12 pyflink 的一个基础使用, 以及环境相关

news 2025/10/19 9:51:24

前言

这是最近有一个来自于朋友的 pyflink 的使用需求

然后看到了很多 pyflink 这边的和使用 java, scala 的 api 使用上的很多差异

这里使用的 pyflink 版本是 1.16.3

也碰到了很多问题

首先需要 python 这边安装 apache-flink 1.16.3, 这个一般是通过 pip 安装

其次本地需要有安装 flink 1.16.3

测试用例如下

这里是做一个简单的从 csv 加载数据

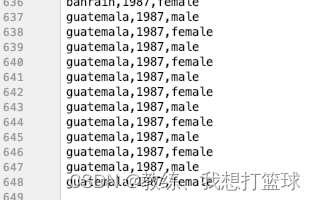

然后做一些简单的转换, 然后持久化到了目标文件[处理方式不好, 仅仅是为了实现效果]

当然这里也是使用的 StreamExecutionEnvironment, 也仅仅是这里测试使用

和批处理一些较大的差异, 这里不细说, 也不是这里的主题

from pyflink.table import (EnvironmentSettings, TableEnvironment, StreamTableEnvironment, Row,DataTypes, CsvTableSource, CsvTableSink, WriteMode)
from pyflink.datastream.functions import ReduceFunction
from pyflink.datastream.connectors.file_system import StreamFormat, FileSource, FileSink
from pyflink.datastream.formats.csv import CsvReaderFormat, CsvBulkWriters, CsvSchema
from pyflink.datastream import StreamExecutionEnvironment, RuntimeExecutionMode
from pyflink.common import WatermarkStrategy
from pyflink.common.typeinfo import Types
from pyflink.common import Row
from pyflink.table import (EnvironmentSettings, TableEnvironment, TableDescriptor, Schema,DataTypes, FormatDescriptor)
from pyflink.table.expressions import lit, col
from pyflink.table.udf import udtf
from pyflink.datastream.functions import AggregateFunction, SinkFunction
from pyflink.datastream import MapFunction, FilterFunction
from pyflink.datastream import KeySelectorimport csv
import tempfileenv = StreamExecutionEnvironment.get_execution_environment()
t_env = StreamTableEnvironment.create(env)
t_env.get_config().set("parallelism.default", "1")
schema = CsvSchema.builder() \.add_string_column('country') \.add_number_column('year', number_type=DataTypes.INT()) \.add_string_column('sex') \.set_column_separator(',') \.set_use_header() \.build()
# source
CSV_FILE_PATH = '/Users/jerry/Tmp/17_pyspark_csv/suicide_clear_3fields.csv'
source = FileSource.for_record_stream_format(CsvReaderFormat.for_schema(schema), CSV_FILE_PATH).build()
ds = env.from_source(source, WatermarkStrategy.no_watermarks(), 'csv-source')# transformation
class Person:def __init__(self, country, year, sex):self.country = countryself.year = yearself.sex = sexself.count = 1def __str__(self):return f"_Person_{self.country}, {self.year}, {self.sex}, {self.count}"class MapToPerson(MapFunction):def map(self, value:Row):return Person(value.country, value.year, value.sex)class FilterYearFunction(FilterFunction):def filter(self, value:Person):return value.year == 1987mappedStream = ds.map(MapToPerson()).filter(FilterYearFunction())# sink
class Person2CsvString(MapFunction):def __init__(self, outputPath):self.outputPath = outputPathdef map(self, value:Person):csvString = f"{value.country},{value.year},{value.sex},{value.count}"with open(outputPath, mode='a', newline='', encoding='utf-8') as csvfile:writer = csv.writer(csvfile)writer.writerow([value.country, value.year, value.sex])return csvStringoutputPath = "/Users/jerry/Tmp/17_pyspark_csv/output.csv"

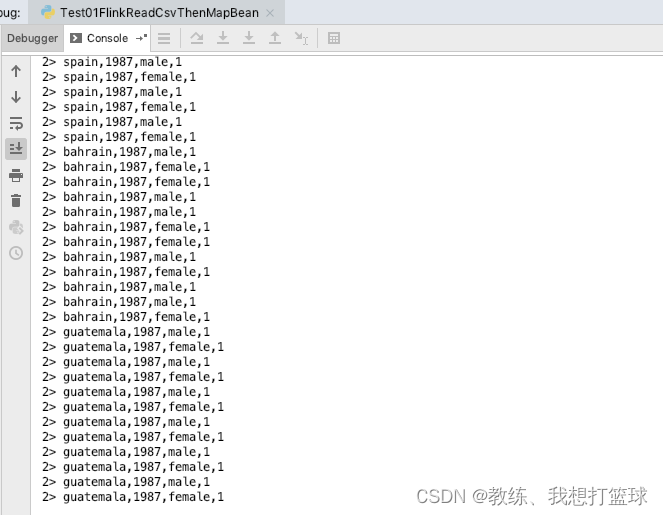

mappedStream.map(Person2CsvString(outputPath)).print()
env.execute("CSV Read Job")

如果本地没有安装 $FLINK_HOME

会报错如下, 安装一下 flink 1.16.3, 配置一下 FLINK_HOME 就好了

然后环境变量更新, 需要重启 pycharm 生效

Traceback (most recent call last):File "/Applications/PyCharm.app/Contents/helpers/pydev/pydevd.py", line 1758, in <module>main()File "/Applications/PyCharm.app/Contents/helpers/pydev/pydevd.py", line 1752, in mainglobals = debugger.run(setup['file'], None, None, is_module)File "/Applications/PyCharm.app/Contents/helpers/pydev/pydevd.py", line 1147, in runpydev_imports.execfile(file, globals, locals)  # execute the scriptFile "/Applications/PyCharm.app/Contents/helpers/pydev/_pydev_imps/_pydev_execfile.py", line 18, in execfileexec(compile(contents+"\n", file, 'exec'), glob, loc)File "/Users/jerry/IdeaProjects/PartTimeJobs/20240525_HelloPyFlink/Test01FlinkReadCsvThenMapBean.py", line 22, in <module>env = StreamExecutionEnvironment.get_execution_environment()File "/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/pyflink/datastream/stream_execution_environment.py", line 827, in get_execution_environmentgateway = get_gateway()File "/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/pyflink/java_gateway.py", line 64, in get_gateway_gateway = launch_gateway()File "/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/pyflink/java_gateway.py", line 119, in launch_gateway+ stderr_info
RuntimeError: Java gateway process exited before sending its port number.
Stderr:
Error: Could not find or load main class org.apache.flink.client.python.PythonGatewayServer

如果 pyflink 版本和本地 flink 版本不对

可能会报错如下, 这是版本之间的一下差异造成的

比如我这里本地 flink 版本是 1.13.6, pyflink 版本是 1.16.3

Traceback (most recent call last):File "/Applications/PyCharm.app/Contents/helpers/pydev/pydevd.py", line 1758, in <module>main()File "/Applications/PyCharm.app/Contents/helpers/pydev/pydevd.py", line 1752, in mainglobals = debugger.run(setup['file'], None, None, is_module)File "/Applications/PyCharm.app/Contents/helpers/pydev/pydevd.py", line 1147, in runpydev_imports.execfile(file, globals, locals)  # execute the scriptFile "/Applications/PyCharm.app/Contents/helpers/pydev/_pydev_imps/_pydev_execfile.py", line 18, in execfileexec(compile(contents+"\n", file, 'exec'), glob, loc)File "/Users/jerry/IdeaProjects/PartTimeJobs/20240525_HelloPyFlink/Test01FlinkReadCsvThenMapBean.py", line 23, in <module>t_env = StreamTableEnvironment.create(env)File "/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/pyflink/table/table_environment.py", line 1706, in createreturn StreamTableEnvironment(j_tenv)File "/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/pyflink/table/table_environment.py", line 1653, in __init__super(StreamTableEnvironment, self).__init__(j_tenv)File "/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/pyflink/table/table_environment.py", line 99, in __init__self._config_chaining_optimization()File "/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/pyflink/table/table_environment.py", line 1623, in _config_chaining_optimizationJChainingOptimizingExecutor(exec_env_field.get(self._j_tenv)))File "/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/pyflink/util/exceptions.py", line 187, in wrapped_call"command line argument '--jarfile' or the config option 'pipeline.jars'" % self._fqn)
TypeError: Could not found the Java class 'org.apache.flink.table.executor.python.ChainingOptimizingExecutor'. The Java dependencies could be specified via command line argument '--jarfile' or the config option 'pipeline.jars'

python2.7.x 和 python3.6.x 共存的情况

pycharm 在项目中使用的是 python 3.6.x

而外部命令行中环境变量中 python 指向的版本是 python 2.7.x

然后执行 pyflink 相关操作的时候可能需要借助外部命令行执行 python 命令

可能执行会报错 "No module named pyflink"

master:ProgramFiles jerry$ python -c "import pyflink;import os;print(os.path.dirname(os.path.abspath(pyflink.__file__))+'/lib')"
Traceback (most recent call last):File "<string>", line 1, in <module>
ImportError: No module named pyflink

然后将外部命令行环境的 python 更新到 python 3.6.x 就行

master:bin jerry$ python -c "import pyflink;import os;print(os.path.dirname(os.path.abspath(pyflink.__file__))+'/lib')"
/Library/Frameworks/Python.framework/Versions/3.6/lib/python3.6/site-packages/pyflink/lib
