高并发内存池日志

目录

1.了解concurrent memory pool的构成(第一天)

2.thread cache

（第二天）

2.1哈希桶对齐和映射规则

(第三天)

2.2threadcacheTLS无锁访问

3.central cache(第四天)

3.1centralcache的核心实现

4.Page Cache

4.1page cache中获取span

5.thread cache的回收机制（第五天）

6.central cache的回收机制

7.PageCache的回收机制

8.大于256KB的大块内存申请释放问题(第六天)

9.使用定长内存池脱离使用new

10.多线程并发环境下，对比malloc和ConcurrentAlloc申请和释放内存效率对比

11.使用tcmalloc源码中实现基数数进行优化

---

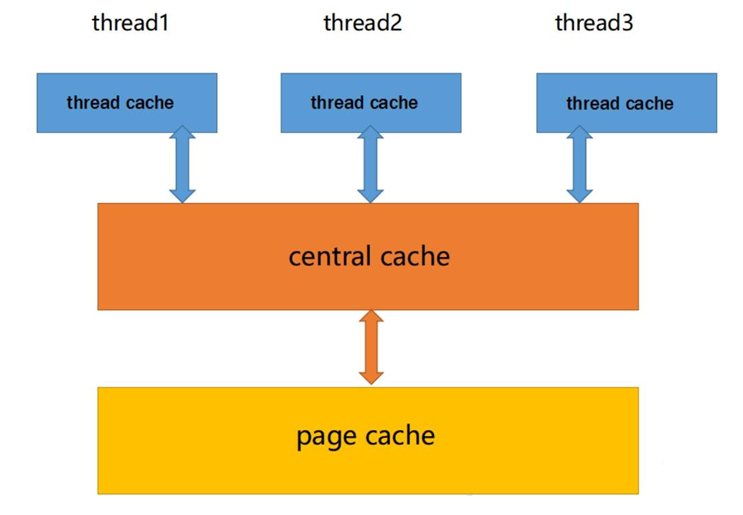

1.了解concurrent memory pool的构成(第一天)

主要由三个部分构成

1. thread cache：线程缓存时每个线程独有的，用于小于256KB的内存的分配，线程从这里申请内存不需要加锁，每个线程独享一个cache，这也就是这个并发线程池高效的地方。
2. central cache：中心缓存是所有线程所共享的，thread cache是按需从central cache中获取的对象。central cache合适的时机回收thread cache中的对象，避免一个线程占用了太多的内存，而其他线程的内存吃紧，达到内存分配再多个线程中更均衡的按需调度的目的。central cache是存在竞争的，所以从这里取内存对象是需要加锁，首先这里用的是桶锁，其次只有thread cache的没有内存对象时才会找central cache，所以这里竞争不会很激烈
3. page cache：页缓存是在central cache缓存上面的一层缓存，存储的内存是以页为单位存储及分配的，central cache没有内存对象时，从page cache分配出一定数量的page，并切割成定长大小的小块内存，分配给central cache。当一个span的几个跨度页的对象都回收以后，page cache会回收c   entral cache满足条件的span对象，并且合并相邻的页，组成更大的页，缓解内存碎片的问题

2.thread cache

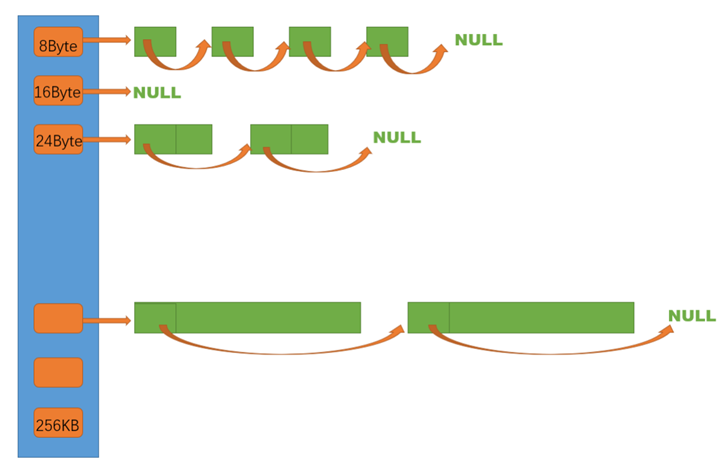

thread cache是哈希桶结构，每个桶是一个按桶位置映射大小的内存块对象的自由链表。每个线程都会有一个thread cache对象，这样每个线程在这里获取对象和释放对象时是无锁的

第一天完成了 线程用完内存块后放回thread cache、线程需要申请内存时从thread cache拿出内存块代码。

//Common.h#pragma once
#include <assert.h>
void*& NextObj(void* obj)
{return *(void**)obj;
}class FreeList
{
public:void Push(void* obj){assert(obj);NextObj(obj) = _freeList;_freeList = obj;}void* Pop(){assert(_freeList);void* obj = _freeList;_freeList = NextObj(obj);}
private:void* _freeList;
};//ThreadCache.h#pragma once
#include "Common.h"class ThreadCache
{
public:void* Allocate(size_t size);void Deallocate(void* ptr, size_t size);
private:FreeList _freeLists[];
};

（第二天）

2.1哈希桶对齐和映射规则

	// 整体控制在最多10%左右的内碎片浪费// [1,128]					8byte对齐	    freelist[0,16)// [128+1,1024]				16byte对齐	    freelist[16,72)// [1024+1,8*1024]			128byte对齐	    freelist[72,128)// [8*1024+1,64*1024]		1024byte对齐     freelist[128,184)// [64*1024+1,256*1024]		8*1024byte对齐   freelist[184,208)

原因：

• 小对象多、敏感于浪费，用更细粒度对齐把内碎片控制住。

• 大对象少、浪费的“绝对值”虽大但相对比例很小，可用更粗粒度来减少规格数量，降低元数据和热路径复杂度。

• 这类分段使总体内碎片≈≤10%。例如 130B 需求会落在 16B 粒度的 144B 桶，浪费 14B≈10.8%；而 2KB 以上使用 128B 粒度，最坏只多出 127B，比例 <6%

要是觉得麻烦 可以就用8/16对齐 也还ok

/*size_t _RoundUp(size_t size, size_t alignNum)
{size_t alignSize;if (size % alignNum != 0){alignSize = (size / alignNum + 1)*alignNum;}else{alignSize = size;}return alignSize;
}*/static inline size_t _RoundUp(size_t bytes, size_t AlignNum)
{return (bytes + AlignNum - 1) & ~(AlignNum - 1);
}
static inline size_t RoundUp(size_t bytes)
{if (bytes <= 128){return _RoundUp(bytes, 8);}else if (bytes <= 1024){return _RoundUp(bytes, 16);}else if (bytes <= 8 * 1024){return _RoundUp(bytes, 128);}else if (bytes <= 64 * 1024){return _RoundUp(bytes, 1024);}else if (bytes <= 256 * 1024){return _RoundUp(bytes, 8 * 1024);}else{assert(false);return -1;}
}

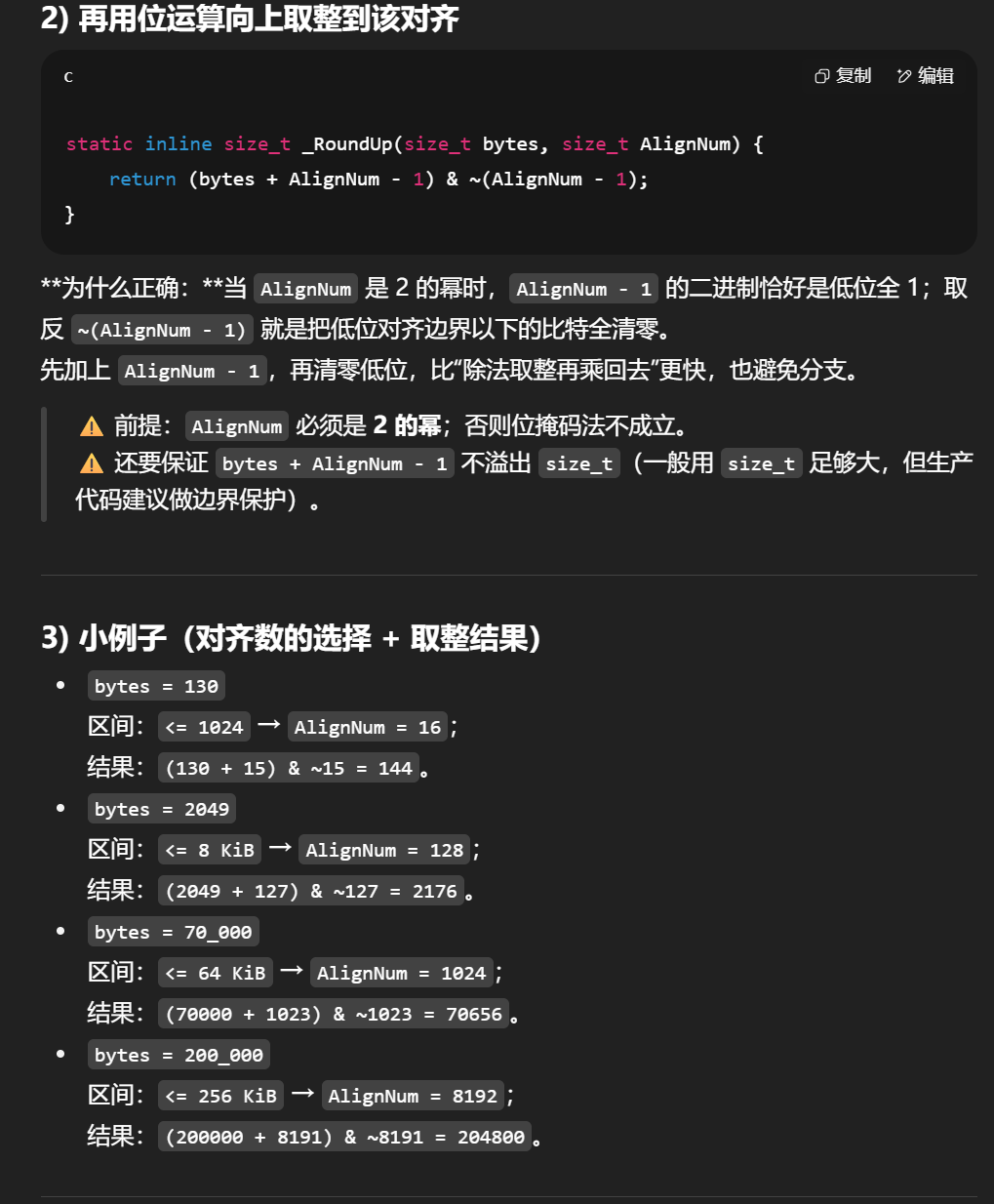

这个运算对齐数的方法是大佬想出来的(注释掉的方法是容易理解一点的)

哈希桶映射

static inline size_t _Index(size_t bytes, size_t align_shift)
{return ((bytes + (1 << align_shift) - 1) >> align_shift) - 1;
}static inline size_t Index(size_t bytes)
{assert(bytes <= MAX_BYTES);static int group_array[4] = { 16, 56, 56, 56 };if (bytes <= 128){return _Index(bytes, 3);}else if (bytes <= 1024){return _Index(bytes - 128, 4) + group_array[0];}else if (bytes <= 8 * 1024){return _Index(bytes - 1024, 7) + group_array[0] + group_array[1];}else if (bytes <= 64 * 1024){return _Index(bytes - 8 * 1024,10) + group_array[0] + group_array[1] + group_array[2];}else if (bytes <= 256 * 1024){return _Index(bytes - 64 * 1024, 13) + group_array[0] + group_array[1] + group_array[2] + group_array[3];}else{assert(false);}return -1;
}

第二天最终代码

Common.h#pragma once
#include <assert.h>static const size_t MAX_BYTES = 256 * 1024;
static const size_t NFREELIST = 208;void*& NextObj(void* obj)
{return *(void**)obj;
}class FreeList
{
public:void Push(void* obj){assert(obj);NextObj(obj) = _freeList;_freeList = obj;}void* Pop(){assert(_freeList);void* obj = _freeList;_freeList = NextObj(obj);}bool Empty(){return _freeList == nullptr;}
private:void* _freeList;
};class SizeClass
{
public:// 整体控制在最多10%左右的内碎片浪费// [1,128]					8byte对齐	    freelist[0,16)// [128+1,1024]				16byte对齐	    freelist[16,72)// [1024+1,8*1024]			128byte对齐	    freelist[72,128)// [8*1024+1,64*1024]		1024byte对齐     freelist[128,184)// [64*1024+1,256*1024]		8*1024byte对齐   freelist[184,208)static inline size_t _RoundUp(size_t bytes, size_t AlignNum){return (bytes + AlignNum - 1) & ~(AlignNum - 1);}static inline size_t RoundUp(size_t bytes){if (bytes <= 128){return _RoundUp(bytes, 8);}else if (bytes <= 1024){return _RoundUp(bytes, 16);}else if (bytes <= 8 * 1024){return _RoundUp(bytes, 128);}else if (bytes <= 64 * 1024){return _RoundUp(bytes, 1024);}else if (bytes <= 256 * 1024){return _RoundUp(bytes, 8 * 1024);}else{assert(false);return -1;}}static inline size_t _Index(size_t bytes, size_t align_shift){return ((bytes + (1 << align_shift) - 1) >> align_shift) - 1;}static inline size_t Index(size_t bytes){assert(bytes <= MAX_BYTES);static int group_array[4] = { 16, 56, 56, 56 };if (bytes <= 128){return _Index(bytes, 3);}else if (bytes <= 1024){return _Index(bytes - 128, 4) + group_array[0];}else if (bytes <= 8 * 1024){return _Index(bytes - 1024, 7) + group_array[0] + group_array[1];}else if (bytes <= 64 * 1024){return _Index(bytes - 8 * 1024,10) + group_array[0] + group_array[1] + group_array[2];}else if (bytes <= 256 * 1024){return _Index(bytes - 64 * 1024, 13) + group_array[0] + group_array[1] + group_array[2] + group_array[3];}else{assert(false);}return -1;}
};ThreadCache.h#pragma once
#include "Common.h"class ThreadCache
{
public:void* Allocate(size_t size);void Deallocate(void* ptr, size_t size);void* FetchFromCentralCache(size_t index, size_t size);
private:FreeList _freeLists[NFREELIST];
};ThreadCache.cpp#define _CRT_SECURE_NO_WARNINGS
#include "ThreadCache.h"void* ThreadCache::Allocate(size_t size)
{assert(size <= MAX_BYTES);int AlignSize = SizeClass::RoundUp(size);int index = SizeClass::Index(size);if (!_freeLists[index].Empty()){return _freeLists[index].Pop();}else{return FetchFromCentralCache(index, size);}
}

(第三天)

2.2threadcacheTLS无锁访问

TLS--thread local storage

linux gcc下 tls

windows vs下 tls

一、先搞懂：为什么 threadcache 需要 TLS？

高并发内存池的threadcache设计初衷很明确：给每个线程配专属缓存，避免锁竞争（≤256KB 的小内存分配直接本地搞定）。但这里藏着两个坑：

1. 线程识别难题：如何让线程安全获取自己的 cache，而非别人的？

1. 资源管理难题：线程退出后，cache 占用的内存怎么自动回收？

没有 TLS 的话，你可能需要用全局哈希表存<线程ID, threadcache>，但查一次要加全局锁 —— 这又回到了 “锁竞争” 的原点。

二、TLS 的三板斧：完美适配 threadcache

TLS（线程局部存储）的核心是 “线程私有全局变量”，每个线程有独立副本，互不干扰。它用三个特性解决问题：

1. 无锁初始化：线程专属 cache 的 “身份证”

用thread_local关键字声明缓存指针，线程首次访问时自动初始化，全程无锁：

// 每个线程独有一份pTLSThreadCachestatic thread_local ThreadCache* pTLSThreadCache = nullptr;// 线程首次分配内存时if (pTLSThreadCache == nullptr) {pTLSThreadCache = new ThreadCache(); // 只属于当前线程}

效果：100 个线程就有 100 个独立指针，不会抢同一块内存，自然不用加锁。

2. 本地直接访问：性能起飞的关键

线程后续分配 / 释放内存时，直接通过 TLS 指针操作自己的 cache：

• 分配：算内存大小→找对应哈希桶→取空闲块（全程线程内操作）

• 释放：直接插回本地自由链表（O (1) 时间）

对比传统全局缓存：从 “加锁竞争” 变成 “线程内无锁操作”，并发越高优势越明显。

3. 自动回收：避免内存泄漏的兜底机制

TLS 变量有个天生优势：线程退出时自动销毁。

当线程结束，pTLSThreadCache指向的 cache 会被自动释放，不用手动管理 —— 解决了 “线程消失后 cache 占内存” 的老大难问题。

三、TLS + 中心缓存：不止于 “独”，更在于 “衡”

TLS 只管 “线程私有”，但还需配合CentralCache（中心缓存）解决 “资源均衡”：

• 当 threadcache 空了：通过 TLS 指针触发批量从中心缓存拿内存（用慢开始算法控制数量）

• 当 threadcache 满了：自动把多余内存还给中心缓存（避免单个线程占太多）

• 中心缓存用 “桶锁”：不同大小内存的请求抢不同的锁，进一步减少竞争

三层架构逻辑：

线程TLS缓存（无锁快取）→ 中心缓存（均衡调度）→ 页缓存（碎片合并）

四、一句话总结：TLS 的核心价值

它让 threadcache 实现了 “线程私有、无锁高效、自动清理”，既保留了 “每个线程一个 cache” 的性能优势，又解决了其管理难题 —— 这就是高并发内存池（如 tcmalloc）的性能密码。

测试代码：
UnitTest.cpp#define _CRT_SECURE_NO_WARNINGS
#include "ConcurrentAlloc.h"void Alloc1()
{for (int i = 0; i < 5; i++){void *ptr = ConcurrentAlloc(6);}
}void Alloc2()
{for (int i = 0; i < 5; i++){void* ptr = ConcurrentAlloc(7);}
}
void TLSTest()
{std::thread t1(Alloc1);t1.join();std::thread t2(Alloc2);t2.join();
}int main()
{TLSTest();return 0;
}Common.h
#pragma once
#include <assert.h>
#include <thread>
#include <iostream>
static const size_t MAX_BYTES = 256 * 1024;
static const size_t NFREELIST = 208;static void*& NextObj(void* obj)
{return *(void**)obj;
}class FreeList
{
public:void Push(void* obj){assert(obj);NextObj(obj) = _freeList;_freeList = obj;}void* Pop(){assert(_freeList);void* obj = _freeList;_freeList = NextObj(obj);return obj;}bool Empty(){return _freeList == nullptr;}
private:void* _freeList = nullptr;
};class SizeClass
{
public:// 整体控制在最多10%左右的内碎片浪费// [1,128]					8byte对齐	    freelist[0,16)// [128+1,1024]				16byte对齐	    freelist[16,72)// [1024+1,8*1024]			128byte对齐	    freelist[72,128)// [8*1024+1,64*1024]		1024byte对齐     freelist[128,184)// [64*1024+1,256*1024]		8*1024byte对齐   freelist[184,208)static inline size_t _RoundUp(size_t bytes, size_t AlignNum){return (bytes + AlignNum - 1) & ~(AlignNum - 1);}static inline size_t RoundUp(size_t bytes){if (bytes <= 128){return _RoundUp(bytes, 8);}else if (bytes <= 1024){return _RoundUp(bytes, 16);}else if (bytes <= 8 * 1024){return _RoundUp(bytes, 128);}else if (bytes <= 64 * 1024){return _RoundUp(bytes, 1024);}else if (bytes <= 256 * 1024){return _RoundUp(bytes, 8 * 1024);}else{assert(false);return -1;}}static inline size_t _Index(size_t bytes, size_t align_shift){return ((bytes + (1 << align_shift) - 1) >> align_shift) - 1;}static inline size_t Index(size_t bytes){assert(bytes <= MAX_BYTES);static int group_array[4] = { 16, 56, 56, 56 };if (bytes <= 128){return _Index(bytes, 3);}else if (bytes <= 1024){return _Index(bytes - 128, 4) + group_array[0];}else if (bytes <= 8 * 1024){return _Index(bytes - 1024, 7) + group_array[0] + group_array[1];}else if (bytes <= 64 * 1024){return _Index(bytes - 8 * 1024,10) + group_array[0] + group_array[1] + group_array[2];}else if (bytes <= 256 * 1024){return _Index(bytes - 64 * 1024, 13) + group_array[0] + group_array[1] + group_array[2] + group_array[3];}else{assert(false);}return -1;}
};ConCurrentAlloc.h#pragma once
#include "ThreadCache.h"static void* ConcurrentAlloc(size_t size)
{if (pTLSThreadCache == nullptr){pTLSThreadCache = new ThreadCache;}std::cout << std::this_thread::get_id() <<":" << pTLSThreadCache << std::endl;return pTLSThreadCache->Allocate(size);
}static void ConcurrentFree(void* obj, size_t size)
{assert(pTLSThreadCache);pTLSThreadCache->Deallocate(obj, size);
}ThreadCache.h#pragma once
#include "Common.h"class ThreadCache
{
public:void* Allocate(size_t size);void Deallocate(void* ptr, size_t size);void* FetchFromCentralCache(size_t index, size_t size);
private:FreeList _freeLists[NFREELIST];
};static _declspec(thread) ThreadCache* pTLSThreadCache = nullptr;

3.central cache(第四天)

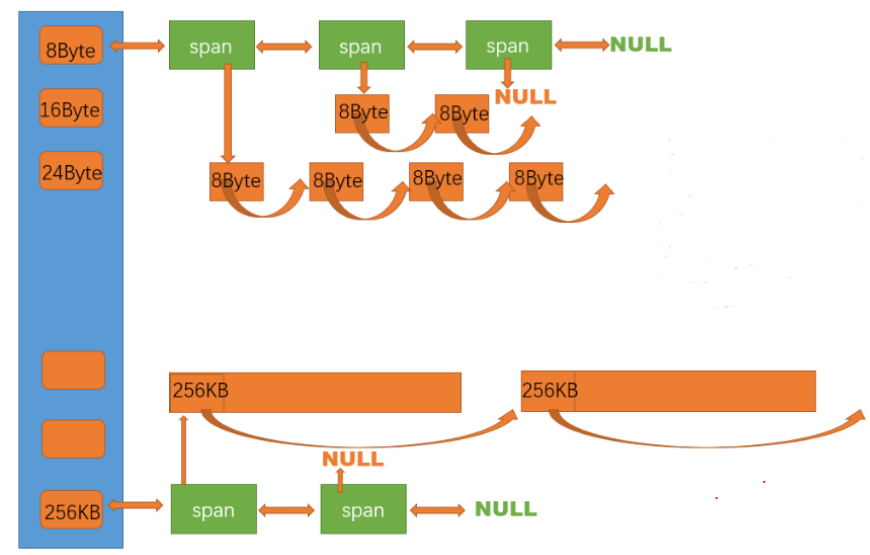

central cache也是一个哈希桶结构，他的哈希桶的映射关系跟thread cache是一样的。不同的是他的每个哈希桶位置挂的是SpanList链表结构，不过每个映射桶下面的span中的大内存块被按映射关系切成了一个个小内存对象挂在span的自由链表中

注意：在span结构体那里 SpanId为什么要条件编译ifdef，为了确保跨平台性。因为后续我们要获取的内存后，得到起始地址，需要确定该内存的页号，所以起始地址转页号时，在64位平台下，地址为8字节；在x86平台下，地址为4字节，所以地址转页号，pageid需要匹配相应的内存大小。

#ifdef _WIN64typedef unsigned long long PAGE_ID;
#elif _WIN32typedef size_t PAGE_ID;
#else //linux
#endifstruct Span
{PAGE_ID _pageId = 0; //大块内存起始页的页号size_t _n = 0;		 //页的数量Span* _prev = nullptr;	//双向链表的结构Span* _next = nullptr;size_t _usecount = 0;		//切好小块内存，被分配给thread cache的数量void* _freeList = nullptr;		//切好的小块内存的自由链表
};class SpanList
{
public:SpanList(){_head = new Span;_head->_prev = _head;_head->_next = _head;}void Insert(Span* pos, Span* newSpan){assert(pos);assert(newSpan);Span* prev = pos->_prev;prev->_next = newSpan;newSpan->_prev = prev;newSpan->_next = pos;pos->_prev = newSpan;}void Erase(Span* pos){assert(pos);assert(pos != _head);Span* prev = pos->_prev;Span* next = pos->_next;prev->_next = next;next->_prev = prev;}private:Span* _head;    //哨兵位
public:std::mutex _mtx;//桶锁
};

3.1centralcache的核心实现

问题：threadcache的内存被用完了，就会向centralcache申请，那要申请多少内存块才合适？如果threadcache的8bytes内存块用完了，向centralcache申请一个，那每次申请8bytes内存块都得从centralcache中获取，会导致多个线程频繁访问centralcache，导致申请内存效率降低。如果每次向centralcache申请200个，首先申请的内存块过多，如果不及时归还，会导致其他线程的threadcache向centralcache出现没有内存块的问题，centralcache会频繁访问pagecache申请大量的页，也会导致大量内存浪费的问题。

解决方法：慢开始反馈调节算法

申请内存块越大，一次向central cache要的内存块数量就越少
申请内存块越小，一次向central cache要的内存块数量就越多

void* ThreadCache::FetchFromCentralCache(size_t index, size_t size)
{size_t batchNum = std::min(_freeLists[index].MaxSize(), SizeClass::NumMoveSize(size));if (batchNum == _freeLists[index].MaxSize()){_freeLists[index].MaxSize() += 1;}void* start;void* end;size_t acturalNum = CentralCache::GetInstance()->FetchRangeObj(start, end, batchNum, size);assert(acturalNum > 0);if (acturalNum == 1){assert(start == end);return start;}else{_freeLists[index].PushRange(NextObj(start), end);return start;}
}	static size_t NumMoveSize(size_t size){assert(size > 0);int num = MAX_BYTES / size;if (num < 2) num = 2;if (num > 512)num = 512;return num;}

threadcache向centralcache申请内存块，也许会出现多个threadcache同时向centralcache申请，所以要加上桶锁(mutex)确保数据的一致性和完整性，并且centralcache没有那么多的内存块，所以我们记录实际上centralcache给了多少内存块给threadcache

size_t CentralCache::FetchRangeObj(void*& start, void*& end, size_t batchNum, size_t size)
{size_t index = SizeClass::Index(size);_spanLists[index]._mtx.lock();Span* span = GetOneSpan(_spanLists[index], size);assert(span);assert(span->_freeList);start = span->_freeList;end = start;int i = 0;int actualNum = 1;while (i < batchNum - 1 && NextObj(end)){i++;actualNum++;end = NextObj(end);}span->_freeList = NextObj(end);NextObj(end) = nullptr;_spanLists[index]._mtx.unlock();return actualNum;
}

4.Page Cache

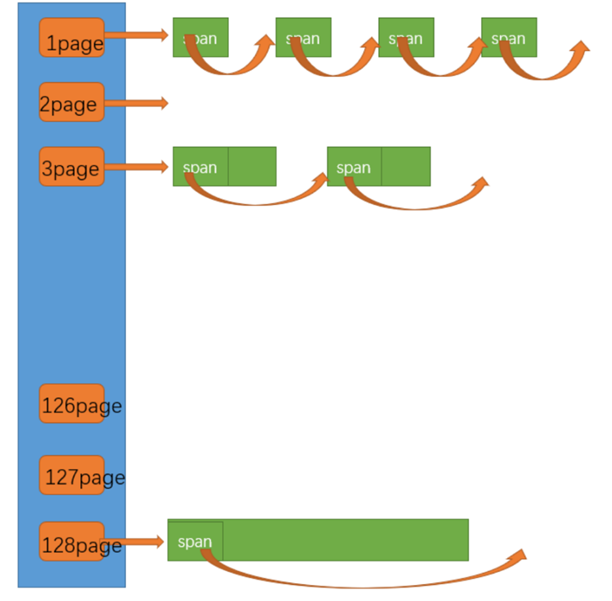

central cache和page cache的核心结构都是spanlist的哈希桶，但是它们是有本质区别的，central cache哈希桶，是跟thread cache一样的大小对齐关系映射的，他的spanlist中挂的span中的内存都被按映射关系切好链接成小块内存的自由链表。而page cache中的spanlist则是按下标桶号映射的，也就是说第i号桶中挂的span都是i页内存

class PageCache
{static PageCache* GetInstance(){return &_sInst;}Span* NewSpan(size_t k);std::mutex _pageMtx;
private:SpanList _spanlists[NPAGES];PageCache(){}PageCache(const PageCache&) = delete;static PageCache _sInst;
};

第四天代码总和：

Common.h#pragma once
#include <assert.h>
#include <thread>
#include <iostream>
#include <mutex>
static const size_t MAX_BYTES = 256 * 1024;
static const size_t NFREELIST = 208;
static const size_t NPAGES = 129;#ifdef _WIN64typedef unsigned long long PAGE_ID;
#elif _WIN32typedef size_t PAGE_ID;
#else //linux
#endifstatic void*& NextObj(void* obj)
{return *(void**)obj;
}class FreeList
{
public:void Push(void* obj){assert(obj);NextObj(obj) = _freeList;_freeList = obj;}void PushRange(void* start,void* end){NextObj(end) = _freeList;_freeList = start;}void* Pop(){assert(_freeList);void* obj = _freeList;_freeList = NextObj(obj);return obj;}bool Empty(){return _freeList == nullptr;}size_t& MaxSize(){return _maxSize;}private:void* _freeList = nullptr;size_t _maxSize = 1;
};class SizeClass
{
public:// 整体控制在最多10%左右的内碎片浪费// [1,128]					8byte对齐	    freelist[0,16)// [128+1,1024]				16byte对齐	    freelist[16,72)// [1024+1,8*1024]			128byte对齐	    freelist[72,128)// [8*1024+1,64*1024]		1024byte对齐     freelist[128,184)// [64*1024+1,256*1024]		8*1024byte对齐   freelist[184,208)static inline size_t _RoundUp(size_t bytes, size_t AlignNum){return (bytes + AlignNum - 1) & ~(AlignNum - 1);}static inline size_t RoundUp(size_t bytes){if (bytes <= 128){return _RoundUp(bytes, 8);}else if (bytes <= 1024){return _RoundUp(bytes, 16);}else if (bytes <= 8 * 1024){return _RoundUp(bytes, 128);}else if (bytes <= 64 * 1024){return _RoundUp(bytes, 1024);}else if (bytes <= 256 * 1024){return _RoundUp(bytes, 8 * 1024);}else{assert(false);return -1;}}static inline size_t _Index(size_t bytes, size_t align_shift){return ((bytes + (1 << align_shift) - 1) >> align_shift) - 1;}static inline size_t Index(size_t bytes){assert(bytes <= MAX_BYTES);static int group_array[4] = { 16, 56, 56, 56 };if (bytes <= 128){return _Index(bytes, 3);}else if (bytes <= 1024){return _Index(bytes - 128, 4) + group_array[0];}else if (bytes <= 8 * 1024){return _Index(bytes - 1024, 7) + group_array[0] + group_array[1];}else if (bytes <= 64 * 1024){return _Index(bytes - 8 * 1024,10) + group_array[0] + group_array[1] + group_array[2];}else if (bytes <= 256 * 1024){return _Index(bytes - 64 * 1024, 13) + group_array[0] + group_array[1] + group_array[2] + group_array[3];}else{assert(false);}return -1;}static size_t NumMoveSize(size_t size){assert(size > 0);int num = MAX_BYTES / size;if (num < 2) num = 2;if (num > 512)num = 512;return num;}};struct Span
{PAGE_ID _pageId = 0; //大块内存起始页的页号size_t _n = 0;		 //页的数量Span* _prev = nullptr;	//双向链表的结构Span* _next = nullptr;size_t _usecount = 0;		//切好小块内存，被分配给thread cache的数量void* _freeList = nullptr;		//切好的小块内存的自由链表
};class SpanList
{
public:SpanList(){_head = new Span;_head->_prev = _head;_head->_next = _head;}void Insert(Span* pos, Span* newSpan){assert(pos);assert(newSpan);Span* prev = pos->_prev;prev->_next = newSpan;newSpan->_prev = prev;newSpan->_next = pos;pos->_prev = newSpan;}void Erase(Span* pos){assert(pos);assert(pos != _head);Span* prev = pos->_prev;Span* next = pos->_next;prev->_next = next;next->_prev = prev;}private:Span* _head;
public:std::mutex _mtx;//桶锁
};ThreadCache.h#pragma once
#include "Common.h"class ThreadCache
{
public:void* Allocate(size_t size);void Deallocate(void* ptr, size_t size);void* FetchFromCentralCache(size_t index, size_t size);
private:FreeList _freeLists[NFREELIST];
};static _declspec(thread) ThreadCache* pTLSThreadCache = nullptr;ThreadCache.cpp#define _CRT_SECURE_NO_WARNINGS
#include "ThreadCache.h"
#include "CentralCache.h"
void* ThreadCache::Allocate(size_t size)
{assert(size <= MAX_BYTES);int AlignSize = SizeClass::RoundUp(size);int index = SizeClass::Index(size);if (!_freeLists[index].Empty()){return _freeLists[index].Pop();}else{return FetchFromCentralCache(index, size);}
}void ThreadCache::Deallocate(void* ptr, size_t size)
{assert(ptr);assert(size <= MAX_BYTES);size_t index = SizeClass::Index(size);_freeLists[index].Push(ptr);
}void* ThreadCache::FetchFromCentralCache(size_t index, size_t size)
{size_t batchNum = std::min(_freeLists[index].MaxSize(), SizeClass::NumMoveSize(size));if (batchNum == _freeLists[index].MaxSize()){_freeLists[index].MaxSize() += 1;}void* start;void* end;size_t acturalNum = CentralCache::GetInstance()->FetchRangeObj(start, end, batchNum, size);assert(acturalNum > 0);if (acturalNum == 1){assert(start == end);return start;}else{_freeLists[index].PushRange(NextObj(start), end);return start;}
}CentralCache.h#pragma once
#include "Common.h"class CentralCache
{
public:static CentralCache* GetInstance(){return &_sInst;}size_t FetchRangeObj(void*& start, void*& end, size_t batchNum, size_t size);Span* GetOneSpan(SpanList& list, size_t size);
private:SpanList _spanLists[NFREELIST];
private:CentralCache(){}CentralCache(const CentralCache&) = delete;static CentralCache _sInst;
};CentralCache.cpp#define _CRT_SECURE_NO_WARNINGS
#include "CentralCache.h"CentralCache CentralCache::_sInst;Span* CentralCache::GetOneSpan(SpanList& list, size_t size)
{// ...return nullptr;
}size_t CentralCache::FetchRangeObj(void*& start, void*& end, size_t batchNum, size_t size)
{size_t index = SizeClass::Index(size);_spanLists[index]._mtx.lock();Span* span = GetOneSpan(_spanLists[index], size);assert(span);assert(span->_freeList);start = span->_freeList;end = start;int i = 0;int actualNum = 1;while (i < batchNum - 1 && NextObj(end)){i++;actualNum++;end = NextObj(end);}span->_freeList = NextObj(end);NextObj(end) = nullptr;_spanLists[index]._mtx.unlock();return actualNum;
}PageCache.h#pragma once
#include "Common.h"class PageCache
{static PageCache* GetInstance(){return &_sInst;}Span* NewSpan(size_t k);std::mutex _pageMtx;
private:SpanList _spanlists[NPAGES];PageCache(){}PageCache(const PageCache&) = delete;static PageCache _sInst;
};

4.1page cache中获取span

当central cache向page cache申请内存时，page cache先检查对应位置有没有span，并且得到span之后要对其进行处理，把多余的内存空间插入到central cache对应的桶里

Span* CentralCache::GetOneSpan(SpanList& list, size_t size)
{//遍历CentralCache的Span链表：查找已有可用SpanSpan* it = list.Begin();while (it != list.End()){if (it->_freeList != nullptr){return it;}else{it = it->_next;}}//若 CentralCache 中没有可用 Span，// 就需要向更上层的 PageCache 申请。// SizeClass::NumMovePage(size)是根据待分配内存 size，// 计算需要向 PageCache 申请的页数量Span* span = PageCache::GetInstance()->NewSpan(SizeClass::NumMovePage(size));//Span的_pageId 是 “页编号”，// PAGE_SHIFT 是页偏移量// （这里 PAGE_SHIFT = 13，即 2 ^ 13 = 8192 = 8KB，// 所以 << PAGE_SHIFT 等价于 “页编号 × 8KB”）；// span->_n 是 Span 包含的页数量，// 因此 bytes 是 Span 总内存大小（页数量 × 每页大小）；// start 是 Span 内存的起始地址（页编号 × 每页大小，转成 char* 方便后续内存操作）char* start = (char*)(span->_pageId << PAGE_SHIFT);size_t bytes = span->_n << PAGE_SHIFT;        //PAGE_SHIFT = 13, <<PAGE_SHIFT相当于*8k(8*1024);char* end = start + bytes;//切分 Span 为多个小内存块，串联成 freeListspan->_freeList = start;start += size;void* tail = span->_freeList;while (start < end){NextObj(tail) = start;tail = NextObj(tail);start += size;}list.PushFront(span);return nullptr;
}

central cache向page cache得到span，首先page cache先检查对应位置有没有span，如果没有则向更大页寻找一个span，如果找到则分裂成两个。比如：申请的是2页的span，2页page后面没有挂span，则向后面寻找更大的span，假设在10页page位置找到一个span，则将10页page span分裂为一个2页的page span和一个8页page span

如果找了_spanlists[128]都没有合适的span，则向系统使用mmap，brk或者是VirtualAlloc等方式申请128页page span挂在自由链表中，再重复上面的过程

Span* PageCache::NewSpan(size_t k)
{assert(k > 0 && k < NPAGES);// 先检查第k个桶里面有没有spanif (!_spanlists[k].Empty()){return _spanlists[k].PopFront();}// 检查一下后面的桶里面有没有span，如果有可以把他它进行切分for (size_t i = k + 1; i < NPAGES; i++){if (!_spanlists[k].Empty()){Span* kSpan = new Span;Span* nSpan = _spanlists[k].PopFront();// 在nSpan的头部切一个k页下来// k页span返回// nSpan再挂到对应映射的位置kSpan->_pageId = nSpan->_pageId;nSpan->_pageId += k;kSpan->_n = k;nSpan->_n -= k;_spanlists[k].PushFront(nSpan);}}// 走到这个位置就说明后面没有大页的span了// 这时就去找堆要一个128页的spanSpan* bigSpan = new Span;void* ptr = SystemAlloc(NPAGES - 1);bigSpan->_pageId = (PAGE_ID)ptr >> 13;bigSpan->_n = NPAGES - 1;_spanlists[bigSpan->_n].PushFront(bigSpan);return NewSpan(k);
}

5.thread cache的回收机制（第五天）

当链表过长时，我们要回收一部分内存到central cache。因为链表过长会导致大量的空间浪费，还给central cache，可以让其他需要大量内存的线程申请使用。

void ThreadCache::Deallocate(void* ptr, size_t size)
{assert(ptr);assert(size <= MAX_BYTES);// 找对映射的自由链表桶，对象插入进入size_t index = SizeClass::Index(size);_freeLists[index].Push(ptr);// 当链表长度大于一次批量申请的内存时就开始还一段list给central cacheif (_freeLists[index].Size() >= _freeLists[index].MaxSize()){ListTooLong(_freeLists[index], size);}
}void ThreadCache::ListTooLong(FreeList& list, size_t size)
{void* start;void* end;list.PopRange(start, end, size);CentralCache::GetInstance()->ReleaseListToSpans(start, size);
}

6.central cache的回收机制

 当thread cache过长或者线程销毁，则会将内存释放回central cache中，释放回来时--use_count。当use_count减到0时则表示所有对象都会到了span，则将span释放回page cache，page cache中会对前后相邻的空闲页进行合并

void CentralCache::ReleaseListToSpans(void* start, size_t size)
{size_t index = SizeClass::Index(size);_spanLists[index]._mtx.lock();while (start){void* next = NextObj(start);Span* span = PageCache::GetInstance()->MapObjectToSpan(start);NextObj(start) = span->_freeList;span->_freeList = start;span->_usecount--;// 说明span的切分出去的所有小块内存都回来了// 这个span就可以再回收给page cache，pagecache可以再尝试去做前后页的合并if (span->_usecount == 0){_spanLists[index].Erase(span);span->_freeList = nullptr;span->_next = nullptr;span->_prev = nullptr;// 释放span给page cache时，使用page cache的锁就可以了// 这时把桶锁解掉_spanLists[index]._mtx.unlock();PageCache::GetInstance()->_pageMtx.lock();PageCache::GetInstance()->ReleaseSpanToPageCache(span);PageCache::GetInstance()->_pageMtx.unlock();_spanLists[index]._mtx.lock();}start = next;}_spanLists[index]._mtx.unlock();
}//用一个unordered_map容器存page_id对应span，这样就不用遍历一遍_spanlists去找span
Span* PageCache::MapObjectToSpan(void* obj)
{PAGE_ID id = ((PAGE_ID)obj >> PAGE_SHIFT);auto ret = _idSpanMap.find(id);if (ret != _idSpanMap.end()){return ret->second;}else{assert(false);return nullptr;}
}

7.PageCache的回收机制

如果central cache释放回一个span，则依次寻找span前后pageid的有没有在使用的空间的span(判断span是否空闲 就在span类中加入一个bool类型的参数，来判断是否空闲)，如果合并继续向前或向后寻找。这样就可以将切小的内存合并收缩成大的span，减少内碎片

void PageCache::ReleaseSpanToPageCache(Span* span)
{// 对span前后的页，尝试进行合并，缓解内存碎片问题while (1){PAGE_ID previd = span->_pageId - 1;auto ret = _idSpanMap.find(previd);// 前面的页号没有，不合并了if (ret == _idSpanMap.end()){break;}Span* prevspan = ret->second;// 前面相邻页的span在使用，不合并了if (prevspan->_isUse == true){break;}// 合并出超过128页的span没办法管理，不合并了if (prevspan->_n + span->_n > NPAGES - 1){break;}span->_n += prevspan->_n;span->_pageId = prevspan->_pageId;_spanlists[prevspan->_n].Erase(prevspan);delete prevspan;}   // 向后合并while (1){PAGE_ID nextid = span->_pageId + span->_n;auto ret = _idSpanMap.find(nextid);if (ret == _idSpanMap.end()){break;}Span* nextspan = ret->second;if (nextspan->_isUse == true){break;}if (nextspan->_n + span->_n > NPAGES - 1){break;}span->_n += nextspan->_n;_spanlists[nextspan->_n].Erase(nextspan);delete nextspan;}_spanlists[span->_n].PushFront(span);span->_isUse = false;_idSpanMap[span->_pageId] = span;_idSpanMap[span->_pageId + span->_n - 1] = span;
}

8.大于256KB的大块内存申请释放问题(第六天)

1. 首先我们申请内存前，先判断申请内存的大小，如果申请内存大于MAX_BYTES = 256 * 1024，也就是超过threadcache哈希桶中存储最大内存的桶。
2. 该内存的对齐数，算出所需页数量
3. 算出页数量后，如果页数量小于128，我们可以直接从pagecache中获取，所以是会有可能访问到pagecache的哈希桶的，所以我们得上锁。
4. 最后将返回的span通过spanid，算出申请内存的起始地址后返回该地址

	if (size > MAX_BYTES){size_t alignSize = SizeClass::RoundUp(size);size_t kpage = alignSize >> PAGE_SHIFT;PageCache::GetInstance()->_pageMtx.lock();Span* span = PageCache::GetInstance()->NewSpan(kpage);PageCache::GetInstance()->_pageMtx.unlock();void* ptr = (void*)(span->_pageId << PAGE_SHIFT);return ptr;}

在NewSpan中要进行判断，申请页数量是否超出pagecache中哈希桶存储的最大页数量，如果超出就直接从系统申请，否则依旧从pagecache哈希桶中获取

Span* PageCache::NewSpan(size_t k)
{assert(k > 0);if (k > NPAGES - 1){void* ptr = SystemAlloc(k);Span* span = new Span;span->_pageId = (PAGE_ID)ptr >> PAGE_SHIFT;span->_n = k;_idSpanMap[span->_pageId] = span;return span;}// 先检查第k个桶里面有没有spanif (!_spanlists[k].Empty()){return _spanlists[k].PopFront();}// 检查一下后面的桶里面有没有span，如果有可以把他它进行切分for (size_t i = k + 1; i < NPAGES; i++){if (!_spanlists[i].Empty()){Span* kSpan = new Span;Span* nSpan = _spanlists[i].PopFront();// 在nSpan的头部切一个k页下来// k页span返回// nSpan再挂到对应映射的位置kSpan->_pageId = nSpan->_pageId;nSpan->_pageId += k;kSpan->_n = k;nSpan->_n -= k;_spanlists[nSpan->_n].PushFront(nSpan);_idSpanMap[nSpan->_pageId] = nSpan;_idSpanMap[nSpan->_pageId + nSpan->_n - 1] = nSpan;for (int i = 0; i < kSpan->_n; i++){_idSpanMap[i + kSpan->_pageId] = kSpan;}return kSpan;}}// 走到这个位置就说明后面没有大页的span了// 这时就去找堆要一个128页的spanSpan* bigSpan = new Span;void* ptr = SystemAlloc(NPAGES - 1);bigSpan->_pageId = (PAGE_ID)ptr >> PAGE_SHIFT;bigSpan->_n = NPAGES - 1;_spanlists[bigSpan->_n].PushFront(bigSpan);return NewSpan(k);
}

上述我们用容器<pageid，span*>存储了每个页号对应的span*，我们就可以通过需要释放内存的内存的起始地址，得到span*，还能通过span*快速得到span中记录的页数量，得知需要释放内存的内存大小

static void ConcurrentFree(void* obj, size_t size)
{if(size > MAX_BYTES){Span* span = PageCache::GetInstance()->MapObjectToSpan(obj);PageCache::GetInstance()->_pageMtx.lock();PageCache::GetInstance()->ReleaseSpanToPageCache(span);PageCache::GetInstance()->_pageMtx.unlock();}else{assert(pTLSThreadCache);pTLSThreadCache->Deallocate(obj, size);}
}

如果释放页数量超出pagecache中哈希桶存储的最大页数量，就直接通过系统释放掉，否则就按正常的程序走，释放到pagecache的哈希桶中

void PageCache::ReleaseSpanToPageCache(Span* span)
{if (span->_n > NPAGES - 1){void* ptr = (void*)(span->_pageId << PAGE_SHIFT);SystemFree(ptr);delete span;return;}while (1){PAGE_ID previd = span->_pageId - 1;auto ret = _idSpanMap.find(previd);if (ret == _idSpanMap.end()){break;}Span* prevspan = ret->second;if (prevspan->_isUse == true){break;}if (prevspan->_n + span->_n > NPAGES - 1){break;}span->_n += prevspan->_n;span->_pageId = prevspan->_pageId;_spanlists[prevspan->_n].Erase(prevspan);delete prevspan;}   while (1){PAGE_ID nextid = span->_pageId + span->_n;auto ret = _idSpanMap.find(nextid);if (ret == _idSpanMap.end()){break;}Span* nextspan = ret->second;if (nextspan->_isUse == true){break;}if (nextspan->_n + span->_n > NPAGES - 1){break;}span->_n += nextspan->_n;_spanlists[nextspan->_n].Erase(nextspan);delete nextspan;}_spanlists[span->_n].PushFront(span);span->_isUse = false;_idSpanMap[span->_pageId] = span;_idSpanMap[span->_pageId + span->_n - 1] = span;
}

9.使用定长内存池脱离使用new

因为我们要用tcmalloc去替换malloc，所以我们内部最好不要用new，直接把new span的地方或者delete span的地方替换成用定长内存池的申请释放内存的方式

10.多线程并发环境下，对比malloc和ConcurrentAlloc申请和释放内存效率对比

Benmarkch.cpp#include"ConcurrentAlloc.h"// ntimes 一轮申请和释放内存的次数
// rounds 轮次
void BenchmarkMalloc(size_t ntimes, size_t nworks, size_t rounds)
{std::vector<std::thread> vthread(nworks);std::atomic<size_t> malloc_costtime = 0;std::atomic<size_t> free_costtime = 0;for (size_t k = 0; k < nworks; ++k){vthread[k] = std::thread([&, k]() {std::vector<void*> v;v.reserve(ntimes);for (size_t j = 0; j < rounds; ++j){size_t begin1 = clock();for (size_t i = 0; i < ntimes; i++){v.push_back(malloc(16));//v.push_back(malloc((16 + i) % 8192 + 1));}size_t end1 = clock();size_t begin2 = clock();for (size_t i = 0; i < ntimes; i++){free(v[i]);}size_t end2 = clock();v.clear();malloc_costtime += (end1 - begin1);free_costtime += (end2 - begin2);}});}for (auto& t : vthread){t.join();}printf("%u个线程并发执行%u轮次，每轮次malloc %u次: 花费：%u ms\n",nworks, rounds, ntimes, malloc_costtime.load());printf("%u个线程并发执行%u轮次，每轮次free %u次: 花费：%u ms\n",nworks, rounds, ntimes, free_costtime.load());printf("%u个线程并发malloc&free %u次，总计花费：%u ms\n",nworks, nworks * rounds * ntimes, malloc_costtime.load() + free_costtime.load());
}// 单轮次申请释放次数 线程数 轮次
void BenchmarkConcurrentMalloc(size_t ntimes, size_t nworks, size_t rounds)
{std::vector<std::thread> vthread(nworks);std::atomic<size_t> malloc_costtime = 0;std::atomic<size_t> free_costtime = 0;for (size_t k = 0; k < nworks; ++k){vthread[k] = std::thread([&]() {std::vector<void*> v;v.reserve(ntimes);for (size_t j = 0; j < rounds; ++j){size_t begin1 = clock();for (size_t i = 0; i < ntimes; i++){v.push_back(ConcurrentAlloc(16));//v.push_back(ConcurrentAlloc((16 + i) % 8192 + 1));}size_t end1 = clock();size_t begin2 = clock();for (size_t i = 0; i < ntimes; i++){ConcurrentFree(v[i]);}size_t end2 = clock();v.clear();malloc_costtime += (end1 - begin1);free_costtime += (end2 - begin2);}});}for (auto& t : vthread){t.join();}printf("%u个线程并发执行%u轮次，每轮次concurrent alloc %u次: 花费：%u ms\n",nworks, rounds, ntimes, malloc_costtime.load());printf("%u个线程并发执行%u轮次，每轮次concurrent dealloc %u次: 花费：%u ms\n",nworks, rounds, ntimes, free_costtime.load());printf("%u个线程并发concurrent alloc&dealloc %u次，总计花费：%u ms\n",nworks, nworks * rounds * ntimes, malloc_costtime.load() + free_costtime.load());
}int main()
{size_t n = 100000;cout << "==========================================================" << endl;BenchmarkConcurrentMalloc(n, 4, 10);cout << endl << endl;BenchmarkMalloc(n, 4, 10);cout << "==========================================================" << endl;return 0;
}

11.使用tcmalloc源码中实现基数数进行优化

PageMap.h#pragma once
#include"Common.h"// Single-level array
template <int BITS>
class TCMalloc_PageMap1 {
private:static const int LENGTH = 1 << BITS;void** array_;public:typedef uintptr_t Number;//explicit TCMalloc_PageMap1(void* (*allocator)(size_t)) {explicit TCMalloc_PageMap1() {//array_ = reinterpret_cast<void**>((*allocator)(sizeof(void*) << BITS));size_t size = sizeof(void*) << BITS;size_t alignSize = SizeClass::_RoundUp(size, 1 << PAGE_SHIFT);array_ = (void**)SystemAlloc(alignSize >> PAGE_SHIFT);memset(array_, 0, sizeof(void*) << BITS);}// Return the current value for KEY.  Returns NULL if not yet set,// or if k is out of range.void* get(Number k) const {if ((k >> BITS) > 0) {return NULL;}return array_[k];}// REQUIRES "k" is in range "[0,2^BITS-1]".// REQUIRES "k" has been ensured before.//// Sets the value 'v' for key 'k'.void set(Number k, void* v) {array_[k] = v;}
};// Two-level radix tree
template <int BITS>
class TCMalloc_PageMap2 {
private:// Put 32 entries in the root and (2^BITS)/32 entries in each leaf.static const int ROOT_BITS = 5;static const int ROOT_LENGTH = 1 << ROOT_BITS;static const int LEAF_BITS = BITS - ROOT_BITS;static const int LEAF_LENGTH = 1 << LEAF_BITS;// Leaf nodestruct Leaf {void* values[LEAF_LENGTH];};Leaf* root_[ROOT_LENGTH];             // Pointers to 32 child nodesvoid* (*allocator_)(size_t);          // Memory allocatorpublic:typedef uintptr_t Number;//explicit TCMalloc_PageMap2(void* (*allocator)(size_t)) {explicit TCMalloc_PageMap2() {//allocator_ = allocator;memset(root_, 0, sizeof(root_));PreallocateMoreMemory();}void* get(Number k) const {const Number i1 = k >> LEAF_BITS;const Number i2 = k & (LEAF_LENGTH - 1);if ((k >> BITS) > 0 || root_[i1] == NULL) {return NULL;}return root_[i1]->values[i2];}void set(Number k, void* v) {const Number i1 = k >> LEAF_BITS;const Number i2 = k & (LEAF_LENGTH - 1);ASSERT(i1 < ROOT_LENGTH);root_[i1]->values[i2] = v;}bool Ensure(Number start, size_t n) {for (Number key = start; key <= start + n - 1;) {const Number i1 = key >> LEAF_BITS;// Check for overflowif (i1 >= ROOT_LENGTH)return false;// Make 2nd level node if necessaryif (root_[i1] == NULL) {//Leaf* leaf = reinterpret_cast<Leaf*>((*allocator_)(sizeof(Leaf)));//if (leaf == NULL) return false;static ObjectPool<Leaf>	leafPool;Leaf* leaf = (Leaf*)leafPool.New();memset(leaf, 0, sizeof(*leaf));root_[i1] = leaf;}// Advance key past whatever is covered by this leaf nodekey = ((key >> LEAF_BITS) + 1) << LEAF_BITS;}return true;}void PreallocateMoreMemory() {// Allocate enough to keep track of all possible pagesEnsure(0, 1 << BITS);}
};// Three-level radix tree
template <int BITS>
class TCMalloc_PageMap3 {
private:// How many bits should we consume at each interior levelstatic const int INTERIOR_BITS = (BITS + 2) / 3; // Round-upstatic const int INTERIOR_LENGTH = 1 << INTERIOR_BITS;// How many bits should we consume at leaf levelstatic const int LEAF_BITS = BITS - 2 * INTERIOR_BITS;static const int LEAF_LENGTH = 1 << LEAF_BITS;// Interior nodestruct Node {Node* ptrs[INTERIOR_LENGTH];};// Leaf nodestruct Leaf {void* values[LEAF_LENGTH];};Node* root_;                          // Root of radix treevoid* (*allocator_)(size_t);          // Memory allocatorNode* NewNode() {Node* result = reinterpret_cast<Node*>((*allocator_)(sizeof(Node)));if (result != NULL) {memset(result, 0, sizeof(*result));}return result;}public:typedef uintptr_t Number;explicit TCMalloc_PageMap3(void* (*allocator)(size_t)) {allocator_ = allocator;root_ = NewNode();}void* get(Number k) const {const Number i1 = k >> (LEAF_BITS + INTERIOR_BITS);const Number i2 = (k >> LEAF_BITS) & (INTERIOR_LENGTH - 1);const Number i3 = k & (LEAF_LENGTH - 1);if ((k >> BITS) > 0 ||root_->ptrs[i1] == NULL || root_->ptrs[i1]->ptrs[i2] == NULL) {return NULL;}return reinterpret_cast<Leaf*>(root_->ptrs[i1]->ptrs[i2])->values[i3];}void set(Number k, void* v) {ASSERT(k >> BITS == 0);const Number i1 = k >> (LEAF_BITS + INTERIOR_BITS);const Number i2 = (k >> LEAF_BITS) & (INTERIOR_LENGTH - 1);const Number i3 = k & (LEAF_LENGTH - 1);reinterpret_cast<Leaf*>(root_->ptrs[i1]->ptrs[i2])->values[i3] = v;}bool Ensure(Number start, size_t n) {for (Number key = start; key <= start + n - 1;) {const Number i1 = key >> (LEAF_BITS + INTERIOR_BITS);const Number i2 = (key >> LEAF_BITS) & (INTERIOR_LENGTH - 1);// Check for overflowif (i1 >= INTERIOR_LENGTH || i2 >= INTERIOR_LENGTH)return false;// Make 2nd level node if necessaryif (root_->ptrs[i1] == NULL) {Node* n = NewNode();if (n == NULL) return false;root_->ptrs[i1] = n;}// Make leaf node if necessaryif (root_->ptrs[i1]->ptrs[i2] == NULL) {Leaf* leaf = reinterpret_cast<Leaf*>((*allocator_)(sizeof(Leaf)));if (leaf == NULL) return false;memset(leaf, 0, sizeof(*leaf));root_->ptrs[i1]->ptrs[i2] = reinterpret_cast<Node*>(leaf);}// Advance key past whatever is covered by this leaf nodekey = ((key >> LEAF_BITS) + 1) << LEAF_BITS;}return true;}void PreallocateMoreMemory() {}
};

project: 和项目有关的代码
