1. 烧录速度
- stm32u575 bin文件57kB
- 使用ofast编译daplink工程
- 烧录时间4.5s
- swclk大约370kHz
- 使用o0编译daplink工程
- 烧录时间5.6s
- swclk大约265kHz

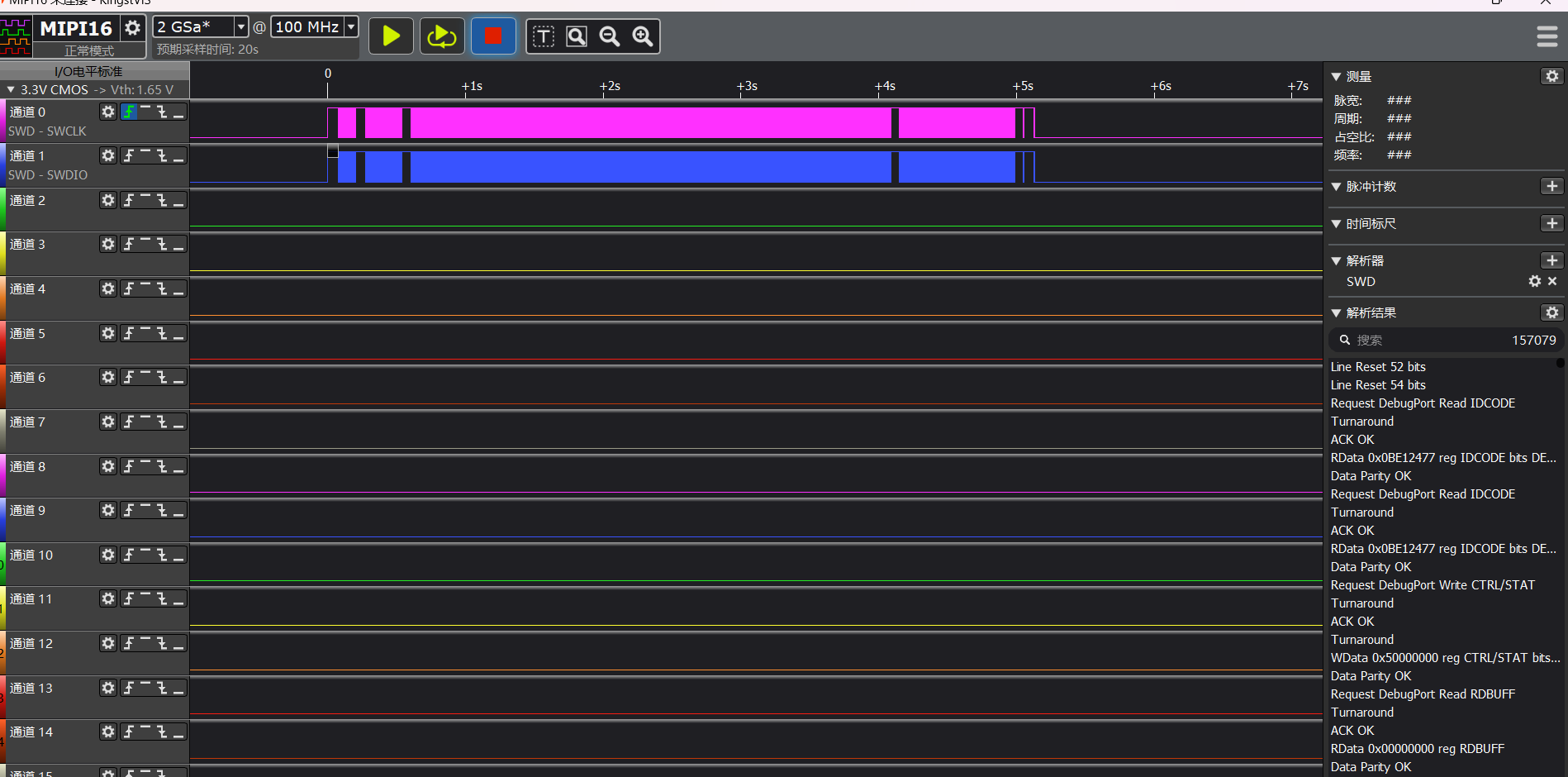

2. 烧录波形
3. tracelog，待分析
DAP.c :1832| DAP_Setup
DAP.c :62 | Set_Clock_Delay
DAP.c :63 | Set_Clock_Delay 1000000(0x000f4240) <= clock
DAP_config.c :763 | DAP_SETUP
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :91 | DAP_Info
DAP.c :92 | DAP_Info 2(0x00000002) <= id
DAP_config.c :187 | DAP_GetProductString
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :91 | DAP_Info
DAP.c :92 | DAP_Info 3(0x00000003) <= id
DAP_config.c :198 | DAP_GetSerNumString
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :91 | DAP_Info
DAP.c :92 | DAP_Info 4(0x00000004) <= id
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :91 | DAP_Info
DAP.c :92 | DAP_Info 240(0x000000f0) <= id
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :91 | DAP_Info
DAP.c :92 | DAP_Info 1(0x00000001) <= id
DAP_config.c :176 | DAP_GetVendorString
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :91 | DAP_Info
DAP.c :92 | DAP_Info 2(0x00000002) <= id
DAP_config.c :187 | DAP_GetProductString
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :91 | DAP_Info
DAP.c :92 | DAP_Info 255(0x000000ff) <= id
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :91 | DAP_Info
DAP.c :92 | DAP_Info 254(0x000000fe) <= id
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :91 | DAP_Info
DAP.c :92 | DAP_Info 240(0x000000f0) <= id
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :249 | DAP_Connect
DAP_config.c :413 | PORT_SWD_SETUP
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :373 | DAP_GPIO_Init
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :420 | DAP_SWJ_Clock
DAP.c :62 | Set_Clock_Delay
DAP.c :63 | Set_Clock_Delay 1000000(0x000f4240) <= clock
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :689 | DAP_TransferConfigure
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :484 | DAP_SWD_Configure
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :224 | DAP_HostStatus
DAP_config.c :700 | LED_CONNECTED_OUT 1(0x00000001) <= bit
DAP_config.c :373 | DAP_GPIO_Init
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :316 | DAP_SWJ_Pins
DAP_config.c :674 | PIN_nRESET_OUT 0(0x00000000) <= bit
DAP_config.c :448 | PIN_SWCLK_TCK_IN
DAP_config.c :477 | PIN_SWDIO_TMS_IN
DAP_config.c :609 | PIN_TDI_IN
DAP_config.c :629 | PIN_TDO_IN
DAP_config.c :640 | PIN_nTRST_IN
DAP_config.c :663 | PIN_nRESET_IN
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :316 | DAP_SWJ_Pins
DAP_config.c :674 | PIN_nRESET_OUT 1(0x00000001) <= bit
DAP_config.c :448 | PIN_SWCLK_TCK_IN
DAP_config.c :477 | PIN_SWDIO_TMS_IN
DAP_config.c :609 | PIN_TDI_IN
DAP_config.c :629 | PIN_TDO_IN
DAP_config.c :640 | PIN_nTRST_IN
DAP_config.c :663 | PIN_nRESET_IN
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :316 | DAP_SWJ_Pins
DAP_config.c :448 | PIN_SWCLK_TCK_IN
DAP_config.c :477 | PIN_SWDIO_TMS_IN
DAP_config.c :609 | PIN_TDI_IN
DAP_config.c :629 | PIN_TDO_IN
DAP_config.c :640 | PIN_nTRST_IN
DAP_config.c :663 | PIN_nRESET_IN
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :457 | DAP_SWJ_Sequence
SW_DP.c :67 | SWJ_Sequence
SW_DP.c :68 | SWJ_Sequence 51(0x00000033) <= count
SW_DP.c :69 | SWJ_Sequence 255(0x000000ff) <= *data
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :457 | DAP_SWJ_Sequence
SW_DP.c :67 | SWJ_Sequence
SW_DP.c :68 | SWJ_Sequence 16(0x00000010) <= count
SW_DP.c :69 | SWJ_Sequence 158(0x0000009e) <= *data
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :457 | DAP_SWJ_Sequence
SW_DP.c :67 | SWJ_Sequence
SW_DP.c :68 | SWJ_Sequence 51(0x00000033) <= count
SW_DP.c :69 | SWJ_Sequence 255(0x000000ff) <= *data
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :486 | PIN_SWDIO_TMS_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :457 | DAP_SWJ_Sequence
SW_DP.c :67 | SWJ_Sequence
SW_DP.c :68 | SWJ_Sequence 8(0x00000008) <= count
SW_DP.c :69 | SWJ_Sequence 0(0x00000000) <= *data
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :457 | DAP_SWJ_Sequence
SW_DP.c :67 | SWJ_Sequence
SW_DP.c :68 | SWJ_Sequence 8(0x00000008) <= count
SW_DP.c :69 | SWJ_Sequence 0(0x00000000) <= *data
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :495 | PIN_SWDIO_TMS_CLR
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4(0x00000004) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1342177280(0x50000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 671088640(0x28000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 335544320(0x14000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 167772160(0x0a000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 83886080(0x05000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 41943040(0x02800000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 20971520(0x01400000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 10485760(0x00a00000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 5242880(0x00500000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2621440(0x00280000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1310720(0x00140000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 655360(0x000a0000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 327680(0x00050000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 163840(0x00028000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 81920(0x00014000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 40960(0x0000a000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 20480(0x00005000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 10240(0x00002800) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 5120(0x00001400) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2560(0x00000a00) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1280(0x00000500) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 640(0x00000280) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 320(0x00000140) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 160(0x000000a0) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 80(0x00000050) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 40(0x00000028) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 20(0x00000014) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 10(0x0000000a) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 5(0x00000005) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT -1610612738(0x9ffffffe) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 14(0x0000000e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 25(0x00000019) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 6(0x00000006) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 10(0x0000000a) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1635| DAP_WriteAbort
DAP.c :1577| DAP_SWD_WriteAbort
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 30(0x0000001e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 15(0x0000000f) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 56(0x00000038) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4(0x00000004) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1342181120(0x50000f00) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 671090560(0x28000780) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 335545280(0x140003c0) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 167772640(0x0a0001e0) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 83886320(0x050000f0) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 41943160(0x02800078) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 20971580(0x0140003c) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 10485790(0x00a0001e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 5242895(0x0050000f) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2621447(0x00280007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1310723(0x00140003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 655361(0x000a0001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 327680(0x00050000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 163840(0x00028000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 81920(0x00014000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 40960(0x0000a000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 20480(0x00005000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 10240(0x00002800) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 5120(0x00001400) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2560(0x00000a00) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1280(0x00000500) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 640(0x00000280) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 320(0x00000140) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 160(0x000000a0) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 80(0x00000050) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 40(0x00000028) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 20(0x00000014) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 10(0x0000000a) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 5(0x00000005) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT -1610605062(0xa0001dfa) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 14(0x0000000e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 25(0x00000019) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 8(0x00000008) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4(0x00000004) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 15(0x0000000f) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 14(0x0000000e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 25(0x00000019) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 8(0x00000008) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4(0x00000004) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 15(0x0000000f) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 240(0x000000f0) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 120(0x00000078) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 60(0x0000003c) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 30(0x0000001e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 15(0x0000000f) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 476(0x000001dc) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 14(0x0000000e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 25(0x00000019) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 15(0x0000000f) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 26(0x0000001a) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 14(0x0000000e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 25(0x00000019) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 8(0x00000008) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4(0x00000004) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 15(0x0000000f) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 14(0x0000000e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 25(0x00000019) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 587202656(0x23000060) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 293601328(0x11800030) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 146800664(0x08c00018) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 73400332(0x0460000c) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 36700166(0x02300006) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 18350083(0x01180003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 9175041(0x008c0001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4587520(0x00460000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2293760(0x00230000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1146880(0x00118000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 573440(0x0008c000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 286720(0x00046000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 143360(0x00023000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 71680(0x00011800) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 35840(0x00008c00) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 17920(0x00004600) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 8960(0x00002300) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4480(0x00001180) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2240(0x000008c0) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1120(0x00000460) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 560(0x00000230) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 280(0x00000118) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 140(0x0000008c) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 70(0x00000046) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 35(0x00000023) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 17(0x00000011) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 8(0x00000008) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4(0x00000004) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1174405307(0x460000bb) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 14(0x0000000e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 25(0x00000019) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4(0x00000004) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 14(0x0000000e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 25(0x00000019) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP.c :1809| DAP_ExecuteCommand
DAP.c :1677| DAP_ProcessCommand
DAP.c :1294| DAP_Transfer
DAP.c :709 | DAP_SWD_Transfer
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :586 | PIN_SWDIO_OUT_ENABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :576 | PIN_SWDIO_OUT 587202657(0x23000061) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 293601328(0x11800030) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 146800664(0x08c00018) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 73400332(0x0460000c) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 36700166(0x02300006) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 18350083(0x01180003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 9175041(0x008c0001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4587520(0x00460000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2293760(0x00230000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1146880(0x00118000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 573440(0x0008c000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 286720(0x00046000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 143360(0x00023000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 71680(0x00011800) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 35840(0x00008c00) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 17920(0x00004600) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 8960(0x00002300) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4480(0x00001180) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2240(0x000008c0) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1120(0x00000460) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 560(0x00000230) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 280(0x00000118) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 140(0x0000008c) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 70(0x00000046) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 35(0x00000023) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 17(0x00000011) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 8(0x00000008) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 4(0x00000004) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 2(0x00000002) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1174405308(0x460000bc) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
SW_DP.c :288 | SWD_Transfer
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 14(0x0000000e) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 7(0x00000007) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 3(0x00000003) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 25(0x00000019) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 0(0x00000000) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :576 | PIN_SWDIO_OUT 1(0x00000001) <= bit
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :597 | PIN_SWDIO_OUT_DISABLE
DAP_config.c :373 | DAP_GPIO_Init
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
DAP_config.c :457 | PIN_SWCLK_TCK_SET
DAP_config.c :466 | PIN_SWCLK_TCK_CLR
DAP_config.c :504 | PIN_SWDIO_IN
