unity 读取PPT显示到屏幕功能

news 2025/10/4 5:35:04

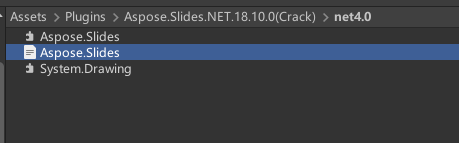

1.准备一份PPT文件和System.Drawing，Aspose.Slides这些dll文件，如图

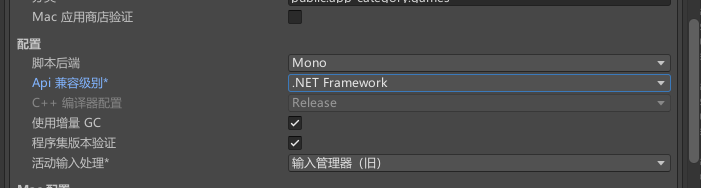

2.unity默认设置，在Player下面找到api兼容级别改成.NETFrameWork 如图

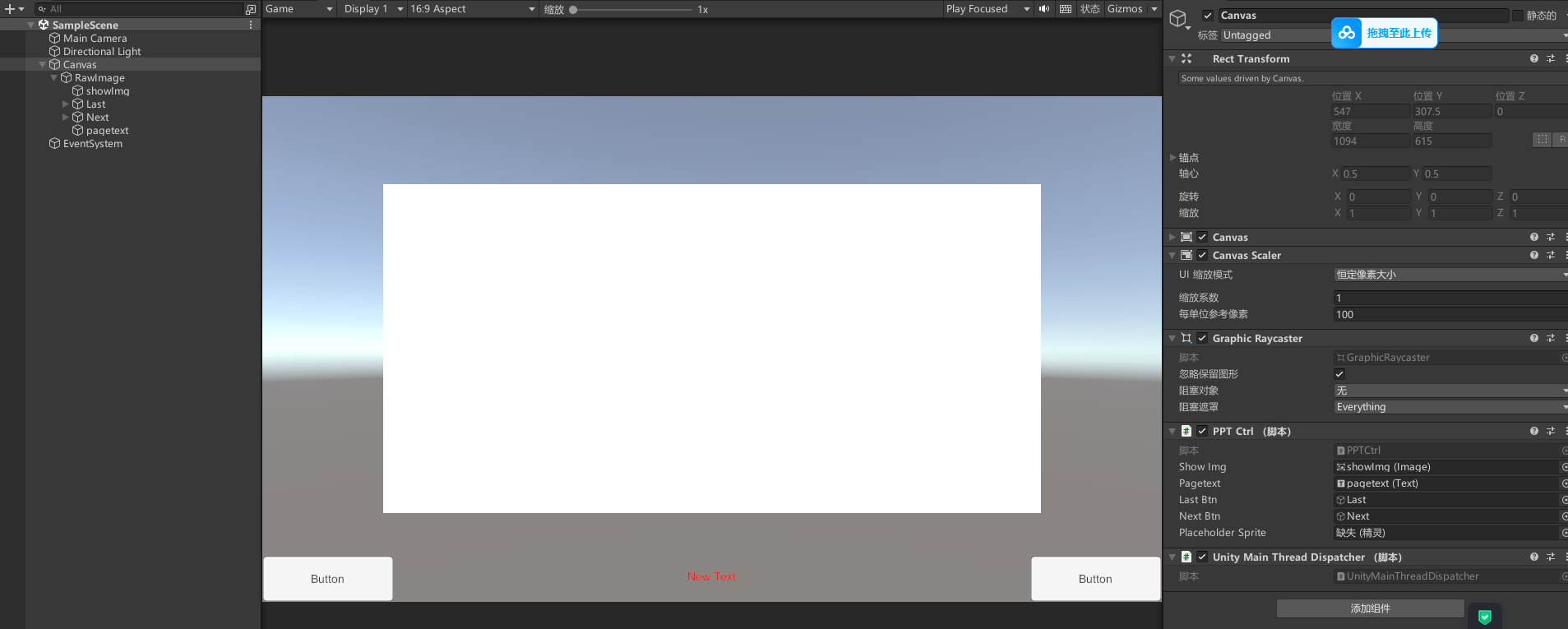

3.创建这些东西，并挂载脚本，脚本是其他大佬分享的，挺好使

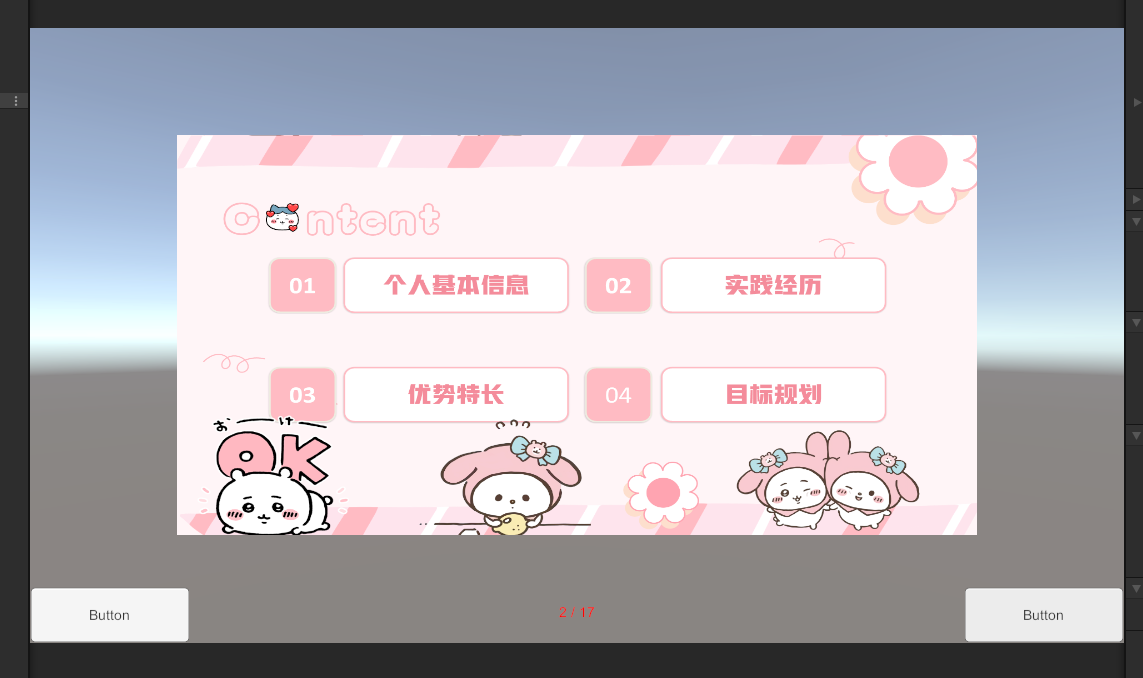

4.运行即可页数多的情况得另外搞

5.参考大佬的地址

⭐ Unity 异步加载PPT页面并首帧无卡顿显示_unity 加载ppt-CSDN博客

这个也能使用，有案例 694fe · 万能工具箱/PPT加载插件v2.0Unity - GitCode

6.dll的话可以去上面工程找下，有报错也是dll的问题和项目设置的问题

7.PPTCtrl脚本在这里

using Aspose.Slides;
using System;
using System.Collections;
using System.Collections.Generic;
using System.Drawing;
using System.Drawing.Imaging;
using System.IO;
using System.Threading.Tasks;
using UnityEngine;
using UnityEngine.UI;

public class PPTCtrl : MonoBehaviour
{
public UnityEngine.UI.Image ShowImg;//展示图片
public Text pagetext;//页数
public GameObject LastBtn, NextBtn;
public Sprite PlaceholderSprite; // 设置一个默认占位图可以用ppt第一张图

private Presentation presentation = null;
private int NowPage = 0;
private bool isLoading = false;

private Dictionary<int, Sprite> slideSprites = new Dictionary<int, Sprite>();

private async void Start()
{
UnityMainThreadDispatcher.Instance(); // 初始化主线程调度器

string PPTPath = Application.dataPath + "/Plugins/Aspose.Slides.NET.18.10.0(Crack)/165.pptx";
presentation = new Presentation(PPTPath);

// 用占位图先顶上 UI
ShowImg.sprite = PlaceholderSprite;

// 优先加载第一页
await LoadAndCacheSlideAsync(0);

// 延迟一帧再刷新 UI，避免卡顿
await Task.Delay(100);
SwitchPage(0);

// 后台加载其他页
_ = Task.Run(() => PreloadOtherSlidesAsync());
}

private void OnEnable()
{
LastBtn.GetComponent<Button>().onClick.AddListener(ClickLast);
NextBtn.GetComponent<Button>().onClick.AddListener(ClickNext);
}

private void OnDisable()
{
LastBtn.GetComponent<Button>().onClick.RemoveListener(ClickLast);
NextBtn.GetComponent<Button>().onClick.RemoveListener(ClickNext);
}

private async Task PreloadOtherSlidesAsync()
{
int total = presentation.Slides.Count;

for (int i = 1; i < total; i++)
{
if (!slideSprites.ContainsKey(i))
await LoadAndCacheSlideAsync(i);
}
}

private async Task LoadAndCacheSlideAsync(int page)
{
var slide = presentation.Slides[page];
var bitmap = slide.GetThumbnail(1f, 1f);
var bytes = GetBitMapBytes(bitmap);

await Task.Yield(); // 推出当前线程

UnityMainThreadDispatcher.Instance().Enqueue(() =>
{
var tex = new Texture2D(bitmap.Width, bitmap.Height, TextureFormat.RGBA32, false);
tex.LoadImage(bytes);
var sprite = Sprite.Create(tex, new Rect(0, 0, tex.width, tex.height), Vector2.zero);
slideSprites[page] = sprite;
});
}

public void SwitchPage(int page)
{
if (isLoading || page < 0 || page >= presentation.Slides.Count)
return;

NowPage = page;
pagetext.text = (page + 1) + " / " + presentation.Slides.Count;
LastBtn.SetActive(page > 0);
NextBtn.SetActive(page < presentation.Slides.Count - 1);

if (slideSprites.TryGetValue(page, out Sprite sprite))
{
ShowImg.sprite = sprite;
}
else
{
ShowImg.sprite = PlaceholderSprite;
StartCoroutine(LoadSlideAsync(page));
}
}

private IEnumerator LoadSlideAsync(int page)
{
isLoading = true;

yield return Task.Run(async () =>
{
await LoadAndCacheSlideAsync(page);
UnityMainThreadDispatcher.Instance().Enqueue(() =>
{
if (NowPage == page && slideSprites.ContainsKey(page))
{
ShowImg.sprite = slideSprites[page];
}
isLoading = false;
});
});
}

private byte[] GetBitMapBytes(Bitmap bm)
{
try
{
using (MemoryStream ms = new MemoryStream())
{
bm.Save(ms, ImageFormat.Png);
return ms.ToArray();
}
}
catch (Exception e)
{
Debug.LogWarning("Get Bytes failed: " + e);
return null;
}
}

public void ClickNext() => SwitchPage(NowPage + 1);
public void ClickLast() => SwitchPage(NowPage - 1);
}

8.主线程调度的脚本在这

using System;
using System.Collections.Generic;
using UnityEngine;

public class UnityMainThreadDispatcher : MonoBehaviour
{
private static readonly Queue<Action> _executionQueue = new Queue<Action>();
private static UnityMainThreadDispatcher _instance = null;

public static UnityMainThreadDispatcher Instance()
{
if (_instance == null)
{
var go = GameObject.Find("MainThreadDispatcher");
if (go == null)
{
go = new GameObject("MainThreadDispatcher");
DontDestroyOnLoad(go);
_instance = go.AddComponent<UnityMainThreadDispatcher>();
}
else
{
_instance = go.GetComponent<UnityMainThreadDispatcher>();
if (_instance == null)
_instance = go.AddComponent<UnityMainThreadDispatcher>();
}
}
return _instance;
}
