可观测性体系建设：Java Agent实现方法级调用链追踪实践

news 2025/10/3 6:37:15

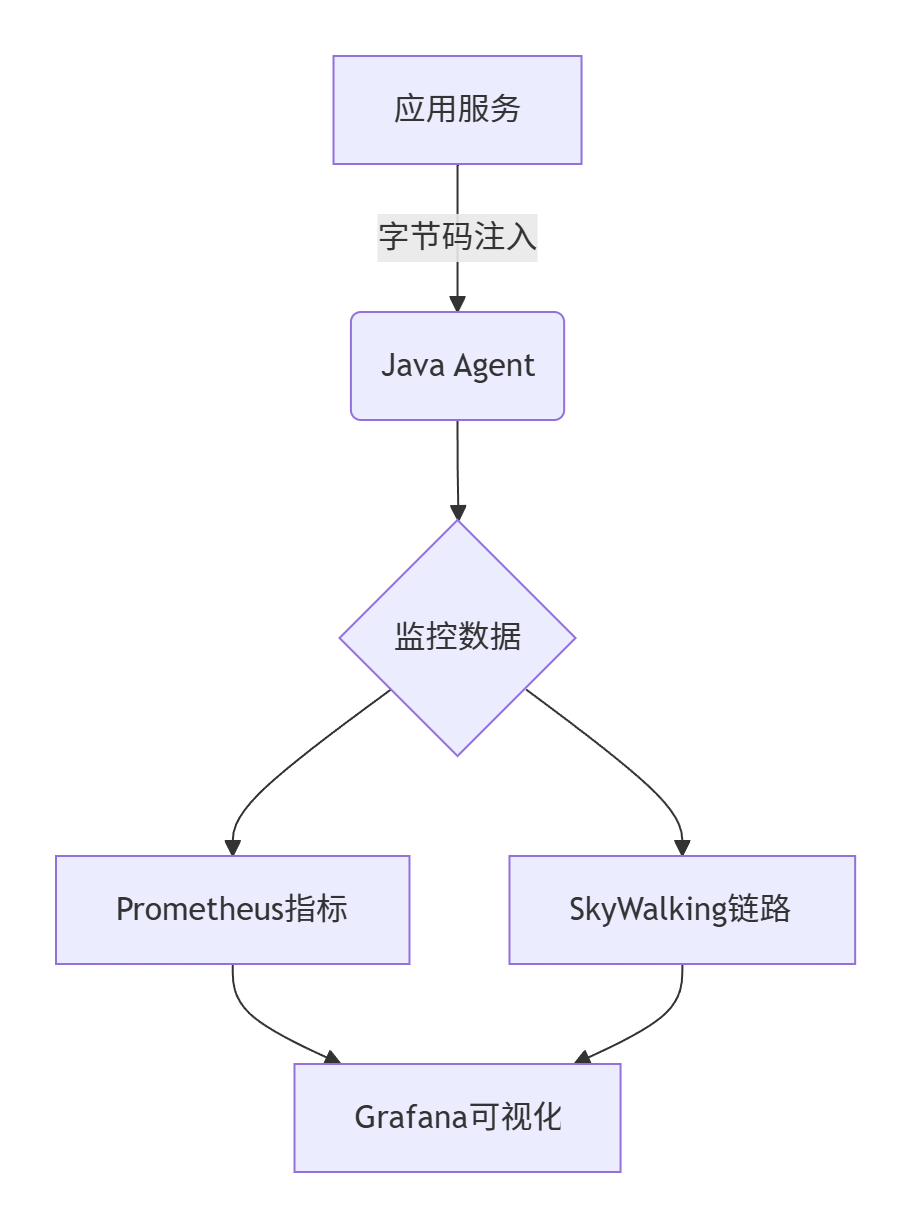

一、技术架构全景图

二、Java Agent核心实现

2.1 Agent基础结构

// agent/src/main/java/com/example/TraceAgent.java
public class TraceAgent {public static void premain(String agentArgs, Instrumentation inst) {inst.addTransformer(new MethodTracerTransformer());}
}// 字节码转换器
public class MethodTracerTransformer implements ClassFileTransformer {@Overridepublic byte[] transform(ClassLoader loader, String className, Class<?> clazz,ProtectionDomain domain, byte[] classfileBuffer) {if (className.startsWith("com/example/service")) {try {ClassPool pool = ClassPool.getDefault();CtClass cc = pool.makeClass(new ByteArrayInputStream(classfileBuffer));for (CtMethod method : cc.getDeclaredMethods()) {method.addLocalVariable("startTime", CtClass.longType);method.insertBefore("startTime = System.nanoTime();");method.insertAfter("{" +"long duration = System.nanoTime() - startTime;" +"TraceContext.recordSpan(\"" + method.getLongName() + "\", duration);" +"}");}return cc.toBytecode();} catch (Exception e) {e.printStackTrace();}}return classfileBuffer;}
}

2.2 上下文传播机制

public class TraceContext {private static final ThreadLocal<Span> currentSpan = new ThreadLocal<>();public static void startSpan(String name) {Span span = new Span(name, UUID.randomUUID().toString());currentSpan.set(span);// 自动注入HTTP头（适用于Feign/RestTemplate）MDC.put("traceId", span.getId());}public static void recordSpan(String operation, long duration) {Span span = currentSpan.get();span.record(operation, duration);sendToSkyWalking(span);  // 上报SkyWalkingsendToPrometheus(operation, duration);  // 更新Prometheus指标}
}

三、监控数据双通道上报

3.1 Prometheus指标上报

// 指标注册
static {CollectorRegistry registry = CollectorRegistry.defaultRegistry;Gauge.build().name("method_duration_seconds").help("方法执行耗时").labelNames("method", "status").register(registry);
}// 数据上报
public static void sendToPrometheus(String method, long duration) {Gauge gauge = Gauge.build().name("method_duration_seconds").labelNames("method", "status").create();gauge.labels(method, "success").set(duration / 1e9);registry.register(gauge);
}

3.2 SkyWalking链路追踪

// SkyWalking数据结构
public class Span implements Serializable {private String traceId;private String spanId;private String operationName;private long startTime;private long duration;private Map<String, String> tags = new HashMap<>();// 自动注入到HTTP头public static void injectHeaders(HttpHeaders headers) {Span span = TraceContext.getCurrentSpan();headers.add("X-B3-TraceId", span.getTraceId());headers.add("X-B3-SpanId", span.getSpanId());}
}

四、全链路监控实现步骤

4.1 环境准备

# 服务端部署
docker-compose up -d prometheus skywalking-oap grafana# 应用配置
-javaagent:/opt/agents/skywalking-agent.jar
-Dskywalking.agent.service_name=order-service
-Dskywalking.collector.backend_service=192.168.1.100:11800

4.2 方法级追踪实现

// 示例服务类
public class OrderService {@Tracepublic Order createOrder(OrderRequest request) {log.info("开始创建订单: {}", request.getId());// 业务逻辑return orderRepository.save(request);}
}// 自定义注解
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.METHOD)
public @interface Trace {String value() default "";
}

4.3 数据可视化配置

Prometheus查询示例

sum(rate(method_duration_seconds_bucket[5m]))
by (method, status)

SkyWalking链路展示：

[用户网关] → [订单服务](@ref)→ [库存服务](@ref)→ [支付服务]

五、生产环境优化策略

5.1 性能调优方案

优化维度	默认值	推荐值	效果
采样率	100%	10%	减少90%存储压力
批量上报间隔	1s	500ms	提升吞吐量30%
日志缓冲队列	无	10000	防止高并发数据丢失

5.2 异常处理机制

// 熔断保护
public class TracingFilter implements Filter {@Overridepublic void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) {try {Span span = TraceContext.startSpan("HTTP_REQUEST");chain.doFilter(request, response);span.finish();} catch (Exception e) {TraceContext.recordError(e);  // 自动记录异常throw e;}}
}

六、架构演进建议

6.1 多环境适配方案

# application-prod.yml
management:endpoints:web:exposure:include: prometheusmetrics:export:prometheus:enabled: truestep: 15s

6.2 混沌工程集成

// 故障注入测试
public class ChaosTest {@Testpublic void testDatabaseLatency() {FaultInjection.start("DB_SLOW", 5000);  // 模拟5秒延迟orderService.createOrder(testRequest);FaultInjection.stop("DB_SLOW");}
}

七、最佳实践总结

分层采样策略：
- 核心接口：100%采样
- 非核心接口：10%采样
- 错误请求：100%采样
上下文传播规范：

X-B3-TraceId: 123e4567-e89b-12d3-a456-426614174000
X-B3-SpanId: 123e4567-e89b-12d3-a456-426614174001
X-B3-ParentSpanId: 123e4567-e89b-12d3-a456-426614174000

3.存储优化方案：

-- Elasticsearch索引策略
PUT _ilm/policy/order-service-policy
{"policy": {"phases": {"hot": {"actions": {"rollover": {"max_size": "50gb","max_age": "30d"}}}}}
}

立即行动建议：
