可视化地图

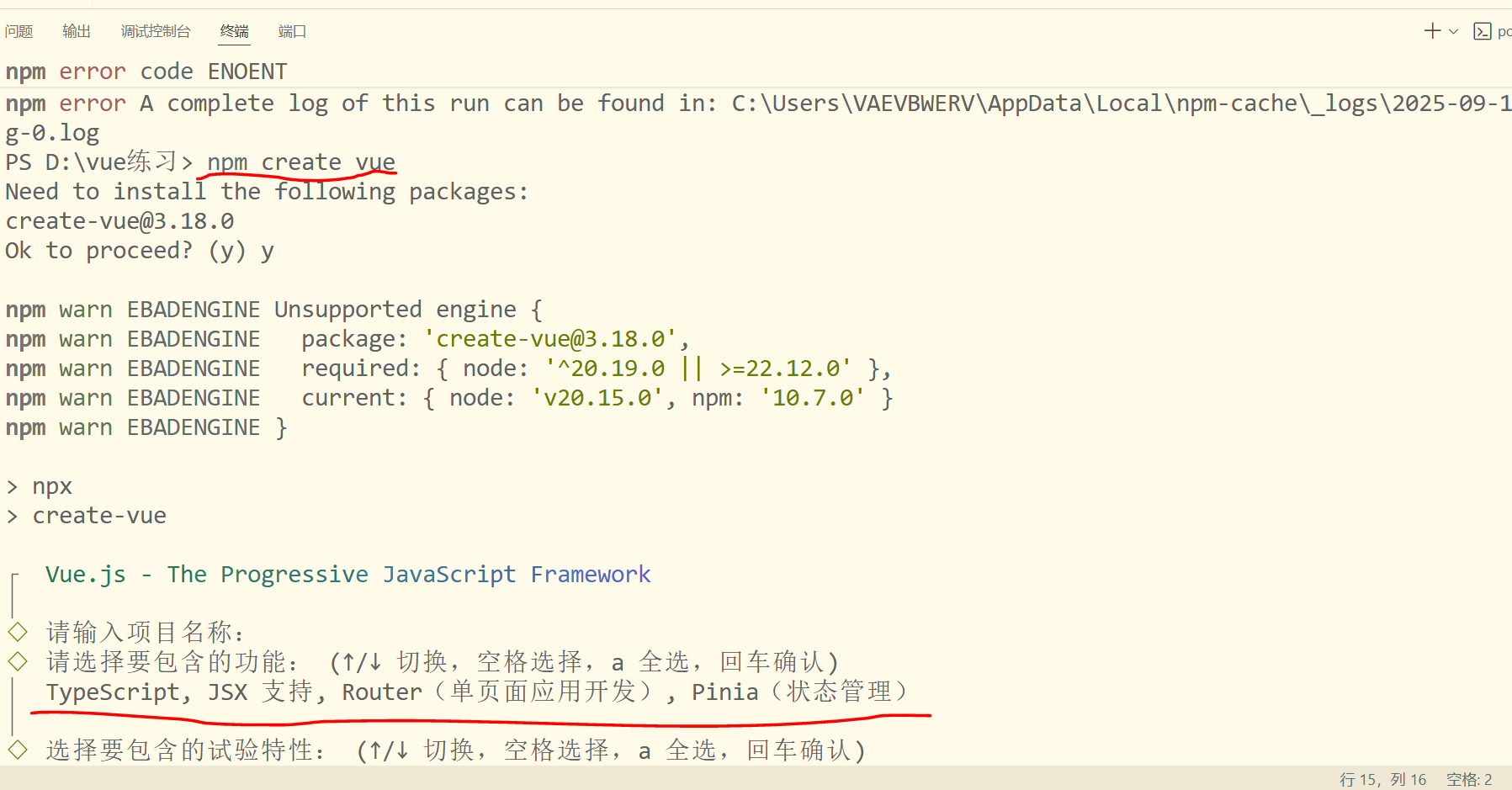

通过脚手架安装，然后选中这几个选项

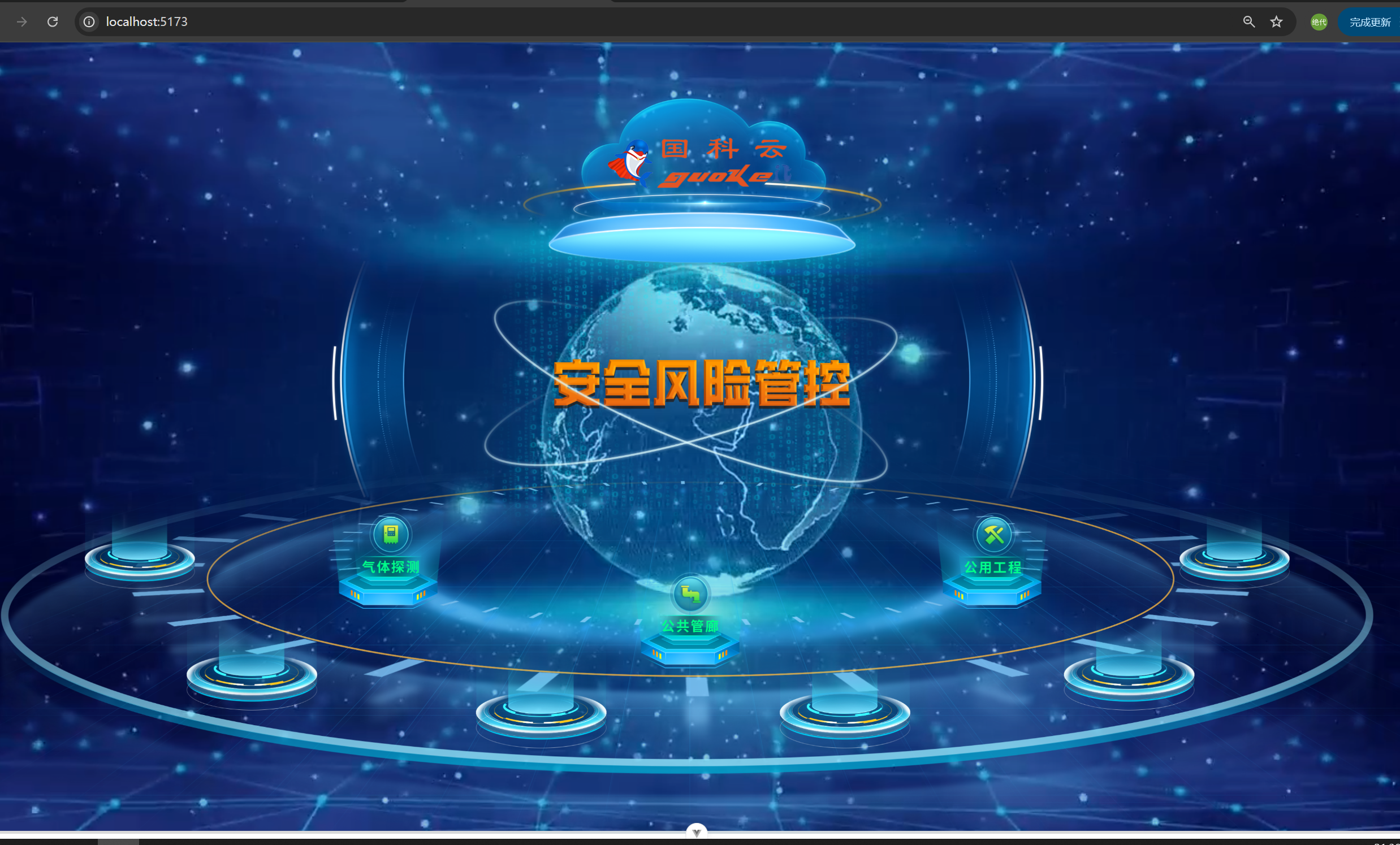

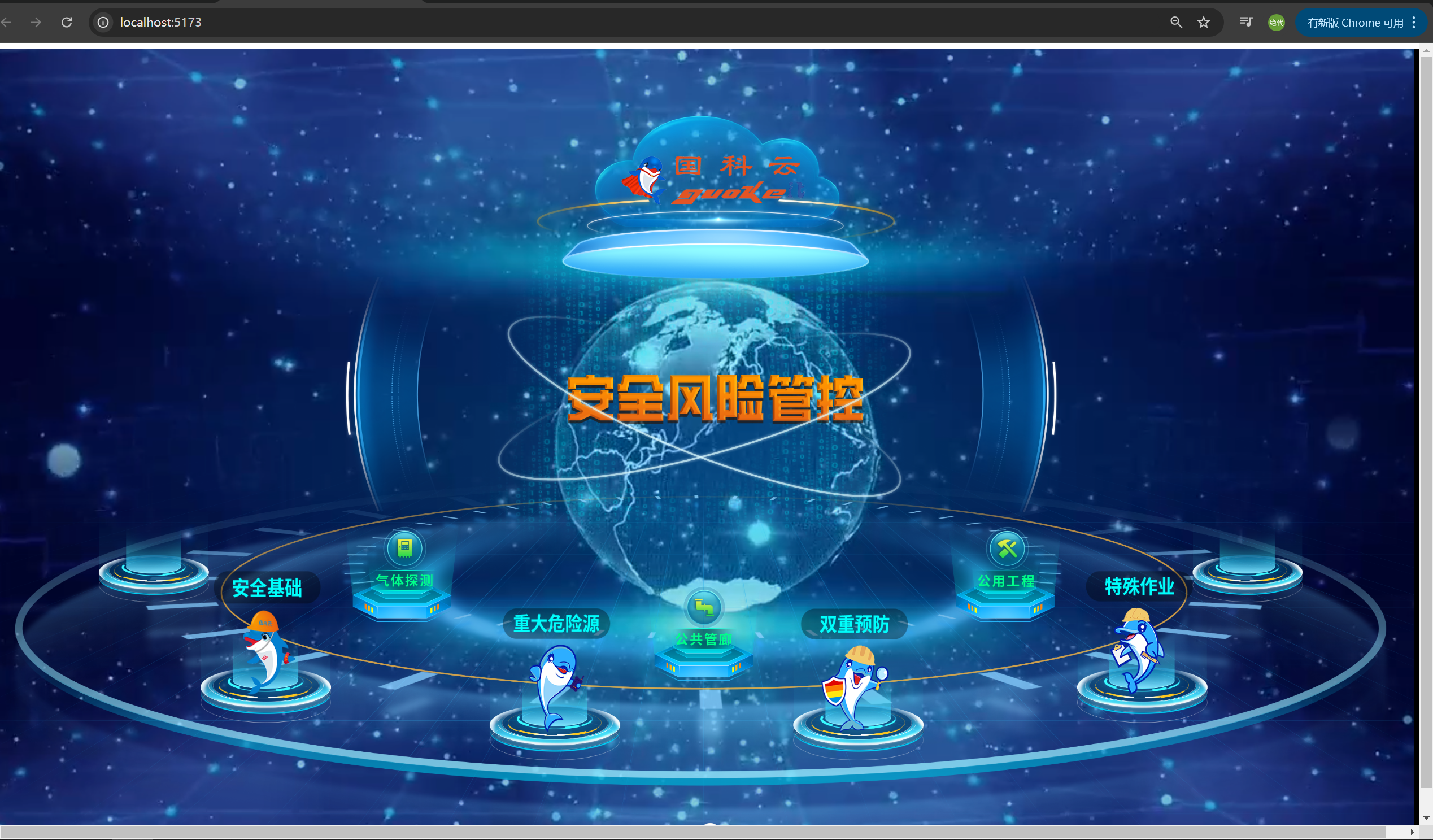

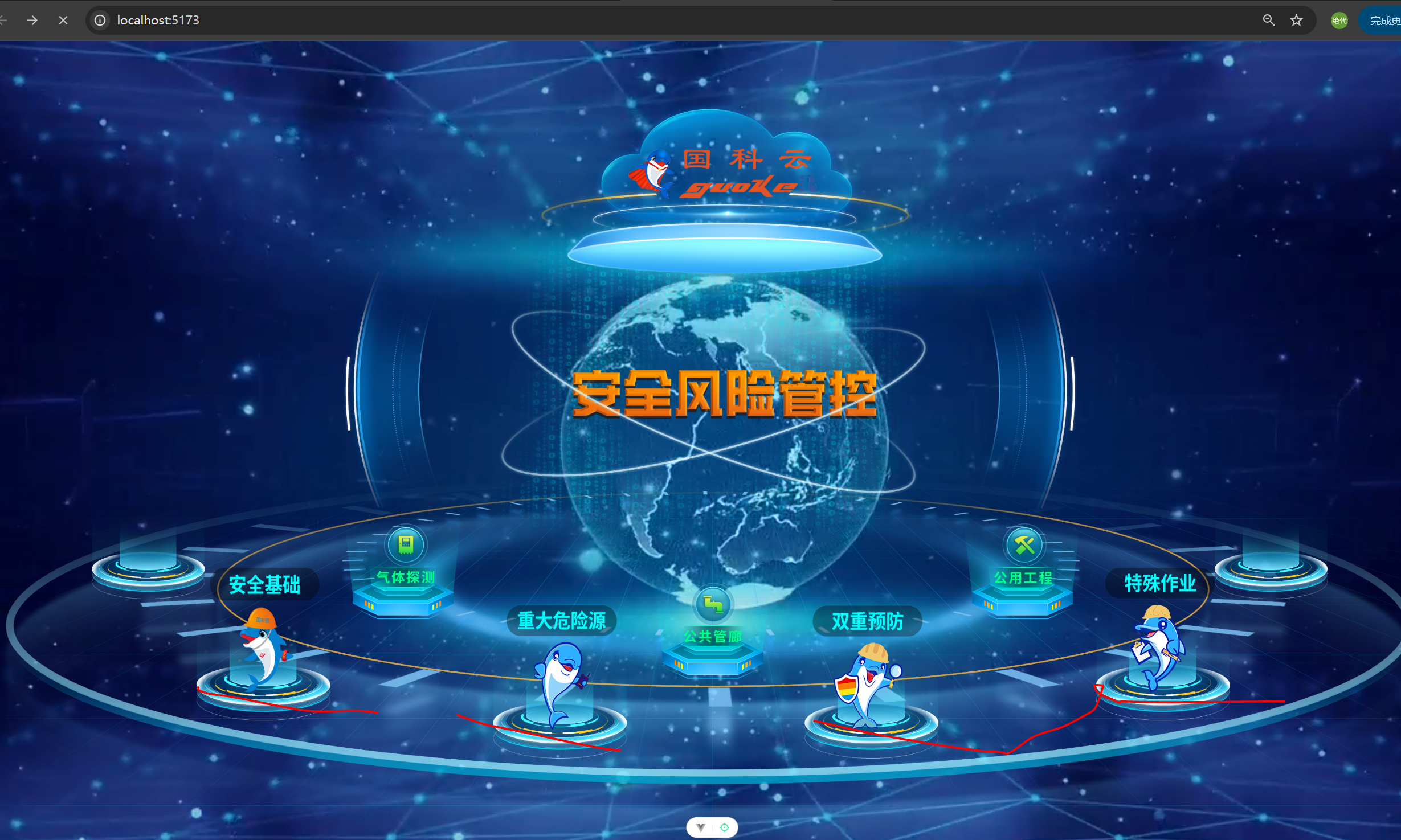

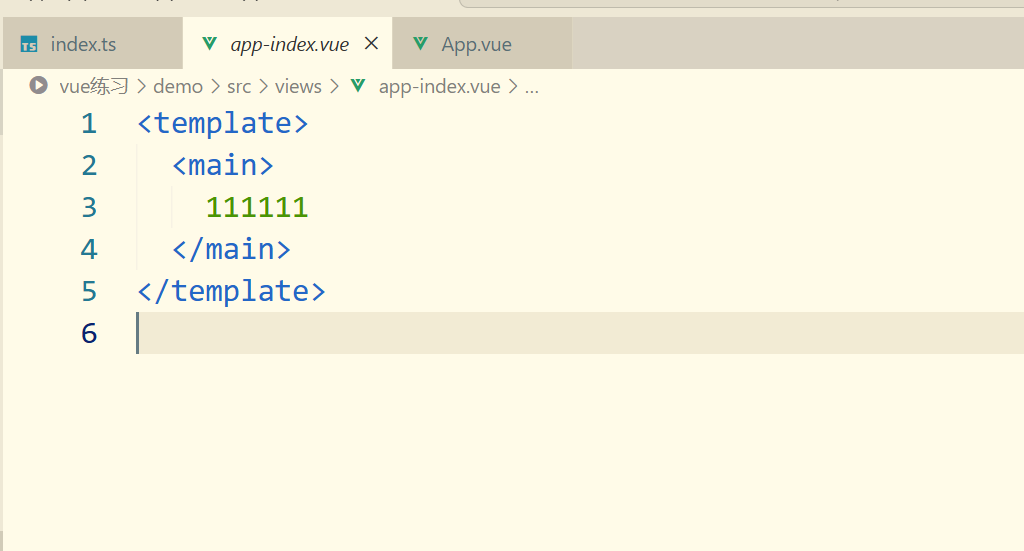

首页布局

//demo\src\views\app-index.vue
<template><div class="box"><video style="width: 100%;height: 100%;" muted loop autoplay><source src="../assets/dv-index-main.mp4"></video><div class="dv-index-main"></div></div>
</template><style scoped lang="scss">
.box{position: relative;width: 100%;height: 100%;
}
.dv-index-main{position: absolute;left:0px;top:0px;width: 100%;height: 100%;background: url('../assets/images/大屏首页.png') no-repeat;background-size:100% 100%;
}
</style>

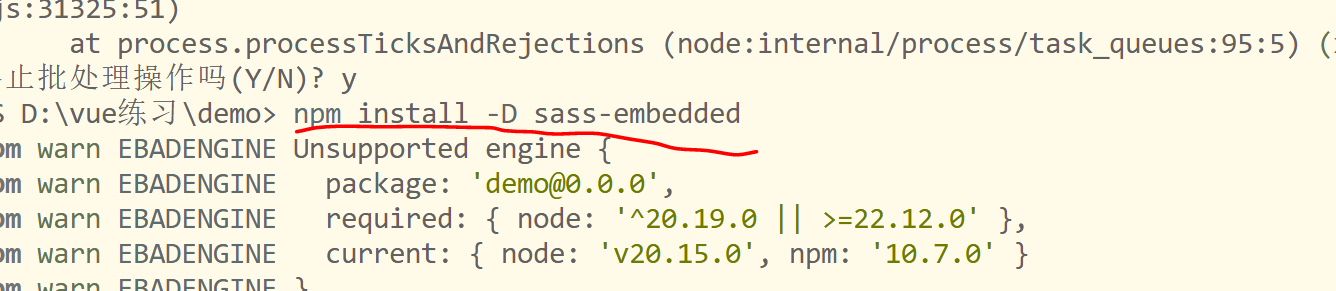

安装sass-embedded，lang=“scss”。编译 Sass 代码
其实就是视频上面加个背景图

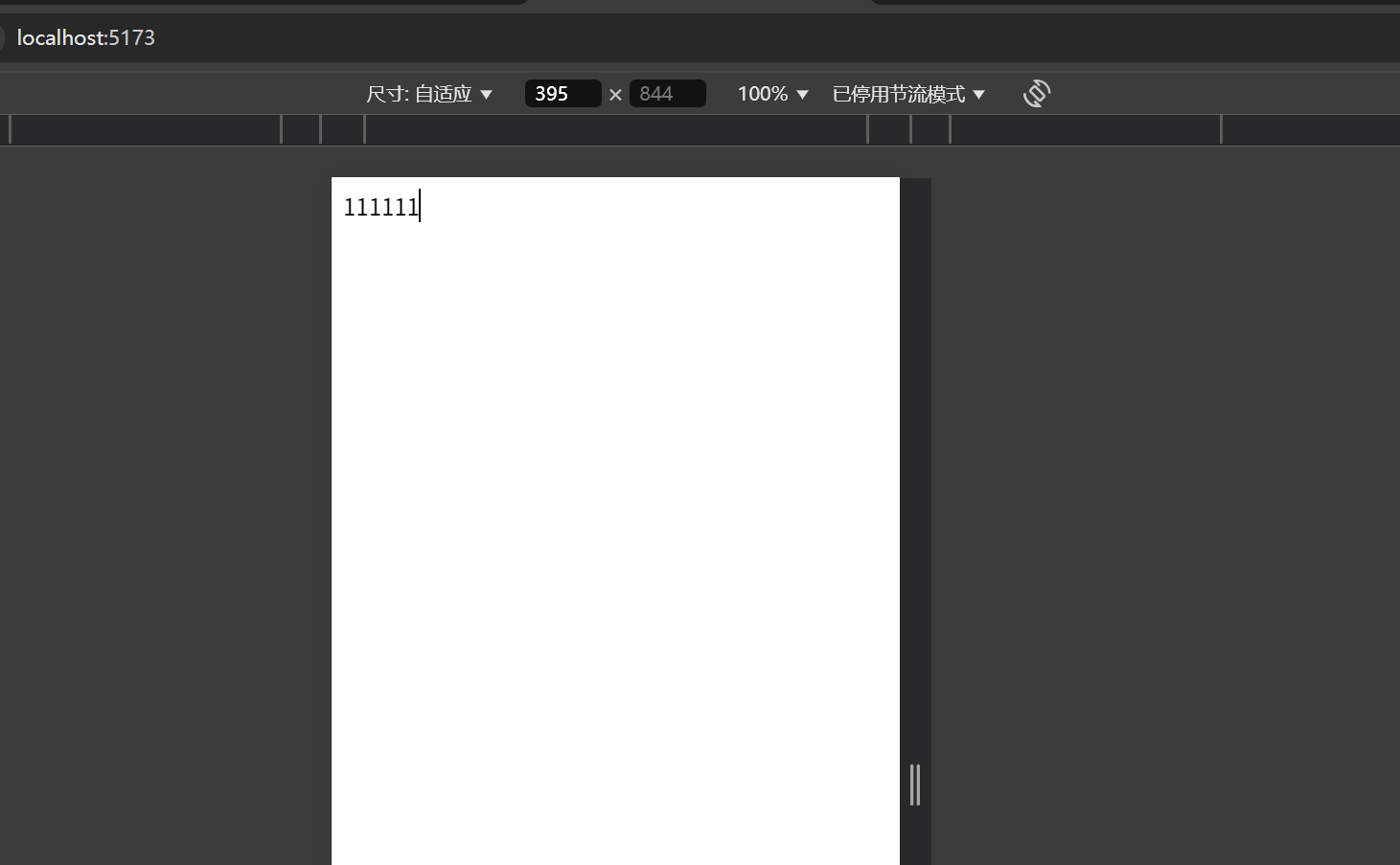

大屏适配

安装插件：大屏适配插件

npm install v-scale-screen@2.0.0

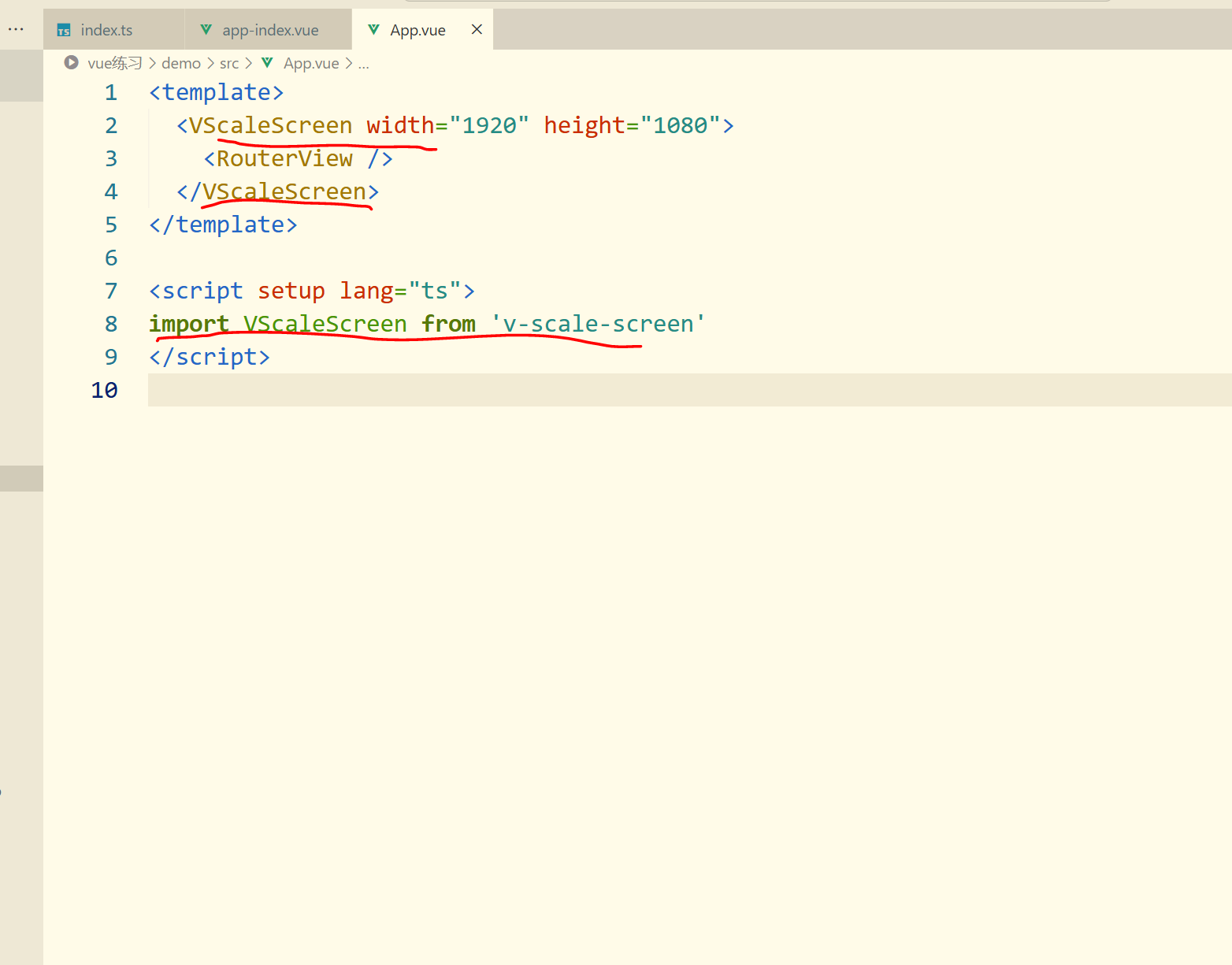

导入进来使用

<template><div class="box"><video style="width: 100%;height: 100%;" muted loop autoplay><source src="../assets/dv-index-main.mp4"></video><div class="dv-index-main"><div class="dv-btn-group"><divv-for="(item,index) in btnArr":key="index"class="btn-item":class="[btnClassHandle(item.num)]"><img :src="getImageUrl(item.url)" alt=""></div> </div></div></div>
</template><script setup lang="ts">
import { ref } from 'vue'const btnArr = ref<any>([{num:'one',url:'安全基础.png'},{num:'two',url:'重大危险源.png'},{num:'three',url:'双重预防.png'},{num:'four',url:'特殊作业.png'}
]);
//接收循环的图片名称，然后然后添加路径
const getImageUrl = ( url:string )=>{// 作用是动态生成图片资源的完整URL路径return new URL(`../assets/images/${url}`,import.meta.url).href;
}
// 接收一个字符串参数 key 并返回一个拼接后的类名字符串
const btnClassHandle = ( key:string  )=>{return `btn-item-${key}`;
}
</script><style scoped lang="scss">
.box{position: relative;width: 100%;height: 100%;
}
.dv-index-main{position: absolute;left:0px;top:0px;width: 100%;height: 100%;background: url('../assets/images/大屏首页.png') no-repeat;background-size:100% 100%;.dv-btn-group{position: absolute;left:0;bottom:145px;width:100%;height: 370px;z-index: 10;.btn-item{position: absolute;width: 145px;height: 168px;transition: transform .3s;cursor: pointer;img{width:100%;height: 100%;}}.btn-item-one{top: 143px;left: 298px;}.btn-item-two{top: 194px;left: 689px;}.btn-item-three{top: 194px;right: 683px;}.btn-item-four{top: 143px;right: 298px;}}
}
.btn-item:hover{transform: scale(1.2);
}
</style>

引入地图

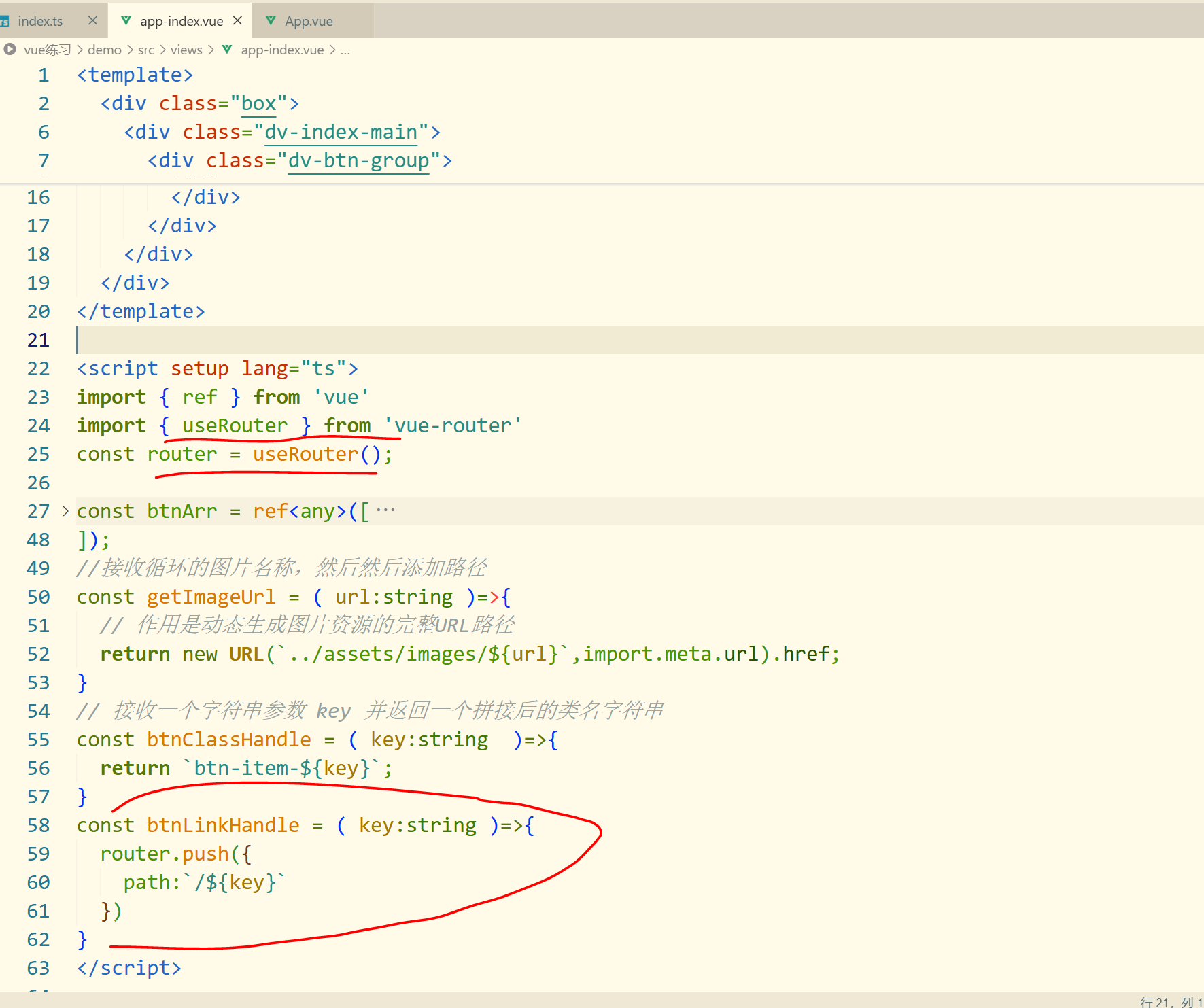

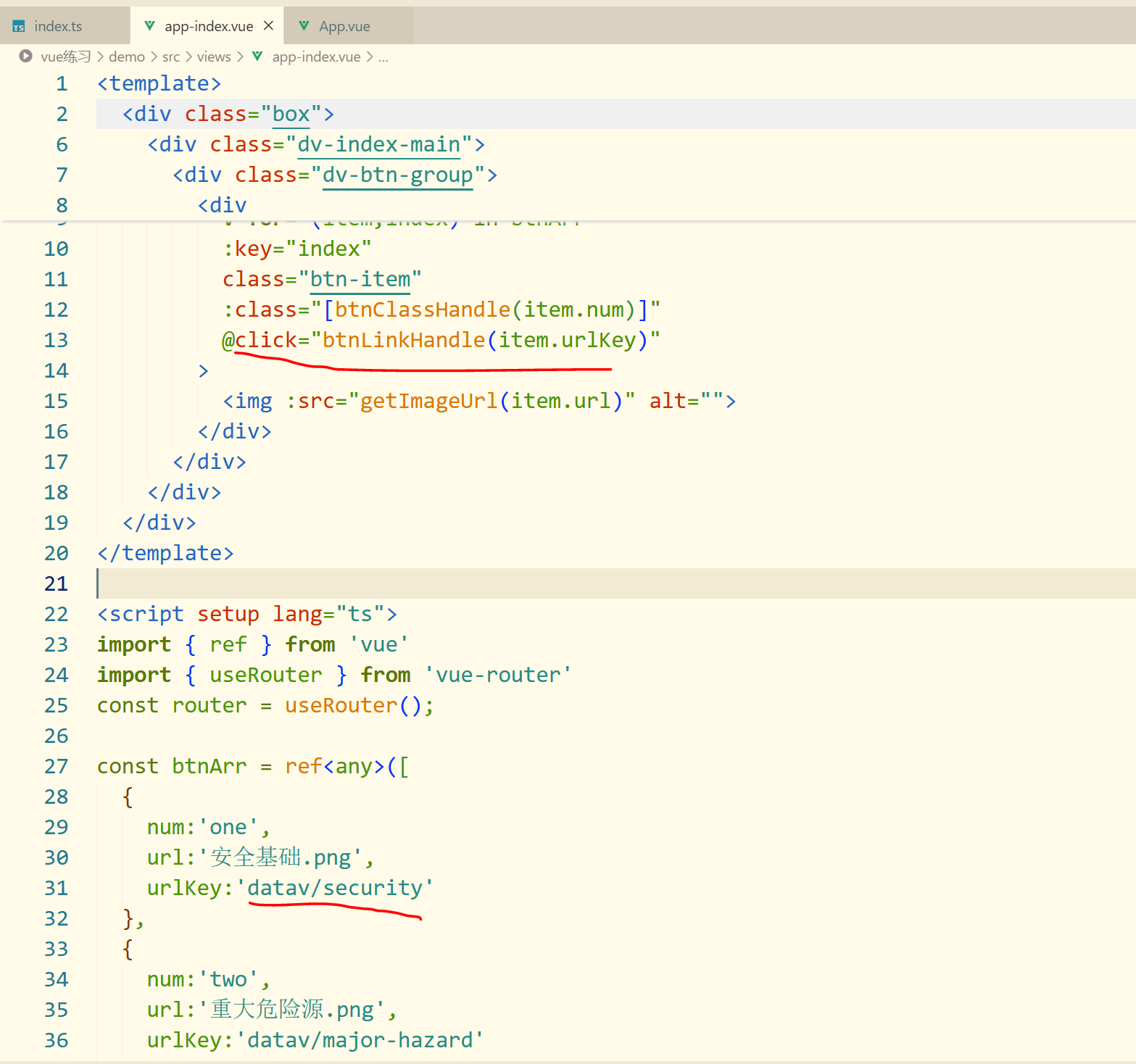

添加点击事件和路由的数据

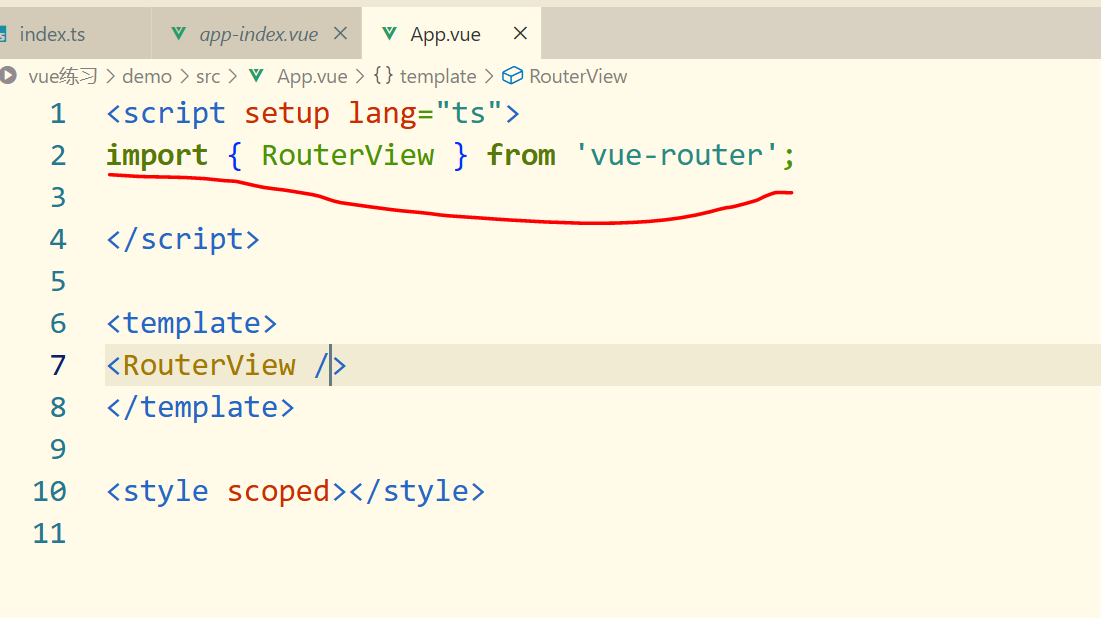

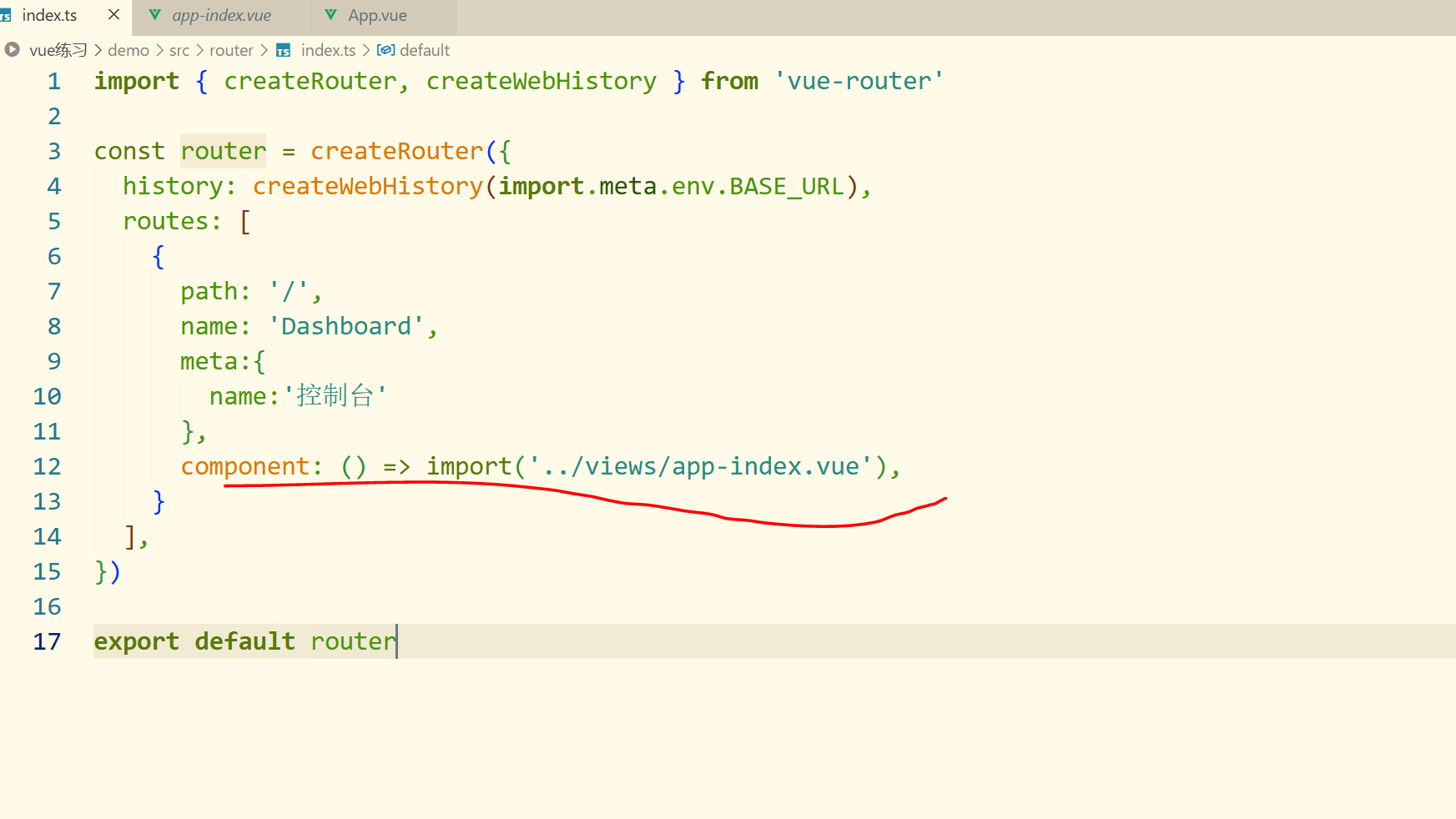

引入路由和对路由进行拼接

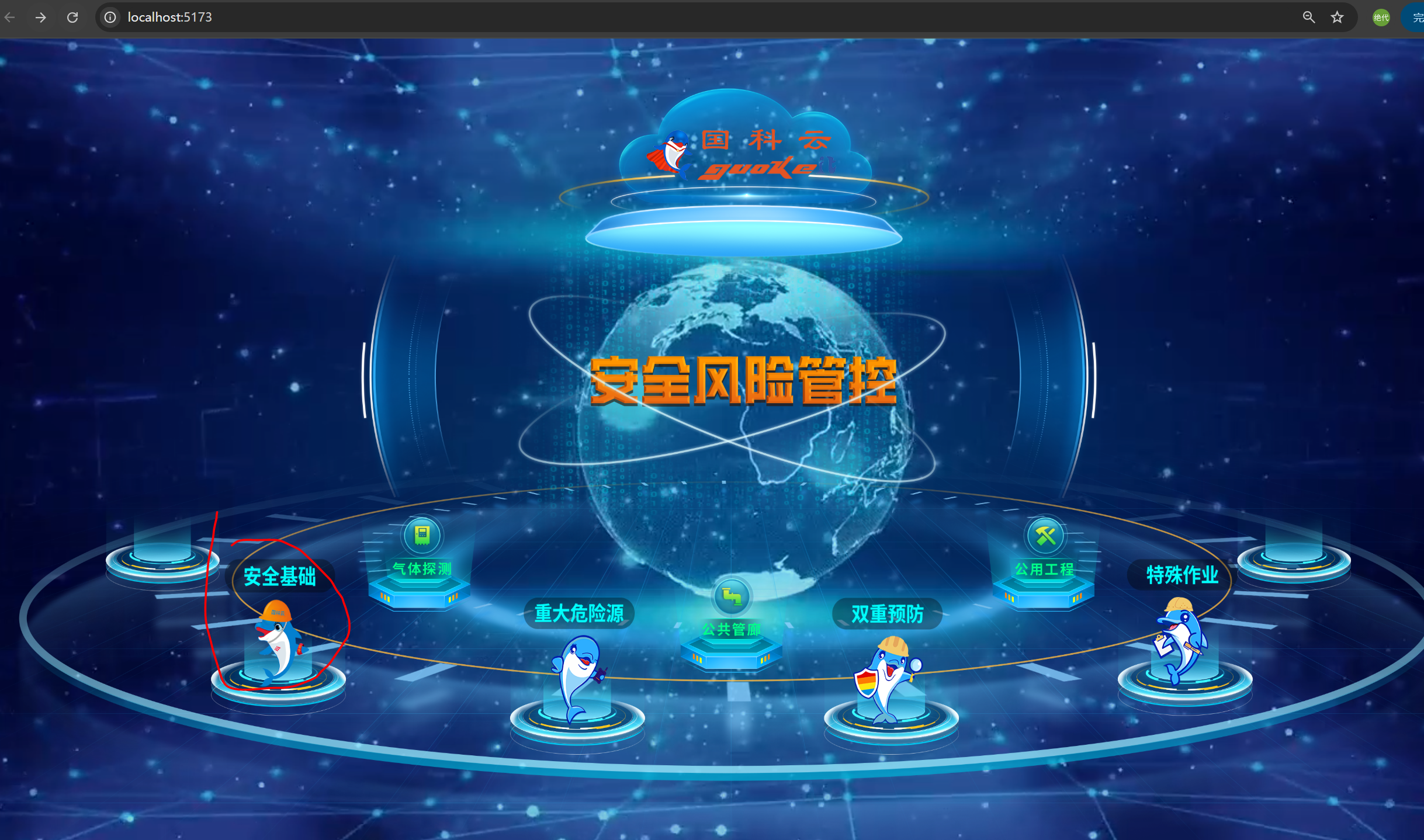

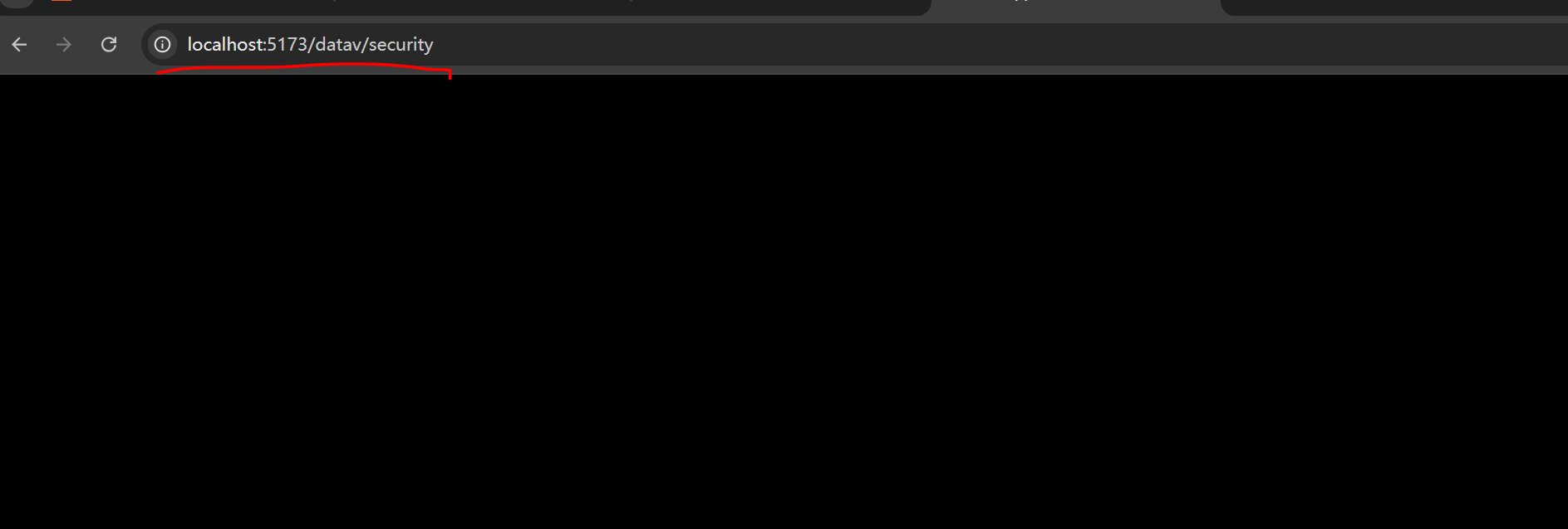

点击后进入

动态创建地图地址，路由，和class

<template><div class="box"><video style="width: 100%;height: 100%;" muted loop autoplay><source src="../assets/dv-index-main.mp4"></video><div class="dv-index-main"><div class="dv-btn-group"><divv-for="(item,index) in btnArr":key="index"class="btn-item":class="[btnClassHandle(item.num)]"@click="btnLinkHandle(item.urlKey)"><img :src="getImageUrl(item.url)" alt=""></div> </div></div></div>
</template><script setup lang="ts">
import { ref } from 'vue'
import { useRouter } from 'vue-router'
const router = useRouter();const btnArr = ref<any>([{num:'one',url:'安全基础.png',urlKey:'datav/security'},{num:'two',url:'重大危险源.png',urlKey:'datav/major-hazard'},{num:'three',url:'双重预防.png',urlKey:'datav/double-prevention-mechanism'},{num:'four',url:'特殊作业.png',urlKey:'datav/double-prevention-mechanism'}
]);
//接收循环的图片名称，然后然后添加路径，url是自定义，用来接收值
const getImageUrl = ( url:string )=>{// 作用是动态生成图片资源的完整URL路径return new URL(`../assets/images/${url}`,import.meta.url).href;
}
//添加动态class， 接收一个字符串参数 key 并返回一个拼接后的类名字符串
const btnClassHandle = ( key:string  )=>{return `btn-item-${key}`;
}
// 添加动态路由
const btnLinkHandle = ( key:string )=>{router.push({path:`/${key}`})
}
</script>

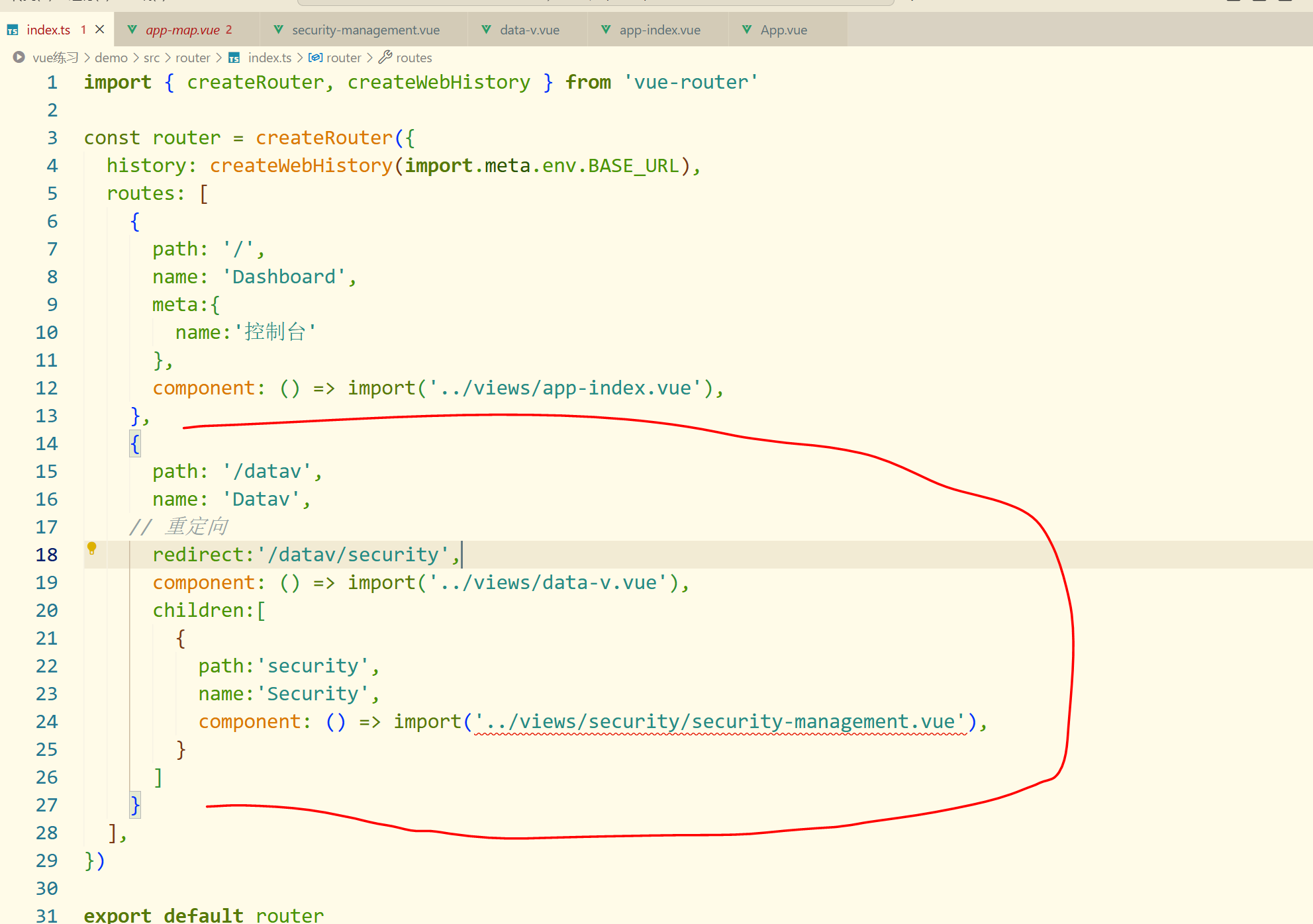

新建子路由

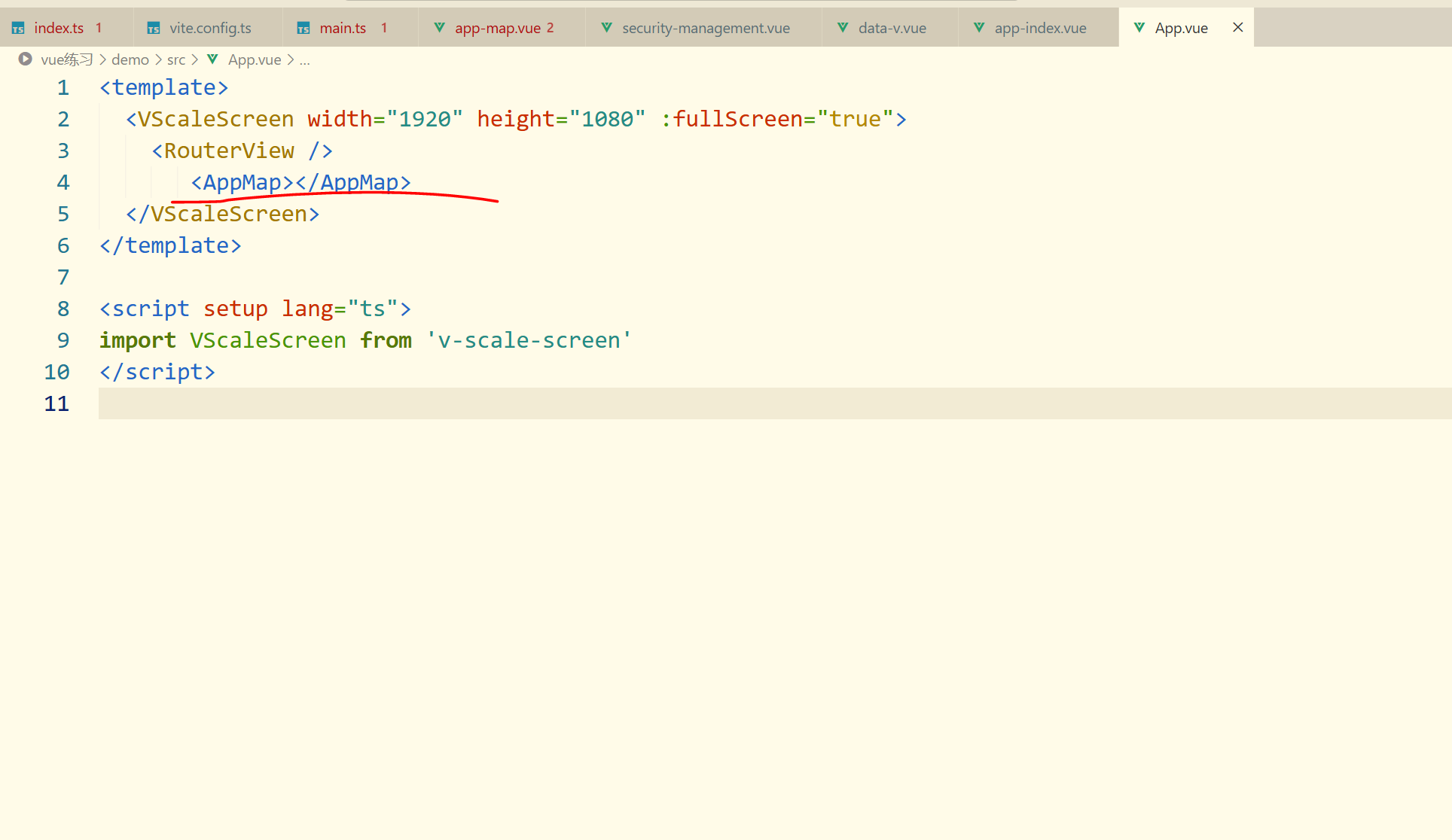

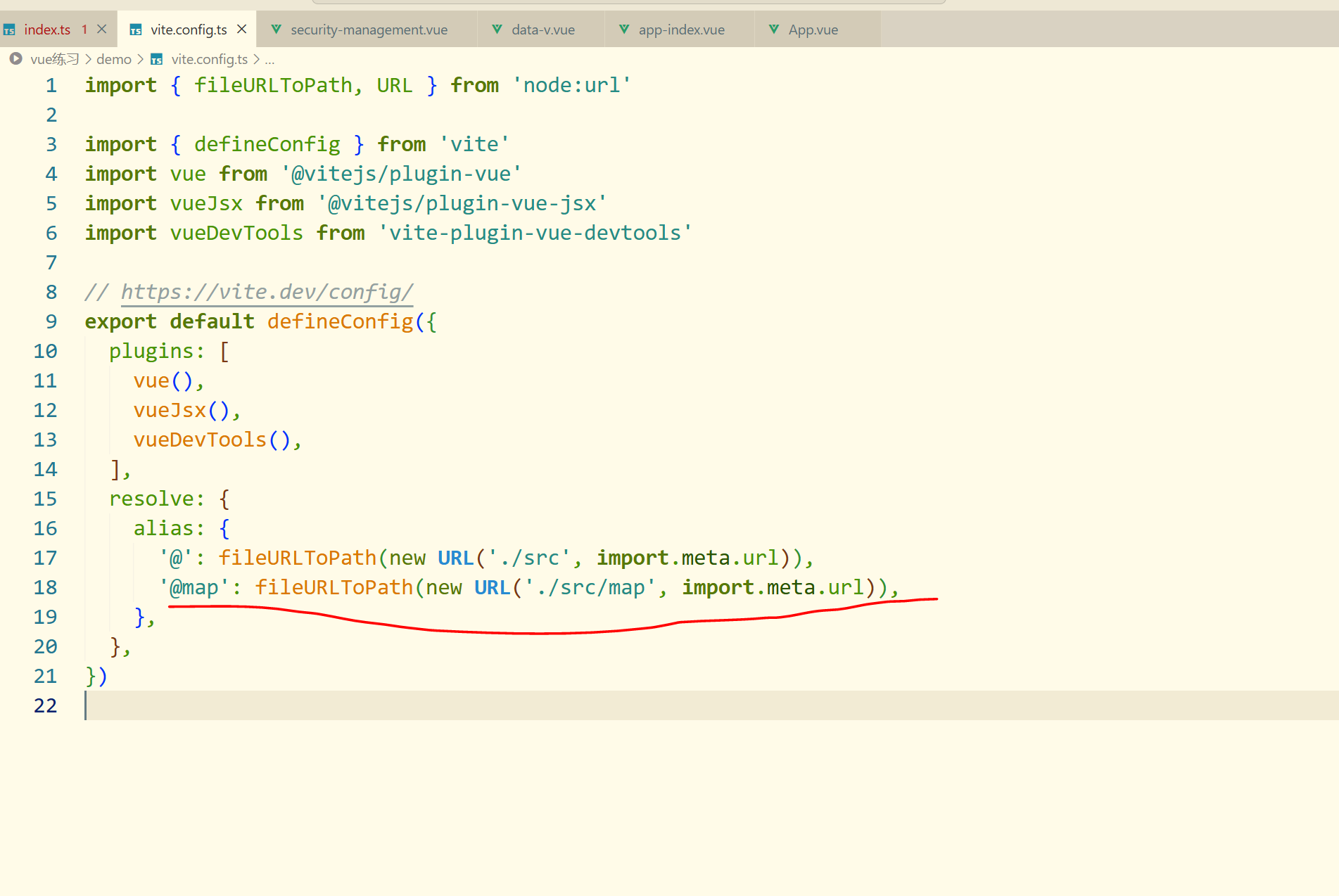

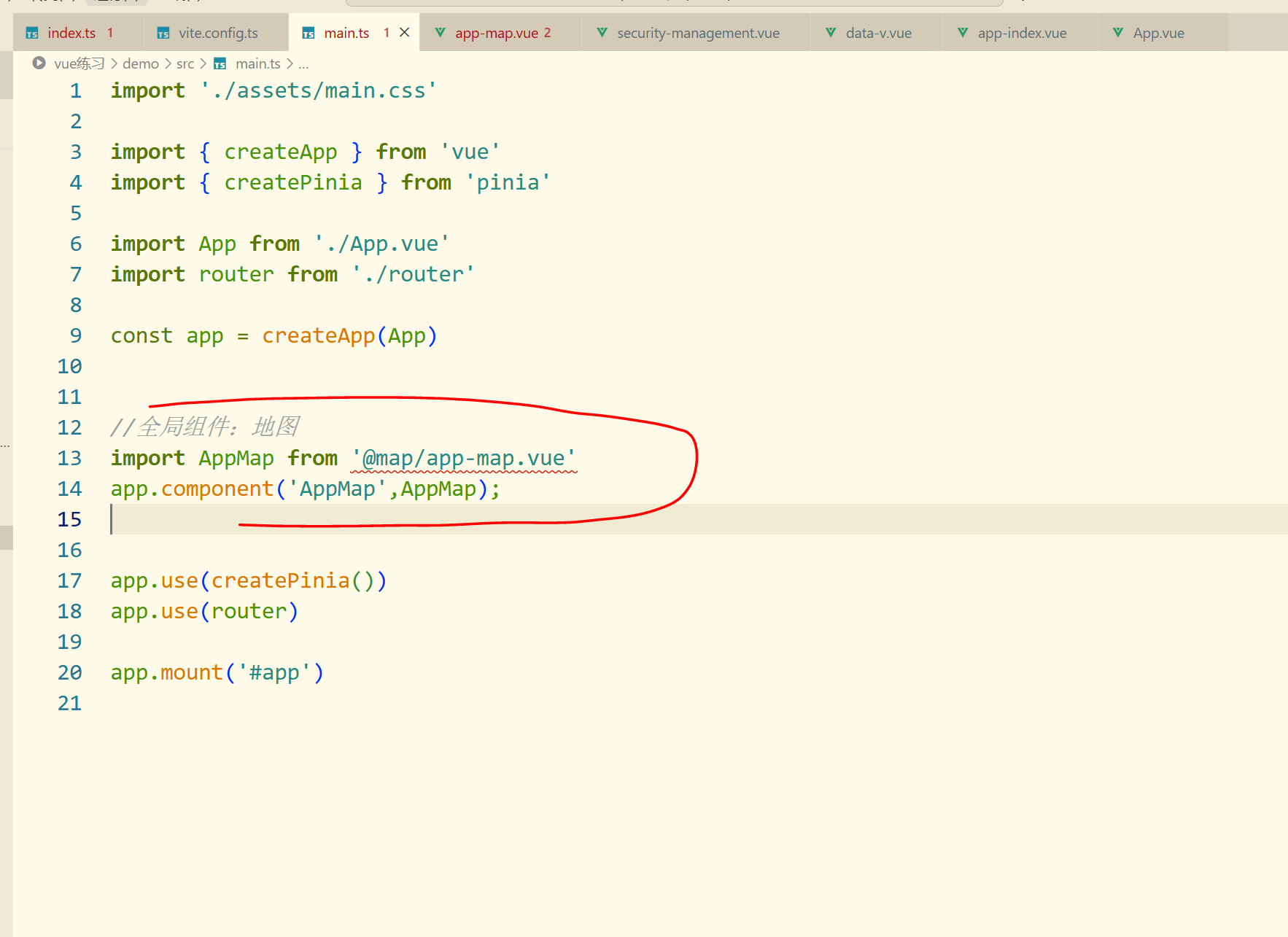

设置地图全局组件

使用：天地图

网址：http://lbs.tianditu.gov.cn/api/js4.0/guide.html

<template><div><div id="tian-map"></div></div>
</template><script setup lang="ts">
import { onMounted } from 'vue';//地图初始化
function initMap(){let T = window.T;//实例化let tmap = new T.Map('tian-map');//初始化地图的位置,经度，维度，大小tmap.centerAndZoom(new T.LngLat(116.40769, 39.89945), 18);//启用地图拖拽tmap.enableDrag();//设置地图类型tmap.setMapType( window.TMAP_SATELLITE_MAP );
}
onMounted(()=>{//1. 创建script标签const script = document.createElement('script');script.src = 'https://api.tianditu.gov.cn/api?v=4.0&tk=2d58761eb6bbdac6095476b73d4d1a82';//2. script标签加载完毕：初始化地图script.onload = initMap;//3. 把script添加到body中document.body.appendChild( script );
})
</script><style scoped>
#tian-map{width: 1920px;height: 1080px;
}
</style>

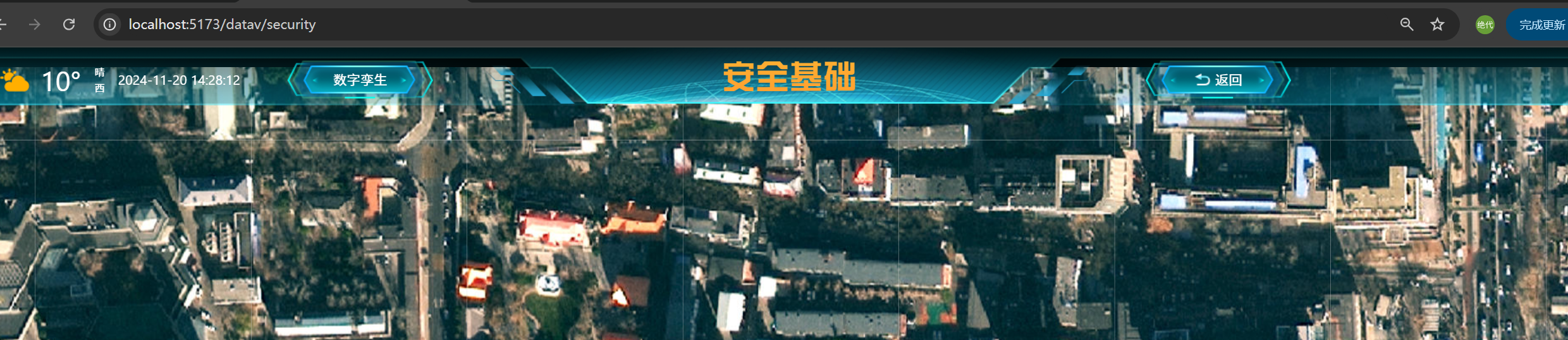

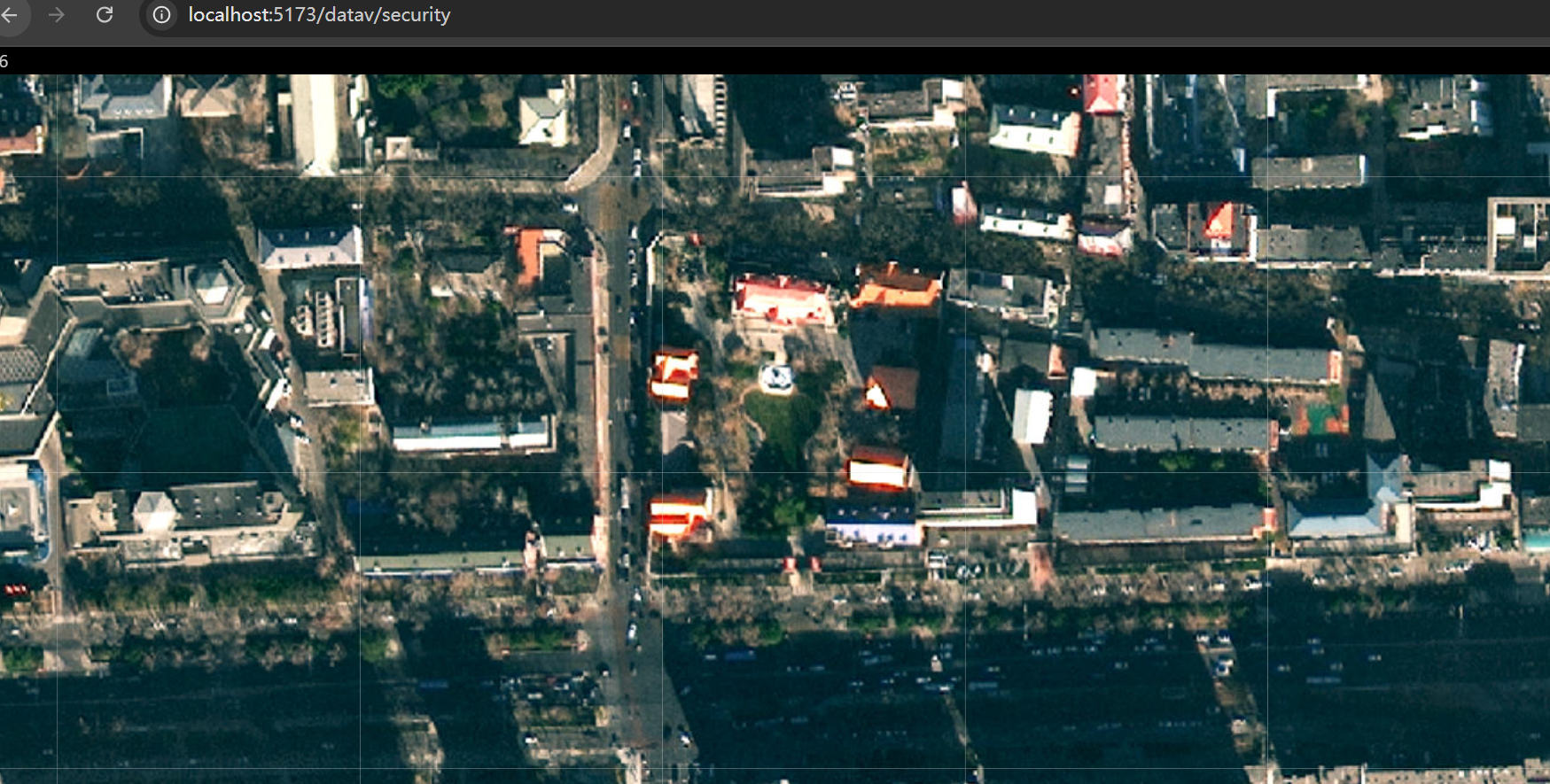

当你点击四个组件就能进去地图的全局组件了

顶部布局

//demo\src\map\app-map.vue
<template><div class="app-header"><div class="app-header-left"><div class="weather"><div class="tep">10°</div><div class="weater-desc"><p>晴</p><p>西</p></div><div class="text-base">2024-11-20 14:28:12</div></div><a class="nav-button">数字孪生</a></div><div class="app-header-center">安全基础</div><div class="app-header-right"><div class="nav-button"><span class="back-btn">返回</span></div></div></div>
</template><style scoped lang="scss">
.app-header{display: flex;justify-content: space-between;align-items: center;position: fixed;width: 100%;height: var(--app-header-height);left: 0;top: 0;color: #ffb432;background-image:url(../assets/images/顶部导航背景.png),linear-gradient(to bottom, rgba(0, 0, 0, .1), rgba(0, 0, 0, .01));background-repeat: no-repeat;background-position: center 0;background-size: auto 100%;z-index: 1000;
}
.app-header-left{width: 28%;height: 68px;margin-top: 8px;display: flex;justify-content: space-between;align-items: center;color: #fff;.weather{display: flex;align-items: center;justify-content: space-around;;.tep{font-size: 33px;padding-left: 72px;background-image: url(../assets/images/duoyun.png);background-repeat: no-repeat;background-position: 24px center;}.weater-desc{font-size: 12px;padding-left: 1rem;padding-right: 1rem;}.text-base{font-size: 1rem;line-height: 1.5rem;}}
}
.nav-button{width: 173px;height: 46px;line-height: 46px;font-size: 16px;text-align: center;color: #fff;background-image: url(../assets/images/导航按钮.png);background-position: center;background-repeat: no-repeat;cursor: pointer;
}
.app-header-center{line-height: 72px;font-size: 40px;background-image: linear-gradient(to bottom, #ffb432, #ff9b2f);background-clip: text;color: transparent;font-family: c-huakang;
}
.app-header-right{width: 28%;height: 68px;margin-top: 8px;display: flex;justify-content: space-between;align-items: center;.back-btn{padding-left: 24px;background-image: url(../assets/images/返回.png);background-repeat: no-repeat;background-position: 0 center;}
}
</style>

axios二次封装

安装

//demo\src\App.vuenpm i axios

App.vue → 调用 → safe.ts 中的 getHazard() → 调用 → request.ts 中的 http.get()
App.vue

<template><VScaleScreen width="1920" height="1080" :fullScreen="true"><RouterView /><AppMap></AppMap></VScaleScreen>
</template><script setup lang="ts">
import VScaleScreen from 'v-scale-screen'
import { getHazard } from '@/api/safe'getHazard({companyId:0
}).then(res=>{console.log( 111,res )
})</script>

safe.ts

//demo\src\api\safe.ts
import http from '@/utils/request'export const getHazard = ( data:any )=>{return http.get('dv3/safe/get-hazard',data);
}

request.ts

//demo\src\utils\request.ts
import axios from 'axios'// 请求数据的地址
const request = axios.create({baseURL: 'http://39.100.95.39:8089/',timeout: 5000
});// 添加请求拦截器
request.interceptors.request.use(function (config) {// 在发送请求之前做些什么return config;
}, function (error) {// 对请求错误做些什么return Promise.reject(error);
});// 添加响应拦截器
request.interceptors.response.use(function (response) {// 2xx 范围内的状态码都会触发该函数。// 对响应数据做点什么return response.data;
}, function (error) {// 超出 2xx 范围的状态码都会触发该函数。// 对响应错误做点什么return Promise.reject(error);
});// 封装get和post两个方法，方便灵活应用
const http ={get( url:string , data:any ){return new Promise((resolve,reject)=>{request.get(url,{params:data}).then((res)=>{resolve(res)}).catch((error)=>{reject(error);})})},post( url:string , data:any ){return new Promise((resolve,reject)=>{request.post(url, data).then((res)=>{resolve(res)}).catch((error)=>{reject(error);})})}
}
// 暴露出去
export default http;

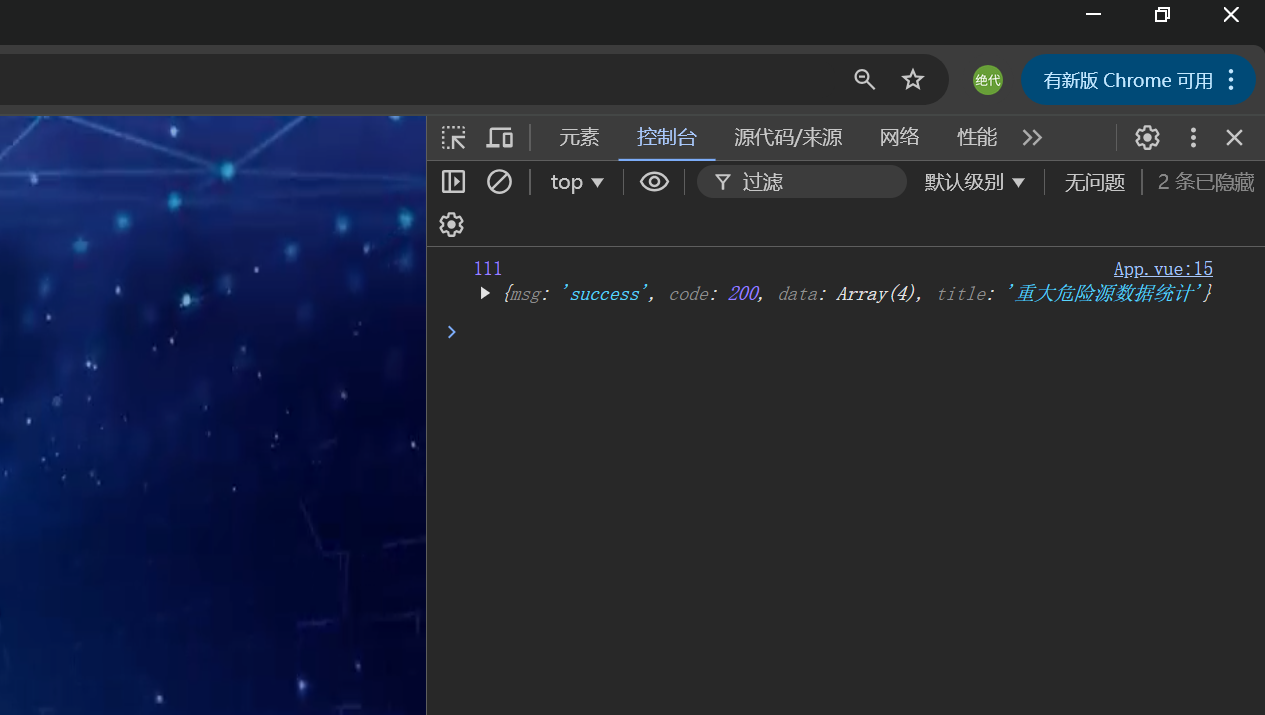

得到接口数据

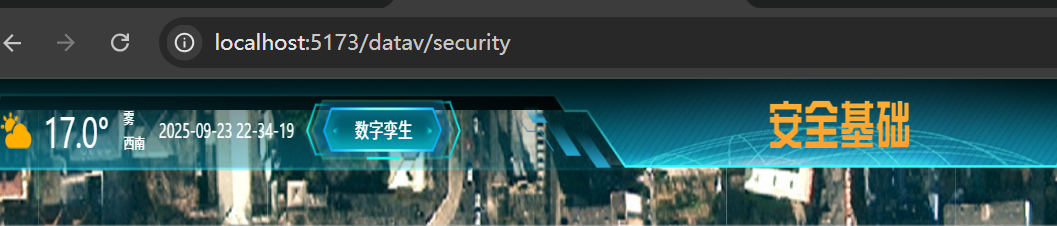

通过接口渲染天气和时间

使用请求回来的数据，进行渲染

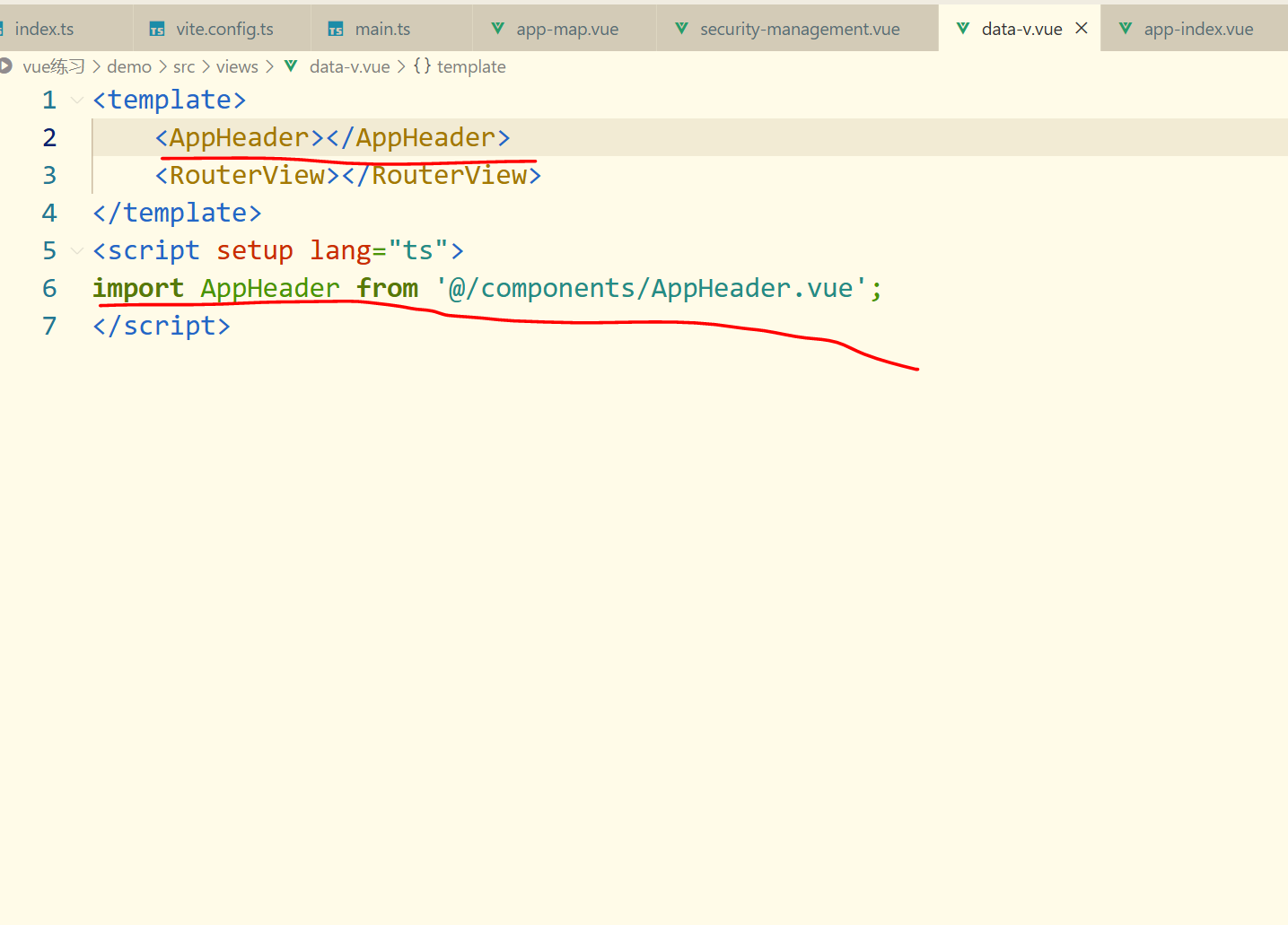

//demo\src\components\AppHeader.vue
<template><div class="app-header"><div class="app-header-left"><div class="weather"><div class="tep">{{ state.weather.temperature_float }}°</div><div class="weater-desc"><p>{{ state.weather.weather }}</p><p>{{ state.weather.winddirection }}</p></div><div class="text-base">{{ state.currentTime }}</div></div><a class="nav-button">数字孪生</a></div><div class="app-header-center">安全基础</div><div class="app-header-right"><div class="nav-button"><span class="back-btn">返回</span></div></div></div>
</template><script setup lang="ts">
import { onMounted  } from 'vue';
// 引用useFunction.ts的getApiAxios();updateTime();，再触发这个函数
import { useFunction } from '@/hooks/useFunction'
let { state , updateTime , getApiAxios } = useFunction();
onMounted(()=>{getApiAxios();updateTime();setInterval(updateTime,1000);
})
</script><style scoped lang="scss">
.app-header{display: flex;justify-content: space-between;align-items: center;position: fixed;width: 100%;height: var(--app-header-height);left: 0;top: 0;color: #ffb432;background-image:url(../assets/images/顶部导航背景.png),linear-gradient(to bottom, rgba(0, 0, 0, .1), rgba(0, 0, 0, .01));background-repeat: no-repeat;background-position: center 0;background-size: auto 100%;z-index: 1000;
}
.app-header-left{width: 28%;height: 68px;margin-top: 8px;display: flex;justify-content: space-between;align-items: center;color: #fff;.weather{display: flex;align-items: center;justify-content: space-around;;.tep{font-size: 33px;padding-left: 72px;background-image: url(../assets/images/duoyun.png);background-repeat: no-repeat;background-position: 24px center;}.weater-desc{font-size: 12px;padding-left: 1rem;padding-right: 1rem;}.text-base{font-size: 1rem;line-height: 1.5rem;}}
}
.nav-button{width: 173px;height: 46px;line-height: 46px;font-size: 16px;text-align: center;color: #fff;background-image: url(../assets/images/导航按钮.png);background-position: center;background-repeat: no-repeat;cursor: pointer;
}
.app-header-center{line-height: 72px;font-size: 40px;background-image: linear-gradient(to bottom, #ffb432, #ff9b2f);background-clip: text;color: transparent;font-family: c-huakang;
}
.app-header-right{width: 28%;height: 68px;margin-top: 8px;display: flex;justify-content: space-between;align-items: center;.back-btn{padding-left: 24px;background-image: url(../assets/images/返回.png);background-repeat: no-repeat;background-position: 0 center;}
}
</style>

通过默认get请求，获取接口数据

//demo\src\hooks\useFunction.ts
import { reactive } from "vue"
import axios from 'axios'
export function useFunction(){const getApiAxios = ()=>{try {axios({url:'https://restapi.amap.com/v3/weather/weatherInfo',params:{key:'a5613e113fa97e8f6b9903990b124f71',city:'110000'}}).then(res=>{let { data } = res;state.weather = data.lives[0];console.log( state.weather )})} catch (error) {console.log( error );}}//获取时间，时间没有使用接口数据function getCurrentDateTime(){const now = new Date();const year = now.getFullYear();const month = String( now.getMonth() + 1 ).padStart(2,'0');const day = String(now.getDate()).padStart(2,'0');const hours = String(now.getHours()).padStart(2,'0');const minutes = String(now.getMinutes()).padStart(2,'0');const seconds = String(now.getSeconds()).padStart(2,'0');const formattedDate = `${year}-${month}-${day}`;const formattedTime = `${hours}-${minutes}-${seconds}`;return `${formattedDate} ${formattedTime}`;}function updateTime(){state.currentTime = getCurrentDateTime();}const state = reactive({weather:{},currentTime:''});return {state,updateTime,getApiAxios,getCurrentDateTime}
}

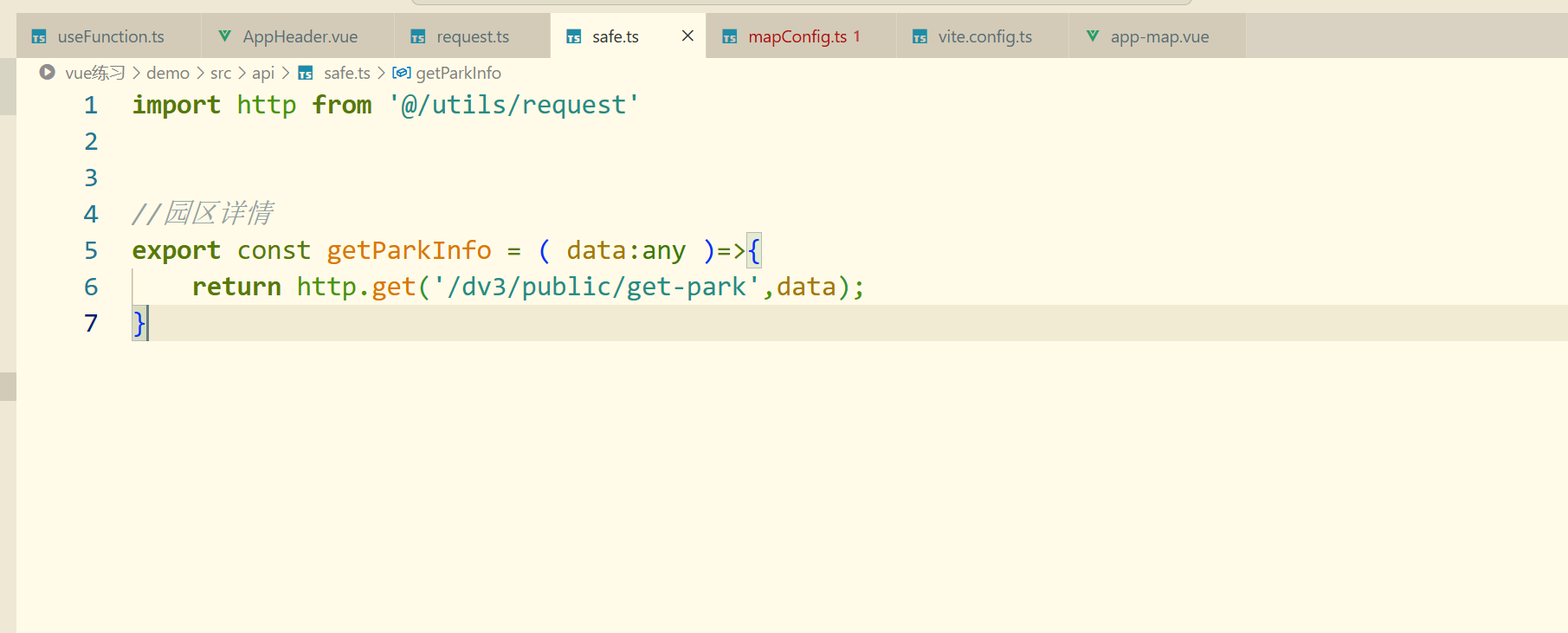

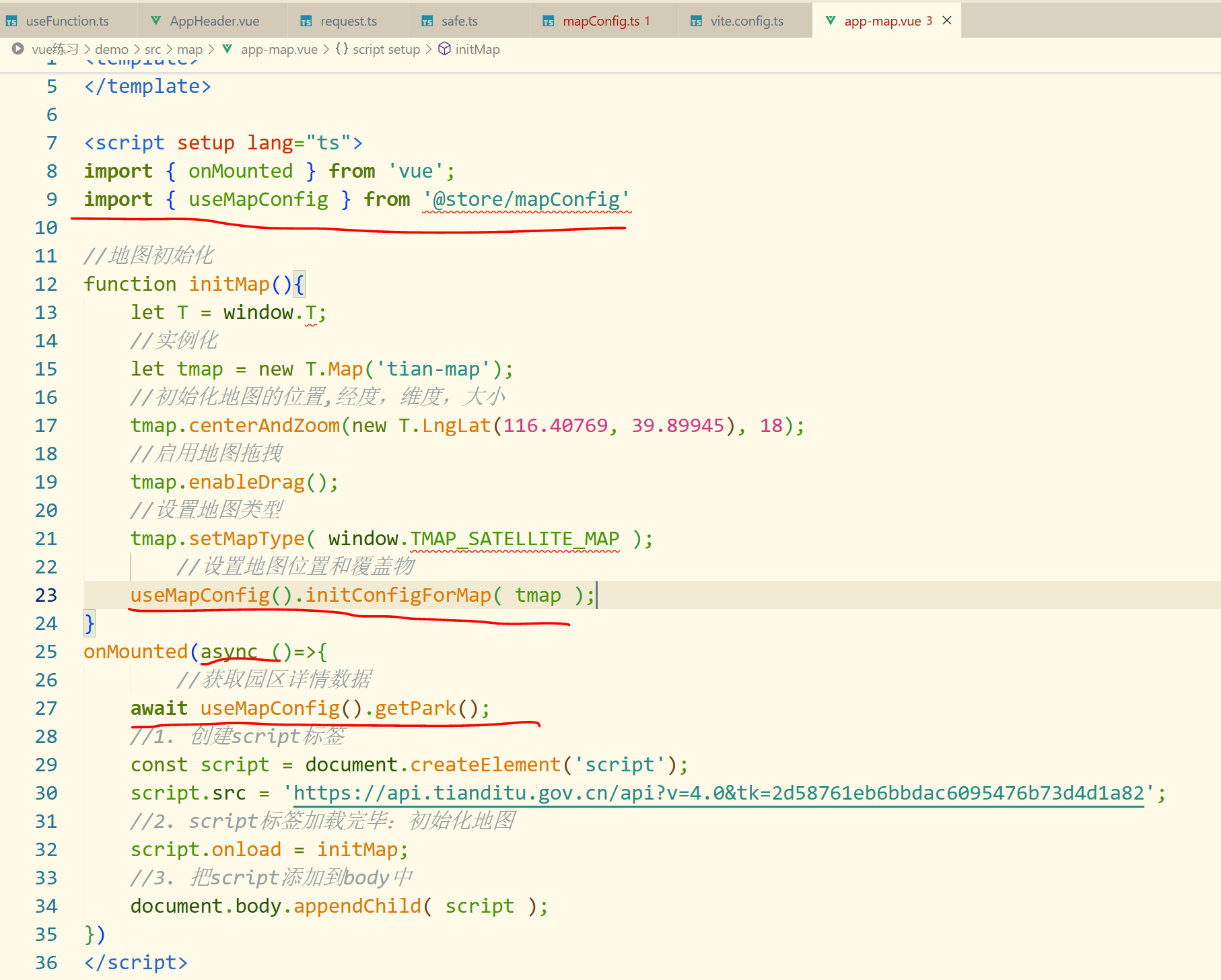

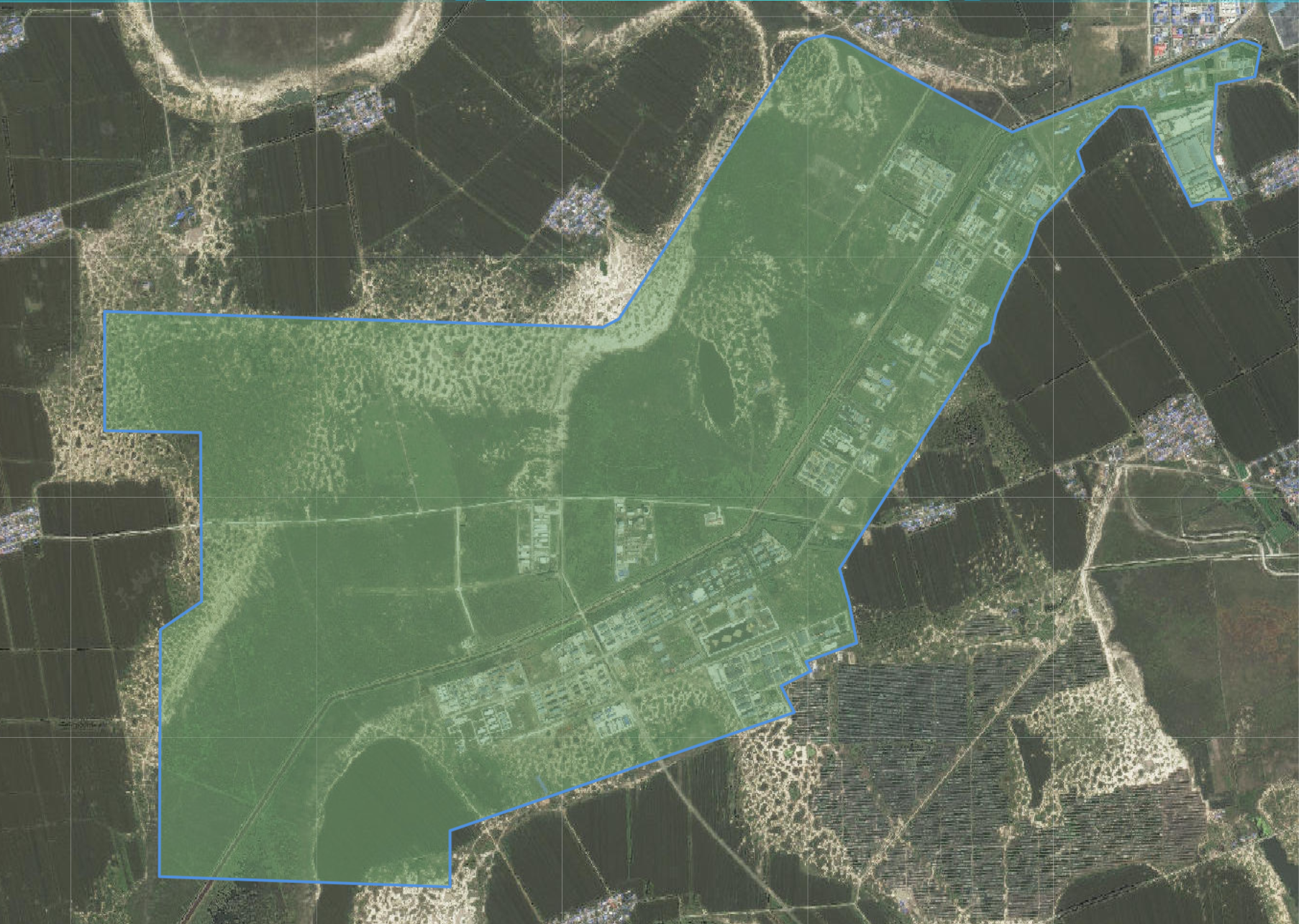

修改地图位置和添加覆盖物

    //获取园区详情数据，useMapConfig是store 实例，挂载触发
await useMapConfig().getPark();

步骤
1,获取园区信息，经纬度等等。
2，覆盖物重构
3，设置多边形覆盖物的位置
4，添加到地图上app-map.vue

//demo\src\stores\mapConfig.ts
import { defineStore } from 'pinia'
import { ref } from 'vue'
import { getParkInfo } from '@api/safe'
// 创建一个新的 store 实例
export const useMapConfig = defineStore('mapConfig',()=>{//园区信息const parkInfo = ref();async function getPark(){let res = await getParkInfo({// 支持未来多园区切换companyId:0})parkInfo.value = res.data;console.log( parkInfo.value  )}//园区中心let parkCenter = ref<any>();//园区边界let parkPolygonPath = ref<any>();//园区图形let parkPolygon = ref<any>();function initConfigForMap( map:any ){// 园区中心点parkCenter.value = new T.LngLat( parkInfo.value?.longitude , parkInfo.value?.latitude );//覆盖物数据重构,使数据格式适合使用。// 第一次分割：分号分隔多个坐标点// 第二次分割：逗号分隔经纬度// 坐标对象创建，map((p) => new T.LngLat(...p)) // 原始数据: "116.1,39.1;116.2,39.2;116.3,39.3"// → split(';'): ["116.1,39.1", "116.2,39.2", "116.3,39.3"]  // → map(split(',')): [["116.1","39.1"], ["116.2","39.2"], ["116.3","39.3"]]// → map(T.LngLat): [T.LngLat(116.1,39.1), T.LngLat(116.2,39.2), T.LngLat(116.3,39.3)]parkPolygonPath.value = parkInfo.value.boundaries[0].value.split(';')           .map((p) => p.split(',')) .map((p) => new T.LngLat(...p)) //多边形覆盖物parkPolygon.value = new T.Polygon( parkPolygonPath.value ,{weight: 3,color: parkInfo.value?.boundaries[0].options.sideFillColor,opacity: 1,fillColor: parkInfo.value?.boundaries[0].options.topFillColor || '#6d9f6a',fillOpacity: 0.5})addParkForMap( map );}//地图添加园区function addParkForMap( map:any ){// 地图中心定位，?. 操作符防止未加载数据时的错误map.panTo( new T.LngLat( parkInfo.value?.longitude , parkInfo.value?.latitude ) );// 调整地图视野map.setViewport( parkPolygonPath.value );//将覆盖物添加到地图中map.addOverLay( parkPolygon.value );}return {getPark,initConfigForMap}
})

数据栏布局

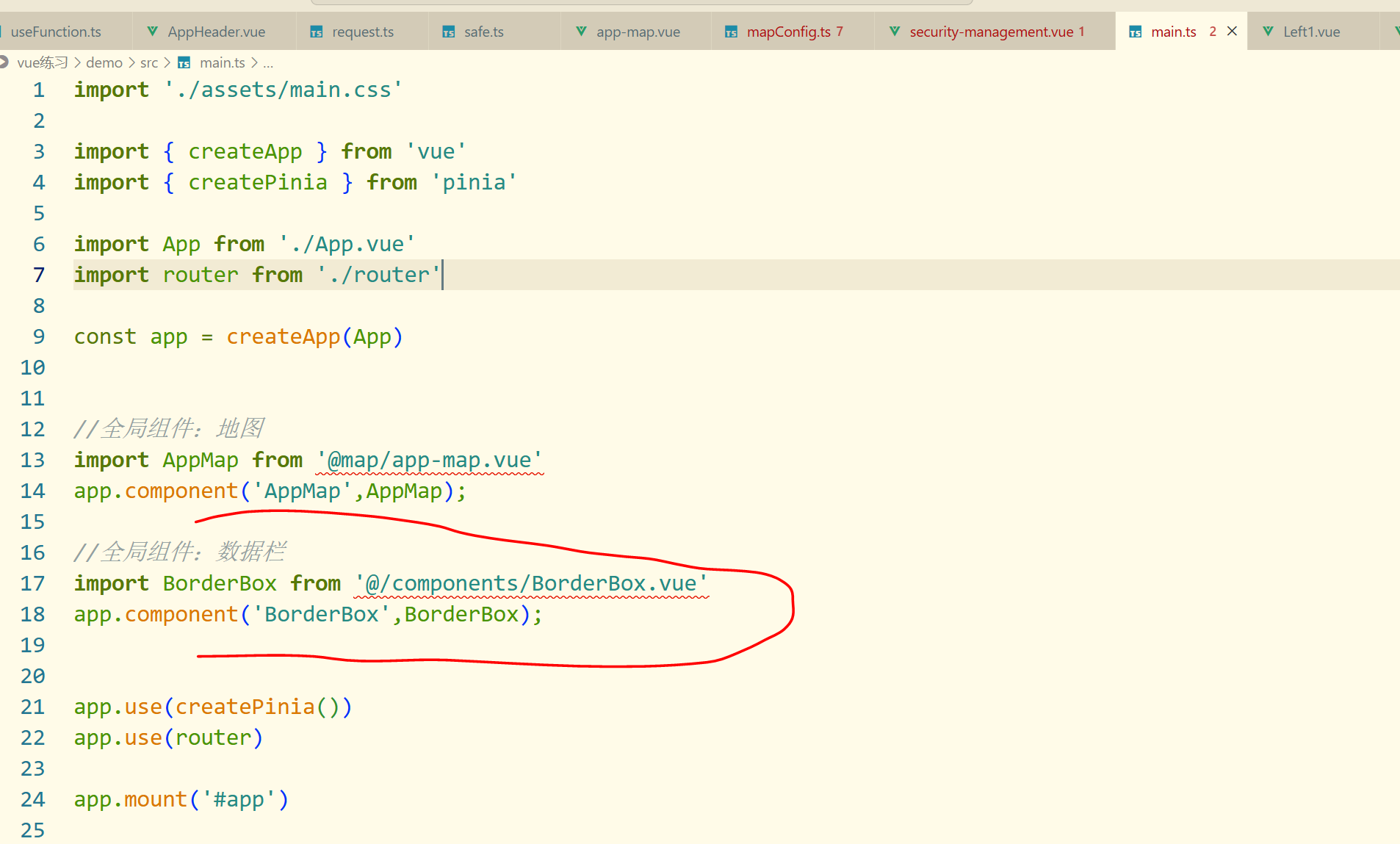

建立全局组件

<template><div class="border-box"><div class="border-box-title font-ssr" v-text="title"></div><slot></slot></div>
</template><script setup lang="ts">
defineProps<{title:string}>()
</script><style scoped lang="scss">
.border-box{position: relative;width:424px;min-height: 160px;background-image: url(@/assets/border-box-1/border-title.png),url(@/assets/border-box-1/border-bottom.png);background-position: 0 0,0 bottom;background-repeat: no-repeat;background-color: rgba(0,42,64,.4);.border-box-title{height: 36px;line-height: 36px;padding-left: 24px;color:#fff;font-size:16px;}
}
</style>

left1.vue

<template><div>这是第一个图表</div>
</template>

security-management.vue

demo\src\views\security\security-management.vue
<template><div class="layout-left"><div class="count-box"><span class="font-ssr">装置最大检修总数</span><span class="font-ssb text-white">27</span></div><border-box title="两重点一重大"><Left1 /></border-box><border-box title="安全三同时报告"><Left1 /></border-box><border-box title="面积规模"><Left1 /></border-box></div><div class="layout-right"><border-box title="两重点一重大"><Left1 /></border-box><border-box title="安全三同时报告"><Left1 /></border-box><border-box title="面积规模"><Left1 /></border-box></div>
</template><script setup lang="ts">
import Left1 from './components/Left1.vue'
</script><style scoped lang="scss">
.count-box{position: absolute;top:-4px;left:calc(100% + 14px);padding: 14px 32px;display: flex;align-items: center;background-image: url('@/assets/images/总数统计背景.png');background-repeat: no-repeat;background-position: center;background-size: 100% 100%;white-space: nowrap;.font-ssr{font-size:14px;color: #a2f4fe;}.font-ssb{padding-left: 12px;font-size: 24px;color: #fff;}}
</style>

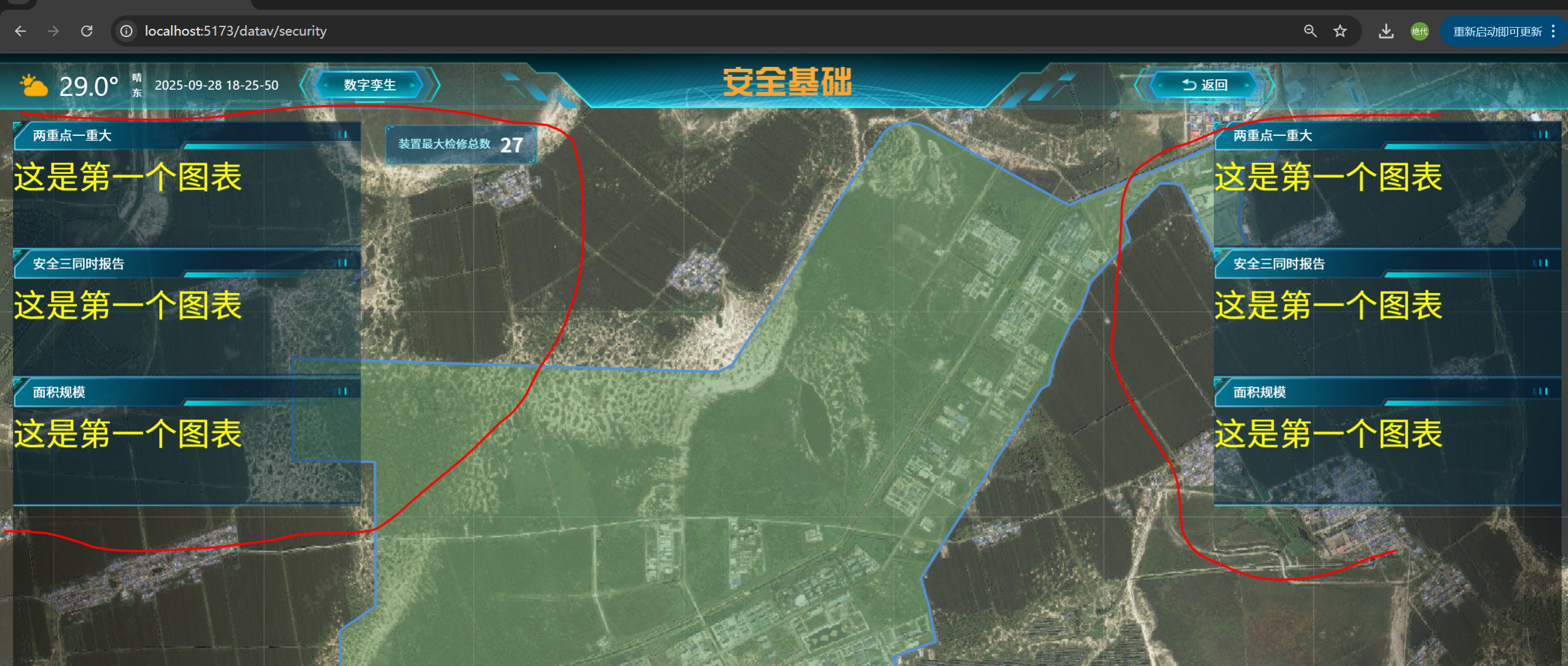

效果

TailwindCSS

Tailwind CSS 是一个功能优先的、低级别的 CSS 框架，它让你能够通过直接在 HTML 中编写预定义的类来快速构建自定义的用户界面。
把它想象成一个巨大的、可复用的 CSS 工具包，而不是预先制作好的组件（如 Bootstrap 的按钮、导航栏）。

安装

npm install -D tailwindcss postcss autoprefixer
npx tailwindcss init

在 v4 版本中，tailwindcss init 命令已经被移除了，所以要安装版本v3

npm install -D tailwindcss@^3.4.0 postcss autoprefixer

安装后会出现一个文件

//demo\tailwind.config.js
/** @type {import('tailwindcss').Config} */
export default {content: [],theme: {extend: {},},plugins: [],
}

添加

/** @type {import('tailwindcss').Config} */
export default {// 扫描 index.html 文件	// 扫描 src 目录下所有的 Vue/JS/TS/JSX/TSX 文件content: ['./index.html', './src/**/*.{vue,js,ts,jsx,tsx}'],theme: {extend: {}},plugins: []
}

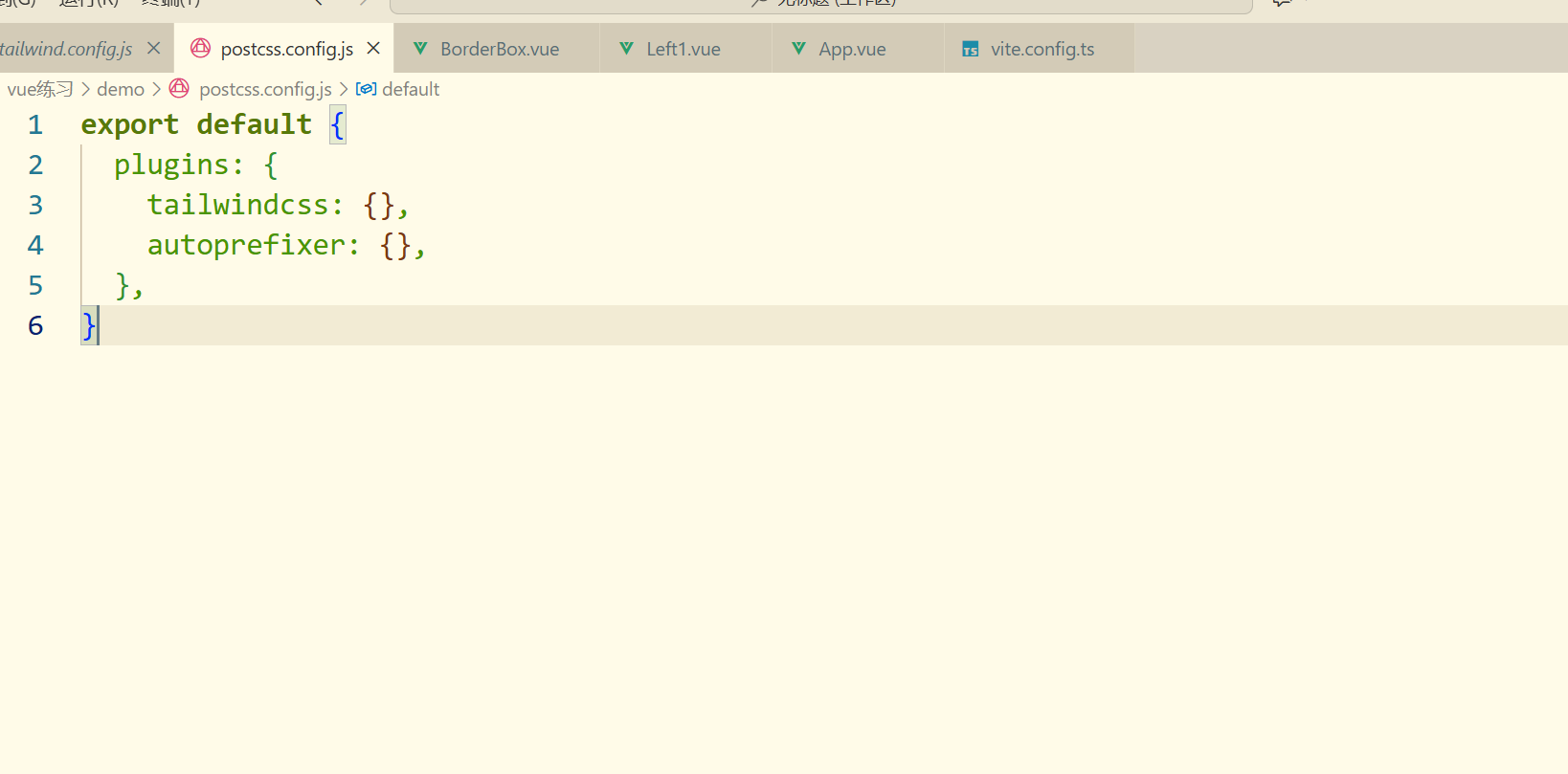

新建一个文件，这是官网上的代码

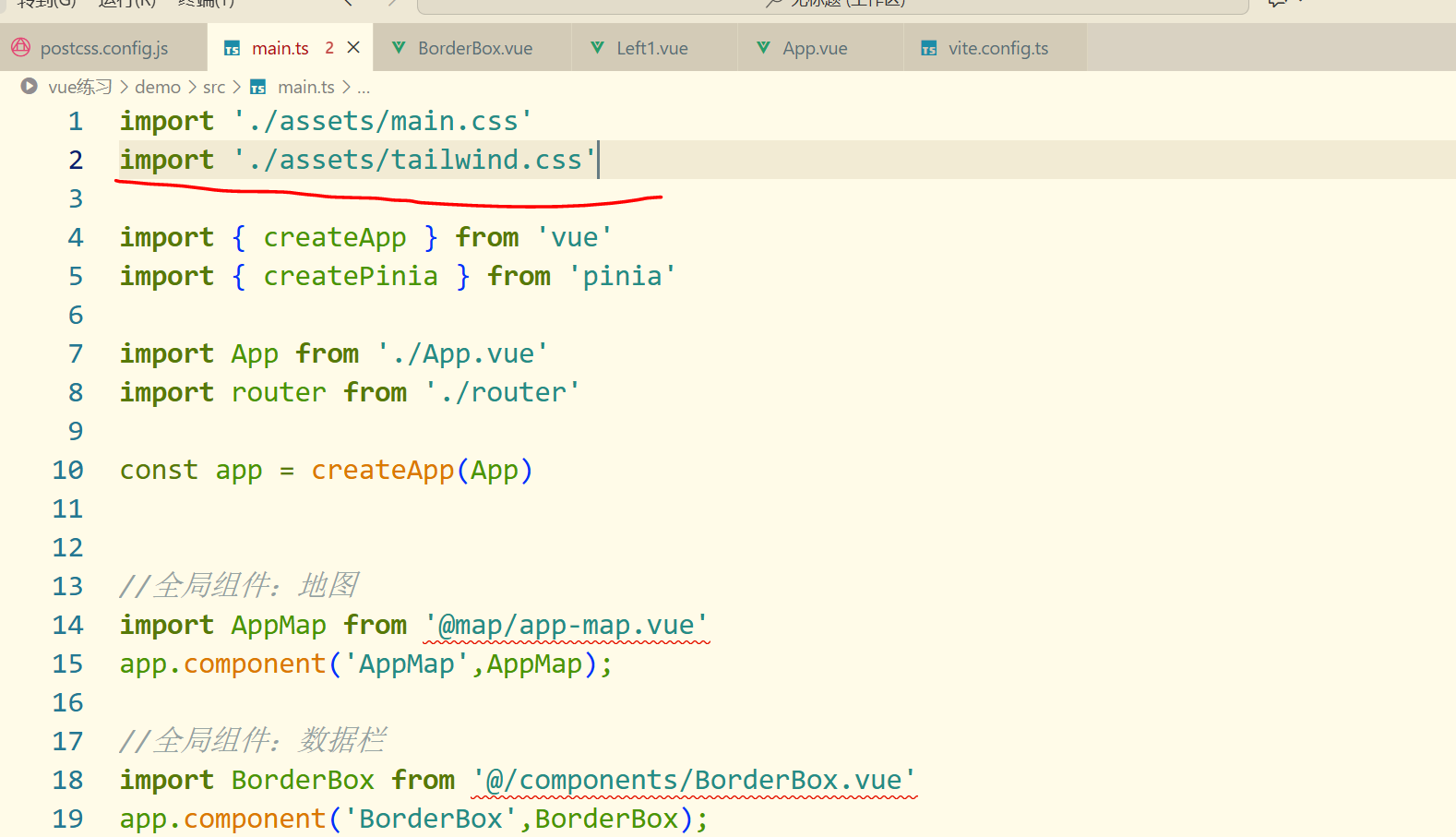

引入

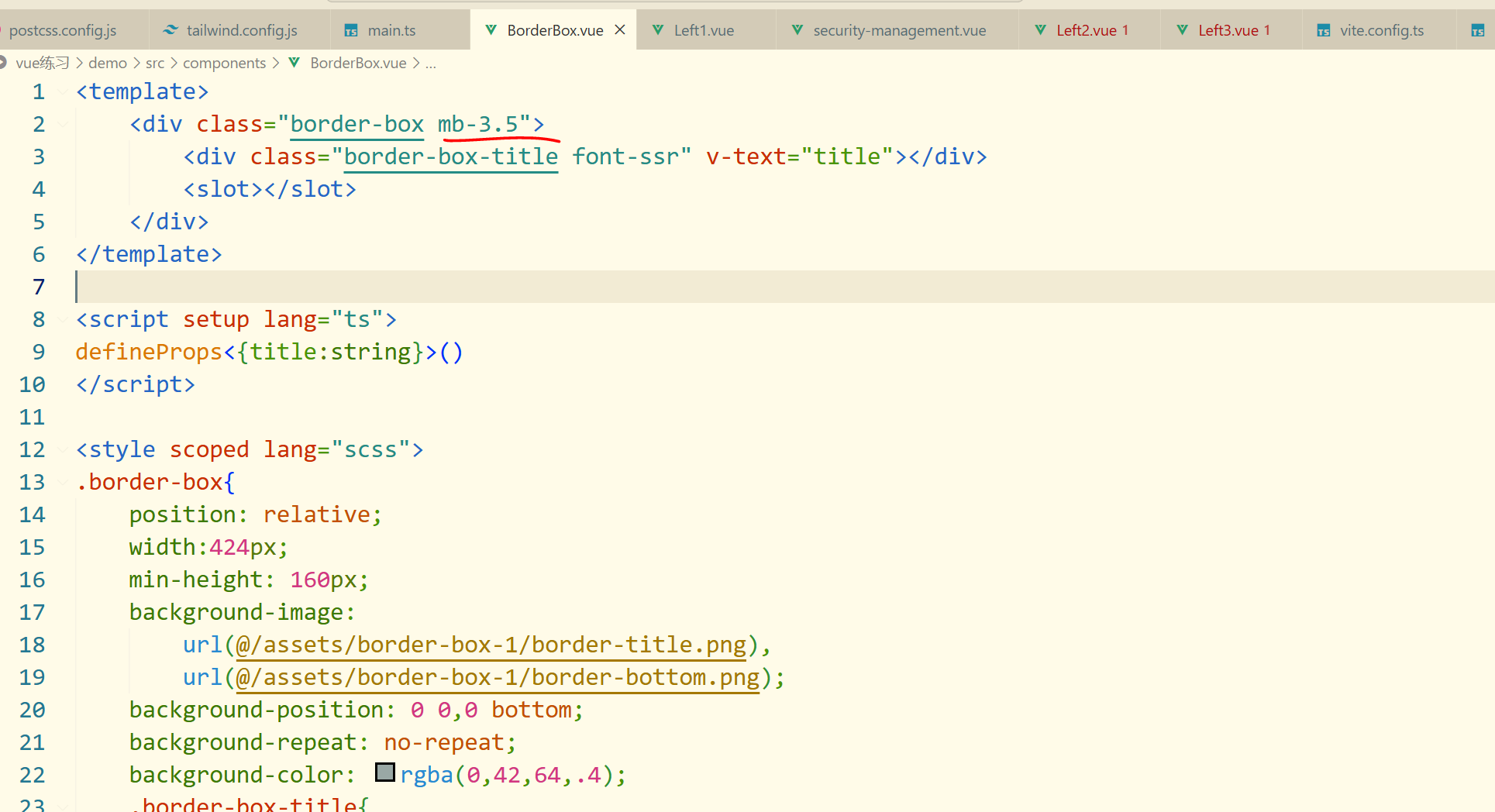

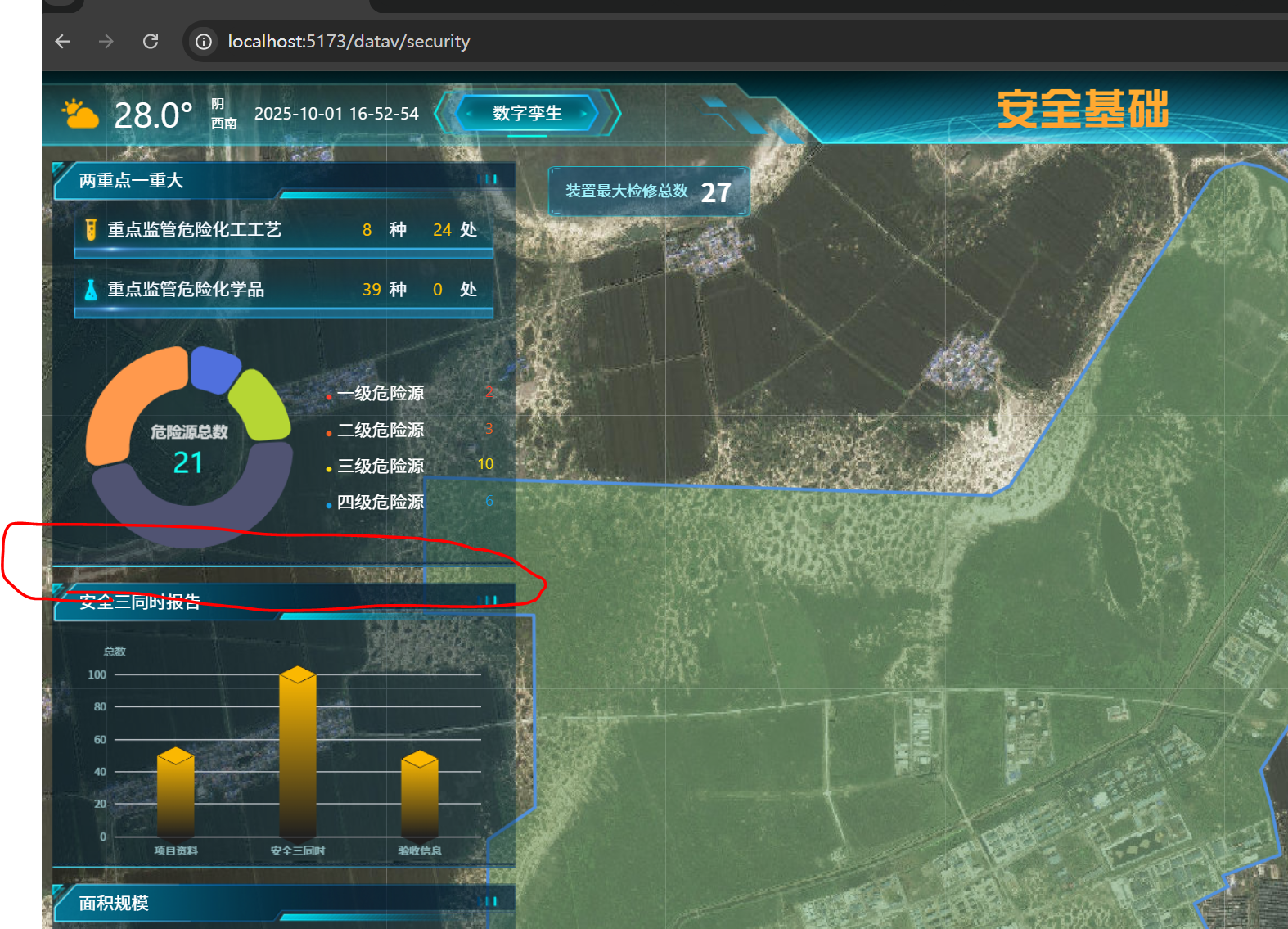

加上组件的间距

这样就有间距了

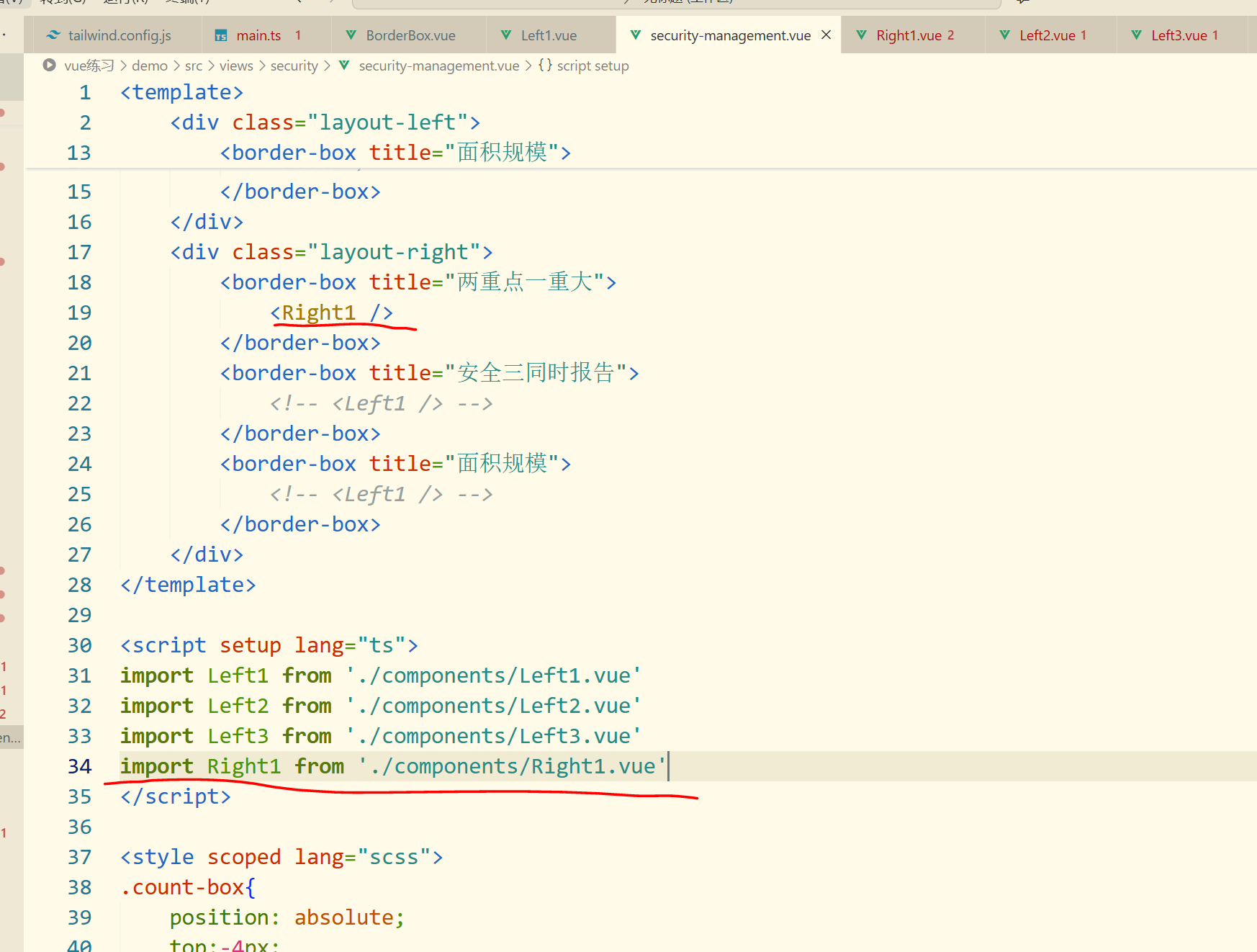

两重点一重大的内容添加

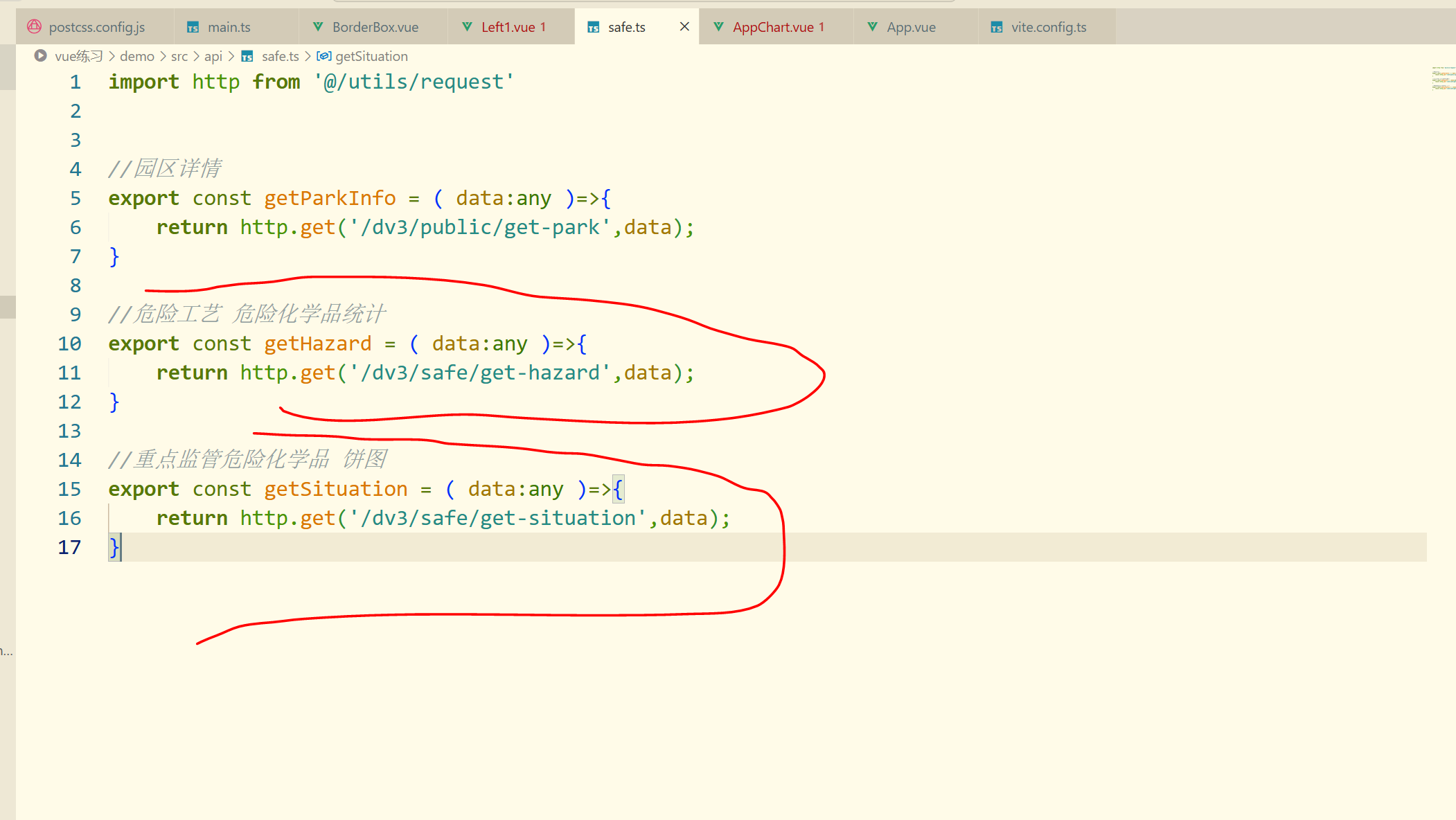

添加请求获取数据

下载引入npm install echarts import * as echarts from 'echarts'

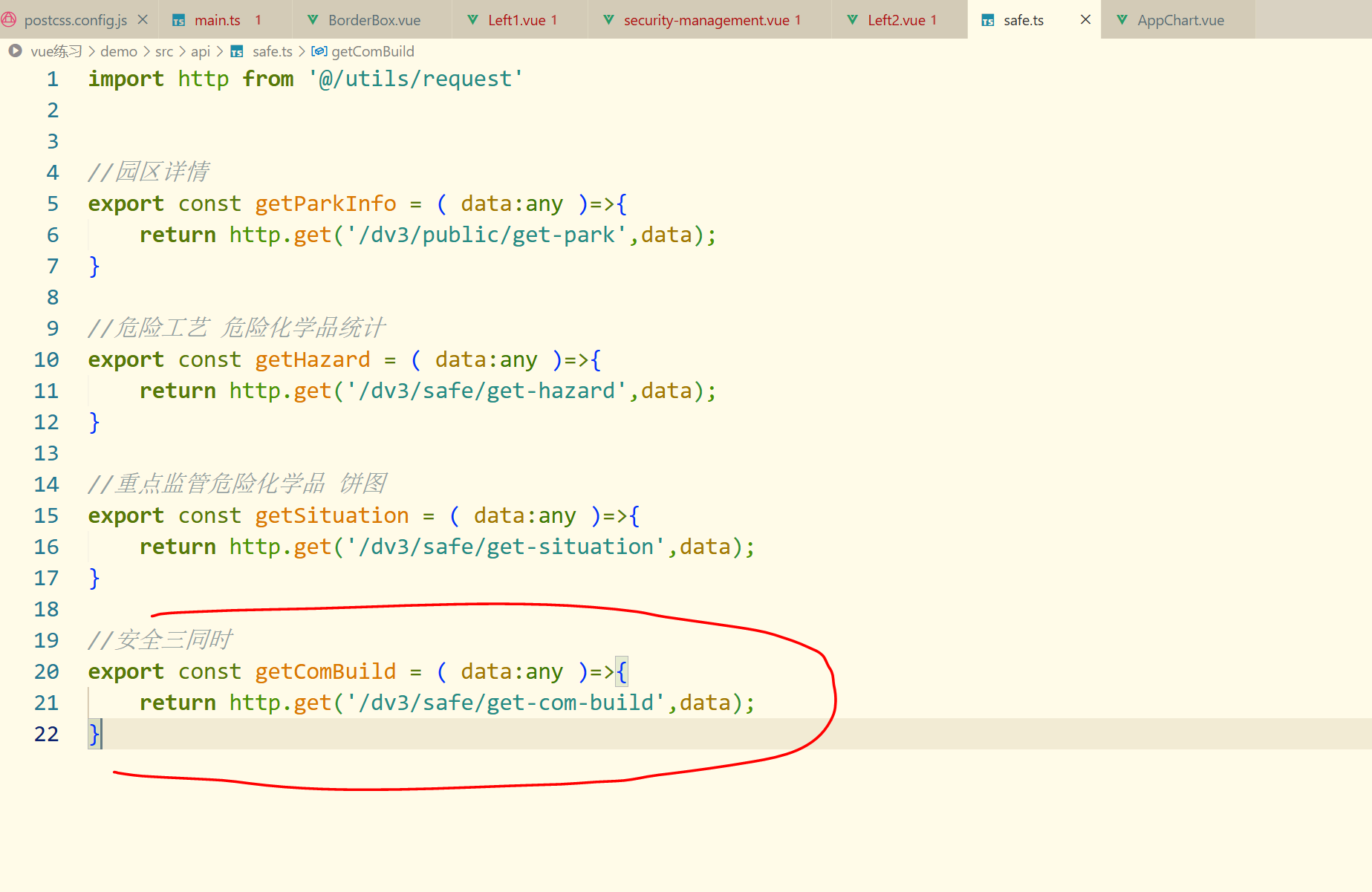

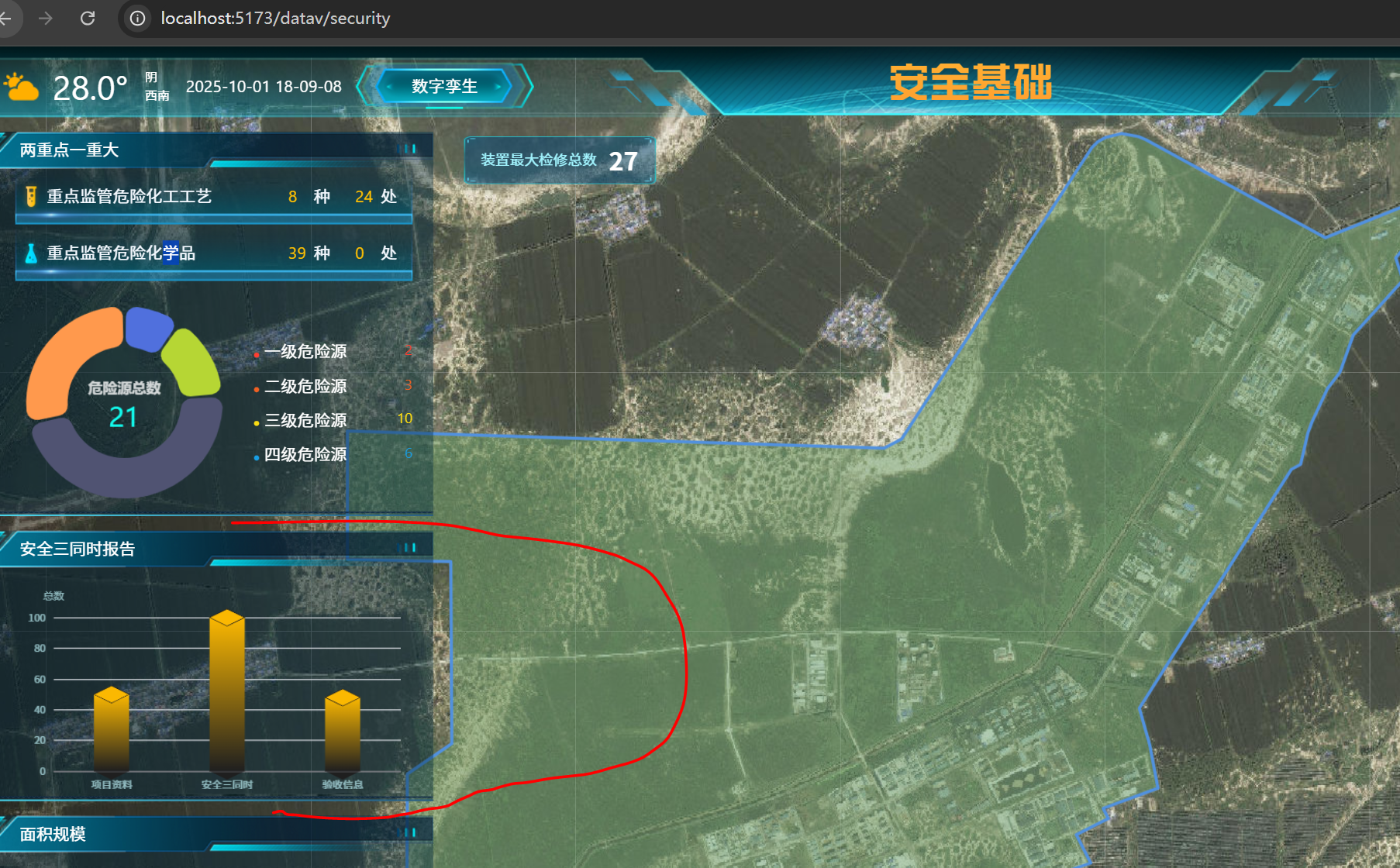

安全三同时报告的内容添加

<template><div class="pt-5 px-8 pb-3"><app-chart :option="option" height="200px" /></div>
</template><script setup lang="ts">
import { ref , computed } from 'vue';
import { getComBuild } from '@api/safe'
let data = ref();
const getDatas = async ()=>{let res = await getComBuild({companyId:0})data.value = res.data;
}
getDatas()
const option = computed(() => {return {grid: {top: '30px',left: '0%',right: '0%',bottom: '0%',containLabel: true},xAxis: {data: ['项目资料', '安全三同时', '验收信息'],axisLabel: {textStyle: {color: 'rgba(197,250,255,0.7)', // 这里设置你想要的颜色fontSize: '10px',fontFamily: 'c-ssr'}}},yAxis: {name: '总数',nameTextStyle: {color: 'rgba(197,250,255,0.7)',fontSize: 10},axisLabel: {textStyle: {color: 'rgba(197,250,255,0.7)', // 这里设置你想要的颜色fontSize: '10px',fontFamily: 'c-ssr'}}},series: [{z: 1,type: 'bar',barWidth: 34,barGap: '-100%',itemStyle: {normal: {color: {type: 'linear',x: 0,y: 0,x2: 0,y2: 1,colorStops: [{offset: 0,color: 'rgb(251,184,1)'},{offset: 1,color: 'rgba(31,31,31,1)'}],global: false}}},data: data.value},{z: 2,type: 'pictorialBar',symbolPosition: 'end',data: data.value,symbol: 'diamond',symbolOffset: [0, '-70%'],symbolSize: [34, 17],itemStyle: {normal: {color: 'rgb(251,184,1)',borderColor: 'rgba(31,31,31,1)',borderWidth: 10}}},{z: 0,legendHoverLink: false,hoverAnimation: false,type: 'pictorialBar',data: [0, 0, 0],symbol: 'diamond',symbolOffset: [0, '50%'],symbolSize: [34, 17],itemStyle: {normal: {color: 'rgba(31,31,31,1)'}}}]}
})
</script>

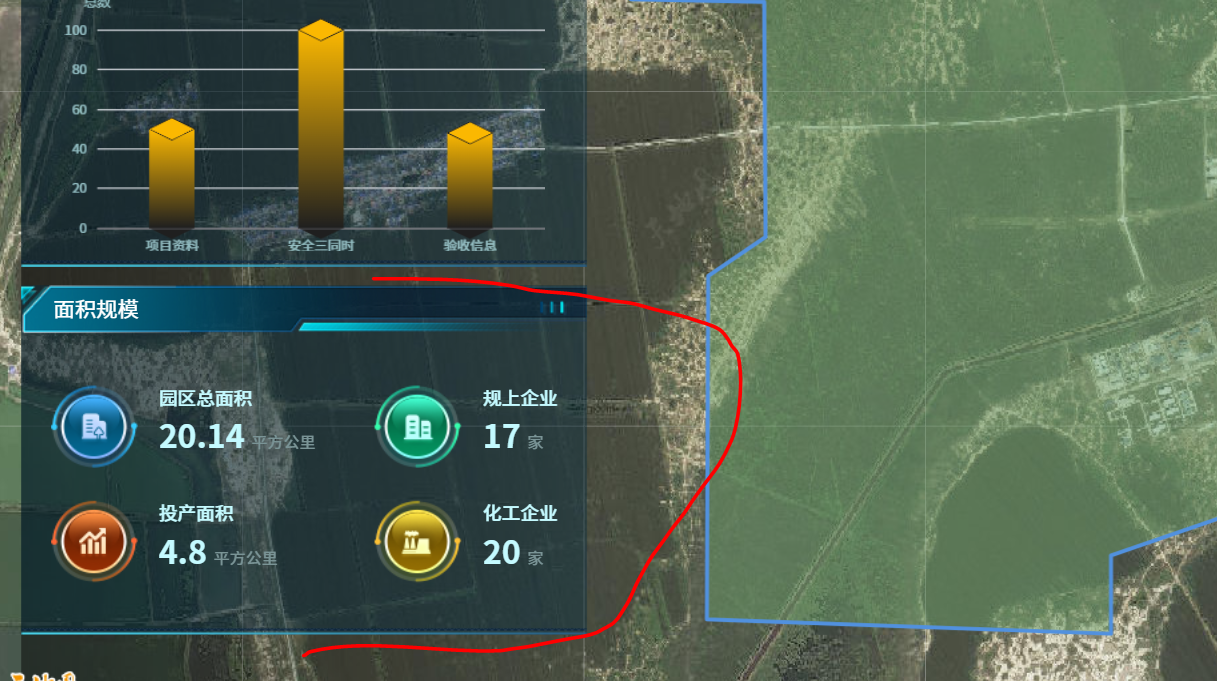

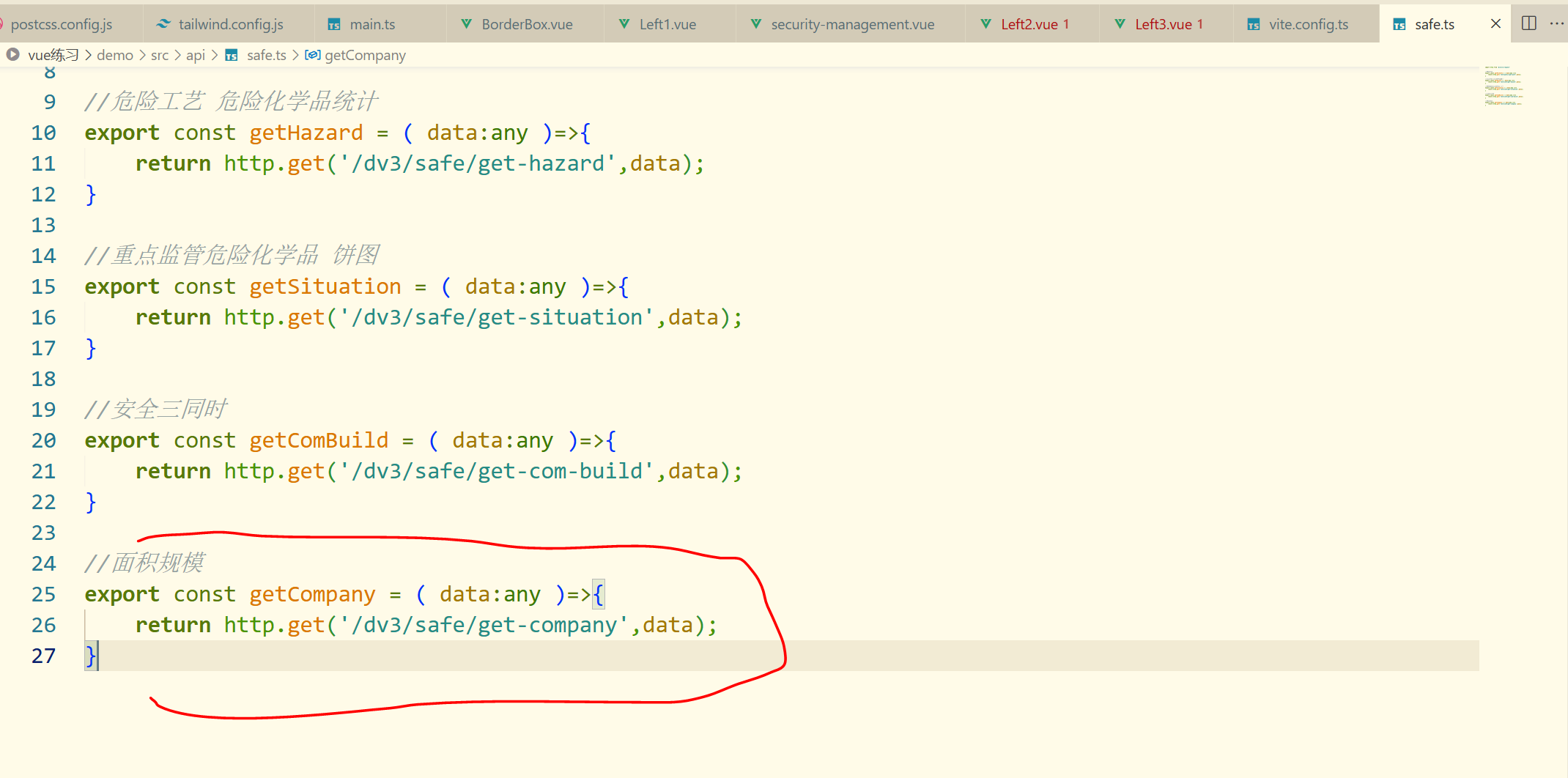

面积规模

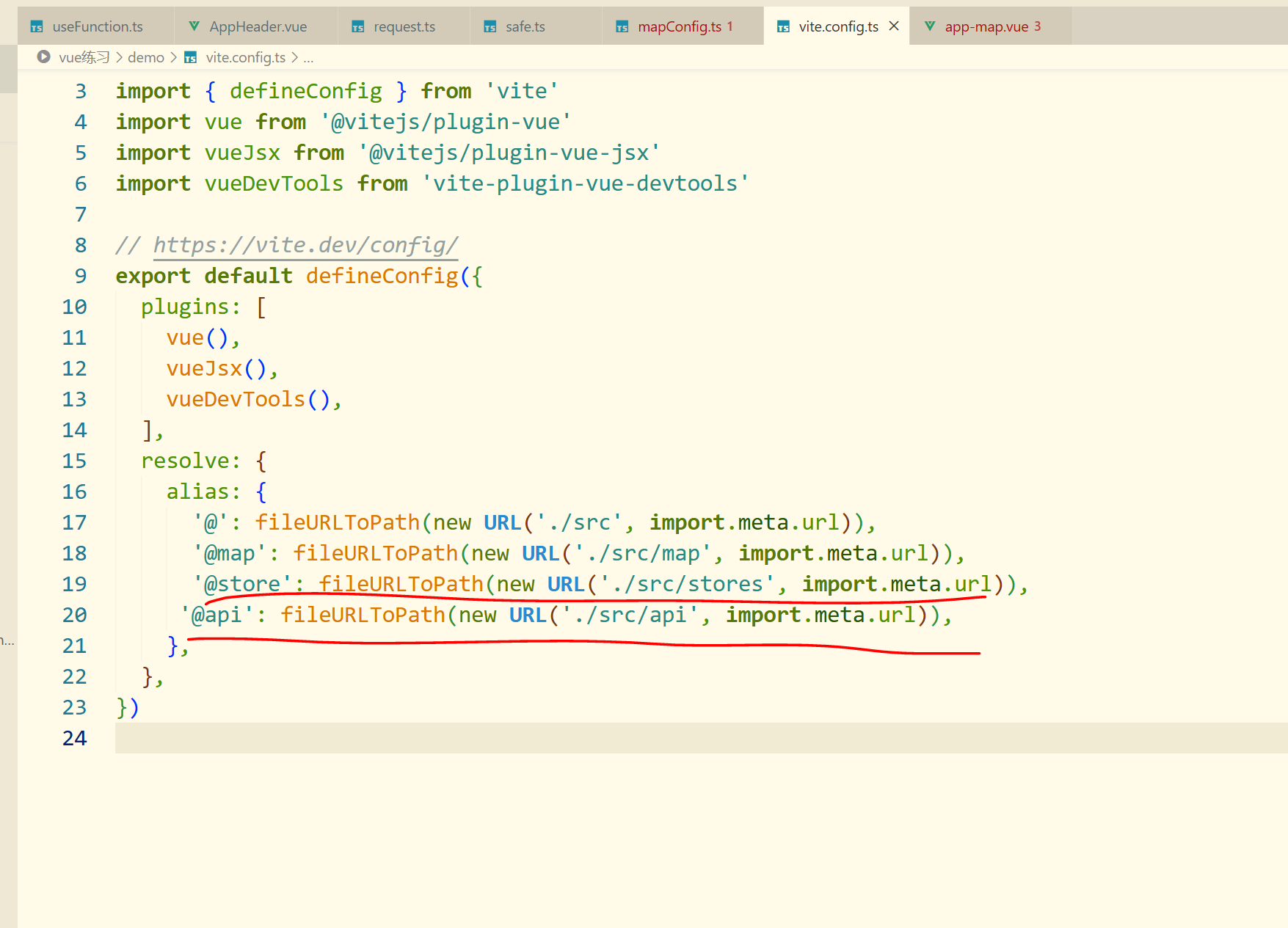

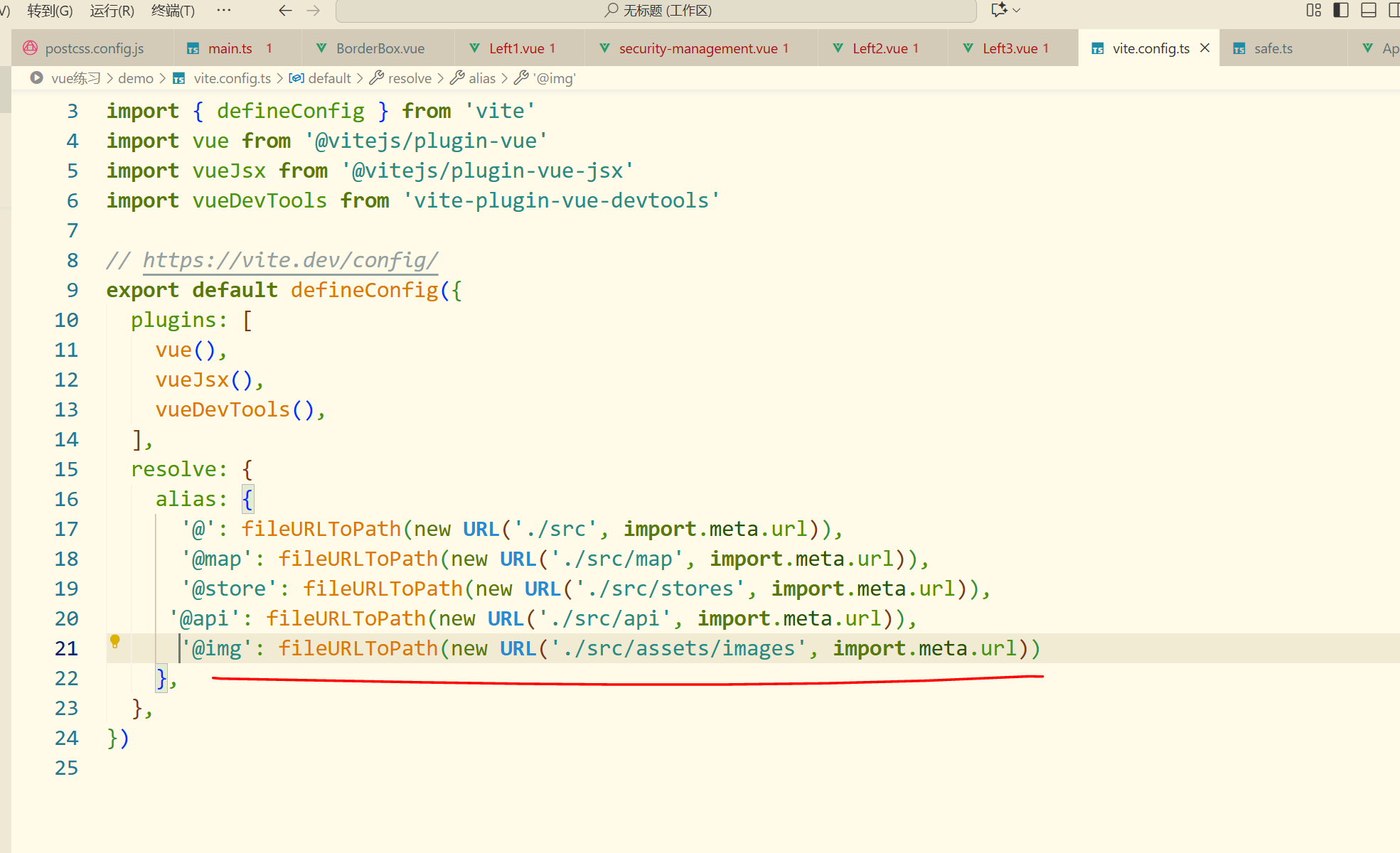

添加短路径

<template><div class="mjgm-box py-10"><div class="mjgm mb-6 basis-4/7 justify-center"><img class="left-icon" src="@img/园区总面积.png" alt="" /><div class="info left-info"><div class="label">园区总面积</div><div><span class="num">{{ yqzmj }}</span>平方公里</div></div></div><div class="mjgm mb-6 basis-3/7 justify-center"><img class="left-icon" src="@img/规上企业.png" alt="" /><div class="info"><div class="label">规上企业</div><div><span class="num">{{ gsqy }}</span>家</div></div></div><div class="mjgm basis-4/7 justify-center"><img class="left-icon" src="@img/投产面积.png" alt="" /><div class="info left-info"><div class="label">投产面积</div><div><span class="num">{{ tcmj }}</span>平方公里</div></div></div><div class="mjgm basis-3/7 justify-center"><img class="left-icon" src="@img/化工企业.png" alt="" /><div class="info"><div class="label">化工企业</div><div><span class="num">{{ hgqy }}</span>家</div></div></div></div>
</template><script setup lang="ts">
import { ref } from 'vue'
import { getCompany } from '@api/safe'const yqzmj = ref('0')
const gsqy = ref('0')
const tcmj = ref('0')
const hgqy = ref('0')
const getDatas = async ()=>{let { data } = await getCompany({companyId:0})yqzmj.value = data[0].value;gsqy.value = data[1].value;tcmj.value = data[2].value;hgqy.value = data[3].value;console.log( data );
}
getDatas();
</script>
<style scoped lang="scss">
.mjgm-box {display: flex;flex-wrap: wrap;justify-content: space-evenly;.left-icon {margin-right: 16px;}.mjgm {display: flex;.info {font-family: c-ssm;font-size: 12px;color: #7a9496;&.left-info {width: 140px;}.label {font-size: 14px;color: #c5faff;}.num {font-family: c-ssb;font-size: 24px;color: #c4faff;margin-right: 5px;}}}
}
</style>

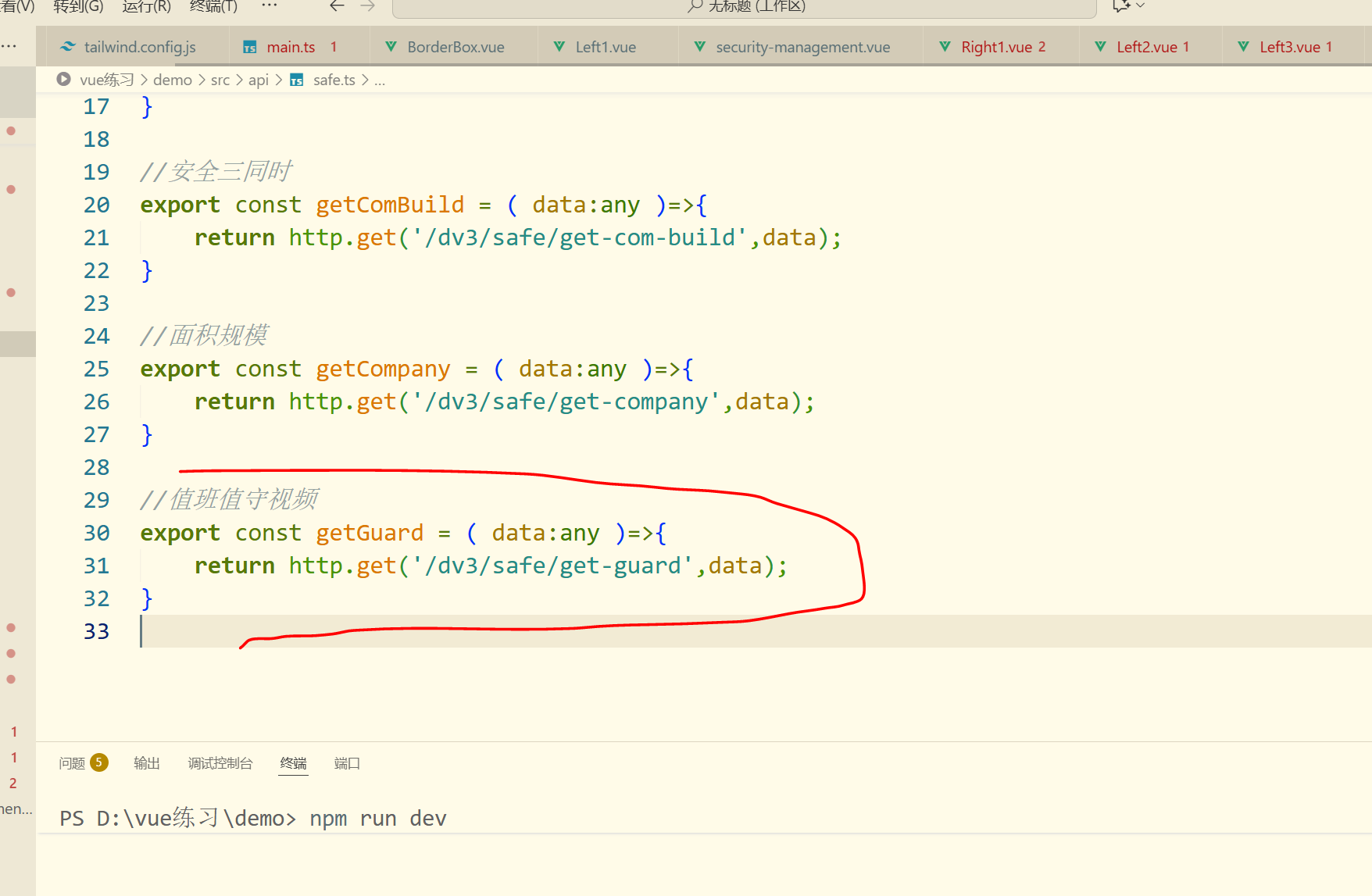

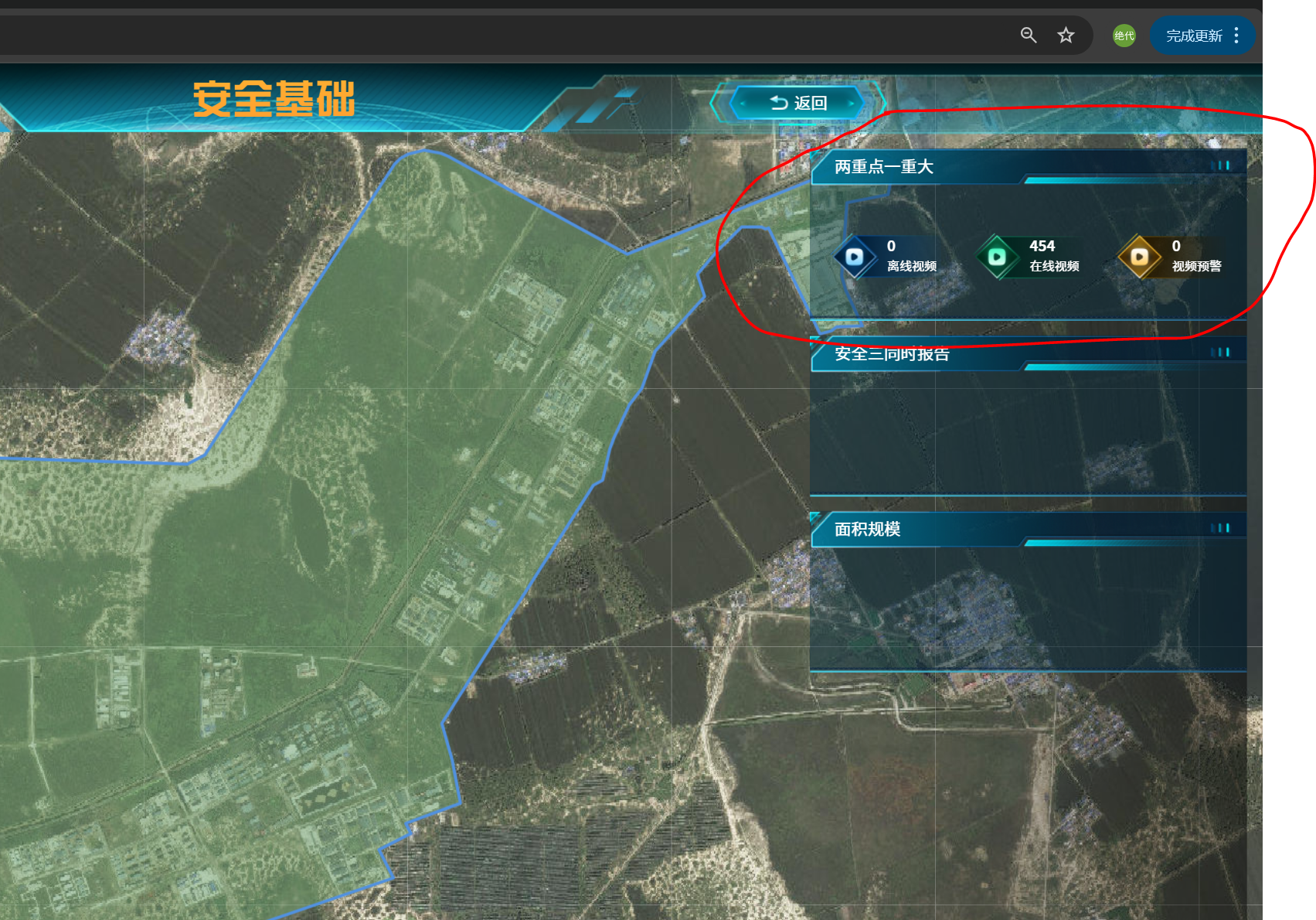

轮班值守的内容添加

<template><div class="zbks-root px-5"><div class="py-5 mb-2"><ViewerButton /></div><div class="zbks-box pb-10"><div class="zbks lxsp"><div class="num">{{ lxsp }}</div><div class="label">离线视频</div></div><div class="zbks zxsp"><div class="num">{{ zxsp }}</div><div class="label">在线视频</div></div><div class="zbks spyj"><div class="num">{{ spyj }}</div><div class="label">视频预警</div></div></div></div>
</template><script setup lang="ts">
import { ref } from 'vue'
import { getGuard } from '@api/safe'
const lxsp = ref(0);
const zxsp = ref(0);
const spyj = ref(0);
const getDatas = async ()=>{let res = await getGuard({companyId:0})res.data.forEach((item) => {switch (item.key) {case '离线视频':lxsp.value = item.value;breakcase '在线视频':zxsp.value = item.value;breakcase '视频预警':spyj.value = item.value;breakdefault:break}})
}
getDatas();
</script><style scoped>
.zbks-box {display: flex;justify-content: space-between;.zbks {width: 28%;color: #ffffff;padding-left: 55px;background-size: cover;background-repeat: no-repeat;height: 47px;padding-top: 2px;.num {font-family: c-ssb;font-size: 14px;}.label {font-family: c-ssr;font-size: 12px;}&.lxsp {background-image: url(@img/离线视频.png);}&.zxsp {background-image: url(@img/在线视频.png);}&.spyj {background-image: url(@img/视频预警.png);}}
}
</style>
