vue3+ts项目实现陕西省3d地图

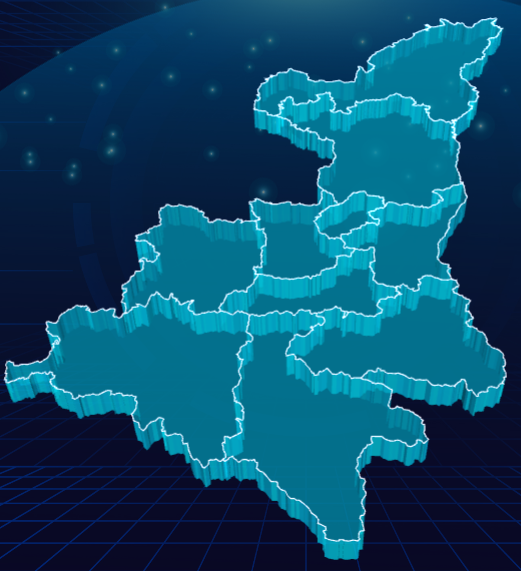

最终效果图

这里只展示地图代码

1.安装echarts相关扩展

npm install echarts@5.4.3 echarts-gl

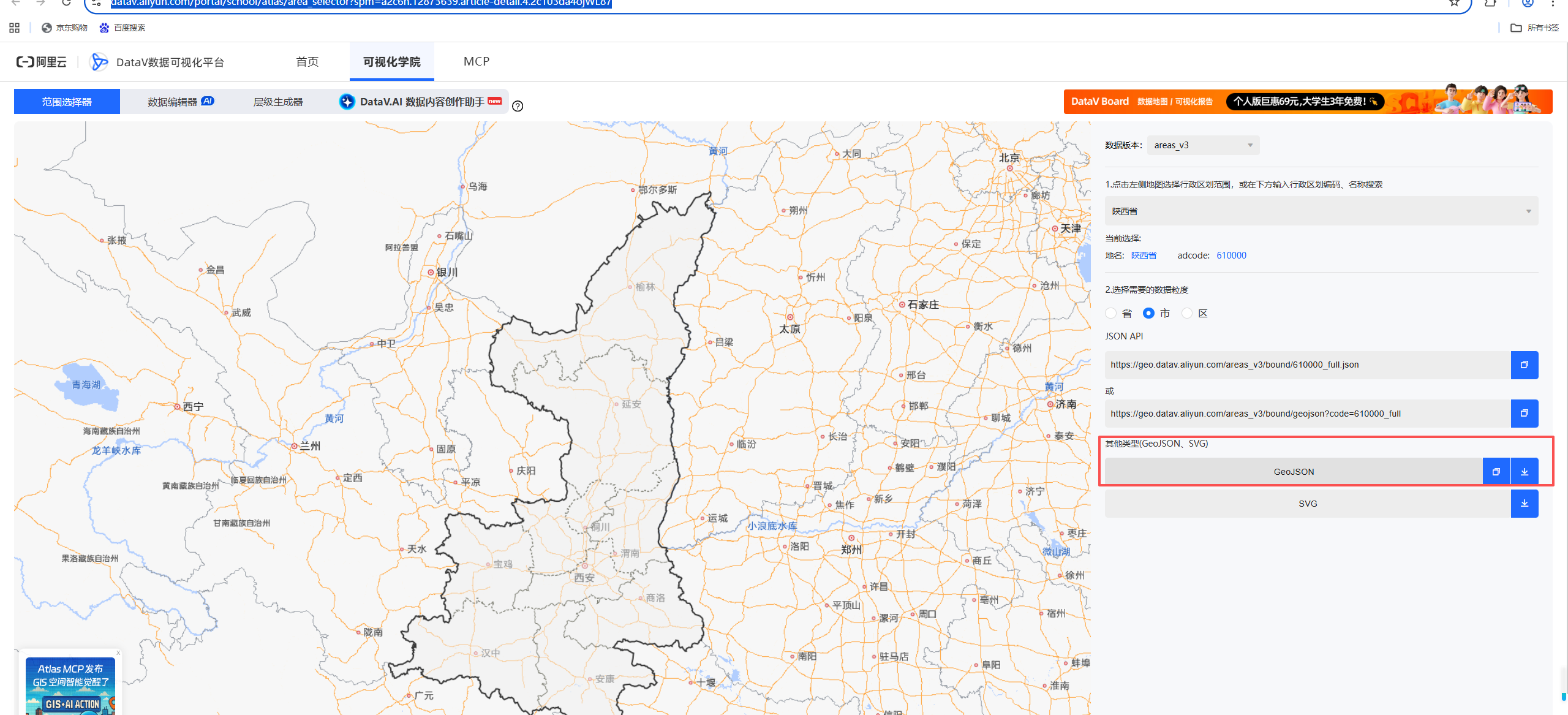

2.前往阿里云数据可视化平台下载地图相关json数据
https://datav.aliyun.com/portal/school/atlas/area_selector?spm=a2c6h.12873639.article-detail.4.2c103da4ojWL87

3.创建echartsUtils.ts（本项目用的是按需引入，存在多余组件）

import * as echarts from 'echarts/core';
import {CustomChart,FunnelChart, FunnelSeriesOption,BarChart,LineChart,GaugeChart,MapChart,PieChart, PieSeriesOption
} from 'echarts/charts';import { Map3DChart, Bar3DChart, Scatter3DChart } from 'echarts-gl/charts';
// import { ShadowEffect, LightEffect } from 'echarts-gl/effects';import {TitleComponent,TooltipComponent,GridComponent,// 数据集组件DatasetComponent,// 内置数据转换器组件 (filter, sort)TransformComponent,PolarComponent,LegendComponent,ToolboxComponent,GraphicComponent,DataZoomSliderComponent,DataZoomComponent,VisualMapComponent,GeoComponent,} from 'echarts/components';import { LabelLayout, UniversalTransition } from 'echarts/features';import { CanvasRenderer } from 'echarts/renderers';import type {// 系列类型的定义后缀都为 SeriesOptionBarSeriesOption,LineSeriesOption
} from 'echarts/charts';import type {// 组件类型的定义后缀都为 ComponentOptionTitleComponentOption,TooltipComponentOption,GridComponentOption,DatasetComponentOption,PolarComponentOption,LegendComponentOption,ToolboxComponentOption,
} from 'echarts/components';import type {ComposeOption,
} from 'echarts/core';// 通过 ComposeOption 来组合出一个只有必须组件和图表的 Option 类型
type ECOption = ComposeOption<| BarSeriesOption| LineSeriesOption| TitleComponentOption| TooltipComponentOption| GridComponentOption| DatasetComponentOption| PolarComponentOption| LegendComponentOption| ToolboxComponentOption| PieSeriesOption
>;// 注册必须的组件
echarts.use([TitleComponent,TooltipComponent,GridComponent,DatasetComponent,TransformComponent,BarChart,LineChart,LabelLayout,UniversalTransition,CanvasRenderer,GaugeChart,PolarComponent, LegendComponent,ToolboxComponent,FunnelChart,CustomChart,GraphicComponent,DataZoomSliderComponent,DataZoomComponent,VisualMapComponent,Map3DChart,MapChart,GeoComponent,Bar3DChart,Scatter3DChart,PieChart,
]);export default echarts;

4.组件代码中使用

<template><div style="width: 100%; height: 100%; overflow: hidden; background: #f2f2f2; position:relative;"><div class="chart" ref="chart"></div></div><div class="controls"><button class="btn" @click="showLabel" >点击显示与隐藏图中label</button></div>
</template>
<script lang="ts" setup>
import { ref, computed, watch, onMounted, defineEmits, defineProps  } from 'vue'
import echarts from '@/utils/echartsUtils'
import shaanxiGeoJSON from '@/assets/jsondata/shannxi.json'const chart = ref<HTMLElement | null>(null);
let chartInstance: echarts.ECharts | null = null;
let isRotating = false;
const showMapLabel = ref(false);
// 地图上显示的数据
const populationData = ref([{ name: '西安市', value: 5123345, coord: [108.942210, 34.261532] },{ name: '宝鸡市', value: 2223476, coord: [107.237539, 34.361915] },{ name: '咸阳市', value: 423435, coord: [108.308837, 34.799870] },{ name: '铜川市', value: 43400, coord: [108.945603, 35.206756] },{ name: '渭南市', value: 5233427, coord: [109.803932, 34.999995] },{ name: '延安市', value: 233326, coord: [109.489727, 36.650077] },{ name: '榆林市', value: 3833245, coord: [109.734546, 38.299185] },{ name: '汉中市', value: 383320, coord: [107.023323, 33.067480] },{ name: '安康市', value: 123456, coord: [109.029022, 32.684714] },{ name: '商洛市', value: 221337, coord: [109.940477, 33.870422] }
]);const showLabel = () => {showMapLabel.value = !showMapLabel.value;iniEcharts();
}const iniEcharts = () => {if (!chart.value) return;// 先销毁示例if (chartInstance) {chartInstance.dispose();chartInstance = null;}chartInstance = echarts.init(chart.value);// 注册地图echarts.registerMap('Shaanxi', shaanxiGeoJSON as any);const option = {tooltip: {trigger: 'item',formatter: function(params : any) {return `${params.name}<br/>: ${params.value || 0}人`;}},// 统计颜色visualMap: {show: false,min: 0,max: 1300,inRange: {color: ['#46c3db', '#ffa85c', '#ff6b6b']},textStyle: {color: '#fff'}},// 全局光照和环境设置globe: {baseTexture: null, // 不使用基础纹理environment: '#000', // 深色背景增强发光效果shading: 'realistic',light: {ambient: {intensity: 0.8},main: {intensity: 1.5,shadow: true}}},geo3D: {map: 'Shaanxi',shading: 'realistic',itemStyle: { // 三维地理坐标系组件 中三维图形的视觉属性，包括颜色，透明度，描边等。color: '#1E5F90', // 地图板块的颜色 rgba(46,110,149, .7)opacity: .5, // 图形的不透明度 [ default: 1 ]borderWidth: 1, // (地图板块间的分隔线)图形描边的宽度。加上描边后可以更清晰的区分每个区域 [ default: 0 ]borderColor: '#79A9C8' // 图形描边的颜色。[ default: #333 ]},emphasis: {itemStyle: {color: '#61a5e2' // 鼠标移动到的地图块颜色}},viewControl: {autoRotate: isRotating,distance: 215, // 视角距离，数值大拉远，反之近alpha: 40, // 数值小后仰，反之前仰beta: 8, // 数字小角度偏右，数字大角度偏左},light: {main: {intensity: 1, // 光照强度shadowQuality: 'high', // 阴影质量，取值为 'low', 'medium', 'high'alpha: 25, // 光照的不透明度beta: 10, // 光照的角度shadow: true // 是否显示阴影},ambient: {intensity: 0.3 // 环境光照强度}},regionHeight: 6 // 地图块高度},series: [{name: '3d地图',type: "bar3D",coordinateSystem: 'geo3D',barSize: 0,bevelSize: 0,data: populationData.value.map(item => {return [item.coord[0], item.coord[1], item.value, item.name];}),label: {show: showMapLabel.value,formatter: function(params:any) {return params.data[3] + ' ' + params.data[2];},position: "top",textStyle: {color: "#ffffff",fontSize: 16,backgroundColor: 'rgba(0,0,0,0.8)',padding: [5, 5, 5, 5],borderRadius: 5,borderWidth: 1,// borderColor: "#F40000"}},},]};chartInstance.setOption(option);// 响应窗口大小变化window.addEventListener('resize', () => {if (chartInstance) {chartInstance.resize();}});
}
// 旋转地图
const rotateMap = () => {isRotating = !isRotating;if (chartInstance) {const option = chartInstance.getOption() as any;option.geo3D[0].viewControl.autoRotate = isRotating;chartInstance.setOption(option);}
};
onMounted(() => {setTimeout(() => {iniEcharts();}, 600);
})
</script>
<style scoped>
.chart {width: 100%;height: 700px;margin-bottom: 20px;top: -130px;/**定义地图背景图片*/background-image: linear-gradient(rgba(0,0,0,0.5), rgba(0,0,0,0.5)),url('@/assets/3dmap.jpg');background-size: cover; background-position: center;
}
</style>
