Ubuntu20.04下跑通ORB-SLAM2

news 2025/9/22 6:53:15

ORB-SLAM2官方代码源在Ubuntu12.04、14.04、16.04上实测成功，后续版本涉及到兼容性问题会有出入。本篇适用于Ubuntu20.04，18.04、22.04亦可参考。修改后的完整代码可后台私信。

1 软件包兼容说明

1.1 编译器版本

ORB-SLAM2官方源码使用C++11，因版本迭代影响博主使用C14。注意ORB-SLAM2相关软件包Pangolin、g2o、DBoW2编译器使用一致。

1.1.1 g++

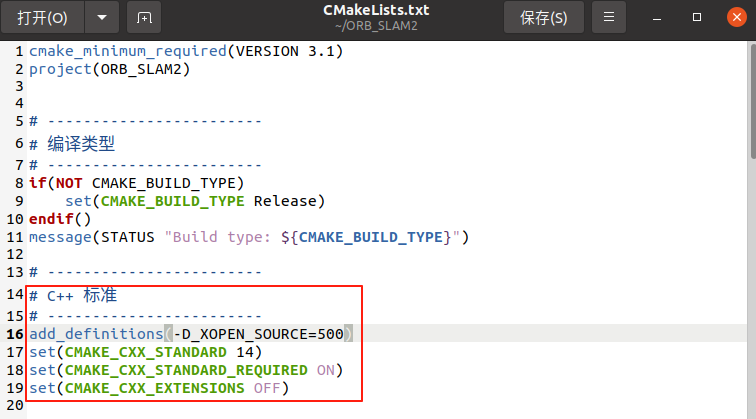

      博主使用9.4.0版，支持C14版，故CMakeLists.txt中需定义使用C14版编译。

g++版本查询命令：

g++ --version

1.1.2 clang++

博主使用10.0.0版，版本查询命令如下：

clang++ --version
1.2 OpenCV

至少需要2.4.3版，3.X兼容性最好，博主使用3.4.16版，因Ubuntu20.04版下默认安装4.X版本，需重装。

1.2.1 版本确认指令
pkg-config --modversion opencv4
//或
pkg-config --modversion opencv
1.2.2 安装3.4.16版
sudo apt-get install cmake g++ wget unzip
wget -O opencv.zip https://github.com/opencv/opencv/archive/3.4.16.zip
wget -O opencv_contrib.zip https://github.com/opencv/opencv_contrib/archive/3.4.16.zipunzip opencv.zip
unzip opencv_contrib.zip
cd opencv-3.4.16
mkdir build && cd buildcmake -D CMAKE_BUILD_TYPE=Release \-D CMAKE_INSTALL_PREFIX=/usr/local \-D OPENCV_EXTRA_MODULES_PATH=../../opencv_contrib-3.4.16/modules \..
make -j$(nproc)
sudo make install
pkg-config --modversion opencv    //检查安装后的版本

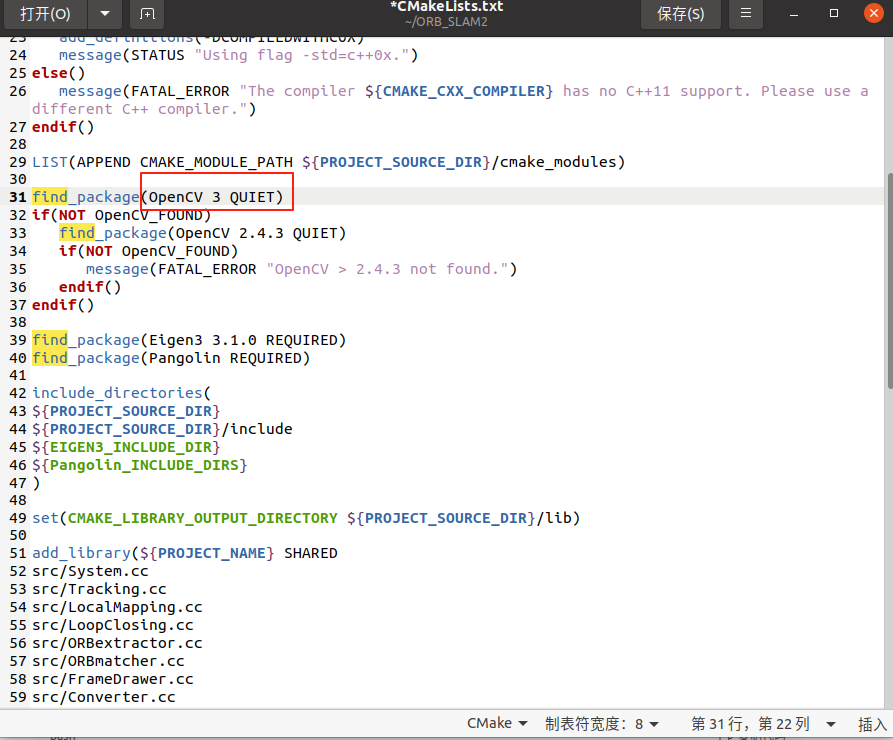

ORB-SLAM2源码下载后找到CMakeLists.txt，搜索找到find_package(OpennCV)改为3

1.3 Pangloin

必须是Pangolin-0.5版。

1.3.1 安装依赖
sudo apt-get install libglew-dev cmake libpython3-dev python3-dev
sudo apt-get install ffmpeg libavcodec-dev libavutil-dev libavformat-dev libswscale-dev
sudo apt-get install libdc1394-22-dev libraw1394-dev
1.3.2 安装libepoxy包
sudo apt-get install libepoxy-dev

否则报错：

ch@ch-TUF-Gaming-FX505GT-FX95GT:~/Pangolin/build$ cmake ..
-- The C compiler identification is GNU 9.4.0
-- The CXX compiler identification is GNU 9.4.0
-- Check for working C compiler: /usr/bin/cc
-- Check for working C compiler: /usr/bin/cc -- works
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Detecting C compile features
-- Detecting C compile features - done
-- Check for working CXX compiler: /usr/bin/c++
-- Check for working CXX compiler: /usr/bin/c++ -- works
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Setting build type to 'Release' as none was specified.
-- libpng Found and Enabled
-- libjpeg Found and Enabled
-- libtiff Found and Enabled
-- libopenexr Found and Enabled
-- liblz4 Found and Enabled
-- libzstd Found and Enabled
-- Found Eigen: '/usr/include/eigen3'
-- Found OpenGL: /usr/lib/x86_64-linux-gnu/libOpenGL.so  found components: OpenGL EGL
CMake Error at /usr/share/cmake-3.16/Modules/FindPackageHandleStandardArgs.cmake:146 (message):Could NOT find epoxy (missing: epoxy_LIBRARIES epoxy_INCLUDE_DIRS)
Call Stack (most recent call first):/usr/share/cmake-3.16/Modules/FindPackageHandleStandardArgs.cmake:393 (_FPHSA_FAILURE_MESSAGE)cmake/Findepoxy.cmake:63 (find_package_handle_standard_args)components/pango_opengl/CMakeLists.txt:50 (find_package)CMakeLists.txt:125 (include)-- Configuring incomplete, errors occurred!
See also "/home/ch/Pangolin/build/CMakeFiles/CMakeOutput.log".
See also "/home/ch/Pangolin/build/CMakeFiles/CMakeError.log".
1.3.3 安装Pangolin

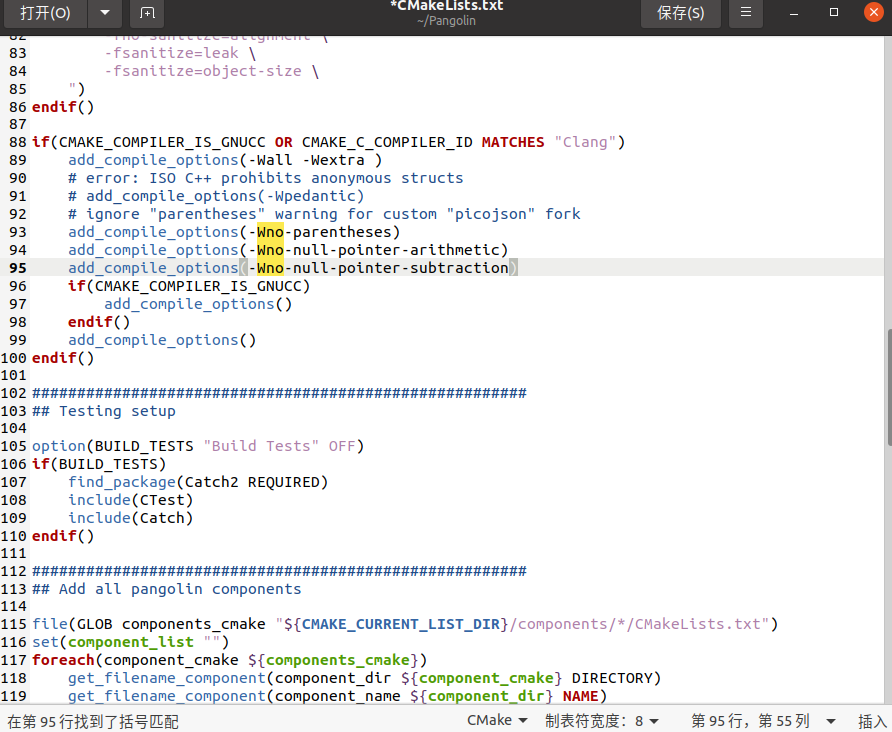

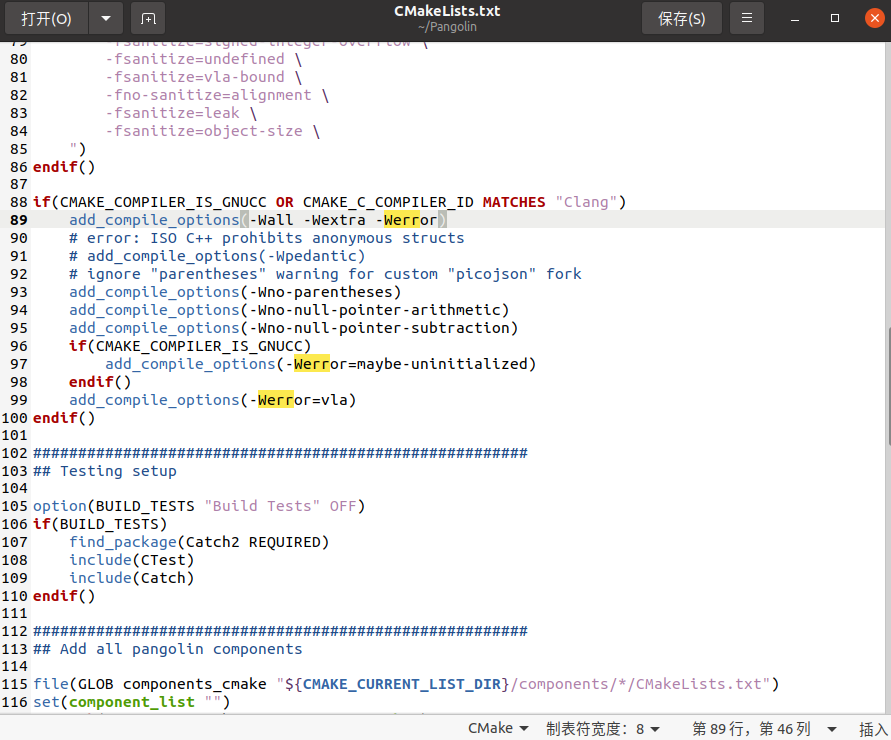

（1）预处理-删除“werror”、“wno”字样语句

        因OpenEXR版本太新（Ubuntu20.04默认使用2.5+）及CMakeLists.txt里面写了有警告即报错语句，会导致整体编译报错（报错代码如下）。需找到Pangolin包对应的CMakeLists.txt，删除“werror”、“wno”字样语句。

ch@ch-TUF-Gaming-FX505GT-FX95GT:~/Pangolin/build$ make -j$(nproc)
Scanning dependencies of target pango_python
Scanning dependencies of target tinyobj
Scanning dependencies of target pango_core
[  1%] Building CXX object CMakeFiles/pango_python.dir/components/pango_core/src/dummy.cpp.o
[  1%] Building CXX object CMakeFiles/tinyobj.dir/components/tinyobj/src/tinyobj.cpp.o
[  2%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/sigstate.cpp.o
[  3%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/file_utils.cpp.o
[  3%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/file_extension.cpp.o
[  4%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/threadedfilebuf.cpp.o
[  4%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/avx_math.cpp.o
[  4%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/factory/factory_registry.cpp.o
[  5%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/factory/factory_help.cpp.o
[  6%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/uri.cpp.o
[  7%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/param_set.cpp.o
[  7%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/posix/condition_variable.cpp.o
[  7%] Linking CXX shared library libpango_python.so
[  8%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/posix/semaphore.cpp.o
[  8%] Built target pango_python
[  9%] Building CXX object CMakeFiles/pango_core.dir/components/pango_core/src/posix/shared_memory_buffer.cpp.o
[ 10%] Linking CXX shared library libtinyobj.so
[ 10%] Built target tinyobj
[ 10%] Linking CXX shared library libpango_core.so
[ 10%] Built target pango_core
Scanning dependencies of target pango_vars
Scanning dependencies of target pango_image
Scanning dependencies of target pango_packetstream
[ 11%] Building CXX object CMakeFiles/pango_vars.dir/components/pango_vars/src/varstate.cpp.o
[ 11%] Building CXX object CMakeFiles/pango_packetstream.dir/components/pango_packetstream/src/packetstream.cpp.o
[ 12%] Building CXX object CMakeFiles/pango_packetstream.dir/components/pango_packetstream/src/packetstream_reader.cpp.o
[ 12%] Building CXX object CMakeFiles/pango_vars.dir/components/pango_vars/src/vars.cpp.o
[ 13%] Building CXX object CMakeFiles/pango_packetstream.dir/components/pango_packetstream/src/packet.cpp.o
[ 14%] Building CXX object CMakeFiles/pango_packetstream.dir/components/pango_packetstream/src/packetstream_writer.cpp.o
[ 14%] Building CXX object CMakeFiles/pango_packetstream.dir/components/pango_packetstream/src/playback_session.cpp.o
[ 15%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/pixel_format.cpp.o
[ 16%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/image_io_exr.cpp.o
[ 16%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/image_io_jpg.cpp.o
[ 16%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/image_io.cpp.o
[ 17%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/image_io_lz4.cpp.o
[ 18%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/image_io_packed12bit.cpp.o
[ 18%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/image_io_pango.cpp.o
In file included from /usr/include/OpenEXR/ImfXdr.h:108,from /usr/include/OpenEXR/ImfGenericOutputFile.h:40,from /usr/include/OpenEXR/ImfTiledOutputFile.h:50,from /usr/include/OpenEXR/ImfInputFile.h:48,from /home/ch/Pangolin/components/pango_image/src/image_io_exr.cpp:10:
/usr/include/OpenEXR/half.h: In member function ‘half half::round(unsigned int) const’:
/usr/include/OpenEXR/half.h:515:10: error: implicitly-declared ‘constexpr half::half(const half&)’ is deprecated [-Werror=deprecated-copy]515 |  return *this;|          ^~~~
/usr/include/OpenEXR/half.h:121:13: note: because ‘half’ has user-provided ‘half& half::operator=(half)’121 |     half &  operator = (half  h);|             ^~~~~~~~
/usr/include/OpenEXR/half.h:558:12: error: implicitly-declared ‘constexpr half::half(const half&)’ is deprecated [-Werror=deprecated-copy]558 |     return h;|            ^
/usr/include/OpenEXR/half.h:121:13: note: because ‘half’ has user-provided ‘half& half::operator=(half)’121 |     half &  operator = (half  h);|             ^~~~~~~~
/usr/include/OpenEXR/half.h: In member function ‘half half::operator-() const’:
/usr/include/OpenEXR/half.h:571:12: error: implicitly-declared ‘constexpr half::half(const half&)’ is deprecated [-Werror=deprecated-copy]571 |     return h;|            ^
/usr/include/OpenEXR/half.h:121:13: note: because ‘half’ has user-provided ‘half& half::operator=(half)’121 |     half &  operator = (half  h);|             ^~~~~~~~
/usr/include/OpenEXR/half.h: In static member function ‘static half half::posInf()’:
/usr/include/OpenEXR/half.h:717:12: error: implicitly-declared ‘constexpr half::half(const half&)’ is deprecated [-Werror=deprecated-copy]717 |     return h;|            ^
/usr/include/OpenEXR/half.h:576:1: note: because ‘half’ has user-provided ‘half& half::operator=(half)’576 | half::operator = (half h)| ^~~~
/usr/include/OpenEXR/half.h: In static member function ‘static half half::negInf()’:
/usr/include/OpenEXR/half.h:726:12: error: implicitly-declared ‘constexpr half::half(const half&)’ is deprecated [-Werror=deprecated-copy]726 |     return h;|            ^
/usr/include/OpenEXR/half.h:576:1: note: because ‘half’ has user-provided ‘half& half::operator=(half)’576 | half::operator = (half h)| ^~~~
/usr/include/OpenEXR/half.h: In static member function ‘static half half::qNan()’:
/usr/include/OpenEXR/half.h:735:12: error: implicitly-declared ‘constexpr half::half(const half&)’ is deprecated [-Werror=deprecated-copy]735 |     return h;|            ^
/usr/include/OpenEXR/half.h:576:1: note: because ‘half’ has user-provided ‘half& half::operator=(half)’576 | half::operator = (half h)| ^~~~
/usr/include/OpenEXR/half.h: In static member function ‘static half half::sNan()’:
/usr/include/OpenEXR/half.h:744:12: error: implicitly-declared ‘constexpr half::half(const half&)’ is deprecated [-Werror=deprecated-copy]744 |     return h;|            ^
/usr/include/OpenEXR/half.h:576:1: note: because ‘half’ has user-provided ‘half& half::operator=(half)’576 | half::operator = (half h)| ^~~~
[ 19%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/image_io_png.cpp.o
[ 19%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/image_io_ppm.cpp.o
[ 20%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/image_io_raw.cpp.o
[ 21%] Building CXX object CMakeFiles/pango_image.dir/components/pango_image/src/image_io_tga.cpp.o
At global scope:
cc1plus: error: unrecognized command line option ‘-Wno-deprecated-register’ [-Werror]
cc1plus: error: unrecognized command line option ‘-Wno-null-pointer-subtraction’ [-Werror]
cc1plus: error: unrecognized command line option ‘-Wno-null-pointer-arithmetic’ [-Werror]
cc1plus: all warnings being treated as errors
make[2]: *** [CMakeFiles/pango_image.dir/build.make:89：CMakeFiles/pango_image.dir/components/pango_image/src/image_io_exr.cpp.o] 错误 1
make[2]: *** 正在等待未完成的任务....
make[1]: *** [CMakeFiles/Makefile2:779：CMakeFiles/pango_image.dir/all] 错误 2
make[1]: *** 正在等待未完成的任务....
[ 22%] Linking CXX shared library libpango_vars.so
[ 23%] Linking CXX shared library libpango_packetstream.so
[ 23%] Built target pango_vars
[ 23%] Built target pango_packetstream
make: *** [Makefile:130：all] 错误 2
（2）预处理-禁用FFmpeg视频模块及共享内存

Pangolin v0.5 和新版 FFmpeg 存在兼容性问题，需在src/CMakeLists.txt中禁用相关模块，否则会出现如下报错。

/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: error: ‘AV_PIX_FMT_XVMC_MPEG2_MC’ was not declared in this scope41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: note: in definition of macro ‘TEST_PIX_FMT_RETURN’41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: error: ‘AV_PIX_FMT_XVMC_MPEG2_IDCT’ was not declared in this scope; did you mean ‘AV_PIX_FMT_VAAPI_IDCT’?41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: note: in definition of macro ‘TEST_PIX_FMT_RETURN’41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: error: ‘AV_PIX_FMT_VDPAU_H264’ was not declared in this scope; did you mean ‘AV_PIX_FMT_VDPAU’?41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: note: in definition of macro ‘TEST_PIX_FMT_RETURN’41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: error: ‘AV_PIX_FMT_VDPAU_MPEG1’ was not declared in this scope; did you mean ‘AV_PIX_FMT_VDPAU’?41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: note: in definition of macro ‘TEST_PIX_FMT_RETURN’41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: error: ‘AV_PIX_FMT_VDPAU_MPEG2’ was not declared in this scope; did you mean ‘AV_PIX_FMT_VDPAU’?41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: note: in definition of macro ‘TEST_PIX_FMT_RETURN’41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: error: ‘AV_PIX_FMT_VDPAU_WMV3’ was not declared in this scope; did you mean ‘AV_PIX_FMT_VDPAU’?41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: note: in definition of macro ‘TEST_PIX_FMT_RETURN’41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: error: ‘AV_PIX_FMT_VDPAU_VC1’ was not declared in this scope; did you mean ‘AV_PIX_FMT_VDPAU’?41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: note: in definition of macro ‘TEST_PIX_FMT_RETURN’41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: error: ‘AV_PIX_FMT_VDPAU_MPEG4’ was not declared in this scope; did you mean ‘AV_PIX_FMT_VDPAU’?41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|                                         ^~~~~~~~~~~
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:41:41: note: in definition of macro ‘TEST_PIX_FMT_RETURN’41 | #  define TEST_PIX_FMT_RETURN(fmt) case AV_PIX_FMT_##fmt: return #fmt;|
/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:501:33: error: ‘CODEC_FLAG_GLOBAL_HEADER’ was not declared in this scope; did you mean ‘AV_CODEC_FLAG_GLOBAL_HEADER’?501 |         stream->codec->flags |= CODEC_FLAG_GLOBAL_HEADER;|                                 ^~~~~~~~~~~~~~~~~~~~~~~~|                                 AV_CODEC_FLAG_GLOBAL_HEADER/home/ch/Pangolin/src/video/drivers/ffmpeg.cpp:564:39: error: ‘AVFMT_RAWPICTURE’ was not declared in this scope564 |     if (recorder.oc->oformat->flags & AVFMT_RAWPICTURE) {|                                       ^~~~~~~~~~~~~~~~

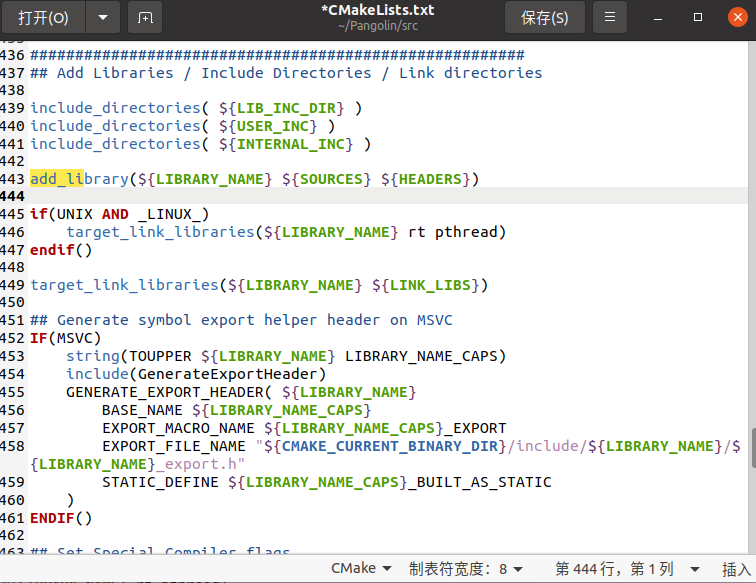

在Pangloin中找到src/CMakeLists.txt，加入如下命令：

if(BUILD_PANGOLIN_VIDEO AND _LINUX_)list(APPEND LINK_LIBS rt pthread)
endif()

（3）安装

make过程中会出现许多警告，这是版本兼容性问题，可以忽略。

git clone https://github.com/stevenlovegrove/Pangolin.git
cd Pangolin
git checkout v0.5
mkdir build && cd build
cmake .. -DBUILD_PANGOLIN_VIDEO=OFF   //禁用FFmpeg视频模块
make -j$(nproc)
sudo make install
1.4 Eigen

       官方代码源适配版本最低为3.1.0，与ORB-SLAM2兼任较好版本为3.3.7、3.3.9，博主使用3.3.7版。

版本查询指令：

pkg-config --modversion eigen3
1.5 g2o

博主使用ORB-SLAM2源码中自带的版本，为2017年10月commit版的快照。

2 安装ORB-SLAM2

       编译安装过程会出现较多版本问题的报错，需要反复耐心修复，博主列出了几种典型报错问题。

不出现报错情况下编译指令：

cd ORB_SLAM2
mkdir build
cd build
cmake ..
make -j$(nproc)
2.1 td::chrono::monotonic_clock 不存在
2.1.1 报错
/home/ch/ORB_SLAM2/Examples/Stereo/stereo_euroc.cc:147:22: error: ‘std::chrono::monotonic_clock’ has not been declared147 |         std::chrono::monotonic_clock::time_point t1 = std::chrono::monotonic_clock::now();|                      ^~~~~~~~~~~~~~~
2.1.2 修复

将monotonic_clock改成：steady_clock

2.2 usleep
2.2.1 报错
/home/ch/ORB_SLAM2/Examples/RGB-D/rgbd_tum.cc:118:13: error: ‘usleep’ was not declared in this scope118 |             usleep((T-ttrack)*1e6);|             ^~~~~~
2.2.2 修复

在头文件中加入：#include <unistd.h>

2.3 KeyFrameAndPose
2.3.1 报错
typedef map<KeyFrame*,g2o::Sim3,std::less<KeyFrame*>,Eigen::aligned_allocator<std::pair<const KeyFrame*, g2o::Sim3> > > KeyFrameAndPose;
2.3.2 修复

将上面语句换成下面标准形式。

typedef std::map<KeyFrame*, g2o::Sim3> KeyFrameAndPose;

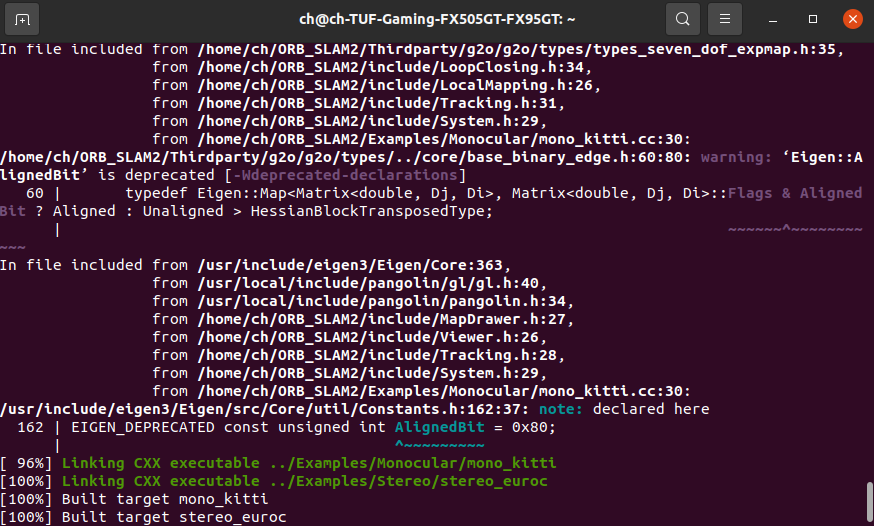

2.4 编译成功

编译过错出现的警告是因为Eigen::AlignedBit 被弃用（deprecated），忽略。

3 测试

博主使用TUM的rgbd_dataset_freiburg1_xyz数据集进行复现。

3.1 下载数据集
mkdir -p ~/Datasets/TUM
cd ~/Datasets/TUM
wget http://vision.in.tum.de/rgbd/dataset/freiburg1/rgbd_dataset_freiburg1_xyz.tgz
tar -xvzf rgbd_dataset_freiburg1_xyz.tgz
3.2 关联文件

关联 TUM 的 rgb.txt 和 depth.txt，生成associate_tum.py，放在ORB_SLAM2 根目录下面。

#!/usr/bin/env python3import sys
import osdef read_file_list(filename):""" reads file with lines: timestamp path """lines = []with open(filename, 'r') as f:for line in f:line = line.strip()if not line or line.startswith('#'):continueparts = line.split()if len(parts) < 2:continuets = float(parts[0])path = parts[1]lines.append((ts, path))return linesdef associate(rgb_list, depth_list, max_difference=0.02):""" For each rgb, find closest depth within max_difference """output = []depth_idx = 0nd = len(depth_list)for ts_rgb, rgb_path in rgb_list:# advance depth_idx until depth timestamp >= rgb timestamp - max_differencewhile depth_idx < nd and depth_list[depth_idx][0] < ts_rgb - max_difference:depth_idx += 1if depth_idx == nd:break# candidate 1: depth_idxbest = Nonebest_diff = float('inf')# check depth_idxts_d, dp = depth_list[depth_idx]diff = abs(ts_rgb - ts_d)if diff < best_diff:best = (ts_d, dp)best_diff = diff# also check previous oneif depth_idx > 0:ts_d2, dp2 = depth_list[depth_idx - 1]diff2 = abs(ts_rgb - ts_d2)if diff2 < best_diff:best = (ts_d2, dp2)best_diff = diff2# if best match is good enough, record itif best_diff <= max_difference:output.append((ts_rgb, rgb_path, best[0], best[1]))return outputdef main():if len(sys.argv) != 4:print("Usage: associate_tum.py rgb.txt depth.txt associate.txt")returnrgb_fn = sys.argv[1]depth_fn = sys.argv[2]out_fn = sys.argv[3]if not os.path.exists(rgb_fn):print("RGB file not found:", rgb_fn)returnif not os.path.exists(depth_fn):print("Depth file not found:", depth_fn)returnrgb_list = read_file_list(rgb_fn)depth_list = read_file_list(depth_fn)associations = associate(rgb_list, depth_list)with open(out_fn, 'w') as f:for ts_rgb, rgb_path, ts_d, dp in associations:f.write("{:.6f} {} {:.6f} {}\n".format(ts_rgb, rgb_path, ts_d, dp))print("Done. Wrote {} associations".format(len(associations)))if __name__ == "__main__":main()

3.3 修改g2o中CMakeLists.txt

在Thirdparty/g2o/CMakeLists.txt中添加语句：

# 强制在 g2o 编译时带上此宏，避免 Eigen 静态对齐问题
add_definitions(-DEIGEN_DONT_ALIGN_STATICALLY)

重新编译g2o包

3.4 重新编译ORB-SLAM2
cd ~/ORB_SLAM2
rm -rf build
mkdir build
cd build
cmake ..
make -j$(nproc)

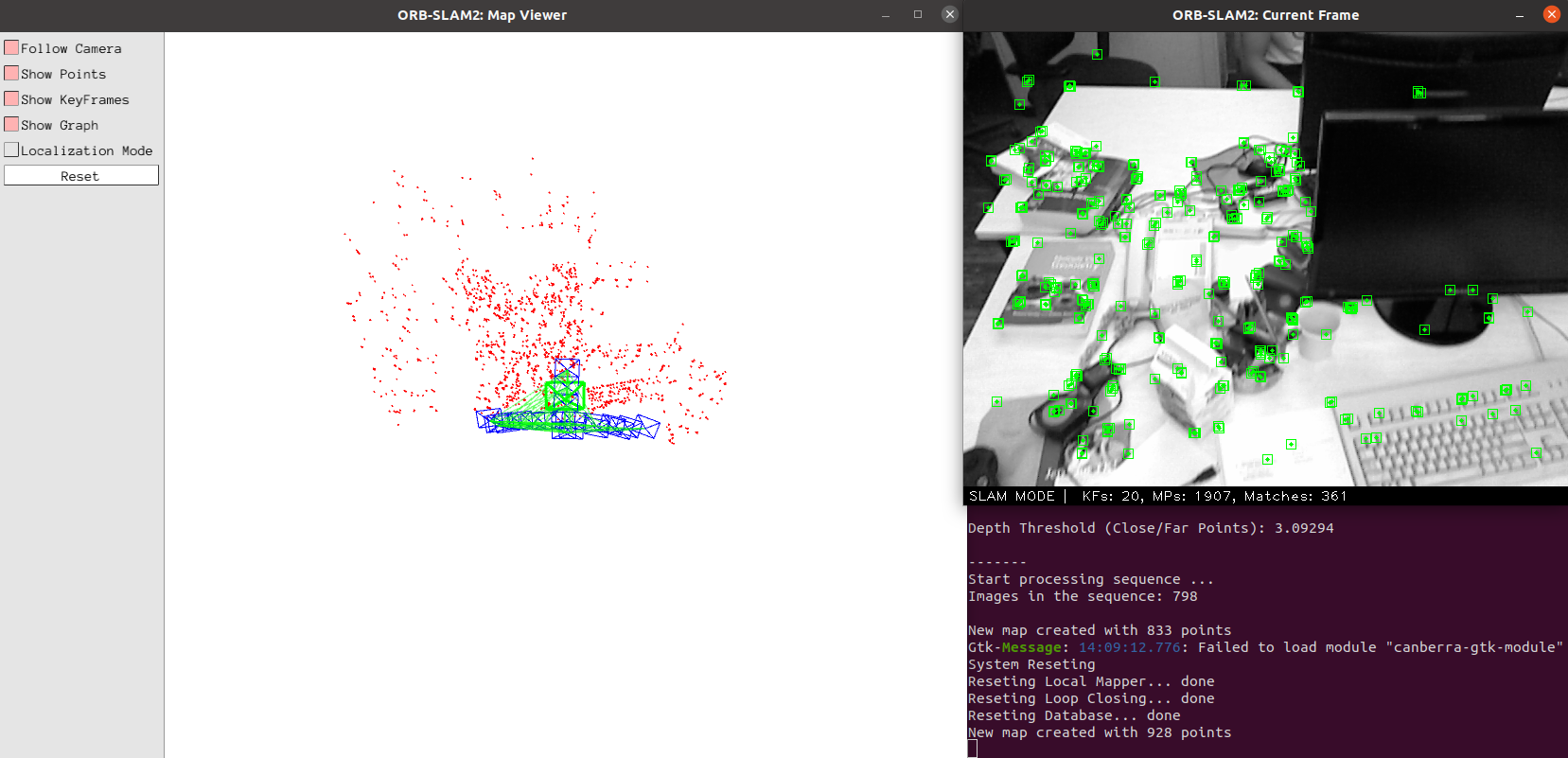

3.5 运行
cd ~/ORB_SLAM2
./Examples/RGB-D/rgbd_tum \Vocabulary/ORBvoc.txt \Examples/RGB-D/TUM1.yaml \~/Datasets/TUM/rgbd_dataset_freiburg1_xyz \~/Datasets/TUM/rgbd_dataset_freiburg1_xyz/associate.txt

http://www.dtcms.com/a/393519.html

相关文章：

  • C++二进制转十进制
  • WordPress用户系统 + JWT认证：打造统一的应用登录解决方案
  • PortSwigger靶场之将反射型 XSS 注入到带有尖括号和双引号的 JavaScript 字符串中，并使用 HTML 编码和单引号进行转义通关秘籍
  • win11电脑按键失灵，提供几个可能恢复的方法
  • Android 中获取稳定时间的方法
  • mac编译ffmpeg
  • Deepsoil V7.1.10+Shake2000，最新版程序、教学视频、PDF使用手册
  • Apollo相机数据RTMP推流与播放指南
  • 使用Python扩展Unity编辑器
  • 【Android】自定义控件
  • 探索 Event 框架 6：高级特性与性能优化
  • JavaSE基础——第九章 枚举类注解
  • 云计算在金融领域中的应用
  • 【入门算法】前缀和：先预存再求和，以空间换时间
  • mac编译vst3sdk
  • Java 网络原理（二）--- TCP的机制 + IP协议 +以太网协议 + DNS
  • Python文件名编码处理深度解析：绕过编码问题的专业指南
  • 如何利用简单的浏览器插件Web Scraper爬取知乎评论数据
  • 鹿鼎记豪侠传：Rust 重塑 iOS 江湖（下）
  • 03.博客版-镜像
  • 云原生docker离线二进制安装
  • RabbitMQ 的配置文件位置及常见配置项
  • Visual Prompt Builder-AI 提示词可视化工具
  • 一文掌握Flask：从基础使用到高级应用
  • 23种设计模式之【责任链模式】-核心原理与 Java 实践
  • 执行 conda update -n base -c defaults conda 后仍提示需要升级
  • 学习日报 20250921｜NIO
  • 【Linux操作系统】Linux基础指令和权限
  • 谷歌nano banana官方Prompt模板
  • 基于Python大数据的新闻推荐分析
