Orin-Apollo园区版本：订阅多个摄像头画面拼接与硬编码RTMP推流

news 2025/9/7 7:30:06

Orin-Apollo园区版本：订阅多个摄像头画面拼接与硬编码RTMP推流

    • 一、目的
    • 二、处理流程
    • 三、操作步骤
      • 1. 登录Orin开发板
      • 2. 进入Apollo环境
      • 3. 循环播放Record数据
      • 4. 查看可用Topic
      • 5. 安装`Jetson-FFmpeg`
      • 6. RTMP服务器搭建
      • 7. 图像订阅与拼接程序
      • 8. 编译与运行
      • 9. 启动FFmpeg推流
      • 10. 使用VLC播放
    • 四、总结

一、目的

本文旨在演示如何在NVIDIA Orin平台上基于Apollo Cyber RT框架，使用C++订阅多个摄像头Topic，对图像进行拼接处理，并通过硬件加速编码实现RTMP推流。该Demo仅用于基础学习。

二、处理流程

  1. 数据源：Apollo录制数据（bev_test.record）提供6路摄像头数据
  2. 数据订阅：通过Cyber RT订阅以下Topic：
    • /apollo/sensor/camera/CAM_FRONT/image
    • /apollo/sensor/camera/CAM_FRONT_RIGHT/image
    • /apollo/sensor/camera/CAM_FRONT_LEFT/image
    • /apollo/sensor/camera/CAM_BACK/image
    • /apollo/sensor/camera/CAM_BACK_RIGHT/image
    • /apollo/sensor/camera/CAM_BACK_LEFT/image
  3. 图像处理：使用OpenCV对图像进行缩放和拼接（2×3布局）
  4. 编码推流：通过FFmpeg NVMPI硬件编码转换为H.264格式，推流到RTMP服务器
  5. 流媒体分发：PingOS服务器接收并分发RTMP流
  6. 客户端播放：使用VLC播放器观看实时视频流

三、操作步骤

1. 登录Orin开发板

ssh <username>@<hostname>

注意：不要切换到root用户

2. 进入Apollo环境

aem enter

成功进入环境后，终端提示符会变为：[nvidia@in-dev-docker:/apollo_workspace]$

3. 循环播放Record数据

cyber_recorder play -f bev_test.record  -l

-l参数表示循环播放，确保数据源持续供应

4. 查看可用Topic

此命令可查看当前所有活跃的Topic及其发布频率，确认摄像头Topic正常发布

cyber_monitor

输出

/apollo/cyber/record_info                           0.00
/apollo/localization/pose                           150.34
/apollo/sensor/LIDAR_TOP/compensator/PointCloud2    20.01
/apollo/sensor/camera/CAM_BACK/image                12.07
/apollo/sensor/camera/CAM_BACK_LEFT/image           12.07
/apollo/sensor/camera/CAM_BACK_RIGHT/image          12.06
/apollo/sensor/camera/CAM_FRONT/image               10.97
/apollo/sensor/camera/CAM_FRONT_LEFT/image          12.07
/apollo/sensor/camera/CAM_FRONT_RIGHT/image         12.06
/tf                                                 158.26

5. 安装Jetson-FFmpeg

Jetson-FFmpeg是针对NVIDIA Jetson平台的FFmpeg优化版本，支持硬件编解码加速。

mkdir -p /apollo_workspace/streamer
cd /apollo_workspace/streamer# 下载FFmpeg源码
git clone git://source.ffmpeg.org/ffmpeg.git -b release/7.1 --depth=1# 下载Jetson-FFmpeg补丁
git clone https://github.com/Keylost/jetson-ffmpeg# 应用补丁
cd jetson-ffmpeg
./ffpatch.sh ../ffmpeg# 编译安装nvmpi
mkdir build
cd build
cmake ..
make
sudo make install
sudo ldconfig# 配置FFmpeg启用NVMPI
cd ../../ffmpeg/
./configure --enable-nvmpi --prefix=`pwd`/_install
make -j4
make install

6. RTMP服务器搭建

PingOS是一个基于Nginx的流媒体服务器，支持RTMP、HLS等协议。

# 登录服务器
ssh username@hostname# 下载并安装PingOS
git clone https://github.com/pingostack/pingos.git
cd pingos
./release.sh -i# 启动PingOS服务
cd /usr/local/pingos/
./sbin/nginx

7. 图像订阅与拼接程序

cd /apollo_workspace/streamer
cat > image_stitching_streamer.cc <<-'EOF'
#include <iostream>
#include <string>
#include <vector>
#include <thread>
#include <mutex>
#include <condition_variable>
#include <atomic>
#include <queue>
#include <memory>
#include <cstdio>
#include <cstdlib>
#include <unistd.h>
#include <fcntl.h>
#include <sys/stat.h>
#include <csignal>
#include <sys/wait.h>
#include <cstring>#include "cyber/cyber.h"
#include "modules/common_msgs/sensor_msgs/sensor_image.pb.h"
#include <opencv2/opencv.hpp>extern "C" {
#include <libavcodec/avcodec.h>
#include <libavformat/avformat.h>
#include <libavutil/opt.h>
#include <libavutil/imgutils.h>
#include <libswscale/swscale.h>
#include <libavutil/hwcontext.h>
}using apollo::cyber::Node;
using apollo::cyber::Reader;
using apollo::drivers::Image;// 定义摄像头位置
enum CameraPosition {FRONT,RIGHT_FRONT,LEFT_FRONT,REAR,LEFT_REAR,RIGHT_REAR,NUM_CAMERAS
};// 全局变量
std::mutex image_mutex;
std::condition_variable image_cv;
std::array<cv::Mat, NUM_CAMERAS> camera_images;
std::array<bool, NUM_CAMERAS> image_updated{false};
std::atomic<bool> running{true};// FFmpeg相关结构体
SwsContext* sws_ctx = nullptr;
AVFrame* yuv_frame = nullptr;
FILE* pipe_fd = nullptr;// 初始化YUV转换器
bool init_yuv_converter(int width, int height) {// 分配YUV帧yuv_frame = av_frame_alloc();yuv_frame->format = AV_PIX_FMT_YUV420P;yuv_frame->width = width;yuv_frame->height = height;int ret = av_frame_get_buffer(yuv_frame, 0);if (ret < 0) {std::cerr << "Failed to allocate YUV frame buffer: " << ret << std::endl;return false;}// 初始化转换上下文sws_ctx = sws_getContext(width, height, AV_PIX_FMT_RGB24,width, height, AV_PIX_FMT_YUV420P,SWS_BICUBIC, nullptr, nullptr, nullptr);if (!sws_ctx) {std::cerr << "Failed to create SwsContext" << std::endl;return false;}return true;
}// 创建命名管道
bool start_ffmpeg_process(int width, int height) {// 创建命名管道std::string pipe_path = "/tmp/yuv_pipe";if (mkfifo(pipe_path.c_str(), 0666) < 0) {if (errno != EEXIST) {std::cerr << "Failed to create named pipe: " << strerror(errno) << std::endl;return false;}}// 打开管道用于写入pipe_fd = fopen(pipe_path.c_str(), "wb");if (!pipe_fd) {std::cerr << "Failed to open pipe for writing: " << strerror(errno) << std::endl;return false;}return true;
}// 清理资源
void cleanup_resources() {if (pipe_fd) {fclose(pipe_fd);pipe_fd = nullptr;}if (sws_ctx) {sws_freeContext(sws_ctx);sws_ctx = nullptr;}if (yuv_frame) {av_frame_free(&yuv_frame);yuv_frame = nullptr;}
}// 将RGB图像转换为YUV420P并写入管道
bool write_yuv_to_pipe(const cv::Mat& image) {if (image.empty()) {std::cerr << "Empty image provided to write_yuv_to_pipe" << std::endl;return false;}// 将BGR转换为YUV420Pconst uint8_t* src_data[1] = {image.data};int src_linesize[1] = {static_cast<int>(image.step)};sws_scale(sws_ctx, src_data, src_linesize, 0, image.rows,yuv_frame->data, yuv_frame->linesize);// 将YUV数据写入管道for (int i = 0; i < yuv_frame->height; i++) {fwrite(yuv_frame->data[0] + i * yuv_frame->linesize[0], 1, yuv_frame->width, pipe_fd);}for (int i = 0; i < yuv_frame->height / 2; i++) {fwrite(yuv_frame->data[1] + i * yuv_frame->linesize[1], 1, yuv_frame->width / 2, pipe_fd);}for (int i = 0; i < yuv_frame->height / 2; i++) {fwrite(yuv_frame->data[2] + i * yuv_frame->linesize[2], 1, yuv_frame->width / 2, pipe_fd);}fflush(pipe_fd); // 确保数据被刷新到管道return true;
}// 图像回调函数
void image_callback(const std::shared_ptr<Image>& image_msg, CameraPosition position) {std::lock_guard<std::mutex> lock(image_mutex);if (image_msg->encoding() == "rgb8") {// 将数据转换为OpenCV格式cv::Mat img(image_msg->height(), image_msg->width(), CV_8UC3,const_cast<char*>(image_msg->data().data()));img.copyTo(camera_images[position]);image_updated[position] = true;// 通知处理线程有新图像image_cv.notify_one();} else {std::cout << "Unsupported encoding: " << image_msg->encoding()<< " for camera " << position << std::endl;}
}// 拼接图像函数
cv::Mat stitch_images() {// 假设每个摄像头图像大小为640x480const int single_width = 640;const int single_height = 480;// 创建拼接后的图像 (2行3列)cv::Mat stitched_image(2 * single_height, 3 * single_width, CV_8UC3, cv::Scalar(0, 0, 0));// 检查所有图像是否有效for (int i = 0; i < NUM_CAMERAS; i++) {if (camera_images[i].empty()) {std::cerr << "Camera " << i << " image is empty!" << std::endl;continue;}// 调整图像大小以确保一致if (camera_images[i].cols != single_width || camera_images[i].rows != single_height) {cv::resize(camera_images[i], camera_images[i], cv::Size(single_width, single_height));}}// 将各个摄像头图像放置到对应位置// 这里需要根据实际的摄像头布局进行调整if (!camera_images[FRONT].empty()) {camera_images[FRONT].copyTo(stitched_image(cv::Rect(single_width, 0, single_width, single_height)));}if (!camera_images[RIGHT_FRONT].empty()) {camera_images[RIGHT_FRONT].copyTo(stitched_image(cv::Rect(2 * single_width, 0, single_width, single_height)));}if (!camera_images[LEFT_FRONT].empty()) {camera_images[LEFT_FRONT].copyTo(stitched_image(cv::Rect(0, 0, single_width, single_height)));}if (!camera_images[REAR].empty()) {camera_images[REAR].copyTo(stitched_image(cv::Rect(single_width, single_height, single_width, single_height)));}if (!camera_images[RIGHT_REAR].empty()) {camera_images[RIGHT_REAR].copyTo(stitched_image(cv::Rect(2 * single_width,single_height, single_width, single_height)));}if (!camera_images[LEFT_REAR].empty()) {camera_images[LEFT_REAR].copyTo(stitched_image(cv::Rect(0, single_height,single_width, single_height)));}// 调整大小为1920x1080cv::Mat resized_image;cv::resize(stitched_image, resized_image, cv::Size(1920, 1080));return resized_image;
}// 检查所有摄像头图像是否已更新
bool all_images_updated() {for (bool updated : image_updated) {if (!updated) {return false;}}return true;
}// 图像处理线程函数
void processing_thread() {const int width = 1920;const int height = 1080;// 初始化YUV转换器if (!init_yuv_converter(width, height)) {std::cerr << "Failed to initialize YUV converter" << std::endl;return;}// 启动FFmpeg进程if (!start_ffmpeg_process(width, height)) {std::cerr << "Failed to start FFmpeg process" << std::endl;return;}std::cout << "YUV converter initialized and FFmpeg process started" << std::endl;while (running) {std::unique_lock<std::mutex> lock(image_mutex);// 等待所有摄像头都有新图像if (!image_cv.wait_for(lock, std::chrono::milliseconds(100), []{ return all_images_updated(); })) {continue;  // 超时，继续等待}// 重置更新标志std::fill(image_updated.begin(), image_updated.end(), false);// 拼接图像cv::Mat stitched_image = stitch_images();lock.unlock();if (stitched_image.empty()) {std::cerr << "Stitched image is empty!" << std::endl;continue;}// 转换为YUV420P并写入管道if (!write_yuv_to_pipe(stitched_image)) {std::cerr << "Failed to write YUV to pipe" << std::endl;break;}// 控制帧率std::this_thread::sleep_for(std::chrono::milliseconds(100)); // ~25 fps}// 清理资源cleanup_resources();
}int main(int argc, char** argv) {// 初始化CyberRTapollo::cyber::Init("image_stitching_streamer");// 创建节点auto node = apollo::cyber::CreateNode("image_stitching_streamer");// 创建订阅者std::array<std::shared_ptr<Reader<Image>>, NUM_CAMERAS> readers;readers[FRONT] = node->CreateReader<Image>("/apollo/sensor/camera/CAM_FRONT/image",[](const std::shared_ptr<Image>& msg) { image_callback(msg, FRONT); });readers[RIGHT_FRONT] = node->CreateReader<Image>("/apollo/sensor/camera/CAM_FRONT_RIGHT/image",[](const std::shared_ptr<Image>& msg) { image_callback(msg, RIGHT_FRONT); });readers[LEFT_FRONT] = node->CreateReader<Image>("/apollo/sensor/camera/CAM_FRONT_LEFT/image",[](const std::shared_ptr<Image>& msg) { image_callback(msg, LEFT_FRONT); });readers[REAR] = node->CreateReader<Image>("/apollo/sensor/camera/CAM_BACK/image",[](const std::shared_ptr<Image>& msg) { image_callback(msg, REAR); });readers[LEFT_REAR] = node->CreateReader<Image>("/apollo/sensor/camera/CAM_BACK_LEFT/image",[](const std::shared_ptr<Image>& msg) { image_callback(msg, LEFT_REAR); });readers[RIGHT_REAR] = node->CreateReader<Image>("/apollo/sensor/camera/CAM_BACK_RIGHT/image",[](const std::shared_ptr<Image>& msg) { image_callback(msg, RIGHT_REAR); });// 启动处理线程std::thread processor(processing_thread);std::cout << "Started image stitching and streaming application" << std::endl;std::cout << "Subscribed to 6 camera topics" << std::endl;// 等待终止信号apollo::cyber::WaitForShutdown();// 停止处理线程running = false;if (processor.joinable()) {processor.join();}return 0;
}
EOF

8. 编译与运行

编译时需要链接Apollo Cyber RT、OpenCV和FFmpeg等相关库：

# 创建OpenCV头文件软链接
ln -sf /opt/apollo/neo/packages/3rd-opencv/latest/include opencv2# 编译程序（链接所有必要库）
g++ -std=c++14 -o image_stitching_streamer image_stitching_streamer.cc \-I . -I /opt/apollo/neo/include \-I /apollo_workspace/streamer/ffmpeg/_install/include/ \/opt/apollo/neo/packages/3rd-protobuf/latest/lib/libprotobuf.so -lpthread \/opt/apollo/neo/lib/modules/common_msgs/sensor_msgs/lib_sensor_image_proto_mcs_bin.so \/opt/apollo/neo/lib/cyber/transport/libcyber_transport.so \/opt/apollo/neo/lib/cyber/service_discovery/libcyber_service_discovery.so \/opt/apollo/neo/lib/cyber/service_discovery/libcyber_service_discovery_role.so \/opt/apollo/neo/lib/cyber/class_loader/shared_library/libshared_library.so \/opt/apollo/neo/lib/cyber/class_loader/utility/libclass_loader_utility.so \/opt/apollo/neo/lib/cyber/class_loader/libcyber_class_loader.so \/opt/apollo/neo/lib/cyber/message/libcyber_message.so \/opt/apollo/neo/lib/cyber/plugin_manager/libcyber_plugin_manager.so \/opt/apollo/neo/lib/cyber/profiler/libcyber_profiler.so \/opt/apollo/neo/lib/cyber/common/libcyber_common.so \/opt/apollo/neo/lib/cyber/data/libcyber_data.so \/opt/apollo/neo/lib/cyber/logger/libcyber_logger.so \/opt/apollo/neo/lib/cyber/service/libcyber_service.so \/opt/apollo/neo/lib/cyber/libcyber.so \/opt/apollo/neo/lib/cyber/timer/libcyber_timer.so \/opt/apollo/neo/lib/cyber/blocker/libcyber_blocker.so \/opt/apollo/neo/lib/cyber/component/libcyber_component.so \/opt/apollo/neo/lib/cyber/tools/cyber_recorder/librecorder.so \/opt/apollo/neo/lib/cyber/base/libcyber_base.so \/opt/apollo/neo/lib/cyber/sysmo/libcyber_sysmo.so \/opt/apollo/neo/lib/cyber/croutine/libcyber_croutine.so \/opt/apollo/neo/lib/cyber/libcyber_binary.so \/opt/apollo/neo/lib/cyber/io/libcyber_io.so \/opt/apollo/neo/lib/cyber/event/libcyber_event.so \/opt/apollo/neo/lib/cyber/statistics/libapollo_statistics.so \/opt/apollo/neo/lib/cyber/scheduler/libcyber_scheduler.so \/opt/apollo/neo/lib/cyber/record/libcyber_record.so \/opt/apollo/neo/lib/cyber/libcyber_state.so \/opt/apollo/neo/lib/cyber/context/libcyber_context.so \/opt/apollo/neo/lib/cyber/node/libcyber_node.so \/opt/apollo/neo/lib/cyber/task/libcyber_task.so \/opt/apollo/neo/lib/cyber/parameter/libcyber_parameter.so \/opt/apollo/neo/lib/cyber/time/libcyber_time.so \/opt/apollo/neo/lib/cyber/transport/libcyber_transport.so \/opt/apollo/neo/lib/cyber/proto/lib_qos_profile_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_topology_change_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_component_conf_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_unit_test_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_record_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_parameter_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_cyber_conf_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_role_attributes_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_transport_conf_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_scheduler_conf_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_run_mode_conf_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_classic_conf_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_dag_conf_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_choreography_conf_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_simple_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_perf_conf_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_clock_proto_cp_bin.so \/opt/apollo/neo/lib/cyber/proto/lib_proto_desc_proto_cp_bin.so \/usr/local/lib/libbvar.so \/opt/apollo/neo/packages/3rd-glog/latest/lib/libglog.so \/opt/apollo/neo/packages/3rd-gflags/latest/lib/libgflags.so \/opt/apollo/neo/packages/3rd-opencv/latest/lib/libopencv_core.so \/opt/apollo/neo/packages/3rd-opencv/latest/lib/libopencv_imgproc.so \/opt/apollo/neo/packages/3rd-opencv/latest/lib/libopencv_imgcodecs.so  \/apollo_workspace/streamer/ffmpeg/_install/lib/libavformat.a \/apollo_workspace/streamer/ffmpeg/_install/lib/libavcodec.a \/apollo_workspace/streamer/ffmpeg/_install/lib/libavdevice.a \/apollo_workspace/streamer/ffmpeg/_install/lib/libavfilter.a \/apollo_workspace/streamer/ffmpeg/_install/lib/libswresample.a \/apollo_workspace/streamer/ffmpeg/_install/lib/libswscale.a \/apollo_workspace/streamer/ffmpeg/_install/lib/libavutil.a \/usr/local/lib/libnvmpi.so -lz \/usr/lib/aarch64-linux-gnu/liblzma.so -ldrm# 运行程序
./image_stitching_streamer

9. 启动FFmpeg推流

/apollo_workspace/streamer/ffmpeg/_install/bin/ffmpeg -f rawvideo -pixel_format yuv420p \-video_size 1920x1080 -framerate 10 -i /tmp/yuv_pipe \-c:v h264_nvmpi -b:v 4M -f flv rtmp://<服务器地址>/live/test

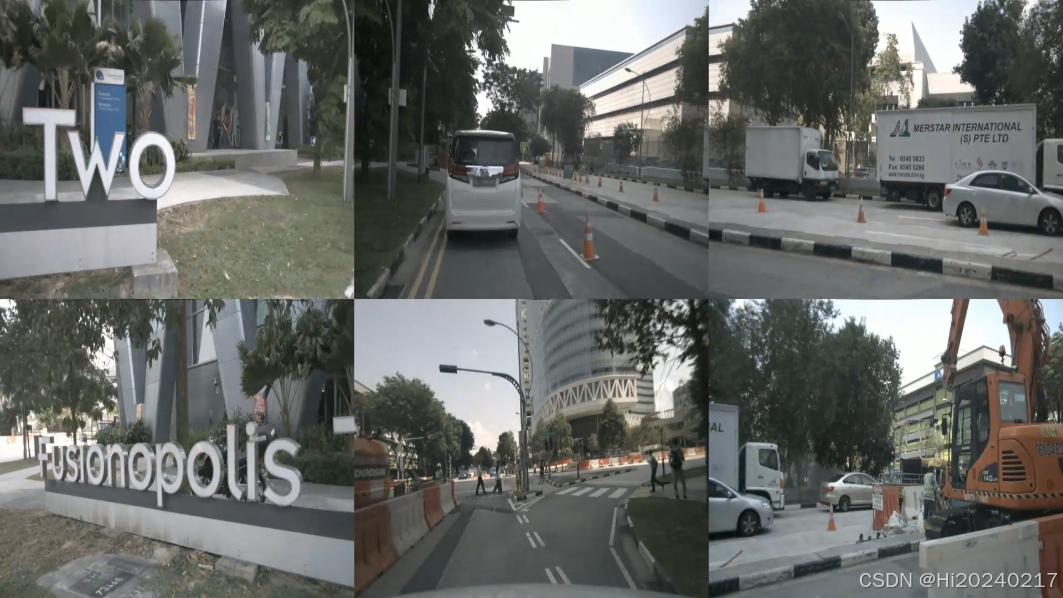

10. 使用VLC播放

请添加图片描述

四、总结

本文介绍了在Orin-Apollo平台上实现多摄像头订阅、图像拼接和RTMP推流的完整流程。通过利用Cyber RT的实时通信能力、OpenCV的图像处理功能和Jetson平台的硬件编解码加速。
