商城系统——项目测试

news 2025/9/5 16:57:21

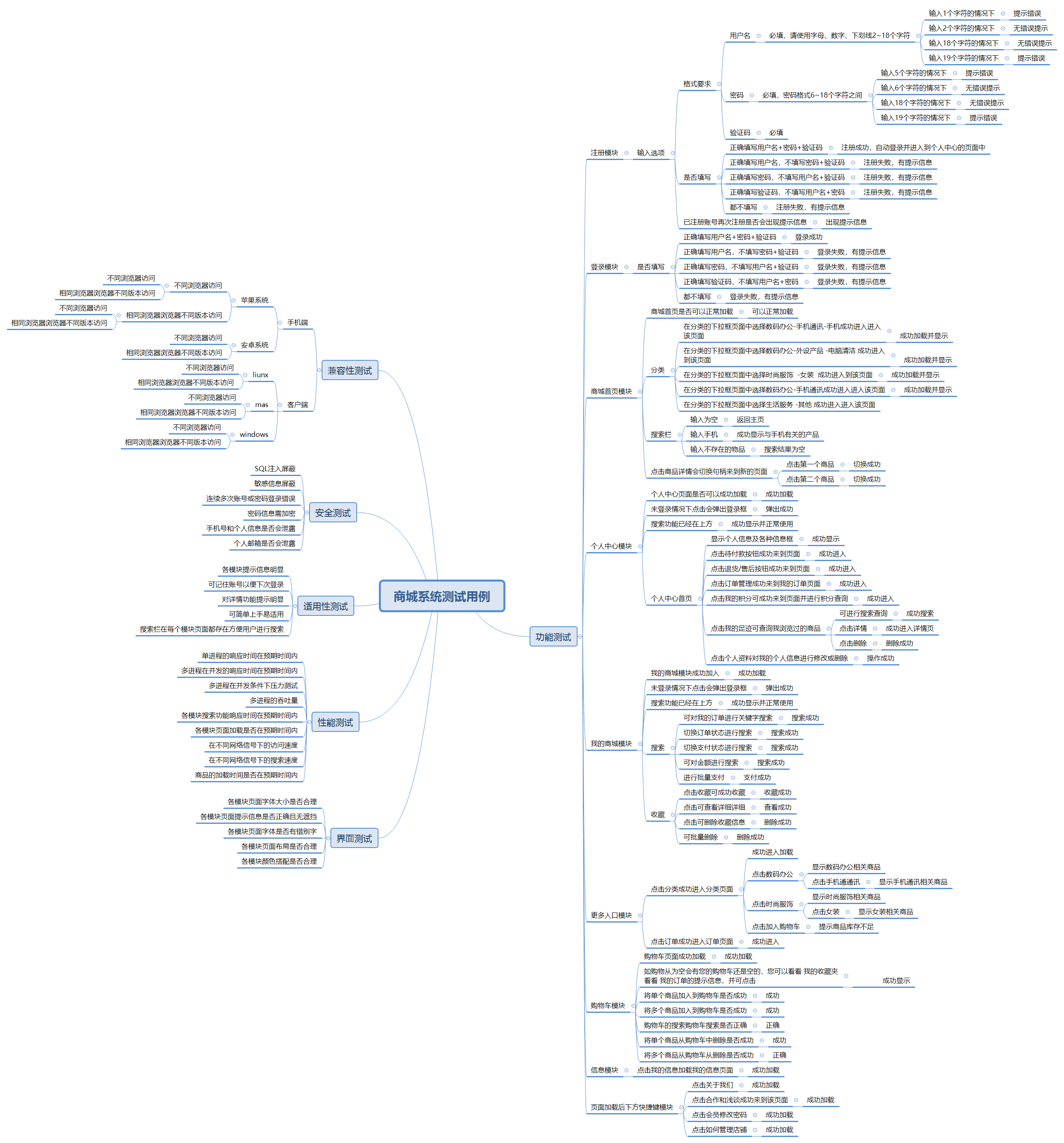

1.测试用例

从功能测试+性能测试+界面测试+兼容性测试+易用测试+安全测试去完成测试用例。
在这里插入图片描述

2.功能测试

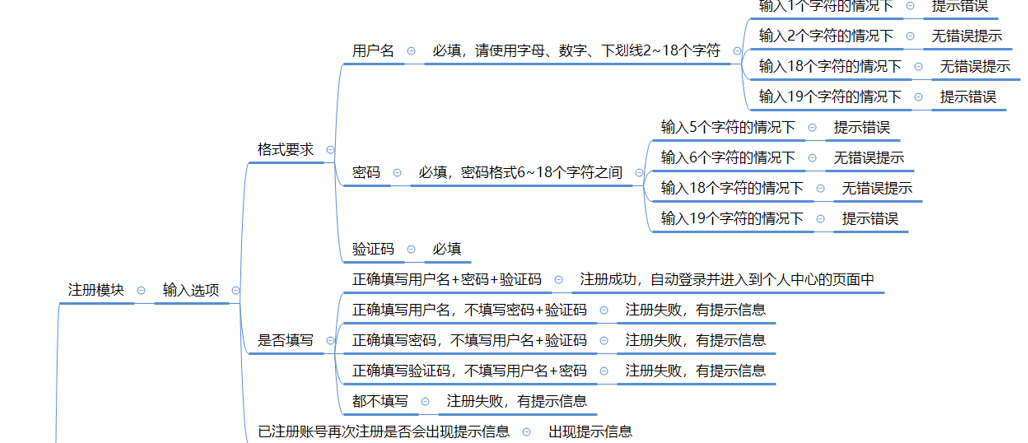

以注册功能为例：
在这里插入图片描述
注册：注册功能通过等价划分法，边界值分析，正交法去设计测试用例，高效覆盖多因素组合场景，用最少的测试用例覆盖尽可能多的参数组合。

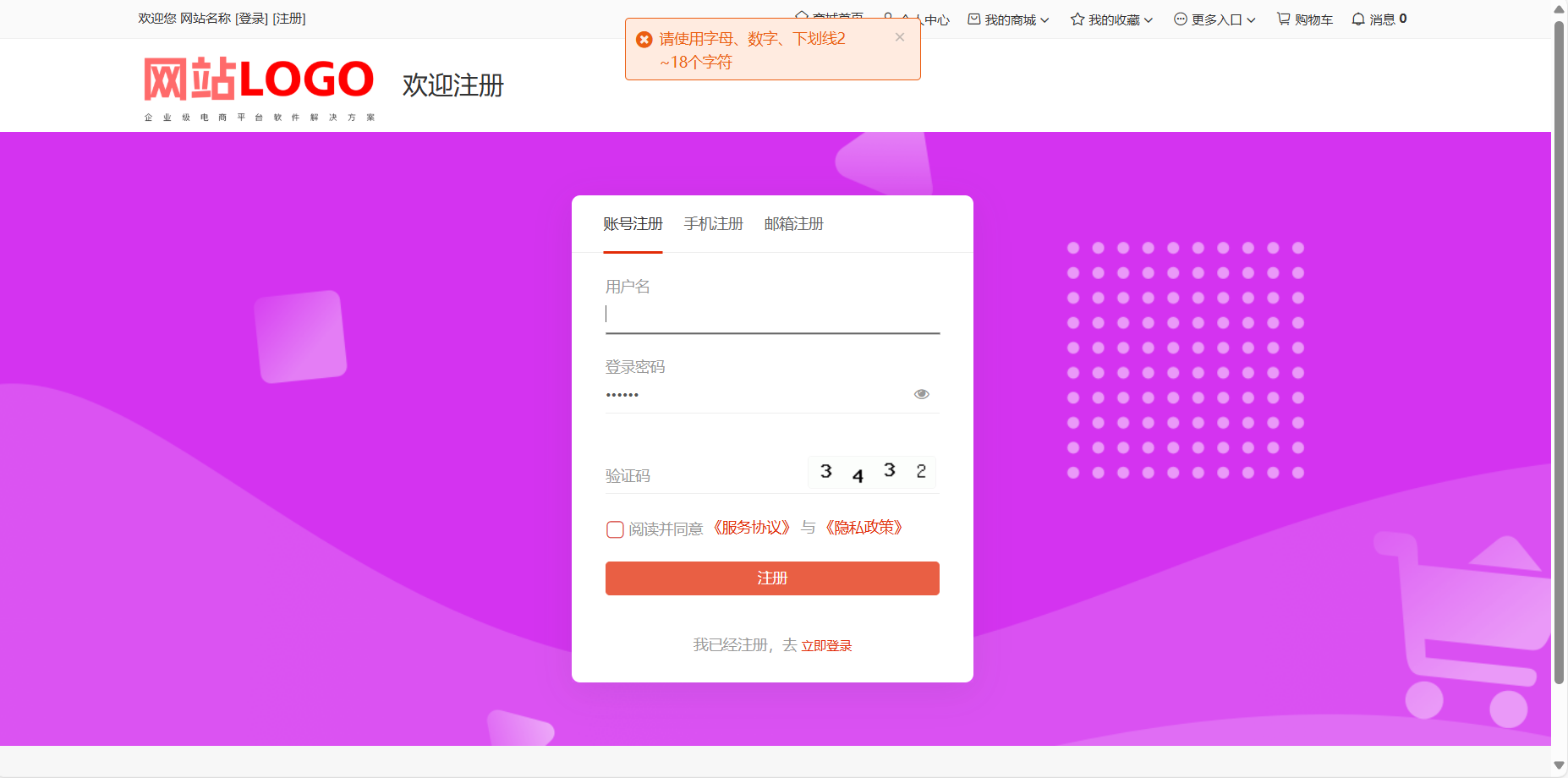

注册测试用例1：

都不输入的情况下点击注册按钮

预期结果：弹出对应的提示信息
在这里插入图片描述

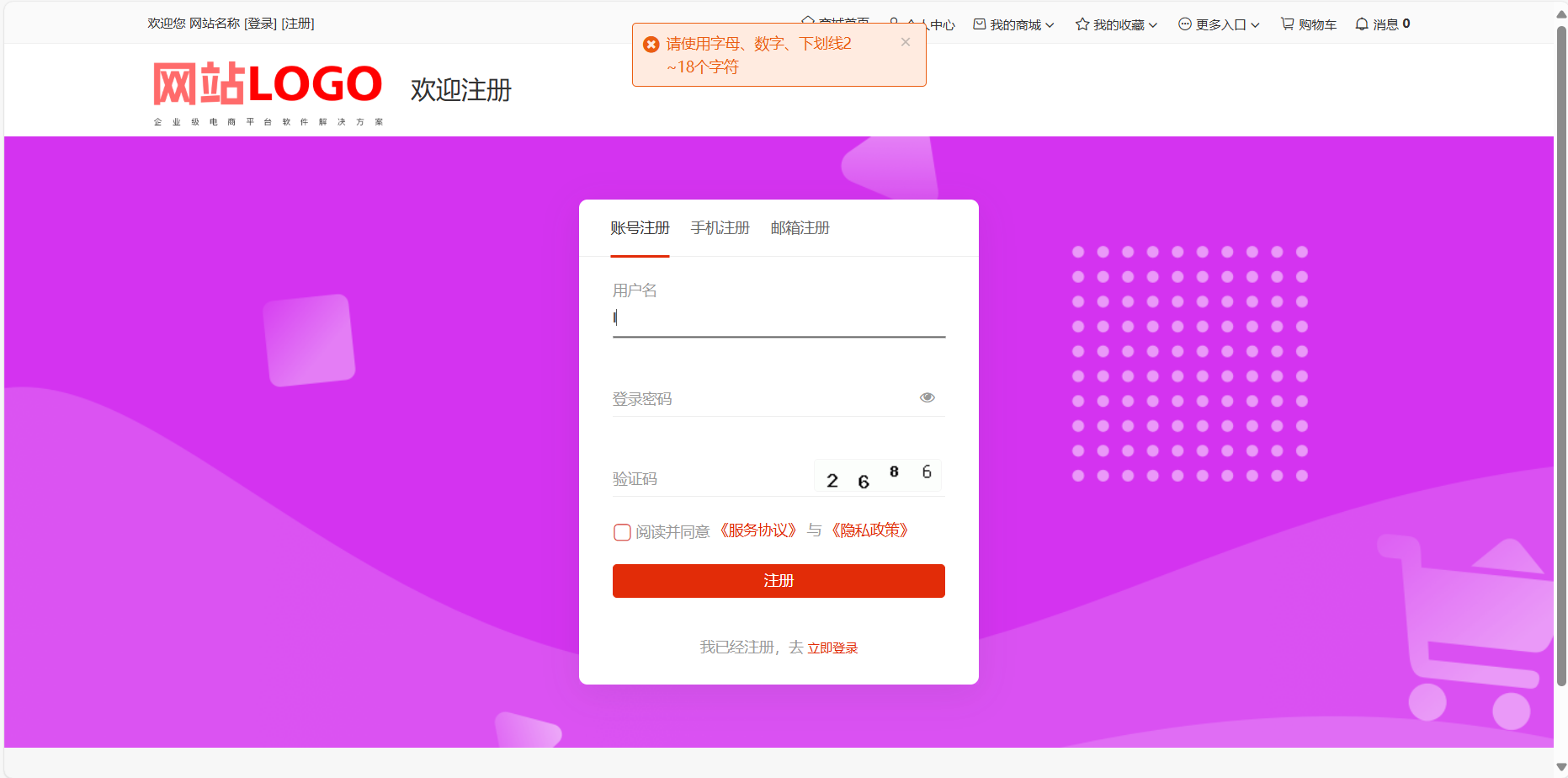

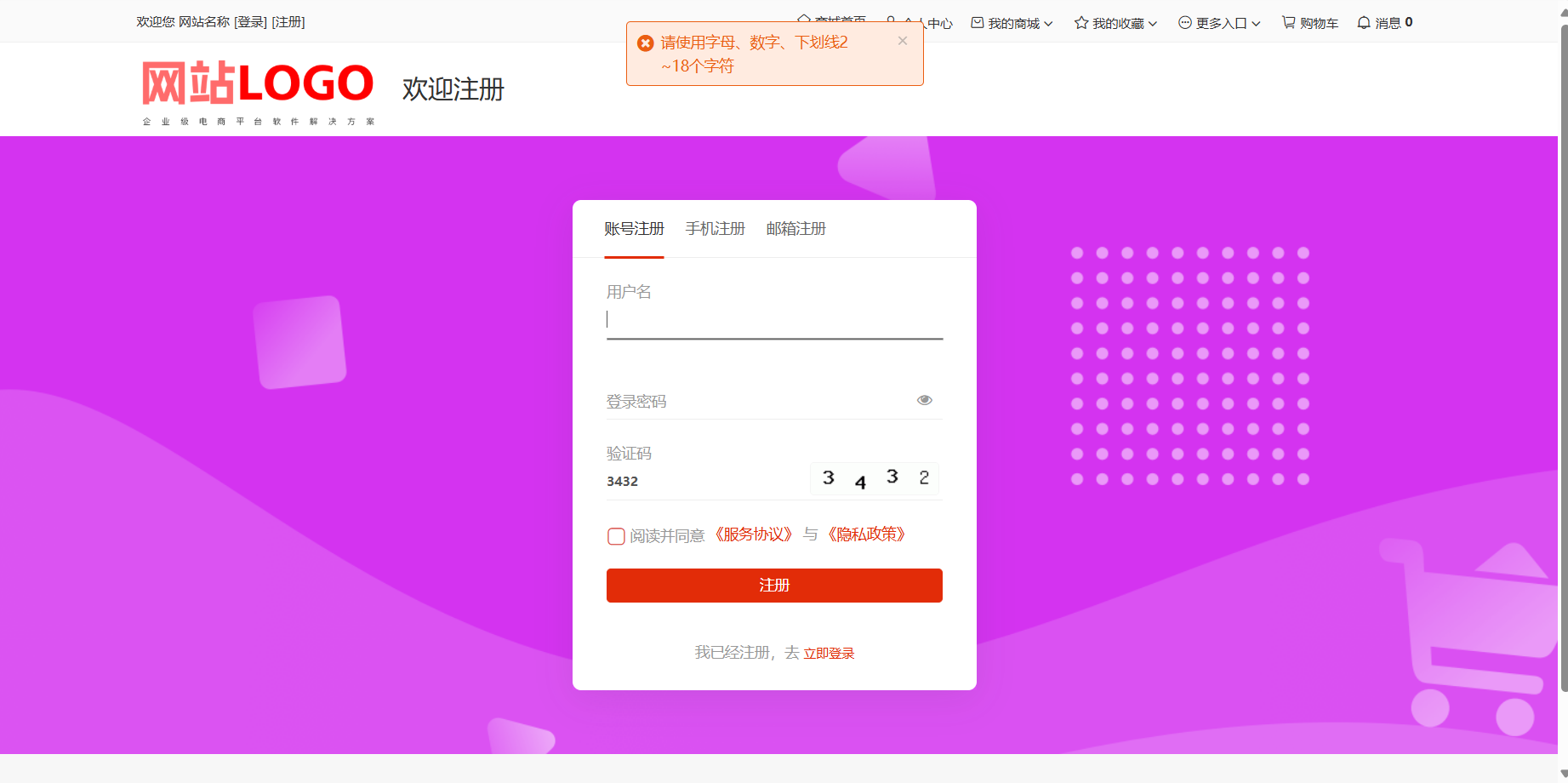

注册测试用例2：

用户名输入1个字符的情况下

预期结果：弹出对应的提示信息
在这里插入图片描述
注册测试用例3：

用户名输入2个字符的情况下

预期结果：无提示信息，点击注册后光标自动来到登录密码框
在这里插入图片描述

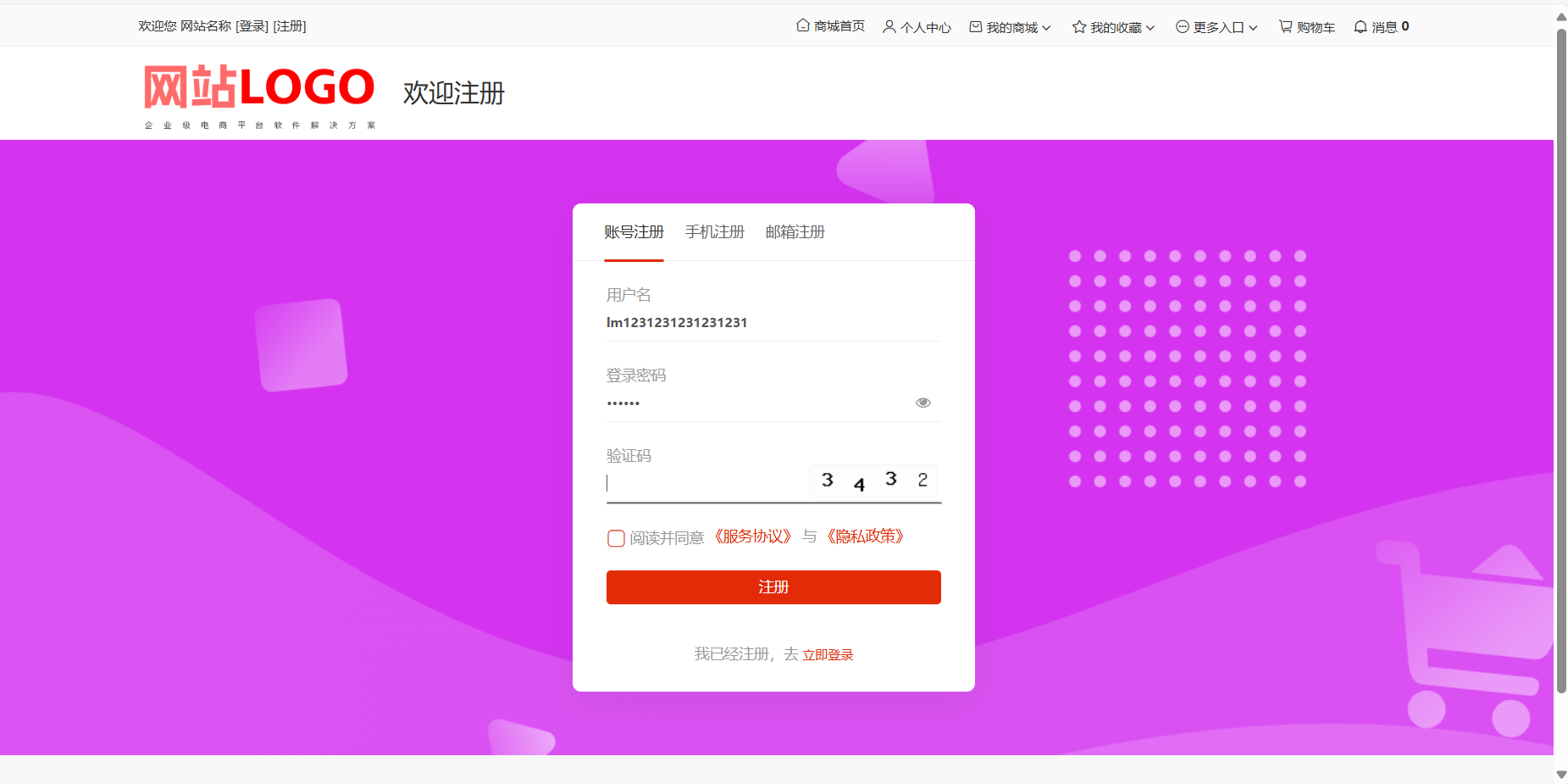

注册测试用例4：

用户名输入18个字符的情况下

预期结果：无提示信息，点击注册后光标自动来到登录密码框
在这里插入图片描述

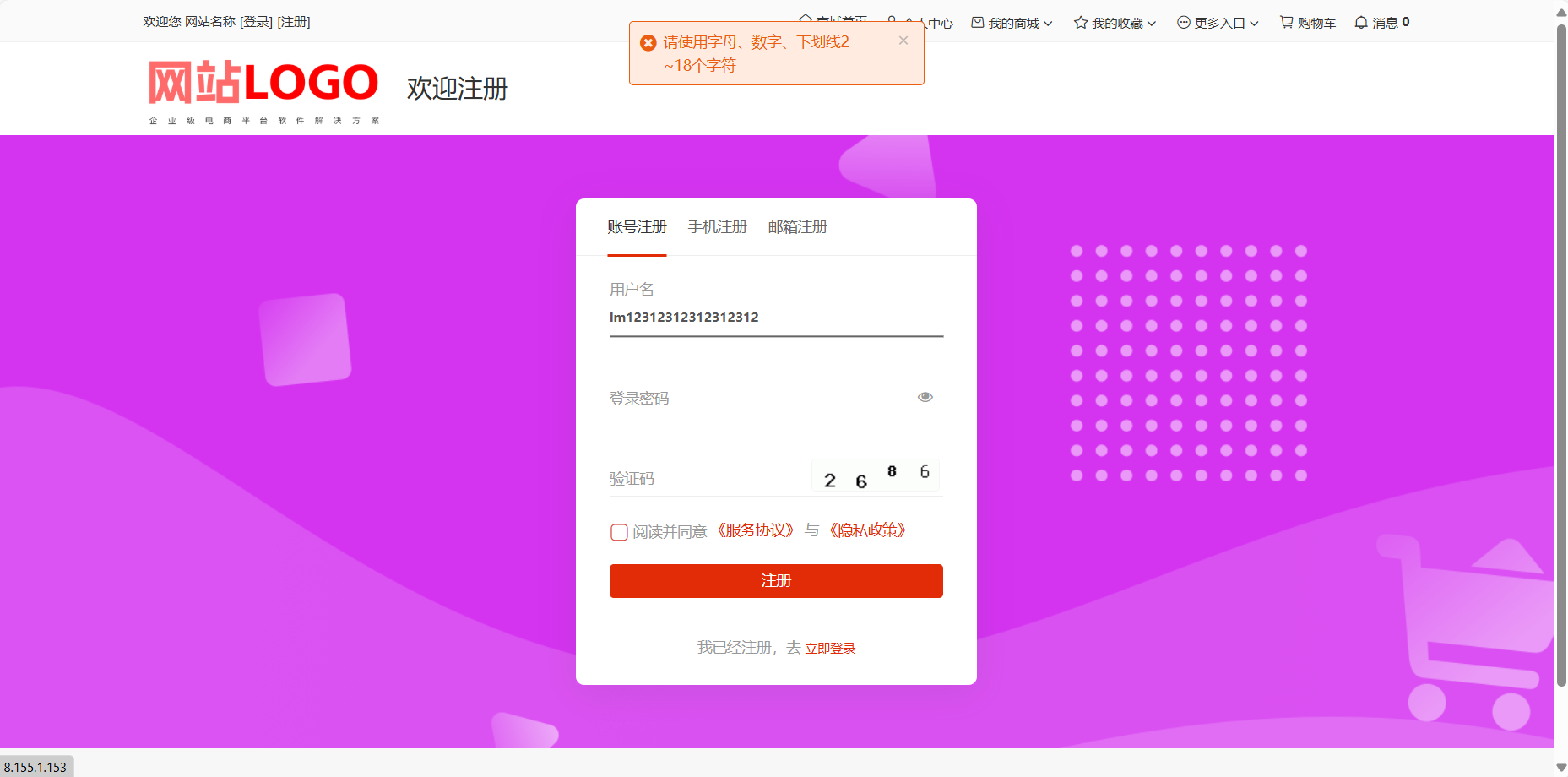

注册测试用例5：

用户名输入19个字符的情况下

预期结果：弹出对应的提示信息
在这里插入图片描述
注册测试用例6：

密码输入5个字符的情况下

预期结果：弹出对应的提示信息
在这里插入图片描述
注册测试用例7：

密码输入6个字符的情况下

预期结果：无提示信息，点击注册后光标自动来到验证码框

在这里插入图片描述

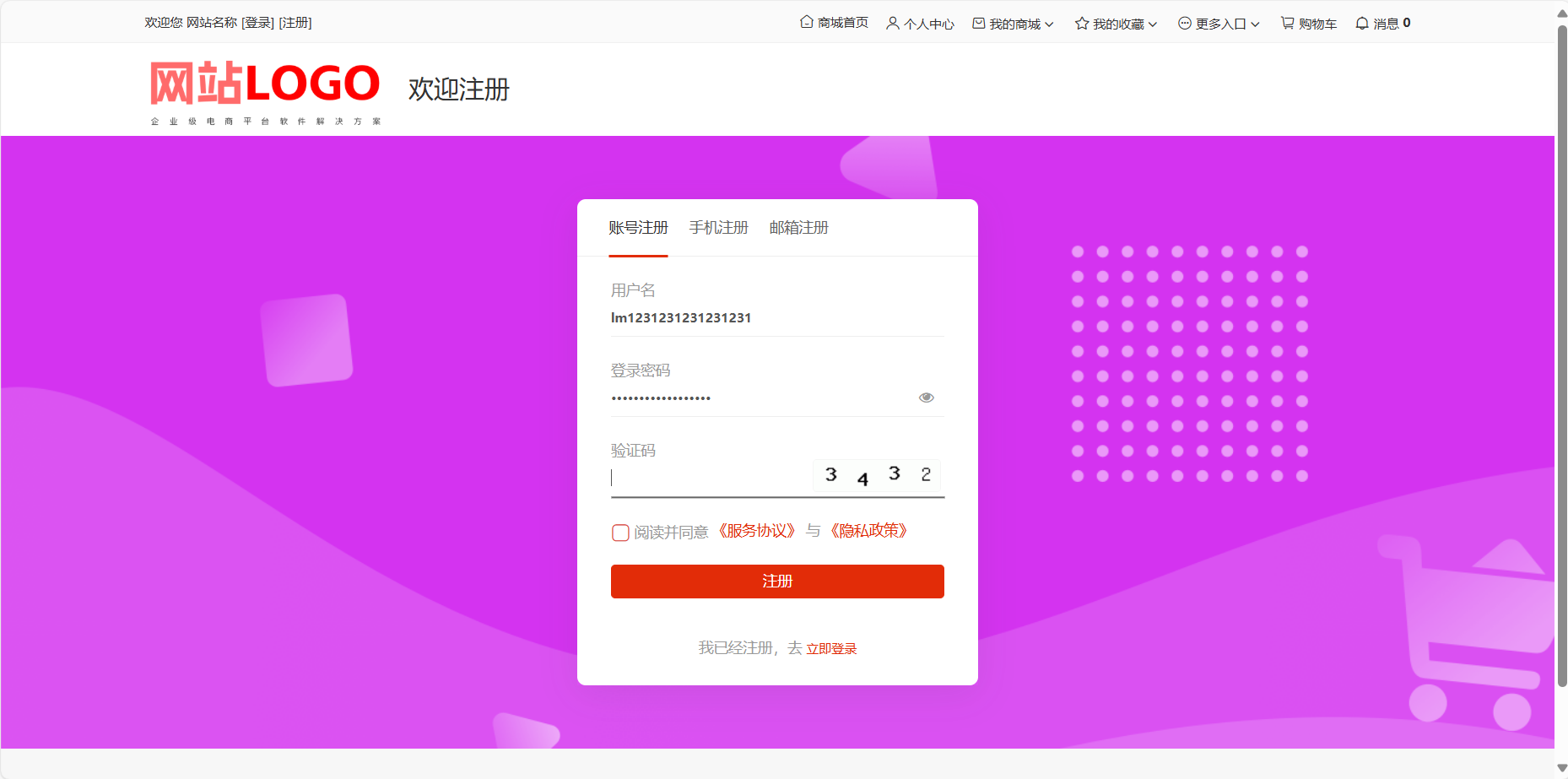

注册测试用例8：

密码输入18个字符的情况下

预期结果：无提示信息，点击注册后光标自动来到验证码框

在这里插入图片描述

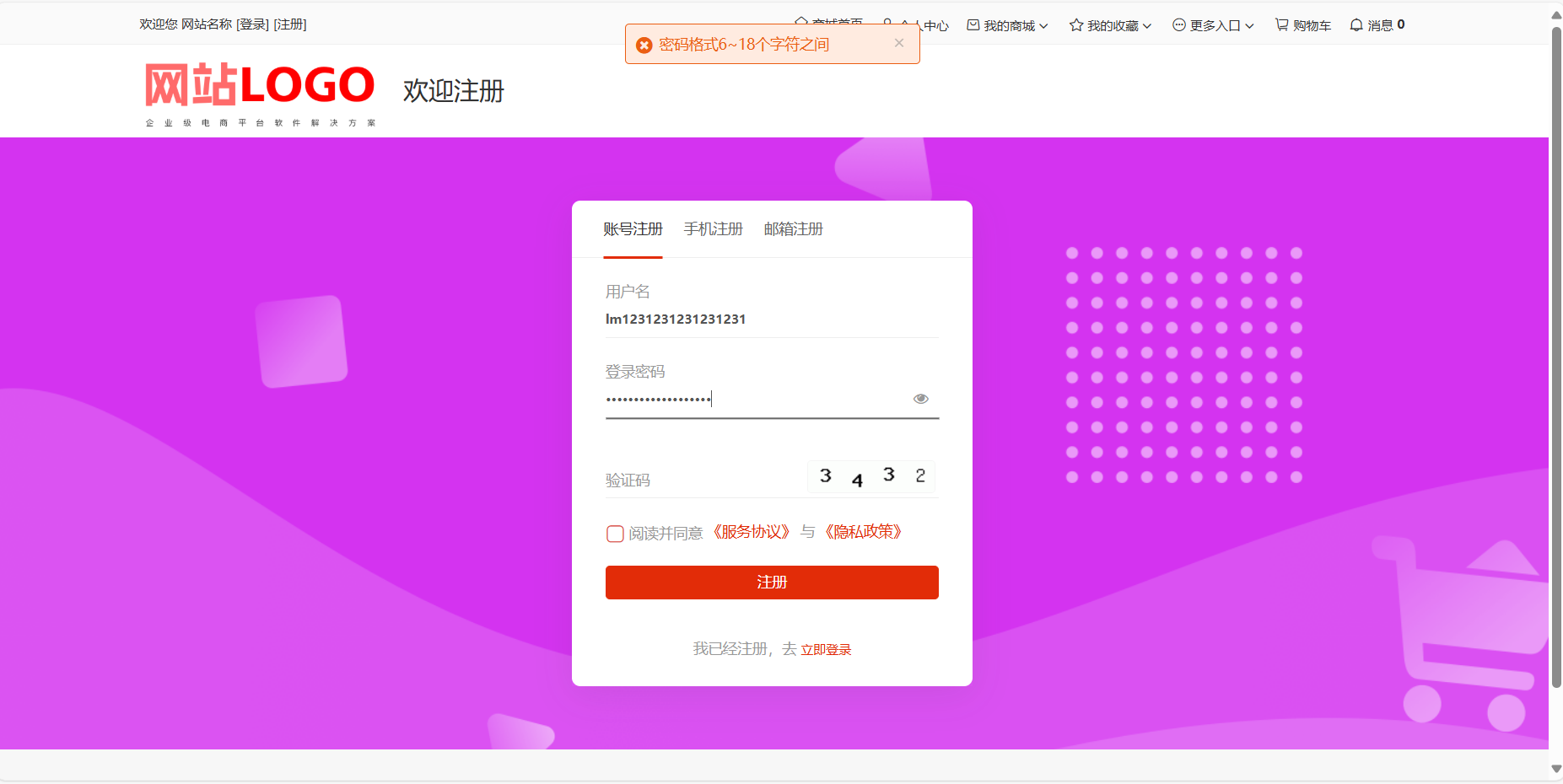

注册测试用例9：

密码输入19个字符的情况下

预期结果：弹出对应的提示信息
在这里插入图片描述

注册测试用例10：

正确填写用户名，不填写密码+验证码

预期结果：弹出对应的提示信息
在这里插入图片描述
注册测试用例11：

正确填写密码，不填写用户名+验证码

预期结果：弹出对应的提示信息在这里插入图片描述
注册测试用例12：

正确填写验证码，不填写用户名+密码

预期结果：弹出对应的提示信息
在这里插入图片描述

3.界面测试

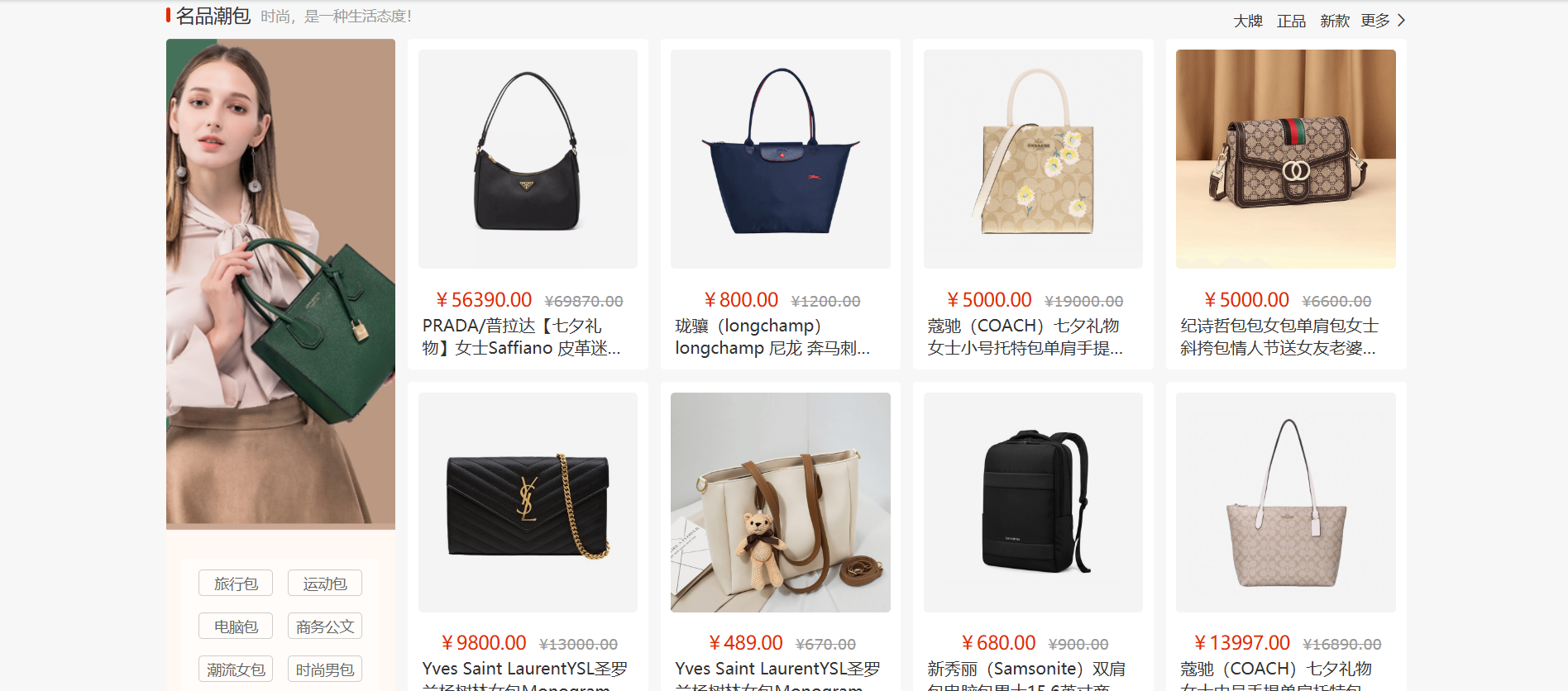

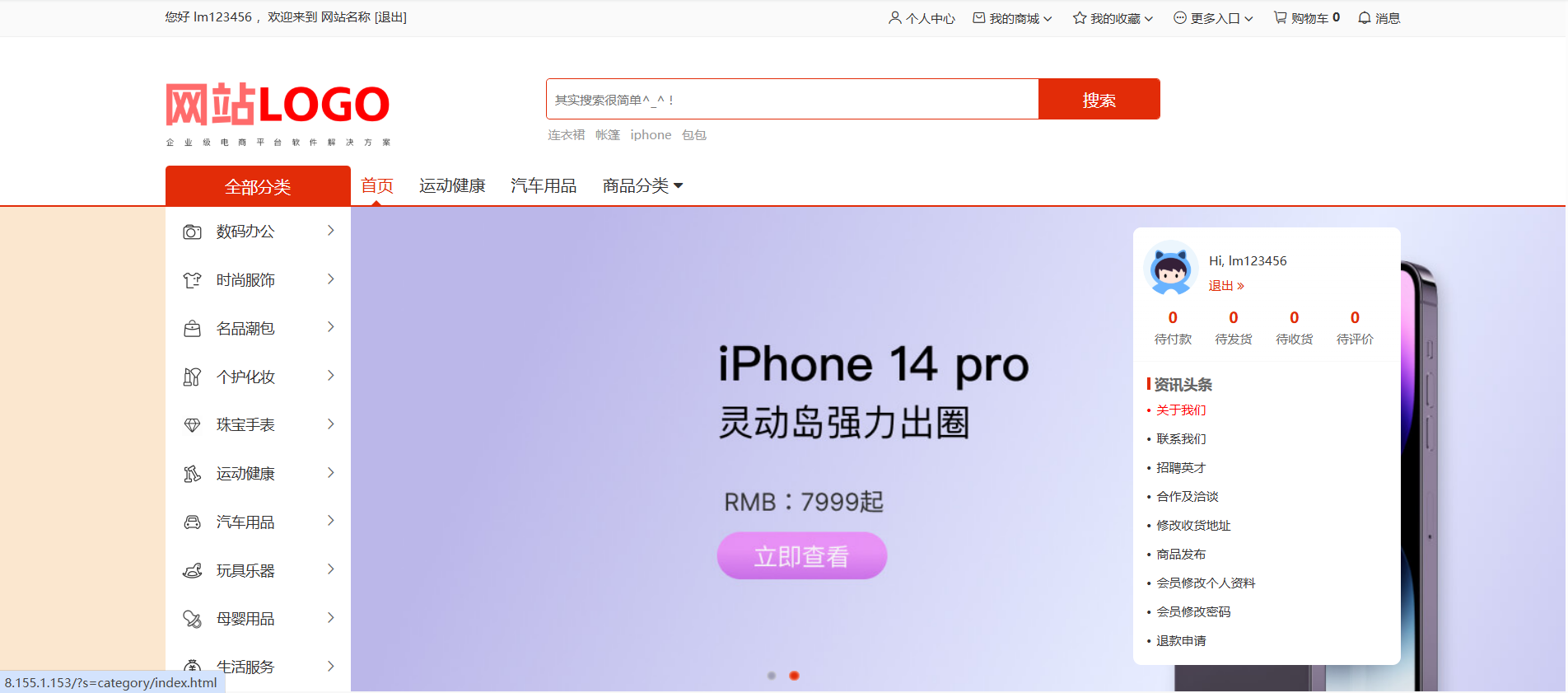

以首页模块为例：

布局大小合理，列间距一致。
图片清晰无模糊，自适应不同屏幕和设备。
页面下滑流畅，分类明确，无错别字。
交互元素如搜索框和导航栏始终置顶，便于使用。
点击图片可跳转至详情页，功能完整。在这里插入图片描述

4.自动化测试

引入依赖：

  <dependencies><dependency><groupId>io.github.bonigarcia</groupId><artifactId>webdrivermanager</artifactId><version>5.8.0</version><scope>test</scope></dependency><dependency><groupId>org.seleniumhq.selenium</groupId><artifactId>selenium-java</artifactId><version>4.0.0</version></dependency><dependency><groupId>commons-io</groupId><artifactId>commons-io</artifactId><version>2.6</version></dependency></dependencies>

Utils类

public class Utils {public static WebDriver driver;public static WebDriver CommonDriver(){if(driver==null){System.setProperty("webdriver.edge.driver","D:/cs/edgedriver_win64/msedgedriver.exe");EdgeOptions options = new EdgeOptions();options.addArguments("--remote-allow-origins=*");driver=new EdgeDriver(options);//隐式等待driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(4));}return driver;}public static WebDriverWait wait = null;public Utils(String Url) throws IOException {CommonDriver();driver.get(Url);wait = new WebDriverWait(driver, Duration.ofSeconds(10));}/* public Utils(String url) {//调用driver对象CommonDriver();driver.get(url);WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(10));}
*///屏幕截图进阶public void CommonScreenshot(String str) throws IOException {SimpleDateFormat sim1 = new SimpleDateFormat("yyy-MM-dd");SimpleDateFormat sim2 = new SimpleDateFormat("HHmmssSS");String dirTime = sim1.format(System.currentTimeMillis());String fileTime = sim2.format(System.currentTimeMillis());String filename = "./src/test/image" + dirTime + "/" + str + "-" + fileTime + ".png";System.out.println("filename:"+filename);File srcFile = ((TakesScreenshot)driver).getScreenshotAs(OutputType.FILE);FileUtils.copyFile(srcFile, new File(filename));}public static void CommonQuit() {//退出浏览器if (driver != null) {driver.quit();}}

以注册页为例：

package tests;import common.Utils;
import org.openqa.selenium.By;
import org.openqa.selenium.Keys;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.interactions.Actions;
import org.openqa.selenium.support.ui.ExpectedConditions;import java.io.IOException;
import java.time.Instant;public class RegistrationRageTest extends Utils {public static String url = "http://8.155.1.153/?s=user/regInfo.html";public RegistrationRageTest() throws IOException {super(url);}//异常注册//都不输入的情况下public void AbnormalRegistrationPage() throws IOException {//点击注册按钮driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button")).click();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());// 等待提示框消失的组合策略// 首先等待提示框出现WebElement prompt = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//p[@class='prompt-msg']")));// 然后等待提示框消失wait.until(ExpectedConditions.invisibilityOf(prompt));}//用户名输入1个字符的情况下public void AbnormalRegistrationPage1() throws IOException {//点击用户输入框并输入WebElement userName = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(1) > input"));userName.click();userName.sendKeys("l");//点击注册按钮driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button")).click();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//等待提示信息WebElement prompt = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//p[@class='prompt-msg' and text()='请使用字母、数字、下划线2~18个字符']")));String text1 = prompt.getText();assert text1.contains("请使用字母、数字、下划线2~18个字符");// 然后等待提示框消失wait.until(ExpectedConditions.invisibilityOf(prompt));}//输入2个字符的情况下,无错误提示public void AbnormalRegistrationPage2() throws InterruptedException, IOException {//点击用户输入框并输入WebElement userName = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(1) > input"));userName.sendKeys(Keys.CONTROL + "a");userName.sendKeys(Keys.DELETE);userName.sendKeys("lm");//点击注册按钮driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button")).click();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//确认无错误提示Boolean prompt = wait.until(ExpectedConditions.invisibilityOfElementLocated(By.xpath("//p[@class='prompt-msg']")));assert prompt;}//输入18个字符的情况下public void AbnormalRegistrationPage3() throws IOException {//点击用户输入框并输入WebElement userName = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(1) > input"));userName.sendKeys(Keys.CONTROL + "a");userName.sendKeys(Keys.DELETE);userName.sendKeys("lm1231231231231231");//点击注册按钮driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button")).click();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//确认无错误提示Boolean prompt = wait.until(ExpectedConditions.invisibilityOfElementLocated(By.xpath("//p[@class='prompt-msg']")));assert prompt;}//输入19个字符的情况下public void AbnormalRegistrationPage4() throws IOException {//点击用户输入框并输入WebElement userName = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(1) > input"));userName.sendKeys(Keys.CONTROL + "a");userName.sendKeys(Keys.DELETE);userName.sendKeys("lm12312312312312312");//点击注册按钮driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button")).click();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//等待提示信息WebElement prompt = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//p[@class='prompt-msg' and text()='请使用字母、数字、下划线2~18个字符']")));String text1 = prompt.getText();assert text1.contains("请使用字母、数字、下划线2~18个字符");// 然后等待提示框消失wait.until(ExpectedConditions.invisibilityOf(prompt));}//密码输入5个字符的情况下public void AbnormalRegistrationPage5() throws IOException {//点击密码输入框并输入WebElement password = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(2) > input"));password.sendKeys(Keys.CONTROL + "a");password.sendKeys(Keys.DELETE);password.sendKeys("lm123");//点击注册按钮driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button")).click();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//等待提示信息WebElement prompt = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//p[@class='prompt-msg' and text()='密码格式6~18个字符之间']")));String text1 = prompt.getText();assert text1.contains("密码格式6~18个字符之间");// 然后等待提示框消失wait.until(ExpectedConditions.invisibilityOf(prompt));}//输入6个字符的情况下public void AbnormalRegistrationPage6() throws IOException {//点击密码输入框并输入WebElement password = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(2) > input"));password.sendKeys(Keys.CONTROL + "a");password.sendKeys(Keys.DELETE);password.sendKeys("lm1234");//点击注册按钮driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button")).click();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//确认无错误提示Boolean prompt = wait.until(ExpectedConditions.invisibilityOfElementLocated(By.xpath("//p[@class='prompt-msg']")));assert prompt;}//输入18个字符的情况下public void AbnormalRegistrationPage7() throws IOException {//点击密码输入框并输入WebElement password = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(2) > input"));password.sendKeys(Keys.CONTROL + "a");password.sendKeys(Keys.DELETE);password.sendKeys("lm1231231231231231");//点击注册按钮driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button")).click();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//确认无错误提示Boolean prompt = wait.until(ExpectedConditions.invisibilityOfElementLocated(By.xpath("//p[@class='prompt-msg']")));assert prompt;}//输入19个字符的情况下public void AbnormalRegistrationPage8() throws IOException {//点击密码输入框并输入WebElement password = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(2) > input"));password.sendKeys(Keys.CONTROL + "a");password.sendKeys(Keys.DELETE);password.sendKeys("lm12312312312312312");//点击注册按钮driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button")).click();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//等待提示信息WebElement prompt = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//p[@class='prompt-msg' and text()='密码格式6~18个字符之间']")));String text1 = prompt.getText();assert text1.contains("密码格式6~18个字符之间");// 然后等待提示框消失wait.until(ExpectedConditions.invisibilityOf(prompt));}//正确填写用户名，不填写密码+验证码public void AbnormalRegistrationPage9() throws IOException {//点击用户输入框并输入WebElement userName = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(1) > input"));userName.sendKeys(Keys.CONTROL + "a");userName.sendKeys(Keys.DELETE);userName.sendKeys("lm123");//清空密码框WebElement password = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(2) > input"));password.sendKeys(Keys.CONTROL + "a");password.sendKeys(Keys.DELETE);//点击注册按钮WebElement click = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button"));new Actions(driver).doubleClick(click).perform();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//等待提示信息WebElement prompt = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//p[@class='prompt-msg' and text()='密码格式6~18个字符之间']")));String text1 = prompt.getText();assert text1.contains("密码格式6~18个字符之间");// 然后等待提示框消失wait.until(ExpectedConditions.invisibilityOf(prompt));}//正确填写密码，不填写用户名+验证码public void AbnormalRegistrationPage10() throws IOException {//清空用户名框WebElement userName = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(1) > input"));userName.sendKeys(Keys.CONTROL + "a");userName.sendKeys(Keys.DELETE);//点击密码输入框并输入WebElement password = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(2) > input"));password.sendKeys(Keys.CONTROL + "a");password.sendKeys(Keys.DELETE);password.sendKeys("lm123456");//点击注册按钮WebElement click = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button"));new Actions(driver).doubleClick(click).perform();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//等待提示信息WebElement prompt = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//p[@class='prompt-msg' and text()='请使用字母、数字、下划线2~18个字符']")));String text1 = prompt.getText();assert text1.contains("请使用字母、数字、下划线2~18个字符");// 然后等待提示框消失wait.until(ExpectedConditions.invisibilityOf(prompt));}//正确填写验证码，不填写用户名+密码public void AbnormalRegistrationPage11() throws IOException {//清空用户名框WebElement userName = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(1) > input"));userName.sendKeys(Keys.CONTROL + "a");userName.sendKeys(Keys.DELETE);//清空密码框WebElement password = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(2) > input"));password.sendKeys(Keys.CONTROL + "a");password.sendKeys(Keys.DELETE);//输入验证码WebElement verificationInput = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div:nth-child(3) > input"));verificationInput.sendKeys("1234");//点击注册按钮WebElement click = driver.findElement(By.cssSelector("body > div.body-content-container > div.body-content-formal-container > div.am-g.user-register-container.theme-data-edit-event > div > div > div.am-radius-lg.am-background-white > div > div.am-tabs-bd.am-border-0 > div.am-tab-panel.am-active > form > div.am-form-group.am-margin-top-main.am-padding-0 > button"));new Actions(driver).doubleClick(click).perform();//屏幕截图CommonScreenshot(Thread.currentThread().getStackTrace()[1].getMethodName());//等待提示信息WebElement prompt = wait.until(ExpectedConditions.visibilityOfElementLocated(By.xpath("//p[@class='prompt-msg' and text()='请使用字母、数字、下划线2~18个字符']")));String text1 = prompt.getText();assert text1.contains("请使用字母、数字、下划线2~18个字符");// 然后等待提示框消失wait.until(ExpectedConditions.invisibilityOf(prompt));}
}

进行测试

public class runtest {public static void main(String[] args) throws InterruptedException, IOException {RegistrationRageTest registrationRageTest=new RegistrationRageTest();registrationRageTest.AbnormalRegistrationPage();registrationRageTest.AbnormalRegistrationPage1();registrationRageTest.AbnormalRegistrationPage2();registrationRageTest.AbnormalRegistrationPage3();registrationRageTest.AbnormalRegistrationPage4();registrationRageTest.AbnormalRegistrationPage5();registrationRageTest.AbnormalRegistrationPage6();registrationRageTest.AbnormalRegistrationPage7();registrationRageTest.AbnormalRegistrationPage8();registrationRageTest.AbnormalRegistrationPage9();registrationRageTest.AbnormalRegistrationPage10();registrationRageTest.AbnormalRegistrationPage11();}
