英伟达Jetson Orin NX-YOLOv8n图像分类模型耗时分析

1 基础信息

测试模型：YOLOv8n-cls
测试环境：Jetson Orin NX 16GB+Python+TensorRT
不同测试功率：25W、MAX功率
不同模型输入分辨率：64×64、128×128、224×224
不同模型参数类型：FP16、INT8（无）
测试方法：热启动后，随机裁剪某图上大小32-300像素的框，推理128次求平均。
注意：测试结果具有不稳定性，但多次测试平均推理耗时偏差不超过1ms，结果数据仅作初步参考。

2 TensorRT转换命令

FP16：

# 静态
trtexec --onnx=cls.onnx --saveEngine=cls.trt --fp16 # 动态
trtexec --onnx=cls.onnx --minShapes=images:1x3x64x64 --optShapes=images:4x3x128x128 --maxShapes=images:8x3x224x224 --saveEngine=cls.trt --fp16

3 模型推理具体耗时与分析

# 查询目前的板子功耗模式
sudo nvpmodel -q
# 设置MAXN功率模式
sudo nvpmodel -m 0
# 设置25W功率模式
sudo nvpmodel -m 3# 开启性能模式
sudo jetson_clocks

3.1 MAX

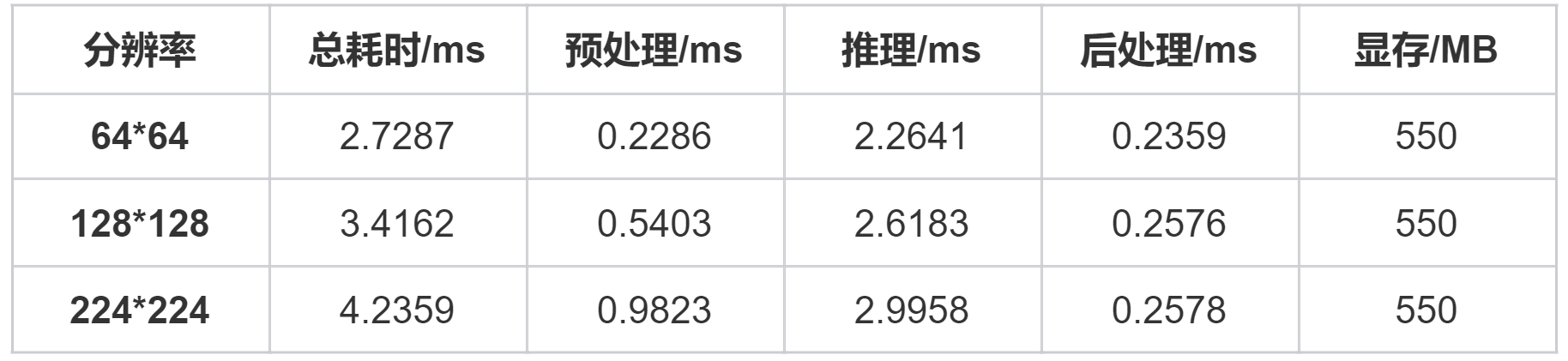

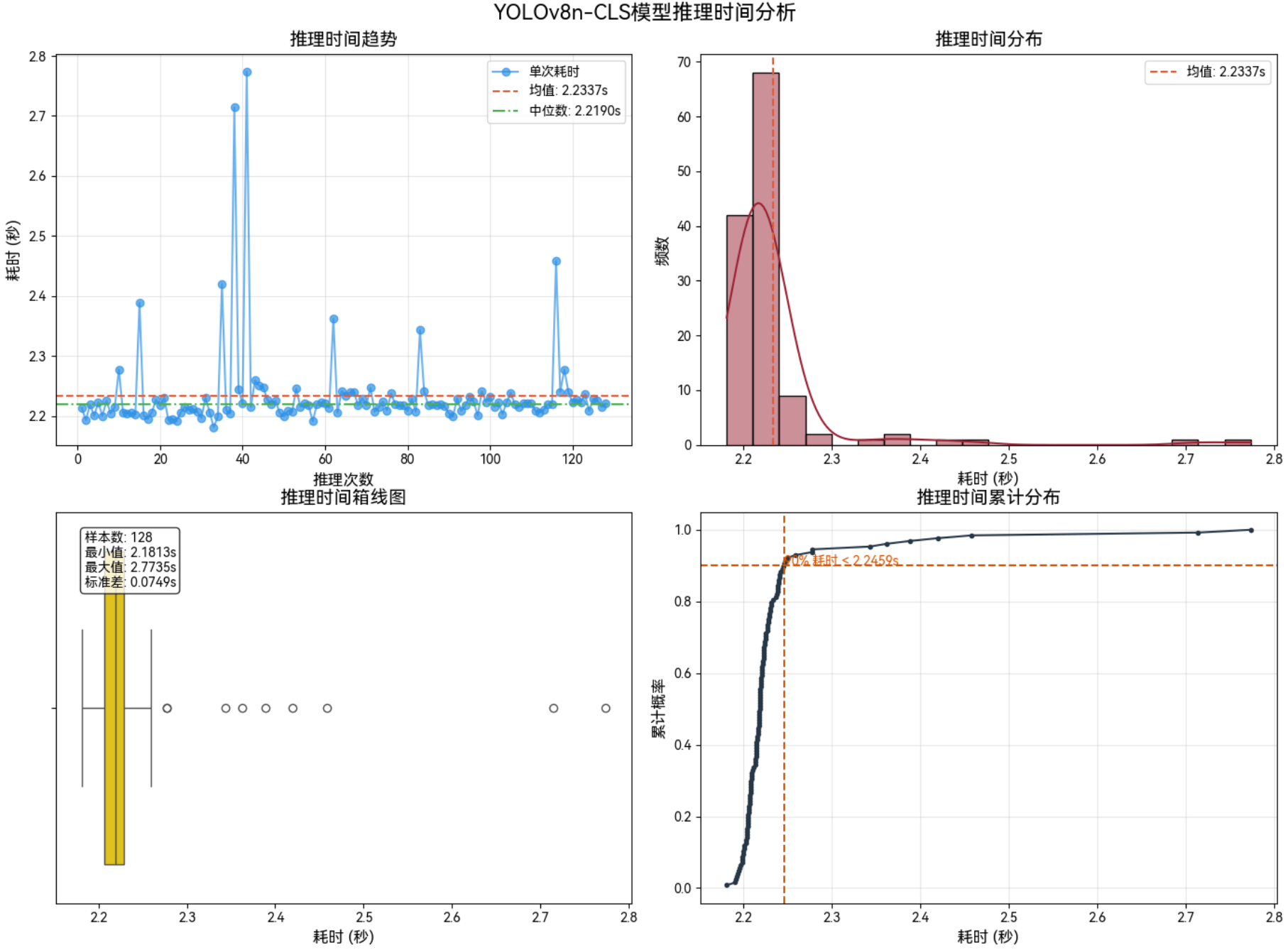

3.1.1 64*64

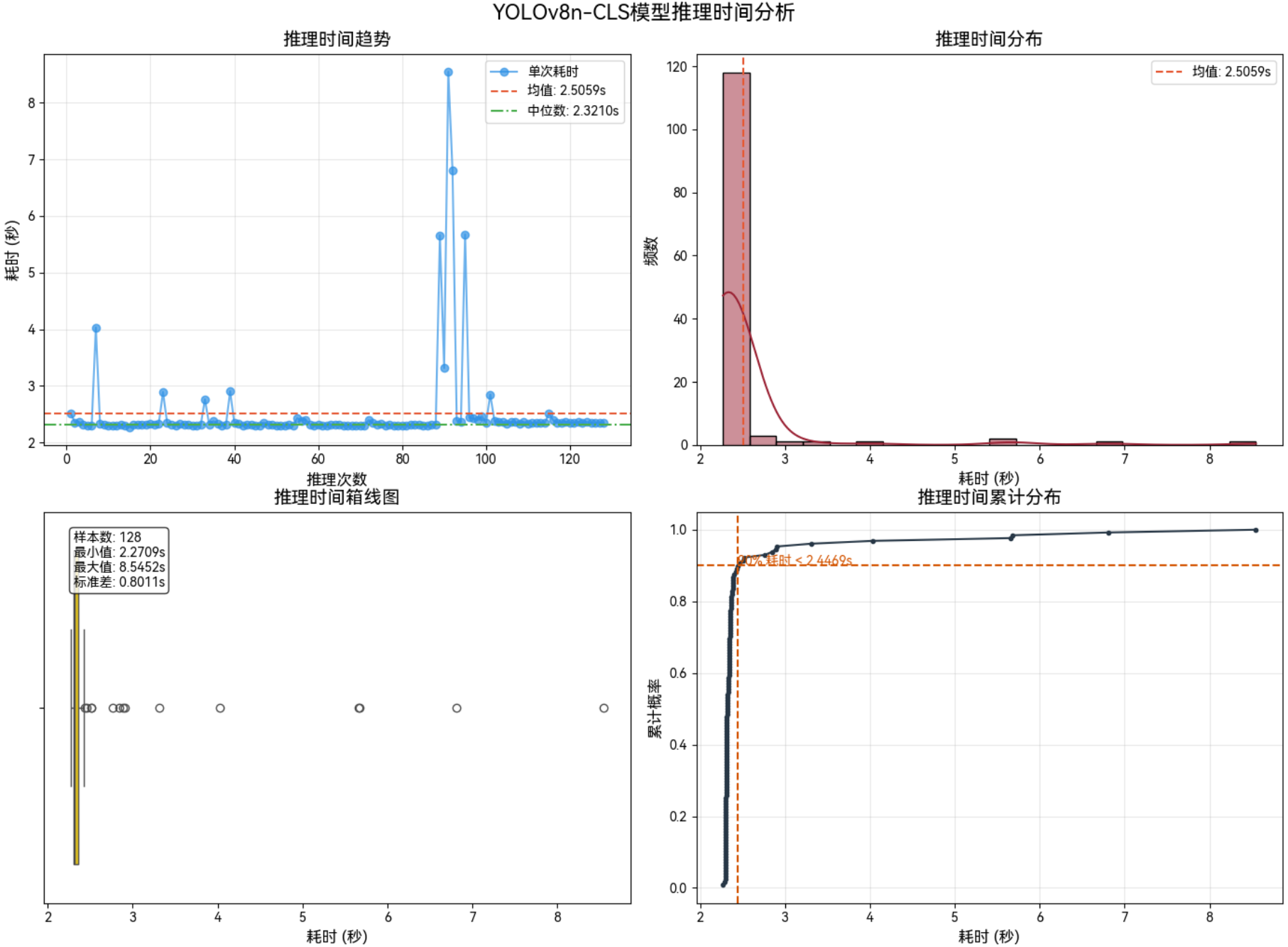

3.1.2 128*128

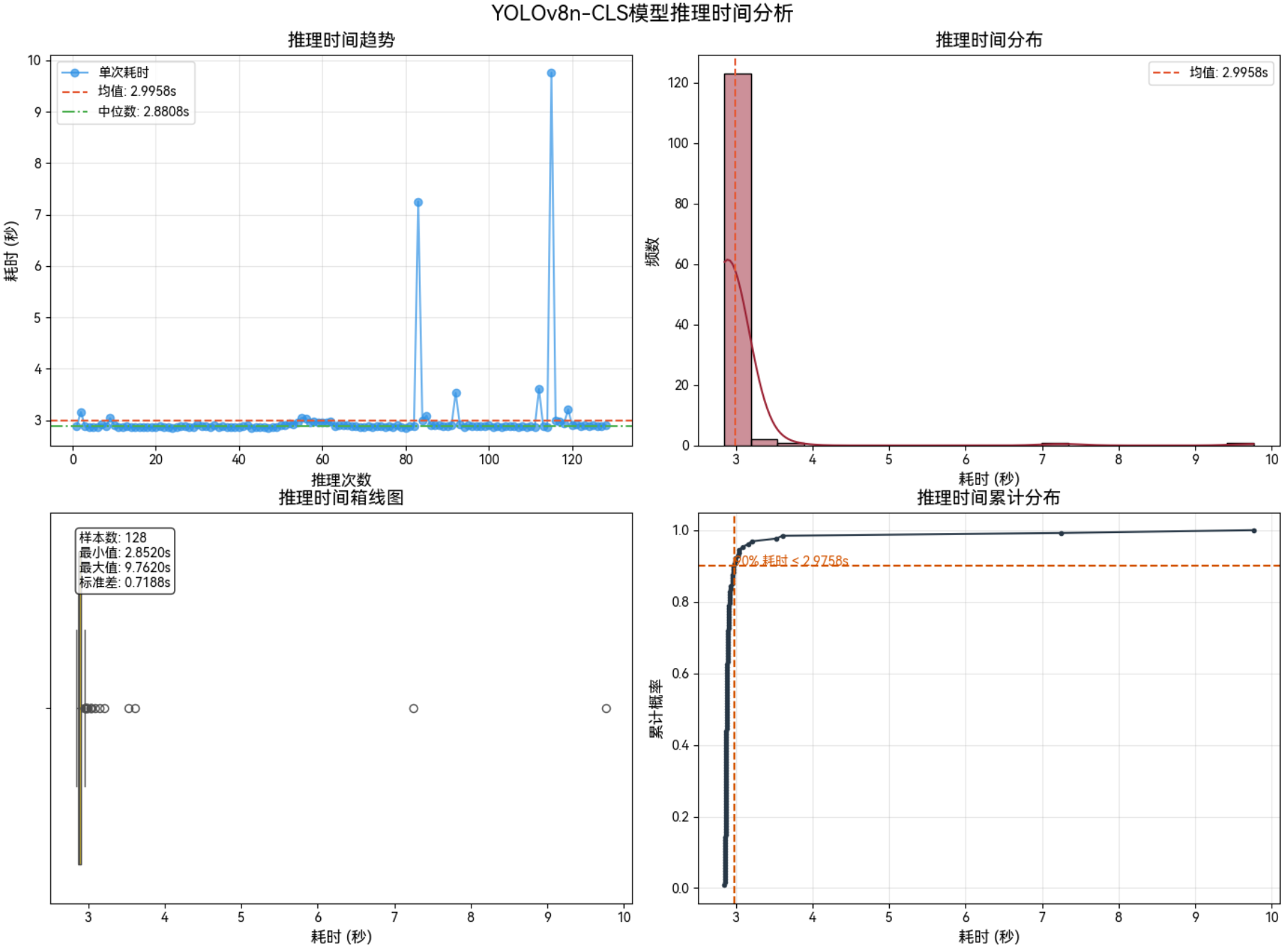

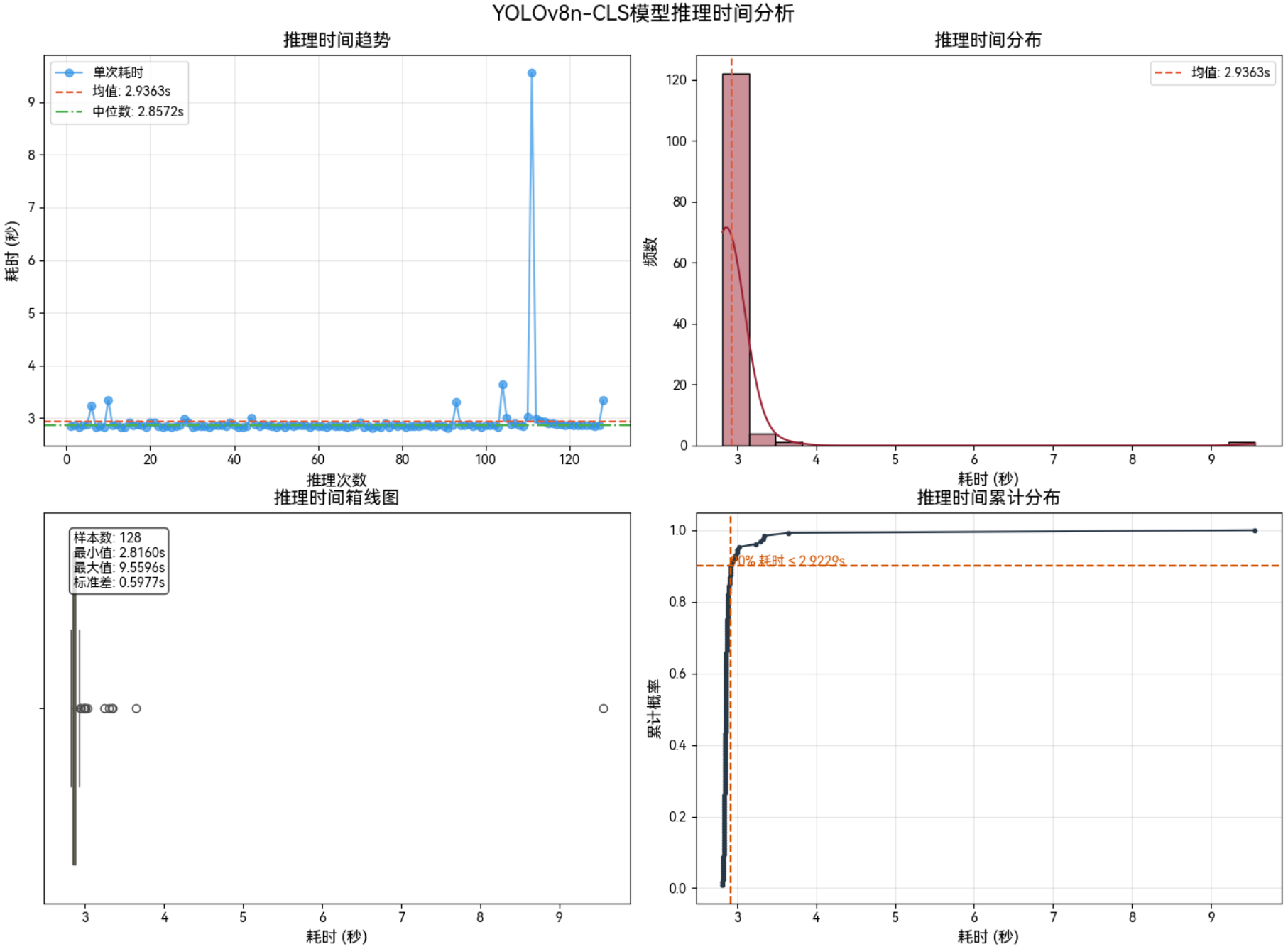

3.1.3 224*224

3.2 MAX+最大频率

3.2.1 64*64

3.2.2 128*128

3.2.3 224*224

3.3 25W

3.3.1 64*64

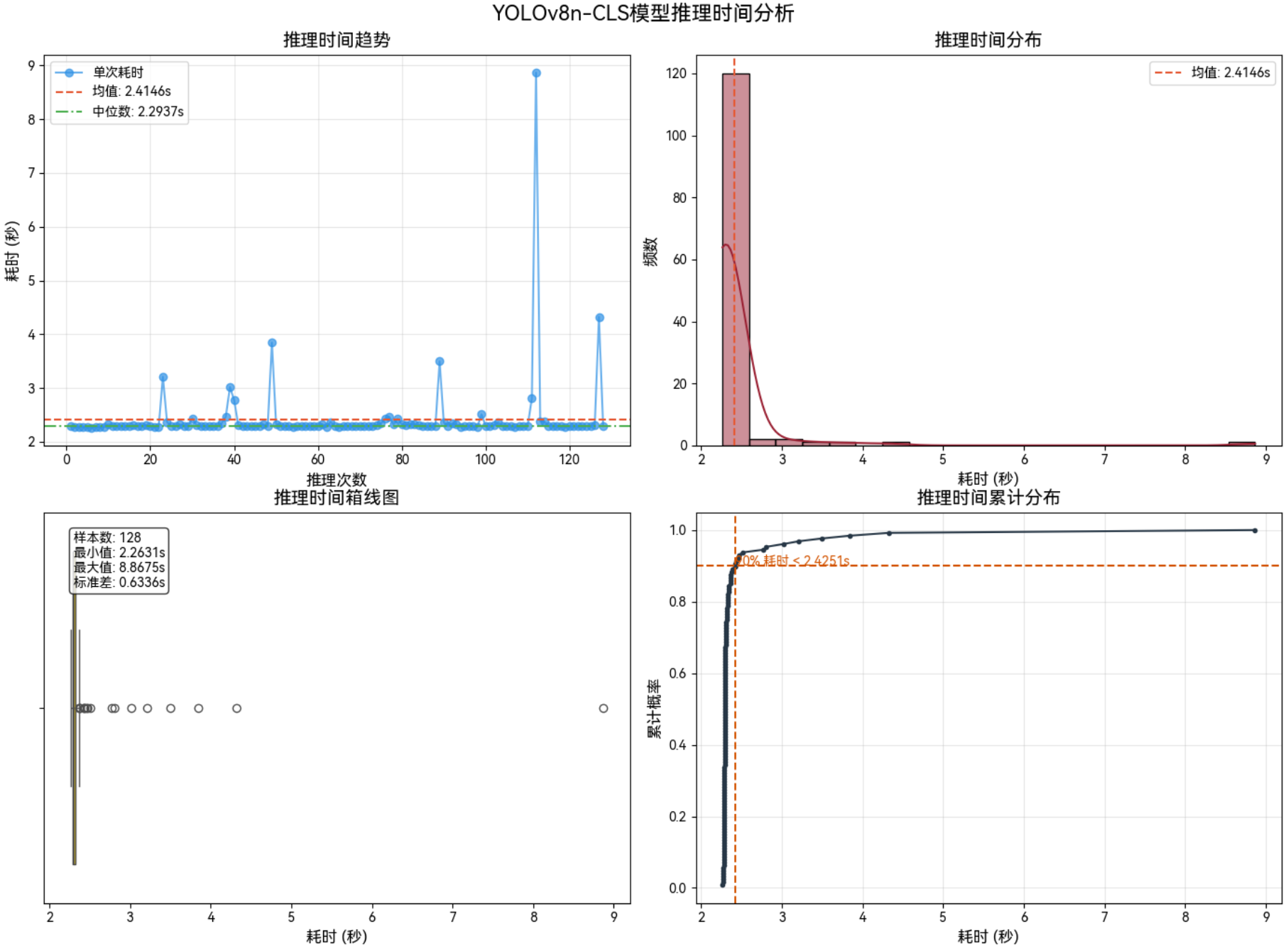

3.3.2 128*128

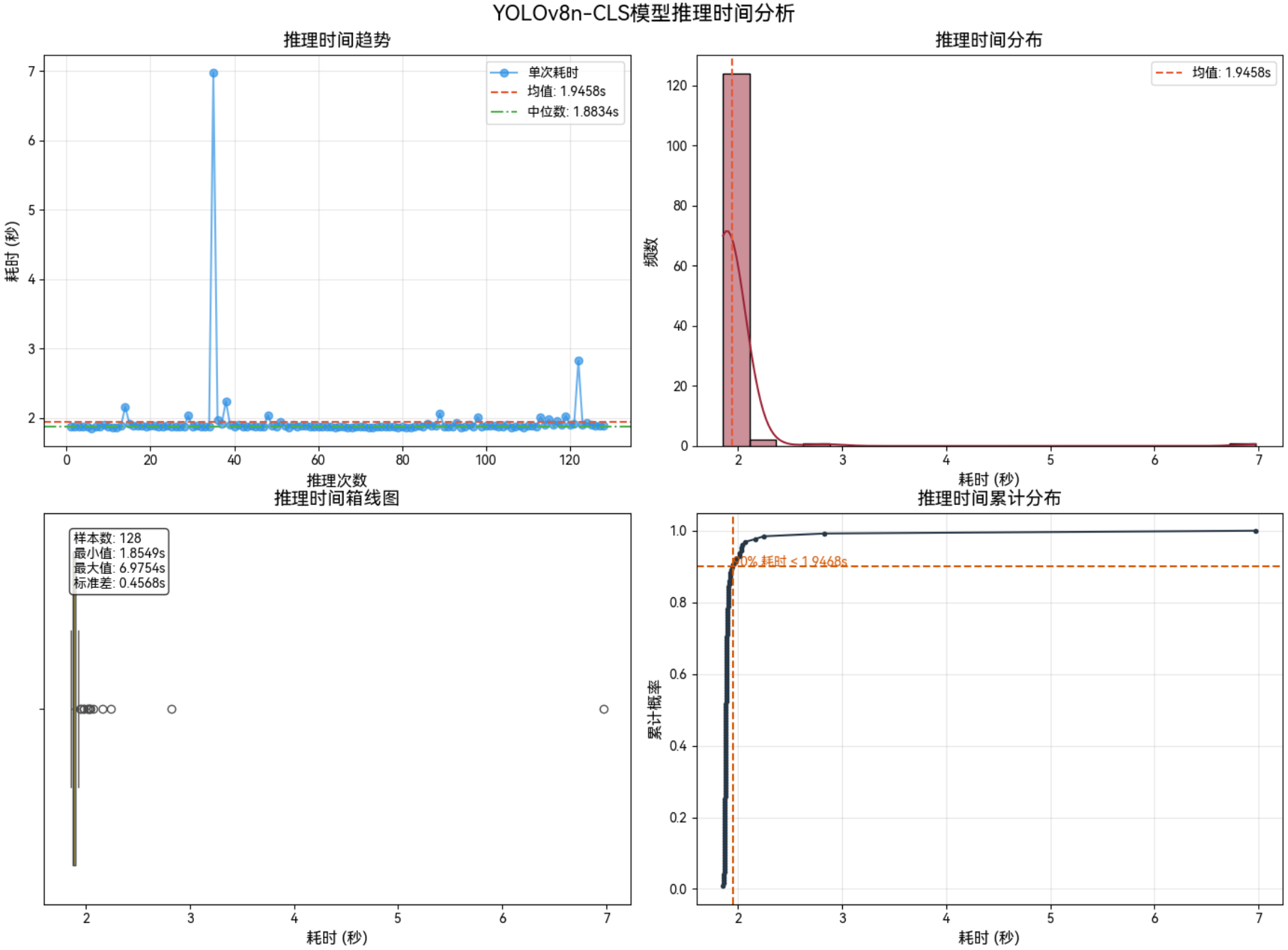

3.3.3 224*224

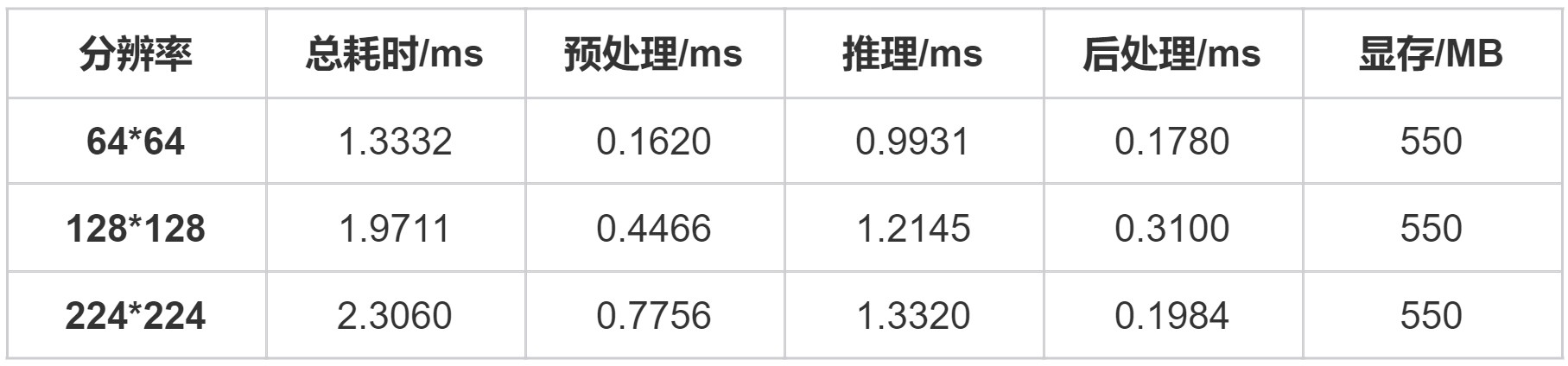

3.4 25W+最大频率

3.4.1 64*64

3.4.2 128*128

3.4.3 224*224

4 运行代码

import warnings
warnings.filterwarnings("ignore", category=DeprecationWarning)import torch
import torch.nn as nn
import numpy as np
import tensorrt as trt
from collections import OrderedDict, namedtuple
import jsonimport cv2
import timeimport matplotlib.pyplot as plt
import seaborn as sns
from matplotlib.font_manager import FontProperties
import osdef load_harmonyos_font(font_path="HarmonyOS_Sans_SC_Regular.ttf"):"""加载HarmonyOS字体"""if not os.path.exists(font_path):print(f"警告: 未找到字体文件 {font_path}，将使用默认字体")return Nonetry:font = FontProperties(fname=font_path)# 测试字体是否可用plt.text(0.5, 0.5, "测试", fontproperties=font)plt.close()print("HarmonyOS字体加载成功")return fontexcept Exception as e:print(f"字体加载失败: {e}，将使用默认字体")return Nonedef visualize_inference_times(time_list, title="STDC推理时间可视化分析", font_path="HarmonyOS_Sans_SC_Regular.ttf"):"""可视化推理时间列表，支持加载HarmonyOS字体参数:time_list: 包含每次推理时间的列表（单位：秒）title: 图表标题font_path: HarmonyOS字体文件路径"""# 加载字体harmony_font = load_harmonyos_font(font_path)# 计算统计指标times = np.array(time_list)mean_time = np.mean(times)median_time = np.median(times)min_time = np.min(times)max_time = np.max(times)std_time = np.std(times)num_samples = len(times)# 创建画布（2行2列布局）fig, axes = plt.subplots(2, 2, figsize=(14, 12))fig.suptitle(title, fontproperties=harmony_font, fontsize=16, y=0.99)# 设置字体的辅助函数def set_font(ax, title, xlabel, ylabel):ax.set_title(title, fontproperties=harmony_font, fontsize=14)ax.set_xlabel(xlabel, fontproperties=harmony_font, fontsize=12)ax.set_ylabel(ylabel, fontproperties=harmony_font, fontsize=12)for label in ax.get_xticklabels() + ax.get_yticklabels():label.set_fontproperties(harmony_font)# 1. 推理时间趋势图（折线图）ax1 = axes[0, 0]ax1.plot(range(1, num_samples+1), times, marker='o', color='#2E91E5', alpha=0.7, label='单次耗时')ax1.axhline(mean_time, color='#E55934', linestyle='--', label=f'均值: {mean_time:.4f}s')ax1.axhline(median_time, color='#4CAF50', linestyle='-.', label=f'中位数: {median_time:.4f}s')set_font(ax1, '推理时间趋势', '推理次数', '耗时 (秒)')ax1.legend(prop=harmony_font)ax1.grid(alpha=0.3)# 2. 推理时间分布直方图ax2 = axes[0, 1]sns.histplot(times, kde=True, ax=ax2, color='#9B2335', bins=min(20, num_samples//2))ax2.axvline(mean_time, color='#E55934', linestyle='--', label=f'均值: {mean_time:.4f}s')set_font(ax2, '推理时间分布', '耗时 (秒)', '频数')ax2.legend(prop=harmony_font)# 3. 箱线图（展示分布特征）ax3 = axes[1, 0]sns.boxplot(x=times, ax=ax3, color='#FFD700')set_font(ax3, '推理时间箱线图', '耗时 (秒)', '')# 添加统计信息文本stats_text = (f'样本数: {num_samples}\n'f'最小值: {min_time:.4f}s\n'f'最大值: {max_time:.4f}s\n'f'标准差: {std_time:.4f}s')ax3.text(0.05, 0.95, stats_text, transform=ax3.transAxes, verticalalignment='top', bbox=dict(boxstyle='round', facecolor='white', alpha=0.8),fontproperties=harmony_font)# 4. 累计分布函数(CDF)ax4 = axes[1, 1]sorted_times = np.sort(times)cdf = np.arange(1, len(sorted_times)+1) / len(sorted_times)ax4.plot(sorted_times, cdf, color='#273746', marker='.')set_font(ax4, '推理时间累计分布', '耗时 (秒)', '累计概率')# 标注90%的推理耗时p90 = np.percentile(times, 90)ax4.axvline(p90, color='#D35400', linestyle='--')ax4.axhline(0.9, color='#D35400', linestyle='--')ax4.text(p90, 0.9, f'90% 耗时 < {p90:.4f}s', color='#D35400',fontproperties=harmony_font)ax4.grid(alpha=0.3)plt.tight_layout()plt.show()# Binding 命名元组
Binding = namedtuple("Binding", ("name", "dtype", "shape", "data", "ptr"))# TensorRT -> PyTorch dtype 映射
trt_to_torch_dtype_dict = {trt.DataType.BOOL: torch.bool,trt.DataType.INT8: torch.int8,trt.DataType.INT32: torch.int32,trt.DataType.HALF: torch.float16,trt.DataType.FLOAT: torch.float32,
}# NumPy -> PyTorch dtype 映射
np_to_torch_dtype = {np.bool_: torch.bool,np.uint8: torch.uint8,np.int8: torch.int8,np.int16: torch.int16,np.int32: torch.int32,np.int64: torch.int64,np.float16: torch.float16,np.float32: torch.float32,np.float64: torch.float64
}class UnifiedTRTModel(nn.Module):def __init__(self,weights="yolo11n.engine",device=torch.device("cuda:0"),fp16=False,input_names=['images'],output_names=None,fixed_output_shapes=None):"""统一的 TensorRT 模型封装器，支持 YOLO、xfeat 等多种模型。参数:weights (str): TensorRT engine 文件路径。device (torch.device): 推理设备，默认为 cuda:0。fp16 (bool): 是否启用半精度推理。input_names (list): 输入张量名称列表。output_names (list): 输出张量名称列表（可选，自动读取）。fixed_output_shapes (dict): 固定输出 shape，如 {'output': (1000, 2)}。"""super().__init__()self.np_to_torch_dtype = np_to_torch_dtypeself.trt_to_torch_dtype = trt_to_torch_dtype_dictself.input_names = input_namesself.output_names = output_namesself.fixed_output_shapes = fixed_output_shapes or {}self.fp16 = fp16self.device = device if device.type != "cpu" else torch.device("cpu")self.stream = torch.cuda.Stream(device=device) if torch.cuda.is_available() else None# 获取权重文件路径w = str(weights[0] if isinstance(weights, list) else weights)logger = trt.Logger(trt.Logger.INFO)trt.init_libnvinfer_plugins(logger, namespace='')print(f"Loading {w} for TensorRT inference...")with open(w, "rb") as f, trt.Runtime(logger) as runtime:try:meta_len = int.from_bytes(f.read(4), byteorder="little")metadata = json.loads(f.read(meta_len).decode("utf-8"))except UnicodeDecodeError:f.seek(0)metadata = Nonemodel = runtime.deserialize_cuda_engine(f.read())context = model.create_execution_context()is_trt10 = not hasattr(model, "num_bindings")# 自动获取输出名称 & 解析绑定信息（合并版本）bindings = OrderedDict()binding_addrs = OrderedDict()dynamic = Falsefp16 = Falseoutput_names = []for i in (range(model.num_io_tensors) if is_trt10 else range(model.num_bindings)):if is_trt10:name = model.get_tensor_name(i)dtype = trt.nptype(model.get_tensor_dtype(name))if model.get_tensor_mode(name) == trt.TensorIOMode.INPUT:if -1 in tuple(context.get_tensor_shape(name)):dynamic = Truecontext.set_input_shape(name, tuple(model.get_tensor_profile_shape(name, 0)[1]))if dtype == np.float16:fp16 = Trueelif model.get_tensor_mode(name) == trt.TensorIOMode.OUTPUT:output_names.append(name)shape = tuple(context.get_tensor_shape(name))else:name = model.get_binding_name(i)dtype = trt.nptype(model.get_binding_dtype(i))if model.binding_is_input(i):if -1 in tuple(model.get_binding_shape(i)):dynamic = Truecontext.set_binding_shape(i, tuple(model.get_profile_shape(0, i)[1]))if dtype == np.float16:fp16 = Trueelif model.get_tensor_mode(name) == trt.TensorIOMode.OUTPUT:output_names.append(name)shape = tuple(context.get_binding_shape(i))# 注意：替换xfeat shape(0, 2)-->(1000, 2)if name in self.fixed_output_shapes:shape = self.fixed_output_shapes[name]# 创建 buffer 并记录地址im = torch.from_numpy(np.empty(shape, dtype=dtype)).to(self.device)bindings[name] = Binding(name, dtype, shape, im, int(im.data_ptr()))binding_addrs[name] = int(im.data_ptr())# 去重输出名称（防止重复）self.output_names = list(dict.fromkeys(output_names))# 注册变量self.model = modelself.context = contextself.bindings = bindingsself.binding_addrs = binding_addrsself.dynamic = dynamicself.is_trt10 = is_trt10print(bindings.keys())def forward(self, *inputs):"""推理函数，支持多输入和手动设置输出 shape。参数:*inputs: 输入张量列表（顺序需与 input_names 一致）返回:tuple: 输出张量列表"""assert len(inputs) == len(self.input_names), \f"Expected {len(self.input_names)} inputs but got {len(inputs)}"contiguous_inputs = [x.contiguous().to(self.device) for x in inputs]for i, input_name in enumerate(self.input_names):im = contiguous_inputs[i]if self.fp16 and im.dtype != torch.float16:im = im.half()if self.dynamic and im.shape != self.bindings[input_name].shape:if self.is_trt10:self.context.set_input_shape(input_name, im.shape)self.bindings[input_name] = self.bindings[input_name]._replace(shape=im.shape)# 确保双输入尺寸对应后再修改输出尺寸if i == len(self.input_names) - 1:for name in self.output_names:# 注意：替换xfeat shape(0, 2)-->(1000, 2)if name in self.fixed_output_shapes:shape = self.fixed_output_shapes[name]self.bindings[name].data.resize_(shape)else:self.bindings[name].data.resize_(tuple(self.context.get_tensor_shape(name)))else:idx = self.model.get_binding_index(input_name)self.context.set_binding_shape(idx, im.shape)self.bindings[input_name] = self.bindings[input_name]._replace(shape=im.shape)# 确保双输入尺寸对应后再修改输出尺寸if i == len(self.input_names) - 1:for name in self.output_names:idx_out = self.model.get_binding_index(name)# 注意：替换xfeat shape(0, 2)-->(1000, 2)if name in self.fixed_output_shapes:shape = self.fixed_output_shapes[name]self.bindings[name].data.resize_(shape)else:self.bindings[name].data.resize_(tuple(self.context.get_binding_shape(idx_out)))self.binding_addrs[input_name] = int(im.data_ptr())outputs = []for output_name in self.output_names:output = self.bindings[output_name].dataself.binding_addrs[output_name] = int(output.data_ptr())outputs.append(output)if self.stream:self.context.execute_async_v2(list(self.binding_addrs.values()), self.stream.cuda_stream)self.stream.synchronize()else:self.context.execute_v2(list(self.binding_addrs.values()))return tuple(outputs) if len(outputs) > 1 else outputs[0]def from_numpy(self, x):"""将 numpy 数组转换为 PyTorch 张量。参数:x (np.ndarray): 要转换的数组。返回:(torch.Tensor): 转换后的张量"""return torch.tensor(x).to(self.device) if isinstance(x, np.ndarray) else x# 前处理，包括：resize, HWC to CHW，BGR to RGB，归一化，增加维度CHW -> BCHW
