rabbitmq集群

news 2025/8/26 6:35:16

在这里插入图片描述

步骤 1：安装 Erlang 和 RabbitMQ（所有节点）

1.1 安装依赖

yum install -y socat logrotate

1.2 下载安装包（以最新稳定版为例）下载 Erlang (匹配 RabbitMQ 版本)

wget https://github.com/rabbitmq/erlang-rpm/releases/download/v25.3.2/erlang-25.3.2-1.el7.x86_64.rpm

1.3 下载 RabbitMQ

wget https://github.com/rabbitmq/rabbitmq-server/releases/download/v3.12.12/rabbitmq-server-3.12.12-1.el8.noarch.rpm

1.4 安装步骤

yum install -y openssl-libs ncurses-compat-libs zlib libstdc++
rpm -ivh erlang-25.3.2-1.el7.x86_64.rpm --nodeps
rpm -ivh rabbitmq-server-3.12.12-1.el8.noarch.rpm --nodepsmkdir -p /mq/{data,log}
chown -R rabbitmq:rabbitmq /mqmkdir -p /mnt/{data,log}
chown -R rabbitmq:rabbitmq /mntcat <<EOF > /etc/rabbitmq/rabbitmq-env.conf
MNESIA_BASE=/mq/data
LOG_BASE=/mq/log
EOF

步骤 2：配置主机名解析（所有节点）

vi /etc/hosts
192.168.1.100 rmq1
192.168.1.110 rmq2
192.168.1.120 rmq3

步骤 3：同步 Erlang Cookie（所有节点）

从节点1复制 cookie 到其他节点
scp /var/lib/rabbitmq/.erlang.cookie root@rmq2:/var/lib/rabbitmq/
scp /var/lib/rabbitmq/.erlang.cookie root@rmq3:/var/lib/rabbitmq/

设置权限（所有节点）

chown rabbitmq:rabbitmq /var/lib/rabbitmq/.erlang.cookie
chmod 400 /var/lib/rabbitmq/.erlang.cookie

步骤 4：启动服务并组建集群

4.1 启动所有节点

systemctl start rabbitmq-server
systemctl enable rabbitmq-server

4.2 将节点加入集群
在节点2执行（加入节点1）

rabbitmqctl stop_app
rabbitmqctl reset
rabbitmqctl join_cluster rabbit@rmq1
rabbitmqctl start_app

在节点3执行（以内存节点加入）

rabbitmqctl stop_app
rabbitmqctl reset
rabbitmqctl join_cluster rabbit@rmq1
rabbitmqctl join_cluster --ram rabbit@rmq1
rabbitmqctl start_app

4.3 验证集群状态

rabbitmqctl cluster_status
输出应包含：plaintext
Disk Nodes: [rabbit@rmq1, rabbit@rmq2]
RAM Nodes: [rabbit@rmq3]启用管理插件
rabbitmq-plugins enable rabbitmq_management

创建管理员用户

rabbitmqctl add_user admin 123456
rabbitmqctl set_user_tags admin administrator
rabbitmqctl set_permissions -p / admin ".*" ".*" ".*"

重启RabbitMQ服务（所有节点）

systemctl restart rabbitmq-server

增加文件句柄限制
echo "fs.file-max = 500000" >> /etc/sysctl.conf
sysctl -p
more rabbitmq.conf
#网络优化
tcp_listen_options.backlog = 4096
tcp_listen_options.nodelay = true
tcp_listen_options.linger.on = true
tcp_listen_options.linger.timeout = 0内存管理
vm_memory_high_watermark.relative = 0.75
vm_memory_calculation_strategy = rss
文件IO优化
channel_max = 5000
disk_free_limit.absolute = 10GB
queue_index_embed_msgs_below = 4096  # 4KB以下消息嵌入索引

配置镜像集群策略

rabbitmqctl set_policy ha-all "^" '{"ha-mode":"all"}'

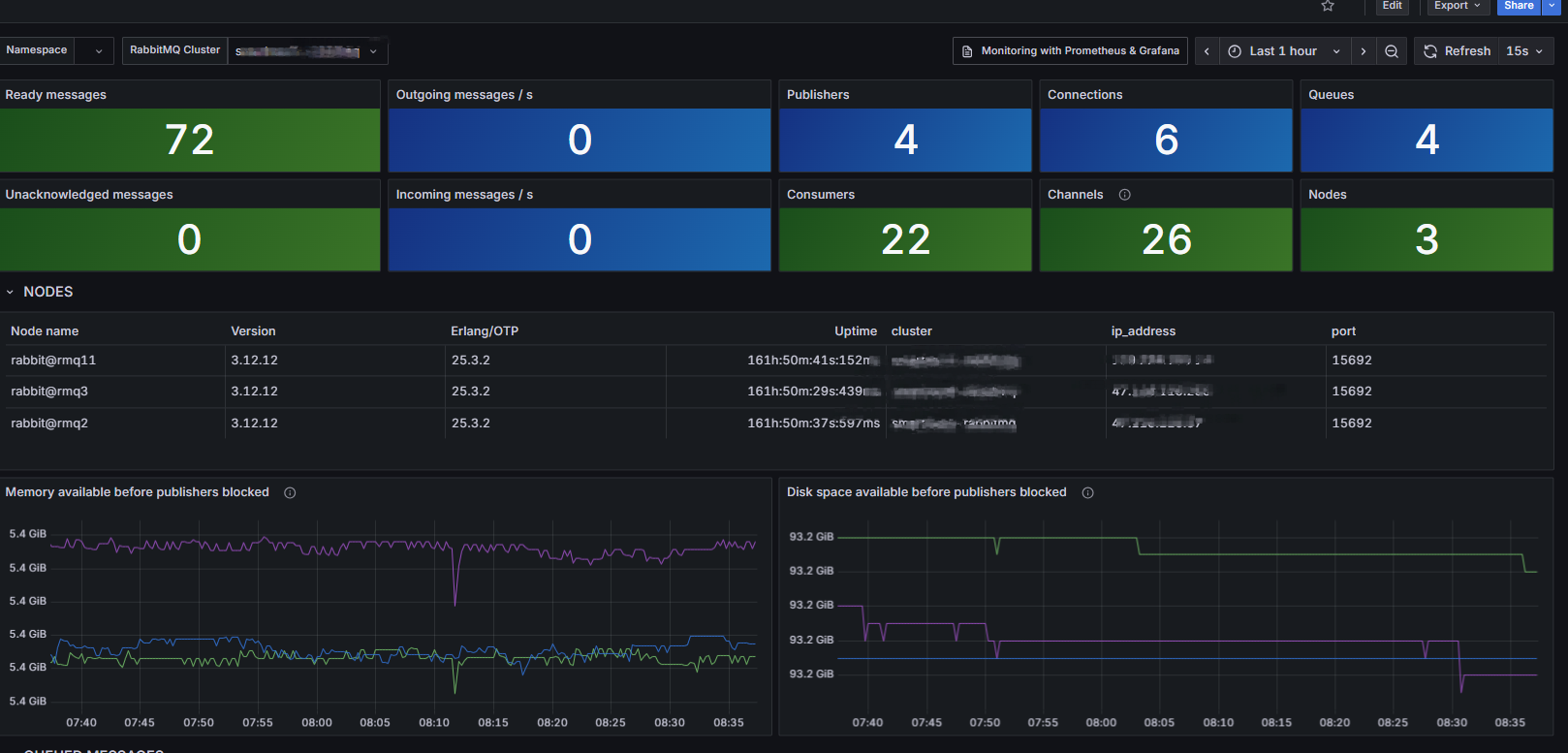

步骤四监控配置

启用插件
#获取集群名称
rabbitmq-diagnostics -q cluster_status
#设置集群名称
rabbitmqctl -q set_cluster_name myrabbitmq
#启用插件
rabbitmq-plugins enable rabbitmq_prometheus

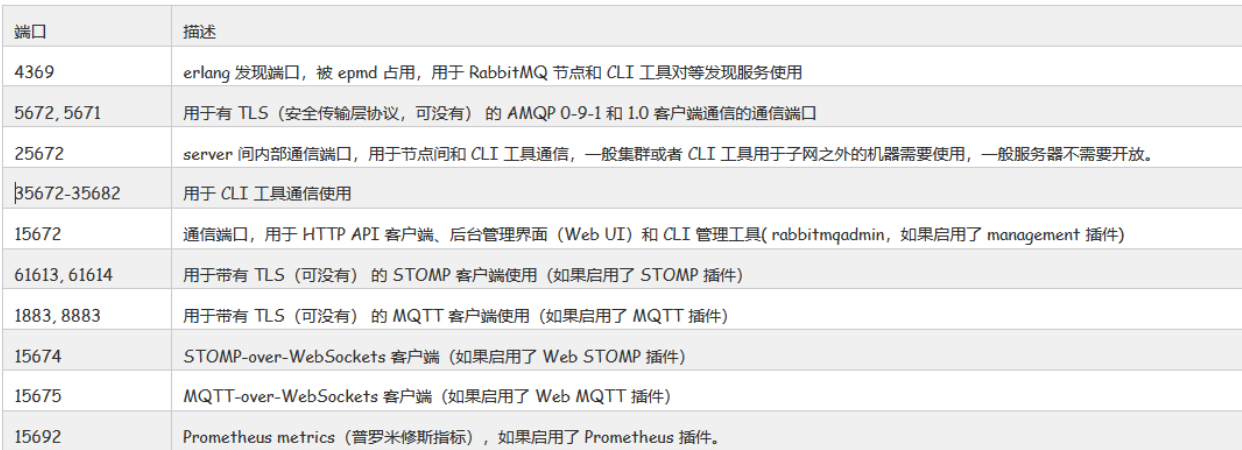

RabbitMQ 在专用 TCP 端口（默认为15692）上公开指标，因此rabbitmq集群需要开放15692端口才行。
在这里插入图片描述
配置prometheus

- job_name: 'rabbitMq-prod'metrics_path: /metricsstatic_configs:- targets: ['192.168.1.100:15692']labels:cluster: smat-rabbitmq- targets: ['192.168.1.110:15692']labels:cluster: smat-rabbitmq- targets: ['192.168.1.120:15692']labels:cluster: smat-rabbitmqrelabel_configs:- source_labels: [__address__]target_label: instance- source_labels: [__address__]regex: '192.168.1.100:15692'target_label: rabbitmq_nodereplacement: 'rabbit@rmq11'- source_labels: [__address__]regex: '192.168.1.110:15692'target_label: rabbitmq_nodereplacement: 'rabbit@rmq2'- source_labels: [__address__]regex: '192.168.1.120:15692'target_label: rabbitmq_nodereplacement: 'rabbit@rmq3'- source_labels: [__address__]regex: '([^:]+):(\d+)'target_label: ip_addressreplacement: '${1}'- source_labels: [__address__]regex: '([^:]+):(\d+)'target_label: portreplacement: '${2}'
