消息中间件RabbitMQ03:结合WebAPI实现点对点(P2P)推送和发布-订阅推送的Demo

news 2025/8/26 6:13:10

一、模式的区别

点对点模式（P2P）：开启多个消费者程序（绑定到同一个队列名称）连接RabbitMQ，这些消费者不会消费到同样的消息，每个消息只会被其中一个消费者消费
发布/订阅（Publish/Subscribe）模式：开启多个消费者程序（绑定到同一个交换机名称）连接RabbitMQ，这些消费者会消费到同样的消息，类似于消息广播
路由模式(Route)：和点对点差不多，点对点依靠队列名称入队，路由模式依靠交换机+路由键+队列名称入队(简单了解即可)
简单比喻，P2P就是你打电话给某一人告诉它八卦，Pub/Sub就是你播新闻八卦（人人皆知）。

【P2P】

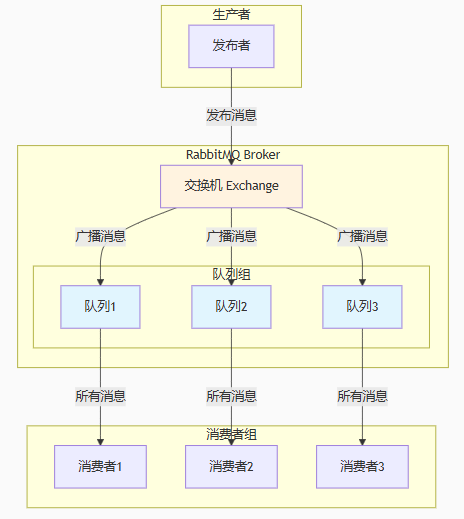

【Pub/Sub】

模式	交换机类型	路由键
点对点	默认""	默认""
发布订阅	Fanout，需要指定	默认""
路由模式	Direct，需要指定	需要指定 routingKey

二、点对点推送

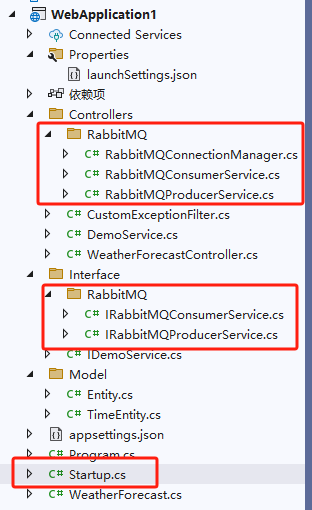

1.文件夹结构

2.连接管理类

我的消息队列是本地的，默认端口5672，账密都是consumer

public static class RabbitMQConnectionManager
{private static readonly Lazy<Task<IConnection>> _connection = new Lazy<Task<IConnection>>(() =>{var factory = new ConnectionFactory(){HostName = "localhost",UserName = "consumer",Password = "consumer",};return factory.CreateConnectionAsync();});// 获取连接public static Task<IConnection> Connection =>  _connection.Value;// 获取通道public static async Task<IChannel> CreateChannelAsync(){var connection = await Connection;return await connection.CreateChannelAsync();}
}

3.生产者

public class RabbitMQProducerService : IRabbitMQProducerService
{private readonly string queueName = "hello";public async Task<bool> SendMessage(TimeEntity timeEntity){try{// 01 建立队列连接using var channel = await RabbitMQConnectionManager.CreateChannelAsync();// 02 声明队列（不存在则创建，确保消费前队列已就绪）await channel.QueueDeclareAsync(queue: queueName,durable: false,exclusive: false,autoDelete: false,arguments: null);// 03 发送内容到消息队列var message = JsonSerializer.Serialize(timeEntity);var body = Encoding.UTF8.GetBytes(message);await channel.BasicPublishAsync(exchange: "",routingKey: queueName,body: body);Console.WriteLine($"生产者发送了: {message}");return true;}catch (Exception ex){return false;}}
}

4.消费者

ublic class RabbitMQConsumerService : IRabbitMQConsumerService{private readonly string queueName = "hello";public async Task StartConsuming(){try{// 01 建立队列连接using var channel = await RabbitMQConnectionManager.CreateChannelAsync();// 02 消费的逻辑方法var consumer = new AsyncEventingBasicConsumer(channel);ConsumeMethod(channel, consumer);// 03 启动消费（禁用自动确认，需在消费逻辑ConsumeMethod中手动确认消息）await channel.BasicConsumeAsync(queue: queueName,autoAck: false,//禁止使用消息自动确认consumer: consumer);Console.WriteLine("点击退出");Console.ReadLine();}catch (Exception ex){Console.WriteLine( ex.Message );}}/// <summary>/// 消费方法/// </summary>private static void ConsumeMethod(IChannel channel, AsyncEventingBasicConsumer consumer){consumer.ReceivedAsync += async (model, ea) =>{// 01 获取入参var body = ea.Body.ToArray();var message = Encoding.UTF8.GetString(body);// 反序列化消息var timeEntity = JsonSerializer.Deserialize<TimeEntity>(message);// 02 根据入参执行一定逻辑int delayMilliseconds =timeEntity.Hour * 3600000 +  // 小时 → 毫秒（1小时=3600×1000毫秒）timeEntity.Minute * 60000 +   // 分钟 → 毫秒（1分钟=60×1000毫秒）timeEntity.Second * 1000;     // 秒 → 毫秒var guid = Guid.NewGuid();Console.WriteLine($"【{guid}】开始时间：现在是{DateTime.Now}，将在 {timeEntity.Hour}时{timeEntity.Minute}分{timeEntity.Second}秒后打印消息...");await Task.Delay(delayMilliseconds);  // 关键：异步延迟，不阻塞线程Console.WriteLine($"【{guid}】结束时间: {DateTime.Now}");Console.WriteLine($"===============================");// 03 手动确认消息await channel.BasicAckAsync(deliveryTag: ea.DeliveryTag, multiple: false);};}}

5.服务的注册

public class Startup
{public Startup(IConfiguration configuration){Configuration = configuration;}public IConfiguration Configuration { get; }public void ConfigureServices(IServiceCollection services){//省略其他代码// 注册 RabbitMQ 服务services.AddSingleton<IRabbitMQConsumerService, RabbitMQConsumerService>();services.AddSingleton<IRabbitMQProducerService, RabbitMQProducerService>();}public void Configure(IApplicationBuilder app, IWebHostEnvironment env){//省略其他代码// 启动消费者var consumerService = app.ApplicationServices.GetRequiredService<IRabbitMQConsumerService>();Task.Run(() => consumerService.StartConsuming());app.UseRouting();app.UseAuthorization();app.UseEndpoints(endpoints =>{endpoints.MapControllers();});}
}

6.接口调用生产者

public class TimeEntity
{public int Hour { get; set; }public int Minute { get; set; }public int Second { get; set; } = 10;
}

/// <summary>
/// 调用生产者发送消息
/// </summary>
[HttpPost]
[Route(nameof(RabbitMQSend))]
public async Task<string> RabbitMQSend(TimeEntity input)
{try{var r = await _rabbitMQProducerService.SendMessage(input);//依赖注入IRabbitMQProducerService调用即可return  r ? "发送成功" : "发送失败";}catch (Exception ex){return "发生错误";}
}

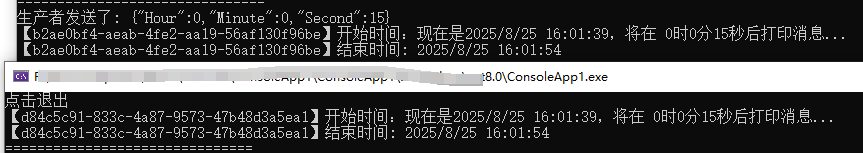

7.调试及结论

调试及结论：
1.开启一个WebAPI连接消息队列名为hello
2.开启一个控制台程序连接消息队列名为hello
3.四条信息入队，分别是ABCD，结果：WebAPI消费了A、C，控制台程序消费了B、D
4.结论：点对点模式（P2P） 场景下，消息会在消费者之间公平分配，每个消费者只处理自己获得的消息

三、发布订阅模式

1.文件夹结构

同上

2.连接管理类

同上

3.生产者

public class RabbitMQProducerService : IRabbitMQProducerService

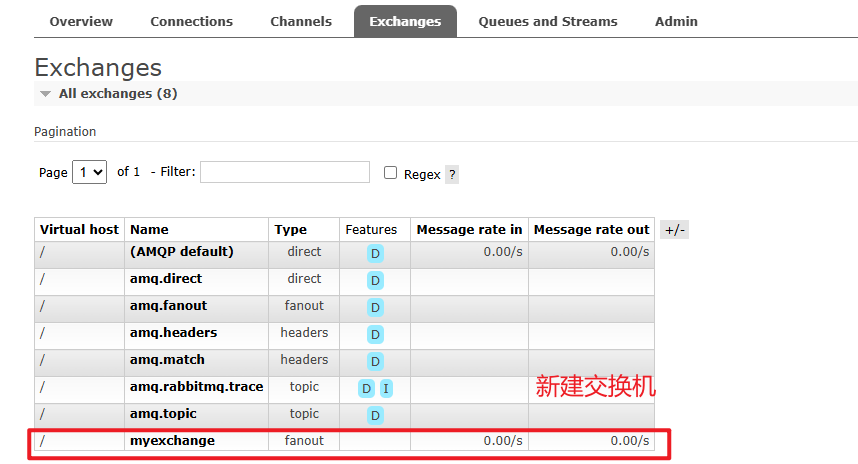

{private readonly string exchangeName = "myexchange";public async Task<bool> SendMessage(TimeEntity timeEntity){try{// 01 建立队列连接using var channel = await RabbitMQConnectionManager.CreateChannelAsync();// 02 声明交换机（fanout类型，适用于发布-订阅模式）await channel.ExchangeDeclareAsync(exchange:exchangeName,type:ExchangeType.Fanout);// 03 发送内容到交换机（不指定routingKey，fanout交换机会将消息广播到所有绑定的队列）var message = JsonSerializer.Serialize(timeEntity);var body = Encoding.UTF8.GetBytes(message);await channel.BasicPublishAsync(exchange: exchangeName,routingKey: "",body: body);Console.WriteLine($"生产者发送了: {message}");return true;}catch (Exception ex){return false;}}
}

4.消费者

public class RabbitMQConsumerService : IRabbitMQConsumerService

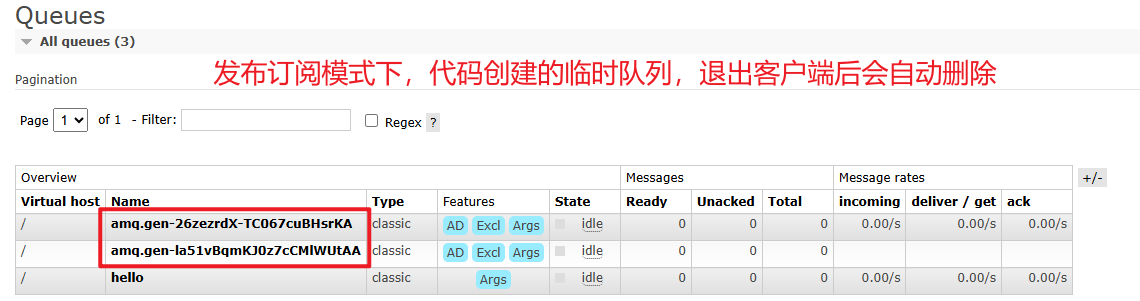

{private readonly string exchangeName = "myexchange";public async Task StartConsuming(){try{// 01 建立队列连接using var channel = await RabbitMQConnectionManager.CreateChannelAsync();// 02 声明交换机（必须与生产者相同）await channel.ExchangeDeclareAsync(exchange: exchangeName, type: ExchangeType.Fanout);// 03 声明一个独立的临时队列，用于接收消息（断开链接后自动删除）var queueName = await channel.QueueDeclareAsync();// 04 绑定队列到交换机await channel.QueueBindAsync(queue: queueName, exchange: exchangeName, routingKey: "");// 05 消费的逻辑方法var consumer = new AsyncEventingBasicConsumer(channel);ConsumeMethod(channel, consumer);// 06 启动消费（禁用自动确认，需在消费逻辑ConsumeMethod中手动确认消息）await channel.BasicConsumeAsync(queue: queueName,autoAck: false,//禁止使用消息自动确认consumer: consumer);Console.WriteLine("点击退出");Console.ReadLine();}catch (Exception ex){Console.WriteLine( ex.Message );}}/// <summary>/// 消费方法/// </summary>private static void ConsumeMethod(IChannel channel, AsyncEventingBasicConsumer consumer){consumer.ReceivedAsync += async (model, ea) =>{// 01 获取入参var body = ea.Body.ToArray();var message = Encoding.UTF8.GetString(body);// 反序列化消息var timeEntity = JsonSerializer.Deserialize<TimeEntity>(message);// 02 根据入参执行一定逻辑int delayMilliseconds =timeEntity.Hour * 3600000 +  // 小时 → 毫秒（1小时=3600×1000毫秒）timeEntity.Minute * 60000 +   // 分钟 → 毫秒（1分钟=60×1000毫秒）timeEntity.Second * 1000;     // 秒 → 毫秒var guid = Guid.NewGuid();Console.WriteLine($"【{guid}】开始时间：现在是{DateTime.Now}，将在 {timeEntity.Hour}时{timeEntity.Minute}分{timeEntity.Second}秒后打印消息...");await Task.Delay(delayMilliseconds);  // 关键：异步延迟，不阻塞线程Console.WriteLine($"【{guid}】结束时间: {DateTime.Now}");Console.WriteLine($"===============================");// 03 手动确认消息await channel.BasicAckAsync(deliveryTag: ea.DeliveryTag, multiple: false);};}
}

5.服务的注册

同上

6.接口调用生产者

同上

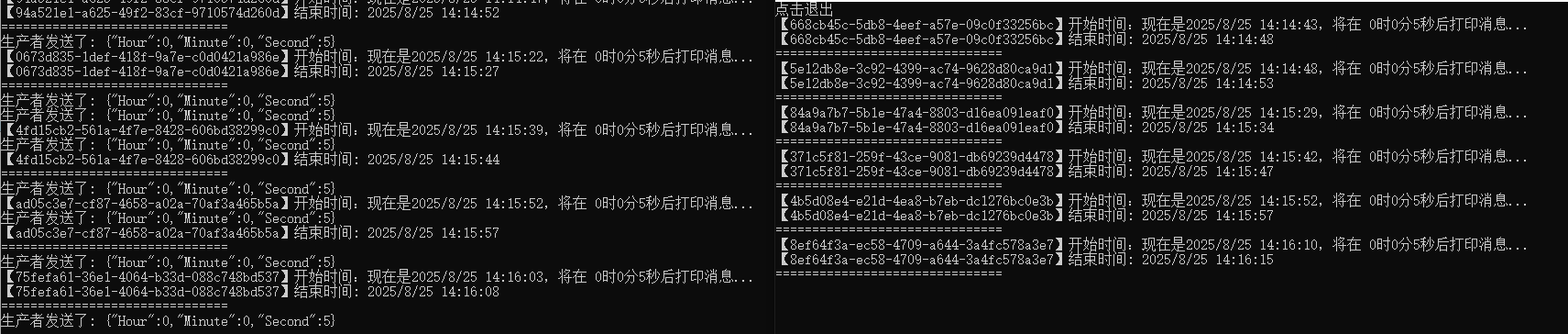

7.调试及结论

调试及结论：
1.开启一个WebAPI连接交换机名为exchangeName
2.开启一个控制台程序连接交换机名为exchangeName
3.两条信息入队，分别是AB，结果：WebAPI消费了A、B，控制台程序消费了A、B
4.结论：发布-订阅（Pub/Sub） 场景下，交换机会将所有消息广播到所有绑定的队列

四、路由模式

1.生产者

public class RabbitMQProducerService : IRabbitMQProducerService
{private readonly string exchangeName = "mydirect";private readonly string routingKey = "myroot";public async Task<bool> SendMessage(TimeEntity timeEntity){try{// 01 建立队列连接using var channel = await RabbitMQConnectionManager.CreateChannelAsync();// 02 声明交换机（Direct类型，适用于路由器模式）await channel.ExchangeDeclareAsync(exchange:exchangeName,type:ExchangeType.Direct);// 03 发送内容到交换机（不指定routingKey，fanout交换机会将消息广播到所有绑定的队列）var message = JsonSerializer.Serialize(timeEntity);var body = Encoding.UTF8.GetBytes(message);await channel.BasicPublishAsync(exchange: exchangeName,routingKey: routingKey,body: body);Console.WriteLine($"生产者发送了: {message}");return true;}catch (Exception ex){return false;}}
}

2.消费者

public class RabbitMQConsumerService : IRabbitMQConsumerService
{private readonly string exchangeName = "mydirect";private readonly string routingKey = "myroot";private readonly string qName = "myqname";public async Task StartConsuming(){try{// 01 建立队列连接using var channel = await RabbitMQConnectionManager.CreateChannelAsync();// 02 声明交换机（Direct类型，适用于路由模式，必须与生产者相同）await channel.ExchangeDeclareAsync(exchange: exchangeName, type: ExchangeType.Direct);// 03 声明一个独立的队列，用于接收消息var queueName = await channel.QueueDeclareAsync(qName,false,false);// 04 绑定队列到交换机await channel.QueueBindAsync(queue: queueName, exchange: exchangeName, routingKey: routingKey);// 05 消费的逻辑方法var consumer = new AsyncEventingBasicConsumer(channel);ConsumeMethod(channel, consumer);// 06 启动消费（禁用自动确认，需在消费逻辑ConsumeMethod中手动确认消息）await channel.BasicConsumeAsync(queue: queueName,autoAck: false,//禁止使用消息自动确认consumer: consumer);Console.WriteLine("点击退出");Console.ReadLine();}catch (Exception ex){Console.WriteLine( ex.Message );}}/// <summary>/// 消费方法/// </summary>private static void ConsumeMethod(IChannel channel, AsyncEventingBasicConsumer consumer){consumer.ReceivedAsync += async (model, ea) =>{// 01 获取入参var body = ea.Body.ToArray();var message = Encoding.UTF8.GetString(body);// 反序列化消息var timeEntity = JsonSerializer.Deserialize<TimeEntity>(message);// 02 根据入参执行一定逻辑int delayMilliseconds =timeEntity.Hour * 3600000 +  // 小时 → 毫秒（1小时=3600×1000毫秒）timeEntity.Minute * 60000 +   // 分钟 → 毫秒（1分钟=60×1000毫秒）timeEntity.Second * 1000;     // 秒 → 毫秒var guid = Guid.NewGuid();Console.WriteLine($"【{guid}】开始时间：现在是{DateTime.Now}，将在 {timeEntity.Hour}时{timeEntity.Minute}分{timeEntity.Second}秒后打印消息...");await Task.Delay(delayMilliseconds);  // 关键：异步延迟，不阻塞线程Console.WriteLine($"【{guid}】结束时间: {DateTime.Now}");Console.WriteLine($"===============================");// 03 手动确认消息await channel.BasicAckAsync(deliveryTag: ea.DeliveryTag, multiple: false);};}
}
