Java微服务架构设计模式详解
微服务架构已成为现代企业级应用开发的主流选择,它通过将单体应用拆分为一组小型、自治的服务来提高系统的可扩展性、可维护性和弹性。本文将深入探讨Java微服务架构的核心设计模式,结合代码示例、流程图和实际应用场景,帮助开发者构建健壮的微服务系统。
1. 微服务架构概述
微服务架构是一种将应用程序设计为一系列松耦合、可独立部署的服务集合的架构风格。每个服务围绕特定业务功能构建,拥有自己的数据存储,并通过轻量级协议(如HTTP/REST)通信。
微服务架构优势
- 技术异构性:不同服务可使用不同技术栈
- 独立部署:服务可单独部署而不影响整个系统
- 弹性设计:单个服务故障不会导致整个系统崩溃
- 可扩展性:可根据需求独立扩展特定服务
微服务架构挑战
- 分布式系统复杂性
- 服务间通信开销
- 数据一致性管理
- 运维和监控复杂度
2. 核心设计模式详解
2.1 服务拆分模式
服务拆分是微服务架构的基础,需要基于业务领域边界进行合理划分。
领域驱动设计(DDD)拆分策略
// 领域模型示例 - 订单领域
public class Order {private OrderId id;private CustomerId customerId;private List<OrderItem> items;private Money totalAmount;private OrderStatus status;public void confirm() {// 业务规则验证if (status != OrderStatus.PENDING) {throw new IllegalStateException("Only pending orders can be confirmed");}status = OrderStatus.CONFIRMED;// 发布领域事件DomainEventPublisher.publish(new OrderConfirmedEvent(id));}
}// 领域服务
public class OrderService {private final OrderRepository orderRepository;private final PaymentService paymentService;@Transactionalpublic Order placeOrder(OrderCommand command) {Order order = Order.create(command);orderRepository.save(order);paymentService.processPayment(order.getId(), order.getTotalAmount());return order;}
}

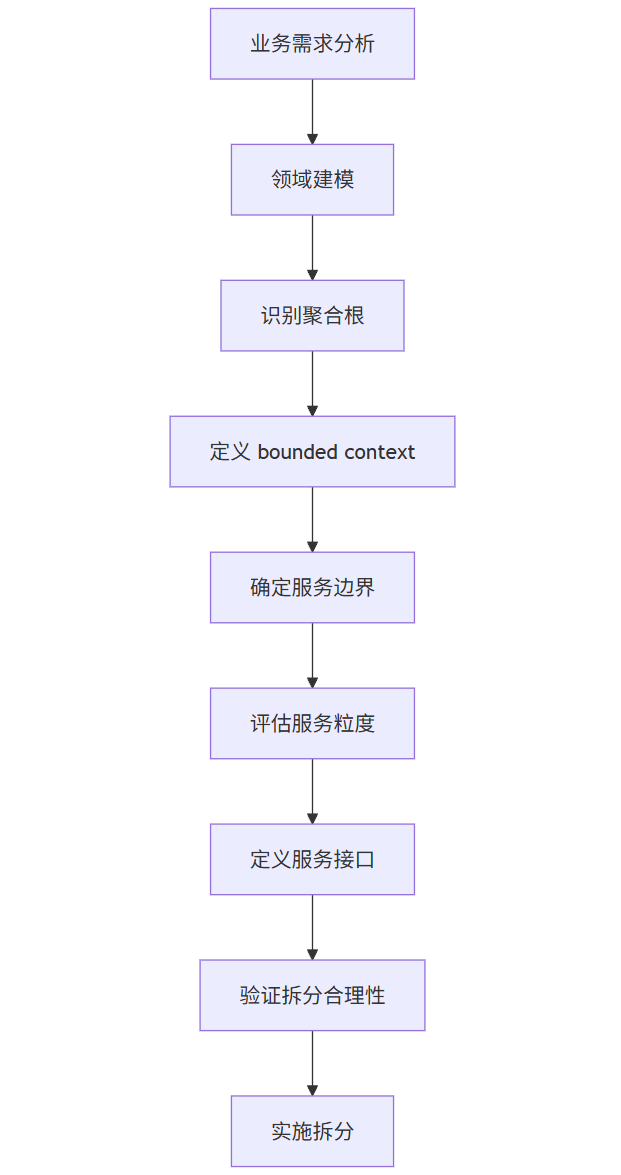

服务拆分原则流程图
graph TD
A[业务需求分析] --> B[领域建模]
B --> C[识别聚合根]
C --> D[定义 bounded context]
D --> E[确定服务边界]
E --> F[评估服务粒度]
F --> G[定义服务接口]
G --> H[验证拆分合理性]
H --> I[实施拆分]
2.2 服务发现模式
在动态微服务环境中,服务实例需要动态注册和发现。
Eureka服务发现实现
服务注册中心 (Eureka Server)
@SpringBootApplication
@EnableEurekaServer
public class DiscoveryServerApplication {public static void main(String[] args) {SpringApplication.run(DiscoveryServerApplication.class, args);}
}
服务提供者 (Eureka Client)
@SpringBootApplication
@EnableDiscoveryClient
public class ProductServiceApplication {public static void main(String[] args) {SpringApplication.run(ProductServiceApplication.class, args);}
}// 服务注册配置
eureka:client:serviceUrl:defaultZone: http://localhost:8761/eureka/instance:preferIpAddress: true
服务消费者
@Service
public class ProductClient {private final LoadBalancerClient loadBalancer;private final RestTemplate restTemplate;public Product getProduct(Long productId) {ServiceInstance instance = loadBalancer.choose("PRODUCT-SERVICE");String url = String.format("http://%s:%s/products/%d", instance.getHost(), instance.getPort(), productId);return restTemplate.getForObject(url, Product.class);}
}

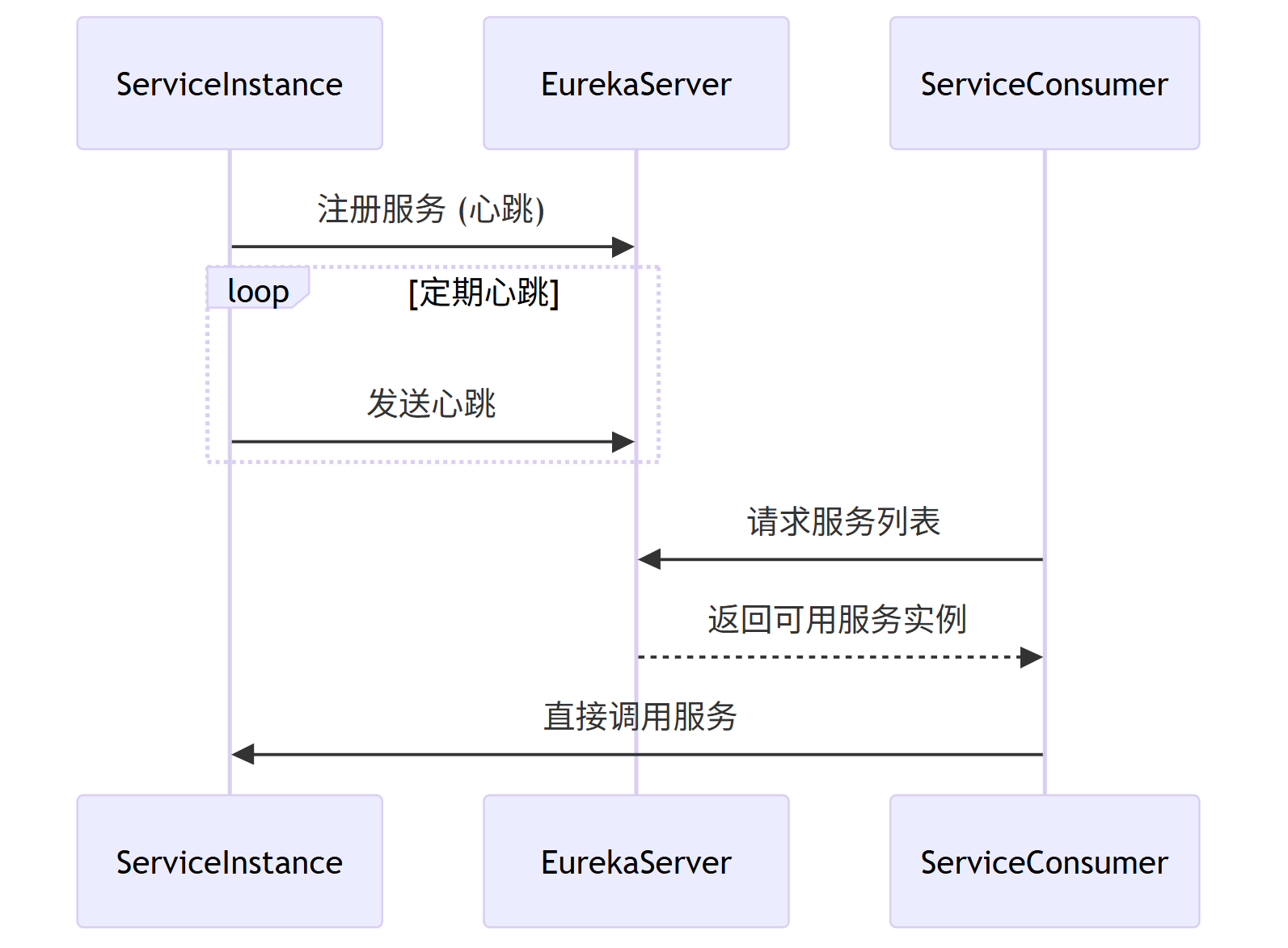

服务发现流程图
sequenceDiagram
participant ServiceInstance
participant EurekaServer
participant ServiceConsumer
ServiceInstance->>EurekaServer: 注册服务 (心跳)
loop 定期心跳
ServiceInstance->>EurekaServer: 发送心跳
end
ServiceConsumer->>EurekaServer: 请求服务列表
EurekaServer-->>ServiceConsumer: 返回可用服务实例
ServiceConsumer->>ServiceInstance: 直接调用服务
2.3 API网关模式
API网关作为微服务架构的入口点,处理请求路由、认证、限流等横切关注点。
Spring Cloud Gateway实现
@SpringBootApplication
public class ApiGatewayApplication {public static void main(String[] args) {SpringApplication.run(ApiGatewayApplication.class, args);}
}// 路由配置
@Configuration
public class GatewayConfig {@Beanpublic RouteLocator customRouteLocator(RouteLocatorBuilder builder) {return builder.routes().route("product-service", r -> r.path("/products/**").filters(f -> f.filter(authenticationFilter()).filter(rateLimiterFilter()).circuitBreaker(config -> config.setName("product-service-cb"))).uri("lb://PRODUCT-SERVICE")).route("order-service", r -> r.path("/orders/**").filters(f -> f.filter(authenticationFilter())).uri("lb://ORDER-SERVICE")).build();}private GatewayFilter authenticationFilter() {return (exchange, chain) -> {// 认证逻辑String authHeader = exchange.getRequest().getHeaders().getFirst("Authorization");if (authHeader == null || !authHeader.startsWith("Bearer ")) {exchange.getResponse().setStatusCode(HttpStatus.UNAUTHORIZED);return exchange.getResponse().setComplete();}return chain.filter(exchange);};}private GatewayFilter rateLimiterFilter() {return (exchange, chain) -> {// 限流逻辑String clientId = exchange.getRequest().getHeaders().getFirst("X-Client-Id");if (rateLimiter.isAllowed(clientId)) {return chain.filter(exchange);} else {exchange.getResponse().setStatusCode(HttpStatus.TOO_MANY_REQUESTS);return exchange.getResponse().setComplete();}};}
}

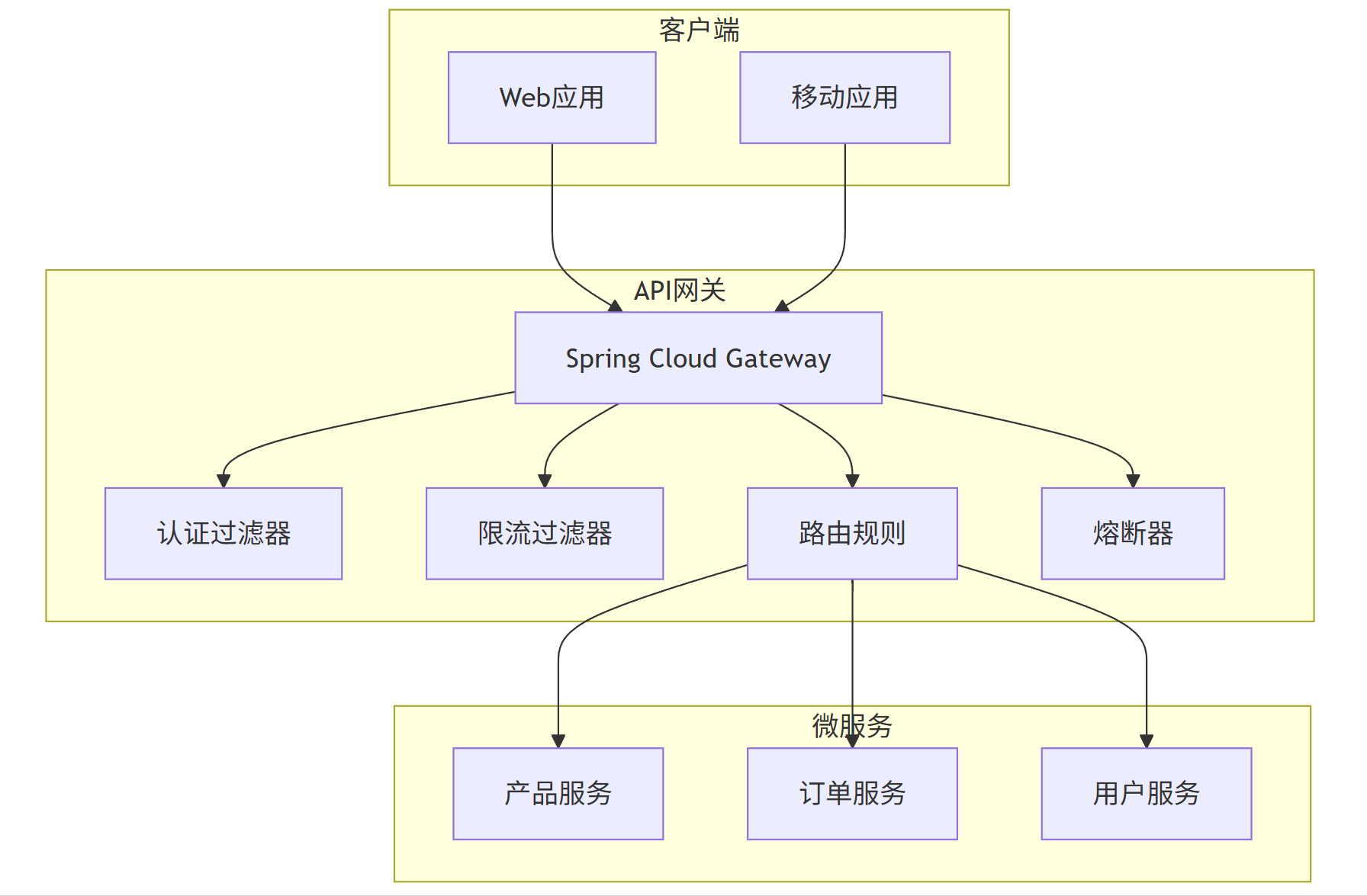

API网关架构图
graph TB
subgraph "客户端"
A[Web应用]
B[移动应用]
end
subgraph "API网关"
C[Spring Cloud Gateway]
D[认证过滤器]
E[限流过滤器]
F[路由规则]
G[熔断器]
end
subgraph "微服务"
H[产品服务]
I[订单服务]
J[用户服务]
end
A --> C
B --> C
C --> D
C --> E
C --> F
C --> G
F --> H
F --> I
F --> J
2.4 配置中心模式
集中管理微服务配置,实现配置的动态更新和环境隔离。
Spring Cloud Config实现
配置服务器
@SpringBootApplication
@EnableConfigServer
public class ConfigServerApplication {public static void main(String[] args) {SpringApplication.run(ConfigServerApplication.class, args);}
}# 配置服务器配置
spring:cloud:config:server:git:uri: https://github.com/your-repo/config-reposearch-paths: '{application}'
配置客户端
@SpringBootApplication
public class ProductServiceApplication {public static void main(String[] args) {SpringApplication.run(ProductServiceApplication.class, args);}
}# bootstrap.yml
spring:application:name: product-servicecloud:config:uri: http://config-server:8888fail-fast: trueretry:initial-interval: 1000max-interval: 2000max-attempts: 6
动态配置刷新
@RestController
@RefreshScope
public class ProductController {@Value("${product.discount.percentage}")private int discountPercentage;@GetMapping("/products/{id}/discount")public DiscountInfo getDiscount(@PathVariable Long id) {return new DiscountInfo(id, discountPercentage);}
}

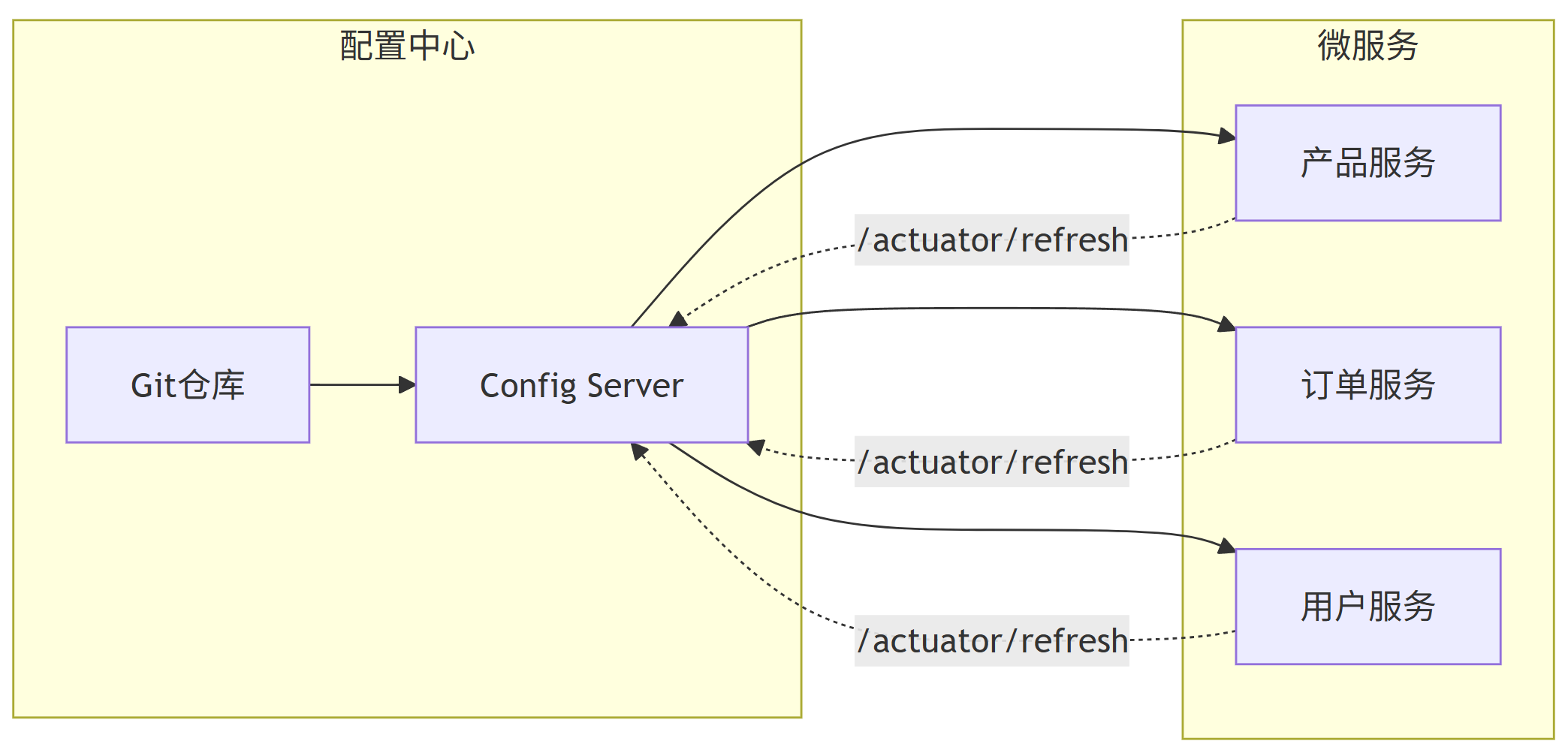

配置中心架构图
graph LR
subgraph "配置中心"
A[Config Server]
B[Git仓库]
end
subgraph "微服务"
C[产品服务]
D[订单服务]
E[用户服务]
end
B --> A
A --> C
A --> D
A --> E
C -.->|/actuator/refresh| A
D -.->|/actuator/refresh| A
E -.->|/actuator/refresh| A
2.5 熔断器模式
防止级联故障,提高系统弹性。
Resilience4j熔断器实现
@Configuration
public class ResilienceConfig {@Beanpublic CircuitBreaker orderServiceCircuitBreaker() {CircuitBreakerConfig config = CircuitBreakerConfig.custom().failureRateThreshold(50).waitDurationInOpenState(Duration.ofMillis(1000)).slidingWindowSize(10).build();return CircuitBreaker.of("orderService", config);}
}@Service
public class OrderServiceClient {private final CircuitBreaker circuitBreaker;private final RestTemplate restTemplate;public OrderServiceClient(CircuitBreaker circuitBreaker, RestTemplate restTemplate) {this.circuitBreaker = circuitBreaker;this.restTemplate = restTemplate;}public Order getOrder(Long orderId) {return circuitBreaker.executeSupplier(() -> {try {return restTemplate.getForObject("http://order-service/orders/" + orderId, Order.class);} catch (Exception e) {throw new RuntimeException("Order service unavailable", e);}});}// 降级方法public Order getOrderFallback(Long orderId) {return new Order(orderId, "Fallback Order", Collections.emptyList());}
}

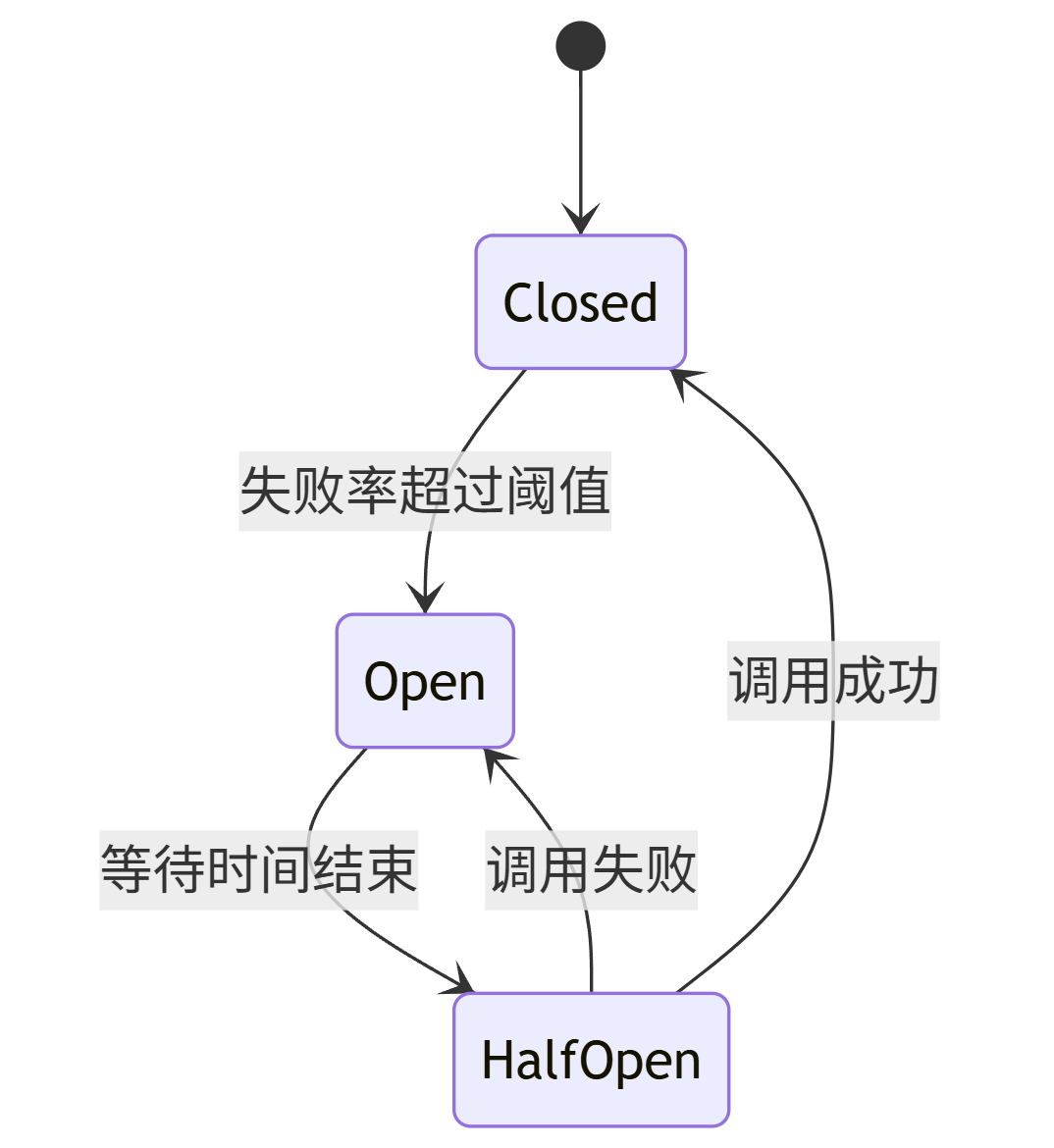

熔断器状态转换图
stateDiagram-v2
[*] --> Closed
Closed --> Open: 失败率超过阈值
Open --> HalfOpen: 等待时间结束
HalfOpen --> Closed: 调用成功
HalfOpen --> Open: 调用失败
2.6 分布式追踪模式
跟踪请求在微服务间的完整调用链。
Spring Cloud Sleuth + Zipkin实现
@SpringBootApplication
public class OrderServiceApplication {public static void main(String[] args) {SpringApplication.run(OrderServiceApplication.class, args);}
}# 配置
spring:sleuth:sampler:probability: 1.0zipkin:base-url: http://zipkin-server:9411/@RestController
public class OrderController {private final ProductServiceClient productClient;private final Tracer tracer;@PostMapping("/orders")public Order createOrder(@RequestBody OrderRequest request) {Span newSpan = tracer.nextSpan().name("createOrder").start();try (Tracer.SpanInScope ws = tracer.withSpan(newSpan.start())) {// 调用产品服务Product product = productClient.getProduct(request.getProductId());// 创建订单Order order = new Order(request.getCustomerId(), product, request.getQuantity());// 记录事件newSpan.event("orderCreated");return orderRepository.save(order);} finally {newSpan.end();}}
}

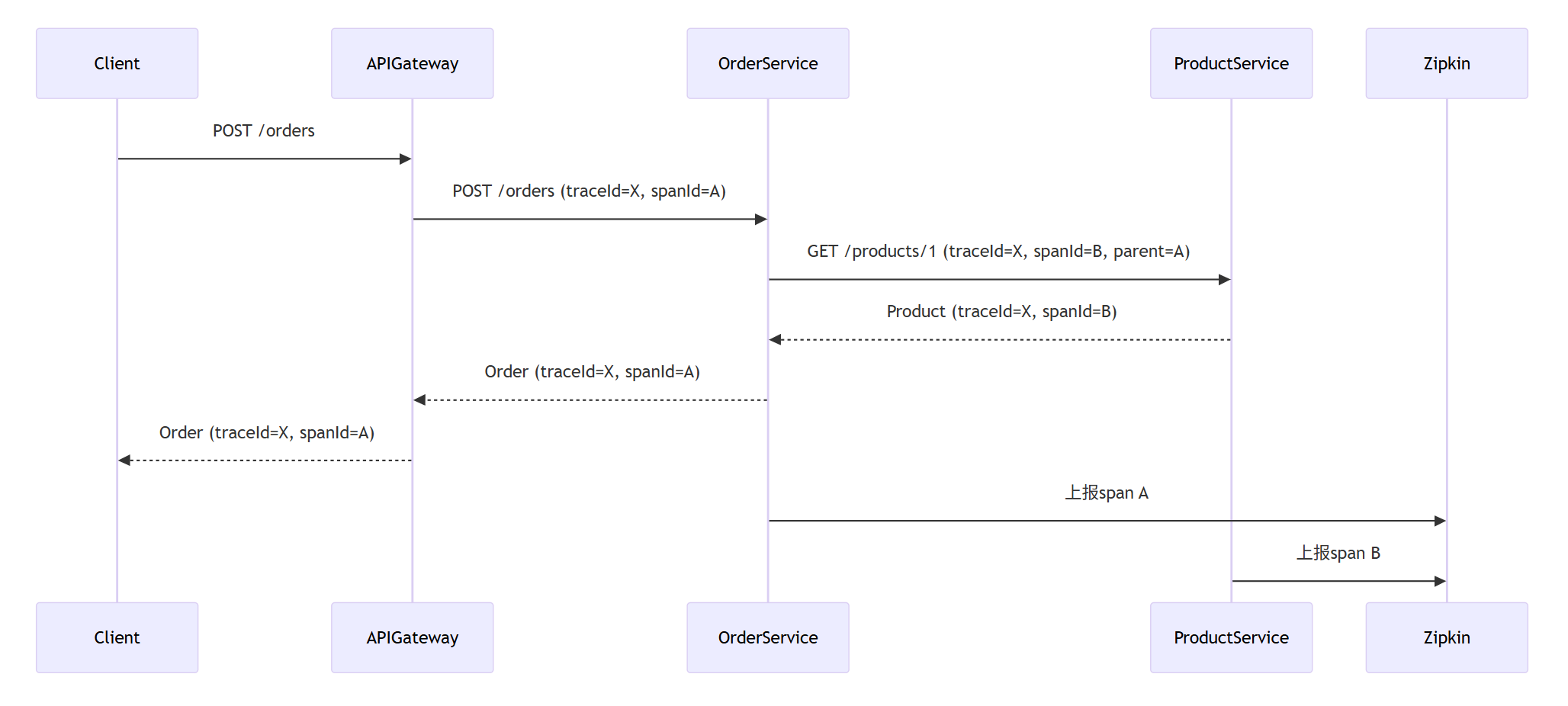

分布式追踪流程图
sequenceDiagram
participant Client
participant APIGateway
participant OrderService
participant ProductService
participant Zipkin
Client->>APIGateway: POST /orders
APIGateway->>OrderService: POST /orders (traceId=X, spanId=A)
OrderService->>ProductService: GET /products/1 (traceId=X, spanId=B, parent=A)
ProductService-->>OrderService: Product (traceId=X, spanId=B)
OrderService-->>APIGateway: Order (traceId=X, spanId=A)
APIGateway-->>Client: Order (traceId=X, spanId=A)
OrderService->>Zipkin: 上报span A
ProductService->>Zipkin: 上报span B
2.7 事件驱动模式
通过异步事件实现服务间松耦合通信。
Spring Cloud Stream实现
// 事件发布者
@Service
public class OrderEventPublisher {private final StreamBridge streamBridge;public void publishOrderCreatedEvent(Order order) {OrderCreatedEvent event = new OrderCreatedEvent(order.getId(), order.getCustomerId(), order.getTotalAmount());streamBridge.send("orderCreated-out-0", event);}
}// 事件消费者
@Service
public class OrderEventConsumer {private final NotificationService notificationService;@Beanpublic Consumer<OrderCreatedEvent> orderCreated() {return event -> {notificationService.sendOrderConfirmation(event.getCustomerId(), event.getOrderId());};}
}# 配置
spring:cloud:stream:bindings:orderCreated-out-0:destination: order-createdorderCreated-in-0:destination: order-createdgroup: notification-service

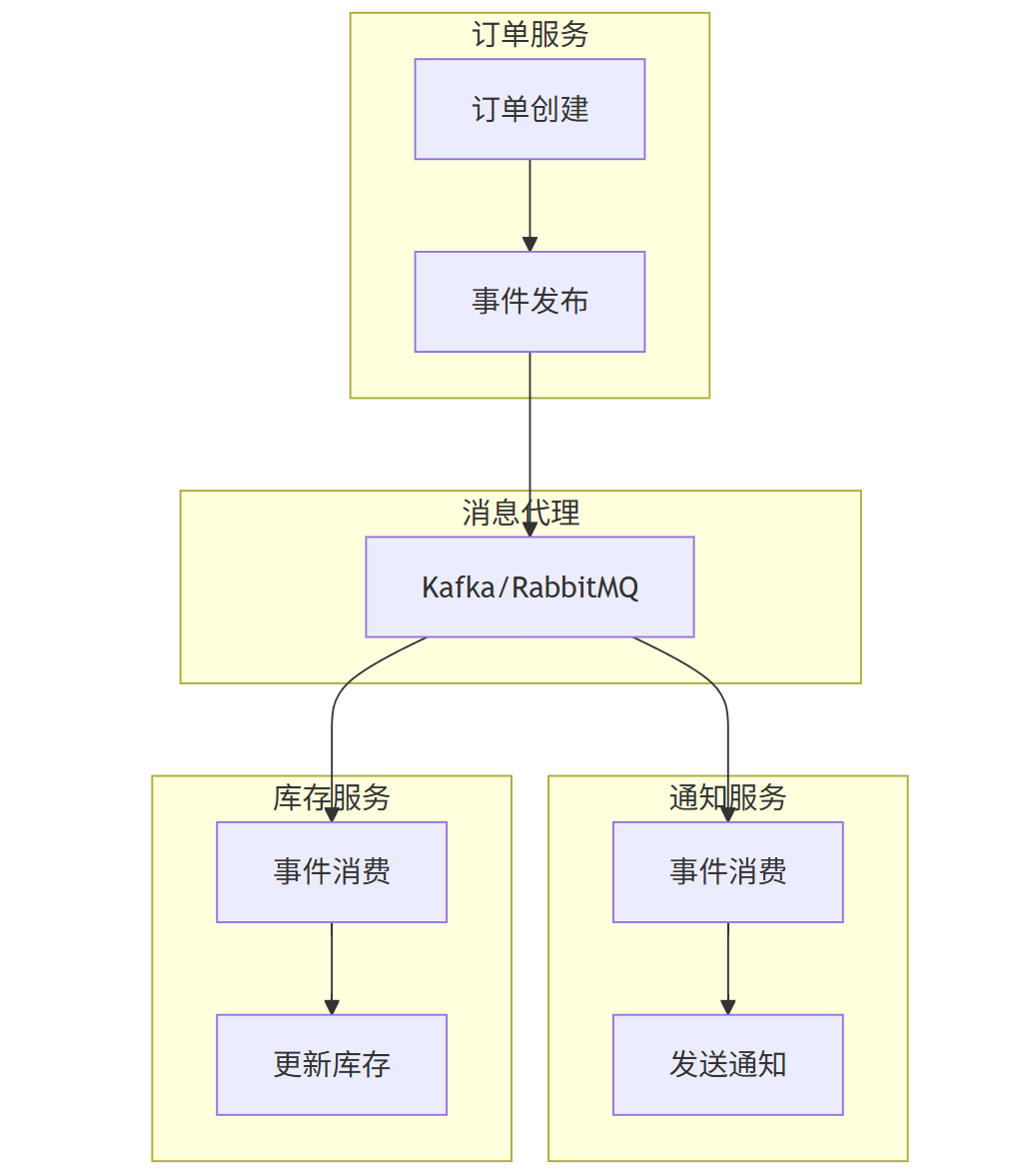

事件驱动架构图
graph TB
subgraph "订单服务"
A[订单创建]
B[事件发布]
end
subgraph "消息代理"
C[Kafka/RabbitMQ]
end
subgraph "通知服务"
D[事件消费]
E[发送通知]
end
subgraph "库存服务"
F[事件消费]
G[更新库存]
end
A --> B
B --> C
C --> D
D --> E
C --> F
F --> G
3. 微服务架构综合示例
3.1 电商系统微服务架构

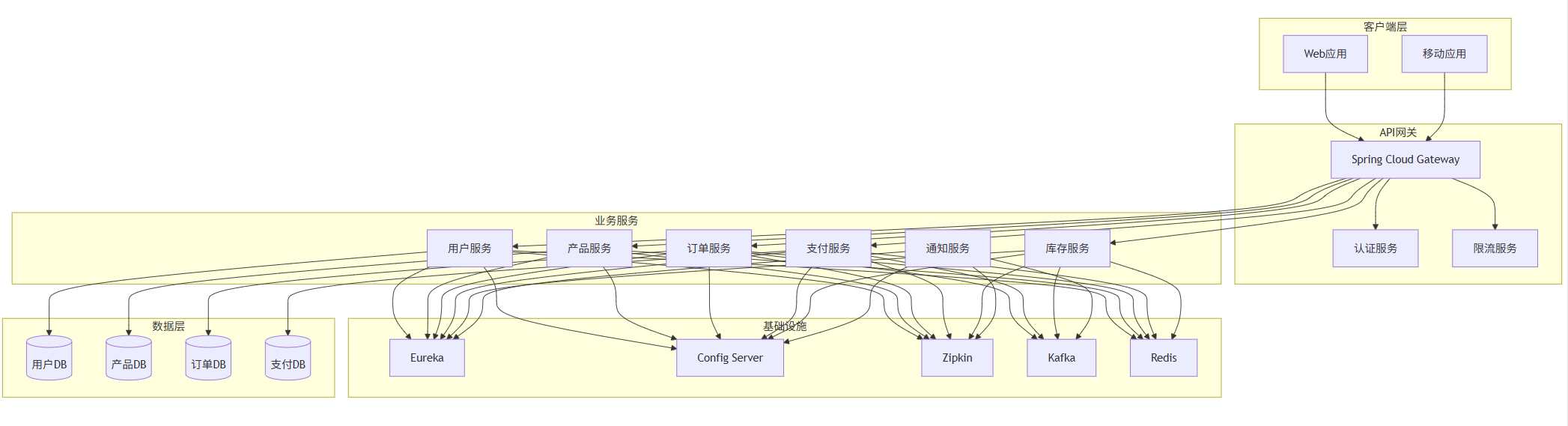

系统架构图
graph TB
subgraph "客户端层"
A[Web应用]
B[移动应用]
end
subgraph "API网关"
C[Spring Cloud Gateway]
D[认证服务]
E[限流服务]
end
subgraph "业务服务"
F[用户服务]
G[产品服务]
H[订单服务]
I[支付服务]
J[库存服务]
K[通知服务]
end
subgraph "基础设施"
L[Eureka]
M[Config Server]
N[Zipkin]
O[Kafka]
P[Redis]
end
subgraph "数据层"
Q[(用户DB)]
R[(产品DB)]
S[(订单DB)]
T[(支付DB)]
end
A --> C
B --> C
C --> D
C --> E
C --> F
C --> G
C --> H
C --> I
C --> J
F --> L
G --> L
H --> L
I --> L
J --> L
K --> L
F --> M
G --> M
H --> M
I --> M
J --> M
K --> M
F --> N
G --> N
H --> N
I --> N
J --> N
K --> N
H --> O
I --> O
J --> O
K --> O
F --> P
G --> P
H --> P
I --> P
J --> P
F --> Q
G --> R
H --> S
I --> T
3.2 订单处理流程

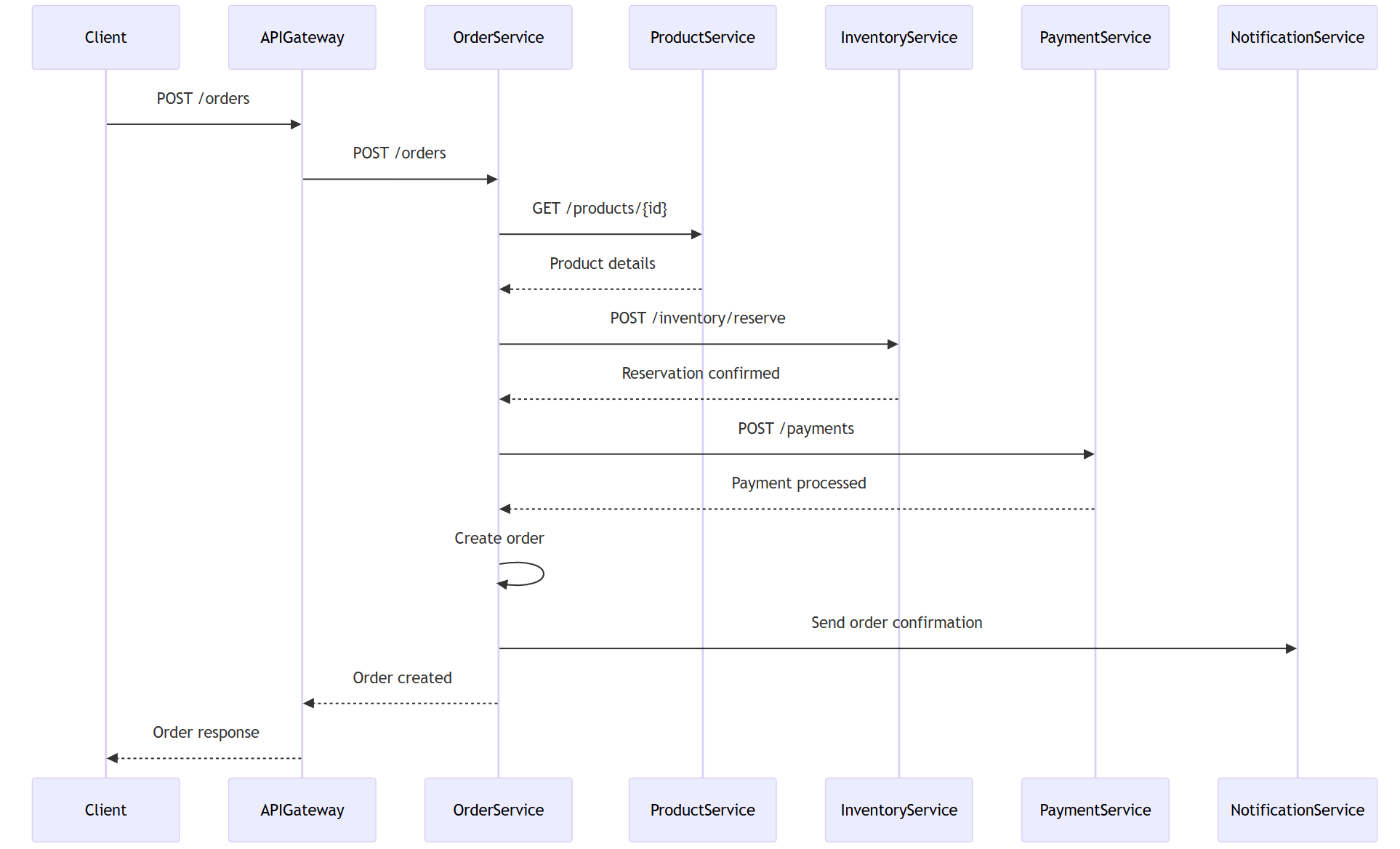

订单创建流程图
sequenceDiagram
participant Client
participant APIGateway
participant OrderService
participant ProductService
participant InventoryService
participant PaymentService
participant NotificationService
Client->>APIGateway: POST /orders
APIGateway->>OrderService: POST /orders
OrderService->>ProductService: GET /products/{id}
ProductService-->>OrderService: Product details
OrderService->>InventoryService: POST /inventory/reserve
InventoryService-->>OrderService: Reservation confirmed
OrderService->>PaymentService: POST /payments
PaymentService-->>OrderService: Payment processed
OrderService->>OrderService: Create order
OrderService->>NotificationService: Send order confirmation
OrderService-->>APIGateway: Order created
APIGateway-->>Client: Order response
订单服务实现
@Service
@Transactional
public class OrderService {private final OrderRepository orderRepository;private final ProductServiceClient productClient;private final InventoryServiceClient inventoryClient;private final PaymentServiceClient paymentClient;private final OrderEventPublisher eventPublisher;private final Tracer tracer;public Order createOrder(OrderRequest request) {Span newSpan = tracer.nextSpan().name("createOrder").start();try (Tracer.SpanInScope ws = tracer.withSpan(newSpan.start())) {// 1. 获取产品信息Product product = productClient.getProduct(request.getProductId());newSpan.tag("productId", product.getId().toString());// 2. 检查库存InventoryReservation reservation = inventoryClient.reserveInventory(product.getId(), request.getQuantity());newSpan.tag("inventoryReserved", "true");// 3. 计算总价Money totalAmount = product.getPrice().multiply(request.getQuantity());// 4. 处理支付Payment payment = paymentClient.processPayment(request.getCustomerId(), totalAmount);newSpan.tag("paymentProcessed", "true");// 5. 创建订单Order order = new Order(request.getCustomerId(),product,request.getQuantity(),totalAmount,payment.getId());order = orderRepository.save(order);newSpan.tag("orderId", order.getId().toString());// 6. 发布事件eventPublisher.publishOrderCreatedEvent(order);return order;} finally {newSpan.end();}}
}
3.3 服务监控与告警

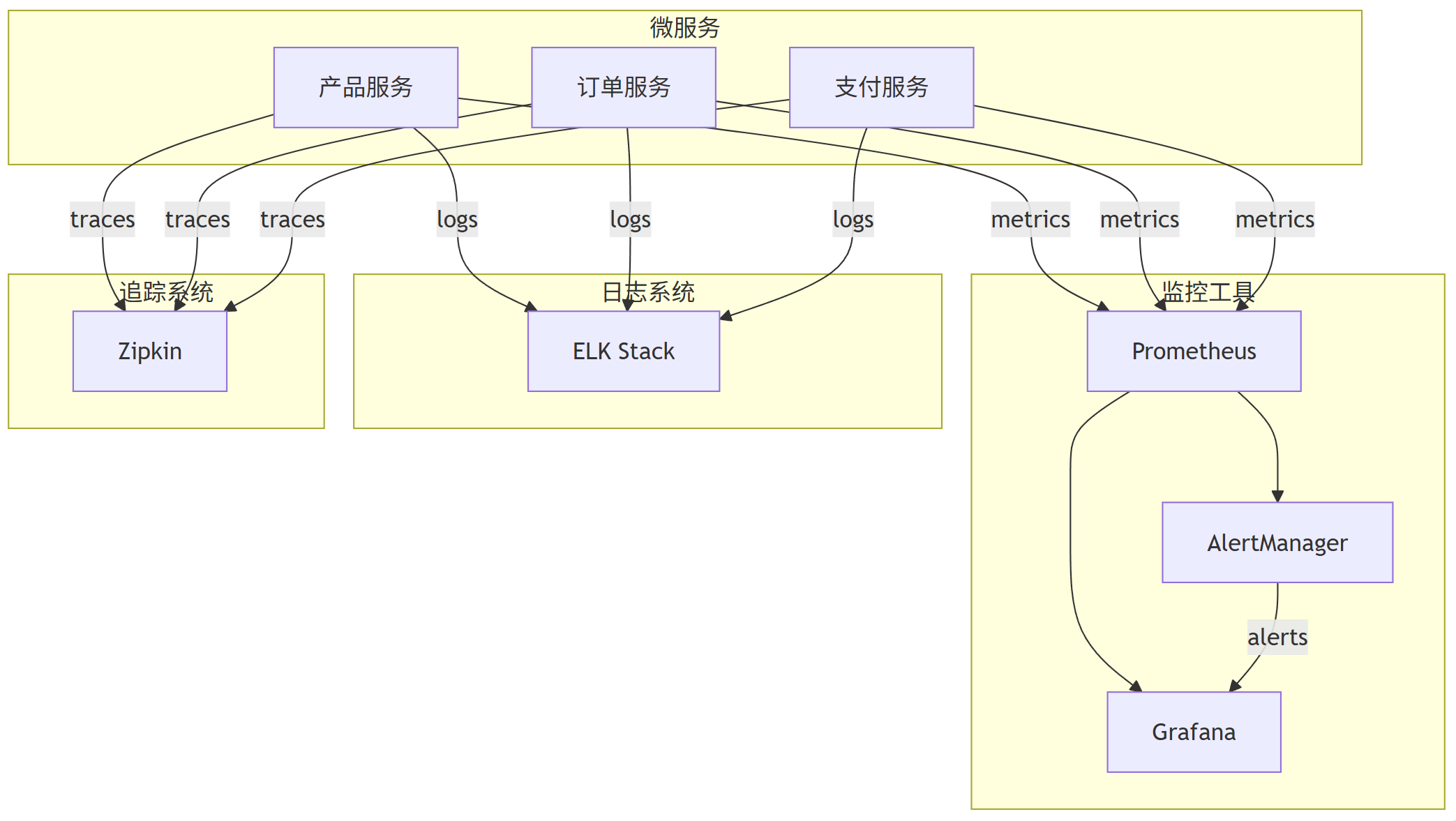

监控架构图
graph TB
subgraph "微服务"
A[产品服务]
B[订单服务]
C[支付服务]
end
subgraph "监控工具"
D[Prometheus]
E[Grafana]
F[AlertManager]
end
subgraph "日志系统"
G[ELK Stack]
end
subgraph "追踪系统"
H[Zipkin]
end
A -->|metrics| D
B -->|metrics| D
C -->|metrics| D
A -->|logs| G
B -->|logs| G
C -->|logs| G
A -->|traces| H
B -->|traces| H
C -->|traces| H
D --> E
D --> F
F -->|alerts| E
健康检查实现
@RestController
public class HealthController {private final OrderRepository orderRepository;private final ProductServiceClient productClient;@GetMapping("/health")public ResponseEntity<HealthStatus> health() {HealthStatus status = new HealthStatus();// 检查数据库连接try {orderRepository.count();status.setDatabase(true);} catch (Exception e) {status.setDatabase(false);}// 检查外部服务try {productClient.health();status.setProductService(true);} catch (Exception e) {status.setProductService(false);}// 整体状态status.setOverall(status.isDatabase() && status.isProductService());return ResponseEntity.ok(status);}
}public class HealthStatus {private boolean overall;private boolean database;private boolean productService;// getters and setters
}
4. 微服务架构最佳实践
4.1 设计原则
- 单一职责:每个服务专注于单一业务功能
- 去中心化治理:服务可自主选择技术栈
- 去中心化数据管理:每个服务拥有自己的数据存储
- 自动化部署:建立CI/CD流水线
- 容错设计:实现熔断、重试、超时等机制
- 监控可观测性:全面监控、日志和追踪
4.2 部署策略

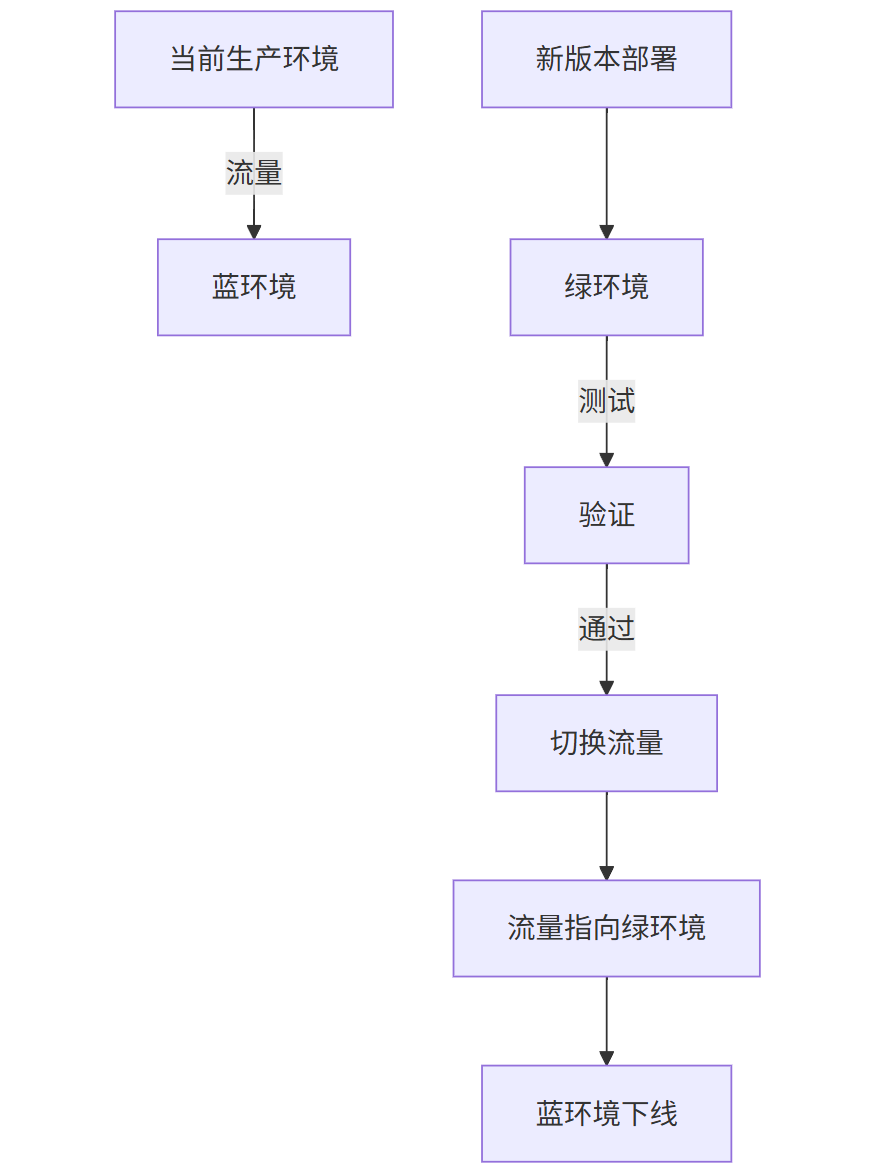

蓝绿部署流程图
graph TD
A[当前生产环境] -->|流量| B[蓝环境]
C[新版本部署] --> D[绿环境]
D -->|测试| E[验证]
E -->|通过| F[切换流量]
F --> G[流量指向绿环境]
G --> H[蓝环境下线]

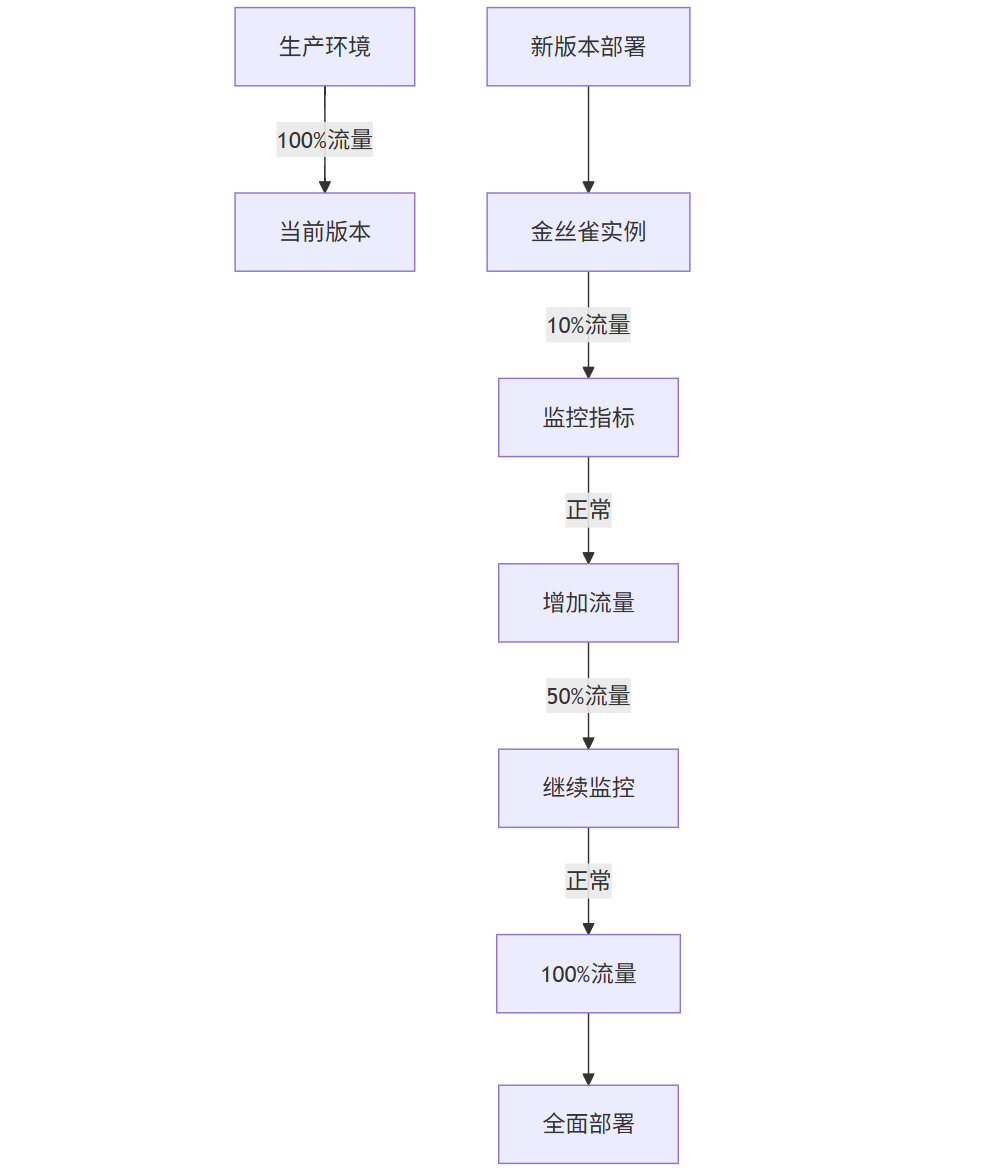

金丝雀发布流程图
graph TD
A[生产环境] -->|100%流量| B[当前版本]
C[新版本部署] --> D[金丝雀实例]
D -->|10%流量| E[监控指标]
E -->|正常| F[增加流量]
F -->|50%流量| G[继续监控]
G -->|正常| H[100%流量]
H --> I[全面部署]
4.3 安全模式

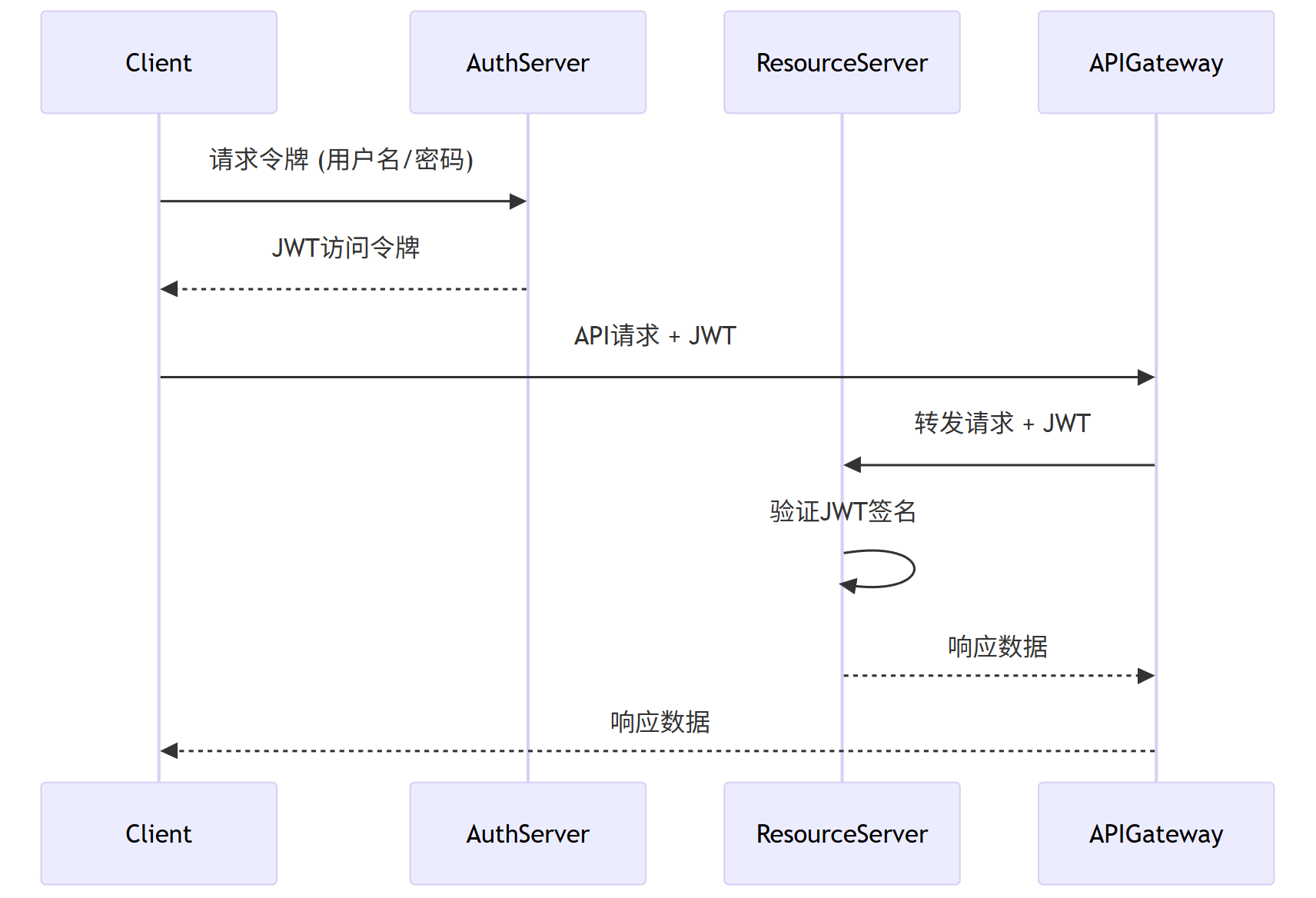

OAuth2 + JWT认证流程
sequenceDiagram
participant Client
participant AuthServer
participant ResourceServer
participant APIGateway
Client->>AuthServer: 请求令牌 (用户名/密码)
AuthServer-->>Client: JWT访问令牌
Client->>APIGateway: API请求 + JWT
APIGateway->>ResourceServer: 转发请求 + JWT
ResourceServer->>ResourceServer: 验证JWT签名
ResourceServer-->>APIGateway: 响应数据
APIGateway-->>Client: 响应数据
API安全实现
@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {@Overrideprotected void configure(HttpSecurity http) throws Exception {http.csrf().disable().authorizeRequests().antMatchers("/actuator/**").permitAll().antMatchers("/public/**").permitAll().anyRequest().authenticated().and().oauth2ResourceServer().jwt().jwtDecoder(jwtDecoder());}@Beanpublic JwtDecoder jwtDecoder() {return NimbusJwtDecoder.withJwkSetUri(jwkSetUri).build();}
}
5. 微服务架构演进路线

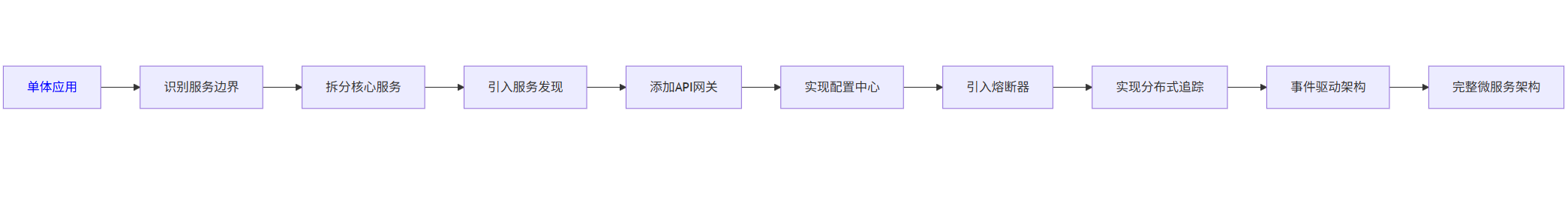

5.1 从单体到微服务的演进
graph LR
A[单体应用] --> B[识别服务边界]
B --> C[拆分核心服务]
C --> D[引入服务发现]
D --> E[添加API网关]
E --> F[实现配置中心]
F --> G[引入熔断器]
G --> H[实现分布式追踪]
H --> I[事件驱动架构]
I --> J[完整微服务架构]
5.2 微服务成熟度模型
级别 | 特征 | 实践 |
---|---|---|
初始级 | 单体应用 | 基本功能实现 |
可重复级 | 服务拆分 | 核心服务独立部署 |
已定义级 | 服务治理 | 服务发现、配置中心 |
量化管理级 | 弹性设计 | 熔断器、限流、降级 |
优化级 | 智能运维 | 自动扩缩容、自愈能力 |
6. 微服务架构挑战与解决方案
6.1 分布式事务管理
Saga模式实现
@Service
public class OrderSagaOrchestrator {private final OrderService orderService;private final PaymentService paymentService;private final InventoryService inventoryService;private final NotificationService notificationService;@Transactionalpublic Order createOrder(OrderRequest request) {// 1. 创建订单Order order = orderService.createOrder(request);try {// 2. 处理支付Payment payment = paymentService.processPayment(order.getId(), order.getTotalAmount());// 3. 扣减库存inventoryService.reserveInventory(order.getProductId(), order.getQuantity());// 4. 发送通知notificationService.sendOrderConfirmation(order);return order;} catch (Exception e) {// 补偿事务compensate(order);throw new RuntimeException("Order creation failed", e);}}private void compensate(Order order) {try {paymentService.refundPayment(order.getId());inventoryService.releaseInventory(order.getProductId(), order.getQuantity());orderService.cancelOrder(order.getId());} catch (Exception e) {// 记录补偿失败,需要人工干预log.error("Compensation failed for order {}", order.getId(), e);}}
}

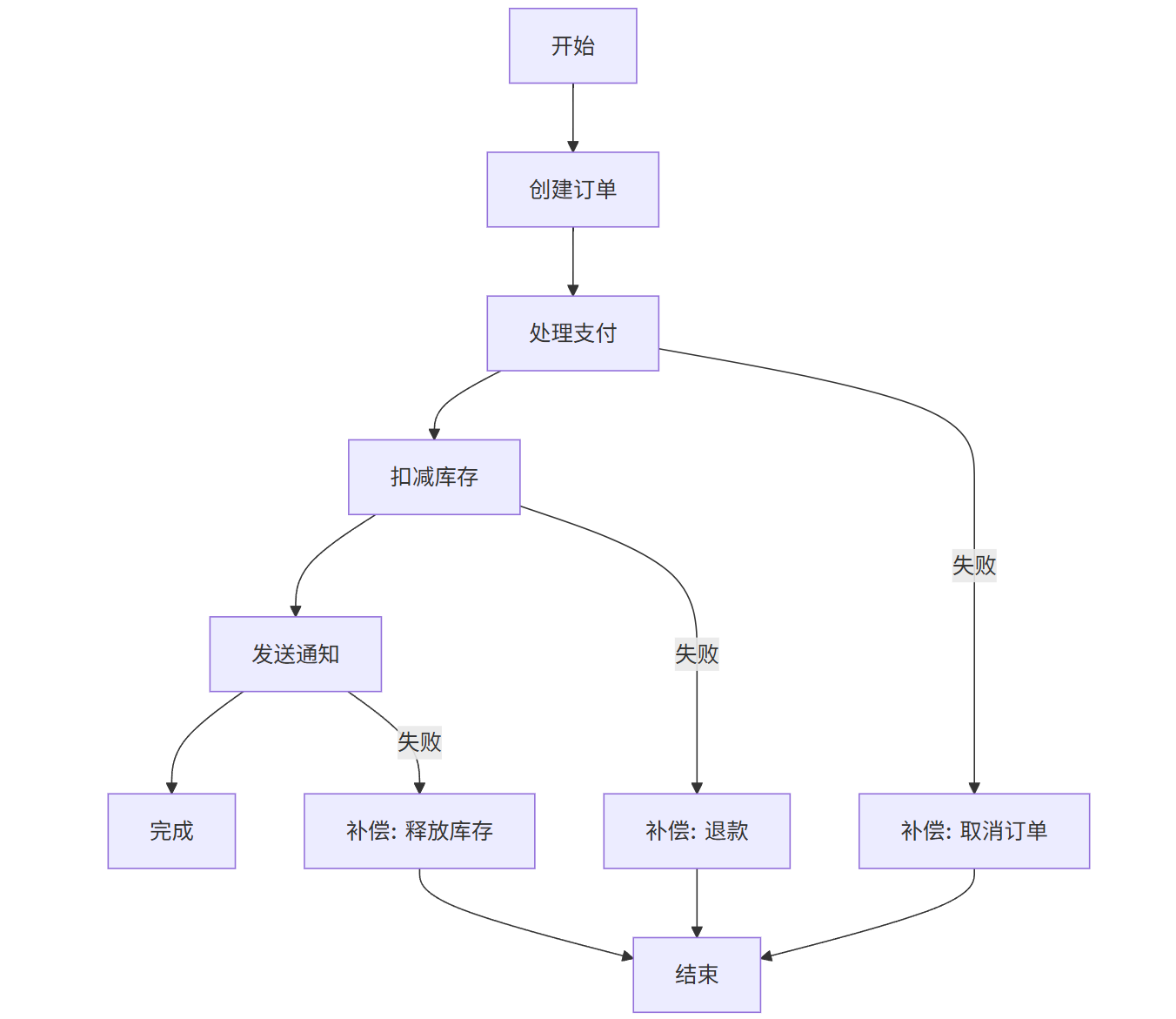

Saga模式流程图
graph TD
A[开始] --> B[创建订单]
B --> C[处理支付]
C --> D[扣减库存]
D --> E[发送通知]
E --> F[完成]
C -->|失败| G[补偿: 取消订单]
D -->|失败| H[补偿: 退款]
E -->|失败| I[补偿: 释放库存]
G --> J[结束]
H --> J
I --> J
6.2 服务间通信优化
gRPC实现高效通信
// 定义服务
service ProductService {rpc GetProduct(GetProductRequest) returns (Product);rpc ListProducts(ListProductsRequest) returns (ListProductsResponse);
}// 服务实现
@GrpcService
public class ProductGrpcService extends ProductServiceGrpc.ProductServiceImplBase {private final ProductRepository productRepository;@Overridepublic void getProduct(GetProductRequest request, StreamObserver<Product> responseObserver) {ProductEntity entity = productRepository.findById(request.getId()).orElseThrow(() -> new StatusRuntimeException(Status.NOT_FOUND.withDescription("Product not found")));Product product = Product.newBuilder().setId(entity.getId()).setName(entity.getName()).setPrice(entity.getPrice()).build();responseObserver.onNext(product);responseObserver.onCompleted();}
}// 客户端调用
@Service
public class OrderService {private final ProductServiceGrpc.ProductServiceBlockingStub productClient;public OrderService(ProductServiceGrpc.ProductServiceBlockingStub productClient) {this.productClient = productClient;}public void processOrder(OrderRequest request) {GetProductRequest productRequest = GetProductRequest.newBuilder().setId(request.getProductId()).build();Product product = productClient.getProduct(productRequest);// 处理订单逻辑}
}
通信协议对比
协议 | 优点 | 缺点 | 适用场景 |
---|---|---|---|
REST/HTTP | 简单、通用 | 性能较低、开销大 | 外部API、简单服务 |
gRPC | 高性能、强类型 | 复杂性高、浏览器支持有限 | 内部服务、高性能需求 |
GraphQL | 灵活查询、减少请求 | 缓存复杂、学习曲线 | 复杂数据查询场景 |
消息队列 | 异步、解耦 | 最终一致性、延迟 | 事件驱动架构 |
7. 微服务架构未来趋势

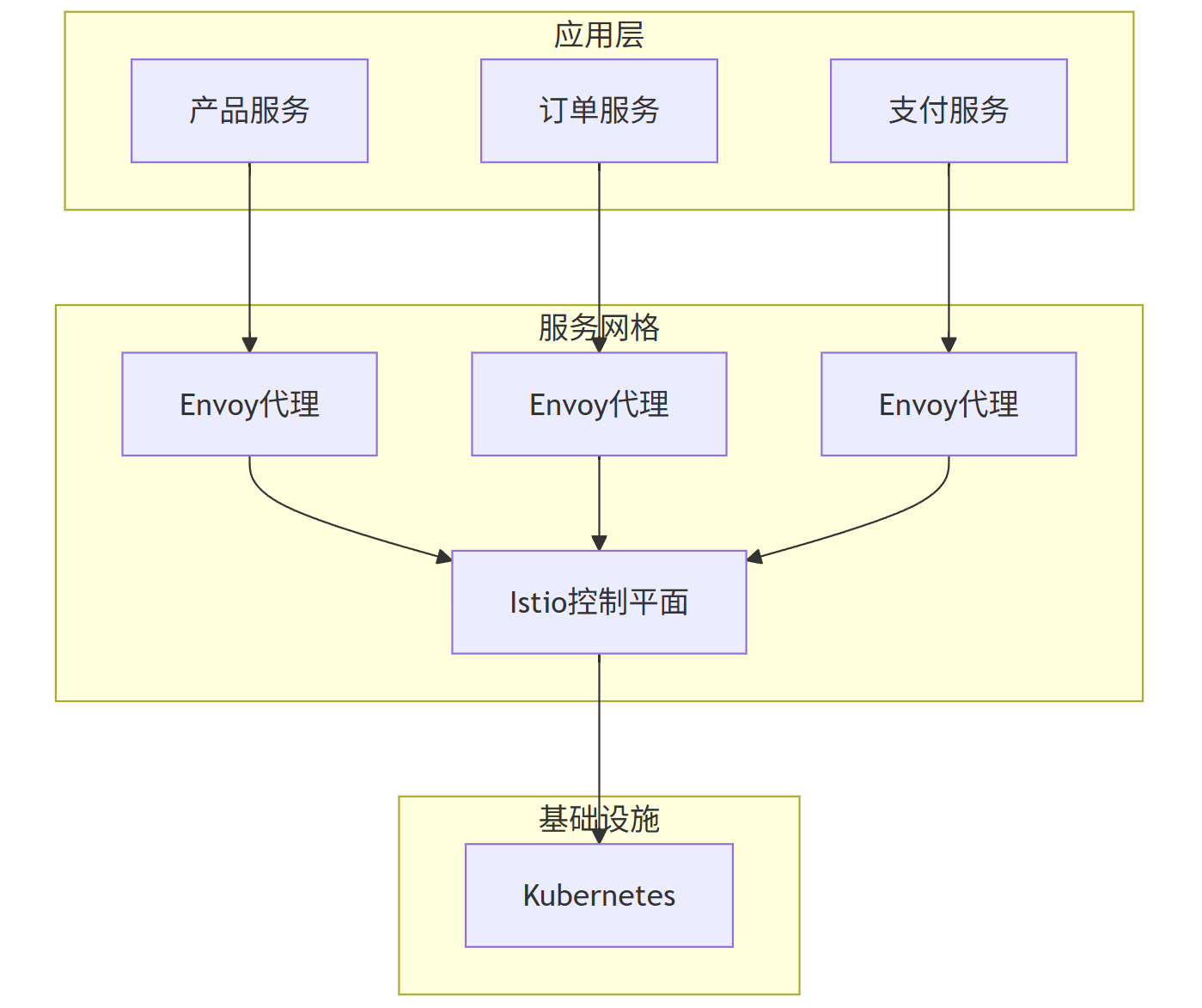

7.1 服务网格(Service Mesh)
graph TB
subgraph "应用层"
A[产品服务]
B[订单服务]
C[支付服务]
end
subgraph "服务网格"
D[Envoy代理]
E[Envoy代理]
F[Envoy代理]
G[Istio控制平面]
end
subgraph "基础设施"
H[Kubernetes]
end
A --> D
B --> E
C --> F
D --> G
E --> G
F --> G
G --> H

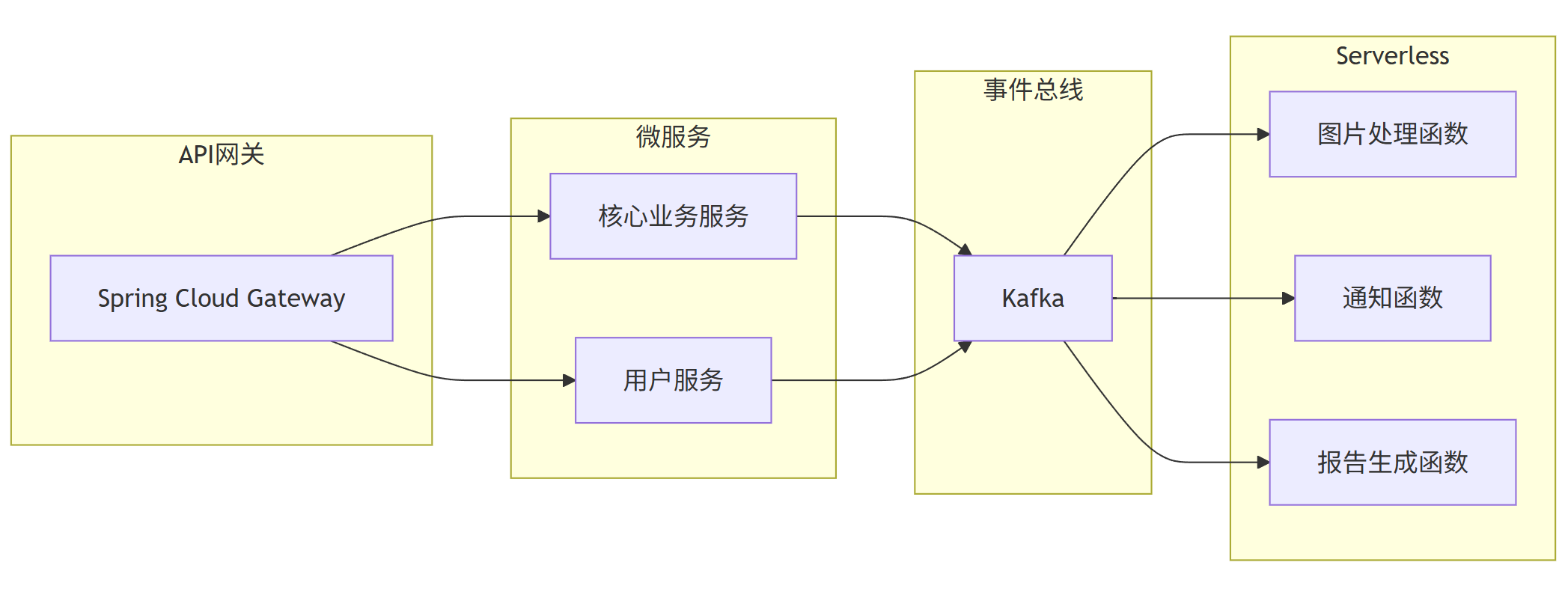

7.2 无服务器(Serverless)与微服务结合
graph LR
subgraph "API网关"
A[Spring Cloud Gateway]
end
subgraph "微服务"
B[核心业务服务]
C[用户服务]
end
subgraph "Serverless"
D[图片处理函数]
E[通知函数]
F[报告生成函数]
end
subgraph "事件总线"
G[Kafka]
end
A --> B
A --> C
B --> G
C --> G
G --> D
G --> E
G --> F
8. 结论
Java微服务架构通过一系列设计模式和技术组件,为构建现代化、可扩展的企业级应用提供了强大支持。从服务拆分、服务发现到API网关、配置中心,再到熔断器、分布式追踪和事件驱动架构,每个模式都解决了微服务架构中的特定挑战。
成功实施微服务架构需要:
- 合理的服务边界划分
- 完善的服务治理体系
- 强大的自动化运维能力
- 全面的监控和可观测性
- 持续的架构演进和优化
随着云原生技术的发展,微服务架构将与容器化、服务网格、无服务器计算等趋势深度融合,为企业数字化转型提供更强大的技术支撑。开发者应持续关注这些技术演进,结合业务需求选择合适的架构模式和技术栈,构建具有高弹性、高可用的现代化应用系统。
