ICS/OT 攻击溯源 (电力系统) 模拟组件

1. 组件概述

ics-attack-forensics 组件是一个前端模拟界面，旨在可视化展示针对工业控制系统 (ICS) / 操作技术 (OT) 环境的网络攻击溯源过程。该组件特别模拟了一个针对电力系统的复杂持续性威胁 (APT) 攻击场景，帮助用户（如安全分析师、学生、运维人员）理解攻击链、分析取证数据、识别受影响系统，并关联威胁情报。

它提供了一个交互式的环境，用于探索攻击的不同阶段，并查看在每个阶段可能收集到的证据类型。

2. 核心功能

攻击时间线可视化: 以类似 MITRE ATT&CK Kill Chain 的方式，展示攻击从初始侦察到最终影响的各个阶段。
- 清晰标记当前分析阶段。
- 鼠标悬停显示阶段描述。
- 点击阶段可聚焦相关证据和系统影响。
多源取证证据展示: 模拟展示来自不同来源的日志和证据，包括：
- 网络流量日志 (Network Logs)
- 主机事件日志 (Host Logs)
- 恶意软件分析指标 (Malware Indicators)
- ICS 操作记录 (ICS Operational Data)
- 威胁情报信息 (Threat Intelligence)
证据筛选与排序: 用户可以根据证据类型（网络、主机、恶意软件、ICS）进行筛选，并按时间戳排序，以便快速定位关键信息。
受影响系统可视化: 提供一个简化的电力系统架构图（包含 IT、DMZ、OT 控制中心、变电站等区域），并根据所选攻击阶段高亮显示：
- involved (卷入): 攻击过程中被利用或经过的系统。
- affected (受影响): 攻击最终目标或直接遭受破坏的系统，通常带有动画效果。
威胁情报关联: 展示与模拟攻击相关的威胁情报信息：
- 攻击归属 (Attribution)
- 攻击动机 (Motivation)
- 使用的战术、技术和过程 (TTPs, 映射到 MITRE ATT&CK for ICS 框架)
- 关键危害指标 (IOCs)，如恶意 IP、域名、文件哈希等。
响应式设计: 界面布局能在不同屏幕尺寸下自动调整，保证可用性。
苹果科技工业风格: 采用简洁、清晰、现代化的界面设计风格。

3. 文件结构

安全与维护组件/
└── ics-attack-forensics/├── index.html       # 组件的 HTML 结构，定义了各个面板布局├── styles.css       # CSS 样式文件，负责组件的外观和响应式设计├── script.js        # JavaScript 文件，包含模拟逻辑、数据处理和交互└── README.md        # 组件说明文档 (本文件)

4. 使用方法

确保你的计算机上有现代网页浏览器（如 Chrome, Firefox, Edge）。
直接在浏览器中打开 安全与维护组件/ics-attack-forensics/index.html 文件。
界面加载后，默认会显示第一个攻击阶段及其相关的证据。
交互:
- 点击攻击时间线上的不同阶段图标，可以切换当前分析的焦点。
- 证据面板右上角的下拉菜单可以选择筛选不同类型的证据。
- 观察受影响系统面板，高亮的设备会随着时间线的推进而变化。
- 查看威胁情报面板获取攻击的背景信息。

5. 技术栈

HTML5: 构建页面结构。
CSS3: 样式设计、布局（Grid）、动画和响应式设计。
JavaScript (ES6+): 实现模拟逻辑、DOM 操作、事件处理和数据可视化驱动。
Font Awesome: 提供图标。

6. 模拟说明与限制

内置场景: 当前版本内置了一个硬编码的、针对电力系统的 APT 攻击场景 (attackScenario 对象在 script.js 中定义)。所有展示的数据（时间线、证据、系统状态、情报）都基于这个预设场景。
非实时模拟: 这不是一个实时的动态模拟器。它主要用于展示一个已完成攻击的溯源分析过程。
简化模型: 无论是电力系统架构图还是攻击证据链，都是为了教学和演示目的而简化的模型，并未完全反映真实世界的复杂性。
数据来源: 所有数据均为模拟生成，并非来自真实攻击事件。

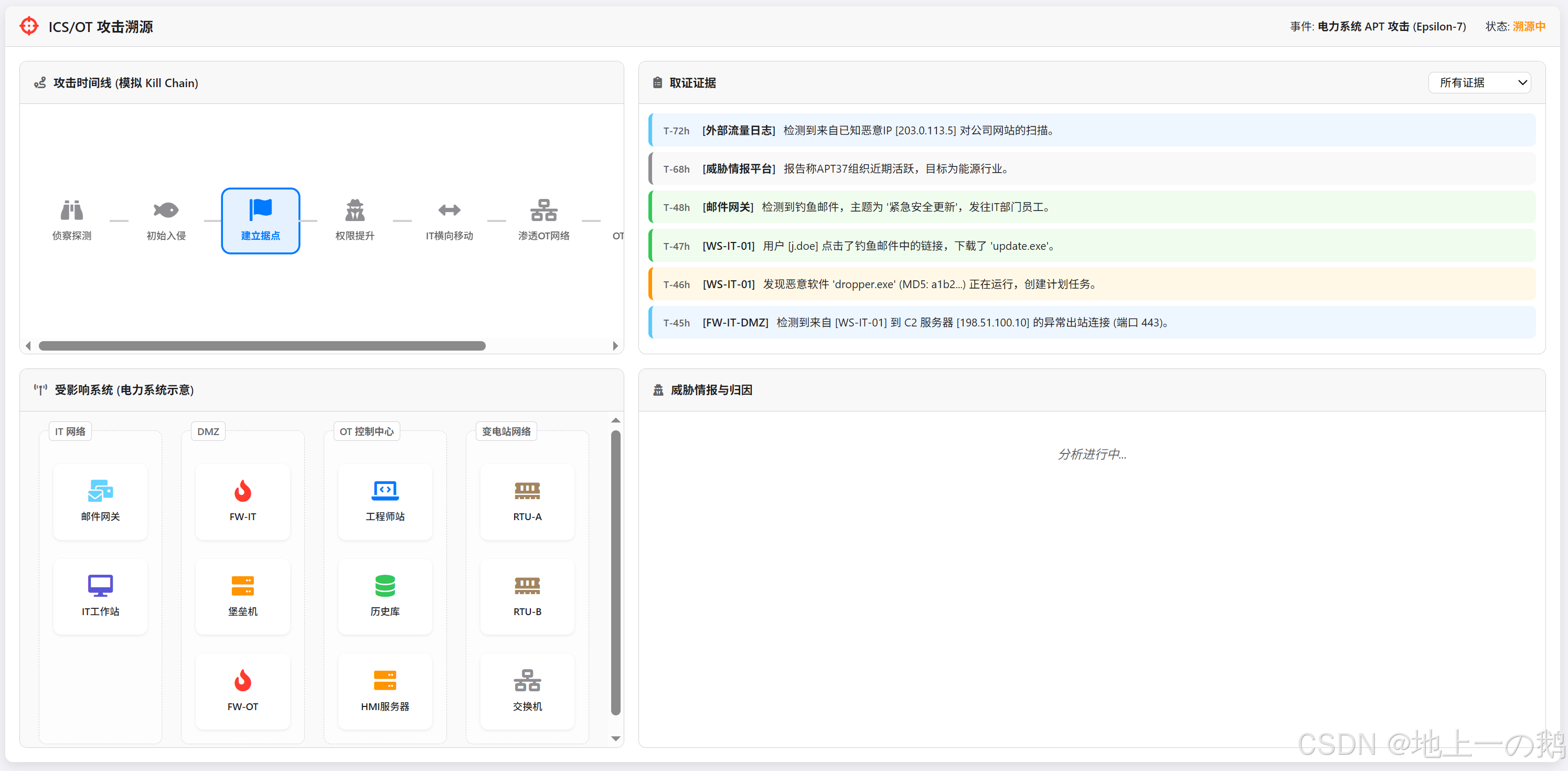

效果展示
