A1-MPLS-LDP配置

1、基础配置

1、路由器IP配置sysname  mpls-ldp-r1
#
interface GigabitEthernet 0/0/1ip address 192.168.34.4 24
#quit
#interface LoopBack 0ip address 1.1.1.9 32
#sysname  mpls-ldp-r2#
interface GigabitEthernet 0/0/1ip address 192.168.34.5 24
#
interface GigabitEthernet 0/0/0ip address 192.168.35.5 24
#interface LoopBack 0ip address 2.2.2.9 32
#sysname  mpls-ldp-r3#
interface GigabitEthernet 0/0/0ip address 192.168.35.6 24
#quit
#interface LoopBack 0ip address 3.3.3.9 32
#2、OSPF配置ospf 1ar 0network 192.168.34.0 0.0.0.255network 1.1.1.9 0.0.0.0ospf 1ar 0network 192.168.35.0 0.0.0.255network 192.168.34.0 0.0.0.255network 2.2.2.9 0.0.0.0ospf 1ar 0network 192.168.35.0 0.0.0.255network 3.3.3.9 0.0.0.0

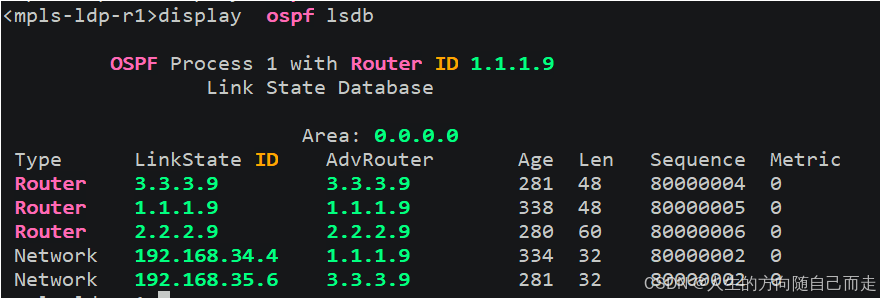

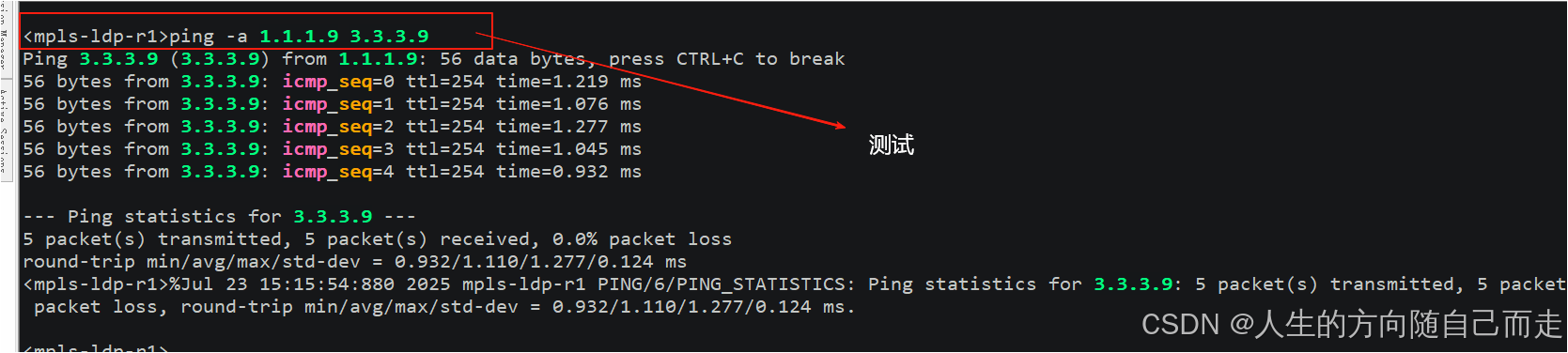

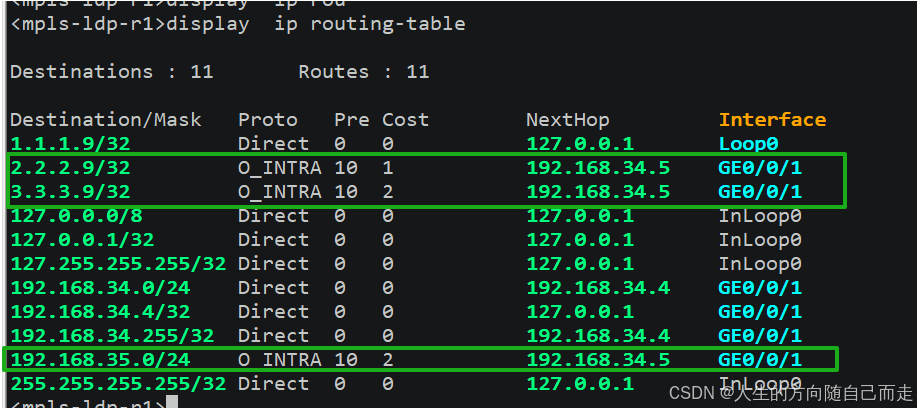

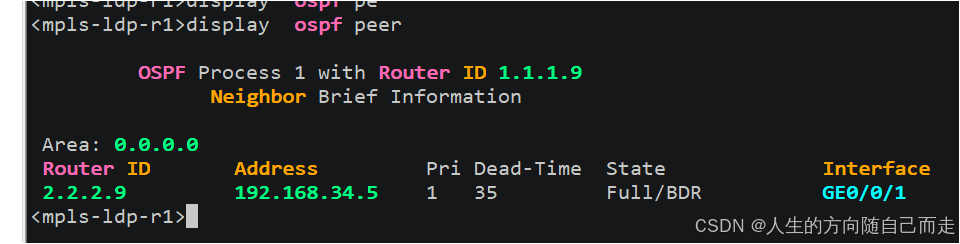

测试

---

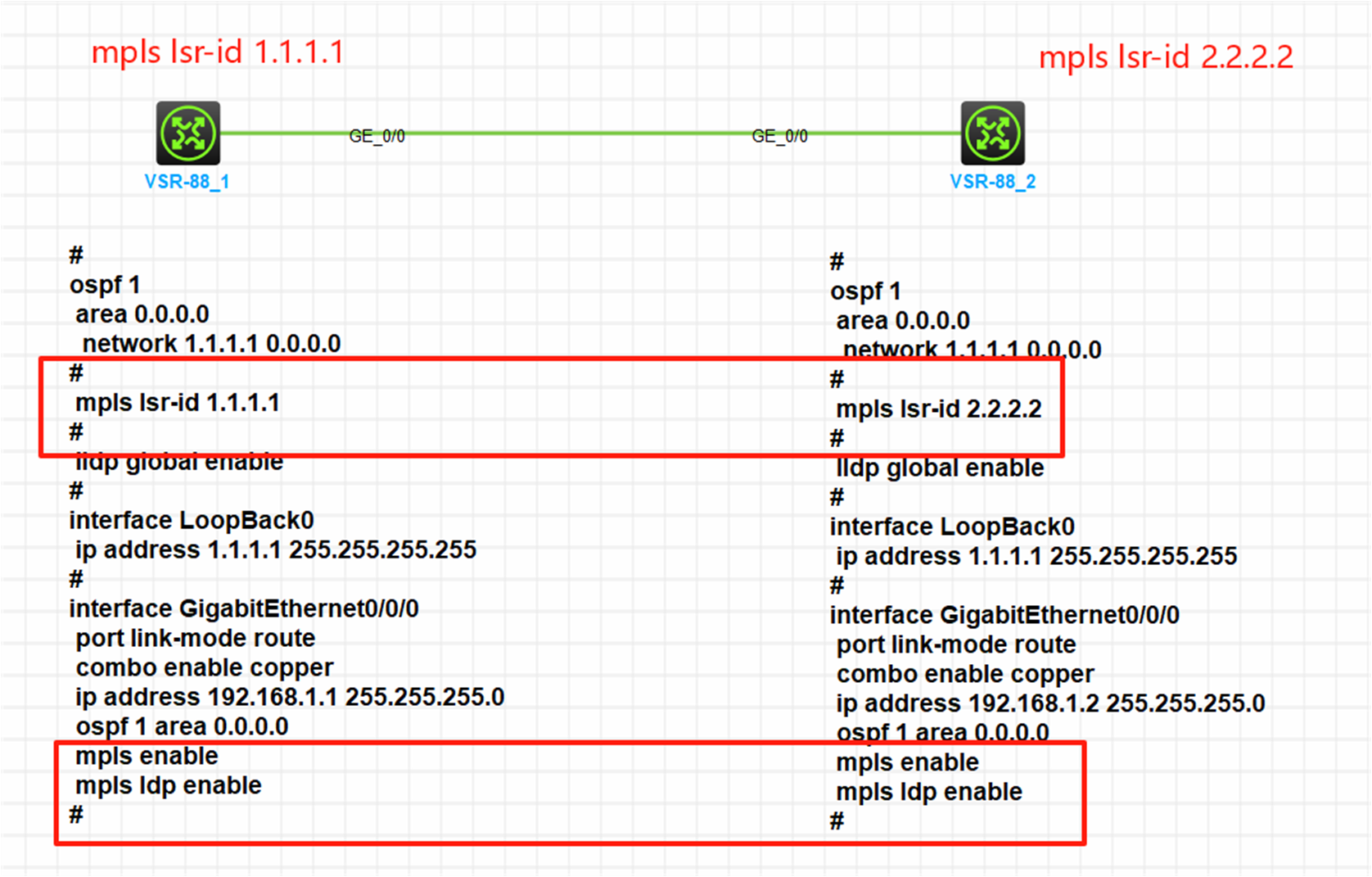

2、MPLS-LDP   配置

mpls lsr-id 1.1.1.9
mpls ldp
#
interface GigabitEthernet 0/0/1
mpls enable
mpls ldp enable
#mpls lsr-id 2.2.2.9
mpls ldp
#
interface GigabitEthernet 0/0/1
mpls enable
mpls ldp enable
#
interface GigabitEthernet 0/0/0
mpls enable
mpls ldp enable
#mpls lsr-id 3.3.3.9
mpls ldp
#
interface GigabitEthernet 0/0/0
mpls enable
mpls ldp enable
#

---

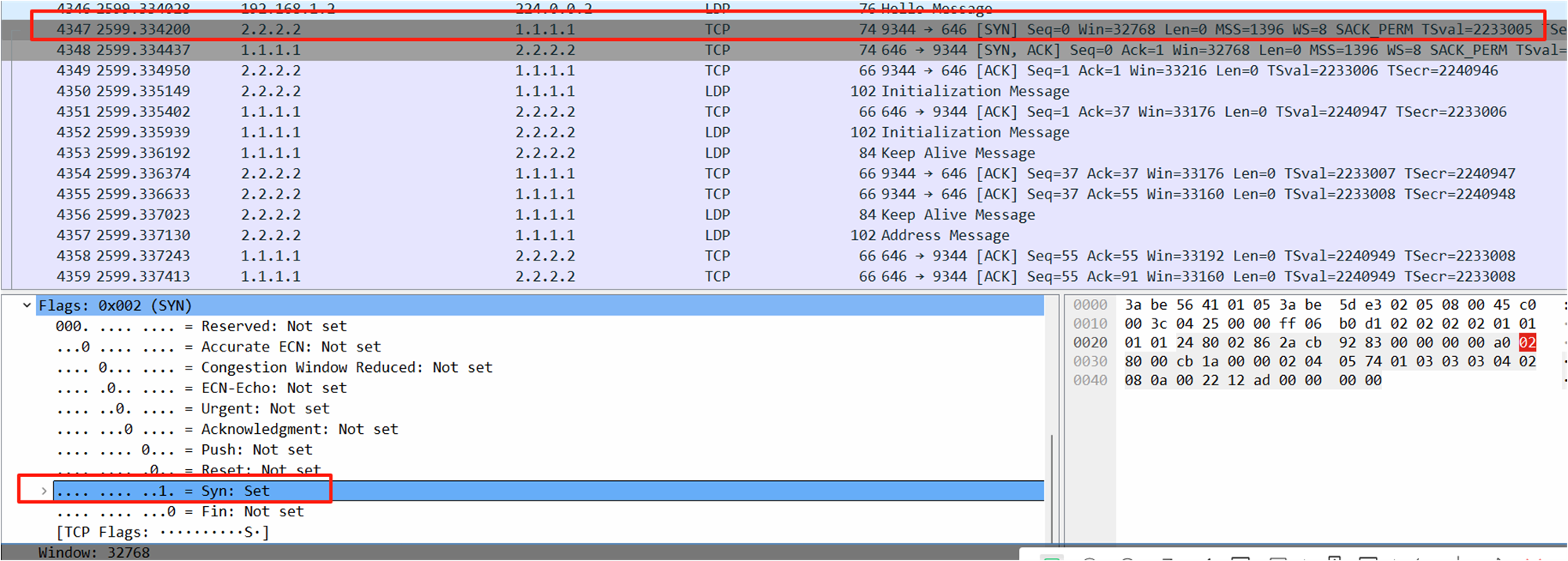

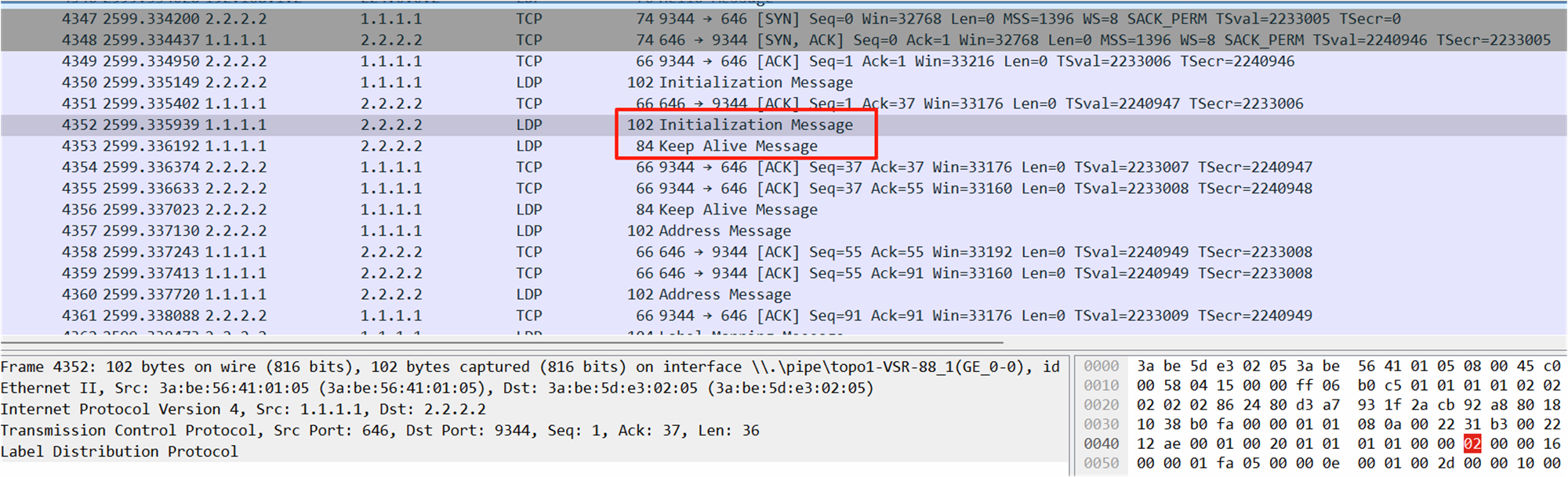

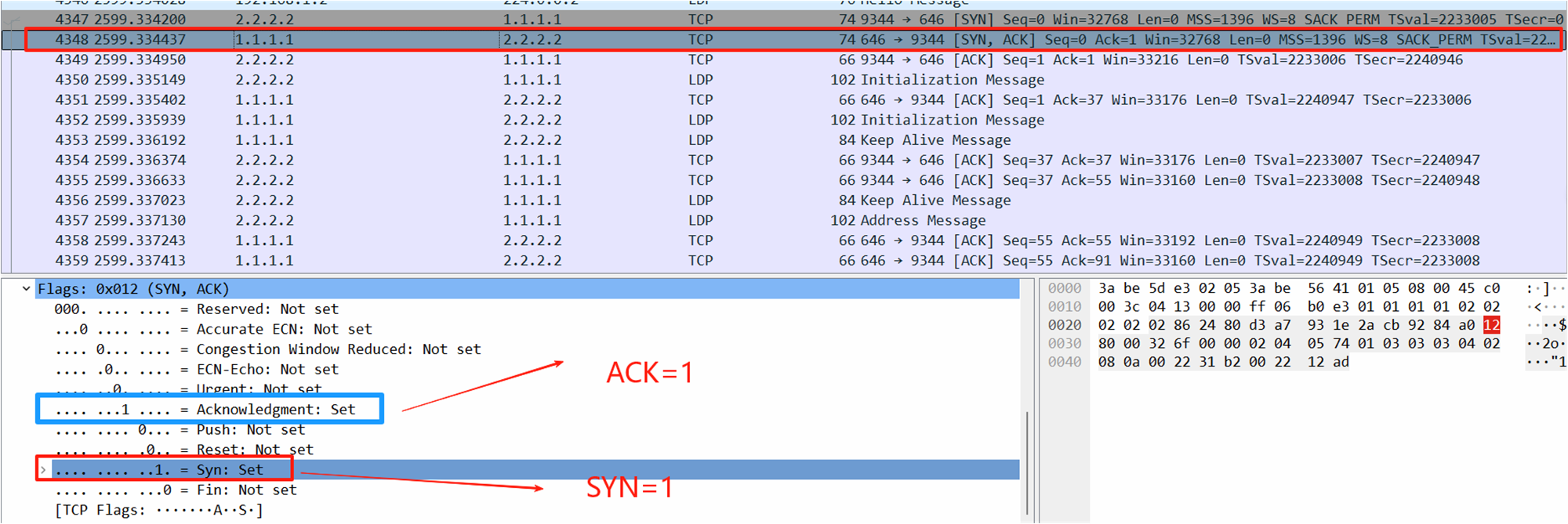

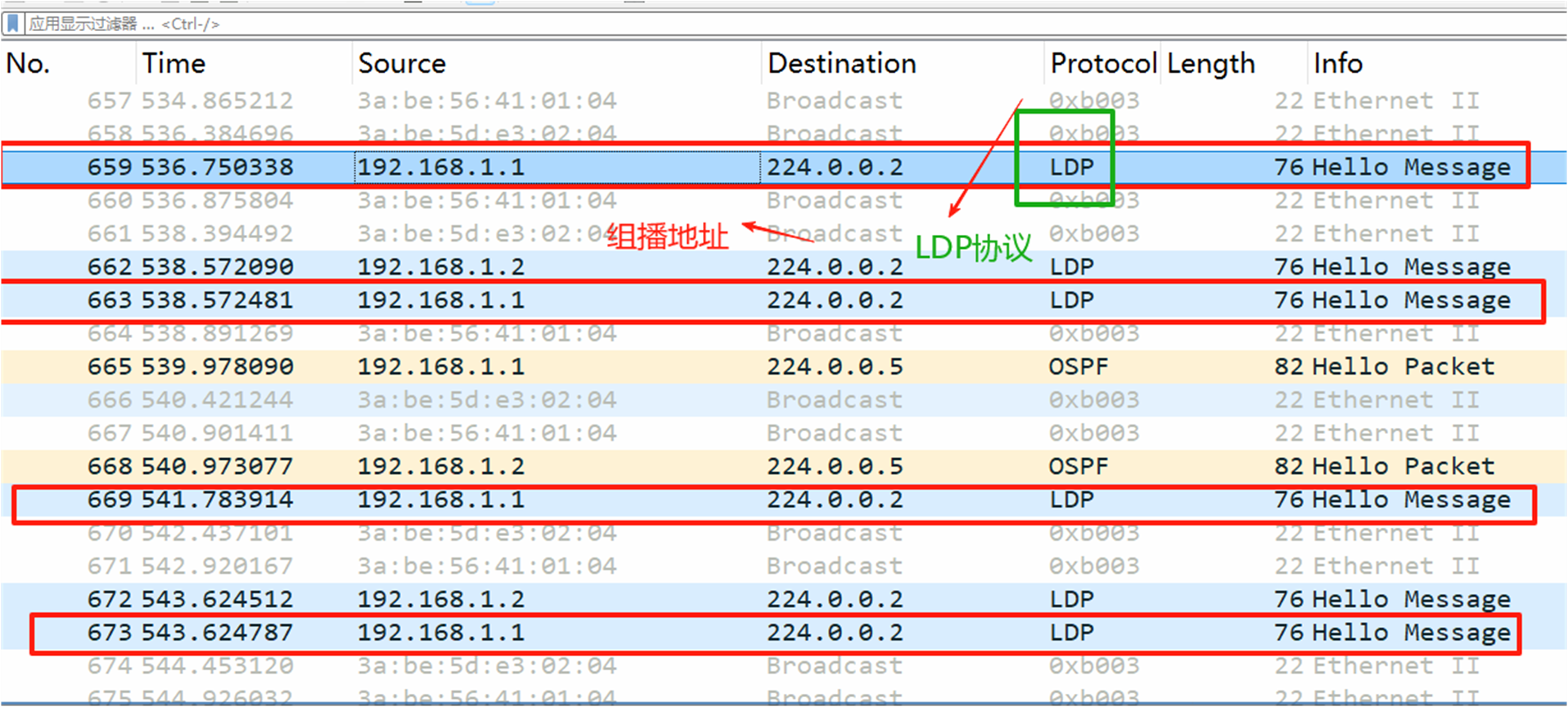

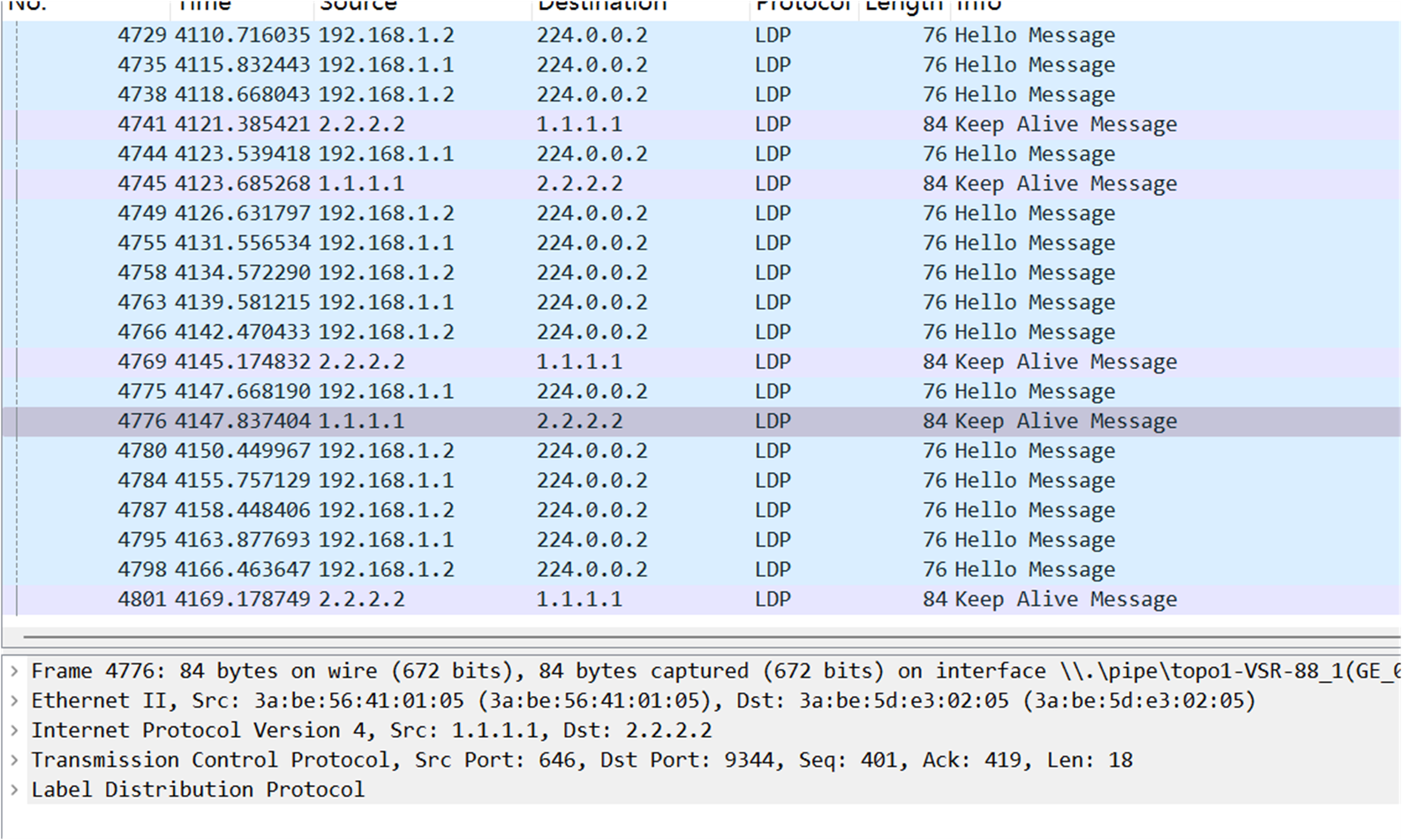

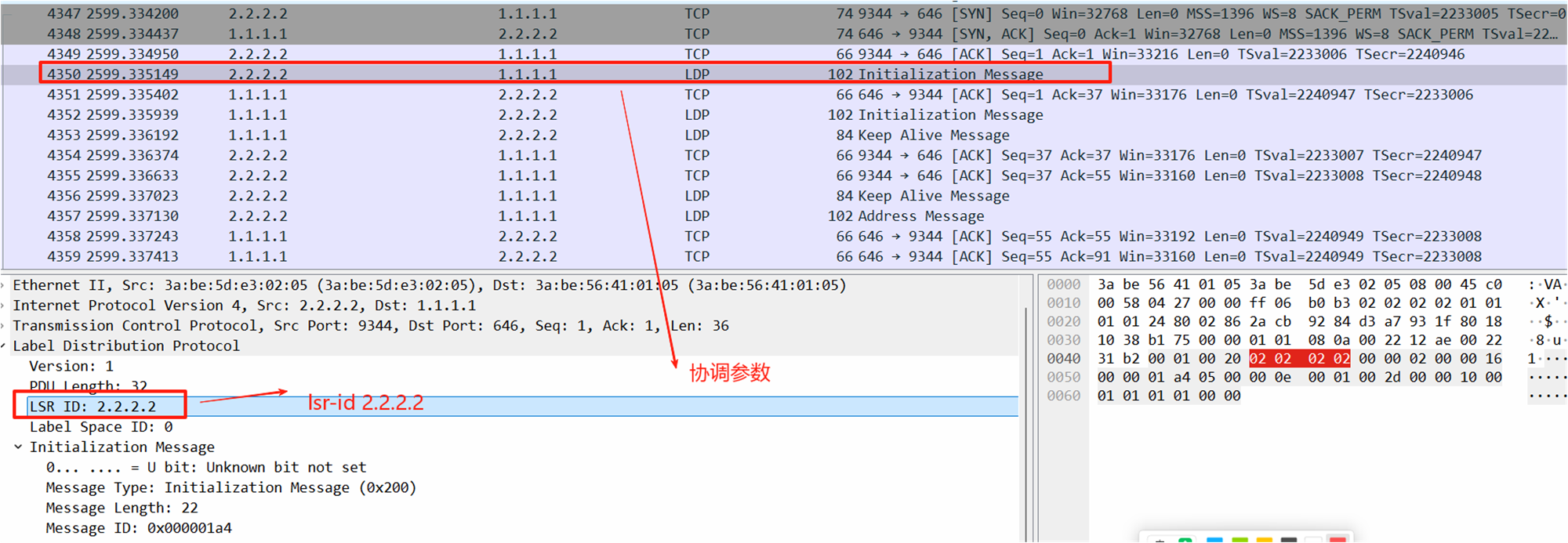

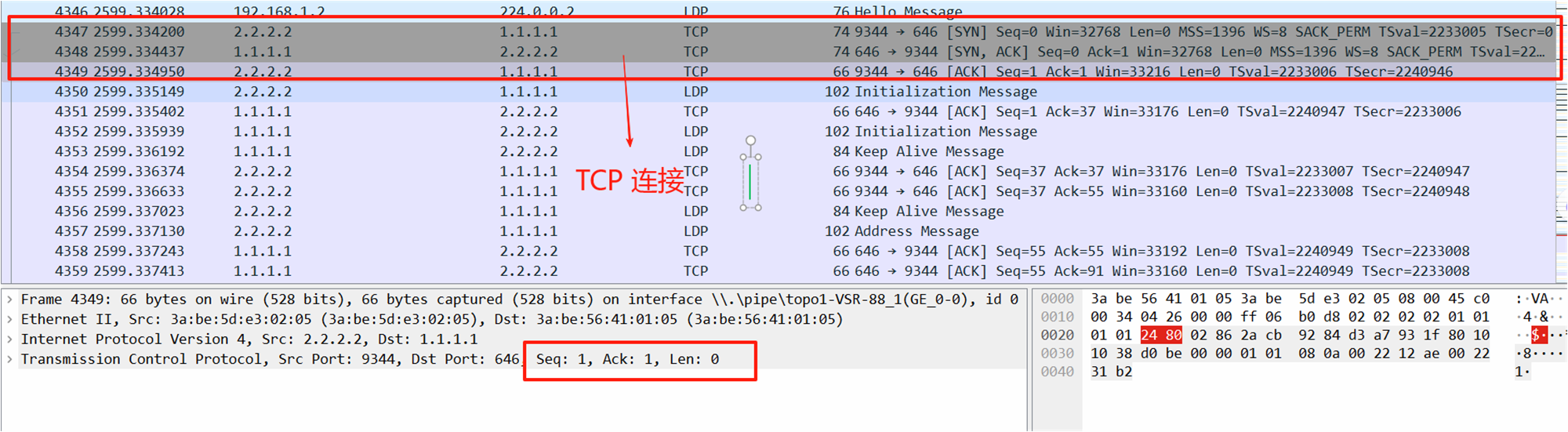

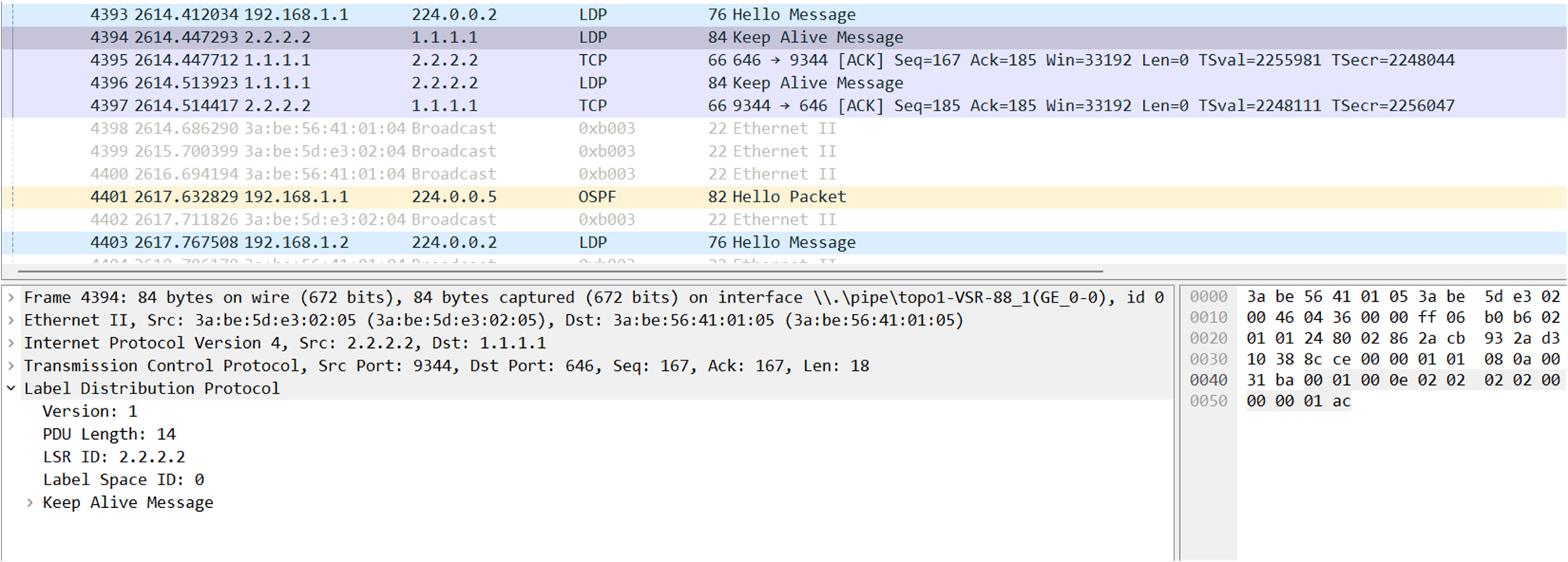

实验
