MongoDB分析insert源代码

mongo插入单条文档insert()

> db.user.insert({
...     "name": "alice",
...     "age": 28
... });
WriteResult({ "nInserted" : 1 })
>

MongoDB插入文档代码调用链如下：

1. mongo/db/commands/write_commands/write_commands.cpp的CmdInsert类
2. mongo/db/commands/write_commands/write_commands.cpp的runImpl
3. mongo/db/ops/write_ops_exec.cpp中的performInserts
4. mongo/db/ops/write_ops_exec.cpp中的insertBatchAndHandleErrors
5. mongo/db/ops/write_ops_exec.cpp中的insertDocuments
6. mongo/db/catalog/collection_impl.cpp的insertDocuments
7. mongo/db/catalog/collection_impl.cpp的_insertDocuments
8. mongo/db/storage/wiredtiger/wiredtiger_record_store.cpp的insertRecords
9. mongo/db/storage/wiredtiger/wiredtiger_record_store.cpp的_insertRecords

mongo/db/commands/write_commands/write_commands.cpp的CmdInsert代码如下：

class CmdInsert final : public WriteCommand {
public:CmdInsert() : WriteCommand("insert") {}private:class Invocation final : public InvocationBase {public:Invocation(const WriteCommand* cmd, const OpMsgRequest& request): InvocationBase(cmd, request), _batch(InsertOp::parse(request)) {}private:NamespaceString ns() const override {return _batch.getNamespace();}...void runImpl(OperationContext* opCtx, BSONObjBuilder& result) const override {auto reply = performInserts(opCtx, _batch);serializeReply(opCtx,ReplyStyle::kNotUpdate,!_batch.getWriteCommandBase().getOrdered(),_batch.getDocuments().size(),std::move(reply),&result);}write_ops::Insert _batch;};std::unique_ptr<CommandInvocation> parse(OperationContext*,const OpMsgRequest& request) override {return std::make_unique<Invocation>(this, request);}...std::string help() const final {return "insert documents";}
} cmdInsert;

mongo/db/ops/write_ops_exec.cpp中的方法performInserts代码：

1、获取系统阈值， maxBatchSize = internalInsertMaxBatchSize.load()默认64，batch一次最多插入64个文档；               maxBatchBytes = write_ops::insertVectorMaxBytes默认256，batch一次最多插入N个文档大小小于256KB。

2、循环wholeOp.getDocuments()文档集合，将遍历文档放入batch中，fixDocumentForInsert验证每个文档参数合法性，重要是系统字段_id生成。

3、循环wholeOp.getDocuments()文档集合，将遍历文档放入batch中，batch满足两个阀值其中一个就insertBatchAndHandleErrors插入到数据库中。

WriteResult performInserts(OperationContext* opCtx,const write_ops::Insert& wholeOp,bool fromMigrate) {// Insert performs its own retries, so we should only be within a WriteUnitOfWork when run in a// transaction.auto txnParticipant = TransactionParticipant::get(opCtx);invariant(!opCtx->lockState()->inAWriteUnitOfWork() ||(txnParticipant && opCtx->inMultiDocumentTransaction()));auto& curOp = *CurOp::get(opCtx);ON_BLOCK_EXIT([&] {// This is the only part of finishCurOp we need to do for inserts because they reuse the// top-level curOp. The rest is handled by the top-level entrypoint.curOp.done();Top::get(opCtx->getServiceContext()).record(opCtx,wholeOp.getNamespace().ns(),LogicalOp::opInsert,Top::LockType::WriteLocked,durationCount<Microseconds>(curOp.elapsedTimeExcludingPauses()),curOp.isCommand(),curOp.getReadWriteType());});{stdx::lock_guard<Client> lk(*opCtx->getClient());curOp.setNS_inlock(wholeOp.getNamespace().ns());curOp.setLogicalOp_inlock(LogicalOp::opInsert);curOp.ensureStarted();curOp.debug().additiveMetrics.ninserted = 0;}uassertStatusOK(userAllowedWriteNS(wholeOp.getNamespace()));DisableDocumentValidationIfTrue docValidationDisabler(opCtx, wholeOp.getWriteCommandBase().getBypassDocumentValidation());LastOpFixer lastOpFixer(opCtx, wholeOp.getNamespace());WriteResult out;out.results.reserve(wholeOp.getDocuments().size());bool containsRetry = false;ON_BLOCK_EXIT([&] { updateRetryStats(opCtx, containsRetry); });size_t stmtIdIndex = 0;size_t bytesInBatch = 0;std::vector<InsertStatement> batch;const size_t maxBatchSize = internalInsertMaxBatchSize.load();const size_t maxBatchBytes = write_ops::insertVectorMaxBytes;batch.reserve(std::min(wholeOp.getDocuments().size(), maxBatchSize));std::cout << "conca " << "maxBatchSize:"<<maxBatchSize<<std::endl;std::cout << "conca " << "maxBatchBytes:"<<maxBatchBytes<< std::endl;for (auto&& doc : wholeOp.getDocuments()) {const bool isLastDoc = (&doc == &wholeOp.getDocuments().back());auto fixedDoc = fixDocumentForInsert(opCtx->getServiceContext(), doc);if (!fixedDoc.isOK()) {// Handled after we insert anything in the batch to be sure we report errors in the// correct order. In an ordered insert, if one of the docs ahead of us fails, we should// behave as-if we never got to this document.} else {const auto stmtId = getStmtIdForWriteOp(opCtx, wholeOp, stmtIdIndex++);if (opCtx->getTxnNumber()) {if (!opCtx->inMultiDocumentTransaction() &&txnParticipant.checkStatementExecutedNoOplogEntryFetch(stmtId)) {containsRetry = true;RetryableWritesStats::get(opCtx)->incrementRetriedStatementsCount();out.results.emplace_back(makeWriteResultForInsertOrDeleteRetry());continue;}}BSONObj toInsert = fixedDoc.getValue().isEmpty() ? doc : std::move(fixedDoc.getValue());batch.emplace_back(stmtId, toInsert);bytesInBatch += batch.back().doc.objsize();if (!isLastDoc && batch.size() < maxBatchSize && bytesInBatch < maxBatchBytes)continue;  // Add more to batch before inserting.}bool canContinue =insertBatchAndHandleErrors(opCtx, wholeOp, batch, &lastOpFixer, &out, fromMigrate);batch.clear();  // We won't need the current batch any more.bytesInBatch = 0;if (canContinue && !fixedDoc.isOK()) {globalOpCounters.gotInsert();ServerWriteConcernMetrics::get(opCtx)->recordWriteConcernForInsert(opCtx->getWriteConcern());try {uassertStatusOK(fixedDoc.getStatus());MONGO_UNREACHABLE;} catch (const DBException& ex) {canContinue = handleError(opCtx, ex, wholeOp.getNamespace(), wholeOp.getWriteCommandBase(), &out);}}if (!canContinue)break;}return out;
}

其中fixDocumentForInsert方法验证参数，如果_id没有值，则MongoDB生成系统字符串对象ObjectId，具体代码是 b.appendOID("_id", nullptr, true)。

MongoDB的ObjectId介绍：

• 插入一条数据系统都会自动插入一个_id键，键值不可以重复，它可以是任何类型的，也可以手动的插入，默认情况下它的数据类型是ObjectId，由于MongoDB在设计之初就是用作分布式数据库，所以使用ObjectId可以避免不同数据库中_id的重复（如果使用自增的方式在分布式系统中就会出现重复的_id的值）。

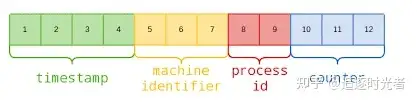

• objectId使用12字节的存储空间，每个字节可以存储两个十六进制数字，所以一共可以存储24个十六进制数字组成的字符串，在这24个字符串中，前8位表示时间戳，接下来6位是一个机器码，接下来4位表示进程id，最后6位表示计数器。示意图如下：

其中包括4-byte Unix 时间戳，3-byte 机器 ID，2-byte 进程 ID，3-byte 计数器(初始化随机)。

601e2b6b aa203c c89f 2d31aa
↑      ↑     ↑     ↑
时间戳  机器码 进程id 计数器

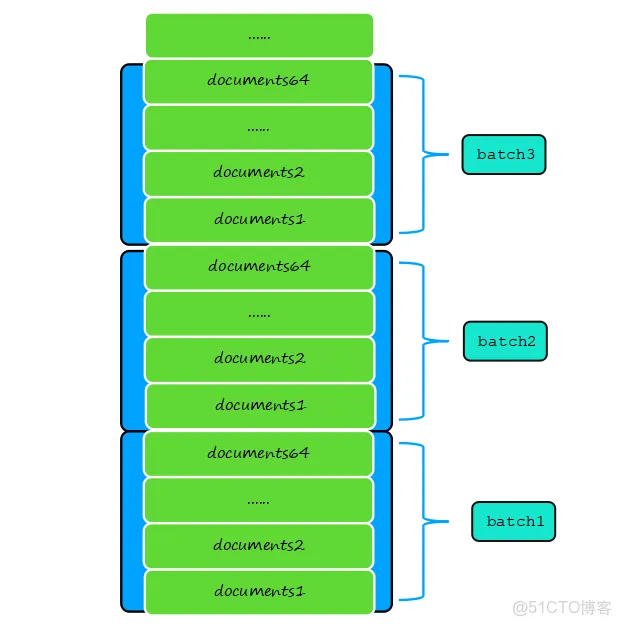

mongo/db/ops/write_ops_exec.cpp中的方法insertBatchAndHandleErrors。一批数据通过分批拆分存入多个batch后，调用insertBatchAndHandleErrors()接口来完成单个batch的数据写入。整个batch数据写入可以在一个transaction事务完成，也可以一条数据一个事务来完成写入，具体核心代码实现如下:

bool insertBatchAndHandleErrors(OperationContext* opCtx,const write_ops::Insert& wholeOp,std::vector<InsertStatement>& batch,LastOpFixer* lastOpFixer,WriteResult* out,bool fromMigrate) {if (batch.empty())return true;auto& curOp = *CurOp::get(opCtx);CurOpFailpointHelpers::waitWhileFailPointEnabled(&hangDuringBatchInsert,opCtx,"hangDuringBatchInsert",[&wholeOp]() {log() << "batch insert - hangDuringBatchInsert fail point enabled for namespace "<< wholeOp.getNamespace()<< ". Blocking ""until fail point is disabled.";},true,  // Check for interrupt periodically.wholeOp.getNamespace());if (MONGO_unlikely(failAllInserts.shouldFail())) {uasserted(ErrorCodes::InternalError, "failAllInserts failpoint active!");}boost::optional<AutoGetCollection> collection;auto acquireCollection = [&] {while (true) {collection.emplace(opCtx,wholeOp.getNamespace(),fixLockModeForSystemDotViewsChanges(wholeOp.getNamespace(), MODE_IX));if (collection->getCollection())break;collection.reset();  // unlock.makeCollection(opCtx, wholeOp.getNamespace());}curOp.raiseDbProfileLevel(collection->getDb()->getProfilingLevel());assertCanWrite_inlock(opCtx, wholeOp.getNamespace(), collection->getCollection());CurOpFailpointHelpers::waitWhileFailPointEnabled(&hangWithLockDuringBatchInsert, opCtx, "hangWithLockDuringBatchInsert");};try {acquireCollection();auto txnParticipant = TransactionParticipant::get(opCtx);auto inTxn = txnParticipant && opCtx->inMultiDocumentTransaction();LOG(1) << "conca collection->getCollection()->isCapped();"<<collection->getCollection()->isCapped();LOG(1) << "conca batch.size();"<<batch.size();if (!collection->getCollection()->isCapped() && !inTxn && batch.size() > 1) {// First try doing it all together. If all goes well, this is all we need to do.// See Collection::_insertDocuments for why we do all capped inserts one-at-a-time.lastOpFixer->startingOp();insertDocuments(opCtx, collection->getCollection(), batch.begin(), batch.end(), fromMigrate);lastOpFixer->finishedOpSuccessfully();globalOpCounters.gotInserts(batch.size());ServerWriteConcernMetrics::get(opCtx)->recordWriteConcernForInserts(opCtx->getWriteConcern(), batch.size());SingleWriteResult result;result.setN(1);std::fill_n(std::back_inserter(out->results), batch.size(), std::move(result));curOp.debug().additiveMetrics.incrementNinserted(batch.size());return true;}} catch (const DBException&) {// Ignore this failure and behave as if we never tried to do the combined batch// insert. The loop below will handle reporting any non-transient errors.collection.reset();}LOG(1) << "conca Try to insert the batch one-at-a-time;";// Try to insert the batch one-at-a-time. This path is executed for singular batches,// multi-statement transactions, capped collections, and if we failed all-at-once inserting.for (auto it = batch.begin(); it != batch.end(); ++it) {globalOpCounters.gotInsert();ServerWriteConcernMetrics::get(opCtx)->recordWriteConcernForInsert(opCtx->getWriteConcern());try {LOG(1) << "conca writeConflictRetry;";writeConflictRetry(opCtx, "insert", wholeOp.getNamespace().ns(), [&] {try {if (!collection)acquireCollection();// Transactions are not allowed to operate on capped collections.uassertStatusOK(checkIfTransactionOnCappedColl(opCtx, collection->getCollection()));lastOpFixer->startingOp();insertDocuments(opCtx, collection->getCollection(), it, it + 1, fromMigrate);lastOpFixer->finishedOpSuccessfully();SingleWriteResult result;result.setN(1);out->results.emplace_back(std::move(result));curOp.debug().additiveMetrics.incrementNinserted(1);} catch (...) {// Release the lock following any error if we are not in multi-statement// transaction. Among other things, this ensures that we don't sleep in the WCE// retry loop with the lock held.// If we are in multi-statement transaction and under a WUOW, we will// not actually release the lock.collection.reset();throw;}});} catch (const DBException& ex) {bool canContinue =handleError(opCtx, ex, wholeOp.getNamespace(), wholeOp.getWriteCommandBase(), out);if (!canContinue) {// Failed in ordered batch, or in a transaction, or from some unrecoverable error.return false;}}}return true;
}

一批batch数据(假设64条)写入过程，如果不是capped固定集合，则这64条数据首先放入一个transaction事务中完成写入，writeConflictRetry里面会执行{}中的函数体。如果写入异常，判断canContinue =handleError（）是否继续一个事务一条数据写入。

mongo/db/ops/write_ops_exec.cpp中的方法insertDocuments把单条文档插入，核心代码如下：WriteUnitOfWork wuow(opCtx)事务开始；把数组begin到end之间的所有doc文档数据放入该事务中insertDocuments；wuow.commit()事务提交。

void insertDocuments(OperationContext* opCtx,Collection* collection,std::vector<InsertStatement>::iterator begin,std::vector<InsertStatement>::iterator end,bool fromMigrate) {WriteUnitOfWork wuow(opCtx);
...LOG(1) << "conca collection->insertDocuments" ;uassertStatusOK(collection->insertDocuments(opCtx, begin, end, &CurOp::get(opCtx)->debug(), fromMigrate));wuow.commit();
}

上面从mongo/db/ops/write_ops_exec.cpp数据库层转移到集合层，调用的是集合插入文档方法collection->insertDocuments。

mongo/db/catalog/collection_impl.cpp的方法insertDocuments

Status CollectionImpl::insertDocuments(OperationContext* opCtx,const std::vector<InsertStatement>::const_iterator begin,const std::vector<InsertStatement>::const_iterator end,OpDebug* opDebug,bool fromMigrate) {LOG(1) << "conca CollectionImpl::insertDocuments"  ;auto status = checkFailCollectionInsertsFailPoint(_ns, (begin != end ? begin->doc : BSONObj()));if (!status.isOK()) {return status;}// Should really be done in the collection object at creation and updated on index create.const bool hasIdIndex = _indexCatalog->findIdIndex(opCtx);for (auto it = begin; it != end; it++) {if (hasIdIndex && it->doc["_id"].eoo()) {return Status(ErrorCodes::InternalError,str::stream()<< "Collection::insertDocument got document without _id for ns:"<< _ns);}auto status = checkValidation(opCtx, it->doc);if (!status.isOK())return status;}const SnapshotId sid = opCtx->recoveryUnit()->getSnapshotId();status = _insertDocuments(opCtx, begin, end, opDebug);if (!status.isOK()) {return status;}invariant(sid == opCtx->recoveryUnit()->getSnapshotId());getGlobalServiceContext()->getOpObserver()->onInserts(opCtx, ns(), uuid(), begin, end, fromMigrate);opCtx->recoveryUnit()->onCommit([this](boost::optional<Timestamp>) { notifyCappedWaitersIfNeeded(); });hangAfterCollectionInserts.executeIf([&](const BSONObj& data) {const auto& firstIdElem = data["first_id"];std::string whenFirst;if (firstIdElem) {whenFirst += " when first _id is ";whenFirst += firstIdElem.str();}log() << "hangAfterCollectionInserts fail point enabled for " << _ns << whenFirst<< ". Blocking until fail point is disabled.";hangAfterCollectionInserts.pauseWhileSet(opCtx);},[&](const BSONObj& data) {const auto& collElem = data["collectionNS"];const auto& firstIdElem = data["first_id"];// If the failpoint specifies no collection or matches the existing one, hang.return (!collElem || _ns.ns() == collElem.str()) &&(!firstIdElem ||(begin != end && firstIdElem.type() == mongo::String &&begin->doc["_id"].str() == firstIdElem.str()));});return Status::OK();
}

mongo/db/catalog/collection_impl.cpp的方法_insertDocuments

Status CollectionImpl::_insertDocuments(OperationContext* opCtx,const std::vector<InsertStatement>::const_iterator begin,const std::vector<InsertStatement>::const_iterator end,OpDebug* opDebug) {dassert(opCtx->lockState()->isCollectionLockedForMode(ns(), MODE_IX));const size_t count = std::distance(begin, end);if (isCapped() && _indexCatalog->haveAnyIndexes() && count > 1) {// We require that inserts to indexed capped collections be done one-at-a-time to avoid the// possibility that a later document causes an earlier document to be deleted before it can// be indexed.// TODO SERVER-21512 It would be better to handle this here by just doing single inserts.return {ErrorCodes::OperationCannotBeBatched,"Can't batch inserts into indexed capped collections"};}if (_needCappedLock) {// X-lock the metadata resource for this capped collection until the end of the WUOW. This// prevents the primary from executing with more concurrency than secondaries.// See SERVER-21646.Lock::ResourceLock heldUntilEndOfWUOW{opCtx->lockState(), ResourceId(RESOURCE_METADATA, _ns.ns()), MODE_X};}std::vector<Record> records;records.reserve(count);std::vector<Timestamp> timestamps;timestamps.reserve(count);for (auto it = begin; it != end; it++) {records.emplace_back(Record{RecordId(), RecordData(it->doc.objdata(), it->doc.objsize())});timestamps.emplace_back(it->oplogSlot.getTimestamp());}LOG(1) << "conca CollectionImpl::insertDocuments _recordStore->insertRecords"  ;Status status = _recordStore->insertRecords(opCtx, &records, timestamps);if (!status.isOK())return status;std::vector<BsonRecord> bsonRecords;bsonRecords.reserve(count);int recordIndex = 0;for (auto it = begin; it != end; it++) {RecordId loc = records[recordIndex++].id;invariant(RecordId::min() < loc);invariant(loc < RecordId::max());BsonRecord bsonRecord = {loc, Timestamp(it->oplogSlot.getTimestamp()), &(it->doc)};bsonRecords.push_back(bsonRecord);}LOG(1) << "conca CollectionImpl::insertDocuments __indexCatalog->indexRecords"  ;int64_t keysInserted;status = _indexCatalog->indexRecords(opCtx, bsonRecords, &keysInserted);if (opDebug) {opDebug->additiveMetrics.incrementKeysInserted(keysInserted);}return status;
}

RecordStore> _recordStore是抽象类， _recordStore->insertRecords（）不同的存储引擎有各自的实现类，MongoDB默认的存储引擎是wiredtiger，后面会重点分析wiredtiger_record_store.cpp插入文档记录逻辑。

_recordStore->insertRecords（）插入文档之后调用_indexCatalog->indexRecords继续插入索引key，_recordStore->insertRecords（）后面单独分析索引插入过程。

mongo/db/storage/mobile/mobile_record_store.cpp移动存储引擎是 MongoDB 为嵌入式设备设计的轻量级存储引擎，特点是资源占用少、依赖简单。

mongo/db/storage/wiredtiger/wiredtiger_record_store.cpp，WiredTiger是MongoDB 的默认存储引擎，提供高性能、高并发和完整的事务支持，insertRecords插入代码：

Status WiredTigerRecordStore::insertRecords(OperationContext* opCtx,std::vector<Record>* records,const std::vector<Timestamp>& timestamps) {return _insertRecords(opCtx, records->data(), timestamps.data(), records->size());
}Status WiredTigerRecordStore::_insertRecords(OperationContext* opCtx,Record* records,const Timestamp* timestamps,size_t nRecords) {dassert(opCtx->lockState()->isWriteLocked());// We are kind of cheating on capped collections since we write all of them at once ....// Simplest way out would be to just block vector writes for everything except oplog ?int64_t totalLength = 0;for (size_t i = 0; i < nRecords; i++)totalLength += records[i].data.size();// caller will retry one element at a timeif (_isCapped && totalLength > _cappedMaxSize)return Status(ErrorCodes::BadValue, "object to insert exceeds cappedMaxSize");LOG(1) << "conca WiredTigerRecordStore::insertRecords _uri:" << _uri;LOG(1) << "conca WiredTigerRecordStore::insertRecords _tableId:" << _tableId;WiredTigerCursor curwrap(_uri, _tableId, true, opCtx);curwrap.assertInActiveTxn();WT_CURSOR* c = curwrap.get();invariant(c);RecordId highestId = RecordId();dassert(nRecords != 0);for (size_t i = 0; i < nRecords; i++) {auto& record = records[i];if (_isOplog) {StatusWith<RecordId> status =oploghack::extractKey(record.data.data(), record.data.size());if (!status.isOK())return status.getStatus();record.id = status.getValue();} else {record.id = _nextId(opCtx);}dassert(record.id > highestId);highestId = record.id;}for (size_t i = 0; i < nRecords; i++) {auto& record = records[i];Timestamp ts;if (timestamps[i].isNull() && _isOplog) {// If the timestamp is 0, that probably means someone inserted a document directly// into the oplog.  In this case, use the RecordId as the timestamp, since they are// one and the same. Setting this transaction to be unordered will trigger a journal// flush. Because these are direct writes into the oplog, the machinery to trigger a// journal flush is bypassed. A followup oplog read will require a fresh visibility// value to make progress.ts = Timestamp(record.id.repr());opCtx->recoveryUnit()->setOrderedCommit(false);} else {ts = timestamps[i];}if (!ts.isNull()) {LOG(4) << "inserting record with timestamp " << ts;fassert(39001, opCtx->recoveryUnit()->setTimestamp(ts));}setKey(c, record.id);WiredTigerItem value(record.data.data(), record.data.size());c->set_value(c, value.Get());int ret = WT_OP_CHECK(c->insert(c));if (ret)return wtRCToStatus(ret, "WiredTigerRecordStore::insertRecord");}_changeNumRecords(opCtx, nRecords);_increaseDataSize(opCtx, totalLength);if (_oplogStones) {_oplogStones->updateCurrentStoneAfterInsertOnCommit(opCtx, totalLength, highestId, nRecords);} else {_cappedDeleteAsNeeded(opCtx, highestId);}return Status::OK();
}

WiredTigerCursor curwrap(_uri, _tableId, true, opCtx);WT_CURSOR* c = curwrap.get();获取WiredTiger引擎游标；

record.id = _nextId(opCtx);设置记录系统隐藏字段recordId，数值类型，自增，唯一不变；

setKey(c, record.id);WiredTiger引擎游标设置索引record.id值；

WiredTigerItem value(record.data.data(), record.data.size());生成文档WiredTigerItem

c->set_value(c, value.Get());WiredTiger引擎游标设置文档WiredTigerItem

int ret = WT_OP_CHECK(c->insert(c));;WiredTiger引擎游标插入。

WiredTiger引擎游标WiredTigerCursor是第三方WiredTiger引擎核心mongo-r4.0.7\src\third_party\wiredtiger，后续文档会继续分析的，B+树怎么存储索引，对应文档的。

mongo插入单条文档insert()主要分4个阶段：

（1）分割文档，分批次插入

（2）将文档传递给集合类插入

（3）将文档传递给记录record插入

（4）传递给引擎游标WiredTigerCursor插入
