springmvc4+hibernate4整合框架的搭建

NO.1

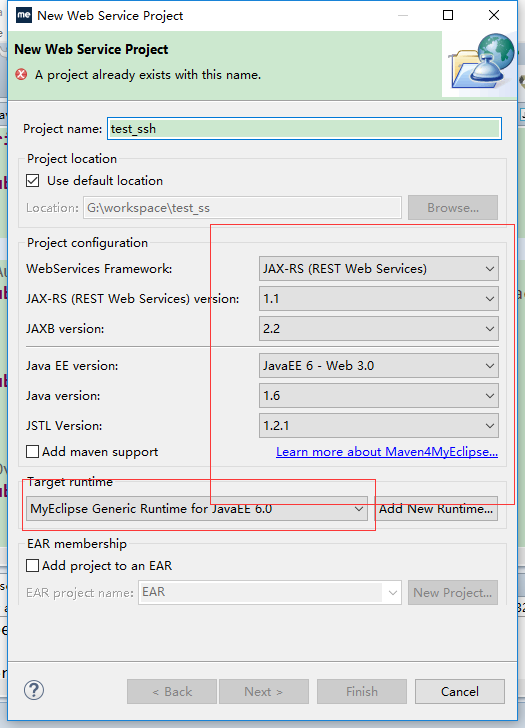

创建一个web项目

在WEB-INF下面创建lib文件夹，用于管理各种jar包
No.2

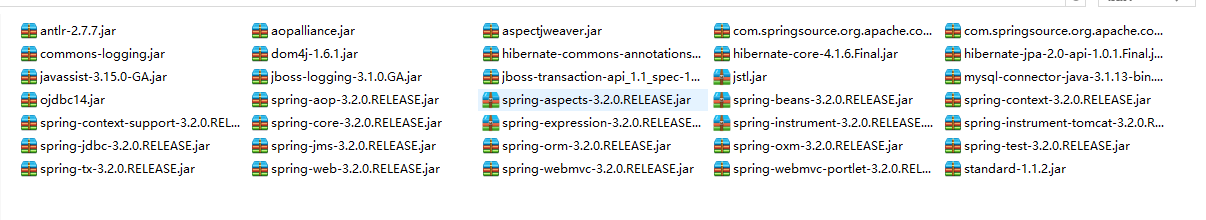

准备各种必备的jar包，如下图所示

No.3
配置web.xml文件的常用属性

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5"><display-name>test_ssh</display-name><welcome-file-list><welcome-file>login.jsp</welcome-file></welcome-file-list><!-- 加载所有的配置文件 --><context-param><param-name>contextConfigLocation</param-name><param-value>classpath*:config/spring/applicationContext.xml</param-value>
</context-param><!-- 配置Spring监听 --><listener><listener-class>org.springframework.web.context.ContextLoaderListener</listener-class></listener><!-- 配置SpringMVC --><servlet><servlet-name>springMVC</servlet-name><servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class><init-param><param-name>contextConfigLocation</param-name><param-value>classpath*:config/spring/spring-servlet.xml</param-value></init-param><load-on-startup>1</load-on-startup></servlet><servlet-mapping><servlet-name>springMVC</servlet-name><url-pattern>/</url-pattern></servlet-mapping><!-- 配置字符集 --><filter><filter-name>encodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class><init-param><param-name>encoding</param-name><param-value>UTF-8</param-value></init-param><init-param><param-name>forceEncoding</param-name><param-value>true</param-value></init-param></filter><filter-mapping><filter-name>encodingFilter</filter-name><url-pattern>/*</url-pattern></filter-mapping><!-- 配置Session --><filter><filter-name>openSession</filter-name><filter-class>org.springframework.orm.hibernate4.support.OpenSessionInViewFilter</filter-class></filter><filter-mapping><filter-name>openSession</filter-name><url-pattern>/*</url-pattern></filter-mapping>
</web-app>AI写代码12345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152535455565758596061

No.4
配置applicationContext.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:context="http://www.springframework.org/schema/context"xmlns:p="http://www.springframework.org/schema/p"xmlns:tx="http://www.springframework.org/schema/tx"xmlns:aop="http://www.springframework.org/schema/aop"xmlns:jaxws="http://cxf.apache.org/jaxws"xsi:schemaLocation="http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.1.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsdhttp://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsdhttp://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.1.xsdhttp://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd"><!--需要引入的配置文件<import resource="classpath:META-INF/cxf/cxf.xml"/><import resource="classpath:META-INF/cxf/cxf-extension-soap.xml"/><import resource="classpath:META-INF/cxf/cxf-servlet.xml"/>
--> <context:component-scan base-package="com.tgb.*" /><!-- 开启注释处理器 --><context:annotation-config/>
<!-- 配置数据源 --><context:property-placeholder location="classpath*:config/spring/jdbc.properties" /><!-- 配置数据源 --><bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource" ><property name="driverClassName" value="com.mysql.jdbc.Driver"></property><property name="url" value="jdbc:mysql://127.0.0.1:3306/lrdb"></property><property name="username" value="root"></property>
<!--        <property name="password" value="1"></property>-->    </bean><bean id="sessionFactory"class="org.springframework.orm.hibernate4.LocalSessionFactoryBean"><property name="dataSource"><ref bean="dataSource" /></property><!-- 扫描实体（pojo） --><property name="namingStrategy">
<bean class="org.hibernate.cfg.ImprovedNamingStrategy"></bean></property><property name="hibernateProperties"><!-- 这个是以前的配置方法<props><prop key="hibernate.hbm2ddl.auto">${hibernate.hbm2ddl.auto}</prop><prop key="hibernate.dialect">${hibernate.dialect}</prop><prop key="hibernate.show_sql">${hibernate.show_sql}</prop><prop key="hibernate.format_sql">${hibernate.format_sql}</prop></props> --><props><prop key="hibernate.show_sql">org.hibernate.dialect.MySQLInnoDBDialect</prop><prop key="hibernate.show_sql">true</prop><prop key="hibernate.format_sql">true</prop><prop key="hibernate.hbm2ddl.auto">update</prop>
</props></property><!-- 自动扫描实体包 --><property name="packagesToScan"><list><value>com.tgb.entity</value><value>com.tgb.entity.view</value></list></property></bean><!-- 实物管理器 --><bean id="transactionManager"class="org.springframework.orm.hibernate4.HibernateTransactionManager"><property name="sessionFactory" ref="sessionFactory" /></bean><tx:advice id="transactionAdvice" transaction-manager="transactionManager"><tx:attributes><tx:method name="add*" /><tx:method name="save*" /><tx:method name="update*" /><tx:method name="modify*" /><tx:method name="edit*" />
<tx:method name="delete*" /><tx:method name="remove*" /><tx:method name="change*" /><tx:method name="repair" /><tx:method name="deleteAndRepair" /><tx:method name="get*" propagation="SUPPORTS" /><tx:method name="find*" propagation="SUPPORTS" /><tx:method name="load*" propagation="SUPPORTS" /><tx:method name="search*" propagation="SUPPORTS" /><tx:method name="datagrid*" propagation="SUPPORTS" /><tx:method name="*" propagation="SUPPORTS" /></tx:attributes></tx:advice><aop:config proxy-target-class="true"><aop:pointcut id="transactionPointcut" expression="execution(* com.tgb.service.*.*(..))" />
<aop:advisor pointcut-ref="transactionPointcut"advice-ref="transactionAdvice" /></aop:config><!-- 注解方式配置事物 --><tx:annotation-driven transaction-manager="transactionManager"/></beans>

No.5配置spring-servlet.xml文件属性

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/contexthttp://www.springframework.org/schema/context/spring-context-3.2.xsdhttp://www.springframework.org/schema/mvchttp://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd"><!-- 注解扫描包 --><context:component-scan base-package="com.tgb" /><!-- 开启注解 --><mvc:annotation-driven /><!-- 静态资源(js/image)的访问 --><mvc:resources location="/js/" mapping="/js/**"/><!-- 定义视图解析器 -->    <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver"><property name="prefix" value="/"></property>
<property name="suffix" value=".jsp"></property></bean>
</beans>

No.6配置jdbc.properties文件

proxool.alias=lrdb
proxool.file=proxool.xml
proxool.providerClass=org.hibernate.service.jdbc.connections.internal.ProxoolConnectionProvider
proxool.maxConnCount=100
proxool.minConnCount=10
proxool.statistics=1m,15m,1h,1d
proxool.simultaneousBuildThrottle=5
proxool.trace=false
proxool.verbose=false
jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://127.0.0.1:3306/dbname
jdbc.username=root
jdbc.password=hibernate.hbm2ddl.auto=none
hibernate.show_sql=true
hibernate.format_sql=true
hibernate.dialect=org.hibernate.dialect.MySQLDialect
hibernate.temp.use_jdbc_metadata_defaults=false

测试：
到这里，环境基本搭建完成了，写代码测试一下

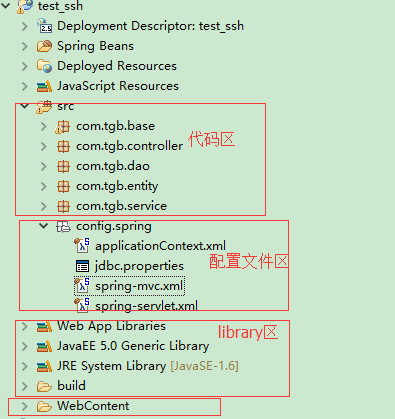

首先看看代码的结构图

数据库表设计

为了方便测试环境框架就建立了一个简简单单的实体类
dao层代码

package com.tgb.dao;import java.util.List;import com.tgb.entity.User;public interface IUserDao {public User getUser(String id);public List<User> getAllUser();public void addUser(User user);public boolean delUser(String id);public boolean updateUser(User user);
}

dao实现类

package com.tgb.dao;import java.util.List;import javax.annotation.Resource;import org.hibernate.Query;
import org.hibernate.SessionFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;import com.tgb.base.BaseDao;
import com.tgb.entity.User;
@Repository
public class UserDao implements IUserDao {@Autowiredprivate SessionFactory sessionFactory;@Resourceprivate BaseDao<User> baseDao;public void setSessionFactory(SessionFactory sessionFactory) {this.sessionFactory = sessionFactory;}@Overridepublic User getUser(String id) {String hql = "from User u where u.id=?";Query query = sessionFactory.getCurrentSession().createQuery(hql);query.setString(0, id);return (User)query.uniqueResult();}@Override
public List<User> getAllUser() {String hql = "from User";//baseDao.find(hql);//Query query = sessionFactory.getCurrentSession().createQuery(hql);return baseDao.find(hql);}@Overridepublic void addUser(User user) {sessionFactory.getCurrentSession().save(user);}@Overridepublic boolean delUser(String id) {String hql = "delete User u where u.id = ?";Query query = sessionFactory.getCurrentSession().createQuery(hql);query.setString(0, id);return (query.executeUpdate() > 0);}@Overridepublic boolean updateUser(User user) {String hql = "update User u set u.userName = ?,u.age=? where u.id = ?";
Query query = sessionFactory.getCurrentSession().createQuery(hql);query.setString(0, user.getUserName());query.setString(1, user.getAge());query.setString(2, user.getId());return (query.executeUpdate() > 0);}}

service层方法

package com.tgb.service;import java.util.List;import com.tgb.entity.User;public interface IUserService {public User getUser(String id);public List<User> getAllUser();public void addUser(User user);public boolean delUser(String id);public boolean updateUser(User user);}
AI写代码1234567891011121314151617181920

service实现类

package com.tgb.service;import java.util.List;import javax.annotation.Resource;import org.springframework.stereotype.Service;import com.tgb.dao.IUserDao;
import com.tgb.entity.User;
@Service
public class UserService implements IUserService {@Resourceprivate IUserDao userDao;public void setUserDao(IUserDao userDao) {this.userDao = userDao;}@Overridepublic User getUser(String id) {return userDao.getUser(id);}@Overridepublic List<User> getAllUser() {return userDao.getAllUser();}@Overridepublic void addUser(User user) {userDao.addUser(user);}@Overridepublic boolean delUser(String id) {return userDao.delUser(id);}@Override
public boolean updateUser(User user) {return userDao.updateUser(user);}}

controller层

package com.tgb.controller;import java.io.IOException;
import java.io.PrintWriter;import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;import com.tgb.entity.User;
import com.tgb.service.IUserService;@Controller
@RequestMapping("/user")
public class UserController {@Resourceprivate IUserService userService;@RequestMapping("/getAllUser")
public String getAllUser(HttpServletRequest request){request.setAttribute("userList", userService.getAllUser());return "/index";}@RequestMapping("/getUser")public String getUser(String id,HttpServletRequest request){request.setAttribute("user", userService.getUser(id));return "/editUser";}@RequestMapping("/toAddUser")public String toAddUser(){return "/addUser";}@RequestMapping("/addUser")public String addUser(User user,HttpServletRequest request){userService.addUser(user);return "redirect:/user/getAllUser";}@RequestMapping("/delUser")public void delUser(String id,HttpServletResponse response){String result = "{\"result\":\"error\"}";
if(userService.delUser(id)){result = "{\"result\":\"success\"}";}response.setContentType("application/json");try {PrintWriter out = response.getWriter();out.write(result);} catch (IOException e) {e.printStackTrace();}}@RequestMapping("/updateUser")public String updateUser(User user,HttpServletRequest request){if(userService.updateUser(user)){user = userService.getUser(user.getId());request.setAttribute("user", user);return "redirect:/user/getAllUser";}else{return "/error";}}
}

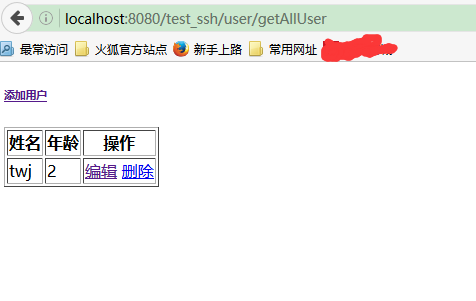

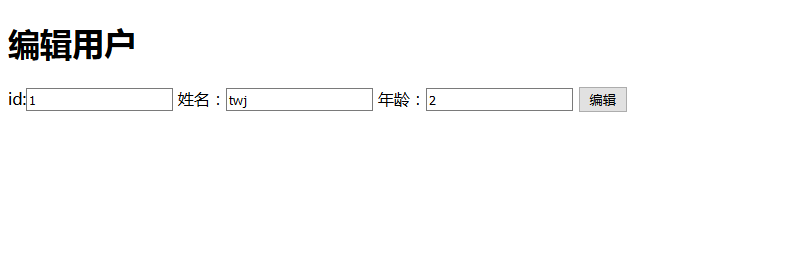

看看效果，虽然简单，足以说明问题
