20250726让荣品的PRO-RK3566开发板通过TF卡刷Buildroot系统

20250726让荣品的PRO-RK3566开发板通过TF卡刷Buildroot系统
2025/7/26 10:35


缘起:需要升级 荣品的PRO-RK3566核心板的 底板上的FPGA程序。
由于没有使用RK809的电量计功能,板子一上电就会被关机!^_

于是给生产线制作了一张TF卡/启动卡,插到底板上。
上电的时候就会进Buildroot/Linux系统,而不是关机!

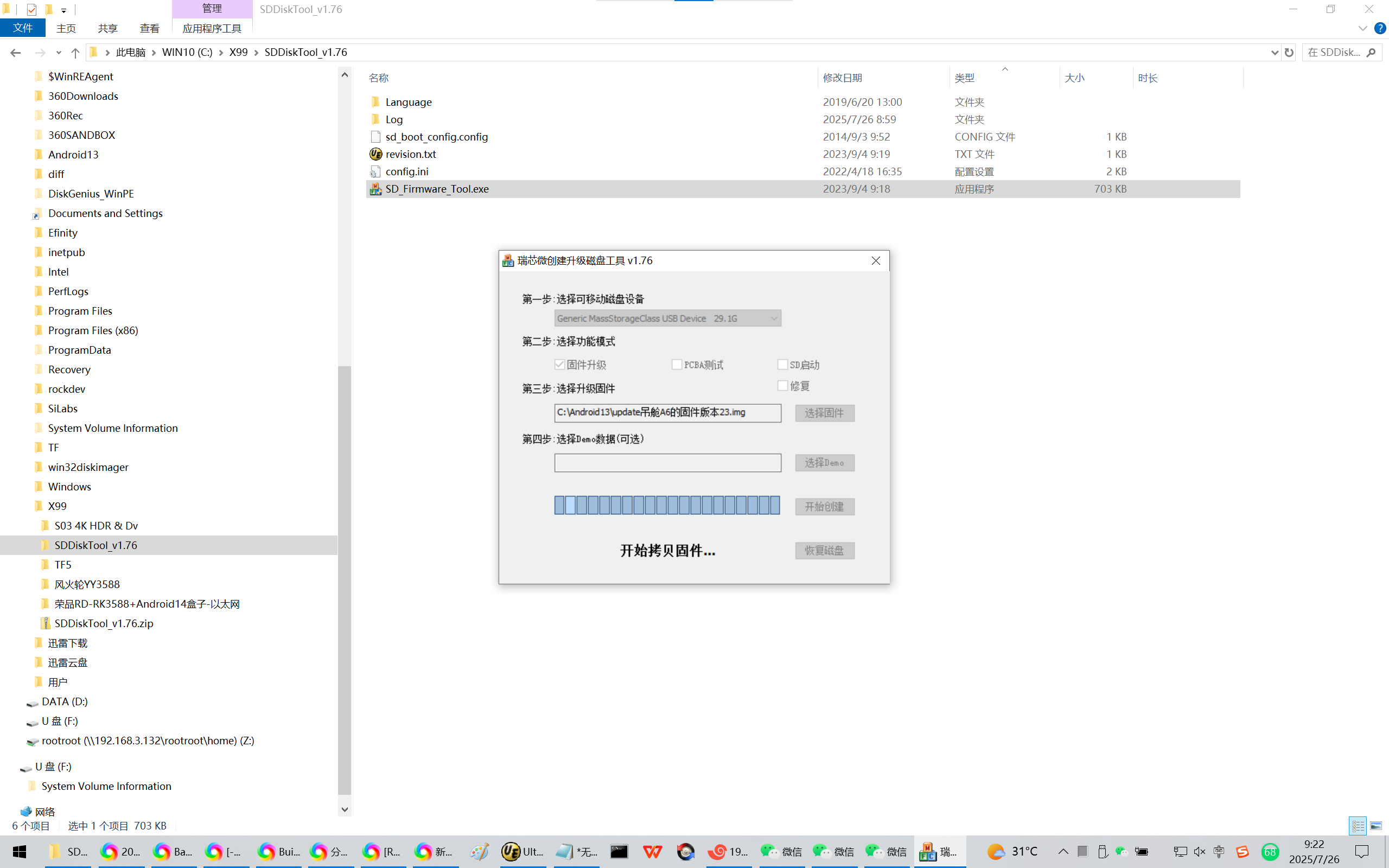

写卡工具使用的是SDK自带的:SDDiskTool_v1.76.zip
Z:\source\tools\windows\SDDiskTool_v1.76.zip

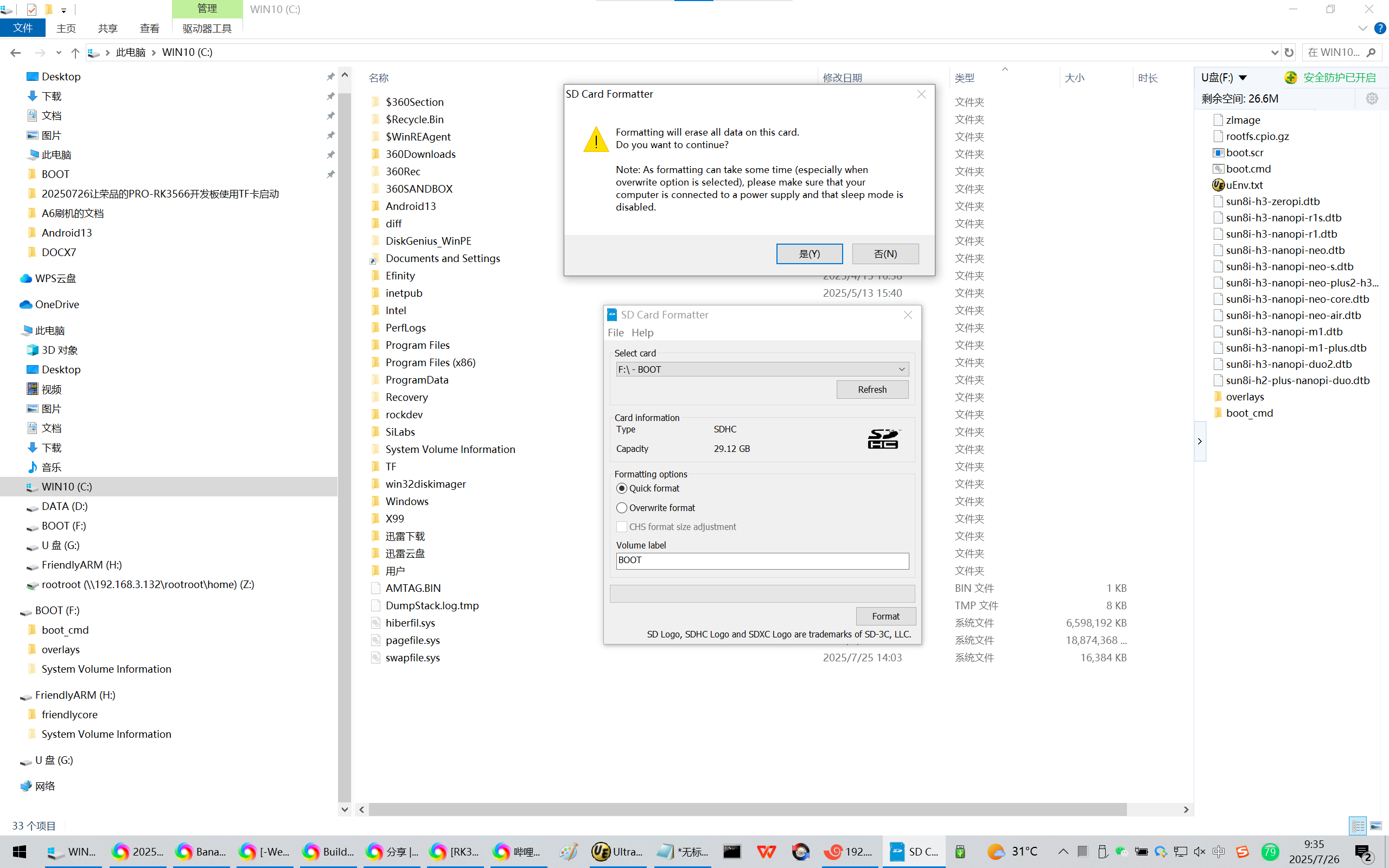

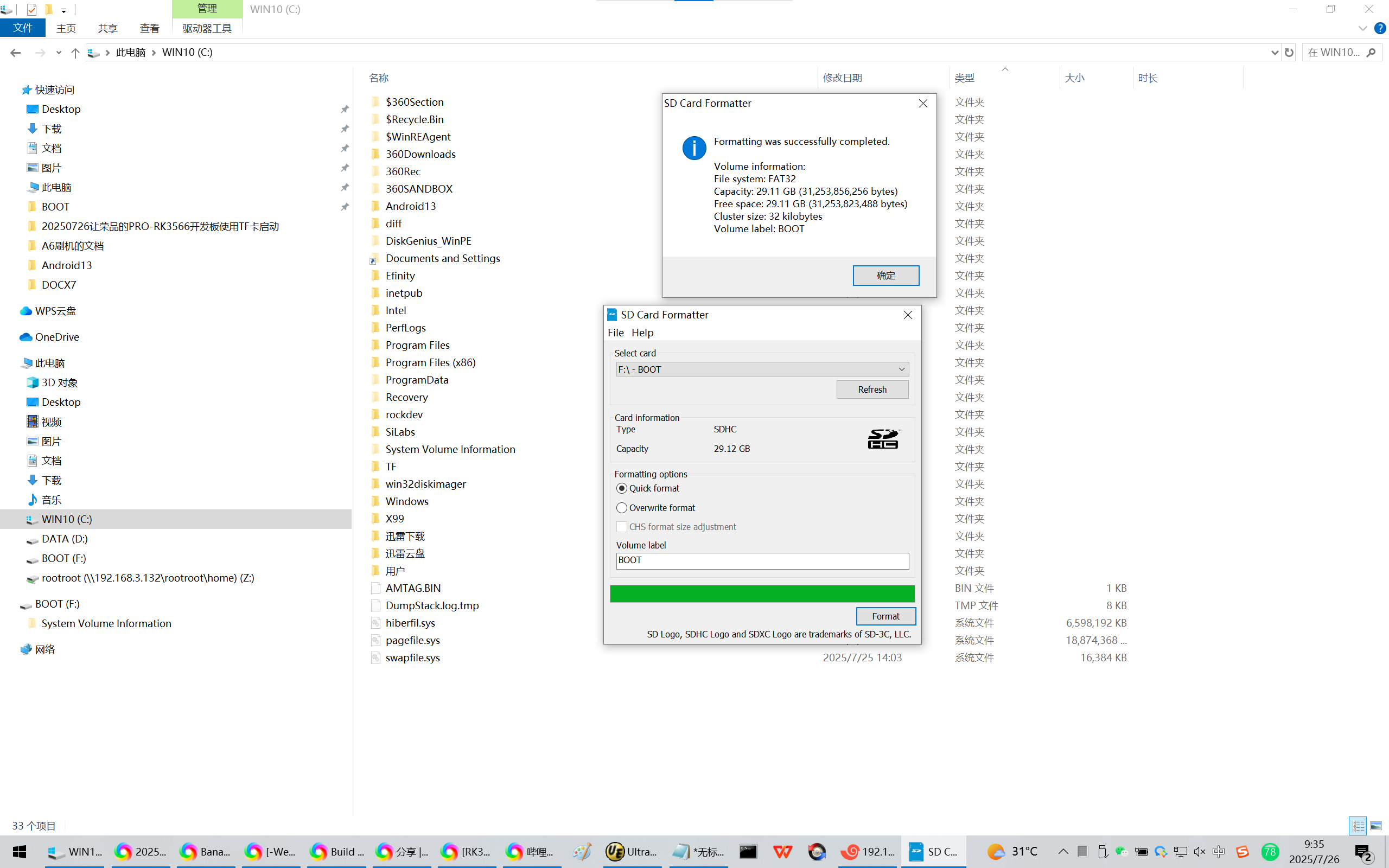

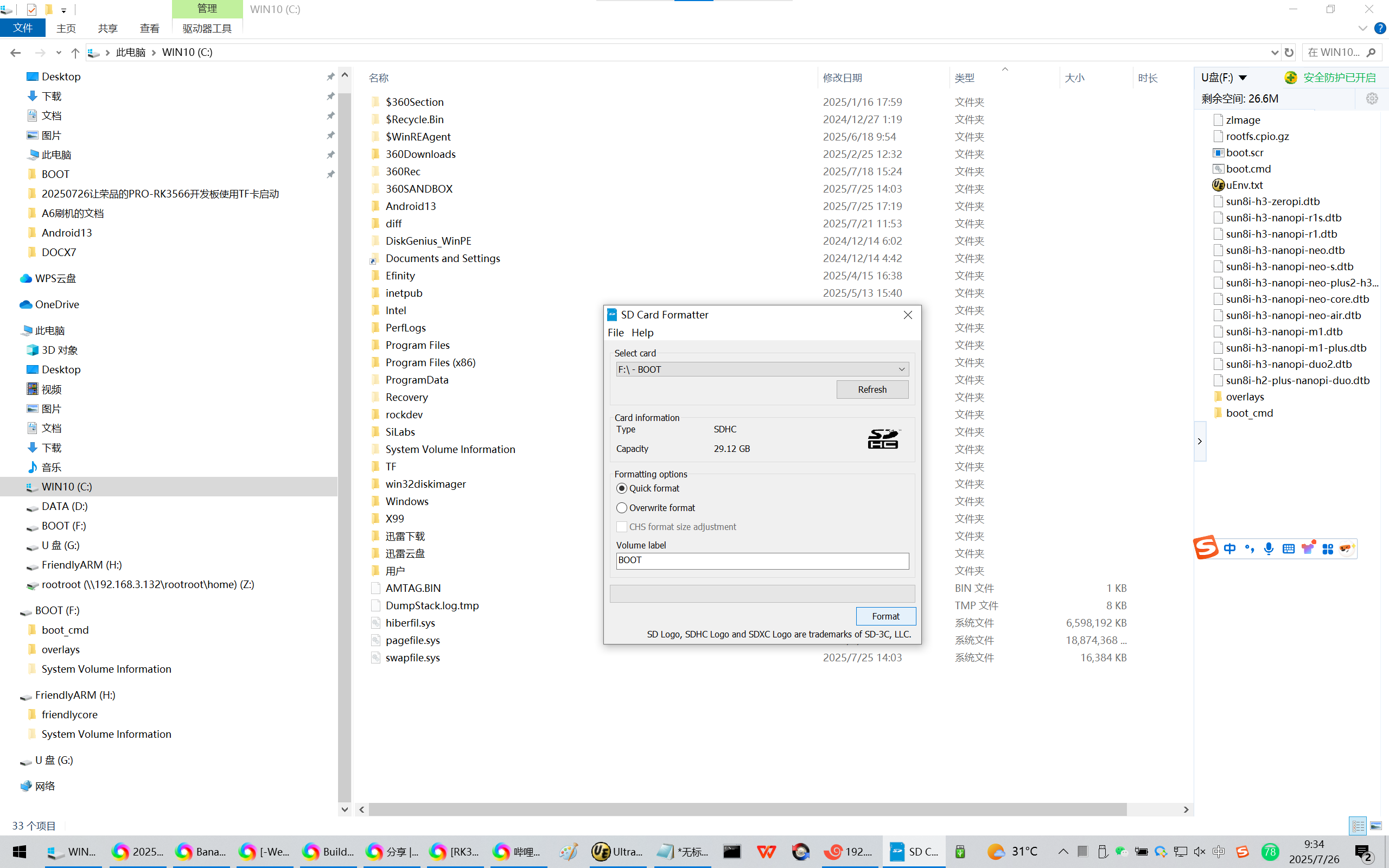

写卡之前,可以使用 SD Card Formatter 重新格式化一下TF卡。
如果你的TF卡以前制作过各种启动卡,使用 SD Card Formatter 可以完美的格式化/还原。
是SD协会官方出品,性能可靠/稳定看得见!^_

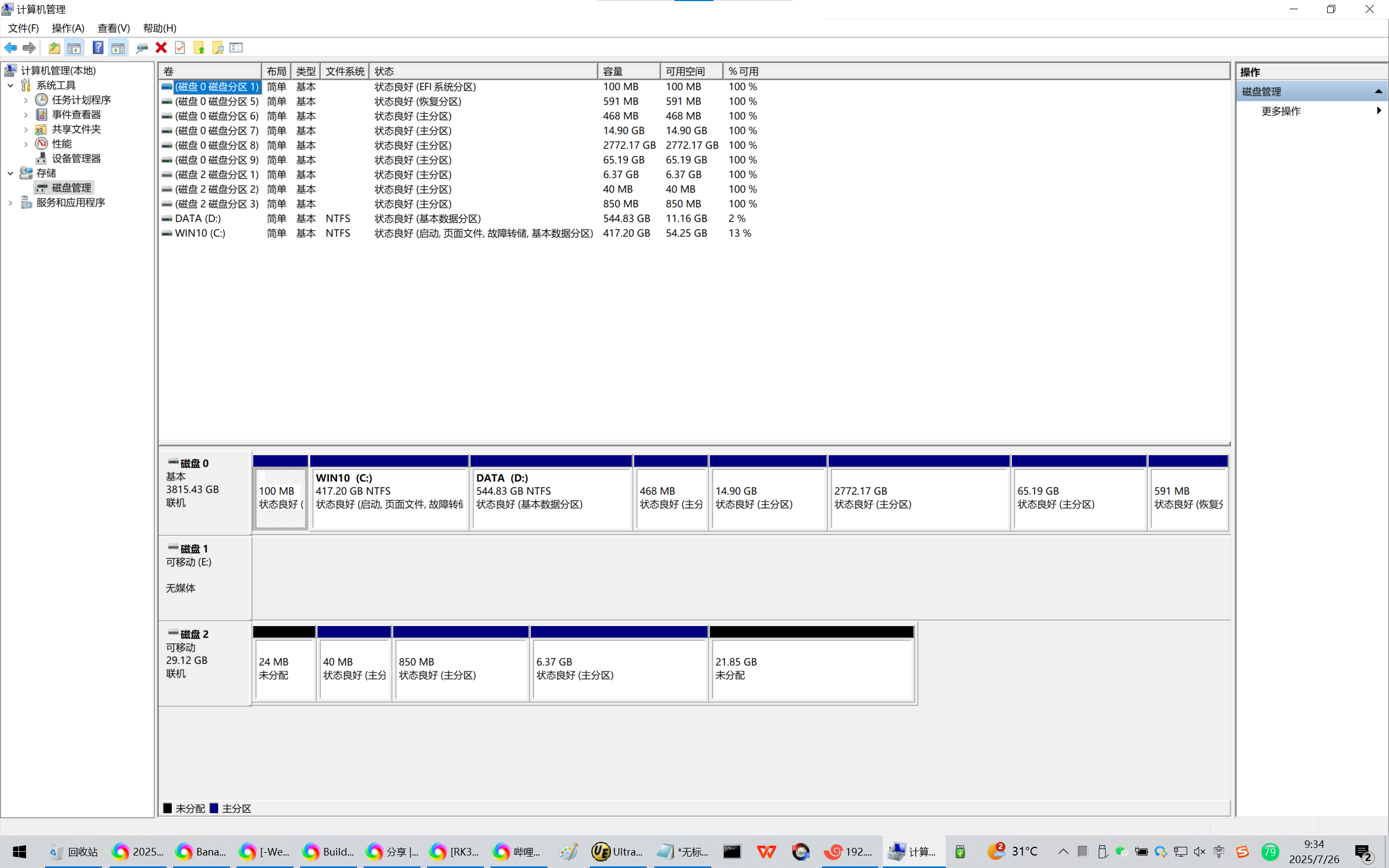

制作卡启动的TF卡制作完成之后,你会发现很多打不开的磁盘。
这是正常现象。因为是LINUX分区:比如ext4格式/swap格式等。
在WIN10/WIN11下打不开是正常现象。


升级卡制作,感觉是 SDDiskTool_v1.76.zip 给TF卡写入了一个底层的引导记录,引导生成的update.img镜像文件。

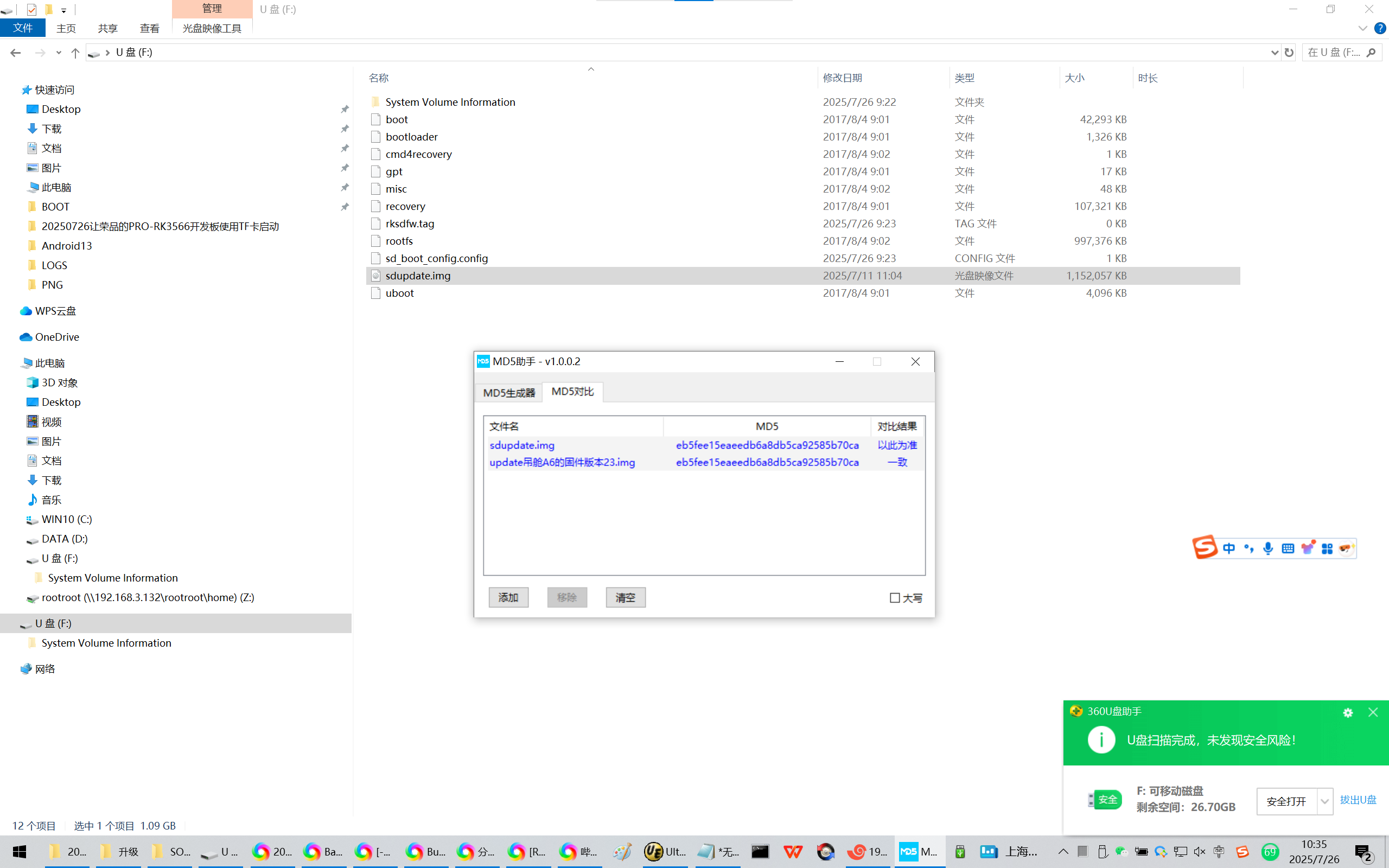

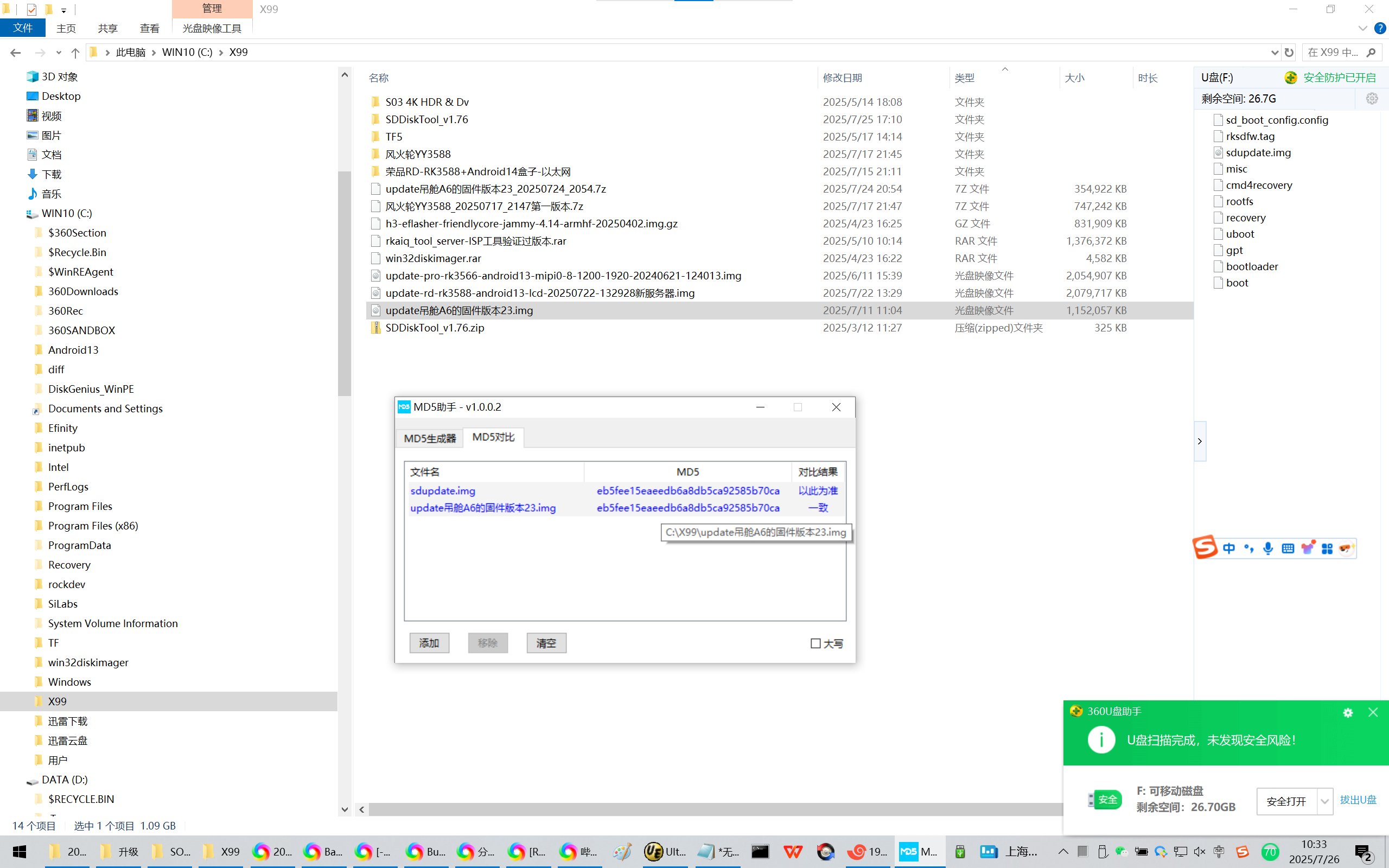

通过md5工具比对,发现TF卡内的sdupdate.img镜像文件和 我编译生成的update.img镜像文件是同一个文件。

将升级卡插入底板的TF卡卡槽升级过一次之后。可以发现多了很多文件!
感觉是底层的引导记录,会将update.img/sdupdate.img解压缩开。
直接在电脑上完成不是更好吗?至少电脑的CPU性能肯定比RK3566强悍很多!


荣品出厂的LOG:启动异常

[BEGIN] 2025/7/26 9:44:25
DDR V1.14 b1f29a2a6f typ 22/09/02-16:40:04
ln
ddrconfig:0
LP4 MR14:0x4d
LPDDR4, 324MHz
BW=32 Col=10 Bk=8 CS0 Row=17 CS=1 Die BW=16 Size=4096MB
tdqss: cs0 dqs0: -24ps, dqs1: -96ps, dqs2: -72ps, dqs3: -144ps,

change to: 324MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x63

change to: 528MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x58

change to: 780MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x58

change to: 1056MHz(final freq)
PHY drv:clk:38,ca:38,DQ:30,odt:60
vrefinner:16%, vrefout:29%
dram drv:40,odt:80
vref_ca:00000068
clk skew:0x2f
cs 0:
the read training result:
DQS0:0x37, DQS1:0x39, DQS2:0x35, DQS3:0x39,
min  : 0x7  0x5  0x3  0x4  0x3  0x3  0x1  0x1 , 0x3  0x5  0x9  0x5  0x1  0x3  0x6  0x2 ,
0x8  0x7  0x6  0x4  0x3  0x4  0x5  0x1 , 0xa  0x6  0x8  0x5  0x6  0x5  0x7  0x1 ,
mid  :0x25 0x21 0x20 0x21 0x20 0x20 0x1f 0x1e ,0x21 0x23 0x27 0x22 0x1f 0x22 0x23 0x1f ,
0x26 0x24 0x22 0x21 0x20 0x21 0x21 0x1e ,0x27 0x22 0x24 0x22 0x22 0x21 0x24 0x1e ,
max  :0x44 0x3d 0x3e 0x3e 0x3e 0x3d 0x3e 0x3b ,0x3f 0x41 0x45 0x40 0x3e 0x41 0x41 0x3c ,
0x44 0x41 0x3e 0x3e 0x3d 0x3e 0x3e 0x3b ,0x44 0x3f 0x41 0x40 0x3f 0x3e 0x41 0x3c ,
range:0x3d 0x38 0x3b 0x3a 0x3b 0x3a 0x3d 0x3a ,0x3c 0x3c 0x3c 0x3b 0x3d 0x3e 0x3b 0x3a ,
0x3c 0x3a 0x38 0x3a 0x3a 0x3a 0x39 0x3a ,0x3a 0x39 0x39 0x3b 0x39 0x39 0x3a 0x3b ,
the write training result:
DQS0:0x2c, DQS1:0x23, DQS2:0x26, DQS3:0x1c,
min  :0x53 0x52 0x52 0x54 0x52 0x51 0x50 0x54 0x53 ,0x46 0x48 0x4d 0x48 0x46 0x49 0x4a 0x49 0x48 ,
0x4f 0x4e 0x4d 0x4d 0x4c 0x4c 0x4e 0x4e 0x4e ,0x46 0x41 0x45 0x44 0x44 0x43 0x45 0x43 0x42 ,
mid  :0x6f 0x6e 0x6e 0x6f 0x6d 0x6c 0x6b 0x6e 0x6e ,0x63 0x64 0x69 0x64 0x61 0x65 0x66 0x66 0x64 ,
0x6b 0x6a 0x69 0x68 0x67 0x67 0x68 0x68 0x69 ,0x60 0x5c 0x5f 0x5e 0x5d 0x5d 0x60 0x5d 0x5d ,
max  :0x8c 0x8a 0x8b 0x8a 0x88 0x88 0x87 0x89 0x8a ,0x81 0x81 0x85 0x81 0x7d 0x82 0x82 0x83 0x81 ,
0x87 0x86 0x85 0x84 0x83 0x83 0x83 0x83 0x85 ,0x7b 0x77 0x79 0x78 0x77 0x78 0x7b 0x78 0x78 ,
range:0x39 0x38 0x39 0x36 0x36 0x37 0x37 0x35 0x37 ,0x3b 0x39 0x38 0x39 0x37 0x39 0x38 0x3a 0x39 ,
0x38 0x38 0x38 0x37 0x37 0x37 0x35 0x35 0x37 ,0x35 0x36 0x34 0x34 0x33 0x35 0x36 0x35 0x36 ,
CA Training result:
cs:0 min  :0x45 0x43 0x3b 0x39 0x3b 0x37 0x3d ,0x45 0x3f 0x3c 0x37 0x3a 0x33 0x3a ,
cs:0 mid  :0x82 0x83 0x78 0x78 0x78 0x76 0x6c ,0x82 0x7f 0x78 0x77 0x78 0x74 0x68 ,
cs:0 max  :0xc0 0xc3 0xb5 0xb8 0xb6 0xb6 0x9b ,0xc0 0xc0 0xb4 0xb7 0xb6 0xb5 0x97 ,
cs:0 range:0x7b 0x80 0x7a 0x7f 0x7b 0x7f 0x5e ,0x7b 0x81 0x78 0x80 0x7c 0x82 0x5d ,
out
U-Boot SPL board init
U-Boot SPL 2017.09-gaaca6ffec1-211203 #zzz (Dec 03 2021 - 18:42:16)
unknown raw ID phN
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
MMC error: The cmd index is 1, ret is -110
Card did not respond to voltage select!
mmc_init: -95, time 17
spl: mmc init failed with error: -95
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x00040000 ... sha256(32fbfe6139...) + OK
## Checking uboot 0x00a00000 ... sha256(79d09518eb...) + OK
## Checking fdt 0x00b35810 ... sha256(fcfda359c0...) + OK
## Checking atf-2 0xfdcc1000 ... sha256(9662321b37...) + OK
## Checking atf-3 0x0006a000 ... sha256(d959b30fef...) + OK
## Checking atf-4 0xfdcd0000 ... sha256(b46eaa95b8...) + OK
## Checking atf-5 0xfdcce000 ... sha256(2f8839c803...) + OK
## Checking atf-6 0x00068000 ... sha256(6e9d32ba23...) + OK
## Checking optee 0x08400000 ... sha256(66bbd17352...) + OK
Jumping to U-Boot(0x00a00000) via ARM Trusted Firmware(0x00040000)
Total: 319.38 ms

INFO:    Preloader serial: 2
NOTICE:  BL31: v2.3():v2.3-389-g4613ae965:cl
NOTICE:  BL31: Built : 11:21:14, Jul  7 2022
INFO:    GICv3 without legacy support detected.
INFO:    ARM GICv3 driver initialized in EL3
INFO:    pmu v1 is valid 220114
INFO:    dfs DDR fsp_param[0].freq_mhz= 1056MHz
INFO:    dfs DDR fsp_param[1].freq_mhz= 324MHz
INFO:    dfs DDR fsp_param[2].freq_mhz= 528MHz
INFO:    dfs DDR fsp_param[3].freq_mhz= 780MHz
INFO:    Using opteed sec cpu_context!
INFO:    boot cpu mask: 0
INFO:    BL31: Initializing runtime services
INFO:    BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-641-g4167319d3 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #8 Wed Mar 16 15:14:56 CST 2022 aarch64
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0xa00000
INFO:    SPSR = 0x3c9


U-Boot 2017.09 (Jul 04 2023 - 18:16:51 +0800)

Model: Rockchip RK3568 Evaluation Board
PreSerial: 2, raw, 0xfe660000
DRAM:  4 GiB
Sysmem: init
Relocation Offset: ed343000
Relocation fdt: eb9f84e0 - eb9fecd0
CR: M/C/I
Using default environment

dwmmc@fe2b0000: 1, dwmmc@fe2c0000: 2, sdhci@fe310000: 0
Bootdev(atags): mmc 0
MMC0: HS200, 200Mhz
PartType: EFI
DM: v1
boot mode: recovery (misc)
boot mode: None
Android 11.0, Build 2021.2, v2
Found DTB in boot part
resource image header:
magic:RSCE
version:0
c_version:0
blks:1
c_offset:1
e_blks:1
e_num:3
DTB: rk-kernel.dtb
HASH(c): OK
ANDROID: fdt overlay OK
I2c0 speed: 100000Hz
PMIC:  RK8090 (on=0x40, off=0x00)
vdd_logic init 950000 uV
vdd_gpu init 900000 uV
vdd_npu init 900000 uV
vsel-gpios- not found! Error: -2
vdd_cpu init 1000000 uV
io-domain: OK
Model: rpdzkj pro-rk3566 base on Rockchip RK3566 EVB1 DDR4 V10 Board
rp_power not have children !
rp_power have node!
rp_power: pwr_5v_3v3 gpio set output
rp_power: led gpio set output
rp_power: usb_pwr gpio set output
rp_power: usb_rst gpio set output
rp_power: spk_en gpio set output
rp_power: spk_mute gpio set output
rp_power: usb_mode gpio set output
Enable charge animation display
charge_extrem_low_power: Not charging, online=0. Shutdown...

[END] 2025/7/26 9:44:34

刷机成功之后的启动LOG:

[BEGIN] 2025/7/26 9:44:49
DDR V1.14 b1f29a2a6f typ 22/09/02-16:40:04
ln
ddrconfig:0
LP4 MR14:0x4d
LPDDR4, 324MHz
BW=32 Col=10 Bk=8 CS0 Row=17 CS=1 Die BW=16 Size=4096MB
tdqss: cs0 dqs0: -24ps, dqs1: -96ps, dqs2: -72ps, dqs3: -144ps,

change to: 324MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x63

change to: 528MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x58

change to: 780MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x58

change to: 1056MHz(final freq)
PHY drv:clk:38,ca:38,DQ:30,odt:60
vrefinner:16%, vrefout:29%
dram drv:40,odt:80
vref_ca:00000068
clk skew:0x2f
cs 0:
the read training result:
DQS0:0x37, DQS1:0x39, DQS2:0x35, DQS3:0x39,
min  : 0x7  0x4  0x3  0x4  0x3  0x3  0x1  0x1 , 0x3  0x5  0x9  0x4  0x1  0x3  0x6  0x2 ,
0x8  0x7  0x6  0x4  0x3  0x4  0x4  0x2 , 0xa  0x6  0x8  0x5  0x6  0x5  0x7  0x1 ,
mid  :0x25 0x20 0x20 0x21 0x21 0x20 0x1f 0x1e ,0x21 0x23 0x27 0x21 0x1f 0x22 0x23 0x1f ,
0x26 0x24 0x22 0x21 0x20 0x21 0x20 0x1e ,0x27 0x22 0x24 0x22 0x22 0x21 0x24 0x1e ,
max  :0x44 0x3d 0x3e 0x3e 0x40 0x3d 0x3e 0x3b ,0x3f 0x41 0x45 0x3f 0x3e 0x41 0x41 0x3c ,
0x44 0x41 0x3e 0x3e 0x3d 0x3e 0x3d 0x3b ,0x44 0x3f 0x41 0x40 0x3f 0x3e 0x41 0x3c ,
range:0x3d 0x39 0x3b 0x3a 0x3d 0x3a 0x3d 0x3a ,0x3c 0x3c 0x3c 0x3b 0x3d 0x3e 0x3b 0x3a ,
0x3c 0x3a 0x38 0x3a 0x3a 0x3a 0x39 0x39 ,0x3a 0x39 0x39 0x3b 0x39 0x39 0x3a 0x3b ,
the write training result:
DQS0:0x2c, DQS1:0x23, DQS2:0x26, DQS3:0x1c,
min  :0x53 0x52 0x52 0x54 0x52 0x51 0x51 0x54 0x53 ,0x46 0x47 0x4c 0x48 0x46 0x49 0x49 0x49 0x48 ,
0x4f 0x4e 0x4d 0x4d 0x4c 0x4c 0x4e 0x4e 0x4e ,0x45 0x42 0x45 0x44 0x44 0x43 0x45 0x43 0x42 ,
mid  :0x6f 0x6e 0x6e 0x6f 0x6d 0x6c 0x6c 0x6e 0x6e ,0x63 0x64 0x68 0x64 0x61 0x65 0x65 0x66 0x64 ,
0x6b 0x6a 0x69 0x68 0x67 0x67 0x68 0x68 0x6a ,0x60 0x5c 0x5f 0x5d 0x5d 0x5e 0x60 0x5d 0x5d ,
max  :0x8c 0x8a 0x8b 0x8a 0x88 0x88 0x87 0x89 0x8a ,0x81 0x81 0x85 0x81 0x7d 0x82 0x82 0x83 0x81 ,
0x87 0x86 0x85 0x84 0x83 0x83 0x83 0x83 0x86 ,0x7b 0x77 0x79 0x77 0x77 0x79 0x7b 0x78 0x78 ,
range:0x39 0x38 0x39 0x36 0x36 0x37 0x36 0x35 0x37 ,0x3b 0x3a 0x39 0x39 0x37 0x39 0x39 0x3a 0x39 ,
0x38 0x38 0x38 0x37 0x37 0x37 0x35 0x35 0x38 ,0x36 0x35 0x34 0x33 0x33 0x36 0x36 0x35 0x36 ,
CA Training result:
cs:0 min  :0x44 0x43 0x3b 0x38 0x3b 0x37 0x3d ,0x44 0x3e 0x3b 0x37 0x3a 0x32 0x3a ,
cs:0 mid  :0x82 0x83 0x77 0x78 0x78 0x76 0x6c ,0x82 0x7f 0x77 0x77 0x78 0x73 0x68 ,
cs:0 max  :0xc0 0xc3 0xb4 0xb9 0xb5 0xb6 0x9b ,0xc0 0xc0 0xb4 0xb7 0xb6 0xb4 0x97 ,
cs:0 range:0x7c 0x80 0x79 0x81 0x7a 0x7f 0x5e ,0x7c 0x82 0x79 0x80 0x7c 0x82 0x5d ,
out
U-Boot SPL board init
U-Boot SPL 2017.09-gaaca6ffec1-211203 #zzz (Dec 03 2021 - 18:42:16)
unknown raw ID phN
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
Magic is incorrect.
Error validating A/B metadata from disk. Resetting and writing new A/B metadata to disk.
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x00040000 ... sha256(b5946ac63d...) + OK
## Checking uboot 0x00a00000 ... sha256(6be14b813a...) + OK
## Checking fdt 0x00b47c68 ... sha256(036cca5880...) + OK
## Checking atf-2 0xfdcc1000 ... sha256(b8dca786b4...) + OK
## Checking atf-3 0x0006b000 ... sha256(2f91089eb7...) + OK
## Checking atf-4 0xfdcce000 ... sha256(86ef885748...) + OK
## Checking atf-5 0xfdcd0000 ... sha256(0b2b146c60...) + OK
## Checking atf-6 0x00069000 ... sha256(a9a1e63bef...) + OK
## Checking optee 0x08400000 ... sha256(6c92ef6a0e...) + OK
Jumping to U-Boot(0x00a00000) via ARM Trusted Firmware(0x00040000)
Total: 387.762 ms

INFO:    Preloader serial: 2
NOTICE:  BL31: v2.3():v2.3-645-g8cea6ab0b:cl, fwver: v1.44
NOTICE:  BL31: Built : 16:36:43, Sep 19 2023
INFO:    GICv3 without legacy support detected.
INFO:    ARM GICv3 driver initialized in EL3
INFO:    pmu v1 is valid 220114
INFO:    l3 cache partition cfg-0
INFO:    dfs DDR fsp_param[0].freq_mhz= 1056MHz
INFO:    dfs DDR fsp_param[1].freq_mhz= 324MHz
INFO:    dfs DDR fsp_param[2].freq_mhz= 528MHz
INFO:    dfs DDR fsp_param[3].freq_mhz= 780MHz
INFO:    Using opteed sec cpu_context!
INFO:    boot cpu mask: 0
INFO:    BL31: Initializing runtime services
INFO:    BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-743-gb5340fd65 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #5 Mon Aug 28 15:15:17 CST 2023 aarch64
I/TC: Primary CPU initializing
E/TC:0 0 hal_algo_version_init:296 CRYPTO_CRYPTO_VERSION_NEW no support. Skip all algo mode check.
I/TC: Primary CPU switching to normal world boot
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0xa00000
INFO:    SPSR = 0x3c9


U-Boot 2017.09 (Jul 11 2025 - 10:58:04 +0800)

Model: Rockchip RK3568 Evaluation Board
MPIDR: 0x81000000
PreSerial: 2, raw, 0xfe660000
DRAM:  3.7 GiB
Sysmem: init
Relocation Offset: ed217000
Relocation fdt: eb9f8948 - eb9fece0
CR: M/C/I
Using default environment

optee api revision: 2.0
no mmc device at slot 1
Repair the backup gpt table OK!
dwmmc@fe2b0000: 1 (SD), dwmmc@fe2c0000: 2, sdhci@fe310000: 0
Bootdev(atags): mmc 1
MMC1: Legacy, 52Mhz
PartType: EFI
TEEC: Waring: Could not find security partition
DM: v1
boot mode: recovery (misc)
RESC: 'recovery', blk@0x0005c265
resource: sha256+
FIT: no signed, no conf required
DTB: rk-kernel.dtb
HASH(c): OK
I2c0 speed: 100000Hz
PMIC:  RK8090 (on=0x40, off=0x00)
vdd_logic init 950000 uV
vdd_gpu init 900000 uV
vdd_npu init 900000 uV
vsel-gpios- not found! Error: -2
vdd_cpu init 1000000 uV
io-domain: OK
INFO:    ddr dmc_fsp already initialized in loader.
Could not find baseparameter partition
Model: pro-rk3566
MPIDR: 0x81000000
ethaddr = e2:f8:58:a5:ef:37
eth1addr = b2:fe:24:7a:42:44
eth2addr = 5e:c1:d2:54:59:ed
eth3addr = a2:96:af:c2:96:fd
rp_power not have children !
rp_power have node!
rp_power: pwr_5v_3v3 gpio set output
rp_power: led gpio function is 3, not realize!
rp_power: usb_pwr gpio set output
rp_power: otg_pwr gpio set output
rp_power: usb_rst gpio set output
rp_power: spk_en gpio function get error, set gpio default dir to output
rp_power: spk_en gpio get error
rp_power: spk_mute gpio set output
rp_power: usb_mode gpio set output
rp_power: Equipment_EN gpio set output
Rockchip UBOOT DRM driver version: v1.0.1
VOP have 1 active VP
vp0 have layer nr:6[0 2 4 1 3 5 ], primary plane: 4
vp1 have layer nr:0[], primary plane: 0
vp2 have layer nr:0[], primary plane: 0
xfer: num: 2, addr: 0x50
xfer: num: 2, addr: 0x50
Monitor has basic audio support
Could not find baseparameter partition
hdmi@fe0a0000:  detailed mode clock 148500 kHz, flags[5]
H: 1920 2008 2052 2200
V: 1080 1084 1089 1125
bus_format: 2025
VOP update mode to: 1920x1080p60, type: HDMI0 for VP0
VP0 set crtc_clock to 148500KHz
VOP VP0 enable Smart0[654x270->654x270@633x405] fmt[2] addr[0xedf2c000]
CEA mode used vic=16
final pixclk = 148500000 tmdsclk = 148500000
PHY powered down in 0 iterations
PHY PLL locked 1 iterations
PHY powered down in 0 iterations
PHY PLL locked 1 iterations
sink has audio support
hdmi_set_clk_regenerator: fs=48000Hz ftdms=148.500MHz N=6144 cts=148500
CLK: (sync kernel. arm: enter 816000 KHz, init 816000 KHz, kernel 0N/A)
apll 1104000 KHz
dpll 528000 KHz
gpll 1188000 KHz
cpll 1000000 KHz
npll 1200000 KHz
vpll 24000 KHz
hpll 148500 KHz
ppll 200000 KHz
armclk 1104000 KHz
aclk_bus 150000 KHz
pclk_bus 100000 KHz
aclk_top_high 500000 KHz
aclk_top_low 400000 KHz
hclk_top 150000 KHz
pclk_top 100000 KHz
aclk_perimid 300000 KHz
hclk_perimid 150000 KHz
pclk_pmu 100000 KHz
Net:   eth1: ethernet@fe010000
Hit key to stop autoboot('CTRL+C'):  0
ANDROID: reboot reason: "recovery"
Not AVB images, AVB skip
No valid android hdr
Android image load failed
Android boot failed, error -1.
## Booting FIT Image at 0xe4faaf00 with size 0x0684ca00
Fdt Ramdisk skip relocation
## Loading kernel from FIT Image at e4faaf00 ...
Using 'conf' configuration
## Verified-boot: 0
Trying 'kernel' kernel subimage
Description:  unavailable
Type:         Kernel Image
Compression:  uncompressed
Data Start:   0xe4fd4f00
Data Size:    42605056 Bytes = 40.6 MiB
Architecture: AArch64
OS:           Linux
Load Address: 0x00280000
Entry Point:  0x00280000
Hash algo:    sha256
Hash value:   e80143e08e6530852192e34c9832cc35cbf815029b09e1d027a621a851767513
Verifying Hash Integrity ... sha256+ OK
## Loading ramdisk from FIT Image at e4faaf00 ...
Using 'conf' configuration
Trying 'ramdisk' ramdisk subimage
Description:  unavailable
Type:         RAMDisk Image
Compression:  uncompressed
Data Start:   0xe7876900
Data Size:    66588235 Bytes = 63.5 MiB
Architecture: AArch64
OS:           Linux
Load Address: 0x0a200000
Entry Point:  unavailable
Hash algo:    sha256
Hash value:   aaa6a57b2132808a2a77f3ea4e20cd81a779be18574a6c2abb47a6d171377f52
Verifying Hash Integrity ... sha256+ OK
Loading ramdisk from 0xe7876900 to 0x0a200000
## Loading fdt from FIT Image at e4faaf00 ...
Using 'conf' configuration
Trying 'fdt' fdt subimage
Description:  unavailable
Type:         Flat Device Tree
Compression:  uncompressed
Data Start:   0xe4fab700
Data Size:    169955 Bytes = 166 KiB
Architecture: AArch64
Load Address: 0x08300000
Hash algo:    sha256
Hash value:   aa03975c23e9ca53e194f3eaa8cf4f5c8980d2baebbd1e73626a72c309d954ca
Verifying Hash Integrity ... sha256+ OK
Loading fdt from 0x08300000 to 0x08300000
Booting using the fdt blob at 0x08300000
Loading Kernel Image from 0xe4fd4f00 to 0x00280000 ... OK
kernel loaded at 0x00280000, end = 0x02b21a00
Using Device Tree in place at 0000000008300000, end 000000000832c7e2
vp0, plane_mask:0x3f, primary-id:4, curser-id:-1
vp1, plane_mask:0x0, primary-id:0, curser-id:-1
vp2, plane_mask:0x0, primary-id:0, curser-id:-1
WARNING: could not set reg FDT_ERR_BADOFFSET.
## reserved-memory:
drm-logo@00000000: addr=edf00000 size=106000
drm-cubic-lut@00000000: addr=eff00000 size=8000
ramoops@110000: addr=110000 size=f0000
Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)
Adding bank: 0x09400000 - 0xf0000000 (size: 0xe6c00000)
== DO RELOCATE == Kernel from 0x00280000 to 0x00200000
Total: 10958.246/11092.421 ms

Starting kernel ...

[   11.103018] Booting Linux on physical CPU 0x0000000000 [0x412fd050]
[   11.103046] Linux version 5.10.198 (rootroot@rootroot-X99-Turbo) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #1 SMP Tue Jul 8 09:38:35 CST 2025
[   11.104905] random: crng init done
[   11.109014] Machine model: pro-rk3566
[   11.152980] earlycon: uart8250 at MMIO32 0x00000000fe660000 (options '')
[   11.205163] printk: bootconsole [uart8250] enabled
[   11.211591] efi: UEFI not found.
[   11.272822] Zone ranges:
[   11.275606]   DMA      [mem 0x0000000000200000-0x00000000efffffff]
[   11.282388]   DMA32    empty
[   11.285540]   Normal   empty
[   11.288693] Movable zone start for each node
[   11.293368] Early memory node ranges
[   11.297282]   node   0: [mem 0x0000000000200000-0x00000000083fffff]
[   11.304151]   node   0: [mem 0x0000000009400000-0x00000000efffffff]
[   11.311026] Initmem setup node 0 [mem 0x0000000000200000-0x00000000efffffff]
[   11.348856] cma: Reserved 16 MiB at 0x00000000ee400000
[   11.354588] psci: probing for conduit method from DT.
[   11.360135] psci: PSCIv1.1 detected in firmware.
[   11.365193] psci: Using standard PSCI v0.2 function IDs
[   11.370922] psci: Trusted OS migration not required
[   11.376269] psci: SMC Calling Convention v1.2
[   11.381456] percpu: Embedded 31 pages/cpu s88344 r8192 d30440 u126976
[   11.388633] Detected VIPT I-cache on CPU0
[   11.393067] CPU features: detected: GIC system register CPU interface
[   11.400127] CPU features: detected: Virtualization Host Extensions
[   11.406907] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
[   11.414562] alternatives: patching kernel code
[   11.421646] Built 1 zonelists, mobility grouping on.  Total pages: 963080
[   11.429095] Kernel command line: storagemedia=sd androidboot.storagemedia=sd androidboot.mode=normal  sdfwupdate androidboot.verifiedbootstate=orange rw rootwait earlycon=uart8250,mmio32,0xfe660000 console=ttyFIQ0 root=PARTUUID=614e0000-0000 androidboot.fwver=bl31-v1.44,uboot-07/11/2025
[   11.458234] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[   11.467412] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[   11.475906] mem auto-init: stack:off, heap alloc:off, heap free:off
[   11.536779] Memory: 3712020K/3913728K available (22208K kernel code, 3846K rwdata, 7876K rodata, 7552K init, 878K bss, 185324K reserved, 16384K cma-reserved)
[   11.552361] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[   11.559557] ftrace: allocating 67078 entries in 263 pages
[   11.654433] ftrace: allocated 263 pages with 4 groups
[   11.660336] rcu: Hierarchical RCU implementation.
[   11.665499] rcu:     RCU event tracing is enabled.
[   11.670462] rcu:     RCU dyntick-idle grace-period acceleration is enabled.
[   11.677808] rcu:     RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.
[   11.684964]     Rude variant of Tasks RCU enabled.
[   11.689925]     Tracing variant of Tasks RCU enabled.
[   11.695174] rcu: RCU calculated value of scheduler-enlistment delay is 30 jiffies.
[   11.703473] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4
[   11.715836] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[   11.723543] GICv3: GIC: Using split EOI/Deactivate mode
[   11.729284] GICv3: 320 SPIs implemented
[   11.733484] GICv3: 0 Extended SPIs implemented
[   11.738387] GICv3: Distributor has no Range Selector support
[   11.744598] GICv3: 16 PPIs implemented
[   11.748739] GICv3: CPU0: found redistributor 0 region 0:0x00000000fd460000
[   11.756395] ITS [mem 0xfd440000-0xfd45ffff]
[   11.761047] ITS@0x00000000fd440000: allocated 8192 Devices @2e00000 (indirect, esz 8, psz 64K, shr 0)
[   11.771191] ITS@0x00000000fd440000: allocated 32768 Interrupt Collections @2e10000 (flat, esz 2, psz 64K, shr 0)
[   11.782354] ITS: using cache flushing for cmd queue
[   11.788084] GICv3: using LPI property table @0x0000000002e20000
[   11.794691] GIC: using cache flushing for LPI property table
[   11.800899] GICv3: CPU0: using allocated LPI pending table @0x0000000002e30000
[   11.808882] rcu:     Offload RCU callbacks from CPUs: (none).
[   11.844218] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[   11.850915] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[   11.862751] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[   11.872632] Console: colour dummy device 80x25
[   11.877553] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=80000)
[   11.888827] pid_max: default: 32768 minimum: 301
[   11.893988] LSM: Security Framework initializing
[   11.899120] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[   11.907252] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[   11.917430] rcu: Hierarchical SRCU implementation.
[   11.923524] Platform MSI: interrupt-controller@fd440000 domain created
[   11.931201] PCI/MSI: /interrupt-controller@fd400000/interrupt-controller@fd440000 domain created
[   11.941232] EFI services will not be available.
[   11.946539] smp: Bringing up secondary CPUs ...
I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
[   11.959857] Detected VIPT I-cache on CPU1
[   11.959889] GICv3: CPU1: found redistributor 100 region 0:0x00000000fd480000
[   11.959913] GICv3: CPU1: using allocated LPI pending table @0x0000000002e40000
[   11.959969] CPU1: Booted secondary processor 0x0000000100 [0x412fd050]
[   11.968323] Detected VIPT I-cache on CPU2
[   11.968350] GICv3: CPU2: found redistributor 200 region 0:0x00000000fd4a0000
[   11.968369] GICv3: CPU2: using allocated LPI pending table @0x0000000002e50000
[   11.968409] CPU2: Booted secondary processor 0x0000000200 [0x412fd050]
[   11.976717] Detected VIPT I-cache on CPU3
[   11.976743] GICv3: CPU3: found redistributor 300 region 0:0x00000000fd4c0000
[   11.976761] GICv3: CPU3: using allocated LPI pending table @0x0000000002e60000
[   11.976798] CPU3: Booted secondary processor 0x0000000300 [0x412fd050]
[   11.976891] smp: Brought up 1 node, 4 CPUs
[   12.063000] SMP: Total of 4 processors activated.
[   12.068161] CPU features: detected: Privileged Access Never
[   12.074273] CPU features: detected: LSE atomic instructions
[   12.080385] CPU features: detected: User Access Override
[   12.086212] CPU features: detected: 32-bit EL0 Support
[   12.091848] CPU features: detected: Common not Private translations
[   12.098724] CPU features: detected: RAS Extension Support
[   12.104648] CPU features: detected: Data cache clean to the PoU not required for I/D coherence
[   12.114098] CPU features: detected: CRC32 instructions
[   12.119733] CPU features: detected: Speculative Store Bypassing Safe (SSBS)
[   12.127371] CPU features: detected: RCpc load-acquire (LDAPR)
[   12.168443] CPU: All CPU(s) started at EL2
[   12.174546] devtmpfs: initialized
[   12.200741] Registered cp15_barrier emulation handler
[   12.206323] Registered setend emulation handler
[   12.211479] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns
[   12.222190] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[   12.230345] pinctrl core: initialized pinctrl subsystem
[   12.236642] DMI not present or invalid.
[   12.241148] NET: Registered protocol family 16
[   12.247648] DMA: preallocated 512 KiB GFP_KERNEL pool for atomic allocations
[   12.255566] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[   12.264175] audit: initializing netlink subsys (disabled)
[   12.270283] audit: type=2000 audit(0.249:1): state=initialized audit_enabled=0 res=1
[   12.272433] Registered FIQ tty driver
[   12.283207] thermal_sys: Registered thermal governor 'fair_share'
[   12.283213] thermal_sys: Registered thermal governor 'step_wise'
[   12.289906] thermal_sys: Registered thermal governor 'user_space'
[   12.296496] thermal_sys: Registered thermal governor 'power_allocator'
[   12.303498] thermal thermal_zone1: power_allocator: sustainable_power will be estimated
[   12.319517] cpuidle: using governor menu
[   12.324139] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[   12.331707] ASID allocator initialised with 65536 entries
[   12.339985] ramoops: dmesg-0    0x20000@0x0000000000110000
[   12.345760] ramoops: console    0x80000@0x0000000000130000
[   12.351509] ramoops: pmsg    0x50000@0x00000000001b0000
[   12.357322] printk: console [ramoops-1] enabled
[   12.362296] pstore: Registered ramoops as persistent store backend
[   12.369079] ramoops: using 0xf0000@0x110000, ecc: 0
[   12.411159] rockchip-gpio fdd60000.gpio0: probed /pinctrl/gpio0@fdd60000
[   12.419029] rockchip-gpio fe740000.gpio1: probed /pinctrl/gpio1@fe740000
[   12.426831] rockchip-gpio fe750000.gpio2: probed /pinctrl/gpio2@fe750000
[   12.434695] rockchip-gpio fe760000.gpio3: probed /pinctrl/gpio3@fe760000
[   12.442505] rockchip-gpio fe770000.gpio4: probed /pinctrl/gpio4@fe770000
[   12.449981] rockchip-pinctrl pinctrl: probed pinctrl
[   12.532497] raid6: neonx8   gen()  2439 MB/s
[   12.592563] raid6: neonx8   xor()  1933 MB/s
[   12.652639] raid6: neonx4   gen()  2493 MB/s
[   12.712714] raid6: neonx4   xor()  1912 MB/s
[   12.772790] raid6: neonx2   gen()  2266 MB/s
[   12.832859] raid6: neonx2   xor()  1757 MB/s
[   12.892939] raid6: neonx1   gen()  1851 MB/s
[   12.953012] raid6: neonx1   xor()  1409 MB/s
[   13.013092] raid6: int64x8  gen()  1652 MB/s
[   13.073160] raid6: int64x8  xor()   891 MB/s
[   13.133236] raid6: int64x4  gen()  1791 MB/s
[   13.193313] raid6: int64x4  xor()   961 MB/s
[   13.253381] raid6: int64x2  gen()  1589 MB/s
[   13.313461] raid6: int64x2  xor()   857 MB/s
[   13.373533] raid6: int64x1  gen()  1161 MB/s
[   13.433594] raid6: int64x1  xor()   585 MB/s
[   13.438280] raid6: using algorithm neonx4 gen() 2493 MB/s
[   13.444202] raid6: .... xor() 1912 MB/s, rmw enabled
[   13.449648] raid6: using neon recovery algorithm
[   13.456295] fiq_debugger fiq_debugger.0: IRQ fiq not found
[   13.462346] fiq_debugger fiq_debugger.0: IRQ wakeup not found
[   13.468664] fiq_debugger_probe: could not install nmi irq handler
[[   13.475443] printk: console [ttyFIQ0] enabled
13.475443] printk: console [ttyFIQ0] enabled
[   13.484569] printk: bootconsole [ua[   13.484569] printk: bootconsole [uart8250] disabled
rt8250] disabled
[   13.494975] Registered fiq debugger ttyFIQ0
[   13.495754] vcc3v3_sys: supplied by dc_12v
[   13.496017] vcc5v0_sys: supplied by dc_12v
[   13.496568] vcc3v3_lcd0_n: supplied by vcc3v3_sys
[   13.496862] vcc3v3_lcd1_n: supplied by vcc3v3_sys
[   13.497751] iommu: Default domain type: Translated
[   13.501270] SCSI subsystem initialized
[   13.501529] usbcore: registered new interface driver usbfs
[   13.501586] usbcore: registered new interface driver hub
[   13.501629] usbcore: registered new device driver usb
[   13.501722] mc: Linux media interface: v0.10
[   13.501751] videodev: Linux video capture interface: v2.00
[   13.501836] pps_core: LinuxPPS API ver. 1 registered
[   13.501845] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[   13.501861] PTP clock support registered
[   13.501900] EDAC MC: Ver: 3.0.0
[   13.502831] arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
[   13.502900] arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
[   13.505156] Advanced Linux Sound Architecture Driver Initialized.
[   13.505636] Bluetooth: Core ver 2.22
[   13.505677] NET: Registered protocol family 31
[   13.505686] Bluetooth: HCI device and connection manager initialized
[   13.505699] Bluetooth: HCI socket layer initialized
[   13.505709] Bluetooth: L2CAP socket layer initialized
[   13.505728] Bluetooth: SCO socket layer initialized
[   13.506103] rockchip-cpuinfo cpuinfo: SoC        : 35662000
[   13.506116] rockchip-cpuinfo cpuinfo: Serial        : ba7f186fecbfe667
[   13.506884] clocksource: Switched to clocksource arch_sys_counter
[   13.951462] NET: Registered protocol family 2
[   13.951734] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear)
[   13.953536] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
[   13.953622] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
[   13.953783] TCP bind hash table entries: 32768 (order: 7, 524288 bytes, linear)
[   13.954237] TCP: Hash tables configured (established 32768 bind 32768)
[   13.954371] UDP hash table entries: 2048 (order: 4, 65536 bytes, linear)
[   13.954427] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes, linear)
[   13.954600] NET: Registered protocol family 1
[   13.955047] RPC: Registered named UNIX socket transport module.
[   13.955059] RPC: Registered udp transport module.
[   13.955065] RPC: Registered tcp transport module.
[   13.955070] RPC: Registered tcp NFSv4.1 backchannel transport module.
[   13.956044] PCI: CLS 0 bytes, default 64
[   13.956721] Trying to unpack rootfs image as initramfs...
[   14.814751] Freeing initrd memory: 65024K
[   14.817210] rockchip-thermal fe710000.tsadc: tsadc is probed successfully!
[   14.818278] hw perfevents: enabled with armv8_cortex_a55 PMU driver, 7 counters available
[   14.822579] Initialise system trusted keyrings
[   14.822744] workingset: timestamp_bits=46 max_order=20 bucket_order=0
[   14.827740] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[   14.828559] NFS: Registering the id_resolver key type
[   14.828594] Key type id_resolver registered
[   14.828601] Key type id_legacy registered
[   14.828639] ntfs: driver 2.1.32 [Flags: R/O].
[   14.828784] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[   14.828995] fuse: init (API version 7.32)
[   14.829367] SGI XFS with security attributes, no debug enabled
[   14.860667] NET: Registered protocol family 38
[   14.860696] xor: measuring software checksum speed
[   14.864340]    8regs           :  2732 MB/sec
[   14.867331]    32regs          :  3313 MB/sec
[   14.870606]    arm64_neon      :  3021 MB/sec
[   14.870613] xor: using function: 32regs (3313 MB/sec)
[   14.870630] Key type asymmetric registered
[   14.870639] Asymmetric key parser 'x509' registered
[   14.870691] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
[   14.870840] io scheduler mq-deadline registered
[   14.870858] io scheduler kyber registered
[   14.871600] rockchip-csi2-dphy-hw fe870000.csi2-dphy-hw: csi2 dphy hw probe successfully!
[   14.872282] rockchip-csi2-dphy csi2-dphy0: csi2 dphy0 probe successfully!
[   14.882248] pwm-backlight backlight: supply power not found, using dummy regulator
[   14.882715] iep: Module initialized.
[   14.882777] mpp_service mpp-srv:
[   14.882789] mpp_service mpp-srv: probe start
[   14.884654] mpp_vdpu2 fdea0400.vdpu: Adding to iommu group 1
[   14.884861] mpp_vdpu2 fdea0400.vdpu: probe device
[   14.885343] mpp_vdpu2 fdea0400.vdpu: probing finish
[   14.885840] mpp_vepu2 fdee0000.vepu: Adding to iommu group 3
[   14.886028] mpp_vepu2 fdee0000.vepu: probing start
[   14.886468] mpp_vepu2 fdee0000.vepu: probing finish
[   14.887096] mpp-iep2 fdef0000.iep: Adding to iommu group 4
[   14.887283] mpp-iep2 fdef0000.iep: probe device
[   14.887560] mpp-iep2 fdef0000.iep: allocate roi buffer failed
[   14.887779] mpp-iep2 fdef0000.iep: probing finish
[   14.888267] mpp_jpgdec fded0000.jpegd: Adding to iommu group 2
[   14.888439] mpp_jpgdec fded0000.jpegd: probe device
[   14.888911] mpp_jpgdec fded0000.jpegd: probing finish
[   14.890248] mpp_service mpp-srv: probe success
[   14.895104] dma-pl330 fe530000.dmac: Loaded driver for PL330 DMAC-241330
[   14.895129] dma-pl330 fe530000.dmac:     DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[   14.897011] dma-pl330 fe550000.dmac: Loaded driver for PL330 DMAC-241330
[   14.897024] dma-pl330 fe550000.dmac:     DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[   14.897830] rockchip-pvtm fde00000.pvtm: pvtm@0 probed
[   14.897964] rockchip-pvtm fde80000.pvtm: pvtm@1 probed
[   14.898072] rockchip-pvtm fde90000.pvtm: pvtm@2 probed
[   14.898668] rockchip-system-monitor rockchip-system-monitor: system monitor probe
[   14.899261] arm-scmi firmware:scmi: Failed. SCMI protocol 22 not active.
[   14.899561] Serial: 8250/16550 driver, 10 ports, IRQ sharing disabled
[   14.900442] fe650000.serial: ttyS1 at MMIO 0xfe650000 (irq = 65, base_baud = 1500000) is a 16550A
[   14.901055] fe670000.serial: ttyS3 at MMIO 0xfe670000 (irq = 66, base_baud = 1500000) is a 16550A
[   14.901546] fe6a0000.serial: ttyS6 at MMIO 0xfe6a0000 (irq = 67, base_baud = 1500000) is a 16550A
[   14.902052] fe6b0000.serial: ttyS7 at MMIO 0xfe6b0000 (irq = 68, base_baud = 1500000) is a 16550A
[   14.902540] fe6d0000.serial: ttyS9 at MMIO 0xfe6d0000 (irq = 69, base_baud = 1500000) is a 16550A
[   14.905637] rockchip-vop2 fe040000.vop: Adding to iommu group 8
[   14.912435] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp0 assign plane mask: 0x3f, primary plane phy id: 4
[   14.912462] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp1 assign plane mask: 0x0, primary plane phy id: -1
[   14.912474] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp2 assign plane mask: 0x0, primary plane phy id: -1
[   14.912597] rockchip-vop2 fe040000.vop: [drm:vop2_bind] VP1 plane_mask is zero, so ignore register crtc
[   14.912611] rockchip-vop2 fe040000.vop: [drm:vop2_bind] VP2 plane_mask is zero, so ignore register crtc
[   14.912684] [drm] failed to init overlay plane Cluster0-win1
[   14.912774] rockchip-drm display-subsystem: bound fe040000.vop (ops 0xffffffc0096e8f58)
[   14.913066] dwhdmi-rockchip fe0a0000.hdmi: Detected HDMI TX controller v2.11a with HDCP (DWC HDMI 2.0 TX PHY)
[   14.913678] dwhdmi-rockchip fe0a0000.hdmi: registered DesignWare HDMI I2C bus driver
[   14.913927] dwhdmi-rockchip fe0a0000.hdmi: IRQ index 1 not found
[   14.914340] rockchip-drm display-subsystem: bound fe0a0000.hdmi (ops 0xffffffc0096f7ae8)
[   15.140704] rockchip-drm display-subsystem: [drm] fb0: rockchipdrmfb frame buffer device
[   15.141375] [drm] Initialized rockchip 3.0.0 20140818 for display-subsystem on minor 0
[   15.149048] input: hdmi_cec_key as /devices/platform/fe0a0000.hdmi/dw-hdmi-cec.1.auto/input/input0
[   15.150038] cacheinfo: Unable to detect cache hierarchy for CPU 0
[   15.150809] brd: module loaded
[   15.156049] loop: module loaded
[   15.156464] zram: Added device: zram0
[   15.156725] lkdtm: No crash points registered, enable through debugfs
[   15.159566] ahci fc800000.sata: supply ahci not found, using dummy regulator
[   15.159728] ahci fc800000.sata: supply phy not found, using dummy regulator
[   15.159856] ahci fc800000.sata: supply target not found, using dummy regulator
[   15.159994] ahci fc800000.sata: forcing port_map 0x0 -> 0x1
[   15.160040] ahci fc800000.sata: AHCI 0001.0300 32 slots 1 ports 6 Gbps 0x1 impl platform mode
[   15.160053] ahci fc800000.sata: flags: ncq sntf pm led clo only pmp fbs pio slum part ccc apst
[   15.160079] ahci fc800000.sata: port 0 is not capable of FBS
[   15.161272] scsi host0: ahci
[   15.161576] ata1: SATA max UDMA/133 mmio [mem 0xfc800000-0xfc800fff] port 0x100 irq 19
[   15.164488] rockchip-spi fe620000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
[   15.165752] rockchip-spi fe630000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
[   15.167564] register spi return v = :0
[   15.168838] CAN device driver interface
[   15.171105] rk_gmac-dwmac fe010000.ethernet: IRQ eth_lpi not found
[   15.171339] rk_gmac-dwmac fe010000.ethernet: supply phy not found, using dummy regulator
[   15.171480] rk_gmac-dwmac fe010000.ethernet: clock input or output? (input).
[   15.171494] rk_gmac-dwmac fe010000.ethernet: TX delay(0x38).
[   15.171503] rk_gmac-dwmac fe010000.ethernet: RX delay(0x34).
[   15.171517] rk_gmac-dwmac fe010000.ethernet: integrated PHY? (no).
[   15.171553] rk_gmac-dwmac fe010000.ethernet: clock input from PHY
[   15.171803] rk_gmac-dwmac fe010000.ethernet: init for RGMII
[   15.172103] rk_gmac-dwmac fe010000.ethernet: User ID: 0x30, Synopsys ID: 0x51
[   15.172121] rk_gmac-dwmac fe010000.ethernet:     DWMAC4/5
[   15.172133] rk_gmac-dwmac fe010000.ethernet: DMA HW capability register supported
[   15.172141] rk_gmac-dwmac fe010000.ethernet: RX Checksum Offload Engine supported
[   15.172148] rk_gmac-dwmac fe010000.ethernet: TX Checksum insertion supported
[   15.172155] rk_gmac-dwmac fe010000.ethernet: Wake-Up On Lan supported
[   15.172221] rk_gmac-dwmac fe010000.ethernet: TSO supported
[   15.172231] rk_gmac-dwmac fe010000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[   15.172238] rk_gmac-dwmac fe010000.ethernet: TSO feature enabled
[   15.172246] rk_gmac-dwmac fe010000.ethernet: Using 32 bits DMA width
[   15.309505] PPP generic driver version 2.4.2
[   15.309706] PPP BSD Compression module registered
[   15.309728] PPP Deflate Compression module registered
[   15.309754] PPP MPPE Compression module registered
[   15.309764] NET: Registered protocol family 24
[   15.309939] usbcore: registered new interface driver rtl8150
[   15.310043] usbcore: registered new interface driver r8152
[   15.310091] usbcore: registered new interface driver asix
[   15.310157] usbcore: registered new interface driver ax88179_178a
[   15.310241] usbcore: registered new interface driver cdc_ether
[   15.310293] usbcore: registered new interface driver net1080
[   15.310337] usbcore: registered new interface driver cdc_subset
[   15.310377] usbcore: registered new interface driver zaurus
[   15.310424] usbcore: registered new interface driver cdc_ncm
[   15.310470] usbcore: registered new interface driver qmi_wwan_q
[   15.321042] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[   15.321083] ehci-pci: EHCI PCI platform driver
[   15.321187] ehci-platform: EHCI generic platform driver
[   15.321657] phy phy-fe8b0000.usb2-phy.3: illegal mode
[   15.323706] ehci-platform fd800000.usb: EHCI Host Controller
[   15.323948] ehci-platform fd800000.usb: new USB bus registered, assigned bus number 1
[   15.324073] ehci-platform fd800000.usb: irq 20, io mem 0xfd800000
[   15.336901] ehci-platform fd800000.usb: USB 2.0 started, EHCI 1.00
[   15.337100] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[   15.337112] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[   15.337121] usb usb1: Product: EHCI Host Controller
[   15.337128] usb usb1: Manufacturer: Linux 5.10.198 ehci_hcd
[   15.337135] usb usb1: SerialNumber: fd800000.usb
[   15.337576] hub 1-0:1.0: USB hub found
[   15.337618] hub 1-0:1.0: 1 port detected
[   15.340336] ehci-platform fd880000.usb: EHCI Host Controller
[   15.340500] ehci-platform fd880000.usb: new USB bus registered, assigned bus number 2
[   15.340619] ehci-platform fd880000.usb: irq 22, io mem 0xfd880000
[   15.353570] ehci-platform fd880000.usb: USB 2.0 started, EHCI 1.00
[   15.353724] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[   15.353736] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[   15.353744] usb usb2: Product: EHCI Host Controller
[   15.353751] usb usb2: Manufacturer: Linux 5.10.198 ehci_hcd
[   15.353758] usb usb2: SerialNumber: fd880000.usb
[   15.354146] hub 2-0:1.0: USB hub found
[   15.354186] hub 2-0:1.0: 1 port detected
[   15.354893] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[   15.354917] ohci-platform: OHCI generic platform driver
[   15.355232] phy phy-fe8b0000.usb2-phy.3: illegal mode
[   15.355245] ohci-platform fd840000.usb: Generic Platform OHCI controller
[   15.355402] ohci-platform fd840000.usb: new USB bus registered, assigned bus number 3
[   15.355510] ohci-platform fd840000.usb: irq 21, io mem 0xfd840000
[   15.414387] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[   15.414401] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[   15.414409] usb usb3: Product: Generic Platform OHCI controller
[   15.414417] usb usb3: Manufacturer: Linux 5.10.198 ohci_hcd
[   15.414423] usb usb3: SerialNumber: fd840000.usb
[   15.414849] hub 3-0:1.0: USB hub found
[   15.414888] hub 3-0:1.0: 1 port detected
[   15.415413] ohci-platform fd8c0000.usb: Generic Platform OHCI controller
[   15.415575] ohci-platform fd8c0000.usb: new USB bus registered, assigned bus number 4
[   15.415703] ohci-platform fd8c0000.usb: irq 23, io mem 0xfd8c0000
[   15.473272] ata1: SATA link down (SStatus 0 SControl 300)
[   15.474366] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[   15.474379] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[   15.474388] usb usb4: Product: Generic Platform OHCI controller
[   15.474396] usb usb4: Manufacturer: Linux 5.10.198 ohci_hcd
[   15.474403] usb usb4: SerialNumber: fd8c0000.usb
[   15.474816] hub 4-0:1.0: USB hub found
[   15.474852] hub 4-0:1.0: 1 port detected
[   15.476190] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[   15.476373] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 5
[   15.476517] xhci-hcd xhci-hcd.4.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000800002010010
[   15.476576] xhci-hcd xhci-hcd.4.auto: irq 83, io mem 0xfd000000
[   15.476704] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[   15.476846] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 6
[   15.476865] xhci-hcd xhci-hcd.4.auto: Host supports USB 3.0 SuperSpeed
[   15.477017] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[   15.477028] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[   15.477036] usb usb5: Product: xHCI Host Controller
[   15.477043] usb usb5: Manufacturer: Linux 5.10.198 xhci-hcd
[   15.477050] usb usb5: SerialNumber: xhci-hcd.4.auto
[   15.477501] hub 5-0:1.0: USB hub found
[   15.477539] hub 5-0:1.0: 1 port detected
[   15.477876] usb usb6: We don't know the algorithms for LPM for this host, disabling LPM.
[   15.477971] usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.10
[   15.477982] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[   15.477990] usb usb6: Product: xHCI Host Controller
[   15.477998] usb usb6: Manufacturer: Linux 5.10.198 xhci-hcd
[   15.478004] usb usb6: SerialNumber: xhci-hcd.4.auto
[   15.478406] hub 6-0:1.0: USB hub found
[   15.478441] hub 6-0:1.0: 1 port detected
[   15.478874] usbcore: registered new interface driver cdc_acm
[   15.478885] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[   15.478953] usbcore: registered new interface driver usblp
[   15.479015] usbcore: registered new interface driver cdc_wdm
[   15.479285] usbcore: registered new interface driver uas
[   15.479378] usbcore: registered new interface driver usb-storage
[   15.479489] usbcore: registered new interface driver usbserial_generic
[   15.479515] usbserial: USB Serial support registered for generic
[   15.479566] usbcore: registered new interface driver ch341
[   15.479588] usbserial: USB Serial support registered for ch341-uart
[   15.479635] usbcore: registered new interface driver cp210x
[   15.479657] usbserial: USB Serial support registered for cp210x
[   15.479722] usbcore: registered new interface driver ftdi_sio
[   15.479745] usbserial: USB Serial support registered for FTDI USB Serial Device
[   15.479869] usbcore: registered new interface driver keyspan
[   15.479895] usbserial: USB Serial support registered for Keyspan - (without firmware)
[   15.479916] usbserial: USB Serial support registered for Keyspan 1 port adapter
[   15.479938] usbserial: USB Serial support registered for Keyspan 2 port adapter
[   15.479959] usbserial: USB Serial support registered for Keyspan 4 port adapter
[   15.480008] usbcore: registered new interface driver option
[   15.480033] usbserial: USB Serial support registered for GSM modem (1-port)
[   15.480187] usbcore: registered new interface driver oti6858
[   15.480261] usbserial: USB Serial support registered for oti6858
[   15.480312] usbcore: registered new interface driver pl2303
[   15.480335] usbserial: USB Serial support registered for pl2303
[   15.480398] usbcore: registered new interface driver qcserial
[   15.480422] usbserial: USB Serial support registered for Qualcomm USB modem
[   15.480478] usbcore: registered new interface driver sierra
[   15.480501] usbserial: USB Serial support registered for Sierra USB modem
[   15.482018] usbcore: registered new interface driver xpad
[   15.482104] <<-GTP-INFO->> GTP driver installing...
[   15.482361] usbcore: registered new interface driver usbtouchscreen
[   15.483056] i2c /dev entries driver
[   15.486321] rk808 0-0020: chip id: 0x8090
[   15.486378] rk808 0-0020: No cache defaults, reading back from HW
[   15.510066] rk808 0-0020: source: on=0x40, off=0x00
[   15.510084] rk808 0-0020: support dcdc3 fb mode:-22, 1
[   15.510094] rk808 0-0020: support pmic reset mode:0,0
[   15.515610] rk808-regulator rk808-regulator: there is no dvs0 gpio
[   15.515645] rk808-regulator rk808-regulator: there is no dvs1 gpio
[   15.516074] vdd_logic: supplied by vcc3v3_sys
[   15.517078] vdd_gpu: supplied by vcc3v3_sys
[   15.517672] vcc_ddr: supplied by vcc3v3_sys
[   15.518259] vdd_npu: supplied by vcc3v3_sys
[   15.519195] vcc_1v8: supplied by vcc3v3_sys
[   15.519763] vdda0v9_image: supplied by vcc3v3_sys
[   15.521199] vdda_0v9: supplied by vcc3v3_sys
[   15.522296] vdda0v9_pmu: supplied by vcc3v3_sys
mount: /mnt/udisk: special device /dev/sda1 does not exist.
[   15.523372] vccio_acodec: supplied by vcc3v3_sys
dmesg(1) may have more information after failed mount system call.
[   15.524810] vccio_sd: supplied by vcc3v3_sys
[   15.525909] vcc3v3_pmu: supplied by vcc3v3_sys
[   15.527374] vcca_1v8: supplied by vcc3v3_sys
[   15.528472] vcca1v8_pmu: supplied by vcc3v3_sys
[   15.529568] vcca1v8_image: supplied by vcc3v3_sys
[   15.531000] vcc_3v3: supplied by vcc3v3_sys
[   15.531904] vcc3v3_sd: supplied by vcc3v3_sys
[   15.532488] rk817-charger: Failed to locate of_node [id: -1]
[   15.532665] rk817-charger rk817-charger: Failed to find matching dt id
[   15.535860] input: rk805 pwrkey as /devices/platform/fdd40000.i2c/i2c-0/0-0020/rk805-pwrkey/input/input1
[   15.538161] fan53555 test 0x1c succes
[   15.539098] fan53555-regulator 0-001c: FAN53555 Option[12] Rev[15] Detected!
[   15.541058] vdd_cpu: supplied by vcc5v0_sys
[   15.807094] rtc-hym8563 4-0051: could not init device, -6
[   15.889877] ov5645 1-003c: OV5645 detected at address 0x3c
[   15.889916] [ov5645_probe, 1742]: zhangpeng enter
[   15.891105] rkcifhw fdfe0000.rkcif: Adding to iommu group 7
[   15.891608] rkcifhw fdfe0000.rkcif: can't request region for resource [mem 0xfdfe0000-0xfdfe7fff]
[   15.891702] rkcifhw fdfe0000.rkcif: No reserved memory region assign to CIF
[   15.891868] rkcif rkcif_mipi_lvds: rkcif driver version: v00.02.00
[   15.892004] rkcif rkcif_mipi_lvds: attach to cif hw node
[   15.892015] rkcif rkcif_mipi_lvds: rkcif wait line 0
[   15.892027] : terminal subdev does not exist
[   15.892035] : terminal subdev does not exist
[   15.892041] : terminal subdev does not exist
[   15.892048] : terminal subdev does not exist
[   15.893409] rkcif rkcif_mipi_lvds: No memory-region-thunderboot specified
[   15.894623] rockchip-mipi-csi2-hw fdfb0000.mipi-csi2-hw: enter mipi csi2 hw probe!
[   15.894796] rockchip-mipi-csi2-hw fdfb0000.mipi-csi2-hw: probe success, v4l2_dev:mipi-csi2-hw!
[   15.895218] rockchip-mipi-csi2 mipi-csi2: attach to csi2 hw node
[   15.895333] rkcif rkcif_mipi_lvds: Entity type for entity rockchip-mipi-csi2 was not initialized!
[   15.895347] rockchip-mipi-csi2: Async registered subdev
[   15.895373] rockchip-csi2-dphy csi2-dphy0: dphy0 matches m00_b_ov5645 1-003c:bus type 5
[   15.895850] rkcif_mipi_lvds: Async subdev notifier completed
[   15.895861] rockchip-mipi-csi2: probe success, v4l2_dev:rkcif_mipi_lvds!
[   15.897838] usbcore: registered new interface driver uvcvideo
[   15.897852] USB Video Class driver (1.1.1)
[   15.899672] device-mapper: ioctl: 4.44.0-ioctl (2021-02-01) initialised: dm-devel@redhat.com
[   15.900094] Bluetooth: HCI UART driver ver 2.3
[   15.900107] Bluetooth: HCI UART protocol H4 registered
[   15.900114] Bluetooth: HCI UART protocol ATH3K registered
[   15.900192] usbcore: registered new interface driver bfusb
[   15.900298] usbcore: registered new interface driver btusb
[   15.901360] cpu cpu0: bin=0
[   15.901427] cpu cpu0: leakage=29
[   15.901469] cpu cpu0: pvtm = 87430, from nvmem
[   15.901485] cpu cpu0: pvtm-volt-sel=2
[   15.901546] cpu cpu0: soc version=0, speed=2
[   15.903250] cpu cpu0: avs=0
[   15.903581] cpu cpu0: EM: created perf domain
mount: /oem: can't find PARTLABEL=oem.
[   15.903645] cpu cpu0: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
mount: /userdata: wrong fs type, bad option, bad superblock on /dev/mmcblk0p14, missing codepage or helper program, or other error.
[   15.909729] sdhci: Secure Digital Host Controller Interface driver
dmesg(1) may have more information after failed mount system call.
[   15.909756] sdhci: Copyright(c) Pierre Ossman
[   15.909763] Synopsys Designware Multimedia Card Interface Driver
[   15.910715] sdhci-pltfm: SDHCI platform and OF driver helper
Start mounting all internal partitions in /etc/fstab
[   15.911142] dwmmc_rockchip fe000000.dwmmc: No normal pinctrl state
Log saved to /var/log/mount-all.log
[   15.911159] dwmmc_rockchip fe000000.dwmmc: No idle pinctrl state
Note: Create /.skip_fsck to skip fsck
[   15.911234] dwmmc_rockchip fe2b0000.dwmmc: No normal pinctrl state
- The check might take a while if didn't shutdown properly!
[   15.911244] dwmmc_rockchip fe2b0000.dwmmc: No idle pinctrl state
realpath: : No such file or directory
[   15.911288] dwmmc_rockchip fe000000.dwmmc: IDMAC supports 32-bit address mode.
[4]: Handling /dev/mmcblk0p14 /userdata ext4 defaults 2
[   15.911313] dwmmc_rockchip fe000000.dwmmc: Using internal DMA controller.
[   15.911324] dwmmc_rockchip fe000000.dwmmc: Version ID is 270a
[   15.911339] dwmmc_rockchip fe2b0000.dwmmc: IDMAC supports 32-bit address mode.
[   15.911357] dwmmc_rockchip fe2b0000.dwmmc: Using internal DMA controller.
[4]: Checking /dev/mmcblk0p14(ext4)
[   15.911368] dwmmc_rockchip fe2b0000.dwmmc: Version ID is 270a
e2fsck 1.46.5 (30-Dec-2021)
[   15.911376] dwmmc_rockchip fe000000.dwmmc: DW MMC controller at irq 49,32 bit host data width,256 deep fifo
ext2fs_open2: Bad magic number in super-block
[   15.911403] dwmmc_rockchip fe2b0000.dwmmc: DW MMC controller at irq 50,32 bit host data width,256 deep fifo
fsck.ext4: Superblock invalid, trying backup blocks...
[   15.911779] dwmmc_rockchip fe000000.dwmmc: allocated mmc-pwrseq
fsck.ext4: Bad magic number in super-block while trying to open /dev/mmcblk0p14
[   15.911796] mmc_host mmc3: card is non-removable.

[   15.912300] arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.
The superblock could not be read or does not describe a valid ext2/ext3/ext4
[   15.912384] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
filesystem.  If the device is valid and it really contains an ext2/ext3/ext4
[   15.913155] cryptodev: driver 1.12 loaded.
filesystem (and not swap or ufs or something else), then the superblock
[   15.913207] hid: raw HID events driver (C) Jiri Kosina
is corrupt, and you might try running e2fsck with an alternate superblock:
[   15.913458] usbcore: registered new interface driver usbhid
e2fsck -b 8193 <device>
[   15.913465] usbhid: USB HID core driver
or
[   15.914425] rockchip,bus bus-npu: bin=0
e2fsck -b 32768 <device>
[   15.914443] rockchip,bus bus-npu: Failed to get leakage

[   15.914493] rockchip,bus bus-npu: pvtm = 87430, from nvmem
[4]: Mounting /dev/mmcblk0p14(ext4) on /userdata with -o defaults
[   15.914504] rockchip,bus bus-npu: pvtm-volt-sel=1
mount: /userdata: wrong fs type, bad option, bad superblock on /dev/mmcblk0p14, missing codepage or helper program, or other error.
[   15.914712] rockchip,bus bus-npu: avs=0
dmesg(1) may have more information after failed mount system call.
[   15.918292] rp_power prepare build 9 gpio
/etc/init.d/S01boot-complete.sh: line 17: /proc/rp_system_flag/rp_boot_completed: No such file or directory
[   15.918434] rp_power request pwr_5v_3v3
Starting syslogd: OK
[   15.918457] success request gpio75 out
Starting klogd: OK
[   15.918471] rp_power request led
Running sysctl: OK
[   15.918483] success request gpio114 flash
Populating /dev using udev: [   15.918495] rp_power request usb_pwr
[   15.918506] success request gpio6 out
[   15.918519] rp_power request otg_pwr
[   15.918529] success request gpio5 out
[   15.918541] rp_power request usb_rst
[   15.918551] success request gpio8 out
[   15.918571] rp_power: probe of rp_power failed with error -1
[   15.918785] rp_gpio prepare build 9 gpio
[   15.918877] rp_gpio request gpio1d0
[   15.918891] success request gpio56 out
[   15.918905] rp_gpio request gpio1d1
[   15.918914] success request gpio57 out
[   15.918928] rp_gpio request gpio1d2
[   15.918937] success request gpio58 out
[   15.918948] rp_gpio request gpio1d3
[   15.918957] success request gpio59 out
[   15.918970] rp_gpio request gpio1d4
[   15.918978] success request gpio60 out
[   15.919019] rp_gpio request gpio4a0
[   15.919031] success request gpio128 out
[   15.919044] rp_gpio request gpio4a1
[   15.919053] success request gpio129 out
[   15.919067] rp_gpio request gpio1a4
[   15.919076] success request gpio36 out
[   15.919090] rp_gpio request gpio3c1
[   15.919099] success request gpio113 out
[   15.919441] mhi_init Quectel_Linux_PCIE_MHI_Driver_V1.3.1
[   15.919627] sprd_pci_ep_dev_init Quectel_Linux&Android_SPRD_PCIE_Driver_V1.1.8
[   15.920131] sipc: name=sprd,sipc
[   15.920138] sipc: type=1
[   15.920143] sipc: dst =1
[   15.920147] sipc: ep_dev=0
[   15.920151] sipc: smem_type = 0
[   15.920748] sipc: smem_base=0xc800000, dst_smem_base=0xc800000, smem_size=0x300000
[   15.920755] sipc: high_offset=0x0n
[   15.920758] smsg_ipc_create: sprd,sipc
[   15.921189] smem_init: pool addr = 0xc800000, size = 0x300000 added.
[   15.921205] smsg_ipc_smem_init: ring_base = 0xc800000, ring_size = 0x1000
[   15.922027] spipe_probe!
[   15.922040] spipe: after parse device tree, name=spipe_nr, dst=1, channel=4, ringnr=15,  rxbuf_size=0x1000, txbuf_size=0x1000
[   15.922051] sbuf_host_init: channel 1-4, offset = 0x0!
[   15.922384] smsg_ch_open: channel 1-4 send open msg!
[   15.923806] spipe_probe!
[   15.923819] spipe: after parse device tree, name=sdiag_nr, dst=1, channel=21, ringnr=1,  rxbuf_size=0x8000, txbuf_size=0x40000
[   15.923830] sbuf_host_init: channel 1-21, offset = 0x0!
[   15.923969] mmc_host mmc1: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)
[   15.923992] smsg_ch_open: channel 1-21 send open msg!
[   15.924151] spipe_probe!
[   15.924159] spipe: after parse device tree, name=stty_nr, dst=1, channel=6, ringnr=32,  rxbuf_size=0x800, txbuf_size=0x800
[   15.924168] sbuf_host_init: channel 1-6, offset = 0x0!
[   15.924353] smsg_ch_open: channel 1-6 send open msg!
[   15.926286] spipe_probe!
[   15.926296] spipe: after parse device tree, name=snv_nr, dst=1, channel=40, ringnr=1,  rxbuf_size=0x1000, txbuf_size=0x40400
done
[   15.926305] sbuf_host_init: channel 1-40, offset = 0x0!
Saving random seed: [   15.926412] smsg_ch_open: channel 1-40 send open msg!
OK
[   15.927044] spool: name=slog_nr, dst=1, channel=5, pre_cfg=0
[   15.927056] spool: tx_num=0, tx_size=0, rx_num=32, rx_size=65536
[   15.927330] smsg_ch_open: channel 1-5 send open msg!
Starting network: [   15.927859] usbcore: registered new interface driver snd-usb-audio
[   15.929793] rk817-codec rk817-codec: DMA mask not set
[   15.934929] rk-multicodecs rk809-sound: Failed to get ADC channel
[   15.935062] rk-multicodecs rk809-sound: ASoC: Property 'rockchip,audio-routing' does not exist or its length is not even
[   15.936145] rk817-codec rk817-codec: rk817_probe: chip_name:0x80, chip_ver:0x95
OK
[   15.940365] rk-multicodecs rk809-sound: Don't need to map headset detect gpio to irq
starting recovery...
[   15.942826] IPVS: Registered protocols (TCP, UDP)
LOG_INFO: Now is SD.
[   15.942884] IPVS: Connection hash table configured (size=4096, memory=32Kbytes)
LOG_INFO: no found mtd.
[   15.942889] mmc0: SDHCI controller on fe310000.sdhci [fe310000.sdhci] using ADMA
LOG_INFO: Boot command: boot-recovery
[   15.943015] IPVS: ipvs loaded.
LOG_INFO: Got arguments from boot message
[   15.943024] IPVS: [rr] scheduler registered.
LOG_INFO: Now is SD.
[   15.943268] Initializing XFRM netlink socket
LOG_INFO: no found mtd.
[   15.943652] NET: Registered protocol family 10
/bin/list-iodomain.sh version: V1.0.1
[   15.944407] Segment Routing with IPv6
Get CHIP ID: rk356x
[   15.944485] NET: Registered protocol family 17
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[   15.944513] NET: Registered protocol family 15
XXXXXXXXXX      PLEASE CHECK IO-DOMAIN !!!!!!!!!!!!!!!
[   15.944562] Bridge firewalling registered
XXXXXXXXXX        请务必检查IO电源域配置  !!!!!!!!!!!!!!!
[   15.944569] can: controller area network core
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[   15.944606] NET: Registered protocol family 29
Get IO DOMAIN VALUE:
[   15.944613] can: raw protocol
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[   15.944620] can: broadcast manager protocol
注意事项:PMUIO1/PMUIO2 固定不可配
[   15.944631] can: netlink gateway - max_hops=1
VCCIO2电平由硬件FLASH_VOL_SEL决定:
[   15.944923] Bluetooth: RFCOMM socket layer initialized
当VCCIo2供电是1.8V,则FLASH_VOL_SEL管脚必须保持为高电平;
[   15.944959] Bluetooth: RFCOMM ver 1.11
当VCCIO2供电是3.3V,则FLASH_VOL_SEL管脚必须保持为低电平;
[   15.944972] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[   15.944987] Bluetooth: HIDP socket layer initialized
pmuio2_vsel: 3.3V
[   15.945307] NET: Registered protocol family 41
vccio7_vsel: 3.3V
[   15.945444] 8021q: 802.1Q VLAN Support v1.8
vccio6_vsel: 1.8V
[   15.945483] [BT_RFKILL]: Enter rfkill_rk_init
vccio5_vsel: 3.3V
[   15.945490] [WLAN_RFKILL]: Enter rfkill_wlan_init
vccio4_vsel: 3.3V
[   15.946320] [WLAN_RFKILL]: Enter rfkill_wlan_probe
vccio3_vsel: 3.3V
[   15.946382] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi_chip_type = ap6398s
vccio2_vsel: 3.3V
[   15.946388] [WLAN_RFKILL]: wlan_platdata_parse_dt: enable wifi power control.
vccio1_vsel: 3.3V
[   15.946394] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi power controled by gpio.
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[   15.946424] [WLAN_RFKILL]: wlan_platdata_parse_dt: WIFI,host_wake_irq = 124, flags = 0.
The camera soft link is automatically createdOK
[   15.946434] [WLAN_RFKILL]: wlan_platdata_parse_dt: The ref_wifi_clk not found !
[   15.946439] [WLAN_RFKILL]: rfkill_wlan_probe: init gpio
[   15.946446] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 1
[   15.946452] [WLAN_RFKILL]: Exit rfkill_wlan_probe
[   15.947496] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 142.
[   15.947520] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,reset_gpio = 133.
[   15.947530] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 134.
[   15.947541] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 137.
[   15.947590] [BT_RFKILL]: Request irq for bt wakeup host
[   15.947696] [BT_RFKILL]: ** disable irq
[   15.947780] [BT_RFKILL]: bt_default device registered.
[   15.947902] Key type dns_resolver registered
[   15.949463] Loading compiled-in X.509 certificates
[   15.951382] Btrfs loaded, crc32c=crc32c-generic
[   15.951620] pstore: Using crash dump compression: deflate
[   15.952800] rga: rga2, irq = 31, match scheduler
[   15.953217] rga: rga2 hardware loaded successfully, hw_version:3.2.63318.
[   15.953243] rga: rga2 probe successfully
[   15.953580] rga_iommu: IOMMU binding successfully, default mapping core[0x4]
[   15.953802] rga: Module initialized. v1.3.1
[   15.985544] mmc0: Host Software Queue enabled
[   15.985582] mmc0: new HS200 MMC card at address 0001
[   15.986260] mmcblk0: mmc0:0001 ARJ11X 29.1 GiB
[   15.986529] mmcblk0boot0: mmc0:0001 ARJ11X partition 1 4.00 MiB
[   15.986847] mmcblk0boot1: mmc0:0001 ARJ11X partition 2 4.00 MiB
[   15.987106] mmcblk0rpmb: mmc0:0001 ARJ11X partition 3 4.00 MiB, chardev (236:0)
[   15.989989]  mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8 p9 p10 p11 p12 p13 p14
[   16.001143] mmc_host mmc1: Bus speed (slot 0) = 148500000Hz (slot req 150000000Hz, actual 148500000HZ div = 0)
[   16.001856] dwmmc_rockchip fe2b0000.dwmmc: All phases bad!
[   16.001867] mmc1: tuning execution failed: -5
[   16.001878] mmc1: error -5 whilst initialising SD card
[   16.016189] mmc_host mmc1: Bus speed (slot 0) = 375000Hz (slot req 375000Hz, actual 375000HZ div = 0)
[   16.058841] vendor storage:20190527 ret = 0
[   16.082708] mmc_host mmc1: Bus speed (slot 0) = 50000000Hz (slot req 50000000Hz, actual 50000000HZ div = 0)
[   16.082982] mmc1: new high speed SDHC card at address b36b
[   16.085168] mmcblk1: mmc1:b36b SDABC 29.1 GiB
[   16.089500]  mmcblk1: p1
[   16.130858] mmc_host mmc3: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)
[   16.146480] mpp_rkvenc fdf40000.rkvenc: Adding to iommu group 5
[   16.147218] mpp_rkvenc fdf40000.rkvenc: probing start
[   16.148495] mpp_rkvenc fdf40000.rkvenc: bin=0
[   16.148572] mpp_rkvenc fdf40000.rkvenc: Failed to get leakage
[   16.148685] mpp_rkvenc fdf40000.rkvenc: pvtm = 87430, from nvmem
[   16.148729] mpp_rkvenc fdf40000.rkvenc: pvtm-volt-sel=1
[   16.149230] mpp_rkvenc fdf40000.rkvenc: avs=0
[   16.149602] mpp_rkvenc fdf40000.rkvenc: failed to find power_model node
[   16.149637] mpp_rkvenc fdf40000.rkvenc: failed to initialize power model
[   16.149661] mpp_rkvenc fdf40000.rkvenc: failed to get dynamic-coefficient
[   16.151433] mpp_rkvenc fdf40000.rkvenc: probing finish
[   16.152635] mpp_rkvdec2 fdf80200.rkvdec: Adding to iommu group 6
[   16.153215] mpp_rkvdec2 fdf80200.rkvdec: rkvdec, probing start
[   16.154231] mpp_rkvdec2 fdf80200.rkvdec: shared_niu_a is not found!
[   16.154264] rkvdec2_init:1022: No niu aclk reset resource define
[   16.154295] mpp_rkvdec2 fdf80200.rkvdec: shared_niu_h is not found!
[   16.154316] rkvdec2_init:1025: No niu hclk reset resource define
[   16.155281] mpp_rkvdec2 fdf80200.rkvdec: bin=0
[   16.155594] mpp_rkvdec2 fdf80200.rkvdec: leakage=54
[   16.155715] mpp_rkvdec2 fdf80200.rkvdec: leakage-volt-sel=0
[   16.155819] mpp_rkvdec2 fdf80200.rkvdec: pvtm = 87430, from nvmem
[   16.155860] mpp_rkvdec2 fdf80200.rkvdec: pvtm-volt-sel=1
[   16.156544] mpp_rkvdec2 fdf80200.rkvdec: avs=0
[   16.157088] mpp_rkvdec2 fdf80200.rkvdec: failed to find power_model node
[   16.157164] mpp_rkvdec2 fdf80200.rkvdec: failed to initialize power model
[   16.157191] mpp_rkvdec2 fdf80200.rkvdec: failed to get dynamic-coefficient
[   16.157804] mpp_rkvdec2 fdf80200.rkvdec: sram_start 0x00000000fdcc0000
[   16.157815] mpp_rkvdec2 fdf80200.rkvdec: rcb_iova 0x0000000010000000
[   16.157821] mpp_rkvdec2 fdf80200.rkvdec: sram_size 45056
[   16.157828] mpp_rkvdec2 fdf80200.rkvdec: rcb_size 65536
[   16.157837] mpp_rkvdec2 fdf80200.rkvdec: min_width 512
[   16.157900] mpp_rkvdec2 fdf80200.rkvdec: link mode probe finish
[   16.157971] mpp_rkvdec2 fdf80200.rkvdec: probing finish
[   16.159011] rockchip-iodomain fdc20000.syscon:io-domains: pmuio2(3300000 uV) supplied by vcc3v3_pmu
[   16.159142] mali fde60000.gpu: Kernel DDK version g18p0-01eac0
[   16.159173] rockchip-iodomain fdc20000.syscon:io-domains: vccio1(3000000 uV) supplied by vccio_acodec
[   16.159303] rockchip-iodomain fdc20000.syscon:io-domains: vccio3(3300000 uV) supplied by vccio_sd
[   16.159491] rockchip-iodomain fdc20000.syscon:io-domains: vccio4(3300000 uV) supplied by vcc_3v3
[   16.159589] rockchip-iodomain fdc20000.syscon:io-domains: vccio5(3300000 uV) supplied by vcc_3v3
[   16.159623] mali fde60000.gpu: bin=0
[   16.159673] mali fde60000.gpu: leakage=8
[   16.159704] rockchip-iodomain fdc20000.syscon:io-domains: vccio6(1800000 uV) supplied by vcc_1v8
[   16.159712] mali fde60000.gpu: pvtm = 87430, from nvmem
[   16.159725] mali fde60000.gpu: pvtm-volt-sel=2
[   16.159741] mali fde60000.gpu: soc version=0, speed=2
[   16.159771] rockchip-iodomain fdc20000.syscon:io-domains: vccio7(3300000 uV) supplied by vcc_3v3
[   16.160370] mali fde60000.gpu: avs=0
[   16.160398] W : [File] : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; [Line] : 143; [Func] : kbase_platform_rk_init(); power-off-delay-ms not available.
[   16.160490] input: adc-keys as /devices/platform/adc-keys/input/input2
[   16.160914] mali fde60000.gpu: GPU identified as 0x2 arch 7.4.0 r1p0 status 0
[   16.161005] mali fde60000.gpu: No priority control manager is configured
[   16.161336] mali fde60000.gpu: No memory group manager is configured
[   16.163643] mali fde60000.gpu: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[   16.165222] mali fde60000.gpu: Probed as mali0
[   16.174247] rk808-rtc rk808-rtc: registered as rtc0
[   16.179121] rk808-rtc rk808-rtc: setting system clock to 2017-08-04T09:00:16 UTC (1501837216)
[   16.179206] rkcif rkcif_mipi_lvds: clear unready subdev num: 0
[   16.180466] rockchip_headset rk-headset: Can not read property hook_gpio
[   16.180494] rockchip_headset rk-headset: have not set adc chan
[   16.180503] rockchip_headset rk-headset: headset have no hook mode
[   16.180712] input: rk-headset as /devices/platform/rk-headset/input/input3
[   16.181590] RKNPU fde40000.npu: Adding to iommu group 0
[   16.182054] RKNPU fde40000.npu: RKNPU: rknpu iommu is enabled, using iommu mode
[   16.182309] RKNPU fde40000.npu: can't request region for resource [mem 0xfde40000-0xfde4ffff]
[   16.182876] [drm] Initialized rknpu 0.9.3 20231121 for fde40000.npu on minor 1
[   16.183536] RKNPU fde40000.npu: bin=0
[   16.183639] RKNPU fde40000.npu: leakage=4
[   16.183678] RKNPU fde40000.npu: pvtm = 87430, from nvmem
[   16.183695] RKNPU fde40000.npu: pvtm-volt-sel=2
[   16.183710] RKNPU fde40000.npu: soc version=0, speed=2
[   16.184251] RKNPU fde40000.npu: avs=0
[   16.184449] RKNPU fde40000.npu: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[   16.185050] RKNPU fde40000.npu: failed to find power_model node
[   16.185063] RKNPU fde40000.npu: RKNPU: failed to initialize power model
[   16.185070] RKNPU fde40000.npu: RKNPU: failed to get dynamic-coefficient
[   16.189401] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[   16.197070] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[   16.197900] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
[   16.197923] cfg80211: failed to load regulatory.db
[   16.198415] rockchip-pm rockchip-suspend: not set pwm-regulator-config
[   16.198939] rockchip-suspend not set sleep-mode-config for mem-lite
[   16.198946] rockchip-suspend not set wakeup-config for mem-lite
[   16.198953] rockchip-suspend not set sleep-mode-config for mem-ultra
[   16.198958] rockchip-suspend not set wakeup-config for mem-ultra
[   16.199894] I : [File] : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; [Line] : 406; [Func] : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '09:41:21', on 'Jul  8 2025'.
[   16.200259] Mali:
[   16.200263] Mali device driver loaded
[   16.200579] ALSA device list:
[   16.200589]   #0: rockchip-rk809
[   16.200595]   #1: rockchip,hdmi
[   16.209036] Freeing unused kernel memory: 7552K
[   16.230478] Run /init as init process
[   16.331532] FAT-fs (mmcblk1p1): utf8 is not a recommended IO charset for FAT filesystems, filesystem will be case sensitive!
[   16.380393] mmc_host mmc3: Bus speed (slot 0) = 375000Hz (slot req 375000Hz, actual 375000HZ div = 0)
[   16.555309] EXT4-fs (mmcblk0p14): VFS: Can't find ext4 filesystem
[   16.696920] ---headsetobserve_work---
[   16.726656] EXT4-fs (mmcblk0p14): VFS: Can't find ext4 filesystem
[   16.781507] udevd[296]: starting version 3.2.10
[   16.786670] udevd[297]: starting eudev-3.2.10
[   16.803726] old_status == headset_info->headset_status
[   17.056535] stream_cif_mipi_id0: open video, entity use_countt 1
[   17.057231] stream_cif_mipi_id0: close video, entity use_count 0
[   17.059270] stream_cif_mipi_id1: open video, entity use_countt 1
[   17.059496] stream_cif_mipi_id1: close video, entity use_count 0
[   17.063144] stream_cif_mipi_id3: open video, entity use_countt 1
[   17.063360] stream_cif_mipi_id3: close video, entity use_count 0
/etc/init.d/S99_config_soundcard: line 3: alsactl: command not found
[   17.067466] stream_cif_mipi_id2: open video, entity use_countt 1
-i use default asound.conf
[   17.067699] stream_cif_mipi_id2: close video, entity use_count 0
Starting mobilenet:OK
[   17.589925] file system registered
Starting input-event-daemon: done
[   17.640667] read descriptors
[   17.640703] read strings
root@rk3566-recovery:/# [   18.510541] Freeing drm_logo memory: 1048K
[   47.497166] vcc3v3_lcd0_n: disabling
[   47.497267] vcc3v3_lcd1_n: disabling
[   74.687162]  mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8 p9 p10 p11 p12 p13 p14
[   74.799179]  mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8 p9 p10 p11 p12 p13 p14
[  181.268495]  mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8 p9 p10 p11 p12 p13 p14
[  181.308232] GPT:disk_guids don't match.
[  181.308266] GPT:partition_entry_array_crc32 values don't match: 0xbc2d202f != 0x464f4276
[  181.308274] GPT: Use GNU Parted to correct GPT errors.
[  181.308306]  mmcblk0: p1 p2 p3 p4 p5 p6
[  181.353577] GPT:disk_guids don't match.
[  181.353629] GPT:partition_entry_array_crc32 values don't match: 0xbc2d202f != 0x464f4276
[  181.353637] GPT: Use GNU Parted to correct GPT errors.
[  181.353685]  mmcblk0: p1 p2 p3 p4 p5 p6
[  181.487212] udevd[851]: inotify_add_watch(6, /dev/mmcblk0p9, 10) failed: No such file or directory
[  181.488671] udevd[850]: inotify_add_watch(6, /dev/mmcblk0p12, 10) failed: No such file or directory
[  181.490324] udevd[844]: inotify_add_watch(6, /dev/mmcblk0p7, 10) failed: No such file or directory
[  181.491611] udevd[889]: inotify_add_watch(6, /dev/mmcblk0p13, 10) failed: No such file or directory
[  181.491837] udevd[834]: inotify_add_watch(6, /dev/mmcblk0p8, 10) failed: No such file or directory
[  181.492603] udevd[853]: inotify_add_watch(6, /dev/mmcblk0p11, 10) failed: No such file or directory
[  181.493456] udevd[842]: inotify_add_watch(6, /dev/mmcblk0p10, 10) failed: No such file or directory
[  181.497964] udevd[890]: inotify_add_watch(6, /dev/mmcblk0p14, 10) failed: No such file or directory
[  182.997891] GPT:disk_guids don't match.
[  182.997956] GPT:partition_entry_array_crc32 values don't match: 0xbc2d202f != 0x464f4276
[  182.997973] GPT: Use GNU Parted to correct GPT errors.
[  182.998044]  mmcblk0: p1 p2 p3 p4 p5 p6
[  190.821932] GPT:disk_guids don't match.
[  190.821967] GPT:partition_entry_array_crc32 values don't match: 0xbc2d202f != 0x464f4276
[  190.821974] GPT: Use GNU Parted to correct GPT errors.
[  190.822002]  mmcblk0: p1 p2 p3 p4 p5 p6
[  190.836545] GPT:disk_guids don't match.
[  190.836576] GPT:partition_entry_array_crc32 values don't match: 0xbc2d202f != 0x464f4276
[  190.836582] GPT: Use GNU Parted to correct GPT errors.
[  190.836617]  mmcblk0: p1 p2 p3 p4 p5 p6
LOG_INFO:
Please remove SD CARD!!!, wait for reboot.
[  296.444870] mmc1: card b36b removed
LOG_INFO: finish_recovery Enter.....
LOG_ERROR: failed to mount /userdata (No such file or directory)
LOG_ERROR: Can't mount /userdata/recovery/log
LOG_ERROR: Can't open /userdata/recovery/log
LOG_ERROR: failed to mount /userdata (No such file or directory)
LOG_ERROR: Can't mount /userdata/recovery/last_log
LOG_ERROR: Can't open /userdata/recovery/last_log
LOG_INFO: Now is SD.
LOG_INFO: no found mtd.
LOG_ERROR: failed to mount /userdata (No such file or directory)
LOG_WARN: Can't unlink /userdata/recovery/command
LOG_INFO: recovery usage time:281153 ms
LOG_INFO: Reboot...
[  299.476630] rk808 0-0020: reboot: not restore POWER_EN
[  299.527971] mpp_rkvdec2 fdf80200.rkvdec: shutdown device
[  299.533342] mpp_rkvdec2 fdf80200.rkvdec: shutdown success
[  299.538793] mpp_rkvenc fdf40000.rkvenc: shutdown device
[  299.544046] mpp_rkvenc fdf40000.rkvenc: shutdown success
[  299.553725] fan53555-regulator 0-001c: fan53555..... reset
[  299.560210] fan53555-regulator 0-001c: reset: force fan53555_reset ok!
[  299.575845] rockchip-vop2 fe040000.vop: [drm:vop2_crtc_atomic_disable] Crtc atomic disable vp0
[  299.602866] [WLAN_RFKILL]: Enter rfkill_wlan_shutdown
[  299.607960] [WLAN_RFKILL]: rockchip_wifi_power: 0
[  299.612706] [WLAN_RFKILL]: rockchip_wifi_power: toggle = false
[  299.618567] [WLAN_RFKILL]: rockchip_wifi_power: toggle = false
[  299.624430] [WLAN_RFKILL]: wifi shut off power [GPIO-1-1]
[  299.629847] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 0
[  299.635959] mpp-iep2 fdef0000.iep: shutdown device
[  299.640794] mpp-iep2 fdef0000.iep: shutdown success
[  299.645753] mpp_vepu2 fdee0000.vepu: shutdown device
[  299.650742] mpp_vepu2 fdee0000.vepu: shutdown success
[  299.655864] mpp_jpgdec fded0000.jpegd: shutdown device
[  299.661032] mpp_jpgdec fded0000.jpegd: shutdown success
[  299.666343] mpp_vdpu2 fdea0400.vdpu: shutdown device
[  299.671336] mpp_vdpu2 fdea0400.vdpu: shutdown success
[  299.676764] xhci-hcd xhci-hcd.4.auto: remove, state 4
[  299.681860] usb usb6: USB disconnect, device number 1
[  299.688258] xhci-hcd xhci-hcd.4.auto: USB bus 6 deregistered
[  299.694456] xhci-hcd xhci-hcd.4.auto: remove, state 4
[  299.699628] usb usb5: USB disconnect, device number 1
[  299.706161] xhci-hcd xhci-hcd.4.auto: USB bus 5 deregistered
[  299.716041] dwc3 fcc00000.dwc3: request 0000000064642e24 was not queued to ep0out
[  299.726623] reboot: Restarting system
[  299.726660] android_work: did not send uevent (0 0 0000000000000000)
DDR V1.14 b1f29a2a6f typ 22/09/02-16:40:04
ln
ddrconfig:0
LP4 MR14:0x4d
LPDDR4, 324MHz
BW=32 Col=10 Bk=8 CS0 Row=17 CS=1 Die BW=16 Size=4096MB
tdqss: cs0 dqs0: -24ps, dqs1: -96ps, dqs2: -72ps, dqs3: -120ps,

change to: 324MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x62

change to: 528MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x58

change to: 780MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x58

change to: 1056MHz(final freq)
PHY drv:clk:38,ca:38,DQ:30,odt:60
vrefinner:16%, vrefout:29%
dram drv:40,odt:80
vref_ca:00000068
clk skew:0x2c
cs 0:
the read training result:
DQS0:0x3c, DQS1:0x3d, DQS2:0x39, DQS3:0x3f,
min  : 0x7  0x5  0x4  0x4  0x4  0x4  0x2  0x1 , 0x2  0x4  0x9  0x4  0x1  0x3  0x6  0x1 ,
0x7  0x7  0x6  0x3  0x3  0x3  0x4  0x1 , 0xc  0x8  0xa  0x7  0x8  0x7  0x9  0x2 ,
mid  :0x27 0x23 0x24 0x24 0x24 0x22 0x22 0x20 ,0x22 0x24 0x28 0x23 0x21 0x23 0x25 0x20 ,
0x27 0x26 0x24 0x22 0x21 0x22 0x22 0x1f ,0x2a 0x26 0x28 0x26 0x26 0x25 0x27 0x21 ,
max  :0x48 0x42 0x44 0x44 0x44 0x41 0x42 0x3f ,0x43 0x45 0x48 0x43 0x41 0x44 0x45 0x40 ,
0x47 0x45 0x42 0x41 0x3f 0x41 0x41 0x3d ,0x49 0x44 0x47 0x45 0x45 0x44 0x46 0x41 ,
range:0x41 0x3d 0x40 0x40 0x40 0x3d 0x40 0x3e ,0x41 0x41 0x3f 0x3f 0x40 0x41 0x3f 0x3f ,
0x40 0x3e 0x3c 0x3e 0x3c 0x3e 0x3d 0x3c ,0x3d 0x3c 0x3d 0x3e 0x3d 0x3d 0x3d 0x3f ,
the write training result:
DQS0:0x29, DQS1:0x20, DQS2:0x23, DQS3:0x1c,
min  :0x4f 0x4f 0x4f 0x50 0x4e 0x4d 0x4d 0x4f 0x4f ,0x43 0x44 0x4a 0x46 0x43 0x46 0x48 0x47 0x45 ,
0x4b 0x4b 0x4a 0x4a 0x48 0x48 0x4a 0x4a 0x4b ,0x44 0x41 0x44 0x43 0x42 0x42 0x44 0x43 0x3f ,
mid  :0x6c 0x6b 0x6b 0x6c 0x69 0x69 0x69 0x6a 0x6b ,0x5f 0x60 0x66 0x62 0x5e 0x61 0x64 0x63 0x60 ,
0x68 0x67 0x65 0x65 0x62 0x62 0x63 0x63 0x66 ,0x60 0x5b 0x5e 0x5d 0x5c 0x5d 0x5f 0x5d 0x5c ,
max  :0x89 0x87 0x88 0x88 0x85 0x85 0x85 0x86 0x87 ,0x7c 0x7c 0x83 0x7e 0x7a 0x7d 0x80 0x80 0x7c ,
0x85 0x83 0x81 0x81 0x7d 0x7d 0x7d 0x7d 0x82 ,0x7c 0x76 0x79 0x78 0x77 0x78 0x7b 0x77 0x79 ,
range:0x3a 0x38 0x39 0x38 0x37 0x38 0x38 0x37 0x38 ,0x39 0x38 0x39 0x38 0x37 0x37 0x38 0x39 0x37 ,
0x3a 0x38 0x37 0x37 0x35 0x35 0x33 0x33 0x37 ,0x38 0x35 0x35 0x35 0x35 0x36 0x37 0x34 0x3a ,
CA Training result:
cs:0 min  :0x45 0x44 0x3c 0x3a 0x3c 0x38 0x3f ,0x45 0x40 0x3d 0x38 0x3b 0x34 0x3b ,
cs:0 mid  :0x82 0x84 0x79 0x7a 0x79 0x77 0x6d ,0x83 0x80 0x79 0x78 0x79 0x75 0x69 ,
cs:0 max  :0xc0 0xc4 0xb6 0xba 0xb7 0xb7 0x9c ,0xc1 0xc1 0xb6 0xb9 0xb8 0xb6 0x98 ,
cs:0 range:0x7b 0x80 0x7a 0x80 0x7b 0x7f 0x5d ,0x7c 0x81 0x79 0x81 0x7d 0x82 0x5d ,
out
U-Boot SPL board init
U-Boot SPL 2017.09-gaaca6ffec1-211203 #zzz (Dec 03 2021 - 18:42:16)
unknown raw ID phN
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
MMC error: The cmd index is 1, ret is -110
Card did not respond to voltage select!
mmc_init: -95, time 17
spl: mmc init failed with error: -95
Trying to boot from MMC1
Magic is incorrect.
Error validating A/B metadata from disk. Resetting and writing new A/B metadata to disk.
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x00040000 ... sha256(b5946ac63d...) + OK
## Checking uboot 0x00a00000 ... sha256(6be14b813a...) + OK
## Checking fdt 0x00b47c68 ... sha256(036cca5880...) + OK
## Checking atf-2 0xfdcc1000 ... sha256(b8dca786b4...) + OK
## Checking atf-3 0x0006b000 ... sha256(2f91089eb7...) + OK
## Checking atf-4 0xfdcce000 ... sha256(86ef885748...) + OK
## Checking atf-5 0xfdcd0000 ... sha256(0b2b146c60...) + OK
## Checking atf-6 0x00069000 ... sha256(a9a1e63bef...) + OK
## Checking optee 0x08400000 ... sha256(6c92ef6a0e...) + OK
Jumping to U-Boot(0x00a00000) via ARM Trusted Firmware(0x00040000)
Total: 332.402 ms

INFO:    Preloader serial: 2
NOTICE:  BL31: v2.3():v2.3-645-g8cea6ab0b:cl, fwver: v1.44
NOTICE:  BL31: Built : 16:36:43, Sep 19 2023
INFO:    GICv3 without legacy support detected.
INFO:    ARM GICv3 driver initialized in EL3
INFO:    pmu v1 is valid 220114
INFO:    l3 cache partition cfg-0
INFO:    dfs DDR fsp_param[0].freq_mhz= 1056MHz
INFO:    dfs DDR fsp_param[1].freq_mhz= 324MHz
INFO:    dfs DDR fsp_param[2].freq_mhz= 528MHz
INFO:    dfs DDR fsp_param[3].freq_mhz= 780MHz
INFO:    Using opteed sec cpu_context!
INFO:    boot cpu mask: 0
INFO:    BL31: Initializing runtime services
INFO:    BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-743-gb5340fd65 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #5 Mon Aug 28 15:15:17 CST 2023 aarch64
I/TC: Primary CPU initializing
E/TC:0 0 hal_algo_version_init:296 CRYPTO_CRYPTO_VERSION_NEW no support. Skip all algo mode check.
I/TC: Primary CPU switching to normal world boot
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0xa00000
INFO:    SPSR = 0x3c9


U-Boot 2017.09 (Jul 11 2025 - 10:58:04 +0800)

Model: Rockchip RK3568 Evaluation Board
MPIDR: 0x81000000
PreSerial: 2, raw, 0xfe660000
DRAM:  3.7 GiB
Sysmem: init
Relocation Offset: ed217000
Relocation fdt: eb9f8948 - eb9fece0
CR: M/C/I
Using default environment

optee api revision: 2.0
dwmmc@fe2b0000: 1, dwmmc@fe2c0000: 2, sdhci@fe310000: 0
Bootdev(atags): mmc 0
MMC0: HS200, 200Mhz
PartType: EFI
TEEC: Waring: Could not find security partition
DM: v1
boot mode: normal
RESC: 'boot', blk@0x0001c65d
resource: sha256+
FIT: no signed, no conf required
DTB: rk-kernel.dtb
HASH(c): OK
I2c0 speed: 100000Hz
PMIC:  RK8090 (on=0x40, off=0x00)
vdd_logic init 950000 uV
vdd_gpu init 900000 uV
vdd_npu init 900000 uV
vsel-gpios- not found! Error: -2
vdd_cpu init 1000000 uV
io-domain: OK
INFO:    ddr dmc_fsp already initialized in loader.
Could not find baseparameter partition
Model: pro-rk3566
MPIDR: 0x81000000
ethaddr = 6a:a4:f2:25:03:19
eth1addr = 6e:a4:f2:25:03:19
eth2addr = ee:b6:34:51:5d:03
eth3addr = 92:ed:8f:4f:43:c0
rp_power not have children !
rp_power have node!
rp_power: pwr_5v_3v3 gpio set output
rp_power: led gpio function is 3, not realize!
rp_power: usb_pwr gpio set output
rp_power: otg_pwr gpio set output
rp_power: usb_rst gpio set output
rp_power: spk_en gpio function get error, set gpio default dir to output
rp_power: spk_en gpio get error
rp_power: spk_mute gpio set output
rp_power: usb_mode gpio set output
rp_power: Equipment_EN gpio set output
Rockchip UBOOT DRM driver version: v1.0.1
VOP have 1 active VP
vp0 have layer nr:6[0 2 4 1 3 5 ], primary plane: 4
vp1 have layer nr:0[], primary plane: 0
vp2 have layer nr:0[], primary plane: 0
xfer: num: 2, addr: 0x50
xfer: num: 2, addr: 0x50
Monitor has basic audio support
Could not find baseparameter partition
hdmi@fe0a0000:  detailed mode clock 148500 kHz, flags[5]
H: 1920 2008 2052 2200
V: 1080 1084 1089 1125
bus_format: 2025
VOP update mode to: 1920x1080p60, type: HDMI0 for VP0
VP0 set crtc_clock to 148500KHz
VOP VP0 enable Smart0[654x270->654x270@633x405] fmt[2] addr[0xedf2c000]
CEA mode used vic=16
final pixclk = 148500000 tmdsclk = 148500000
PHY powered down in 0 iterations
PHY PLL locked 1 iterations
PHY powered down in 0 iterations
PHY PLL locked 1 iterations
sink has audio support
hdmi_set_clk_regenerator: fs=48000Hz ftdms=148.500MHz N=6144 cts=148500
CLK: (sync kernel. arm: enter 816000 KHz, init 816000 KHz, kernel 0N/A)
apll 1104000 KHz
dpll 528000 KHz
gpll 1188000 KHz
cpll 1000000 KHz
npll 1200000 KHz
vpll 24000 KHz
hpll 148500 KHz
ppll 200000 KHz
armclk 1104000 KHz
aclk_bus 150000 KHz
pclk_bus 100000 KHz
aclk_top_high 500000 KHz
aclk_top_low 400000 KHz
hclk_top 150000 KHz
pclk_top 100000 KHz
aclk_perimid 300000 KHz
hclk_perimid 150000 KHz
pclk_pmu 100000 KHz
Net:   eth1: ethernet@fe010000
Hit key to stop autoboot('CTRL+C'):  0
ANDROID: reboot reason: "(none)"
Not AVB images, AVB skip
No valid android hdr
Android image load failed
Android boot failed, error -1.
## Booting FIT Image at 0xe8f2bf00 with size 0x028cba00
Fdt Ramdisk skip relocation
## Loading kernel from FIT Image at e8f2bf00 ...
Using 'conf' configuration
## Verified-boot: 0
Trying 'kernel' kernel subimage
Description:  unavailable
Type:         Kernel Image
Compression:  uncompressed
Data Start:   0xe8f55f00
Data Size:    42605056 Bytes = 40.6 MiB
Architecture: AArch64
OS:           Linux
Load Address: 0x00280000
Entry Point:  0x00280000
Hash algo:    sha256
Hash value:   e80143e08e6530852192e34c9832cc35cbf815029b09e1d027a621a851767513
Verifying Hash Integrity ... sha256+ OK
## Loading fdt from FIT Image at e8f2bf00 ...
Using 'conf' configuration
Trying 'fdt' fdt subimage
Description:  unavailable
Type:         Flat Device Tree
Compression:  uncompressed
Data Start:   0xe8f2c700
Data Size:    169955 Bytes = 166 KiB
Architecture: AArch64
Load Address: 0x08300000
Hash algo:    sha256
Hash value:   aa03975c23e9ca53e194f3eaa8cf4f5c8980d2baebbd1e73626a72c309d954ca
Verifying Hash Integrity ... sha256+ OK
Loading fdt from 0x08300000 to 0x08300000
Booting using the fdt blob at 0x08300000
Loading Kernel Image from 0xe8f55f00 to 0x00280000 ... OK
kernel loaded at 0x00280000, end = 0x02b21a00
Using Device Tree in place at 0000000008300000, end 000000000832c7e2
vp0, plane_mask:0x3f, primary-id:4, curser-id:-1
vp1, plane_mask:0x0, primary-id:0, curser-id:-1
vp2, plane_mask:0x0, primary-id:0, curser-id:-1
WARNING: could not set reg FDT_ERR_BADOFFSET.
## reserved-memory:
drm-logo@00000000: addr=edf00000 size=106000
drm-cubic-lut@00000000: addr=eff00000 size=8000
ramoops@110000: addr=110000 size=f0000
Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)
Adding bank: 0x09400000 - 0xf0000000 (size: 0xe6c00000)
== DO RELOCATE == Kernel from 0x00280000 to 0x00200000
Total: 1432.525/1566.692 ms

Starting kernel ...

[    1.577174] Booting Linux on physical CPU 0x0000000000 [0x412fd050]
[    1.577202] Linux version 5.10.198 (rootroot@rootroot-X99-Turbo) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #1 SMP Tue Jul 8 09:38:35 CST 2025
[    1.579067] random: crng init done
[    1.583205] Machine model: pro-rk3566
[    1.627419] earlycon: uart8250 at MMIO32 0x00000000fe660000 (options '')
[    1.679598] printk: bootconsole [uart8250] enabled
[    1.686043] efi: UEFI not found.
[    1.747796] Zone ranges:
[    1.750580]   DMA      [mem 0x0000000000200000-0x00000000efffffff]
[    1.757362]   DMA32    empty
[    1.760514]   Normal   empty
[    1.763665] Movable zone start for each node
[    1.768341] Early memory node ranges
[    1.772254]   node   0: [mem 0x0000000000200000-0x00000000083fffff]
[    1.779124]   node   0: [mem 0x0000000009400000-0x00000000efffffff]
[    1.785998] Initmem setup node 0 [mem 0x0000000000200000-0x00000000efffffff]
[    1.823852] cma: Reserved 16 MiB at 0x00000000ee400000
[    1.829580] psci: probing for conduit method from DT.
[    1.835128] psci: PSCIv1.1 detected in firmware.
[    1.840188] psci: Using standard PSCI v0.2 function IDs
[    1.845917] psci: Trusted OS migration not required
[    1.851264] psci: SMC Calling Convention v1.2
[    1.856457] percpu: Embedded 31 pages/cpu s88344 r8192 d30440 u126976
[    1.863634] Detected VIPT I-cache on CPU0
[    1.868072] CPU features: detected: GIC system register CPU interface
[    1.875134] CPU features: detected: Virtualization Host Extensions
[    1.881914] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
[    1.889570] alternatives: patching kernel code
[    1.896658] Built 1 zonelists, mobility grouping on.  Total pages: 963080
[    1.904107] Kernel command line: storagemedia=emmc androidboot.storagemedia=emmc androidboot.mode=normal  androidboot.verifiedbootstate=orange rw rootwait earlycon=uart8250,mmio32,0xfe660000 console=ttyFIQ0 root=PARTUUID=614e0000-0000 androidboot.fwver=bl31-v1.44,uboot-07/11/2025
[    1.932558] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[    1.941735] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[    1.950230] mem auto-init: stack:off, heap alloc:off, heap free:off
[    2.009579] Memory: 3777052K/3913728K available (22208K kernel code, 3846K rwdata, 7876K rodata, 7552K init, 878K bss, 120292K reserved, 16384K cma-reserved)
[    2.025159] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[    2.032353] ftrace: allocating 67078 entries in 263 pages
[    2.127564] ftrace: allocated 263 pages with 4 groups
[    2.133463] rcu: Hierarchical RCU implementation.
[    2.138625] rcu:     RCU event tracing is enabled.
[    2.143588] rcu:     RCU dyntick-idle grace-period acceleration is enabled.
[    2.150934] rcu:     RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.
[    2.158090]     Rude variant of Tasks RCU enabled.
[    2.163050]     Tracing variant of Tasks RCU enabled.
[    2.168300] rcu: RCU calculated value of scheduler-enlistment delay is 30 jiffies.
[    2.176599] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4
[    2.188990] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    2.196706] GICv3: GIC: Using split EOI/Deactivate mode
[    2.202446] GICv3: 320 SPIs implemented
[    2.206646] GICv3: 0 Extended SPIs implemented
[    2.211551] GICv3: Distributor has no Range Selector support
[    2.217763] GICv3: 16 PPIs implemented
[    2.221904] GICv3: CPU0: found redistributor 0 region 0:0x00000000fd460000
[    2.229559] ITS [mem 0xfd440000-0xfd45ffff]
[    2.234212] ITS@0x00000000fd440000: allocated 8192 Devices @2e00000 (indirect, esz 8, psz 64K, shr 0)
[    2.244355] ITS@0x00000000fd440000: allocated 32768 Interrupt Collections @2e10000 (flat, esz 2, psz 64K, shr 0)
[    2.255518] ITS: using cache flushing for cmd queue
[    2.261261] GICv3: using LPI property table @0x0000000002e20000
[    2.267867] GIC: using cache flushing for LPI property table
[    2.274072] GICv3: CPU0: using allocated LPI pending table @0x0000000002e30000
[    2.282056] rcu:     Offload RCU callbacks from CPUs: (none).
[    2.317358] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[    2.324054] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[    2.335890] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[    2.345782] Console: colour dummy device 80x25
[    2.350704] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=80000)
[    2.361977] pid_max: default: 32768 minimum: 301
[    2.367139] LSM: Security Framework initializing
[    2.372271] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    2.380402] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[    2.390584] rcu: Hierarchical SRCU implementation.
[    2.396677] Platform MSI: interrupt-controller@fd440000 domain created
[    2.404329] PCI/MSI: /interrupt-controller@fd400000/interrupt-controller@fd440000 domain created
[    2.414355] EFI services will not be available.
[    2.419663] smp: Bringing up secondary CPUs ...
I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
[    2.432982] Detected VIPT I-cache on CPU1
[    2.433015] GICv3: CPU1: found redistributor 100 region 0:0x00000000fd480000
[    2.433037] GICv3: CPU1: using allocated LPI pending table @0x0000000002e40000
[    2.433093] CPU1: Booted secondary processor 0x0000000100 [0x412fd050]
[    2.441448] Detected VIPT I-cache on CPU2
[    2.441474] GICv3: CPU2: found redistributor 200 region 0:0x00000000fd4a0000
[    2.441494] GICv3: CPU2: using allocated LPI pending table @0x0000000002e50000
[    2.441534] CPU2: Booted secondary processor 0x0000000200 [0x412fd050]
[    2.449838] Detected VIPT I-cache on CPU3
[    2.449864] GICv3: CPU3: found redistributor 300 region 0:0x00000000fd4c0000
[    2.449883] GICv3: CPU3: using allocated LPI pending table @0x0000000002e60000
[    2.449919] CPU3: Booted secondary processor 0x0000000300 [0x412fd050]
[    2.450014] smp: Brought up 1 node, 4 CPUs
[    2.536124] SMP: Total of 4 processors activated.
[    2.541285] CPU features: detected: Privileged Access Never
[    2.547398] CPU features: detected: LSE atomic instructions
[    2.553510] CPU features: detected: User Access Override
[    2.559336] CPU features: detected: 32-bit EL0 Support
[    2.564973] CPU features: detected: Common not Private translations
[    2.571848] CPU features: detected: RAS Extension Support
[    2.577771] CPU features: detected: Data cache clean to the PoU not required for I/D coherence
[    2.587221] CPU features: detected: CRC32 instructions
[    2.592856] CPU features: detected: Speculative Store Bypassing Safe (SSBS)
[    2.600495] CPU features: detected: RCpc load-acquire (LDAPR)
[    2.641783] CPU: All CPU(s) started at EL2
[    2.647917] devtmpfs: initialized
[    2.674250] Registered cp15_barrier emulation handler
[    2.679832] Registered setend emulation handler
[    2.684988] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns
[    2.695697] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[    2.703858] pinctrl core: initialized pinctrl subsystem
[    2.710159] DMI not present or invalid.
[    2.714659] NET: Registered protocol family 16
[    2.721190] DMA: preallocated 512 KiB GFP_KERNEL pool for atomic allocations
[    2.729112] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[    2.737726] audit: initializing netlink subsys (disabled)
[    2.743834] audit: type=2000 audit(0.249:1): state=initialized audit_enabled=0 res=1
[    2.746003] Registered FIQ tty driver
[    2.756758] thermal_sys: Registered thermal governor 'fair_share'
[    2.756762] thermal_sys: Registered thermal governor 'step_wise'
[    2.763457] thermal_sys: Registered thermal governor 'user_space'
[    2.770049] thermal_sys: Registered thermal governor 'power_allocator'
[    2.777053] thermal thermal_zone1: power_allocator: sustainable_power will be estimated
[    2.793071] cpuidle: using governor menu
[    2.797683] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[    2.805250] ASID allocator initialised with 65536 entries
[    2.813556] ramoops: dmesg-0    0x20000@0x0000000000110000
[    2.820508] ramoops: console    0x80000@0x0000000000130000
[    2.826261] ramoops: pmsg    0x50000@0x00000000001b0000
[    2.832065] printk: console [ramoops-1] enabled
[    2.837040] pstore: Registered ramoops as persistent store backend
[    2.843823] ramoops: using 0xf0000@0x110000, ecc: 0
[    2.886298] rockchip-gpio fdd60000.gpio0: probed /pinctrl/gpio0@fdd60000
[    2.894187] rockchip-gpio fe740000.gpio1: probed /pinctrl/gpio1@fe740000
[    2.902000] rockchip-gpio fe750000.gpio2: probed /pinctrl/gpio2@fe750000
[    2.909867] rockchip-gpio fe760000.gpio3: probed /pinctrl/gpio3@fe760000
[    2.917680] rockchip-gpio fe770000.gpio4: probed /pinctrl/gpio4@fe770000
[    2.925154] rockchip-pinctrl pinctrl: probed pinctrl
[    3.009364] raid6: neonx8   gen()  2420 MB/s
[    3.069408] raid6: neonx8   xor()  1919 MB/s
[    3.129470] raid6: neonx4   gen()  2478 MB/s
[    3.189521] raid6: neonx4   xor()  1899 MB/s
[    3.249574] raid6: neonx2   gen()  2250 MB/s
[    3.309628] raid6: neonx2   xor()  1740 MB/s
[    3.369684] raid6: neonx1   gen()  1837 MB/s
[    3.429737] raid6: neonx1   xor()  1400 MB/s
[    3.489800] raid6: int64x8  gen()  1640 MB/s
[    3.549859] raid6: int64x8  xor()   885 MB/s
[    3.609908] raid6: int64x4  gen()  1775 MB/s
[    3.669956] raid6: int64x4  xor()   951 MB/s
[    3.730021] raid6: int64x2  gen()  1578 MB/s
[    3.790070] raid6: int64x2  xor()   852 MB/s
[    3.850122] raid6: int64x1  gen()  1135 MB/s
[    3.910172] raid6: int64x1  xor()   580 MB/s
[    3.914858] raid6: using algorithm neonx4 gen() 2478 MB/s
[    3.920779] raid6: .... xor() 1899 MB/s, rmw enabled
[    3.926225] raid6: using neon recovery algorithm
[    3.932879] fiq_debugger fiq_debugger.0: IRQ fiq not found
[    3.938923] fiq_debugger fiq_debugger.0: IRQ wakeup not found
[    3.945241] fiq_debugger_probe: could not install nmi irq handler
[[    3.952017] printk: console [ttyFIQ0] enabled
3.952017] printk: console [ttyFIQ0] enabled
[    3.961144] printk: bootconsole [uar[    3.961144] printk: bootconsole [uart8250] disabled
t8250] disabled
[    3.971566] Registered fiq debugger ttyFIQ0
[    3.972347] vcc3v3_sys: supplied by dc_12v
[    3.972609] vcc5v0_sys: supplied by dc_12v
[    3.973159] vcc3v3_lcd0_n: supplied by vcc3v3_sys
[    3.973459] vcc3v3_lcd1_n: supplied by vcc3v3_sys
[    3.974388] iommu: Default domain type: Translated
[    3.977914] SCSI subsystem initialized
[    3.978174] usbcore: registered new interface driver usbfs
[    3.978230] usbcore: registered new interface driver hub
[    3.978271] usbcore: registered new device driver usb
[    3.978363] mc: Linux media interface: v0.10
[    3.978394] videodev: Linux video capture interface: v2.00
[    3.978478] pps_core: LinuxPPS API ver. 1 registered
[    3.978487] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    3.978504] PTP clock support registered
[    3.978542] EDAC MC: Ver: 3.0.0
[    3.979483] arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
[    3.979553] arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
[    3.981844] Advanced Linux Sound Architecture Driver Initialized.
[    3.982329] Bluetooth: Core ver 2.22
[    3.982371] NET: Registered protocol family 31
[    3.982381] Bluetooth: HCI device and connection manager initialized
[    3.982394] Bluetooth: HCI socket layer initialized
[    3.982403] Bluetooth: L2CAP socket layer initialized
[    3.982422] Bluetooth: SCO socket layer initialized
[    3.982795] rockchip-cpuinfo cpuinfo: SoC        : 35662000
[    3.982808] rockchip-cpuinfo cpuinfo: Serial        : ba7f186fecbfe667
[    3.983575] clocksource: Switched to clocksource arch_sys_counter
[    4.433220] NET: Registered protocol family 2
[    4.433493] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear)
[    4.435350] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
[    4.435407] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
[    4.435569] TCP bind hash table entries: 32768 (order: 7, 524288 bytes, linear)
[    4.436019] TCP: Hash tables configured (established 32768 bind 32768)
[    4.436167] UDP hash table entries: 2048 (order: 4, 65536 bytes, linear)
[    4.436225] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes, linear)
[    4.436404] NET: Registered protocol family 1
[    4.436864] RPC: Registered named UNIX socket transport module.
[    4.436875] RPC: Registered udp transport module.
[    4.436882] RPC: Registered tcp transport module.
[    4.436887] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    4.437903] PCI: CLS 0 bytes, default 64
[    4.440636] rockchip-thermal fe710000.tsadc: tsadc is probed successfully!
[    4.441650] hw perfevents: enabled with armv8_cortex_a55 PMU driver, 7 counters available
[    4.445915] Initialise system trusted keyrings
[    4.446063] workingset: timestamp_bits=46 max_order=20 bucket_order=0
[    4.451195] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    4.451962] NFS: Registering the id_resolver key type
[    4.452001] Key type id_resolver registered
[    4.452010] Key type id_legacy registered
[    4.452052] ntfs: driver 2.1.32 [Flags: R/O].
[    4.452199] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[    4.452427] fuse: init (API version 7.32)
[    4.452794] SGI XFS with security attributes, no debug enabled
[    4.484996] NET: Registered protocol family 38
[    4.485024] xor: measuring software checksum speed
[    4.488718]    8regs           :  2678 MB/sec
[    4.491737]    32regs          :  3292 MB/sec
[    4.495055]    arm64_neon      :  2985 MB/sec
[    4.495063] xor: using function: 32regs (3292 MB/sec)
[    4.495080] Key type asymmetric registered
[    4.495088] Asymmetric key parser 'x509' registered
[    4.495149] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
[    4.495292] io scheduler mq-deadline registered
[    4.495309] io scheduler kyber registered
[    4.496067] rockchip-csi2-dphy-hw fe870000.csi2-dphy-hw: csi2 dphy hw probe successfully!
[    4.496876] rockchip-csi2-dphy csi2-dphy0: csi2 dphy0 probe successfully!
[    4.507150] pwm-backlight backlight: supply power not found, using dummy regulator
[    4.507660] iep: Module initialized.
[    4.507721] mpp_service mpp-srv:
[    4.507731] mpp_service mpp-srv: probe start
[    4.509737] mpp_vdpu2 fdea0400.vdpu: Adding to iommu group 1
[    4.509945] mpp_vdpu2 fdea0400.vdpu: probe device
[    4.510445] mpp_vdpu2 fdea0400.vdpu: probing finish
[    4.510932] mpp_vepu2 fdee0000.vepu: Adding to iommu group 3
[    4.511125] mpp_vepu2 fdee0000.vepu: probing start
[    4.511524] mpp_vepu2 fdee0000.vepu: probing finish
[    4.512070] mpp-iep2 fdef0000.iep: Adding to iommu group 4
[    4.512260] mpp-iep2 fdef0000.iep: probe device
[    4.512524] mpp-iep2 fdef0000.iep: allocate roi buffer failed
[    4.512708] mpp-iep2 fdef0000.iep: probing finish
[    4.513147] mpp_jpgdec fded0000.jpegd: Adding to iommu group 2
[    4.513319] mpp_jpgdec fded0000.jpegd: probe device
[    4.513799] mpp_jpgdec fded0000.jpegd: probing finish
[    4.515212] mpp_service mpp-srv: probe success
[    4.520621] dma-pl330 fe530000.dmac: Loaded driver for PL330 DMAC-241330
[    4.520645] dma-pl330 fe530000.dmac:     DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[    4.522497] dma-pl330 fe550000.dmac: Loaded driver for PL330 DMAC-241330
[    4.522512] dma-pl330 fe550000.dmac:     DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[    4.523274] rockchip-pvtm fde00000.pvtm: pvtm@0 probed
[    4.523419] rockchip-pvtm fde80000.pvtm: pvtm@1 probed
[    4.523534] rockchip-pvtm fde90000.pvtm: pvtm@2 probed
[    4.524209] rockchip-system-monitor rockchip-system-monitor: system monitor probe
[    4.525004] arm-scmi firmware:scmi: Failed. SCMI protocol 22 not active.
[    4.525296] Serial: 8250/16550 driver, 10 ports, IRQ sharing disabled
[    4.526172] fe650000.serial: ttyS1 at MMIO 0xfe650000 (irq = 65, base_baud = 1500000) is a 16550A
[    4.526793] fe670000.serial: ttyS3 at MMIO 0xfe670000 (irq = 66, base_baud = 1500000) is a 16550A
[    4.527354] fe6a0000.serial: ttyS6 at MMIO 0xfe6a0000 (irq = 67, base_baud = 1500000) is a 16550A
[    4.527861] fe6b0000.serial: ttyS7 at MMIO 0xfe6b0000 (irq = 68, base_baud = 1500000) is a 16550A
[    4.528352] fe6d0000.serial: ttyS9 at MMIO 0xfe6d0000 (irq = 69, base_baud = 1500000) is a 16550A
[    4.531697] rockchip-vop2 fe040000.vop: Adding to iommu group 8
[    4.538802] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp0 assign plane mask: 0x3f, primary plane phy id: 4
[    4.538828] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp1 assign plane mask: 0x0, primary plane phy id: -1
[    4.538839] rockchip-vop2 fe040000.vop: [drm:vop2_bind] vp2 assign plane mask: 0x0, primary plane phy id: -1
[    4.538971] rockchip-vop2 fe040000.vop: [drm:vop2_bind] VP1 plane_mask is zero, so ignore register crtc
[    4.538984] rockchip-vop2 fe040000.vop: [drm:vop2_bind] VP2 plane_mask is zero, so ignore register crtc
[    4.539060] [drm] failed to init overlay plane Cluster0-win1
[    4.539145] rockchip-drm display-subsystem: bound fe040000.vop (ops 0xffffffc0096e8f58)
[    4.539444] dwhdmi-rockchip fe0a0000.hdmi: Detected HDMI TX controller v2.11a with HDCP (DWC HDMI 2.0 TX PHY)
[    4.540012] dwhdmi-rockchip fe0a0000.hdmi: registered DesignWare HDMI I2C bus driver
[    4.540300] dwhdmi-rockchip fe0a0000.hdmi: IRQ index 1 not found
[    4.540753] rockchip-drm display-subsystem: bound fe0a0000.hdmi (ops 0xffffffc0096f7ae8)
[    4.769576] rockchip-drm display-subsystem: [drm] fb0: rockchipdrmfb frame buffer device
[    4.770284] [drm] Initialized rockchip 3.0.0 20140818 for display-subsystem on minor 0
[    4.778043] input: hdmi_cec_key as /devices/platform/fe0a0000.hdmi/dw-hdmi-cec.1.auto/input/input0
[    4.779035] cacheinfo: Unable to detect cache hierarchy for CPU 0
[    4.779767] brd: module loaded
[    4.785072] loop: module loaded
[    4.785495] zram: Added device: zram0
[    4.785755] lkdtm: No crash points registered, enable through debugfs
[    4.788663] ahci fc800000.sata: supply ahci not found, using dummy regulator
[    4.788818] ahci fc800000.sata: supply phy not found, using dummy regulator
[    4.788940] ahci fc800000.sata: supply target not found, using dummy regulator
[    4.789079] ahci fc800000.sata: forcing port_map 0x0 -> 0x1
[    4.789127] ahci fc800000.sata: AHCI 0001.0300 32 slots 1 ports 6 Gbps 0x1 impl platform mode
[    4.789140] ahci fc800000.sata: flags: ncq sntf pm led clo only pmp fbs pio slum part ccc apst
[    4.789159] ahci fc800000.sata: port 0 is not capable of FBS
[    4.790278] scsi host0: ahci
[    4.790577] ata1: SATA max UDMA/133 mmio [mem 0xfc800000-0xfc800fff] port 0x100 irq 19
[    4.793456] rockchip-spi fe620000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
[    4.794826] rockchip-spi fe630000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
[    4.796683] register spi return v = :0
[    4.798033] CAN device driver interface
[    4.800309] rk_gmac-dwmac fe010000.ethernet: IRQ eth_lpi not found
[    4.800542] rk_gmac-dwmac fe010000.ethernet: supply phy not found, using dummy regulator
[    4.800701] rk_gmac-dwmac fe010000.ethernet: clock input or output? (input).
[    4.800715] rk_gmac-dwmac fe010000.ethernet: TX delay(0x38).
[    4.800725] rk_gmac-dwmac fe010000.ethernet: RX delay(0x34).
[    4.800740] rk_gmac-dwmac fe010000.ethernet: integrated PHY? (no).
[    4.800781] rk_gmac-dwmac fe010000.ethernet: clock input from PHY
[    4.801030] rk_gmac-dwmac fe010000.ethernet: init for RGMII
[    4.801301] rk_gmac-dwmac fe010000.ethernet: User ID: 0x30, Synopsys ID: 0x51
[    4.801314] rk_gmac-dwmac fe010000.ethernet:     DWMAC4/5
[    4.801325] rk_gmac-dwmac fe010000.ethernet: DMA HW capability register supported
[    4.801333] rk_gmac-dwmac fe010000.ethernet: RX Checksum Offload Engine supported
[    4.801340] rk_gmac-dwmac fe010000.ethernet: TX Checksum insertion supported
[    4.801346] rk_gmac-dwmac fe010000.ethernet: Wake-Up On Lan supported
[    4.801410] rk_gmac-dwmac fe010000.ethernet: TSO supported
[    4.801419] rk_gmac-dwmac fe010000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[    4.801427] rk_gmac-dwmac fe010000.ethernet: TSO feature enabled
[    4.801435] rk_gmac-dwmac fe010000.ethernet: Using 32 bits DMA width
[    4.936623] PPP generic driver version 2.4.2
[    4.936828] PPP BSD Compression module registered
[    4.936841] PPP Deflate Compression module registered
[    4.936872] PPP MPPE Compression module registered
[    4.936882] NET: Registered protocol family 24
[    4.937082] usbcore: registered new interface driver rtl8150
[    4.937182] usbcore: registered new interface driver r8152
[    4.937227] usbcore: registered new interface driver asix
[    4.937295] usbcore: registered new interface driver ax88179_178a
[    4.937341] usbcore: registered new interface driver cdc_ether
[    4.937383] usbcore: registered new interface driver net1080
[    4.937425] usbcore: registered new interface driver cdc_subset
[    4.937465] usbcore: registered new interface driver zaurus
[    4.937514] usbcore: registered new interface driver cdc_ncm
[    4.937550] usbcore: registered new interface driver qmi_wwan_q
[    4.948294] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    4.948332] ehci-pci: EHCI PCI platform driver
[    4.948429] ehci-platform: EHCI generic platform driver
[    4.948900] phy phy-fe8b0000.usb2-phy.3: illegal mode
[    4.950953] ehci-platform fd800000.usb: EHCI Host Controller
[    4.951135] ehci-platform fd800000.usb: new USB bus registered, assigned bus number 1
[    4.951271] ehci-platform fd800000.usb: irq 20, io mem 0xfd800000
[    4.963583] ehci-platform fd800000.usb: USB 2.0 started, EHCI 1.00
[    4.963761] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    4.963773] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.963782] usb usb1: Product: EHCI Host Controller
[    4.963789] usb usb1: Manufacturer: Linux 5.10.198 ehci_hcd
[    4.963795] usb usb1: SerialNumber: fd800000.usb
[    4.964224] hub 1-0:1.0: USB hub found
[    4.964262] hub 1-0:1.0: 1 port detected
[    4.966931] ehci-platform fd880000.usb: EHCI Host Controller
[    4.967089] ehci-platform fd880000.usb: new USB bus registered, assigned bus number 2
[    4.967211] ehci-platform fd880000.usb: irq 22, io mem 0xfd880000
[    4.980260] ehci-platform fd880000.usb: USB 2.0 started, EHCI 1.00
[    4.980422] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    4.980434] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    4.980442] usb usb2: Product: EHCI Host Controller
[    4.980449] usb usb2: Manufacturer: Linux 5.10.198 ehci_hcd
[    4.980456] usb usb2: SerialNumber: fd880000.usb
[    4.980847] hub 2-0:1.0: USB hub found
[    4.980881] hub 2-0:1.0: 1 port detected
[    4.981580] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    4.981603] ohci-platform: OHCI generic platform driver
[    4.981916] phy phy-fe8b0000.usb2-phy.3: illegal mode
[    4.981928] ohci-platform fd840000.usb: Generic Platform OHCI controller
[    4.982092] ohci-platform fd840000.usb: new USB bus registered, assigned bus number 3
[    4.982201] ohci-platform fd840000.usb: irq 21, io mem 0xfd840000
[    5.041065] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[    5.041078] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    5.041086] usb usb3: Product: Generic Platform OHCI controller
[    5.041093] usb usb3: Manufacturer: Linux 5.10.198 ohci_hcd
[    5.041100] usb usb3: SerialNumber: fd840000.usb
[    5.041516] hub 3-0:1.0: USB hub found
[    5.041552] hub 3-0:1.0: 1 port detected
[    5.042077] ohci-platform fd8c0000.usb: Generic Platform OHCI controller
[    5.042257] ohci-platform fd8c0000.usb: new USB bus registered, assigned bus number 4
[    5.042366] ohci-platform fd8c0000.usb: irq 23, io mem 0xfd8c0000
[    5.101051] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[    5.101064] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    5.101072] usb usb4: Product: Generic Platform OHCI controller
[    5.101079] usb usb4: Manufacturer: Linux 5.10.198 ohci_hcd
[    5.101086] usb usb4: SerialNumber: fd8c0000.usb
[    5.101499] hub 4-0:1.0: USB hub found
[    5.101535] hub 4-0:1.0: 1 port detected
[    5.102878] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[    5.103072] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 5
[    5.103211] xhci-hcd xhci-hcd.4.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000800002010010
[    5.103275] xhci-hcd xhci-hcd.4.auto: irq 83, io mem 0xfd000000
[    5.103299] ata1: SATA link down (SStatus 0 SControl 300)
[    5.103409] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[    5.103588] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 6
[    5.103609] xhci-hcd xhci-hcd.4.auto: Host supports USB 3.0 SuperSpeed
[    5.103759] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    5.103770] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    5.103778] usb usb5: Product: xHCI Host Controller
[    5.103785] usb usb5: Manufacturer: Linux 5.10.198 xhci-hcd
[    5.103792] usb usb5: SerialNumber: xhci-hcd.4.auto
[    5.104244] hub 5-0:1.0: USB hub found
[    5.104286] hub 5-0:1.0: 1 port detected
[    5.104632] usb usb6: We don't know the algorithms for LPM for this host, disabling LPM.
[    5.104725] usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.10
[    5.104737] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    5.104745] usb usb6: Product: xHCI Host Controller
[    5.104753] usb usb6: Manufacturer: Linux 5.10.198 xhci-hcd
[    5.104760] usb usb6: SerialNumber: xhci-hcd.4.auto
[    5.105157] hub 6-0:1.0: USB hub found
[    5.105195] hub 6-0:1.0: 1 port detected
[    5.105638] usbcore: registered new interface driver cdc_acm
[    5.105648] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[    5.105715] usbcore: registered new interface driver usblp
[    5.105780] usbcore: registered new interface driver cdc_wdm
[    5.106056] usbcore: registered new interface driver uas
[    5.106149] usbcore: registered new interface driver usb-storage
[    5.106249] usbcore: registered new interface driver usbserial_generic
[    5.106273] usbserial: USB Serial support registered for generic
[    5.106334] usbcore: registered new interface driver ch341
[    5.106358] usbserial: USB Serial support registered for ch341-uart
[    5.106405] usbcore: registered new interface driver cp210x
[    5.106428] usbserial: USB Serial support registered for cp210x
[    5.106489] usbcore: registered new interface driver ftdi_sio
[    5.106512] usbserial: USB Serial support registered for FTDI USB Serial Device
[    5.106636] usbcore: registered new interface driver keyspan
[    5.106660] usbserial: USB Serial support registered for Keyspan - (without firmware)
[    5.106680] usbserial: USB Serial support registered for Keyspan 1 port adapter
[    5.106706] usbserial: USB Serial support registered for Keyspan 2 port adapter
[    5.106728] usbserial: USB Serial support registered for Keyspan 4 port adapter
[    5.106778] usbcore: registered new interface driver option
[    5.106804] usbserial: USB Serial support registered for GSM modem (1-port)
[    5.107003] usbcore: registered new interface driver oti6858
[    5.107030] usbserial: USB Serial support registered for oti6858
[    5.107078] usbcore: registered new interface driver pl2303
[    5.107100] usbserial: USB Serial support registered for pl2303
[    5.107151] usbcore: registered new interface driver qcserial
[    5.107173] usbserial: USB Serial support registered for Qualcomm USB modem
[    5.107240] usbcore: registered new interface driver sierra
[    5.107265] usbserial: USB Serial support registered for Sierra USB modem
[    5.108779] usbcore: registered new interface driver xpad
[    5.108862] <<-GTP-INFO->> GTP driver installing...
[    5.109134] usbcore: registered new interface driver usbtouchscreen
[    5.109826] i2c /dev entries driver
[    5.113026] rk808 0-0020: chip id: 0x8090
[    5.113113] rk808 0-0020: No cache defaults, reading back from HW
[    5.136799] rk808 0-0020: source: on=0x40, off=0x00
mount: /oem: can't find PARTLABEL=oem.
[    5.136817] rk808 0-0020: support dcdc3 fb mode:-22, 1
mount: /userdata: can't find PARTLABEL=userdata.
[    5.136827] rk808 0-0020: support pmic reset mode:0,0
[    5.141693] rk808-regulator rk808-regulator: there is no dvs0 gpio
[    5.141729] rk808-regulator rk808-regulator: there is no dvs1 gpio
[    5.141813] vdd_logic: supplied by vcc3v3_sys
[    5.142504] vdd_gpu: supplied by vcc3v3_sys
[    5.143094] vcc_ddr: supplied by vcc3v3_sys
[    5.143726] vdd_npu: supplied by vcc3v3_sys
[    5.144308] vcc_1v8: supplied by vcc3v3_sys
[    5.144879] vdda0v9_image: supplied by vcc3v3_sys
[    5.145993] vdda_0v9: supplied by vcc3v3_sys
[    5.147099] vdda0v9_pmu: supplied by vcc3v3_sys
[    5.148195] vccio_acodec: supplied by vcc3v3_sys
[    5.149285] vccio_sd: supplied by vcc3v3_sys
[    5.150386] vcc3v3_pmu: supplied by vcc3v3_sys
[    5.151485] vcca_1v8: supplied by vcc3v3_sys
[    5.152584] vcca1v8_pmu: supplied by vcc3v3_sys
Start mounting all internal partitions in /etc/fstab
[    5.153678] vcca1v8_image: supplied by vcc3v3_sys
Log saved to /var/log/mount-all.log
[    5.154771] vcc_3v3: supplied by vcc3v3_sys
Note: Will skip fsck, remove /.skip_fsck to enable
[    5.155339] vcc3v3_sd: supplied by vcc3v3_sys
[    5.155911] rk817-charger: Failed to locate of_node [id: -1]
[    5.156091] rk817-charger rk817-charger: Failed to find matching dt id
[    5.159293] input: rk805 pwrkey as /devices/platform/fdd40000.i2c/i2c-0/0-0020/rk805-pwrkey/input/input1
[    5.161569] fan53555 test 0x1c succes
[    5.162508] fan53555-regulator 0-001c: FAN53555 Option[12] Rev[15] Detected!
[    5.164476] vdd_cpu: supplied by vcc5v0_sys
[0]: Handling /dev/mmcblk0p6 / ext4 rw,noauto 1
[    5.295430] rtc-hym8563 4-0051: could not init device, -6
[    5.380746] ov5645 1-003c: OV5645 detected at address 0x3c
[    5.380784] [ov5645_probe, 1742]: zhangpeng enter
[    5.382105] rkcifhw fdfe0000.rkcif: Adding to iommu group 7
[    5.382649] rkcifhw fdfe0000.rkcif: can't request region for resource [mem 0xfdfe0000-0xfdfe7fff]
[    5.382743] rkcifhw fdfe0000.rkcif: No reserved memory region assign to CIF
[    5.382947] rkcif rkcif_mipi_lvds: rkcif driver version: v00.02.00
[    5.383085] rkcif rkcif_mipi_lvds: attach to cif hw node
[    5.383096] rkcif rkcif_mipi_lvds: rkcif wait line 0
[0]: Resizing /dev/mmcblk0p6(ext4)
[    5.383108] : terminal subdev does not exist
[    5.383117] : terminal subdev does not exist
[    5.383124] : terminal subdev does not exist
[    5.383129] : terminal subdev does not exist
[    5.384546] rkcif rkcif_mipi_lvds: No memory-region-thunderboot specified
[    5.385812] rockchip-mipi-csi2-hw fdfb0000.mipi-csi2-hw: enter mipi csi2 hw probe!
resize2fs 1.46.5 (30-Dec-2021)
[    5.385967] rockchip-mipi-csi2-hw fdfb0000.mipi-csi2-hw: probe success, v4l2_dev:mipi-csi2-hw!
[    5.386464] rockchip-mipi-csi2 mipi-csi2: attach to csi2 hw node
[    5.386589] rkcif rkcif_mipi_lvds: Entity type for entity rockchip-mipi-csi2 was not initialized!
[    5.386603] rockchip-mipi-csi2: Async registered subdev
[    5.386627] rockchip-csi2-dphy csi2-dphy0: dphy0 matches m00_b_ov5645 1-003c:bus type 5
[    5.387098] rkcif_mipi_lvds: Async subdev notifier completed
[    5.387110] rockchip-mipi-csi2: probe success, v4l2_dev:rkcif_mipi_lvds!
[    5.389408] usbcore: registered new interface driver uvcvideo
[    5.389419] USB Video Class driver (1.1.1)
[    5.391501] device-mapper: ioctl: 4.44.0-ioctl (2021-02-01) initialised: dm-devel@redhat.com
[    5.391921] Bluetooth: HCI UART driver ver 2.3
[    5.391936] Bluetooth: HCI UART protocol H4 registered
[    5.391942] Bluetooth: HCI UART protocol ATH3K registered
[    5.392021] usbcore: registered new interface driver bfusb
[    5.392075] usbcore: registered new interface driver btusb
Filesystem at /dev/mmcblk0p6 is mounted on /; on-line resizing required
[    5.393086] cpu cpu0: bin=0
old_desc_blocks = 1, new_desc_blocks = 2
[    5.393153] cpu cpu0: leakage=29
The filesystem on /dev/mmcblk0p6 is now 7573499 (4k) blocks long.
[    5.393197] cpu cpu0: pvtm = 87430, from nvmem

[    5.393213] cpu cpu0: pvtm-volt-sel=2
[    5.393293] cpu cpu0: soc version=0, speed=2
/etc/init.d/S01boot-complete.sh: line 17: /proc/rp_system_flag/rp_boot_completed: No such file or directory
[    5.395027] cpu cpu0: avs=0
Starting syslogd: OK
[    5.395299] cpu cpu0: EM: created perf domain
Starting klogd: [    5.395361] cpu cpu0: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
OK
[    5.401596] sdhci: Secure Digital Host Controller Interface driver
[    5.401618] sdhci: Copyright(c) Pierre Ossman
Running sysctl: [    5.401625] Synopsys Designware Multimedia Card Interface Driver
[    5.402787] sdhci-pltfm: SDHCI platform and OF driver helper
OK
[    5.403632] dwmmc_rockchip fe000000.dwmmc: No normal pinctrl state
Populating /dev using udev: [    5.403654] dwmmc_rockchip fe000000.dwmmc: No idle pinctrl state
[    5.403728] dwmmc_rockchip fe2b0000.dwmmc: No normal pinctrl state
[    5.403742] dwmmc_rockchip fe2b0000.dwmmc: No idle pinctrl state
[    5.403783] dwmmc_rockchip fe000000.dwmmc: IDMAC supports 32-bit address mode.
[    5.403823] dwmmc_rockchip fe000000.dwmmc: Using internal DMA controller.
[    5.403838] dwmmc_rockchip fe000000.dwmmc: Version ID is 270a
[    5.403861] dwmmc_rockchip fe2b0000.dwmmc: IDMAC supports 32-bit address mode.
[    5.403890] dwmmc_rockchip fe2b0000.dwmmc: Using internal DMA controller.
[    5.403903] dwmmc_rockchip fe2b0000.dwmmc: Version ID is 270a
[    5.403908] dwmmc_rockchip fe000000.dwmmc: DW MMC controller at irq 49,32 bit host data width,256 deep fifo
[    5.403952] dwmmc_rockchip fe2b0000.dwmmc: DW MMC controller at irq 50,32 bit host data width,256 deep fifo
[    5.404374] dwmmc_rockchip fe000000.dwmmc: allocated mmc-pwrseq
[    5.404406] mmc_host mmc3: card is non-removable.
[    5.405002] arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.
[    5.405115] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
[    5.406213] cryptodev: driver 1.12 loaded.
[    5.406301] hid: raw HID events driver (C) Jiri Kosina
[    5.406736] usbcore: registered new interface driver usbhid
[    5.406748] usbhid: USB HID core driver
[    5.408124] rockchip,bus bus-npu: bin=0
[    5.408144] rockchip,bus bus-npu: Failed to get leakage
[    5.408205] rockchip,bus bus-npu: pvtm = 87430, from nvmem
[    5.408222] rockchip,bus bus-npu: pvtm-volt-sel=1
[    5.408471] rockchip,bus bus-npu: avs=0
[    5.413738] rp_power prepare build 9 gpio
[    5.413916] rp_power request pwr_5v_3v3
[    5.413946] success request gpio75 out
[    5.413973] rp_power request led
[    5.413989] success request gpio114 flash
[    5.414006] rp_power request usb_pwr
[    5.414020] success request gpio6 out
[    5.414040] rp_power request otg_pwr
[    5.414053] success request gpio5 out
[    5.414071] rp_power request usb_rst
[    5.414083] success request gpio8 out
[    5.414117] rp_power: probe of rp_power failed with error -1
[    5.414482] rp_gpio prepare build 9 gpio
[    5.414618] rp_gpio request gpio1d0
[    5.414636] success request gpio56 out
[    5.414656] rp_gpio request gpio1d1
[    5.414670] success request gpio57 out
[    5.414688] rp_gpio request gpio1d2
[    5.414701] success request gpio58 out
[    5.414718] rp_gpio request gpio1d3
[    5.414730] success request gpio59 out
[    5.414747] rp_gpio request gpio1d4
[    5.414759] success request gpio60 out
[    5.414852] rp_gpio request gpio4a0
[    5.414869] success request gpio128 out
[    5.414887] rp_gpio request gpio4a1
[    5.414900] success request gpio129 out
[    5.414918] rp_gpio request gpio1a4
[    5.414930] success request gpio36 out
[    5.414949] rp_gpio request gpio3c1
[    5.414963] success request gpio113 out
[    5.415455] mhi_init Quectel_Linux_PCIE_MHI_Driver_V1.3.1
[    5.415709] sprd_pci_ep_dev_init Quectel_Linux&Android_SPRD_PCIE_Driver_V1.1.8
[    5.416330] sipc: name=sprd,sipc
[    5.416340] sipc: type=1
[    5.416345] sipc: dst =1
[    5.416350] sipc: ep_dev=0
[    5.416354] sipc: smem_type = 0
[    5.417089] sipc: smem_base=0x5c00000, dst_smem_base=0x5c00000, smem_size=0x300000
[    5.417100] sipc: high_offset=0x0n
[    5.417103] smsg_ipc_create: sprd,sipc
[    5.417407] mmc_host mmc1: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)
[    5.417616] smem_init: pool addr = 0x5c00000, size = 0x300000 added.
[    5.417631] smsg_ipc_smem_init: ring_base = 0x5c00000, ring_size = 0x1000
[    5.418648] spipe_probe!
[    5.418660] spipe: after parse device tree, name=spipe_nr, dst=1, channel=4, ringnr=15,  rxbuf_size=0x1000, txbuf_size=0x1000
[    5.418672] sbuf_host_init: channel 1-4, offset = 0x0!
[    5.419079] smsg_ch_open: channel 1-4 send open msg!
done
[    5.420535] spipe_probe!
[    5.420548] spipe: after parse device tree, name=sdiag_nr, dst=1, channel=21, ringnr=1,  rxbuf_size=0x8000, txbuf_size=0x40000
Starting irqbalance: [    5.420561] sbuf_host_init: channel 1-21, offset = 0x0!
[    5.420865] smsg_ch_open: channel 1-21 send open msg!
[    5.420955] spipe_probe!
[    5.420965] spipe: after parse device tree, name=stty_nr, dst=1, channel=6, ringnr=32,  rxbuf_size=0x800, txbuf_size=0x800
OK
[    5.420976] sbuf_host_init: channel 1-6, offset = 0x0!
[    5.421349] smsg_ch_open: channel 1-6 send open msg!
[    5.424217] spipe_probe!
[    5.424236] spipe: after parse device tree, name=snv_nr, dst=1, channel=40, ringnr=1,  rxbuf_size=0x1000, txbuf_size=0x40400
[    5.424250] sbuf_host_init: channel 1-40, offset = 0x0!
Saving random seed: [    5.424565] smsg_ch_open: channel 1-40 send open msg!
[    5.425344] spool: name=slog_nr, dst=1, channel=5, pre_cfg=0
[    5.425356] spool: tx_num=0, tx_size=0, rx_num=32, rx_size=65536
OK
[    5.425727] smsg_ch_open: channel 1-5 send open msg!
[    5.426353] usbcore: registered new interface driver snd-usb-audio
[    5.429018] rk817-codec rk817-codec: DMA mask not set
[    5.434444] rk-multicodecs rk809-sound: Failed to get ADC channel
[    5.434580] rk-multicodecs rk809-sound: ASoC: Property 'rockchip,audio-routing' does not exist or its length is not even
Starting system message bus: [    5.435777] rk817-codec rk817-codec: rk817_probe: chip_name:0x80, chip_ver:0x95
[    5.436384] mmc0: SDHCI controller on fe310000.sdhci [fe310000.sdhci] using ADMA
done
[    5.440597] rk-multicodecs rk809-sound: Don't need to map headset detect gpio to irq
[    5.443641] IPVS: Registered protocols (TCP, UDP)
[    5.443706] IPVS: Connection hash table configured (size=4096, memory=32Kbytes)
Starting iptables: [    5.443834] IPVS: ipvs loaded.
[    5.443846] IPVS: [rr] scheduler registered.
OK
[    5.444137] Initializing XFRM netlink socket
[    5.444534] NET: Registered protocol family 10
[    5.445435] Segment Routing with IPv6
[    5.445514] NET: Registered protocol family 17
[    5.445549] NET: Registered protocol family 15
[    5.445603] Bridge firewalling registered
[    5.445609] can: controller area network core
[    5.445647] NET: Registered protocol family 29
Starting bluetoothd: [    5.445654] can: raw protocol
OK
[    5.445662] can: broadcast manager protocol
[    5.445673] can: netlink gateway - max_hops=1
[    5.445963] Bluetooth: RFCOMM socket layer initialized
Starting network: [    5.446000] Bluetooth: RFCOMM ver 1.11
[    5.446018] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[    5.446029] Bluetooth: HIDP socket layer initialized
[    5.446488] NET: Registered protocol family 41
[    5.446649] 8021q: 802.1Q VLAN Support v1.8
[    5.446679] [BT_RFKILL]: Enter rfkill_rk_init
[    5.446686] [WLAN_RFKILL]: Enter rfkill_wlan_init
[    5.447530] [WLAN_RFKILL]: Enter rfkill_wlan_probe
[    5.447578] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi_chip_type = ap6398s
[    5.447585] [WLAN_RFKILL]: wlan_platdata_parse_dt: enable wifi power control.
[    5.447590] [WLAN_RFKILL]: wlan_platdata_parse_dt: wifi power controled by gpio.
ln: failed to create symbolic link '': No such file or directory
[    5.447623] [WLAN_RFKILL]: wlan_platdata_parse_dt: WIFI,host_wake_irq = 124, flags = 0.
Failed to detect Wi-Fi/BT chip!
[    5.447634] [WLAN_RFKILL]: wlan_platdata_parse_dt: The ref_wifi_clk not found !
[    5.447639] [WLAN_RFKILL]: rfkill_wlan_probe: init gpio
[    5.447647] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 1
[    5.447653] [WLAN_RFKILL]: Exit rfkill_wlan_probe
[    5.448580] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 142.
[    5.448605] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,reset_gpio = 133.
OK
[    5.448616] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 134.
[    5.448628] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 137.
[    5.448684] [BT_RFKILL]: Request irq for bt wakeup host
Starting dhcpcd...
[    5.448767] [BT_RFKILL]: ** disable irq
[    5.448848] [BT_RFKILL]: bt_default device registered.
dhcpcd-9.4.1 starting
[    5.448993] Key type dns_resolver registered
dev: loaded udev
[    5.450676] Loading compiled-in X.509 certificates
[    5.453010] Btrfs loaded, crc32c=crc32c-generic
[    5.453260] pstore: Using crash dump compression: deflate
[    5.454493] rga: rga2, irq = 31, match scheduler
[    5.455003] rga: rga2 hardware loaded successfully, hw_version:3.2.63318.
[    5.455031] rga: rga2 probe successfully
[    5.455350] rga_iommu: IOMMU binding successfully, default mapping core[0x4]
[    5.455576] rga: Module initialized. v1.3.1
[    5.478730] mmc0: Host Software Queue enabled
[    5.478769] mmc0: new HS200 MMC card at address 0001
[    5.479531] mmcblk0: mmc0:0001 ARJ11X 29.1 GiB
[    5.479778] mmcblk0boot0: mmc0:0001 ARJ11X partition 1 4.00 MiB
[    5.480018] mmcblk0boot1: mmc0:0001 ARJ11X partition 2 4.00 MiB
[    5.480262] mmcblk0rpmb: mmc0:0001 ARJ11X partition 3 4.00 MiB, chardev (236:0)
[    5.482769] GPT:disk_guids don't match.
[    5.482788] GPT:partition_entry_array_crc32 values don't match: 0xbc2d202f != 0x464f4276
[    5.482794] GPT: Use GNU Parted to correct GPT errors.
[    5.482824]  mmcblk0: p1 p2 p3 p4 p5 p6
[    5.560528] vendor storage:20190527 ret = 0
[    5.624407] mmc_host mmc3: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)
[    5.639851] mpp_rkvenc fdf40000.rkvenc: Adding to iommu group 5
[    5.640490] mpp_rkvenc fdf40000.rkvenc: probing start
[    5.641765] mpp_rkvenc fdf40000.rkvenc: bin=0
[    5.641842] mpp_rkvenc fdf40000.rkvenc: Failed to get leakage
[    5.641954] mpp_rkvenc fdf40000.rkvenc: pvtm = 87430, from nvmem
[    5.641995] mpp_rkvenc fdf40000.rkvenc: pvtm-volt-sel=1
no interfaces have a carrier
[    5.642500] mpp_rkvenc fdf40000.rkvenc: avs=0
forked to background, child pid 460
[    5.642870] mpp_rkvenc fdf40000.rkvenc: failed to find power_model node
Starting ntpd: [    5.642906] mpp_rkvenc fdf40000.rkvenc: failed to initialize power model
[    5.642929] mpp_rkvenc fdf40000.rkvenc: failed to get dynamic-coefficient
[    5.645101] mpp_rkvenc fdf40000.rkvenc: probing finish
[    5.646197] mpp_rkvdec2 fdf80200.rkvdec: Adding to iommu group 6
[    5.646773] mpp_rkvdec2 fdf80200.rkvdec: rkvdec, probing start
[    5.647705] mpp_rkvdec2 fdf80200.rkvdec: shared_niu_a is not found!
[    5.647717] rkvdec2_init:1022: No niu aclk reset resource define
OK
[    5.647726] mpp_rkvdec2 fdf80200.rkvdec: shared_niu_h is not found!
[    5.647732] rkvdec2_init:1025: No niu hclk reset resource define
[    5.647971] mpp_rkvdec2 fdf80200.rkvdec: bin=0
[    5.648073] mpp_rkvdec2 fdf80200.rkvdec: leakage=54
starting weston... done.
[    5.648087] mpp_rkvdec2 fdf80200.rkvdec: leakage-volt-sel=0
[    5.648123] mpp_rkvdec2 fdf80200.rkvdec: pvtm = 87430, from nvmem
[    5.648135] mpp_rkvdec2 fdf80200.rkvdec: pvtm-volt-sel=1
[    5.648315] mpp_rkvdec2 fdf80200.rkvdec: avs=0
[    5.648446] mpp_rkvdec2 fdf80200.rkvdec: failed to find power_model node
Starting dropbear sshd: [    5.648456] mpp_rkvdec2 fdf80200.rkvdec: failed to initialize power model
OK
[    5.648464] mpp_rkvdec2 fdf80200.rkvdec: failed to get dynamic-coefficient
[    5.648591] mpp_rkvdec2 fdf80200.rkvdec: sram_start 0x00000000fdcc0000
Starting pulseaudio: OK
[    5.648600] mpp_rkvdec2 fdf80200.rkvdec: rcb_iova 0x0000000010000000
[    5.648608] mpp_rkvdec2 fdf80200.rkvdec: sram_size 45056
[    5.648614] mpp_rkvdec2 fdf80200.rkvdec: rcb_size 65536
[    5.648622] mpp_rkvdec2 fdf80200.rkvdec: min_width 512
Starting dnsmasq: [    5.648681] mpp_rkvdec2 fdf80200.rkvdec: link mode probe finish
[    5.648756] mpp_rkvdec2 fdf80200.rkvdec: probing finish
[    5.649729] rockchip-iodomain fdc20000.syscon:io-domains: pmuio2(3300000 uV) supplied by vcc3v3_pmu
OK
[    5.649894] rockchip-iodomain fdc20000.syscon:io-domains: vccio1(3000000 uV) supplied by vccio_acodec
[    5.649943] mali fde60000.gpu: Kernel DDK version g18p0-01eac0
[    5.650031] rockchip-iodomain fdc20000.syscon:io-domains: vccio3(3300000 uV) supplied by vccio_sd
/bin/list-iodomain.sh version: V1.0.1
[    5.650202] rockchip-iodomain fdc20000.syscon:io-domains: vccio4(3300000 uV) supplied by vcc_3v3
[    5.650303] rockchip-iodomain fdc20000.syscon:io-domains: vccio5(3300000 uV) supplied by vcc_3v3
W: [pulseaudio] main.c: This program is not intended to be run as root (unless --system is specified).
[    5.650456] mali fde60000.gpu: bin=0
W: [pulseaudio] main.c: Compiled with DEPRECATED libsamplerate support!
[    5.650463] rockchip-iodomain fdc20000.syscon:io-domains: vccio6(1800000 uV) supplied by vcc_1v8
Get CHIP ID: rk356x
[    5.650512] mali fde60000.gpu: leakage=8
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[    5.650535] rockchip-iodomain fdc20000.syscon:io-domains: vccio7(3300000 uV) supplied by vcc_3v3
XXXXXXXXXX      PLEASE CHECK IO-DOMAIN !!!!!!!!!!!!!!!
[    5.650551] mali fde60000.gpu: pvtm = 87430, from nvmem
XXXXXXXXXX        请务必检查IO电源域配置  !!!!!!!!!!!!!!!
[    5.650568] mali fde60000.gpu: pvtm-volt-sel=2
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[    5.650583] mali fde60000.gpu: soc version=0, speed=2
Get IO DOMAIN VALUE:
[    5.651130] mali fde60000.gpu: avs=0
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[    5.651155] W : [File] : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; [Line] : 143; [Func] : kbase_platform_rk_init(); power-off-delay-ms not available.
注意事项:PMUIO1/PMUIO2 固定不可配
[    5.651198] input: adc-keys as /devices/platform/adc-keys/input/input2
VCCIO2电平由硬件FLASH_VOL_SEL决定:
[    5.651709] mali fde60000.gpu: GPU identified as 0x2 arch 7.4.0 r1p0 status 0
当VCCIo2供电是1.8V,则FLASH_VOL_SEL管脚必须保持为高电平;
[    5.651817] mali fde60000.gpu: No priority control manager is configured
当VCCIO2供电是3.3V,则FLASH_VOL_SEL管脚必须保持为低电平;
[    5.652111] mali fde60000.gpu: No memory group manager is configured
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[    5.653907] mali fde60000.gpu: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
pmuio2_vsel: 3.3V
[    5.655496] mali fde60000.gpu: Probed as mali0
vccio7_vsel: 3.3V
[    5.664452] rk808-rtc rk808-rtc: registered as rtc0
vccio6_vsel: 1.8V
[    5.666303] rk808-rtc rk808-rtc: setting system clock to 2017-08-04T09:05:05 UTC (1501837505)
vccio5_vsel: 3.3V
[    5.666376] rkcif rkcif_mipi_lvds: clear unready subdev num: 0
vccio4_vsel: 3.3V
[    5.667494] rockchip_headset rk-headset: Can not read property hook_gpio
vccio3_vsel: 3.3V
[    5.667518] rockchip_headset rk-headset: have not set adc chan
vccio2_vsel: 3.3V
[    5.667525] rockchip_headset rk-headset: headset have no hook mode
vccio1_vsel: 3.3V
[    5.667711] input: rk-headset as /devices/platform/rk-headset/input/input3
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
[    5.668507] RKNPU fde40000.npu: Adding to iommu group 0
The camera soft link is automatically createdDate: 2017-08-04 CST
[    5.668936] RKNPU fde40000.npu: RKNPU: rknpu iommu is enabled, using iommu mode
[17:05:07.370] weston 13.0.0
[    5.669204] RKNPU fde40000.npu: can't request region for resource [mem 0xfde40000-0xfde4ffff]
https://wayland.freedesktop.org
[    5.669771] [drm] Initialized rknpu 0.9.3 20231121 for fde40000.npu on minor 1
Bug reports to: https://gitlab.freedesktop.org/wayland/weston/issues/
[    5.672585] RKNPU fde40000.npu: bin=0
Build: linux5.10-rkr7.1(v1.4.0_20231220)-395-gad3330a33b+
[    5.672651] RKNPU fde40000.npu: leakage=4
[17:05:07.371] Command line: /usr/bin/weston
[    5.672689] RKNPU fde40000.npu: pvtm = 87430, from nvmem
[17:05:07.371] OS: Linux, 5.10.198, #1 SMP Tue Jul 8 09:38:35 CST 2025, aarch64
[    5.672706] RKNPU fde40000.npu: pvtm-volt-sel=2
[17:05:07.371] Flight recorder: enabled
[    5.672721] RKNPU fde40000.npu: soc version=0, speed=2
[17:05:07.371] warning: XDG_RUNTIME_DIR "/var/run" is not configured
[    5.673292] RKNPU fde40000.npu: avs=0
correctly.  Unix access mode must be 0700 (current mode is 0755),
[    5.673487] RKNPU fde40000.npu: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
and must be owned by the user UID 0 (current owner is UID 0).
[    5.674074] RKNPU fde40000.npu: failed to find power_model node
Refer to your distribution on how to get it, or
[    5.674085] RKNPU fde40000.npu: RKNPU: failed to initialize power model
http://www.freedesktop.org/wiki/Specifications/basedir-spec
[    5.674093] RKNPU fde40000.npu: RKNPU: failed to get dynamic-coefficient
on how to implement it.
[    5.675700] cfg80211: Loading compiled-in X.509 certificates for regulatory database
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
[    5.677556] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[17:05:07.374] Using config file '/etc/xdg/weston/weston.ini'
[    5.678297] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
[17:05:07.376] Output repaint window is -1 ms maximum.
[    5.678313] cfg80211: failed to load regulatory.db
[17:05:07.377] Loading module '/usr/lib/libweston-13/drm-backend.so'
[    5.678759] rockchip-pm rockchip-suspend: not set pwm-regulator-config
[17:05:07.381] initializing drm backend
[    5.679312] rockchip-suspend not set sleep-mode-config for mem-lite
[17:05:07.381] Entering mirror mode.
[    5.679321] rockchip-suspend not set wakeup-config for mem-lite
[17:05:07.381] Trying direct launcher...
[    5.679329] rockchip-suspend not set sleep-mode-config for mem-ultra
[17:05:07.383] using /dev/dri/card0
[    5.679335] rockchip-suspend not set wakeup-config for mem-ultra
[17:05:07.383] DRM: does not support atomic modesetting
[    5.680439] I : [File] : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; [Line] : 406; [Func] : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '09:41:21', on 'Jul  8 2025'.
[17:05:07.383] DRM: does not support GBM modifiers
[    5.680903] Mali:
[17:05:07.383] DRM: does not support async page flipping
[    5.680906] Mali device driver loaded
[17:05:07.383] DRM: supports picture aspect ratio
[    5.681317] ALSA device list:
[17:05:07.387] Loading module '/usr/lib/libweston-13/gl-renderer.so'
[    5.681328]   #0: rockchip-rk809
arm_release_ver: g13p0-01eac0, rk_so_ver: 10
[    5.681335]   #1: rockchip,hdmi
OK
[    5.688191] EXT4-fs (mmcblk0p6): mounted filesystem with ordered data mode. Opts: (null)
[17:05:07.420] EGL version: 1.4 Bifrost-"g13p0-01eac0"
[    5.688265] VFS: Mounted root (ext4 filesystem) on device 179:6.
[17:05:07.420] EGL vendor: ARM
[    5.688597] devtmpfs: mounted
[17:05:07.420] EGL client APIs: OpenGL_ES
[    5.695391] Freeing unused kernel memory: 7552K
[17:05:07.421] EGL features:
[    5.720442] Run /sbin/init as init process
EGL Wayland extension: yes
[    5.774101] EXT4-fs (mmcblk0p6): re-mounted. Opts: (null)
context priority: yes
[    5.873669] mmc_host mmc3: Bus speed (slot 0) = 375000Hz (slot req 375000Hz, actual 375000HZ div = 0)
buffer age: no
[    6.150031] EXT4-fs (mmcblk0p6): resizing filesystem from 249344 to 7573499 blocks
partial update: yes
[    6.183679] ---headsetobserve_work---
swap buffers with damage: no
[    6.219990] EXT4-fs (mmcblk0p6): resized filesystem to 7573499
configless context: yes
[    6.290435] old_status == headset_info->headset_status
surfaceless context: yes
[    6.352623] udevd[314]: starting version 3.2.10
dmabuf support: modifiers
[    6.369068] udevd[315]: starting eudev-3.2.10
[17:05:07.439] GL version: OpenGL ES 3.2 v1.g13p0-01eac0.98c5dad4e3309b873e3189000b74ea36
[    6.599501] stream_cif_mipi_id1: open video, entity use_countt 1
[17:05:07.439] GLSL version: OpenGL ES GLSL ES 3.20
[    6.599543] stream_cif_mipi_id0: open video, entity use_countt 1
[17:05:07.439] GL vendor: ARM
[    6.599557] stream_cif_mipi_id2: open video, entity use_countt 1
[17:05:07.439] GL renderer: Mali-G52
[    6.599672] stream_cif_mipi_id2: close video, entity use_count 0
W: [pulseaudio] authkey.c: Failed to open cookie file '/userdata/.pulse/.config/pulse/cookie': No such file or directory
[    6.599684] stream_cif_mipi_id0: close video, entity use_count 0
W: [pulseaudio] authkey.c: Failed to load authentication key '/userdata/.pulse/.config/pulse/cookie': No such file or directory
[    6.599711] stream_cif_mipi_id1: close video, entity use_count 0
W: [pulseaudio] authkey.c: Failed to open cookie file '/userdata/.pulse/.pulse-cookie': No such file or directory
[    6.604842] stream_cif_mipi_id3: open video, entity use_countt 1
W: [pulseaudio] authkey.c: Failed to load authentication key '/userdata/.pulse/.pulse-cookie': No such file or directory
[    6.605043] stream_cif_mipi_id3: close video, entity use_count 0
E: [pulseaudio] module-rescue-streams.c: module-rescue-stream is obsolete and should no longer be loaded. Please remove it from your configuration.
[    7.233647] rk_gmac-dwmac fe010000.ethernet eth0: PHY [stmmac-1:00] driver [RTL8211F Gigabit Ethernet] (irq=POLL)
E: [pulseaudio] module-console-kit.c: GetSessionsForUnixUser() call failed: org.freedesktop.DBus.Error.ServiceUnknown: The name org.freedesktop.ConsoleKit was not provided by any .service files
[    7.236092] dwmac4: Master AXI performs any burst length
E: [pulseaudio] module.c: Failed to load module "module-console-kit" (argument: ""): initialization failed.
[    7.236139] rk_gmac-dwmac fe010000.ethernet eth0: No Safety Features support found
W: [pulseaudio] server-lookup.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
[    7.236170] rk_gmac-dwmac fe010000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported
W: [pulseaudio] main.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
[    7.236478] rk_gmac-dwmac fe010000.ethernet eth0: registered PTP clock
[17:05:07.620] GL ES 3.2 - renderer features:
[    7.238170] rk_gmac-dwmac fe010000.ethernet eth0: configuring for phy/rgmii link mode
read-back format: ARGB8888
[    7.951130] file system registered
glReadPixels supports y-flip: no
[    8.032178] read descriptors
wl_shm 10 bpc formats: yes
[    8.032216] read strings
wl_shm 16 bpc formats: no
wl_shm half-float formats: no
internal R and RG formats: yes
OES_EGL_image_external: yes
wl_shm sub-image to texture: yes
[17:05:07.620] Using GL renderer
[17:05:07.644] event2  - adc-keys: is tagged by udev as: Keyboard
[17:05:07.644] event2  - adc-keys: device is a keyboard
[17:05:07.646] event1  - rk805 pwrkey: is tagged by udev as: Keyboard
[17:05:07.646] event1  - rk805 pwrkey: device is a keyboard
[17:05:07.648] event0  - hdmi_cec_key: is tagged by udev as: Keyboard
[17:05:07.648] event0  - hdmi_cec_key: device is a keyboard
[17:05:07.649] event3  - rk-headset: is tagged by udev as: Keyboard
[17:05:07.649] event3  - rk-headset: device is a keyboard
[17:05:07.703] libinput: configuring device "adc-keys".
[17:05:07.703] libinput: configuring device "rk805 pwrkey".
[17:05:07.703] libinput: configuring device "hdmi_cec_key".
[17:05:07.703] libinput: configuring device "rk-headset".
[17:05:07.703] Registered plugin API 'weston_drm_output_api_v1' of size 40
[17:05:07.703] Color manager: no-op
[17:05:07.703] Compositor capabilities:
arbitrary surface rotation: yes
screen capture uses y-flip: yes
cursor planes: yes
arbitrary resolutions: no
view mask clipping: yes
explicit sync: yes
color operations: no
presentation clock: CLOCK_MONOTONIC, id 1
presentation clock resolution: 0.000000001 s
[17:05:07.704] Loading module '/usr/lib/weston/desktop-shell.so'
[17:05:07.745] DRM: head 'HDMI-A-1' found, connector 114 is connected, EDID make 'GSM', model '27MP35', serial ''
Supported EOTF modes: SDR
[17:05:07.745] launching '/usr/libexec/weston-keyboard'
[17:05:07.749] launching '/usr/libexec/weston-desktop-shell'
[17:05:07.751] HDMI-A-1 using at least 2 buffers
[17:05:07.751] Output 'HDMI-A-1' attempts EOTF mode: SDR
[17:05:07.751] Output 'HDMI-A-1' using color profile: stock sRGB color profile
[17:05:07.752] Chosen EGL config details: id:   9 rgba: 8 8 8 0 buf: 24 dep:  0 stcl: 0 int: 0-1 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[17:05:07.752] Output HDMI-A-1 (crtc 71) video modes:
1920x1080@60.0, preferred, current, 148.5 MHz
1920x1080@60.0 16:9, 148.5 MHz
1920x1080@59.9 16:9, 148.4 MHz
1920x1080i@60.0, 74.2 MHz
1920x1080i@60.0 16:9, 74.2 MHz
1920x1080i@59.9 16:9, 74.2 MHz
1920x1080@50.0 16:9, 148.5 MHz
1920x1080i@50.0 16:9, 74.2 MHz
1680x1050@59.9, 119.0 MHz
1400x1050@59.9, 101.0 MHz
1600x900@60.0, 108.0 MHz
1280x1024@75.0, 135.0 MHz
1280x1024@60.0, 108.0 MHz
1440x900@59.9, 88.8 MHz
1280x800@59.9, 71.0 MHz
1152x864@75.0, 108.0 MHz
1280x720@60.0, 74.2 MHz
1280x720@60.0 16:9, 74.2 MHz
1280x720@59.9 16:9, 74.2 MHz
1280x720@50.0 16:9, 74.2 MHz
1024x768@75.0, 78.8 MHz
1024x768@60.0, 65.0 MHz
800x600@75.0, 49.5 MHz
800x600@60.3, 40.0 MHz
720x576@50.0 16:9, 27.0 MHz
720x480@60.0 4:3, 27.0 MHz
720x480@60.0 16:9, 27.0 MHz
720x480@59.9, 27.0 MHz
720x480@59.9 16:9, 27.0 MHz
640x480@75.0, 31.5 MHz
640x480@60.0 4:3, 25.2 MHz
640x480@59.9, 25.2 MHz
640x480@59.9 4:3, 25.2 MHz
720x400@70.1, 28.3 MHz
[17:05:07.753] associating input device event2 with output HDMI-A-1 (none by udev)
[17:05:07.753] associating input device event1 with output HDMI-A-1 (none by udev)
[17:05:07.753] associating input device event0 with output HDMI-A-1 (none by udev)
[17:05:07.753] associating input device event3 with output HDMI-A-1 (none by udev)
[17:05:07.753] Output 'HDMI-A-1' enabled with head(s) HDMI-A-1
could not load cursor 'dnd-move'
could not load cursor 'dnd-move'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-none'
could not load cursor 'dnd-none'
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'.  Disabiling compose
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'.  Disabiling compose
alsa-lib main.c:1541:(snd_use_case_mgr_open) error: failed to import hw:1 use case configuration -2
-i use default asound.conf
Starting mobilenet:OK
Starting input-event-daemon: done
root@rk3566-buildroot:/# [    8.958199] Freeing drm_logo memory: 1048K

root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# [   36.264147] vcc3v3_lcd0_n: disabling
[   36.264243] vcc3v3_lcd1_n: disabling

root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# poweroff
root@rk3566-buildroot:/# Stopping input-event-daemon: done
Starting mobilenet:OK
alsa-lib main.c:1541:(snd_use_case_mgr_open) error: failed to import hw:1 use case configuration -2
-i use default asound.conf
Not stop quntionstop auto-reboot finished
Stopping dnsmasq: OK
Stopping pulseaudio: E: [pulseaudio] main.c: Failed to kill daemon: No such process
OK
Stopping dropbear sshd: OK
stoping weston... [17:06:38.660] caught signal 15
done.
[17:06:38.662] event2  - adc-keys: device removed
Stopping ntpd: OK
Stopping dhcpcd...
no /sbin/dhcpcd found; none killed
[17:06:38.695] event1  - rk805 pwrkey: device removed
killall: rkaiq_3A_server: no process killed
Stopping network: [17:06:38.740] event0  - hdmi_cec_key: device removed
[17:06:38.774] event3  - rk-headset: device removed
[   98.968869] rockchip-vop2 fe040000.vop: [drm:vop2_crtc_atomic_disable] Crtc atomic disable vp0
OK
Stopping bluetoothd: OK
[   99.009621] rockchip-vop2 fe040000.vop: [drm:vop2_crtc_atomic_enable] Update mode to 1920x1080p60, type: 11(if:800, flag:0x0) for vp0 dclk: 148500000
Stopping Wi-Fi/BT...
Stopping iptables: OK
Stopping system message bus: done
Saving random seed: OK
[   99.143131] dwc3 fcc00000.dwc3: request 000000008e6ade5b was not queued to ep0out
[   99.143389] android_work: did not send uevent (0 0 0000000000000000)
Stopping irqbalance: OK
Stopping klogd: OK
Stopping syslogd: OK
no stop function
[   99.262641] ffs_data_put(): freeing
umount: /var/log: target is busy.
umount: /run: target is busy.
[   99.278238] EXT4-fs (mmcblk0p6): re-mounted. Opts: (null)
The system is going down NOW!
Sent SIGTERM to all processes
W: [pulseaudio] pid.c: Failed to open PID file '/tmp/pulse-2FMz8kQWpgAY/pid': Read-only file system
W: [pulseaudio] pid.c: Failed to open PID file '/tmp/pulse-2FMz8kQWpgAY/pid': Read-only file system
Sent SIGKILL to all processes
Requesting system poweroff
[  101.291751] rk808 0-0020: reboot: not restore POWER_EN
[  101.321224] mpp_rkvdec2 fdf80200.rkvdec: shutdown device
[  101.326574] mpp_rkvdec2 fdf80200.rkvdec: shutdown success
[  101.332030] mpp_rkvenc fdf40000.rkvenc: shutdown device
[  101.337281] mpp_rkvenc fdf40000.rkvenc: shutdown success
[  101.347014] fan53555-regulator 0-001c: fan53555..... reset
[  101.353622] fan53555-regulator 0-001c: reset: force fan53555_reset ok!
[  101.369796] rockchip-vop2 fe040000.vop: [drm:vop2_crtc_atomic_disable] Crtc atomic disable vp0
[  101.410911] [WLAN_RFKILL]: Enter rfkill_wlan_shutdown
[  101.415996] [WLAN_RFKILL]: rockchip_wifi_power: 0
[  101.420716] [WLAN_RFKILL]: rockchip_wifi_power: toggle = false
[  101.426564] [WLAN_RFKILL]: rockchip_wifi_power: toggle = false
[  101.432410] [WLAN_RFKILL]: wifi shut off power [GPIO-1-1]
[  101.437822] [WLAN_RFKILL]: rfkill_set_wifi_bt_power: 0
[  101.443877] mpp-iep2 fdef0000.iep: shutdown device
[  101.448700] mpp-iep2 fdef0000.iep: shutdown success
[  101.453638] mpp_vepu2 fdee0000.vepu: shutdown device
[  101.458625] mpp_vepu2 fdee0000.vepu: shutdown success
[  101.463738] mpp_jpgdec fded0000.jpegd: shutdown device
[  101.468894] mpp_jpgdec fded0000.jpegd: shutdown success
[  101.474187] mpp_vdpu2 fdea0400.vdpu: shutdown device
[  101.479176] mpp_vdpu2 fdea0400.vdpu: shutdown success
[  101.484594] xhci-hcd xhci-hcd.4.auto: remove, state 4
[  101.489682] usb usb6: USB disconnect, device number 1
[  101.495652] xhci-hcd xhci-hcd.4.auto: USB bus 6 deregistered
[  101.501733] xhci-hcd xhci-hcd.4.auto: remove, state 4
[  101.506845] usb usb5: USB disconnect, device number 1
[  101.513000] xhci-hcd xhci-hcd.4.auto: USB bus 5 deregistered
[  101.526802] reboot: Power down

[END] 2025/7/26 10:17:49

http://www.dtcms.com/a/299151.html

相关文章:

  • 详解力扣高频SQL50题之1141. 查询近30天活跃用户数【简单】
  • 工具 | 解决 VSCode 中的 Delete CR 问题
  • 黑屏运维OceanBase数据库的常见案例
  • Java中配置两个r2db连接不同的数据库
  • LeetCode 854:相似度为 K 的字符串
  • RabbitMQ面试精讲 Day 5:Virtual Host与权限控制
  • 力扣 hot100 Day56
  • 香港本地和国际金融科技应用
  • 比特币如何实现去中心化?技术架构与机制解析
  • 2025年7月26日训练日志
  • MySQL 基本查询
  • SGLang 核心技术详解
  • IPSec IKE端口理解
  • Bert项目--新闻标题文本分类
  • 备份一下我的 mac mini 的环境变量配置情况
  • Java基础-文件操作
  • 尝试几道算法题,提升python编程思维
  • JavaSE:初识数组
  • 7月26日星期六今日早报简报微语报早读
  • kafka的消息存储机制和查询机制
  • Android Data Binding 深度解析与实践指南
  • Ubuntu22.04提示找不到python命令的解决方案
  • 测试人员先写测试要点,还是 测试场景?
  • 可调谐激光器原理与设计 【DFB 与 DBR 激光器剖析】
  • HiggsAudio-V2: 融合语言与声音的下一代音频大模型
  • 从零开始大模型之编码注意力机制
  • 设计模式十一:享元模式(Flyweight Pattern)
  • 微信小程序 自定义带图片弹窗
  • 单机版管家婆数据库日志自动清理计划
  • 从一个“诡异“的C++程序理解状态机、防抖与系统交互
