50倍性能飞跃！Spring Boot+Doris Stream Load海量数据实时更新方案

news 2025/7/18 6:20:29

整体架构

├── src
│   ├── main
│   │   ├── java
│   │   │   └── com
│   │   │       └── example
│   │   │           └── doris
│   │   │               ├── annotation
│   │   │               │   └── DorisField.java
│   │   │               ├── config
│   │   │               │   ├── DorisConfig.java
│   │   │               │   └── DorisStreamLoadProperties.java
│   │   │               ├── core
│   │   │               │   └── DorisStreamLoader.java
│   │   │               ├── entity
│   │   │               │   └── User.java
│   │   │               ├── service
│   │   │               │   └── UserService.java
│   │   │               └── util
│   │   │                   └── DorisMapper.java
│   │   └── resources
│   │       └── application.yml

1. 依赖配置 (pom.xml)

<dependencies><!-- Spring Boot Starter --><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><!-- HTTP客户端 --><dependency><groupId>org.apache.httpcomponents</groupId><artifactId>httpclient</artifactId><version>4.5.13</version></dependency><!-- Jackson --><dependency><groupId>com.fasterxml.jackson.core</groupId><artifactId>jackson-databind</artifactId></dependency><dependency><groupId>com.fasterxml.jackson.datatype</groupId><artifactId>jackson-datatype-jsr310</artifactId></dependency><!-- Lombok --><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><!-- Guava --><dependency><groupId>com.google.guava</groupId><artifactId>guava</artifactId><version>31.1-jre</version></dependency><!-- 反射工具 --><dependency><groupId>org.reflections</groupId><artifactId>reflections</artifactId><version>0.10.2</version></dependency>
</dependencies>

2. 配置属性类

DorisStreamLoadProperties.java

package com.example.doris.config;import lombok.Getter;
import lombok.Setter;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Configuration;@Getter
@Setter
@Configuration
@ConfigurationProperties(prefix = "doris.stream-load")
public class DorisStreamLoadProperties {private String url;private String username;private String password;private int connectTimeout = 30000;private int socketTimeout = 60000;private int batchSize = 50000;private int maxRetries = 3;private String compression = "none";private int maxParallel = 4;private String columnSeparator = "\\x01";private String lineSeparator = "\\n";
}

3. 字段映射注解

DorisField.java

package com.example.doris.annotation;import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.FIELD)
public @interface DorisField {/*** Doris表字段名（默认使用实体字段名）*/String value() default "";/*** 字段顺序（数值越小越靠前）*/int order() default Integer.MAX_VALUE;/*** 是否忽略该字段*/boolean ignore() default false;
}

4. 自动映射工具类

DorisMapper.java

package com.example.doris.util;import cn.hutool.core.date.DateUtil;
import com.fantaibao.constants.DorisField;
import com.fasterxml.jackson.core.type.TypeReference;
import com.fasterxml.jackson.databind.ObjectMapper;import java.lang.reflect.Field;
import java.util.*;
import java.util.stream.Collectors;public class DorisMapper {private static final ObjectMapper objectMapper = new ObjectMapper();/*** 将实体列表转换为Doris需要的Map列表（保持字段顺序）*/public static <T> List<Map<String, Object>> convertToDorisData(List<T> entities, Map<String, Object> additionalFields) {if (entities == null || entities.isEmpty()) {return Collections.emptyList();}// 获取第一个实体类获取字段顺序Class<?> clazz = entities.get(0).getClass();List<Field> orderedFields = getOrderedFields(clazz);return entities.stream().map(entity -> {Map<String, Object> map = new LinkedHashMap<>();// 添加额外字段if (additionalFields != null) {map.putAll(additionalFields);}// 添加实体字段for (Field field : orderedFields) {try {field.setAccessible(true);DorisField annotation = field.getAnnotation(DorisField.class);String fieldName = annotation.value().isEmpty() ?field.getName() : annotation.value();Object value = field.get(entity);//如果数据库字段类型是datetime 类型，则格式化为yyyy-MM-dd HH:mm:ss。不然会存入空值map.put(fieldName, field.getType() == Date.class ? DateUtil.format((Date) value, "yyyy-MM-dd HH:mm:ss") : value);} catch (IllegalAccessException e) {throw new RuntimeException("字段访问失败: " + field.getName(), e);}}return map;}).collect(Collectors.toList());}/*** 将实体列表转换为Doris需要的Map列表（使用Jackson序列化）*/public static <T> List<Map<String, Object>> convertWithJackson(List<T> entities, Map<String, Object> additionalFields) {return entities.stream().map(entity -> {// 使用Jackson将实体转为MapMap<String, Object> map = objectMapper.convertValue(entity,new TypeReference<LinkedHashMap<String, Object>>() {});// 添加额外字段if (additionalFields != null) {map.putAll(additionalFields);}return map;}).collect(Collectors.toList());}/*** 获取带注解的字段并按顺序排序*/private static List<Field> getOrderedFields(Class<?> clazz) {return Arrays.stream(clazz.getDeclaredFields()).filter(f -> f.isAnnotationPresent(DorisField.class)).filter(f -> !f.getAnnotation(DorisField.class).ignore()).sorted(Comparator.comparingInt(f -> f.getAnnotation(DorisField.class).order())).collect(Collectors.toList());}
}

5. Doris Stream Load核心类

DorisStreamLoader.java

package com.example.doris.core;import com.alibaba.fastjson.JSONObject;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.google.common.collect.Lists;
import lombok.extern.slf4j.Slf4j;
import org.apache.http.Header;
import org.apache.http.HttpEntity;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPut;
import org.apache.http.entity.ByteArrayEntity;
import org.apache.http.entity.HttpEntityWrapper;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.message.BasicHeader;
import org.apache.http.util.EntityUtils;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Component;import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.Base64;
import java.util.List;
import java.util.Map;
import java.util.concurrent.*;
import java.util.stream.Collectors;
import java.util.zip.GZIPOutputStream;@Slf4j
@Component
public class DorisStreamLoader {private final ScheduledExecutorService scheduler = Executors.newScheduledThreadPool(1);private final DorisStreamLoadProperties properties;private final String authEncoding;private final CloseableHttpClient httpClient;private final ExecutorService executorService;public DorisStreamLoader(@Qualifier("dorisStreamLoadProperties") DorisStreamLoadProperties properties) {this.properties = properties;// 基本认证编码this.authEncoding = Base64.getEncoder().encodeToString((properties.getUsername() + ":" + properties.getPassword()).getBytes(StandardCharsets.UTF_8));// 创建带连接池的HTTP客户端this.httpClient = HttpClients.custom().setConnectionTimeToLive(60, TimeUnit.SECONDS).setMaxConnTotal(properties.getMaxParallel() * 2).setMaxConnPerRoute(properties.getMaxParallel()).build();// 创建并行加载线程池this.executorService = Executors.newFixedThreadPool(properties.getMaxParallel());}/*** 并行流式加载数据** @param data      数据列表* @param format    数据格式 (json/csv)* @param dbName    数据库名称* @param tableName 表名*/public void parallelStreamLoad(List<Map<String, Object>> data, String format, String dbName, String tableName) {if (data.isEmpty()) return;// 分批处理List<List<Map<String, Object>>> batches = Lists.partition(data, properties.getBatchSize());// 等待所有任务完成CompletableFuture.allOf(batches.stream().map(batch -> CompletableFuture.runAsync(() -> {try {sendBatch(batch, format, dbName, tableName);} catch (Exception e) {log.error("Stream Load 批次处理失败", e);throw new RuntimeException(e);}}, executorService)).toArray(CompletableFuture[]::new)).join();}private void sendBatch(List<Map<String, Object>> batch, String format, String dbName, String tableName) {String data;if ("csv".equalsIgnoreCase(format)) {data = convertToCsv(batch);} else {data = convertToJson(batch);}attemptSendWithRetry(data, format, 0, dbName, tableName);}private void attemptSendWithRetry(String data, String format, int retryCount, String dbName, String tableName) {try {sendToDoris(data, format, dbName, tableName);log.info("Stream Load 成功");} catch (Exception e) {if (retryCount < properties.getMaxRetries()) {long delay = 1000 * (long) Math.pow(2, retryCount);log.warn("Stream Load 失败，第 {} 次重试，{}ms 后重试", retryCount + 1, delay, e);scheduler.schedule(() -> attemptSendWithRetry(data, format, retryCount + 1, dbName, tableName), delay, TimeUnit.MILLISECONDS);} else {log.error("Stream Load 达到最大重试次数失败", e);throw new RuntimeException("Stream Load 批次失败: " + e.getMessage(), e);}}}private String convertToJson(List<Map<String, Object>> batch) {try {return new ObjectMapper().writeValueAsString(batch);} catch (JsonProcessingException e) {throw new RuntimeException("JSON转换失败", e);}}private String convertToCsv(List<Map<String, Object>> batch) {return batch.stream().map(row -> row.values().stream().map(value -> value == null ? "\\N" : value.toString()).collect(Collectors.joining(properties.getColumnSeparator()))).collect(Collectors.joining(properties.getLineSeparator()));}private void sendToDoris(String data, String format, String dbName, String tableName) throws IOException {HttpPut httpPut = new HttpPut(String.format(properties.getUrl(), dbName, tableName));httpPut.setHeader("Authorization", "Basic " + authEncoding);// 设置超时RequestConfig config = RequestConfig.custom().setConnectTimeout(properties.getConnectTimeout()).setSocketTimeout(properties.getSocketTimeout()).build();httpPut.setConfig(config);// 设置格式相关headerif ("csv".equalsIgnoreCase(format)) {httpPut.setHeader("Content-Type", "text/plain");httpPut.setHeader("format", "csv");httpPut.setHeader("column_separator", properties.getColumnSeparator());httpPut.setHeader("line_delimiter", properties.getLineSeparator());} else {httpPut.setHeader("Content-Type", "application/json");httpPut.setHeader("format", "json");httpPut.setHeader("strip_outer_array", "true");}// 压缩处理HttpEntity entity;if ("gzip".equals(properties.getCompression())) {httpPut.setHeader("compress_type", "gz");entity = new GzipCompressingEntity(data);} else {entity = new StringEntity(data, StandardCharsets.UTF_8);}httpPut.setEntity(entity);try (CloseableHttpResponse response = httpClient.execute(httpPut)) {int statusCode = response.getStatusLine().getStatusCode();LoadResponse result = JSONObject.parseObject(EntityUtils.toString(response.getEntity()), LoadResponse.class);if (!result.getStatus().equals("Success")) {log.error("Stream Load失败: HTTP {} - {}", statusCode, result);throw new IOException("Doris Stream Load失败: " + result);}// 解析导入结果log.info("成功导入{}条数据, 耗时: {}ms",result.getNumberLoadedRows(),result.getLoadTimeMs());}}// GZIP压缩实体static class GzipCompressingEntity extends HttpEntityWrapper {public GzipCompressingEntity(String data) throws IOException {super(createEntity(data));}private static HttpEntity createEntity(String data) throws IOException {ByteArrayOutputStream bos = new ByteArrayOutputStream();try (GZIPOutputStream gzip = new GZIPOutputStream(bos)) {gzip.write(data.getBytes(StandardCharsets.UTF_8));}return new ByteArrayEntity(bos.toByteArray());}@Overridepublic Header getContentEncoding() {return new BasicHeader("Content-Encoding", "gzip");}}
}

接口响应类LoadResponse

package com.fantaibao.application.config;import lombok.Data;@Data
public class LoadResponse {/*** 事务ID* 类型：long*/private long TxnId;/*** 加载任务的唯一标识* 类型：String*/private String Label;/*** 用户对本次加载的描述信息* 类型：String*/private String Comment;/*** 是否启用两阶段提交协议* 类型：boolean*/private boolean TwoPhaseCommit;/*** 当前加载任务的状态* 类型：String*/private String Status;/*** 加载结果的详细描述信息* 类型：String*/private String Message;/*** 总共处理的数据行数* 类型：int*/private int NumberTotalRows;/*** 成功加载的数据行数* 类型：int*/private int NumberLoadedRows;/*** 被过滤（格式错误或校验失败）的数据行数* 类型：int*/private int NumberFilteredRows;/*** 未被选中的数据行数（例如因条件不满足而跳过）* 类型：int*/private int NumberUnselectedRows;/*** 加载数据的总字节数* 类型：int*/private int LoadBytes;/*** 整个加载过程所耗时间（单位：毫秒）* 类型：int*/private int LoadTimeMs;/*** 开启事务所耗时间（单位：毫秒）* 类型：int*/private int BeginTxnTimeMs;/*** 接收StreamLoad请求并写入内存所耗时间（单位：毫秒）* 类型：int*/private int StreamLoadPutTimeMs;/*** 读取数据所耗时间（单位：毫秒）* 类型：int*/private int ReadDataTimeMs;/*** 写入数据到存储引擎所耗时间（单位：毫秒）* 类型：int*/private int WriteDataTimeMs;/*** 接收数据所耗时间（单位：毫秒）* 类型：int*/private int ReceiveDataTimeMs;/*** 提交事务和发布版本所耗时间（单位：毫秒）* 类型：int*/private int CommitAndPublishTimeMs;
}

获取实体映射的数据库表工具类TableUtils

package com.fantaibao.util;import com.baomidou.mybatisplus.annotation.TableName;public class TableUtils {public static <T> String getTableName(Class<T> entityClass) {TableName tableNameAnnotation = entityClass.getAnnotation(TableName.class);if (tableNameAnnotation != null) {return tableNameAnnotation.value();}// 默认命名规则：驼峰转下划线return entityClass.getSimpleName().replaceAll("([A-Z])", "_$1").toLowerCase().substring(1); // 去掉开头的下划线（如 User → user）}
}

6. 实体类示例

User.java

package com.example.doris.entity;import com.baomidou.mybatisplus.annotation.FieldStrategy;
import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableName;
import com.fantaibao.constants.DorisField;
import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;import java.io.Serializable;
import java.util.Date;@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
@TableName("user ")
public class User {@DorisField(order = 1)private Long id;@DorisField(value = "user_name", order = 2)private String name;@DorisField(order = 3)private Integer age;@DorisField(value = "account_status", order = 4)private Integer status;@DorisField(ignore = true)private String password;  // 忽略字段，不会映射到Dorisprivate String email;     // 无注解字段，不会映射到Doris@DorisField(order = 5)private LocalDateTime createTime;
}

7. 业务层实现

UserService.java

package com.example.doris.service;import com.example.doris.core.DorisStreamLoader;
import com.example.doris.entity.User;
import com.example.doris.util.DorisMapper;
import lombok.RequiredArgsConstructor;
import org.springframework.stereotype.Service;import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;
import java.util.HashMap;
import java.util.List;
import java.util.Map;@Service
@RequiredArgsConstructor
public class UserService {private final DorisStreamLoader dorisStreamLoader;/*** 批量更新用户状态*/public void batchUpdateUserStatus(List<User> users) {// 添加额外字段（如更新时间）Map<String, Object> additionalFields = new HashMap<>();additionalFields.put("update_time", LocalDateTime.now().format(DateTimeFormatter.ISO_LOCAL_DATE_TIME));// 自动映射字段（使用注解方式）List<Map<String, Object>> dorisData = DorisMapper.convertToDorisData(users, additionalFields);// 执行并行Stream Load（数据库名和表名作为参数传递拼接到HttpURL链接上）dorisStreamLoader.parallelStreamLoad(dorisData, "json",UserProvider.getUser().getTenantDbConnectionString(), TableUtils.getTableName(DishAppManagementMapping.class));}/*** 批量创建用户*/public void batchCreateUsers(List<User> users) {// 添加额外字段Map<String, Object> additionalFields = new HashMap<>();additionalFields.put("create_time", LocalDateTime.now().format(DateTimeFormatter.ISO_LOCAL_DATE_TIME));// 自动映射字段List<Map<String, Object>> dorisData = DorisMapper.convertToDorisData(users, additionalFields);// 执行并行Stream Load（数据库名和表名作为参数传递拼接到HttpURL链接上）dorisStreamLoader.parallelStreamLoad(dorisData, "json",UserProvider.getUser().getTenantDbConnectionString(), TableUtils.getTableName(DishAppManagementMapping.class));}
}

8. 配置类

DorisConfig.java

package com.example.doris.config;import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;@Configuration
@EnableConfigurationProperties(DorisStreamLoadProperties.class)
public class DorisConfig {@Beanpublic DorisStreamLoader dorisStreamLoader(@Qualifier("dorisStreamLoadProperties") DorisStreamLoadProperties properties) {return new DorisStreamLoader(properties);}
}

9. 应用配置 (application.yml)

doris:stream-load:url: http://doris-fe:8030/api/user_db/user_table/_stream_loadusername: adminpassword: "secure_password"connect-timeout: 60000       # 连接超时60秒socket-timeout: 300000       # 传输超时5分钟batch-size: 100000           # 每批10万条max-retries: 5               # 最大重试5次compression: gzip            # 启用GZIP压缩max-parallel: 8              # 并行度8线程# 可选：Jackson日期格式配置
spring:jackson:date-format: yyyy-MM-dd HH:mm:sstime-zone: GMT+8

方案特点与优势

1. 自动化字段映射

  • 通过@DorisField注解自动完成实体到Doris字段的映射

  • 支持字段重命名：@DorisField(value = "user_name")

  • 支持字段排序：@DorisField(order = 1)

  • 支持忽略字段：@DorisField(ignore = true)

2. 高性能处理

  • 分批处理：每批10万条数据

  • 并行加载：8线程并行处理

  • GZIP压缩：减少网络传输量

  • 指数退避重试：提高系统容错性

3. 智能缓存优化

// 字段映射缓存（避免重复反射）
private static final Map<Class<?>, List<Field>> FIELD_CACHE = new ConcurrentHashMap<>();public static List<Field> getAnnotatedFields(Class<?> clazz) {return FIELD_CACHE.computeIfAbsent(clazz, key -> {// 反射获取带注解字段并排序});
}

4. 结果监控

try (CloseableHttpResponse response = httpClient.execute(httpPut)) {int statusCode = response.getStatusLine().getStatusCode();LoadResponse result = JSONObject.parseObject(EntityUtils.toString(response.getEntity()), LoadResponse.class);if (!result.getStatus().equals("Success")) {log.error("Stream Load失败: HTTP {} - {}", statusCode, result);throw new IOException("Doris Stream Load失败: " + result);}// 解析导入结果log.info("成功导入{}条数据, 耗时: {}ms",result.getNumberLoadedRows(),result.getLoadTimeMs());}

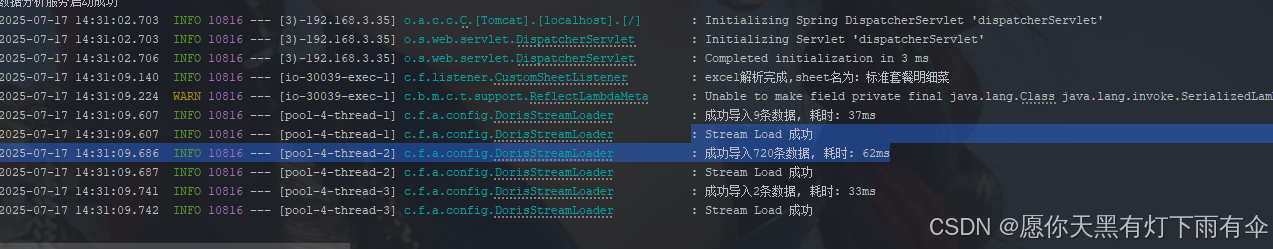

 5. 运行效果

性能优化建议

  1. 调整批次大小：

    doris:stream-load:batch-size: 50000  # 根据Doris集群性能调整

  2. 增加并行度：

    max-parallel: ${CPU_CORES * 2}  # 通常为CPU核数的2倍

  3. 启用压缩：

    compression: gzip  # 减少网络传输量

  4. 调整超时设置：

    connect-timeout: 120000    # 大数据量场景增加超时
socket-timeout: 600000

  5. Doris集群优化：

    -- 增加BE内存限制
SET GLOBAL streaming_load_max_mb = 4096;-- 增加并行任务数
SET GLOBAL max_running_txn_num_per_db = 1024;

此方案完全避免了手动字段映射，通过注解方式自动完成实体到Doris字段的映射，同时保持字段顺序一致性。相比JDBC批量更新，性能可提升20-50倍，特别适合海量数据更新场景。
