绘制饼图详细过程

news 来源：原创 2025/6/8 14:02:20

`QtCharts`绘制饼图

说明：qcustomplot模块没有绘制饼图的接口和模块，所以用Qt官方自带的QtCharts进行绘制。绘制出来还挺美观。

1 模块导入

QT       += charts

QT_BEGIN_NAMESPACE

以上这两行代码必须得加

2 总体代码

widget.h

#ifndef WIDGET_H
#define WIDGET_H#include <QWidget>
#include <QtCharts>
#include <QChartView>
#include "qcustomplot.h"
#include <QTimer>
#include <QRandomGenerator>
QT_BEGIN_NAMESPACE
namespace Ui { class Widget; }
QT_END_NAMESPACE
QT_CHARTS_USE_NAMESPACE
class Widget : public QWidget
{Q_OBJECTpublic:Widget(QWidget *parent = nullptr);~Widget();public:void paintPie(QChartView *chartView);private:Ui::Widget *ui;QTimer *timer;
};
#endif // WIDGET_H

widget.cpp

#include "widget.h"
#include "ui_widget.h"Widget::Widget(QWidget *parent): QWidget(parent), ui(new Ui::Widget)
{ui->setupUi(this);paintPie(ui->graphicsView);timer = new QTimer(this);connect(timer, &QTimer::timeout, this,[this](){// 预定义的类别名称数组static const QStringList categoryNames = {"Search Engine","Direct","Email","Union Ads","Video Ads"};QPieSeries *series = static_cast<QPieSeries *>(ui->graphicsView->chart()->series().at(0));QList<QPieSlice*> slices = series->slices();if (slices.size() >= 5){slices[0]->setValue(QRandomGenerator::global()->bounded(10, 100));slices[1]->setValue(QRandomGenerator::global()->bounded(10, 100));slices[2]->setValue(QRandomGenerator::global()->bounded(10, 100));slices[3]->setValue(QRandomGenerator::global()->bounded(10, 100));slices[4]->setValue(QRandomGenerator::global()->bounded(10, 100));}for (int i = 0; i < slices.size(); i++){qreal percent = (slices[i]->value() / series->sum()) * 100.0;
//            修改了这句代码，slice->label()会获取标签值，然后在标签值后不断追加数据
//            label = QString("%1\n%2%").arg(slice->label()).arg(percent, 0, 'f', 1);QString label = QString("%1\n%2%").arg(categoryNames[i]).arg(percent, 0, 'f', 1);slices[i]->setLabel(label);slices[i]->setLabelVisible(true);slices[i]->setLabelArmLengthFactor(0.05);slices[i]->setLabelPosition(QPieSlice::LabelOutside);}});timer->start(1000);
}Widget::~Widget()
{delete ui;
}void Widget::paintPie(QChartView *chartView)
{// 创建饼图对象QPieSeries *series = new QPieSeries();series->setHoleSize(0.35);  // 空心圆大小（0-1）series->setPieSize(0.7);     // 饼图相对视图的大小// 创建Chart画布QChart *chart = new QChart();chartView->setBackgroundBrush(QBrush(QColor(Qt::black)));chart->setBackgroundBrush(QBrush(QColor(Qt::black)));chart->addSeries(series);chart->setAnimationOptions(QChart::AllAnimations); // 设置显示时的动画效果chart->setTitle("系统CPU利用率");chart->setTitleFont(QFont("Arial", 14, QFont::Bold));// 将参数设置到画布chartView->setChart(chart);chartView->setRenderHint(QPainter::Antialiasing);chartView->chart()->setTheme(QChart::ChartTheme(0));chartView->setRubberBand(QChartView::RectangleRubberBand);  // 矩形缩放// 添加数据切片QPieSlice *slice1 = series->append("Search Engine", 1048);QPieSlice *slice2 = series->append("Direct", 735);QPieSlice *slice3 = series->append("Email", 580);QPieSlice *slice4 = series->append("Union Ads", 484);QPieSlice *slice5 = series->append("Video Ads", 300);// 配置每个切片的样式slice1->setColor(QColor(92, 123, 217));slice2->setColor(QColor(159, 224, 128));slice3->setColor(QColor(255, 220, 96));slice4->setColor(QColor(255, 112, 112));slice5->setColor(QColor(126, 211, 244));// 设置标签格式：显示百分比和名称for (auto slice : series->slices()) {qreal percent = (slice->value() / series->sum()) * 100.0;QString label = QString("%1\n%2%").arg(slice->label()).arg(percent, 0, 'f', 1);slice->setLabel(label);slice->setLabelVisible(true);slice->setLabelArmLengthFactor(0.05);  // 标签连接线长度slice->setLabelPosition(QPieSlice::LabelOutside);  // 标签在外部
//       slice->setBorderWidth(2);  // 切片边框宽度}// 配置图例chart->legend()->setVisible(true);chart->legend()->setAlignment(Qt::AlignTrailing);chart->legend()->setFont(QFont("Arial", 9));// 连接悬停信号（突出显示效果）connect(series, &QPieSeries::hovered, [](QPieSlice *slice, bool state){if (state){slice->setExploded(true);      // 突出显示slice->setLabelVisible(true);  // 确保标签可见}else{slice->setExploded(false);slice->setPen(QPen(Qt::NoPen));}});}

3 逐段代码看效果

// 创建饼图对象
QPieSeries *series = new QPieSeries();
series->setHoleSize(0.35);  // 空心圆大小（0-1）
series->setPieSize(0.7);     // 饼图相对视图的大小// 创建Chart画布
QChart *chart = new QChart();
// 将饼图对象加入画布中
chart->addSeries(series);// 设置界面打开时有动画显示
chart->setAnimationOptions(QChart::AllAnimations); // 设置显示时的动画效果
chart->setTitle("饼图示例");
chart->setTitleFont(QFont("Arial", 14, QFont::Bold));
// 将画布设置到视图
chartView->setChart(chart);
chartView->setRenderHint(QPainter::Antialiasing);
chartView->chart()->setTheme(QChart::ChartTheme(0));
chartView->setRubberBand(QChartView::RectangleRubberBand);  // 矩形缩放

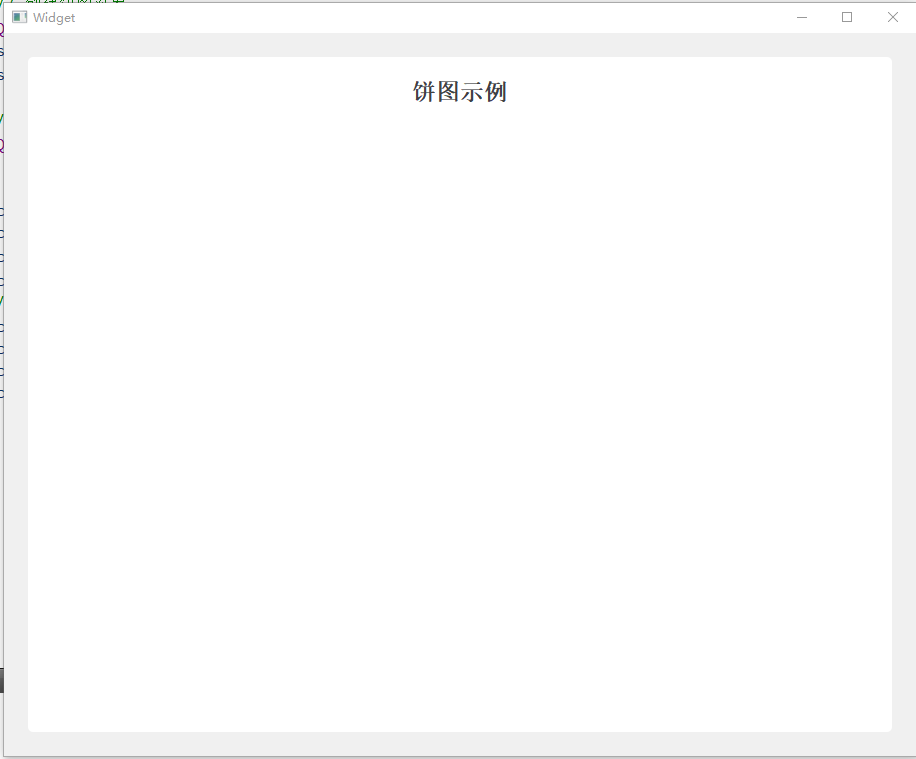

上述代码是标准操作流程

在这里插入图片描述

接下来才是操作饼图

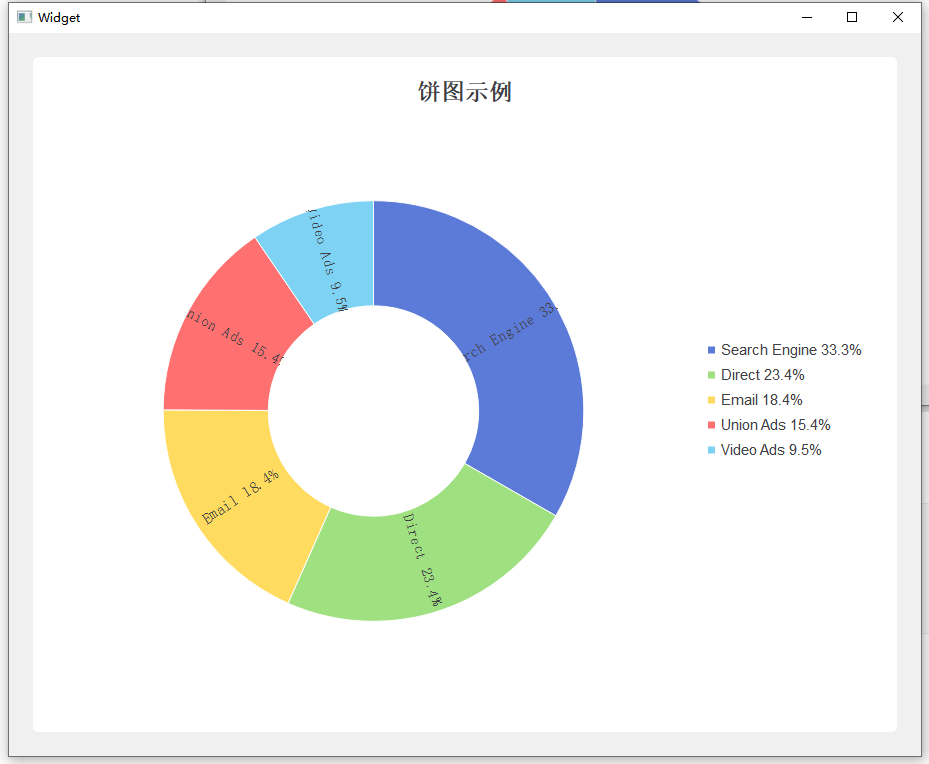

// 添加数据切片
QPieSlice *slice1 = series->append("Search Engine", 1048);
QPieSlice *slice2 = series->append("Direct", 735);
QPieSlice *slice3 = series->append("Email", 580);
QPieSlice *slice4 = series->append("Union Ads", 484);
QPieSlice *slice5 = series->append("Video Ads", 300);
// 配置每个切片的样式
slice1->setColor(QColor(92, 123, 217));
slice2->setColor(QColor(159, 224, 128));
slice3->setColor(QColor(255, 220, 96));
slice4->setColor(QColor(255, 112, 112));
slice5->setColor(QColor(126, 211, 244));

在这里插入图片描述

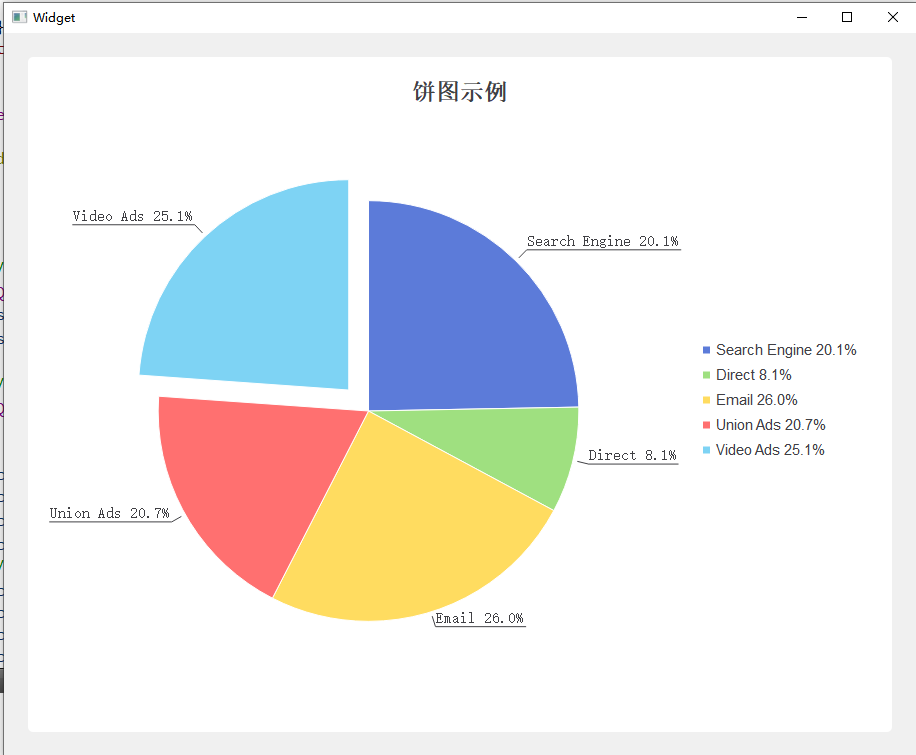

series->setHoleSize(0);  // 空心圆大小（0-1）
series->setPieSize(0.7);     // 饼图相对视图的大小

在这里插入图片描述

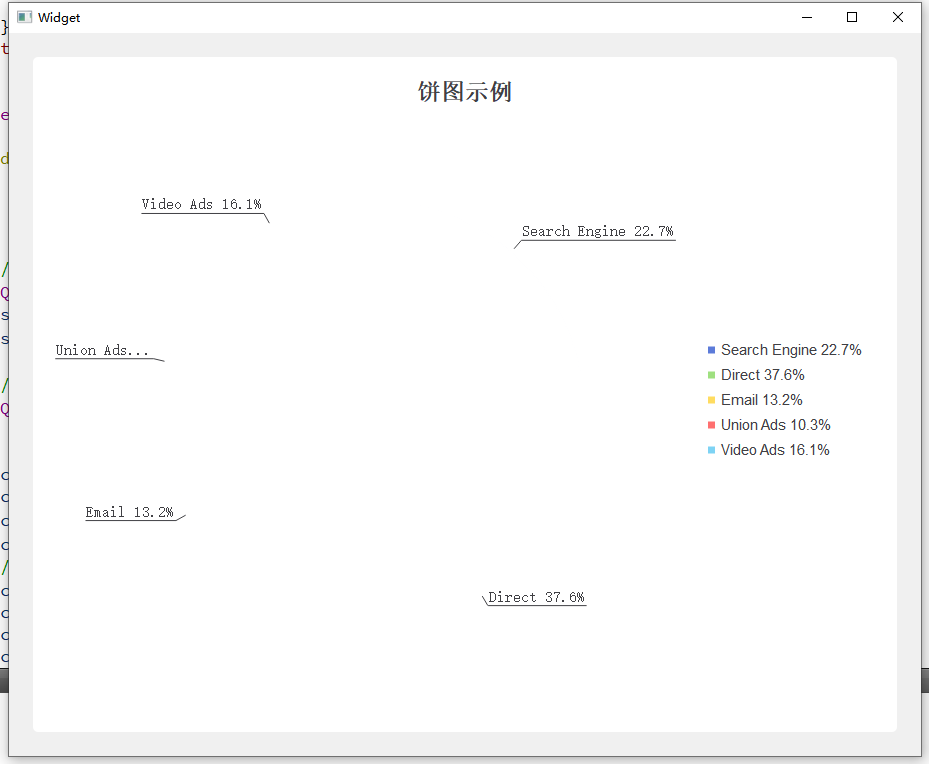

series->setHoleSize(1);  // 空心圆大小（0-1）
series->setPieSize(0.7);     // 饼图相对视图的大小

在这里插入图片描述

这样，基础的饼图就绘制出来了，接下来是配置

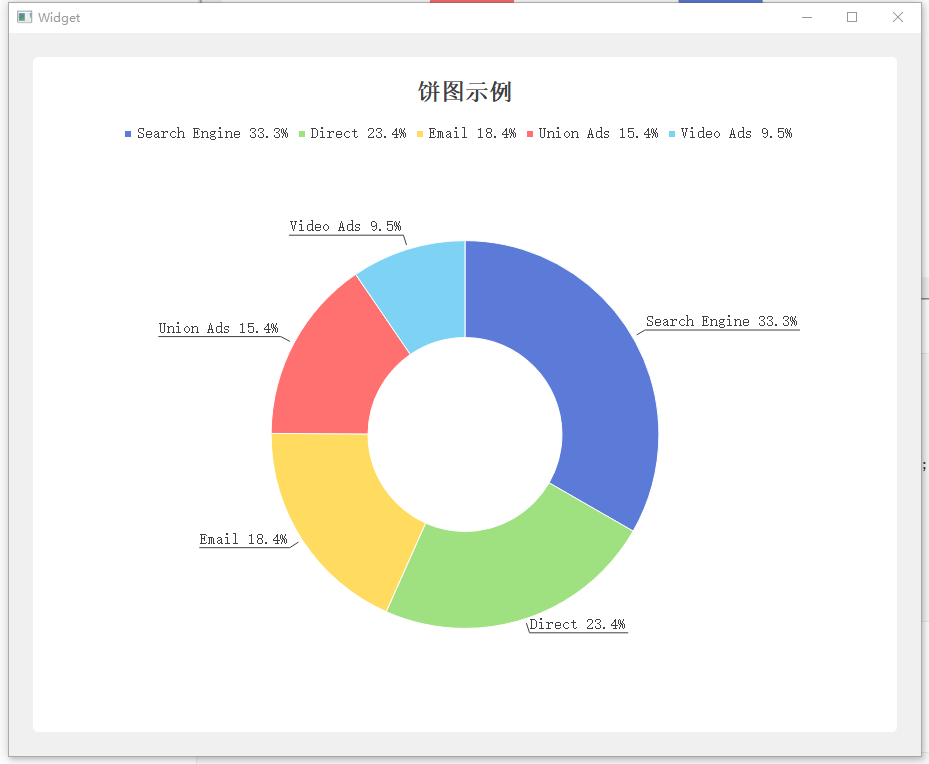

// 设置标签格式：显示百分比和名称
for (auto slice : series->slices())
{qreal percent = (slice->value() / series->sum()) * 100.0;QString label = QString("%1\n%2%").arg(slice->label()).arg(percent, 0, 'f', 1);slice->setLabel(label);slice->setLabelVisible(true);slice->setLabelArmLengthFactor(0.05);  // 标签连接线长度slice->setLabelPosition(QPieSlice::LabelOutside);  // 标签在外部// slice->setBorderWidth(2);  // 切片边框宽度
}

在这里插入图片描述

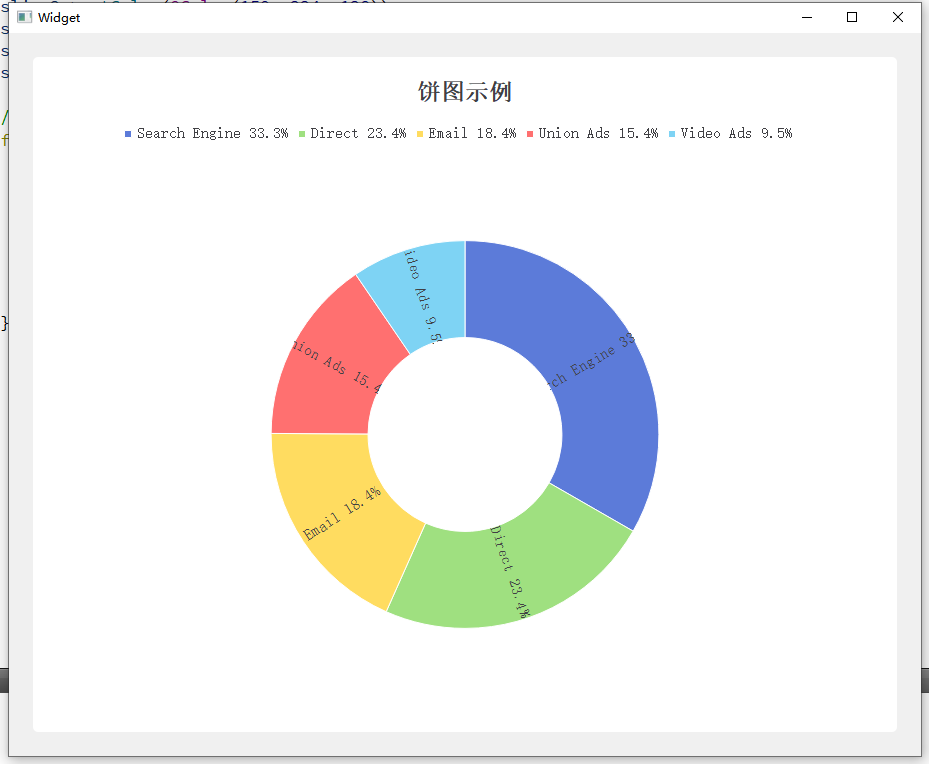

slice->setLabelPosition(QPieSlice::LabelInsideNormal);

在这里插入图片描述

// 配置图例
chart->legend()->setVisible(true);
chart->legend()->setAlignment(Qt::AlignTrailing);
chart->legend()->setFont(QFont("Arial", 9));

在这里插入图片描述

// 连接悬停信号（突出显示效果）
connect(series, &QPieSeries::hovered, [](QPieSlice *slice, bool state)
{if (state){slice->setExploded(true);      // 突出显示slice->setLabelVisible(true);  // 确保标签可见}else{slice->setExploded(false);slice->setPen(QPen(Qt::NoPen));}
});

在这里插入图片描述

4 让饼图动态显示

// 首先，肯定要有一个定时器吧
timer = new QTimer(this);connect(timer, &QTimer::timeout, this,[this]()
{// 预定义的类别名称数组static const QStringList categoryNames = {"Search Engine","Direct","Email","Union Ads","Video Ads"};// 获取饼图的切片QPieSeries *series = static_cast<QPieSeries *>(ui->graphicsView->chart()->series().at(0));QList<QPieSlice*> slices = series->slices();if (slices.size() >= 5){// 这里直接用索引，没有用series->appendslices[0]->setValue(QRandomGenerator::global()->bounded(10, 100));slices[1]->setValue(QRandomGenerator::global()->bounded(10, 100));slices[2]->setValue(QRandomGenerator::global()->bounded(10, 100));slices[3]->setValue(QRandomGenerator::global()->bounded(10, 100));slices[4]->setValue(QRandomGenerator::global()->bounded(10, 100));}for (int i = 0; i < slices.size(); i++){qreal percent = (slices[i]->value() / series->sum()) * 100.0;
//            修改了这句代码，slice->label()会获取标签值，然后在标签值后不断追加数据
//            label = QString("%1\n%2%").arg(slice->label()).arg(percent, 0, 'f', 1);QString label = QString("%1\n%2%").arg(categoryNames[i]).arg(percent, 0, 'f', 1);slices[i]->setLabel(label);slices[i]->setLabelVisible(true);slices[i]->setLabelArmLengthFactor(0.05);slices[i]->setLabelPosition(QPieSlice::LabelOutside);}});
timer->start(1000);
