Python训练营---Day45

news 来源：原创 2025/6/6 12:58:25

DAY 45 Tensorboard使用介绍

知识点回顾：

tensorboard的发展历史和原理
tensorboard的常见操作
tensorboard在cifar上的实战：MLP和CNN模型

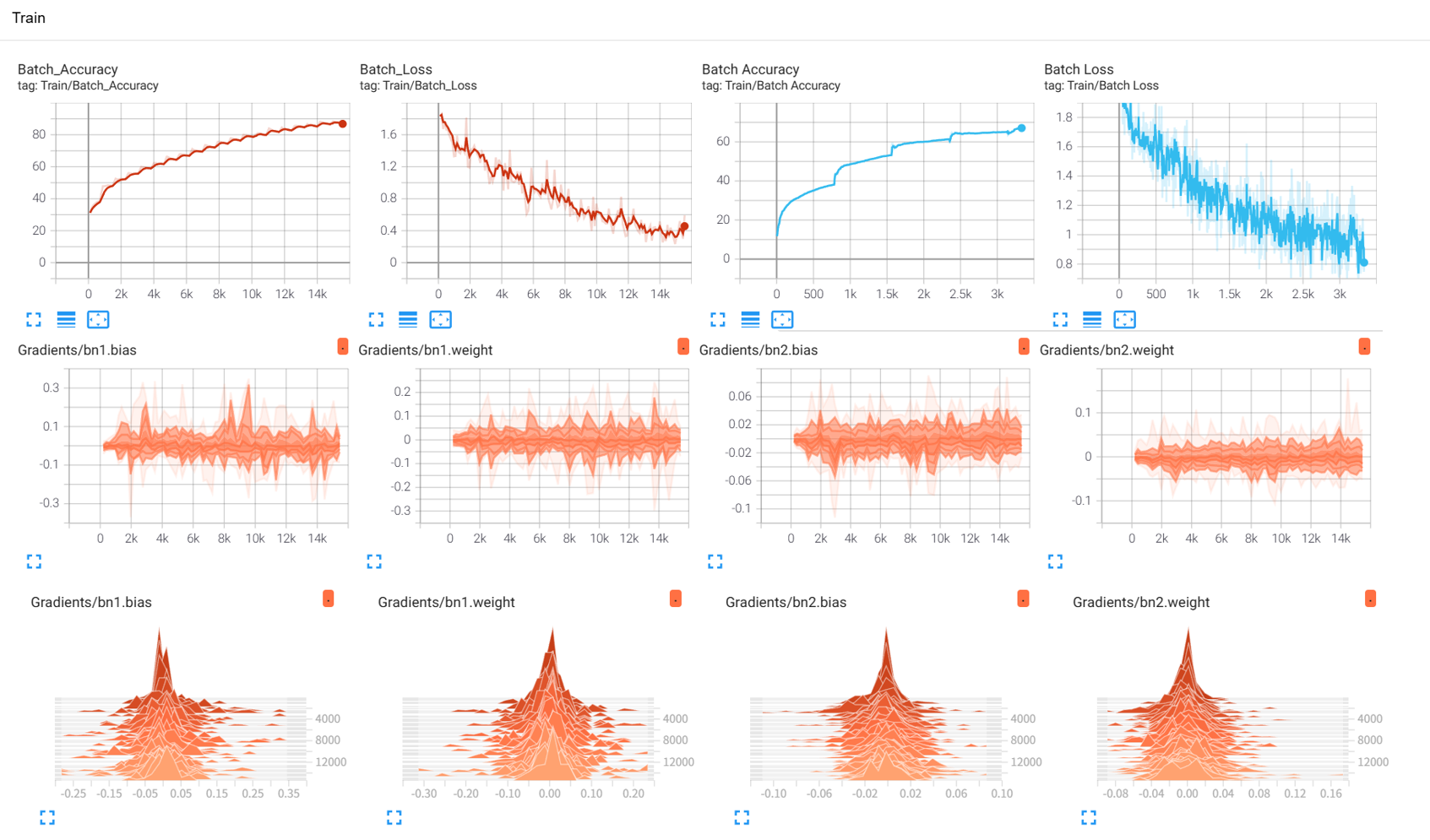

效果展示如下，很适合拿去组会汇报撑页数：

作业：对resnet18在cifar10上采用微调策略下，用tensorboard监控训练过程。

import torch
import torch.nn as nn
import torch.optim as optim
from torchvision import datasets, transforms, models
from torch.utils.data import DataLoader
import matplotlib.pyplot as plt
import os# 设置中文字体支持
plt.rcParams["font.family"] = ["SimHei"]
plt.rcParams['axes.unicode_minus'] = False  # 解决负号显示问题# 检查GPU是否可用
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"使用设备: {device}")# 1. 数据预处理（训练集增强，测试集标准化）
train_transform = transforms.Compose([transforms.RandomCrop(32, padding=4),transforms.RandomHorizontalFlip(),transforms.ColorJitter(brightness=0.2, contrast=0.2, saturation=0.2, hue=0.1),transforms.RandomRotation(15),transforms.ToTensor(),transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010))
])test_transform = transforms.Compose([transforms.ToTensor(),transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2023, 0.1994, 0.2010))
])# 2. 加载CIFAR-10数据集
train_dataset = datasets.CIFAR10(root='./data',train=True,download=True,transform=train_transform
)test_dataset = datasets.CIFAR10(root='./data',train=False,transform=test_transform
)# 3. 创建数据加载器
batch_size = 64
train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
test_loader = DataLoader(test_dataset, batch_size=batch_size, shuffle=False)# 4. 定义ResNet18模型
def create_resnet18(pretrained=True, num_classes=10):model = models.resnet18(pretrained=pretrained)# 修改最后一层全连接层in_features = model.fc.in_featuresmodel.fc = nn.Linear(in_features, num_classes)return model.to(device)# 5. 冻结/解冻模型层的函数
# 这种设计允许我们在迁移学习中保留预训练模型的特征提取部分（卷积层），只训练新添加的分类层（全连接层）。
def freeze_model(model, freeze=True):"""冻结或解冻模型的卷积层参数"""# 冻结/解冻除fc层外的所有参数for name, param in model.named_parameters():if 'fc' not in name:    #排除名称中包含 "fc" 的参数，这些通常是全连接层的参数param.requires_grad = not freeze    #param.requires_grad是 PyTorch 中控制参数是否参与反向传播和梯度更新的标志# 打印冻结状态frozen_params = sum(p.numel() for p in model.parameters() if not p.requires_grad)   #统计所有requires_grad=False的参数数量total_params = sum(p.numel() for p in model.parameters())if freeze:print(f"已冻结模型卷积层参数 ({frozen_params}/{total_params} 参数)")else:print(f"已解冻模型所有参数 ({total_params}/{total_params} 参数可训练)")return model# 6. 训练函数（整合 TensorBoard 记录）
def train_with_freeze_schedule(model, train_loader, test_loader, criterion, optimizer, scheduler, device, epochs, freeze_epochs=5):# ======================== TensorBoard 核心配置 ========================# 在使用tensorboard前需要先指定日志保存路径log_dir = "runs/cifar10_resnet18_exp" # 指定日志保存路径if os.path.exists(log_dir): #检查刚才定义的路径是否存在version = 1 while os.path.exists(f"{log_dir}_v{version}"): # 如果路径存在且版本号一致version += 1 # 版本号加1log_dir = f"{log_dir}_v{version}" # 如果路径存在，则创建一个新版本writer = SummaryWriter(log_dir) # 初始化SummaryWriterprint("开始使用ResNet18训练模型...")print(f"TensorBoard 日志目录: {log_dir}") # 所以第一次是cifar10_resnet_exp、第二次是cifar10_resnet_exp_v1print("训练后执行: tensorboard --logdir=runs 查看可视化")# （可选）记录模型结构：用一个真实样本走一遍前向传播，让 TensorBoard 解析计算图dataiter = iter(train_loader)images, labels = next(dataiter)images = images.to(device)writer.add_graph(model, images)  # 写入模型结构到 TensorBoard# （可选）记录原始训练图像：可视化数据增强前/后效果img_grid = torchvision.utils.make_grid(images[:8].cpu())  # 取前8张writer.add_image('原始训练图像（增强前）', img_grid, global_step=0)global_step = 0       # 全局步骤，用于 TensorBoard 标量记录"""前freeze_epochs轮冻结卷积层，之后解冻所有层进行训练"""# 初始冻结卷积层if freeze_epochs > 0:model = freeze_model(model, freeze=True)for epoch in range(epochs):# 解冻控制：在指定轮次后解冻所有层if epoch == freeze_epochs:model = freeze_model(model, freeze=False)# 解冻后调整优化器（可选）optimizer.param_groups[0]['lr'] = 1e-4  # 降低学习率防止过拟合model.train()  # 设置为训练模式running_loss = 0.0correct_train = 0total_train = 0for batch_idx, (data, target) in enumerate(train_loader):data, target = data.to(device), target.to(device)optimizer.zero_grad()output = model(data)loss = criterion(output, target)loss.backward()optimizer.step()# 统计准确率running_loss += iter_loss_, predicted = output.max(1)total_train += target.size(0)correct_train += predicted.eq(target).sum().item()# ======================== TensorBoard 标量记录 ========================# 记录每个 batch 的损失、准确率和学习率batch_acc = 100. * correct_train / total_trainwriter.add_scalar('Train/Batch Loss', iter_loss, global_step)writer.add_scalar('Train/Batch Accuracy', batch_acc, global_step)writer.add_scalar('Train/Learning Rate', optimizer.param_groups[0]['lr'], global_step)# 每 200 个 batch 记录一次参数直方图（可选，耗时稍高）if (batch_idx + 1) % 200 == 0:for name, param in model.named_parameters():writer.add_histogram(f'Weights/{name}', param, global_step)if param.grad is not None:writer.add_histogram(f'Gradients/{name}', param.grad, global_step)global_step += 1  # 全局步骤递增# 计算 epoch 级训练指标epoch_train_loss = running_loss / len(train_loader)epoch_train_acc = 100. * correct_train / total_train# ======================== TensorBoard  epoch 标量记录 ========================writer.add_scalar('Train/Epoch Loss', epoch_train_loss, epoch)writer.add_scalar('Train/Epoch Accuracy', epoch_train_acc, epoch)# 测试阶段model.eval()correct_test = 0total_test = 0test_loss = 0.0wrong_images = []  # 存储错误预测样本（用于可视化）wrong_labels = []wrong_preds = []with torch.no_grad():for data, target in test_loader:data, target = data.to(device), target.to(device)output = model(data)test_loss += criterion(output, target).item()_, predicted = output.max(1)total_test += target.size(0)correct_test += predicted.eq(target).sum().item()# 收集错误预测样本（用于可视化）wrong_mask = (predicted != target)if wrong_mask.sum() > 0:wrong_batch_images = data[wrong_mask][:8].cpu()  # 最多存8张wrong_batch_labels = target[wrong_mask][:8].cpu()wrong_batch_preds = predicted[wrong_mask][:8].cpu()wrong_images.extend(wrong_batch_images)wrong_labels.extend(wrong_batch_labels)wrong_preds.extend(wrong_batch_preds)# 计算 epoch 级测试指标epoch_test_loss = test_loss / len(test_loader)epoch_test_acc = 100. * correct_test / total_test# ======================== TensorBoard 测试集记录 ========================writer.add_scalar('Test/Epoch Loss', epoch_test_loss, epoch)writer.add_scalar('Test/Epoch Accuracy', epoch_test_acc, epoch)# （可选）可视化错误预测样本if wrong_images:wrong_img_grid = torchvision.utils.make_grid(wrong_images)writer.add_image('错误预测样本', wrong_img_grid, epoch)# 写入错误标签文本（可选）wrong_text = [f"真实: {classes[wl]}, 预测: {classes[wp]}" for wl, wp in zip(wrong_labels, wrong_preds)]writer.add_text('错误预测标签', '\n'.join(wrong_text), epoch)# 记录历史数据train_loss_history.append(epoch_train_loss)test_loss_history.append(epoch_test_loss)train_acc_history.append(epoch_train_acc)test_acc_history.append(epoch_test_acc)# 更新学习率调度器if scheduler is not None:scheduler.step(epoch_test_loss)# 打印 epoch 结果print(f"Epoch {epoch+1} 完成 | 训练损失: {epoch_train_loss:.4f} "f"| 训练准确率: {epoch_train_acc:.2f}% | 测试准确率: {epoch_test_acc:.2f}%")# 关闭 TensorBoard 写入器writer.close()return epoch_test_acc  # 返回最终测试准确率# 主函数：训练模型
def main():# 参数设置epochs = 40  # 总训练轮次freeze_epochs = 5  # 冻结卷积层的轮次learning_rate = 1e-3  # 初始学习率weight_decay = 1e-4  # 权重衰减# 创建ResNet18模型（加载预训练权重）model = create_resnet18(pretrained=True, num_classes=10)# 定义优化器和损失函数optimizer = optim.Adam(model.parameters(), lr=learning_rate, weight_decay=weight_decay)criterion = nn.CrossEntropyLoss()# 定义学习率调度器scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer, mode='min', factor=0.5, patience=2, verbose=True)# 开始训练（前5轮冻结卷积层，之后解冻）final_accuracy = train_with_freeze_schedule(model=model,train_loader=train_loader,test_loader=test_loader,criterion=criterion,optimizer=optimizer,scheduler=scheduler,device=device,epochs=epochs,freeze_epochs=freeze_epochs)print(f"训练完成！最终测试准确率: {final_accuracy:.2f}%")# # 保存模型# torch.save(model.state_dict(), 'resnet18_cifar10_finetuned.pth')# print("模型已保存至: resnet18_cifar10_finetuned.pth")if __name__ == "__main__":main()
