Docker-搭建MySQL主从复制与双主双从

主从复制是指 一台服务器充当主数据库服务器 ， 另一台或多台服务器充当从数据库服务器，主服务器中的数据自动复制到从服务器之中。

对于多级复制，数据库服务器即可充当主机，也可充当从机。MySQL 主从复制的基础是 主服务器对数据库修改记录二进制日志 ，从服务器通过主服务器的 二进制日志 自动执行更新

• 主数据库（Master）：负责处理写操作和更新数据，是业务操作的主要入口。
• 从数据库（Slave）：复制主数据库的数据，通常用于读操作和数据备份，以减轻主数据库的
  压力。

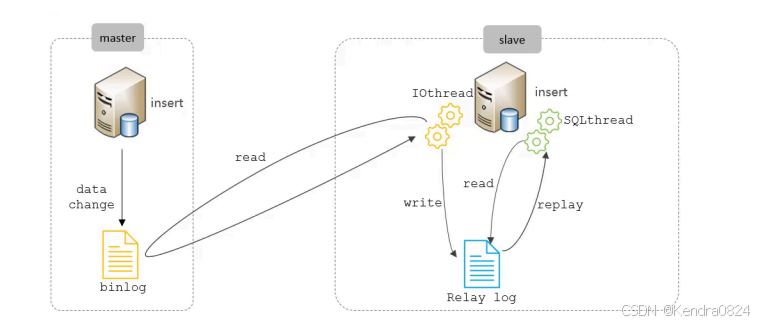

1. 记录主库更新的操作记录到二进制日志 binlog 中，通过 binlog dump线程发送给从库
   • 当主库发生更新事件（如UPDATE、INSERT、DELETE、CREATE）时，这些操作会被顺序地写入二进制日志（binlog）中。
   • 主库会开启一个 binlog dump线程，负责将 binlog 日志中的事件发送给从库。
2. 从库 IO 线程通过设置的主库的 slave 账号，连接到主库请求 binlog，并接收主库的binlog，写入到中断日志 relay log 中
   • 从库通过 IO 线程连接到主库，并请求 binlog 日志的内容。
   • 主库的 binlog dump 线程将 binlog 日志中的事件发送给从库的 IO 线程。
   • 从库的 IO 线程接收这些事件，并将其写入到从库的中继日志（relay log）中
3. 从库 SQL 线程实时监控 relay log，读取、解析并执行 relay log 中的SQL语句，实现数据的同步。
   • 从库开启一个 SQL 线程，实时监控 relay log 的内容是否有更新。
   • SQL 线程解析 relay log 中的 SQL 语句，并在从库上执行这些语句，从而实现数据的同步。

一、MySQL主从复制

1.1 准备工作

从 Harbor 私有仓库拉取镜像

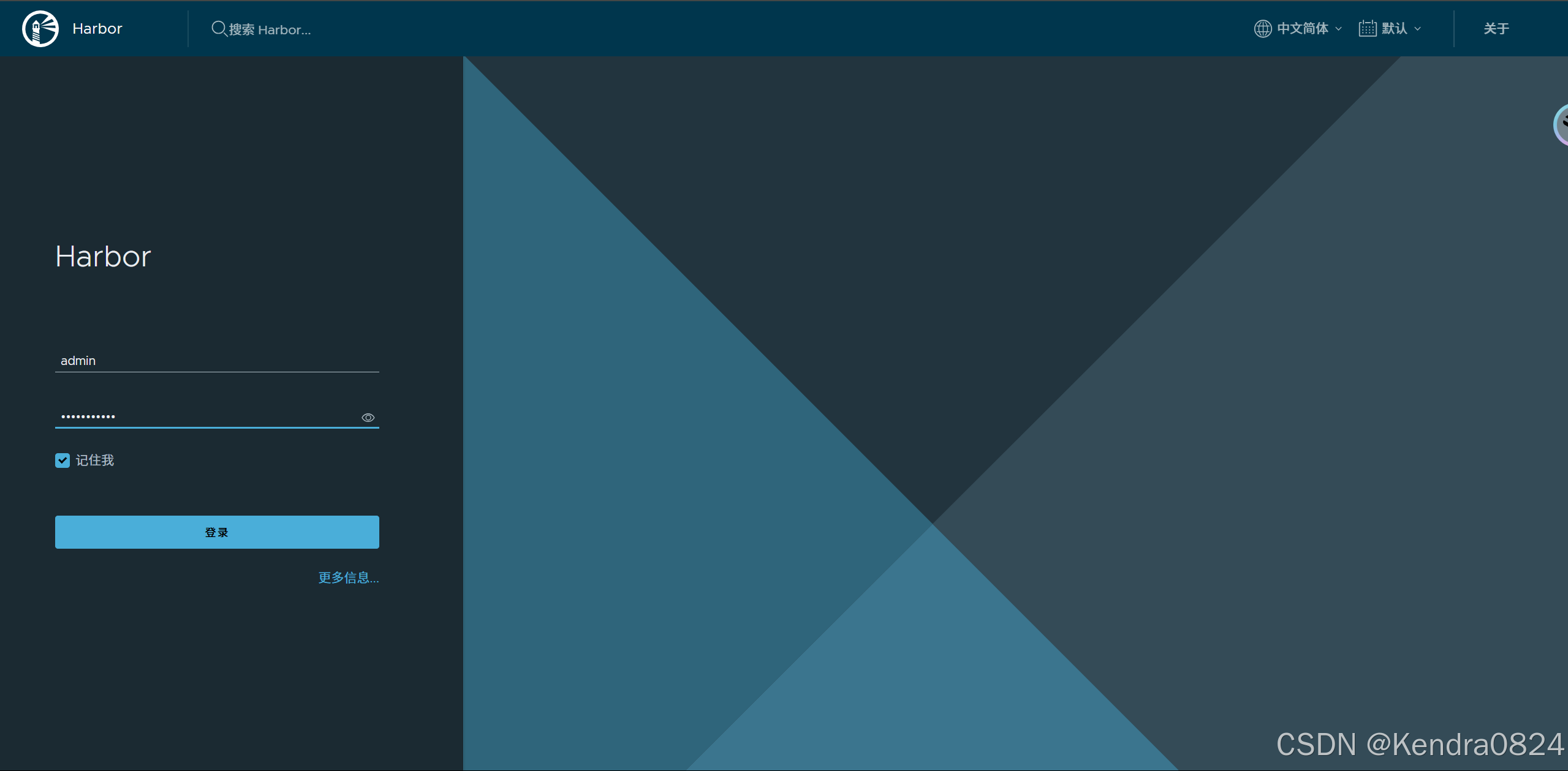

首先虚拟机打开 harbor 虚拟机，浏览器登录进入到 harbor

• 在 Harbor 私有仓库拉取镜像前提：
  1. 需要拉取镜像的虚拟机上配置 /etc/hosts文件，添加：
     harbor 主机 IP 地址 harbor.registry.com harbor
  2. 保证本主机 docker 的安装配置的正确性
  3. 拉取命令：
     docker pull harbor.registry.com/library/仓库内的镜像名称和版本

这里的 harbor.registry.com 来自于/etc/docker/daemon.json文件 “insecure-registries”: [“https://harbor.registry.com”]

[root@docker ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.86.20 harbor.registry.com harbor
[root@docker ~]# cat /etc/docker/daemon.json
{"default-ipc-mode": "shareable",    "data-root": "/data/docker",        "exec-opts": ["native.cgroupdriver=systemd"],    "log-driver": "json-file",    "log-opts": {"max-size": "100m","max-file": "50"},"insecure-registries": ["https://harbor.registry.com"],    "registry-mirrors":[    "https://docker.m.daocloud.io","https://docker.imgdb.de","https://docker-0.unsee.tech","https://docker.hlmirror.com","https://docker.1ms.run","https://func.ink","https://lispy.org","https://docker.xiaogenban1993.com"]
}
[root@docker ~]# systemctl restart docker

[root@docker ~]# systemctl restart docker
在 Harbor 私有仓库查看镜像版本
拉取命令：docker pull harbor.registry.com/library/mysql:9.3.0

[root@docker ~]# docker pull harbor.registry.com/library/mysql:9.3.0
9.3.0: Pulling from library/mysql
c2eb5d06bfea: Pull complete
ba361f0ba5e7: Pull complete
0e83af98b000: Pull complete
770e931107be: Pull complete
a2be1b721112: Pull complete
68c594672ed3: Pull complete
cfd201189145: Pull complete
e9f009c5b388: Pull complete
61a291920391: Pull complete
c8604ede059a: Pull complete
Digest: sha256:242c70430703dd27b3a0fcfa628368d165510a5867f20a9beb62f6036879bcf8
Status: Downloaded newer image for harbor.registry.com/library/mysql:9.3.0
harbor.registry.com/library/mysql:9.3.0

直接拉取镜像

[root@docker conf]# docker pull mysql:9.3.0
9.3.0: Pulling from library/mysql
c2eb5d06bfea: Pull complete
ba361f0ba5e7: Pull complete
0e83af98b000: Pull complete
770e931107be: Pull complete
a2be1b721112: Pull complete
68c594672ed3: Pull complete
cfd201189145: Pull complete
e9f009c5b388: Pull complete
61a291920391: Pull complete
c8604ede059a: Pull complete
Digest: sha256:2247f6d47a59e5fa30a27ddc2e183a3e6b05bc045e3d12f8d429532647f61358
Status: Downloaded newer image for mysql:9.3.0
docker.io/library/mysql:9.3.0

运行容器

[root@docker ~]# docker images
REPOSITORY                          TAG       IMAGE ID       CREATED       SIZE
harbor.registry.com/library/mysql   9.3.0     2c849dee4ca9   5 weeks ago   859MB
[root@docker ~]# docker ps -a
CONTAINER ID   IMAGE     COMMAND   CREATED   STATUS    PORTS     NAMES

[root@docker ~]# docker run --name mysql -p 3306:3306 -d -e MYSQL_ROOT_PASSWORD="123456" harbor.registry.com/library/mysql:9.3.0
f2bed716866881f1bb4cd1db02889d34f8faac25480367e02eb2bc4e55aabf83
[root@docker ~]# docker ps -a
CONTAINER ID   IMAGE                                     COMMAND                  CREATED         STATUS         PORTS                                                    NAMES
f2bed7168668   harbor.registry.com/library/mysql:9.3.0   "docker-entrypoint.s…"   3 seconds ago   Up 3 seconds   0.0.0.0:3306->3306/tcp, [::]:3306->3306/tcp, 33060/tcp   mysql

# 执行此命令可进入 MySQL
[root@docker ~]# docker exec -it mysql /bin/bash

1.2 配置主、从服务器

1. 创建挂载数据目录
   /data/master/conf
   /data/slave/conf
2. 创建配置文件
   my.cnf

# 1.创建挂载数据目录
[root@docker ~]# mkdir /data/master/conf -p
[root@docker ~]# mkdir /data/slave/conf -p# 2.创建配置文件
#主：
[root@docker ~]# cd /data/master/conf/		#
[root@docker conf]# docker cp mysql:/etc/my.cnf .
Successfully copied 2.56kB to /data/master/conf/.
[root@docker conf]# ls
my.cnf[root@docker conf]# vim my.cnf
[root@docker conf]# cat my.cnf
[mysqld]server-id=1host-cache-size=0
skip-name-resolve
datadir=/var/lib/mysql
socket=/var/run/mysqld/mysqld.sock
secure-file-priv=/var/lib/mysql-files
user=mysqlpid-file=/var/run/mysqld/mysqld.pid
[client]
socket=/var/run/mysqld/mysqld.sock!includedir /etc/mysql/conf.d/#从：
[root@docker conf]# cp my.cnf ../../slave/conf/
[root@docker conf]# vim /data/slave/conf/my.cnf
[root@docker conf]# cat /data/slave/conf/my.cnf
[mysqld]server-id=2		#id改变host-cache-size=0
skip-name-resolve
datadir=/var/lib/mysql
socket=/var/run/mysqld/mysqld.sock
secure-file-priv=/var/lib/mysql-files
user=mysqlpid-file=/var/run/mysqld/mysqld.pid
[client]
socket=/var/run/mysqld/mysqld.sock!includedir /etc/mysql/conf.d/

• my.cnf 文件内容：

[mysqld]
# mysql 服务ID，保证整个集群环境中唯一，取值范围：1 – 2的32次方-1，默认为1
server-id=1# 是否只读，1 代表当前服务器只读(不能做增删改操作), 0代表读写
read-only=0
host-cache-size=0# 只能用IP地址检查客户端的登录，不用主机名
skip-name-resolve# mysql数据文件所在位置
datadir=/var/lib/mysql# 设置socke文件所在目录
socket=/var/run/mysqld/mysqld.sock
secure-file-priv=/var/lib/mysql-files# 用户
user=mysql# pid文件
pid-file=/var/run/mysqld/mysqld.pid
[client]
socket=/var/run/mysqld/mysqld.sock

[root@docker ~]# docker stop mysql
mysql
[root@docker ~]# docker rm mysql
mysql
[root@docker ~]# docker ps -a
CONTAINER ID   IMAGE          COMMAND                  CREATED      STATUS                  PORTS

1.3 创建主、从服务器

1. 运行容器
   docker run -d
2. 查看容器
   docker ps

# 1.运行容器
#主：
[root@docker ~]# docker run -d \
--name mysql-master \
-e MYSQL_ROOT_PASSWORD=123456 \
-v /data/master/conf/my.cnf:/etc/my.cnf \
-p 3306:3306 \
harbor.registry.com/library/mysql:9.3.0 \
--character-set-server=utf8mb4 \
--collation-server=utf8mb4_unicode_ci
981cc5a3123d9db266efd8504d66ee553c29277521dba412437cbace074c5849# 2.查看容器
[root@docker ~]# docker ps
CONTAINER ID   IMAGE                                     COMMAND                  CREATED         STATUS         PORTS                                                    NAMES
981cc5a3123d   harbor.registry.com/library/mysql:9.3.0   "docker-entrypoint.s…"   2 minutes ago   Up 2 minutes   0.0.0.0:3306->3306/tcp, [::]:3306->3306/tcp, 33060/tcp   mysql-master

# 从：
[root@docker ~]# docker run -d \
--name mysql-slave \
-e MYSQL_ROOT_PASSWORD=123456 \
-v /data/slave/conf/my.cnf:/etc/my.cnf \
-p 3307:3306 \
harbor.registry.com/library/mysql:9.3.0 \
--character-set-server=utf8mb4 \
--collation-server=utf8mb4_unicode_ci
895a1d40e66bbb1784cc275c01c30713550cd779340b61e75d7a3152198c1d50
[root@docker ~]# docker ps
CONTAINER ID   IMAGE                                     COMMAND                  CREATED         STATUS         PORTS                                                              NAMES
895a1d40e66b   harbor.registry.com/library/mysql:9.3.0   "docker-entrypoint.s…"   4 seconds ago   Up 4 seconds   3306/tcp, 33060/tcp, 0.0.0.0:3307->3307/tcp, [::]:3307->3307/tcp   mysql-slave
981cc5a3123d   harbor.registry.com/library/mysql:9.3.0   "docker-entrypoint.s…"   3 minutes ago   Up 3 minutes   0.0.0.0:3306->3306/tcp, [::]:3306->3306/tcp, 33060/tcp             mysql-master

• 运行容器命令：
  • –name 名字那里注意修改
  • -v 文件挂载路径注意修改
  • -p 注意端口冲突，后续服务器端口修改第一个端口号

docker run -d \		#daemon缩写,后台运行   \：连接符
--name mysql-master \	#取名字	注意 master
-e MYSQL_ROOT_PASSWORD=123456 \		#-e：指定密码
-v /data/master/conf/my.cnf:/etc/my.cnf \	#指定文件挂载		注意master与slave时文件路径切换
-p 3306:3306 \		#暴露端口	注意端口冲突，slave可改为3307，只改前面不改后面
# 如果是在harbor内拉取的则为：harbor.registry.com/library/mysql:9.3.0
harbor.registry.com/library/mysql:9.3.0 \		#指定容器的镜像
--character-set-server=utf8mb4 \	#指定编码格式
--collation-server=utf8mb4_unicode_ci

1.4 启动主库，创建同步用户

1. 进入主服务器数据库
   docker exec -it mysql-master /bin/bash
mysql uroot -p密码
   或者docker exec -it mysql-master mysql -uroot -p123456
2. 创建专门用于复制的账户
   create user 'backups'@'%' identified by '123456';
3. 授予此帐户复制所需的权限并刷新权限
   grant replication slave on *.* to 'backups'@'%';
flush privileges;
4. 确定当前二进制日志文件的名称和位置
   show binary log status;
show binary log status\G

# 1.进入主服务器数据库
[root@docker ~]# docker exec -it mysql-master /bin/bash
bash-5.1# mysql -uroot -p123456
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 10
Server version: 9.3.0 MySQL Community Server - GPLCopyright (c) 2000, 2025, Oracle and/or its affiliates.Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
4 rows in set (0.005 sec)[root@docker ~]# docker exec -it mysql-master mysql -uroot -p123456

2. 创建传门用于复制的账户

# 创建账户
mysql> create user 'backups'@'%' identified by '123456';
Query OK, 0 rows affected (0.013 sec)

3. 授予此帐户复制所需的权限并刷新权限

mysql> grant replication slave on *.* to 'backups'@'%';
Query OK, 0 rows affected (0.004 sec)mysql> flush privileges;
Query OK, 0 rows affected, 1 warning (0.003 sec)

4. 确定当前二进制日志文件的名称和位置

mysql> show binary log status;
+---------------+----------+--------------+------------------+-------------------+
| File          | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+---------------+----------+--------------+------------------+-------------------+
| binlog.000002 |      864 |              |                  |                   |
+---------------+----------+--------------+------------------+-------------------+
1 row in set (0.001 sec)
# 或者
mysql> show binary log status\G
*************************** 1. row ***************************File: binlog.000002Position: 864Binlog_Do_DB: Binlog_Ignore_DB:
Executed_Gtid_Set:
1 row in set (0.000 sec)

记录一下 File 和 Position，在从库配置同步源的时候需要用到

# 主：
File: binlog.000002
Position: 862

1.5 配置启动从库

1. 进入从服务器容器数据库
   docker exec -it mysql-slave /bin/bash
mysql -uroot -p123456
2. 配置 MySQL 主从复制
   CHANGE REPLICATION SOURCE TO \ SOURCE_HOST='192.168.98.140',SOURCE_USER='backups',SOURCE_PASSWORD='123456', \ SOURCE_LOG_FILE='binlog.000002',SOURCE_LOG_POS=864, \ GET_SOURCE_PUBLIC_KEY=1;
   • 注意主服务器的 FILE 和 Position 值
3. 执行语句开启同步
   start replica;
4. 查看复制状态
   show replica status\G
   • 注意查看Replica_IO_Running: 、Replica_SQL_Running: 两值为 YES

配置启动从库流程：

1. 进入从服务器容器数据库

[root@docker conf]# docker exec -it mysql-slave /bin/bash
bash-5.1# mysql -uroot -p123456
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 9
Server version: 9.3.0 MySQL Community Server - GPLCopyright (c) 2000, 2025, Oracle and/or its affiliates.Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.mysql>

2. 配置 MySQL 主从复制

mysql> CHANGE REPLICATION SOURCE TO \	#复制源，从主机'192.168.98.140'，以及master主机的用户'backups'.....-> SOURCE_HOST='192.168.98.140',SOURCE_USER='backups',SOURCE_PASSWORD='123456', \-> SOURCE_LOG_FILE='binlog.000002',SOURCE_LOG_POS=864, \	#主服务器的FILE 和Position-> GET_SOURCE_PUBLIC_KEY=1;
Query OK, 0 rows affected, 2 warnings (0.015 sec)

3. 执行语句开启同步

# 开始复制/开始同步
mysql> start replica;
Query OK, 0 rows affected (0.102 sec)

4. 查看复制状态

mysql> show replica status\G
*************************** 1. row ***************************Replica_IO_State: Waiting for source to send eventSource_Host: 192.168.98.140Source_User: backupsSource_Port: 3306Connect_Retry: 60Source_Log_File: binlog.000002Read_Source_Log_Pos: 864Relay_Log_File: ba94af67c5cd-relay-bin.000002Relay_Log_Pos: 325Relay_Source_Log_File: binlog.000002Replica_IO_Running: YesReplica_SQL_Running: YesReplicate_Do_DB: Replicate_Ignore_DB: Replicate_Do_Table: Replicate_Ignore_Table: Replicate_Wild_Do_Table: Replicate_Wild_Ignore_Table: Last_Errno: 0Last_Error: Skip_Counter: 0Exec_Source_Log_Pos: 864Relay_Log_Space: 543Until_Condition: NoneUntil_Log_File: Until_Log_Pos: 0Source_SSL_Allowed: NoSource_SSL_CA_File: Source_SSL_CA_Path: Source_SSL_Cert: Source_SSL_Cipher: Source_SSL_Key: Seconds_Behind_Source: 0
Source_SSL_Verify_Server_Cert: NoLast_IO_Errno: 0Last_IO_Error: Last_SQL_Errno: 0Last_SQL_Error: Replicate_Ignore_Server_Ids: Source_Server_Id: 1Source_UUID: 830681c2-36f1-11f0-ac13-424aa25cd880Source_Info_File: mysql.slave_master_infoSQL_Delay: 0SQL_Remaining_Delay: NULLReplica_SQL_Running_State: Replica has read all relay log; waiting for more updatesSource_Retry_Count: 10Source_Bind: Last_IO_Error_Timestamp: Last_SQL_Error_Timestamp: Source_SSL_Crl: Source_SSL_Crlpath: Retrieved_Gtid_Set: Executed_Gtid_Set: Auto_Position: 0Replicate_Rewrite_DB: Channel_Name: Source_TLS_Version: Source_public_key_path: Get_Source_public_key: 1Network_Namespace:
1 row in set (0.000 sec)

• MySQL 主从复制语句：

CHANGE REPLICATION SOURCE TO \
SOURCE_HOST='192.168.98.140',SOURCE_USER='backups',SOURCE_PASSWORD='123456', \
SOURCE_LOG_FILE='binlog.000002',SOURCE_LOG_POS=864, \
GET_SOURCE_PUBLIC_KEY=1;

1.6 主从复制测试

1. 在主服务器上创建库、表并插入数据
2. 在从服务器上查看数据

• 主服务器

# 主
mysql> create database my_db;
Query OK, 1 row affected (0.006 sec)mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| my_db              |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
5 rows in set (0.007 sec)mysql> use my_db;
Database changed
mysql> create table t1(name varchar(5),sex varchar(2));
Query OK, 0 rows affected (0.013 sec)mysql> desc t1;
+-------+------------+------+-----+---------+-------+
| Field | Type       | Null | Key | Default | Extra |
+-------+------------+------+-----+---------+-------+
| name  | varchar(5) | YES  |     | NULL    |       |
| sex   | varchar(2) | YES  |     | NULL    |       |
+-------+------------+------+-----+---------+-------+
2 rows in set (0.008 sec)
mysql> insert into t1(name,sex) values('li','m');
Query OK, 1 row affected (0.002 sec)
mysql> select * from t1;
+------+------+
| name | sex  |
+------+------+
| li   | m    |
+------+------+
1 row in set (0.001 sec)

• 从

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| my_db              |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
5 rows in set (0.001 sec)mysql> use my_db;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -ADatabase changed
mysql> select * from t1;
+------+------+
| name | sex  |
+------+------+
| li   | m    |
+------+------+
1 row in set (0.000 sec)

二、MySQL双主双从

• 直接拉取镜像

[root@docker conf]# docker pull mysql:9.3.0
9.3.0: Pulling from library/mysql
c2eb5d06bfea: Pull complete
ba361f0ba5e7: Pull complete
0e83af98b000: Pull complete
770e931107be: Pull complete
a2be1b721112: Pull complete
68c594672ed3: Pull complete
cfd201189145: Pull complete
e9f009c5b388: Pull complete
61a291920391: Pull complete
c8604ede059a: Pull complete
Digest: sha256:2247f6d47a59e5fa30a27ddc2e183a3e6b05bc045e3d12f8d429532647f61358
Status: Downloaded newer image for mysql:9.3.0
docker.io/library/mysql:9.3.0

2.1 创建网络

docker network create mysql-replication-net

2.2 创建容器

• master1：

docker run -d \
--name master1 \
--network mysql-replication-net \
-e MYSQL_ROOT_PASSWORD=123456 \
-v /data/master1.cnf:/etc/my.cnf \
-p 3306:3306 \
mysql:9.3.0 \
--character-set-server=utf8mb4 \
--collation-server=utf8mb4_unicode_ci

• master2：

docker run -d \
--name master2 \
--network mysql-replication-net \
-e MYSQL_ROOT_PASSWORD=123456 \
-v /data/master2.cnf:/etc/my.cnf \
-p 3307:3306 \
mysql:9.3.0 \
--character-set-server=utf8mb4 \
--collation-server=utf8mb4_unicode_ci

• slave1：

docker run -d \
--name slave1 \
--network mysql-replication-net \
-e MYSQL_ROOT_PASSWORD=123456 \
-v /data/slave1.cnf:/etc/my.cnf \
-p 3308:3306 \
mysql:9.3.0 \
--character-set-server=utf8mb4 \
--collation-server=utf8mb4_unicode_ci

• slave2：

docker run -d \
--name slave1 \
--network mysql-replication-net \
-e MYSQL_ROOT_PASSWORD=123456 \
-v /data/slave2.cnf:/etc/my.cnf \
-p 3309:3306 \
mysql:9.3.0 \
--character-set-server=utf8mb4 \
--collation-server=utf8mb4_unicode_ci

2.3 创建配置文件

[root@docker ~]# cd /data/master/conf/
[root@docker conf]# cp my.cnf /data/master1.cnf
[root@docker conf]# cp my.cnf /data/master2.cnf
[root@docker conf]# cp my.cnf /data/slave1.cnf
[root@docker conf]# cp my.cnf /data/slave2.cnf
[root@docker conf]# vim /data/master1.cnf
[root@docker conf]# cat /data/master1.cnf
[mysqld]
server-id=1host-cache-size=0
skip-name-resolve
datadir=/var/lib/mysql
socket=/var/run/mysqld/mysqld.sock
secure-file-priv=/var/lib/mysql-files
user=mysqlpid-file=/var/run/mysqld/mysqld.pid
[client]
socket=/var/run/mysqld/mysqld.sock!includedir /etc/mysql/conf.d/
[root@docker conf]# vim /data/master2.cnf
[root@docker conf]# cat /data/master2.cnf
[mysqld]
server-id=2host-cache-size=0
skip-name-resolve
datadir=/var/lib/mysql
socket=/var/run/mysqld/mysqld.sock
secure-file-priv=/var/lib/mysql-files
user=mysqlpid-file=/var/run/mysqld/mysqld.pid
[client]
socket=/var/run/mysqld/mysqld.sock!includedir /etc/mysql/conf.d/
[root@docker conf]# vim /data/slave1.cnf
[root@docker conf]# cat /data/slave1.cnf
[mysqld]
server-id=11host-cache-size=0
skip-name-resolve
datadir=/var/lib/mysql
socket=/var/run/mysqld/mysqld.sock
secure-file-priv=/var/lib/mysql-files
user=mysqlpid-file=/var/run/mysqld/mysqld.pid
[client]
socket=/var/run/mysqld/mysqld.sock!includedir /etc/mysql/conf.d/
[root@docker conf]# vim /data/slave2.cnf
[root@docker conf]# cat /data/slave2.cnf
[mysqld]
server-id=22host-cache-size=0
skip-name-resolve
datadir=/var/lib/mysql
socket=/var/run/mysqld/mysqld.sock
secure-file-priv=/var/lib/mysql-files
user=mysqlpid-file=/var/run/mysqld/mysqld.pid
[client]
socket=/var/run/mysqld/mysqld.sock!includedir /etc/mysql/conf.d/

2.4 配置主主复制

在两个主数据服务中创建用于复制/同步数据的用户

查看两个主数据库服务器中查看要同步的二进制文件及位置

记录这个显示中 file 和 position 的值，以便于从服务器进行复制。

2.4.1 在 master 上配置

• master1 和 master2 执行下列命令
  1. 进入master容器
     docker exec -it mysql-master1 mysql -uroot -p123456
docker exec -it mysql-master2 mysql -uroot -p123456
  2. 创建复制用户
     create user 'rep1'@'%' identified by '123456';
  3. 赋权限
     grant replication slave on *.* to 'rep1'@'%';
  4. 刷新
     flush privileges;
  5. 查看 master1 状态并记录 File 和 Position
     show binary log status\G

# 在两个主数据服务中创建用于复制/同步数据的用户
create user 'rep1'@'%' identified by '123456';
grant replication slave on *.* to 'rep1'@'%';
flush privileges;# 查看两个主数据库服务器中查看要同步的二进制文件及位置
show binary log status\G;
#记录这个显示中 file 和 position 的值，以便于从服务器进行复制

2.4.2 配置 master1 复制 master2

• 在 master1上执行：
  • 查看复制状态
    show replica status\G
  • 开始复制
    start replica;

# master1主数据库服务器同步master2主数据库：
CHANGE REPLICATION SOURCE TO
SOURCE_HOST='master2',
SOURCE_USER='rep1',
SOURCE_PASSWORD='123456',
SOURCE_LOG_FILE='binlog.000003',	#master2的file
SOURCE_LOG_POS=864,		#master2的Position
GET_SOURCE_PUBLIC_KEY=1;

2.4.3 配置 master2 复制 master1

• 在 master2上执行：
  • 查看复制状态
    show replica status\G
  • 开始复制
    start replica;

# master2同步master1:
CHANGE REPLICATION SOURCE TO
SOURCE_HOST='master1',
SOURCE_USER='rep1',
SOURCE_PASSWORD='123456'
SOURCE_LOG_FILE='binlog.000003'，
SOURCE_LOG_POS=864,
GET_SOURCE_PUBLIC_KEY=1;

2.5 配置从节点

2.5.1 配置 slave1 复制 master1

1. 进入 slave1 容器：
   docker exec -it mysql-slave1 mysql -uroot -p123456

2. 配置复制

3. 查看复制状态
   show replica status\G

4. 开始复制
   start replica;

# slave1同步master1
CHANGE REPLICATION SOURCE TO
SOURCE_HOST='master1',
SOURCE_USER='rep1',
SOURCE_PASSWORD='123456'
SOURCE_LOG_FILE='binlog.000003',
SOURCE_LOG_POS=864,
GET_SOURCE_PUBLIC_KEY=1;

2.5.2 配置 slave2 复制 master2

1. 进入 slave2 容器：
   docker exec -it mysql-slave2 mysql -uroot -p123456

2. 配置复制

3. 查看复制状态
   show replica status\G

4. 开始复制
   start replica;

# slave2同步master2
CHANGE REPLICATION SOURCE TO
SOURCE_HOST='master2',
SOURCE_USER='rep1',
SOURCE_PASSWORD='123456'，
SOURCE_LOG_FILE='binlog.000003'
SOURCE_LOG_POS=864,
GET_SOURCE_PUBLIC_KEY=1;

2.6 验证复制状态

# 在每个节点上执行：
show replica status\G
#检查slave_IO_Running和Slave_SQL_Running是否为Yes。
