【android bluetooth 协议分析 01】【HCI 层介绍 9】【ReadLocalSupportedCommands命令介绍】

1. HCI_Read_Local_Supported_Commands 命令介绍

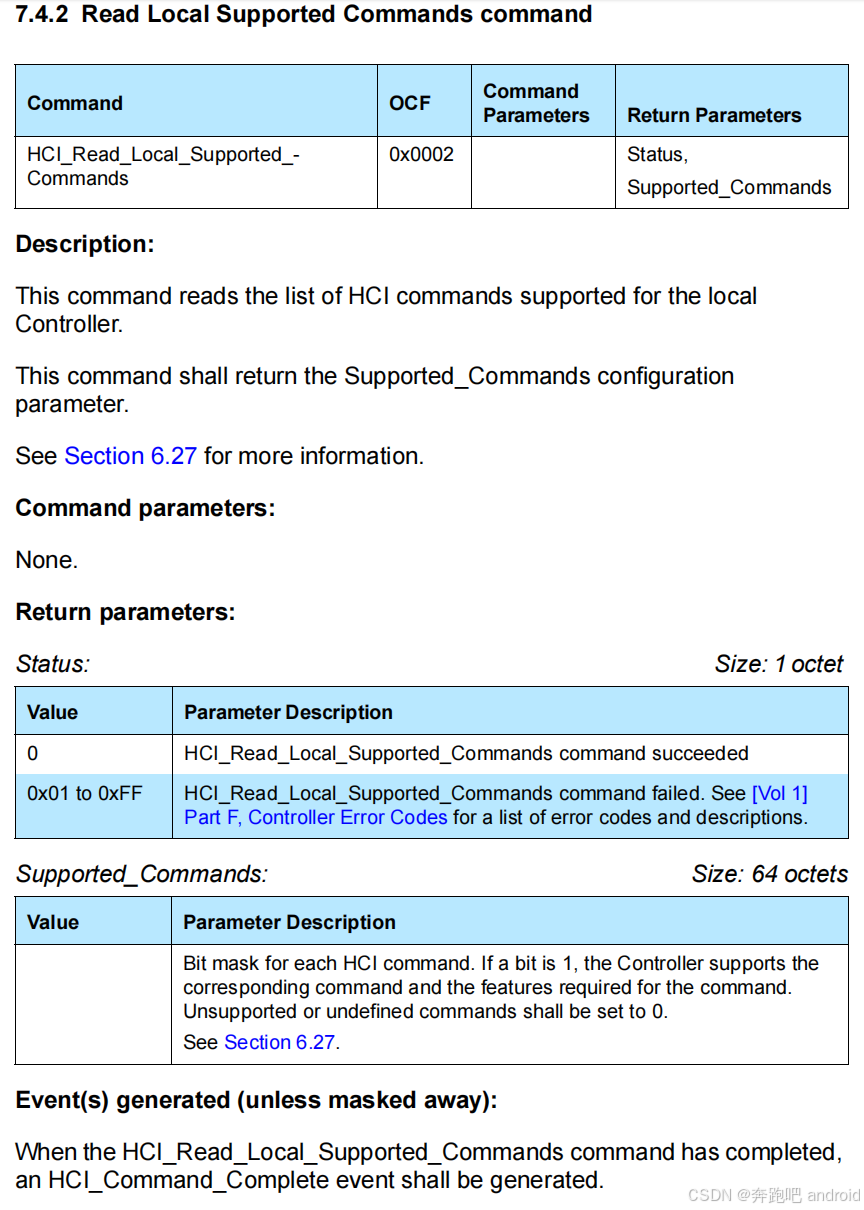

1. 命令介绍（Description）

HCI_Read_Local_Supported_Commands 是 HCI 层中非常重要的查询命令。它允许 Host（如 Android 系统中的 Bluetooth stack）获取 Controller（蓝牙芯片）支持的 所有 HCI 命令 列表。

这些命令的支持情况由 Supported_Commands 这个 64 字节位图 表示，每一位（bit）对应一个 HCI 命令是否支持。

🔹 本质：能力查询的位图（Command Capabilities Bitmap）

---

2.命令参数

13	2025-04-24 15:55:53.354453	host	controller	HCI_CMD	4	Sent Read Local Supported CommandsBluetooth HCI Command - Read Local Supported CommandsCommand Opcode: Read Local Supported Commands (0x1002)0001 00.. .... .... = Opcode Group Field: Informational Parameters (0x04).... ..00 0000 0010 = Opcode Command Field: Read Local Supported Commands (0x002)Parameter Total Length: 0[Response in frame: 14][Command-Response Delta: 0.775ms]

无参数

---

3. 返回参数

14	2025-04-24 15:55:53.355228	controller	host	HCI_EVT	71	Rcvd Command Complete (Read Local Supported Commands)Bluetooth HCI Event - Command CompleteEvent Code: Command Complete (0x0e)Parameter Total Length: 68Number of Allowed Command Packets: 1Command Opcode: Read Local Supported Commands (0x1002)0001 00.. .... .... = Opcode Group Field: Informational Parameters (0x04).... ..00 0000 0010 = Opcode Command Field: Read Local Supported Commands (0x002)Status: Success (0x00)Local Supported Commands: ffffff03ceffefffffffff1ff20fe8fe3ff783ff1c00040061ffffff7f3820f5fff0ffff…[Command in frame: 13][Command-Response Delta: 0.775ms]

参数名	大小	描述
Status	1 byte	0x00 表示成功
Supported_Commands	64 bytes	每个 bit 对应一个 HCI 命令是否支持（参考 Vol 4, Part E, Section 6.27）

---

4.事件

• 成功后会通过 HCI_Command_Complete 事件返回上述字段

---

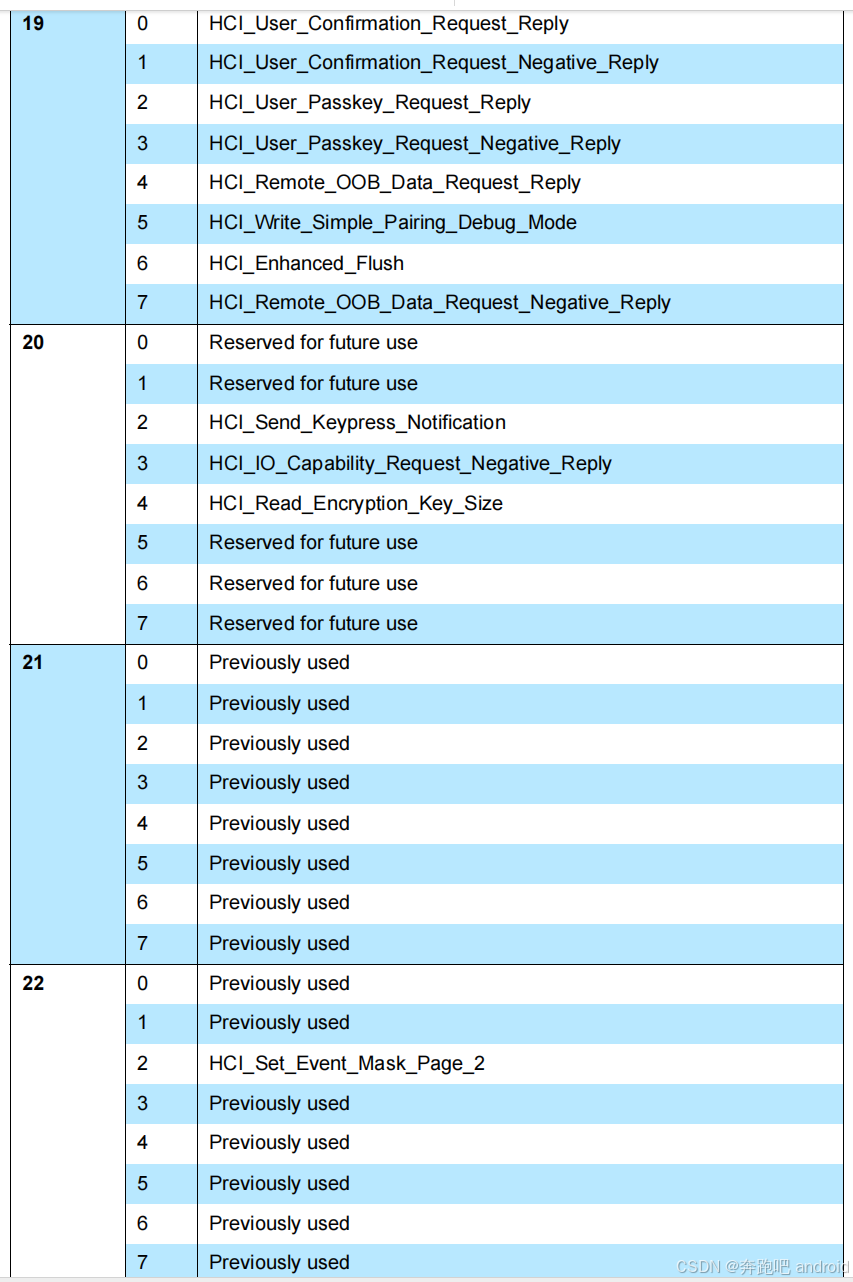

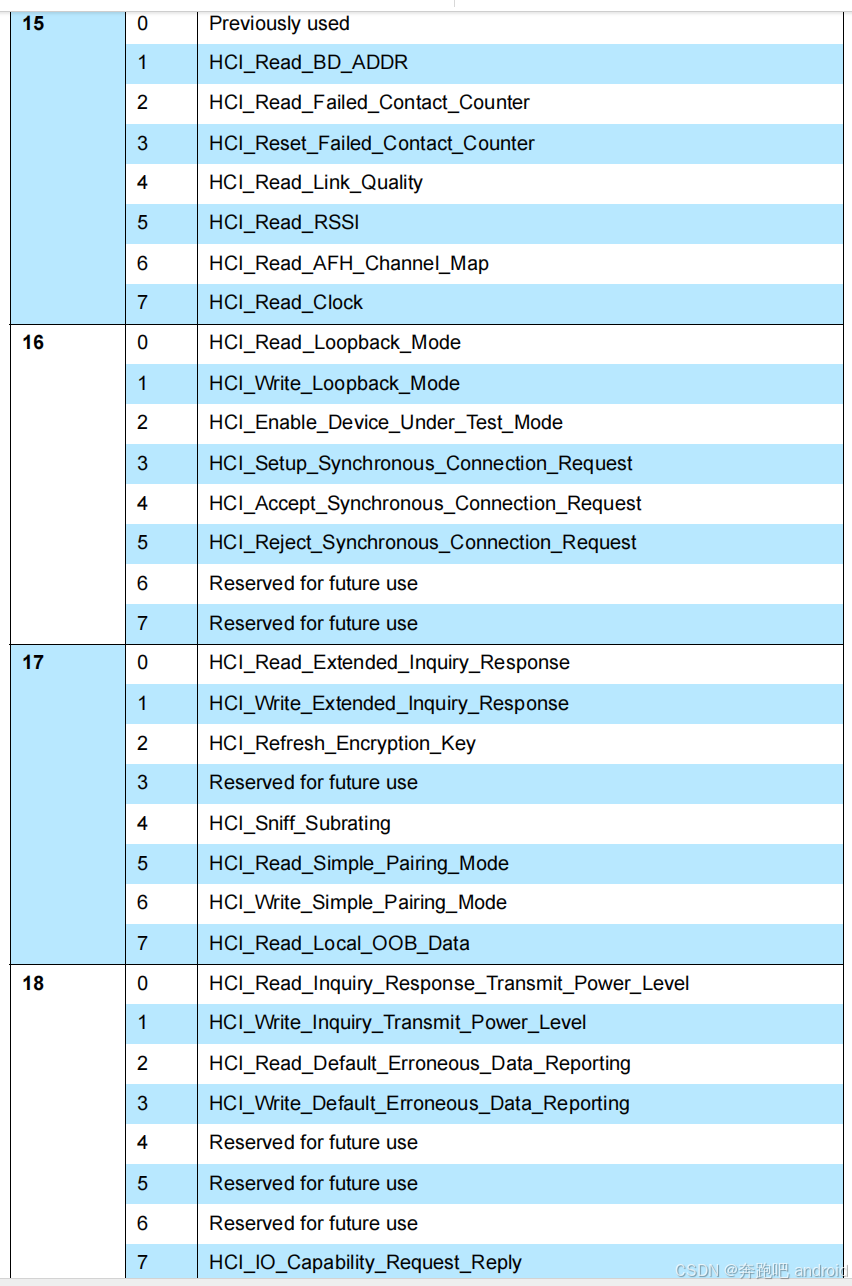

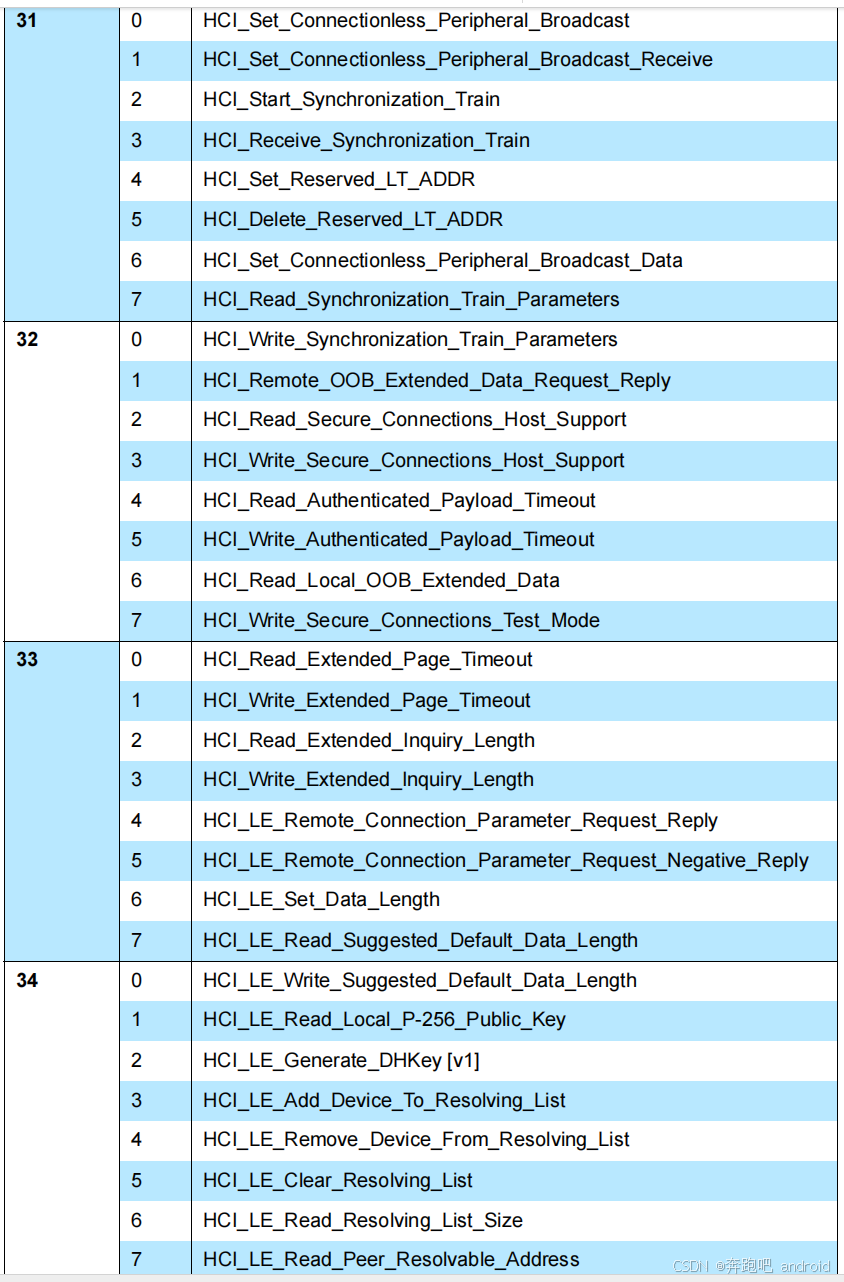

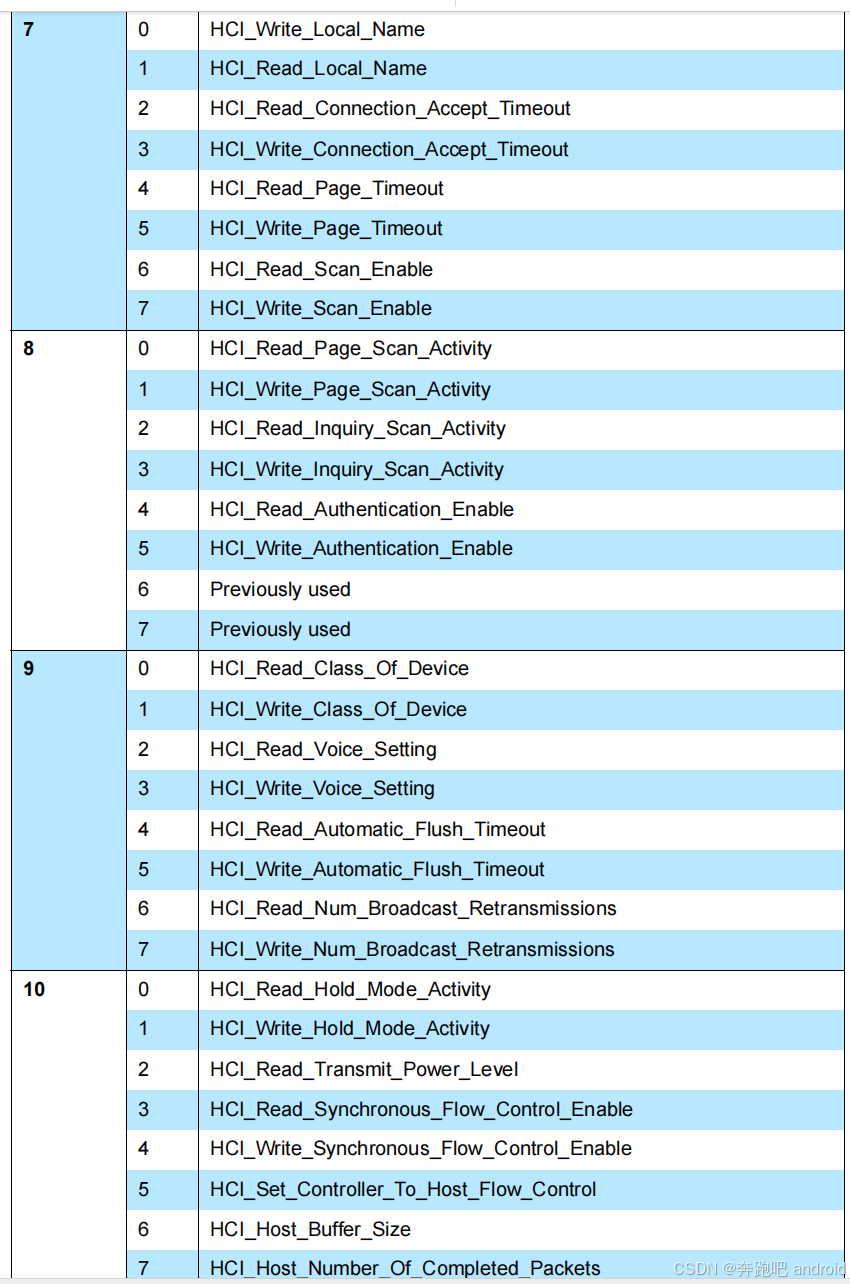

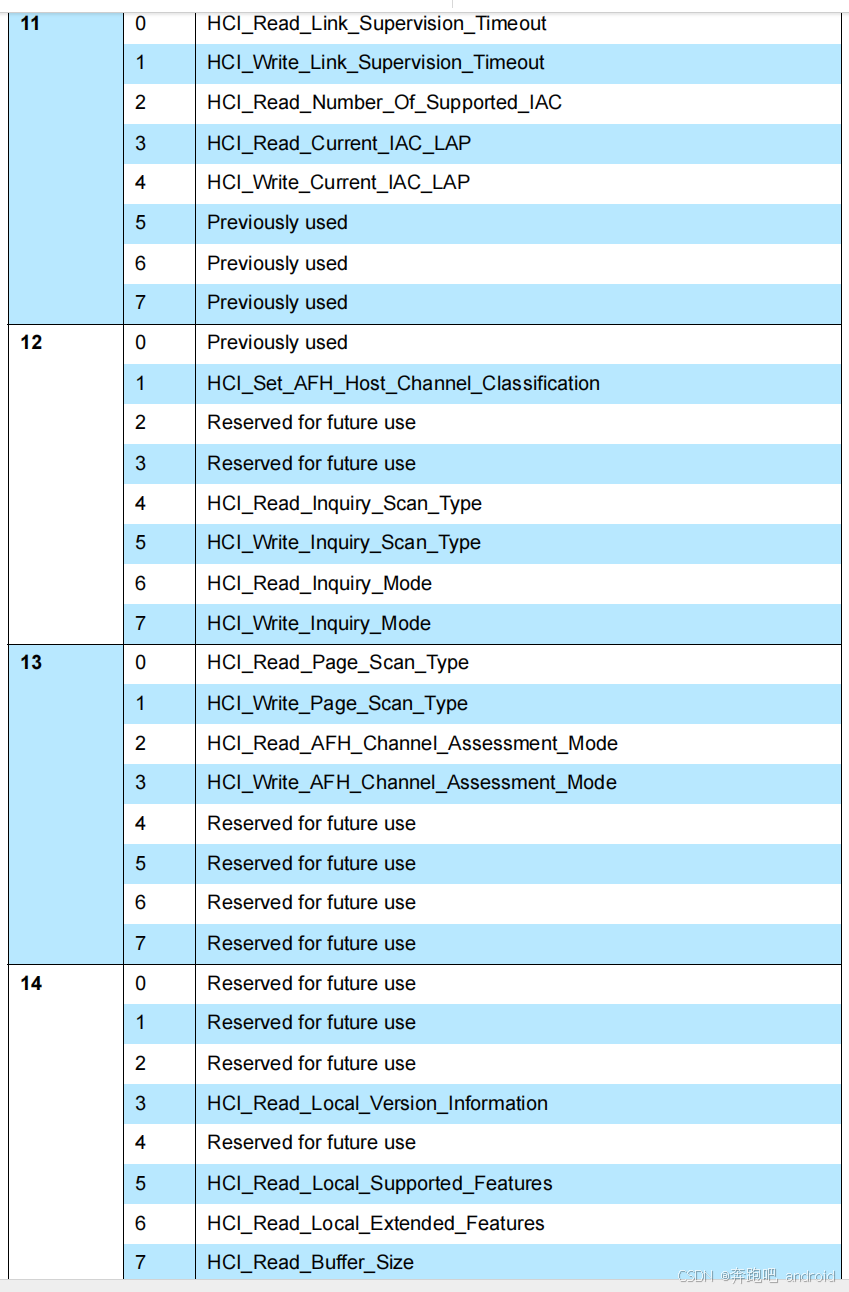

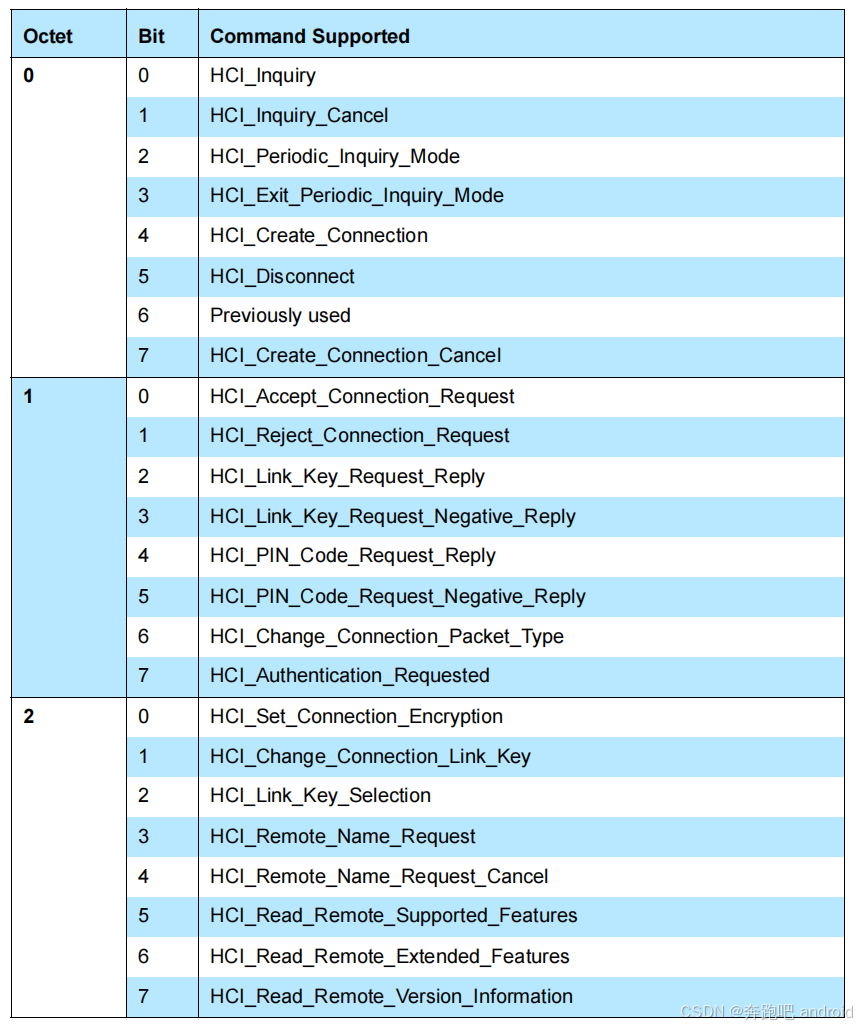

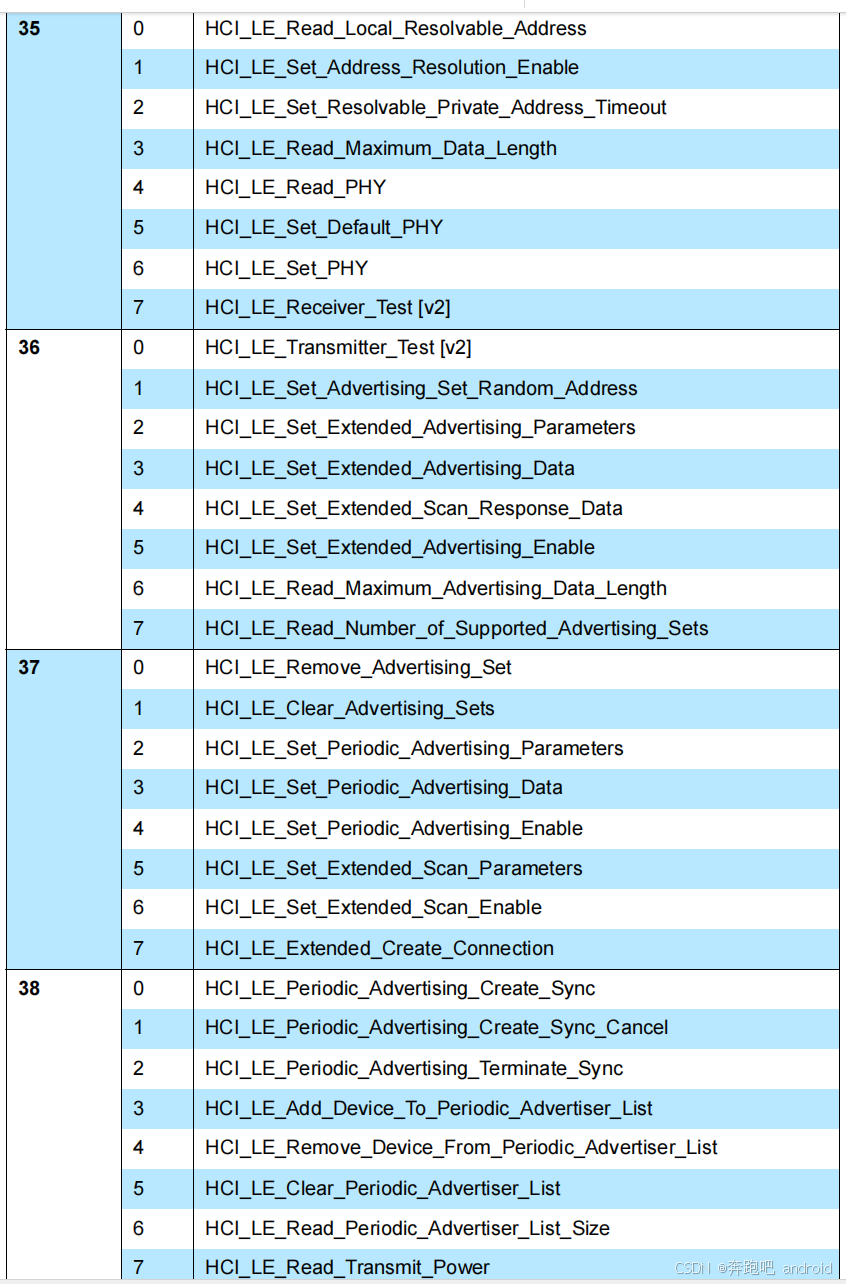

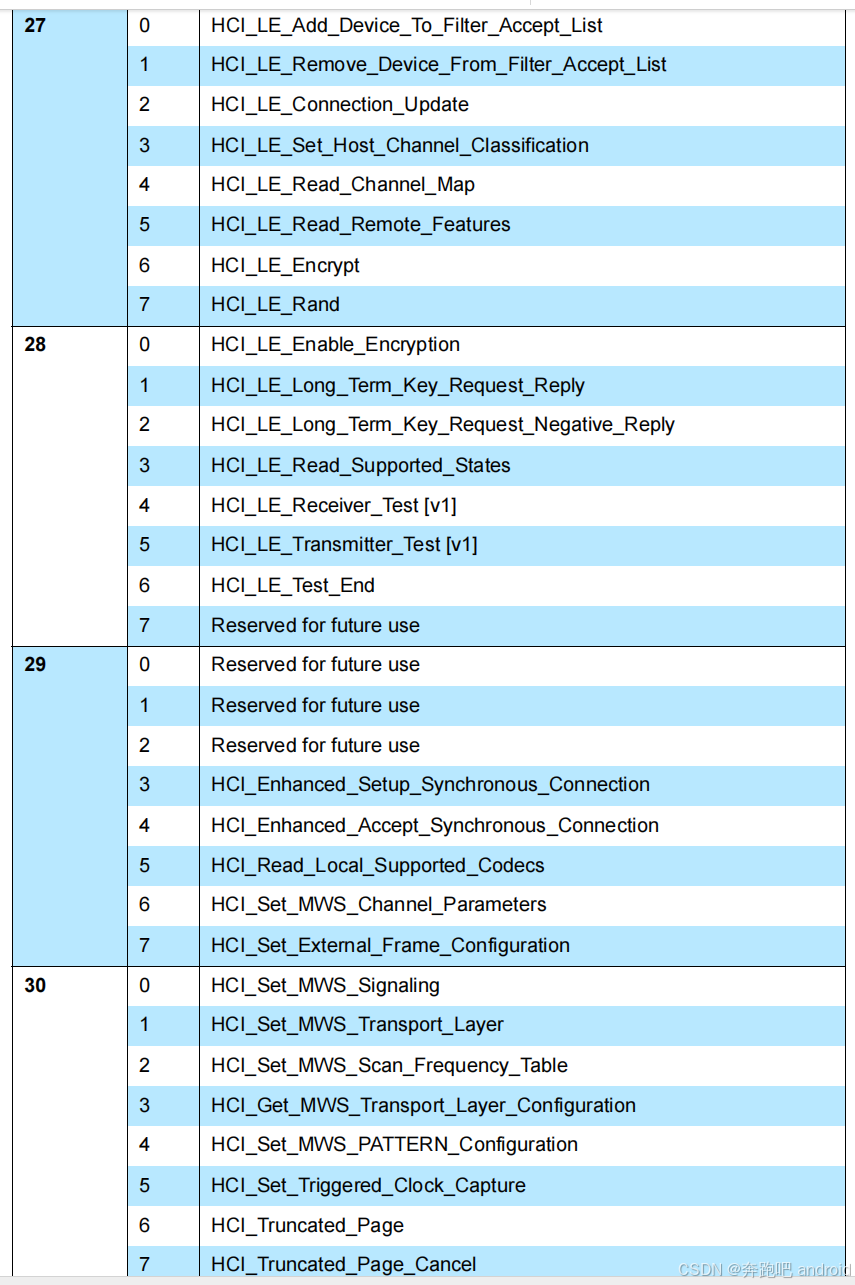

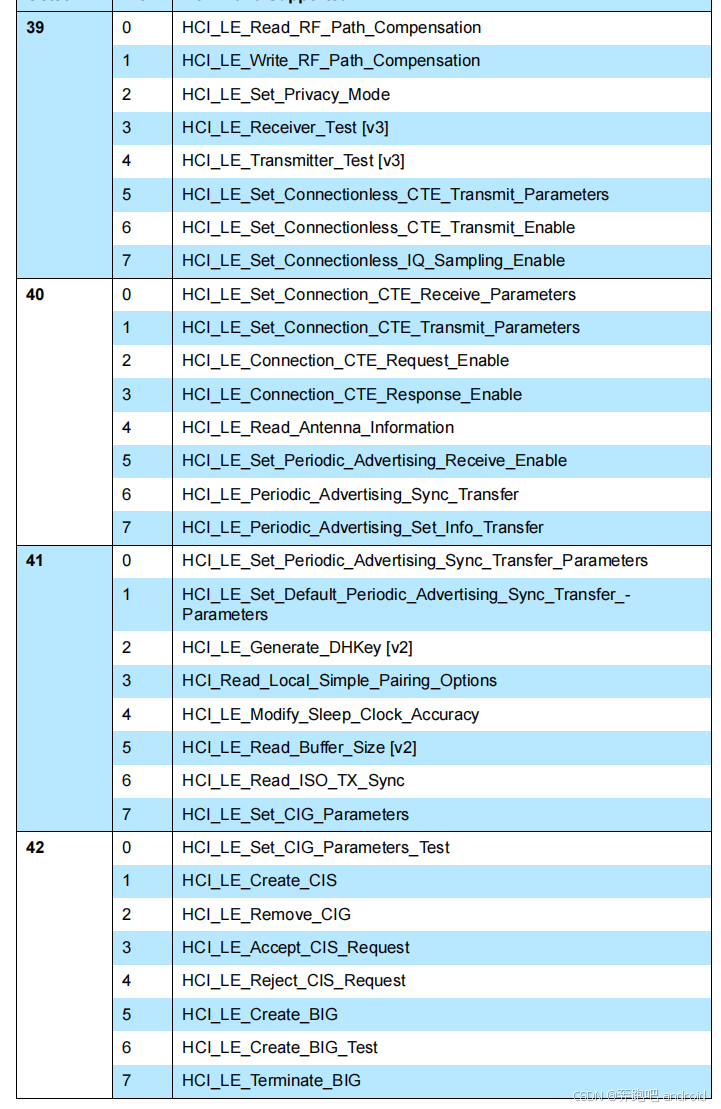

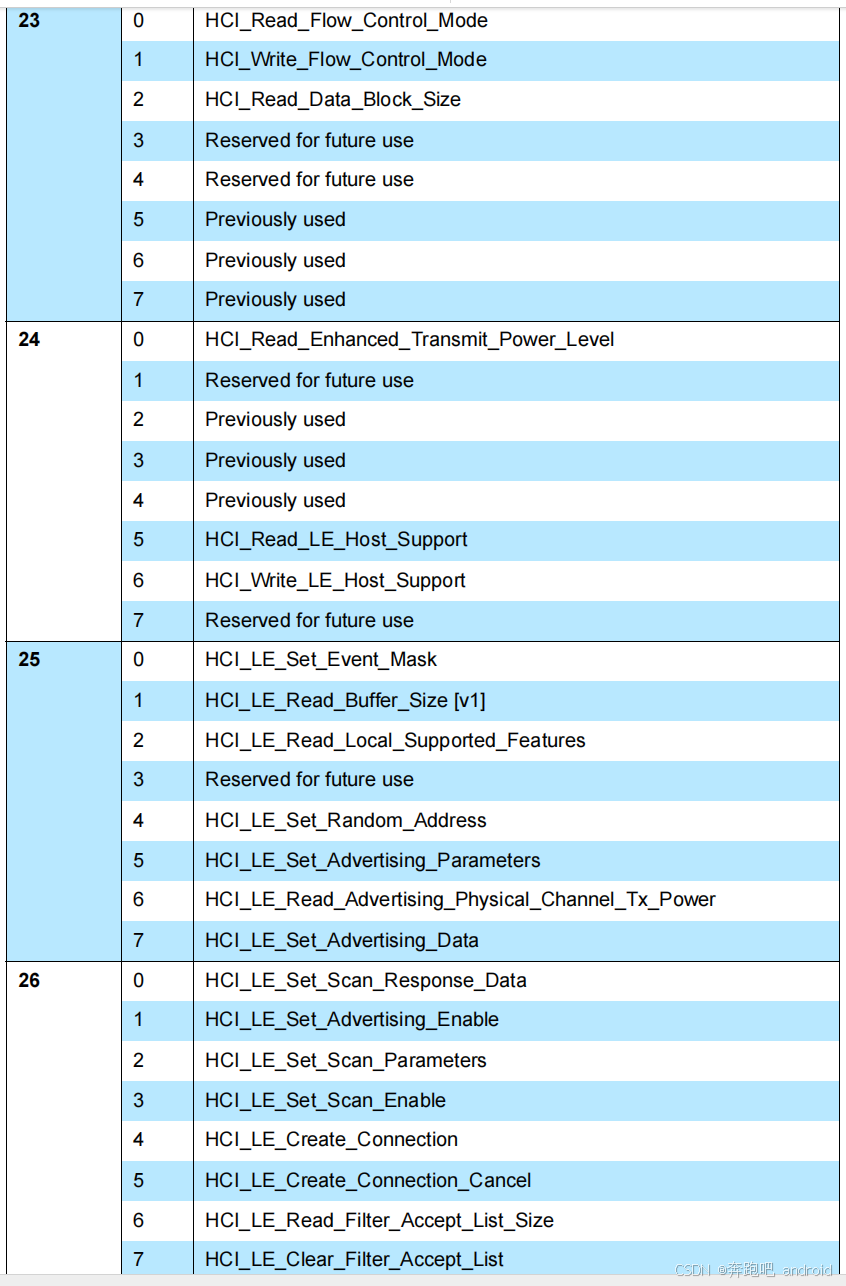

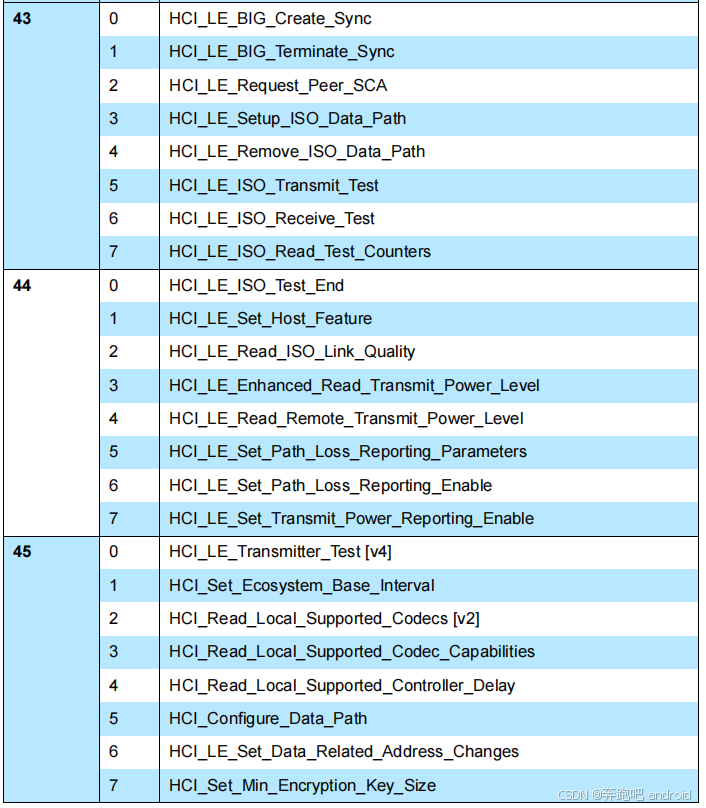

5. Supported_Commands 的位图说明

这个位图是 HCI 控制器支持能力的集中体现。例如：

• Byte 0 bit 0 → HCI_Inquiry
• Byte 0 bit 1 → HCI_Inquiry_Cancel
• Byte 1 bit 5 → HCI_Read_Remote_Supported_Features
• Byte 5 bit 6 → HCI_LE_Set_Advertise_Enable
• Byte 27 bit 2 → HCI_LE_Set_Extended_Advertising_Parameters

等等，具体定义见 Bluetooth Core Spec Vol 4, Part E, Section 6.27（共 64 字节，512 bits，分别映射所有可能的 HCI 命令）

---

2. aosp 中的应用

1. host 发送该命令

// system/gd/hci/controller.ccstruct Controller::impl {void Start(hci::HciLayer* hci) {
...hci_->EnqueueCommand(ReadLocalSupportedCommandsBuilder::Create(),handler->BindOnceOn(this, &Controller::impl::read_local_supported_commands_complete_handler));
...
}

当收到 controller 的回复时将调用 read_local_supported_commands_complete_handler

1. read_local_supported_commands_complete_handler

  void read_local_supported_commands_complete_handler(CommandCompleteView view) {auto complete_view = ReadLocalSupportedCommandsCompleteView::Create(view);ASSERT(complete_view.IsValid());ErrorCode status = complete_view.GetStatus();ASSERT_LOG(status == ErrorCode::SUCCESS, "Status 0x%02hhx, %s", status, ErrorCodeText(status).c_str());local_supported_commands_ = complete_view.GetSupportedCommands();}

• 将 命令支持位图 保存在 local_supported_commands_ 中

我们来看一下如何使用 local_supported_commands_

// system/gd/hci/controller.cc#define OP_CODE_MAPPING(name)                                                  \case OpCode::name: {                                                         \uint16_t index = (uint16_t)OpCodeIndex::name;                              \uint16_t byte_index = index / 10;                                          \uint16_t bit_index = index % 10;                                           \bool supported = local_supported_commands_[byte_index] & (1 << bit_index); \if (!supported) {                                                          \LOG_DEBUG("unsupported command opcode: 0x%04x", (uint16_t)OpCode::name); \}                                                                          \return supported;                                                          \}

OpCodeIndex 命令索引如下：

• system/gd/hci/hci_packets.pdl

// For mapping Local Supported Commands command
// Value = Octet * 10 + bit
enum OpCodeIndex : 16 {INQUIRY = 0,INQUIRY_CANCEL = 1,PERIODIC_INQUIRY_MODE = 2,EXIT_PERIODIC_INQUIRY_MODE = 3,CREATE_CONNECTION = 4,DISCONNECT = 5,ADD_SCO_CONNECTION = 6,CREATE_CONNECTION_CANCEL = 7,ACCEPT_CONNECTION_REQUEST = 10,REJECT_CONNECTION_REQUEST = 11,LINK_KEY_REQUEST_REPLY = 12,LINK_KEY_REQUEST_NEGATIVE_REPLY = 13,PIN_CODE_REQUEST_REPLY = 14,PIN_CODE_REQUEST_NEGATIVE_REPLY = 15,CHANGE_CONNECTION_PACKET_TYPE = 16,AUTHENTICATION_REQUESTED = 17,SET_CONNECTION_ENCRYPTION = 20,CHANGE_CONNECTION_LINK_KEY = 21,CENTRAL_LINK_KEY = 22,REMOTE_NAME_REQUEST = 23,REMOTE_NAME_REQUEST_CANCEL = 24,READ_REMOTE_SUPPORTED_FEATURES = 25,READ_REMOTE_EXTENDED_FEATURES = 26,READ_REMOTE_VERSION_INFORMATION = 27,READ_CLOCK_OFFSET = 30,READ_LMP_HANDLE = 31,HOLD_MODE = 41,SNIFF_MODE = 42,EXIT_SNIFF_MODE = 43,QOS_SETUP = 46,ROLE_DISCOVERY = 47,SWITCH_ROLE = 50,READ_LINK_POLICY_SETTINGS = 51,WRITE_LINK_POLICY_SETTINGS = 52,READ_DEFAULT_LINK_POLICY_SETTINGS = 53,WRITE_DEFAULT_LINK_POLICY_SETTINGS = 54,FLOW_SPECIFICATION = 55,SET_EVENT_MASK = 56,RESET = 57,SET_EVENT_FILTER = 60,FLUSH = 61,READ_PIN_TYPE = 62,WRITE_PIN_TYPE = 63,READ_STORED_LINK_KEY = 65,WRITE_STORED_LINK_KEY = 66,DELETE_STORED_LINK_KEY = 67,WRITE_LOCAL_NAME = 70,READ_LOCAL_NAME = 71,READ_CONNECTION_ACCEPT_TIMEOUT = 72,WRITE_CONNECTION_ACCEPT_TIMEOUT = 73,READ_PAGE_TIMEOUT = 74,WRITE_PAGE_TIMEOUT = 75,READ_SCAN_ENABLE = 76,WRITE_SCAN_ENABLE = 77,READ_PAGE_SCAN_ACTIVITY = 80,WRITE_PAGE_SCAN_ACTIVITY = 81,READ_INQUIRY_SCAN_ACTIVITY = 82,WRITE_INQUIRY_SCAN_ACTIVITY = 83,READ_AUTHENTICATION_ENABLE = 84,WRITE_AUTHENTICATION_ENABLE = 85,READ_CLASS_OF_DEVICE = 90,WRITE_CLASS_OF_DEVICE = 91,READ_VOICE_SETTING = 92,WRITE_VOICE_SETTING = 93,READ_AUTOMATIC_FLUSH_TIMEOUT = 94,WRITE_AUTOMATIC_FLUSH_TIMEOUT = 95,READ_NUM_BROADCAST_RETRANSMITS = 96,WRITE_NUM_BROADCAST_RETRANSMITS = 97,READ_HOLD_MODE_ACTIVITY = 100,WRITE_HOLD_MODE_ACTIVITY = 101,READ_TRANSMIT_POWER_LEVEL = 102,READ_SYNCHRONOUS_FLOW_CONTROL_ENABLE = 103,WRITE_SYNCHRONOUS_FLOW_CONTROL_ENABLE = 104,SET_CONTROLLER_TO_HOST_FLOW_CONTROL = 105,HOST_BUFFER_SIZE = 106,HOST_NUM_COMPLETED_PACKETS = 107,READ_LINK_SUPERVISION_TIMEOUT = 110,WRITE_LINK_SUPERVISION_TIMEOUT = 111,READ_NUMBER_OF_SUPPORTED_IAC = 112,READ_CURRENT_IAC_LAP = 113,WRITE_CURRENT_IAC_LAP = 114,SET_AFH_HOST_CHANNEL_CLASSIFICATION = 121,READ_INQUIRY_SCAN_TYPE = 124,WRITE_INQUIRY_SCAN_TYPE = 125,READ_INQUIRY_MODE = 126,WRITE_INQUIRY_MODE = 127,READ_PAGE_SCAN_TYPE = 130,WRITE_PAGE_SCAN_TYPE = 131,READ_AFH_CHANNEL_ASSESSMENT_MODE = 132,WRITE_AFH_CHANNEL_ASSESSMENT_MODE = 133,READ_LOCAL_VERSION_INFORMATION = 143,READ_LOCAL_SUPPORTED_FEATURES = 145,READ_LOCAL_EXTENDED_FEATURES = 146,READ_BUFFER_SIZE = 147,READ_BD_ADDR = 151,READ_FAILED_CONTACT_COUNTER = 152,RESET_FAILED_CONTACT_COUNTER = 153,READ_LINK_QUALITY = 154,READ_RSSI = 155,READ_AFH_CHANNEL_MAP = 156,READ_CLOCK = 157,READ_LOOPBACK_MODE = 160,WRITE_LOOPBACK_MODE = 161,ENABLE_DEVICE_UNDER_TEST_MODE = 162,SETUP_SYNCHRONOUS_CONNECTION = 163,ACCEPT_SYNCHRONOUS_CONNECTION = 164,REJECT_SYNCHRONOUS_CONNECTION = 165,READ_EXTENDED_INQUIRY_RESPONSE = 170,WRITE_EXTENDED_INQUIRY_RESPONSE = 171,REFRESH_ENCRYPTION_KEY = 172,SNIFF_SUBRATING = 174,READ_SIMPLE_PAIRING_MODE = 175,WRITE_SIMPLE_PAIRING_MODE = 176,READ_LOCAL_OOB_DATA = 177,READ_INQUIRY_RESPONSE_TRANSMIT_POWER_LEVEL = 180,WRITE_INQUIRY_TRANSMIT_POWER_LEVEL = 181,IO_CAPABILITY_REQUEST_REPLY = 187,USER_CONFIRMATION_REQUEST_REPLY = 190,USER_CONFIRMATION_REQUEST_NEGATIVE_REPLY = 191,USER_PASSKEY_REQUEST_REPLY = 192,USER_PASSKEY_REQUEST_NEGATIVE_REPLY = 193,REMOTE_OOB_DATA_REQUEST_REPLY = 194,WRITE_SIMPLE_PAIRING_DEBUG_MODE = 195,ENHANCED_FLUSH = 196,REMOTE_OOB_DATA_REQUEST_NEGATIVE_REPLY = 197,SEND_KEYPRESS_NOTIFICATION = 202,IO_CAPABILITY_REQUEST_NEGATIVE_REPLY = 203,READ_ENCRYPTION_KEY_SIZE = 204,SET_EVENT_MASK_PAGE_2 = 222,READ_DATA_BLOCK_SIZE = 232,READ_LE_HOST_SUPPORT = 245,WRITE_LE_HOST_SUPPORT = 246,LE_SET_EVENT_MASK = 250,LE_READ_BUFFER_SIZE_V1 = 251,LE_READ_LOCAL_SUPPORTED_FEATURES = 252,LE_SET_RANDOM_ADDRESS = 254,LE_SET_ADVERTISING_PARAMETERS = 255,LE_READ_ADVERTISING_PHYSICAL_CHANNEL_TX_POWER = 256,LE_SET_ADVERTISING_DATA = 257,LE_SET_SCAN_RESPONSE_DATA = 260,LE_SET_ADVERTISING_ENABLE = 261,LE_SET_SCAN_PARAMETERS = 262,LE_SET_SCAN_ENABLE = 263,LE_CREATE_CONNECTION = 264,LE_CREATE_CONNECTION_CANCEL = 265,LE_READ_FILTER_ACCEPT_LIST_SIZE = 266,LE_CLEAR_FILTER_ACCEPT_LIST = 267,LE_ADD_DEVICE_TO_FILTER_ACCEPT_LIST = 270,LE_REMOVE_DEVICE_FROM_FILTER_ACCEPT_LIST = 271,LE_CONNECTION_UPDATE = 272,LE_SET_HOST_CHANNEL_CLASSIFICATION = 273,LE_READ_CHANNEL_MAP = 274,LE_READ_REMOTE_FEATURES = 275,LE_ENCRYPT = 276,LE_RAND = 277,LE_START_ENCRYPTION = 280,LE_LONG_TERM_KEY_REQUEST_REPLY = 281,LE_LONG_TERM_KEY_REQUEST_NEGATIVE_REPLY = 282,LE_READ_SUPPORTED_STATES = 283,LE_RECEIVER_TEST = 284,LE_TRANSMITTER_TEST = 285,LE_TEST_END = 286,ENHANCED_SETUP_SYNCHRONOUS_CONNECTION = 293,ENHANCED_ACCEPT_SYNCHRONOUS_CONNECTION = 294,READ_LOCAL_SUPPORTED_CODECS_V1 = 295,REMOTE_OOB_EXTENDED_DATA_REQUEST_REPLY = 321,READ_SECURE_CONNECTIONS_HOST_SUPPORT = 322,WRITE_SECURE_CONNECTIONS_HOST_SUPPORT = 323,READ_LOCAL_OOB_EXTENDED_DATA = 326,WRITE_SECURE_CONNECTIONS_TEST_MODE = 327,LE_REMOTE_CONNECTION_PARAMETER_REQUEST_REPLY = 334,LE_REMOTE_CONNECTION_PARAMETER_REQUEST_NEGATIVE_REPLY = 335,LE_SET_DATA_LENGTH = 336,LE_READ_SUGGESTED_DEFAULT_DATA_LENGTH = 337,LE_WRITE_SUGGESTED_DEFAULT_DATA_LENGTH = 340,LE_READ_LOCAL_P_256_PUBLIC_KEY_COMMAND = 341,LE_GENERATE_DHKEY_COMMAND_V1 = 342,LE_ADD_DEVICE_TO_RESOLVING_LIST = 343,LE_REMOVE_DEVICE_FROM_RESOLVING_LIST = 344,LE_CLEAR_RESOLVING_LIST = 345,LE_READ_RESOLVING_LIST_SIZE = 346,LE_READ_PEER_RESOLVABLE_ADDRESS = 347,LE_READ_LOCAL_RESOLVABLE_ADDRESS = 350,LE_SET_ADDRESS_RESOLUTION_ENABLE = 351,LE_SET_RESOLVABLE_PRIVATE_ADDRESS_TIMEOUT = 352,LE_READ_MAXIMUM_DATA_LENGTH = 353,LE_READ_PHY = 354,LE_SET_DEFAULT_PHY = 355,LE_SET_PHY = 356,LE_ENHANCED_RECEIVER_TEST = 357,LE_ENHANCED_TRANSMITTER_TEST = 360,LE_SET_ADVERTISING_SET_RANDOM_ADDRESS = 361,LE_SET_EXTENDED_ADVERTISING_PARAMETERS = 362,LE_SET_EXTENDED_ADVERTISING_DATA = 363,LE_SET_EXTENDED_SCAN_RESPONSE_DATA = 364,LE_SET_EXTENDED_ADVERTISING_ENABLE = 365,LE_READ_MAXIMUM_ADVERTISING_DATA_LENGTH = 366,LE_READ_NUMBER_OF_SUPPORTED_ADVERTISING_SETS = 367,LE_REMOVE_ADVERTISING_SET = 370,LE_CLEAR_ADVERTISING_SETS = 371,LE_SET_PERIODIC_ADVERTISING_PARAM = 372,LE_SET_PERIODIC_ADVERTISING_DATA = 373,LE_SET_PERIODIC_ADVERTISING_ENABLE = 374,LE_SET_EXTENDED_SCAN_PARAMETERS = 375,LE_SET_EXTENDED_SCAN_ENABLE = 376,LE_EXTENDED_CREATE_CONNECTION = 377,LE_PERIODIC_ADVERTISING_CREATE_SYNC = 380,LE_PERIODIC_ADVERTISING_CREATE_SYNC_CANCEL = 381,LE_PERIODIC_ADVERTISING_TERMINATE_SYNC = 382,LE_ADD_DEVICE_TO_PERIODIC_ADVERTISING_LIST = 383,LE_REMOVE_DEVICE_FROM_PERIODIC_ADVERTISING_LIST = 384,LE_CLEAR_PERIODIC_ADVERTISING_LIST = 385,LE_READ_PERIODIC_ADVERTISING_LIST_SIZE = 386,LE_READ_TRANSMIT_POWER = 387,LE_READ_RF_PATH_COMPENSATION_POWER = 390,LE_WRITE_RF_PATH_COMPENSATION_POWER = 391,LE_SET_PRIVACY_MODE = 392,LE_SET_PERIODIC_ADVERTISING_RECEIVE_ENABLE = 405,LE_PERIODIC_ADVERTISING_SYNC_TRANSFER = 406,LE_PERIODIC_ADVERTISING_SET_INFO_TRANSFER = 407,LE_SET_PERIODIC_ADVERTISING_SYNC_TRANSFER_PARAMETERS = 410,LE_SET_DEFAULT_PERIODIC_ADVERTISING_SYNC_TRANSFER_PARAMETERS = 411,LE_GENERATE_DHKEY_COMMAND = 412,LE_MODIFY_SLEEP_CLOCK_ACCURACY = 414,LE_READ_BUFFER_SIZE_V2 = 415,LE_READ_ISO_TX_SYNC = 416,LE_SET_CIG_PARAMETERS = 417,LE_SET_CIG_PARAMETERS_TEST = 418,LE_CREATE_CIS = 421,LE_REMOVE_CIG = 422,LE_ACCEPT_CIS_REQUEST = 423,LE_REJECT_CIS_REQUEST = 424,LE_CREATE_BIG = 425,LE_TERMINATE_BIG = 427,LE_BIG_CREATE_SYNC = 430,LE_BIG_TERMINATE_SYNC = 431,LE_REQUEST_PEER_SCA = 432,LE_SETUP_ISO_DATA_PATH = 433,LE_REMOVE_ISO_DATA_PATH = 434,LE_SET_HOST_FEATURE = 441,LE_READ_ISO_LINK_QUALITY = 442,LE_ENHANCED_READ_TRANSMIT_POWER_LEVEL = 443,LE_READ_REMOTE_TRANSMIT_POWER_LEVEL = 444,LE_SET_PATH_LOSS_REPORTING_PARAMETERS = 445,LE_SET_PATH_LOSS_REPORTING_ENABLE = 446,LE_SET_TRANSMIT_POWER_REPORTING_ENABLE = 447,SET_ECOSYSTEM_BASE_INTERVAL = 451,READ_LOCAL_SUPPORTED_CODECS_V2 = 452,READ_LOCAL_SUPPORTED_CODEC_CAPABILITIES = 453,READ_LOCAL_SUPPORTED_CONTROLLER_DELAY = 454,CONFIGURE_DATA_PATH = 455,LE_SET_DATA_RELATED_ADDRESS_CHANGES = 456,SET_MIN_ENCRYPTION_KEY_SIZE = 457,LE_SET_DEFAULT_SUBRATE = 460,LE_SUBRATE_REQUEST = 461,
}

这里我拿 LE_SUBRATE_REQUEST 为例 说明 OP_CODE_MAPPING 如何使用：

#define OP_CODE_MAPPING(LE_SUBRATE_REQUEST)      // 等价于下面的：case OpCode::LE_SUBRATE_REQUEST: {                                                         uint16_t index = (uint16_t)OpCodeIndex::LE_SUBRATE_REQUEST;// 461                              uint16_t byte_index = index / 10; // 46                                          uint16_t bit_index = index % 10;  // 1                                         bool supported = local_supported_commands_[byte_index] & (1 << bit_index);  // local_supported_commands_ 位图中第 46 字节第1bitif (!supported) {                                                          LOG_DEBUG("unsupported command opcode: 0x%04x", (uint16_t)OpCode::LE_SUBRATE_REQUEST); }                                                                          return supported;                                                          }

• 通过 OP_CODE_MAPPING 我们可以成功索引到 该 hcicmd 在 位图中对应的位。

// system/gd/hci/controller.ccbool is_supported(OpCode op_code) {switch (op_code) {OP_CODE_MAPPING(INQUIRY)OP_CODE_MAPPING(INQUIRY_CANCEL)OP_CODE_MAPPING(PERIODIC_INQUIRY_MODE)OP_CODE_MAPPING(EXIT_PERIODIC_INQUIRY_MODE)OP_CODE_MAPPING(CREATE_CONNECTION)OP_CODE_MAPPING(DISCONNECT)OP_CODE_MAPPING(CREATE_CONNECTION_CANCEL)OP_CODE_MAPPING(ACCEPT_CONNECTION_REQUEST)OP_CODE_MAPPING(REJECT_CONNECTION_REQUEST)OP_CODE_MAPPING(LINK_KEY_REQUEST_REPLY)OP_CODE_MAPPING(LINK_KEY_REQUEST_NEGATIVE_REPLY)OP_CODE_MAPPING(PIN_CODE_REQUEST_REPLY)OP_CODE_MAPPING(PIN_CODE_REQUEST_NEGATIVE_REPLY)OP_CODE_MAPPING(CHANGE_CONNECTION_PACKET_TYPE)OP_CODE_MAPPING(AUTHENTICATION_REQUESTED)OP_CODE_MAPPING(SET_CONNECTION_ENCRYPTION)OP_CODE_MAPPING(CHANGE_CONNECTION_LINK_KEY)OP_CODE_MAPPING(CENTRAL_LINK_KEY)OP_CODE_MAPPING(REMOTE_NAME_REQUEST)OP_CODE_MAPPING(REMOTE_NAME_REQUEST_CANCEL)OP_CODE_MAPPING(READ_REMOTE_SUPPORTED_FEATURES)OP_CODE_MAPPING(READ_REMOTE_EXTENDED_FEATURES)OP_CODE_MAPPING(READ_REMOTE_VERSION_INFORMATION)OP_CODE_MAPPING(READ_CLOCK_OFFSET)OP_CODE_MAPPING(READ_LMP_HANDLE)OP_CODE_MAPPING(HOLD_MODE)OP_CODE_MAPPING(SNIFF_MODE)OP_CODE_MAPPING(EXIT_SNIFF_MODE)OP_CODE_MAPPING(QOS_SETUP)OP_CODE_MAPPING(ROLE_DISCOVERY)OP_CODE_MAPPING(SWITCH_ROLE)OP_CODE_MAPPING(READ_LINK_POLICY_SETTINGS)OP_CODE_MAPPING(WRITE_LINK_POLICY_SETTINGS)OP_CODE_MAPPING(READ_DEFAULT_LINK_POLICY_SETTINGS)OP_CODE_MAPPING(WRITE_DEFAULT_LINK_POLICY_SETTINGS)OP_CODE_MAPPING(FLOW_SPECIFICATION)OP_CODE_MAPPING(SET_EVENT_MASK)OP_CODE_MAPPING(RESET)OP_CODE_MAPPING(SET_EVENT_FILTER)OP_CODE_MAPPING(FLUSH)OP_CODE_MAPPING(READ_PIN_TYPE)OP_CODE_MAPPING(WRITE_PIN_TYPE)OP_CODE_MAPPING(READ_STORED_LINK_KEY)OP_CODE_MAPPING(WRITE_STORED_LINK_KEY)OP_CODE_MAPPING(DELETE_STORED_LINK_KEY)OP_CODE_MAPPING(WRITE_LOCAL_NAME)OP_CODE_MAPPING(READ_LOCAL_NAME)OP_CODE_MAPPING(READ_CONNECTION_ACCEPT_TIMEOUT)OP_CODE_MAPPING(WRITE_CONNECTION_ACCEPT_TIMEOUT)OP_CODE_MAPPING(READ_PAGE_TIMEOUT)OP_CODE_MAPPING(WRITE_PAGE_TIMEOUT)OP_CODE_MAPPING(READ_SCAN_ENABLE)OP_CODE_MAPPING(WRITE_SCAN_ENABLE)OP_CODE_MAPPING(READ_PAGE_SCAN_ACTIVITY)OP_CODE_MAPPING(WRITE_PAGE_SCAN_ACTIVITY)OP_CODE_MAPPING(READ_INQUIRY_SCAN_ACTIVITY)OP_CODE_MAPPING(WRITE_INQUIRY_SCAN_ACTIVITY)OP_CODE_MAPPING(READ_AUTHENTICATION_ENABLE)OP_CODE_MAPPING(WRITE_AUTHENTICATION_ENABLE)OP_CODE_MAPPING(READ_CLASS_OF_DEVICE)OP_CODE_MAPPING(WRITE_CLASS_OF_DEVICE)OP_CODE_MAPPING(READ_VOICE_SETTING)OP_CODE_MAPPING(WRITE_VOICE_SETTING)OP_CODE_MAPPING(READ_AUTOMATIC_FLUSH_TIMEOUT)OP_CODE_MAPPING(WRITE_AUTOMATIC_FLUSH_TIMEOUT)OP_CODE_MAPPING(READ_NUM_BROADCAST_RETRANSMITS)OP_CODE_MAPPING(WRITE_NUM_BROADCAST_RETRANSMITS)OP_CODE_MAPPING(READ_HOLD_MODE_ACTIVITY)OP_CODE_MAPPING(WRITE_HOLD_MODE_ACTIVITY)OP_CODE_MAPPING(READ_TRANSMIT_POWER_LEVEL)OP_CODE_MAPPING(READ_SYNCHRONOUS_FLOW_CONTROL_ENABLE)OP_CODE_MAPPING(WRITE_SYNCHRONOUS_FLOW_CONTROL_ENABLE)OP_CODE_MAPPING(SET_CONTROLLER_TO_HOST_FLOW_CONTROL)OP_CODE_MAPPING(HOST_BUFFER_SIZE)OP_CODE_MAPPING(HOST_NUM_COMPLETED_PACKETS)OP_CODE_MAPPING(READ_LINK_SUPERVISION_TIMEOUT)OP_CODE_MAPPING(WRITE_LINK_SUPERVISION_TIMEOUT)OP_CODE_MAPPING(READ_NUMBER_OF_SUPPORTED_IAC)OP_CODE_MAPPING(READ_CURRENT_IAC_LAP)OP_CODE_MAPPING(WRITE_CURRENT_IAC_LAP)OP_CODE_MAPPING(SET_AFH_HOST_CHANNEL_CLASSIFICATION)OP_CODE_MAPPING(READ_INQUIRY_SCAN_TYPE)OP_CODE_MAPPING(WRITE_INQUIRY_SCAN_TYPE)OP_CODE_MAPPING(READ_INQUIRY_MODE)OP_CODE_MAPPING(WRITE_INQUIRY_MODE)OP_CODE_MAPPING(READ_PAGE_SCAN_TYPE)OP_CODE_MAPPING(WRITE_PAGE_SCAN_TYPE)OP_CODE_MAPPING(READ_AFH_CHANNEL_ASSESSMENT_MODE)OP_CODE_MAPPING(WRITE_AFH_CHANNEL_ASSESSMENT_MODE)OP_CODE_MAPPING(READ_LOCAL_VERSION_INFORMATION)OP_CODE_MAPPING(READ_LOCAL_SUPPORTED_FEATURES)OP_CODE_MAPPING(READ_LOCAL_EXTENDED_FEATURES)OP_CODE_MAPPING(READ_BUFFER_SIZE)OP_CODE_MAPPING(READ_BD_ADDR)OP_CODE_MAPPING(READ_FAILED_CONTACT_COUNTER)OP_CODE_MAPPING(RESET_FAILED_CONTACT_COUNTER)OP_CODE_MAPPING(READ_LINK_QUALITY)OP_CODE_MAPPING(READ_RSSI)OP_CODE_MAPPING(READ_AFH_CHANNEL_MAP)OP_CODE_MAPPING(READ_CLOCK)OP_CODE_MAPPING(READ_LOOPBACK_MODE)OP_CODE_MAPPING(WRITE_LOOPBACK_MODE)OP_CODE_MAPPING(ENABLE_DEVICE_UNDER_TEST_MODE)OP_CODE_MAPPING(SETUP_SYNCHRONOUS_CONNECTION)OP_CODE_MAPPING(ACCEPT_SYNCHRONOUS_CONNECTION)OP_CODE_MAPPING(REJECT_SYNCHRONOUS_CONNECTION)OP_CODE_MAPPING(READ_EXTENDED_INQUIRY_RESPONSE)OP_CODE_MAPPING(WRITE_EXTENDED_INQUIRY_RESPONSE)OP_CODE_MAPPING(REFRESH_ENCRYPTION_KEY)OP_CODE_MAPPING(SNIFF_SUBRATING)OP_CODE_MAPPING(READ_SIMPLE_PAIRING_MODE)OP_CODE_MAPPING(WRITE_SIMPLE_PAIRING_MODE)OP_CODE_MAPPING(READ_LOCAL_OOB_DATA)OP_CODE_MAPPING(READ_INQUIRY_RESPONSE_TRANSMIT_POWER_LEVEL)OP_CODE_MAPPING(WRITE_INQUIRY_TRANSMIT_POWER_LEVEL)OP_CODE_MAPPING(IO_CAPABILITY_REQUEST_REPLY)OP_CODE_MAPPING(USER_CONFIRMATION_REQUEST_REPLY)OP_CODE_MAPPING(USER_CONFIRMATION_REQUEST_NEGATIVE_REPLY)OP_CODE_MAPPING(USER_PASSKEY_REQUEST_REPLY)OP_CODE_MAPPING(USER_PASSKEY_REQUEST_NEGATIVE_REPLY)OP_CODE_MAPPING(REMOTE_OOB_DATA_REQUEST_REPLY)OP_CODE_MAPPING(WRITE_SIMPLE_PAIRING_DEBUG_MODE)OP_CODE_MAPPING(REMOTE_OOB_DATA_REQUEST_NEGATIVE_REPLY)OP_CODE_MAPPING(SEND_KEYPRESS_NOTIFICATION)OP_CODE_MAPPING(SET_EVENT_MASK_PAGE_2)OP_CODE_MAPPING(IO_CAPABILITY_REQUEST_NEGATIVE_REPLY)OP_CODE_MAPPING(REMOTE_OOB_EXTENDED_DATA_REQUEST_REPLY)OP_CODE_MAPPING(READ_ENCRYPTION_KEY_SIZE)OP_CODE_MAPPING(READ_DATA_BLOCK_SIZE)OP_CODE_MAPPING(READ_LE_HOST_SUPPORT)OP_CODE_MAPPING(WRITE_LE_HOST_SUPPORT)OP_CODE_MAPPING(LE_SET_EVENT_MASK)OP_CODE_MAPPING(LE_READ_BUFFER_SIZE_V1)OP_CODE_MAPPING(LE_READ_LOCAL_SUPPORTED_FEATURES)OP_CODE_MAPPING(LE_SET_RANDOM_ADDRESS)OP_CODE_MAPPING(LE_SET_ADVERTISING_PARAMETERS)OP_CODE_MAPPING(LE_READ_ADVERTISING_PHYSICAL_CHANNEL_TX_POWER)OP_CODE_MAPPING(LE_SET_ADVERTISING_DATA)OP_CODE_MAPPING(LE_SET_SCAN_RESPONSE_DATA)OP_CODE_MAPPING(LE_SET_ADVERTISING_ENABLE)OP_CODE_MAPPING(LE_SET_SCAN_PARAMETERS)OP_CODE_MAPPING(LE_SET_SCAN_ENABLE)OP_CODE_MAPPING(LE_CREATE_CONNECTION)OP_CODE_MAPPING(LE_CREATE_CONNECTION_CANCEL)OP_CODE_MAPPING(LE_READ_FILTER_ACCEPT_LIST_SIZE)OP_CODE_MAPPING(LE_CLEAR_FILTER_ACCEPT_LIST)OP_CODE_MAPPING(LE_ADD_DEVICE_TO_FILTER_ACCEPT_LIST)OP_CODE_MAPPING(LE_REMOVE_DEVICE_FROM_FILTER_ACCEPT_LIST)OP_CODE_MAPPING(LE_CONNECTION_UPDATE)OP_CODE_MAPPING(LE_SET_HOST_CHANNEL_CLASSIFICATION)OP_CODE_MAPPING(LE_READ_CHANNEL_MAP)OP_CODE_MAPPING(LE_READ_REMOTE_FEATURES)OP_CODE_MAPPING(LE_ENCRYPT)OP_CODE_MAPPING(LE_RAND)OP_CODE_MAPPING(LE_START_ENCRYPTION)OP_CODE_MAPPING(LE_LONG_TERM_KEY_REQUEST_REPLY)OP_CODE_MAPPING(LE_LONG_TERM_KEY_REQUEST_NEGATIVE_REPLY)OP_CODE_MAPPING(LE_READ_SUPPORTED_STATES)OP_CODE_MAPPING(LE_RECEIVER_TEST)OP_CODE_MAPPING(LE_TRANSMITTER_TEST)OP_CODE_MAPPING(LE_TEST_END)OP_CODE_MAPPING(ENHANCED_SETUP_SYNCHRONOUS_CONNECTION)OP_CODE_MAPPING(ENHANCED_ACCEPT_SYNCHRONOUS_CONNECTION)OP_CODE_MAPPING(READ_LOCAL_SUPPORTED_CODECS_V1)OP_CODE_MAPPING(READ_SECURE_CONNECTIONS_HOST_SUPPORT)OP_CODE_MAPPING(WRITE_SECURE_CONNECTIONS_HOST_SUPPORT)OP_CODE_MAPPING(READ_LOCAL_OOB_EXTENDED_DATA)OP_CODE_MAPPING(WRITE_SECURE_CONNECTIONS_TEST_MODE)OP_CODE_MAPPING(LE_REMOTE_CONNECTION_PARAMETER_REQUEST_REPLY)OP_CODE_MAPPING(LE_REMOTE_CONNECTION_PARAMETER_REQUEST_NEGATIVE_REPLY)OP_CODE_MAPPING(LE_SET_DATA_LENGTH)OP_CODE_MAPPING(LE_READ_SUGGESTED_DEFAULT_DATA_LENGTH)OP_CODE_MAPPING(LE_WRITE_SUGGESTED_DEFAULT_DATA_LENGTH)OP_CODE_MAPPING(LE_READ_LOCAL_P_256_PUBLIC_KEY_COMMAND)OP_CODE_MAPPING(LE_GENERATE_DHKEY_COMMAND_V1)OP_CODE_MAPPING(LE_ADD_DEVICE_TO_RESOLVING_LIST)OP_CODE_MAPPING(LE_REMOVE_DEVICE_FROM_RESOLVING_LIST)OP_CODE_MAPPING(LE_CLEAR_RESOLVING_LIST)OP_CODE_MAPPING(LE_READ_RESOLVING_LIST_SIZE)OP_CODE_MAPPING(LE_READ_PEER_RESOLVABLE_ADDRESS)OP_CODE_MAPPING(LE_READ_LOCAL_RESOLVABLE_ADDRESS)OP_CODE_MAPPING(LE_SET_ADDRESS_RESOLUTION_ENABLE)OP_CODE_MAPPING(LE_SET_RESOLVABLE_PRIVATE_ADDRESS_TIMEOUT)OP_CODE_MAPPING(LE_READ_MAXIMUM_DATA_LENGTH)OP_CODE_MAPPING(LE_READ_PHY)OP_CODE_MAPPING(LE_SET_DEFAULT_PHY)OP_CODE_MAPPING(LE_SET_PHY)OP_CODE_MAPPING(LE_ENHANCED_RECEIVER_TEST)OP_CODE_MAPPING(LE_ENHANCED_TRANSMITTER_TEST)OP_CODE_MAPPING(LE_SET_ADVERTISING_SET_RANDOM_ADDRESS)OP_CODE_MAPPING(LE_SET_EXTENDED_ADVERTISING_PARAMETERS)OP_CODE_MAPPING(LE_SET_EXTENDED_ADVERTISING_DATA)OP_CODE_MAPPING(LE_SET_EXTENDED_SCAN_RESPONSE_DATA)OP_CODE_MAPPING(LE_SET_EXTENDED_ADVERTISING_ENABLE)OP_CODE_MAPPING(LE_READ_MAXIMUM_ADVERTISING_DATA_LENGTH)OP_CODE_MAPPING(LE_READ_NUMBER_OF_SUPPORTED_ADVERTISING_SETS)OP_CODE_MAPPING(LE_REMOVE_ADVERTISING_SET)OP_CODE_MAPPING(LE_CLEAR_ADVERTISING_SETS)OP_CODE_MAPPING(LE_SET_PERIODIC_ADVERTISING_PARAM)OP_CODE_MAPPING(LE_SET_PERIODIC_ADVERTISING_DATA)OP_CODE_MAPPING(LE_SET_PERIODIC_ADVERTISING_ENABLE)OP_CODE_MAPPING(LE_SET_EXTENDED_SCAN_PARAMETERS)OP_CODE_MAPPING(LE_SET_EXTENDED_SCAN_ENABLE)OP_CODE_MAPPING(LE_EXTENDED_CREATE_CONNECTION)OP_CODE_MAPPING(LE_PERIODIC_ADVERTISING_CREATE_SYNC)OP_CODE_MAPPING(LE_PERIODIC_ADVERTISING_CREATE_SYNC_CANCEL)OP_CODE_MAPPING(LE_PERIODIC_ADVERTISING_TERMINATE_SYNC)OP_CODE_MAPPING(LE_ADD_DEVICE_TO_PERIODIC_ADVERTISING_LIST)OP_CODE_MAPPING(LE_REMOVE_DEVICE_FROM_PERIODIC_ADVERTISING_LIST)OP_CODE_MAPPING(LE_CLEAR_PERIODIC_ADVERTISING_LIST)OP_CODE_MAPPING(LE_READ_PERIODIC_ADVERTISING_LIST_SIZE)OP_CODE_MAPPING(LE_READ_TRANSMIT_POWER)OP_CODE_MAPPING(LE_READ_RF_PATH_COMPENSATION_POWER)OP_CODE_MAPPING(LE_WRITE_RF_PATH_COMPENSATION_POWER)OP_CODE_MAPPING(LE_SET_PRIVACY_MODE)OP_CODE_MAPPING(LE_SET_PERIODIC_ADVERTISING_RECEIVE_ENABLE)OP_CODE_MAPPING(LE_PERIODIC_ADVERTISING_SYNC_TRANSFER)OP_CODE_MAPPING(LE_PERIODIC_ADVERTISING_SET_INFO_TRANSFER)OP_CODE_MAPPING(LE_SET_PERIODIC_ADVERTISING_SYNC_TRANSFER_PARAMETERS)OP_CODE_MAPPING(LE_SET_DEFAULT_PERIODIC_ADVERTISING_SYNC_TRANSFER_PARAMETERS)OP_CODE_MAPPING(LE_GENERATE_DHKEY_COMMAND)OP_CODE_MAPPING(LE_MODIFY_SLEEP_CLOCK_ACCURACY)OP_CODE_MAPPING(LE_READ_BUFFER_SIZE_V2)OP_CODE_MAPPING(LE_READ_ISO_TX_SYNC)OP_CODE_MAPPING(LE_SET_CIG_PARAMETERS)OP_CODE_MAPPING(LE_SET_CIG_PARAMETERS_TEST)OP_CODE_MAPPING(LE_CREATE_CIS)OP_CODE_MAPPING(LE_REMOVE_CIG)OP_CODE_MAPPING(LE_ACCEPT_CIS_REQUEST)OP_CODE_MAPPING(LE_REJECT_CIS_REQUEST)OP_CODE_MAPPING(LE_CREATE_BIG)OP_CODE_MAPPING(LE_TERMINATE_BIG)OP_CODE_MAPPING(LE_BIG_CREATE_SYNC)OP_CODE_MAPPING(LE_BIG_TERMINATE_SYNC)OP_CODE_MAPPING(LE_REQUEST_PEER_SCA)OP_CODE_MAPPING(LE_SETUP_ISO_DATA_PATH)OP_CODE_MAPPING(LE_REMOVE_ISO_DATA_PATH)OP_CODE_MAPPING(LE_SET_HOST_FEATURE)OP_CODE_MAPPING(LE_READ_ISO_LINK_QUALITY)OP_CODE_MAPPING(LE_ENHANCED_READ_TRANSMIT_POWER_LEVEL)OP_CODE_MAPPING(LE_READ_REMOTE_TRANSMIT_POWER_LEVEL)OP_CODE_MAPPING(LE_SET_PATH_LOSS_REPORTING_PARAMETERS)OP_CODE_MAPPING(LE_SET_PATH_LOSS_REPORTING_ENABLE)OP_CODE_MAPPING(LE_SET_TRANSMIT_POWER_REPORTING_ENABLE)OP_CODE_MAPPING(SET_ECOSYSTEM_BASE_INTERVAL)OP_CODE_MAPPING(READ_LOCAL_SUPPORTED_CODECS_V2)OP_CODE_MAPPING(READ_LOCAL_SUPPORTED_CODEC_CAPABILITIES)OP_CODE_MAPPING(READ_LOCAL_SUPPORTED_CONTROLLER_DELAY)OP_CODE_MAPPING(CONFIGURE_DATA_PATH)OP_CODE_MAPPING(ENHANCED_FLUSH)OP_CODE_MAPPING(LE_SET_DATA_RELATED_ADDRESS_CHANGES)OP_CODE_MAPPING(LE_SET_DEFAULT_SUBRATE)OP_CODE_MAPPING(LE_SUBRATE_REQUEST)OP_CODE_MAPPING(SET_MIN_ENCRYPTION_KEY_SIZE)// deprecatedcase OpCode::ADD_SCO_CONNECTION:return false;// vendor specificcase OpCode::LE_GET_VENDOR_CAPABILITIES:return vendor_capabilities_.is_supported_ == 0x01;case OpCode::LE_MULTI_ADVT:return vendor_capabilities_.max_advt_instances_ != 0x00;case OpCode::LE_BATCH_SCAN:return vendor_capabilities_.total_scan_results_storage_ != 0x00;case OpCode::LE_ADV_FILTER:return vendor_capabilities_.filtering_support_ == 0x01;case OpCode::LE_ENERGY_INFO:return vendor_capabilities_.activity_energy_info_support_ == 0x01;case OpCode::LE_EXTENDED_SCAN_PARAMS:return vendor_capabilities_.extended_scan_support_ == 0x01;case OpCode::CONTROLLER_DEBUG_INFO:return vendor_capabilities_.debug_logging_supported_ == 0x01;case OpCode::CONTROLLER_A2DP_OPCODE:return vendor_capabilities_.a2dp_source_offload_capability_mask_ != 0x00;case OpCode::CONTROLLER_BQR:return vendor_capabilities_.bluetooth_quality_report_support_ == 0x01;// undefined in local_supported_commands_case OpCode::READ_LOCAL_SUPPORTED_COMMANDS:return true;case OpCode::NONE:return false;}return false;}

• 所以如果要判断 当前 controller 是否支持 该命令，只需要调用 is_supported 函数即可。

bool Controller::IsSupported(bluetooth::hci::OpCode op_code) const {return impl_->is_supported(op_code);
}

• 外部模块只需要调用 Controller::IsSupported 即可判断是否支持该命令。

2. aosp 中的作用：为什么它很重要？

在 Android 蓝牙协议栈（如 system/bt）中，HCI_Read_Local_Supported_Commands 返回的这 64 字节位图广泛用于以下几个方面：

---

1. 功能检测与控制器能力决策

• Android 蓝牙栈会根据该命令结果动态判断 Controller 支持哪些命令。

• 典型例子：LE Extended Advertising、Coded PHY、LE Periodic Advertising 等功能是否可用，直接影响上层是否启用某些 GAP/GATT 功能。

---

2. 初始化过程动态调整命令发送策略

• 在 stack 初始化时，controller 不支持某些命令则跳过它们的初始化调用，避免失败。
• 举例：是否发送 LeReadBufferSizeV2 命令前会先检查对应 bit 是否为 1。

if (is_supported(OpCode::LE_READ_BUFFER_SIZE_V2)) {hci_->EnqueueCommand(LeReadBufferSizeV2Builder::Create(),handler->BindOnceOn(this, &Controller::impl::le_read_buffer_size_v2_handler));}

---

3. 厂商定制逻辑与能力适配

• 有些厂商芯片即便宣称是 BT5.1，但可能缺失部分命令实现。

• Android 通过查询这个位图 动态适配，避免调用未支持的命令导致错误。

---

4. 蓝牙兼容性 Debug

• 蓝牙连接或功能异常时，可通过 dumpsys 或 log 分析哪些命令是被支持的。
• Supported_Commands 是诊断「为什么不能执行某个 HCI 操作」的关键。

---
