0 前言

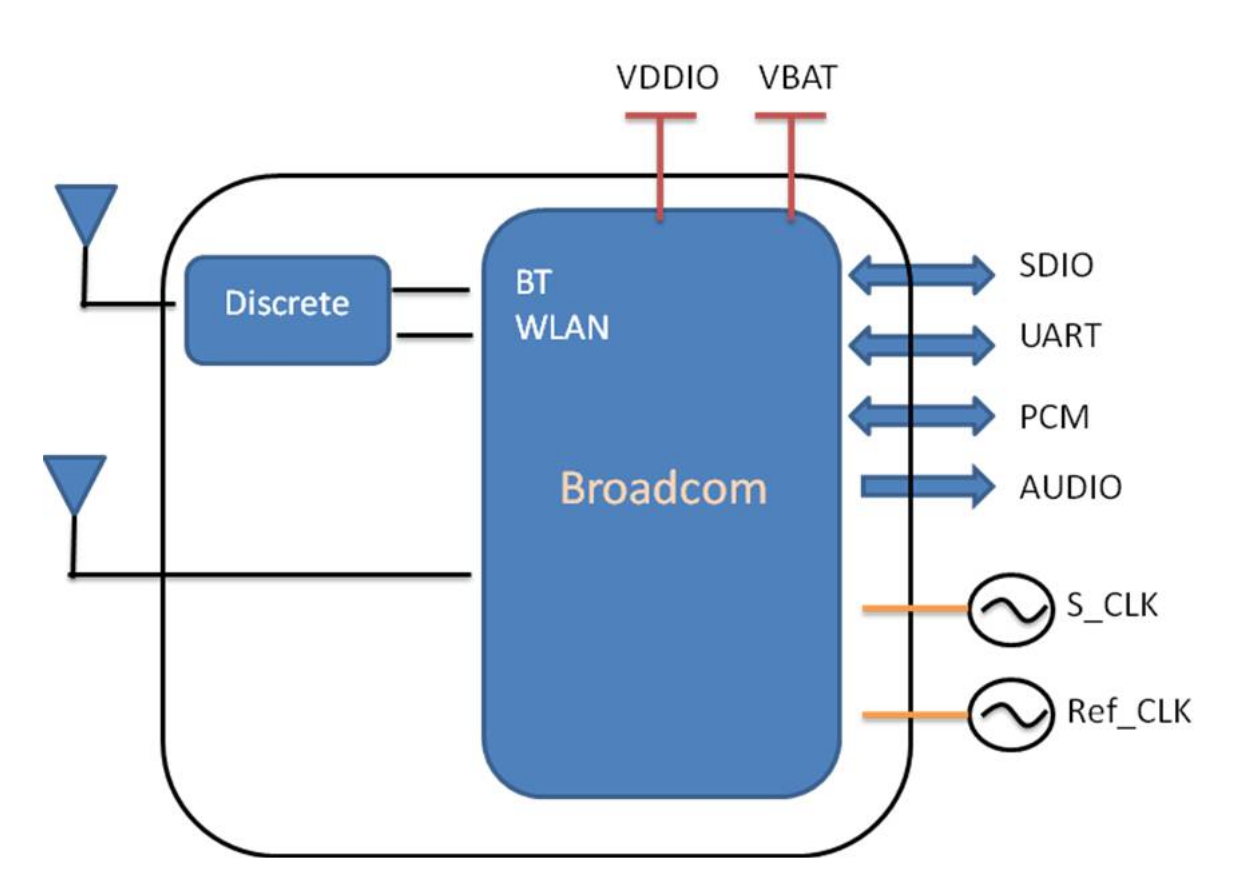

AIO-1126-JD4采用了正基科技推出的一款集成WiFi、蓝牙功能的模组AP6236，支持高速（HS）功能的蓝牙 4.0，集成了 1.5 类功率放大器（PA），并支持低功耗蓝牙（BLE）。提到正基就不得不提下博通。博通和正基是芯片技术与模块制造方面的合作关系，正基科技是中国台湾的公司，在无线通信模块领域有一定的市场份额，博通则是全球领先的有线和无线通信半导体公司。正基把包含博通关键IP的核心芯片和自家的射频部分等封装在一起，即SIP（System In Package）。AP6236正是这种采用了博通BCM43430B0方案的SIP模组。

一般SDK里面都会带上博通或正基提供的后台应用。前端的话，可以是自己封装的应用或服务，直接调用博通的接口和后台交互，跑自己的协议栈，当然也可以跑开源的bluez协议栈，bluez的IPC机制是D-BUS，一样是后台前端的模式。

1 Deviceio库

在AIO-1126-JD4上，瑞芯微专门开发了一个中间层Deviceio库，可以支持正基博通，海华博通，还有bluez。Deviceio库屏蔽了底层复杂的WiFiBT操作比如wpa_supplicant/bluez/bsa等，向上提供友好的应用开发接口，比直接拿着bluez开发起来方便得多，见仁见智。

1.1 Deviceio库编译

SDK里面Deviceio库源码路径在external/deviceio_release，严格按照下面顺序编译。

make rkwifibt-dirclean && make rkwifibt-rebuild
make broadcom_bsa-dirclean && make broadcom_bsa-rebuild
make deviceio_release-dirclean && make deviceio_release

如果直接编译deviceio_release编不过，需要对Deviceio库源码的CMakeLists.txt进行修改，修改如下：

external/deviceio/CMakeLists.txt

cmake_minimum_required(VERSION 2.8.0 FATAL_ERROR)#PROJECT (deviceio_test)message(${PROJECT_SOURCE_DIR})
message(${PROJECT_BINARY_DIR})set(deviceio_SOURCE_DIR ${PROJECT_SOURCE_DIR})add_definitions("-Wall -g")add_subdirectory("DeviceIO")
add_subdirectory("test")

external/deviceio/test/CMakeLists.txt

cmake_minimum_required(VERSION 2.8.0 FATAL_ERROR)set(SRC_FILESDeviceIOTest.cppbt_test.cppbt_test_1s2.cpprk_ble_app.crk_wifi_test.c
)if(BLUEZ)
add_definitions(-DBLUEZ_USE)
elseif(BSA)
add_definitions(-DBSA_USE)
endif()add_definitions("-fpermissive")link_directories(${deviceio_SOURCE_DIR}/DeviceIO/rv1126_rv1109/lib32/broadcom)add_executable(deviceio_test ${SRC_FILES})
target_include_directories(deviceio_test PUBLIC"${deviceio_SOURCE_DIR}/DeviceIO/include" )
target_link_libraries(deviceio_test pthread DeviceIo asound)install(TARGETS deviceio_test DESTINATION bin)

external/deviceio/DeviceIO/CMakeLists.txt

cmake_minimum_required(VERSION 3.1 FATAL_ERROR)
project(DeviceIo)# file(COPY ${CMAKE_CURRENT_SOURCE_DIR}/include/DeviceIo DESTINATION ${CMAKE_INSTALL_STAGING}/usr/include/)
# file(COPY ${CMAKE_CURRENT_SOURCE_DIR}/rv1126_rv1109/lib32/broadcom/libDeviceIo.so DESTINATION ${CMAKE_INSTALL_STAGING}/usr/lib/)
install(DIRECTORY ${CMAKE_CURRENT_SOURCE_DIR}/include/DeviceIo DESTINATION ${CMAKE_INSTALL_PREFIX}/include)
install(FILES ${CMAKE_CURRENT_SOURCE_DIR}/rv1126_rv1109/lib32/broadcom/libDeviceIo.so DESTINATION ${CMAKE_INSTALL_PREFIX}/lib)

在SDK根目录下再次执行

make deviceio_release-dirclean && make deviceio_release

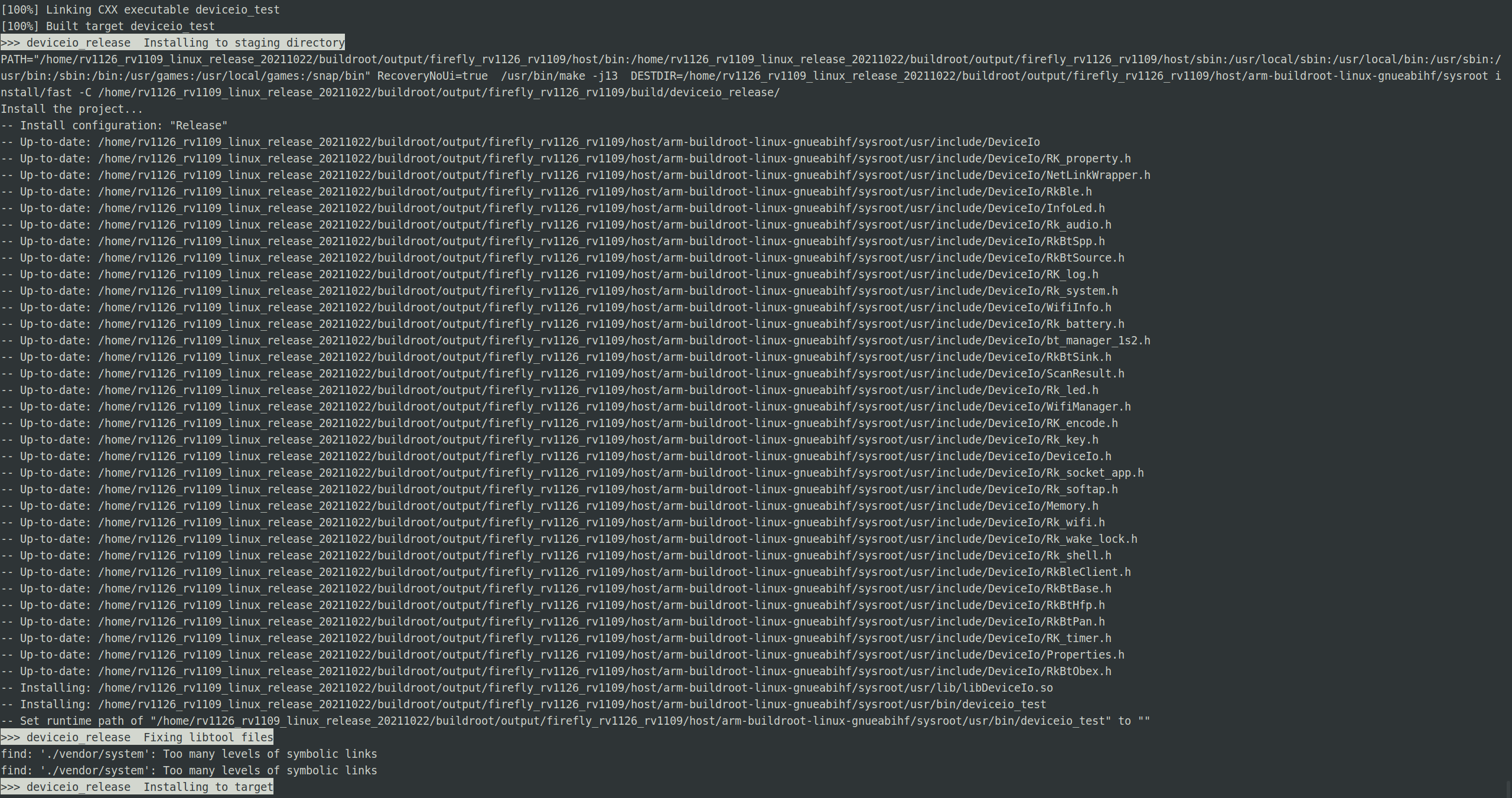

编译成功后会自动安装到host编译链路径和打包target路径

执行./build.sh生成新固件，就可将带有Deviceio库的新固件烧写到设备中。

2 蓝牙服务程序开发

2.1 Deviceio库链接到应用

cmake工程配置

set(TARGET_SYSROOT "you_sdk_path/rv1126_rv1109_linux_release_20211022/buildroot/output/firefly_rv1126_rv1109/host/arm-buildroot-linux-gnueabihf/sysroot")
set(CMAKE_SYSROOT "${TARGET_SYSROOT}")

target_link_libraries(${PROJECT_NAME}DeviceIo
)

2.2 创建蓝牙服务程序

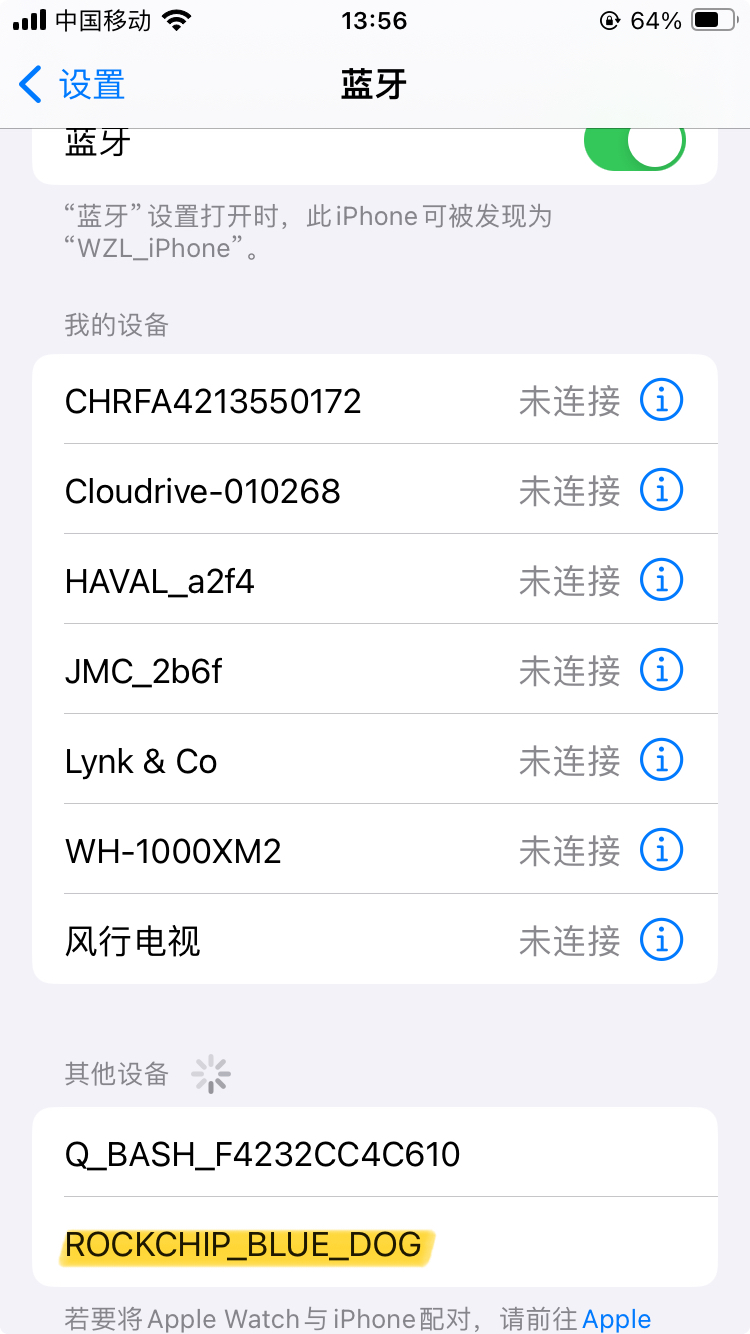

蓝牙名：ROCKCHIP_BLUE_DOG

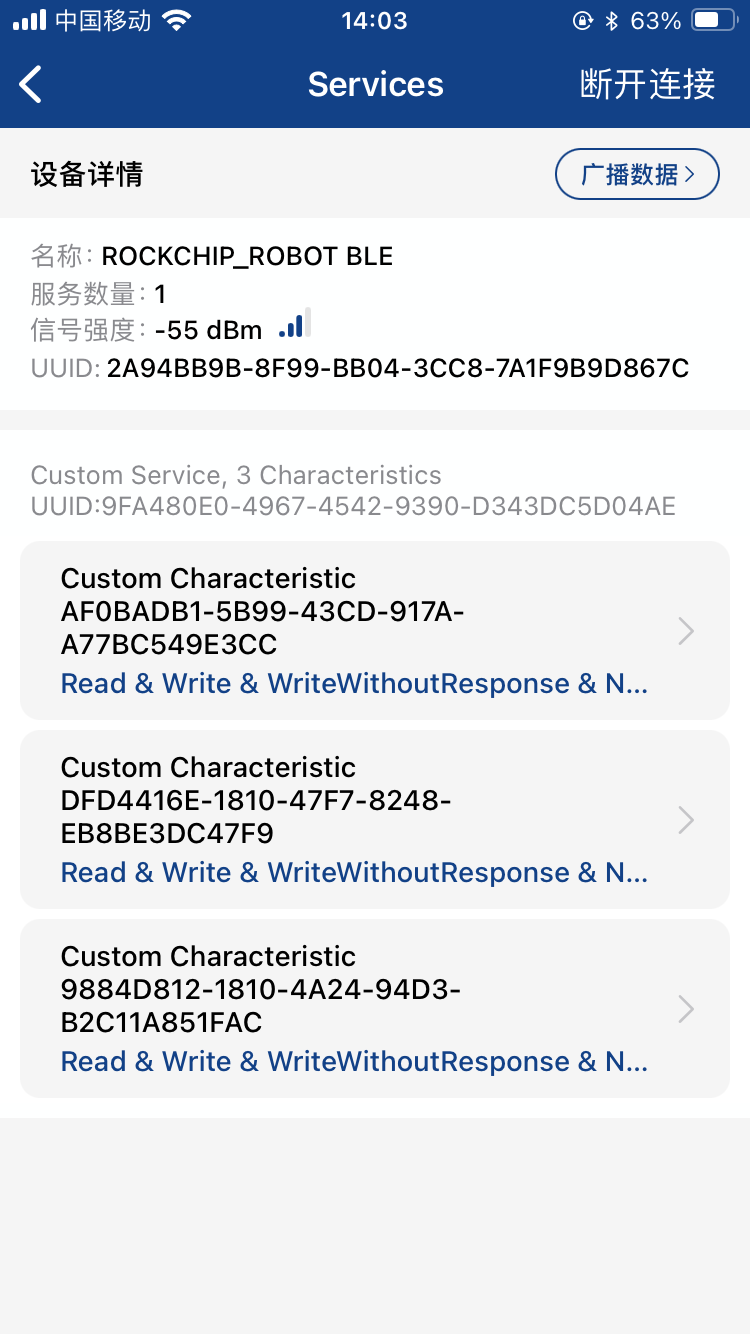

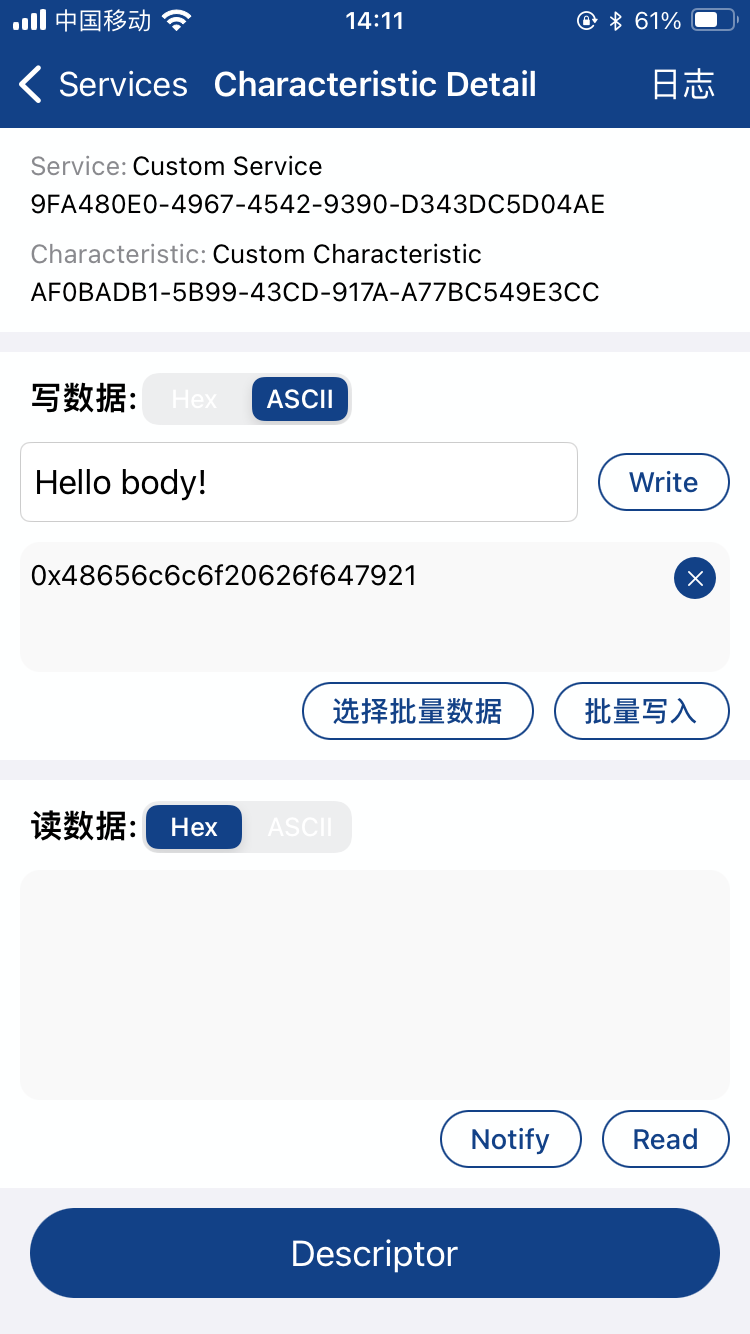

创建一个包含三个特征的蓝牙服务，可用如下方法。

#define BLE_UUID_SERVICE	"9FA480E0-4967-4542-9390-D343DC5D04AE"
#define BLE_UUID_REMOTE_CHAR	"AF0BADB1-5B99-43CD-917A-A77BC549E3CC"
#define BLE_UUID_SEND		"dfd4416e-1810-47f7-8248-eb8be3dc47f9"
#define BLE_UUID_RECV		"9884d812-1810-4a24-94d3-b2c11a851fac"

/** The Bluetooth basic service is turned on and the function* must be called before using the Bluetooth function.*/
#if 1
void *bt_test_bluetooth_init_thread(void *)
{printf("%s: BT BLUETOOTH INIT\n", __func__);memset(&bt_content, 0, sizeof(RkBtContent));bt_content.bt_name = "ROCKCHIP_BLUE_DOG";//bt_content.bt_addr = "11:22:33:44:55:66";bt_content.ble_content.ble_name = "ROCKCHIP_ROBOT BLE";#if 0//user-defined ble address test, if not set, the default random addressbt_content.ble_content.ble_addr[0] = 0x11;bt_content.ble_content.ble_addr[1] = 0x22;bt_content.ble_content.ble_addr[2] = 0x33;bt_content.ble_content.ble_addr[3] = 0x44;bt_content.ble_content.ble_addr[4] = 0x55;bt_content.ble_content.ble_addr[5] = 0x66;//Clear two most significant bitsbt_content.ble_content.ble_addr[5] &= 0x3f;//Set second most significant bit, Private resolvablebt_content.ble_content.ble_addr[5] |= 0x40;printf("ble_addr: %02hhx:%02hhx:%02hhx:%02hhx:%02hhx:%02hhx\n",bt_content.ble_content.ble_addr[5], bt_content.ble_content.ble_addr[4],bt_content.ble_content.ble_addr[3], bt_content.ble_content.ble_addr[2],bt_content.ble_content.ble_addr[1], bt_content.ble_content.ble_addr[0]);
#endifbt_content.ble_content.server_uuid.uuid = BLE_UUID_SERVICE;bt_content.ble_content.server_uuid.len = UUID_128;bt_content.ble_content.chr_uuid[0].uuid = BLE_UUID_REMOTE_CHAR;bt_content.ble_content.chr_uuid[0].len = UUID_128;bt_content.ble_content.chr_uuid[1].uuid = BLE_UUID_SEND;bt_content.ble_content.chr_uuid[1].len = UUID_128;bt_content.ble_content.chr_uuid[2].uuid = BLE_UUID_RECV;bt_content.ble_content.chr_uuid[2].len = UUID_128;bt_content.ble_content.chr_cnt = 3;bt_content.ble_content.advDataType = BLE_ADVDATA_TYPE_SYSTEM;bt_content.ble_content.cb_ble_recv_fun = bt_test_ble_recv_data_callback;bt_content.ble_content.cb_ble_request_data = bt_test_ble_request_data_callback;rk_bt_register_state_callback(bt_test_state_cb);rk_bt_register_bond_callback(bt_test_bond_state_cb);rk_bt_register_name_change_callback(bt_test_name_change_cb);rk_bt_init(&bt_content);return NULL;
}
#else

cb_ble_recv_fun：BLE数据接收回调。

cb_ble_request_data：BLE请求数据回调。

rk_bt_register_state_callback：注册蓝牙状态回调，蓝牙的打开、关闭等状态。

rk_bt_register_bond_callback：注册蓝牙绑定回调，蓝牙绑定状态通过这个回调上送。

rk_bt_register_name_change_callback：注册蓝牙名称改变回调。
