DNS练习
练习内容：配置dns主从服务，要求从服务器能够定时从主服务器同步数据。
主服务器： 192.168.92.132
从服务器： 192.168.92.133
基础配置 软件安装以及网卡设置，以下为从服务器代码。
[root@localhost ~]# setenforce 0
[root@localhost ~]# systemctl stop firewalld.service
[root@localhost ~]# mount /dev/sr0 /mnt
mount: /mnt: WARNING: source write-protected, mounted read-only.
[root@localhost ~]# dnf install -y bind
Updating Subscription Management repositories.
Unable to read consumer identityThis system is not registered with an entitlement server. You can use "rhc" or "subscription-manager" to register.BaseOS 2.7 MB/s | 2.7 kB 00:00
App 3.1 MB/s | 3.2 kB 00:00
Dependencies resolved.
================================================================================================================Package Architecture Version Repository Size
================================================================================================================
Installing:bind x86_64 32:9.16.23-24.el9_5 AppStream 509 k
Installing dependencies:bind-dnssec-doc noarch 32:9.16.23-24.el9_5 AppStream 49 kpython3-bind noarch 32:9.16.23-24.el9_5 AppStream 72 kpython3-ply noarch 3.11-14.el9 BaseOS 111 k
Installing weak dependencies:bind-dnssec-utils x86_64 32:9.16.23-24.el9_5 AppStream 122 kTransaction Summary
================================================================================================================
Install 5 PackagesTotal size: 862 k
Installed size: 2.5 M
Downloading Packages:
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transactionPreparing : 1/1 Installing : bind-dnssec-doc-32:9.16.23-24.el9_5.noarch 1/5 Installing : python3-ply-3.11-14.el9.noarch 2/5 Installing : python3-bind-32:9.16.23-24.el9_5.noarch 3/5 Installing : bind-dnssec-utils-32:9.16.23-24.el9_5.x86_64 4/5 Running scriptlet: bind-32:9.16.23-24.el9_5.x86_64 5/5 Installing : bind-32:9.16.23-24.el9_5.x86_64 5/5 Running scriptlet: bind-32:9.16.23-24.el9_5.x86_64 5/5 Verifying : python3-ply-3.11-14.el9.noarch 1/5 Verifying : bind-32:9.16.23-24.el9_5.x86_64 2/5 Verifying : bind-dnssec-doc-32:9.16.23-24.el9_5.noarch 3/5 Verifying : bind-dnssec-utils-32:9.16.23-24.el9_5.x86_64 4/5 Verifying : python3-bind-32:9.16.23-24.el9_5.noarch 5/5
Installed products updated.Installed:bind-32:9.16.23-24.el9_5.x86_64 bind-dnssec-doc-32:9.16.23-24.el9_5.noarch bind-dnssec-utils-32:9.16.23-24.el9_5.x86_64 python3-bind-32:9.16.23-24.el9_5.noarch python3-ply-3.11-14.el9.noarch Complete!
[root@localhost ~]# nmcli connection modify ens160 ipv4.method manual ipv4.addresses 192.168.92.133/24 ipv4.gateway 192.168.92.2 ipv4.dns 192.168.92.133
[root@localhost ~]# nmcli c reload
[root@localhost ~]# nmcli c up ens160
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/3)
编辑主服务器配置，从服务器同理
[root@alpha ~]# vim /etc/named.conf options {listen-on port 53 { any; };listen-on-v6 port 53 { ::1; };directory "/var/named";dump-file "/var/named/data/cache_dump.db";statistics-file "/var/named/data/named_stats.txt";memstatistics-file "/var/named/data/named_mem_stats.txt";secroots-file "/var/named/data/named.secroots";recursing-file "/var/named/data/named.recursing";allow-query { any; };
[root@alpha ~]# vim /etc/named.rfc1912.zoneszone "openlab.com" IN {type master;file "openlab.com.zone";allow-transfer { 192.168.92.133; };
};
zone "92.168.192.in-addr.arpa" IN {type master;file "192.168.92.arpa";allow-transfer { 192.168.92.133; };
};
主服务端正反向解析
[root@alpha ~]# cd /var/named
[root@alpha named]# cp -a named.localhost openlab.com.zone
[root@alpha named]# vim openlab.com.zone
$TTL 1D
@ IN SOA ns.openlab.com. admin.openlab.com. (0 ; serial1D ; refresh1H ; retry1W ; expire3H ) ; minimumNS ns.openlab.com.NS slave.openlab.com.
ns IN A 192.168.92.132
www IN A 192.168.92.132
bbs IN A 192.168.92.132
ftp IN CNAME www
slave IN A 192.168.92.133
[root@alpha named]# cp -a named.loopback 192.168.92.arpa
[root@alpha named]# vim /var/named/192.168.92.arpa
$TTL 1D
@ IN SOA ns.openlab.com admin.openlab.com. (0 ; serial1D ; refresh1H ; retry1W ; expire3H ) ; minimumNS ns.openlab.com.NS slave.openlab.com.
130 IN PTR ns.openlab.com.
130 IN PTR www.openlab.com.
130 IN PTR bbs.openlab.com.
130 IN PTR ftp.openlab.com.

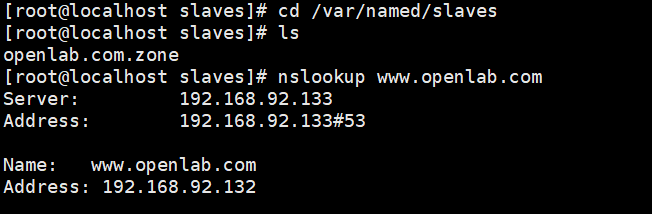

131 IN PTR slave.openlab.com.结果测试
