FPGA教程系列-Vivado中读取ROM中数据

news 2025/11/15 7:28:45

FPGA教程系列-Vivado中读取ROM中数据

生成coe文件教程

https://blog.csdn.net/ccsss22/article/details/124441036

本实验主要读取rom中的数据。rom中存储的数据为coe文件，用matlab可以生成。

生成coe文件


clc;
clear;
close all;
warning off;
addpath(genpath(pwd));
% --- 1. Parameters ---
num_points = 512;         % Number of points in the sine wave (e.g., 256 for a 256-depth ROM)
amplitude_scale = 1023;   % Scaling factor to match the desired integer range.% 1023 corresponds to a 10-bit unsigned range (0-1023) or% an 11-bit signed range centered at 0 (-1023 to 1023).% We will generate a signed sine wave.
% --- 2. Generate the Sine Wave ---
% Create a time vector from 0 to 2*pi for one full cycle
t = linspace(0, 2*pi, num_points);
% Generate the floating-point sine wave
y_continuous = sin(t);
% Quantize and scale the wave to integer values
% The result will be in the range [-1023, 1023]
y_quantized = round(amplitude_scale * y_continuous);
% --- 3. Write to .coe File ---
file_name = 'sine_wave.coe';
fid = fopen(file_name, 'w');
% Check if the file opened successfully
if fid == -1error('Could not open file for writing.');
end
% Write the .coe file header
fprintf(fid, 'memory_initialization_radix=10;\n');
fprintf(fid, 'memory_initialization_vector =\n');
% Write the data vector
for i = 1:length(y_quantized)fprintf(fid, '%d', y_quantized(i));    % Add a comma after each value except the last oneif i < length(y_quantized)fprintf(fid, ',\n');elsefprintf(fid, ';'); % End the vector with a semicolonend
end
% Close the file
fclose(fid);
fprintf('Successfully generated %s with %d data points.\n', file_name, num_points);
% --- 4. Plot the Generated Wave for Verification ---
figure;
plot(y_quantized);
title('Generated Quantized Sine Wave');
xlabel('Sample Index');
ylabel('Amplitude (Integer Value)');
grid on;
axis tight; % Fit the axes tightly to the data

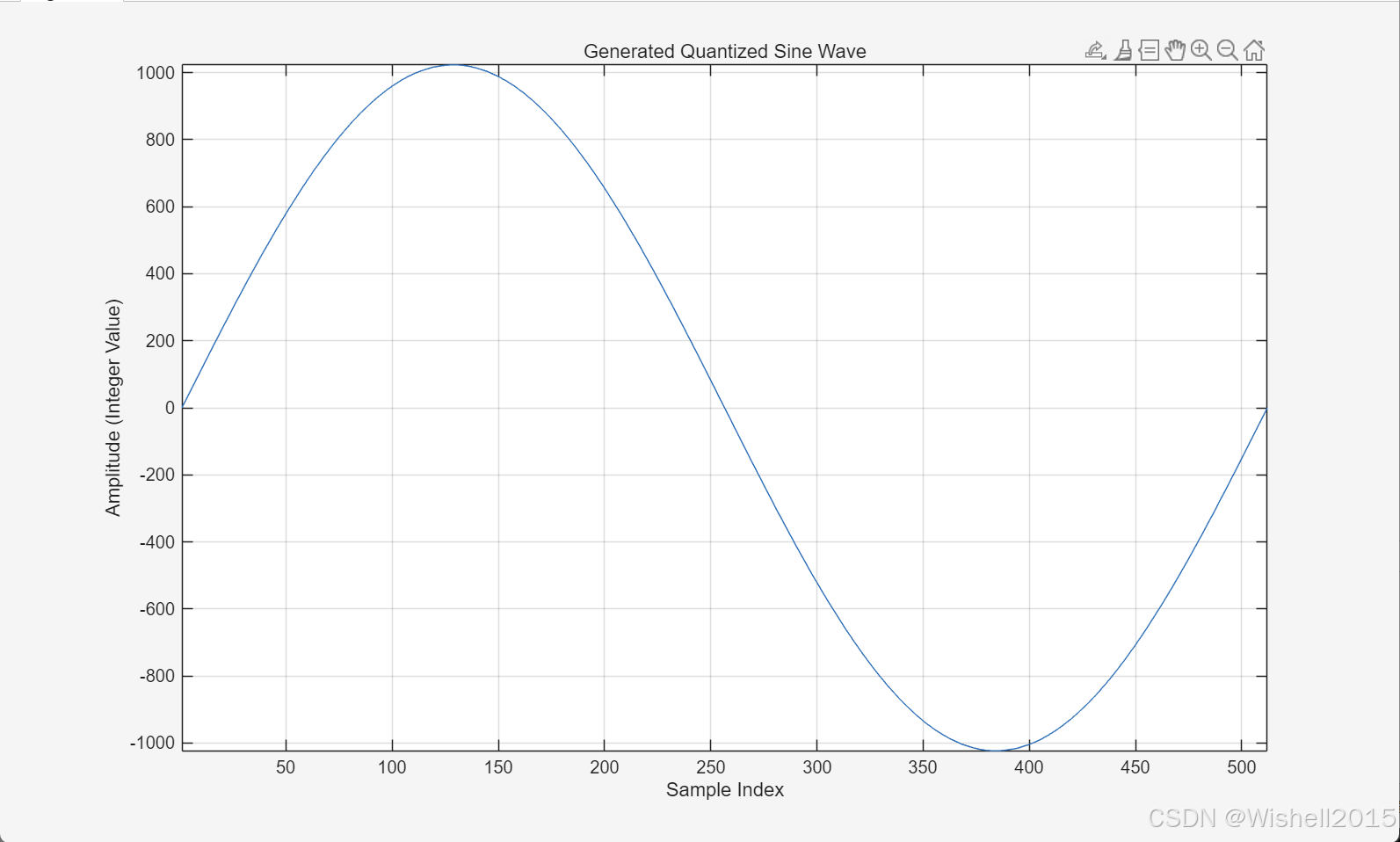

用上述程序，生成一个sine_wave.coe文件，生成的波形如图：

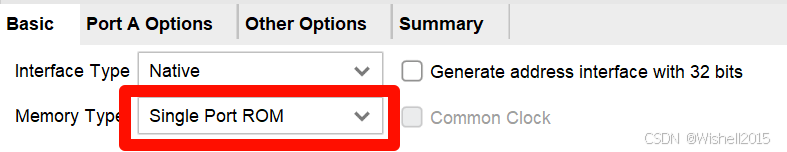

生成IP核

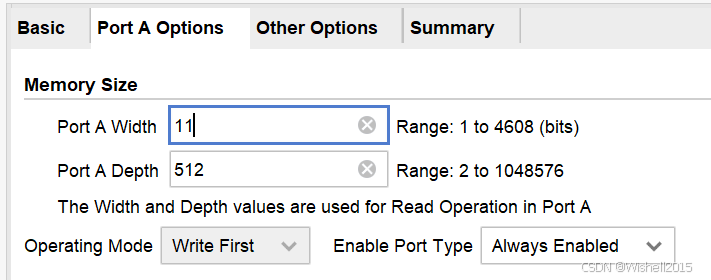

本仿真采用ROM核，位数11位，深度512.

编写top文件

`timescale 1ns / 1psmodule rom_top(
input clka,
input rsta,
output signed[10:0] douta);reg[8:0] addra;
always @(posedge clka or posedge rsta)
beginif(rsta)beginaddra <= 9'd0;end
else beginif(addra == 9'd511)addra <= 9'd0;elseaddra <= addra+ 9'd1;end
endblk_mem_gen_0 blk_mem_gen_u (.clka(clka),            // input wire clka.rsta(rsta),            // input wire rsta.addra(addra),          // input wire [8 : 0] addra.douta(douta),          // output wire [10 : 0] douta.rsta_busy()  // output wire rsta_busy
);endmodule

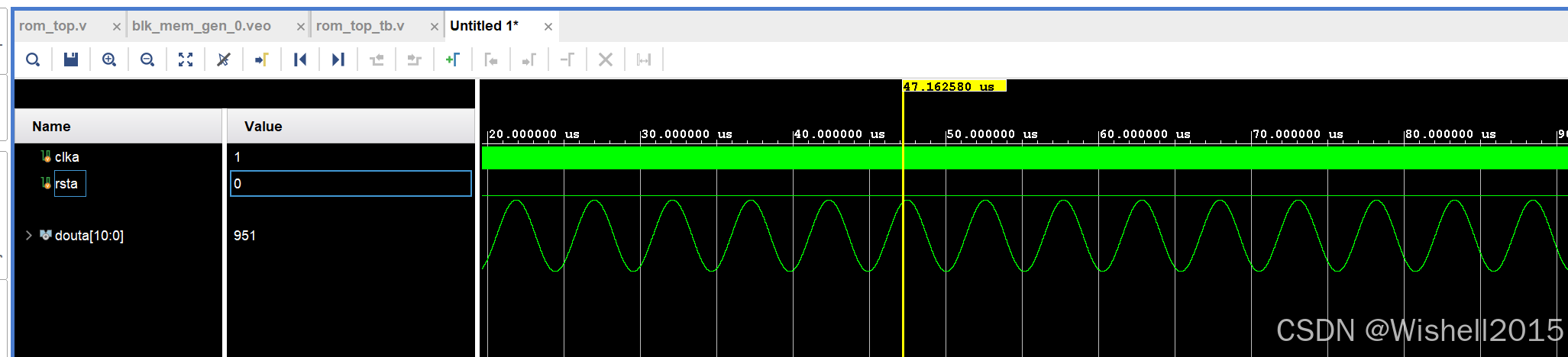

编写Testbench

`timescale 1ns / 1psmodule rom_top_tb;
reg clka;
reg rsta;
wire signed[10:0]douta;
rom_top rom_top_u(
.clka  (clka),
.rsta  (rsta),
.douta (douta)
);
initial
begin
clka = 1'b1;
rsta = 1'b1;
#100
rsta = 1'b0;
end
always #5 clka = ~clka;
endmodule
