SAP FICO发出商品报表分享

news 2025/11/13 14:59:47

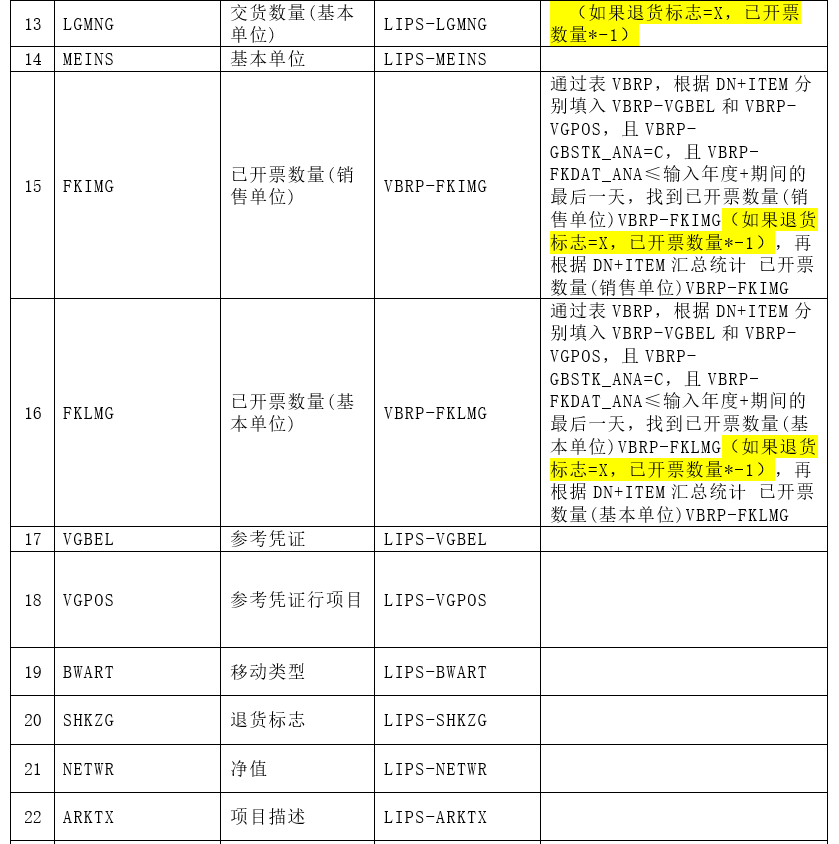

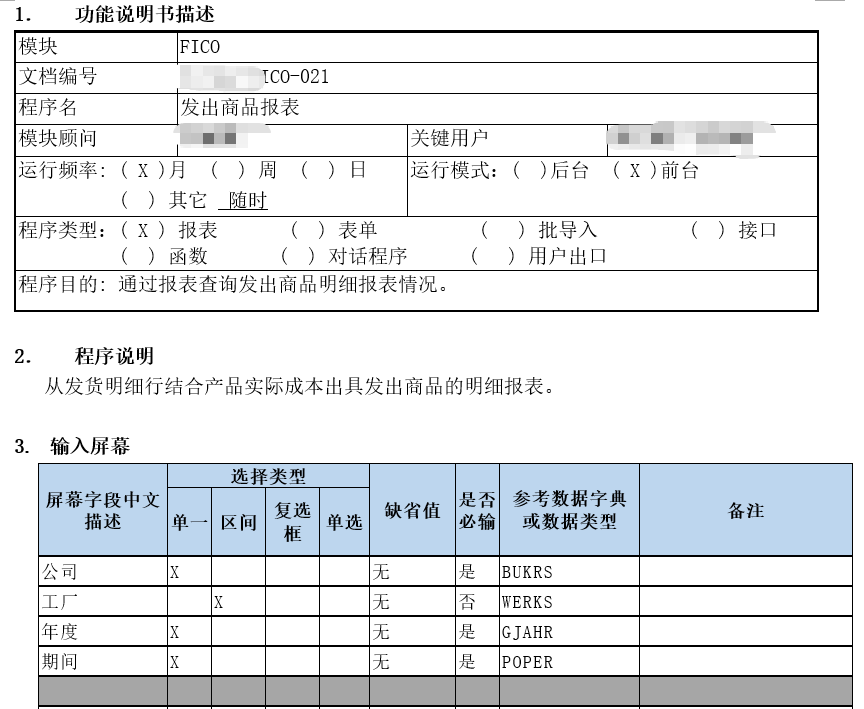

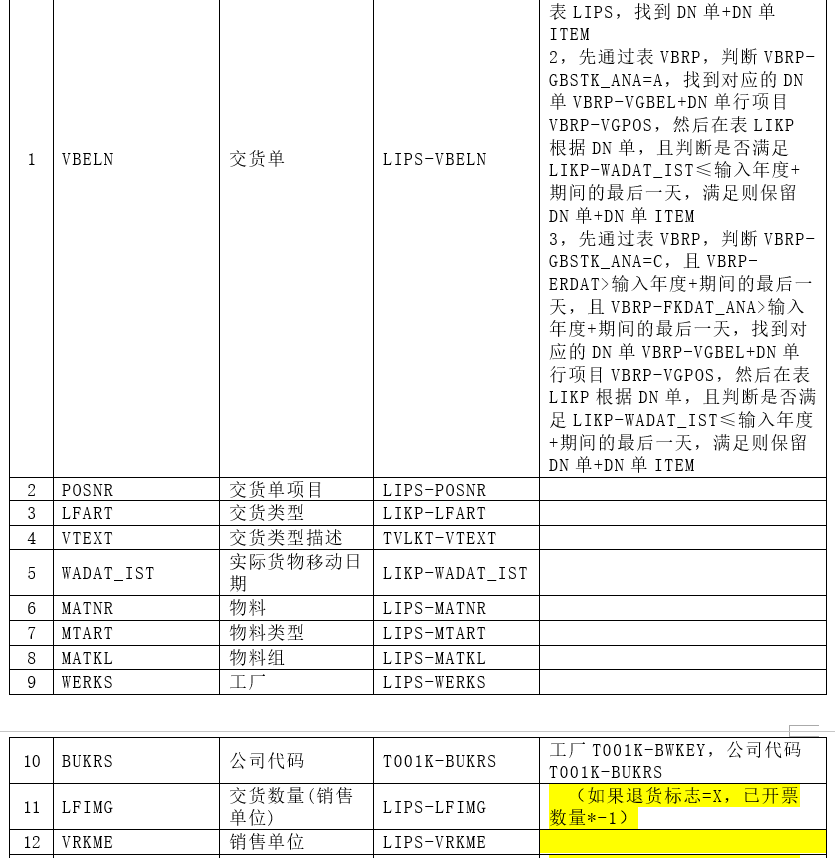

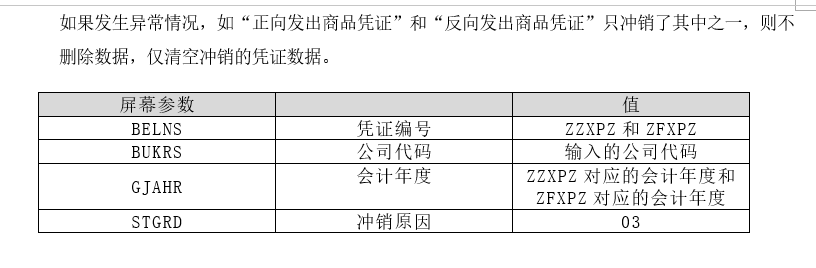

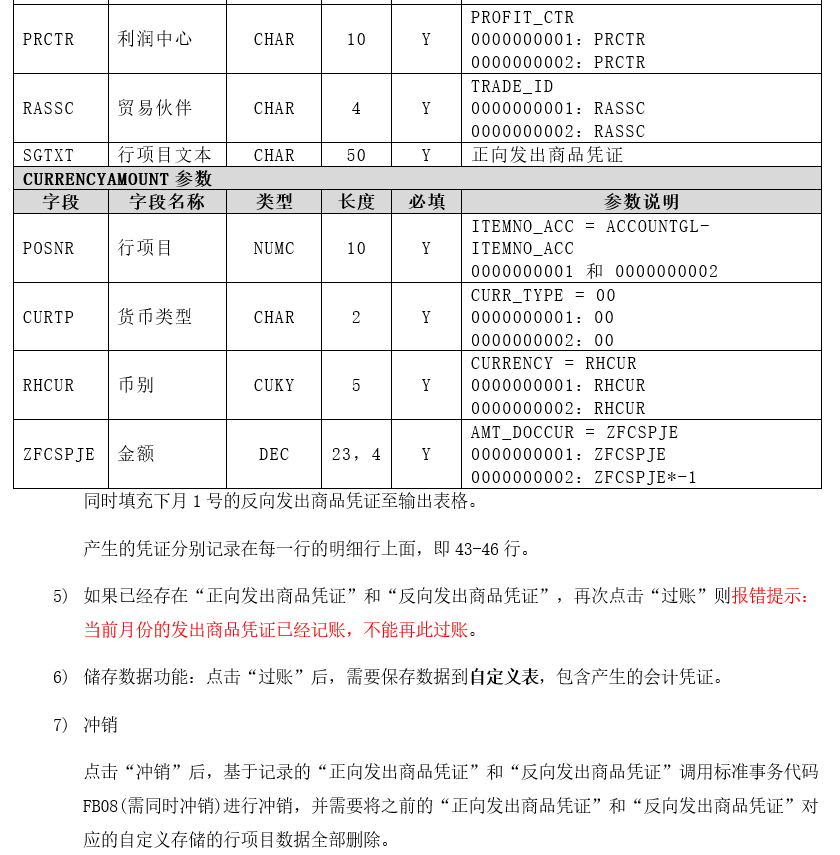

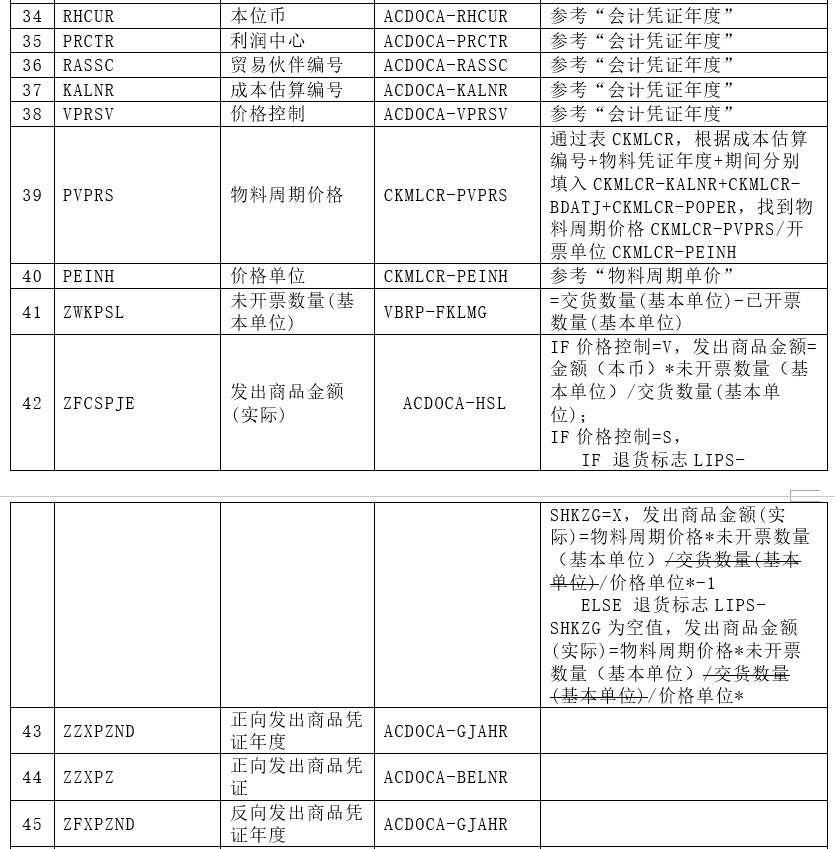

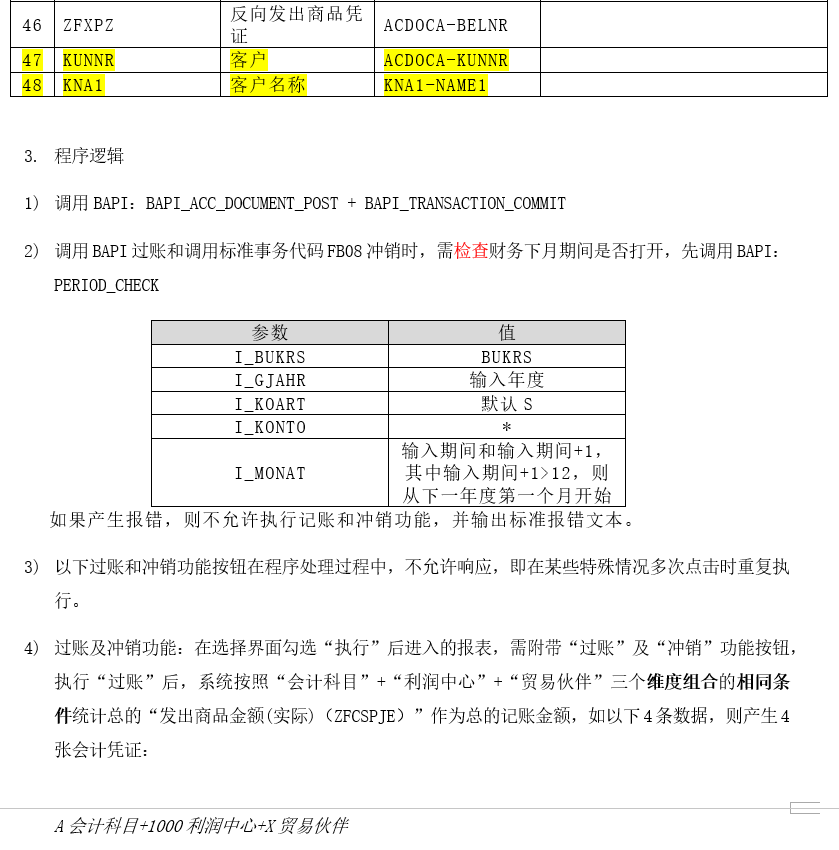

一、报表逻辑

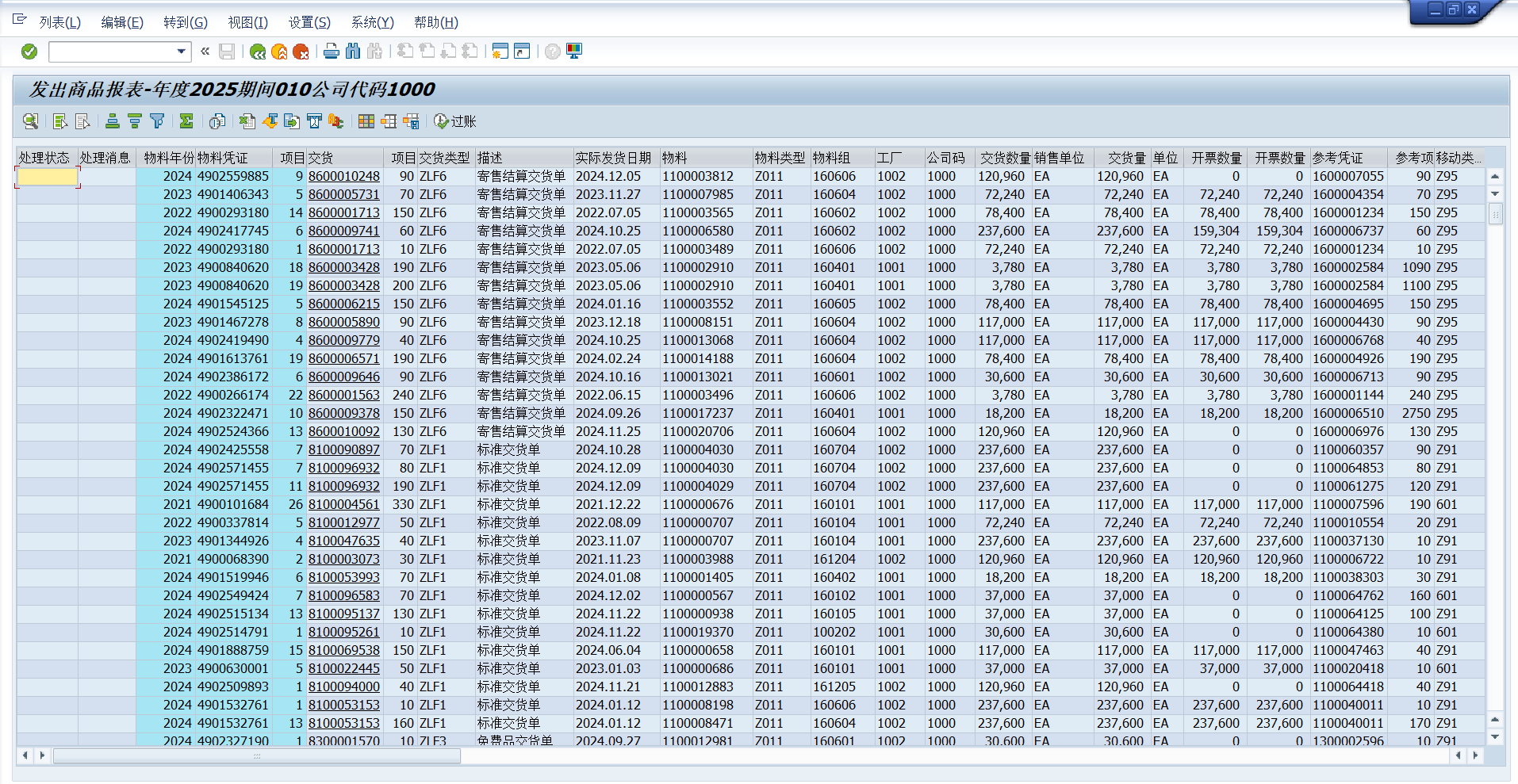

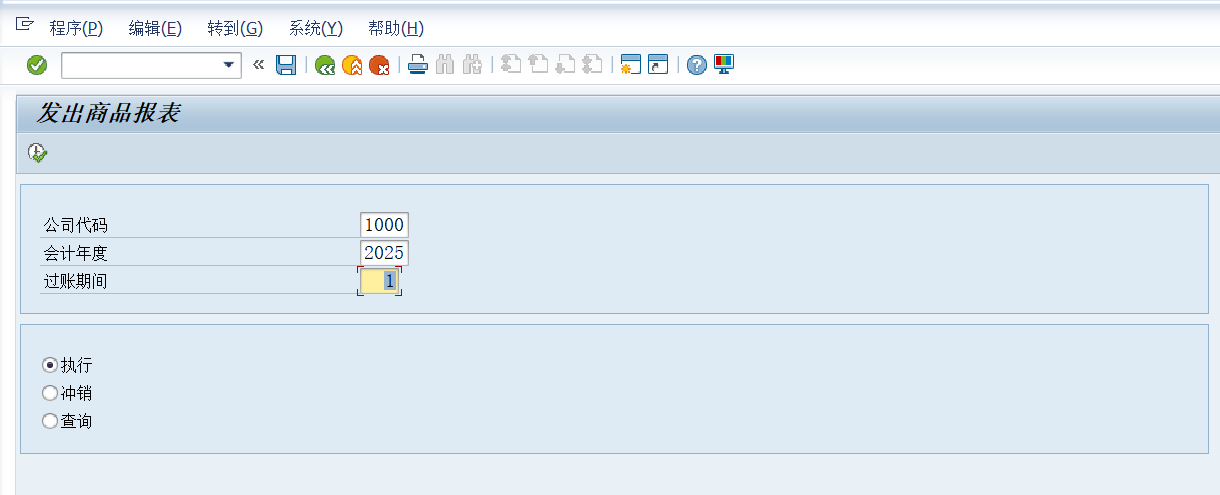

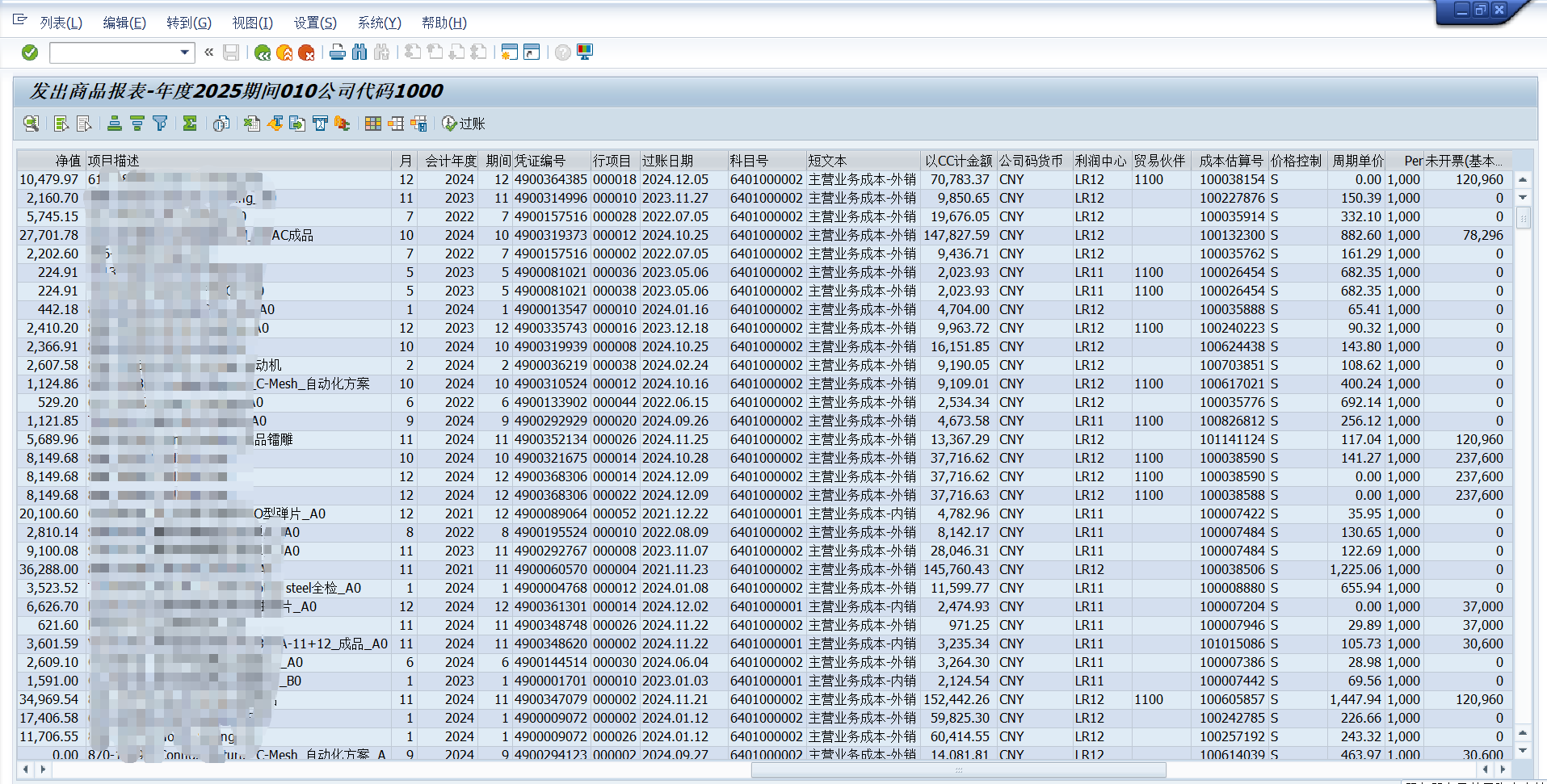

二、报表界面

三、报表代码

*&---------------------------------------------------------------------*
*& 程序名： ZRPFI_021
*&
*&---------------------------------------------------------------------*
*& 创建者(公司)/日期：
*& 程序描述：
*&   1.发出商品报表
*&   2.
*&---------------------------------------------------------------------*
*& 版本/修改者(公司)/日期//修改描述
*&
*&
*&---------------------------------------------------------------------*

REPORT ZRPFI_021.

INCLUDE ZRPFI_021_TOP.

INCLUDE ZRPFI_021_LCL .

INCLUDE ZRPFI_021_F01 .

AT SELECTION-SCREEN OUTPUT.
  PERFORM FRM_CHG_SCRN.

AT SELECTION-SCREEN.
  "权限检查
*  DATA: LV_MESSAGE TYPE STRING.
*  AUTHORITY-CHECK OBJECT 'F_BKPF_BUK'
*             ID 'BUKRS' FIELD PA_BUKRS.
*  IF SY-SUBRC <> 0.
*    LV_MESSAGE = '没有' && PA_BUKRS && '公司代码权限！'.
*    MESSAGE LV_MESSAGE TYPE 'E'.
*  ENDIF.

START-OF-SELECTION.

  PERFORM FRM_CHECK_INPUT.

  CASE 'X'.
    WHEN PA_EXE.
      PERFORM FRM_AUTHORITY USING '10'.
      PERFORM FRM_GET_DATA_EXE.
    WHEN OTHERS.
      PERFORM FRM_AUTHORITY USING '03'.
      PERFORM FRM_GET_DATA_REVNSRH.
  ENDCASE.
  PERFORM FRM_SHOW_ALV.

*&---------------------------------------------------------------------*
*& 包含               ZRPFI_021_TOP
*&---------------------------------------------------------------------*

TABLES:ACDOCA.

SELECTION-SCREEN:BEGIN OF BLOCK B01 WITH FRAME.
  PARAMETERS:PA_BUKRS TYPE ACDOCA-RBUKRS OBLIGATORY .
  SELECT-OPTIONS :SO_WERKS FOR ACDOCA-WERKS.
  PARAMETERS:PA_GJAHR TYPE ACDOCA-GJAHR OBLIGATORY,
             PA_POPER TYPE ACDOCA-POPER OBLIGATORY.
SELECTION-SCREEN:END OF BLOCK B01 .

SELECTION-SCREEN:BEGIN OF BLOCK B02 WITH FRAME.
  PARAMETERS:PA_EXE TYPE C RADIOBUTTON GROUP G1 DEFAULT 'X' USER-COMMAND G1,
             PA_REV TYPE C RADIOBUTTON GROUP G1,
             PA_SRH TYPE C RADIOBUTTON GROUP G1.

SELECTION-SCREEN:END OF BLOCK B02 .

DATA:BEGIN OF GS_OUT,
       STATUS   TYPE C LENGTH 20,  "红绿灯
       MSG(100) TYPE C.
       INCLUDE STRUCTURE  ZTFI021 .
DATA: END OF GS_OUT.

DATA:GT_OUT      LIKE TABLE OF GS_OUT,
     GV_FIRSTDATE TYPE SY-DATUM,
     GV_LASTDATE TYPE SY-DATUM, "输入期间最后一天
     GV_NEXTDATE TYPE SY-DATUM. "输入期间最后一天+1

DATA: GR_TABLE   TYPE REF TO CL_SALV_TABLE,
      GR_COLUMNS TYPE REF TO CL_SALV_COLUMNS_TABLE,
      GR_COLUMN  TYPE REF TO CL_SALV_COLUMN_TABLE,
      GR_DISPLAY TYPE REF TO CL_SALV_DISPLAY_SETTINGS,
      GR_LAYOUT  TYPE REF TO CL_SALV_LAYOUT.

*&---------------------------------------------------------------------*
*& 包含               ZRPFI_021_LCL
*&---------------------------------------------------------------------*

CLASS L_CL_HANDLE_EVENTS DEFINITION.
  PUBLIC SECTION.
    METHODS: ON_USER_COMMAND FOR EVENT ADDED_FUNCTION OF CL_SALV_EVENTS_TABLE
      IMPORTING E_SALV_FUNCTION.

    METHODS: ON_CLICK FOR EVENT LINK_CLICK OF CL_SALV_EVENTS_TABLE
      IMPORTING ROW COLUMN.
ENDCLASS.

CLASS L_CL_HANDLE_EVENTS IMPLEMENTATION.
  METHOD ON_USER_COMMAND.
    PERFORM HANDLE_USER_COMMAND USING E_SALV_FUNCTION.
  ENDMETHOD.

  METHOD ON_CLICK.
    PERFORM HANDLE_ON_CLICK USING  ROW COLUMN.
  ENDMETHOD.
ENDCLASS.
*&---------------------------------------------------------------------*
*& Form HANDLE_USER_COMMAND
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*&      --> E_SALV_FUNCTION
*&---------------------------------------------------------------------*
FORM HANDLE_USER_COMMAND  USING    E_SALV_FUNCTION.

  CASE E_SALV_FUNCTION.
    WHEN 'ZPOST'.
      PERFORM FRM_CHECK_PERIOD.

      CHECK SY-SUBRC EQ 0.

      PERFORM FRM_ZPOST.

    WHEN 'ZREV'.

      PERFORM FRM_ZREVERSE.

  ENDCASE.

  GR_TABLE->REFRESH( ).

ENDFORM.
*&---------------------------------------------------------------------*
*& Form HANDLE_ON_CLICK
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*&      --> ROW
*&      --> COLUMN
*&---------------------------------------------------------------------*
FORM HANDLE_ON_CLICK  USING    P_ROW
                               P_COLUMN.

  READ TABLE GT_OUT INTO GS_OUT INDEX P_ROW.
  IF SY-SUBRC EQ 0.

    IF  P_COLUMN EQ 'VBELN' AND GS_OUT-VBELN IS NOT INITIAL.
      SET PARAMETER ID 'VL' FIELD GS_OUT-VBELN.
      CALL TRANSACTION 'VL03N' AND SKIP FIRST SCREEN.
    ENDIF.

    IF  P_COLUMN EQ 'ZZXPZ' AND GS_OUT-ZZXPZ IS NOT INITIAL.
      SET PARAMETER ID 'BLN' FIELD GS_OUT-ZZXPZ.
      SET PARAMETER ID 'BUK' FIELD GS_OUT-BUKRS.
      SET PARAMETER ID 'GJR' FIELD GS_OUT-ZZXPZND.
      CALL TRANSACTION 'FB03' AND SKIP FIRST SCREEN.
    ENDIF.

    IF  P_COLUMN EQ 'ZFXPZ' AND GS_OUT-ZFXPZ IS NOT INITIAL.
      SET PARAMETER ID 'BLN' FIELD GS_OUT-ZFXPZ.
      SET PARAMETER ID 'BUK' FIELD GS_OUT-BUKRS.
      SET PARAMETER ID 'GJR' FIELD GS_OUT-ZFXPZND.
      CALL TRANSACTION 'FB03' AND SKIP FIRST SCREEN.
    ENDIF.

  ENDIF.

ENDFORM.

*&---------------------------------------------------------------------*
*& 包含               ZRPFI_021_F01
*&---------------------------------------------------------------------*
*&---------------------------------------------------------------------*
*& Form FRM_CHECK_INPUT
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_check_input .

  DATA:lv_last TYPE sy-datum, "上个月最后一天
       lv_now  TYPE sy-datum,
       lv_date TYPE sy-datum. "本月第一天

  DATA:lv_msg TYPE string.

  IF pa_srh IS INITIAL .

    lv_now+0(6) = sy-datum+0(6).
    lv_now+6(2) = '01'.

    lv_last = lv_now - 1.

    IF NOT ( ( pa_poper EQ lv_last+4(2) AND pa_gjahr EQ lv_last+0(4) ) OR
      ( pa_poper EQ lv_now+4(2) AND pa_gjahr EQ lv_now+0(4) ) ).

      MESSAGE '“执行”按钮只允许的年度期间为实际操作当月或上月，其他月份请勾选“查询”按钮查询'
                TYPE 'S' DISPLAY LIKE 'E'.
      STOP.

    ENDIF.

    IF pa_rev IS NOT INITIAL."冲销只检查区间
      REFRESH:so_werks.
      RETURN.
    ENDIF.

    SELECT SINGLE * FROM ztfi021 INTO @DATA(lt_ztfi021)
           WHERE  zbukrs = @pa_bukrs
             AND zgjahr = @pa_gjahr
             AND zpoper = @pa_poper
             AND zdelete = ''.
    IF sy-subrc EQ 0.

      CLEAR:lv_msg .
      CONCATENATE '公司代码:' pa_bukrs ' 年度:' pa_gjahr ' 期间:'
                 pa_poper '数据已存在，请查询或者冲销后重新执行'
       INTO lv_msg.

      MESSAGE lv_msg  TYPE 'S' DISPLAY LIKE 'E'.
      STOP.

    ENDIF.

    lv_date = pa_gjahr && pa_poper+1(2) && '01'.

    CALL FUNCTION 'RP_LAST_DAY_OF_MONTHS'
      EXPORTING
        day_in            = lv_date
      IMPORTING
        last_day_of_month = gv_lastdate
      EXCEPTIONS
        day_in_no_date    = 1
        OTHERS            = 2.

    gv_nextdate = gv_lastdate + 1.

    gv_firstdate = gv_lastdate+0(6) && '01'.
  ENDIF.

  REFRESH:gt_out.

ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_GET_DATA_EXE
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_get_data_exe .

  RANGES:ra_vstel FOR likp-vstel.

  SELECT a~vstel AS low,
         'EQ' AS option,
         'I' AS sign
          FROM tvswz AS a
               INNER JOIN t001w AS b ON a~werks = b~werks
               INNER JOIN t001k AS c ON b~bwkey = c~bwkey
               WHERE  bukrs = @pa_bukrs
             INTO CORRESPONDING FIELDS OF TABLE @ra_vstel.

  IF ra_vstel[] IS INITIAL.
    MESSAGE '无符合条件数据'
              TYPE 'S' DISPLAY LIKE 'E'.
    STOP.
  ENDIF.

  SELECT a~vbeln,a~posnr,
         b~lfart,
         b~wadat_ist FROM lips AS a
                    INNER JOIN likp AS b ON a~vbeln = b~vbeln
                   WHERE b~gbstk IN ( 'A','B' )
                     AND b~vstel IN @ra_vstel
                     AND wbstk = 'C'
                     AND wadat_ist LE @gv_lastdate

    UNION

SELECT vgbel AS vbeln,
       vgpos AS posnr,
       b~lfart,
       b~wadat_ist FROM vbrp AS a
       INNER JOIN likp AS b ON a~vgbel = b~vbeln
       WHERE gbstk_ana = 'A'
         AND b~vstel IN @ra_vstel
         AND  wadat_ist LE @gv_lastdate
