作者，Evil Genius
今天是lol S15的全球总决赛，T1vsKT，大家看好谁？
像Faker这样出道即巅峰，S3统治到S15，5冠王马上冲击6冠的选手，固然让人热血沸腾，但是对我们大多数人来讲，像deft这样十几年的坚守最后大器晚成，Doinb这样跌宕起伏、起落落落落落落起落落落落落落落落起的人生但是始终没有放弃，才更像是我们普通人该学习的榜样。
我们2025番外--linux、R、python培训R部分也已经结束了，封装类的R脚本是大家必须要掌握的。
今天我们更新脚本

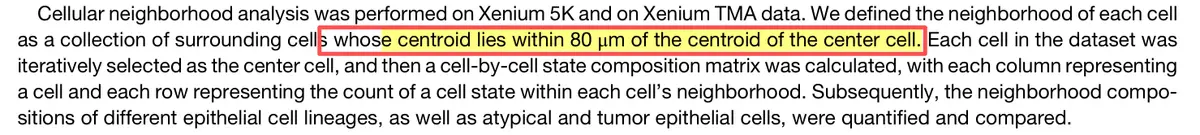

高精度空间转录组的细胞邻域分析
分析方法

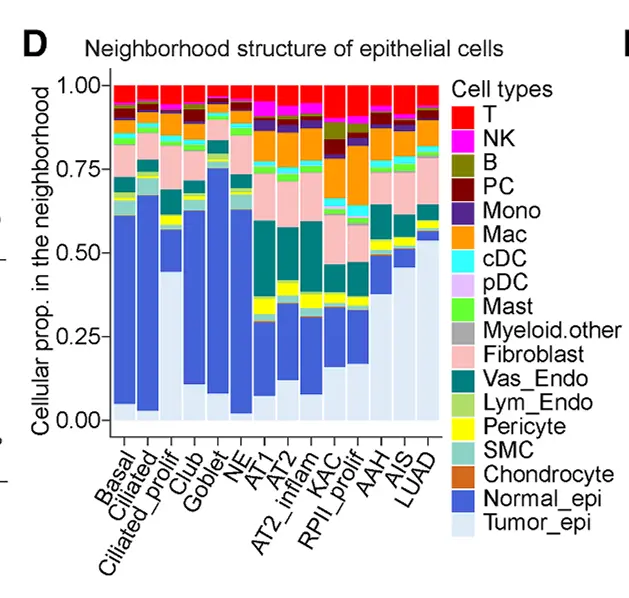

我们用R来实现一下,当然一般会计算一下邻域的差异细胞类型
#zhaoyunfei
###20251109library(dplyr)
library(tidyr)
library(ggplot2)
library(sp)
library(reshape2)# 设置参数
neighborhood_radius <- 80 # 邻域半径 80 μmxenium_data <- readRDS("xenium_data.rds")# 提取坐标和细胞类型信息
# 坐标在obj@meta.data的x,y列，细胞类型在celltype列
coordinates <- xenium_data@meta.data[, c("x", "y")]
celltypes <- xenium_data@meta.data$celltype# 为每个细胞创建唯一标识符
cell_ids <- rownames(xenium_data@meta.data)# 函数：计算两个点之间的欧几里得距离
calculate_distance <- function(point1, point2) {sqrt((point1[1] - point2[1])^2 + (point1[2] - point2[2])^2)
}# 函数：找到指定细胞周围80μm内的邻居细胞
find_neighbors <- function(center_cell_index, coordinates, radius) {center_coord <- coordinates[center_cell_index, ]distances <- apply(coordinates, 1, function(coord) {calculate_distance(center_coord, coord)})neighbor_indices <- which(distances <= radius & distances > 0) # 排除自身return(neighbor_indices)
}# 创建细胞状态计数函数
count_cell_states <- function(neighbor_indices, celltypes) {neighbor_celltypes <- celltypes[neighbor_indices]celltype_table <- table(neighbor_celltypes)return(celltype_table)
}###构建细胞-by-细胞状态组成矩阵# 初始化结果矩阵
all_celltypes <- unique(celltypes)
cell_state_matrix <- matrix(0, nrow = length(all_celltypes), ncol = length(cell_ids),dimnames = list(all_celltypes, cell_ids))#### 为每个细胞计算邻域组成
for (i in 1:length(cell_ids)) {if (i %% 1000 == 0) cat("处理细胞:", i, "/", length(cell_ids), "\n")##### 找到当前细胞的邻居neighbor_indices <- find_neighbors(i, coordinates, neighborhood_radius)if (length(neighbor_indices) > 0) {# 计算邻域中的细胞状态组成cellstate_counts <- count_cell_states(neighbor_indices, celltypes)# 更新矩阵for (celltype in names(cellstate_counts)) {cell_state_matrix[celltype, i] <- cellstate_counts[celltype]}}
}cat("细胞邻域组成矩阵构建完成!\n")# 将矩阵转换为数据框便于分析
cell_state_df <- as.data.frame(t(cell_state_matrix))
cell_state_df$cell_id <- cell_ids
cell_state_df$center_celltype <- celltypes
cell_state_df$center_x <- coordinates$x
cell_state_df$center_y <- coordinates$y# 分析特定上皮细胞谱系的邻域组成
# 假设我们关注的上皮细胞类型
epithelial_lineages <- c("Tumor_Epithelial", "Atypical_Epithelial", "Normal_Epithelial")
epithelial_lineages <- epithelial_lineages[epithelial_lineages %in% unique(celltypes)]# 提取上皮细胞的邻域数据
epithelial_neighborhoods <- cell_state_df[cell_state_df$center_celltype %in% epithelial_lineages, ]# 计算每种上皮细胞类型的平均邻域组成
epithelial_summary <- epithelial_neighborhoods %>%group_by(center_celltype) %>%summarise(across(all_celltypes, list(mean = mean, sd = sd), .names = "{.col}_{.fn}"))# 可视化：比较不同上皮细胞类型的邻域组成
plot_data <- epithelial_neighborhoods %>%select(center_celltype, all_of(all_celltypes)) %>%pivot_longer(cols = all_of(all_celltypes), names_to = "neighbor_celltype", values_to = "count") %>%group_by(center_celltype, neighbor_celltype) %>%summarise(mean_count = mean(count),se_count = sd(count) / sqrt(n()))# 绘制热图显示邻域组成
heatmap_plot <- ggplot(plot_data, aes(x = center_celltype, y = neighbor_celltype, fill = mean_count)) +geom_tile() +scale_fill_gradient2(low = "blue", mid = "white", high = "red", midpoint = mean(plot_data$mean_count)) +labs(title = "细胞邻域组成热图",x = "中心细胞类型",y = "邻居细胞类型",fill = "平均数量") +theme_minimal() +theme(axis.text.x = element_text(angle = 45, hjust = 1))print(heatmap_plot)# 绘制条形图比较主要细胞类型的分布
bar_plot <- ggplot(plot_data, aes(x = neighbor_celltype, y = mean_count, fill = center_celltype)) +geom_bar(stat = "identity", position = "dodge") +labs(title = "不同上皮细胞类型的邻域组成比较",x = "邻居细胞类型",y = "平均数量",fill = "中心细胞类型") +theme_minimal() +theme(axis.text.x = element_text(angle = 45, hjust = 1))print(bar_plot)# 统计检验：比较不同上皮细胞类型的邻域组成差异
# 例如，比较肿瘤上皮细胞和非典型上皮细胞的邻域差异
if ("Tumor_Epithelial" %in% epithelial_lineages & "Atypical_Epithelial" %in% epithelial_lineages) {# 对每种邻居细胞类型进行t检验significant_differences <- list()for (neighbor_type in all_celltypes) {tumor_data <- epithelial_neighborhoods[epithelial_neighborhoods$center_celltype == "Tumor_Epithelial", neighbor_type]atypical_data <- epithelial_neighborhoods[epithelial_neighborhoods$center_celltype == "Atypical_Epithelial", neighbor_type]if (length(tumor_data) > 1 & length(atypical_data) > 1) {t_test_result <- t.test(tumor_data, atypical_data)if (t_test_result$p.value < 0.05) {significant_differences[[neighbor_type]] <- list(p_value = t_test_result$p.value,mean_tumor = mean(tumor_data),mean_atypical = mean(atypical_data))}}}cat("\n显著差异的邻居细胞类型:\n")if (length(significant_differences) > 0) {for (celltype in names(significant_differences)) {cat(celltype, ": p =", significant_differences[[celltype]]$p_value, "(Tumor:", round(significant_differences[[celltype]]$mean_tumor, 2),"vs Atypical:", round(significant_differences[[celltype]]$mean_atypical, 2), ")\n")}} else {cat("未发现显著差异\n")}
}# 保存结果
write.csv(cell_state_df, "cellular_neighborhood_composition.csv", row.names = FALSE)
write.csv(epithelial_summary, "epithelial_neighborhood_summary.csv", row.names = FALSE)# 保存图表
ggsave("neighborhood_heatmap.png", heatmap_plot, width = 10, height = 8, dpi = 300)
ggsave("neighborhood_barchart.png", bar_plot, width = 12, height = 6, dpi = 300)cat("分析完成! 结果已保存到当前工作目录。\n")
