H3C AC+AP本地转发二层组网
1 实验准备

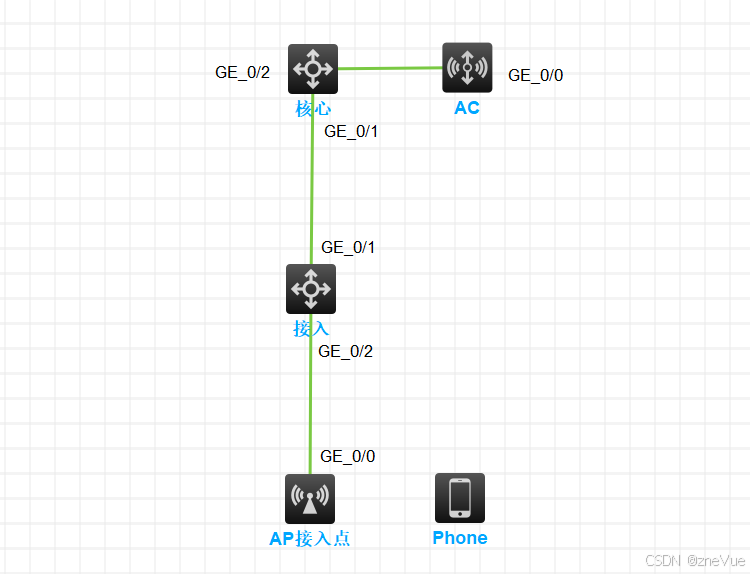

1.1 拓扑图
1.2 IP划分
| IP地址 | 网关 | VLAN | 作用 |
|---|---|---|---|
| 10.0.100.0/24 | 10.0.100.254 | 100 | 交换机管理地址 |
| 10.0.101.0/24 | 10.0.101.254 | 101 | AP管理地址 |
| 10.0.10.0/24 | 10.0.10.254 | 10 | AP业务地址 |
2 实验配置
2.1 核心交换机
# 创建VLAN
[hexin] vlan 10 100 101
# 配置网关地址
[hexin] interface vlan 10
[hexin-Vlan-interface10] ip address 10.0.10.254 24
[hexin] interface vlan 100
[hexin-Vlan-interface100] ip address 10.0.100.254 24
[hexin] interface vlan 101
[hexin-Vlan-interface101] ip address 10.0.101.254 24
# 配置下行接口
[hexin] interface gi 1/0/1
[hexin-GigabitEthernet1/0/1] port link-type trunk
[hexin-GigabitEthernet1/0/1] port trunk permit vlan 10 100 101
[hexin-GigabitEthernet1/0/1] undo port trunk permit vlan 1
# 配置连接AC接口，放通AP管理地址和业务地址
[hexin] interface gi 1/0/2
[hexin-GigabitEthernet1/0/2] port link-type trunk
[hexin-GigabitEthernet1/0/2] port trunk permit vlan 10 101
[hexin-GigabitEthernet1/0/2] undo port trunk permit vlan 1
# 启用DHCP服务
[hexin] dhcp enable
[hexin] dhcp server ip-pool guanli_ap
[hexin-dhcp-pool-guanli_ap] gateway-list 10.0.101.254
[hexin-dhcp-pool-guanli_ap] network 10.0.101.0 mask 255.255.255.0
[hexin] dhcp server ip-pool yewu_ap
[hexin-dhcp-pool-guanli_ap] gateway-list 10.0.10.254
[hexin-dhcp-pool-guanli_ap] network 10.0.10.0 mask 255.255.255.0
ip-pool 可自定义名称，如 guanli_ap。
2.2 接入交换机
# 创建VLAN
[jieru] vlan 10 100 101
# 配置管理地址
[jieru] interface vlan 100
[jieru-Vlan-interface100] ip address 10.0.100.254 24
# 配置上行接口
[jieru] interface gi 1/0/1
[jieru-GigabitEthernet1/0/1] port link-type trunk
[jieru-GigabitEthernet1/0/1] port trunk permit vlan 10 100 101
[jieru-GigabitEthernet1/0/1] undo port trunk permit vlan 1
# 配置下行接口
[jieru] interface gi 1/0/2
[jieru-GigabitEthernet1/0/2] port link-type trunk
[jieru-GigabitEthernet1/0/2] port trunk permit vlan 10 101
[jieru-GigabitEthernet1/0/2] undo port trunk permit vlan 1
2.3 无线AC
# 创建VLAN
[AC] vlan 10 101
# 配置vlan地址
[AC] interface vlan 101
[AC-Vlan-interface101] ip address 10.0.101.253 24
# 配置连接核心接口
[AC] interface GigabitEthernet1/0/0
[AC-GigabitEthernet1/0/0] port link-type trunk
[AC-GigabitEthernet1/0/0] port trunk permit vlan 10 101
# 创建无线服务模板
[AC] wlan service-template 111
[AC-wlan-st-111] ssid H3C
[AC-wlan-st-111] vlan 10
[AC-wlan-st-111] service-template enable
# 绑定AP并配置射频卡参数
[AC] wlan ap ap_1 model WA6320-HCL
[AC-wlan-ap-ap_1] serial-id H3C_18-B4-59-B0-04-00
[AC-wlan-ap-ap_1] radio 1
[AC-wlan-ap-ap_1-radio-1] channel 149
[AC-wlan-ap-ap_1-radio-1] radio enable
[AC-wlan-ap-ap_1-radio-1] service-template 111
无线服务模板可以自定义名称，如 111；
ssid H3C 设置wifi名称；
vlan 10 绑定业务vlan。
射频卡参数需要自定义名称并绑定AP型号，如 WA6320-HCL；
serial-id 字段用于绑定AP序列号；
2.4 配置AP
[AP] vlan 10 101
# 配置上行接口
[AC] interface GigabitEthernet0/0/0
[AC-GigabitEthernet0/0/0] port link-type trunk
[AC-GigabitEthernet0/0/0] port trunk permit vlan 10 101
# 查看AP序列号
[AC] display device manuinfo
# DEVICE_SERIAL_NUMBER 字段即是序列号
3 验证结果

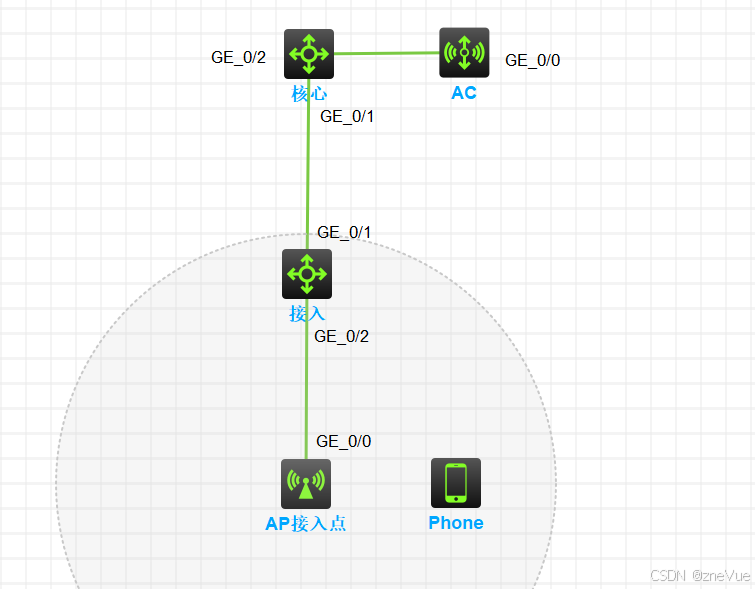

此时，拓扑中出现了以AP为中心的圆形用于模拟WiFi信号范围。

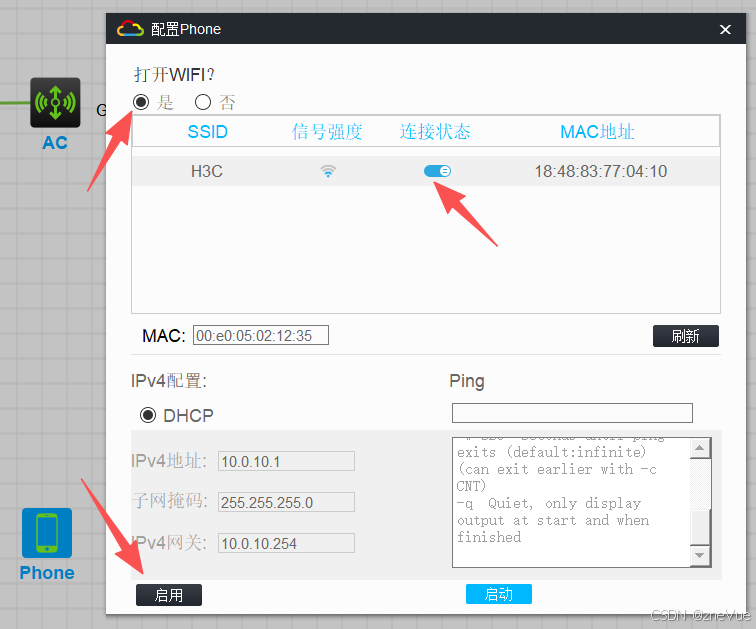

打开Phone配置，发现已经可以搜索到H3C信号，可以自动获取到IP地址。
