关于浏览器中的屏幕录制案例及源码

在浏览器中实现屏幕录制通常使用 MediaStream API 和 MediaRecorder API。下面是一个完整的示例，展示如何在Web页面中录制屏幕，并提供下载功能。

功能

• 选择屏幕或窗口进行录制
• 开始/暂停/停止录制
• 录制完成后可下载视频

核心技术

1. navigator.mediaDevices.getDisplayMedia()：获取屏幕媒体流

2. MediaRecorder：录制流并保存为视频文件

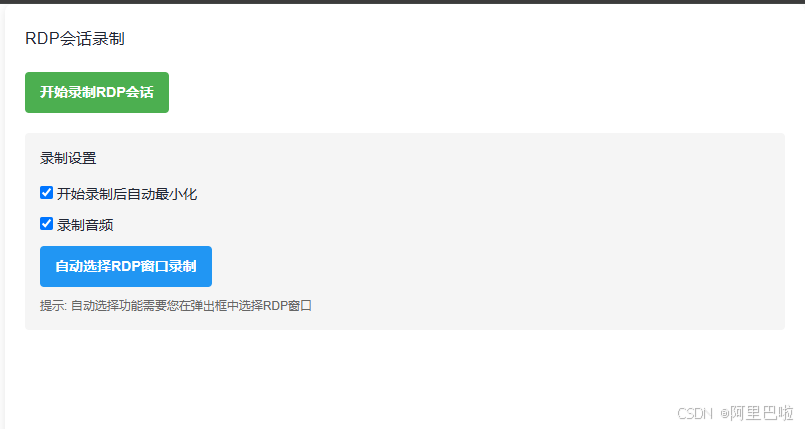

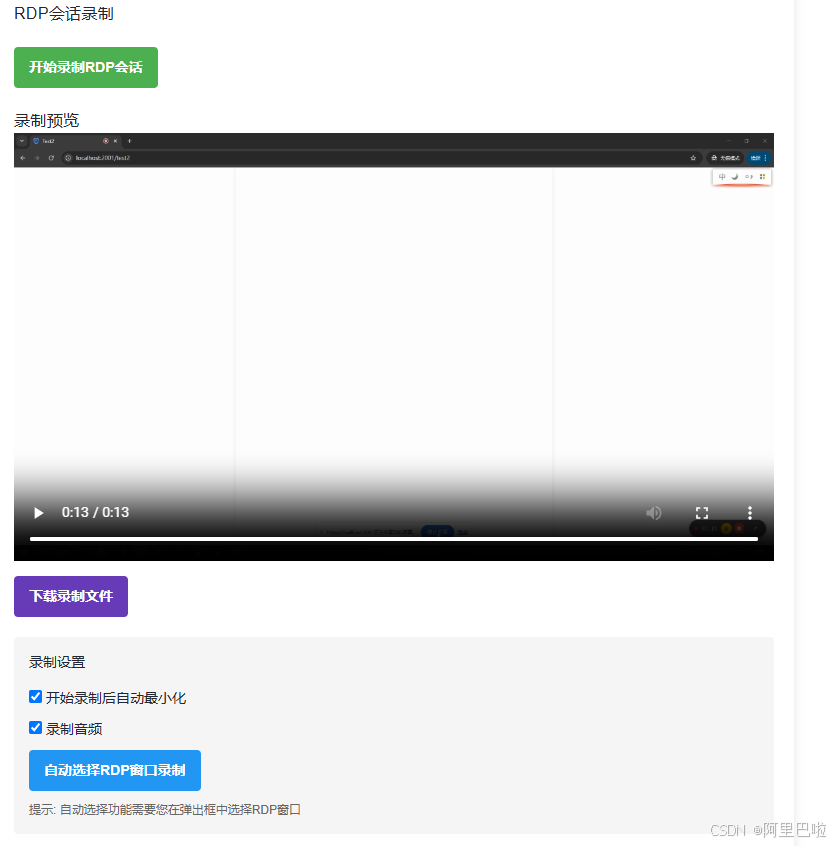

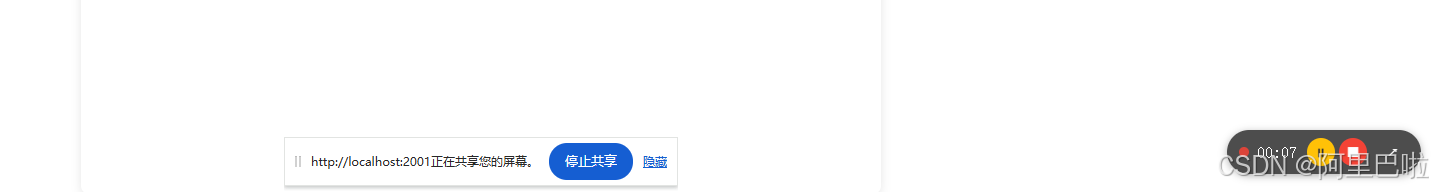

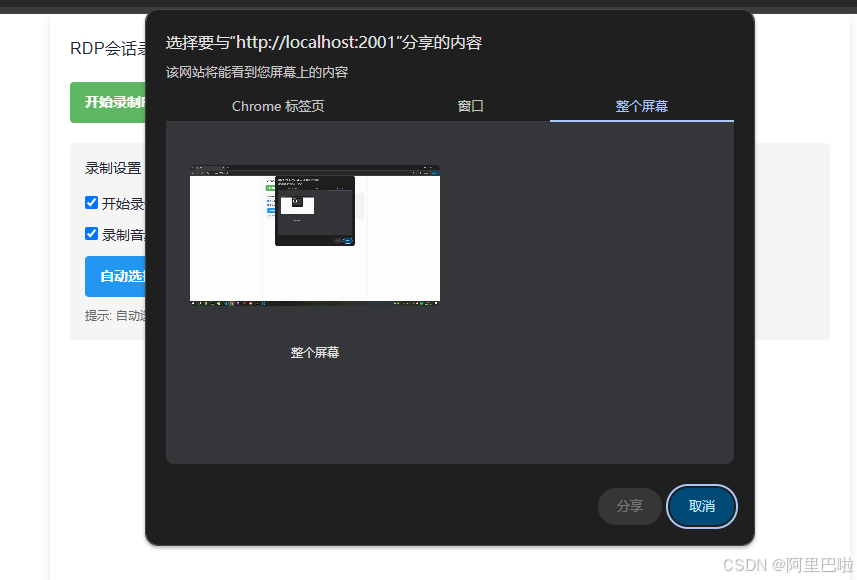

界面截图：

案例源码：

<template>
  <div class="rdp-recorder" :class="{ 'minimal-ui': minimalUI }">
    <!-- 悬浮的最小化控制面板 - 适合无感录制 -->
    <div v-if="minimalUI" class="floating-controls">
      <div class="recording-status">
        <span class="record-indicator" :class="{ paused: isPaused }"></span>
        <span class="timer">{{ formatTime(recordingTime) }}</span>
      </div>

      <div class="button-group">
        <button
          v-if="isPaused"
          class="icon-btn resume-btn"
          title="继续录制"
          @click="resumeRecording"
        >
          ▶
        </button>
        <button
          v-else-if="isRecording"
          class="icon-btn pause-btn"
          title="暂停录制"
          @click="pauseRecording"
        >
          ⏸
        </button>
        <button
          v-if="isRecording"
          class="icon-btn stop-btn"
          title="停止录制"
          @click="stopRecording"
        >
          ⏹
        </button>
      </div>

      <button class="icon-btn expand-btn" title="展开面板" @click="minimalUI = false">
        ↗
      </button>
    </div>

    <!-- 完整控制面板 -->
    <div v-else class="full-controls">
      <div class="panel-header">
        <h3>RDP会话录制</h3>
        <button class="icon-btn minimize-btn" title="最小化" @click="minimalUI = true">
          ↙
        </button>
      </div>

      <div class="controls">
        <button
          v-if="!isRecording"
          :disabled="!hasSupport"
          class="btn start-btn"
          @click="startRDPRecording"
        >
          开始录制RDP会话
        </button>

        <template v-else>
          <button
            v-if="!isPaused"
            class="btn pause-btn"
            @click="pauseRecording"
          >
            暂停
          </button>

          <button
            v-else
            class="btn resume-btn"
            @click="resumeRecording"
          >
            继续
          </button>

          <button
            class="btn stop-btn"
            @click="stopRecording"
          >
            停止录制
          </button>
        </template>
      </div>

      <div v-if="isRecording" class="recording-info">
        <div class="recording-status">
          <span class="record-indicator" :class="{ paused: isPaused }"></span>
          <span>{{ isPaused ? '已暂停' : '正在录制RDP会话...' }}</span>
        </div>
        <div class="timer">{{ formatTime(recordingTime) }}</div>
      </div>

      <div v-if="recordingURL" class="preview">
        <h3>录制预览</h3>
        <video :src="recordingURL" controls width="100%"></video>
        <button class="btn download-btn" @click="downloadRecording('rdp-recording.webm')">
          下载录制文件
        </button>
      </div>

      <div v-if="error" class="error">
        录制错误: {{ error }}
      </div>

      <div v-if="!hasSupport" class="no-support">
        您的浏览器不支持屏幕录制功能
      </div>

      <div class="settings">
        <h4>录制设置</h4>
        <div class="checkbox-group">
          <label>
            <input v-model="autoMinimize" type="checkbox" />
            开始录制后自动最小化
          </label>
        </div>
        <div class="checkbox-group">
          <label>
            <input v-model="recordAudio" type="checkbox" />
            录制音频
          </label>
        </div>
        <button class="btn auto-start-btn" @click="autoStartRecording">
          自动选择RDP窗口录制
        </button>
        <p class="tip">提示: 自动选择功能需要您在弹出框中选择RDP窗口</p>
      </div>
    </div>
  </div>
</template>

<script lang="ts" setup>
  import { ref, onMounted, watch } from 'vue';
  import { useRDPScreenRecorder } from './useRDPScreenRecorder';

  // 组件名称定义
  defineOptions({
    name: 'RDPRecorderComponent',
  });

  // 状态
  const hasSupport = ref(false);
  const minimalUI = ref(false);
  const autoMinimize = ref(true);
  const recordAudio = ref(true);

  // 引入录屏功能
  const {
    isRecording,
    isPaused,
    recordingTime,
    recordingURL,
    error,
    startRecording,
    autoStartRDPRecording,
    pauseRecording,
    resumeRecording,
    stopRecording,
    downloadRecording,
  } = useRDPScreenRecorder();

  // 检查浏览器支持
  onMounted(() => {
    hasSupport.value = !!(navigator.mediaDevices &&
      navigator.mediaDevices.getDisplayMedia);
  });

  // 在录制开始后自动最小化UI
  watch(isRecording, (newValue) => {
    if (newValue && autoMinimize.value) {
      minimalUI.value = true;
    }
  });

  // 格式化时间显示
  const formatTime = (seconds: number): string => {
    const mins = Math.floor(seconds / 60);
    const secs = seconds % 60;
    return `${mins.toString().padStart(2, '0')}:${secs.toString().padStart(2, '0')}`;
  };

  // 开始RDP会话录制
  const startRDPRecording = () => {
    startRecording({
      videoConstraints: {
        video: {
          frameRate: { ideal: 15 },
          cursor: 'always',
          displaySurface: 'window', // 窗口模式，便于选择RDP窗口
          logicalSurface: true,
          width: { ideal: 1280 },
          height: { ideal: 720 },
        },
      },
      includeAudio: recordAudio.value,
      captureApplicationAudio: recordAudio.value,
      mimeType: 'video/webm;codecs=vp9',
    });
  };

  // 自动开始RDP会话录制
  const autoStartRecording = () => {
    autoStartRDPRecording();
  };
</script>

<style scoped>
  .rdp-recorder {
    position: relative;
    max-width: 800px;
    margin: 0 auto;
    padding: 20px;
    font-family: Arial, sans-serif;
    border-radius: 8px;
    background-color: #fff;
    box-shadow: 0 2px 10px rgba(0, 0, 0, 0.1);
  }

  .floating-controls {
    position: fixed;
    bottom: 20px;
    right: 20px;
    display: flex;
    align-items: center;
    padding: 8px 12px;
    background-color: rgba(33, 33, 33, 0.8);
    border-radius: 50px;
    box-shadow: 0 2px 8px rgba(0, 0, 0, 0.3);
    z-index: 9999;
    color: white;
  }

  .recording-status {
    display: flex;
    align-items: center;
    gap: 8px;
  }

  .record-indicator {
    display: inline-block;
    width: 10px;
    height: 10px;
    border-radius: 50%;
    background-color: #F44336;
    animation: blink 1s infinite;
  }

  .record-indicator.paused {
    background-color: #FFC107;
    animation: none;
  }

  .button-group {
    display: flex;
    margin: 0 8px;
  }

  .icon-btn {
    background-color: transparent;
    border: none;
    color: white;
    width: 28px;
    height: 28px;
    border-radius: 50%;
    display: flex;
    align-items: center;
    justify-content: center;
    cursor: pointer;
    margin: 0 2px;
    font-size: 14px;
  }

  .icon-btn:hover {
    background-color: rgba(255, 255, 255, 0.2);
  }

  .minimize-btn, .expand-btn {
    font-size: 12px;
  }

  .panel-header {
    display: flex;
    justify-content: space-between;
    align-items: center;
    margin-bottom: 15px;
  }

  .panel-header h3 {
    margin: 0;
  }

  .controls {
    margin: 20px 0;
    display: flex;
    gap: 10px;
  }

  .btn {
    padding: 10px 15px;
    border: none;
    border-radius: 4px;
    cursor: pointer;
    font-weight: bold;
    transition: background-color 0.3s;
  }

  .start-btn {
    background-color: #4CAF50;
    color: white;
  }

  .pause-btn {
    background-color: #FFC107;
    color: #333;
  }

  .resume-btn {
    background-color: #2196F3;
    color: white;
  }

  .stop-btn {
    background-color: #F44336;
    color: white;
  }

  .download-btn {
    background-color: #673AB7;
    color: white;
    margin-top: 10px;
  }

  .auto-start-btn {
    background-color: #2196F3;
    color: white;
  }

  .btn:hover {
    opacity: 0.9;
  }

  .btn:disabled {
    background-color: #cccccc;
    cursor: not-allowed;
  }

  .recording-info {
    display: flex;
    align-items: center;
    justify-content: space-between;
    margin: 20px 0;
    padding: 10px;
    background-color: #f5f5f5;
    border-radius: 4px;
  }

  .timer {
    font-family: monospace;
    font-size: 1.2rem;
  }

  .floating-controls .timer {
    font-size: 1rem;
  }

  .preview {
    margin-top: 20px;
  }

  .error {
    color: #F44336;
    margin: 10px 0;
    padding: 10px;
    background-color: #FFEBEE;
    border-radius: 4px;
  }

  .no-support {
    color: #F44336;
    margin: 10px 0;
    padding: 10px;
    background-color: #FFEBEE;
    border-radius: 4px;
  }

  .settings {
    margin-top: 20px;
    padding: 15px;
    background-color: #f5f5f5;
    border-radius: 4px;
  }

  .settings h4 {
    margin-top: 0;
    margin-bottom: 15px;
  }

  .checkbox-group {
    margin-bottom: 10px;
  }

  .tip {
    font-size: 12px;
    color: #666;
    margin-top: 10px;
  }

  @keyframes blink {
    0% { opacity: 1; }
    50% { opacity: 0.4; }
    100% { opacity: 1; }
  }
</style>

// useRDPScreenRecorder.ts
import { ref, onUnmounted } from 'vue';

export function useRDPScreenRecorder() {
  const isRecording = ref<boolean>(false);
  const isPaused = ref<boolean>(false);
  const recordingTime = ref<number>(0);
  const recordingURL = ref<string>('');
  const error = ref<string | null>(null);

  let mediaRecorder: MediaRecorder | null = null;
  let recordedChunks: Blob[] = [];
  let startTime = 0;
  let timerInterval: number | null = null;
  let combinedStream: MediaStream | null = null;

  interface RecordingOptions {
    videoConstraints?: MediaStreamConstraints;
    audioConstraints?: MediaStreamConstraints;
    mimeType?: string;
    timeslice?: number;
    includeAudio?: boolean;
    captureApplicationAudio?: boolean;
  }

  // 开始录制屏幕和音频
  const startRecording = async (options: RecordingOptions = {}) => {
    const defaultOptions: RecordingOptions = {
      videoConstraints: {
        video: {
          // 针对RDP窗口的优化设置
          frameRate: { ideal: 15 }, // 降低帧率以减少RDP连接的负担
          cursor: 'always', // 始终捕获光标
          displaySurface: 'window', // 优先尝试捕获窗口而非整个屏幕
          logicalSurface: true, // 捕获逻辑窗口表面而非物理显示
          width: { ideal: 1920 }, // 设置理想分辨率
          height: { ideal: 1080 },
        },
      },
      audioConstraints: {
        audio: {
          // 音频设置优化
          echoCancellation: true, // 回声消除
          noiseSuppression: true, // 噪声抑制
          autoGainControl: true, // 自动增益控制
        },
      },
      mimeType: 'video/webm;codecs=vp9', // VP9编码器在低带宽环境下表现更好
      timeslice: 1000, // 每秒获取一次数据
      includeAudio: true, // 是否包含麦克风音频
      captureApplicationAudio: true, // 是否尝试捕获应用程序音频
    };

    const config = { ...defaultOptions, ...options };
    recordedChunks = [];
    error.value = null;

    try {
      // 获取屏幕流，用户在选择对话框中应该选择RDP窗口
      const screenStream = await navigator.mediaDevices.getDisplayMedia(config.videoConstraints);

      // 处理录制结束
      screenStream.getVideoTracks()[0].onended = () => {
        stopRecording();
      };

      let streams = [screenStream];

      // 尝试捕获系统音频（RDP会话中的声音）
      // 注意：这依赖于浏览器和系统支持，可能不适用于所有环境
      if (config.captureApplicationAudio) {
        try {
          // 在某些浏览器中，系统音频可以通过getDisplayMedia的audio选项获取
          // 检查是否已经有音频轨道
          const hasAudioTrack = screenStream.getAudioTracks().length > 0;

          if (!hasAudioTrack) {
            console.warn('无法直接捕获RDP会话的系统音频，这在某些浏览器中是正常现象');
          }
        } catch (err) {
          console.warn('捕获系统音频失败:', err);
        }
      }

      // 如果需要麦克风音频，获取麦克风流
      if (config.includeAudio) {
        try {
          const audioStream = await navigator.mediaDevices.getUserMedia(config.audioConstraints);
          streams.push(audioStream);
        } catch (err) {
          console.warn('无法获取麦克风权限，继续仅录制视频', err);
        }
      }

      // 合并流
      combinedStream = new MediaStream();

      // 添加所有视频轨道
      streams.forEach(stream => {
        stream.getVideoTracks().forEach(track => {
          combinedStream.addTrack(track);
        });
      });

      // 添加所有音频轨道
      streams.forEach(stream => {
        stream.getAudioTracks().forEach(track => {
          combinedStream.addTrack(track);
        });
      });

      // 创建MediaRecorder，优化RDP场景的录制设置
      const recorderOptions: MediaRecorderOptions = {};

      if (config.mimeType) {
        // 检查MIME类型支持
        if (MediaRecorder.isTypeSupported(config.mimeType)) {
          recorderOptions.mimeType = config.mimeType;
        } else if (MediaRecorder.isTypeSupported('video/webm')) {
          recorderOptions.mimeType = 'video/webm'; // 降级
        }
      }

      // 可以添加录制质量设置
      // 对于RDP场景，可以考虑降低视频比特率以减少资源占用

      // 初始化录制器
      mediaRecorder = new MediaRecorder(combinedStream, recorderOptions);

      // 处理数据可用事件
      mediaRecorder.ondataavailable = (event) => {
        if (event.data.size > 0) {
          recordedChunks.push(event.data);
        }
      };

      // 处理录制结束事件
      mediaRecorder.onstop = () => {
        const mimeType = mediaRecorder?.mimeType || 'video/webm';
        const blob = new Blob(recordedChunks, { type: mimeType });
        recordingURL.value = URL.createObjectURL(blob);
        isRecording.value = false;
        if (timerInterval) {
          clearInterval(timerInterval);
          timerInterval = null;
        }
      };

      // 开始录制
      mediaRecorder.start(config.timeslice);
      isRecording.value = true;
      isPaused.value = false;
      startTime = Date.now();

      // 启动计时器
      timerInterval = window.setInterval(() => {
        recordingTime.value = Math.floor((Date.now() - startTime) / 1000);
      }, 1000);
    } catch (err: any) {
      error.value = err.message || '录制失败';
      console.error('录制失败:', err);
    }
  };

  // 自动开始录制RDP窗口（无感知方式）
  const autoStartRDPRecording = async () => {
    try {
      // 尝试自动开始录制，但需要用户交互触发
      // 建议在用户点击页面其他地方或进行其他交互后调用
      await startRecording({
        videoConstraints: {
          video: {
            // 针对RDP会话的优化设置
            frameRate: { ideal: 10 }, // 降低帧率可减轻网络负担
            cursor: 'always',
            displaySurface: 'window', // 设置为窗口模式，方便用户选择RDP窗口
            logicalSurface: true,
            // 减少分辨率可以降低CPU使用率
            width: { ideal: 1280 },
            height: { ideal: 720 },
          },
        },
        // 降低录制频率，减少资源占用
        timeslice: 2000,
        captureApplicationAudio: true,
      });

      console.log('RDP录制已自动开始，请在弹出的对话框中选择RDP窗口');
    } catch (err) {
      console.error('自动开始RDP录制失败:', err);
    }
  };

  // 暂停录制
  const pauseRecording = () => {
    if (mediaRecorder && isRecording.value && !isPaused.value && mediaRecorder.state === 'recording') {
      mediaRecorder.pause();
      isPaused.value = true;
      if (timerInterval) {
        clearInterval(timerInterval);
        timerInterval = null;
      }
    }
  };

  // 继续录制
  const resumeRecording = () => {
    if (mediaRecorder && isRecording.value && isPaused.value && mediaRecorder.state === 'paused') {
      mediaRecorder.resume();
      isPaused.value = false;

      // 重启计时器
      timerInterval = window.setInterval(() => {
        recordingTime.value = Math.floor((Date.now() - startTime) / 1000);
      }, 1000);
    }
  };

  // 停止录制
  const stopRecording = () => {
    if (mediaRecorder && isRecording.value &&
      (mediaRecorder.state === 'recording' || mediaRecorder.state === 'paused')) {
      mediaRecorder.stop();

      // 停止所有轨道
      if (combinedStream) {
        combinedStream.getTracks().forEach(track => track.stop());
      }

      if (timerInterval) {
        clearInterval(timerInterval);
        timerInterval = null;
      }
    }
  };

  // 下载录制内容
  const downloadRecording = (filename = 'rdp-recording.webm') => {
    if (recordingURL.value) {
      const a = document.createElement('a');
      document.body.appendChild(a);
      a.style.display = 'none';
      a.href = recordingURL.value;
      a.download = filename;
      a.click();
      document.body.removeChild(a);
    }
  };

  // 清理函数
  onUnmounted(() => {
    stopRecording();
    if (recordingURL.value) {
      URL.revokeObjectURL(recordingURL.value);
    }
  });

  return {
    isRecording,
    isPaused,
    recordingTime,
    recordingURL,
    error,
    startRecording,
    autoStartRDPRecording,
    pauseRecording,
    resumeRecording,
    stopRecording,
    downloadRecording,
  };
}
