塔防游戏Python开发核心状态与算法实现：植物大战僵尸类游戏技术解析

news 2025/10/23 8:18:17

塔防游戏核心算法与实现：植物大战僵尸类游戏技术解析

引言

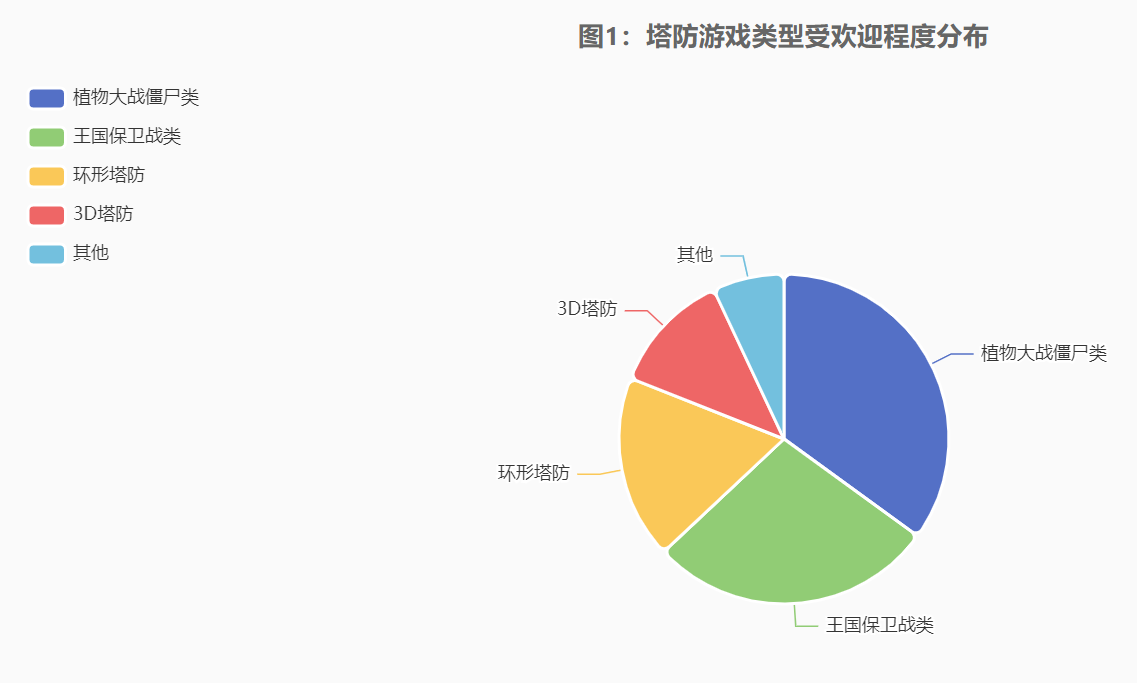

每一个字节都是思想的回响，每一行代码都是成长的见证。在程序员的世界里，游戏开发总是充满魔力和挑战的领域。塔防游戏作为一种经典游戏类型，以其简单易懂的规则和策略性的深度赢得了无数玩家的喜爱，而《植物大战僵尸》无疑是其中的佼佼者。本文将深入剖析塔防游戏的核心算法和实现逻辑，从游戏架构设计到具体算法实现，带您探索这类游戏背后的技术奥秘。
在这里插入图片描述

第一章：塔防游戏架构设计

1.1 游戏架构概览

塔防游戏通常采用分层架构设计，将游戏逻辑、渲染、输入处理等功能解耦，以提高代码的可维护性和扩展性。一个典型的塔防游戏架构可以分为以下几个核心层次：

游戏引擎层：负责基础功能如渲染、物理、音频等
游戏核心层：处理游戏逻辑、状态管理、事件系统
实体层：定义游戏中的各种对象（植物、僵尸、子弹等）
AI层：实现敌人的行为决策和路径规划
UI层：处理用户界面和交互

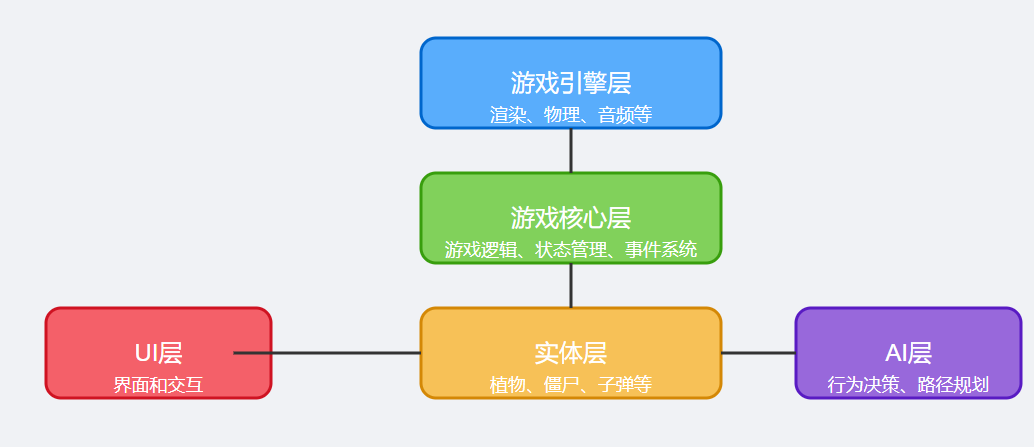

这种分层架构使得游戏开发团队可以并行工作，同时也方便后期维护和功能扩展。下面我们来看一个简化的架构类图：

在这里插入图片描述

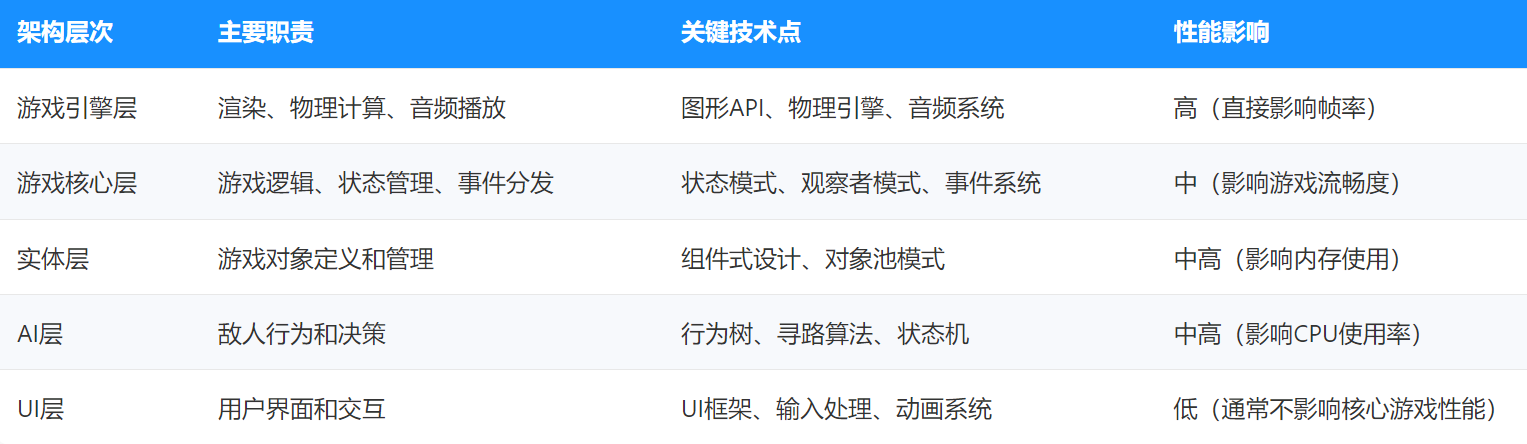

这种分层架构使得游戏开发团队可以并行工作，同时也方便后期维护和功能扩展。下面我们通过表格来比较不同层次的职责和实现要点：

1.2 游戏状态管理

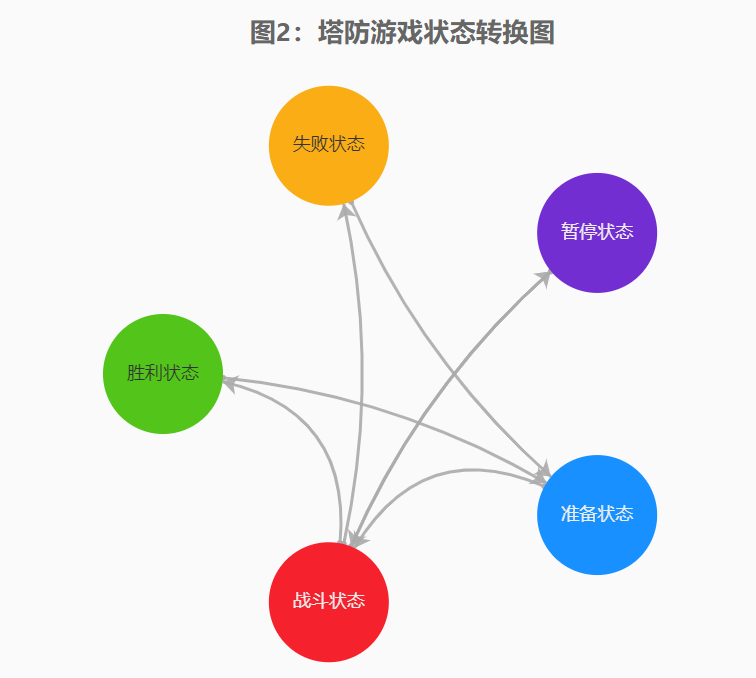

塔防游戏的状态管理是确保游戏流程正常运行的关键。一个典型的塔防游戏包含以下几种状态：

准备状态：玩家布置防御单位
战斗状态：敌人进攻，防御单位攻击
胜利状态：成功抵御所有波次进攻
失败状态：敌人到达终点或资源耗尽
暂停状态：游戏暂时停止

在这里插入图片描述

状态管理通常使用状态模式（State Pattern）实现，每个状态类负责处理特定状态下的逻辑：

class GameState:def enter(self):passdef update(self, dt):passdef exit(self):passclass PreparationState(GameState):def enter(self):print("进入准备状态，玩家可以布置植物")def update(self, dt):# 处理准备阶段的逻辑passclass BattleState(GameState):def enter(self):print("进入战斗状态，僵尸开始进攻")def update(self, dt):# 处理战斗阶段的逻辑pass

1.3 事件系统设计

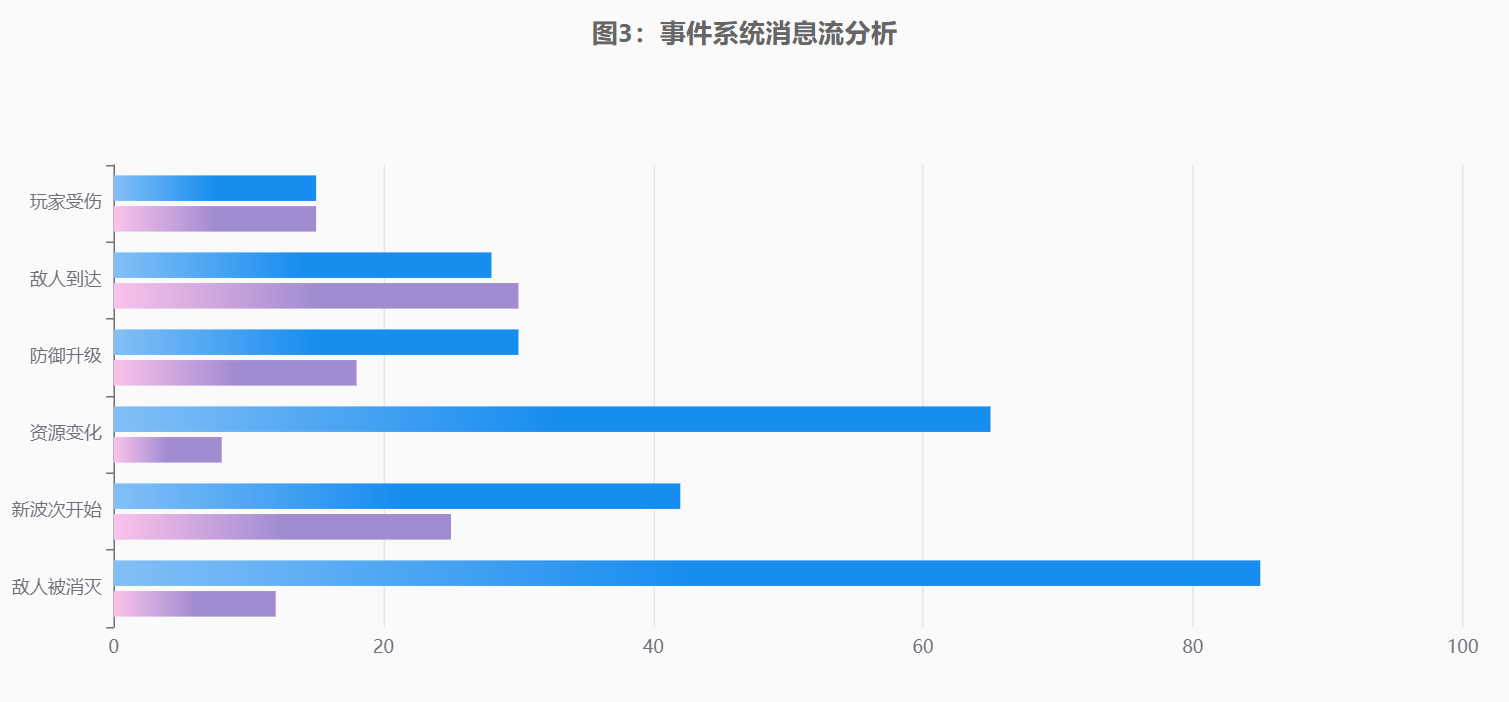

事件系统是游戏中不同组件之间通信的重要机制。在塔防游戏中，我们需要处理多种事件，如敌人被消灭、新一波敌人来袭、玩家资源变化等。事件系统通常采用观察者模式（Observer Pattern）实现，具有松耦合、易扩展的特点。
在这里插入图片描述

事件系统通常采用观察者模式（Observer Pattern）实现，下面是一个简化的事件系统实现：

class EventManager:def __init__(self):self.listeners = {}def register(self, event_type, listener):if event_type not in self.listeners:self.listeners[event_type] = []self.listeners[event_type].append(listener)def unregister(self, event_type, listener):if event_type in self.listeners:self.listeners[event_type].remove(listener)def emit(self, event_type, data=None):if event_type in self.listeners:for listener in self.listeners[event_type]:listener(data)

第二章：核心算法实现

2.1 路径规划算法

路径规划是塔防游戏中敌人移动的核心算法。在《植物大战僵尸》这类游戏中，敌人通常沿着固定路径前进，但在更复杂的塔防游戏中，可能需要动态路径规划。

2.1.1 格子地图表示

首先，我们需要将游戏地图表示为一个网格：

class Grid:def __init__(self, width, height):self.width = widthself.height = heightself.cells = [[0 for _ in range(width)] for _ in range(height)]def set_cell(self, x, y, value):self.cells[y][x] = valuedef get_cell(self, x, y):if 0 <= x < self.width and 0 <= y < self.height:return self.cells[y][x]return None

2.1.2 A*寻路算法

A算法是一种高效的寻路算法，结合了Dijkstra算法和贪心最佳优先搜索。A算法使用启发式函数来引导搜索方向，大大提高了寻路效率。

在塔防游戏中，我们可以使用A*算法来计算敌人从起点到终点的最短路径：

import heapqdef astar(grid, start, end):# 启发函数：曼哈顿距离def heuristic(a, b):return abs(a[0] - b[0]) + abs(a[1] - b[1])open_set = []heapq.heappush(open_set, (0 + heuristic(start, end), 0, start, []))visited = set()while open_set:_, cost_so_far, current, path = heapq.heappop(open_set)if current == end:return path + [current]if current in visited:continuevisited.add(current)# 检查四个方向directions = [(0, 1), (1, 0), (0, -1), (-1, 0)]for dx, dy in directions:next_x, next_y = current[0] + dx, current[1] + dynext_node = (next_x, next_y)# 检查是否在网格范围内且可通行if grid.get_cell(next_x, next_y) == 0:new_cost = cost_so_far + 1new_path = path + [current]priority = new_cost + heuristic(next_node, end)heapq.heappush(open_set, (priority, new_cost, next_node, new_path))return None  # 没有找到路径

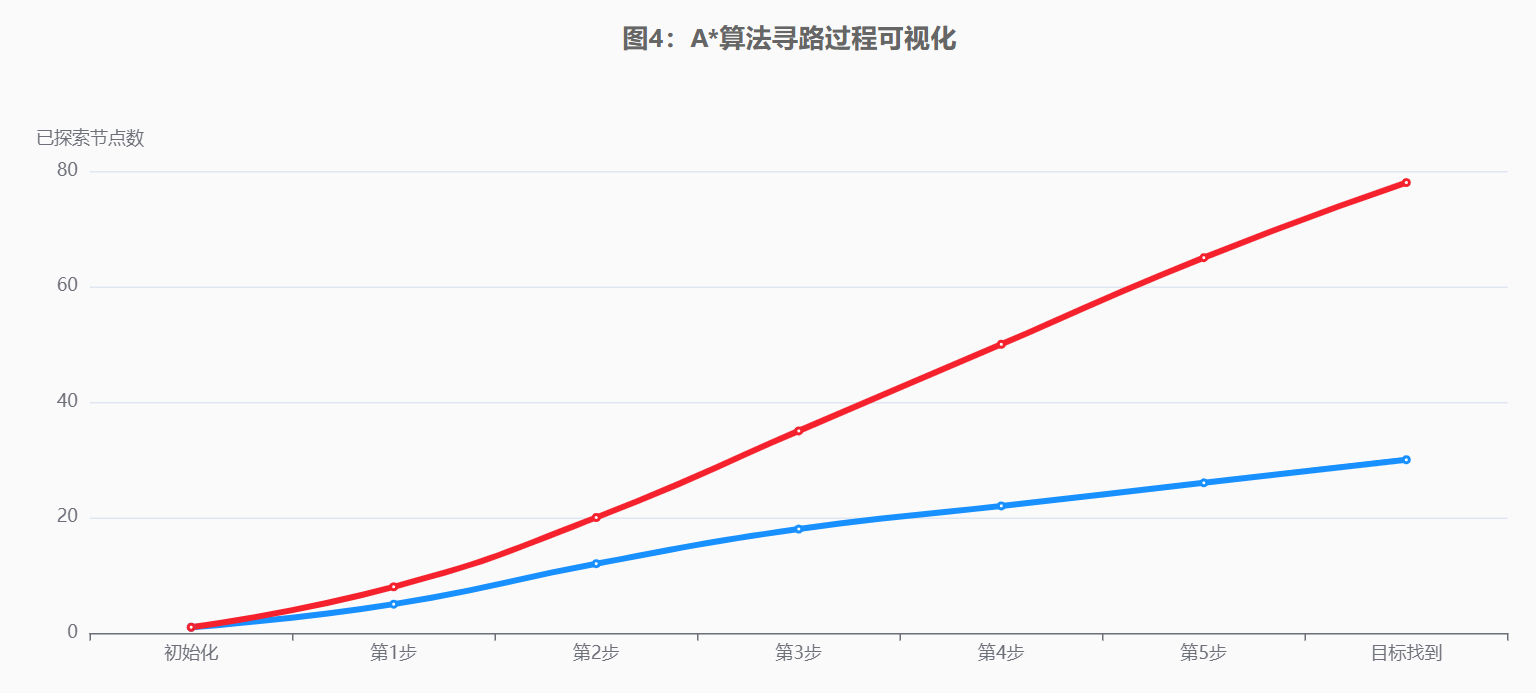

实现效果分析如下：
在这里插入图片描述

2.1.3 波次生成算法

在塔防游戏中，敌人通常以波次的形式出现。波次生成算法需要考虑以下因素：

波次间隔时间
每波敌人数量
敌人种类组合
难度递增曲线

下面是一个简化的波次生成器实现：

class WaveGenerator:def __init__(self, total_waves, base_enemies_per_wave=10):self.total_waves = total_wavesself.base_enemies_per_wave = base_enemies_per_waveself.current_wave = 0def generate_wave(self):self.current_wave += 1# 敌人数量随波次递增enemy_count = int(self.base_enemies_per_wave * (1 + self.current_wave * 0.5))# 敌人类型随波次变得更强if self.current_wave <= 3:enemy_types = ["普通僵尸"]elif self.current_wave <= 7:enemy_types = ["普通僵尸", "路障僵尸"]else:enemy_types = ["普通僵尸", "路障僵尸", "铁桶僵尸"]# 生成敌人列表import randomenemies = []for _ in range(enemy_count):enemy_type = random.choice(enemy_types)enemies.append({"type": enemy_type,"health": self._calculate_health(enemy_type),"speed": self._calculate_speed(enemy_type),"damage": self._calculate_damage(enemy_type)})return {"wave_number": self.current_wave,"enemies": enemies,"interval_between_enemies": max(0.5, 2 - self.current_wave * 0.1)  # 间隔时间递减}def _calculate_health(self, enemy_type):base_health = {"普通僵尸": 100, "路障僵尸": 200, "铁桶僵尸": 300}return int(base_health[enemy_type] * (1 + self.current_wave * 0.3))def _calculate_speed(self, enemy_type):base_speed = {"普通僵尸": 1.0, "路障僵尸": 0.8, "铁桶僵尸": 0.6}return base_speed[enemy_type]def _calculate_damage(self, enemy_type):base_damage = {"普通僵尸": 10, "路障僵尸": 15, "铁桶僵尸": 20}return int(base_damage[enemy_type] * (1 + self.current_wave * 0.2))

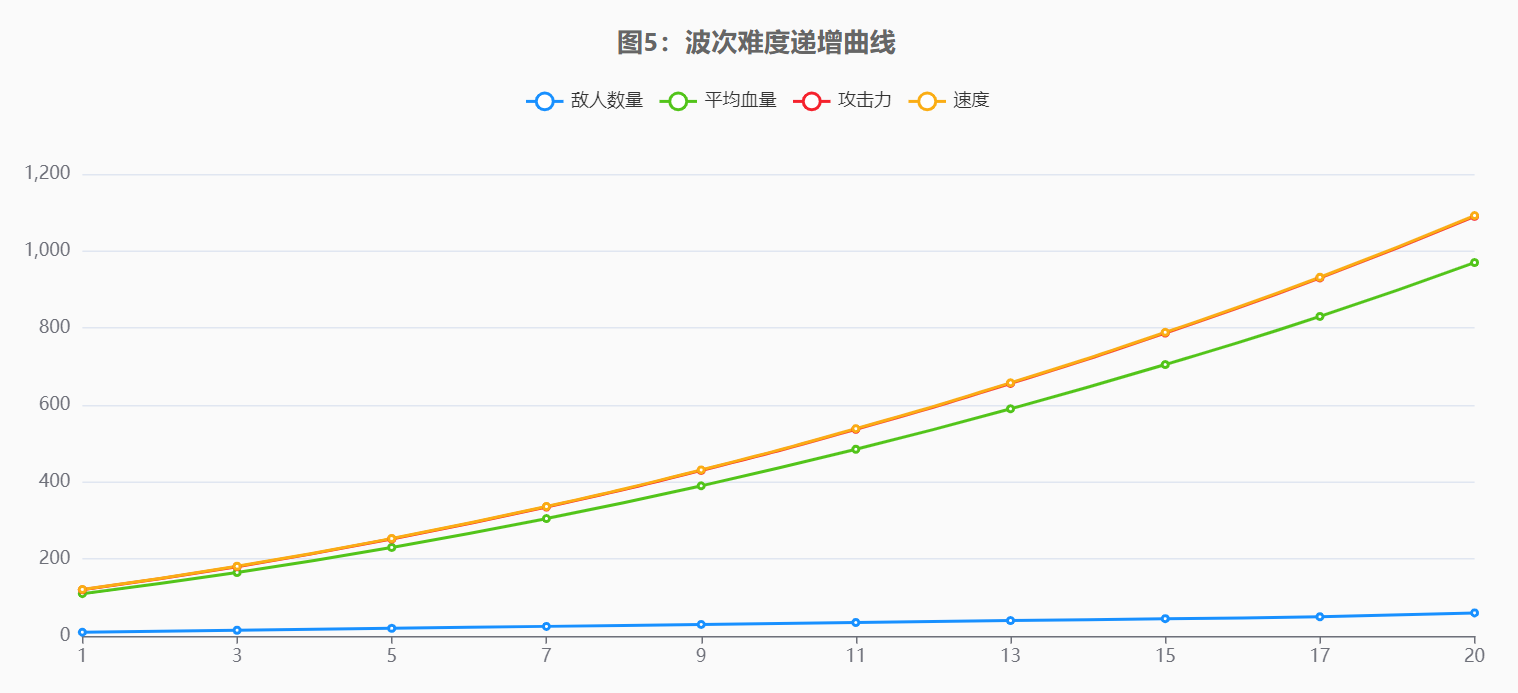

波次难度递增曲线分析如下：
在这里插入图片描述

2.2 战斗系统算法

战斗系统是塔防游戏的核心，包括攻击判定、伤害计算、范围检测等算法。

2.2.1 碰撞检测算法

碰撞检测用于判断防御单位是否可以攻击敌人。在塔防游戏中，通常使用圆形碰撞或矩形碰撞检测：

def circle_collision(x1, y1, r1, x2, y2, r2):"""检测两个圆形是否碰撞"""dx = x1 - x2dy = y1 - y2distance = (dx * dx + dy * dy) ** 0.5return distance < (r1 + r2)def rectangle_collision(x1, y1, w1, h1, x2, y2, w2, h2):"""检测两个矩形是否碰撞"""return (x1 < x2 + w2 and x1 + w1 > x2 and y1 < y2 + h2 and y1 + h1 > y2)

2.2.2 目标选择算法

防御单位需要从多个敌人中选择一个目标进行攻击。常见的目标选择策略包括：

最近的敌人
血量最低的敌人
距离终点最近的敌人（优先处理威胁最大的敌人）

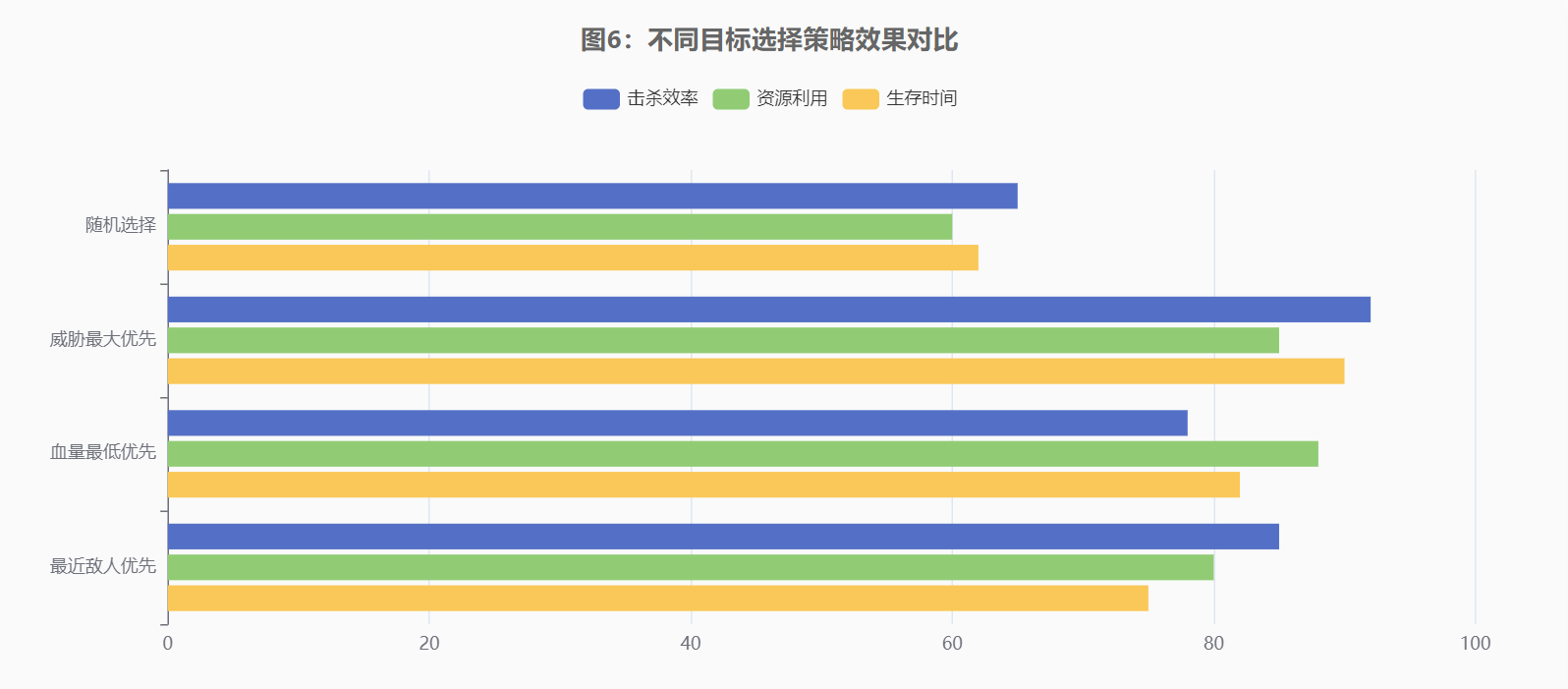

不同策略的效果对比如下：
在这里插入图片描述

下面是一个综合的目标选择实现：

class TargetSelector:@staticmethoddef select_nearest(attacker, enemies):"""选择最近的敌人"""if not enemies:return Nonenearest_enemy = Nonemin_distance = float('inf')for enemy in enemies:dx = attacker.x - enemy.xdy = attacker.y - enemy.ydistance = (dx * dx + dy * dy) ** 0.5if distance < min_distance and distance <= attacker.attack_range:min_distance = distancenearest_enemy = enemyreturn nearest_enemy@staticmethoddef select_lowest_health(attacker, enemies):"""选择血量最低的敌人"""valid_enemies = [e for e in enemies if ((attacker.x - e.x)**2 + (attacker.y - e.y)**2)**0.5 <= attacker.attack_range]if not valid_enemies:return Nonereturn min(valid_enemies, key=lambda e: e.health)@staticmethoddef select_most_threatening(attacker, enemies, path_end):"""选择距离终点最近的敌人（威胁最大）"""valid_enemies = [e for e in enemies if ((attacker.x - e.x)**2 + (attacker.y - e.y)**2)**0.5 <= attacker.attack_range]if not valid_enemies:return None# 计算敌人到终点的距离，距离越近威胁越大return min(valid_enemies, key=lambda e: ((e.x - path_end[0])**2 + (e.y - path_end[1])**2)**0.5)

2.2.3 伤害计算系统

伤害计算系统需要考虑多种因素，如攻击类型、防御类型、暴击率等：

class DamageCalculator:@staticmethoddef calculate_damage(attacker, target):# 基础伤害base_damage = attacker.attack_power# 暴击判定import randomif random.random() < attacker.crit_chance:base_damage *= attacker.crit_multiplierprint("暴击！")# 伤害类型与防御类型的相互作用damage_multiplier = 1.0# 简单的属性克制系统if attacker.attack_type == "物理":damage_multiplier = 1.0 - (target.physical_resistance / 100)elif attacker.attack_type == "魔法":damage_multiplier = 1.0 - (target.magic_resistance / 100)# 计算最终伤害final_damage = max(1, int(base_damage * damage_multiplier))return final_damage

2.3 经济系统算法

经济系统控制游戏中的资源分配，影响玩家的策略选择。常见的经济系统包括：

2.3.1 资源生成算法

class ResourceManager:def __init__(self, initial_sun=50, sun_per_second=5):self.sun = initial_sunself.sun_per_second = sun_per_secondself.last_update_time = 0def update(self, current_time):# 计算时间差time_delta = current_time - self.last_update_time# 生成资源if time_delta >= 1.0:  # 每秒更新一次self.sun += self.sun_per_second * time_deltaself.last_update_time = current_timedef can_afford(self, cost):return self.sun >= costdef spend(self, cost):if self.can_afford(cost):self.sun -= costreturn Truereturn Falsedef add_resource(self, amount):self.sun += amount

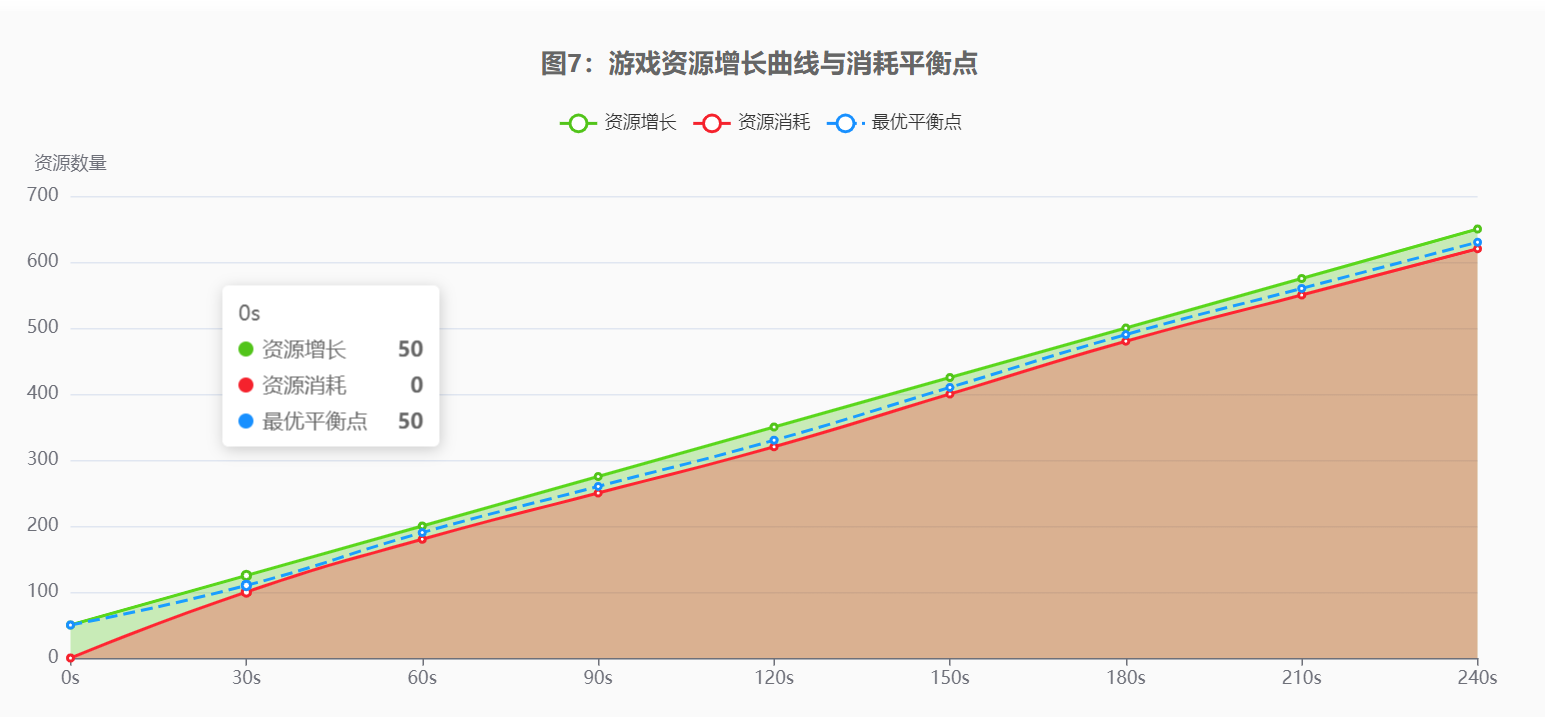

经分析植物大战僵尸类游戏以线性增强植物能力和所需资源来实现最佳平衡，最经典的比如豌豆射手100点阳光1次发射1枚豌豆，双重射手200点阳光发射2枚豌豆，3重射手325点阳光1次发射3枚豌豆，基本上是3倍资源生产对应3倍攻击力，因此线性关系比较合理：
在这里插入图片描述

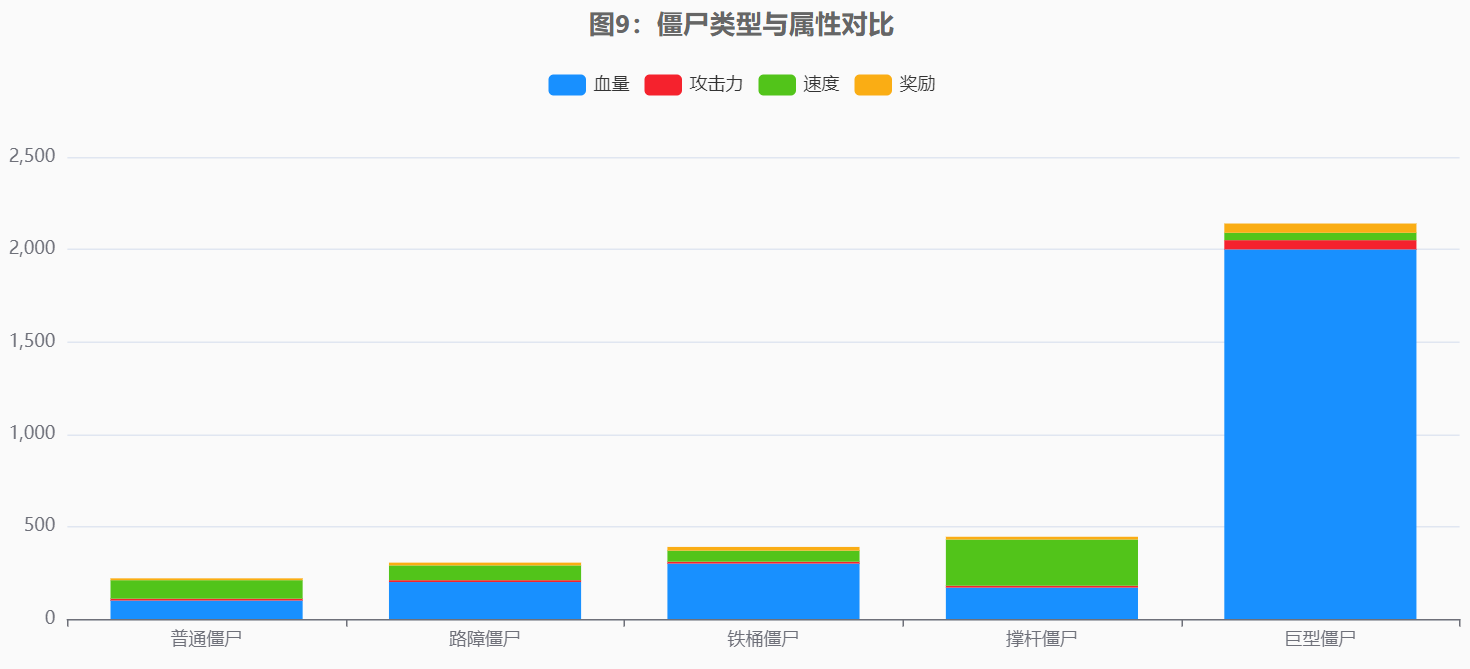

同样的道理，僵尸的血量、攻击力、速度和奖励也基本是线性成正比的关系。所谓付出越多，收获越多，这里体现得非常充分。

2.3.2 经济平衡算法

经济平衡是游戏设计的重要部分，需要确保游戏既有挑战性又不会过于困难：

class EconomyBalancer:def __init__(self):self.resource_multiplier = 1.0self.enemy_reward_multiplier = 1.0def adjust_balance(self, game_state):# 根据玩家表现调整经济平衡if game_state.player_health < 20:# 玩家血量低时增加资源获取self.resource_multiplier = 1.2elif game_state.wave_number > 10 and game_state.enemies_killed_per_wave > game_state.enemies_spawned_per_wave * 0.9:# 玩家表现太好时减少资源获取self.resource_multiplier = 0.9else:# 正常情况self.resource_multiplier = 1.0def calculate_enemy_reward(self, enemy_type, base_reward):return int(base_reward * self.enemy_reward_multiplier)

第三章：实体系统设计

3.1 实体组件系统

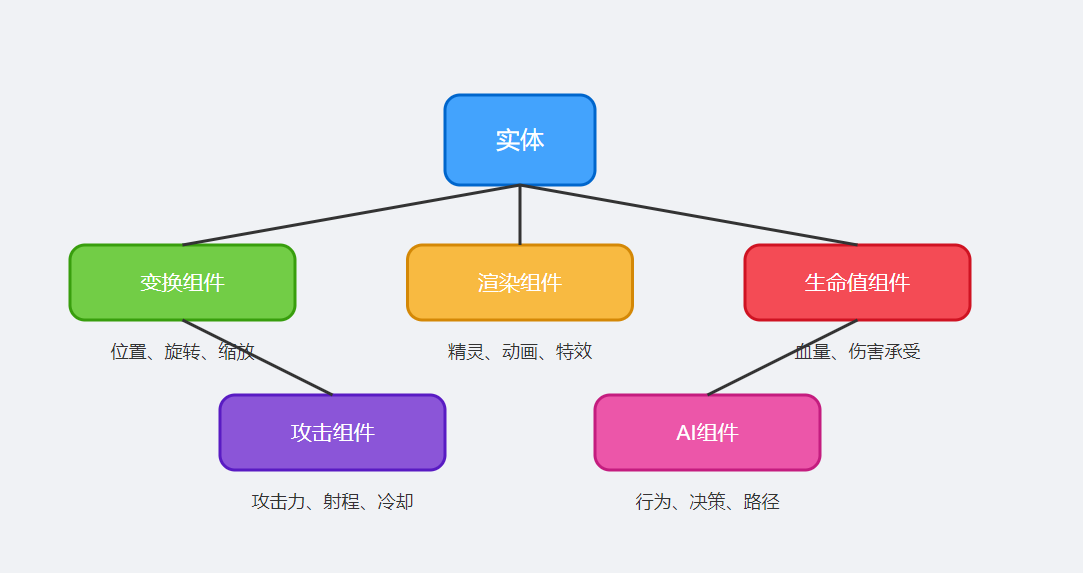

实体组件系统是一种灵活的游戏对象设计模式，将游戏对象的各种功能拆分为独立的组件。这种设计模式具有高度的灵活性和可扩展性，特别适合塔防游戏中多样化的游戏对象。
在这里插入图片描述

class Component:def __init__(self, entity):self.entity = entitydef update(self, dt):passdef destroy(self):passclass TransformComponent(Component):def __init__(self, entity, x=0, y=0):super().__init__(entity)self.x = xself.y = yself.rotation = 0self.scale = 1.0class RenderComponent(Component):def __init__(self, entity, sprite=None):super().__init__(entity)self.sprite = spritedef render(self, renderer):if self.sprite:transform = self.entity.get_component(TransformComponent)renderer.draw_sprite(self.sprite, transform.x, transform.y, transform.rotation, transform.scale)class HealthComponent(Component):def __init__(self, entity, max_health):super().__init__(entity)self.max_health = max_healthself.health = max_healthdef take_damage(self, amount):self.health -= amountif self.health <= 0:self.health = 0# 触发死亡事件from event_system import event_managerevent_manager.emit("entity_died", {"entity": self.entity})return self.health <= 0  # 返回是否死亡def heal(self, amount):self.health = min(self.max_health, self.health + amount)class Entity:def __init__(self, entity_id, entity_type):self.id = entity_idself.type = entity_typeself.components = {}self.active = Truedef add_component(self, component):component_type = component.__class__.__name__self.components[component_type] = componentreturn componentdef get_component(self, component_class):component_type = component_class.__name__return self.components.get(component_type)def update(self, dt):for component in self.components.values():component.update(dt)def destroy(self):self.active = Falsefor component in self.components.values():component.destroy()self.components.clear()

3.2 植物实体设计

在《植物大战僵尸》类游戏中，植物是防御单位，具有不同的攻击方式和特性：

class Plant(Entity):def __init__(self, entity_id, plant_type, x, y, cost):super().__init__(entity_id, "plant")self.plant_type = plant_typeself.cost = cost# 添加基本组件self.add_component(TransformComponent(self, x, y))self.add_component(RenderComponent(self, f"sprites/{plant_type}.png"))def get_stats(self):# 根据植物类型返回不同的属性stats = {"豌豆射手": {"health": 300, "damage": 20, "range": 4, "cooldown": 1.0, "cost": 100},"向日葵": {"health": 300, "sun_production": 25, "production_interval": 10.0, "cost": 50},"坚果墙": {"health": 2000, "cost": 50},"樱桃炸弹": {"health": 300, "damage": 1000, "area_radius": 1.5, "cost": 150},"寒冰射手": {"health": 300, "damage": 20, "range": 4, "cooldown": 1.0, "slow_effect": 0.5, "cost": 175}}return stats.get(self.plant_type, {"health": 300, "cost": 100})

3.3 僵尸实体设计

僵尸是进攻方，具有不同的血量、速度和特殊能力：

class Zombie(Entity):def __init__(self, entity_id, zombie_type, x, y):super().__init__(entity_id, "zombie")self.zombie_type = zombie_type# 添加基本组件self.add_component(TransformComponent(self, x, y))self.add_component(RenderComponent(self, f"sprites/{zombie_type}.png"))def get_stats(self):# 根据僵尸类型返回不同的属性stats = {"普通僵尸": {"health": 100, "speed": 1.0, "damage": 10, "reward": 10},"路障僵尸": {"health": 200, "speed": 0.8, "damage": 10, "reward": 15},"铁桶僵尸": {"health": 300, "speed": 0.6, "damage": 10, "reward": 20},"撑杆僵尸": {"health": 170, "speed": 2.5, "jump_distance": 2, "damage": 10, "reward": 15},"巨型僵尸": {"health": 2000, "speed": 0.4, "damage": 50, "reward": 50}}return stats.get(self.zombie_type, {"health": 100, "speed": 1.0, "damage": 10})

3.4 子弹实体设计

子弹是植物攻击的媒介，可能具有不同的效果：

class Bullet(Entity):def __init__(self, entity_id, bullet_type, x, y, direction):super().__init__(entity_id, "bullet")self.bullet_type = bullet_typeself.direction = direction  # 方向向量 (dx, dy)# 添加基本组件self.add_component(TransformComponent(self, x, y))self.add_component(RenderComponent(self, f"sprites/{bullet_type}_bullet.png"))def get_stats(self):# 根据子弹类型返回不同的属性stats = {"普通": {"damage": 20, "speed": 5.0, "pierce": 1},"寒冰": {"damage": 20, "speed": 5.0, "pierce": 1, "slow_effect": 0.5, "slow_duration": 3.0},"火球": {"damage": 40, "speed": 5.0, "pierce": 2, "splash_radius": 0.5}}return stats.get(self.bullet_type, {"damage": 20, "speed": 5.0, "pierce": 1})

第四章：AI系统实现

4.1 僵尸AI行为树

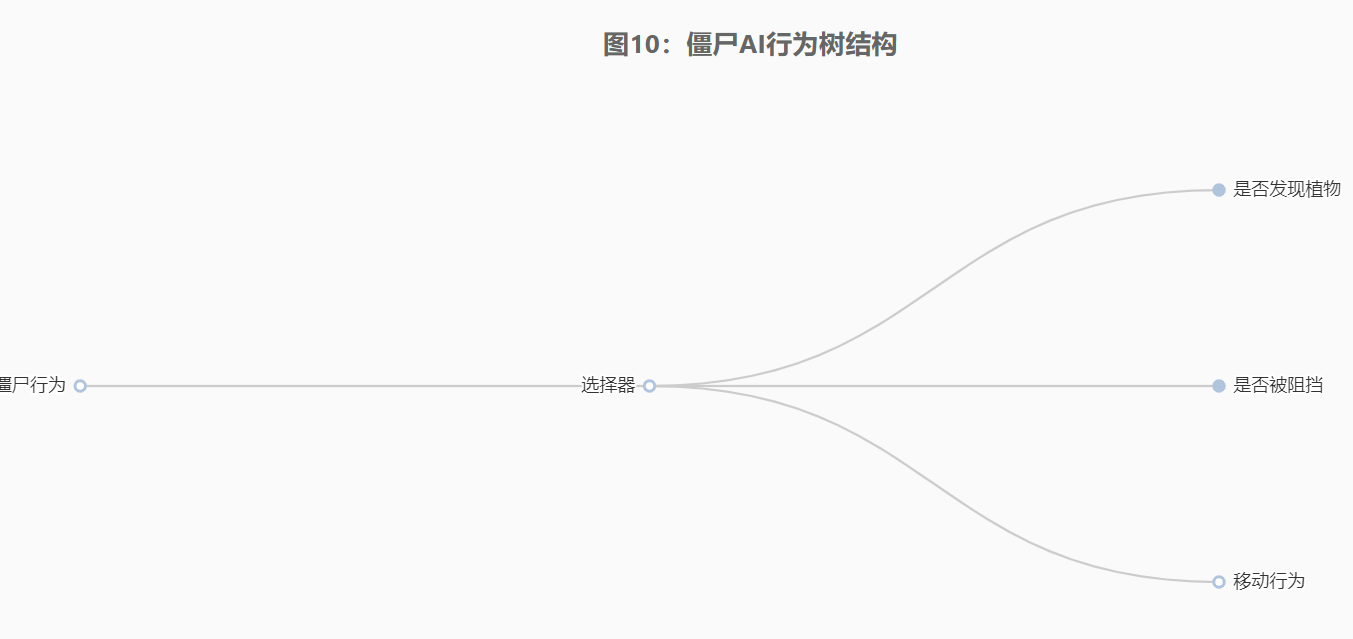

行为树是实现复杂AI行为的强大工具，特别适合游戏NPC。在塔防游戏中，僵尸的行为可以通过行为树来组织和控制。如下所示：
在这里插入图片描述

class TreeNode:SUCCESS = 0FAILURE = 1RUNNING = 2def execute(self, agent, dt):passclass Sequence(TreeNode):def __init__(self, children):self.children = childrendef execute(self, agent, dt):for child in self.children:result = child.execute(agent, dt)if result != TreeNode.SUCCESS:return resultreturn TreeNode.SUCCESSclass Selector(TreeNode):def __init__(self, children):self.children = childrendef execute(self, agent, dt):for child in self.children:result = child.execute(agent, dt)if result != TreeNode.FAILURE:return resultreturn TreeNode.FAILUREclass AttackAction(TreeNode):def execute(self, agent, dt):target = agent.get_nearest_plant()if target:agent.attack(target, dt)return TreeNode.SUCCESSreturn TreeNode.FAILUREclass MoveAction(TreeNode):def execute(self, agent, dt):agent.move_along_path(dt)return TreeNode.SUCCESSclass ZombieAI:def __init__(self, zombie):self.zombie = zombie# 构建行为树self.behavior_tree = Selector([AttackAction(),MoveAction()])def update(self, dt):self.behavior_tree.execute(self.zombie, dt)

4.2 路径跟随算法

僵尸需要沿着预定路径移动，路径跟随算法确保它们能够平滑地沿着路径前进：

class PathFollower:def __init__(self, path, agent):self.path = pathself.agent = agentself.current_waypoint_index = 0self.arrival_threshold = 0.5  # 到达路点的阈值距离def update(self, dt):if not self.path or self.current_waypoint_index >= len(self.path):return False  # 路径结束或无效current_waypoint = self.path[self.current_waypoint_index]agent_transform = self.agent.get_component(TransformComponent)# 计算到当前路点的向量dx = current_waypoint[0] - agent_transform.xdy = current_waypoint[1] - agent_transform.ydistance = (dx * dx + dy * dy) ** 0.5# 检查是否到达路点if distance < self.arrival_threshold:self.current_waypoint_index += 1if self.current_waypoint_index >= len(self.path):return False  # 路径完成current_waypoint = self.path[self.current_waypoint_index]dx = current_waypoint[0] - agent_transform.xdy = current_waypoint[1] - agent_transform.y# 归一化方向向量if distance > 0:dx /= distancedy /= distance# 移动代理speed = self.agent.speedagent_transform.x += dx * speed * dtagent_transform.y += dy * speed * dtreturn True  # 路径跟随继续

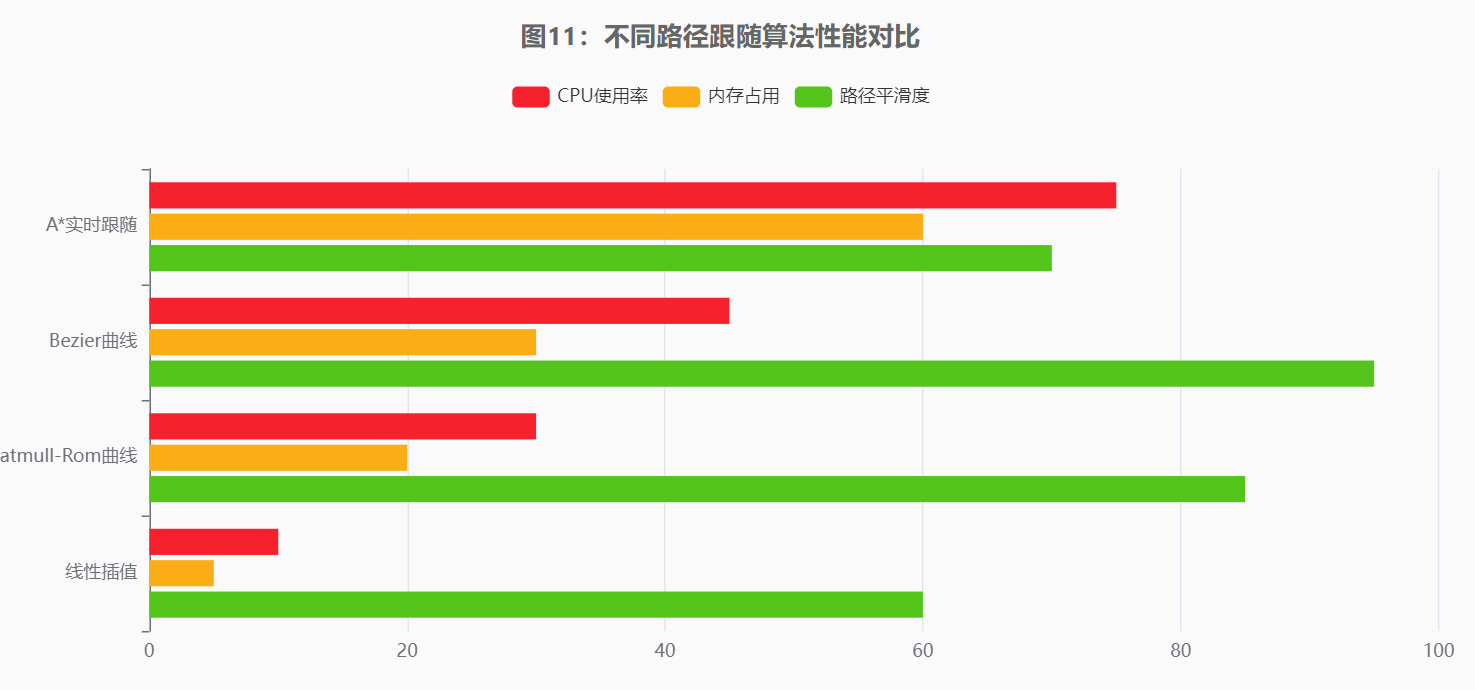

通过优化路径跟随算法，可以显著提升游戏中敌人移动的真实感和流畅度。不同路
在这里插入图片描述

4.3 植物自动攻击系统

植物的自动攻击系统需要检测范围内的敌人并进行攻击：

class AutoAttackSystem:def __init__(self, plant):self.plant = plantself.attack_cooldown = 0self.target_selector = TargetSelector()def update(self, dt, enemies):# 更新攻击冷却if self.attack_cooldown > 0:self.attack_cooldown -= dtreturn# 选择目标plant_transform = self.plant.get_component(TransformComponent)attack_range = self.plant.get_stats().get("range", 0)# 根据植物类型选择不同的目标选择策略if self.plant.plant_type == "豌豆射手" or self.plant.plant_type == "寒冰射手":# 优先攻击最近的敌人target = self.target_selector.select_nearest({"x": plant_transform.x,"y": plant_transform.y,"attack_range": attack_range}, enemies)elif self.plant.plant_type == "杨桃":# 可以攻击多个方向的植物# 这里简化处理target = self.target_selector.select_nearest({"x": plant_transform.x,"y": plant_transform.y,"attack_range": attack_range}, enemies)else:# 默认选择策略target = self.target_selector.select_nearest({"x": plant_transform.x,"y": plant_transform.y,"attack_range": attack_range}, enemies)# 进行攻击if target:self.attack(target)# 设置冷却时间self.attack_cooldown = self.plant.get_stats().get("cooldown", 1.0)def attack(self, target):# 根据植物类型创建不同类型的子弹或直接造成伤害plant_transform = self.plant.get_component(TransformComponent)damage = self.plant.get_stats().get("damage", 20)if self.plant.plant_type == "豌豆射手":# 创建普通子弹bullet = Bullet(entity_id=f"bullet_{id(self)}",bullet_type="普通",x=plant_transform.x + 0.5,y=plant_transform.y,direction=(1, 0)  # 向右发射)# 添加到游戏世界from game_world import game_worldgame_world.add_entity(bullet)elif self.plant.plant_type == "寒冰射手":# 创建寒冰子弹bullet = Bullet(entity_id=f"bullet_{id(self)}",bullet_type="寒冰",x=plant_transform.x + 0.5,y=plant_transform.y,direction=(1, 0))game_world.add_entity(bullet)elif self.plant.plant_type == "樱桃炸弹":# 范围伤害explosion_radius = self.plant.get_stats().get("area_radius", 1.5)from game_world import game_worldaffected_enemies = [e for e in game_world.get_enemies() if ((e.get_component(TransformComponent).x - plant_transform.x)**2 +(e.get_component(TransformComponent).y - plant_transform.y)**2)**0.5 <= explosion_radius]for enemy in affected_enemies:health_component = enemy.get_component(HealthComponent)if health_component:health_component.take_damage(damage)# 樱桃炸弹引爆后消失game_world.remove_entity(self.plant)

第五章：游戏优化技术

5.1 性能优化策略

塔防游戏中，随着敌人和防御单位数量的增加，性能优化变得尤为重要：

5.1.1 空间划分算法

使用四叉树（Quad Tree）或网格（Grid）来优化碰撞检测和范围查询：

class SpatialGrid:def __init__(self, world_width, world_height, cell_size=1.0):self.world_width = world_widthself.world_height = world_heightself.cell_size = cell_sizeself.cols = int(world_width / cell_size) + 1self.rows = int(world_height / cell_size) + 1# 初始化网格self.cells = [[[] for _ in range(self.cols)] for _ in range(self.rows)]def get_cell_index(self, x, y):"""获取位置对应的网格索引"""col = min(self.cols - 1, max(0, int(x / self.cell_size)))row = min(self.rows - 1, max(0, int(y / self.cell_size)))return col, rowdef insert(self, entity):"""插入实体到网格中"""transform = entity.get_component(TransformComponent)col, row = self.get_cell_index(transform.x, transform.y)self.cells[row][col].append(entity)def remove(self, entity):"""从网格中移除实体"""transform = entity.get_component(TransformComponent)col, row = self.get_cell_index(transform.x, transform.y)if entity in self.cells[row][col]:self.cells[row][col].remove(entity)def update_entity(self, entity):"""更新实体在网格中的位置"""self.remove(entity)self.insert(entity)def get_nearby_entities(self, x, y, radius):"""获取指定范围内的所有实体"""min_col, min_row = self.get_cell_index(x - radius, y - radius)max_col, max_row = self.get_cell_index(x + radius, y + radius)nearby_entities = []for row in range(min_row, max_row + 1):for col in range(min_col, max_col + 1):for entity in self.cells[row][col]:# 进一步检查实际距离e_transform = entity.get_component(TransformComponent)dx = e_transform.x - xdy = e_transform.y - yif (dx * dx + dy * dy) <= radius * radius:nearby_entities.append(entity)return nearby_entities

5.1.2 对象池模式

对象池模式用于重用频繁创建和销毁的对象，如子弹、特效等：

class ObjectPool:def __init__(self, object_factory, initial_size=10):self.object_factory = object_factory  # 创建对象的工厂函数self.pool = []# 预创建对象for _ in range(initial_size):self.pool.append(self.object_factory())def get(self):"""从池中获取一个对象，如果池为空则创建新对象"""if not self.pool:return self.object_factory()return self.pool.pop()def release(self, obj):"""将对象放回池中"""# 重置对象状态if hasattr(obj, 'reset'):obj.reset()self.pool.append(obj)def size(self):"""获取池中对象的数量"""return len(self.pool)

5.2 内存管理优化

内存管理对于游戏性能和稳定性至关重要：

class MemoryManager:def __init__(self):self.pools = {}def create_pool(self, pool_id, object_factory, initial_size=10):"""创建一个新的对象池"""self.pools[pool_id] = ObjectPool(object_factory, initial_size)def get_object(self, pool_id):"""从指定的池中获取对象"""if pool_id not in self.pools:raise ValueError(f"Pool {pool_id} not found")return self.pools[pool_id].get()def return_object(self, pool_id, obj):"""将对象返回给指定的池"""if pool_id not in self.pools:raise ValueError(f"Pool {pool_id} not found")self.pools[pool_id].release(obj)def get_pool_stats(self):"""获取所有池的统计信息"""stats = {}for pool_id, pool in self.pools.items():stats[pool_id] = pool.size()return stats

5.3 渲染优化

渲染优化可以显著提升游戏的帧率和视觉效果：

class RenderOptimizer:def __init__(self):self.camera = Noneself.layer_manager = Nonedef set_camera(self, camera):self.camera = cameradef set_layer_manager(self, layer_manager):self.layer_manager = layer_managerdef cull_entities(self, entities):"""剔除视野外的实体"""if not self.camera:return entitiesviewport_rect = self.camera.get_viewport_rect()visible_entities = []for entity in entities:transform = entity.get_component(TransformComponent)# 简单的矩形剔除if rectangle_collision(transform.x - 0.5, transform.y - 0.5, 1, 1,viewport_rect["x"], viewport_rect["y"],viewport_rect["width"], viewport_rect["height"]):visible_entities.append(entity)return visible_entitiesdef batch_render(self, renderer, entities):"""批处理渲染以减少渲染调用"""# 按纹理分类实体entities_by_texture = {}for entity in entities:render_comp = entity.get_component(RenderComponent)if render_comp and render_comp.sprite:texture = render_comp.spriteif texture not in entities_by_texture:entities_by_texture[texture] = []entities_by_texture[texture].append(entity)# 按纹理批次渲染for texture, texture_entities in entities_by_texture.items():renderer.bind_texture(texture)for entity in texture_entities:render_comp = entity.get_component(RenderComponent)transform = entity.get_component(TransformComponent)render_comp.render(renderer)

第六章：高级特性实现

6.1 关卡编辑器

关卡编辑器允许游戏开发者或玩家创建自定义关卡：

class LevelEditor:def __init__(self, game_world):self.game_world = game_worldself.selected_tool = "select"self.selected_tile = "grass"self.is_editing = Falsedef start_editing(self):self.is_editing = Trueprint("关卡编辑器已启动")def stop_editing(self):self.is_editing = Falseprint("关卡编辑器已关闭")def set_tool(self, tool_name):self.selected_tool = tool_nameprint(f"已选择工具: {tool_name}")def set_tile(self, tile_name):self.selected_tile = tile_nameprint(f"已选择瓦片: {tile_name}")def handle_click(self, x, y):"""处理编辑器中的点击事件"""if not self.is_editing:returngrid_x, grid_y = self.world_to_grid(x, y)if self.selected_tool == "select":# 选择对象entity = self.game_world.get_entity_at(x, y)if entity:print(f"选中实体: {entity.type}, ID: {entity.id}")elif self.selected_tool == "tile":# 放置瓦片self.game_world.set_tile(grid_x, grid_y, self.selected_tile)elif self.selected_tool == "plant":# 放置植物if self.selected_tile in ["豌豆射手", "向日葵", "坚果墙", "樱桃炸弹", "寒冰射手"]:plant = Plant(entity_id=f"plant_{id(self)}",plant_type=self.selected_tile,x=grid_x + 0.5,y=grid_y + 0.5,cost=self.get_plant_cost(self.selected_tile))self.game_world.add_entity(plant)elif self.selected_tool == "remove":# 删除对象entity = self.game_world.get_entity_at(x, y)if entity:self.game_world.remove_entity(entity)print(f"已删除实体: {entity.type}")def world_to_grid(self, x, y):"""将世界坐标转换为网格坐标"""grid_x = int(x)grid_y = int(y)return grid_x, grid_ydef save_level(self, filename):"""保存关卡到文件"""level_data = {"tiles": self.game_world.get_tile_data(),"plants": self.game_world.get_plant_data(),"spawn_points": self.game_world.get_spawn_points()}import jsonwith open(filename, 'w') as f:json.dump(level_data, f)print(f"关卡已保存至: {filename}")def load_level(self, filename):"""从文件加载关卡"""import jsontry:with open(filename, 'r') as f:level_data = json.load(f)# 清空当前世界self.game_world.clear()# 加载瓦片self.game_world.set_tile_data(level_data.get("tiles", []))# 加载植物for plant_data in level_data.get("plants", []):plant = Plant(entity_id=plant_data["id"],plant_type=plant_data["type"],x=plant_data["x"],y=plant_data["y"],cost=plant_data.get("cost", 100))self.game_world.add_entity(plant)# 设置出生点self.game_world.set_spawn_points(level_data.get("spawn_points", []))print(f"关卡已从: {filename} 加载")except Exception as e:print(f"加载关卡失败: {e}")def get_plant_cost(self, plant_type):"""获取植物的成本"""costs = {"豌豆射手": 100,"向日葵": 50,"坚果墙": 50,"樱桃炸弹": 150,"寒冰射手": 175}return costs.get(plant_type, 100)

6.2 成就系统

成就系统可以增加游戏的回放价值和玩家的参与度：

class AchievementSystem:def __init__(self):self.achievements = {"新手园丁": {"description": "种植你的第一株植物", "completed": False},"僵尸杀手": {"description": "消灭100个僵尸", "completed": False, "progress": 0, "target": 100},"向日葵农场主": {"description": "同时种植10个向日葵", "completed": False, "progress": 0, "target": 10},"爆破专家": {"description": "使用樱桃炸弹消灭10个僵尸", "completed": False, "progress": 0, "target": 10},"生存大师": {"description": "完成20波僵尸进攻", "completed": False, "progress": 0, "target": 20}}self.listeners = []def register_listener(self, listener):"""注册成就解锁监听器"""self.listeners.append(listener)def unregister_listener(self, listener):"""注销监听器"""if listener in self.listeners:self.listeners.remove(listener)def notify_achievement_unlocked(self, achievement_id):"""通知所有监听器成就已解锁"""for listener in self.listeners:listener(achievement_id)def update_progress(self, achievement_id, increment=1):"""更新成就进度"""if achievement_id not in self.achievements:returnachievement = self.achievements[achievement_id]if achievement["completed"]:returnif "progress" in achievement:achievement["progress"] = min(achievement["progress"] + increment, achievement["target"])# 检查是否完成if achievement["progress"] >= achievement["target"]:achievement["completed"] = Trueprint(f"成就解锁: {achievement_id} - {achievement['description']}")self.notify_achievement_unlocked(achievement_id)else:# 对于没有进度的成就，直接标记为完成achievement["completed"] = Trueprint(f"成就解锁: {achievement_id} - {achievement['description']}")self.notify_achievement_unlocked(achievement_id)def get_achievements(self):"""获取所有成就的状态"""return self.achievementsdef get_completed_count(self):"""获取已完成成就的数量"""return sum(1 for a in self.achievements.values() if a["completed"])def get_total_count(self):"""获取成就总数"""return len(self.achievements)

6.3 存档系统

存档系统允许玩家保存和加载游戏进度：

class SaveLoadSystem:def __init__(self, game_state):self.game_state = game_statedef save_game(self, slot=1):"""保存游戏进度到指定槽位"""save_data = {"version": "1.0","timestamp": self.get_current_timestamp(),"game_state": {"current_wave": self.game_state.current_wave,"player_health": self.game_state.player_health,"resources": self.game_state.resource_manager.sun,"score": self.game_state.score},"entities": self.serialize_entities(),"achievements": self.game_state.achievement_system.get_achievements()}filename = f"save_slot_{slot}.json"try:import jsonwith open(filename, 'w') as f:json.dump(save_data, f, indent=2)print(f"游戏已保存到槽位 {slot}")return Trueexcept Exception as e:print(f"保存游戏失败: {e}")return Falsedef load_game(self, slot=1):"""从指定槽位加载游戏进度"""filename = f"save_slot_{slot}.json"try:import jsonwith open(filename, 'r') as f:save_data = json.load(f)# 验证版本if save_data.get("version") != "1.0":print("存档版本不兼容")return False# 恢复游戏状态game_state_data = save_data["game_state"]self.game_state.current_wave = game_state_data["current_wave"]self.game_state.player_health = game_state_data["player_health"]self.game_state.resource_manager.sun = game_state_data["resources"]self.game_state.score = game_state_data["score"]# 恢复实体self.deserialize_entities(save_data["entities"])# 恢复成就self.game_state.achievement_system.achievements = save_data["achievements"]print(f"已从槽位 {slot} 加载游戏")return Trueexcept FileNotFoundError:print(f"找不到存档槽位 {slot}")return Falseexcept Exception as e:print(f"加载游戏失败: {e}")return Falsedef serialize_entities(self):"""序列化游戏实体"""entities_data = []for entity in self.game_state.game_world.entities:entity_data = {"id": entity.id,"type": entity.type}# 序列化转换组件transform = entity.get_component(TransformComponent)if transform:entity_data["transform"] = {"x": transform.x,"y": transform.y,"rotation": transform.rotation,"scale": transform.scale}# 序列化生命值组件health = entity.get_component(HealthComponent)if health:entity_data["health"] = {"health": health.health,"max_health": health.max_health}# 根据实体类型序列化特殊属性if entity.type == "plant":plant = entityentity_data["plant_type"] = plant.plant_typeentity_data["cost"] = plant.costelif entity.type == "zombie":zombie = entityentity_data["zombie_type"] = zombie.zombie_typeentities_data.append(entity_data)return entities_datadef deserialize_entities(self, entities_data):"""反序列化游戏实体"""# 清空当前实体self.game_state.game_world.clear_entities()for entity_data in entities_data:# 根据类型创建实体if entity_data["type"] == "plant":entity = Plant(entity_id=entity_data["id"],plant_type=entity_data["plant_type"],x=entity_data["transform"]["x"],y=entity_data["transform"]["y"],cost=entity_data["cost"])elif entity_data["type"] == "zombie":entity = Zombie(entity_id=entity_data["id"],zombie_type=entity_data["zombie_type"],x=entity_data["transform"]["x"],y=entity_data["transform"]["y"])else:# 其他类型的实体continue# 设置变换组件transform = entity.get_component(TransformComponent)if "transform" in entity_data:t_data = entity_data["transform"]transform.rotation = t_data["rotation"]transform.scale = t_data["scale"]# 设置生命值组件if "health" in entity_data and entity.get_component(HealthComponent):health_data = entity_data["health"]health_component = HealthComponent(entity, health_data["max_health"])health_component.health = health_data["health"]entity.add_component(health_component)# 添加到游戏世界self.game_state.game_world.add_entity(entity)def get_current_timestamp(self):"""获取当前时间戳"""import datetimereturn datetime.datetime.now().isoformat()def list_save_slots(self):"""列出所有可用的存档槽位"""import osslots = []for slot in range(1, 11):  # 假设有10个存档槽位filename = f"save_slot_{slot}.json"if os.path.exists(filename):try:import jsonwith open(filename, 'r') as f:save_data = json.load(f)slots.append({"slot": slot,"timestamp": save_data.get("timestamp", "未知时间"),"wave": save_data["game_state"].get("current_wave", 0),"score": save_data["game_state"].get("score", 0)})except:slots.append({"slot": slot,"timestamp": "无效存档","wave": 0,"score": 0})return slots

第七章：游戏测试与调试

7.1 单元测试

单元测试确保游戏中的各个组件能够正常工作：

import unittestclass TestPathfinding(unittest.TestCase):def setUp(self):# 创建一个简单的网格用于测试self.grid = Grid(10, 10)# 设置一些障碍物for x in range(3, 8):self.grid.set_cell(x, 5, 1)def test_simple_path(self):# 测试简单路径path = astar(self.grid, (1, 1), (9, 9))self.assertIsNotNone(path)self.assertTrue(len(path) > 0)def test_blocked_path(self):# 测试被完全阻挡的路径for x in range(1, 10):self.grid.set_cell(x, 3, 1)path = astar(self.grid, (1, 1), (9, 9))self.assertIsNone(path)def test_path_around_obstacle(self):# 测试绕过障碍物的路径path = astar(self.grid, (1, 4), (9, 4))self.assertIsNotNone(path)# 确保路径不会穿过障碍物for x, y in path:self.assertEqual(self.grid.get_cell(x, y), 0)class TestCombatSystem(unittest.TestCase):def setUp(self):self.damage_calculator = DamageCalculator()def test_basic_damage(self):# 测试基本伤害计算attacker = type('obj', (object,), {'attack_power': 50,'attack_type': '物理','crit_chance': 0,'crit_multiplier': 2.0})target = type('obj', (object,), {'physical_resistance': 20,'magic_resistance': 10})damage = self.damage_calculator.calculate_damage(attacker, target)self.assertEqual(damage, 40)  # 50 * (1 - 0.2) = 40def test_critical_hit(self):# 测试暴击伤害attacker = type('obj', (object,), {'attack_power': 50,'attack_type': '物理','crit_chance': 1.0,  # 100%暴击率'crit_multiplier': 2.0})target = type('obj', (object,), {'physical_resistance': 0,'magic_resistance': 0})damage = self.damage_calculator.calculate_damage(attacker, target)self.assertEqual(damage, 100)  # 50 * 2 = 100if __name__ == '__main__':unittest.main()

7.2 调试工具

调试工具可以帮助开发者快速定位和解决问题：

class DebugSystem:def __init__(self):self.enabled = Falseself.show_colliders = Falseself.show_paths = Falseself.show_fps = Falseself.show_entity_count = Falseself.stats = {"fps": 0,"frame_time": 0,"entity_count": 0,"collision_tests": 0}def toggle(self):"""切换调试模式"""self.enabled = not self.enabledprint(f"调试模式: {'开启' if self.enabled else '关闭'}")def toggle_colliders(self):"""切换碰撞体显示"""self.show_colliders = not self.show_collidersdef toggle_paths(self):"""切换路径显示"""self.show_paths = not self.show_pathsdef toggle_fps(self):"""切换FPS显示"""self.show_fps = not self.show_fpsdef update_stats(self, stats):"""更新统计信息"""self.stats.update(stats)def render_debug_info(self, renderer):"""渲染调试信息"""if not self.enabled:return# 渲染FPSif self.show_fps:renderer.draw_text(f"FPS: {self.stats['fps']:.1f}", 10, 10)renderer.draw_text(f"Frame Time: {self.stats['frame_time']*1000:.2f}ms", 10, 30)# 渲染实体数量if self.show_entity_count:renderer.draw_text(f"Entities: {self.stats['entity_count']}", 10, 50)def render_colliders(self, renderer, entities):"""渲染碰撞体"""if not self.enabled or not self.show_colliders:returnfor entity in entities:transform = entity.get_component(TransformComponent)if transform:# 绘制简单的圆形碰撞体renderer.draw_circle(transform.x, transform.y, 0.5,  # 假设碰撞半径为0.5(255, 0, 0, 128)  # 半透明红色)def render_paths(self, renderer, entities):"""渲染路径"""if not self.enabled or not self.show_paths:returnfor entity in entities:if entity.type == "zombie" and hasattr(entity, "path_follower"):transform = entity.get_component(TransformComponent)if transform and entity.path_follower and entity.path_follower.path:# 绘制当前路径path = entity.path_follower.pathfor i in range(1, len(path)):x1, y1 = path[i-1]x2, y2 = path[i]renderer.draw_line(x1, y1, x2, y2, (0, 0, 255, 128))# 绘制到下一个路点的连线current_idx = entity.path_follower.current_waypoint_indexif current_idx < len(path):next_x, next_y = path[current_idx]renderer.draw_line(transform.x, transform.y, next_x, next_y, (0, 255, 0, 255))
