Vue3+echarts 3d饼图

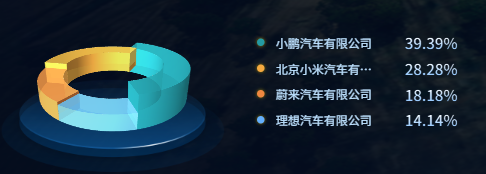

使用echarts-gl，图可以旋转，鼠标悬停会放大，变亮

<template><div class="chart"><div class="chart-container"><div ref="chartRef" class="chart3d"></div><!-- 底盘图片 --><img src="@/assets/bs_images/dz.png" alt="" class="chart-base" /></div><div class="chart-legend"><div v-for="(item, index) in seriesData" :key="index" class="legend-item"><span :style="{ backgroundColor: colors[index] }"></span><span>{{ item.name }}</span><span>{{ item.percent }}%</span></div></div></div></div>
</template><script setup lang="ts" name="MileageDistribution">
import { ref, onMounted, onBeforeUnmount } from 'vue'
import { getMileageDistribution } from "@/api/base/bigScreen/index"
import * as echarts from 'echarts'
import 'echarts-gl'const chartRef = ref<HTMLDivElement | null>(null)
let chartInstance: echarts.ECharts | null = nullconst colors = ['RGBA(36, 154, 163, 1)','RGBA(245, 169, 64, 1)','RGBA(240, 136, 64, 1)','RGBA(100, 175, 252, 1)',
]const seriesData = ref<{ name: string; value: number; percent: string; itemStyle?: any }[]>([])
let option: any = {} // 存储当前图表配置// 拉取数据并渲染
const fetchAndRender = async () => {try {const res = await getMileageDistribution()const total = res.data.reduce((sum: number, item: any) => sum + item.value, 0)seriesData.value = res.data.map((item: any, i: number) => ({name: item.label,value: item.value,percent: total ? ((item.value / total) * 100).toFixed(2) : '0', // 百分比itemStyle: { color: colors[i % colors.length], opacity: 0.7 }}))if (chartInstance) {option = getPie3D(seriesData.value, 0.8)chartInstance.setOption(option)bindListen(chartInstance)}} catch (err) {console.error('获取里程分布失败', err)}
}// 构造 3D 环图
const getPie3D = (pieData: any[], internalDiameterRatio: number) => {let series: any[] = []let sumValue = 0let startValue = 0let endValue = 0const k = 1 - internalDiameterRatiopieData.forEach(item => sumValue += item.value)pieData.forEach((item) => {endValue = startValue + item.valueitem.startRatio = startValue / sumValueitem.endRatio = endValue / sumValuestartValue = endValueseries.push({name: item.name,type: 'surface',parametric: true,shading: 'realistic',wireframe: { show: false },itemStyle: { ...item.itemStyle },pieData: item,pieStatus: { selected: false, hovered: false, k },parametricEquation: getParametricEquation(item.startRatio, item.endRatio, false, false, k, item.value),})})return {tooltip: {formatter: (params: any) => {if (params.seriesName !== 'mouseoutSeries' && params.seriesName !== 'pie2d') {const bfb = ((series[params.seriesIndex].pieData.endRatio - series[params.seriesIndex].pieData.startRatio) * 100).toFixed(2)return (`${params.seriesName}<br/>` +`<span style="display:inline-block;margin-right:4px;border-radius:50%;width:8px;height:8px;background-color:${params.color};"></span>` +`${bfb}%`)}return ''},},xAxis3D: { min: -1, max: 1 },yAxis3D: { min: -1, max: 1 },zAxis3D: { min: -1, max: 1 },grid3D: {show: false,boxHeight: 10,boxWidth: 100,boxDepth: 100,environment: 'auto',light: {main: { intensity: 1.2, shadow: true },ambient: { intensity: 0.6 },},viewControl: { alpha: 25, distance: 200, rotateSensitivity: 0, zoomSensitivity: 0, panSensitivity: 0, autoRotate: true }},series}
}// 扇形曲面方程
const getParametricEquation = (startRatio: number, endRatio: number, isSelected: boolean, isHovered: boolean, k: number, h: number) => {const midRatio = (startRatio + endRatio) / 2const startRadian = startRatio * Math.PI * 2const endRadian = endRatio * Math.PI * 2const midRadian = midRatio * Math.PI * 2if (startRatio === 0 && endRatio === 1) isSelected = falsek = typeof k !== 'undefined' ? k : 1 / 3const offsetX = isSelected ? Math.cos(midRadian) * 0.1 : 0const offsetY = isSelected ? Math.sin(midRadian) * 0.1 : 0const hoverRate = isHovered ? 1.05 : 1return {u: { min: -Math.PI, max: Math.PI * 3, step: Math.PI / 32 },v: { min: 0, max: Math.PI * 2, step: Math.PI / 20 },x(u: number, v: number) {if (u < startRadian) return offsetX + Math.cos(startRadian) * (1 + Math.cos(v) * k) * hoverRateif (u > endRadian) return offsetX + Math.cos(endRadian) * (1 + Math.cos(v) * k) * hoverRatereturn offsetX + Math.cos(u) * (1 + Math.cos(v) * k) * hoverRate},y(u: number, v: number) {if (u < startRadian) return offsetY + Math.sin(startRadian) * (1 + Math.cos(v) * k) * hoverRateif (u > endRadian) return offsetY + Math.sin(endRadian) * (1 + Math.cos(v) * k) * hoverRatereturn offsetY + Math.sin(u) * (1 + Math.cos(v) * k) * hoverRate},z(u: number, v: number) {if (u < -Math.PI * 0.5) return Math.sin(u)if (u > Math.PI * 2.5) return Math.sin(u) * h * 0.1return Math.sin(v) > 0 ? 1 * h * 0.1 : -1}}
}// 绑定点击/hover交互
const bindListen = (myChart: echarts.ECharts) => {let selectedIndex = ''let hoveredIndex = ''myChart.on('click', (params: any) => {let isSelected = !option.series[params.seriesIndex].pieStatus.selectedlet isHovered = option.series[params.seriesIndex].pieStatus.hoveredlet k = option.series[params.seriesIndex].pieStatus.klet startRatio = option.series[params.seriesIndex].pieData.startRatiolet endRatio = option.series[params.seriesIndex].pieData.endRatio// 取消上次选中if (selectedIndex !== '' && selectedIndex !== params.seriesIndex) {let old = option.series[selectedIndex]old.parametricEquation = getParametricEquation(old.pieData.startRatio, old.pieData.endRatio, false, false, k, old.pieData.value)old.pieStatus.selected = false}option.series[params.seriesIndex].parametricEquation = getParametricEquation(startRatio, endRatio, isSelected, isHovered, k, option.series[params.seriesIndex].pieData.value)option.series[params.seriesIndex].pieStatus.selected = isSelectedif (isSelected) selectedIndex = params.seriesIndexmyChart.setOption(option)})myChart.on('mouseover', (params: any) => {if (hoveredIndex === params.seriesIndex) returnif (hoveredIndex !== '') {let old = option.series[hoveredIndex]old.parametricEquation = getParametricEquation(old.pieData.startRatio, old.pieData.endRatio, old.pieStatus.selected, false, old.pieStatus.k, old.pieData.value)old.pieStatus.hovered = falsehoveredIndex = ''}if (params.seriesName !== 'mouseoutSeries' && params.seriesName !== 'pie2d') {let cur = option.series[params.seriesIndex]cur.parametricEquation = getParametricEquation(cur.pieData.startRatio, cur.pieData.endRatio, cur.pieStatus.selected, true, cur.pieStatus.k, cur.pieData.value + 5)cur.pieStatus.hovered = truehoveredIndex = params.seriesIndex}myChart.setOption(option)})myChart.on('globalout', () => {if (hoveredIndex !== '') {let old = option.series[hoveredIndex]old.parametricEquation = getParametricEquation(old.pieData.startRatio, old.pieData.endRatio, old.pieStatus.selected, false, old.pieStatus.k, old.pieData.value)old.pieStatus.hovered = falsehoveredIndex = ''myChart.setOption(option)}})
}onMounted(() => {if (chartRef.value) {chartInstance = echarts.init(chartRef.value)fetchAndRender()}
})onBeforeUnmount(() => {if (chartInstance) {chartInstance.dispose()chartInstance = null}
})
