SpringCloud系列（53）--SpringCloud Sleuth之zipkin的搭建与使用

news 2025/10/16 7:01:41

前言：在上一章节中简单的概括了SpringCloud Sleuth和zipkin之间的关系，所以为了可视化得观察服务间的调用过程，我们本节会先去搭建zipkin

1、下载zipkin的jar包

注：SpringCloud从F版起已不需要自己构建Zipkin Server，只需调用jar包即可

zipkin server jar包下载地址：https://repo1.maven.org/maven2/io/zipkin/java/zipkin-server/

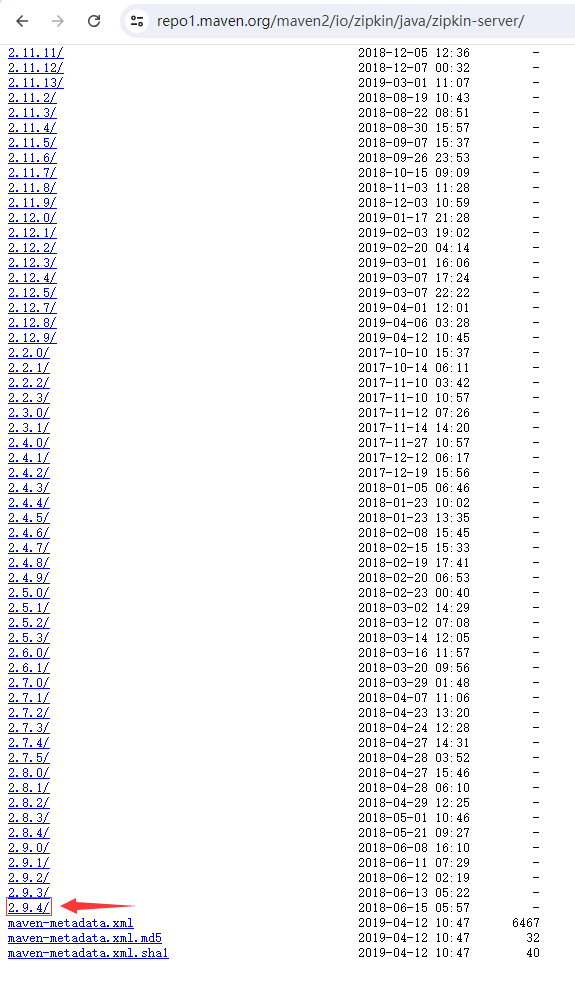

点进2.9.4版本目录

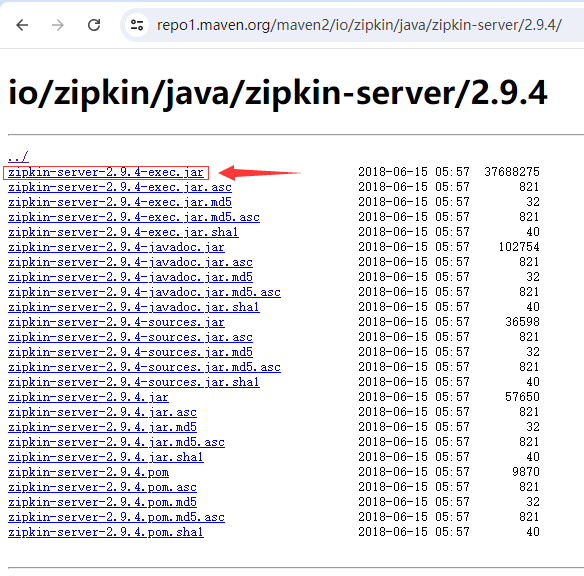

下载zipkin-server-2.9.4-exec.jar

2、运行zipkin server jar包

在zipkin-server-2.9.4-exec.jar包所在的目录运行cmd命令行，然后输入以下命令启动jar包

java -jar zipkin-server-2.9.4-exec.jar

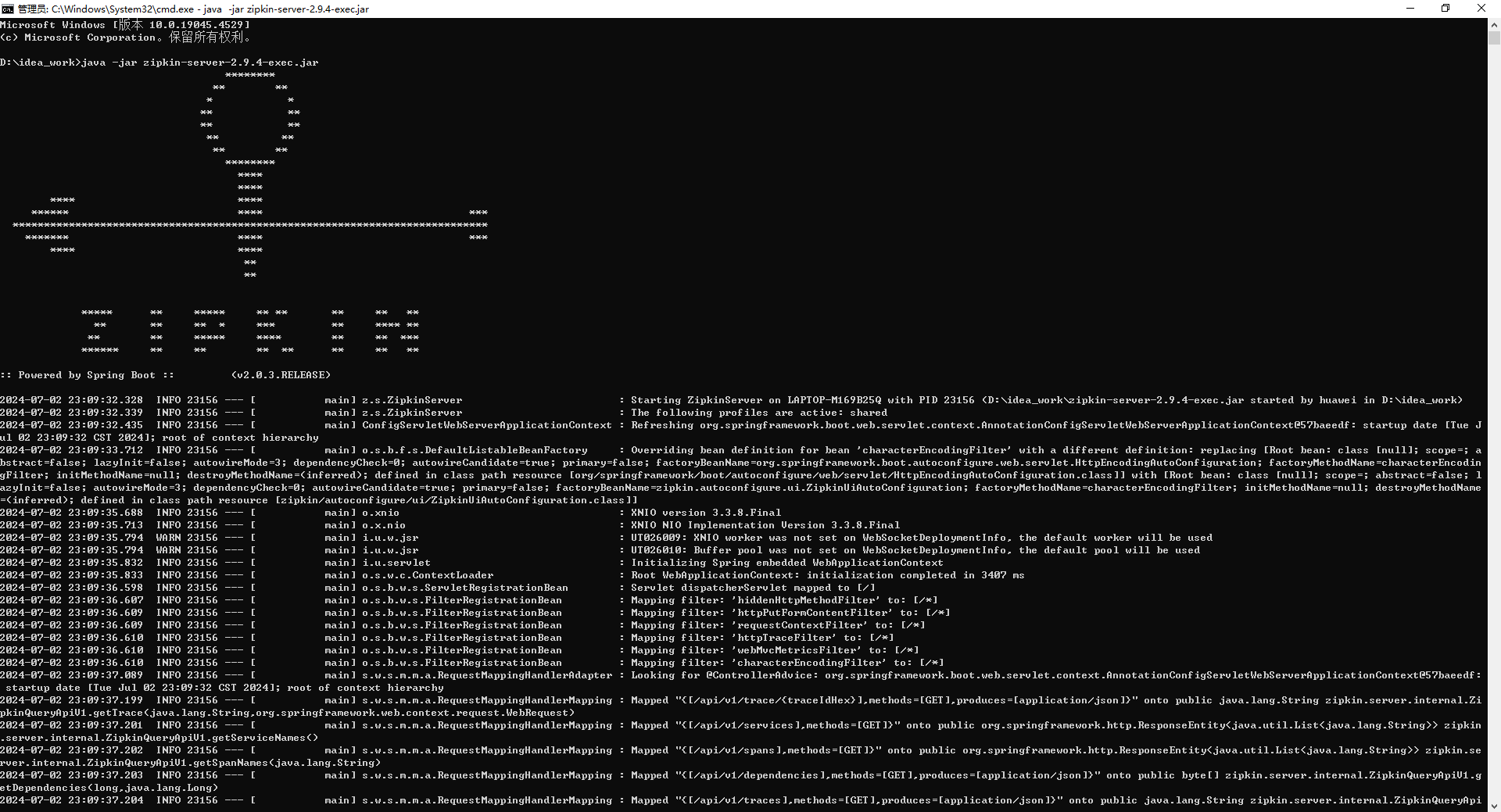

效果图：

3、查看zipkin是否正常运行

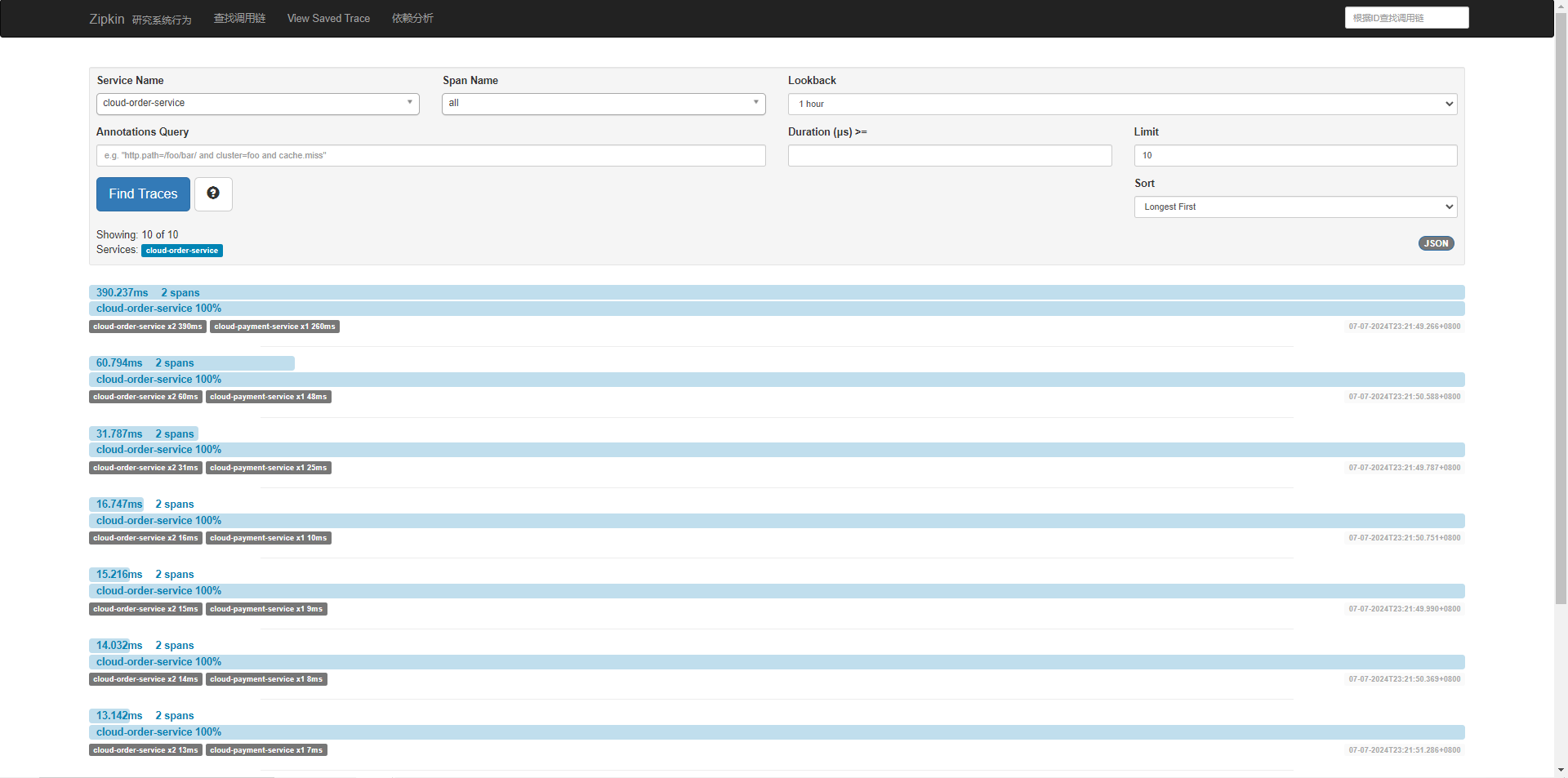

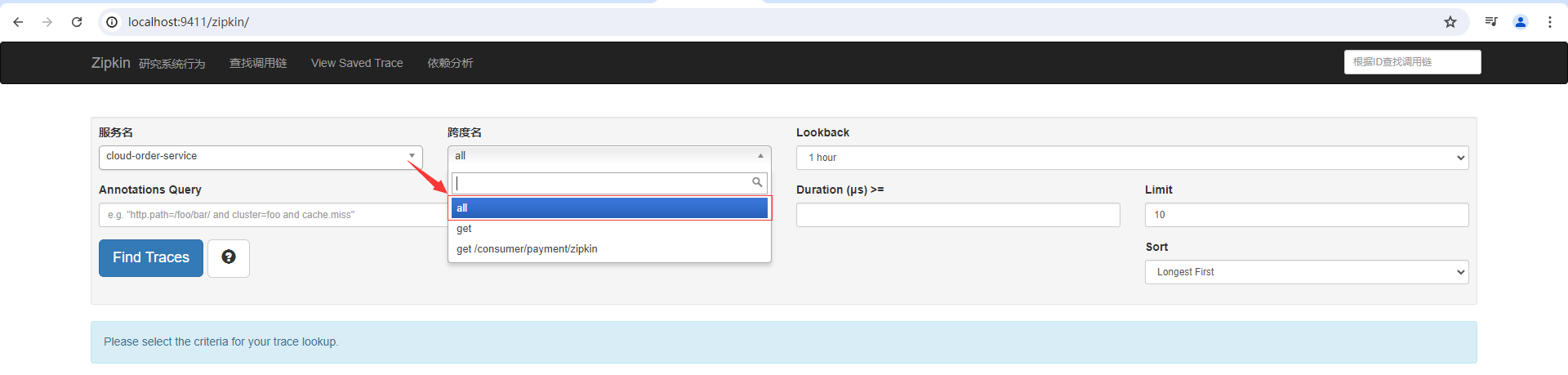

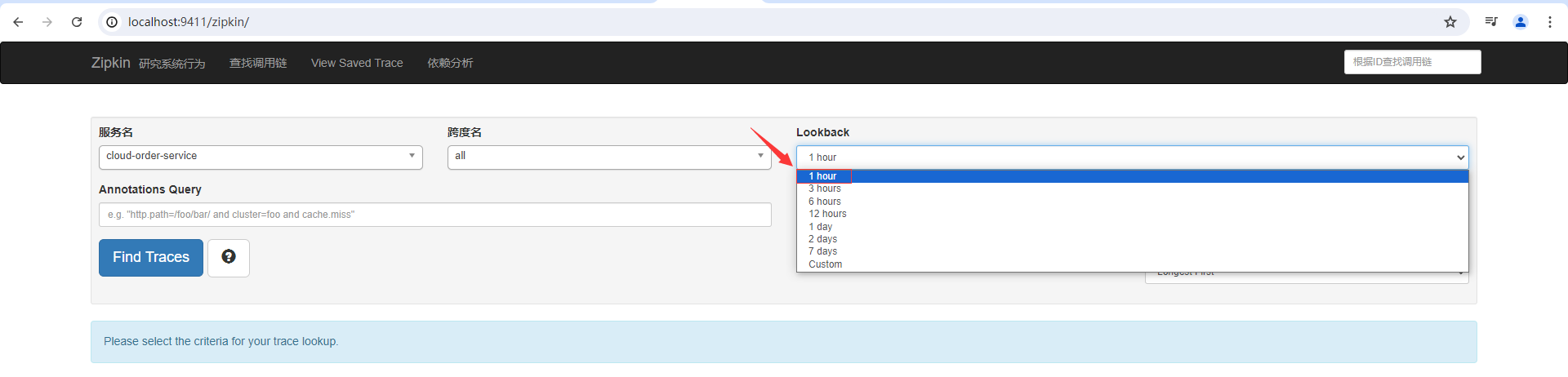

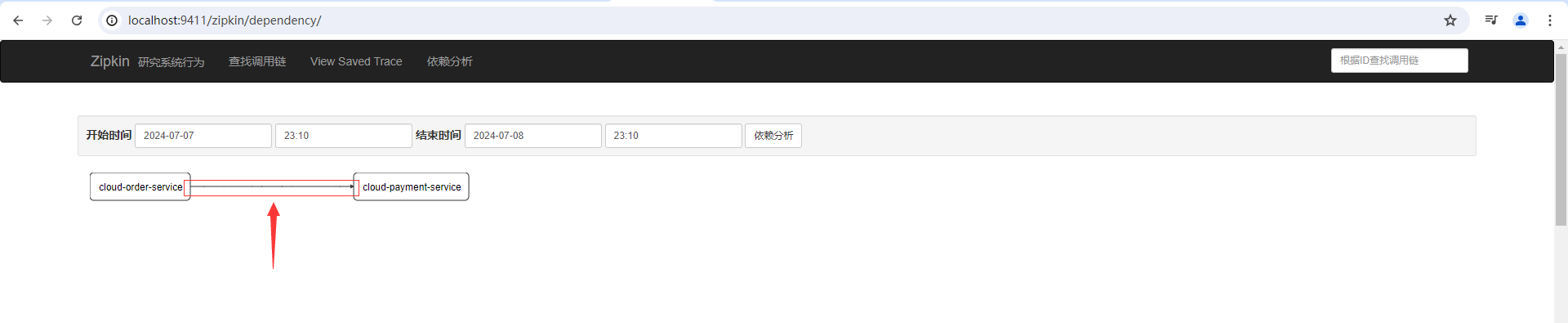

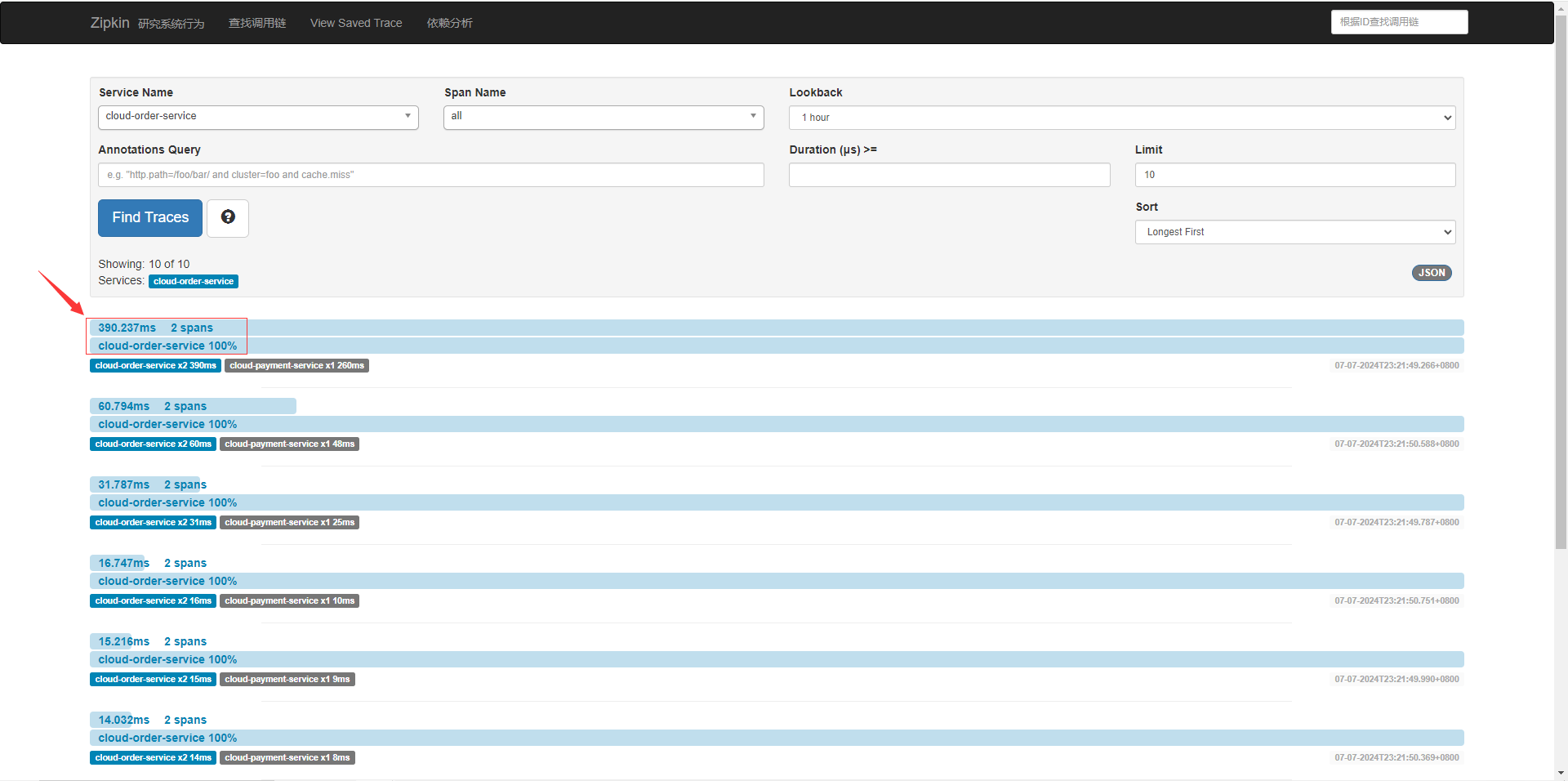

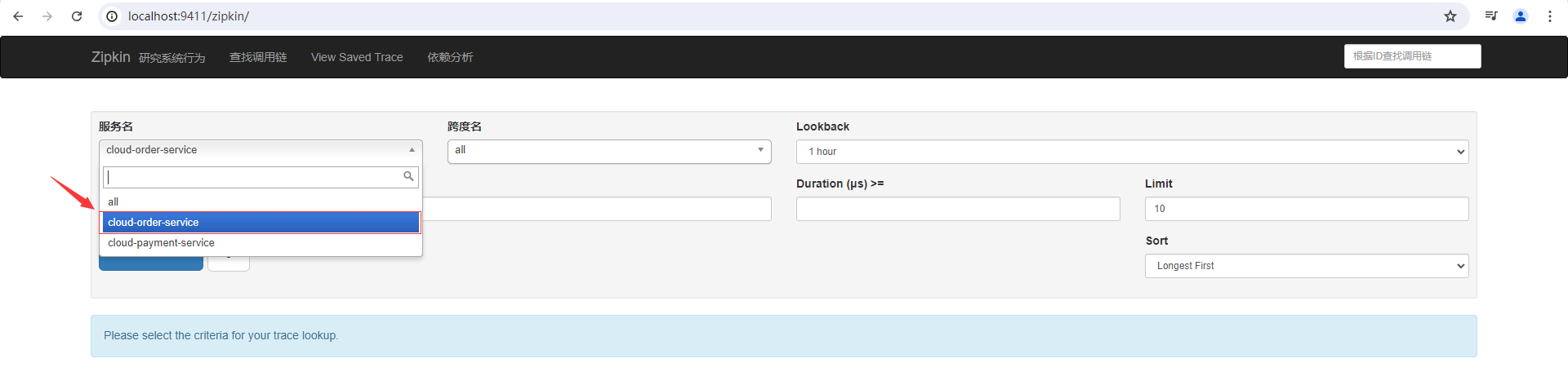

在浏览器输入http://localhost:9411/zipkin/然后按下回车，进入zipkin控制台页面

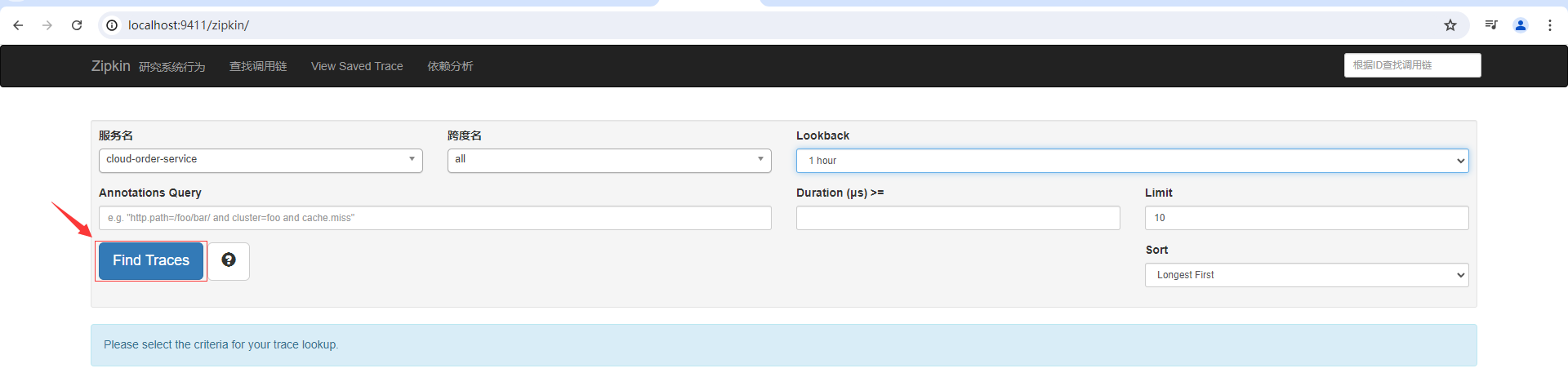

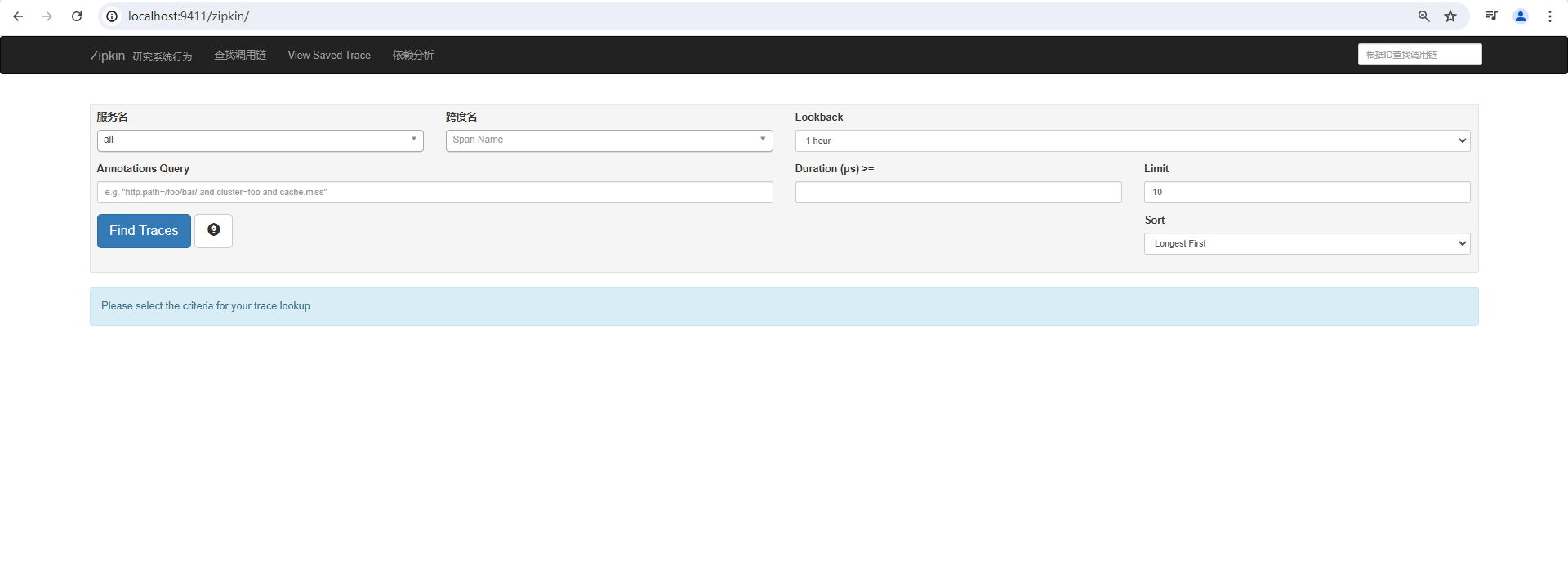

效果图：

4、相关名词解释

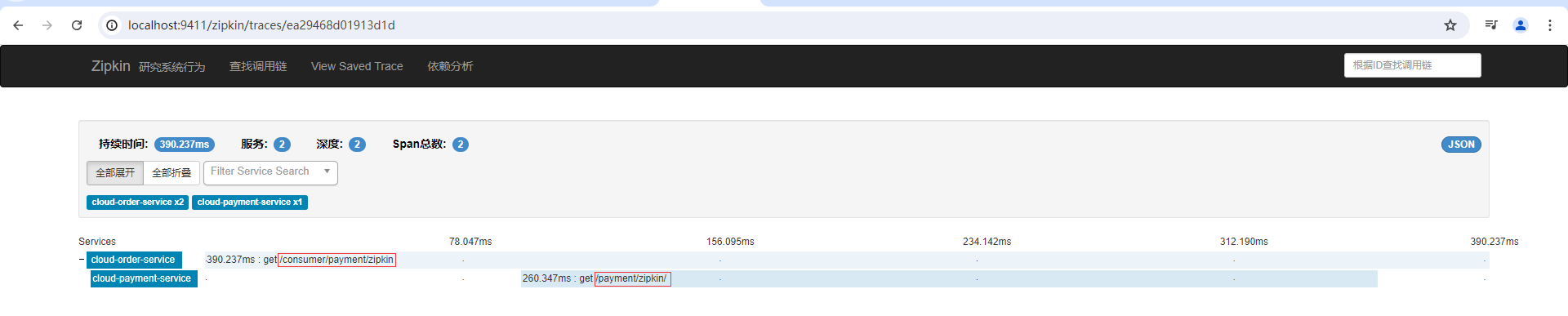

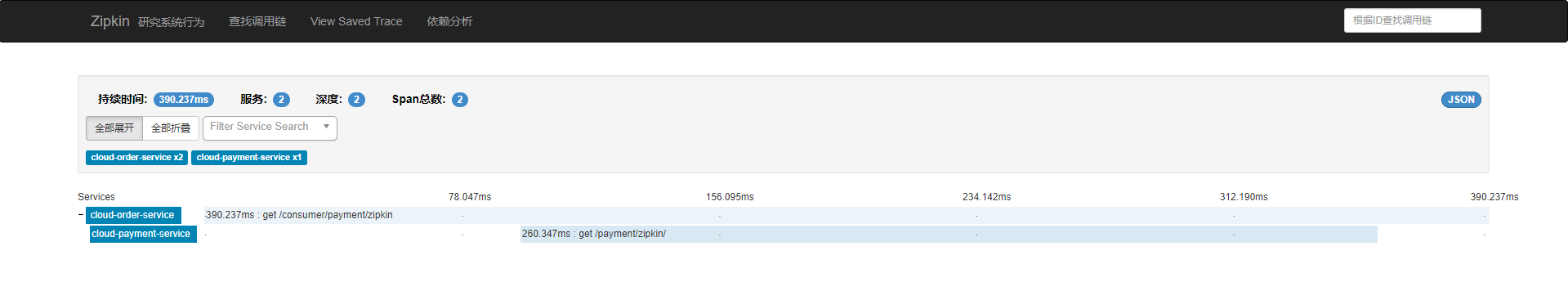

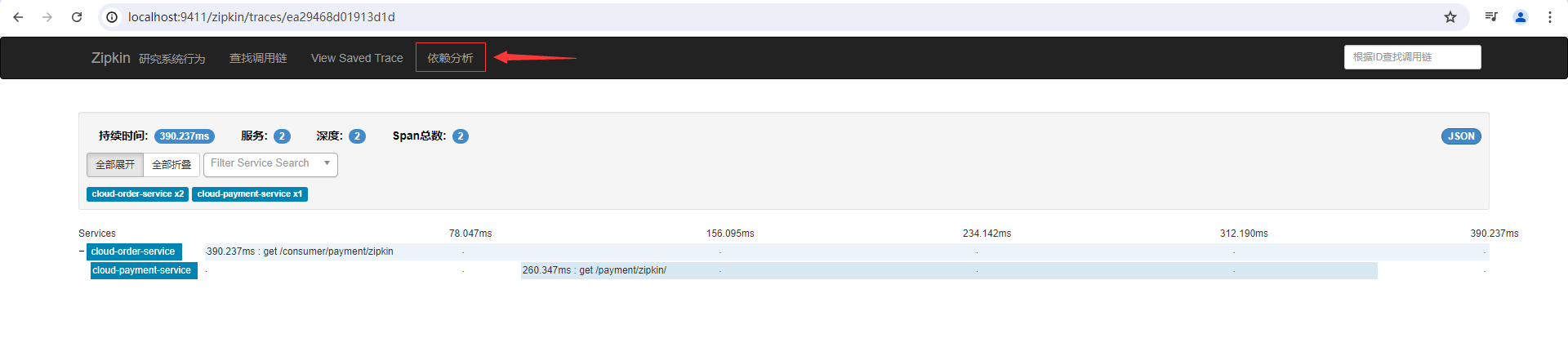

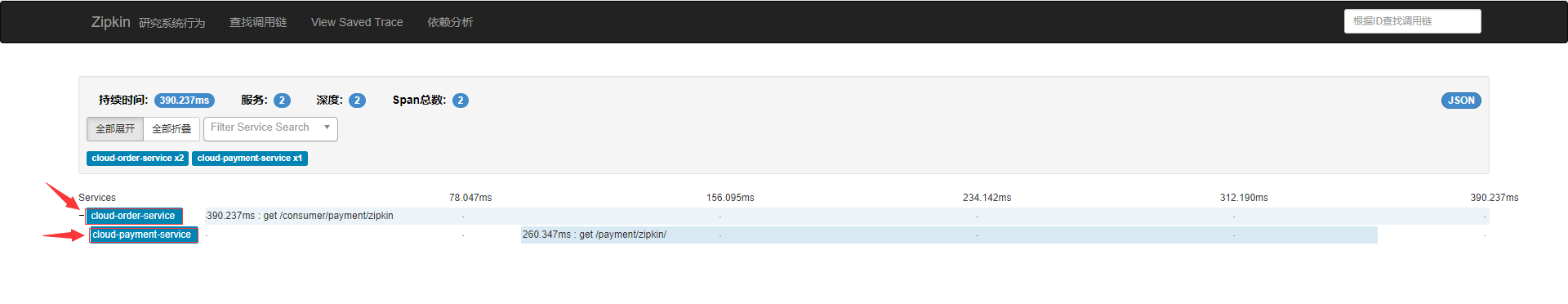

Trace：类似于树结构的Span集合，表示一条调用链路，存在唯一标识

Span：表示调用链路来源，通俗的理解span就是一次请求信息

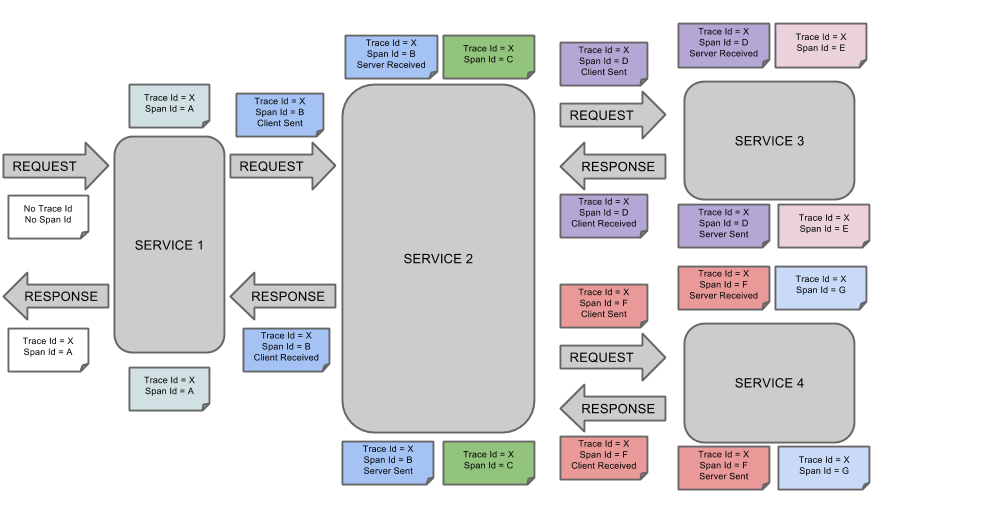

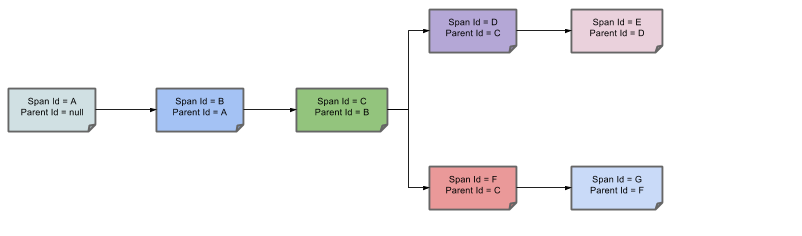

下图表示一请求链路，一条链路通过Trace ld唯一标识，Span标识发起的请求信息，各span通过parent id关联起来

把图精简下

5、修改服务提供者provider-payment8001子模块的pom.xml文件，导入zipkin依赖，然后reolad一下，下载依赖

例：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><parent><artifactId>springcloud01</artifactId><groupId>com.ken.springcloud</groupId><version>1.0-SNAPSHOT</version></parent><modelVersion>4.0.0</modelVersion><artifactId>provider-payment8001</artifactId><dependencies><!--包含了sleuth+zipkin--><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-zipkin</artifactId></dependency><!--以下依赖都没写版本号，没写版本号的情况下会引用父项目的版本--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><!--监控--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-actuator</artifactId></dependency><!--Mybatis和SpringBoot的整合--><dependency><groupId>org.mybatis.spring.boot</groupId><artifactId>mybatis-spring-boot-starter</artifactId></dependency><dependency><groupId>com.alibaba</groupId><artifactId>druid</artifactId></dependency><!--mysql-connector-java--><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId></dependency><!--jdbc--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-jdbc</artifactId></dependency><!--热部署--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-devtools</artifactId><scope>runtime</scope><optional>true</optional></dependency><!--lombok插件--><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency><!--引入自己定义的api调用包，可以使用Payment模块的entity--><dependency><groupId>com.ken.springcloud</groupId><artifactId>api-commons</artifactId><version>${project.version}</version></dependency><!--Eureka Clinet--><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-netflix-eureka-client</artifactId></dependency></dependencies></project>

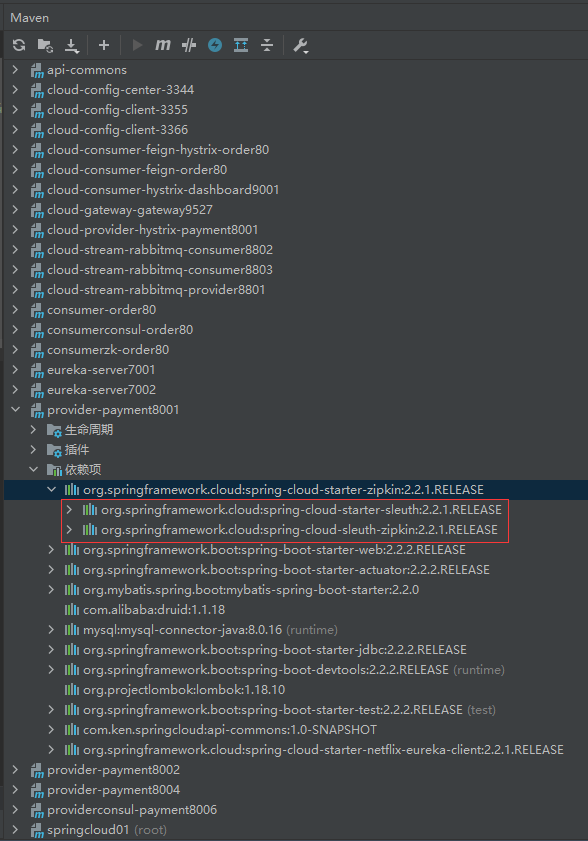

查看provider-payment8001子模块的依赖，可以看到spring-cloud-starter-zipkin包是包含了sleuth和zipkin的

6、修改provider-payment8001子模块的application.yml文件配置

#服务端口号
server:port: 8001#服务名称
spring:application:name: cloud-payment-service#指定Zipkin的服务器地址zipkin:base-url: http://localhost:9411sleuth:sampler:#采样率值介于0到1之间，1则表示全部采集（一般用0.5，这里为了演示用1）probability: 1datasource:type: com.alibaba.druid.pool.DruidDataSource      #当前数据源操作类型driver-class-name: com.mysql.cj.jdbc.Driver       #mysql驱动包（mysql驱动包版本是5的要写成com.mysql.jdbc.Driver）url: jdbc:mysql://localhost:3306/cloud?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=GMT%2B8 #mysql连接路径，记得把cloud这个数据库名改成自己的，或者新建名为cloud的数据库username: rootpassword: 123456eureka:client:#表示是否将自己注册进Eureka Server里，默认为trueregister-with-eureka: true#是否从Eureka Server抓取已有的注册信息，默认为true，单节点无所谓，集群必须设置为true才能配合ribbon使用负载均衡fetch-registry: trueservice-url:defaultZone: http://localhost:7001/eureka
#      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eurekainstance:instance-id: payment8001#访问路径可以显示IP地址prefer-ip-address: true#Eureka客户端向服务端发送心跳的时间间隔，单位为秒(默认是30秒)lease-renewal-interval-in-seconds: 1#Eureka服务端在收到最后一次心跳后等待时间上限，单位为秒(默认是90秒)，超时将剔除服务lease-expiration-duration-in-seconds: 2#mybatis配置
mybatis:mapper-locations: classpath:mapper/*.xml            #扫描类路径下的mapper文件夹下所有的.xml配置文件type-aliases-package: com.ken.springcloud.entities  #该包下的所有Entity类都取默认别名

7、修改provider-payment8001子模块的PaymentController类，增加/payment/zipkin接口

package com.ken.springcloud.controller;import com.ken.springcloud.entities.CommonResult;
import com.ken.springcloud.entities.Payment;
import com.ken.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.web.bind.annotation.*;import javax.annotation.Resource;
import java.util.List;
import java.util.concurrent.TimeUnit;@RestController
@Slf4j
public class PaymentController {@Resourceprivate PaymentService paymentService;@Value("${server.port}")private String serverPort;@Resourceprivate DiscoveryClient discoveryClient;@PostMapping("/payment/insert")public CommonResult insert(@RequestBody Payment payment) {int result = paymentService.insert(payment);log.info("插入结果{}",result);if(result > 0) {return new CommonResult(200,"插入数据库成功，提供服务的端口号为" + serverPort,result);}else {return new CommonResult(500,"插入数据库失败",result);}}@GetMapping("/payment/get/{id}")public CommonResult insert(@PathVariable("id") Long id) {Payment payment = paymentService.getPaymentById(id);log.info("查询结果{}",payment);if(payment != null) {return new CommonResult(200,"查询成功，提供服务的端口号为" + serverPort,payment);}else {return new CommonResult(500,"没有对应的数据，查询失败，查询id" + id,payment);}}@GetMapping("/payment/discovery")public Object discovery() {//获取eureka内的服务List<String> services = discoveryClient.getServices();for (String service : services) {log.info("***service:" + service);}//获取服务名为CLOUD-PAYMENT-SERVICE下的实例List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-PAYMENT-SERVICE");for (ServiceInstance instance : instances) {log.info(instance.getServiceId()+"\t"+instance.getHost()+"\t"+instance.getPort()+"\t"+instance.getUri());}return this.discoveryClient;}@GetMapping("/payment/lb")public String getPaymentLB() {//返回当前服务的端口号return serverPort;}@GetMapping("/payment/feign/timeout")public String paymentFeigntimeout() {try {TimeUnit.SECONDS.sleep(3);} catch (InterruptedException e) {e.printStackTrace();}//返回当前服务的端口号return serverPort;}@GetMapping("/payment/zipkin")public String paymentZipkin() {return "进入provider-payment8001模块的/payment/zipkin接口";}}

8、修改服务消费者consumer-order80子模块的pom.xml文件，导入zipkin依赖，然后reolad一下，下载依赖

例：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><parent><artifactId>springcloud01</artifactId><groupId>com.ken.springcloud</groupId><version>1.0-SNAPSHOT</version></parent><modelVersion>4.0.0</modelVersion><artifactId>consumer-order80</artifactId><dependencies><!--包含了sleuth+zipkin--><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-zipkin</artifactId></dependency><!--以下依赖都没写版本号，没写版本号的情况下会引用父项目的版本--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><!--监控--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-actuator</artifactId></dependency><!--热部署--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-devtools</artifactId><scope>runtime</scope><optional>true</optional></dependency><!--lombok插件--><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency><!--引入自己定义的api调用包，可以使用Payment模块的entity--><dependency><groupId>com.ken.springcloud</groupId><artifactId>api-commons</artifactId><version>${project.version}</version></dependency><!--Eureka Clinet--><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-netflix-eureka-client</artifactId></dependency></dependencies></project>

9、修改consumer-order80子模块的application.yml文件配置

server:port: 80  #用80端口是因为浏览器网页服务默认的端口号都是80（80端口是为HTTP开放的）spring:application:name: cloud-order-service#指定Zipkin的服务器地址zipkin:base-url: http://localhost:9411sleuth:sampler:#采样率值介于0到1之间，1则表示全部采集（一般用0.5，这里为了演示用1）probability: 1eureka:client:#表示是否将自己注册进Eureka Server里，默认为trueregister-with-eureka: true#是否从Eureka Server抓取已有的注册信息，默认为true，单节点无所谓，集群必须设置为true才能配合ribbon使用负载均衡fetch-registry: trueservice-url:#defaultZone: http://localhost:7001/eurekadefaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka
#ribbon:
#  NFLoadBalancerRuleClassName=com.netflix.loadbalancer.RandomRule

10、修改consumer-order80子模块的OrderController类，增加/consumer/payment/zipkin接口
