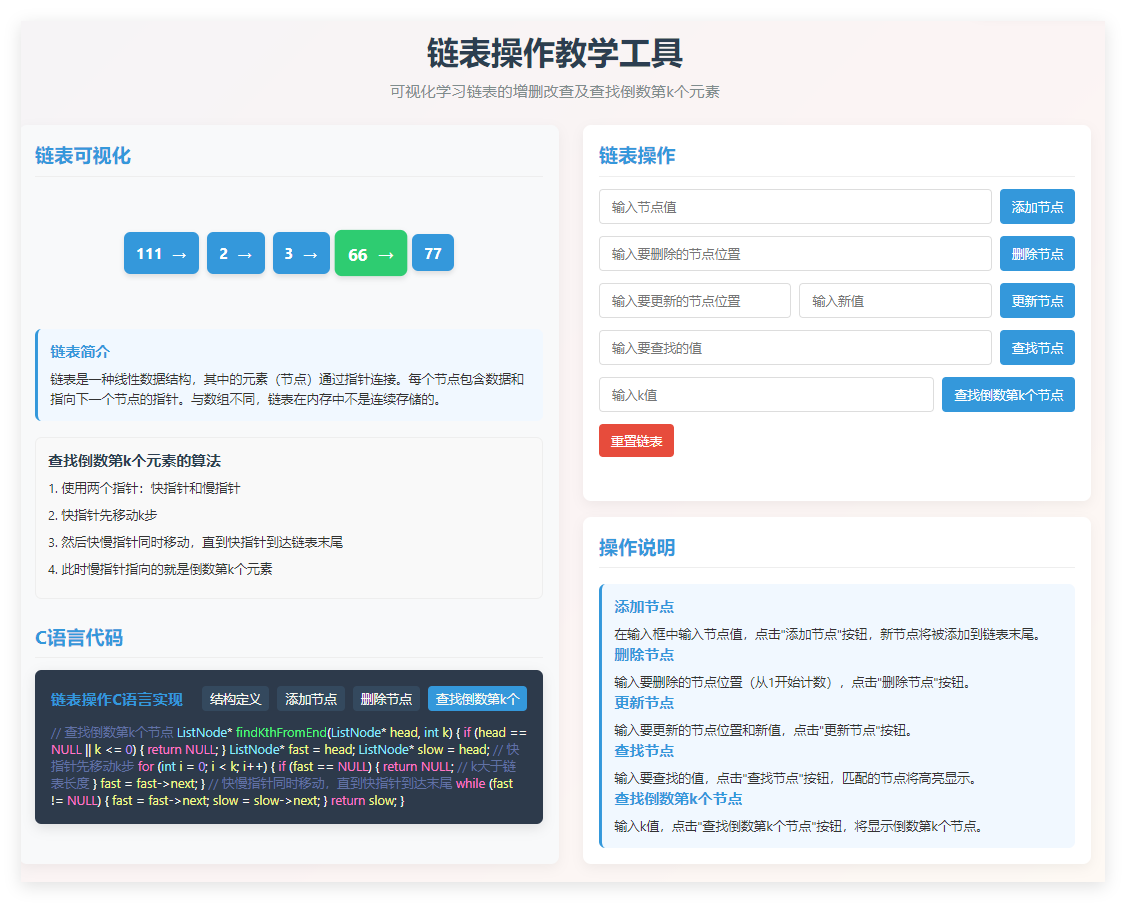

<body><div class="container"><header><h1>链表操作教学工具</h1><p class="subtitle">可视化学习链表的增删改查及查找倒数第k个元素</p></header><div class="content"><div class="visualization"><h2>链表可视化</h2><div class="linked-list" id="linkedList"></div><div class="explanation"><h3>链表简介</h3><p>链表是一种线性数据结构，其中的元素（节点）通过指针连接。每个节点包含数据和指向下一个节点的指针。与数组不同，链表在内存中不是连续存储的。</p></div><div class="algorithm"><h3>查找倒数第k个元素的算法</h3><p>1. 使用两个指针：快指针和慢指针</p><p>2. 快指针先移动k步</p><p>3. 然后快慢指针同时移动，直到快指针到达链表末尾</p><p>4. 此时慢指针指向的就是倒数第k个元素</p></div><div class="code-section"><h2>C语言代码</h2><div class="code-container"><div class="code-header"><div class="code-title">链表操作C语言实现</div><div class="code-tabs"><div class="code-tab active" data-tab="struct">结构定义</div><div class="code-tab" data-tab="add">添加节点</div><div class="code-tab" data-tab="delete">删除节点</div><div class="code-tab" data-tab="findk">查找倒数第k个</div></div></div><div id="codeContent"></div></div></div></div><div class="controls"><div class="panel"><h2>链表操作</h2><div class="input-group"><input type="number" id="nodeValue" placeholder="输入节点值"><button id="addNode">添加节点</button></div><div class="input-group"><input type="number" id="deleteIndex" placeholder="输入要删除的节点位置"><button id="deleteNode">删除节点</button></div><div class="input-group"><input type="number" id="updateIndex" placeholder="输入要更新的节点位置"><input type="number" id="updateValue" placeholder="输入新值"><button id="updateNode">更新节点</button></div><div class="input-group"><input type="number" id="searchValue" placeholder="输入要查找的值"><button id="searchNode">查找节点</button></div><div class="input-group"><input type="number" id="kValue" placeholder="输入k值"><button id="findKth">查找倒数第k个节点</button></div><button id="resetList" style="background-color: #e74c3c;">重置链表</button><div id="statusMessage" class="status"></div></div><div class="panel"><h2>操作说明</h2><div class="explanation"><h3>添加节点</h3><p>在输入框中输入节点值，点击"添加节点"按钮，新节点将被添加到链表末尾。</p><h3>删除节点</h3><p>输入要删除的节点位置（从1开始计数），点击"删除节点"按钮。</p><h3>更新节点</h3><p>输入要更新的节点位置和新值，点击"更新节点"按钮。</p><h3>查找节点</h3><p>输入要查找的值，点击"查找节点"按钮，匹配的节点将高亮显示。</p><h3>查找倒数第k个节点</h3><p>输入k值，点击"查找倒数第k个节点"按钮，将显示倒数第k个节点。</p></div></div></div></div></div><script>class ListNode {constructor(value) {this.value = value;this.next = null;}}class LinkedList {constructor() {this.head = null;this.size = 0;}add(value) {const newNode = new ListNode(value);if (!this.head) {this.head = newNode;} else {let current = this.head;while (current.next) {current = current.next;}current.next = newNode;}this.size++;return true;}deleteAt(position) {if (position < 1 || position > this.size) {return false;}if (position === 1) {this.head = this.head.next;} else {let current = this.head;let previous = null;let index = 1;while (index < position) {previous = current;current = current.next;index++;}previous.next = current.next;}this.size--;return true;}updateAt(position, newValue) {if (position < 1 || position > this.size) {return false;}let current = this.head;let index = 1;while (index < position) {current = current.next;index++;}current.value = newValue;return true;}search(value) {let current = this.head;let index = 1;let positions = [];while (current) {if (current.value === value) {positions.push(index);}current = current.next;index++;}return positions;}findKthFromEnd(k) {if (k < 1 || k > this.size) {return null;}let fast = this.head;let slow = this.head;for (let i = 0; i < k; i++) {fast = fast.next;}while (fast) {fast = fast.next;slow = slow.next;}return slow;}getValues() {const values = [];let current = this.head;while (current) {values.push(current.value);current = current.next;}return values;}}const cCodeSnippets = {struct: `
<span class="code-comment">// 链表节点结构定义</span>
<span class="code-keyword">typedef struct</span> <span class="code-type">ListNode</span> {<span class="code-type">int</span> <span class="code-var">val</span>;<span class="code-keyword">struct</span> <span class="code-type">ListNode</span> *<span class="code-var">next</span>;
} <span class="code-type">ListNode</span>;<span class="code-comment">// 创建新节点</span>
<span class="code-type">ListNode</span>* <span class="code-function">createNode</span>(<span class="code-type">int</span> <span class="code-var">val</span>) {<span class="code-type">ListNode</span>* <span class="code-var">newNode</span> = (<span class="code-type">ListNode</span>*)<span class="code-function">malloc</span>(<span class="code-keyword">sizeof</span>(<span class="code-type">ListNode</span>));<span class="code-var">newNode</span>-><span class="code-var">val</span> = <span class="code-var">val</span>;<span class="code-var">newNode</span>-><span class="code-var">next</span> = <span class="code-keyword">NULL</span>;<span class="code-keyword">return</span> <span class="code-var">newNode</span>;
}`,add: `
<span class="code-comment">// 在链表末尾添加节点</span>
<span class="code-type">void</span> <span class="code-function">addNode</span>(<span class="code-type">ListNode</span>** <span class="code-var">head</span>, <span class="code-type">int</span> <span class="code-var">val</span>) {<span class="code-type">ListNode</span>* <span class="code-var">newNode</span> = <span class="code-function">createNode</span>(<span class="code-var">val</span>);<span class="code-keyword">if</span> (*<span class="code-var">head</span> == <span class="code-keyword">NULL</span>) {*<span class="code-var">head</span> = <span class="code-var">newNode</span>;<span class="code-keyword">return</span>;}<span class="code-type">ListNode</span>* <span class="code-var">current</span> = *<span class="code-var">head</span>;<span class="code-keyword">while</span> (<span class="code-var">current</span>-><span class="code-var">next</span> != <span class="code-keyword">NULL</span>) {<span class="code-var">current</span> = <span class="code-var">current</span>-><span class="code-var">next</span>;}<span class="code-var">current</span>-><span class="code-var">next</span> = <span class="code-var">newNode</span>;
}`,delete: `
<span class="code-comment">// 删除指定位置的节点</span>
<span class="code-type">int</span> <span class="code-function">deleteNode</span>(<span class="code-type">ListNode</span>** <span class="code-var">head</span>, <span class="code-type">int</span> <span class="code-var">position</span>) {<span class="code-keyword">if</span> (*<span class="code-var">head</span> == <span class="code-keyword">NULL</span> || <span class="code-var">position</span> < <span class="code-number">1</span>) {<span class="code-keyword">return</span> <span class="code-number">0</span>; <span class="code-comment">// 删除失败</span>}<span class="code-keyword">if</span> (<span class="code-var">position</span> == <span class="code-number">1</span>) {<span class="code-type">ListNode</span>* <span class="code-var">temp</span> = *<span class="code-var">head</span>;*<span class="code-var">head</span> = (*<span class="code-var">head</span>)-><span class="code-var">next</span>;<span class="code-function">free</span>(<span class="code-var">temp</span>);<span class="code-keyword">return</span> <span class="code-number">1</span>; <span class="code-comment">// 删除成功</span>}<span class="code-type">ListNode</span>* <span class="code-var">current</span> = *<span class="code-var">head</span>;<span class="code-type">ListNode</span>* <span class="code-var">prev</span> = <span class="code-keyword">NULL</span>;<span class="code-type">int</span> <span class="code-var">count</span> = <span class="code-number">1</span>;<span class="code-keyword">while</span> (<span class="code-var">current</span> != <span class="code-keyword">NULL</span> && <span class="code-var">count</span> < <span class="code-var">position</span>) {<span class="code-var">prev</span> = <span class="code-var">current</span>;<span class="code-var">current</span> = <span class="code-var">current</span>-><span class="code-var">next</span>;<span class="code-var">count</span>++;}<span class="code-keyword">if</span> (<span class="code-var">current</span> == <span class="code-keyword">NULL</span>) {<span class="code-keyword">return</span> <span class="code-number">0</span>; <span class="code-comment">// 位置超出链表长度</span>}<span class="code-var">prev</span>-><span class="code-var">next</span> = <span class="code-var">current</span>-><span class="code-var">next</span>;<span class="code-function">free</span>(<span class="code-var">current</span>);<span class="code-keyword">return</span> <span class="code-number">1</span>; <span class="code-comment">// 删除成功</span>
}`,findk: `
<span class="code-comment">// 查找倒数第k个节点</span>
<span class="code-type">ListNode</span>* <span class="code-function">findKthFromEnd</span>(<span class="code-type">ListNode</span>* <span class="code-var">head</span>, <span class="code-type">int</span> <span class="code-var">k</span>) {<span class="code-keyword">if</span> (<span class="code-var">head</span> == <span class="code-keyword">NULL</span> || <span class="code-var">k</span> <= <span class="code-number">0</span>) {<span class="code-keyword">return</span> <span class="code-keyword">NULL</span>;}<span class="code-type">ListNode</span>* <span class="code-var">fast</span> = <span class="code-var">head</span>;<span class="code-type">ListNode</span>* <span class="code-var">slow</span> = <span class="code-var">head</span>;<span class="code-comment">// 快指针先移动k步</span><span class="code-keyword">for</span> (<span class="code-type">int</span> <span class="code-var">i</span> = <span class="code-number">0</span>; <span class="code-var">i</span> < <span class="code-var">k</span>; <span class="code-var">i</span>++) {<span class="code-keyword">if</span> (<span class="code-var">fast</span> == <span class="code-keyword">NULL</span>) {<span class="code-keyword">return</span> <span class="code-keyword">NULL</span>; <span class="code-comment">// k大于链表长度</span>}<span class="code-var">fast</span> = <span class="code-var">fast</span>-><span class="code-var">next</span>;}<span class="code-comment">// 快慢指针同时移动，直到快指针到达末尾</span><span class="code-keyword">while</span> (<span class="code-var">fast</span> != <span class="code-keyword">NULL</span>) {<span class="code-var">fast</span> = <span class="code-var">fast</span>-><span class="code-var">next</span>;<span class="code-var">slow</span> = <span class="code-var">slow</span>-><span class="code-var">next</span>;}<span class="code-keyword">return</span> <span class="code-var">slow</span>;
}`};const linkedList = new LinkedList();const linkedListElement = document.getElementById('linkedList');const statusMessage = document.getElementById('statusMessage');const codeContent = document.getElementById('codeContent');function renderLinkedList(highlightIndex = null, kthHighlight = null) {linkedListElement.innerHTML = '';if (linkedList.size === 0) {linkedListElement.innerHTML = '<p style="text-align: center; color: #7f8c8d;">链表为空，请添加节点</p>';return;}let current = linkedList.head;let index = 1;while (current) {const nodeElement = document.createElement('div');nodeElement.className = 'node';if (highlightIndex && highlightIndex.includes(index)) {nodeElement.classList.add('highlight');}if (kthHighlight && kthHighlight === index) {nodeElement.classList.add('kth-highlight');}nodeElement.innerHTML = `<div class="node-value">${current.value}</div>${current.next ? '<div class="node-pointer">→</div>' : ''}`;linkedListElement.appendChild(nodeElement);current = current.next;index++;}}function renderCode(tab) {codeContent.innerHTML = cCodeSnippets[tab];document.querySelectorAll('.code-tab').forEach(tabElement => {if (tabElement.getAttribute('data-tab') === tab) {tabElement.classList.add('active');} else {tabElement.classList.remove('active');}});}function showStatus(message, type = 'info') {statusMessage.textContent = message;statusMessage.className = `status ${type}`;setTimeout(() => {statusMessage.textContent = '';statusMessage.className = 'status';}, 3000);}document.getElementById('addNode').addEventListener('click', () => {const valueInput = document.getElementById('nodeValue');const value = parseInt(valueInput.value);if (isNaN(value)) {showStatus('请输入有效的节点值', 'error');return;}linkedList.add(value);renderLinkedList();valueInput.value = '';showStatus(`成功添加节点: ${value}`, 'success');});document.getElementById('deleteNode').addEventListener('click', () => {const indexInput = document.getElementById('deleteIndex');const position = parseInt(indexInput.value);if (isNaN(position) || position < 1) {showStatus('请输入有效的节点位置', 'error');return;}if (linkedList.deleteAt(position)) {renderLinkedList();indexInput.value = '';showStatus(`成功删除位置 ${position} 的节点`, 'success');} else {showStatus(`位置 ${position} 无效，无法删除节点`, 'error');}});document.getElementById('updateNode').addEventListener('click', () => {const indexInput = document.getElementById('updateIndex');const valueInput = document.getElementById('updateValue');const position = parseInt(indexInput.value);const newValue = parseInt(valueInput.value);if (isNaN(position) || position < 1 || isNaN(newValue)) {showStatus('请输入有效的节点位置和新值', 'error');return;}if (linkedList.updateAt(position, newValue)) {renderLinkedList([position]);indexInput.value = '';valueInput.value = '';showStatus(`成功更新位置 ${position} 的节点值为 ${newValue}`, 'success');} else {showStatus(`位置 ${position} 无效，无法更新节点`, 'error');}});document.getElementById('searchNode').addEventListener('click', () => {const valueInput = document.getElementById('searchValue');const value = parseInt(valueInput.value);if (isNaN(value)) {showStatus('请输入有效的查找值', 'error');return;}const positions = linkedList.search(value);if (positions.length > 0) {renderLinkedList(positions);valueInput.value = '';showStatus(`找到值为 ${value} 的节点，位置: ${positions.join(', ')}`, 'success');} else {showStatus(`未找到值为 ${value} 的节点`, 'error');}});document.getElementById('findKth').addEventListener('click', () => {const kInput = document.getElementById('kValue');const k = parseInt(kInput.value);if (isNaN(k) || k < 1) {showStatus('请输入有效的k值', 'error');return;}const kthNode = linkedList.findKthFromEnd(k);if (kthNode) {let position = 1;let current = linkedList.head;while (current !== kthNode) {current = current.next;position++;}renderLinkedList(null, position);kInput.value = '';showStatus(`倒数第 ${k} 个节点的值为: ${kthNode.value}`, 'success');} else {showStatus(`k值 ${k} 无效，链表长度: ${linkedList.size}`, 'error');}});document.getElementById('resetList').addEventListener('click', () => {linkedList.head = null;linkedList.size = 0;renderLinkedList();showStatus('链表已重置', 'info');});document.querySelectorAll('.code-tab').forEach(tab => {tab.addEventListener('click', () => {const tabName = tab.getAttribute('data-tab');renderCode(tabName);});});renderLinkedList();renderCode('struct');</script>
