SAP MM供应商主数据维护接口分享

news 2025/10/13 10:28:33

一、接口逻辑

1）外围系统：适用于走OA或SRM系统创建供应商与SAP交互

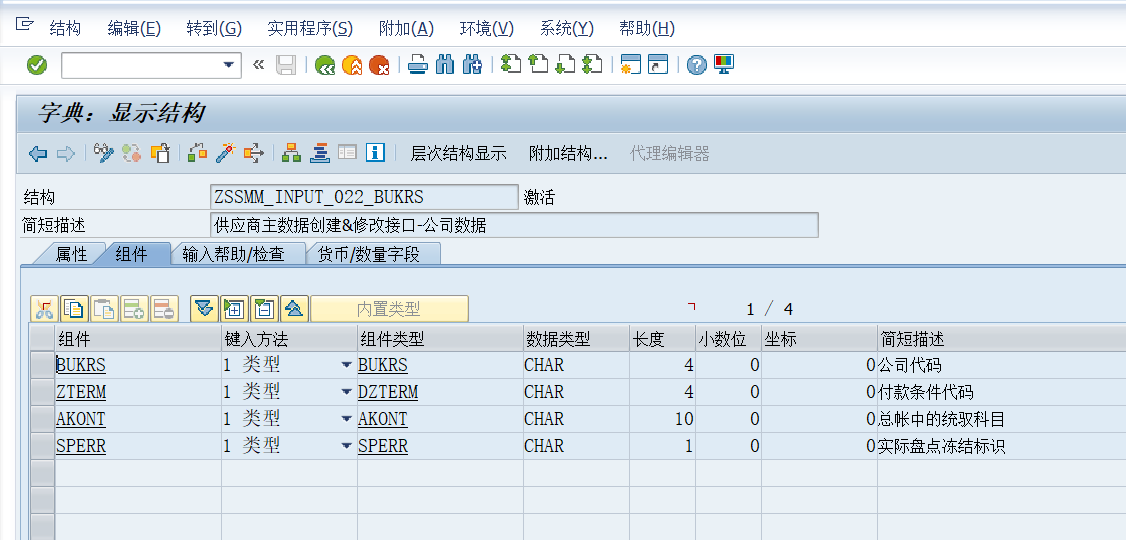

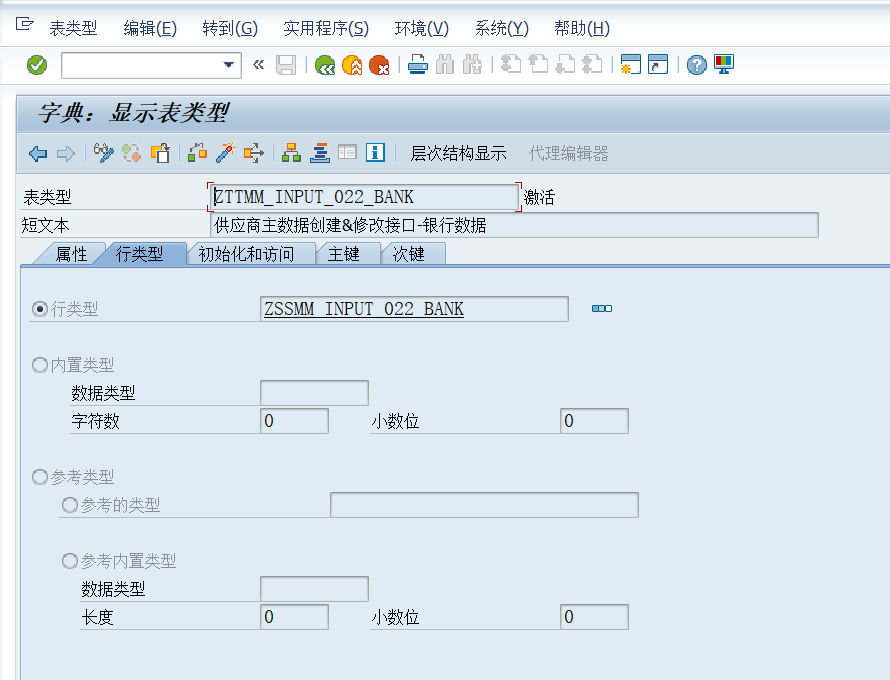

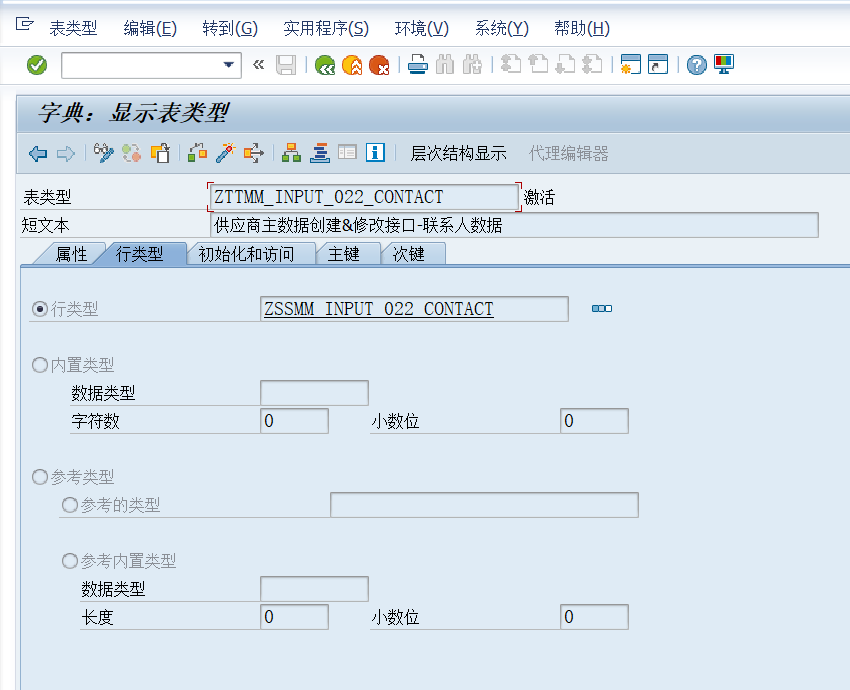

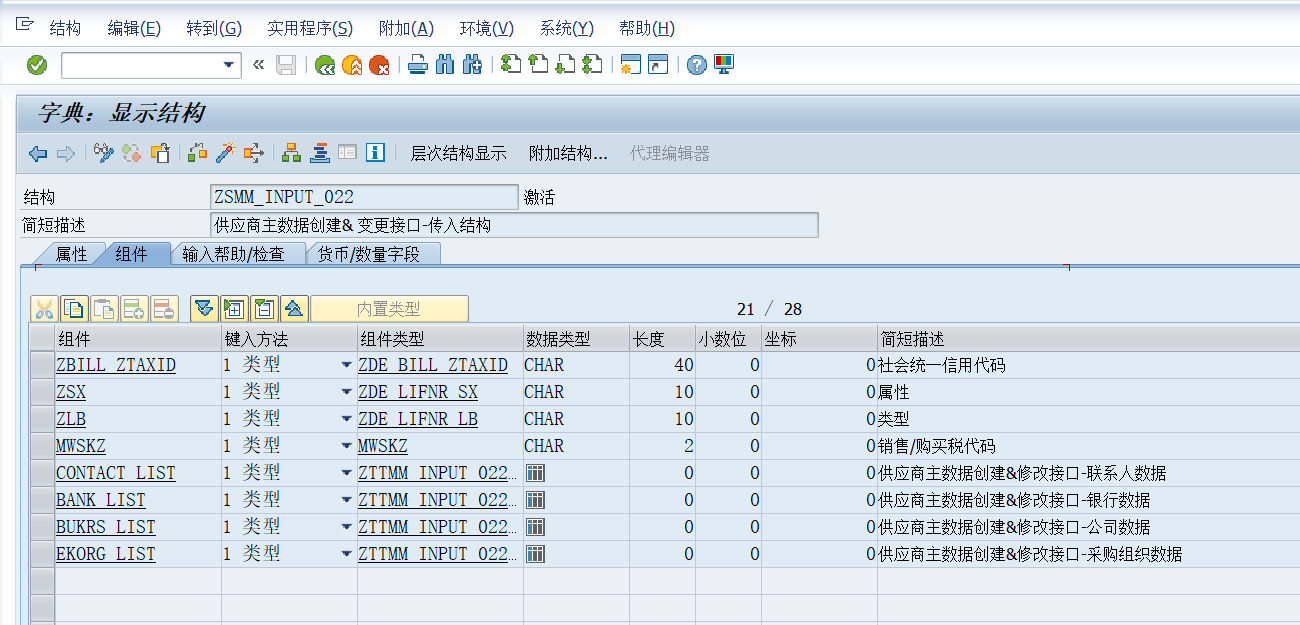

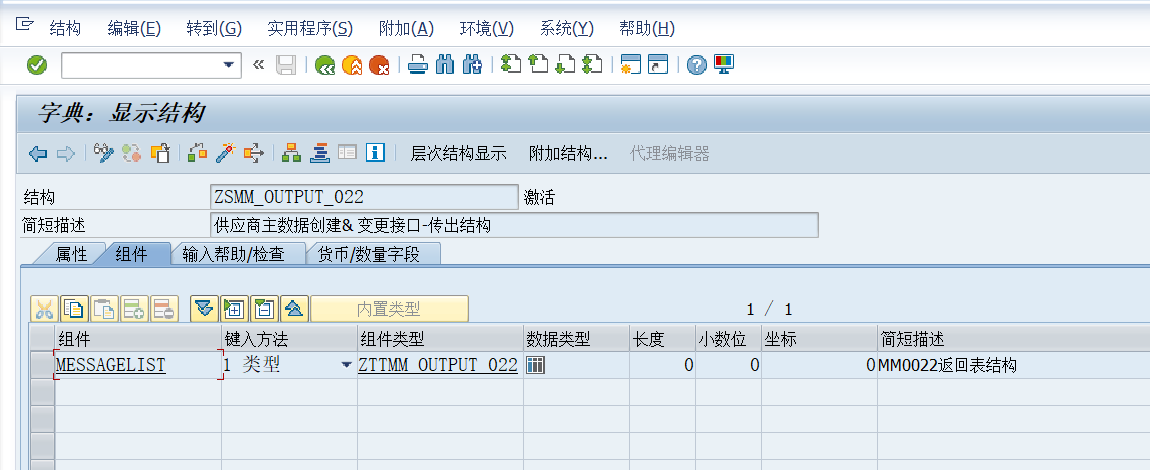

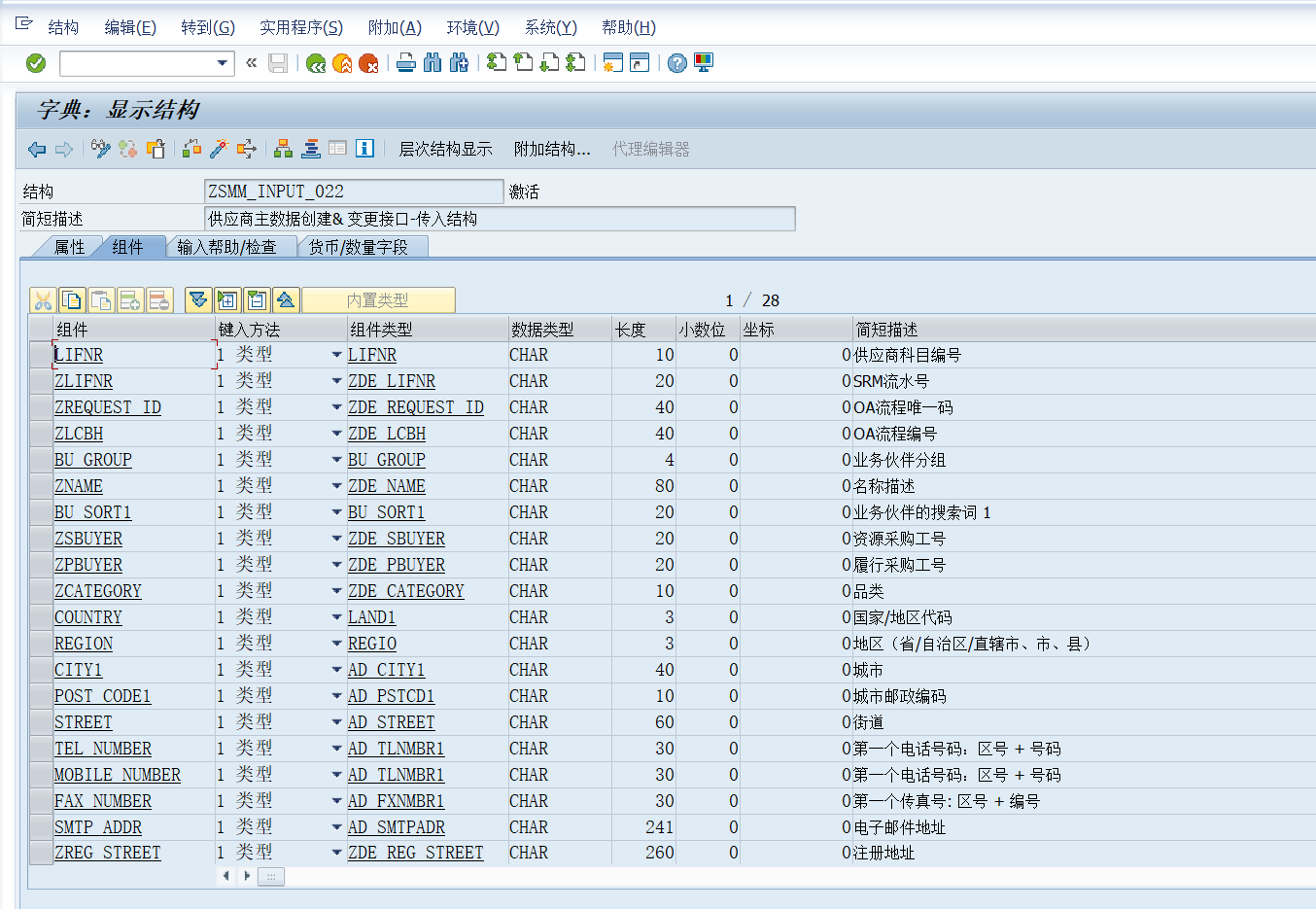

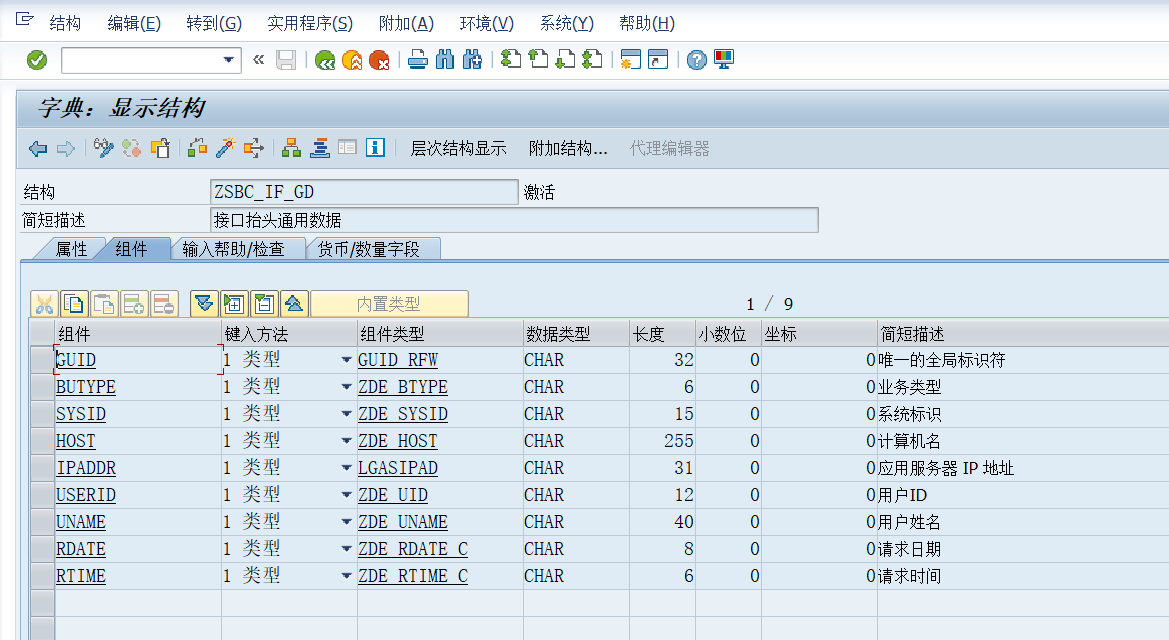

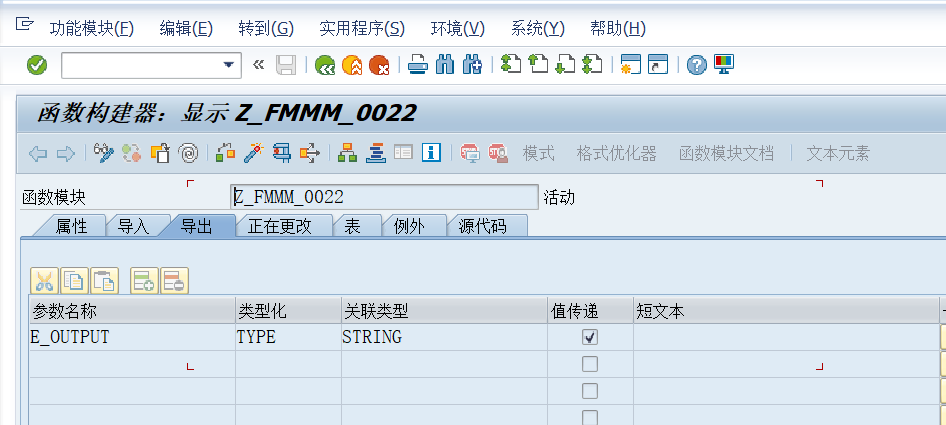

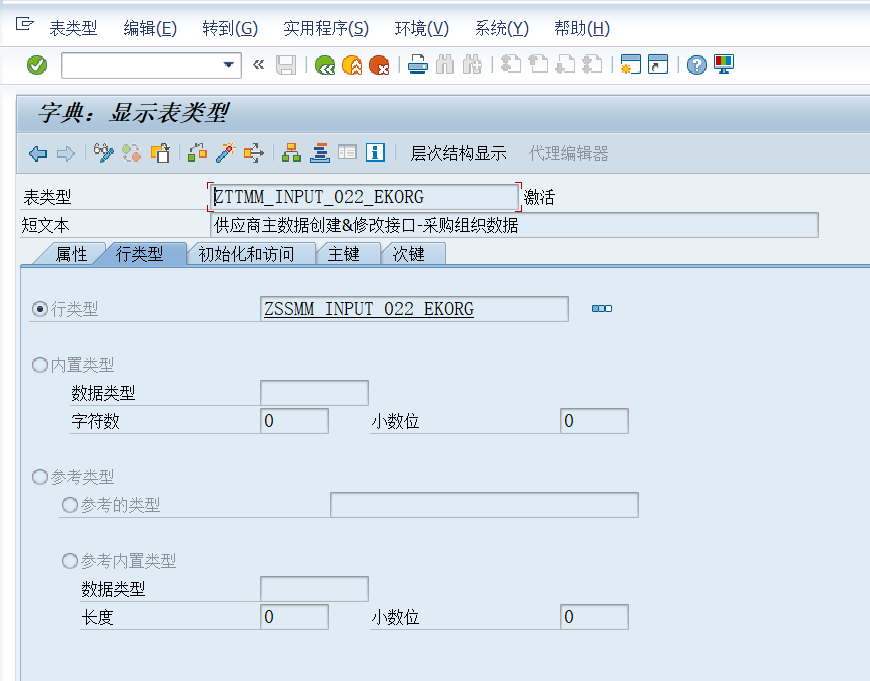

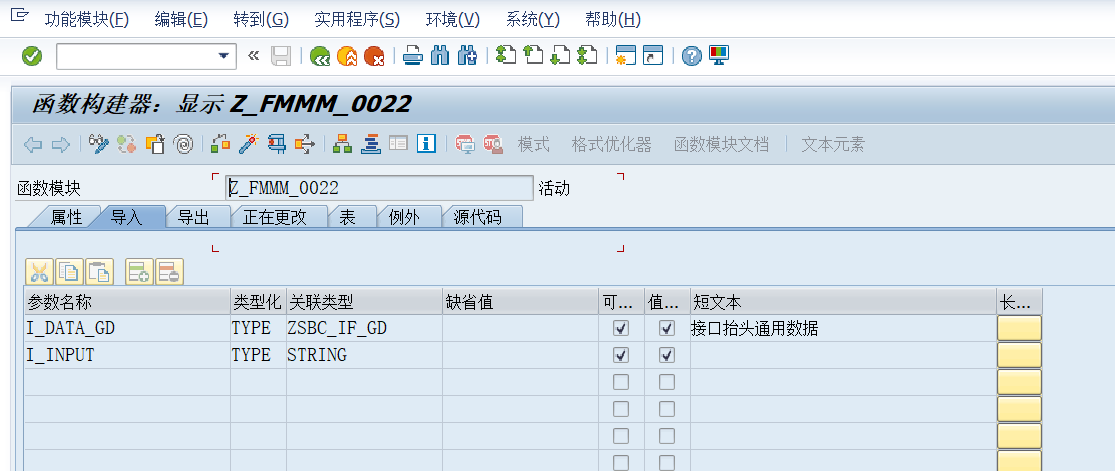

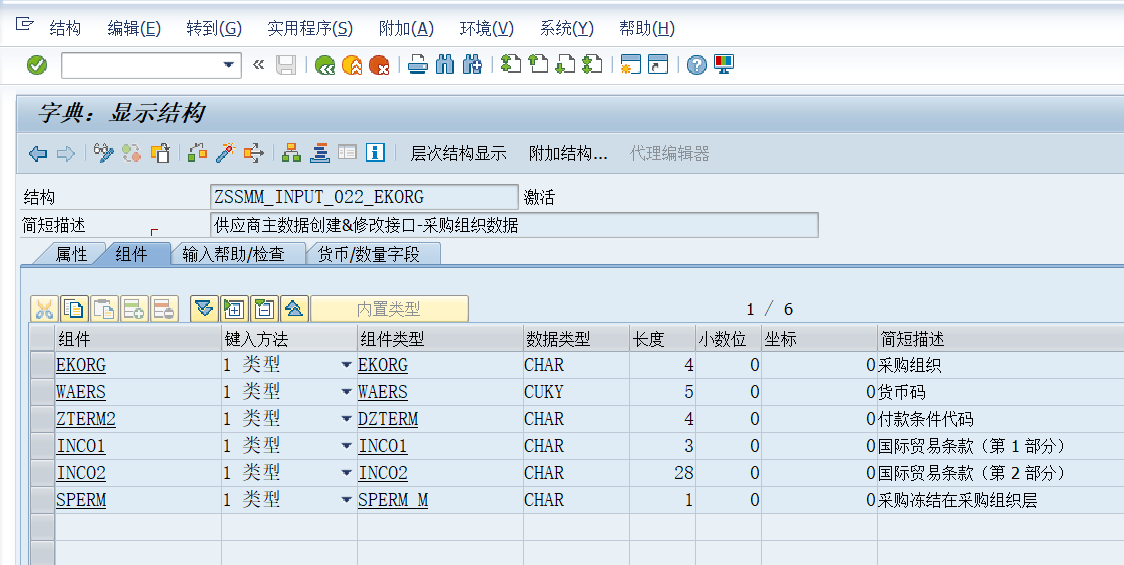

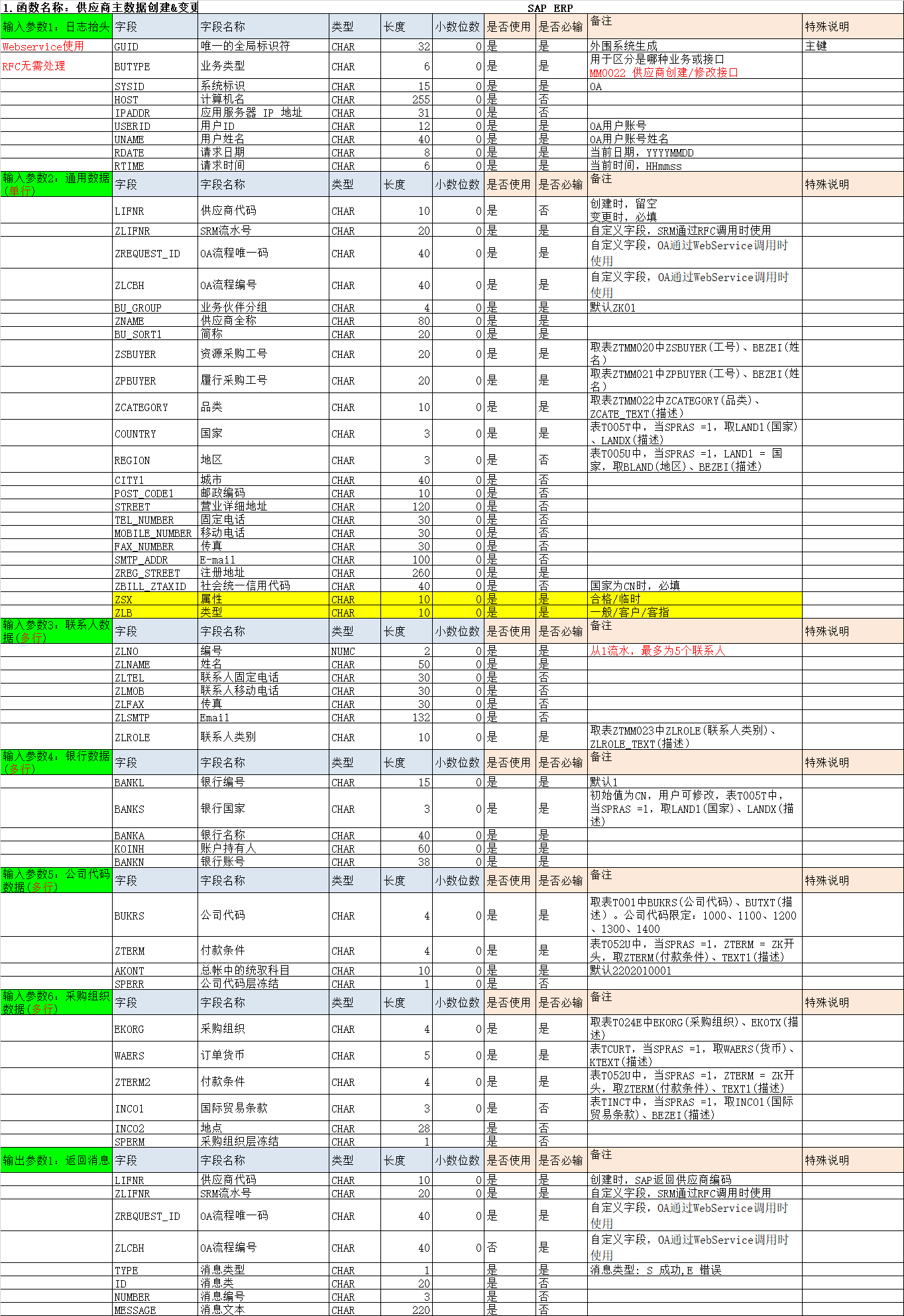

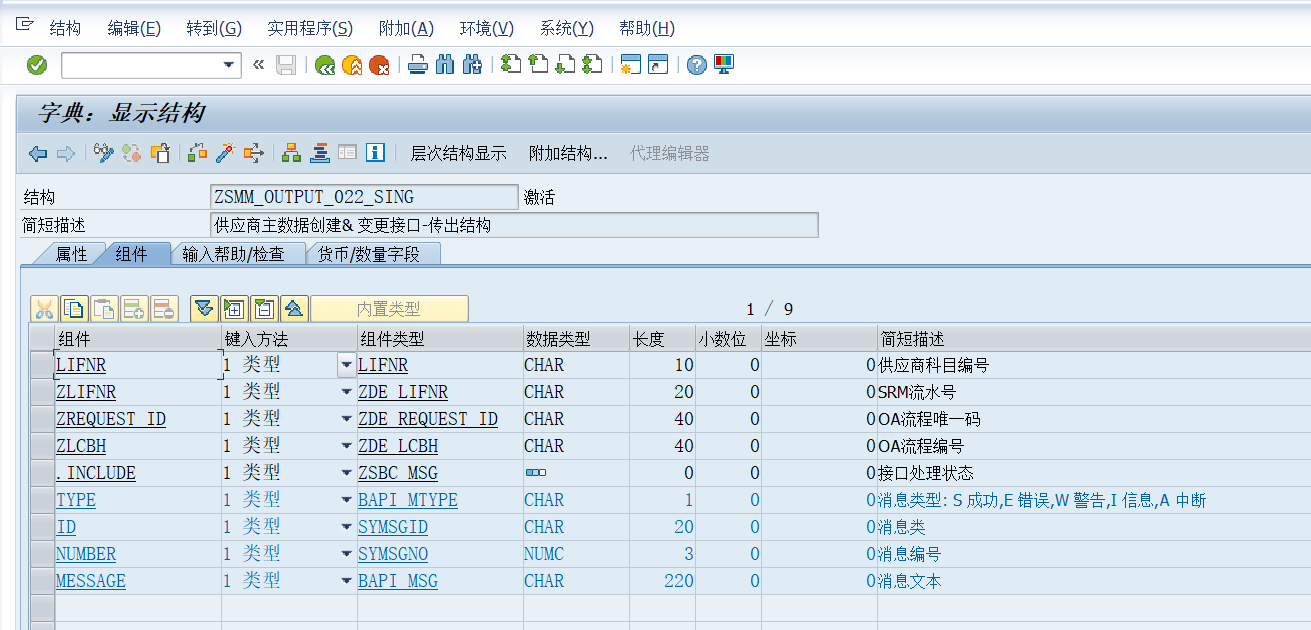

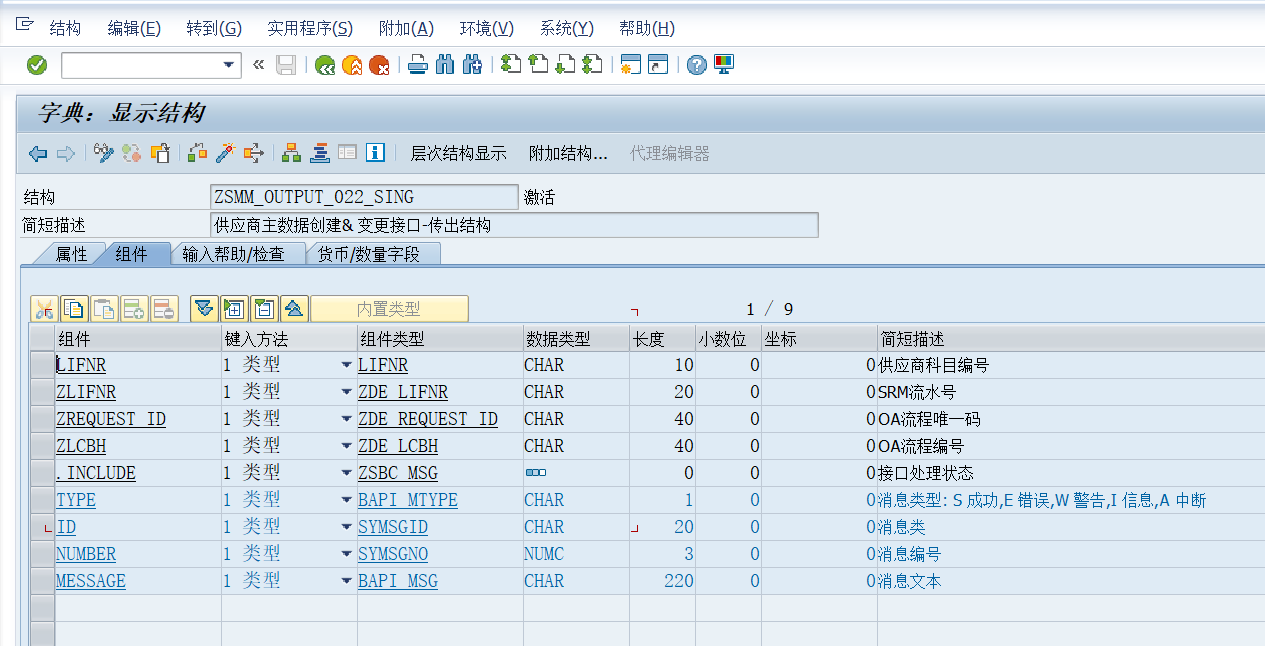

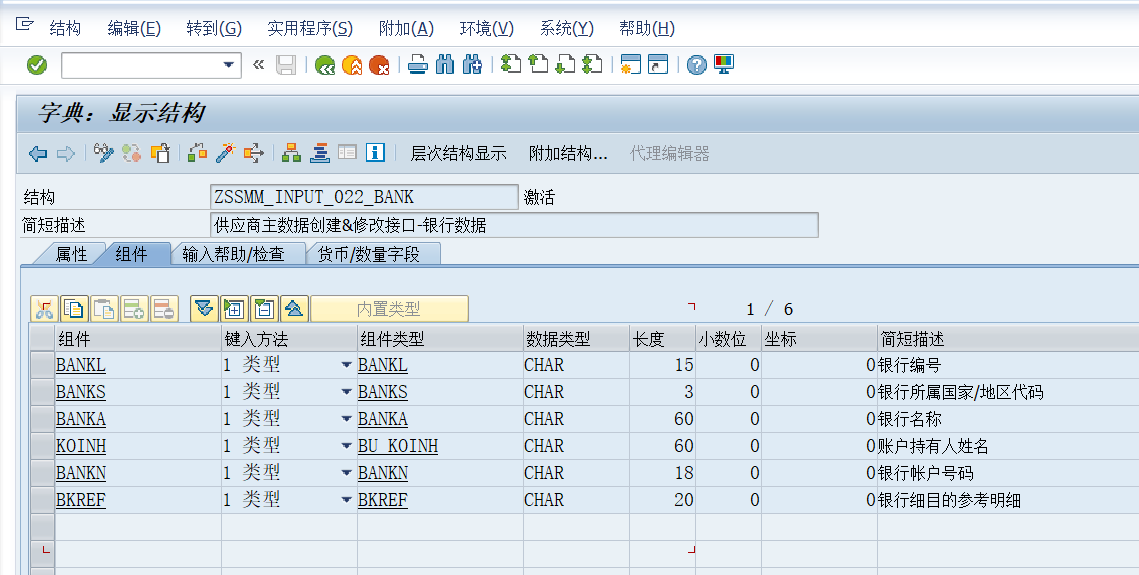

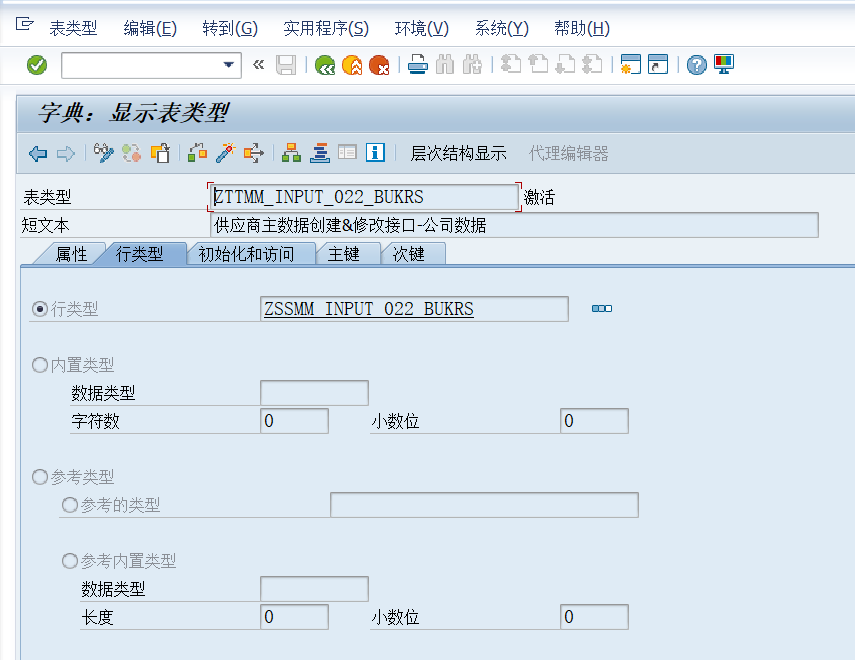

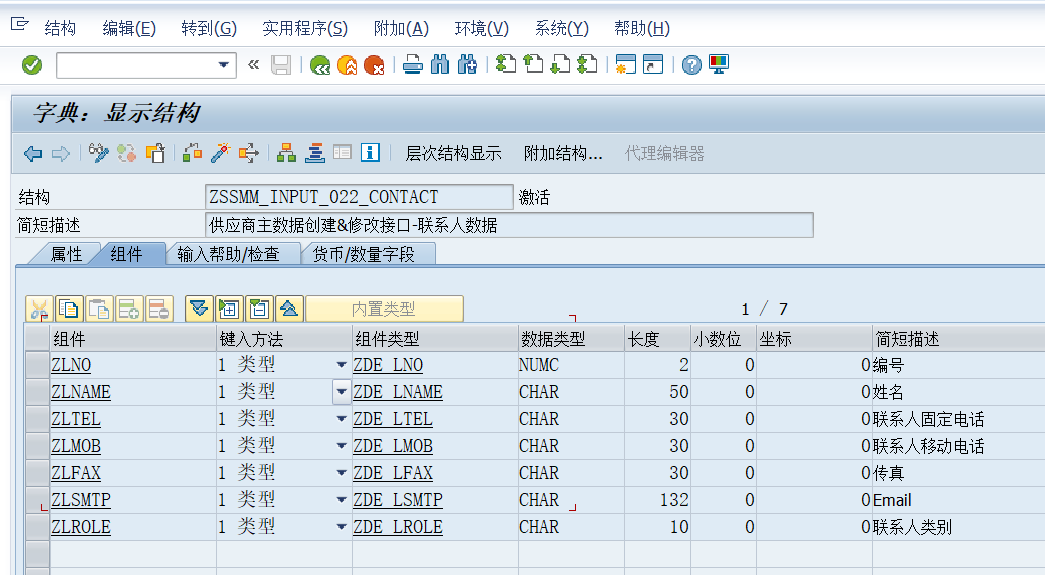

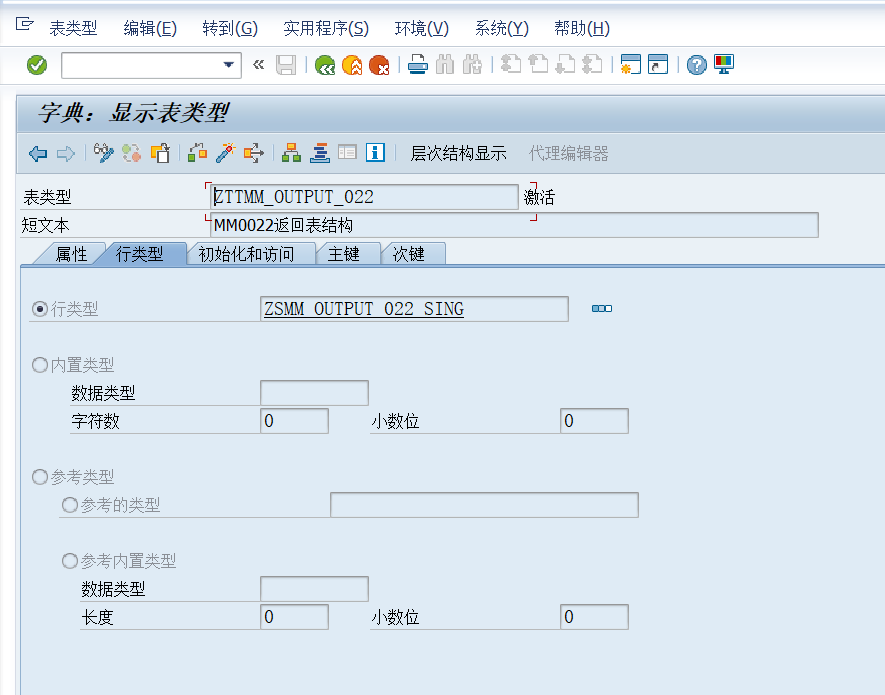

2）输入参数和输出参数

3）程序逻辑

社会统一信用代码防呆：当供应商代码为空且国家”为“CN”时，从表BUT000中，当ZBILL_ZTAXID = “社会统一信用代码”，且BU_GROUP = ZK01或ZK02，取PARTNER值。如果有记录，则返回消息TYPE = E，MESSAGE = “当前社会统一信用代码已存在供应商编码：XXXXXX！”；
供应商全称防呆：当供应商代码为空，从表BUT000中，当NAME_ORG1 = “全称”前40位且NAME_ORG2 = “全称”后40位，且BU_GROUP = ZK01或ZK02，取PARTNER值。如果有记录，则返回消息TYPE = E，MESSAGE = “当前供应商全称已存在编码：XXXXXX！”；
供应商接口联系人数据：如果超过5行，则返回消息TYPE = E，MESSAGE = “联系人信息最多为5个”；
数据转换：供应商接口联系人数据，将每一行分别并写入BUT000中联系人1到5中；
调用类方法CL_MD_BP_MAINTAIN=>MAINTAIN处理。如果成功，则返回消息TYPE = S，MESSAGE = “供应商XXXX维护成功！”；否则返回消息TYPE = E，MESSAGE = “供应商维护失败！”；

二、供应商增强&接口代码

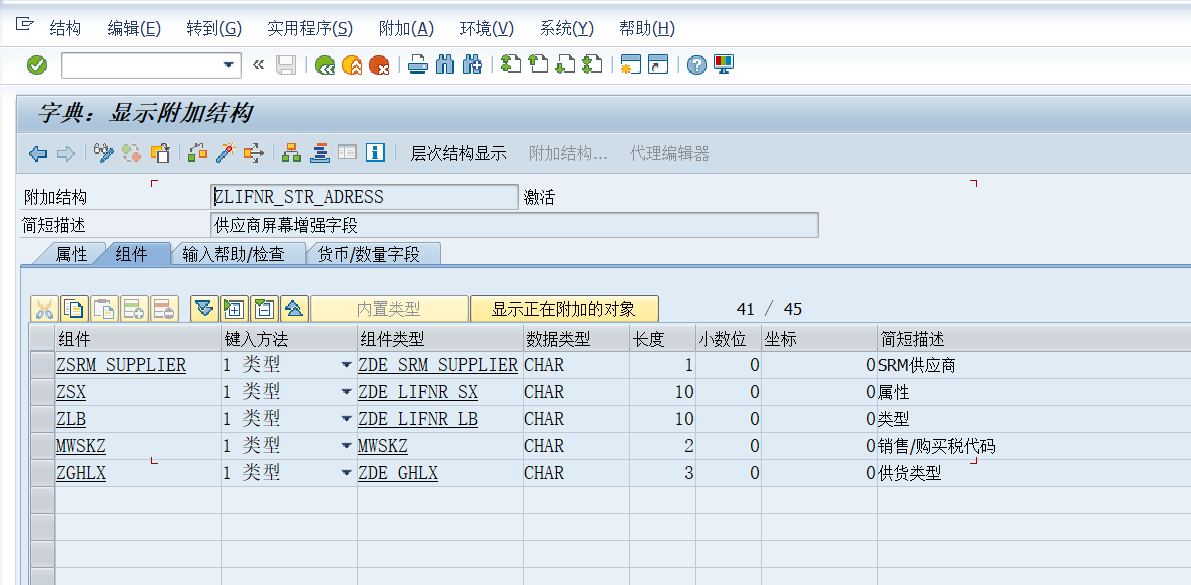

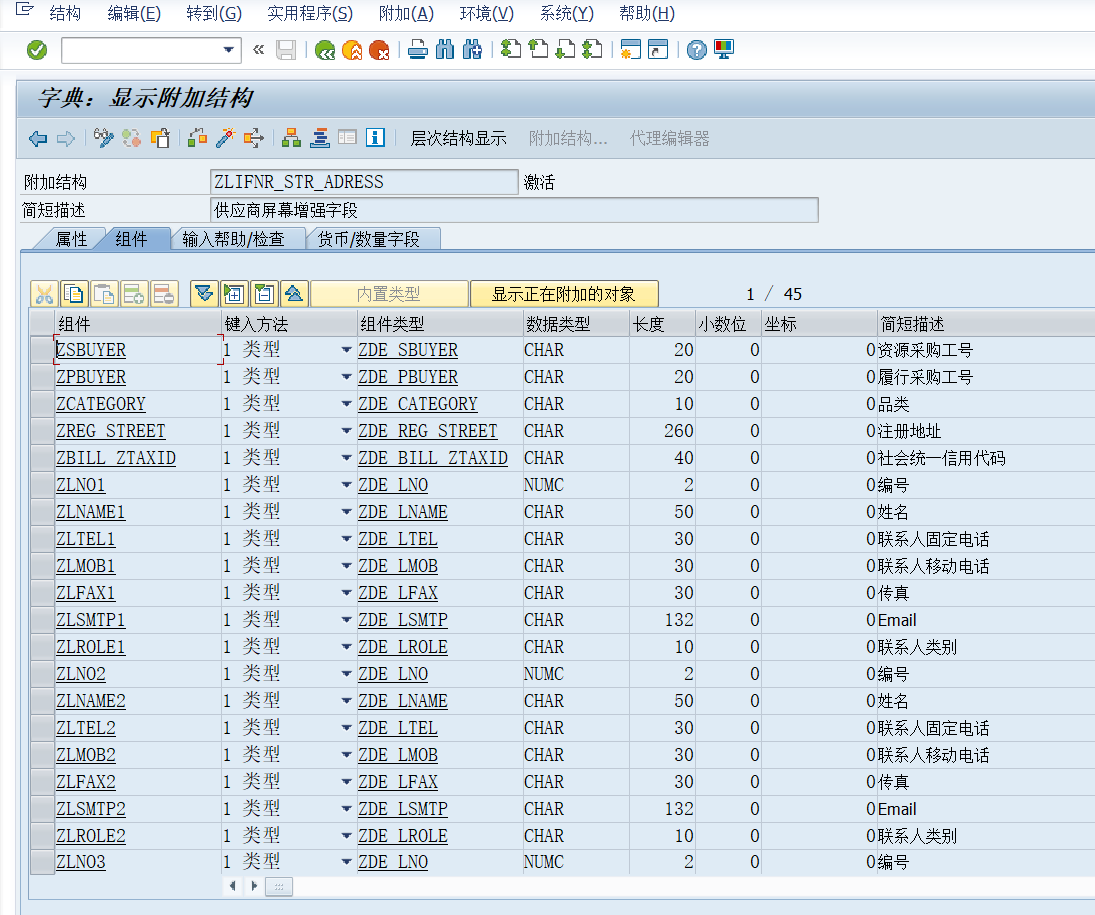

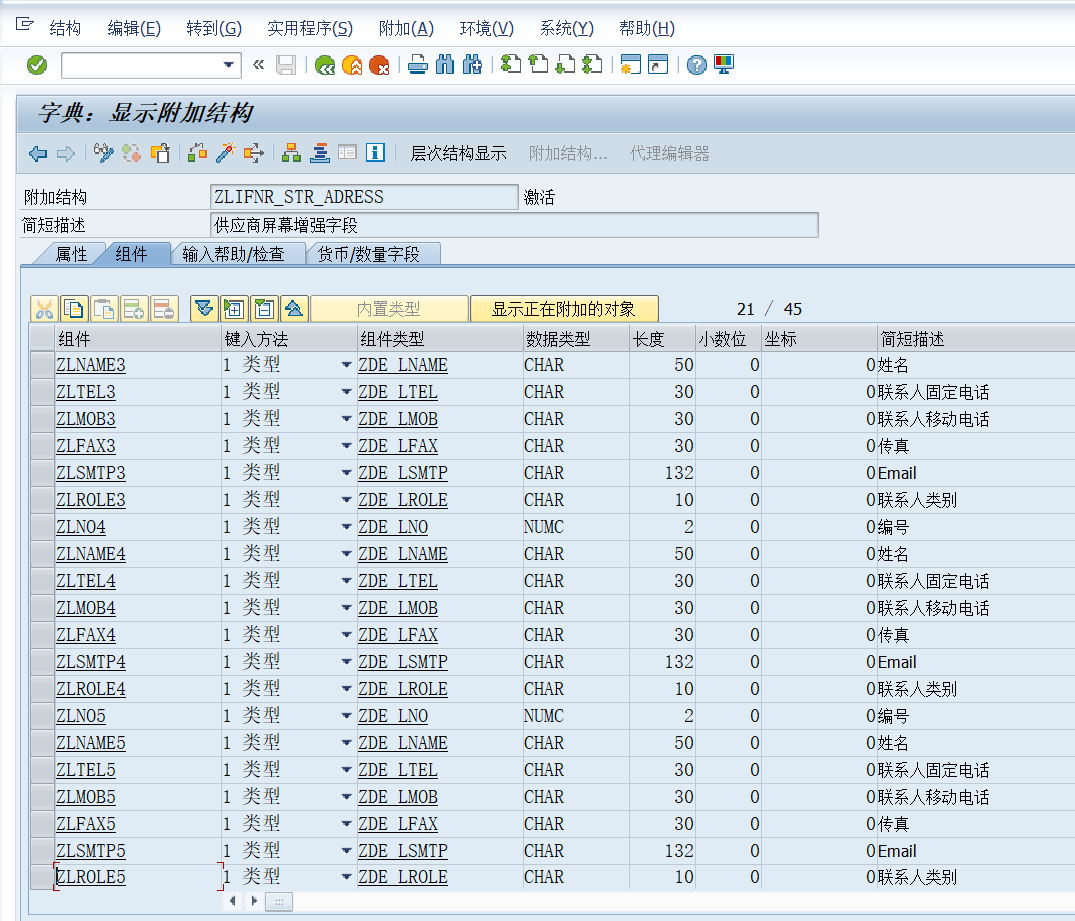

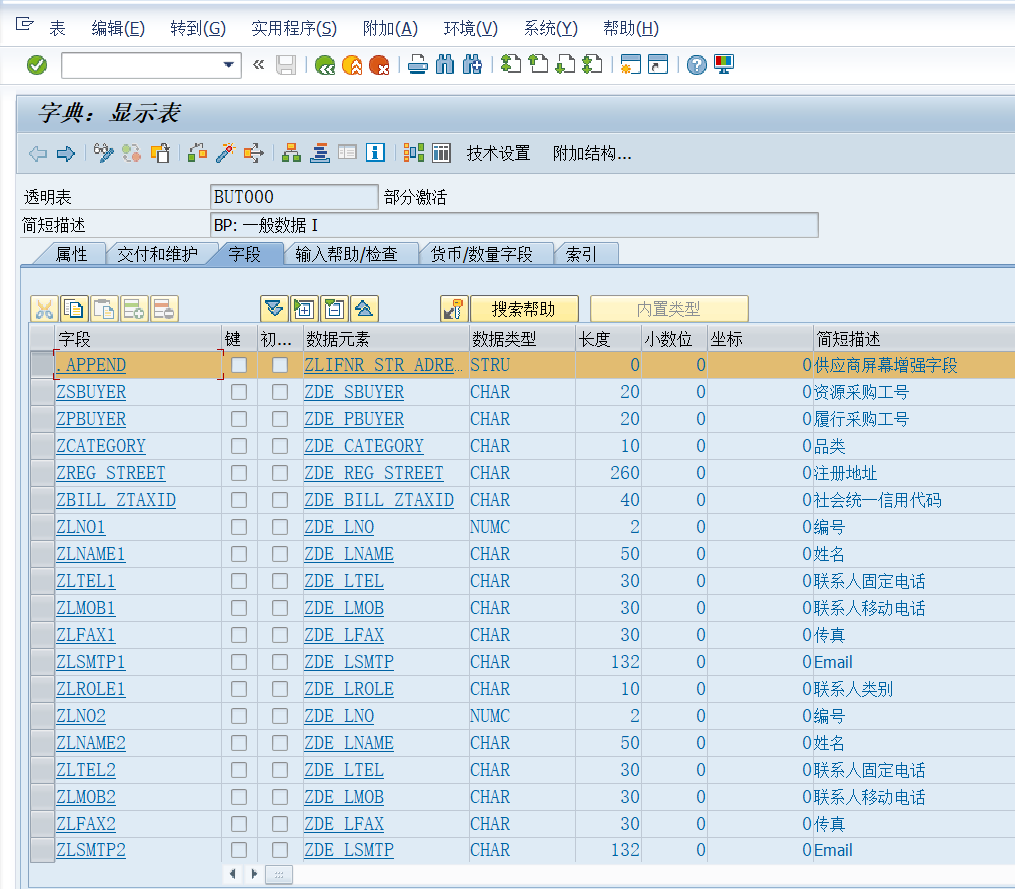

1）供应商主数据增强字段

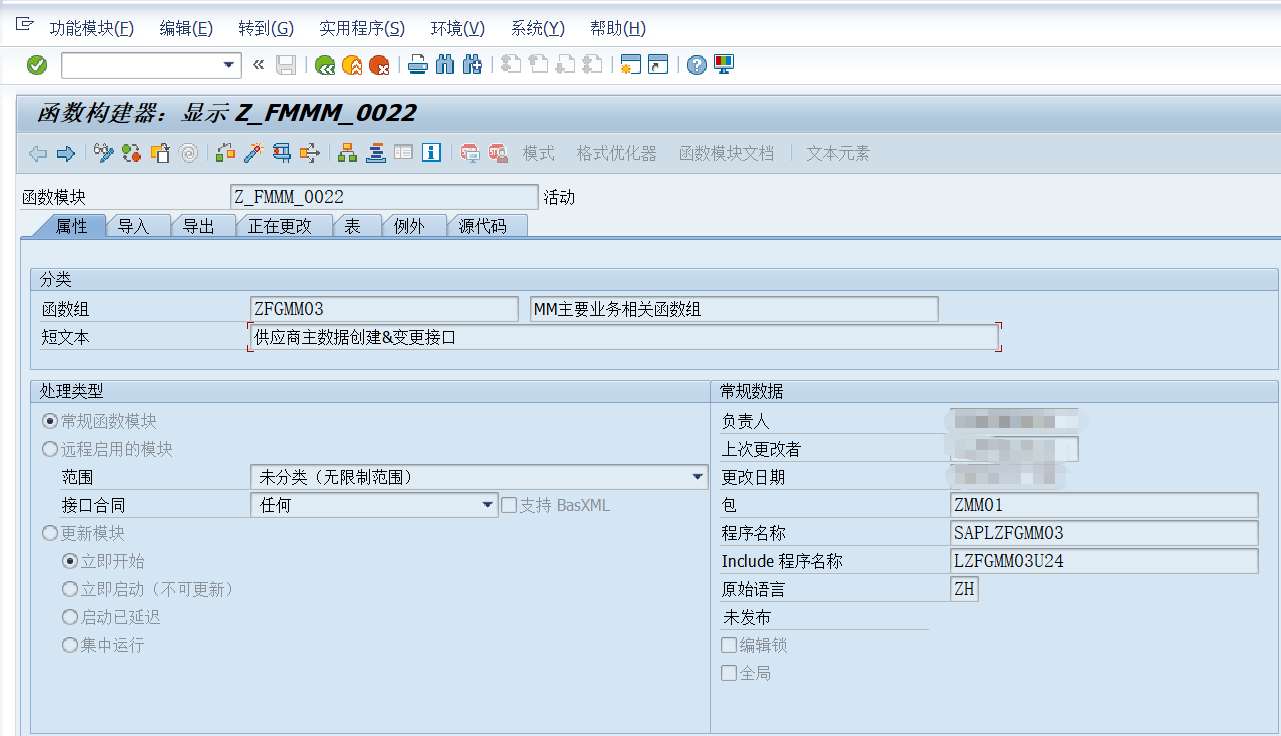

2）接口代码

FUNCTION z_fmmm_0022.
*"----------------------------------------------------------------------
*"*"本地接口：
*"  IMPORTING
*"     VALUE(I_DATA_GD) TYPE  ZSBC_IF_GD OPTIONAL
*"     VALUE(I_INPUT) TYPE  STRING OPTIONAL
*"  EXPORTING
*"     VALUE(E_OUTPUT) TYPE  STRING
*"----------------------------------------------------------------------
  DATA: ls_input       TYPE zsmm_input_022,
        lt_contact     TYPE zttmm_input_022_contact,
        lt_bank        TYPE zttmm_input_022_bank,
        lt_bukrs       TYPE zttmm_input_022_bukrs,
        lt_ekorg       TYPE zttmm_input_022_ekorg,
        ls_output      TYPE zsmm_output_022,
        ls_output_sing TYPE zsmm_output_022_sing.

  IF i_input IS NOT INITIAL.
    CALL FUNCTION 'Z_FMBC_JSONTOABAP2'
      EXPORTING
        i_json = i_input
      IMPORTING
        e_data = ls_input.
  ENDIF.

  IF ls_input IS INITIAL.
*    PERFORM frm_set_msg TABLES ls_output_sing USING 'E' '00' '001' '请检查JSON结构与SAP ABAP结构是否一致！'.
    ls_output_sing-type    = 'E'.
    ls_output_sing-message = '请检查JSON结构与SAP ABAP结构是否一致！'.
    APPEND ls_output_sing TO ls_output-messagelist.
    PERFORM frm_write_log_new USING  'MM0022' ls_output i_data_gd i_input e_output 'E'.
    EXIT.
  ENDIF.

  MOVE-CORRESPONDING ls_input TO ls_output.

  lt_contact = ls_input-contact_list.
  lt_bank    = ls_input-bank_list.
  lt_bukrs   = ls_input-bukrs_list.
  lt_ekorg   = ls_input-ekorg_list.

  DELETE lt_contact WHERE zlno = ''.
  DELETE lt_bank WHERE bankl = ''.
  DELETE lt_bukrs WHERE bukrs = ''.
  DELETE lt_ekorg WHERE ekorg = ''.

  DATA: lv_table        TYPE char20,
        lv_spras        TYPE char2,
        lv_lifnr        TYPE lfa1-lifnr,
        ls_partner      TYPE bus_ei_extern, "ҵ
        ls_vendor       TYPE vmds_ei_extern, "  Ӧ
        lv_mode         TYPE  char1, "    ģʽ
        lv_bu_bkvid     TYPE n LENGTH 4,
        lv_bpartnerguid TYPE bu_partner_guid, "bu_partner_guid_bapi,
        lt_roles        TYPE bus_ei_bupa_roles_t,
        ls_roles        TYPE bus_ei_bupa_roles,
        lt_addresses    TYPE bus_ei_bupa_address_t,
        ls_addresses    TYPE bus_ei_bupa_address,
*        ls_central_data TYPE vmds_ei_central_data,
        lt_bankdetails  TYPE bus_ei_bupa_bankdetail_t,
        ls_bankdetails  TYPE bus_ei_bupa_bankdetail,
*        ls_header       TYPE vmds_ei_header,
*        ls_central      TYPE vmds_ei_vmd_central,
        ls_data         TYPE  cvis_ei_extern,
        lt_data         TYPE  cvis_ei_extern_t,
        lt_return       TYPE  bapiretm,
        ls_return       TYPE  bapireti,
        lt_return1      TYPE bus_bapiret2_t,
        ls_msg          TYPE  bapiretc,
        lwa_bus000_eew  TYPE bus000_eew.

  CLEAR: lv_table,lv_spras,lv_lifnr,ls_partner,ls_vendor,lv_bpartnerguid,
         lv_mode,ls_roles,lt_roles,lt_addresses,ls_addresses,
         lt_bankdetails,ls_bankdetails,ls_data,lt_data,
         lt_return,ls_output_sing,ls_msg.

  CALL FUNCTION 'CONVERSION_EXIT_ISOLA_OUTPUT'
    EXPORTING
      input  = sy-langu
    IMPORTING
      output = lv_spras.

  "check
  IF ls_input-bu_group IS INITIAL.
    ls_output_sing-type    = 'E'.
    ls_output_sing-message = '账户组不能为空'.
    RETURN.
  ENDIF.

  lv_lifnr = ls_input-lifnr.
  CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
    EXPORTING
      input  = lv_lifnr
   &nbs
