VR大空间资料 02 —— 常用Body IK对比

省流总结：

笔者使用Mimic IK VR Body System，此插件可以整合进VRAF和VREP框架中，能正常打包apk。

DragonIK，动画同事用的多。

BodySync IK，无法打包android。

VR Body in BP (Synced) ，没用过不了解。

Ynnk IK Body，Pico手腕默认折90°，暂时没找到如何修改；UE5.2手指抓握动画Bug；UE5.3、UE5.4缺失关键手指相关的骨骼旋转蓝图节点

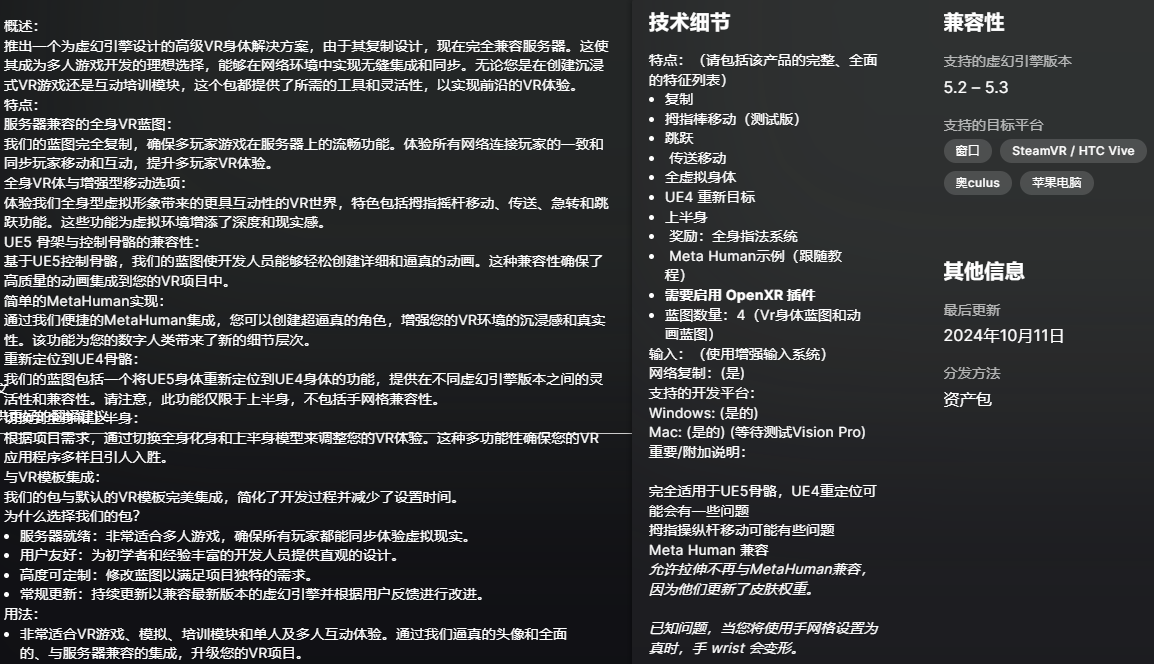

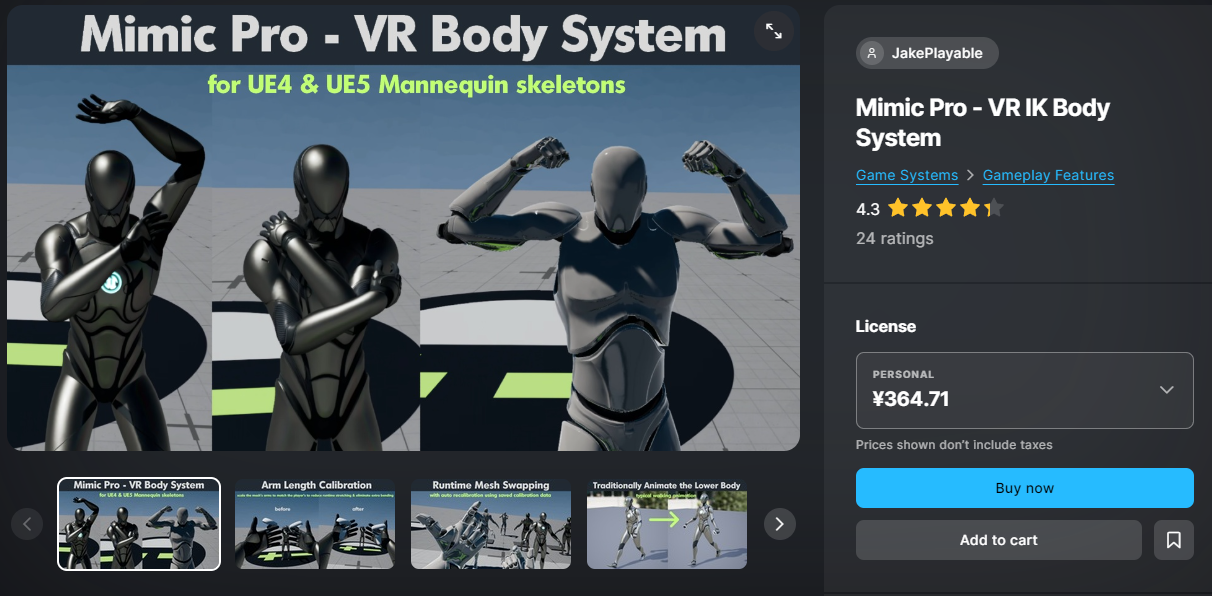

Mimic Pro IK Body System（配合VREP网络复制）

整合VRAF框架

可以修复Pico手腕弯折Bug，

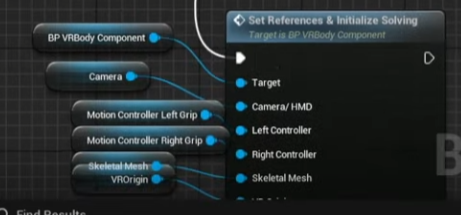

BP_VRBodyComponent中偏移量改为000，不用断开Disconnect for VR Expansion Template（修改手碗偏移量）

https://www.fab.com/listings/acfd423d-3153-4bbc-a656-d04fb4e84c01

说明文档 https://docs.google.com/document/d/1JJ3E8JdUmuyvdMj2vnPoKZ05n4cePGDGtRBKUWKyCBY/edit?pli=1&tab=t.0

Demo下载 MimicPro Demo.zip (561M)

Switch Skeletal Mesh Tutorial

VRE Integration Tutorial

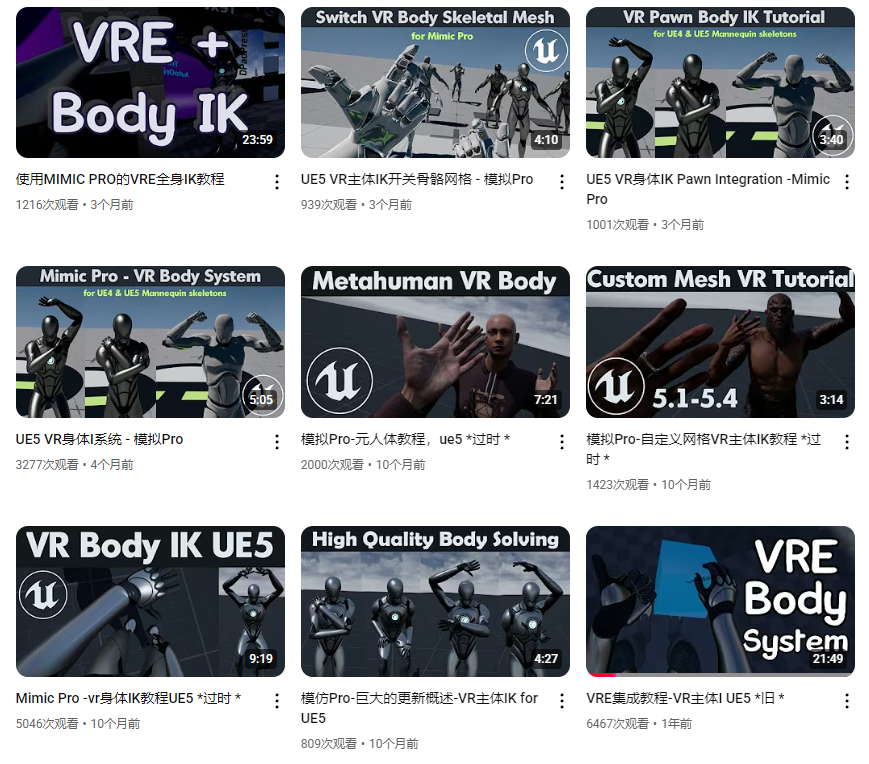

作者频道 Jake

https://www.youtube.com/@JakePlayableDev/videos

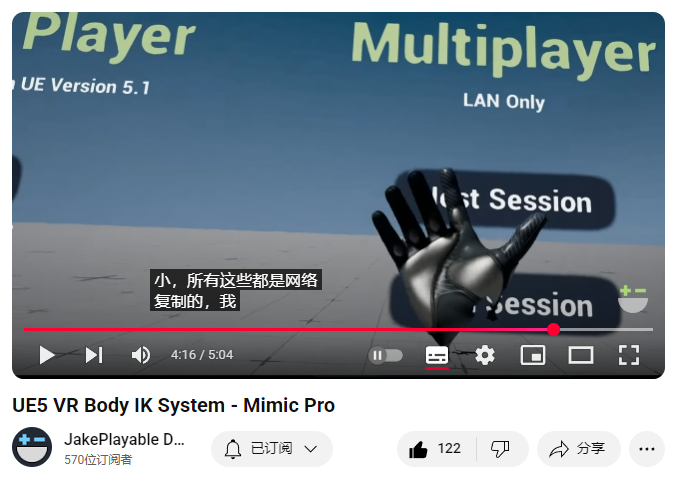

网络复制 https://www.youtube.com/watch?v=FKke1zdkalo

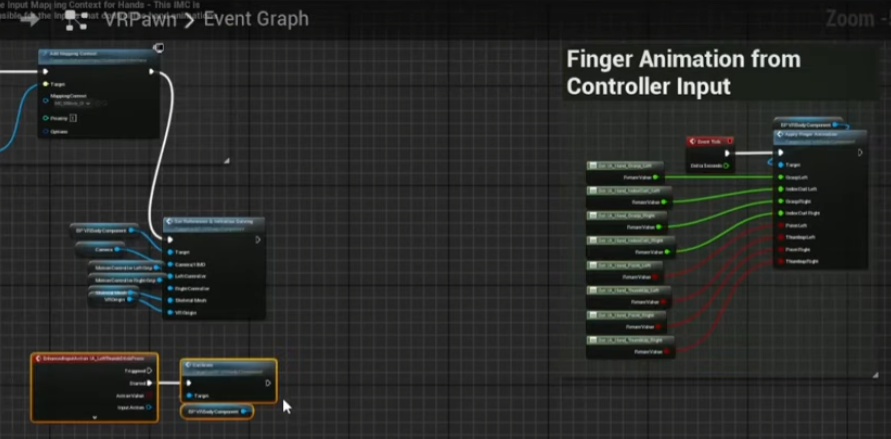

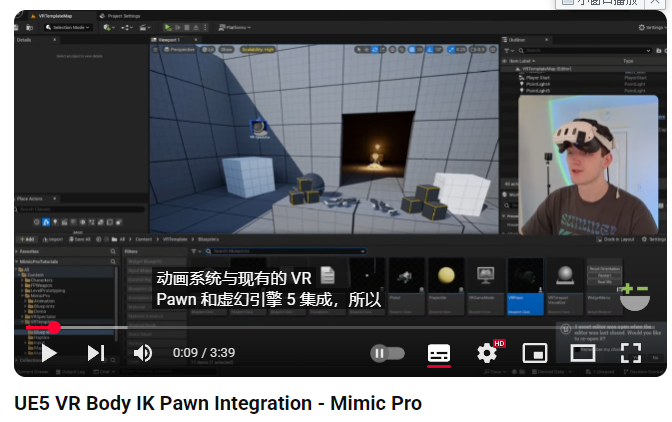

VR IK 和UE5默认VR整合 https://www.youtube.com/watch?v=3njrq5avB_M

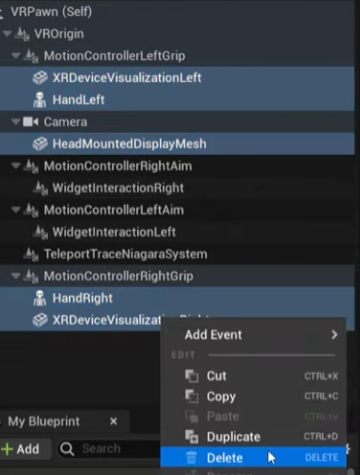

移除默认VRPawn的部分组件，新建root修改为根节点，添加骨骼模型,添加VRBodyComponent

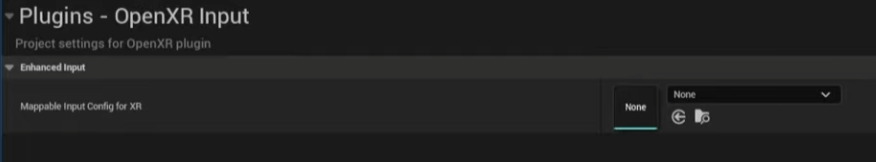

取消系统配置的增强输入PMI_VRTemple，增强输入设置IMC VRBody，优先级1

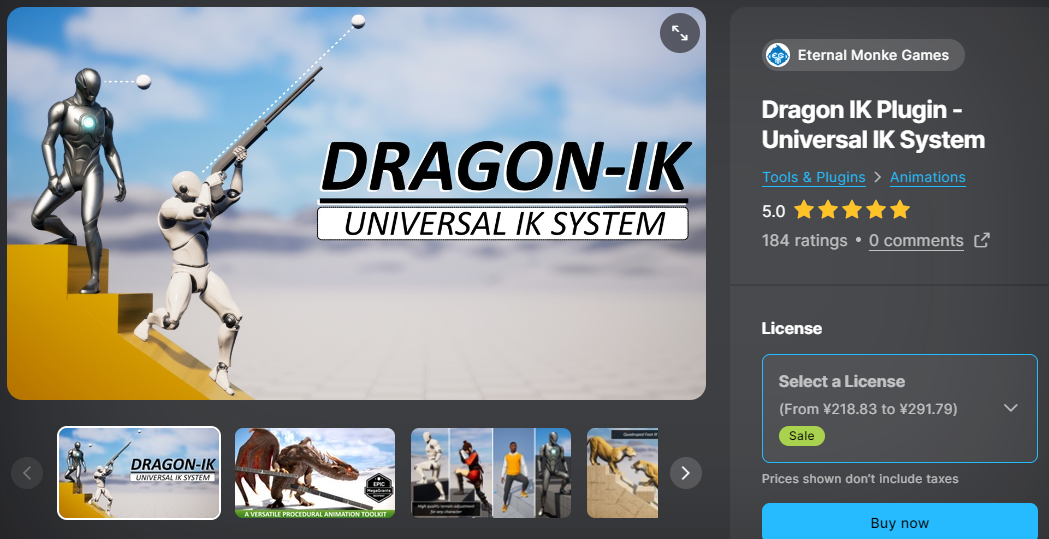

Dragon IK 插件

https://www.fab.com/listings/d3f8d256-d8d9-4d27-91c1-c61e55e984a6

VRE+DragonIK

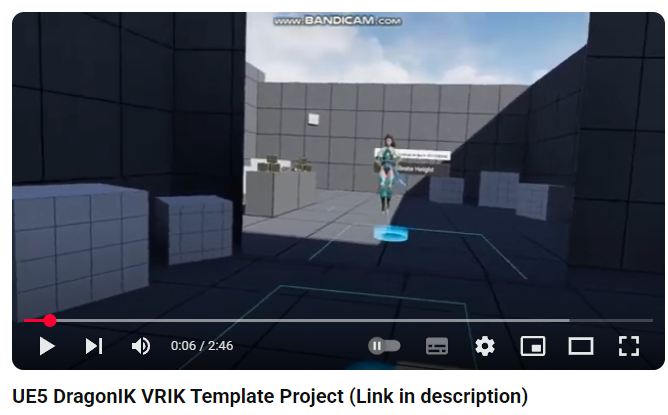

DragonIK+VRE VR Full body IK Example Project

https://github.com/codehawk64/VRE-DragonIK-VRIK UE4.27 UE5.5

https://github.com/codehawk64/VRE-DragonIK-UE5

Main DragonIK Example Project https://github.com/codehawk64/DragonIK-ExampleProject

官网

https://dragonik.eternalmonke.com/

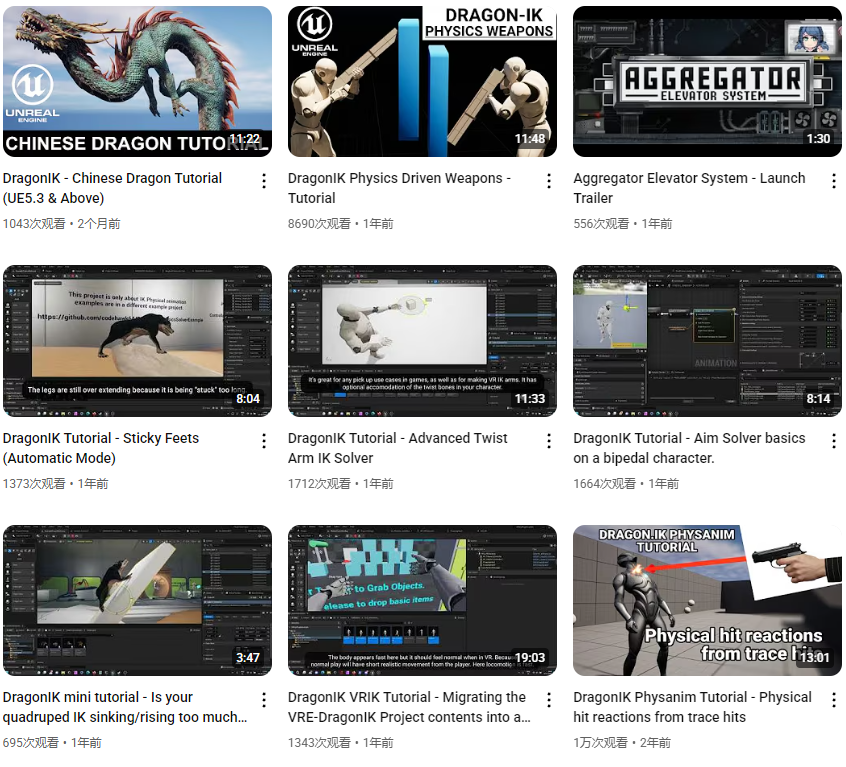

作者频道 Eternal Monke Games

https://www.youtube.com/@eternalmonkegames1859

VR整合

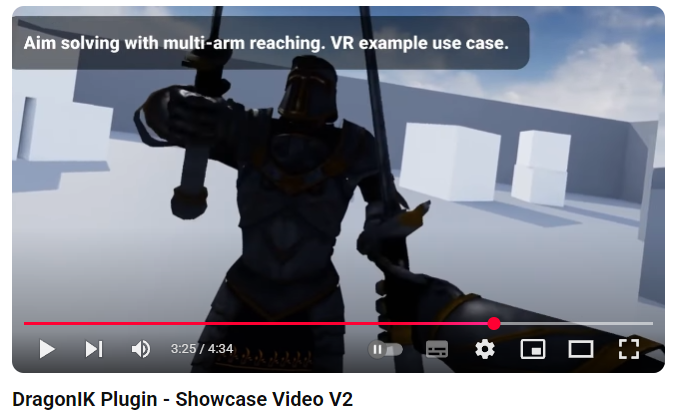

介绍视频 不同生物IK https://www.youtube.com/watch?v=3EBvLRNMsFY

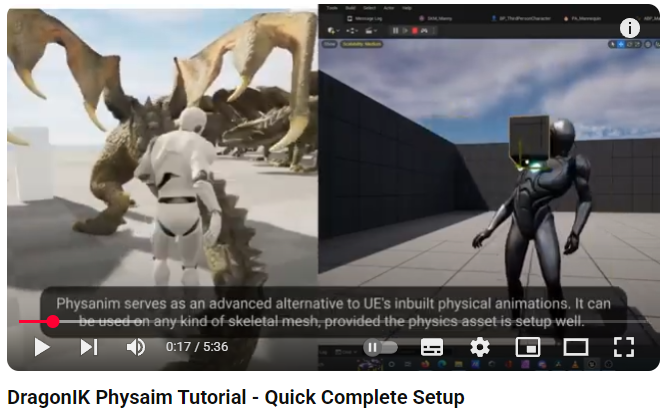

物理IK使用教程 https://www.youtube.com/watch?v=J3d2IvoeTEk

https://www.youtube.com/watch?v=z4cLm-ixwGE

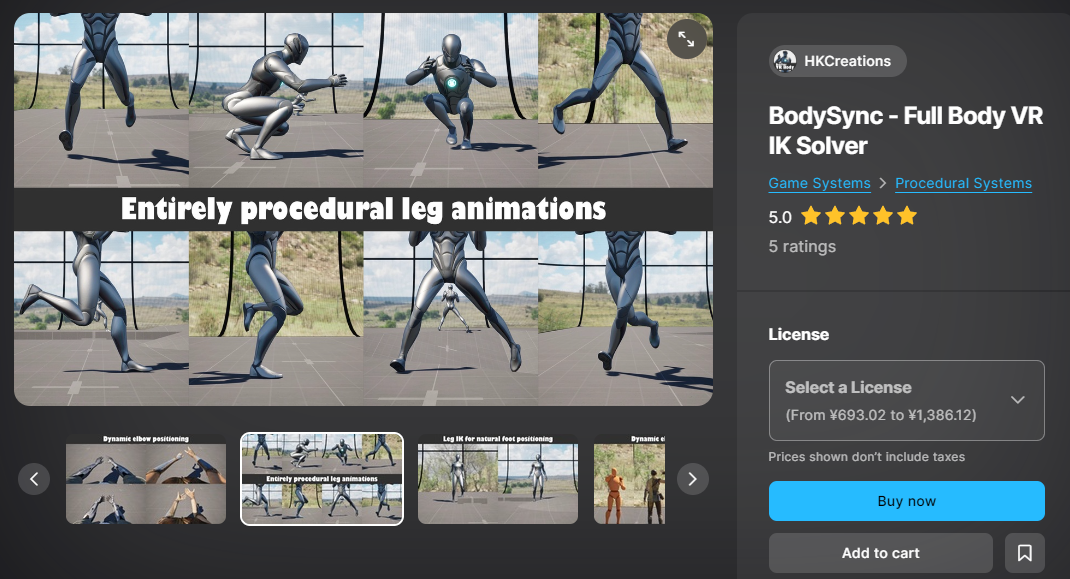

BodySync IK插件

https://www.fab.com/listings/e2209c00-01ad-43c1-95ce-4a7fd54855c0

无法打包android

🎮 Playable Demo (0.43 GB

🎮 Playable Demo With More Characters (1.26 GB) (slightly outdated)

🎬 Demonstration Video

━━━━━━━━━━━━━━━━━━

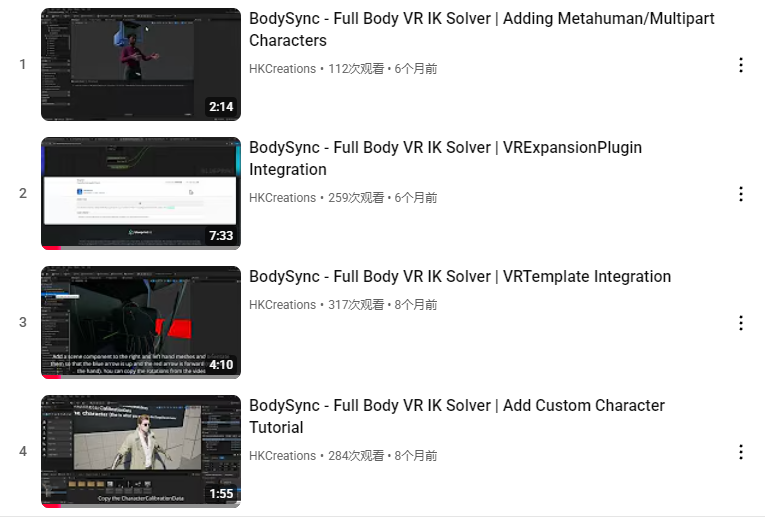

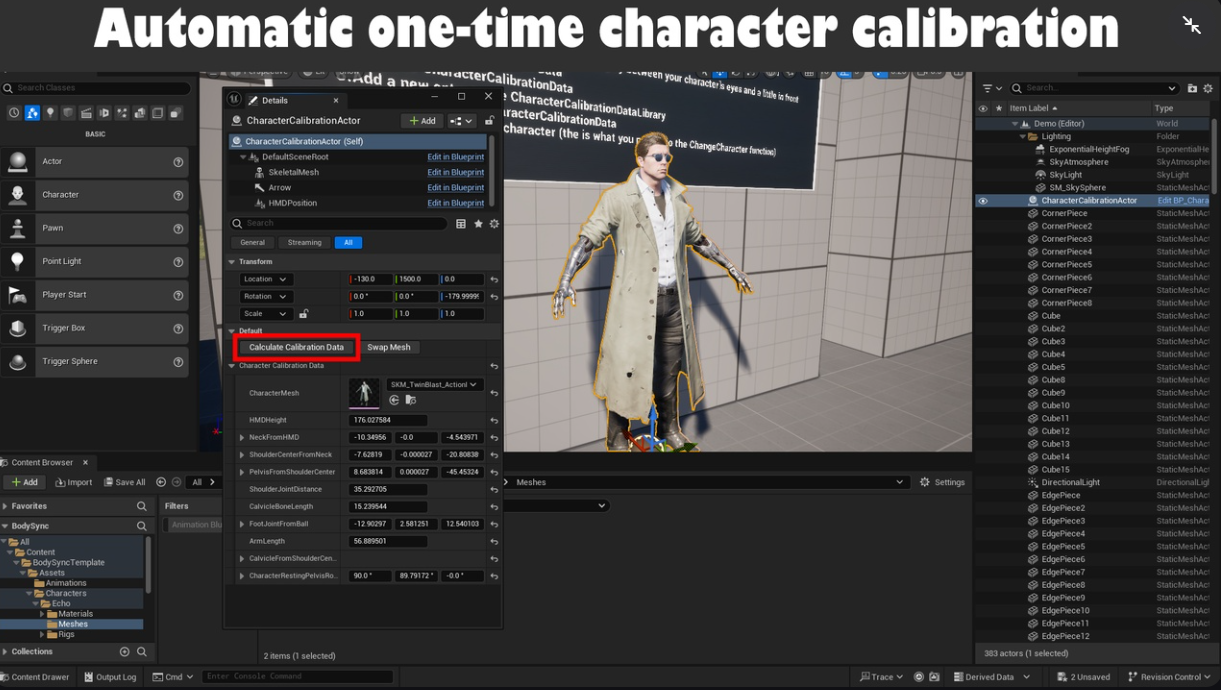

添加一个基础角色模型教程 📖 Add Custom Character Tutorial

VR默认模板添加插件教程 📖 VRTemplate Integration

📖 VRExpansionPlugin Integration

📖 Adding Metahuman/Multipart Characters

作者频道 HKCreations

https://www.youtube.com/playlist?list=PLm2zfb9AR_g_Ee1WmU4WIuYTKoekFKJ09

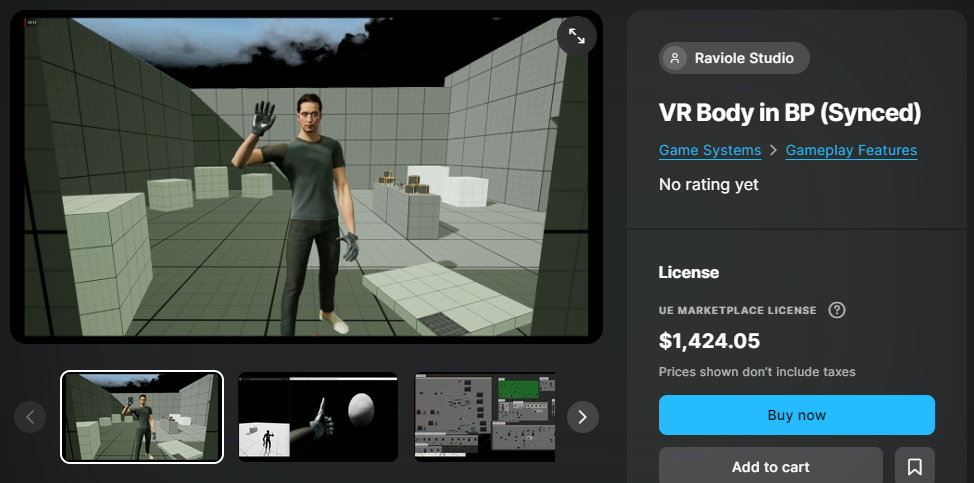

VR Body in BP (Synced)

https://www.fab.com/listings/918975ef-abbe-44eb-b796-a79638837500

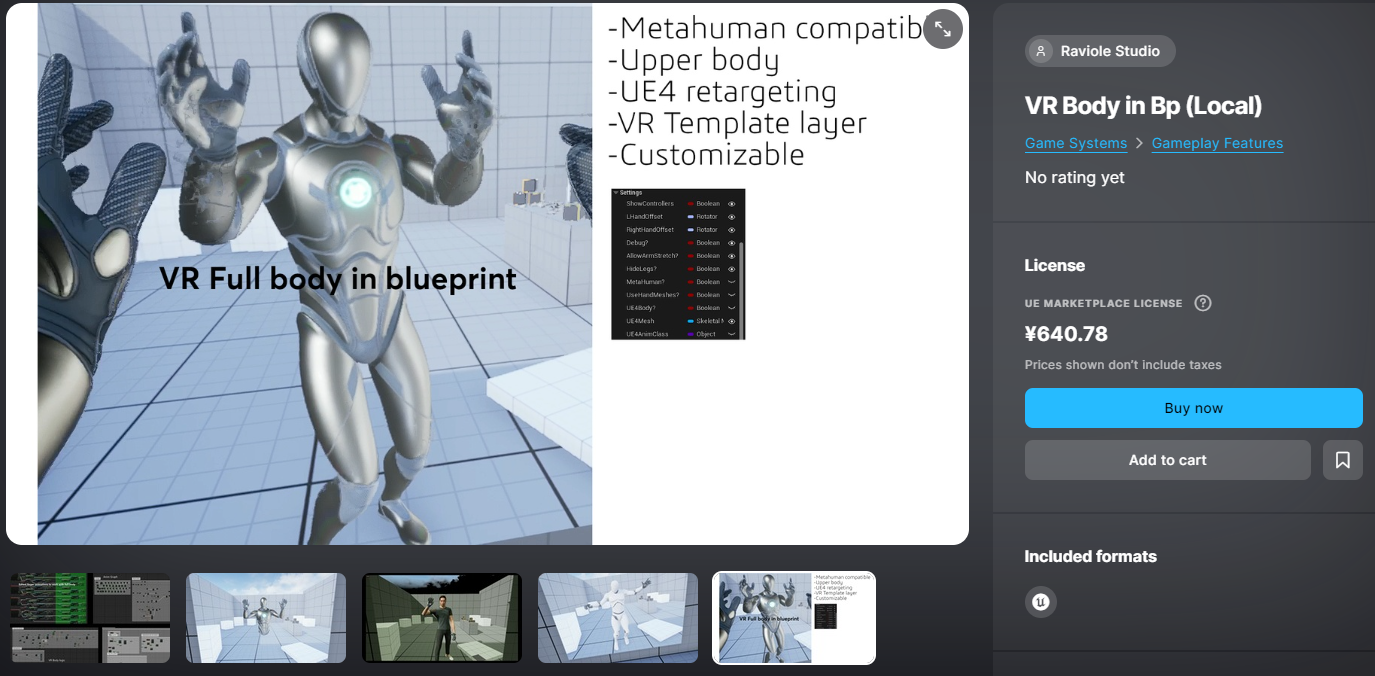

VR Body in Bp (Local)

https://www.fab.com/listings/91e28e86-0973-4a51-a5c8-e67447707879

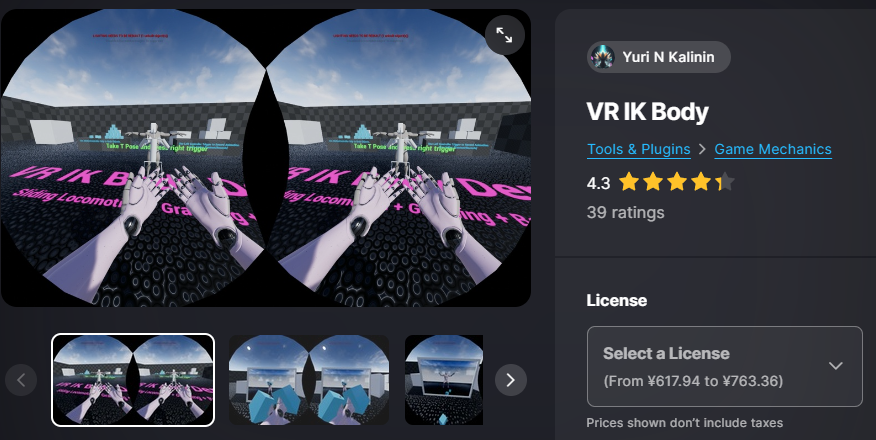

VR Ynnk IK Body 插件

优点：用actor组件绑定Character的相机、左右手控制器组件

缺点：Pico手腕默认折90°，无法修改；UE5.2手指抓握动画Bug；UE5.3、UE5.4缺失关键手指相关的骨骼旋转蓝图节点

https://www.fab.com/listings/42ce2175-b6d3-4264-88f4-716ffe9c3ce3

教程视频：https://www.youtube.com/watch?v=WQ98f0k2R60

官方dome: https://drive.google.com/file/d/14DmHL0Hr3cBJu9eZC2l_Nsk2bjgbHP18/view

Demo video of Ynnk VR-Avatar component: YouTube

Tutorial (see "Documentation" below for the latset tutorial) video of Ynnk VR-Avatar component: YouTube

Features:

• neural net-based full-body VR solver
• distinction of head and ribcage rotation
• calculated elbow joint targets
• calculated feet positions
• body calibration
• keeps accurate head and hands positions
• supported locomotion from stick
• input from scene components or default interface
• special IK animation node for blending legs animation
• can work with any VR headset ant motion controllers
• source code is included

Code Modules:

• VRIKBodyRuntime (Runtime)
• VRIKBodyEditor (Editor)

Number of Blueprints: 0

Number of C++ Classes: 3

Network Replicated: Yes

Supported Development Platforms: Win64, Linux

Supported Target Build Platforms: Win64, Linux, Android (Quest)

Documentation: VIDEO | PDF 新视频17mins和淘宝下载10分钟不同

Example Projects: 5.2-5.4 for OpenXR | 5.3-5.4 for MetaXR (Quest)

Executable Demo: ZIP

Ynnk 【坑】

用到第一人称来复枪的二维运动混合空间BS_Strafe.uasset，混合下半身

VR Ynnk BodyIK 可以下半身IK配置，无法修正Pico端的曲折手腕。

官方案例UE5.2 可以正常打开，加载OpenXR插件后编译报错，无法修正手腕适配Pico；增强输入监听到按键输入但是无法触发握拳动画

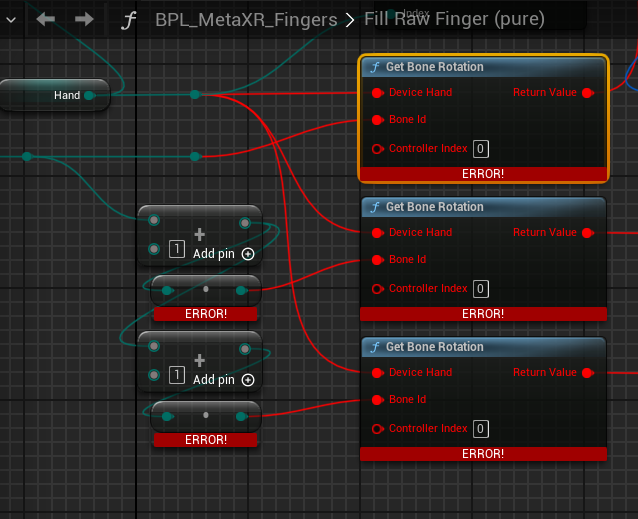

官方案例UE5.3,UE5.4骨骼节点蓝图方法过时，代码报错

UE5.5 VR全身Body视频教程

https://www.youtube.com/watch?v=xzBOBWtmzAo&list=PLKwYQadv_MEn5SzAsvvLQpk0YqooKVjMP

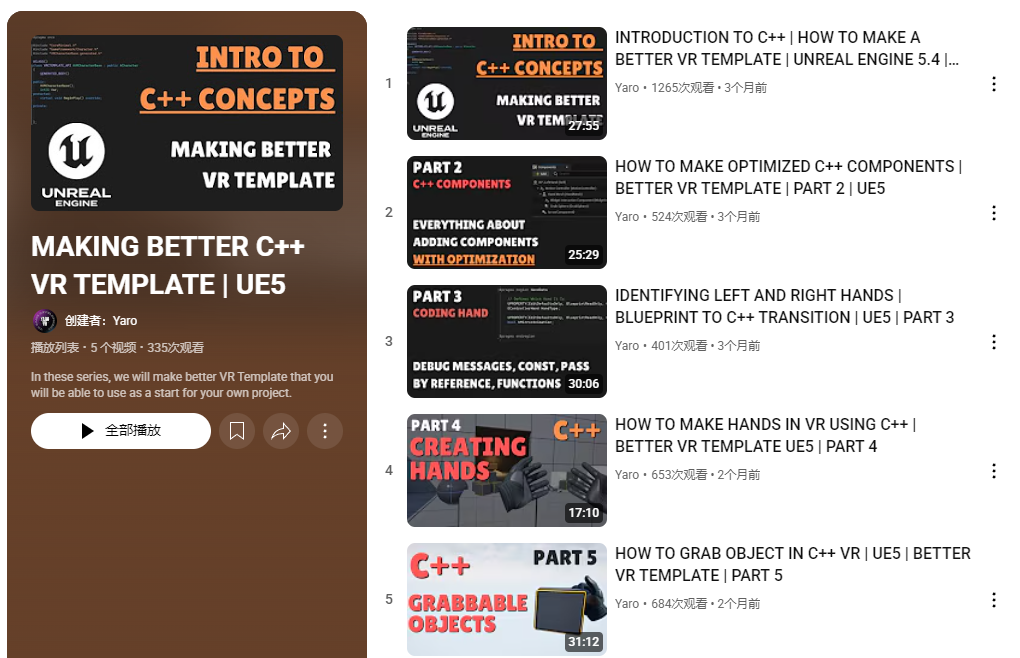

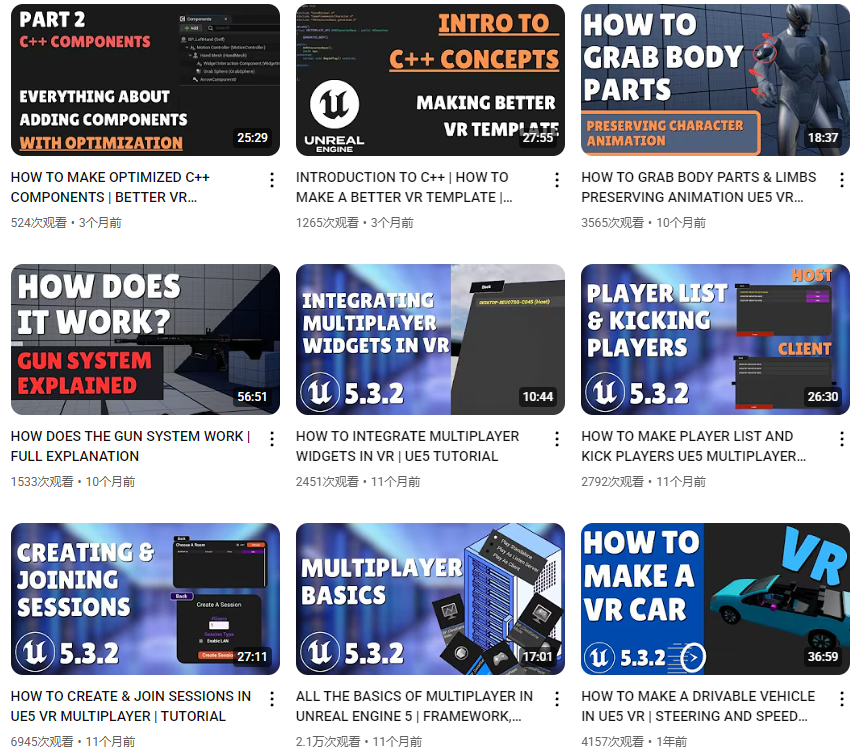

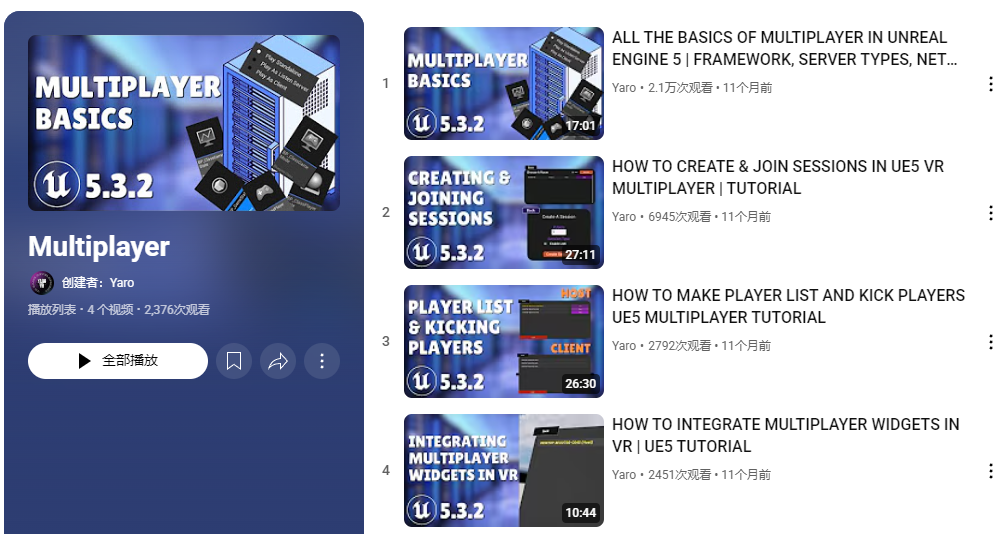

UE5 VR C++ 视频教程 By Yaro

https://www.youtube.com/playlist?list=PL1WBj5uIi-O2EdR2IyvaUcqK35IjPsu9t
