ArcGIS JSAPI 高级教程 - 高亮效果优化之开启使用多高亮样式

news 2025/9/29 5:52:29

ArcGIS JSAPI 高级教程 - 高亮效果优化之开启使用多高亮样式

- 完整代码
- 在线示例

本文主要介绍一下高亮效果的更新优化，包括支持在场景中添加最多六个高亮配置对象以及在线示例。

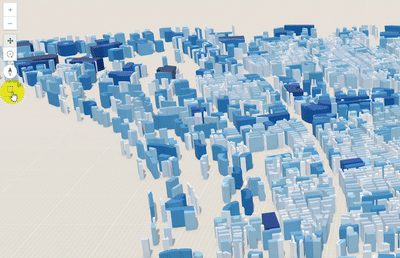

实现三种高亮效果：标绘框选图形高亮、选中的几何体高亮、鼠标悬浮高亮。

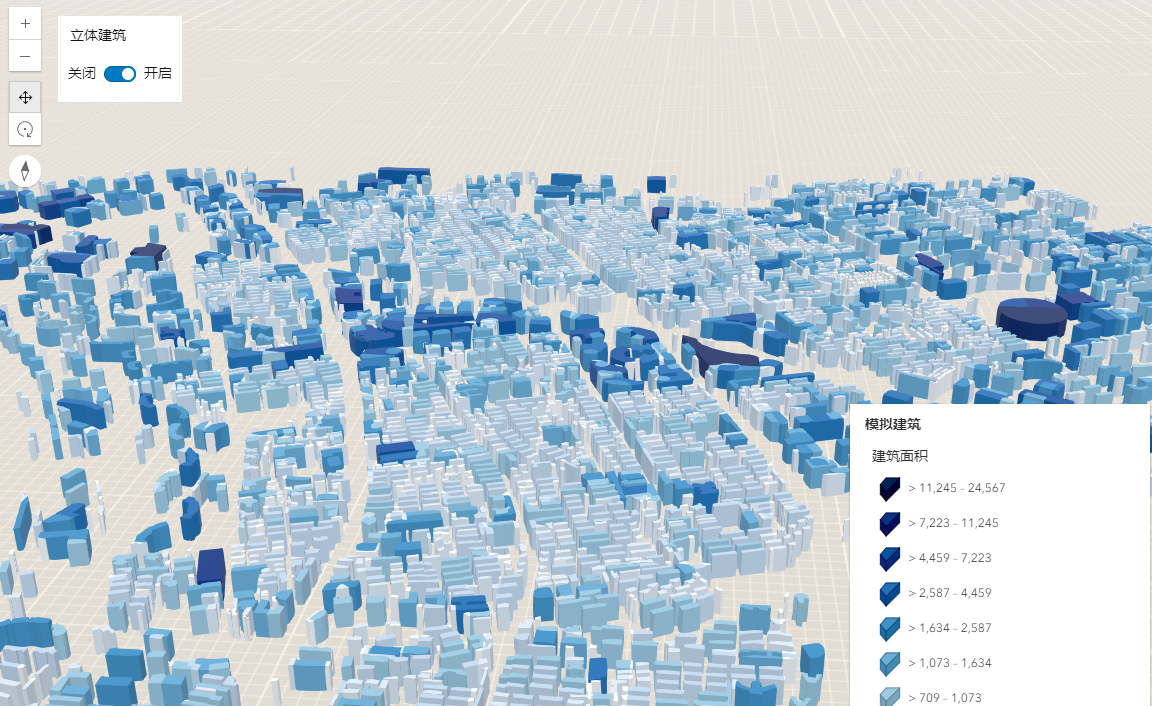

在这里插入图片描述

本文包括完整代码以及在线示例。

完整代码


<html lang="en">
