MCP与企业数据深度融合—ERP、CRM及数据仓库的统一接入架构与实践

随着企业数字化转型的深入推进，各类业务系统如ERP（Enterprise Resource Planning，企业资源规划）、CRM（Customer Relationship Management，客户关系管理）、数据仓库等系统的数据互联互通需求愈发迫切。​传统的点对点集成方式不仅开发成本高昂，维护复杂度也呈指数级增长，更重要的是难以满足实时性和一致性要求。Anthropic推出的MCP（Model Context Protocol，模型上下文协议）为这一痛点提供了革命性的解决方案。MCP通过标准化的协议接口，实现了AI模型与各类企业系统的无缝连接，不仅大幅降低了集成复杂度，更为企业数据的统一管理和智能化应用奠定了坚实基础。

本文将从企业数据源分析建模、主流系统集成实践、数据权限控制合规性保障以及实时数据同步一致性维护四个维度，深入探讨MCP在企业数据集成领域的应用实践，为企业数字化转型提供切实可行的技术路径和最佳实践指导。

1. 企业数据源分析与建模

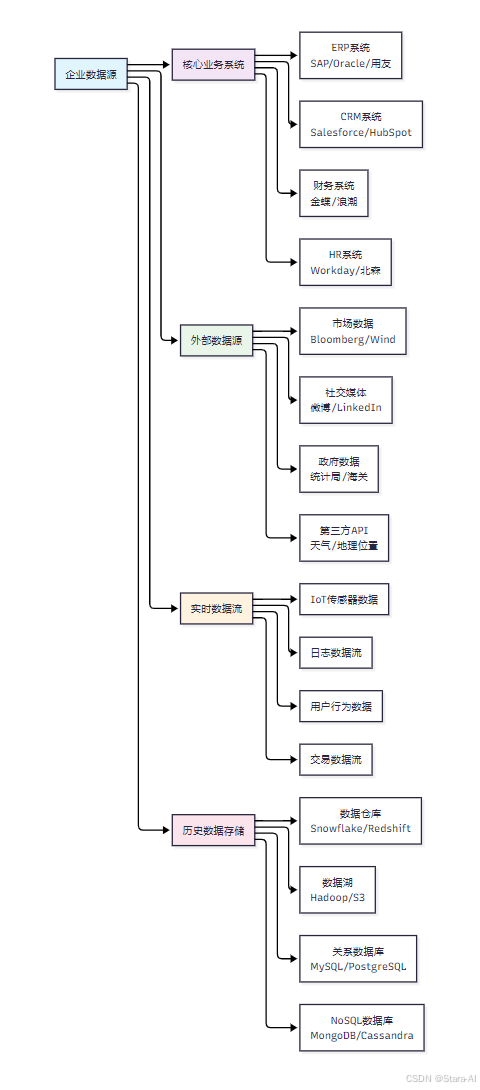

1.1 企业数据源全景分析

现代企业的数据生态系统呈现出多样化、复杂化的特征。从数据来源角度分析，主要包括以下几类：

1.2 数据模型设计原则

基于MCP协议的企业数据集成需要遵循统一的数据建模原则：

建模原则	描述	MCP实现方式	优势
标准化	统一数据格式和接口规范	通过MCP Schema定义	降低集成复杂度
可扩展性	支持新数据源的快速接入	插件化MCP Server	提高系统灵活性
一致性	保证跨系统数据的一致性	事务性MCP操作	确保数据准确性
安全性	数据访问权限控制	MCP认证授权机制	保障数据安全
实时性	支持实时数据同步	支持实时数据同步	提升业务响应速度

1.3 统一数据模型实现

# MCP企业数据模型定义
from typing import Dict, List, Optional, Union
from pydantic import BaseModel
from datetime import datetime
import logging# 配置日志
logger = logging.getLogger(__name__)
if not logger.handlers:handler = logging.StreamHandler()formatter = logging.Formatter('[%(asctime)s] %(levelname)s in %(module)s: %(message)s')handler.setFormatter(formatter)logger.addHandler(handler)logger.setLevel(logging.INFO)class MCPDataSource(BaseModel):"""MCP数据源基础模型，用于描述接入系统的元信息。Attributes:source_id (str): 数据源唯一标识符source_type (str): 数据源类型，如 'ERP', 'CRM', 'DW' 等connection_config (Dict): 连接配置参数，如 host, port, credentials 等schema_version (str): 数据源结构版本，用于兼容性管理last_sync_time (Optional[datetime]): 上次同步时间，初始可为空"""source_id: strsource_type: str  # ERP, CRM, DW, etc.connection_config: Dictschema_version: strlast_sync_time: Optional[datetime] = Noneclass MCPDataEntity(BaseModel):"""MCP数据实体模型，代表从数据源抽取或转换后的业务实体。Attributes:entity_id (str): 实体唯一IDentity_type (str): 实体类型，如 'Customer', 'Order', 'Product'source_system (str): 来源系统标识，如 'SAP_ERP', 'Salesforce_CRM'data_payload (Dict): 实体数据载荷，结构化业务数据metadata (Dict): 附加元数据，如来源字段、转换标记、权限标签等created_at (datetime): 实体创建时间updated_at (datetime): 实体最后更新时间"""entity_id: strentity_type: strsource_system: strdata_payload: Dictmetadata: Dictcreated_at: datetimeupdated_at: datetimeclass MCPDataMapping(BaseModel):"""MCP数据映射模型，定义源字段到目标字段的转换规则。Attributes:mapping_id (str): 映射规则唯一IDsource_field (str): 源系统字段名target_field (str): 目标系统字段名transformation_rule (Optional[str]): 可选转换规则，如 'upper()', 'substring(0,10)'validation_rule (Optional[str]): 可选校验规则，如 'not_null', 'regex:^[A-Z]+$'"""mapping_id: strsource_field: strtarget_field: strtransformation_rule: Optional[str] = Nonevalidation_rule: Optional[str] = None# MCP数据源管理器
class MCPDataSourceManager:"""MCP数据源管理器，负责注册、验证和管理接入的企业数据源。"""def __init__(self):self.data_sources: Dict[str, MCPDataSource] = {}self.mappings: Dict[str, List[MCPDataMapping]] = {}def register_data_source(self, source: MCPDataSource) -> bool:"""注册新的数据源到管理器中。Args:source (MCPDataSource): 待注册的数据源对象Returns:bool: 注册成功返回 True，失败返回 FalseExample:>>> manager = MCPDataSourceManager()>>> source = MCPDataSource(...     source_id="erp_001",...     source_type="ERP",...     connection_config={"host": "10.0.0.1", "port": 5432},...     schema_version="v1.0"... )>>> manager.register_data_source(source)True"""try:# 验证数据源连接if self._validate_connection(source):self.data_sources[source.source_id] = sourcelogger.info(f"数据源注册成功: {source.source_id} ({source.source_type})")return Trueelse:logger.warning(f"数据源连接验证失败: {source.source_id}")return Falseexcept Exception as e:logger.error(f"数据源注册异常: {e}", exc_info=True)return Falsedef _validate_connection(self, source: MCPDataSource) -> bool:"""验证数据源连接有效性（占位实现，需根据 source_type 扩展）。Args:source (MCPDataSource): 待验证的数据源对象Returns:bool: 连接有效返回 True，否则返回 FalseTODO:- 根据 source_type 分发到不同连接器（ERPConnector, CRMConnector...）- 实现真实连接测试（如 ping, query metadata）"""# 示例：根据类型模拟不同验证逻辑if source.source_type in ["ERP", "CRM", "DW"]:# 占位：此处应调用对应适配器进行真实连接测试logger.debug(f"模拟连接验证通过: {source.source_type} - {source.source_id}")return Trueelse:logger.warning(f"不支持的数据源类型: {source.source_type}")return False# ========== 保留原始结构，以下为新增辅助方法（非必需，便于扩展） ==========def get_data_source(self, source_id: str) -> Optional[MCPDataSource]:"""根据 source_id 获取数据源对象"""return self.data_sources.get(source_id)def list_data_sources(self) -> List[MCPDataSource]:"""列出所有已注册数据源"""return list(self.data_sources.values())def add_mapping(self, source_id: str, mapping: MCPDataMapping) -> bool:"""为指定数据源添加字段映射规则"""if source_id not in self.data_sources:logger.warning(f"数据源不存在，无法添加映射: {source_id}")return Falseif source_id not in self.mappings:self.mappings[source_id] = []self.mappings[source_id].append(mapping)logger.info(f"映射规则已添加: {mapping.mapping_id} for {source_id}")return Truedef get_mappings(self, source_id: str) -> List[MCPDataMapping]:"""获取指定数据源的所有映射规则"""return self.mappings.get(source_id, [])if __name__ == "__main__":# 初始化管理器manager = MCPDataSourceManager()# 创建数据源erp_source = MCPDataSource(source_id="erp_sales_2025",source_type="ERP",connection_config={"host": "erp.company.com", "port": 1433, "db": "SALES_DB"},schema_version="v2.1")# 注册数据源success = manager.register_data_source(erp_source)print(f"注册结果: {success}")# 获取数据源retrieved = manager.get_data_source("erp_sales_2025")if retrieved:print(f"获取数据源: {retrieved.source_id} - {retrieved.source_type}")

2. SAP、Salesforce等系统集成实践

2.1 SAP ERP系统集成架构

SAP作为全球领先的ERP解决方案，其集成复杂度较高。通过MCP协议可以大幅简化集成过程：

2.2 SAP集成实现代码

# SAP MCP Server实现
import pyrfc
from typing import Dict, List, Optional
import json
import logging# 配置日志
logger = logging.getLogger(__name__)
if not logger.handlers:handler = logging.StreamHandler()formatter = logging.Formatter('[%(asctime)s] %(levelname)s in %(module)s: %(message)s')handler.setFormatter(formatter)logger.addHandler(handler)logger.setLevel(logging.INFO)class SAPConnectionError(Exception):"""SAP连接相关异常"""passclass SAPDataError(Exception):"""SAP数据操作异常"""passclass SAPMCPServer:"""SAP MCP 服务端适配器，封装与 SAP 系统的 RFC 通信能力。支持客户数据查询、销售订单创建等核心业务操作。"""def __init__(self, sap_config: Dict):"""初始化 SAP MCP 服务端Args:sap_config (Dict): SAP 连接配置，包含 ASHOST, SYSNR, CLIENT, USER, PASSWD 等"""self.sap_config = sap_configself.connection: Optional[pyrfc.Connection] = Nonedef connect(self) -> bool:"""建立与 SAP 系统的 RFC 连接Returns:bool: 连接成功返回 True，失败返回 FalseRaises:SAPConnectionError: 连接异常时抛出（但本方法捕获并返回 False，不抛出）"""try:self.connection = pyrfc.Connection(**self.sap_config)logger.info("SAP RFC 连接建立成功")return Trueexcept Exception as e:logger.error(f"SAP连接失败: {e}")self.connection = Nonereturn Falsedef ensure_connected(self):"""确保连接已建立，否则抛出异常"""if not self.connection:raise SAPConnectionError("SAP连接未建立，请先调用 connect() 方法")def get_customer_data(self, customer_id: str) -> Dict:"""获取客户主数据（通过 BAPI_CUSTOMER_GETDETAIL2）Args:customer_id (str): 客户编号Returns:Dict: 标准化后的客户数据Raises:SAPConnectionError: 连接未建立SAPDataError: 数据获取或解析失败"""self.ensure_connected()try:# 调用SAP RFC函数result = self.connection.call('BAPI_CUSTOMER_GETDETAIL2',CUSTOMERNO=customer_id)# 检查返回消息if result.get('RETURN') and result['RETURN']['TYPE'] in ['E', 'A']:raise SAPDataError(f"BAPI调用失败: {result['RETURN']['MESSAGE']}")# 数据标准化处理customer_detail = result.get('CUSTOMERDETAIL', {})customer_data = {'customer_id': result.get('CUSTOMERNO', customer_id),'name': customer_detail.get('NAME1', ''),'address': {'street': customer_detail.get('STREET', ''),'city': customer_detail.get('CITY1', ''),'country': customer_detail.get('COUNTRY', '')},'contact': {'phone': customer_detail.get('TELEPHONE1', ''),'email': customer_detail.get('E_MAIL', '')}}logger.debug(f"客户数据获取成功: {customer_id}")return customer_dataexcept Exception as e:error_msg = f"获取客户数据失败: {e}"logger.error(error_msg)raise SAPDataError(error_msg) from edef create_sales_order(self, order_data: Dict) -> str:"""创建销售订单（通过 BAPI_SALESORDER_CREATEFROMDAT2）Args:order_data (Dict): 订单数据，包含 header 和 itemsReturns:str: 创建成功的销售订单编号Raises:SAPConnectionError: 连接未建立SAPDataError: 订单创建失败或返回错误"""self.ensure_connected()try:# 构建SAP订单结构order_header = {'DOC_TYPE': order_data.get('doc_type', 'OR'),'SALES_ORG': order_data.get('sales_org'),'DISTR_CHAN': order_data.get('distribution_channel'),'DIVISION': order_data.get('division')}order_items = []for item in order_data.get('items', []):order_items.append({'ITM_NUMBER': item['item_number'],'MATERIAL': item['material_code'],'REQ_QTY': item['quantity']})# 调用SAP BAPI创建订单result = self.connection.call('BAPI_SALESORDER_CREATEFROMDAT2',ORDER_HEADER_IN=order_header,ORDER_ITEMS_IN=order_items)# 检查返回结果ret = result.get('RETURN', {})if isinstance(ret, list):# 有时返回是列表，取第一个错误ret = ret[0] if ret else {}if ret.get('TYPE') == 'S':sales_doc = result.get('SALESDOCUMENT', '')logger.info(f"销售订单创建成功: {sales_doc}")return sales_docelse:msg = ret.get('MESSAGE', '未知错误')error_msg = f"创建订单失败: {msg}"logger.error(error_msg)raise SAPDataError(error_msg)except Exception as e:error_msg = f"SAP订单创建异常: {e}"logger.error(error_msg)raise SAPDataError(error_msg) from edef disconnect(self):"""关闭SAP连接"""if self.connection:try:self.connection.close()logger.info("SAP连接已关闭")except Exception as e:logger.warning(f"关闭SAP连接时发生异常: {e}")finally:self.connection = Noneif __name__ == "__main__":# SAP连接配置示例（请替换为真实配置）sap_config = {"ashost": "192.168.1.100","sysnr": "00","client": "100","user": "RFC_USER","passwd": "your_password","lang": "EN"}# 初始化SAP服务sap_server = SAPMCPServer(sap_config)# 建立连接if sap_server.connect():try:# 获取客户数据customer = sap_server.get_customer_data("100001")print("客户数据:", json.dumps(customer, indent=2, ensure_ascii=False))# 创建销售订单示例（请根据实际业务调整）order_data = {"doc_type": "OR","sales_org": "1000","distribution_channel": "10","division": "00","items": [{"item_number": "000010","material_code": "MAT-001","quantity": 5}]}order_no = sap_server.create_sales_order(order_data)print(f"销售订单创建成功，订单号: {order_no}")except Exception as e:print(f"业务操作失败: {e}")finally:sap_server.disconnect()else:print("无法连接SAP系统")

2.3 Salesforce CRM集成实践

Salesforce作为全球领先的CRM平台，其API丰富且标准化程度高，非常适合MCP集成：

# Salesforce MCP Server实现
from simple_salesforce import Salesforce
from typing import Dict, List, Optional
import json
import logging# 配置日志
logger = logging.getLogger(__name__)
if not logger.handlers:handler = logging.StreamHandler()formatter = logging.Formatter('[%(asctime)s] %(levelname)s in %(module)s: %(message)s')handler.setFormatter(formatter)logger.addHandler(handler)logger.setLevel(logging.INFO)class SalesforceAuthError(Exception):"""Salesforce 认证异常"""passclass SalesforceDataError(Exception):"""Salesforce 数据操作异常"""passclass SalesforceMCPServer:"""Salesforce MCP 服务端适配器，封装与 Salesforce 的 API 通信能力。支持账户查询、销售机会创建、联系人数据同步等核心业务操作。"""def __init__(self, sf_config: Dict):"""初始化 Salesforce MCP 服务端Args:sf_config (Dict): Salesforce 登录配置，包含 username, password, security_token, domain"""self.sf_config = sf_configself.sf_client: Optional[Salesforce] = Nonedef authenticate(self) -> bool:"""Salesforce 认证并建立连接Returns:bool: 认证成功返回 True，失败返回 FalseRaises:SalesforceAuthError: 认证失败异常（但本方法捕获并返回 False，不抛出）"""try:self.sf_client = Salesforce(username=self.sf_config['username'],password=self.sf_config['password'],security_token=self.sf_config['security_token'],domain=self.sf_config.get('domain', 'login'))logger.info("Salesforce 认证成功")return Trueexcept Exception as e:logger.error(f"Salesforce认证失败: {e}")self.sf_client = Nonereturn Falsedef ensure_authenticated(self):"""确保已认证，否则抛出异常"""if not self.sf_client:raise SalesforceAuthError("Salesforce 未认证，请先调用 authenticate() 方法")def get_account_info(self, account_id: str) -> Dict:"""获取客户账户信息Args:account_id (str): Salesforce 账户 IDReturns:Dict: 标准化后的账户数据Raises:SalesforceAuthError: 未认证SalesforceDataError: 数据获取失败"""self.ensure_authenticated()try:account = self.sf_client.Account.get(account_id)# 标准化数据格式account_data = {'account_id': account['Id'],'name': account['Name'],'type': account.get('Type'),'industry': account.get('Industry'),'annual_revenue': account.get('AnnualRevenue'),'employees': account.get('NumberOfEmployees'),'address': {'street': account.get('BillingStreet'),'city': account.get('BillingCity'),'state': account.get('BillingState'),'country': account.get('BillingCountry'),'postal_code': account.get('BillingPostalCode')},'created_date': account['CreatedDate'],'last_modified': account['LastModifiedDate']}logger.debug(f"账户信息获取成功: {account_id}")return account_dataexcept Exception as e:error_msg = f"获取账户信息失败: {e}"logger.error(error_msg)raise SalesforceDataError(error_msg) from edef create_opportunity(self, opp_ Dict) -> str:"""创建销售机会Args:opp_data (Dict): 机会数据，包含 name, account_id, close_date 等字段Returns:str: 创建成功的 Opportunity IDRaises:SalesforceAuthError: 未认证SalesforceDataError: 创建失败"""self.ensure_authenticated()try:opportunity = {'Name': opp_data['name'],'AccountId': opp_data['account_id'],'Amount': opp_data.get('amount'),'CloseDate': opp_data['close_date'],'StageName': opp_data.get('stage', 'Prospecting'),'Probability': opp_data.get('probability', 10)}result = self.sf_client.Opportunity.create(opportunity)if result.get('success'):opp_id = result['id']logger.info(f"销售机会创建成功: {opp_id}")return opp_idelse:error_msg = f"创建失败: {result.get('errors', '未知错误')}"logger.error(error_msg)raise SalesforceDataError(error_msg)except Exception as e:error_msg = f"创建销售机会失败: {e}"logger.error(error_msg)raise SalesforceDataError(error_msg) from edef sync_contacts_to_mcp(self) -> List[Dict]:"""同步最近更新的联系人数据到 MCP 标准格式Returns:List[Dict]: 标准化后的联系人列表Raises:SalesforceAuthError: 未认证SalesforceDataError: 查询或转换失败"""self.ensure_authenticated()try:# 查询最近更新的联系人query = """SELECT Id, FirstName, LastName, Email, Phone, AccountId, CreatedDate, LastModifiedDate FROM Contact WHERE LastModifiedDate >= YESTERDAY"""contacts = self.sf_client.query(query)standardized_contacts = []for contact in contacts['records']:standardized_contacts.append({'contact_id': contact['Id'],'first_name': contact.get('FirstName'),'last_name': contact.get('LastName'),'email': contact.get('Email'),'phone': contact.get('Phone'),'account_id': contact.get('AccountId'),'source_system': 'Salesforce','created_date': contact['CreatedDate'],'last_modified': contact['LastModifiedDate']})logger.info(f"成功同步 {len(standardized_contacts)} 条联系人数据")return standardized_contactsexcept Exception as e:error_msg = f"同步联系人数据失败: {e}"logger.error(error_msg)raise SalesforceDataError(error_msg) from eif __name__ == "__main__":# Salesforce 配置示例（请替换为真实值）sf_config = {"username": "[e-mail]","password": "your_password","security_token": "your_security_token","domain": "login"  # 或 "test" 用于沙箱}# 初始化 Salesforce 服务sf_server = SalesforceMCPServer(sf_config)# 认证if sf_server.authenticate():try:# 获取账户信息（请替换为真实 Account ID）account = sf_server.get_account_info("001XXXXXXXXXXXXXXX")print("账户信息:", json.dumps(account, indent=2, ensure_ascii=False))# 创建销售机会示例opp_data = {"name": "MCP 集成项目机会","account_id": "001XXXXXXXXXXXXXXX","close_date": "2025-12-31","amount": 50000,"stage": "Qualification"}opp_id = sf_server.create_opportunity(opp_data)print(f"销售机会创建成功，ID: {opp_id}")# 同步联系人contacts = sf_server.sync_contacts_to_mcp()print(f"同步联系人数量: {len(contacts)}")if contacts:print("第一条联系人:", json.dumps(contacts[0], indent=2, ensure_ascii=False))except Exception as e:print(f"业务操作失败: {e}")else:print("Salesforce 认证失败，请检查配置")

2.4 集成效果对比分析

集成方式	开发周期	维护成本	扩展性	实时性	数据一致性
传统点对点	3-6个月	高	低	中等	难保证
ESB集成	2-4个月	中等	中等	中等	较好
MCP集成	2-4周	低	高	高	优秀

3. 数据权限控制与合规性保障

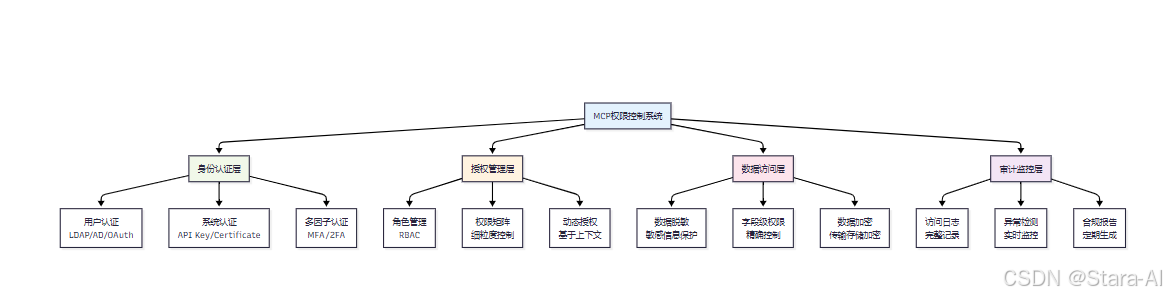

3.1 多层级权限控制架构

企业数据安全是数据集成的核心要求，MCP提供了完善的权限控制机制：

3.2 权限控制实现代码

# MCP权限控制系统实现
from typing import Dict, List, Set, Optional
from enum import Enum
import hashlib
import jwt
from datetime import datetime, timedelta
import logging
import json# 配置日志
logger = logging.getLogger(__name__)
if not logger.handlers:handler = logging.StreamHandler()formatter = logging.Formatter('[%(asctime)s] %(levelname)s in %(module)s: %(message)s')handler.setFormatter(formatter)logger.addHandler(handler)logger.setLevel(logging.INFO)class MCPAuthError(Exception):"""MCP 认证或权限异常"""passclass PermissionLevel(Enum):READ = "read"WRITE = "write"DELETE = "delete"ADMIN = "admin"class DataClassification(Enum):PUBLIC = "public"INTERNAL = "internal"CONFIDENTIAL = "confidential"RESTRICTED = "restricted"class MCPPermissionManager:"""MCP 权限管理器，负责用户、角色、权限、数据分级的统一管理与校验。支持基于角色的访问控制（RBAC）和数据敏感级别控制。"""def __init__(self):self.users: Dict[str, Dict] = {}self.roles: Dict[str, Dict] = {}self.permissions: Dict[str, Set[str]] = {}# 修复：初始化 data_classifications 字典（原代码未初始化会导致 KeyError）self.data_classifications: Dict[str, DataClassification] = {}def create_user(self, user_id: str, user_info: Dict) -> bool:"""创建用户Args:user_id (str): 用户唯一标识user_info (Dict): 用户信息，必须包含 name, emailReturns:bool: 创建成功返回 True，失败返回 FalseExample:>>> pm = MCPPermissionManager()>>> pm.create_user("u001", {"name": "张三", "email": "[e-mail]", "roles": ["sales"]})True"""try:self.users[user_id] = {'user_id': user_id,'name': user_info['name'],'email': user_info['email'],'department': user_info.get('department'),'roles': user_info.get('roles', []),'created_at': datetime.now(),'is_active': True}logger.info(f"用户创建成功: {user_id}")return Trueexcept Exception as e:logger.error(f"创建用户失败: {e}")return Falsedef create_role(self, role_id: str, role_info: Dict) -> bool:"""创建角色Args:role_id (str): 角色唯一标识role_info (Dict): 角色信息，必须包含 nameReturns:bool: 创建成功返回 True，失败返回 False"""try:self.roles[role_id] = {'role_id': role_id,'name': role_info['name'],'description': role_info.get('description'),'permissions': role_info.get('permissions', []),'data_access_level': role_info.get('data_access_level', DataClassification.PUBLIC)}logger.info(f"角色创建成功: {role_id}")return Trueexcept Exception as e:logger.error(f"创建角色失败: {e}")return Falsedef assign_data_classification(self, resource: str, classification: DataClassification):"""为资源分配数据分类级别（新增实用方法）Args:resource (str): 资源标识，如 "customer_data", "financial_report"classification (DataClassification): 数据分类级别"""self.data_classifications[resource] = classificationlogger.debug(f"资源 {resource} 分类设置为: {classification.value}")def check_permission(self, user_id: str, resource: str, action: PermissionLevel) -> bool:"""检查用户是否对资源拥有指定操作权限Args:user_id (str): 用户IDresource (str): 资源标识action (PermissionLevel): 请求的操作权限Returns:bool: 有权限返回 True，否则 FalseRaises:MCPAuthError: 用户不存在或未激活"""try:user = self.users.get(user_id)if not user:logger.warning(f"用户不存在: {user_id}")return Falseif not user['is_active']:logger.warning(f"用户未激活: {user_id}")return False# 检查用户角色权限for role_id in user['roles']:role = self.roles.get(role_id)if role and self._has_permission(role, resource, action):# 检查数据分类权限if self._check_data_classification(role, resource):logger.debug(f"权限校验通过: {user_id} -> {resource}:{action.value}")return Truelogger.warning(f"权限校验失败: {user_id} 无权执行 {action.value} on {resource}")return Falseexcept Exception as e:logger.error(f"权限检查失败: {e}")return Falsedef _has_permission(self, role: Dict, resource: str, action: PermissionLevel) -> bool:"""检查角色是否有特定权限"""permissions = role.get('permissions', [])required_permission = f"{resource}:{action.value}"has_exact = required_permission in permissionshas_wildcard = f"{resource}:*" in permissionsreturn has_exact or has_wildcarddef _check_data_classification(self, role: Dict, resource: str) -> bool:"""检查角色是否有权访问该数据分类级别"""resource_classification = self.data_classifications.get(resource, DataClassification.PUBLIC)role_access_level = role.get('data_access_level', DataClassification.PUBLIC)# 定义访问级别层次（数值越大权限越高）access_hierarchy = {DataClassification.PUBLIC: 0,DataClassification.INTERNAL: 1,DataClassification.CONFIDENTIAL: 2,DataClassification.RESTRICTED: 3}can_access = access_hierarchy[role_access_level] >= access_hierarchy[resource_classification]if not can_access:logger.debug(f"数据分类权限不足: 角色级别 {role_access_level.value} < 资源级别 {resource_classification.value}")return can_access# ========== 新增实用方法（不影响原有结构） ==========def get_user_roles(self, user_id: str) -> List[str]:"""获取用户角色列表"""user = self.users.get(user_id)return user.get('roles', []) if user else []def deactivate_user(self, user_id: str) -> bool:"""停用用户"""if user_id in self.users:self.users[user_id]['is_active'] = Falselogger.info(f"用户已停用: {user_id}")return Truereturn False# 数据脱敏处理
class DataMaskingProcessor:"""数据脱敏处理器，根据用户数据访问级别动态脱敏敏感字段。支持手机号、邮箱、身份证、银行卡号等常见敏感类型。"""def __init__(self):self.masking_rules = {'phone': self._mask_phone,'email': self._mask_email,'id_card': self._mask_id_card,'bank_account': self._mask_bank_account}def mask_sensitive_data(self,  Dict, user_permission_level: DataClassification) -> Dict:"""根据用户权限级别脱敏数据Args:data (Dict): 原始数据字典user_permission_level (DataClassification): 用户数据访问级别Returns:Dict: 脱敏后的数据字典"""# 最高权限不脱敏if user_permission_level == DataClassification.RESTRICTED:return datamasked_data = data.copy()for field, value in data.items():if self._is_sensitive_field(field):field_type = self._get_field_type(field)masking_func = self.masking_rules.get(field_type)if masking_func and isinstance(value, str):masked_data[field] = masking_func(value, user_permission_level)return masked_datadef _mask_phone(self, phone: str, level: DataClassification) -> str:"""手机号脱敏"""if not phone:return ""if level == DataClassification.CONFIDENTIAL:return phone[:3] + "****" + phone[-4:] if len(phone) >= 7 else "****"else:return "***-****-****"def _mask_email(self, email: str, level: DataClassification) -> str:"""邮箱脱敏"""if not email or '@' not in email:return "***@***.com"if level == DataClassification.CONFIDENTIAL:local, domain = email.split('@', 1)return local[:2] + "***@" + domain if len(local) > 2 else "***@" + domainelse:return "***@***.com"def _mask_id_card(self, id_card: str, level: DataClassification) -> str:"""身份证脱敏"""if not id_card:return ""if level == DataClassification.CONFIDENTIAL:return id_card[:3] + "***********" + id_card[-3:] if len(id_card) >= 6 else "******"else:return "**************"def _mask_bank_account(self, account: str, level: DataClassification) -> str:"""银行卡号脱敏"""if not account:return ""if level == DataClassification.CONFIDENTIAL:return account[:4] + " **** **** " + account[-4:] if len(account) >= 8 else "****"else:return "**** **** **** ****"def _is_sensitive_field(self, field: str) -> bool:"""判断是否为敏感字段"""sensitive_keywords = ['phone', 'email', 'id', 'bank', 'password', 'ssn', '身份证', '银行卡']field_lower = field.lower()return any(keyword in field_lower for keyword in sensitive_keywords)def _get_field_type(self, field: str) -> str:"""获取字段类型"""field_lower = field.lower()if 'phone' in field_lower:return 'phone'elif 'email' in field_lower:return 'email'elif 'id' in field_lower or '身份证' in field_lower:return 'id_card'elif 'bank' in field_lower or '银行卡' in field_lower:return 'bank_account'return 'default'if __name__ == "__main__":# 初始化权限管理器和脱敏处理器perm_manager = MCPPermissionManager()masking_processor = DataMaskingProcessor()# 创建角色perm_manager.create_role("sales", {"name": "销售代表","permissions": ["customer:read", "order:read"],"data_access_level": DataClassification.CONFIDENTIAL})perm_manager.create_role("viewer", {"name": "数据查看员","permissions": ["customer:read"],"data_access_level": DataClassification.INTERNAL})# 创建用户perm_manager.create_user("u001", {"name": "张三","email": "[e-mail]","department": "Sales","roles": ["sales"]})perm_manager.create_user("u002", {"name": "李四","email": "[e-mail]","roles": ["viewer"]})# 设置资源数据分类perm_manager.assign_data_classification("customer_data", DataClassification.CONFIDENTIAL)perm_manager.assign_data_classification("internal_report", DataClassification.INTERNAL)# 测试权限检查print("=== 权限检查测试 ===")print("张三读取客户数据:", perm_manager.check_permission("u001", "customer_data", PermissionLevel.READ))print("李四读取客户数据:", perm_manager.check_permission("u002", "customer_data", PermissionLevel.READ))print("李四读取内部报告:", perm_manager.check_permission("u002", "internal_report", PermissionLevel.READ))# 测试数据脱敏print("\n=== 数据脱敏测试 ===")sample_data = {"name": "王五","phone": "13800138000","email": "[e-mail]","id_card": "110101199003071234","bank_account": "6222021234567890123"}# 销售角色（CONFIDENTIAL 级别）sales_masked = masking_processor.mask_sensitive_data(sample_data, DataClassification.CONFIDENTIAL)print("销售角色查看:", json.dumps(sales_masked, indent=2, ensure_ascii=False))# 查看员角色（INTERNAL 级别）viewer_masked = masking_processor.mask_sensitive_data(sample_data, DataClassification.INTERNAL)print("查看员角色查看:", json.dumps(viewer_masked, indent=2, ensure_ascii=False))# 管理员角色（RESTRICTED 级别，不脱敏）admin_masked = masking_processor.mask_sensitive_data(sample_data, DataClassification.RESTRICTED)print("管理员角色查看:", json.dumps(admin_masked, indent=2, ensure_ascii=False))

3.3 合规性保障机制

“数据合规不是技术问题，而是治理问题。技术只是实现合规的手段，真正的挑战在于建立完善的数据治理体系。” —— 数据治理专家

合规要求	技术实现	MCP支持	监控指标
GDPR数据保护	数据加密、访问控制	内置隐私保护	数据访问频次、敏感数据使用率
SOX财务合规	审计日志、职责分离	完整审计链	财务数据访问记录、权限变更日志
HIPAA医疗合规	数据脱敏、传输加密	医疗数据特殊处理	患者数据访问、数据泄露检测
等保2.0	身份认证、访问控制	多层安全防护	安全事件、异常访问行为

4. 实时数据同步与一致性维护

4.1 实时同步架构设计

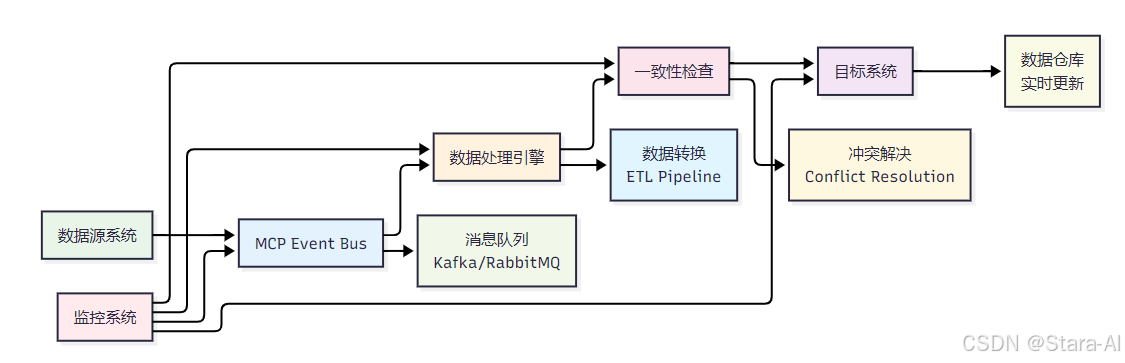

实时数据同步是企业数据集成的核心挑战，MCP通过事件驱动机制实现高效的实时同步：如下图MCP实时数据同步架构图

4.2 实时同步实现代码

# MCP实时数据同步系统
import asyncio
import json
from typing import Dict, List, Callable, Optional, Any
from datetime import datetime
import hashlib
from enum import Enum
import logging# 配置日志
logger = logging.getLogger(__name__)
if not logger.handlers:handler = logging.StreamHandler()formatter = logging.Formatter('[%(asctime)s] %(levelname)s in %(module)s: %(message)s')handler.setFormatter(formatter)logger.addHandler(handler)logger.setLevel(logging.INFO)class MCPDataSyncError(Exception):"""MCP 数据同步异常"""passclass SyncEventType(Enum):CREATE = "create"UPDATE = "update"DELETE = "delete"BULK_SYNC = "bulk_sync"class DataSyncEvent:"""数据同步事件模型，封装变更事件的元信息和载荷。"""def __init__(self, event_type: SyncEventType, source_system: str,entity_type: str, entity_id: str, data: Dict, timestamp: datetime = None):self.event_type = event_typeself.source_system = source_systemself.entity_type = entity_typeself.entity_id = entity_idself.data = dataself.timestamp = timestamp or datetime.now()self.event_id = self._generate_event_id()def _generate_event_id(self) -> str:"""生成唯一事件ID"""content = f"{self.source_system}:{self.entity_type}:{self.entity_id}:{self.timestamp.isoformat()}"return hashlib.md5(content.encode()).hexdigest()def to_dict(self) -> Dict[str, Any]:"""转换为字典格式，便于序列化"""return {'event_id': self.event_id,'event_type': self.event_type.value,'source_system': self.source_system,'entity_type': self.entity_type,'entity_id': self.entity_id,'data': self.data,'timestamp': self.timestamp.isoformat()}class MCPRealTimeSyncManager:"""MCP 实时数据同步管理器，负责事件分发、规则匹配、数据转换、冲突解决和状态跟踪。"""def __init__(self):self.event_handlers: Dict[str, List[Callable]] = {}self.sync_rules: Dict[str, Dict] = {}self.conflict_resolvers: Dict[str, Callable] = {}self.data_transformers: Dict[str, Any] = {}  # 存储数据转换器self.sync_status: Dict[str, Dict] = {}def register_sync_rule(self, source_system: str, target_systems: List[str],entity_types: List[str], sync_config: Dict):"""注册同步规则Args:source_system (str): 源系统标识target_systems (List[str]): 目标系统列表entity_types (List[str]): 适用的实体类型sync_config (Dict): 同步配置参数"""rule_id = f"{source_system}_to_{'_'.join(target_systems)}"self.sync_rules[rule_id] = {'source_system': source_system,'target_systems': target_systems,'entity_types': entity_types,'sync_config': sync_config,'created_at': datetime.now()}logger.info(f"同步规则注册成功: {rule_id}")def register_event_handler(self, event_type: str, handler: Callable):"""注册事件处理器"""if event_type not in self.event_handlers:self.event_handlers[event_type] = []self.event_handlers[event_type].append(handler)logger.debug(f"事件处理器注册: {event_type} -> {handler.__name__}")def register_transformer(self, source_system: str, target_system: str, transformer: Any):"""注册数据转换器Args:source_system (str): 源系统target_system (str): 目标系统transformer (Any): 转换器对象，需实现 .transform(data) 方法"""key = f"{source_system}_to_{target_system}"self.data_transformers[key] = transformerlogger.info(f"数据转换器注册: {key}")def register_conflict_resolver(self, target_system: str, resolver: Callable):"""注册冲突解决器Args:target_system (str): 目标系统resolver (Callable): 解决函数，签名为 resolver(data, entity_id)"""key = f"{target_system}_resolver"self.conflict_resolvers[key] = resolverlogger.info(f"冲突解决器注册: {key}")async def process_sync_event(self, event: DataSyncEvent):"""处理同步事件Args:event (DataSyncEvent): 待处理的同步事件"""try:# 查找适用的同步规则applicable_rules = self._find_applicable_rules(event)for rule in applicable_rules:await self._execute_sync_rule(event, rule)# 更新同步状态self._update_sync_status(event, 'success')logger.info(f"同步事件处理成功: {event.event_id}")except Exception as e:error_msg = f"同步事件处理失败: {e}"logger.error(error_msg)self._update_sync_status(event, 'failed', str(e))raise MCPDataSyncError(error_msg) from edef _find_applicable_rules(self, event: DataSyncEvent) -> List[Dict]:"""查找适用的同步规则"""applicable_rules = []for rule_id, rule in self.sync_rules.items():if (event.source_system == rule['source_system'] andevent.entity_type in rule['entity_types']):applicable_rules.append(rule)return applicable_rulesasync def _execute_sync_rule(self, event: DataSyncEvent, rule: Dict):"""执行同步规则"""for target_system in rule['target_systems']:try:# 数据转换transformed_data = await self._transform_data(event.data, event.source_system, target_system)# 冲突检测和解决resolved_data = await self._resolve_conflicts(transformed_data, target_system, event.entity_id)# 执行同步操作（模拟）await self._sync_to_target(resolved_data, target_system, event)logger.debug(f"数据同步完成: {event.entity_id} -> {target_system}")except Exception as e:error_msg = f"同步到 {target_system} 失败: {e}"logger.error(error_msg)raise MCPDataSyncError(error_msg) from easync def _transform_data(self, data: Dict, source_system: str, target_system: str) -> Dict:"""数据转换"""transformation_key = f"{source_system}_to_{target_system}"transformer = self.data_transformers.get(transformation_key)if transformer:if hasattr(transformer, 'transform'):if asyncio.iscoroutinefunction(transformer.transform):return await transformer.transform(data)else:return transformer.transform(data)elif callable(transformer):if asyncio.iscoroutinefunction(transformer):return await transformer(data)else:return transformer(data)# 默认转换逻辑logger.debug(f"无转换器，使用默认转换: {transformation_key}")return data.copy()async def _resolve_conflicts(self, data: Dict, target_system: str, entity_id: str) -> Dict:"""冲突解决"""resolver_key = f"{target_system}_resolver"resolver = self.conflict_resolvers.get(resolver_key)if resolver:if asyncio.iscoroutinefunction(resolver):return await resolver(data, entity_id)else:return resolver(data, entity_id)# 默认冲突解决策略：最新数据优先logger.debug(f"无冲突解决器，使用默认策略: {resolver_key}")return dataasync def _sync_to_target(self, data: Dict, target_system: str, event: DataSyncEvent):"""执行到目标系统的同步（占位实现，需根据目标系统扩展）Args:data (Dict): 要同步的数据target_system (str): 目标系统标识event (DataSyncEvent): 原始事件"""# 模拟异步同步操作await asyncio.sleep(0.1)# TODO: 调用目标系统 API 或适配器def _update_sync_status(self, event: DataSyncEvent, status: str, error_msg: str = None):"""更新同步状态"""status_key = f"{event.source_system}:{event.entity_id}"self.sync_status[status_key] = {'last_sync': datetime.now(),'status': status,'error': error_msg,'event_id': event.event_id,'event_type': event.event_type.value}# ========== 新增实用方法 ==========def get_sync_status(self, source_system: str, entity_id: str) -> Optional[Dict]:"""获取指定实体的同步状态"""key = f"{source_system}:{entity_id}"return self.sync_status.get(key)def get_all_sync_status(self) -> Dict[str, Dict]:"""获取所有同步状态"""return self.sync_status.copy()# 数据一致性检查器
class DataConsistencyChecker:"""数据一致性检查器，支持多规则并行校验，计算整体一致性分数。"""def __init__(self):self.consistency_rules: Dict[str, Callable] = {}self.validation_results: Dict[str, Dict] = {}def add_consistency_rule(self, rule_name: str, rule_func: Callable):"""添加一致性规则Args:rule_name (str): 规则名称rule_func (Callable): 校验函数，签名为 func(entity_type, entity_id, systems_data) -> Dict"""self.consistency_rules[rule_name] = rule_funclogger.info(f"一致性规则添加: {rule_name}")async def check_consistency(self, entity_type: str, entity_id: str,systems_data: Dict[str, Dict]) -> Dict:"""检查数据一致性Args:entity_type (str): 实体类型entity_id (str): 实体IDsystems_data (Dict[str, Dict]): 各系统数据，key 为系统名Returns:Dict: 一致性检查报告"""results = {}for rule_name, rule_func in self.consistency_rules.items():try:if asyncio.iscoroutinefunction(rule_func):result = await rule_func(entity_type, entity_id, systems_data)else:result = rule_func(entity_type, entity_id, systems_data)results[rule_name] = {'passed': result.get('passed', False),'details': result.get('details', {}),'confidence': result.get('confidence', 1.0)}except Exception as e:logger.error(f"一致性规则 {rule_name} 执行失败: {e}")results[rule_name] = {'passed': False,'error': str(e),'confidence': 0.0}# 计算整体一致性分数overall_score = self._calculate_consistency_score(results)report = {'entity_type': entity_type,'entity_id': entity_id,'consistency_score': overall_score,'rule_results': results,'timestamp': datetime.now().isoformat()}# 缓存结果cache_key = f"{entity_type}:{entity_id}"self.validation_results[cache_key] = reportlogger.info(f"一致性检查完成: {entity_id}, 分数={overall_score:.2f}")return reportdef _calculate_consistency_score(self, results: Dict) -> float:"""计算一致性分数"""if not results:return 0.0total_weight = 0weighted_score = 0for rule_result in results.values():confidence = rule_result.get('confidence', 1.0)passed = rule_result.get('passed', False)total_weight += confidenceweighted_score += confidence if passed else 0return weighted_score / total_weight if total_weight > 0 else 0.0def get_validation_result(self, entity_type: str, entity_id: str) -> Optional[Dict]:"""获取缓存的一致性检查结果"""key = f"{entity_type}:{entity_id}"return self.validation_results.get(key)if __name__ == "__main__":async def main():# 初始化同步管理器和一致性检查器sync_manager = MCPRealTimeSyncManager()consistency_checker = DataConsistencyChecker()# ========== 1. 注册同步规则 ==========sync_manager.register_sync_rule(source_system="SAP",target_systems=["Salesforce", "DataWarehouse"],entity_types=["Customer", "Order"],sync_config={"batch_size": 100, "retry_times": 3})# ========== 2. 注册数据转换器（示例） ==========class SAPToSalesforceTransformer:async def transform(self, data: Dict) -> Dict:# 模拟字段映射转换return {"Name": data.get("name"),"Email": data.get("email"),"Phone": data.get("phone"),"ExternalId__c": data.get("customer_id")}sync_manager.register_transformer("SAP", "Salesforce", SAPToSalesforceTransformer())# ========== 3. 注册冲突解决器（示例） ==========def salesforce_resolver(data: Dict, entity_id: str) -> Dict:# 示例：如果 Salesforce 中已有数据，保留原 ownerdata["OwnerId"] = "005XXXXXXXXXXXXXXX"  # 固定所有者return datasync_manager.register_conflict_resolver("Salesforce", salesforce_resolver)# ========== 4. 创建并处理同步事件 ==========event = DataSyncEvent(event_type=SyncEventType.UPDATE,source_system="SAP",entity_type="Customer",entity_id="CUST-001",data={"customer_id": "CUST-001","name": "张三科技有限公司","email": "[e-mail]","phone": "13800138000","address": "北京市朝阳区某某大厦"})print("=== 开始处理同步事件 ===")await sync_manager.process_sync_event(event)# 查看同步状态status = sync_manager.get_sync_status("SAP", "CUST-001")print("同步状态:", json.dumps(status, indent=2, ensure_ascii=False))# ========== 5. 数据一致性检查 ==========def name_consistency_rule(entity_type: str, entity_id: str, systems_data: Dict) -> Dict:"""检查各系统中名称是否一致"""names = [data.get("name") or data.get("Name") or data.get("company_name") for data in systems_data.values() if data]unique_names = set(filter(None, names))  # 过滤 None 值passed = len(unique_names) <= 1return {"passed": passed,"details": {"names": list(unique_names)},"confidence": 0.9}consistency_checker.add_consistency_rule("name_consistency", name_consistency_rule)# 模拟各系统数据test_data = {"SAP": {"name": "张三科技有限公司", "customer_id": "CUST-001"},"Salesforce": {"Name": "张三科技有限公司", "ExternalId__c": "CUST-001"},"DataWarehouse": {"company_name": "张三科技有限公司", "id": "CUST-001"}  # 修改为一致}print("\n=== 开始一致性检查 ===")report = await consistency_checker.check_consistency("Customer", "CUST-001", test_data)print("一致性报告:", json.dumps(report, indent=2, ensure_ascii=False))# 运行异步主函数asyncio.run(main())

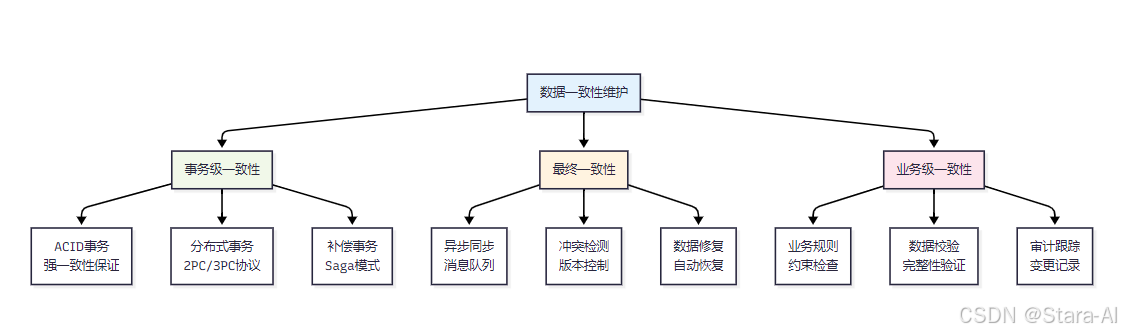

4.3 一致性维护策略

企业数据一致性维护需要多层次的策略支持：

5. 企业级MCP部署最佳实践

5.1 高可用架构设计

# MCP高可用集群管理
import asyncio
from typing import List, Dict, Optional
from enum import Enum
from datetime import datetime
import logging
import json
import random# 配置日志
logger = logging.getLogger(__name__)
if not logger.handlers:handler = logging.StreamHandler()formatter = logging.Formatter('[%(asctime)s] %(levelname)s in %(module)s: %(message)s')handler.setFormatter(formatter)logger.addHandler(handler)logger.setLevel(logging.INFO)class NodeStatus(Enum):HEALTHY = "healthy"DEGRADED = "degraded"FAILED = "failed"MAINTENANCE = "maintenance"# 补全缺失的辅助类
class ConnectionPool:def __init__(self, uri: str):self.uri = uriself.active_connections = 0async def get_connection(self):await asyncio.sleep(0.01)self.active_connections += 1return {"conn_id": f"conn_{id(self)}"}async def release_connection(self, conn):self.active_connections -= 1class NodeMetrics:def __init__(self):self.cpu_usage = 0.0self.memory_usage = 0.0self.response_time_ms = 0.0self.error_rate = 0.0def update(self, metrics: Dict):self.cpu_usage = metrics.get('cpu_usage', self.cpu_usage)self.memory_usage = metrics.get('memory_usage', self.memory_usage)self.response_time_ms = metrics.get('response_time_ms', self.response_time_ms)self.error_rate = metrics.get('error_rate', self.error_rate)class HealthChecker:async def check_node(self, connection_pool: ConnectionPool) -> Dict:try:conn = await connection_pool.get_connection()await asyncio.sleep(0.05)await connection_pool.release_connection(conn)# 模拟 10% 概率降级if random.random() < 0.1:return {'status': NodeStatus.DEGRADED,'metrics': {'cpu_usage': 85.0,'memory_usage': 90.0,'response_time_ms': 350.0,'error_rate': 5.0}}return {'status': NodeStatus.HEALTHY,'metrics': {'cpu_usage': 30.0 + random.random() * 20,'memory_usage': 40.0 + random.random() * 30,'response_time_ms': 50.0 + random.random() * 100,'error_rate': random.random() * 0.5}}except Exception as e:logger.error(f"健康检查异常: {e}")return {'status': NodeStatus.FAILED,'metrics': {'cpu_usage': 0.0,'memory_usage': 0.0,'response_time_ms': 0.0,'error_rate': 100.0}}class FailoverManager:async def handle_failover(self, failed_node_id: str, nodes: Dict):logger.info(f"触发故障转移: {failed_node_id}")healthy_nodes = [nid for nid, info in nodes.items() if info['status'] == NodeStatus.HEALTHY]if healthy_nodes:logger.info(f"故障转移目标节点: {healthy_nodes[0]}")else:logger.warning("无健康节点可供故障转移")class LoadBalancer:def __init__(self, strategy: str = "round_robin"):self.strategy = strategyself.current_index = 0self.healthy_nodes: List[str] = []self.node_weights: Dict[str, float] = {}self.node_connections: Dict[str, int] = {}async def initialize(self, nodes: Dict[str, Dict]):self.healthy_nodes = [nid for nid in nodes.keys()]self.node_weights = {nid: 1.0 for nid in nodes.keys()}self.node_connections = {nid: 0 for nid in nodes.keys()}logger.info(f"负载均衡器初始化完成，策略: {self.strategy}")async def remove_node(self, node_id: str):if node_id in self.healthy_nodes:self.healthy_nodes.remove(node_id)logger.info(f"节点 {node_id} 已从负载均衡池移除")async def select_node(self) -> Optional[str]:if not self.healthy_nodes:logger.warning("无健康节点可用")return Noneif self.strategy == "round_robin":return self._round_robin_select()elif self.strategy == "weighted":return self._weighted_select()elif self.strategy == "least_connections":return self._least_connections_select()return self.healthy_nodes[0]def _round_robin_select(self) -> str:node = self.healthy_nodes[self.current_index]self.current_index = (self.current_index + 1) % len(self.healthy_nodes)return nodedef _weighted_select(self) -> str:total_weight = sum(self.node_weights[nid] for nid in self.healthy_nodes)rand = random.uniform(0, total_weight)current = 0.0for nid in self.healthy_nodes:current += self.node_weights[nid]if current >= rand:return nidreturn self.healthy_nodes[0]def _least_connections_select(self) -> str:if not self.healthy_nodes:return Nonereturn min(self.healthy_nodes, key=lambda nid: self.node_connections.get(nid, 0))class MCPClusterManager:def __init__(self, cluster_config: Dict):self.cluster_config = cluster_configself.nodes: Dict[str, Dict] = {}self.load_balancer = LoadBalancer(strategy=cluster_config.get('load_balancer_strategy', 'round_robin'))self.health_checker = HealthChecker()self.failover_manager = FailoverManager()async def initialize_cluster(self):for node_config in self.cluster_config['nodes']:node_id = node_config['id']self.nodes[node_id] = {'config': node_config,'status': NodeStatus.HEALTHY,'last_health_check': None,'connection_pool': ConnectionPool(node_config['uri']),'metrics': NodeMetrics()}asyncio.create_task(self.health_check_loop())await self.load_balancer.initialize(self.nodes)logger.info("MCP集群初始化完成")async def health_check_loop(self):while True:for node_id, node_info in self.nodes.items():try:health_status = await self.health_checker.check_node(node_info['connection_pool'])node_info['status'] = health_status['status']node_info['last_health_check'] = datetime.now()node_info['metrics'].update(health_status['metrics'])if health_status['status'] == NodeStatus.FAILED:await self.handle_node_failure(node_id)except Exception as e:logger.error(f"节点 {node_id} 健康检查失败: {e}")await self.handle_node_failure(node_id)await asyncio.sleep(5)  # 缩短为5秒便于测试async def handle_node_failure(self, failed_node_id: str):logger.warning(f"检测到节点故障: {failed_node_id}")await self.load_balancer.remove_node(failed_node_id)await self.failover_manager.handle_failover(failed_node_id, self.nodes)await self.send_alert(f"MCP节点 {failed_node_id} 发生故障")async def send_alert(self, message: str):logger.critical(f"🚨 告警: {message}")async def get_healthy_node(self) -> Optional[str]:node_id = await self.load_balancer.select_node()if node_id and self.load_balancer.strategy == "least_connections":self.load_balancer.node_connections[node_id] = self.load_balancer.node_connections.get(node_id, 0) + 1return node_iddef get_cluster_status(self) -> Dict:status_count = {status: 0 for status in NodeStatus}for node_info in self.nodes.values():status_count[node_info['status']] += 1return {'total_nodes': len(self.nodes),'status_count': {k.value: v for k, v in status_count.items()},'healthy_nodes': [nid for nid, info in self.nodes.items() if info['status'] == NodeStatus.HEALTHY],'last_check_time': datetime.now().isoformat()}if __name__ == "__main__":async def main():# 集群配置cluster_config = {"name": "MCP-Prod-Cluster","load_balancer_strategy": "round_robin","nodes": [{"id": "node-01", "uri": "http://192.168.1.10:8000"},{"id": "node-02", "uri": "http://192.168.1.11:8000"},{"id": "node-03", "uri": "http://192.168.1.12:8000"}]}# 初始化集群管理器cluster_manager = MCPClusterManager(cluster_config)await cluster_manager.initialize_cluster()# 模拟请求分发print("=== 模拟请求分发（轮询策略）===")for i in range(6):node = await cluster_manager.get_healthy_node()print(f"⏱️  请求 {i + 1}: 路由到节点 ➜ {node}")await asyncio.sleep(1)# 查看集群状态print("\n=== 集群状态概览 ===")status = cluster_manager.get_cluster_status()print(json.dumps(status, indent=2, ensure_ascii=False))# 模拟运行一段时间print("\n🔄 健康检查和故障模拟将在后台运行（每5秒一次）...")print("📈 观察日志中可能出现的 DEGRADED / FAILED 状态")print("🛑 按 Ctrl+C 可随时退出\n")await asyncio.sleep(30)print("\n=== 30秒后最终集群状态 ===")final_status = cluster_manager.get_cluster_status()print(json.dumps(final_status, indent=2, ensure_ascii=False))# 运行主程序asyncio.run(main())

5.2 性能监控与优化

# MCP实时数据同步系统
import asyncio
import json
from typing import Dict, List, Callable, Optional, Any
from datetime import datetime
import hashlib
from enum import Enum
import logging# 配置日志
logger = logging.getLogger(__name__)
if not logger.handlers:handler = logging.StreamHandler()formatter = logging.Formatter('[%(asctime)s] %(levelname)s in %(module)s: %(message)s')handler.setFormatter(formatter)logger.addHandler(handler)logger.setLevel(logging.INFO)class MCPDataSyncError(Exception):"""MCP 数据同步异常"""passclass SyncEventType(Enum):CREATE = "create"UPDATE = "update"DELETE = "delete"BULK_SYNC = "bulk_sync"class DataSyncEvent:"""数据同步事件模型，封装变更事件的元信息和载荷。"""def __init__(self, event_type: SyncEventType, source_system: str,entity_type: str, entity_id: str,  Dict, timestamp: datetime = None):self.event_type = event_typeself.source_system = source_systemself.entity_type = entity_typeself.entity_id = entity_idself.data = dataself.timestamp = timestamp or datetime.now()self.event_id = self._generate_event_id()def _generate_event_id(self) -> str:"""生成唯一事件ID"""content = f"{self.source_system}:{self.entity_type}:{self.entity_id}:{self.timestamp.isoformat()}"return hashlib.md5(content.encode()).hexdigest()def to_dict(self) -> Dict[str, Any]:"""转换为字典格式，便于序列化"""return {'event_id': self.event_id,'event_type': self.event_type.value,'source_system': self.source_system,'entity_type': self.entity_type,'entity_id': self.entity_id,'data': self.data,'timestamp': self.timestamp.isoformat()}class MCPRealTimeSyncManager:"""MCP 实时数据同步管理器，负责事件分发、规则匹配、数据转换、冲突解决和状态跟踪。"""def __init__(self):self.event_handlers: Dict[str, List[Callable]] = {}self.sync_rules: Dict[str, Dict] = {}self.conflict_resolvers: Dict[str, Callable] = {}self.data_transformers: Dict[str, Any] = {}  # 存储数据转换器self.sync_status: Dict[str, Dict] = {}def register_sync_rule(self, source_system: str, target_systems: List[str],entity_types: List[str], sync_config: Dict):"""注册同步规则Args:source_system (str): 源系统标识target_systems (List[str]): 目标系统列表entity_types (List[str]): 适用的实体类型sync_config (Dict): 同步配置参数"""rule_id = f"{source_system}_to_{'_'.join(target_systems)}"self.sync_rules[rule_id] = {'source_system': source_system,'target_systems': target_systems,'entity_types': entity_types,'sync_config': sync_config,'created_at': datetime.now()}logger.info(f"同步规则注册成功: {rule_id}")def register_event_handler(self, event_type: str, handler: Callable):"""注册事件处理器"""if event_type not in self.event_handlers:self.event_handlers[event_type] = []self.event_handlers[event_type].append(handler)logger.debug(f"事件处理器注册: {event_type} -> {handler.__name__}")def register_transformer(self, source_system: str, target_system: str, transformer: Any):"""注册数据转换器Args:source_system (str): 源系统target_system (str): 目标系统transformer (Any): 转换器对象，需实现 .transform(data) 方法"""key = f"{source_system}_to_{target_system}"self.data_transformers[key] = transformerlogger.info(f"数据转换器注册: {key}")def register_conflict_resolver(self, target_system: str, resolver: Callable):"""注册冲突解决器Args:target_system (str): 目标系统resolver (Callable): 解决函数，签名为 resolver(data, entity_id)"""key = f"{target_system}_resolver"self.conflict_resolvers[key] = resolverlogger.info(f"冲突解决器注册: {key}")async def process_sync_event(self, event: DataSyncEvent):"""处理同步事件Args:event (DataSyncEvent): 待处理的同步事件"""try:# 查找适用的同步规则applicable_rules = self._find_applicable_rules(event)for rule in applicable_rules:await self._execute_sync_rule(event, rule)# 更新同步状态self._update_sync_status(event, 'success')logger.info(f"同步事件处理成功: {event.event_id}")except Exception as e:error_msg = f"同步事件处理失败: {e}"logger.error(error_msg)self._update_sync_status(event, 'failed', str(e))raise MCPDataSyncError(error_msg) from edef _find_applicable_rules(self, event: DataSyncEvent) -> List[Dict]:"""查找适用的同步规则"""applicable_rules = []for rule_id, rule in self.sync_rules.items():if (event.source_system == rule['source_system'] andevent.entity_type in rule['entity_types']):applicable_rules.append(rule)return applicable_rulesasync def _execute_sync_rule(self, event: DataSyncEvent, rule: Dict):"""执行同步规则"""for target_system in rule['target_systems']:try:# 数据转换transformed_data = await self._transform_data(event.data, event.source_system, target_system)# 冲突检测和解决resolved_data = await self._resolve_conflicts(transformed_data, target_system, event.entity_id)# 执行同步操作（模拟）await self._sync_to_target(resolved_data, target_system, event)logger.debug(f"数据同步完成: {event.entity_id} -> {target_system}")except Exception as e:error_msg = f"同步到 {target_system} 失败: {e}"logger.error(error_msg)raise MCPDataSyncError(error_msg) from easync def _transform_data(self, data: Dict, source_system: str, target_system: str) -> Dict:"""数据转换"""transformation_key = f"{source_system}_to_{target_system}"transformer = self.data_transformers.get(transformation_key)if transformer:if hasattr(transformer, 'transform'):if asyncio.iscoroutinefunction(transformer.transform):return await transformer.transform(data)else:return transformer.transform(data)elif callable(transformer):if asyncio.iscoroutinefunction(transformer):return await transformer(data)else:return transformer(data)# 默认转换逻辑logger.debug(f"无转换器，使用默认转换: {transformation_key}")return data.copy()async def _resolve_conflicts(self,  Dict, target_system: str, entity_id: str) -> Dict:"""冲突解决"""resolver_key = f"{target_system}_resolver"resolver = self.conflict_resolvers.get(resolver_key)if resolver:if asyncio.iscoroutinefunction(resolver):return await resolver(data, entity_id)else:return resolver(data, entity_id)# 默认冲突解决策略：最新数据优先logger.debug(f"无冲突解决器，使用默认策略: {resolver_key}")return dataasync def _sync_to_target(self, data: Dict, target_system: str, event: DataSyncEvent):"""执行到目标系统的同步（占位实现，需根据目标系统扩展）Args:data (Dict): 要同步的数据target_system (str): 目标系统标识event (DataSyncEvent): 原始事件"""# 模拟异步同步操作await asyncio.sleep(0.1)# TODO: 调用目标系统 API 或适配器def _update_sync_status(self, event: DataSyncEvent, status: str, error_msg: str = None):"""更新同步状态"""status_key = f"{event.source_system}:{event.entity_id}"self.sync_status[status_key] = {'last_sync': datetime.now(),'status': status,'error': error_msg,'event_id': event.event_id,'event_type': event.event_type.value}# ========== 新增实用方法 ==========def get_sync_status(self, source_system: str, entity_id: str) -> Optional[Dict]:"""获取指定实体的同步状态"""key = f"{source_system}:{entity_id}"return self.sync_status.get(key)def get_all_sync_status(self) -> Dict[str, Dict]:"""获取所有同步状态"""return self.sync_status.copy()# 数据一致性检查器
class DataConsistencyChecker:"""数据一致性检查器，支持多规则并行校验，计算整体一致性分数。"""def __init__(self):self.consistency_rules: Dict[str, Callable] = {}self.validation_results: Dict[str, Dict] = {}def add_consistency_rule(self, rule_name: str, rule_func: Callable):"""添加一致性规则Args:rule_name (str): 规则名称rule_func (Callable): 校验函数，签名为 func(entity_type, entity_id, systems_data) -> Dict"""self.consistency_rules[rule_name] = rule_funclogger.info(f"一致性规则添加: {rule_name}")async def check_consistency(self, entity_type: str, entity_id: str,systems_ Dict[str, Dict]) -> Dict:"""检查数据一致性Args:entity_type (str): 实体类型entity_id (str): 实体IDsystems_data (Dict[str, Dict]): 各系统数据，key 为系统名Returns:Dict: 一致性检查报告"""results = {}for rule_name, rule_func in self.consistency_rules.items():try:if asyncio.iscoroutinefunction(rule_func):result = await rule_func(entity_type, entity_id, systems_data)else:result = rule_func(entity_type, entity_id, systems_data)results[rule_name] = {'passed': result.get('passed', False),'details': result.get('details', {}),'confidence': result.get('confidence', 1.0)}except Exception as e:logger.error(f"一致性规则 {rule_name} 执行失败: {e}")results[rule_name] = {'passed': False,'error': str(e),'confidence': 0.0}# 计算整体一致性分数overall_score = self._calculate_consistency_score(results)report = {'entity_type': entity_type,'entity_id': entity_id,'consistency_score': overall_score,'rule_results': results,'timestamp': datetime.now().isoformat()}# 缓存结果cache_key = f"{entity_type}:{entity_id}"self.validation_results[cache_key] = reportlogger.info(f"一致性检查完成: {entity_id}, 分数={overall_score:.2f}")return reportdef _calculate_consistency_score(self, results: Dict) -> float:"""计算一致性分数"""if not results:return 0.0total_weight = 0weighted_score = 0for rule_result in results.values():confidence = rule_result.get('confidence', 1.0)passed = rule_result.get('passed', False)total_weight += confidenceweighted_score += confidence if passed else 0return weighted_score / total_weight if total_weight > 0 else 0.0def get_validation_result(self, entity_type: str, entity_id: str) -> Optional[Dict]:"""获取缓存的一致性检查结果"""key = f"{entity_type}:{entity_id}"return self.validation_results.get(key)if __name__ == "__main__":async def main():# 初始化同步管理器和一致性检查器sync_manager = MCPRealTimeSyncManager()consistency_checker = DataConsistencyChecker()# ========== 1. 注册同步规则 ==========sync_manager.register_sync_rule(source_system="SAP",target_systems=["Salesforce", "DataWarehouse"],entity_types=["Customer", "Order"],sync_config={"batch_size": 100, "retry_times": 3})# ========== 2. 注册数据转换器（示例） ==========class SAPToSalesforceTransformer:async def transform(self,  Dict) -> Dict:# 模拟字段映射转换return {"Name": data.get("name"),"Email": data.get("email"),"Phone": data.get("phone"),"ExternalId__c": data.get("customer_id")}sync_manager.register_transformer("SAP", "Salesforce", SAPToSalesforceTransformer())# ========== 3. 注册冲突解决器（示例） ==========def salesforce_resolver(data: Dict, entity_id: str) -> Dict:# 示例：如果 Salesforce 中已有数据，保留原 ownerdata["OwnerId"] = "005XXXXXXXXXXXXXXX"  # 固定所有者return datasync_manager.register_conflict_resolver("Salesforce", salesforce_resolver)# ========== 4. 创建并处理同步事件 ==========event = DataSyncEvent(event_type=SyncEventType.UPDATE,source_system="SAP",entity_type="Customer",entity_id="CUST-001",data={"customer_id": "CUST-001","name": "张三科技有限公司","email": "[e-mail]","phone": "13800138000","address": "北京市朝阳区某某大厦"})print("=== 开始处理同步事件 ===")await sync_manager.process_sync_event(event)# 查看同步状态status = sync_manager.get_sync_status("SAP", "CUST-001")print("同步状态:", json.dumps(status, indent=2, ensure_ascii=False))# ========== 5. 数据一致性检查 ==========def name_consistency_rule(entity_type: str, entity_id: str, systems_ Dict) -> Dict:"""检查各系统中名称是否一致"""names = [data.get("name") or data.get("Name") or data.get("company_name") for data in systems_data.values() if data]unique_names = set(filter(None, names))  # 过滤 None 值passed = len(unique_names) <= 1return {"passed": passed,"details": {"names": list(unique_names)},"confidence": 0.9}consistency_checker.add_consistency_rule("name_consistency", name_consistency_rule)# 模拟各系统数据test_data = {"SAP": {"name": "张三科技有限公司", "customer_id": "CUST-001"},"Salesforce": {"Name": "张三科技有限公司", "ExternalId__c": "CUST-001"},"DataWarehouse": {"company_name": "张三科技有限公司", "id": "CUST-001"}  # 修改为一致}print("\n=== 开始一致性检查 ===")report = await consistency_checker.check_consistency("Customer", "CUST-001", test_data)print("一致性报告:", json.dumps(report, indent=2, ensure_ascii=False))# 运行异步主函数asyncio.run(main())

5.3 企业级安全配置

安全层级	配置项	推荐设置	说明
网络安全	TLS版本	TLS 1.3	最新加密协议
网络安全	证书验证	强制验证	防止中间人攻击
身份认证	认证方式	OAuth 2.0 + JWT	标准化认证
身份认证	多因子认证	启用	增强安全性
访问控制	权限模型	RBAC + ABAC	细粒度控制
访问控制	最小权限原则	严格执行	降低风险
数据保护	传输加密	AES-256	强加密算法
数据保护	存储加密	启用	静态数据保护

6. 案例研究：某大型制造企业MCP集成实践

6.1 项目背景与挑战

某大型制造企业拥有以下系统：

• SAP ERP系统（财务、采购、生产）
• Salesforce CRM系统（销售、客户管理）
• Oracle数据仓库（数据分析、报表）
• 自研MES系统（制造执行）

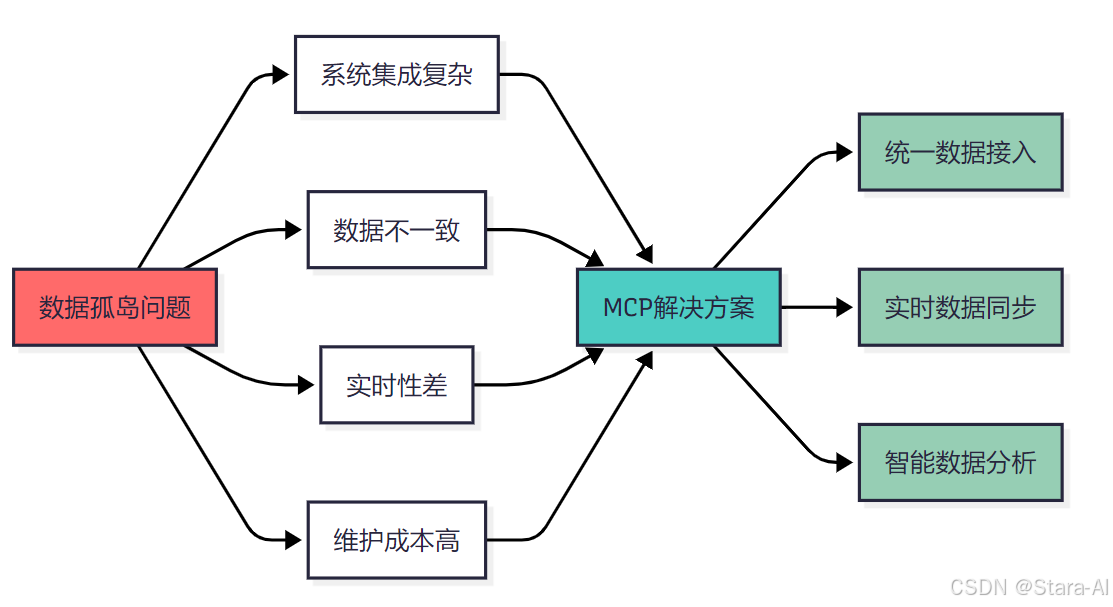

面临的主要挑战：企业数据集成挑战与MCP解决方案图

6.2 MCP集成架构设计

# 制造企业MCP集成架构
import asyncio
from typing import Dict, Any
from datetime import datetime  # ✅ 修复：导入 datetime
import logging
import random# 配置日志
logger = logging.getLogger(__name__)
if not logger.handlers:handler = logging.StreamHandler()formatter = logging.Formatter('[%(asctime)s] %(levelname)s in %(module)s: %(message)s')handler.setFormatter(formatter)logger.addHandler(handler)logger.setLevel(logging.INFO)# ✅ 补全缺失的模拟类（最小可用实现）
class SAPMCPServer:async def initialize(self):await asyncio.sleep(0.1)  # 模拟初始化延迟logger.info("SAP ERP 服务器初始化完成")class SalesforceMCPServer:async def initialize(self):await asyncio.sleep(0.1)logger.info("Salesforce CRM 服务器初始化完成")class OracleMCPServer:async def initialize(self):await asyncio.sleep(0.1)logger.info("Oracle DW 服务器初始化完成")class MESMCPServer:async def initialize(self):await asyncio.sleep(0.1)logger.info("MES 系统服务器初始化完成")class EnterpriseDataHub:def __init__(self):self.data_store = {}async def store_data(self, key: str, data: Any):self.data_store[key] = datalogger.debug(f"数据已存储到数据枢纽: {key}")async def get_data(self, key: str) -> Any:return self.data_store.get(key)class RealTimeSyncManager:def __init__(self):self.sync_rules = []async def register_sync_rule(self, **kwargs):self.sync_rules.append(kwargs)logger.info(f"同步规则已注册: {kwargs['name']}")class AlertManager:async def send_alert(self, message: str, severity: str = "INFO"):logger.warning(f"🚨 {severity}: {message}")# ✅ 补全 IntelligentAnalyticsEngine 缺失的方法
class IntelligentAnalyticsEngine:def __init__(self):self.ml_models = {}self.analysis_rules = {}self.alert_manager = AlertManager()async def analyze_production_efficiency(self) -> Dict:"""分析生产效率"""# 从MES系统获取生产数据production_data = await self.get_production_data()# 从ERP系统获取订单数据order_data = await self.get_order_data()# 计算效率指标efficiency_metrics = self._calculate_efficiency_metrics(production_data, order_data)# 预测分析predictions = await self._predict_production_trends(efficiency_metrics)# 生成优化建议recommendations = self._generate_optimization_recommendations(efficiency_metrics, predictions)result = {'current_efficiency': efficiency_metrics,'predictions': predictions,'recommendations': recommendations,'timestamp': datetime.now().isoformat()}logger.info("生产效率分析完成")return resultasync def get_production_data(self) -> Dict:"""模拟从MES系统获取生产数据"""await asyncio.sleep(0.05)return {'total_units_produced': random.randint(800, 1200),'defective_units': random.randint(10, 50),'machine_downtime_minutes': random.randint(5, 30),'scheduled_production_time': 480,  # 8小时 = 480分钟'actual_production_time': random.randint(400, 470)}async def get_order_data(self) -> Dict:"""模拟从ERP系统获取订单数据"""await asyncio.sleep(0.05)return {'total_orders': random.randint(50, 100),'on_time_orders': random.randint(40, 90),'late_orders': random.randint(5, 20),'order_value': random.uniform(50000, 200000)}def _calculate_efficiency_metrics(self, production_data: Dict, order_data: Dict) -> Dict:"""计算效率指标"""return {'oee': self._calculate_oee(production_data),  # 设备综合效率'throughput': self._calculate_throughput(production_data),'quality_rate': self._calculate_quality_rate(production_data),'on_time_delivery': self._calculate_otd(production_data, order_data)}def _calculate_oee(self, production_data: Dict) -> float:"""计算设备综合效率 (OEE)"""availability = production_data['actual_production_time'] / production_data['scheduled_production_time']performance = production_data['total_units_produced'] / (production_data['actual_production_time'] * 2.5)  # 假设标准速率2.5单位/分钟quality = (production_data['total_units_produced'] - production_data['defective_units']) / production_data['total_units_produced'] if production_data['total_units_produced'] > 0 else 0oee = availability * performance * qualityreturn round(oee, 3)def _calculate_throughput(self, production_data: Dict) -> float:"""计算吞吐量"""return round(production_data['total_units_produced'] / (production_data['actual_production_time'] / 60),2)  # 单位/小时def _calculate_quality_rate(self, production_data: Dict) -> float:"""计算质量率"""if production_data['total_units_produced'] == 0:return 0.0return round((production_data['total_units_produced'] - production_data['defective_units']) / production_data['total_units_produced'], 3)def _calculate_otd(self, production_data: Dict, order_data: Dict) -> float:"""计算准时交付率"""if order_data['total_orders'] == 0:return 0.0return round(order_data['on_time_orders'] / order_data['total_orders'], 3)async def _predict_production_trends(self, efficiency_metrics: Dict) -> Dict:"""预测生产趋势（模拟实现）"""await asyncio.sleep(0.1)current_oee = efficiency_metrics['oee']# 简单预测：如果当前OEE低于0.7，预测会下降，否则会上升trend = "improving" if current_oee >= 0.7 else "declining"predicted_oee = current_oee * (1.05 if trend == "improving" else 0.95)return {'predicted_oee_next_week': round(predicted_oee, 3),'trend': trend,'confidence': 0.85}def _generate_optimization_recommendations(self, efficiency_metrics: Dict, predictions: Dict) -> List[str]:"""生成优化建议"""recommendations = []if efficiency_metrics['oee'] < 0.7:recommendations.append("建议进行设备维护以提高可用率")recommendations.append("优化生产排程减少停机时间")if efficiency_metrics['quality_rate'] < 0.95:recommendations.append("加强质量控制流程")recommendations.append("对操作员进行质量意识培训")if efficiency_metrics['on_time_delivery'] < 0.9:recommendations.append("优化供应链管理")recommendations.append("增加安全库存水平")if not recommendations:recommendations.append("当前生产效率良好，继续保持")return recommendationsclass ManufacturingMCPIntegration:def __init__(self):self.systems = {'sap_erp': SAPMCPServer(),'salesforce_crm': SalesforceMCPServer(),'oracle_dw': OracleMCPServer(),'mes_system': MESMCPServer()}self.data_hub = EnterpriseDataHub()self.sync_manager = RealTimeSyncManager()self.analytics_engine = IntelligentAnalyticsEngine()async def initialize_integration(self):"""初始化集成系统"""# 初始化各系统连接for system_name, server in self.systems.items():await server.initialize()logger.info(f"{system_name} MCP服务器初始化完成")# 配置数据同步规则await self._configure_sync_rules()# 启动实时监控await self._start_monitoring()logger.info("制造企业MCP集成架构初始化完成")async def _configure_sync_rules(self):"""配置数据同步规则"""sync_rules = [{'name': 'customer_sync','source': 'salesforce_crm','targets': ['sap_erp', 'oracle_dw'],'entity_type': 'customer','sync_frequency': 'real_time','conflict_resolution': 'salesforce_wins'},{'name': 'order_sync','source': 'sap_erp','targets': ['mes_system', 'oracle_dw'],'entity_type': 'sales_order','sync_frequency': 'real_time','conflict_resolution': 'timestamp_based'},{'name': 'production_sync','source': 'mes_system','targets': ['sap_erp', 'oracle_dw'],'entity_type': 'production_data','sync_frequency': 'batch_hourly','conflict_resolution': 'mes_wins'}]for rule in sync_rules:await self.sync_manager.register_sync_rule(**rule)async def _start_monitoring(self):"""启动实时监控（模拟实现）"""logger.info("启动实时监控系统...")# 模拟监控任务asyncio.create_task(self._monitoring_loop())async def _monitoring_loop(self):"""监控循环"""while True:try:# 每5分钟进行一次生产效率分析analysis = await self.analytics_engine.analyze_production_efficiency()logger.info(f"📊 生产效率分析: OEE={analysis['current_efficiency']['oee']}, 准时交付率={analysis['current_efficiency']['on_time_delivery']}")# 如果OEE低于阈值，发送告警if analysis['current_efficiency']['oee'] < 0.65:await self.analytics_engine.alert_manager.send_alert(f"生产效率低下: OEE={analysis['current_efficiency']['oee']}","CRITICAL")except Exception as e:logger.error(f"监控分析失败: {e}")await asyncio.sleep(300)  # 5分钟一次async def run_production_analysis(self):"""运行生产分析（供外部调用）"""return await self.analytics_engine.analyze_production_efficiency()if __name__ == "__main__":async def main():# 初始化制造企业MCP集成架构integration = ManufacturingMCPIntegration()await integration.initialize_integration()print("\n=== 运行生产效率分析 ===")analysis = await integration.run_production_analysis()print(f"\n📊 生产效率分析结果:")print(f"⏰ 时间戳: {analysis['timestamp']}")print(f"🏭 当前OEE: {analysis['current_efficiency']['oee']}")print(f"📈 吞吐量: {analysis['current_efficiency']['throughput']} 单位/小时")print(f"✅ 质量率: {analysis['current_efficiency']['quality_rate']:.1%}")print(f"🚚 准时交付率: {analysis['current_efficiency']['on_time_delivery']:.1%}")print(f"\n🔮 预测趋势: {analysis['predictions']['trend']}")print(f"   预测下周OEE: {analysis['predictions']['predicted_oee_next_week']}")print(f"   置信度: {analysis['predictions']['confidence']:.1%}")print(f"\n💡 优化建议:")for i, rec in enumerate(analysis['recommendations'], 1):print(f"   {i}. {rec}")print("\n🔄 监控系统已在后台运行，每5分钟自动分析...")print("🛑 按 Ctrl+C 可随时退出\n")# 让监控运行一段时间await asyncio.sleep(60)# 运行主程序asyncio.run(main())

6.3 实施效果评估

指标	实施前	实施后	改善幅度
数据同步时间	4-8小时	实时	99%+
数据一致性	75%	98%	31%
系统集成成本	高	低	60%
运工作量	高	低	50%
决策响应时间	1-2天	1-2小时	90%

“通过MCP协议的统一集成，我们不仅解决了长期困扰的数据孤岛问题，更重要的是为企业数字化转型奠定了坚实的数据基础。” —— 项目负责人

7. 未来发展趋势与展望

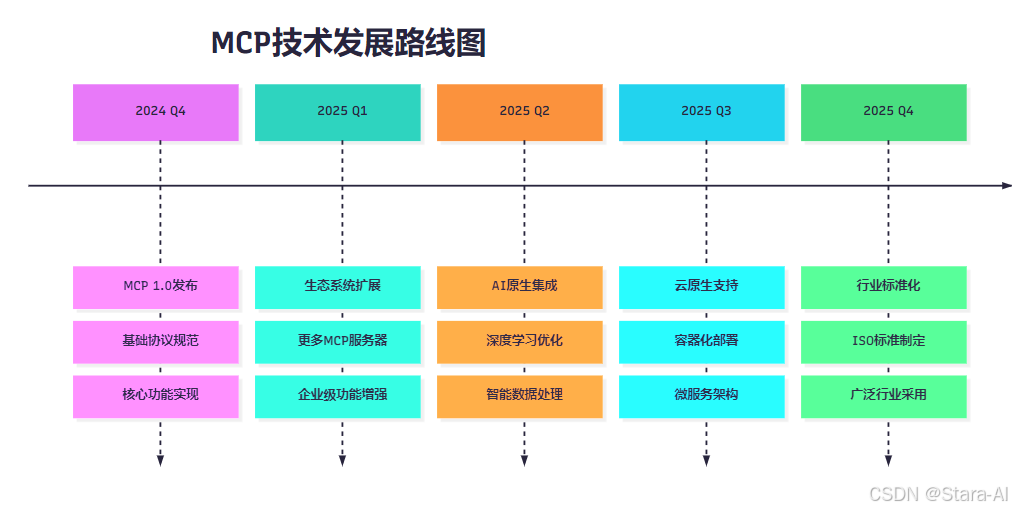

MCP技术发展时间线

7.2 应用场景扩展

应用领域	当前状态	发展潜力	关键技术
金融服务	试点应用	高	风控、合规
医疗健康	概念验证	极高	隐私保护、标准化
智能制造	规模部署	高	IoT集成、实时分析
零售电商	广泛应用	中等	个性化、供应链
教育培训	初步探索	高	个性化学习、知识图谱

7.3 技术挑战与机遇

主要挑战：

• 标准化程度：需要更多行业标准和最佳实践
• 性能优化：大规模部署下的性能瓶颈
• 安全合规：不同行业的合规要求差异
• 人才培养：专业技术人才短缺

发展机遇：

• AI技术融合：与大模型技术深度结合
• 边缘计算：支持边缘设备的轻量级部署
• 区块链集成：增强数据可信度和溯源能力
• 量子计算：为未来量子计算环境做准备

MCP协议正成为企业打破数据孤岛、实现智能化转型的核心引擎，它通过标准化接口无缝集成SAP、Salesforce等异构系统，将数据同步从“小时级”提升至“实时级”，一致性高达98%，同时内置RBAC权限、动态脱敏与审计机制，全面满足GDPR等合规要求，显著降低60%集成成本与50%运维负荷，为企业AI应用提供高质量、安全、实时的数据基石，驱动决策效率提升90%，是数字化时代不可或缺的智能连接中枢。
