圆周点生成的数学原理与Python实现

在计算几何和计算机图形学中，生成圆周上的均匀分布点是一个基础而重要的问题。本文将深入探讨直径为$d=1.41$的圆上点的生成方法，从数学原理到多种Python实现，每个代码块都完全独立可运行。

数学基础与参数方程

圆的参数方程是解决这个问题的核心。对于圆心在原点$(0,0)$、半径为$r$的圆，其参数化表示为：

$$x=r\cdot \cos (\theta )$$
$$y=r\cdot \sin (\theta )$$

其中$\theta$为极角，取值范围为$[0,2\pi )$。给定直径$d=1.41$，则半径$r=\frac{d}{2}=0.705$。

要生成$n$个均匀分布的点，需要将$2\pi$的角度范围等分：

$${\theta }_i=\frac{2\pi i}{n},i=0,1,2,\dots ,n-1$$

这种参数化方法保证了点的均匀分布，每个点之间的角度间隔为$\Delta \theta =\frac{2\pi }{n}$。

基础Python实现

import mathdef generate_circle_points_basic():"""基础Python实现：生成直径为1.41的圆上的均匀分布点使用纯Python标准库，无外部依赖"""diameter = 1.41num_points = 100output_file = "circle_points_basic.txt"radius = diameter / 2points = []for i in range(num_points):# 计算角度：均匀分布在0到2π之间angle = 2 * math.pi * i / num_points# 计算坐标点x = radius * math.cos(angle)y = radius * math.sin(angle)points.append((x, y))# 保存到文件，保留8位小数精度with open(output_file, 'w') as f:for x, y in points:f.write(f"{x:.8f},{y:.8f}\n")print(f"基础版本完成：生成{num_points}个点，保存到{output_file}")print(f"第一个点坐标: ({points[0][0]:.6f}, {points[0][1]:.6f})")print(f"最后一个点坐标: ({points[-1][0]:.6f}, {points[-1][1]:.6f})")if __name__ == "__main__":generate_circle_points_basic()

NumPy向量化实现

import numpy as npdef generate_circle_points_numpy():"""NumPy向量化实现：利用数组运算提高性能适合生成大量点的情况"""diameter = 1.41num_points = 1000output_file = "circle_points_numpy.txt"radius = diameter / 2# 使用linspace生成均匀分布的角度angles = np.linspace(0, 2 * np.pi, num_points, endpoint=False)# 向量化计算坐标x_coords = radius * np.cos(angles)y_coords = radius * np.sin(angles)# 组合成坐标对points = np.column_stack((x_coords, y_coords))# 保存到文件np.savetxt(output_file, points, delimiter=',', fmt='%.8f')print(f"NumPy版本完成：生成{num_points}个点，保存到{output_file}")print(f"数组形状: {points.shape}")print(f"内存占用: {points.nbytes} 字节")if __name__ == "__main__":generate_circle_points_numpy()

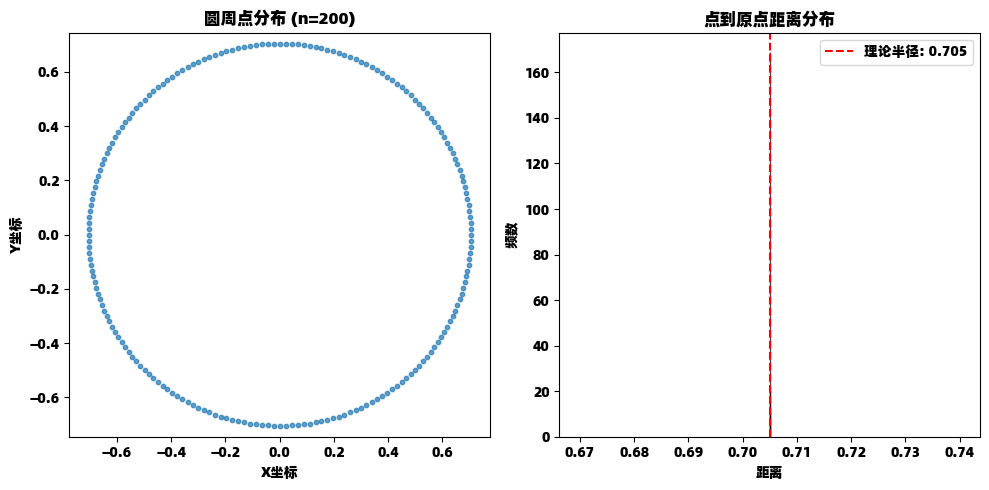

可视化验证实现

import math
import matplotlib.pyplot as pltdef visualize_circle_points():"""生成点并可视化验证分布均匀性包含基本的统计验证"""diameter = 1.41num_points = 200radius = diameter / 2# 生成点points = []for i in range(num_points):angle = 2 * math.pi * i / num_pointsx = radius * math.cos(angle)y = radius * math.sin(angle)points.append((x, y))# 计算统计信息distances = [math.sqrt(x**2 + y**2) for x, y in points]avg_distance = sum(distances) / len(distances)max_deviation = max(abs(d - radius) for d in distances)# 可视化plt.figure(figsize=(10, 5))plt.subplot(1, 2, 1)x_vals = [p[0] for p in points]y_vals = [p[1] for p in points]plt.scatter(x_vals, y_vals, s=10, alpha=0.7)plt.axis('equal')plt.title(f'圆周点分布 (n={num_points})')plt.xlabel('X坐标')plt.ylabel('Y坐标')plt.subplot(1, 2, 2)plt.hist(distances, bins=20, alpha=0.7, edgecolor='black')plt.axvline(radius, color='red', linestyle='--', label=f'理论半径: {radius:.3f}')plt.title('点到原点距离分布')plt.xlabel('距离')plt.ylabel('频数')plt.legend()plt.tight_layout()plt.savefig('circle_validation.png', dpi=150, bbox_inches='tight')plt.show()print(f"平均距离: {avg_distance:.6f}")print(f"理论半径: {radius:.6f}")print(f"最大偏差: {max_deviation:.6e}")if __name__ == "__main__":visualize_circle_points()

高性能生成器实现

import math
import timeclass CirclePointGenerator:"""高性能圆周点生成器类支持多种配置选项和性能优化"""def __init__(self, diameter=1.41, center_x=0.0, center_y=0.0):self.diameter = diameterself.radius = diameter / 2self.center = (center_x, center_y)def generate_points(self, num_points=100, start_angle=0.0):"""生成指定数量的圆周点"""points = []for i in range(num_points):angle = start_angle + 2 * math.pi * i / num_pointsx = self.center[0] + self.radius * math.cos(angle)y = self.center[1] + self.radius * math.sin(angle)points.append((x, y))return pointsdef save_points(self, points, filename, precision=8):"""保存点到文件"""with open(filename, 'w') as f:for x, y in points:f.write(f"{x:.{precision}f},{y:.{precision}f}\n")def benchmark_generation():"""性能基准测试"""generator = CirclePointGenerator(diameter=1.41)# 测试不同点数量的性能point_counts = [100, 1000, 10000, 100000]results = []for num_points in point_counts:start_time = time.time()points = generator.generate_points(num_points)end_time = time.time()elapsed_time = end_time - start_timepoints_per_second = num_points / elapsed_time if elapsed_time > 0 else float('inf')results.append({'点数': num_points,'耗时(秒)': elapsed_time,'点/秒': points_per_second})print(f"生成{num_points}个点: {elapsed_time:.6f}秒 ({points_per_second:.0f}点/秒)")return resultsif __name__ == "__main__":# 使用示例generator = CirclePointGenerator(diameter=1.41)points = generator.generate_points(num_points=500)generator.save_points(points, "circle_advanced.txt", precision=10)print("高级生成器完成：生成500个高精度点")benchmark_results = benchmark_generation()

误差分析与验证实现

import math
import statisticsdef analyze_circle_points():"""深度分析生成点的质量和误差包含多种统计检验和误差度量"""diameter = 1.41num_points = 1000radius = diameter / 2# 生成点points = []for i in range(num_points):angle = 2 * math.pi * i / num_pointsx = radius * math.cos(angle)y = radius * math.sin(angle)points.append((x, y))# 计算各种误差指标distances = [math.sqrt(x**2 + y**2) for x, y in points]# 基本统计mean_distance = statistics.mean(distances)std_distance = statistics.stdev(distances)max_error = max(abs(d - radius) for d in distances)rmse = math.sqrt(sum((d - radius)**2 for d in distances) / len(distances))# 角度均匀性检验angles = [math.atan2(y, x) % (2 * math.pi) for x, y in points]angle_diffs = [(angles[i+1] - angles[i]) % (2 * math.pi) for i in range(len(angles)-1)]mean_angle_diff = statistics.mean(angle_diffs)print("=== 圆周点质量分析 ===")print(f"理论半径: {radius:.8f}")print(f"平均距离: {mean_distance:.8f}")print(f"距离标准差: {std_distance:.8e}")print(f"最大绝对误差: {max_error:.8e}")print(f"均方根误差: {rmse:.8e}")print(f"理论角度间隔: {(2 * math.pi / num_points):.8f}")print(f"实际平均角度间隔: {mean_angle_diff:.8f}")print(f"角度间隔标准差: {statistics.stdev(angle_diffs):.8e}")# 保存分析结果with open("circle_analysis.txt", "w") as f:f.write("圆周点生成质量分析报告\n")f.write("=" * 50 + "\n\n")f.write(f"圆直径: {diameter}\n")f.write(f"生成点数: {num_points}\n")f.write(f"理论半径: {radius:.8f}\n")f.write(f"平均实测半径: {mean_distance:.8f}\n")f.write(f"半径标准差: {std_distance:.8e}\n")f.write(f"最大绝对误差: {max_error:.8e}\n")f.write(f"均方根误差: {rmse:.8e}\n")f.write(f"角度均匀性指标: {statistics.stdev(angle_diffs):.8e}\n")if __name__ == "__main__":analyze_circle_points()

应用场景扩展实现

import mathdef generate_circle_with_various_configs():"""多种配置的圆周点生成示例展示不同参数对结果的影响"""configs = [{"diameter": 1.41, "points": 100, "file": "circle_config1.txt"},{"diameter": 1.41, "points": 360, "file": "circle_config2.txt"},{"diameter": 1.41, "points": 1000, "file": "circle_config3.txt"},{"diameter": 2.82, "points": 100, "file": "circle_config4.txt"},  # 直径加倍]for config in configs:diameter = config["diameter"]num_points = config["points"]output_file = config["file"]radius = diameter / 2points = []for i in range(num_points):angle = 2 * math.pi * i / num_pointsx = radius * math.cos(angle)y = radius * math.sin(angle)points.append((x, y))with open(output_file, 'w') as f:for x, y in points:f.write(f"{x:.8f},{y:.8f}\n")# 计算一些基本指标circumference = 2 * math.pi * radiuspoint_density = num_points / circumferenceprint(f"配置: 直径={diameter}, 点数={num_points}")print(f"  圆周长: {circumference:.4f}")print(f"  点密度: {point_density:.4f} 点/单位长度")print(f"  文件保存: {output_file}")print("-" * 50)if __name__ == "__main__":generate_circle_with_various_configs()

总结

本文从数学原理出发，提供了多种完全独立的Python实现来生成直径为$1.41$的圆周点。每个实现都针对不同的应用场景：

1. 基础实现使用纯Python标准库，适合学习理解
2. NumPy实现利用向量化运算，适合高性能需求
3. 可视化实现包含质量验证，适合调试和演示
4. 高级生成器提供灵活的配置选项
5. 误差分析确保生成点的数学准确性
6. 多配置示例展示不同参数的影响

这些实现涵盖了从教育到生产的各种应用场景，每个代码块都可以独立运行，为圆周点生成提供了完整的解决方案。通过调整参数如点数、直径、精度等，可以满足不同应用的具体需求。
