ubuntu2204配置网桥
文章目录
- 前言
- 一、原有配置
- 二、更改后配置
- 总结
前言
ubuntu2204配置网桥
一、原有配置
# This is the network config written by 'subiquity'
network:ethernets:eno1:addresses:- 192.168.150.5/24nameservers:addresses:- 8.8.8.8- 114.114.114.114search: []routes:- to: defaultvia: 192.168.150.254eno2:dhcp4: trueenp59s0f0:dhcp4: trueenp59s0f1:dhcp4: trueenp59s0f2:dhcp4: trueenp59s0f3:dhcp4: trueversion: 2
二、更改后配置
network:version: 2renderer: networkd # 推荐服务器使用 networkd；桌面可选 NetworkManagerethernets:eno1:dhcp4: falsedhcp6: falsebridges:br0:interfaces:- eno1addresses:- 192.168.150.5/24 # 静态 IP 和子网掩码gateway4: 192.168.150.254 # 默认网关（可选，推荐在 routes 中定义）nameservers:addresses:- 8.8.8.8- 114.114.114.114# 更现代写法（推荐）使用 routes 替代 gateway4：routes:- to: defaultvia: 192.168.150.254dhcp4: falsedhcp6: false
修改后执行命令
netplan apply

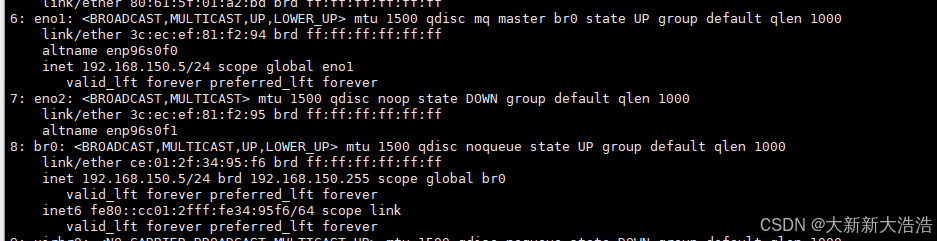

使用配置，配置好之后使用ip a查看配置结果
总结
之前只会centos的网桥配置，这里记录一下ubuntu的网桥配置
