第21节：环境贴图与PBR材质升级——构建电影级真实感渲染

第21节：环境贴图与PBR材质升级——构建电影级真实感渲染

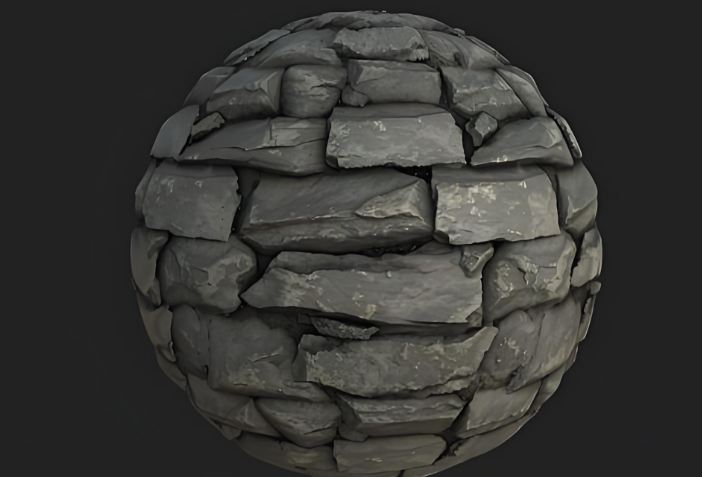

概述

基于物理的渲染（Physically Based Rendering, PBR）是当代计算机图形学中最重要的技术进步之一，它彻底改变了实时渲染的质量标准。在本节中，我们将深入探索Three.js中PBR材质的完整实现体系，从理论基础到实战应用，涵盖HDR环境照明、材质物理属性、以及性能优化等关键领域。

PBR不是简单的视觉效果提升，而是基于真实世界物理光学原理的完整渲染范式转变。与传统的经验式渲染模型不同，PBR通过精确的能量守恒定律和微表面理论，确保材质在不同光照环境下都能保持物理准确性。

核心原理深度解析

微表面理论基础

PBR的核心建立在微表面理论之上，该理论将材质表面视为由无数微观几何细节组成的结构。这些微观细节的大小和分布决定了材质的视觉表现：

• 法线分布函数（NDF）：描述微表面法线的统计分布，控制高光反射的形状和强度
• 几何遮蔽函数（G）：处理微表面间的自阴影效应，影响边缘处的光衰减
• 菲涅尔方程（F）：描述不同角度下反射与折射的比例关系

金属度-粗糙度工作流

Three.js采用标准的金属度-粗糙度工作流，这是glTF 2.0的标准配置：

flowchart TDA[PBR材质输入参数] --> B{金属度判断}B -- 金属材质 > 0.5 --> C[高反射率<br>F0 = 基础反射率]B -- 非金属材质 ≤ 0.5 --> D[低反射率<br>F0 = 0.04]C --> E[粗糙度控制]D --> EE --> F{粗糙度值}F -- 低粗糙度 → 光滑表面 --> G[锐利高光反射<br>清晰环境映射]F -- 高粗糙度 → 粗糙表面 --> H[模糊漫反射<br>散射光传播]G --> I[能量守恒计算]H --> II --> J[微表面BRDF计算]J --> K[最终像素颜色输出]

HDR环境照明的物理意义

高动态范围（HDR）环境贴图提供了基于真实物理测量的照明信息，与传统LDR贴图的对比：

特性	HDR环境贴图	LDR环境贴图
亮度范围	0-∞（物理准确）	0-1（ clamped）
高光保留	完整保留亮部细节	高光区域过曝
物理准确性	真实世界光照测量	艺术化调整
内存占用	较高（32位/像素）	较低（8位/像素）

完整代码实现与深度解析

增强版Vue3 PBR演示组件

<template><div class="pbr-demo-container"><div ref="container" class="canvas-container"></div><div class="control-panel"><h3>PBR材质控制器</h3><div class="control-group"><label>金属度: {{ metalness }}</label><input type="range" v-model="metalness" min="0" max="1" step="0.01"></div><div class="control-group"><label>粗糙度: {{ roughness }}</label><input type="range" v-model="roughness" min="0" max="1" step="0.01"></div><div class="control-group"><label>环境光强度: {{ envIntensity }}</label><input type="range" v-model="envIntensity" min="0" max="2" step="0.1"></div><div class="control-group"><label>曝光值: {{ exposure }}</label><input type="range" v-model="exposure" min="0.5" max="2" step="0.05"></div></div></div>
</template><script>
import { onMounted, onUnmounted, ref, watch } from 'vue';
import * as THREE from 'three';
import { OrbitControls } from 'three/addons/controls/OrbitControls.js';
import { RGBELoader } from 'three/addons/loaders/RGBELoader.js';
import { PMREMGenerator } from 'three';
import { GUI } from 'three/addons/libs/lil-gui.module.min.js';export default {name: 'AdvancedPBRDemo',setup() {const container = ref(null);const metalness = ref(0.5);const roughness = ref(0.5);const envIntensity = ref(1.0);const exposure = ref(1.0);let scene, camera, renderer, controls, gui;let envMap, material, testSphere;// HDR环境贴图加载与处理const loadEnvironmentMap = () => {return new Promise((resolve, reject) => {const rgbeLoader = new RGBELoader();const pmremGenerator = new PMREMGenerator(renderer);pmremGenerator.compileEquirectangularShader();// 使用Poly Haven的高质量HDR贴图rgbeLoader.load('https://dl.polyhaven.org/file/ph-assets/HDRIs/hdr/2k/industrial_sunset_02_2k.hdr',(texture) => {// 生成预滤波的环境贴图mipmap链envMap = pmremGenerator.fromEquirectangular(texture).texture;// 设置场景环境和背景scene.environment = envMap;scene.background = envMap;// 释放资源texture.dispose();pmremGenerator.dispose();resolve(envMap);},undefined,(error) => {console.error('HDR环境贴图加载失败:', error);reject(error);});});};// 创建PBR测试场景const createTestScene = () => {// 创建地面平面const floorGeometry = new THREE.PlaneGeometry(20, 20);const floorMaterial = new THREE.MeshStandardMaterial({color: 0x888888,roughness: 0.9,metalness: 0.1});const floor = new THREE.Mesh(floorGeometry, floorMaterial);floor.rotation.x = -Math.PI / 2;floor.position.y = -1;floor.receiveShadow = true;scene.add(floor);// 创建测试球体const sphereGeometry = new THREE.SphereGeometry(1, 64, 64);material = new THREE.MeshStandardMaterial({color: 0xffffff,metalness: metalness.value,roughness: roughness.value,envMap: envMap,envIntensity: envIntensity.value});testSphere = new THREE.Mesh(sphereGeometry, material);testSphere.castShadow = true;testSphere.position.y = 1;scene.add(testSphere);// 创建参考物体阵列createMaterialReferenceObjects();};// 创建材质参考对比物体const createMaterialReferenceObjects = () => {const geometry = new THREE.SphereGeometry(0.3, 32, 32);const positions = [{ x: -2, z: -2, metalness: 0.0, roughness: 0.1, color: 0xffffff },{ x: -2, z: 0, metalness: 0.0, roughness: 0.5, color: 0xffffff },{ x: -2, z: 2, metalness: 0.0, roughness: 0.9, color: 0xffffff },{ x: 0, z: -2, metalness: 0.5, roughness: 0.1, color: 0xffffff },{ x: 0, z: 2, metalness: 0.5, roughness: 0.9, color: 0xffffff },{ x: 2, z: -2, metalness: 1.0, roughness: 0.1, color: 0xffffff },{ x: 2, z: 0, metalness: 1.0, roughness: 0.5, color: 0xffffff },{ x: 2, z: 2, metalness: 1.0, roughness: 0.9, color: 0xffffff }];positions.forEach(pos => {const refMaterial = new THREE.MeshStandardMaterial({color: pos.color,metalness: pos.metalness,roughness: pos.roughness,envMap: envMap,envIntensity: envIntensity.value});const mesh = new THREE.Mesh(geometry, refMaterial);mesh.position.set(pos.x, 0.3, pos.z);mesh.castShadow = true;scene.add(mesh);});};// 设置照明系统const setupLighting = () => {// 主定向光 - 模拟太阳光const mainLight = new THREE.DirectionalLight(0xffffff, 1.5);mainLight.position.set(5, 8, 5);mainLight.castShadow = true;mainLight.shadow.mapSize.set(2048, 2048);mainLight.shadow.camera.near = 0.5;mainLight.shadow.camera.far = 20;mainLight.shadow.camera.left = -10;mainLight.shadow.camera.right = 10;mainLight.shadow.camera.top = 10;mainLight.shadow.camera.bottom = -10;mainLight.shadow.normalBias = 0.05;scene.add(mainLight);// 填充光 - 减少对比度const fillLight = new THREE.DirectionalLight(0x7777ff, 0.5);fillLight.position.set(-5, 3, -5);scene.add(fillLight);// 环境光 - 提供基础照明const ambientLight = new THREE.AmbientLight(0x404040, 0.4);scene.add(ambientLight);// 点光源 - 增加场景层次感const pointLight = new THREE.PointLight(0xff6600, 2, 10);pointLight.position.set(0, 3, 0);scene.add(pointLight);};// 初始化场景const init = async () => {// 初始化Three.js核心组件scene = new THREE.Scene();scene.background = new THREE.Color(0x222222);camera = new THREE.PerspectiveCamera(75,window.innerWidth / window.innerHeight,0.1,100);camera.position.set(0, 3, 8);renderer = new THREE.WebGLRenderer({antialias: true,powerPreference: "high-performance"});renderer.setSize(window.innerWidth, window.innerHeight);renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2));renderer.outputEncoding = THREE.sRGBEncoding;renderer.toneMapping = THREE.ACESFilmicToneMapping;renderer.toneMappingExposure = exposure.value;renderer.shadowMap.enabled = true;renderer.shadowMap.type = THREE.PCFSoftShadowMap;renderer.physicallyCorrectLights = true;container.value.appendChild(renderer.domElement);// 加载环境贴图await loadEnvironmentMap();// 创建场景内容createTestScene();setupLighting();// 设置控制器controls = new OrbitControls(camera, renderer.domElement);controls.enableDamping = true;controls.dampingFactor = 0.05;controls.minDistance = 3;controls.maxDistance = 20;// 设置调试UIsetupGUI();// 启动渲染循环animate();};// 调试UI设置const setupGUI = () => {gui = new GUI({ container: container.value.parentElement });const materialFolder = gui.addFolder('PBR材质参数');materialFolder.add(material, 'metalness', 0, 1, 0.01).name('金属度');materialFolder.add(material, 'roughness', 0, 1, 0.01).name('粗糙度');materialFolder.add(material, 'envIntensity', 0, 3, 0.1).name('环境强度');const rendererFolder = gui.addFolder('渲染设置');rendererFolder.add(renderer, 'toneMappingExposure', 0.5, 2, 0.05).name('曝光');rendererFolder.add({ mapping: 'ACESFilmic' }, 'mapping', ['NoToneMapping','LinearToneMapping', 'ReinhardToneMapping','CineonToneMapping','ACESFilmicToneMapping']).name('色调映射').onChange(value => {renderer.toneMapping = THREE[value];});materialFolder.open();rendererFolder.open();};// 响应式更新watch([metalness, roughness, envIntensity, exposure], ([newMetalness, newRoughness, newEnvIntensity, newExposure]) => {if (material) {material.metalness = newMetalness;material.roughness = newRoughness;material.envIntensity = newEnvIntensity;material.needsUpdate = true;}if (renderer) {renderer.toneMappingExposure = newExposure;}});const animate = () => {requestAnimationFrame(animate);// 更新控制器controls.update();// 轻微旋转球体以便观察if (testSphere) {testSphere.rotation.y += 0.005;}// 渲染场景renderer.render(scene, camera);};const handleResize = () => {if (!camera || !renderer) return;camera.aspect = window.innerWidth / window.innerHeight;camera.updateProjectionMatrix();renderer.setSize(window.innerWidth, window.innerHeight);};onMounted(() => {init();window.addEventListener('resize', handleResize);});onUnmounted(() => {window.removeEventListener('resize', handleResize);if (gui) gui.destroy();if (renderer) {renderer.dispose();renderer.forceContextLoss();}});return {container,metalness,roughness,envIntensity,exposure};}
};
</script><style scoped>
.pbr-demo-container {position: relative;width: 100%;height: 100vh;overflow: hidden;
}.canvas-container {width: 100%;height: 100%;
}.control-panel {position: absolute;top: 20px;right: 20px;background: rgba(0, 0, 0, 0.7);padding: 15px;border-radius: 8px;color: white;min-width: 250px;backdrop-filter: blur(10px);
}.control-panel h3 {margin: 0 0 15px 0;color: #00d4ff;font-size: 16px;
}.control-group {margin-bottom: 12px;
}.control-group label {display: block;margin-bottom: 5px;font-size: 14px;color: #ccc;
}.control-group input[type="range"] {width: 100%;height: 6px;border-radius: 3px;background: #444;outline: none;opacity: 0.7;transition: opacity 0.2s;
}.control-group input[type="range"]:hover {opacity: 1;
}.control-group input[type="range"]::-webkit-slider-thumb {appearance: none;width: 16px;height: 16px;border-radius: 50%;background: #00d4ff;cursor: pointer;
}
</style>

高级PBR技术与优化策略

HDR工作流最佳实践

1. HDR贴图选择标准

   • 分辨率选择：桌面端推荐2K-4K，移动端使用1K
   • 动态范围：确保贴图包含真实世界的亮度变化（10^-6到106 cd/m²）
   • 内容匹配：根据场景主题选择合适的环境（室内/室外/工作室）

2. PMREM（预滤波的Mipmap辐射环境贴图）技术

// 高级PMREM配置
const pmremGenerator = new PMREMGenerator(renderer);
pmremGenerator.compileCubemapShader();
pmremGenerator.compileEquirectangularShader();// 自定义mipmap级别和采样质量
pmremGenerator.samples = 128; // 提高采样质量
pmremGenerator.resolution = 512; // mipmap分辨率// 生成高质量环境贴图
const generateHighQualityEnvMap = (texture) => {const params = {samples: 256,resolution: 1024,blur: 0.1 // 控制模糊程度};return pmremGenerator.fromEquirectangular(texture, params).texture;
};

性能优化深度策略

优化层级	技术方案	预期收益	适用场景
纹理优化	ASTC/KTX2压缩	内存减少60-80%	所有平台
计算优化	预积分BRDF	减少实时计算开销	移动设备
内存优化	纹理池共享	减少重复加载	多材质场景
渲染优化	动态环境贴图降级	保持帧率稳定	复杂场景

// 智能纹理管理系统
class TextureManager {constructor(renderer) {this.renderer = renderer;this.textureCache = new Map();this.memoryBudget = 512 * 1024 * 1024; // 512MB内存预算}async loadCompressedTexture(url, quality = 'high') {const cacheKey = `${url}_${quality}`;if (this.textureCache.has(cacheKey)) {return this.textureCache.get(cacheKey);}const ktx2Loader = new KTX2Loader().setTranscoderPath('/path/to/basis/transcoder/').detectSupport(this.renderer);const texture = await ktx2Loader.loadAsync(url);// 根据质量设置调整if (quality === 'low') {texture.generateMipmaps = false;texture.minFilter = THREE.LinearFilter;}this.textureCache.set(cacheKey, texture);return texture;}// 内存管理enforceMemoryBudget() {let totalMemory = 0;const textures = Array.from(this.textureCache.values());textures.forEach(texture => {totalMemory += this.estimateTextureMemory(texture);});if (totalMemory > this.memoryBudget) {this.releaseLeastRecentlyUsed();}}
}

移动端PBR适配方案

1. 简化渲染管线

const setupMobilePBR = () => {// 降低环境贴图分辨率const mobileEnvMap = pmremGenerator.fromEquirectangular(hdrTexture, {resolution: 256,samples: 32});// 简化材质设置const mobileMaterial = new THREE.MeshStandardMaterial({metalness: 0.5,roughness: 0.5,envMap: mobileEnvMap,envIntensity: 1.0});// 禁用昂贵特性mobileMaterial.roughnessMap = null;mobileMaterial.metalnessMap = null;mobileMaterial.normalMap = null;
};

2. 动态质量调整

class DynamicQualityManager {constructor(renderer) {this.renderer = renderer;this.qualityLevel = 'high';this.fpsMonitor = new Stats();}update() {const fps = this.fpsMonitor.getFPS();if (fps < 30 && this.qualityLevel !== 'low') {this.setQuality('low');} else if (fps > 50 && this.qualityLevel !== 'high') {this.setQuality('high');}}setQuality(level) {this.qualityLevel = level;switch(level) {case 'high':this.renderer.toneMapping = THREE.ACESFilmicToneMapping;this.applyHighQualitySettings();break;case 'low':this.renderer.toneMapping = THREE.LinearToneMapping;this.applyLowQualitySettings();break;}}
}

注意事项与最佳实践

1. HDR工作流注意事项

   • 确保所有纹理都在线性空间处理，最后输出时转换为sRGB
   • 使用正确的gamma校正（Three.js默认使用sRGB编码）
   • 避免HDR贴图的过度曝光，保持合理的动态范围

2. 材质参数调优指南

   • 金属材质：金属度1.0，粗糙度根据表面处理调整（抛光金属0.1-0.3，磨损金属0.4-0.7）
   • 非金属材质：金属度0.0，粗糙度根据材质类型调整（陶瓷0.1-0.3，石材0.6-0.9）
   • 混合材质：使用纹理贴图控制不同区域的金属度和粗糙度

3. 性能敏感场景优化

   • 使用纹理阵列替代多个单独纹理
   • 实现基于距离的材质LOD系统
   • 批量处理相同材质的物体减少状态切换

下一节预告

第22节：性能监控与内存管理——构建高性能3D应用
将深入探讨Three.js应用的性能优化体系，包括：

• Stats.js高级集成与自定义性能面板
• 内存泄漏检测与对象生命周期管理
• 大规模场景的对象池模式实现
• GPU与CPU性能瓶颈分析工具
• 自动化性能回归测试框架

通过完整的性能监控解决方案，确保你的3D应用在各种设备上都能保持流畅运行。
