Flink提交作业

WebUI上提交

代码：

import org.apache.flink.api.common.typeinfo.Types;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.util.Collector;import java.util.Arrays;public class SocketStreamWordCount {public static void main(String[] args) throws Exception {// 1. 创建流式执行环境StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();// 2. 读取文本流：master表示发送端主机名、7777表示端口号DataStreamSource<String> lineStream = env.socketTextStream("master", 7777);// 3. 转换、分组、求和，得到统计结果SingleOutputStreamOperator<Tuple2<String, Long>> sum = lineStream.flatMap((String line, Collector<Tuple2<String, Long>> out) -> {String[] words = line.split(" ");for (String word : words) {out.collect(Tuple2.of(word, 1L));}}).returns(Types.TUPLE(Types.STRING, Types.LONG)).keyBy(data -> data.f0).sum(1);// 4. 打印sum.print();// 5. 执行env.execute();}
}

pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>com.tsg</groupId><artifactId>FlinkTutorial-1.17</artifactId><version>1.0-SNAPSHOT</version><properties><flink.version>1.17.0</flink.version></properties><dependencies><dependency><groupId>org.apache.flink</groupId><artifactId>flink-streaming-java</artifactId><version>${flink.version}</version></dependency><dependency><groupId>org.apache.flink</groupId><artifactId>flink-clients</artifactId><version>${flink.version}</version></dependency></dependencies><build><plugins><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-shade-plugin</artifactId><version>3.2.4</version><executions><execution><phase>package</phase><goals><goal>shade</goal></goals><configuration><artifactSet><excludes><exclude>com.google.code.findbugs:jsr305</exclude><exclude>org.slf4j:*</exclude><exclude>log4j:*</exclude></excludes></artifactSet><filters><filter><!-- Do not copy the signatures in the META-INF folder.Otherwise, this might cause SecurityExceptions when using the JAR. --><artifact>*:*</artifact><excludes><exclude>META-INF/*.SF</exclude><exclude>META-INF/*.DSA</exclude><exclude>META-INF/*.RSA</exclude></excludes></filter></filters><transformers combine.children="append"><transformerimplementation="org.apache.maven.plugins.shade.resource.ServicesResourceTransformer"></transformer></transformers></configuration></execution></executions></plugin><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><version>3.8.1</version> <!-- 可以使用较新的版本 --><configuration><source>1.8</source> <!-- 源代码使用的 Java 版本 --><target>1.8</target> <!-- 生成的字节码使用的 Java 版本 --><encoding>UTF-8</encoding> <!-- 可选，指定编码 --></configuration></plugin></plugins></build></project>

使用maven进行打包操作

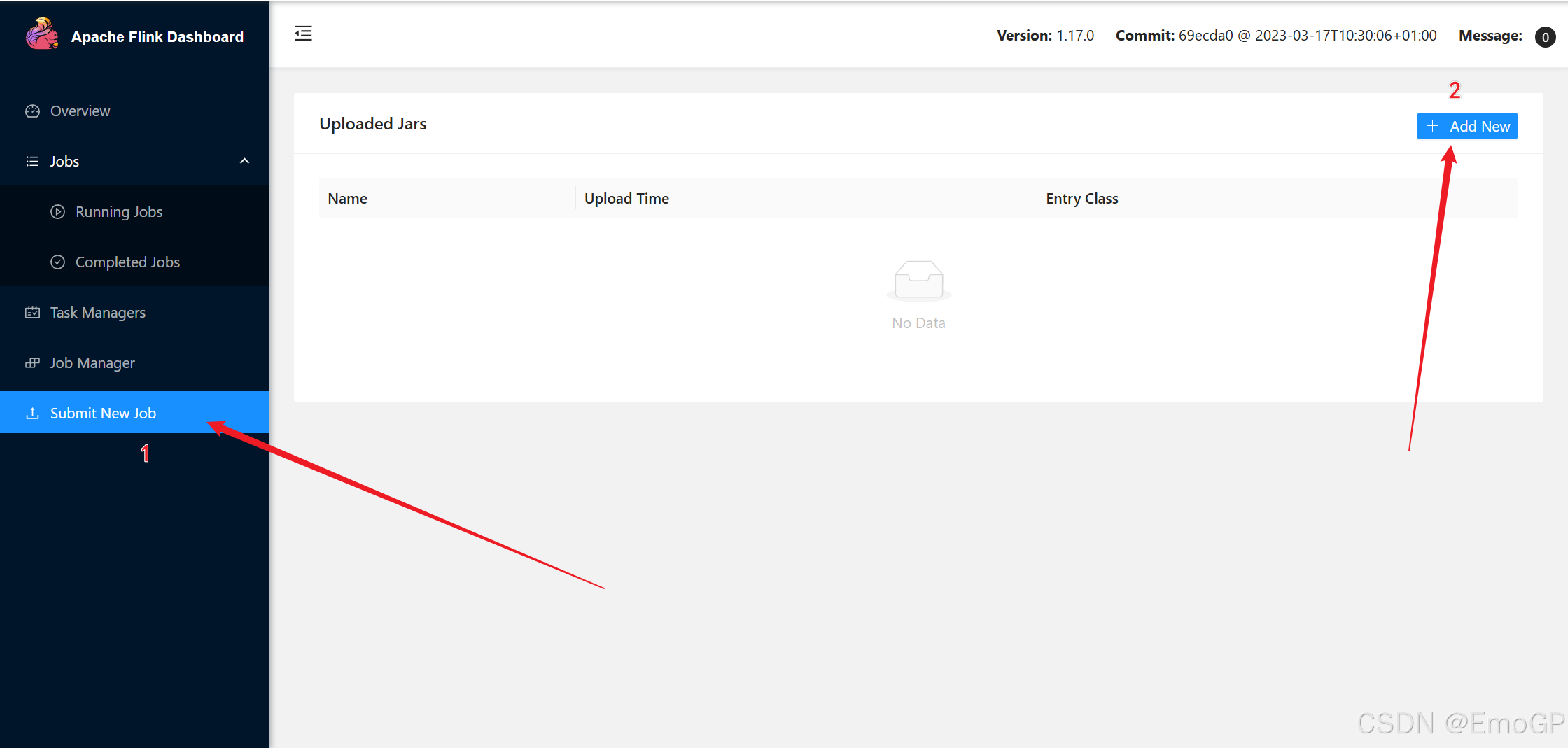

启动Flink集群，并通过webui访问

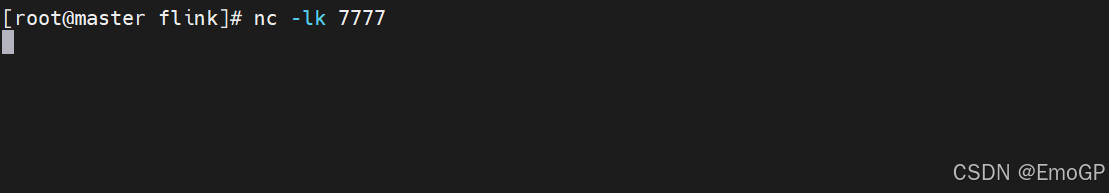

使用netcat监听端口

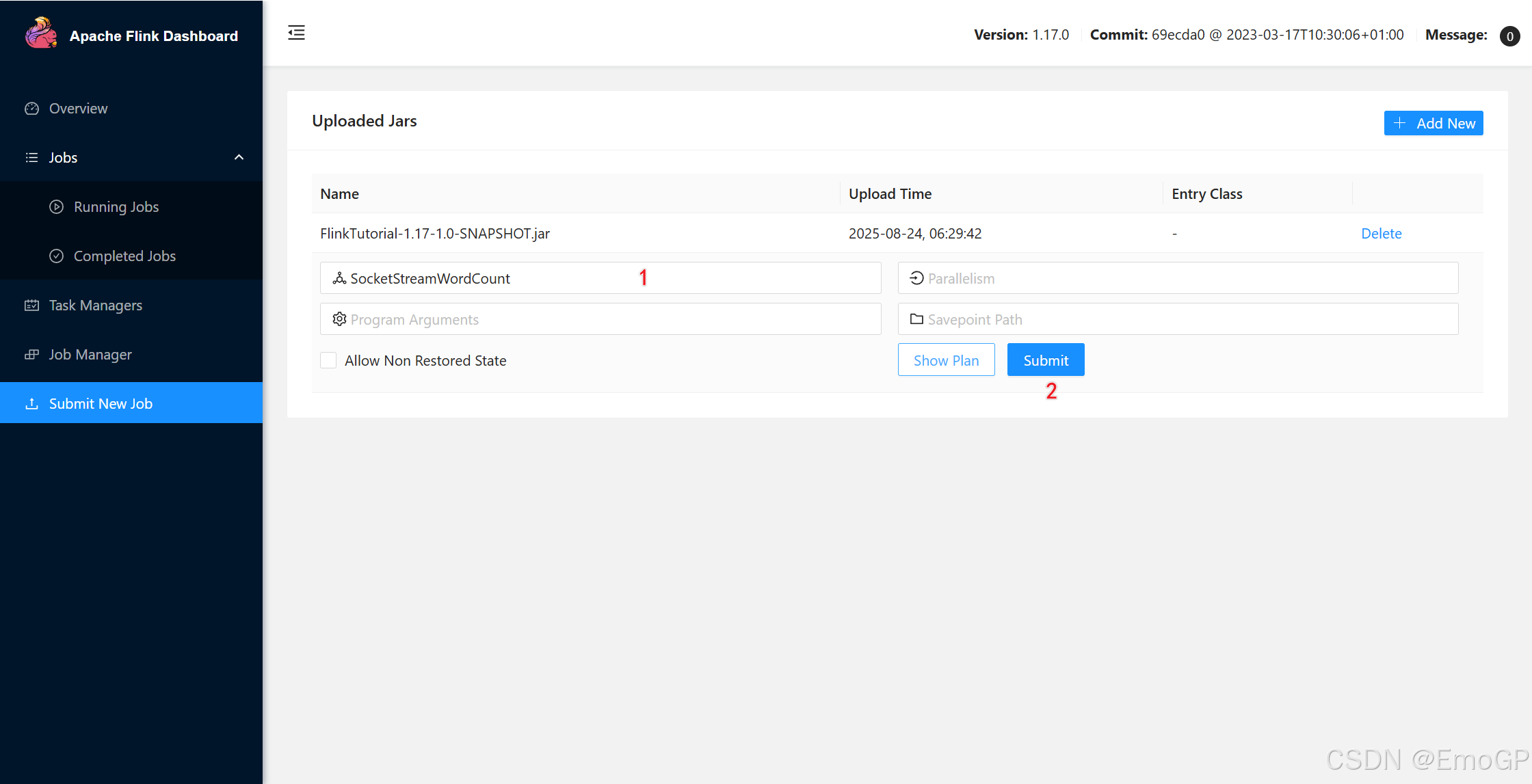

输入主类名，并提交任务

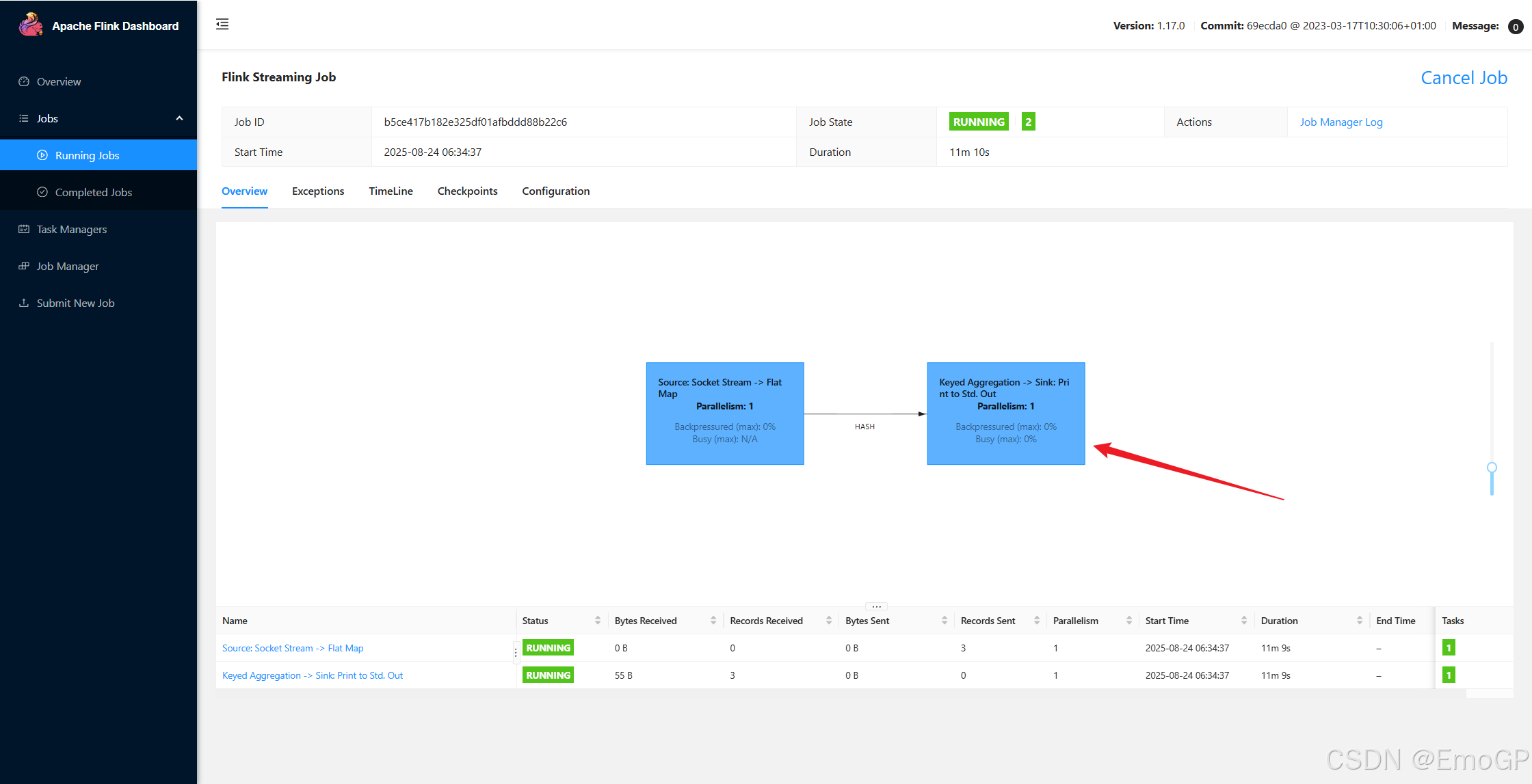

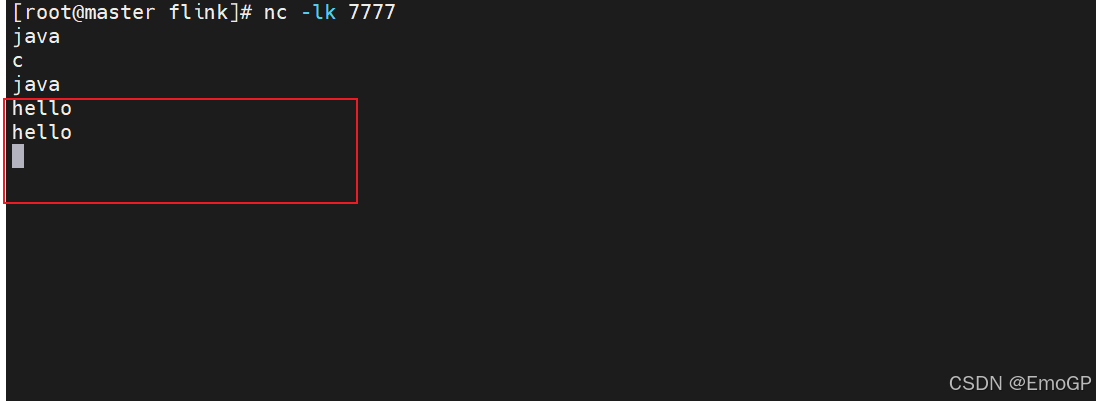

继续在端口输入数据

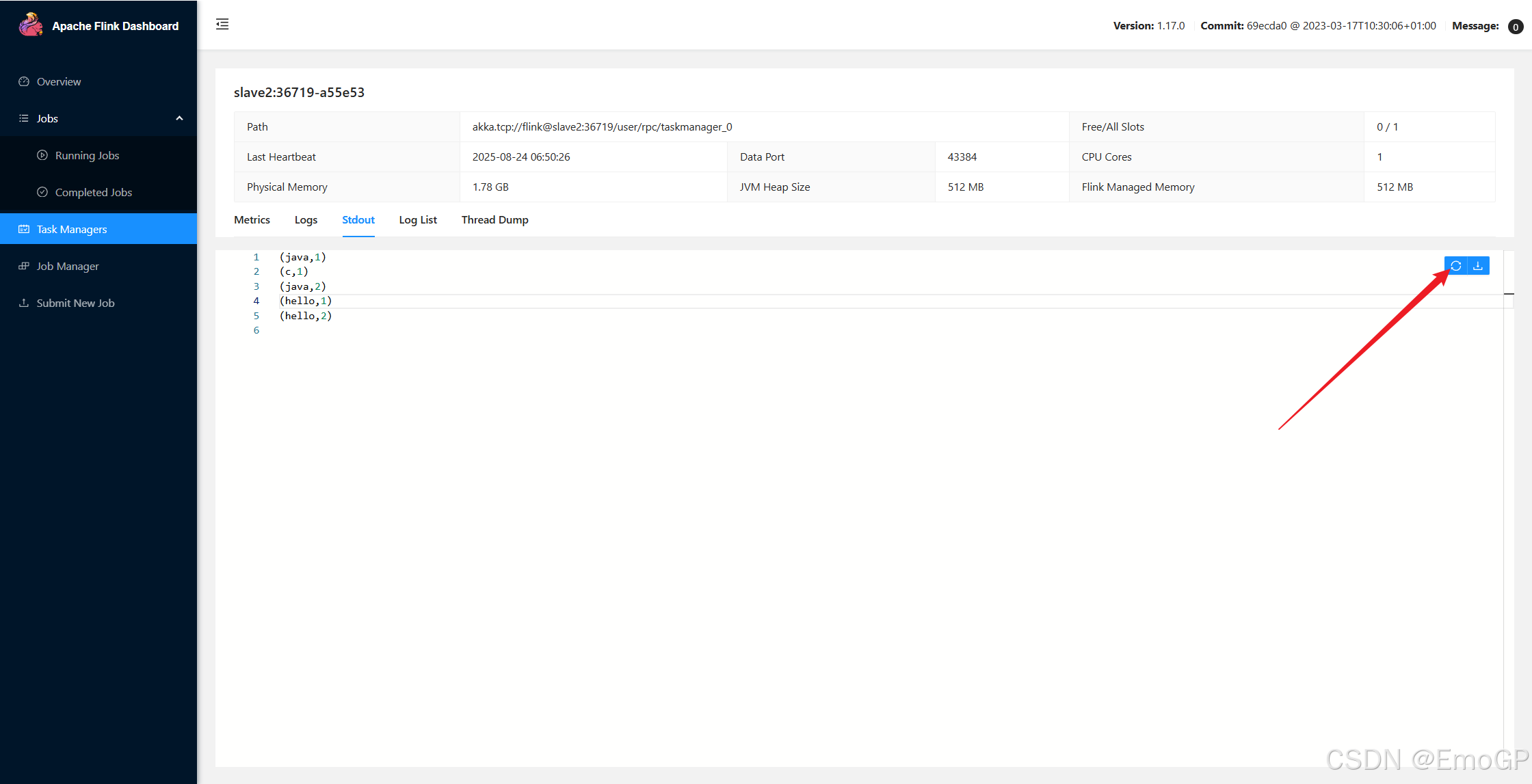

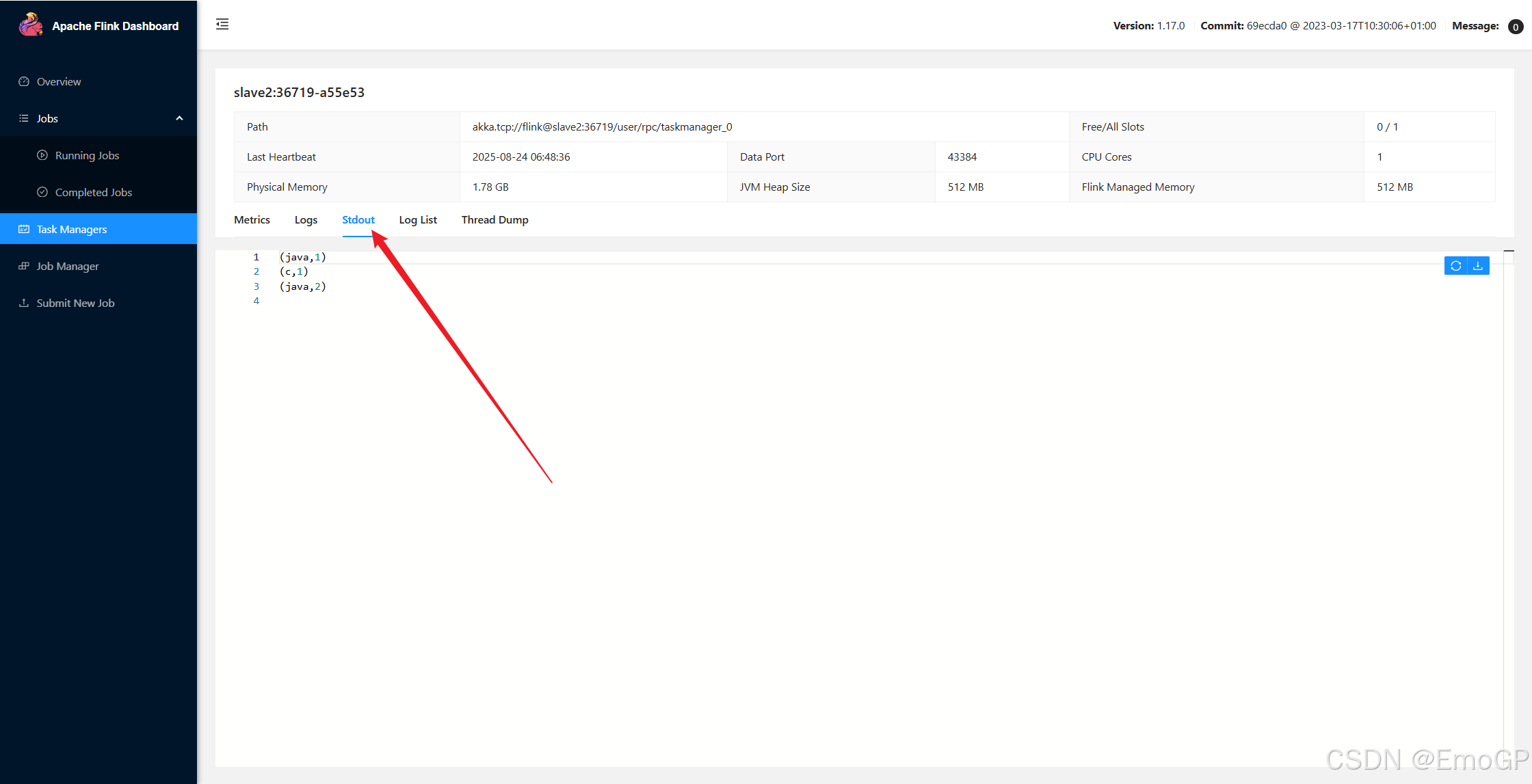

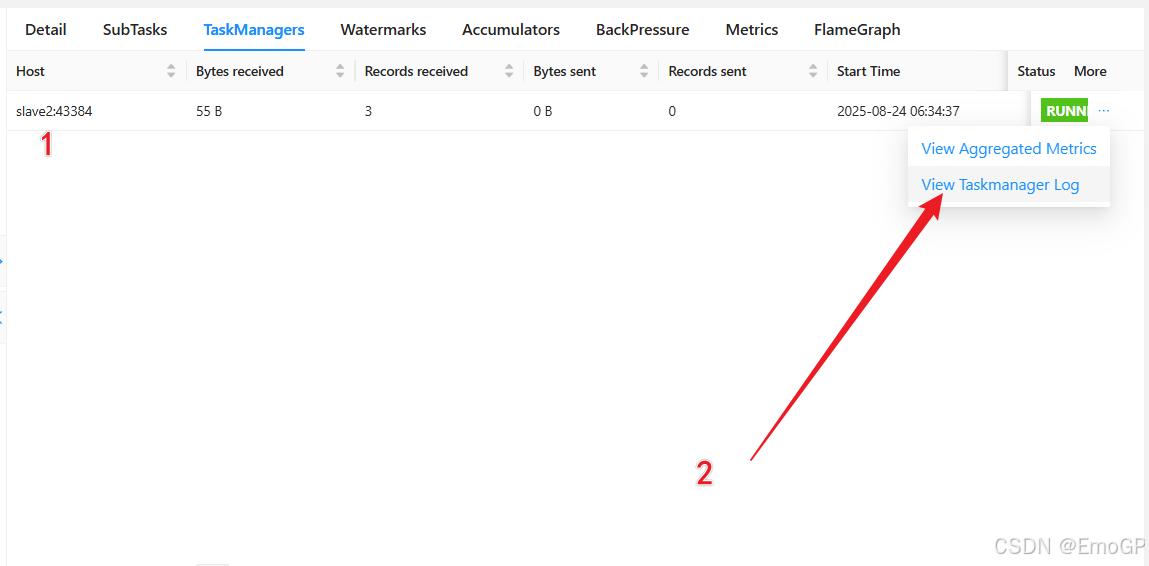

需要手动刷新结果

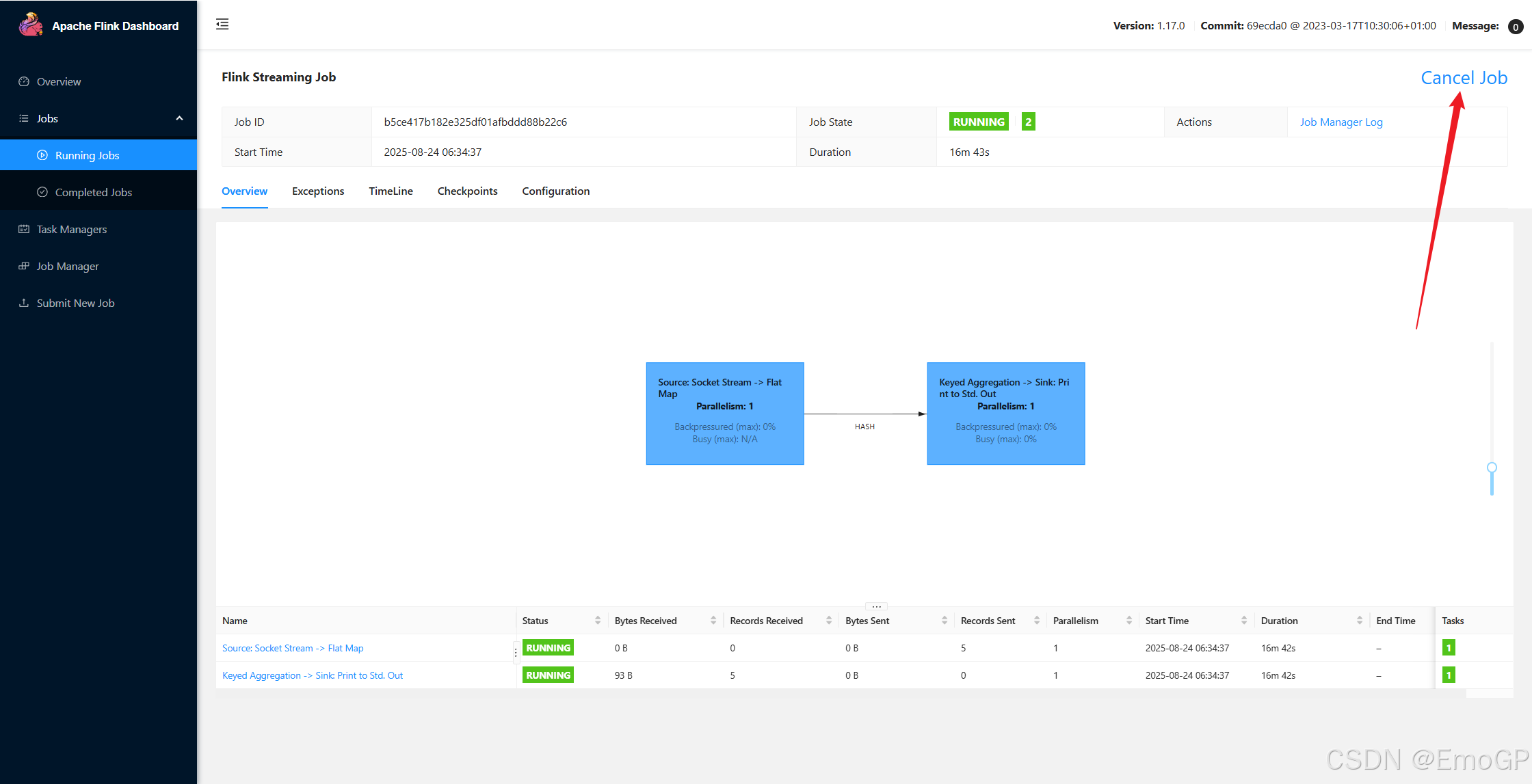

停止作业

命令行提交作业

启动集群

上传jar包到linux

监听端口

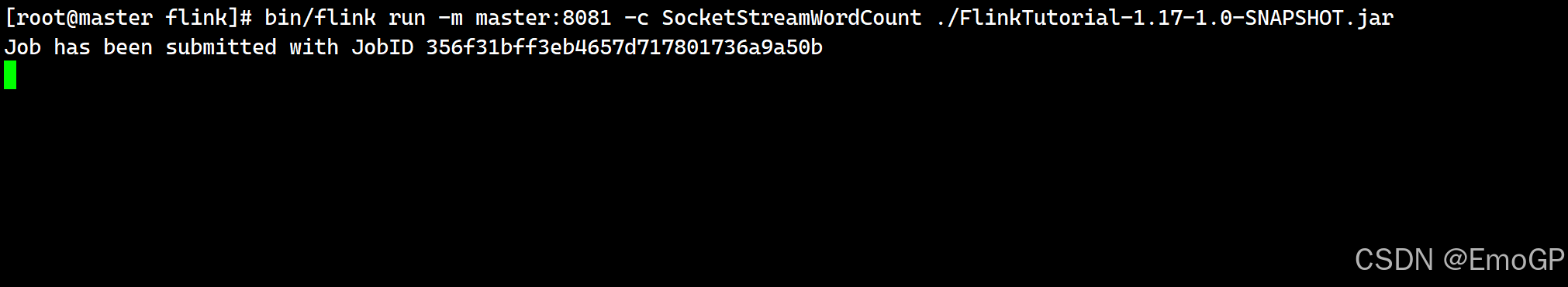

执行程序

bin/flink run -m master:8081 -c SocketStreamWordCount ./FlinkTutorial-1.17-1.0-SNAPSHOT.jar

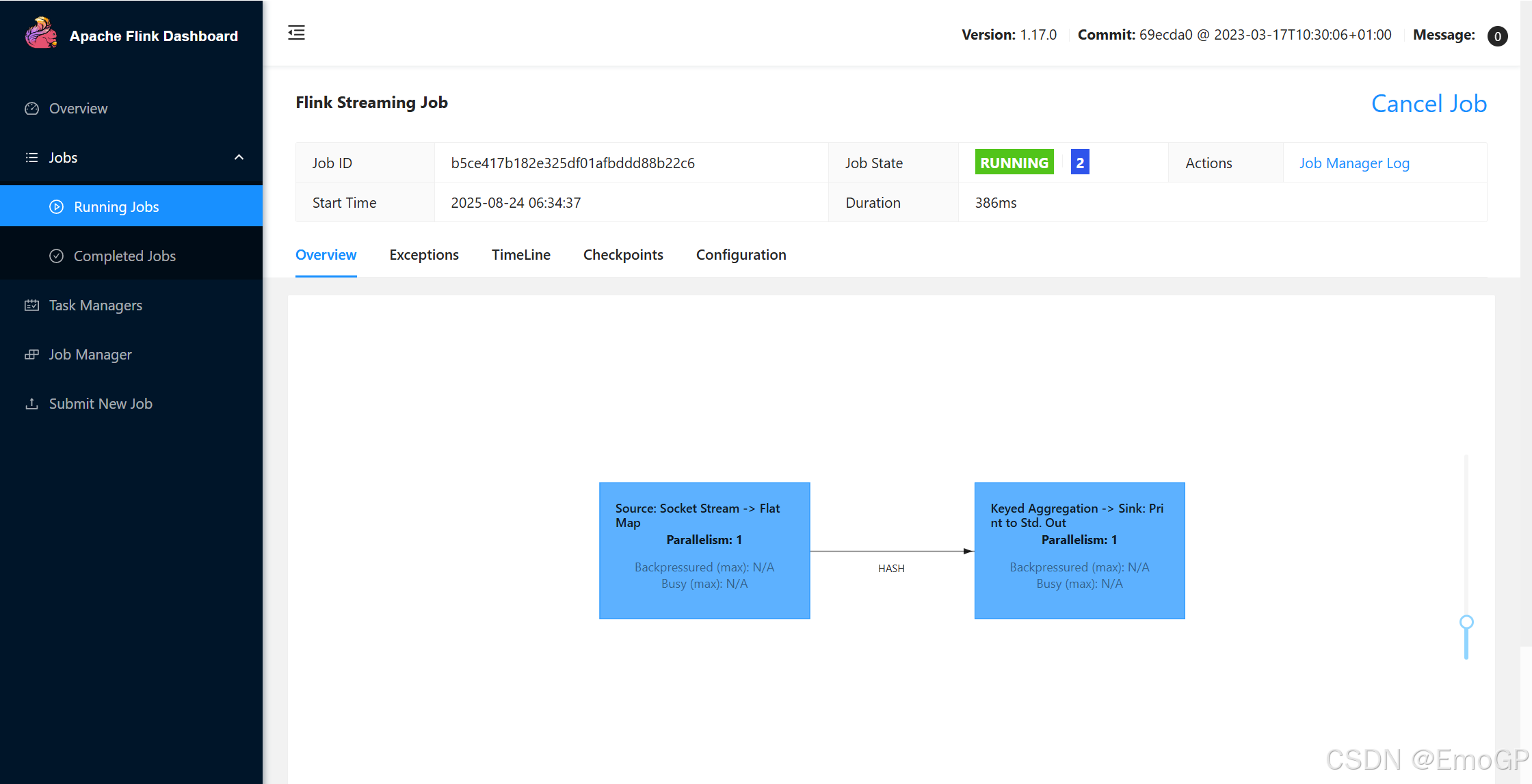

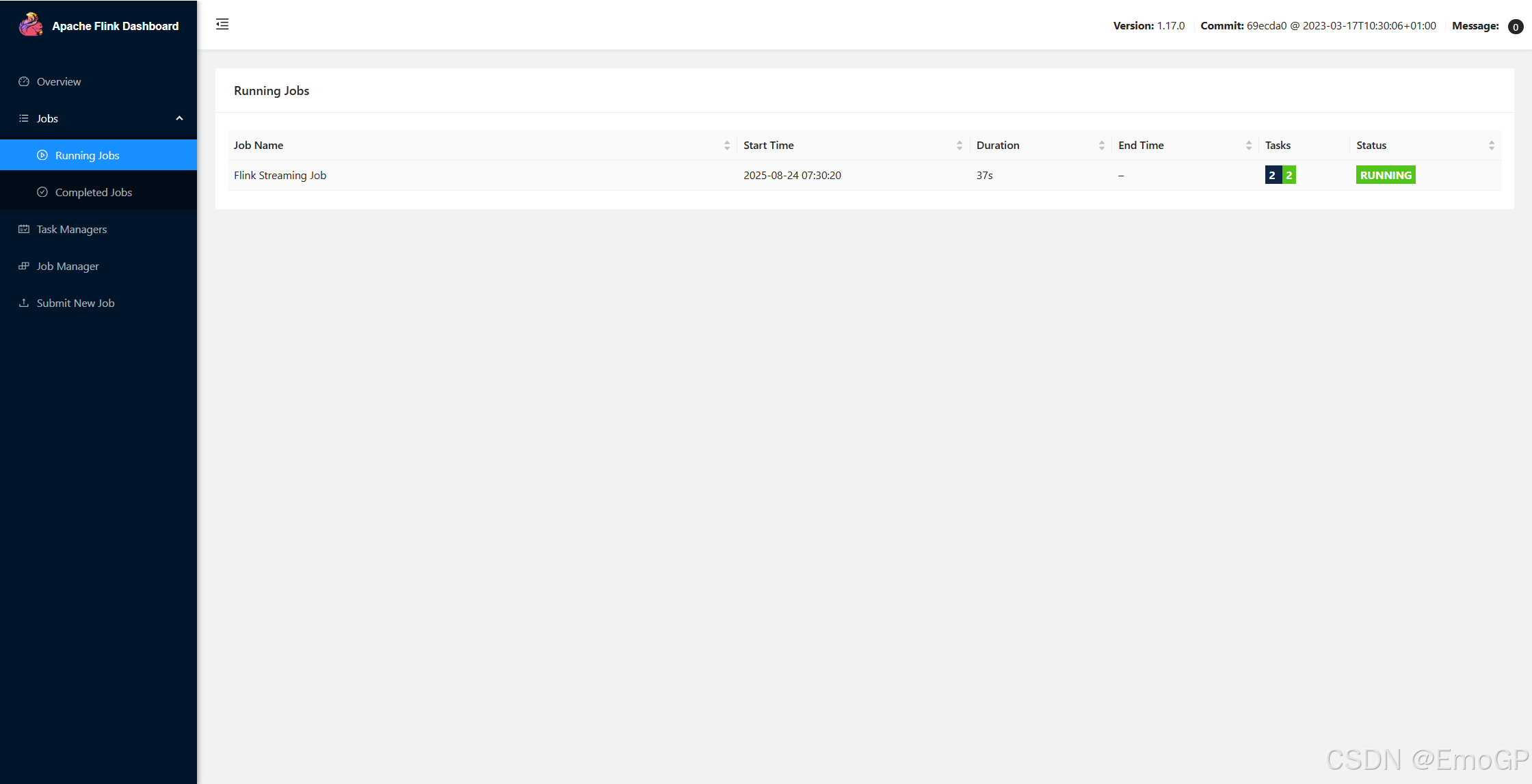

webui查看
