Spring把「手动」的复杂裹成了「自动」的温柔

案例

案例一：@EnableXXX注解使用
在一个 Spring MVC 项目，通过给配置类加上一个 @EnableWebMvc 注解，加上之后 Spring 就会注册 Spring MVC 的一系列组件，包括：HandlerMapping，HandlerAdapter，ViewResolver 等。

案例二：Spring Boot自动配置
在一个 Spring Boot应用中会有 @SpringBootApplication 注解修饰启动类，当引入 spring-boot-starter-web 依赖之后，Spring 也会自动地注册 Spring MVC 的一系列组件。

那 Spring 中是如何实现自动注册的能力的呢？先说结论：
Spring 中提供了 @Import 注解可以引入一个配置类或者是配置类的选择器。

当使用一般的 @EnableXXX 注解时实际上是通过 @Import 注解引入了预先定义好的配置类，它会配置一些指定的 Bean 来实现对应的功能。

当使用 Spring Boot 的自动配置功能时实际上是通过 @Import 注解引入了一个配置类的选择器，它会读取配置文件中配置的所有配置类，然后判断该配置类的条件是否满足，如果满足，则引入，否则，则不引入，从而实现自动配置某些功能。

源码分析

@EnableXXX注解实现原理

先看一下 @EnableWebMvc 注解，该注解上通过 @Import 注解引用了一个 DelegatingWebMvcConfiguration 配置类，它上面有 @Configuration 注解修饰。代码如下：

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(DelegatingWebMvcConfiguration.class)
public @interface EnableWebMvc {
}@Configuration(proxyBeanMethods = false)
public class DelegatingWebMvcConfiguration extends WebMvcConfigurationSupport {
}

在 DelegatingWebMvcConfiguration 这个配置类的父类 WebMvcConfigurationSupport 中定义了很多由 @Bean 注解修饰的方法，这些就是 Spring 会注册的 Spring MVC 组件类。代码如下：

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {// 定义HandlerMapping组件Bean@Bean@SuppressWarnings("deprecation")public RequestMappingHandlerMapping requestMappingHandlerMapping(@Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager,@Qualifier("mvcConversionService") FormattingConversionService conversionService,@Qualifier("mvcResourceUrlProvider") ResourceUrlProvider resourceUrlProvider) {// 省略代码}// 定义HandlerAdapter组件Bean@Beanpublic RequestMappingHandlerAdapter requestMappingHandlerAdapter(@Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager,@Qualifier("mvcConversionService") FormattingConversionService conversionService,@Qualifier("mvcValidator") Validator validator) {// 省略代码}// 定义ViewResolver组件Bean@Beanpublic ViewResolver mvcViewResolver(@Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager) {// 省略代码}
}

在3 个案例看透 Spring @Component 扫描：从普通应用到 Spring Boot文章中介绍了 Spring 中如何从 @Configuration 注解修饰的配置类的包扫描路径取扫描 Bean 的。主要是在ConfigurationClassParser 的 doProcessConfigurationClass() 方法中实现的，而对 @Import 注解引用的类也是在该方法中实现的。代码如下：

@Nullable
protected final SourceClass doProcessConfigurationClass(ConfigurationClass configClass, SourceClass sourceClass, Predicate<String> filter)throws IOException {// 省略代码// 这里处理@Import注解// Process any @Import annotationsprocessImports(configClass, sourceClass, getImports(sourceClass), filter, true);// 省略代码// 这里处理@Bean注解修饰的方法// Process individual @Bean methodsSet<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);for (MethodMetadata methodMetadata : beanMethods) {if (methodMetadata.isAnnotated("kotlin.jvm.JvmStatic") && !methodMetadata.isStatic()) {continue;}// 添加到配置类中configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));}// 省略代码// No superclass -> processing is completereturn null;
}

在处理 @Import 注解引用的且是 @Configuration 注解修饰的类时，把它当作配置类，递归调用解析配置类的方法 processConfigurationClass()，然后又进入到 doProcessConfigurationClass() 中，解析该类上 @Bean 注解修饰的方法添加到配置类中 。代码如下：

private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,Collection<SourceClass> importCandidates, Predicate<String> filter, boolean checkForCircularImports) {// 省略代码if (checkForCircularImports && isChainedImportOnStack(configClass)) {// 省略代码}else {this.importStack.push(configClass);try {for (SourceClass candidate : importCandidates) {// 省略代码// 处理@Configuration注解修饰的类，就是去把它当作配置类继续解析它的配置this.importStack.registerImport(currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());processConfigurationClass(candidate.asConfigClass(configClass), filter);}} finally {this.importStack.pop();}}
}

具体把配置类中的 Bean 方法解析为 Bean 定义则是在 ConfigurationClassPostProcessor 的 processConfigBeanDefinitions() 中调用 ConfigurationClassBeanDefinitionReader 的 loadBeanDefinitionsForBeanMethod() 方法实现的。代码如下：

public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {// 省略代码// Parse each @Configuration classConfigurationClassParser parser = new ConfigurationClassParser(this.metadataReaderFactory, this.problemReporter, this.environment,this.resourceLoader, this.componentScanBeanNameGenerator, registry);Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);Set<ConfigurationClass> alreadyParsed = CollectionUtils.newHashSet(configCandidates.size());do {// 省略代码parser.parse(candidates);parser.validate();// 省略代码// 这里调用loadBeanDefinitionsForBeanMethod()解析并注册Bean定义this.reader.loadBeanDefinitions(configClasses);// 省略代码}while (!candidates.isEmpty());// 省略代码
}

然后在 ConfigurationClassBeanDefinitionReader 的 loadBeanDefinitionsForBeanMethod() 方法中从 @Bean 注解中获取 initMethod，destroyMethod 这些信息，然后注册 Bean 定义。代码如下：

private void loadBeanDefinitionsForConfigurationClass(ConfigurationClass configClass, TrackedConditionEvaluator trackedConditionEvaluator) {// 省略代码for (BeanMethod beanMethod : configClass.getBeanMethods()) {loadBeanDefinitionsForBeanMethod(beanMethod);}// 省略代码
}private void loadBeanDefinitionsForBeanMethod(BeanMethod beanMethod) {ConfigurationClass configClass = beanMethod.getConfigurationClass();MethodMetadata metadata = beanMethod.getMetadata();String methodName = metadata.getMethodName();// 省略代码ConfigurationClassBeanDefinition beanDef = new ConfigurationClassBeanDefinition(configClass, metadata, beanName);String initMethodName = bean.getString("initMethod");if (StringUtils.hasText(initMethodName)) {beanDef.setInitMethodName(initMethodName);}String destroyMethodName = bean.getString("destroyMethod");beanDef.setDestroyMethodName(destroyMethodName);// 注册Bean定义this.registry.registerBeanDefinition(beanName, beanDefToRegister);
}

Spring Boot 自动配置原理

对于一个 Spring Boot 应用上的 @SpringBootApplication 注解是一个组合注解，它上面有 @EnableAutoConfiguration 注解修饰，而这个注解则是实现自动配置的关键。代码如下：

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(excludeFilters = { @Filter(type = FilterType.CUSTOM, classes = TypeExcludeFilter.class),  @Filter(type = FilterType.CUSTOM, classes = AutoConfigurationExcludeFilter.class) })
public @interface SpringBootApplication {}

@EnableAutoConfiguration 注解和上面的 @EnableWebMvc 注解类似也是通过 @Import 注解引入了一个类 AutoConfigurationImportSelector，但是这个类却没有 @Configuration 注解修饰，而是实现了 ImportSelector 接口。代码如下：

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@AutoConfigurationPackage
@Import(AutoConfigurationImportSelector.class)
public @interface EnableAutoConfiguration {}public class AutoConfigurationImportSelector implements DeferredImportSelector, BeanClassLoaderAware,  ResourceLoaderAware, BeanFactoryAware, EnvironmentAware, Ordered {}

在上面的 ConfigurationClassParser 类的 processImports() 方法中有一个分支就是判断 @Import 注解引入的类是不是 DeferredImportSelector 接口，如果是则会调用 DeferredImportSelectorHandler 的 handle() 方法进行处理。代码如下：

private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,Collection<SourceClass> importCandidates, Predicate<String> filter, boolean checkForCircularImports) {if (importCandidates.isEmpty()) {return;}if (checkForCircularImports && isChainedImportOnStack(configClass)) {this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));}else {this.importStack.push(configClass);try {for (SourceClass candidate : importCandidates) {if (selector instanceof DeferredImportSelector deferredImportSelector) {  // 调用deferredImportSelectorHandler的handle()方法this.deferredImportSelectorHandler.handle(configClass, deferredImportSelector);  }}} finally {this.importStack.pop();}}
}

而 DeferredImportSelectorHandler 的 handle 方法只是先把当前类加入到自己的 deferredImportSelectors 属性中。代码如下：

private class DeferredImportSelectorHandler {@Nullableprivate List<DeferredImportSelectorHolder> deferredImportSelectors = new ArrayList<>();void handle(ConfigurationClass configClass, DeferredImportSelector importSelector) {DeferredImportSelectorHolder holder = new DeferredImportSelectorHolder(configClass, importSelector);if (this.deferredImportSelectors == null) {DeferredImportSelectorGroupingHandler handler = new DeferredImportSelectorGroupingHandler();handler.register(holder);handler.processGroupImports();}else {this.deferredImportSelectors.add(holder);}}
}

最后在 ConfigurationClassParser 的 parse() 方法最后调用它的 process() 方法。在 DeferredImportSelectorHandler 的 process() 方法中又调用了 DeferredImportSelectorHolder 的 processGroupImport() 方法。代码如下：

public void parse(Set<BeanDefinitionHolder> configCandidates) {// 省略代码this.deferredImportSelectorHandler.process();
}void handle(ConfigurationClass configClass, DeferredImportSelector importSelector) {DeferredImportSelectorHolder holder = new DeferredImportSelectorHolder(configClass, importSelector);if (this.deferredImportSelectors == null) {DeferredImportSelectorGroupingHandler handler = new DeferredImportSelectorGroupingHandler();handler.register(holder);handler.processGroupImports();}else {this.deferredImportSelectors.add(holder);}
}private class DeferredImportSelectorGroupingHandler {@SuppressWarnings("NullAway")void processGroupImports() {for (DeferredImportSelectorGrouping grouping : this.groupings.values()) {Predicate<String> filter = grouping.getCandidateFilter();// 调用getImports()方法获取到配置类，然后在递归调用processImports()方法grouping.getImports().forEach(entry -> {ConfigurationClass configurationClass = this.configurationClasses.get(entry.getMetadata());try {processImports(configurationClass, asSourceClass(configurationClass, filter),Collections.singleton(asSourceClass(entry.getImportClassName(), filter)),filter, false);}// 省略代码});}}
}

然后调用到了 AutoConfigurationGroup 的 process() 方法，在该方法中会调用 AutoConfigurationImportSelector 的 getAutoConfigurationEntry() 方法，这个里这个类就是通过 @EnableAutoConfiguration 引入的类了。代码如下：

private static final class AutoConfigurationGroupimplements DeferredImportSelector.Group, BeanClassLoaderAware, BeanFactoryAware, ResourceLoaderAware {@Overridepublic void process(AnnotationMetadata annotationMetadata, DeferredImportSelector deferredImportSelector) {// 省略代码// 调用AutoConfigurationImportSelector的getAutoConfigurationEntry()方法AutoConfigurationEntry autoConfigurationEntry = autoConfigurationImportSelector.getAutoConfigurationEntry(annotationMetadata);this.autoConfigurationEntries.add(autoConfigurationEntry);for (String importClassName : autoConfigurationEntry.getConfigurations()) {this.entries.putIfAbsent(importClassName, annotationMetadata);}}
}

在 AutoConfigurationImportSelector 的 getAutoConfigurationEntry() 方法调用 ImportCandidates 读取默认值为 org.springframework.boot.autoconfigure.AutoConfiguration.imports 文件中列举的配置类，然后过滤掉不满足条件的配置类，过滤的方式可以是判断 CLASSPATH 路径下某些类是否存在。代码如下：

AutoConfigurationImportSelector{protected AutoConfigurationEntry getAutoConfigurationEntry(AnnotationMetadata annotationMetadata) {// 省略代码// 获取所有配置类List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);// 过滤掉不满足条件的配置类configurations = getConfigurationClassFilter().filter(configurations);fireAutoConfigurationImportEvents(configurations, exclusions);return new AutoConfigurationEntry(configurations, exclusions);}protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {ImportCandidates importCandidates = ImportCandidates.load(this.autoConfigurationAnnotation,getBeanClassLoader());return configurations;}
}public final class ImportCandidates implements Iterable<String> {private static final String LOCATION = "META-INF/spring/%s.imports";public static ImportCandidates load(Class<?> annotation, ClassLoader classLoader) {ClassLoader classLoaderToUse = decideClassloader(classLoader);// 这里就是配置类所在文件，默认是org.springframework.boot.autoconfigure.AutoConfiguration.importsString location = String.format(LOCATION, annotation.getName());Enumeration<URL> urls = findUrlsInClasspath(classLoaderToUse, location);List<String> importCandidates = new ArrayList<>();while (urls.hasMoreElements()) {URL url = urls.nextElement();importCandidates.addAll(readCandidateConfigurations(url));}return new ImportCandidates(importCandidates);}
}

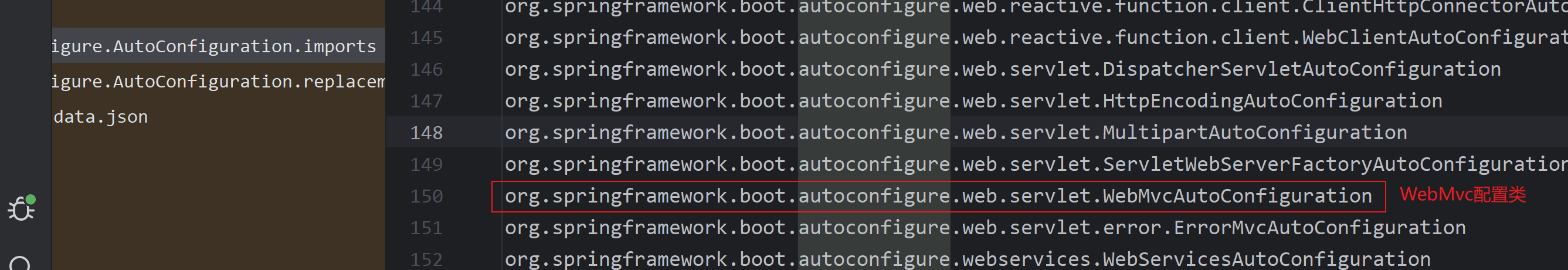

org.springframework.boot.autoconfigure.AutoConfiguration.imports 文件中内容如下：

这里以 WebMvcAutoConfiguration 配置类为例，它要不被过滤掉的条件是 CLASSPATH 路径下存在 Servlet, DispatcherServlet, WebMvcConfigurer 这些类，即这些类存在则会解析 WebMvcAutoConfiguration 配置类配置的 Bean，从而实现 Spring MVC 组件的 Bean 的注册。代码如下：

@AutoConfiguration(after = { DispatcherServletAutoConfiguration.class, TaskExecutionAutoConfiguration.class,  ValidationAutoConfiguration.class })
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass({ Servlet.class, DispatcherServlet.class, WebMvcConfigurer.class })
@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
@ImportRuntimeHints(WebResourcesRuntimeHints.class)
public class WebMvcAutoConfiguration {}
