深度学习 --- 迁移学习以及onnx推理

深度学习 — 迁移学习以及onnx推理

---

五,预训练与迁移学习

在原始的已经学习了基本特征的权重参数基础之上，继续进行训练，而不是每次都从0开始。

原始权重参数：

1. 官方经典网络模型的预训练参数：别人已经训练好了；
2. 也可以是自己训练好的权重文件；

5.1(以resnet18网络以及权重示例)

from torchvision.models import resnet18, ResNet18_Weights

5.2 初始化

weight = ResNet18_Weights.DEFAULT
model = resnet18(weights=weight)
model.to(device)

5.3 保存初始权值重文件

# 保存模型权重文件到本地
if not os.path.exists(os.path.join(mdelpath, f"model_res18.pth")):torch.save(model.state_dict(), os.path.join(mdelpath, f"model_res18.pth"))

5.4 修改网格结构

重新加载resnet18模型并修改网络结构。

​ ResNet18默认有1000个类别，和我们的需求不匹配需要修改网络结构

# 重新加载网络模型：需要根据分类任务进行模型结构调整
pretrained_model = resnet18(weights=None)
# print(pretrained_model)
in_features_num = pretrained_model.fc.in_features
pretrained_model.fc = nn.Linear(in_features_num, 10)

5.5 调整权重参数

# 加载刚才下载的权重参数
weight18 = torch.load(os.path.join(mdelpath, f"model_res18.pth"))
print(weight18.keys())
# 全连接层被我们修改了，需要删除历史的全连接层参数
weight18.pop("fc.weight")
weight18.pop("fc.bias")# 获取自己的模型的参数信息
my_resnet18_dict = pretrained_model.state_dict()# 去除不必要的权重参数
weight18 = {k:v for k, v in weight18.items() if k in my_resnet18_dict}#更新
my_resnet18_dict.update(weight18)

5.6 新参数+新模型

 处理完后把最新的参数更新到模型中
pretrained_model.load_state_dict(my_resnet18_dict)
model = pretrained_model.to(device)

六,整体流程

6.1导入包

import time
import osimport numpy as np
import pandas as pd
import torch
import torch.nn as nn
import torch.optim as optim
import torchvision
import torchvision.transforms as transforms
from torch.utils.data import DataLoader
from torchvision.datasets import CIFAR10from torchvision.models import resnet18, ResNet18_Weights
import wandb
from torch.utils.tensorboard import SummaryWriter
from sklearn.metrics import *
import matplotlib.pyplot as plt

6.2 加载构建数据集

train_dataset = CIFAR10(root=datapath,train=True,download=True,transform=transform,
)
train_loader = DataLoader(#dataset=train_dataset,batch_size=batzh_size,shuffle=True,num_workers=2,
)

6.3模型

# 再次获取resnet18原始神经网络并对齐fc层进行调整
model = resnet18(weights=None)in_features = model.fc.in_features
# 重写FC：我们这里做的是10分类
model.fc = nn.Linear(in_features=in_features, out_features=10)# 需要对权重信息进行处理：要加载我们训练之后最新的权重文件
weights_default = torch.load(weightpath)
weights_default.pop("fc.weight")
weights_default.pop("fc.bias")# 把权重参数进行同步
new_state_dict = model.state_dict()
weights_default_process = {k: v for k, v in weights_default.items() if k in new_state_dict
}
new_state_dict.update(weights_default_process)
model.load_state_dict(new_state_dict)
model.to(device)

6.4 训练

6.4.1 数据增强

transform = transforms.Compose([transforms.RandomRotation(45),  # 随机旋转，-45到45度之间随机选transforms.RandomCrop(32, padding=4),  # 随机裁剪transforms.RandomHorizontalFlip(p=0.5),  # 随机水平翻转 选择一个概率概率transforms.RandomVerticalFlip(p=0.5),  # 随机垂直翻转transforms.ToTensor(),transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2471, 0.2435, 0.2616)),]
)transformtest = transforms.Compose([transforms.ToTensor(),transforms.Normalize((0.4914, 0.4822, 0.4465), (0.2471, 0.2435, 0.2616)),]
)

6.4.2 开始训练

    # 损失函数和优化器loss_fn = nn.CrossEntropyLoss()optimizer = optim.Adam(model.parameters(), lr=lr)for epoch in range(epochs):# 开始时间start = time.time()# 总的损失值total_loss = 0.0# 样本数量：最后一次样本数量不是128samp_num = 0# 总的预测正确的分类correct = 0model.train()for i, (x, y) in enumerate(train_loader):x, y = x.to(device), y.to(device)# 累加样本数量samp_num += len(y)out = model(x)# 预测正确的样本数量correct += out.argmax(dim=1).eq(y).sum().item()loss = loss_fn(out, y)# 损失率累加total_loss += loss.item() * len(y)optimizer.zero_grad()loss.backward()optimizer.step()if i % 100 == 0:img_grid = torchvision.utils.make_grid(x)write1.add_image(f"r_m_{epoch}_{i}", img_grid, epoch * len(train_loader) + i)print("批次：%d 损失率：%.4f 准确率：%.4f 耗时：%.4f"% (epoch, total_loss / samp_num, correct / samp_num, time.time() - start))# log metrics to wandbwandb.log({"acc": correct / samp_num, "loss": total_loss / samp_num})

6.4.3 保存模型

torch.save(model.state_dict(), weightpath)

6.4.4 训练过程可视化

write1 = SummaryWriter(log_dir=log_dir)
# 保存模型结构到tensorboard
write1.add_graph(model, input_to_model=torch.randn(1, 3, 32, 32).to(device=device))

6.5 数据验证

• 数据验证

weights_default = torch.load(weightpath)# 再次获取resnet18原始神经网络并对齐fc层进行调整model = resnet18(pretrained=False)in_features = model.fc.in_features# 重写FC：我们这里做的是10分类model.fc = nn.Linear(in_features=in_features, out_features=10)model.load_state_dict(weights_default)model.to(device)model.eval()samp_num = 0correct = 0data2csv = np.empty(shape=(0, 13))for x, y in vaild_loader:x = x.to(device)y = y.to(device)# 累加样本数量samp_num += len(y)# 模型运算out = model(x)# 数组的合并data2csv = np.concatenate((data2csv, outdata_softmax), axis=0)# 预测正确的样本数量correct += out.argmax(dim=1).eq(y).sum().item()print("准确率：%.4f" % (correct / samp_num))

• 数据结果可视化

data2csv = np.empty(shape=(0, 13))#数据整理
out = model(x)
outdata = out.cpu().detach()
outdata_softmax = torch.softmax(outdata, dim=1)
outdata_softmax = np.concatenate((# 本身预测的值outdata_softmax.numpy(),# 真正的目标值y.cpu().numpy().reshape(-1, 1),# 预测值outdata_softmax.argmax(dim=1).reshape(-1, 1),# 分类名称np.array([vaild_dataset.classes[i] for i in y.cpu().numpy()]).reshape(-1, 1),),axis=1,
)
# 数组的合并
data2csv = np.concatenate((data2csv, outdata_softmax), axis=0)#写入CSV
columns = np.concatenate((vaild_dataset.classes, ["target", "prep", "分类"]))
pddata = pd.DataFrame(data2csv, columns=columns)
pddata.to_csv(csvpath, encoding="GB2312")

6.6 指标分析

def analy():# 读取csv数据data1 = pd.read_csv(csvpath, encoding="GB2312")print(type(data1))# 整体数据分析报告report = classification_report(y_true=data1["target"].values,y_pred=data1["prep"].values,)print(report)# 准确度 Accprint("准确度Acc：",accuracy_score(y_true=data1["target"].values,y_pred=data1["prep"].values,),)# 精确度print("精确度Precision：",precision_score(y_true=data1["target"].values, y_pred=data1["prep"].values, average="macro"),)# 召回率print("召回率Recall：",recall_score(# 100y_true=data1["target"].values,y_pred=data1["prep"].values,average="macro",),)# F1 Scoreprint("F1 Score：",f1_score(y_true=data1["target"].values,y_pred=data1["prep"].values,average="macro",),)passdef matrix():# 读取csv数据data1 = pd.read_csv(csvpath, encoding="GB2312", index_col=0)confusion = confusion_matrix(# 0y_true=data1["target"].values,y_pred=data1["prep"].values,# labels=data1.columns[0:10].values,)print(confusion)# 绘制混淆矩阵plt.rcParams["font.sans-serif"] = ["SimHei"]plt.rcParams["axes.unicode_minus"] = Falseplt.matshow(confusion, cmap=plt.cm.Greens)plt.colorbar()for i in range(confusion.shape[0]):for j in range(confusion.shape[1]):plt.text(j, i, confusion[i, j], ha="center", va="center", color="b")plt.title("验证数据混淆矩阵")plt.xlabel("Predicted label")plt.xticks(range(10), data1.columns[0:10].values, rotation=45)plt.ylabel("True label")plt.yticks(range(10), data1.columns[0:10].values)plt.show()

6.7 调用主函数

def app():dir = os.path.dirname(__file__)imgpath = os.path.join("图片位置目录", "图片名称")# 读取图像文件img = cv2.imread(imgpath)# 将图像转换为灰度图img = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)# 对灰度图进行二值化处理，采用OTSU自适应阈值方法，并反转颜色ret, img = cv2.threshold(img, 0, 255, cv2.THRESH_BINARY_INV | cv2.THRESH_OTSU)plt.imshow(img)plt.show()# img = cv2.resize(img, (32, 32))img = torch.Tensor(img).unsqueeze(0)transform = transforms.Compose([transforms.Resize((32, 32)),  # 调整输入图像大小为32x32transforms.ToTensor(),transforms.Normalize((0.1307,), (0.3081,)),])img = transform(img).unsqueeze(0)# 加载模型net = LeNet5()net.load_state_dict(torch.load(modelpath))# 预测outputs = net(img)print(outputs)print(outputs.argmax(axis=1))

七,模型移植

7.1 onnx

https://onnx.ai/

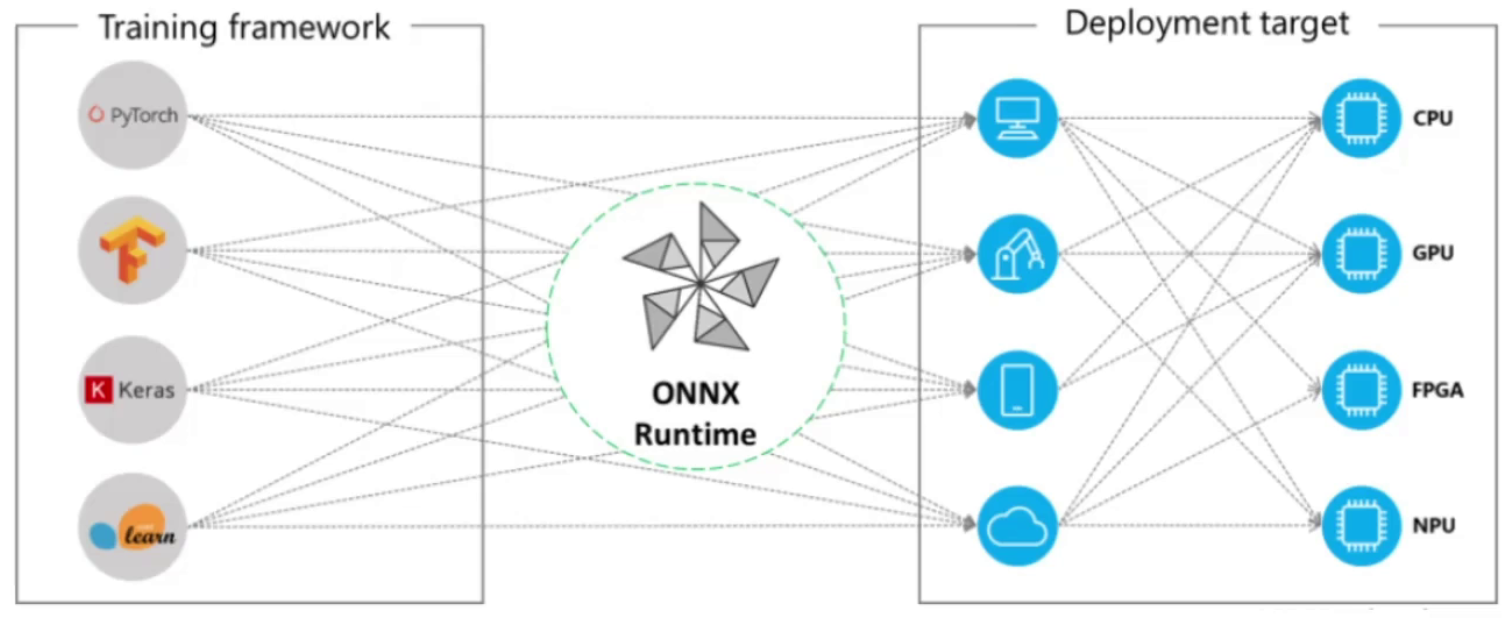

Open Neural Network Exchange（ONNX，开放神经网络交换）格式，是一个用于表示深度学习模型的标准，可使模型在不同框架之间进行转移。

目前官方支持加载ONNX模型并进行推理的深度学习框架有： Caffe2, PyTorch, PaddlePaddle， TensorFlow等。

7.2 得到onnx文件

7.2.1 安装依赖包

pip install onnx
pip install onnxruntime

7.2.2 导出onnx文件

import os
import torch
import torch.nn as nn
from torchvision.models import resnet18if __name__ == "__main__":dir = os.path.dirname(__file__)weightpath = os.path.join(os.path.dirname(__file__), "pth", "resnet18_default_weight.pth")onnxpath = os.path.join(os.path.dirname(__file__), "pth", "resnet18_default_weight.onnx")device = torch.device("cuda" if torch.cuda.is_available() else "cpu")model = resnet18(pretrained=False)model.conv1 = nn.Conv2d(#in_channels=3,out_channels=64,kernel_size=3,stride=1,padding=0,bias=False,)# 删除池化层model.maxpool = nn.MaxPool2d(kernel_size=1, stride=1, padding=0)# 修改全连接层in_feature = model.fc.in_featuresmodel.fc = nn.Linear(in_feature, 10)model.load_state_dict(torch.load(weightpath, map_location=device))model.to(device)# 创建一个实例输入x = torch.randn(1, 3, 224, 224, device=device)# 导出onnxtorch.onnx.export(model,x,onnxpath,#verbose=True, # 输出转换过程input_names=["input"],output_names=["output"],)print("onnx导出成功")

7.2.3 onnx结构可视化

可以直接在线查看：https://netron.app/
也可以下载桌面版：https://github.com/lutzroeder/netron

7.3 使用onnx作推理

一般使用GPU,安装

pip install onnxruntime-gpu

import time
import random
import os# 推理的模块
import onnxruntime as ort
import torchvision.transforms as transforms
import numpy as np
import PIL.Image as Imageimg_size = 32
transformtest = transforms.Compose([transforms.Resize((img_size, img_size)),transforms.ToTensor(),transforms.Normalize(# 均值和标准差mean=[0.4914, 0.4822, 0.4465],std=[0.2471, 0.2435, 0.2616],),]
)def softmax(x):e_x = np.exp(x - np.max(x))return e_x / e_x.sum(axis=1, keepdims=True)def imgclass():# AI推理# 读取图片imgpath = os.path.join(os.path.dirname(__file__), "..", "static/ai", filename)# 加载并预处理图像image = Image.open(imgpath)input_tensor = transformtest(image)input_tensor = input_tensor.unsqueeze(0)  # 添加批量维度# 将图片转换为ONNX运行时所需的格式img_numpy = input_tensor.numpy()# 加载模型onnxPath = os.path.join(#os.path.dirname(__file__),"..","onnx","resnet18_default_weight_1.onnx",)# 设置 ONNX Runtime 使用 GPUproviders = ["CUDAExecutionProvider"]sess = ort.InferenceSession(onnxPath, providers=providers)# 使用模型对图片进行推理运算output = sess.run(None, {"input": img_numpy})output = softmax(output[0])print(output)ind = np.argmax(output, axis=1)print(ind)lablename = "飞机、汽车、鸟类、猫、鹿、狗、青蛙、马、船、卡车".split("、")res = {"code": 200, "msg": "处理成功", "url": img, "class": lablename[ind[0]]}
