vue vxe-table :edit-config=“editConfig“ 可以编辑的表格

news 2025/8/2 20:14:58

背景：

在vue中的表格有合并行、合并列的情况，可以使用插件vxe-table实现各种样式的表格。就是不能跨框架运行，只能运行在 vue 框架中。对于表格中的每一个单元格可以编辑，配置table表格可以编辑。行可编辑或者单元格可编辑。

设置 edit-config={trigger: 'manual', mode: 'row'} 启用行编辑的功能

const editConfig = ref({ trigger: 'manual', mode: 'row' })

通过 edit-config.trigger=click 设置单元格单击模式

const editConfig = ref({ trigger: 'click', mode: 'cell' })

通过 edit-config.trigger=dblclick 设置单元格双击模式

const editConfig = ref({ trigger: 'dblclick', mode: 'cell' })

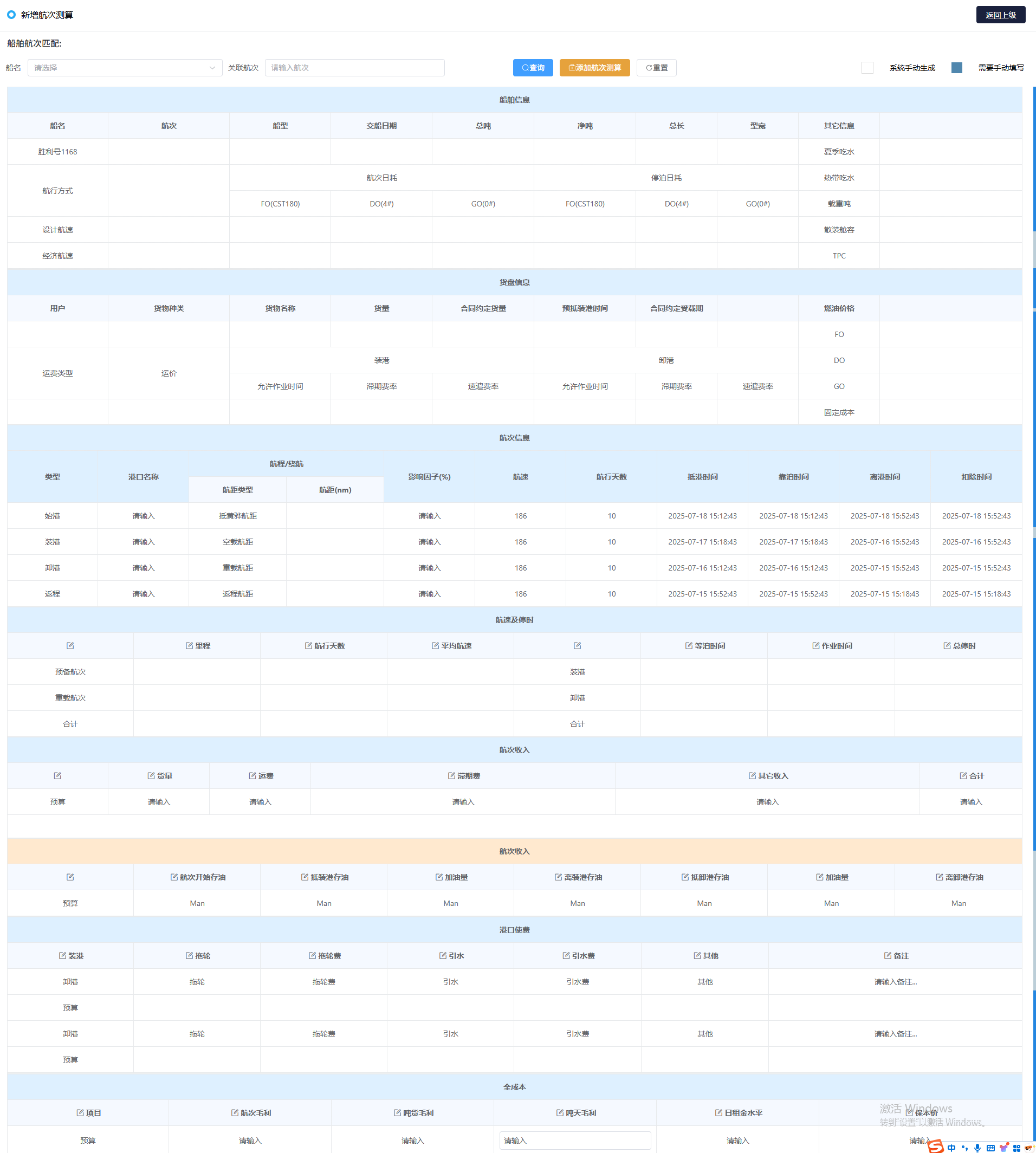

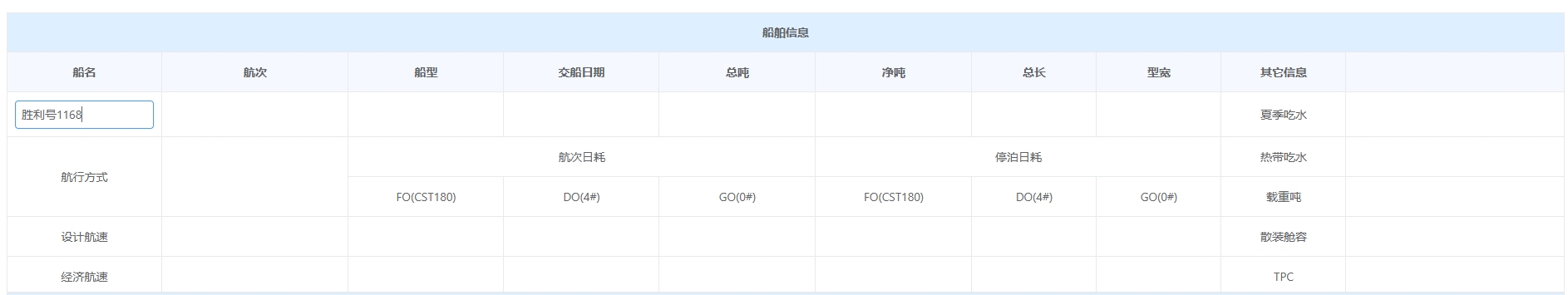

实现效果：

备注：单元格单击会触发表格的可编辑状态。:edit-render="{ name: 'VxeInput' }"编辑状态渲染的是input输入框，也可以写成下拉列表等表单组件。

核心代码：

表格绑定属性:edit-config

const editConfig = ref({ trigger: 'manual', mode: 'row' })

const editConfig = ref({ trigger: 'click', mode: 'cell' })

const editConfig = ref({ trigger: 'dblclick', mode: 'cell' })

<div class="container1 infoState"><vxe-table :data="voyageCostState.tableData" empty-text="没有更多数据了！" :loading="voyageCostState.loading":border="'full'" :align="'center'" :merge-cells="voyageCostState.mergeCells":edit-config="voyageCostState.editConfig"><vxe-colgroup title="船舶信息" :header-cell-class-name="'header-cell'"><vxe-column v-for="(item, index) in voyageCostState.tableList" :field="item.prop" :title="item.label":width="item.width" :key="index" :edit-render="{ name: 'VxeInput' }"></vxe-column></vxe-colgroup></vxe-table>
</div>

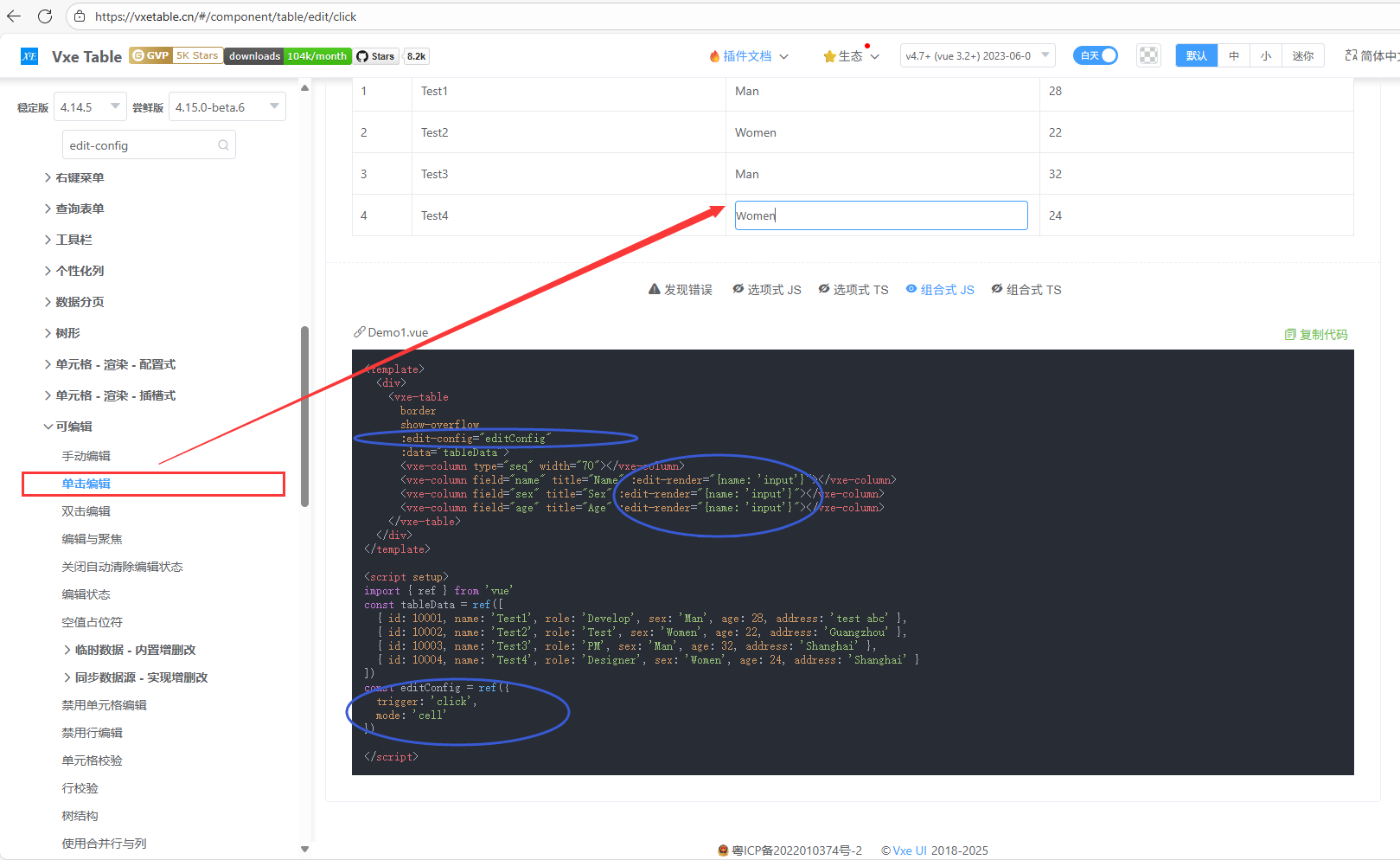

官网链接：点击跳转官网

官网代码：

<template><div><vxe-tablebordershow-overflow:edit-config="editConfig":data="tableData"><vxe-column type="seq" width="70"></vxe-column><vxe-column field="name" title="Name" :edit-render="{name: 'input'}"></vxe-column><vxe-column field="sex" title="Sex" :edit-render="{name: 'input'}"></vxe-column><vxe-column field="age" title="Age" :edit-render="{name: 'input'}"></vxe-column></vxe-table></div>
</template><script setup>
import { ref } from 'vue'
const tableData = ref([{ id: 10001, name: 'Test1', role: 'Develop', sex: 'Man', age: 28, address: 'test abc' },{ id: 10002, name: 'Test2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },{ id: 10003, name: 'Test3', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },{ id: 10004, name: 'Test4', role: 'Designer', sex: 'Women', age: 24, address: 'Shanghai' }
])
const editConfig = ref({trigger: 'click',mode: 'cell'
})</script>

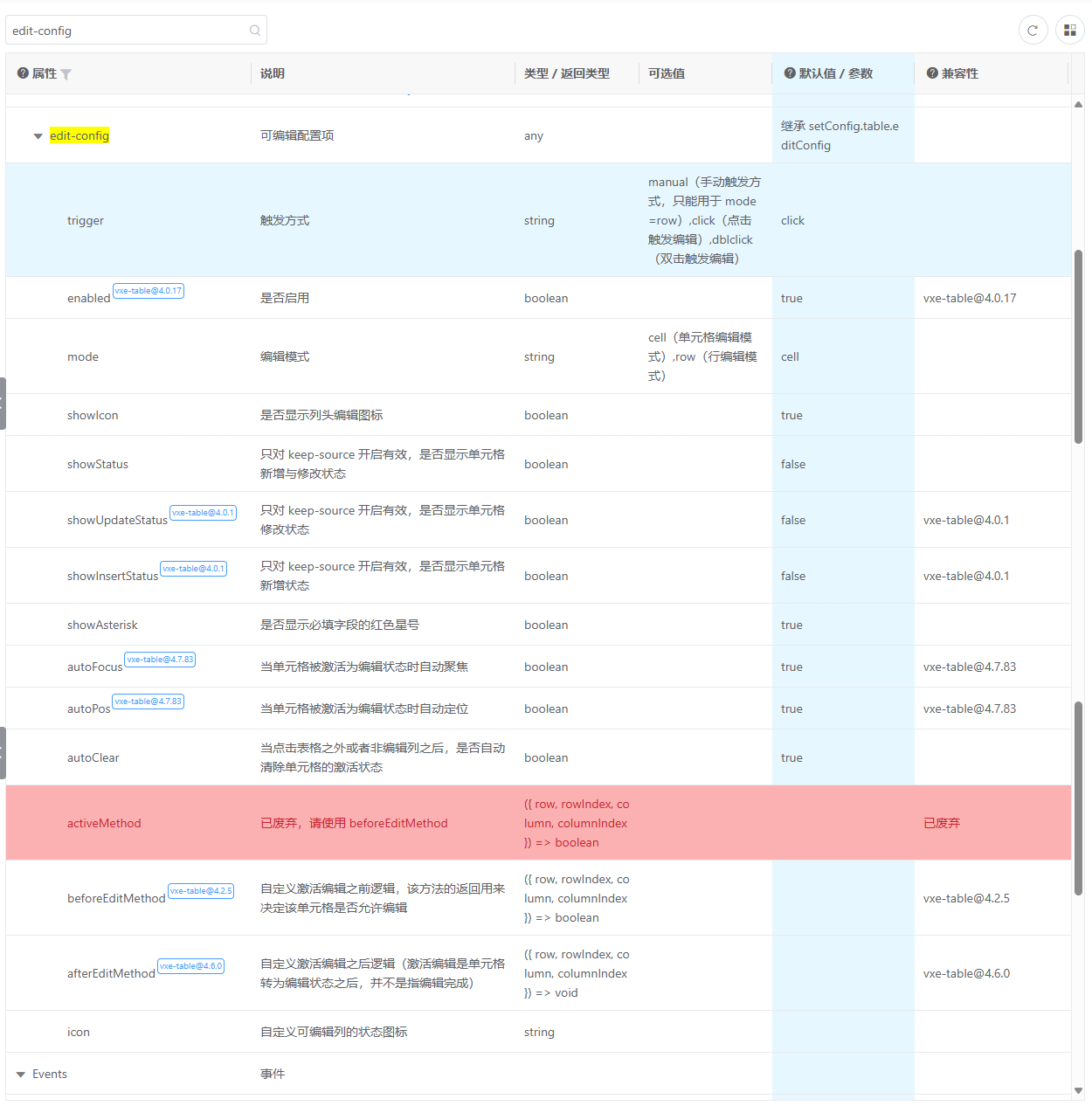

理论知识：

官网链接：点击跳转

理论知识总结：

trigger: "click",//触发方式 manual（手动触发方式，只能用于 mode=row）,click（点击触发编辑）,dblclick（双击触发编辑）

mode: 'cell',//编辑模式cell（单元格编辑模式）,row（行编辑模式）

showIcon: true,//是否显示列头编辑图标

beforeEditMethod: ({ row, rowIndex, column, columnIndex }) => {

console.log('beforeEditMethod>>>', row, rowIndex, column, columnIndex);

const _point = [rowIndex, columnIndex];

return pointExists(voyageCostState.points, _point);

}//官方方法。用来自定义激活编辑之前逻辑，该方法的返回用来决定该单元格是否允许编辑

//自定义封装的方法，判断是否存在，存在返回true，否则返回false

const pointExists = (points, target) => {

for (let i = 0; i < points.length; i++) {

if (points[i][0] === target[0] && points[i][1] === target[1]) {

return true;

}

}

return false;

}

触发方式分为三种：

manual（手动触发方式，只能用于 mode=row）,

click（点击触发编辑）,

dblclick（双击触发编辑）

编辑模式分为两种：

cell（单元格编辑模式）,

row（行编辑模式）

完整代码：

<template><div><div class="container1 voyageCostState"><!-- 绑定:edit-config={}属性不生效 --><vxe-table :data="voyageCostState.tableData" empty-text="没有更多数据了！" :loading="voyageCostState.loading":border="'full'" :align="'center'" :merge-cells="voyageCostState.mergeCells":edit-config="voyageCostState.editConfig"><vxe-colgroup title="航次成本" :header-cell-class-name="'header-cell'"><!-- 问题出在这儿，多级表头会不生效 --><template v-for="(item, index) in voyageCostState.tableList" :key="index"><vxe-column :field="item.prop" :title="item.label" :width="item.width"v-if="!item.children"></vxe-column><vxe-colgroup v-else :title="item.label" :header-cell-class-name="'header-cell'"><vxe-column v-for="(item2, index2) in item.children" :field="item2.prop":title="item2.label" :width="item2.width" :key="index2"></vxe-column></vxe-colgroup></template></vxe-colgroup></vxe-table><!-- 绑定:edit-config={}属性有效 --><div class="container1 infoState"><vxe-table :data="voyageCostState.tableData" empty-text="没有更多数据了！" :loading="voyageCostState.loading":border="'full'" :align="'center'" :merge-cells="voyageCostState.mergeCells":edit-config="voyageCostState.editConfig"><vxe-colgroup title="船舶信息" :header-cell-class-name="'header-cell'"><vxe-column v-for="(item, index) in voyageCostState.tableList" :field="item.prop" :title="item.label":width="item.width" :key="index" :edit-render="{ name: 'VxeInput' }"></vxe-column></vxe-colgroup></vxe-table></div></div></div>
</template><script setup>
import { reactive, ref, watch } from "vue";const voyageCostState = reactive({loading: false,isHeader: false,tableData: [{id: 10001,myType: '预算',actualQuantity: '请输入',cargoVolume: '请输入',freight: '请输入',actualQuantity: '请输入',actualQuantity: '请输入',actualQuantity: '请输入',fo_hcrh: '20',do_hcrh: '20',go_hcrh: '200',},],tableList: [{label: "",prop: "myType",width: '10%',},{label: "燃油成本",prop: "actualQuantity",width: '30%',children: [{label: "FO耗量",prop: "fo_hcrh",width: 180,},{label: "DO耗量",prop: "do_hcrh",width: 180,},{label: "GO耗量",prop: "go_hcrh",width: 180,},{label: "燃油成本",prop: "go_cost",width: 180,},]},{label: "其它收入",prop: "actualQuantity",width: '30%',children: [{label: "装港",prop: "loading_port",width: 180,},{label: "卸港",prop: "do_hcrh",width: 180,},{label: "合计",prop: "go_hcrh",width: 180,},]},{label: "其它收入",prop: "actualQuantity",width: '30%',children: [{label: "航次天数",prop: "fo_hcrh",width: 180,},{label: "固定成本",prop: "do_hcrh",width: 180,},]},{label: "合计",prop: "actualQuantity",width: '12.5%',},],mergeCells: [],points: [[0, 0],[0, 1], [0, 2], [0, 3], [0, 4], [0, 5], [0, 6], [0, 7], [0, 9],[1, 9],[2, 9],[3, 0],[3, 1], [3, 2], [3, 3], [3, 4], [3, 5], [3, 6], [3, 7], [3, 9],],editConfig: {trigger: "click",mode: 'cell',showIcon: true,beforeEditMethod: ({ row, rowIndex, column, columnIndex }) => {console.log('beforeEditMethod>>>', row, rowIndex, column, columnIndex);const _point = [rowIndex, columnIndex];return pointExists(voyageCostState.points, _point);}},
})
const pointExists = (points, target) => {for (let i = 0; i < points.length; i++) {if (points[i][0] === target[0] && points[i][1] === target[1]) {return true;}}return false;
}
</script><style scoped>
:deep(.vxe-header--row) {background-color: #def0ff;&:last-child {background-color: #f5f9ff;}
}.infoState {height: 400px;
}
</style>

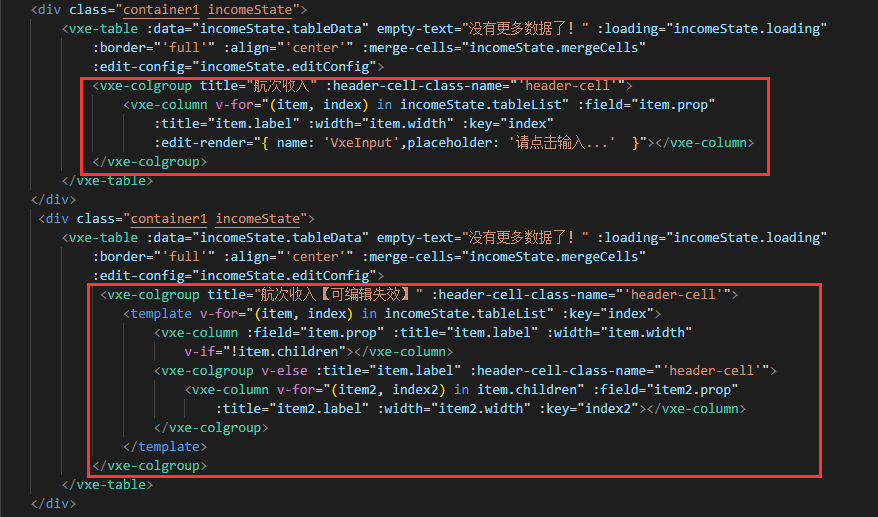

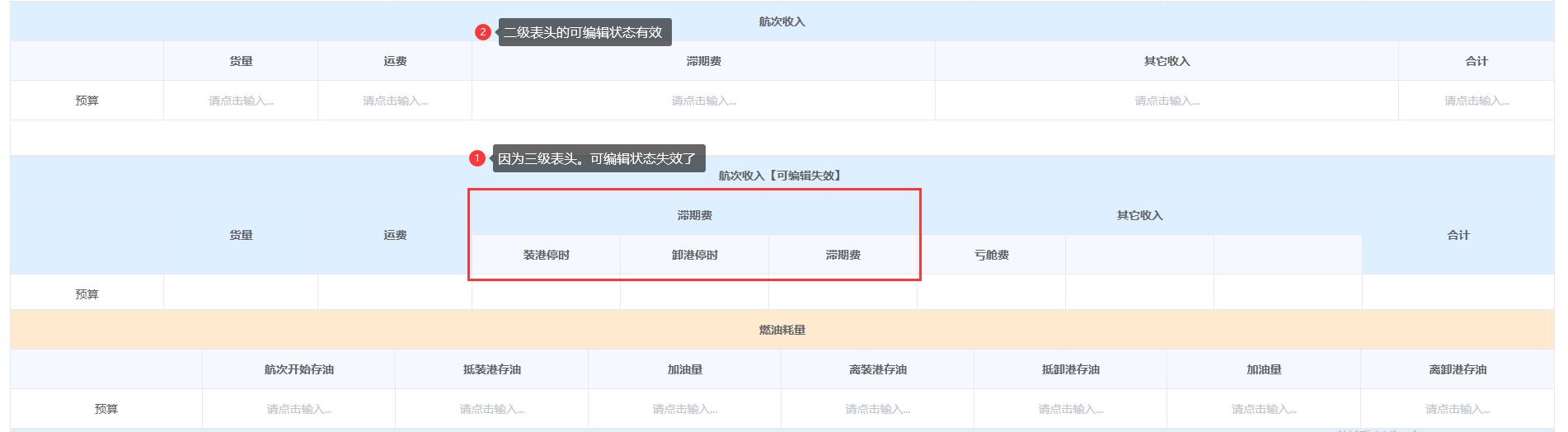

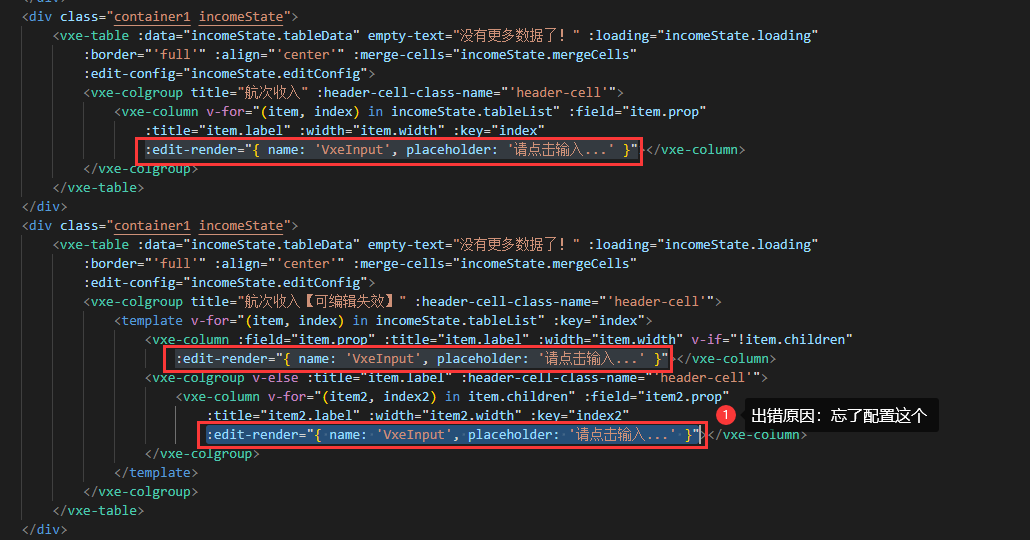

写到这儿。。。发现有一个问题，多级表头无法触发可编辑状态。。。

示例代码：

示例一：没有多级表头

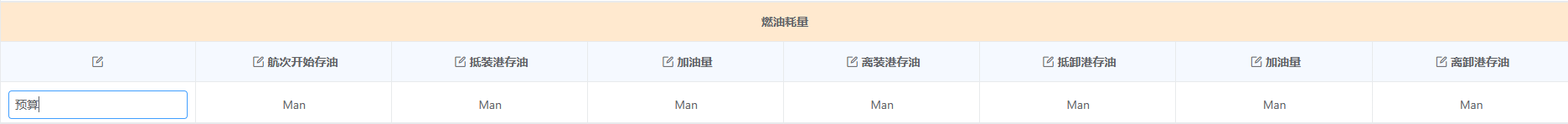

实现效果：

实现代码：

<template><div><div class="container1 fuelConsumptionState"><vxe-table :data="fuelConsumptionState.tableData" empty-text="没有更多数据了！":loading="fuelConsumptionState.loading" :border="'full'" :align="'center'":merge-cells="fuelConsumptionState.mergeCells" :edit-config="fuelConsumptionState.editConfig"><vxe-colgroup title="燃油耗量" :header-cell-class-name="'header-cell'"><vxe-column v-for="(item, index) in fuelConsumptionState.tableList" :field="item.prop":title="item.label" :width="item.width" :key="index":edit-render="{ name: 'VxeInput' }"></vxe-column></vxe-colgroup></vxe-table></div></div>
</template><script setup>
import { reactive, ref, watch } from "vue";
const pointExists = (points, target) => {for (let i = 0; i < points.length; i++) {if (points[i][0] === target[0] && points[i][1] === target[1]) {return true;}}return false;
}
const fuelConsumptionState = reactive({loading: false,tableData: [{id: 10001,weikong: "预算",startOil: "Man",arrivalLoadingOil: "Man",pushOil: "Man",departureLoadingOil: "Man",arrivalDischargeOil: "Man",dischargeBunkering: "Man",departureDischargeOil: "Man",},],tableList: [{label: "",prop: "weikong",width: "12.5%",},{label: "航次开始存油",prop: "startOil",width: "12.5%",},{label: "抵装港存油",prop: "arrivalLoadingOil",width: "12.5%",},{label: "加油量",prop: "pushOil",width: "12.5%",},{label: "离装港存油",prop: "departureLoadingOil",width: "12.5%",},{label: "抵卸港存油",prop: "arrivalDischargeOil",width: "12.5%",},{label: "加油量",prop: "dischargeBunkering",width: "12.5%",},{label: "离卸港存油",prop: "departureDischargeOil",width: "12.5%",},],points: [[0, 0],[0, 1], [0, 2], [0, 3], [0, 4], [0, 5], [0, 6], [0, 7], [0, 9],[1, 9],[2, 9],[3, 0],[3, 1], [3, 2], [3, 3], [3, 4], [3, 5], [3, 6], [3, 7], [3, 9],],editConfig: {trigger: 'click',mode: 'cell',showIcon: true,beforeEditMethod: ({ row, rowIndex, column, columnIndex }) => {console.log('ajing>>>', row, rowIndex, column, columnIndex);const _point = [rowIndex, columnIndex];return pointExists(fuelConsumptionState.points, _point);}},
});
</script><style scoped>
:deep(.vxe-header--row) {background-color: #def0ff;&:last-child {background-color: #f5f9ff;}
}.infoState {height: 400px;
}
</style>

示例二：没有多级表头，有合并表格

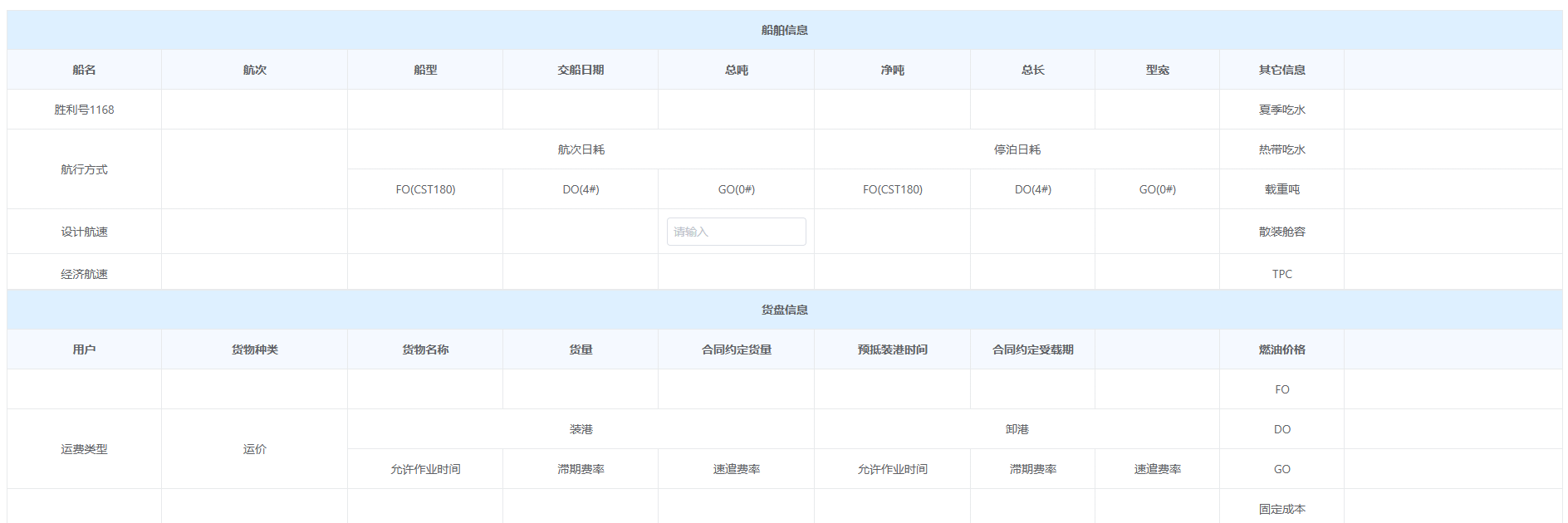

实现效果：

实现代码：

<template><div><div class="container1 infoState"><vxe-table :data="infoState.tableData" empty-text="没有更多数据了！" :loading="infoState.loading" :border="'full'":align="'center'" :merge-cells="infoState.mergeCells" :edit-config="infoState.editConfig"><vxe-colgroup title="船舶信息" :header-cell-class-name="'header-cell'"><vxe-column v-for="(item, index) in infoState.tableList" :field="item.prop" :title="item.label":width="item.width" :key="index" :edit-render="{ name: 'VxeInput' }"></vxe-column></vxe-colgroup></vxe-table></div></div>
</template><script setup>
import { reactive, ref, watch } from "vue";
const pointExists = (points, target) => {for (let i = 0; i < points.length; i++) {if (points[i][0] === target[0] && points[i][1] === target[1]) {return true;}}return false;
}
const infoState = reactive({loading: false,tableData: [{id: 10001,name: "胜利号1168",cargoType: "",shipLook: "",shipTime: "",height: "",jHeight: "",length: "",width: "",xWidth: "",myType: "夏季吃水",draft: ""},{id: 10002,name: "航行方式",cargoType: "航速",shipLook: "航次日耗",shipTime: "航次日耗",height: "航次日耗",jHeight: "停泊日耗",length: "停泊日耗",width: "停泊日耗",xWidth: "31",myType: "热带吃水",draft: ""},{id: 10003,name: "航行方式",cargoType: "航速",shipLook: "FO(CST180)",shipTime: "DO(4#)",height: "GO(0#)",jHeight: "FO(CST180)",length: "DO(4#)",width: "GO(0#)",xWidth: "31",myType: "载重吨",draft: ""},{id: 10004,name: "设计航速",cargoType: "",shipLook: "",shipTime: "",height: "",jHeight: "",length: "",width: "",xWidth: "",myType: "散装舱容",draft: ""},{id: 10005,name: "经济航速",cargoType: "",shipLook: "",shipTime: "",height: "",jHeight: "",length: "",width: "",xWidth: "",myType: "TPC",draft: ""},],tableList: [{label: "船名",prop: "name",width: '10%',},{label: "航次",prop: "hangci",width: '12%',},{label: "船型",prop: "shipLook",width: '10%',},{label: "交船日期",prop: "shipTime",width: '10%',},{label: "总吨",prop: "height",width: '10%',},{label: "净吨",prop: "jHeight",width: '10%',},{label: "总长",prop: "length",width: '8%',},{label: "型宽",prop: "width",width: '8%',},{label: "其它信息",prop: "myType",width: '8%',},{label: "",prop: "draft",width: '14%',},],mergeCells: [{row: 1,col: 0,rowspan: 2,colspan: 1},{row: 1,col: 1,rowspan: 2,colspan: 1},{row: 1,col: 2,rowspan: 1,colspan: 3},{row: 1,col: 5,rowspan: 1,colspan: 3},],points: [[0, 0],[0, 1], [0, 2], [0, 3], [0, 4], [0, 5], [0, 6], [0, 7], [0, 9],[1, 1], [1, 9],[2, 9],[3, 1], [3, 2], [3, 3], [3, 4], [3, 5], [3, 6], [3, 7], [3, 9],[4, 1], [4, 2], [4, 3], [4, 4], [4, 5], [4, 6], [4, 7], [4, 9],],editConfig: {trigger: 'click',mode: 'cell',showIcon: false,beforeEditMethod: ({ row, rowIndex, column, columnIndex }) => {const _point = [rowIndex, columnIndex];return pointExists(infoState.points, _point);}},
});
</script><style scoped>
:deep(.vxe-header--row) {background-color: #def0ff;&:last-child {background-color: #f5f9ff;}
}.infoState {height: 400px;
}
</style>
