OpenLayers 综合案例-量测工具

Vue 3 + OpenLayers 实现的 WebGIS 应用提供了完整的量测工具功能

主要功能

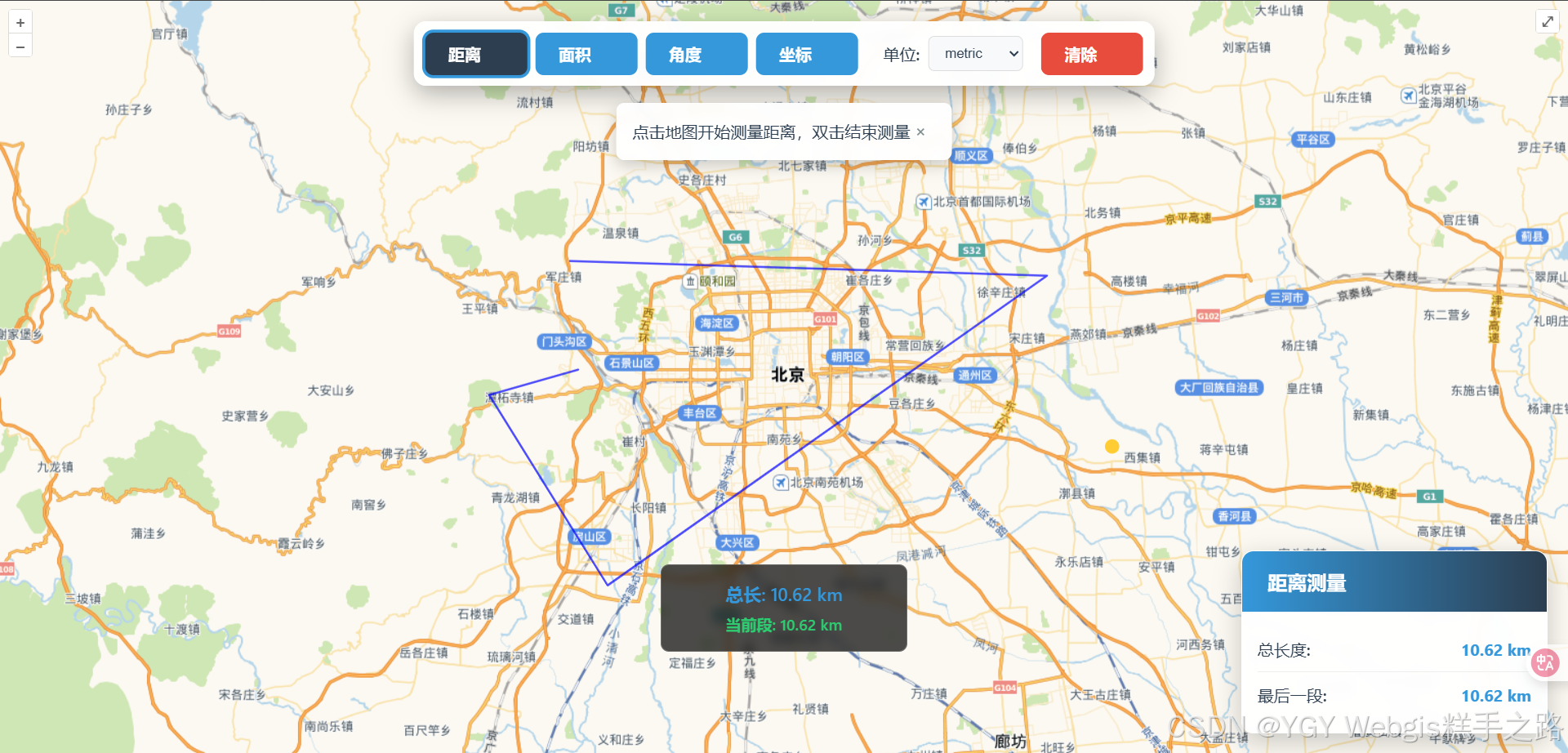

1. 距离、面积、角度测量和单位转换。
2. 可实时显示测量结果和单位转换。

MP4效果动画链接地址

技术栈

该环境下代码即拿即用

Vue 3.5.13+
OpenLayers 10.5.0+
Vite 6.3.5+

<template><div class="measure-map-container"><div ref="mapContainer" class="map"></div><div class="toolbar"><div class="toolbar-group"><buttonv-for="tool in tools":key="tool.id"class="tool-btn":class="{ active: activeTool === tool.id, disabled: tool.disabled }"@click="activateTool(tool.id)"><i :class="tool.icon"></i><span class="tool-label">{{ tool.label }}</span></button></div><div class="toolbar-group"><div class="unit-selector"><label for="unit">单位:</label><select id="unit" v-model="selectedUnit"><option v-for="unit in units" :key="unit" :value="unit">{{ unit }}</option></select></div><button class="tool-btn clear-btn" @click="clearAll"><i class="fas fa-trash-alt"></i><span class="tool-label">清除</span></button></div></div><div class="measurement-results"><divv-if="activeTool === 'distance' && currentMeasurement"class="result-card"><div class="result-header"><i class="fas fa-ruler"></i><h3>距离测量</h3></div><div class="result-content"><div class="result-item"><span class="label">总长度:</span><span class="value">{{ formatDistance(totalDistance) }}</span></div><div v-if="segments.length > 1" class="result-item"><span class="label">分段数:</span><span class="value">{{ segments.length }} 段</span></div><div v-if="segments.length > 0" class="result-item"><span class="label">最后一段:</span><span class="value">{{ formatDistance(lastSegmentDistance) }}</span></div></div></div><divv-if="activeTool === 'area' && currentMeasurement"class="result-card"><div class="result-header"><i class="fas fa-draw-polygon"></i><h3>面积测量</h3></div><div class="result-content"><div class="result-item"><span class="label">总面积:</span><span class="value">{{ formatArea(area) }}</span></div><div class="result-item"><span class="label">周长:</span><span class="value">{{ formatDistance(perimeter) }}</span></div><div class="result-item"><span class="label">顶点数:</span><span class="value">{{ vertices }} 个</span></div></div></div><divv-if="activeTool === 'angle' && currentMeasurement"class="result-card"><div class="result-header"><i class="fas fa-compass"></i><h3>角度测量</h3></div><div class="result-content"><div class="result-item"><span class="label">角度值:</span><span class="value">{{ angle.toFixed(1) }}°</span></div><div class="result-item"><span class="label">方向:</span><span class="value">{{ direction }}</span></div><div class="result-item"><span class="label">坐标:</span><span class="value">{{ vertexCoords }}</span></div></div></div><div v-if="activeTool === 'coordinate'" class="result-card"><div class="result-header"><i class="fas fa-map-marker-alt"></i><h3>坐标定位</h3></div><div class="result-content"><div class="result-item"><span class="label">经度:</span><span class="value">{{ clickedCoord[0].toFixed(6) }}</span></div><div class="result-item"><span class="label">纬度:</span><span class="value">{{ clickedCoord[1].toFixed(6) }}</span></div><div class="result-item"><span class="label">缩放级别:</span><span class="value">{{ currentZoom.toFixed(2) }}</span></div></div></div></div><div class="help-tip" v-if="showHelp"><div class="tip-content"><p v-if="activeTool === 'distance'">点击地图开始测量距离，双击结束测量</p><p v-if="activeTool === 'area'">点击地图开始测量面积，双击闭合多边形</p><p v-if="activeTool === 'angle'">点击三个点测量角度（顶点、起点、终点）</p><p v-if="activeTool === 'coordinate'">点击地图获取坐标位置</p></div><button class="close-tip" @click="showHelp = false">×</button></div><divclass="measurement-overlay"v-if="activeTool !== 'coordinate' && currentMeasurement"><div class="overlay-content"><div v-if="activeTool === 'distance'" class="distance-overlay"><div class="total">总长: {{ formatDistance(totalDistance) }}</div><div class="segment" v-if="segments.length > 0">当前段: {{ formatDistance(lastSegmentDistance) }}</div></div><div v-if="activeTool === 'area'" class="area-overlay"><div class="area">面积: {{ formatArea(area) }}</div><div class="perimeter">周长: {{ formatDistance(perimeter) }}</div></div><div v-if="activeTool === 'angle'" class="angle-overlay"><div class="angle">角度: {{ angle.toFixed(1) }}°</div><div class="direction">方向: {{ direction }}</div></div></div></div></div>
</template><script setup>
import { ref, onMounted, onUnmounted, computed } from "vue";
import Map from "ol/Map";
import View from "ol/View";
import { Tile as TileLayer, Vector as VectorLayer } from "ol/layer";
import { XYZ, Vector as VectorSource } from "ol/source";
import { Point, LineString, Polygon } from "ol/geom";
import Feature from "ol/Feature";
import { Style, Fill, Stroke, Circle } from "ol/style";
import { fromLonLat, toLonLat } from "ol/proj";
import { defaults as defaultControls, FullScreen } from "ol/control";
import { Draw, Modify } from "ol/interaction";
import { getArea, getLength } from "ol/sphere";
import "ol/ol.css";// 地图实例
const map = ref(null);
const mapContainer = ref(null);
const measureSource = ref(null);
const drawInteraction = ref(null);// 工具状态
const tools = ref([{ id: "distance", label: "距离", disabled: false },{ id: "area", label: "面积", disabled: false },{ id: "angle", label: "角度", disabled: false },{ id: "coordinate", label: "坐标", disabled: false },
]);const activeTool = ref(null);
const selectedUnit = ref("metric");
const currentMeasurement = ref(false);
const showHelp = ref(false);
const clickedCoord = ref([0, 0]);
const currentZoom = ref(0);// 测量数据
const totalDistance = ref(0);
const lastSegmentDistance = ref(0);
const segments = ref([]);
const area = ref(0);
const perimeter = ref(0);
const vertices = ref(0);
const angle = ref(0);
const direction = ref("");
const vertexCoords = ref("");// 单位选项
const units = ref(["metric", "imperial"]);// 计算格式化的距离
const formatDistance = computed(() => {return (distance) => {if (selectedUnit.value === "imperial") {// 转换为英尺和英里const feet = distance * 3.28084;if (feet > 5280) {return (feet / 5280).toFixed(2) + " mi";} else {return feet.toFixed(1) + " ft";}} else {// 公制单位（米和公里）if (distance > 1000) {return (distance / 1000).toFixed(2) + " km";} else {return distance.toFixed(1) + " m";}}};
});// 计算格式化的面积
const formatArea = computed(() => {return (areaVal) => {if (selectedUnit.value === "imperial") {// 转换为平方英尺和英亩const sqft = areaVal * 10.7639;if (sqft > 43560) {return (sqft / 43560).toFixed(2) + " acres";} else {return sqft.toFixed(1) + " sq ft";}} else {// 公制单位（平方米、公顷和平方公里）if (areaVal > 10000) {if (areaVal > 1000000) {return (areaVal / 1000000).toFixed(2) + " km²";}return (areaVal / 10000).toFixed(2) + " ha";} else {return areaVal.toFixed(1) + " m²";}}};
});// 初始化地图
onMounted(() => {// 创建测量数据源measureSource.value = new VectorSource();// 创建测量图层const measureLayer = new VectorLayer({source: measureSource.value,style: new Style({fill: new Fill({color: "rgba(255, 255, 255, 0.2)",}),stroke: new Stroke({color: "rgba(0, 0, 255, 0.7)",width: 2,}),image: new Circle({radius: 7,fill: new Fill({color: "#ffcc33",}),}),}),});// 创建高德地图图层const baseLayer = new TileLayer({source: new XYZ({url: "https://webrd04.is.autonavi.com/appmaptile?lang=zh_cn&size=1&scale=1&style=7&x={x}&y={y}&z={z}",}),});// 创建地图map.value = new Map({target: mapContainer.value,layers: [baseLayer, measureLayer],view: new View({center: fromLonLat([116.4, 39.9]),zoom: 10,}),controls: defaultControls().extend([new FullScreen()]),});// 监听缩放变化map.value.getView().on("change:resolution", () => {currentZoom.value = map.value.getView().getZoom();});// 坐标定位点击事件map.value.on("click", (event) => {if (activeTool.value === "coordinate") {const coord = toLonLat(event.coordinate);clickedCoord.value = coord;currentMeasurement.value = true;}});
});// 激活工具
function activateTool(toolId) {// 清除现有交互if (drawInteraction.value) {map.value.removeInteraction(drawInteraction.value);drawInteraction.value = null;}// 重置测量状态currentMeasurement.value = false;activeTool.value = toolId;// 根据工具类型创建新的交互switch (toolId) {case "distance":setupDistanceMeasurement();break;case "area":setupAreaMeasurement();break;case "angle":setupAngleMeasurement();break;case "coordinate":// 不需要特殊交互break;}// 显示帮助提示showHelp.value = true;
}// 设置距离测量
function setupDistanceMeasurement() {measureSource.value.clear();// 创建线要素const line = new LineString([]);const feature = new Feature({geometry: line,type: "distance",});measureSource.value.addFeature(feature);// 创建绘制交互drawInteraction.value = new Draw({source: measureSource.value,type: "LineString",style: new Style({stroke: new Stroke({color: "rgba(0, 0, 255, 0.7)",width: 3,}),image: new Circle({radius: 7,fill: new Fill({color: "#ffcc33",}),}),}),});// 添加事件监听drawInteraction.value.on("drawstart", () => {segments.value = [];totalDistance.value = 0;lastSegmentDistance.value = 0;currentMeasurement.value = true;});drawInteraction.value.on("drawend", (event) => {// 计算总距离const geometry = event.feature.getGeometry();totalDistance.value = getLength(geometry);// 计算分段距离const coords = geometry.getCoordinates();for (let i = 1; i < coords.length; i++) {const segment = new LineString([coords[i - 1], coords[i]]);const distance = getLength(segment);segments.value.push(distance);}if (segments.value.length > 0) {lastSegmentDistance.value = segments.value[segments.value.length - 1];}});drawInteraction.value.on("drawabort", () => {measureSource.value.clear();currentMeasurement.value = false;});map.value.addInteraction(drawInteraction.value);
}// 设置面积测量
function setupAreaMeasurement() {measureSource.value.clear();// 创建面要素const polygon = new Polygon([]);const feature = new Feature({geometry: polygon,type: "area",});measureSource.value.addFeature(feature);// 创建绘制交互drawInteraction.value = new Draw({source: measureSource.value,type: "Polygon",style: new Style({fill: new Fill({color: "rgba(0, 100, 255, 0.2)",}),stroke: new Stroke({color: "rgba(0, 0, 255, 0.7)",width: 2,}),image: new Circle({radius: 7,fill: new Fill({color: "#ffcc33",}),}),}),});// 添加事件监听drawInteraction.value.on("drawstart", () => {area.value = 0;perimeter.value = 0;vertices.value = 0;currentMeasurement.value = true;});drawInteraction.value.on("drawend", (event) => {const geometry = event.feature.getGeometry();area.value = getArea(geometry);// 计算周长const coordinates = geometry.getCoordinates()[0];vertices.value = coordinates.length;for (let i = 1; i < coordinates.length; i++) {const segment = new LineString([coordinates[i - 1], coordinates[i]]);perimeter.value += getLength(segment);}});drawInteraction.value.on("drawabort", () => {measureSource.value.clear();currentMeasurement.value = false;});map.value.addInteraction(drawInteraction.value);
}// 设置角度测量
function setupAngleMeasurement() {measureSource.value.clear();// 用于存储3个点的坐标let anglePoints = [];// 创建绘制交互drawInteraction.value = new Draw({source: measureSource.value,type: "Point",style: (feature) => {// 按照采集顺序上色const features = measureSource.value.getFeatures();const idx = features.indexOf(feature);let color;switch (idx) {case 0:color = "#ff0000";break; // 顶点 - 红色case 1:color = "#00ff00";break; // 起点 - 绿色case 2:color = "#0000ff";break; // 终点 - 蓝色default:color = "#ffcc33";}return new Style({image: new Circle({radius: 7,fill: new Fill({ color }),stroke: new Stroke({ color: "#ffffff", width: 2 }),}),});},});drawInteraction.value.on("drawstart", () => {angle.value = 0;direction.value = "";vertexCoords.value = "";currentMeasurement.value = true;});drawInteraction.value.on("drawend", (event) => {const coord = event.feature.getGeometry().getCoordinates();anglePoints.push(coord);if (anglePoints.length === 3) {// 计算角度const [vertex, start, end] = anglePoints;const v1 = [start[0] - vertex[0], start[1] - vertex[1]];const v2 = [end[0] - vertex[0], end[1] - vertex[1]];const dot = v1[0] * v2[0] + v1[1] * v2[1];const mod1 = Math.sqrt(v1[0] * v1[0] + v1[1] * v1[1]);const mod2 = Math.sqrt(v2[0] * v2[0] + v2[1] * v2[1]);let theta = 0;if (mod1 > 0 && mod2 > 0) {theta = Math.acos(Math.max(-1, Math.min(1, dot / (mod1 * mod2))));}angle.value = theta * (180 / Math.PI);// 计算方向（取v1和v2的平均方向）const midAngle =(Math.atan2(v1[1], v1[0]) + Math.atan2(v2[1], v2[0])) / 2;const deg = midAngle * (180 / Math.PI);if (deg >= -22.5 && deg < 22.5) direction.value = "东";else if (deg >= 22.5 && deg < 67.5) direction.value = "东北";else if (deg >= 67.5 && deg < 112.5) direction.value = "北";else if (deg >= 112.5 && deg < 157.5) direction.value = "西北";else if (deg >= 157.5 || deg < -157.5) direction.value = "西";else if (deg >= -157.5 && deg < -112.5) direction.value = "西南";else if (deg >= -112.5 && deg < -67.5) direction.value = "南";else if (deg >= -67.5 && deg < -22.5) direction.value = "东南";// 设置坐标文本const vertexLonLat = toLonLat(vertex);vertexCoords.value = `${vertexLonLat[0].toFixed(4)}, ${vertexLonLat[1].toFixed(4)}`;// 3点采集完后，移除交互，保留点map.value.removeInteraction(drawInteraction.value);drawInteraction.value = null;}});map.value.addInteraction(drawInteraction.value);
}// 清除所有测量
function clearAll() {measureSource.value.clear();currentMeasurement.value = false;segments.value = [];totalDistance.value = 0;area.value = 0;angle.value = 0;
}// 组件卸载时清理
onUnmounted(() => {if (map.value) {map.value.dispose();}
});
</script><style scoped>
.measure-map-container {position: relative;width: 100vw;height: 100vh;overflow: hidden;font-family: "Segoe UI", Tahoma, Geneva, Verdana, sans-serif;background: linear-gradient(135deg, #0c2461, #1e3799);
}.map {width: 100%;height: 100%;background: #0a3d62;
}.toolbar {position: absolute;top: 20px;left: 50%;transform: translateX(-50%);display: flex;gap: 15px;background: rgba(255, 255, 255, 0.95);border-radius: 12px;padding: 10px;box-shadow: 0 8px 25px rgba(0, 0, 0, 0.3);z-index: 1;backdrop-filter: blur(5px);border: 1px solid rgba(255, 255, 255, 0.3);
}.toolbar-group {display: flex;gap: 8px;align-items: center;
}.tool-btn {padding: 10px 15px;border: none;border-radius: 8px;background: #3498db;color: white;font-weight: 600;cursor: pointer;transition: all 0.2s ease;display: flex;align-items: center;gap: 8px;min-width: 100px;
}.tool-btn:hover:not(.disabled) {background: #2980b9;transform: translateY(-2px);
}.tool-btn.active {background: #2c3e50;box-shadow: 0 0 0 3px #3498db;
}.tool-btn.disabled {opacity: 0.5;cursor: not-allowed;
}.clear-btn {background: #e74c3c;
}.clear-btn:hover {background: #c0392b;
}.unit-selector {display: flex;align-items: center;gap: 8px;padding: 0 10px;color: #2c3e50;font-weight: 500;
}.unit-selector select {padding: 8px 12px;border-radius: 6px;border: 1px solid #ddd;background: #f8f9fa;color: #2c3e50;font-weight: 500;
}.measurement-results {position: absolute;bottom: 20px;right: 20px;width: 300px;z-index: 1;display: flex;flex-direction: column;gap: 15px;
}.result-card {background: rgba(255, 255, 255, 0.95);border-radius: 12px;box-shadow: 0 8px 25px rgba(0, 0, 0, 0.2);overflow: hidden;backdrop-filter: blur(5px);border: 1px solid rgba(255, 255, 255, 0.3);animation: slideIn 0.3s ease-out;
}@keyframes slideIn {from {transform: translateY(20px);opacity: 0;}to {transform: translateY(0);opacity: 1;}
}.result-header {background: linear-gradient(to right, #3498db, #2c3e50);color: white;padding: 15px;display: flex;align-items: center;gap: 10px;
}.result-header i {font-size: 1.5rem;
}.result-header h3 {margin: 0;font-size: 1.2rem;
}.result-content {padding: 15px;
}.result-item {display: flex;justify-content: space-between;padding: 10px 0;border-bottom: 1px solid #eee;
}.result-item:last-child {border-bottom: none;
}.result-item .label {font-weight: 500;color: #2c3e50;
}.result-item .value {font-weight: 700;color: #3498db;
}.help-tip {position: absolute;top: 100px;left: 50%;transform: translateX(-50%);background: rgba(255, 255, 255, 0.95);border-radius: 8px;padding: 15px 40px 15px 15px;box-shadow: 0 5px 15px rgba(0, 0, 0, 0.2);z-index: 1;backdrop-filter: blur(5px);border: 1px solid rgba(255, 255, 255, 0.3);display: flex;align-items: center;gap: 10px;
}.help-tip i {color: #3498db;font-size: 1.5rem;
}.tip-content p {margin: 0;color: #2c3e50;font-weight: 500;
}.close-tip {position: absolute;top: 5px;right: 5px;background: none;border: none;color: #7f8c8d;cursor: pointer;font-size: 1rem;
}.measurement-overlay {position: absolute;bottom: 100px;left: 50%;transform: translateX(-50%);background: rgba(0, 0, 0, 0.7);color: white;border-radius: 8px;padding: 10px 20px;z-index: 1;backdrop-filter: blur(5px);border: 1px solid rgba(255, 255, 255, 0.2);min-width: 200px;text-align: center;
}.overlay-content {font-weight: 600;font-size: 1.1rem;
}.overlay-content div {margin: 5px 0;
}.distance-overlay .total {color: #3498db;
}.distance-overlay .segment {color: #2ecc71;font-size: 0.95rem;
}.area-overlay .area {color: #9b59b6;
}.area-overlay .perimeter {color: #1abc9c;font-size: 0.95rem;
}.angle-overlay .angle {color: #e74c3c;
}.angle-overlay .direction {color: #f39c12;font-size: 0.95rem;
}
