交换机的六种常见连接方式配置（基于华为eNSP）

交换机的六种常见连接方式配置（基于华为eNSP）

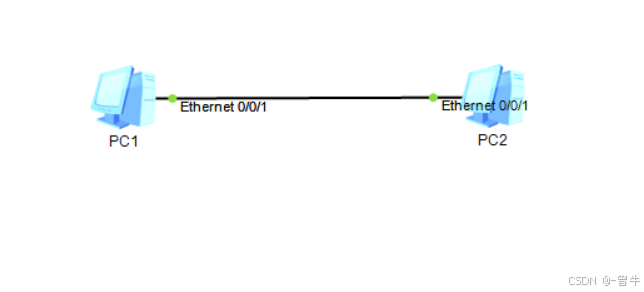

1.基础直连

要求两台主机的IP地址C段要相同，可以设置网关也可以不设置网关

PC>ping 192.168.0.99Ping 192.168.0.99: 32 data bytes, Press Ctrl_C to break
From 192.168.0.99: bytes=32 seq=1 ttl=128 time=32 ms
From 192.168.0.99: bytes=32 seq=2 ttl=128 time=31 ms
From 192.168.0.99: bytes=32 seq=3 ttl=128 time=31 ms
From 192.168.0.99: bytes=32 seq=4 ttl=128 time=32 ms
From 192.168.0.99: bytes=32 seq=5 ttl=128 time=32 ms--- 192.168.0.99 ping statistics ---5 packet(s) transmitted5 packet(s) received0.00% packet lossround-trip min/avg/max = 31/31/32 msPC>ping 192.168.0.99Ping 192.168.0.99: 32 data bytes, Press Ctrl_C to break
From 192.168.1.100: Destination host unreachable

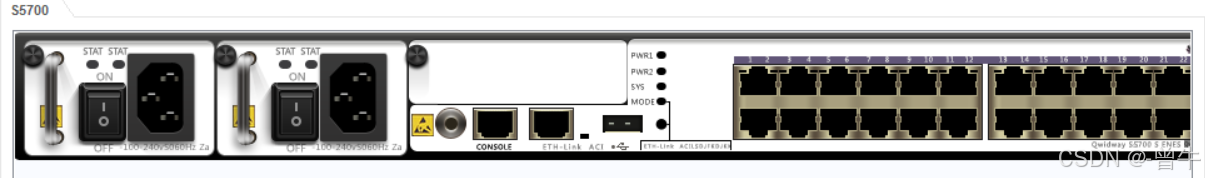

2.交换机说明

配置每一个接口，图中有1-24个接口

需要配置：每一个接口的链路类型、如果有网段还需要配置vlan;如果是三层交换机配置了vlanif也需要单独配置

一、交换机基础概念

1. 二层交换机
   • 工作层次：数据链路层
   • 特点：无 vlanif 配置，主要用于同一网段内的数据帧转发。
2. 三层交换机
   • 工作层次：网络层
   • 特点：支持 vlanif 路由配置，可实现不同网段（VLAN）间的通信。

二、链路类型（交换机接口模式）

1. access 模式
   • 应用场景：主机与主机之间、主机与交换机之间的连接。
   • 特点：通常只允许一个 VLAN 的报文通过（默认 VLAN）。
2. trunk 模式
   • 应用场景：交换机与交换机之间的连接。
   • 特点：可配置允许多个 VLAN 的报文通过，实现跨交换机的 VLAN 通信。
3. hybrid 模式
   • 特点：融合 access 和 trunk 的功能，既可以用于主机间连接，也可用于交换机间连接；能灵活接收和发送多个 VLAN 的报文。

三、VLAN（虚拟局域网）

• 核心作用：
  1. 网络隔离：将同一网段的主机划分到不同 VLAN，实现逻辑隔离（如限制广播域）。
  2. 跨网段通信：配合三层交换机的 vlanif 配置，可实现不同 VLAN（网段）间的互通。
• 示例：
  • 网段 192.168.61.0/24 的主机可划分到 vlan2，网关为 192.168.61.1；
  • 网段 192.168.71.0/24 的主机可划分到 vlan3，网关为 192.168.71.1。

四、子网与子网掩码

• 作用：通过子网掩码划分网络（如 / 24 表示子网掩码为 255.255.255.0），实现网络分段，减少广播风暴，提高网络效率。

五、网关

1. 网关定义：
   协议转换器、间接连接器，工作在网络层及以上，用于实现不同网络（网段）之间的互联。
2. 默认网关：
   • 作用：主机访问其他网段时的 “出口”，通常是网段的首个或最后一个 IP（如 192.168.61.1 或 192.168.61.254）。
   • 地址分配：网段内 2-253 的 IP 通常留给 DHCP 自动分配（主机使用）。

六、vlanif

• 作用：为 VLAN 配置网关，是三层交换机实现跨 VLAN 通信的核心配置（每个 VLAN 对应一个 vlanif 接口，IP 为该 VLAN 的网关地址）。

七、交换机扩展与层级

1. 堆叠
   • 定义：将多台交换机逻辑上 “集中” 为一台设备。
   • 目的：解决单台交换机接口数量不足的问题，提升网络扩展性。
2. 交换机层级
   • 楼层交换机：部署在接入层，直接连接终端设备（如主机、摄像头）。
   • 汇聚层交换机：汇总楼层交换机的数据，是网络核心节点之一；渗透测试中常以汇聚层为接入点（可覆盖更多网段）。

八、相关安全概念

• 钓鱼：通过伪装合法信息（如邮件、链接）诱导用户泄露敏感信息的攻击方式。
• 蜜罐：模拟脆弱系统或服务的陷阱，用于诱捕攻击者、收集攻击行为数据。

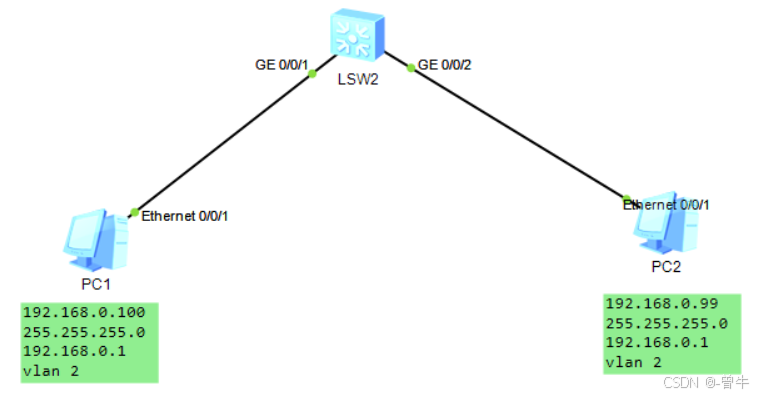

3.主机通过交换机通信

配置思路：

1.PC1和PC2要连接交换机

2.交换机配置vlan

1.创建vlan 2

<Huawei>system-view #切换系统视图
Enter system view, return user view with Ctrl+Z.
[Huawei]vlan 2  #创建单一vlan2
[Huawei-vlan2]vlan batch 3 to 5  #批量创建vlan
Info: This operation may take a few seconds. Please wait for a moment...done.
[Huawei]dis this #打印当前 查看vlan的状态
#
sysname Huawei
#
vlan batch 2 to 5  #包括所有vlan
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
return

2.配置vlanif，作为vlan的网关

[Huawei]int 	#Tab补全
[Huawei]interface vlan2 #配置vlan2的网关，会进入vlanif2的配置路径
[Huawei-Vlanif2]dis this  #[Huawei-Vlanif2]的配置路径
#
interface Vlanif2
#
return
[Huawei-Vlanif2]ip address 192.168.0.1 255.255.255.0
[Huawei-Vlanif2]dis this
#
interface Vlanif2ip address 192.168.0.1 255.255.255.0
#
return

3.配置交换机连接主机的接口

要配置接口类型为access，配置当前默认的vlan（给当前接口划分一个vlan）

[Huawei-Vlanif2]int g0/0/1  #进入GE0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type access
[Huawei-GigabitEthernet0/0/1]port default vlan 2
[Huawei-GigabitEthernet0/0/1]dis this
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 2
#
return
[Huawei-GigabitEthernet0/0/1]quit
[Huawei]int g0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type access
[Huawei-GigabitEthernet0/0/2]port default vlan 2
[Huawei-GigabitEthernet0/0/2]dis this
#
interface GigabitEthernet0/0/2port link-type accessport default vlan 2
#
return

用pc1ping网关和pc2发现可以通信

PC>ping 192.168.0.1Ping 192.168.0.1: 32 data bytes, Press Ctrl_C to break
From 192.168.0.1: bytes=32 seq=1 ttl=255 time=16 ms
From 192.168.0.1: bytes=32 seq=2 ttl=255 time=31 ms
From 192.168.0.1: bytes=32 seq=3 ttl=255 time=32 ms
From 192.168.0.1: bytes=32 seq=4 ttl=255 time=31 ms
From 192.168.0.1: bytes=32 seq=5 ttl=255 time=31 ms--- 192.168.0.1 ping statistics ---5 packet(s) transmitted5 packet(s) received0.00% packet lossround-trip min/avg/max = 16/28/32 msPC>ping 192.168.0.99Ping 192.168.0.99: 32 data bytes, Press Ctrl_C to break
From 192.168.0.99: bytes=32 seq=1 ttl=128 time=47 ms
From 192.168.0.99: bytes=32 seq=2 ttl=128 time=32 ms
From 192.168.0.99: bytes=32 seq=3 ttl=128 time=62 ms
From 192.168.0.99: bytes=32 seq=4 ttl=128 time=47 ms
From 192.168.0.99: bytes=32 seq=5 ttl=128 time=47 ms--- 192.168.0.99 ping statistics ---5 packet(s) transmitted5 packet(s) received0.00% packet lossround-trip min/avg/max = 32/47/62 ms

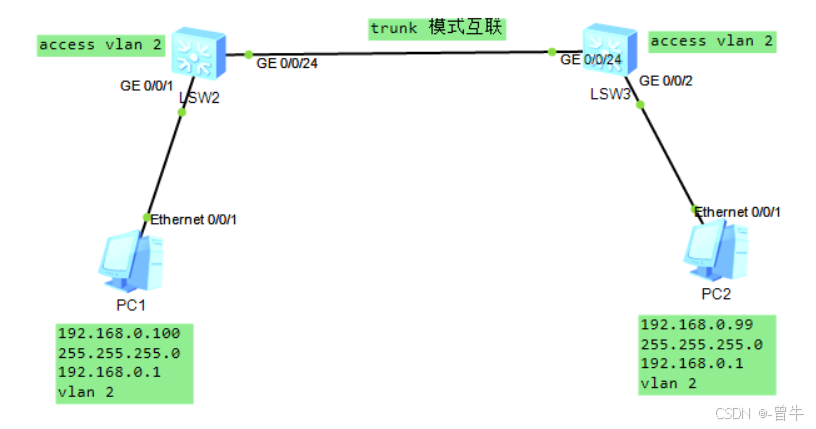

4.两台不同交换机互联

配置思路：

1.配置主机系统的ip地址

2.配置交换机1，创建vlan同时配置vlanif 指定当前接口GE0/0/1为access 接口GE0/0/24为trunk

配置交换机2，创建vlan同时配置vlanif 指定当前接口GE0/0/1为access 接口GE0/0/24为trunk

1.配置LSW2，创建vlan2，设置GE0/0/24为trunk模式，并放行vlan 2

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/24
[Huawei-GigabitEthernet0/0/24]port link-type trunk[Huawei-GigabitEthernet0/0/24]port trunk allow-pass vlan 2  #允许vlan 2通行
# 或者[Huawei-GigabitEthernet0/0/24]port trunk allow-pass vlan all  #允许所有vlan通行
[Huawei-GigabitEthernet0/0/24]dis this
#
interface GigabitEthernet0/0/24port link-type trunkport trunk allow-pass vlan 2
#
return

2.配置vlanif 2 ，设置GE0/0/1为access模式

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]vlan 2
[Huawei-vlan2]int vlanif2
[Huawei-Vlanif2]ip address 192.168.0.1 255.255.255.0
[Huawei-Vlanif2]dis this
#
interface Vlanif2
ip address 192.168.0.1 255.255.255.0
#
return
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type access
[Huawei-GigabitEthernet0/0/1]dis this
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 2
#
return

3.配置LSW3，创建vlan2 同时配置vlanif2

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]vlan 2
[Huawei-vlan2]int vlanif 2
[Huawei-Vlanif2]ip address 192.168.0.1 255.255.255.0
[Huawei-Vlanif2]dis this
#
interface Vlanif2
ip address 192.168.0.1 255.255.255.0
#
return
[Huawei-Vlanif2]

4.指定当前接口001为access接口 0024为trunk

[Huawei-Vlanif2]int g0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type access
[Huawei-GigabitEthernet0/0/1]port default vlan 2
[Huawei-GigabitEthernet0/0/1]dis this
#
interface GigabitEthernet0/0/1
port link-type access
port default vlan 2
#
return [Huawei-GigabitEthernet0/0/1]int g0/0/24
[Huawei-GigabitEthernet0/0/24]port link-ty trunk
[Huawei-GigabitEthernet0/0/24]port trunk allow-pass vlan 2
[Huawei-GigabitEthernet0/0/24]dis this
#
interface GigabitEthernet0/0/24
port link-type trunk
port trunk allow-pass vlan 2
#
return

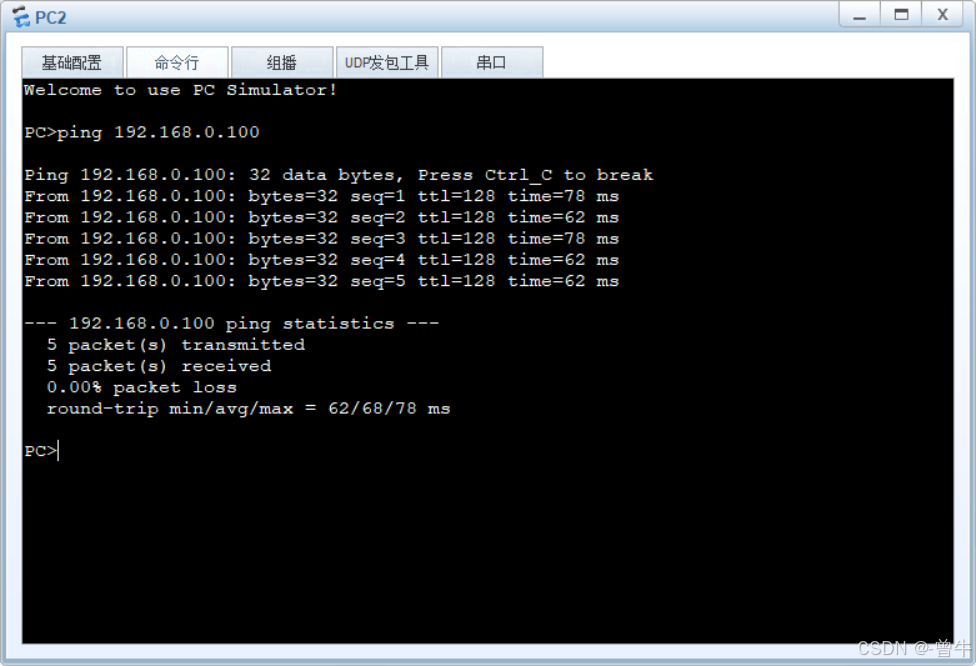

发现可以PC1可以ping通PC2

PC>ping 192.168.0.99Ping 192.168.0.99: 32 data bytes, Press Ctrl_C to break
From 192.168.0.100: Destination host unreachable
From 192.168.0.100: Destination host unreachable
From 192.168.0.100: Destination host unreachable
From 192.168.0.100: Destination host unreachable
From 192.168.0.100: Destination host unreachable--- 192.168.0.99 ping statistics ---5 packet(s) transmitted0 packet(s) received100.00% packet lossPC>ping 192.168.0.99Ping 192.168.0.99: 32 data bytes, Press Ctrl_C to break
From 192.168.0.99: bytes=32 seq=1 ttl=128 time=94 ms
From 192.168.0.99: bytes=32 seq=2 ttl=128 time=78 ms
From 192.168.0.99: bytes=32 seq=3 ttl=128 time=62 ms
From 192.168.0.99: bytes=32 seq=4 ttl=128 time=63 ms
From 192.168.0.99: bytes=32 seq=5 ttl=128 time=62 ms--- 192.168.0.99 ping statistics ---5 packet(s) transmitted5 packet(s) received0.00% packet lossround-trip min/avg/max = 62/71/94 ms

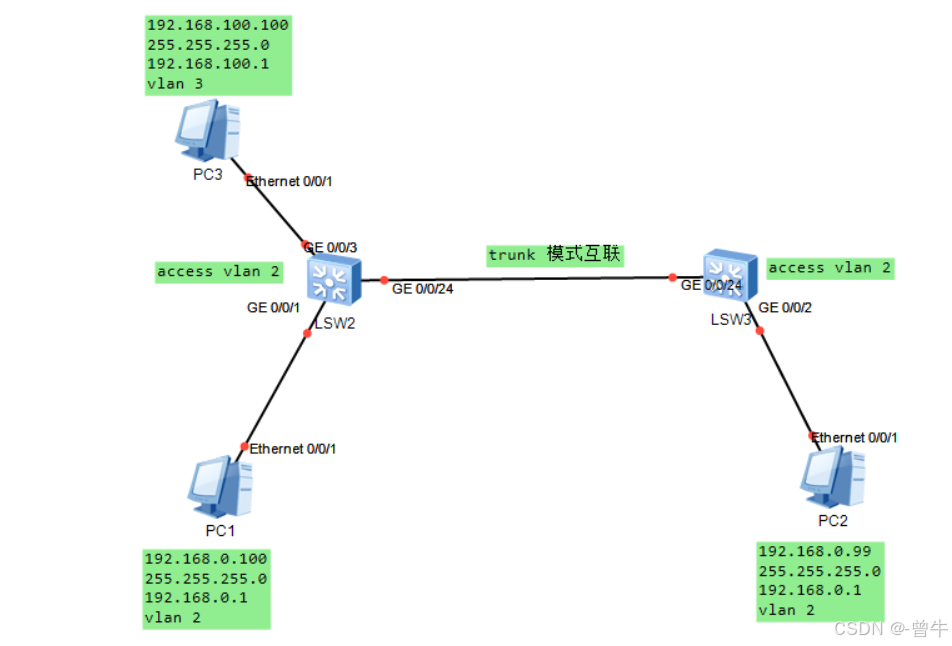

扩展：如果要将PC3接入，需要怎么做？

1、在接入的交换机中创建vlan3，配置vlanif3，配置对应的接口为access，同时允许vlan3通过

2、另一台交换机也创建vlan3，不需要配置vlanif

3、两台交换机之间的trunk口要配置为：port trunk allow-pass vlan 2 3

LSW2:
int g0/0/24
port trunk allow-pass vlan 2 3
int g0/0/3
port link-type access
vlan 3
int vlanif 3
ip address 192.168.100.1 255.255.255.0
port default vlan 3
LSW3:
vlan 3

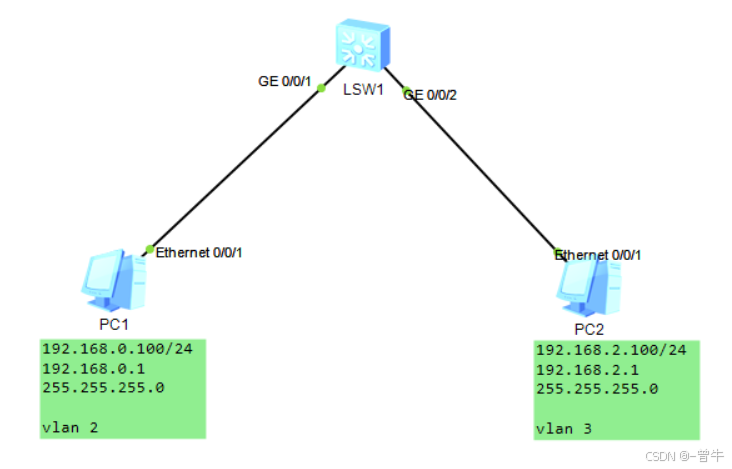

5.[三层交换机]不同的vlan间通信

主要原理：三层交换机支持mac地址转发，具备路由功能 ，只要在交换机内配置网关之间的vlanif，交换机本身的路由会进行两个网段的互通。 配置不同的网段内主机，在不同vlan中的通信

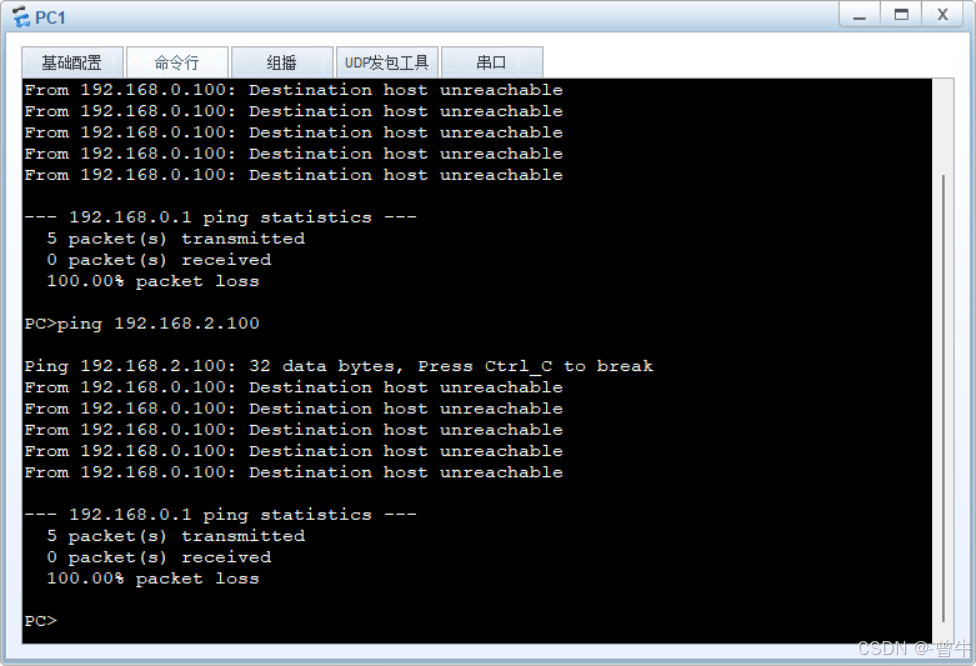

未配置时两个主机无法通信

在交换机中创建两个vlan ，并分别配置vlanif2和vlanif3 指向两个不同的vlan

创建vlan2并配置vlanif2

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]vlan 2
[Huawei-vlan2]int vlanif 2
[Huawei-Vlanif2]ip address 192.168.0.1 255.255.255.0
[Huawei-Vlanif2]int g0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type access
[Huawei-GigabitEthernet0/0/1]port default vlan 2
[Huawei-GigabitEthernet0/0/1]dis this
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 2
#
return

创建vlan3并配置vlanif3

[Huawei-GigabitEthernet0/0/1]vlan 3
[Huawei-vlan3]int vlanif 3
[Huawei-Vlanif3]ip address 192.168.2.1 255.255.255.0
[Huawei-Vlanif3]int g0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type access
[Huawei-GigabitEthernet0/0/2]port default vlan 3
[Huawei-GigabitEthernet0/0/2]dis this
#
interface GigabitEthernet0/0/2port link-type accessport default vlan 3
#
return
[Huawei-GigabitEthernet0/0/2]dis vlan
The total number of vlans is : 3
--------------------------------------------------------------------------------
U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
MP: Vlan-mapping;               ST: Vlan-stacking;
#: ProtocolTransparent-vlan;    *: Management-vlan;
--------------------------------------------------------------------------------VID  Type    Ports
--------------------------------------------------------------------------------
1    common  UT:GE0/0/3(D)      GE0/0/4(D)      GE0/0/5(D)      GE0/0/6(D)      GE0/0/7(D)      GE0/0/8(D)      GE0/0/9(D)      GE0/0/10(D)     GE0/0/11(D)     GE0/0/12(D)     GE0/0/13(D)     GE0/0/14(D)     GE0/0/15(D)     GE0/0/16(D)     GE0/0/17(D)     GE0/0/18(D)     GE0/0/19(D)     GE0/0/20(D)     GE0/0/21(D)     GE0/0/22(D)     GE0/0/23(D)     GE0/0/24(D)                                     2    common  UT:GE0/0/1(U)                                                      3    common  UT:GE0/0/2(U)                                                      VID  Status  Property      MAC-LRN Statistics Description
--------------------------------------------------------------------------------1    enable  default       enable  disable    VLAN 0001
2    enable  default       enable  disable    VLAN 0002
3    enable  default       enable  disable    VLAN 0003

配置完成后PC1与PC2可以进行通信

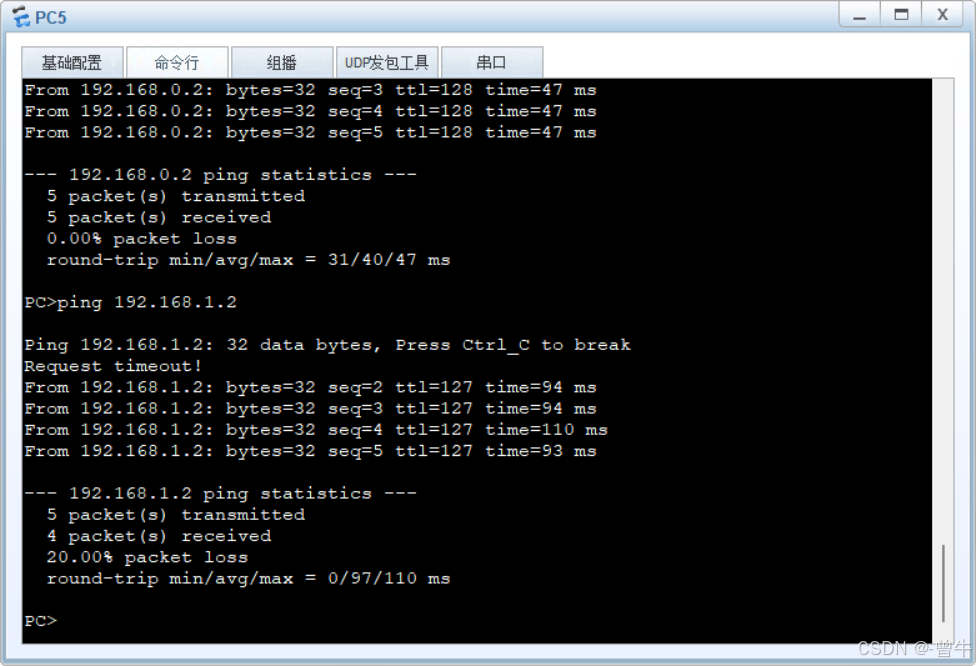

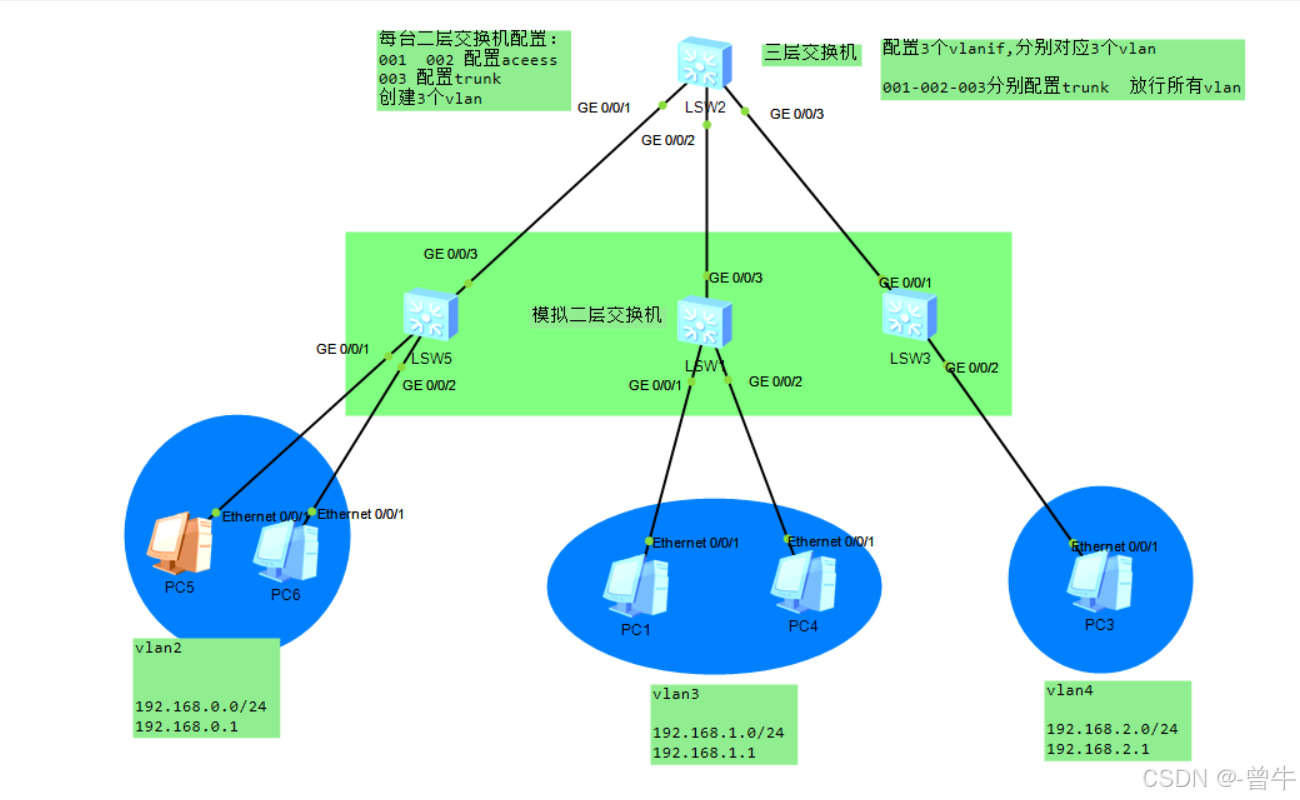

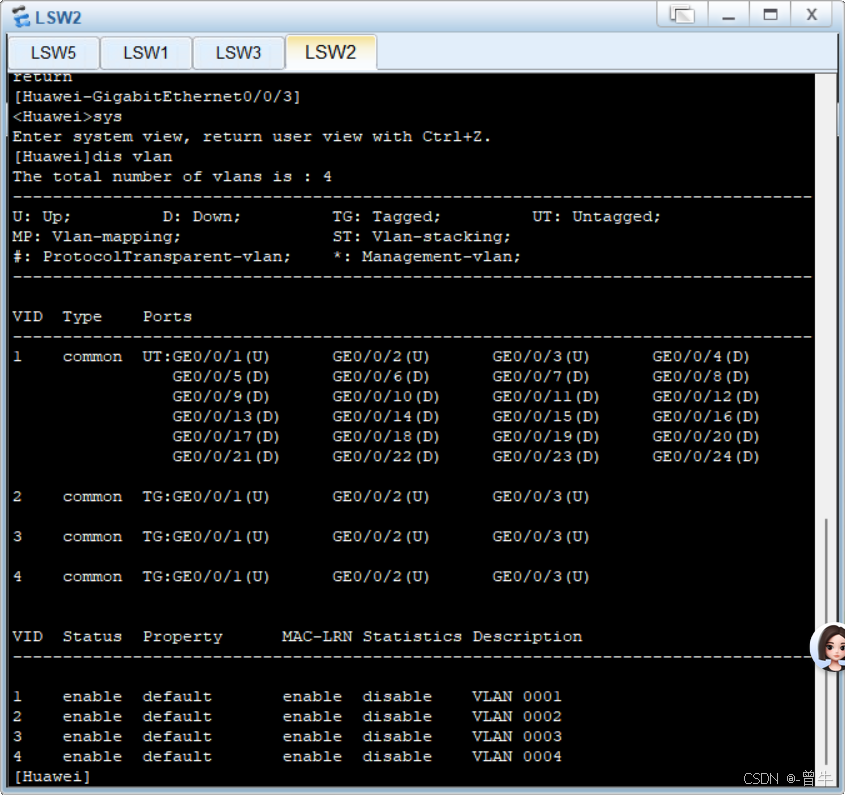

6.二层交换机利用三层vlanif配置不同网络vlan间通信

模拟二层交换机作为汇聚层交换机，通过三层交换机配置vlanif，实现不同的vlan间的通信

核心思路：

1、二层只做转发，不配置vlanif，但是要划分对应的vlan

2、三层交换机需要配置vlan及vlanif，同时在每个接口中放行所有vlan

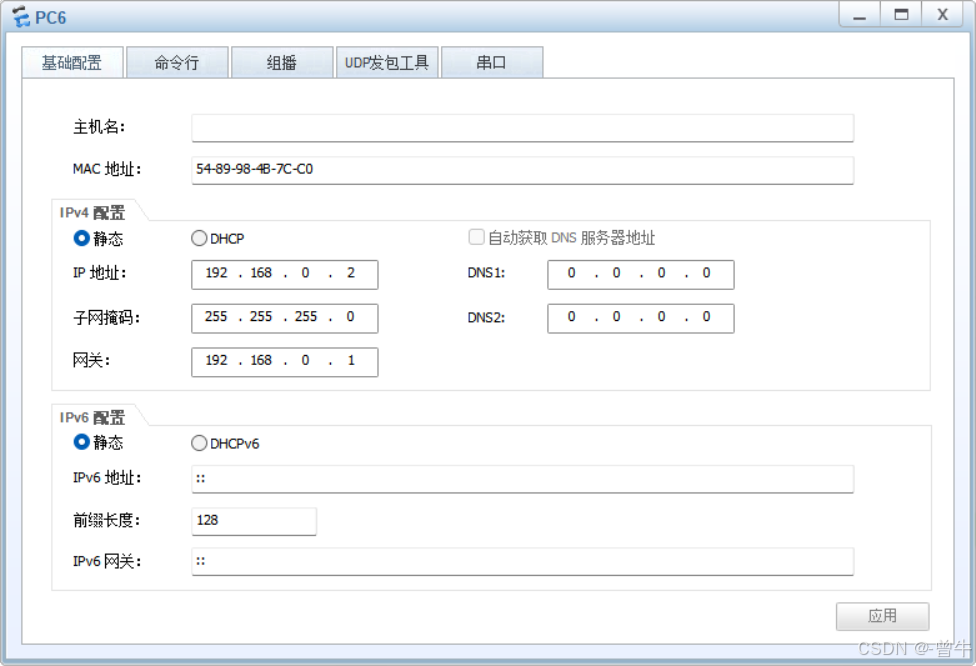

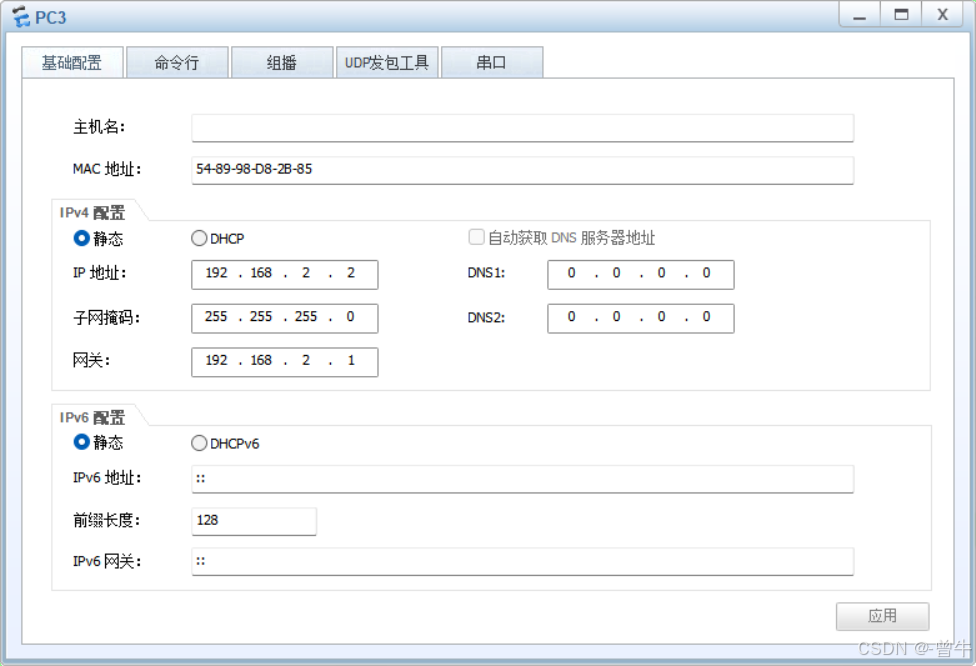

1.配置pc机的IP、子网掩码、网关

2.配置LSW5

（1）配置GE0/0/1类型为access 放行vlan2

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]vlan 2
[Huawei-vlan2]int g0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type access
[Huawei-GigabitEthernet0/0/1]port default vlan 2
[Huawei-GigabitEthernet0/0/1]dis this
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 2
#
return

（2）配置GE0/0/2类型为access 放行vlan2

[Huawei-GigabitEthernet0/0/1]int g0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type access
[Huawei-GigabitEthernet0/0/2]port default vlan 2
[Huawei-GigabitEthernet0/0/2]dis this
#
interface GigabitEthernet0/0/2port link-type accessport default vlan 2
#
return

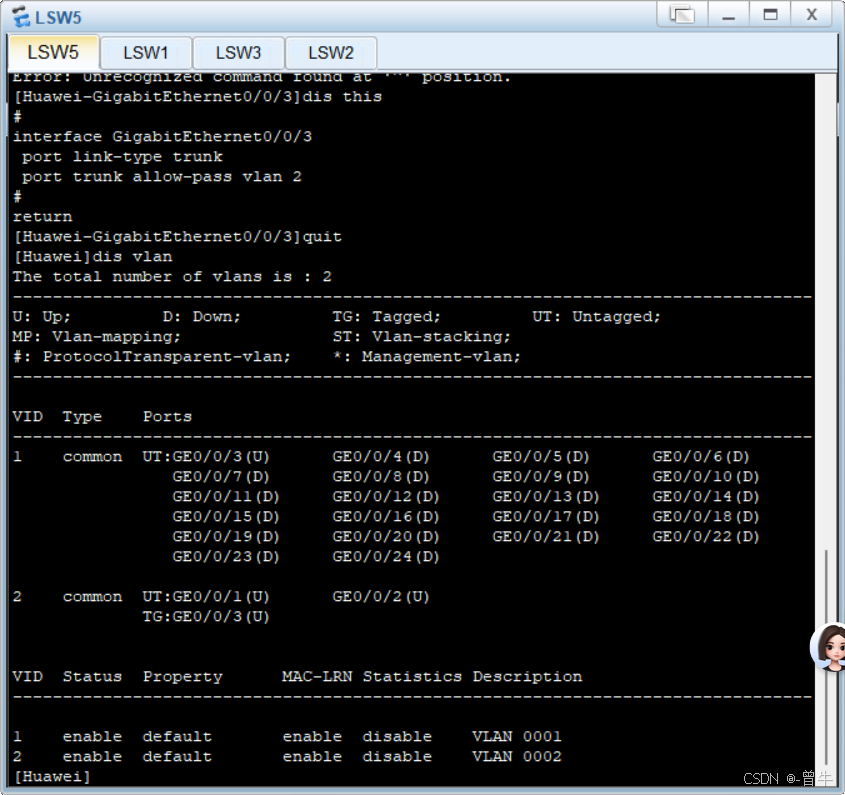

（3）配置GE0/0/3类型为trunk 放行vlan 2

[Huawei-GigabitEthernet0/0/2]int g0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type trunk
[Huawei-GigabitEthernet0/0/3]port trunk allow-pass vlan 2
[Huawei-GigabitEthernet0/0/3]dis this
#
interface GigabitEthernet0/0/3port link-type trunkport trunk allow-pass vlan 2
#
return

3.配置LSW1

（1）配置GE0/0/1 类型为access 放行vlan3

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type access
[Huawei-GigabitEthernet0/0/1]vlan 3
[Huawei-vlan3]int g0/0/1
[Huawei-GigabitEthernet0/0/1]port default vlan 3
[Huawei-GigabitEthernet0/0/1]dis this
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 3
#
return

（2）配置GE0/0/2类型为access 放行vlan3

[Huawei-GigabitEthernet0/0/1]int g0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type access
[Huawei-GigabitEthernet0/0/2]port default vlan 3
[Huawei-GigabitEthernet0/0/2]dis this
#
interface GigabitEthernet0/0/2port link-type accessport default vlan 3
#
return

（3）配置GE0/0/1类型为trunk 放行vlan2

[Huawei-GigabitEthernet0/0/2]int g0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type trunk
[Huawei-GigabitEthernet0/0/3]port trunk allow-pass vlan 3
[Huawei-GigabitEthernet0/0/3]dis this
#
interface GigabitEthernet0/0/3port link-type trunkport trunk allow-pass vlan 3
#
return

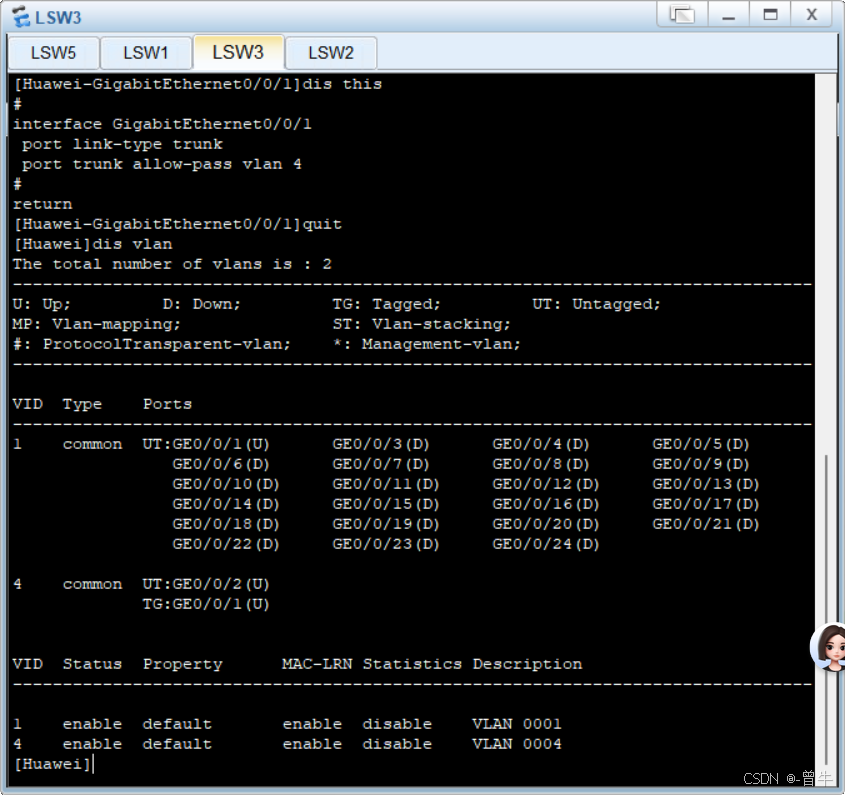

4.配置LSW3

（1）配置GE0/0/2 类型为access 放行vlan 4

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]int g0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type access
[Huawei-GigabitEthernet0/0/2]vlan 4
[Huawei-vlan4]int g0/0/2
[Huawei-GigabitEthernet0/0/2]port default vlan 4
[Huawei-GigabitEthernet0/0/2]dis this
#
interface GigabitEthernet0/0/2port link-type accessport default vlan 4
#
return

（2）配置GE0/0/1类型为trunk 放行vlan2

[Huawei-GigabitEthernet0/0/2]int g0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type trunk
[Huawei-GigabitEthernet0/0/1]port trun allow-pass vlan  4
[Huawei-GigabitEthernet0/0/1]dis this
#
interface GigabitEthernet0/0/1port link-type trunkport trunk allow-pass vlan  4
#
return

5.配置LSW2

（1）配置GE0/0/1类型为trunk 放行所有vlan

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]vlan 2
[Huawei-vlan2]int vlanif 2
[Huawei-Vlanif2]ip address 192.168.0.1 255.255.255.0
[Huawei-Vlanif2]int g0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type trunk
[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/1]dis this
#
interface GigabitEthernet0/0/1port link-type trunkport trunk allow-pass vlan 2 to 4094
#
return

（2）配置GE0/0/2 类型为trunk 放行所有vlan

[Huawei-GigabitEthernet0/0/1]int g0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type trunk
[Huawei-GigabitEthernet0/0/2]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/2]vlan 3
[Huawei-vlan3]int vlanif 3
[Huawei-Vlanif3]ip address 192.168.1.1 255.255.255.0
[Huawei-Vlanif3]dis this
#
interface Vlanif3ip address 192.168.1.1 255.255.255.0
#
return
[Huawei-Vlanif3]quit
[Huawei]int g0/0/2
[Huawei-GigabitEthernet0/0/2]dis this
#
interface GigabitEthernet0/0/2port link-type trunkport trunk allow-pass vlan 2 to 4094
#
return

（3）配置GE0/0/3类型为trunk 放行所有vlan

[Huawei-GigabitEthernet0/0/2]vlan 4
[Huawei-vlan4]int vlanif 4
[Huawei-Vlanif4]ip address 192.168.2.1 255.255.255.0
[Huawei-Vlanif4]dis this
#
interface Vlanif4ip address 192.168.2.1 255.255.255.0
#
return
[Huawei-Vlanif4]int g0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type trunk
[Huawei-GigabitEthernet0/0/3]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/3]dis this
#
interface GigabitEthernet0/0/3port link-type trunkport trunk allow-pass vlan 2 to 4094
#
return

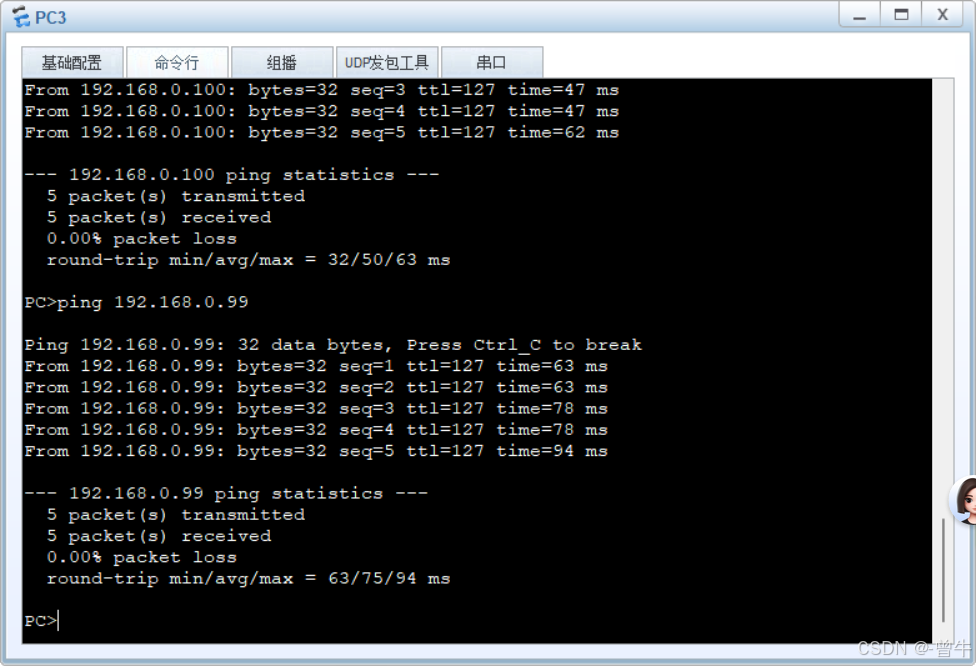

6.验证网络连通性

使用PC5ping各个主机

7.交换机配置：链路聚合以及手工负载分担

一、链路聚合核心概念

定义：将多个物理端口捆绑为一个逻辑端口（Eth-Trunk），实现带宽叠加（总和为成员端口带宽之和）、负载分担（）及链路冗余。

核心价值：

• 带宽提升：无需硬件升级，通过逻辑聚合突破单链路带宽限制。
• 可靠性增强：某链路故障时，流量自动切换至其他链路。
• 负载均衡：流量按规则分配至成员端口，避免单链路拥塞。

二、手工负载分担模式（Manual Load-Balance）

是一种基本的链路聚合方式，配置使用Eth-Trunk

模式特点：

• 纯手工配置：无 LACP 协议参与，两端需手动创建 Eth-Trunk 并添加成员接口。
• 全活跃转发：所有成员接口均处于活动状态，共同分担流量（无备份链路）。
• 兼容性强：适用于至少一端设备不支持 LACP 的场景（如老旧设备互联）。

优缺点：

• ✅ 配置简单，稳定无协议开销。
• ❌ 无法检测链路错连（如一端接错设备），故障仅依赖物理层检测。

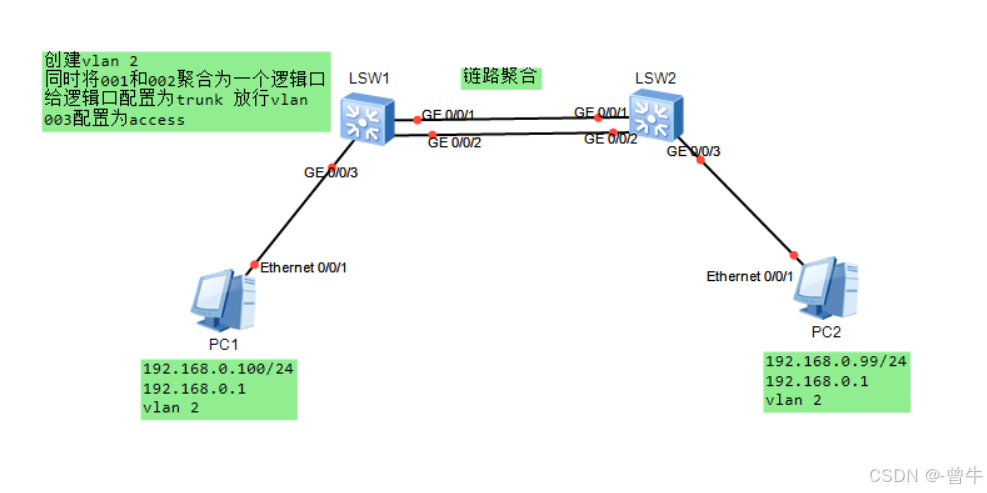

配置过程：

（1）配置LSW1的过程

1.创建两个vlan，将两个口聚合

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]vlan 2 #创建vlan 2
[Huawei-vlan2]int Eth-Trunk 1 #创建一个聚合Eth-Trunk设置对应的编号
[Huawei-Eth-Trunk1]mode manual load-balance #设置当前手工负载分担
[Huawei-Eth-Trunk1]load-balance ? #查看可加载的有哪些模式dst-ip       According to destination IP hash arithmeticdst-mac      According to destination MAC hash arithmeticsrc-dst-ip   According to source/destination IP hash arithmetic #默认模式src-dst-mac  According to source/destination MAC hash arithmeticsrc-ip       According to source IP hash arithmeticsrc-mac      According to source MAC hash arithmetic
[Huawei-Eth-Trunk1]load-balance src-dst-ip  #设置Eth-Trunk1为默认模式
[Huawei-Eth-Trunk1]trunkport GigabitEthernet 0/0/1 to 0/0/2 #将g0/0/1和g0/0/2进行聚合

2.给逻辑口配置trunk 放行vlan

[Huawei-Eth-Trunk1]int Eth-Trunk 1
[Huawei-Eth-Trunk1]port link-type trunk
[Huawei-Eth-Trunk1]port trunk allow-pass vlan 2
[Huawei-Eth-Trunk1]dis this
#
interface Eth-Trunk1port link-type trunkport trunk allow-pass vlan 2
#
return

3.给GE0/0/3配置access模式

[Huawei-Eth-Trunk1]int g0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type access
[Huawei-GigabitEthernet0/0/3]port default vlan 2
[Huawei-GigabitEthernet0/0/3]dis this
#
interface GigabitEthernet0/0/3port link-type accessport default vlan 2
#
return
[Huawei-GigabitEthernet0/0/3]dis vlan
The total number of vlans is : 2
--------------------------------------------------------------------------------
U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
MP: Vlan-mapping;               ST: Vlan-stacking;
#: ProtocolTransparent-vlan;    *: Management-vlan;
--------------------------------------------------------------------------------VID  Type    Ports
--------------------------------------------------------------------------------
1    common  UT:GE0/0/4(D)      GE0/0/5(D)      GE0/0/6(D)      GE0/0/7(D)      GE0/0/8(D)      GE0/0/9(D)      GE0/0/10(D)     GE0/0/11(D)     GE0/0/12(D)     GE0/0/13(D)     GE0/0/14(D)     GE0/0/15(D)     GE0/0/16(D)     GE0/0/17(D)     GE0/0/18(D)     GE0/0/19(D)     GE0/0/20(D)     GE0/0/21(D)     GE0/0/22(D)     GE0/0/23(D)     GE0/0/24(D)     Eth-Trunk1(U)                                   2    common  UT:GE0/0/3(U)                                                      TG:Eth-Trunk1(U)                                                   VID  Status  Property      MAC-LRN Statistics Description
--------------------------------------------------------------------------------1    enable  default       enable  disable    VLAN 0001
2    enable  default       enable  disable    VLAN 0002

（2）LSW2配置过程同上

1.创建两个vlan，将两个口聚合

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]vlan 2
[Huawei-vlan2]
Jul 22 2025 22:40:21-08:00 Huawei DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5
.25.191.3.1 configurations have been changed. The current change number is 4, th
e change loop count is 0, and the maximum number of records is 4095.
[Huawei-vlan2]int Eth-Trunk 1
[Huawei-Eth-Trunk1]mode manual load-balance
[Huawei-Eth-Trunk1]load-balance src-dst-ip
[Huawei-Eth-Trunk1]trunkport GigabitEthernet 0/0/1 to 0/0/2
Info: This operation may take a few seconds. Please wait for a moment...done.
[Huawei-Eth-Trunk1]
Jul 22 2025 22:42:01-08:00 Huawei %%01IFNET/4/IF_STATE(l)[0]:Interface Eth-Trunk
1 has turned into UP state.

2.给逻辑口配置trunk 放行vlan

[Huawei-vlan2]int Eth-Trunk 1
[Huawei-Eth-Trunk1]mode manual load-balance
[Huawei-Eth-Trunk1]load-balance src-dst-ip
[Huawei-Eth-Trunk1]trunkport GigabitEthernet 0/0/1 to 0/0/2
[Huawei-Eth-Trunk1]int Eth-Trunk 1
[Huawei-Eth-Trunk1]port link-type trunk
[Huawei-Eth-Trunk1]port trunk allow-pass vlan 2
[Huawei-Eth-Trunk1]
#
interface Eth-Trunk1port link-type trunkport trunk allow-pass vlan 2
#
return

3.给GE0/0/3配置access模式

[Huawei-Eth-Trunk1]int g0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type access
[Huawei-GigabitEthernet0/0/3]port default vlan 2
#
interface GigabitEthernet0/0/3port link-type accessport default vlan 2
#
return
[Huawei-GigabitEthernet0/0/3]dis vlan
The total number of vlans is : 2
--------------------------------------------------------------------------------
U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
MP: Vlan-mapping;               ST: Vlan-stacking;
#: ProtocolTransparent-vlan;    *: Management-vlan;
--------------------------------------------------------------------------------VID  Type    Ports
--------------------------------------------------------------------------------
1    common  UT:GE0/0/4(D)      GE0/0/5(D)      GE0/0/6(D)      GE0/0/7(D)      GE0/0/8(D)      GE0/0/9(D)      GE0/0/10(D)     GE0/0/11(D)     GE0/0/12(D)     GE0/0/13(D)     GE0/0/14(D)     GE0/0/15(D)     GE0/0/16(D)     GE0/0/17(D)     GE0/0/18(D)     GE0/0/19(D)     GE0/0/20(D)     GE0/0/21(D)     GE0/0/22(D)     GE0/0/23(D)     GE0/0/24(D)     Eth-Trunk1(U)                                   2    common  UT:GE0/0/3(U)                                                      TG:Eth-Trunk1(U)                                                   VID  Status  Property      MAC-LRN Statistics Description
--------------------------------------------------------------------------------1    enable  default       enable  disable    VLAN 0001
2    enable  default       enable  disable    VLAN 0002

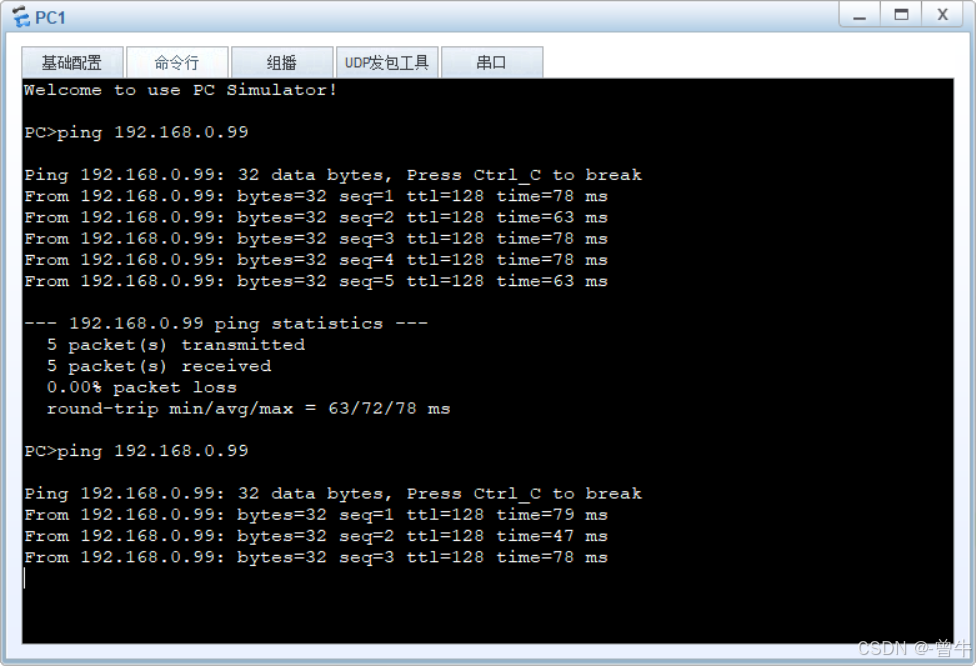

说明：

如果要使用网关通信，只需要在链路聚合的某一个vlanif中配置网关即可，比如在LSW2中配置，同网段即可联通。

[Huawei-GigabitEthernet0/0/3]int vlanif 2
[Huawei-Vlanif2]ip address 192.168.0.1 255.255.255.0

三、静态 LACP 模式（Static LACP/M:N 模式）

在原本的链路聚合上加入了一条备份链路，利用LACP协议进行链路聚合，可以包含活动或者非活动接口

模式特点：

• LACP 协议协商：通过 LACPDU 报文交互，动态确定活动链路（M 条）与备份链路（N 条），支持冗余切换。
• 智能选路：两端设备通过系统优先级（默认 32768）和 MAC 地址选举主动端，以主动端接口优先级（默认 128）和端口号选择活动接口。
• 混合速率支持：需手动开启lacp mixed-rate link enable，否则不同速率接口仅高速口活跃。

常见使用场景：

1.要和服务器进行互联，需要选择手工模式

2.多台交换机进行堆叠的时候，需要进行聚合

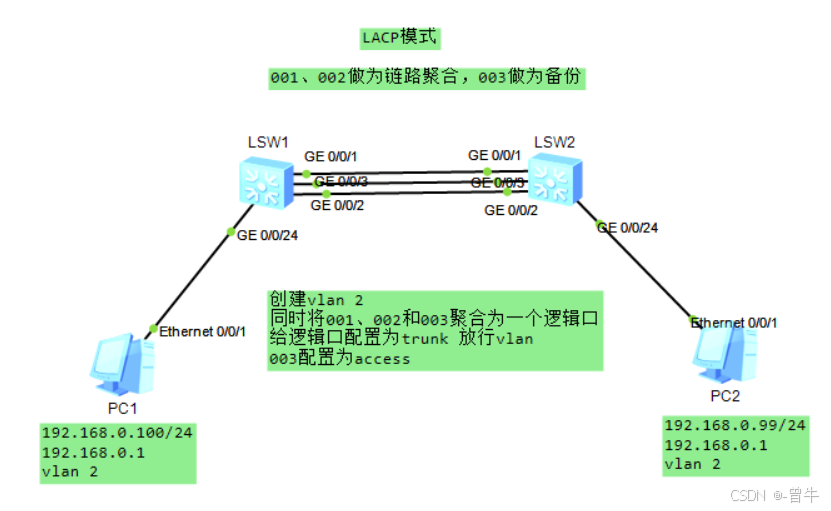

配置过程

（1）配置LSW1的过程

1、配置聚合模式为lacp，同时聚合端口

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int Eth-Trunk 2
[Huawei-Eth-Trunk2]mode lacp-static
[Huawei-Eth-Trunk2]trunkport GigabitEthernet 0/0/1 to 0/0/3
Info: This operation may take a few seconds. Please wait for a moment...done.
[Huawei-Eth-Trunk2]dis this
#
interface Eth-Trunk2mode lacp-static
#
return

2.设置对应优先级，设置连接上限

[Huawei-Eth-Trunk2]quit
[Huawei]lacp priority 100  #设置系统优先级为100
[Huawei]int Eth-Trunk 2
[Huawei-Eth-Trunk2]max active-linknumber 2 #配置交换机活动接口上限为2（因为有3个聚合，用2个）

3.指定活动链路，只需要进入需要配置的接口进行优先级设置即可

[Huawei-Eth-Trunk2]int g0/0/1
[Huawei-GigabitEthernet0/0/1]lacp priority 100
[Huawei-GigabitEthernet0/0/1]int g0/0/2
[Huawei-GigabitEthernet0/0/2]lacp priority 100

4.配置聚合链路Eth-Trunk 2的trunk模式以及通过的vlan

[Huawei-GigabitEthernet0/0/2]int Eth-Trunk 2
[Huawei-Eth-Trunk2]port link-type trunk
[Huawei-Eth-Trunk2]port trunk allow-pass vlan all
[Huawei-Eth-Trunk2]dis this
#
interface Eth-Trunk2port link-type trunkport trunk allow-pass vlan 2 to 4094mode lacp-staticmax active-linknumber 2
#
return

5.创建vlan2并配置vlanif

[Huawei-Eth-Trunk2]vlan 2
[Huawei-vlan2]int vlanif 2
[Huawei-Vlanif2]ip address 192.168.0.1 255.255.255.0
[Huawei-Vlanif2]dis this
#
interface Vlanif2ip address 192.168.0.1 255.255.255.0
#
return

6.验证查看当前配置的聚合状态是否成功

[Huawei-Vlanif2]quit
[Huawei]dis Eth-Trunk 2
Eth-Trunk2's state information is:
Local:
LAG ID: 2                   WorkingMode: STATIC
Preempt Delay: Disabled     Hash arithmetic: According to SIP-XOR-DIP
System Priority: 100        System ID: 4c1f-cc16-1899
Least Active-linknumber: 1  Max Active-linknumber: 2
Operate status: down        Number Of Up Port In Trunk: 0
--------------------------------------------------------------------------------
ActorPortName          Status   PortType PortPri PortNo PortKey PortState Weight
GigabitEthernet0/0/1   Unselect 1GE      100     2      561     10100010  1
GigabitEthernet0/0/2   Unselect 1GE      100     3      561     10100010  1
GigabitEthernet0/0/3   Unselect 1GE      32768   4      561     10100010  1       #portPri越高表示优先级越低Partner:
--------------------------------------------------------------------------------
ActorPortName          SysPri   SystemID        PortPri PortNo PortKey PortState
GigabitEthernet0/0/1   0        0000-0000-0000  0       0      0       10100011
GigabitEthernet0/0/2   0        0000-0000-0000  0       0      0       10100011
GigabitEthernet0/0/3   0        0000-0000-0000  0       0      0       10100011

（2）配置LSW2同上

1、配置聚合模式为lacp，同时聚合端口

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int Eth-TRunk 2
[Huawei-Eth-Trunk2]mode lacp-static
[Huawei-Eth-Trunk2]trunkport GigabitEthernet 0/0/1 to 0/0/3
Info: This operation may take a few seconds. Please wait for a moment...done.
[Huawei-Eth-Trunk2]dis this
#
interface Eth-Trunk2mode lacp-static
#
return

2.设置对应优先级，设置连接上限

[Huawei-Eth-Trunk2]quit
[Huawei]lacp priority 100  #设置系统优先级为100
[Huawei]int Eth-Trunk 2
[Huawei-Eth-Trunk2]max active-linknumber 2 #配置交换机活动接口上限为2（因为有3个聚合，用2个）

3.指定活动链路，只需要进入需要配置的接口进行优先级设置即可

[Huawei-Eth-Trunk2]int g0/0/1
[Huawei-GigabitEthernet0/0/1]lacp priority 100
[Huawei-GigabitEthernet0/0/1]int g0/0/2
[Huawei-GigabitEthernet0/0/2]lacp priority 100

4.配置聚合链路Eth-Trunk 2的trunk模式以及通过的vlan

[Huawei-GigabitEthernet0/0/2]int Eth-Trunk 2
[Huawei-Eth-Trunk2]port link-type trunk
[Huawei-Eth-Trunk2]port trunk allow-pass vlan all
[Huawei-Eth-Trunk2]dis this
#
interface Eth-Trunk2port link-type trunkport trunk allow-pass vlan 2 to 4094mode lacp-staticmax active-linknumber 2
#
return

5.创建vlan2并配置vlanif

[Huawei-Eth-Trunk2]vlan 2
[Huawei-vlan2]int vlanif 2
[Huawei-Vlanif2]ip address 192.168.0.1 255.255.255.0
[Huawei-Vlanif2]dis this
#
interface Vlanif2ip address 192.168.0.1 255.255.255.0
#
return

6.验证查看当前配置的聚合状态是否成功

[Huawei-Vlanif2]quit
[Huawei]dis Eth-Trunk 2
Eth-Trunk2's state information is:
Local:
LAG ID: 2                   WorkingMode: STATIC
Preempt Delay: Disabled     Hash arithmetic: According to SIP-XOR-DIP
System Priority: 100        System ID: 4c1f-cc16-1899
Least Active-linknumber: 1  Max Active-linknumber: 2
Operate status: down        Number Of Up Port In Trunk: 0
--------------------------------------------------------------------------------
ActorPortName          Status   PortType PortPri PortNo PortKey PortState Weight
GigabitEthernet0/0/1   Unselect 1GE      100     2      561     10100010  1
GigabitEthernet0/0/2   Unselect 1GE      100     3      561     10100010  1
GigabitEthernet0/0/3   Unselect 1GE      32768   4      561     10100010  1       #portPri越高表示优先级越低Partner:
--------------------------------------------------------------------------------
ActorPortName          SysPri   SystemID        PortPri PortNo PortKey PortState
GigabitEthernet0/0/1   0        0000-0000-0000  0       0      0       10100011
GigabitEthernet0/0/2   0        0000-0000-0000  0       0      0       10100011
GigabitEthernet0/0/3   0        0000-0000-0000  0       0      0       10100011
