【安卓笔记】用MVC、MVP、MVVM来实现井字棋案例

news 2025/7/23 5:12:13

0. 环境：

电脑：Windows10

Android Studio: 2024.3.2

编程语言: Java

Gradle version：8.11.1

Compile Sdk Version：35

Java 版本：Java11

1. 首先、简单实现井字棋的功能。

功能拆解：

1. 棋盘为3x3

2. 点击棋盘button，判断是否有效

3. 如果有效，判断是否赢得游戏

4. 如果赢得游戏，则显示胜利

5. 如果未赢得游戏，判断是否平局

6. 如果平局，则显示平局

7. 如果没赢得游戏，也没平局，则轮换选手下棋

关键部分代码：

package com.liosen.androidnote;import android.os.Bundle;
import android.view.Menu;
import android.view.MenuInflater;
import android.view.MenuItem;
import android.view.View;
import android.widget.Button;
import android.widget.GridLayout;
import android.widget.LinearLayout;
import android.widget.TextView;import androidx.activity.EdgeToEdge;
import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.graphics.Insets;
import androidx.core.view.ViewCompat;
import androidx.core.view.WindowInsetsCompat;/*** 井字棋的activity* 一个文件实现功能*/
public class TicTacToeActivity extends AppCompatActivity {// --------------------- model ---------------------public enum Player {X, O}    // 枚举两位玩家，一位执棋X，一位执棋Opublic class Chessboard {private Player value;}private Chessboard[][] board = new Chessboard[3][3];    // 棋盘为 3x3private Player winner;  // 定义胜利者private enum GameState {    // 枚举当前游戏状态：游戏中，游戏结束GAMING, FINISHED}private GameState state;    // 定义当前游戏状态private Player currentTurn; // 定义当前轮次，当前执棋手// --------------------- View ---------------------private GridLayout glChessboard;private LinearLayout llWinner;private TextView tvWinner, tvTips;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);EdgeToEdge.enable(this);setContentView(R.layout.activity_main);ViewCompat.setOnApplyWindowInsetsListener(findViewById(R.id.main), (v, insets) -> {Insets systemBars = insets.getInsets(WindowInsetsCompat.Type.systemBars());v.setPadding(systemBars.left, systemBars.top, systemBars.right, systemBars.bottom);return insets;});findView();// 重置游戏restartGame();}@Overridepublic boolean onCreateOptionsMenu(Menu menu) {MenuInflater inflater = getMenuInflater();inflater.inflate(R.menu.menu_tictactoe, menu);return super.onCreateOptionsMenu(menu);}@Overridepublic boolean onOptionsItemSelected(@NonNull MenuItem item) {if (item.getItemId() == R.id.reset) {restartGame();return true;} else {return super.onOptionsItemSelected(item);}}private void findView() {glChessboard = findViewById(R.id.gl_chessboard);llWinner = findViewById(R.id.ll_winner);tvWinner = findViewById(R.id.tv_winner);tvTips = findViewById(R.id.tv_tips);}private void restartGame() {// 重置数据clearChessboard();winner = null;currentTurn = Player.X;state = GameState.GAMING;// 重置UIllWinner.setVisibility(View.GONE);tvWinner.setText("");for (int i = 0; i < glChessboard.getChildCount(); i++) {((Button) glChessboard.getChildAt(i)).setText("");}}/*** 清空棋盘上的棋子数据*/private void clearChessboard() {for (int i = 0; i < 3; i++) {for (int j = 0; j < 3; j++) {board[i][j] = new Chessboard();}}}/*** 棋盘上的格子，点击事件*/public void clickButton(View view) {Button btn = (Button) view;String tag = btn.getTag().toString();   // 通过tag获取行列数据int row = Integer.parseInt(tag.substring(0, 1));int col = Integer.parseInt(tag.substring(1, 2));Player currentPlayer = mark(row, col);if (currentPlayer != null) {btn.setText(currentPlayer.toString());if (winner != null) {   // 如果胜利的棋手 不为空，则显示胜利的信息tvWinner.setText(currentPlayer.toString());llWinner.setVisibility(View.VISIBLE);} else if (state == GameState.FINISHED) {tvWinner.setText("");tvTips.setText("本局平局");llWinner.setVisibility(View.VISIBLE);}}}/*** 下棋 的函数*/private Player mark(int row, int col) {Player currentPlayer = null;if (isValid(row, col)) {    // 这一步下棋，是否有效// 如果有效board[row][col].value = currentTurn; // 将这一步棋存入二维数组currentPlayer = currentTurn;if (isWinningGame(currentTurn, row, col)) {// 如果这一步棋 赢下了游戏// 游戏状态改为结束state = GameState.FINISHED;// 胜者为刚刚这一轮的执棋者winner = currentTurn;} else if (isNoChessboard()) {state = GameState.FINISHED;winner = null;} else {// 如果这一步棋没有赢下游戏，则轮换选手flipPlayerTurn();}}return currentPlayer;}/*** 轮换选手*/private void flipPlayerTurn() {currentTurn = currentTurn == Player.X ? Player.O : Player.X;}/*** 判断 赢下游戏的条件*/private boolean isWinningGame(Player currentTurn, int row, int col) {return (board[row][0].value == currentTurn &&board[row][1].value == currentTurn &&board[row][2].value == currentTurn) // 同一行三个棋子相同||(board[0][col].value == currentTurn &&board[1][col].value == currentTurn &&board[2][col].value == currentTurn) // 同一列三个棋子相同||((row == col) &&board[0][0].value == currentTurn &&board[1][1].value == currentTurn &&board[2][2].value == currentTurn)   // 对角线三个棋子相同||((row + col == 2) &&board[0][2].value == currentTurn &&board[1][1].value == currentTurn &&board[2][0].value == currentTurn)   //反向对角线棋子相同;}private boolean isNoChessboard() {for (int i = 0; i < 3; i++) {for (int j = 0; j < 3; j++) {if (board[i][j].value == null) {return false;}}}return true;}/*** 判断这一步棋 是否有效*/private boolean isValid(int row, int col) {if (state == GameState.FINISHED) {return false;} else if (isAlreadySet(row, col)) {//当前棋盘按钮，已经下过棋子了return false;} else {return true;}}private boolean isAlreadySet(int row, int col) {return board[row][col].value != null;}}

布局文件：

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:app="http://schemas.android.com/apk/res-auto"xmlns:tools="http://schemas.android.com/tools"android:id="@+id/main"android:layout_width="match_parent"android:layout_height="match_parent"tools:context=".TicTacToeActivity"android:gravity="center_horizontal"android:orientation="vertical"android:fitsSystemWindows="true"android:layout_marginTop="60dp"><GridLayoutandroid:id="@+id/gl_chessboard"android:layout_width="wrap_content"android:layout_height="wrap_content"android:columnCount="3"android:rowCount="3"><Buttonandroid:tag="00"android:onClick="clickButton"style="@style/chessboard_btn"/><Buttonandroid:tag="01"android:onClick="clickButton"style="@style/chessboard_btn"/><Buttonandroid:tag="02"android:onClick="clickButton"style="@style/chessboard_btn"/><Buttonandroid:tag="10"android:onClick="clickButton"style="@style/chessboard_btn"/><Buttonandroid:tag="11"android:onClick="clickButton"style="@style/chessboard_btn"/><Buttonandroid:tag="12"android:onClick="clickButton"style="@style/chessboard_btn"/><Buttonandroid:tag="20"android:onClick="clickButton"style="@style/chessboard_btn"/><Buttonandroid:tag="21"android:onClick="clickButton"style="@style/chessboard_btn"/><Buttonandroid:tag="22"android:onClick="clickButton"style="@style/chessboard_btn"/></GridLayout><LinearLayoutandroid:id="@+id/ll_winner"android:layout_width="wrap_content"android:layout_height="wrap_content"android:orientation="vertical"><TextViewandroid:id="@+id/tv_winner"android:layout_width="wrap_content"android:layout_height="wrap_content"android:textSize="40sp"android:layout_margin="20dp"tools:text="X"/><TextViewandroid:id="@+id/tv_tips"android:layout_width="wrap_content"android:layout_height="wrap_content"android:textSize="30sp"android:text="@string/winner"/></LinearLayout></LinearLayout>

2. MVC实现井字棋功能

先拆分功能：

MVC：

M：model数据
V：view视图

C：controller逻辑

model部分，分为 Plyaer、GameState、Chessboard、Board（棋盘）

view部分，依然是activity

controller部分，将在Board棋盘中实现

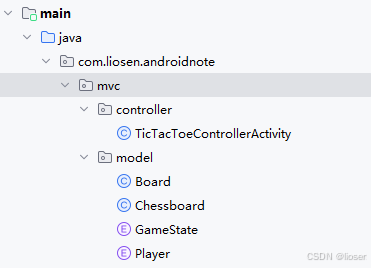

文件结构如下：

重点代码：

activity部分：

package com.liosen.androidnote.mvc.controller;import android.os.Bundle;
import android.view.Menu;
import android.view.MenuInflater;
import android.view.MenuItem;
import android.view.View;
import android.widget.Button;
import android.widget.GridLayout;
import android.widget.LinearLayout;
import android.widget.TextView;import androidx.activity.EdgeToEdge;
import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.graphics.Insets;
import androidx.core.view.ViewCompat;
import androidx.core.view.WindowInsetsCompat;import com.liosen.androidnote.R;
import com.liosen.androidnote.mvc.model.Board;
import com.liosen.androidnote.mvc.model.GameState;
import com.liosen.androidnote.mvc.model.Player;public class TicTacToeControllerActivity extends AppCompatActivity {// --------------------- model ---------------------Board model;// --------------------- View ---------------------private GridLayout glChessboard;private LinearLayout llWinner;private TextView tvWinner, tvTips;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);EdgeToEdge.enable(this);setContentView(R.layout.activity_main);ViewCompat.setOnApplyWindowInsetsListener(findViewById(R.id.main), (v, insets) -> {Insets systemBars = insets.getInsets(WindowInsetsCompat.Type.systemBars());v.setPadding(systemBars.left, systemBars.top, systemBars.right, systemBars.bottom);return insets;});model = new Board();findView();// 重置游戏restartGame();}private void findView() {glChessboard = findViewById(R.id.gl_chessboard);llWinner = findViewById(R.id.ll_winner);tvWinner = findViewById(R.id.tv_winner);tvTips = findViewById(R.id.tv_tips);}@Overridepublic boolean onCreateOptionsMenu(Menu menu) {MenuInflater inflater = getMenuInflater();inflater.inflate(R.menu.menu_tictactoe, menu);return super.onCreateOptionsMenu(menu);}@Overridepublic boolean onOptionsItemSelected(@NonNull MenuItem item) {if (item.getItemId() == R.id.reset) {restartGame();return true;} else {return super.onOptionsItemSelected(item);}}private void restartGame() {model.restartGame();resetView();}private void resetView() {// 重置UIllWinner.setVisibility(View.GONE);tvWinner.setText("");for (int i = 0; i < glChessboard.getChildCount(); i++) {((Button) glChessboard.getChildAt(i)).setText("");}}/*** 棋盘上的格子，点击事件*/public void clickButton(View view) {Button btn = (Button) view;String tag = btn.getTag().toString();   // 通过tag获取行列数据int row = Integer.parseInt(tag.substring(0, 1));int col = Integer.parseInt(tag.substring(1, 2));Player currentPlayer = model.mark(row, col);if (currentPlayer != null) {btn.setText(currentPlayer.toString());if (model.getWinner() != null) {   // 如果胜利的棋手 不为空，则显示胜利的信息tvWinner.setText(currentPlayer.toString());llWinner.setVisibility(View.VISIBLE);} else if (model.getState() == GameState.FINISHED) {tvWinner.setText("");tvTips.setText("本局平局");llWinner.setVisibility(View.VISIBLE);}}}
}

可以看到，代码中，几乎只剩下对UI视图操作的部分。逻辑部分，都交给Board棋盘来实现。

下面看Board棋盘部分的代码：

package com.liosen.androidnote.mvc.model;/*** 计分板*/
public class Board {private Chessboard[][] board = new Chessboard[3][3];    // 棋盘为 3x3private Player winner;  // 定义胜利者private GameState state;    // 定义当前游戏状态private Player currentTurn; // 定义当前轮次，当前执棋手public GameState getState() {return state;}public void setState(GameState state) {this.state = state;}public Player getWinner() {return winner;}public void setWinner(Player winner) {this.winner = winner;}/*** 重置游戏，清空数据*/public void restartGame() {// 重置数据clearChessboard();winner = null;currentTurn = Player.X;state = GameState.GAMING;}/*** 清空棋盘上的棋子数据*/public void clearChessboard() {for (int i = 0; i < 3; i++) {for (int j = 0; j < 3; j++) {board[i][j] = new Chessboard();}}}/*** 下棋 的函数*/public Player mark(int row, int col) {Player currentPlayer = null;if (isValid(row, col)) {    // 这一步下棋，是否有效// 如果有效board[row][col].setValue(currentTurn); // 将这一步棋存入二维数组currentPlayer = currentTurn;if (isWinningGame(currentTurn, row, col)) {// 如果这一步棋 赢下了游戏// 游戏状态改为结束state = GameState.FINISHED;// 胜者为刚刚这一轮的执棋者winner = currentTurn;} else if (isNoChessboard()) {state = GameState.FINISHED;winner = null;} else {// 如果这一步棋没有赢下游戏，则轮换选手flipPlayerTurn();}}return currentPlayer;}/*** 轮换选手*/private void flipPlayerTurn() {currentTurn = currentTurn == Player.X ? Player.O : Player.X;}/*** 判断 赢下游戏的条件*/private boolean isWinningGame(Player currentTurn, int row, int col) {return (board[row][0].getValue() == currentTurn &&board[row][1].getValue() == currentTurn &&board[row][2].getValue() == currentTurn) // 同一行三个棋子相同||(board[0][col].getValue() == currentTurn &&board[1][col].getValue() == currentTurn &&board[2][col].getValue() == currentTurn) // 同一列三个棋子相同||((row == col) &&board[0][0].getValue() == currentTurn &&board[1][1].getValue() == currentTurn &&board[2][2].getValue() == currentTurn)   // 对角线三个棋子相同||((row + col == 2) &&board[0][2].getValue() == currentTurn &&board[1][1].getValue() == currentTurn &&board[2][0].getValue() == currentTurn)   //反向对角线棋子相同;}private boolean isNoChessboard() {for (int i = 0; i < 3; i++) {for (int j = 0; j < 3; j++) {if (board[i][j].getValue() == null) {return false;}}}return true;}/*** 判断这一步棋 是否有效*/private boolean isValid(int row, int col) {if (state == GameState.FINISHED) {return false;} else if (isAlreadySet(row, col)) {//当前棋盘按钮，已经下过棋子了return false;} else {return true;}}private boolean isAlreadySet(int row, int col) {return board[row][col].getValue() != null;}
}

model数据部分，主要通过棋盘实现以下功能：

1. 重置游戏数据

2. 下棋动作 及是否有效

3. 判断是否赢得游戏

4. 判断是否平局

5. 轮换选手

这样，就可以把model从activity中抽离出来。减少了activity的臃肿

但是controller部分依然在activity中，随着功能增多，activity依然会变臃肿

于是引入MVP

3. MVP实现井字棋功能

 先拆分功能：

M：model数据

V：view视图

P：presenter逻辑

model部分，依然是 Plyaer、GameState、Chessboard、Board，所有不变

view部分，依然是activity，同时增加IView接口

presenter部分，将在TicTacToePresenter逻辑层中实现

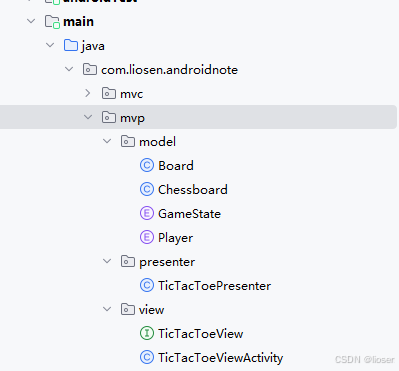

文件结构如下：（忽略mvc文件夹）

代码部分：

IView：

package com.liosen.androidnote.mvp.view;public interface TicTacToeView {void showWinner(String winner);    // 显示胜利玩家void noWinner();    // 无胜利玩家，即平局void clearButton();    // 清空棋盘按钮void clearWinner();    // 清空胜利玩家void setBtnText(int row, int col, String player);    // 下棋动作后，棋盘显示棋子
}

 Activity：

package com.liosen.androidnote.mvp.view;import android.os.Bundle;
import android.view.Menu;
import android.view.MenuInflater;
import android.view.MenuItem;
import android.view.View;
import android.widget.Button;
import android.widget.GridLayout;
import android.widget.LinearLayout;
import android.widget.TextView;import androidx.activity.EdgeToEdge;
import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.graphics.Insets;
import androidx.core.view.ViewCompat;
import androidx.core.view.WindowInsetsCompat;import com.liosen.androidnote.R;
import com.liosen.androidnote.mvp.presenter.TicTacToePresenter;public class TicTacToeViewActivity extends AppCompatActivity implements TicTacToeView {// --------------------- View ---------------------private GridLayout glChessboard;private LinearLayout llWinner;private TextView tvWinner, tvTips;// --------------------- Presenter ---------------------TicTacToePresenter presenter = new TicTacToePresenter(this); // 实例化，传入IView接口@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);EdgeToEdge.enable(this);setContentView(R.layout.activity_main);ViewCompat.setOnApplyWindowInsetsListener(findViewById(R.id.main), (v, insets) -> {Insets systemBars = insets.getInsets(WindowInsetsCompat.Type.systemBars());v.setPadding(systemBars.left, systemBars.top, systemBars.right, systemBars.bottom);return insets;});findView();// 重置游戏presenter.reset();}private void findView() {glChessboard = findViewById(R.id.gl_chessboard);llWinner = findViewById(R.id.ll_winner);tvWinner = findViewById(R.id.tv_winner);tvTips = findViewById(R.id.tv_tips);}@Overridepublic boolean onCreateOptionsMenu(Menu menu) {MenuInflater inflater = getMenuInflater();inflater.inflate(R.menu.menu_tictactoe, menu);return super.onCreateOptionsMenu(menu);}@Overridepublic boolean onOptionsItemSelected(@NonNull MenuItem item) {if (item.getItemId() == R.id.reset) {presenter.reset();return true;} else {return super.onOptionsItemSelected(item);}}/*** 棋盘上的格子，点击事件*/public void clickButton(View view) {Button btn = (Button) view;String tag = btn.getTag().toString();   // 通过tag获取行列数据int row = Integer.parseInt(tag.substring(0, 1));int col = Integer.parseInt(tag.substring(1, 2));presenter.clickBtn(row, col);   // 通过presenter来实现棋子的点击事件逻辑}// ------------------------------- 以下为IView的接口实现public void showWinner(String winner) {tvWinner.setText(winner);llWinner.setVisibility(View.VISIBLE);}public void noWinner() {tvWinner.setText("");tvTips.setText("本局平局");llWinner.setVisibility(View.VISIBLE);}public void clearButton() {for (int i = 0; i < glChessboard.getChildCount(); i++) {((Button) glChessboard.getChildAt(i)).setText("");}}public void clearWinner() {llWinner.setVisibility(View.GONE);tvWinner.setText("");}public void setBtnText(int row, int col, String player) {Button btn = glChessboard.findViewWithTag("" + row + col);if (btn != null) {btn.setText(player);}}
}

Presenter：

package com.liosen.androidnote.mvp.presenter;import android.view.View;import com.liosen.androidnote.mvp.model.GameState;
import com.liosen.androidnote.mvp.model.Board;
import com.liosen.androidnote.mvp.model.Player;
import com.liosen.androidnote.mvp.view.TicTacToeView;public class TicTacToePresenter {private TicTacToeView view;private Board model;public TicTacToePresenter(TicTacToeView view) {this.view = view;this.model = new Board();}public void clickBtn(int row, int col) {Player player = model.mark(row, col);if (player != null) {view.setBtnText(row, col, player.toString());if (model.getWinner() != null) {   // 如果胜利的棋手 不为空，则显示胜利的信息view.showWinner(player.toString());} else if (model.getState() == GameState.FINISHED) {view.noWinner();}}}public void reset() {model.restartGame();view.clearButton();view.clearWinner();}
}

可以看到，逻辑部分：点击棋盘、重置游戏，都在presenter中实现。如果需要修改view部分，通过IView接口来传递数据。

这样，通过presenter，就可以完成view和model之间的交互。

但是MVP软件架构有个问题，就是IView接口设计会越来越多。增加一个功能，需要修改的部分变更多了。有点为了架构而架构的味道

接下来引入第三个软件架构：MVVM

4. MVVM实现井字棋功能

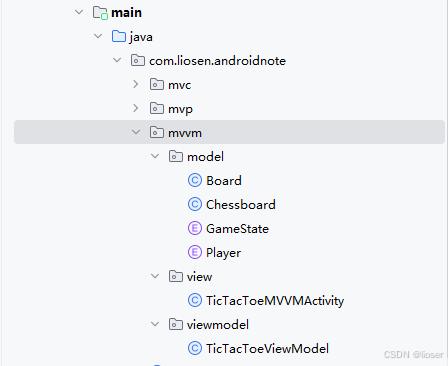

文件结构如下：（忽略mvc文件夹和mvp文件夹）

4.1 第一步增加dataBinding

在app级别（如果有使用其他module，那该module也需要增加）的build.gradle中，android下增加，如下所示：

android {···dataBinding {enable true}
}

 这里我插一嘴：dataBinding和viewBinding的区别

viewBinding：省略findViewById 的功能

dataBinding：除了viewBinding的功能，还能绑定data部分

4.2 修改activity.xml



<?xml version="1.0" encoding="utf-8"?>
<layout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:tools="http://schemas.android.com/tools"><data><import type="android.view.View" /><variablename="viewModel"type="com.liosen.androidnote.mvvm.viewmodel.TicTacToeViewModel" /></data><LinearLayoutandroid:id="@+id/main"android:layout_width="match_parent"android:layout_height="match_parent"android:layout_marginTop="60dp"android:fitsSystemWindows="true"android:gravity="center_horizontal"android:orientation="vertical"tools:context=".TicTacToeActivity"><GridLayoutandroid:id="@+id/gl_chessboard"android:layout_width="wrap_content"android:layout_height="wrap_content"android:columnCount="3"android:rowCount="3"><Buttonstyle="@style/chessboard_btn"android:onClick="@{()->viewModel.onClickedChessboard(0,0)}"android:text='@{viewModel.board["00"]}' /><Buttonstyle="@style/chessboard_btn"android:onClick="@{()->viewModel.onClickedChessboard(0,1)}"android:text='@{viewModel.board["01"]}' /><Buttonstyle="@style/chessboard_btn"android:onClick="@{()->viewModel.onClickedChessboard(0,2)}"android:text='@{viewModel.board["02"]}' /><Buttonstyle="@style/chessboard_btn"android:onClick="@{()->viewModel.onClickedChessboard(1,0)}"android:text='@{viewModel.board["10"]}' /><Buttonstyle="@style/chessboard_btn"android:onClick="@{()->viewModel.onClickedChessboard(1,1)}"android:text='@{viewModel.board["11"]}' /><Buttonstyle="@style/chessboard_btn"android:onClick="@{()->viewModel.onClickedChessboard(1,2)}"android:text='@{viewModel.board["12"]}' /><Buttonstyle="@style/chessboard_btn"android:onClick="@{()->viewModel.onClickedChessboard(2,0)}"android:text='@{viewModel.board["20"]}' /><Buttonstyle="@style/chessboard_btn"android:onClick="@{()->viewModel.onClickedChessboard(2,1)}"android:text='@{viewModel.board["21"]}' /><Buttonstyle="@style/chessboard_btn"android:onClick="@{()->viewModel.onClickedChessboard(2,2)}"android:text='@{viewModel.board["22"]}' /></GridLayout><LinearLayoutandroid:id="@+id/ll_winner"android:layout_width="wrap_content"android:layout_height="wrap_content"android:orientation="vertical"android:visibility="@{viewModel.winner == null ? View.GONE : View.VISIBLE}"><TextViewandroid:id="@+id/tv_winner"android:layout_width="wrap_content"android:layout_height="wrap_content"android:layout_margin="20dp"android:textSize="40sp"tools:text="X"android:text="@{viewModel.winner}"/><TextViewandroid:id="@+id/tv_tips"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="@{viewModel.result}"android:textSize="30sp" /></LinearLayout></LinearLayout></layout>

可以看到有一些新内容：

首先，必须要用<layout></layout>包裹原有的xml

然后，<variable>标签需要至少引入viewModel，其中name为自定义的名称，type为绑定的ViewModel。此处，我需要将该xml和TicTacToeViewModel.java 进行绑定。

最后，看到<Button>标签中onClick方法变成了

android:onClick="@{()->viewModel.onClickedChessboard(0,0)}"

格式为 "@{}" ，此处中间为lamda，viewModel中的onClickedChessboard方法，在后面的viewModel文件中会有。

text文字变成了

android:text='@{viewModel.board["00"]}'

数据来源为viewModel中的board，同样的 在viewModel文件中会有。

4.3 增加viewModel文件

package com.liosen.androidnote.mvvm.viewmodel;import androidx.databinding.ObservableArrayMap;
import androidx.databinding.ObservableField;import com.liosen.androidnote.mvvm.model.GameState;
import com.liosen.androidnote.mvvm.model.Board;
import com.liosen.androidnote.mvvm.model.Player;public class TicTacToeViewModel {public Board model;public final ObservableArrayMap<String, String> board = new ObservableArrayMap<>(); // 此处为被观察者，被观察的数据为map，用于存 <棋盘格子, 棋手>public final ObservableField<String> winner = new ObservableField<>();  // 此处也为被观察者，被观察的数据为String类型的对象public final ObservableField<String> result = new ObservableField<>();public TicTacToeViewModel() {model = new Board();}public void reset() {model.restartGame();winner.set(null);board.clear();}public void onClickedChessboard(int row, int col) {Player player = model.mark(row, col);if (player != null) {// 棋盘格子 显示玩家X或者Oboard.put("" + row + col, player == null ? null : player.toString());if (model.getWinner() != null) {   // 如果胜利的棋手 不为空，则显示胜利的信息winner.set(model.getWinner() == null ? null : model.getWinner().toString());result.set("你赢了");} else if (model.getState() == GameState.FINISHED) {winner.set("");result.set("本局平局");}}}
}

4.4 最后activity文件

package com.liosen.androidnote.mvvm.view;import android.os.Bundle;
import android.view.Menu;
import android.view.MenuInflater;
import android.view.MenuItem;import androidx.activity.EdgeToEdge;
import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.graphics.Insets;
import androidx.core.view.ViewCompat;
import androidx.core.view.WindowInsetsCompat;
import androidx.databinding.DataBindingUtil;import com.liosen.androidnote.R;
import com.liosen.androidnote.databinding.ActivityMainMvvmBinding;
import com.liosen.androidnote.mvvm.viewmodel.TicTacToeViewModel;public class TicTacToeMVVMActivity extends AppCompatActivity {// --------------------- View ---------------------TicTacToeViewModel viewModel = new TicTacToeViewModel();    //@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);EdgeToEdge.enable(this);
//        setContentView(R.layout.activity_main);   // 此时已经不需要该行代码了，通过下面两行实现xml和activity的绑定ActivityMainMvvmBinding binding = DataBindingUtil.setContentView(this, R.layout.activity_main_mvvm); // binding.setViewModel(viewModel);    //ViewCompat.setOnApplyWindowInsetsListener(findViewById(R.id.main), (v, insets) -> {Insets systemBars = insets.getInsets(WindowInsetsCompat.Type.systemBars());v.setPadding(systemBars.left, systemBars.top, systemBars.right, systemBars.bottom);return insets;});// 重置游戏viewModel.reset();}@Overridepublic boolean onCreateOptionsMenu(Menu menu) {MenuInflater inflater = getMenuInflater();inflater.inflate(R.menu.menu_tictactoe, menu);return super.onCreateOptionsMenu(menu);}@Overridepublic boolean onOptionsItemSelected(@NonNull MenuItem item) {if (item.getItemId() == R.id.reset) {viewModel.reset();return true;} else {return super.onOptionsItemSelected(item);}}
}

activity中绑定viewModel即可。

甚至连findViewById也省了。如果需要在activity中操作UI，可以直接通过binding获取，例如：

binding.tvWinner

至于tvWinner是哪里来的：是由于在xml文件中，设置的id。这样生成binding文件（编译时自动生成）时，就会自动生成该field，可以通过binding获取到。

5. 写在最后

至此我们就学会了用3种软件架构：MVC、MVP、MVVM

MVVM是目前使用最广泛、最好用、最易维护的架构。一定要掌握
